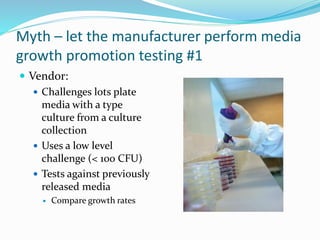

Media growth promotion – can it be skipped?
Microbial distribution in cleanrooms – free floating?
Environmental monitoring parameters – can they be pre-set?
Bunsen burners needed to create aseptic space– or not?
Identification results– always believable?
Risk management tools and techniques for environmental monitoring:
Application of HACCP for selecting environmental monitoring locations; Use of risk filtering to determine frequencies of monitoring ; Applying FMEA to assess risks from process equipment – a sterility testing isolator.
Considering: Environmental monitoring guidance, Background to USP <1116>, Main changes and debates Method limitations, Incident rates, Frequencies of monitoring, Locations of monitoring, Other changes, Regulatory issues and Rapid methods
Introduction to Basic Pharmaceutical MicrobiologyChittaranjan Das
Contains basic of pharmaceutical microbiology and major microflora in the cleanroom. Microorganisms like bacteria and fungi. Common microorganisms in the cleanroom and diseases they produce. Biofilm in the pharmaceutical cleanroom.
Risk management tools and techniques for environmental monitoring:
Application of HACCP for selecting environmental monitoring locations; Use of risk filtering to determine frequencies of monitoring ; Applying FMEA to assess risks from process equipment – a sterility testing isolator.
Considering: Environmental monitoring guidance, Background to USP <1116>, Main changes and debates Method limitations, Incident rates, Frequencies of monitoring, Locations of monitoring, Other changes, Regulatory issues and Rapid methods
Introduction to Basic Pharmaceutical MicrobiologyChittaranjan Das
Contains basic of pharmaceutical microbiology and major microflora in the cleanroom. Microorganisms like bacteria and fungi. Common microorganisms in the cleanroom and diseases they produce. Biofilm in the pharmaceutical cleanroom.
Microbiological Environmental Monitoring in Pharmaceutical Facilitydelli_intralab
Merupakan jurnal tentang microbiological environment monitoring in pharma facility
Untuk informasi lebih lanjut atau diskusi mengenai environment monitoring, silahkan hubungi delli.intralab@gmail.com
Pharmaceutical Microbiology: Current and Future Challenges Tim Sandle, Ph.D.
The changing environment for pharmaceutical microbiology
Limitations of methods
Need for new (rapid) methods
Separating people form processes
Single-use technologies
Environmental monitoring programme
Best practices
Rapid methods
Contamination control strategy
Objectionable organisms
Burkholderia cepacia complex
In-House Microbial Isolates in Compendial Testing: Regulatory RequirementsRobert Westney
This presentation provides an overview of the current regulatory expectations for the use of in-house microbial isolates in compendial testing. It reviews regulatory, compendial and industry references on the topic. Importantly, it also provides a strategy for selection of these isolates.
Control on Cleanroom Environmental Monitoring (Pharmaceutical)Srinath Sasidharan
A general consideration of Environmental Monitoring in Pharmaceutical manufacturing area. Cleanroom Monitoring Tools and Utilities: Author Sreenath Sasidharan (Geltec Healthcare FZE)
Bioassays are assays or biological techniques to measure strength, potency, concentration or efficacy of any substance by its effect on biological substance like tissues, cells, animals or enzymes etc
Microbiological Environmental Monitoring in Pharmaceutical Facilitydelli_intralab
Merupakan jurnal tentang microbiological environment monitoring in pharma facility
Untuk informasi lebih lanjut atau diskusi mengenai environment monitoring, silahkan hubungi delli.intralab@gmail.com
Pharmaceutical Microbiology: Current and Future Challenges Tim Sandle, Ph.D.
The changing environment for pharmaceutical microbiology
Limitations of methods
Need for new (rapid) methods
Separating people form processes
Single-use technologies
Environmental monitoring programme
Best practices
Rapid methods
Contamination control strategy
Objectionable organisms
Burkholderia cepacia complex
In-House Microbial Isolates in Compendial Testing: Regulatory RequirementsRobert Westney
This presentation provides an overview of the current regulatory expectations for the use of in-house microbial isolates in compendial testing. It reviews regulatory, compendial and industry references on the topic. Importantly, it also provides a strategy for selection of these isolates.
Control on Cleanroom Environmental Monitoring (Pharmaceutical)Srinath Sasidharan
A general consideration of Environmental Monitoring in Pharmaceutical manufacturing area. Cleanroom Monitoring Tools and Utilities: Author Sreenath Sasidharan (Geltec Healthcare FZE)
Bioassays are assays or biological techniques to measure strength, potency, concentration or efficacy of any substance by its effect on biological substance like tissues, cells, animals or enzymes etc
Microbial cultures are foundational and basic diagnostic methods used extensively as a research tool in molecular biology.
Microbial cultures are used to determine the type of organism, its abundance in the sample being tested, or both.
It is one of the primary diagnostic methods of microbiology and used as a tool to determine the cause of infectious disease by letting the agent multiply in a predetermined medium.
It is often essential to isolate a pure culture of microorganisms
safety data sheet, an introduction to cell culture, safety equipment, safe laboratory practices, ascetic techniques, sterile work area, good personal hygiene, sterile reagents and media, sterile handling, planning of cell culture labs.
Microbiologists carry out a lot of environmental montoring, but is this sufficiently focused? Are too many samples taken? Are samples taken in the wrong locations or at the wrong frequency? Some ideas are presented.
Overview of the key requirements ofelectronic data management systems in relation to pharmaceuticals and healthcare facilities. This includes the importance of computerised systems controls and defenitions of data. The presentation includes the importance of validation and quality assurance aspects.
Overview of the apporach to non-compliances and related matters. Appropriate training for analysts on how to perform the tests and steps to take when obtaining OOS results should be implemented . The use of root cause analysis tools when finding an OOS should also be available for review.
Application of FMEA to a Sterility Testing Isolator: A Case StudyTim Sandle, Ph.D.
Presentation on Failure Modes and Effects Analysis, in the pharmaceutical context. Covering:
Introduction to risk assessment
What are risks?
Advantages and disadvantages of FMEA
Applying FMEA to review a sterility testing isolator – case study
Why use reference materials?
The importance of reference materials
Different categories of reference materials.
Different classes of reference materials.
Standards for reference materials.
How reference materials are prepared and assessed.
How reference materials are used.
GxP is a general abbreviation for the "good practice" quality guidelines and regulations. These slides provide an overview of current regulations, with a focus on pharmaceuticals and healthcare.
What is likely to go into the revised Annex 1, including:
Terminal sterilisation vs aseptic processing
WFI produced by reverse osmosis
Guidance for media simulation trials
This remains speculative
Key question:
Could the plague ever re-emerge on a similar level in the twenty-first century?
Due to the potential seriousness of the disease this is a subject worthy of epidemiological consideration and research.
The two most commonly used within microbiology are
HACCP (which originated in the food industry) and FMEA
(developed for engineering). This article explores these two
approaches, first with a description of HACCP, followed by a
description and case study of FMEA in sterility testing.
An introduction to the international cleanroom standard ISO 14644 and the 2015 revisions to Parts 1 and 2. The focus is on particulate and contamination control.
Presentation on the examination of microbiological data for assessment and trending.
Includes: normalizing data, graphs, and assessment of alert and action levels.
A brief information about the SCOP protein database used in bioinformatics.
The Structural Classification of Proteins (SCOP) database is a comprehensive and authoritative resource for the structural and evolutionary relationships of proteins. It provides a detailed and curated classification of protein structures, grouping them into families, superfamilies, and folds based on their structural and sequence similarities.
(May 29th, 2024) Advancements in Intravital Microscopy- Insights for Preclini...Scintica Instrumentation
Intravital microscopy (IVM) is a powerful tool utilized to study cellular behavior over time and space in vivo. Much of our understanding of cell biology has been accomplished using various in vitro and ex vivo methods; however, these studies do not necessarily reflect the natural dynamics of biological processes. Unlike traditional cell culture or fixed tissue imaging, IVM allows for the ultra-fast high-resolution imaging of cellular processes over time and space and were studied in its natural environment. Real-time visualization of biological processes in the context of an intact organism helps maintain physiological relevance and provide insights into the progression of disease, response to treatments or developmental processes.
In this webinar we give an overview of advanced applications of the IVM system in preclinical research. IVIM technology is a provider of all-in-one intravital microscopy systems and solutions optimized for in vivo imaging of live animal models at sub-micron resolution. The system’s unique features and user-friendly software enables researchers to probe fast dynamic biological processes such as immune cell tracking, cell-cell interaction as well as vascularization and tumor metastasis with exceptional detail. This webinar will also give an overview of IVM being utilized in drug development, offering a view into the intricate interaction between drugs/nanoparticles and tissues in vivo and allows for the evaluation of therapeutic intervention in a variety of tissues and organs. This interdisciplinary collaboration continues to drive the advancements of novel therapeutic strategies.
Richard's entangled aventures in wonderlandRichard Gill
Since the loophole-free Bell experiments of 2020 and the Nobel prizes in physics of 2022, critics of Bell's work have retreated to the fortress of super-determinism. Now, super-determinism is a derogatory word - it just means "determinism". Palmer, Hance and Hossenfelder argue that quantum mechanics and determinism are not incompatible, using a sophisticated mathematical construction based on a subtle thinning of allowed states and measurements in quantum mechanics, such that what is left appears to make Bell's argument fail, without altering the empirical predictions of quantum mechanics. I think however that it is a smoke screen, and the slogan "lost in math" comes to my mind. I will discuss some other recent disproofs of Bell's theorem using the language of causality based on causal graphs. Causal thinking is also central to law and justice. I will mention surprising connections to my work on serial killer nurse cases, in particular the Dutch case of Lucia de Berk and the current UK case of Lucy Letby.
Multi-source connectivity as the driver of solar wind variability in the heli...Sérgio Sacani
The ambient solar wind that flls the heliosphere originates from multiple
sources in the solar corona and is highly structured. It is often described
as high-speed, relatively homogeneous, plasma streams from coronal
holes and slow-speed, highly variable, streams whose source regions are
under debate. A key goal of ESA/NASA’s Solar Orbiter mission is to identify
solar wind sources and understand what drives the complexity seen in the
heliosphere. By combining magnetic feld modelling and spectroscopic
techniques with high-resolution observations and measurements, we show
that the solar wind variability detected in situ by Solar Orbiter in March
2022 is driven by spatio-temporal changes in the magnetic connectivity to
multiple sources in the solar atmosphere. The magnetic feld footpoints
connected to the spacecraft moved from the boundaries of a coronal hole
to one active region (12961) and then across to another region (12957). This
is refected in the in situ measurements, which show the transition from fast
to highly Alfvénic then to slow solar wind that is disrupted by the arrival of
a coronal mass ejection. Our results describe solar wind variability at 0.5 au
but are applicable to near-Earth observatories.
The increased availability of biomedical data, particularly in the public domain, offers the opportunity to better understand human health and to develop effective therapeutics for a wide range of unmet medical needs. However, data scientists remain stymied by the fact that data remain hard to find and to productively reuse because data and their metadata i) are wholly inaccessible, ii) are in non-standard or incompatible representations, iii) do not conform to community standards, and iv) have unclear or highly restricted terms and conditions that preclude legitimate reuse. These limitations require a rethink on data can be made machine and AI-ready - the key motivation behind the FAIR Guiding Principles. Concurrently, while recent efforts have explored the use of deep learning to fuse disparate data into predictive models for a wide range of biomedical applications, these models often fail even when the correct answer is already known, and fail to explain individual predictions in terms that data scientists can appreciate. These limitations suggest that new methods to produce practical artificial intelligence are still needed.
In this talk, I will discuss our work in (1) building an integrative knowledge infrastructure to prepare FAIR and "AI-ready" data and services along with (2) neurosymbolic AI methods to improve the quality of predictions and to generate plausible explanations. Attention is given to standards, platforms, and methods to wrangle knowledge into simple, but effective semantic and latent representations, and to make these available into standards-compliant and discoverable interfaces that can be used in model building, validation, and explanation. Our work, and those of others in the field, creates a baseline for building trustworthy and easy to deploy AI models in biomedicine.
Bio
Dr. Michel Dumontier is the Distinguished Professor of Data Science at Maastricht University, founder and executive director of the Institute of Data Science, and co-founder of the FAIR (Findable, Accessible, Interoperable and Reusable) data principles. His research explores socio-technological approaches for responsible discovery science, which includes collaborative multi-modal knowledge graphs, privacy-preserving distributed data mining, and AI methods for drug discovery and personalized medicine. His work is supported through the Dutch National Research Agenda, the Netherlands Organisation for Scientific Research, Horizon Europe, the European Open Science Cloud, the US National Institutes of Health, and a Marie-Curie Innovative Training Network. He is the editor-in-chief for the journal Data Science and is internationally recognized for his contributions in bioinformatics, biomedical informatics, and semantic technologies including ontologies and linked data.
Slide 1: Title Slide
Extrachromosomal Inheritance
Slide 2: Introduction to Extrachromosomal Inheritance
Definition: Extrachromosomal inheritance refers to the transmission of genetic material that is not found within the nucleus.
Key Components: Involves genes located in mitochondria, chloroplasts, and plasmids.
Slide 3: Mitochondrial Inheritance
Mitochondria: Organelles responsible for energy production.
Mitochondrial DNA (mtDNA): Circular DNA molecule found in mitochondria.
Inheritance Pattern: Maternally inherited, meaning it is passed from mothers to all their offspring.
Diseases: Examples include Leber’s hereditary optic neuropathy (LHON) and mitochondrial myopathy.
Slide 4: Chloroplast Inheritance
Chloroplasts: Organelles responsible for photosynthesis in plants.
Chloroplast DNA (cpDNA): Circular DNA molecule found in chloroplasts.
Inheritance Pattern: Often maternally inherited in most plants, but can vary in some species.
Examples: Variegation in plants, where leaf color patterns are determined by chloroplast DNA.
Slide 5: Plasmid Inheritance
Plasmids: Small, circular DNA molecules found in bacteria and some eukaryotes.
Features: Can carry antibiotic resistance genes and can be transferred between cells through processes like conjugation.
Significance: Important in biotechnology for gene cloning and genetic engineering.
Slide 6: Mechanisms of Extrachromosomal Inheritance
Non-Mendelian Patterns: Do not follow Mendel’s laws of inheritance.
Cytoplasmic Segregation: During cell division, organelles like mitochondria and chloroplasts are randomly distributed to daughter cells.
Heteroplasmy: Presence of more than one type of organellar genome within a cell, leading to variation in expression.
Slide 7: Examples of Extrachromosomal Inheritance
Four O’clock Plant (Mirabilis jalapa): Shows variegated leaves due to different cpDNA in leaf cells.
Petite Mutants in Yeast: Result from mutations in mitochondrial DNA affecting respiration.
Slide 8: Importance of Extrachromosomal Inheritance
Evolution: Provides insight into the evolution of eukaryotic cells.
Medicine: Understanding mitochondrial inheritance helps in diagnosing and treating mitochondrial diseases.
Agriculture: Chloroplast inheritance can be used in plant breeding and genetic modification.
Slide 9: Recent Research and Advances
Gene Editing: Techniques like CRISPR-Cas9 are being used to edit mitochondrial and chloroplast DNA.
Therapies: Development of mitochondrial replacement therapy (MRT) for preventing mitochondrial diseases.
Slide 10: Conclusion
Summary: Extrachromosomal inheritance involves the transmission of genetic material outside the nucleus and plays a crucial role in genetics, medicine, and biotechnology.
Future Directions: Continued research and technological advancements hold promise for new treatments and applications.
Slide 11: Questions and Discussion
Invite Audience: Open the floor for any questions or further discussion on the topic.
Professional air quality monitoring systems provide immediate, on-site data for analysis, compliance, and decision-making.
Monitor common gases, weather parameters, particulates.
2. Introduction – the ‘great’ myths
1. Colony Forming Units – what are they?
2. Microbiology laboratory cabinets – always work?

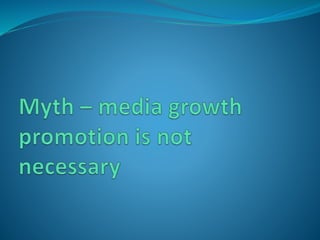

3. Media growth promotion – can it be skipped?

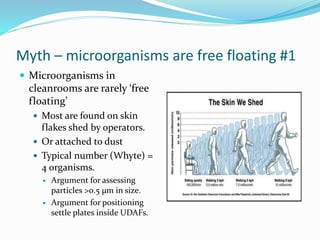

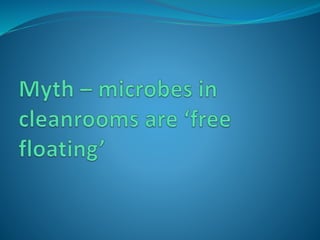

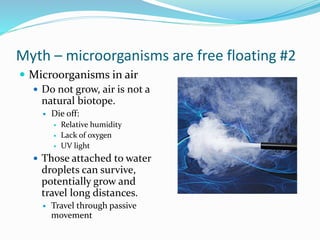

4. Microbial distribution in cleanrooms – free floating?
5. Environmental monitoring parameters – can they be
pre-set?

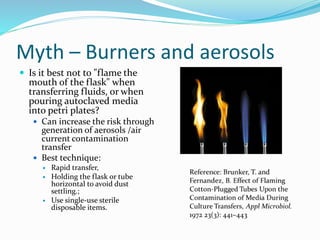

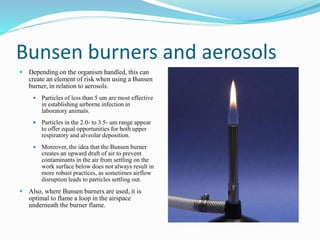

6. Bunsen burners needed to create aseptic space– or
not?

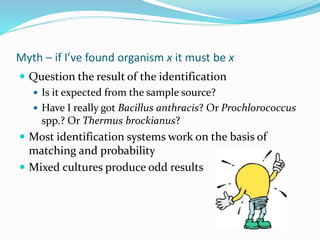

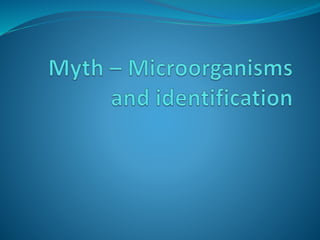

7. Identification results– always believable?
3. Myths
What is a myth?
Myth ~ a traditional or legendary story with or without a
determinable basis of fact or a natural explanation.
4.

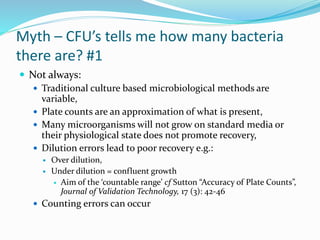

5. Myth – CFU’s tells me how many bacteria
there are? #1
Not always:
Traditional culture based microbiological methods are
variable,
Plate counts are an approximation of what is present,
Many microorganisms will not grow on standard media or
their physiological state does not promote recovery,
Dilution errors lead to poor recovery e.g.:
Over dilution,
Under dilution = confluent growth
Aim of the ‘countable range’ cf Sutton “Accuracy of Plate Counts”,
Journal of Validation Technology, 17 (3): 42-46
Counting errors can occur

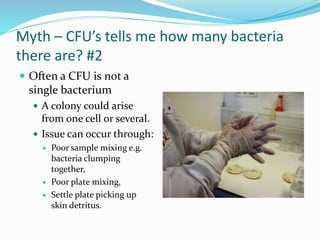

6. Myth – CFU’s tells me how many bacteria
there are? #2
Often a CFU is not a
single bacterium
A colony could arise
from one cell or several.
Issue can occur through:
Poor sample mixing e.g.
bacteria clumping
together,
Poor plate mixing,
Settle plate picking up
skin detritus.

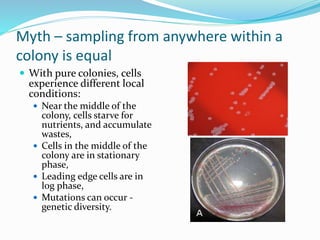

7. Myth – sampling from anywhere within a
colony is equal
With pure colonies, cells
experience different local
conditions:
Near the middle of the
colony, cells starve for
nutrients, and accumulate
wastes,
Cells in the middle of the
colony are in stationary
phase,
Leading edge cells are in
log phase,
Mutations can occur -
genetic diversity.
8.

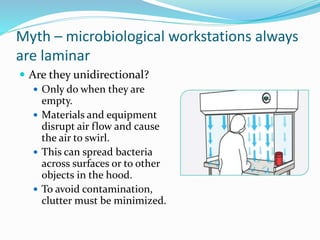

9. Myth – microbiological workstations always
are laminar
Are they unidirectional?
Only do when they are
empty.
Materials and equipment
disrupt air flow and cause
the air to swirl.
This can spread bacteria
across surfaces or to other
objects in the hood.
To avoid contamination,
clutter must be minimized.

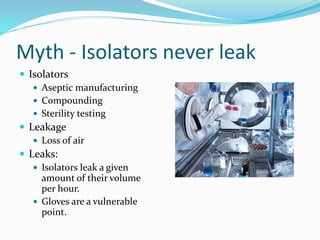

11. Myth - Isolators never leak
Isolators
Aseptic manufacturing
Compounding
Sterility testing
Leakage
Loss of air
Leaks:
Isolators leak a given
amount of their volume
per hour.
Gloves are a vulnerable
point.
12.
13. Myth – let the manufacturer perform media
growth promotion testing #1
Vendor:
Challenges lots plate
media with a type
culture from a culture
collection
Uses a low level
challenge (< 100 CFU)
Tests against previously
released media
Compare growth rates

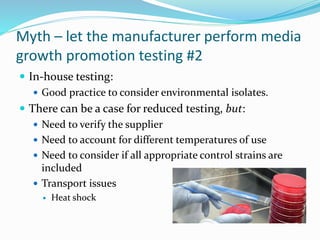

14. Myth – let the manufacturer perform media
growth promotion testing #2
In-house testing:
Good practice to consider environmental isolates.
There can be a case for reduced testing, but:
Need to verify the supplier
Need to account for different temperatures of use
Need to consider if all appropriate control strains are
included
Transport issues
Heat shock
15.
16. Myth – microorganisms are free floating #1
Microorganisms in
cleanrooms are rarely ‘free
floating’
Most are found on skin
flakes shed by operators.
Or attached to dust
Typical number (Whyte) =
4 organisms.
Argument for assessing
particles >0.5 µm in size.
Argument for positioning
settle plates inside UDAFs.
17. Myth – microorganisms are free floating #2
Microorganisms in air
Do not grow, air is not a
natural biotope.
Die off:
Relative humidity
Lack of oxygen
UV light
Those attached to water
droplets can survive,
potentially grow and
travel long distances.
Travel through passive
movement
18.

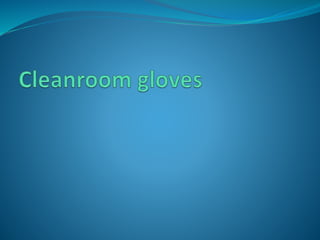

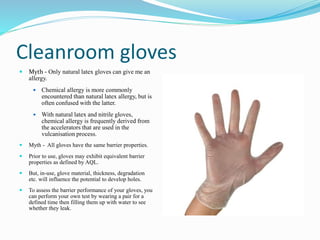

19. Cleanroom gloves
Myth - Only natural latex gloves can give me an
allergy.
Chemical allergy is more commonly
encountered than natural latex allergy, but is
often confused with the latter.
With natural latex and nitrile gloves,
chemical allergy is frequently derived from
the accelerators that are used in the
vulcanisation process.
Myth - All gloves have the same barrier properties.
Prior to use, gloves may exhibit equivalent barrier
properties as defined by AQL.
But, in-use, glove material, thickness, degradation
etc. will influence the potential to develop holes.
To assess the barrier performance of your gloves, you
can perform your own test by wearing a pair for a
defined time then filling them up with water to see
whether they leak.
20.

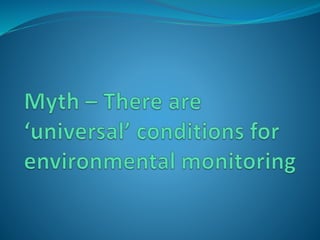

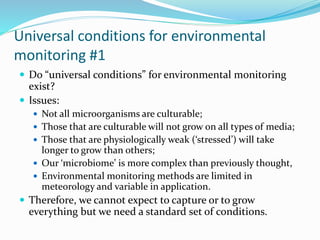

21. Universal conditions for environmental
monitoring #1
Do “universal conditions” for environmental monitoring
exist?
Issues:
Not all microorganisms are culturable;
Those that are culturable will not grow on all types of media;
Those that are physiologically weak (‘stressed’) will take
longer to grow than others;
Our ‘microbiome’ is more complex than previously thought,
Environmental monitoring methods are limited in
meteorology and variable in application.
Therefore, we cannot expect to capture or to grow
everything but we need a standard set of conditions.
22. Universal conditions for environmental
monitoring #2
Some decisions required:
Whether to select?
A general medium incubated
across suitable temperature
range, or
Two media – typically
‘bacterial’ and ‘fungal’,
Consideration of periodic
selective agar / incubation
conditions use.
Once agar has been selected,
establish appropriate incubation
times.
References:
Sandle, T., Skinner, K. and
Yeandle, E. (2013). Optimal
conditions for the recovery of
bioburden from
pharmaceutical processes: a
case study, European Journal of
Parenteral and Pharmaceutical
Sciences, 18 (3): 84-91
Sandle, T. (2014) Examination
of the Order of Incubation for
the Recovery of Bacteria and
Fungi from Pharmaceutical
Cleanrooms, International
Journal of Pharmaceutical
Compounding, 18 (3): 242 – 247

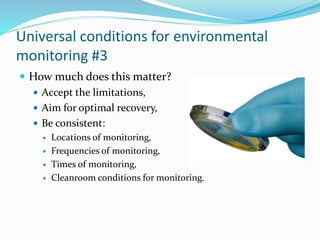

23. Universal conditions for environmental
monitoring #3
How much does this matter?
Accept the limitations,
Aim for optimal recovery,
Be consistent:
Locations of monitoring,
Frequencies of monitoring,
Times of monitoring,
Cleanroom conditions for monitoring.
24.

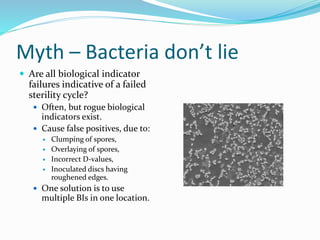

25. Myth – Bacteria don’t lie
Are all biological indicator
failures indicative of a failed
sterility cycle?
Often, but rogue biological
indicators exist.
Cause false positives, due to:
Clumping of spores,
Overlaying of spores,
Incorrect D-values,
Inoculated discs having
roughened edges.
One solution is to use
multiple BIs in one location.
26.

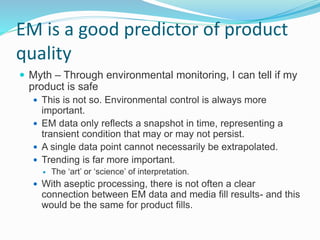

27. EM is a good predictor of product
quality
Myth – Through environmental monitoring, I can tell if my
product is safe
This is not so. Environmental control is always more
important.
EM data only reflects a snapshot in time, representing a
transient condition that may or may not persist.
A single data point cannot necessarily be extrapolated.
Trending is far more important.
The ‘art’ or ‘science’ of interpretation.
With aseptic processing, there is not often a clear
connection between EM data and media fill results- and this
would be the same for product fills.
28.
29.

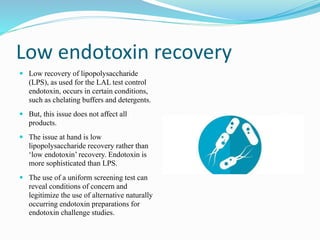

30. Low endotoxin recovery
Low recovery of lipopolysaccharide
(LPS), as used for the LAL test control
endotoxin, occurs in certain conditions,
such as chelating buffers and detergents.
But, this issue does not affect all
products.
The issue at hand is low
lipopolysaccharide recovery rather than
‘low endotoxin’ recovery. Endotoxin is
more sophisticated than LPS.
The use of a uniform screening test can
reveal conditions of concern and
legitimize the use of alternative naturally
occurring endotoxin preparations for
endotoxin challenge studies.

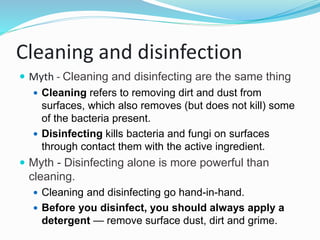

31. Cleaning and disinfection
Myth - Cleaning and disinfecting are the same thing
Cleaning refers to removing dirt and dust from
surfaces, which also removes (but does not kill) some
of the bacteria present.
Disinfecting kills bacteria and fungi on surfaces
through contact them with the active ingredient.
Myth - Disinfecting alone is more powerful than
cleaning.
Cleaning and disinfecting go hand-in-hand.
Before you disinfect, you should always apply a
detergent — remove surface dust, dirt and grime.

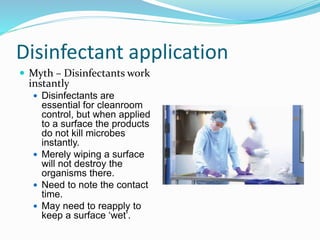

32. Disinfectant application
Myth – Disinfectants work
instantly
Disinfectants are
essential for cleanroom
control, but when applied
to a surface the products
do not kill microbes
instantly.
Merely wiping a surface
will not destroy the
organisms there.
Need to note the contact
time.
May need to reapply to
keep a surface ‘wet’.

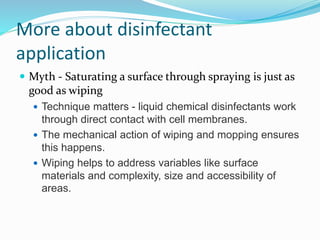

33. More about disinfectant
application
Myth - Saturating a surface through spraying is just as
good as wiping
Technique matters - liquid chemical disinfectants work
through direct contact with cell membranes.
The mechanical action of wiping and mopping ensures
this happens.
Wiping helps to address variables like surface
materials and complexity, size and accessibility of
areas.

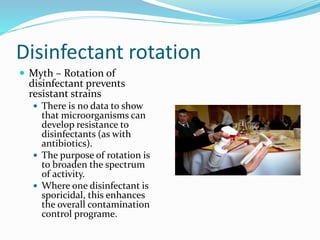

34. Disinfectant rotation
Myth – Rotation of
disinfectant prevents
resistant strains
There is no data to show
that microorganisms can
develop resistance to
disinfectants (as with
antibiotics).
The purpose of rotation is
to broaden the spectrum
of activity.
Where one disinfectant is
sporicidal, this enhances
the overall contamination
control programe.

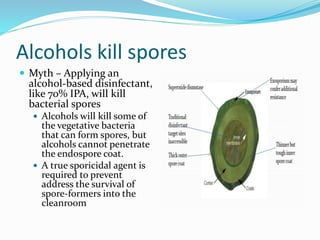

35. Alcohols kill spores
Myth – Applying an
alcohol-based disinfectant,
like 70% IPA, will kill
bacterial spores
Alcohols will kill some of
the vegetative bacteria
that can form spores, but
alcohols cannot penetrate
the endospore coat.
A true sporicidal agent is
required to prevent
address the survival of
spore-formers into the
cleanroom

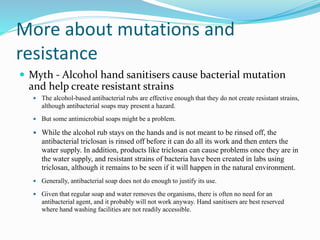

36. More about mutations and
resistance
Myth - Alcohol hand sanitisers cause bacterial mutation
and help create resistant strains
The alcohol-based antibacterial rubs are effective enough that they do not create resistant strains,
although antibacterial soaps may present a hazard.
But some antimicrobial soaps might be a problem.
While the alcohol rub stays on the hands and is not meant to be rinsed off, the
antibacterial triclosan is rinsed off before it can do all its work and then enters the
water supply. In addition, products like triclosan can cause problems once they are in
the water supply, and resistant strains of bacteria have been created in labs using
triclosan, although it remains to be seen if it will happen in the natural environment.
Generally, antibacterial soap does not do enough to justify its use.
Given that regular soap and water removes the organisms, there is often no need for an
antibacterial agent, and it probably will not work anyway. Hand sanitisers are best reserved
where hand washing facilities are not readily accessible.
37.

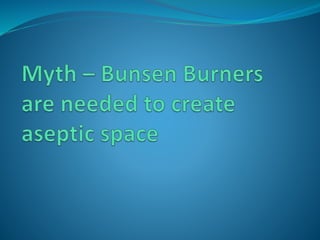

38. Myth – Burners and aerosols
Is it best not to "flame the
mouth of the flask" when
transferring fluids, or when
pouring autoclaved media
into petri plates?
Can increase the risk through
generation of aerosols /air
current contamination
transfer
Best technique:
Rapid transfer,
Holding the flask or tube
horizontal to avoid dust
settling.;
Use single-use sterile
disposable items.
39. Bunsen burners and aerosols
Depending on the organism handled, this can
create an element of risk when using a Bunsen
burner, in relation to aerosols.
Particles of less than 5 um are most effective
in establishing airborne infection in
laboratory animals.
Particles in the 2.0- to 3.5- um range appear
to offer equal opportunities for both upper
respiratory and alveolar deposition.
Moreover, the idea that the Bunsen burner
creates an upward draft of air to prevent
contaminants in the air from settling on the
work surface below does not always result in
more robust practices, as sometimes airflow
disruption leads to particles settling out.
Also, where Bunsen burners are used, it is
optimal to flame a loop in the airspace
underneath the burner flame.
40.
41. Myth – if controls work, the ID is sound
Gram-stain
Easy to get a mixed colony,
Old colonies lean towards
Gram-positives,
Over decolorisation can occur,
Bacillus species can appear
Gram-negative.
Automated systems
Phenotypic systems are
affected by phenotypic
changes,
All systems are only as good as
their databases,
Cross-contamination can
occur.
42. Myth – if I’ve found organism x it must be x
Question the result of the identification
Is it expected from the sample source?
Have I really got Bacillus anthracis? Or Prochlorococcus
spp.? Or Thermus brockianus?
Most identification systems work on the basis of
matching and probability
Mixed cultures produce odd results

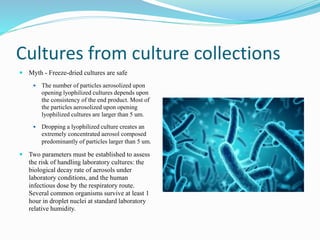

43. Cultures from culture collections
Myth - Freeze-dried cultures are safe
The number of particles aerosolized upon
opening lyophilized cultures depends upon
the consistency of the end product. Most of
the particles aerosolized upon opening
lyophilized cultures are larger than 5 um.
Dropping a lyophilized culture creates an
extremely concentrated aerosol composed
predominantly of particles larger than 5 um.
Two parameters must be established to assess
the risk of handling laboratory cultures: the
biological decay rate of aerosols under
laboratory conditions, and the human
infectious dose by the respiratory route.
Several common organisms survive at least 1
hour in droplet nuclei at standard laboratory
relative humidity.

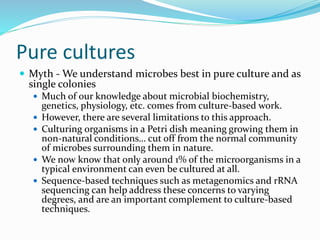

44. Pure cultures
Myth - We understand microbes best in pure culture and as
single colonies
Much of our knowledge about microbial biochemistry,
genetics, physiology, etc. comes from culture-based work.
However, there are several limitations to this approach.
Culturing organisms in a Petri dish meaning growing them in
non-natural conditions… cut off from the normal community
of microbes surrounding them in nature.
We now know that only around 1% of the microorganisms in a
typical environment can even be cultured at all.
Sequence-based techniques such as metagenomics and rRNA
sequencing can help address these concerns to varying
degrees, and are an important complement to culture-based
techniques.

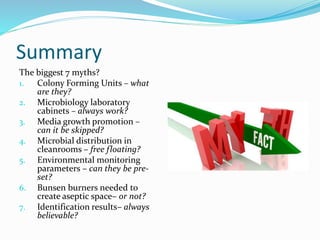

45. Summary
The biggest 7 myths?
1. Colony Forming Units – what
are they?
2. Microbiology laboratory
cabinets – always work?
3. Media growth promotion –
can it be skipped?
4. Microbial distribution in
cleanrooms – free floating?
5. Environmental monitoring
parameters – can they be pre-
set?
6. Bunsen burners needed to
create aseptic space– or not?
7. Identification results– always
believable?
Difficult to select myths.
Time available, topics selected are:
Colony Forming Units – what are they?
Microbiology laboratory cabinets – always work?
Media growth promotion – can it be skipped?
Microbial distribution in cleanrooms – are they free floating?
Environmental monitoring parameters – can they be pre-set?
Bunsen burners needed to create aseptic space– or not?
Identification results– always believable?
A myth is something that can be widely accepted, but which doesn’t stand up to scrutiny or collected facts.
As pharmaceutical microbiology has advanced, some things that have been commonly held as ‘correct’ aren’t necessarily so…or at least not as certain as previously thought.
With these myths, some things will be a surprise to some of you; to others you’ll know everything…but hopefully they’re interesting areas to re-visit.
First – colony forming units – the basis of pharmaceutical microbiology for decades, although now challenged by some rapid methods.
Should we assume the colony forming unit represents all of the microorganisms in a sample? Or those that could be recovered?
No, because of several reasons -
Our methods, especially traditional culture based ones, are variable
Many microorganisms will not grow on standard media – either ‘viable but nonculturable’ (‘active but non-culturable’) or they are too stressed or the media or incubation parameters are not suitable.
Depending on the test method…It is easy to over-dilute, leading to under estimation
It is easy to have too many colonies on a plate, leading to confluent growth or over crowding – good paper by Scott Sutton – want an optimal countable range of 25 – 250 CFU per plate
We can all make counting or calculation errors
I’ll talk about media type, incubation time and temperature later
Also, a CFU should not be thought of as a single bacterium or fungus – it is a colony forming unit.
The ‘unit’ could be made up from one cell or many.
There are several situations where this can arise. Example:
Poor mixing of a sample before plating out, where cells stick together or become bound to the sample. Bacillus species, for example, are notorious for clumping;
This can also be the result of poor mixing of agar plates;
Also, with environmental monitoring, if a skin flake lands on a settle plate, this is often carrying more than one organism….I’ll come back to this later.
Let’s throw in another ‘myth’. Each visible colony on a plate is composed of around one million cells but the organisms within a colony are not all in the same state.
Pure colonies come from a single ancestor, but progeny cells are different based on the location.
Cells near the middle of the colony can be starved of nutrients and affected by toxic wastes. These cells may not grow when subcultured.
Also, central cells are in the stationary phase and will take longer to grow when subcultured.
BUT cells at the edge are in the log phase, and should grow faster.
Mutations can occur, especially with cells adjacent to each other, leading to genetic diversity – can be an issue with some identification methods...also can lead to transfer of genetic material and antimicrobial resistance.
Improvement in obtaining pure, healthy cultures from quadrant plate technique.

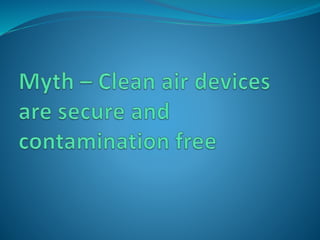

Next myth – clean air devices in labs– are they always contamination free?
First off – do clean air cabinets always have unidirectional airflow?
Well, only when they’re empty.
Materials and equipment disrupt unidrectional flow and cause the air to swirl, which can actually spread contamination across surfaces.
To avoid contamination, clutter must be minimized
Here are some illustrations of things that can disrupt unidirectional airflow devices:
Objects,
Bunsen flames,
Broken filter faces,
Other obstructions etc.
It is important to assess the working area and to check the air velocity is within range where key aseptic operations are undertaken.
Another clean air device in a lab could be an isolator, as might be used for sterility testing.
Although isolators present a barrier, all isolators, contrary to some opinion, leak.
What matters is by how much do they leak. This should be assessed before each decontamination cycle using a pressure decay test. This is expressed as pressure drop over time.
The size of the leak, if excessive, needs investigation. Here the location of the leak is as much indicative of the contamination risk as the size.
A common risk area is with gloves, especially around the cuffs or with pin prick holes. Many users assess gloves post-use by water intrusion.
Next myth – do we really need to carry out media growth promotion?
At one level, why do it? Arguments against are:
The vendor does it, using type cultures for consistency:
Here media growth properties are demonstrated from a low level challenges.
And media growth performance can be assessed against a previously released lot, so we can compare growth rates and patterns.
There could be a case to reducing testing, but here it is important to:
Verify the supplier,
Ensure the vendor tests the media at all of the temperatures of use that you will use it at,
Check that all representative control strains are used and if you are concerned with a particular objectionable microorganism, that this is included,
Ensure transportation issues have been assessed e.g. heat shock if the freight lorry breaks down on a hot day.
Personally I think confirmatory testing by the receiving laboratory is important to address these factors.
Also, if environmental isolates are necessary for inclusion, this can only really be done by the user.
There’s no time for the environmental isolate debate.
Next myth, which relates a little to the colony forming units, is about how microorganisms are distributed in cleanrooms.
Here it is rare for microorganisms in cleanrooms to be ‘free floating’
Most microbes are found on particles, like skin flakes or dust.
Work by Bill Whyte suggests 4 bacteria are typically found on one skin cell, and these are typically around 12 microns in size. This is perhaps an argument for looking for larger particles in cleanrooms.
Also, the risk of larger particles falling put of the air through gravity or air striking an object supports the use of settle plates (in addition to air samplers) - if settle plates are in the correct locations.
Smoke studies help to decide this.
The biggest risk from air is mainly that it acts as a vector for contamination and this is a concern in a poorly designed cleanroom.
Because microbes do not grow in air and many will eventually die in cleanrooms, unless they are endospores, then where air ends up and whether particles will fall out is important. Airflow design is key to contamination control.
With air particles, many microbes will survive for longer on water droplets compared with dust, which means places like wash bays need to be controlled.
Only natural latex gloves can give me an allergy.
Chemical allergy is more commonly encountered than natural latex allergy, but is often confused with the latter. With natural latex and nitrile gloves, chemical allergy is frequently derived from the accelerators (e.g. thiazoles, dithiocarbamates, thiurams etc) that are used in the vulcanisation process. Plasticisers such as phthalates are often found in vinyl gloves and can also trigger a chemical allergy.
All gloves have the same barrier properties.
Gloves are often worn as a barrier for personal protection or for process protection and often for both. Prior to use, gloves may exhibit equivalent barrier properties as defined by AQL. The latter refers to the statistical probability of holes in the gloves. In-use, glove material, thickness, degradation etc. will influence the potential to develop holes. A simulated use study by Kerr revealed failure rates of respectively 35% and 9% in vinyl and latex. To assess the barrier performance of your gloves, you can perform your own test by wearing a pair for a defined time then filling them up with water to see whether they leak.
Next myth is about environmental monitoring and that there are universal incubation conditions that we can all follow.
Actually there are no universal conditions for environmental monitoring because:
Not all microorganisms can be cultured.
Those that can grow on one culture medium will not grow on all culture media
Some organisms can grow, in theory, but will not grow under the physiological state found, or they might grow slowly.
The limitations of culture media have been emphasised recently by knowldged the human microbiome of the skin. Much more is found on the skin surface than we recover (see Tony Cundell).
The methods we use are limited in terms of accuracy and variability.
In doing so we need to make some decisions:
Will we use one general culture medium –like TSA – and incubate it across a suitable temperature range or use a dual incubation step?
Or will we use two media, including one designed to detect fungi and use separate temperature ranges?
Do we need to enhance this with selective media if we are concerned about an objectionable microorganism or have a concern about a particular type e.g. anaerobes where nitrogen comes into contact with product.
Once we’ve unravelled these, we need to decide on incubation times.
This is a huge debate and there is no time to explore it here. I have provided some references on the slide which might be useful.
How much does this matter?
Well, we have to accept the limitations – we can’t capture everything
We should run some studies to know we are close to optimal recovery.
But most importantly, we need to be consistent. We can do this with our:
Locations of monitoring,
Frequencies of monitoring,
Times of monitoring,
Cleanroom conditions for monitoring,
And using data to look for trends.

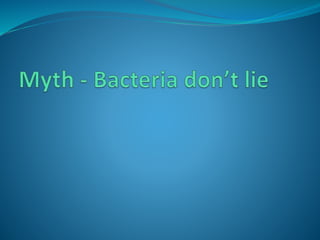

Next myth – we should always believe the results microorganisms tell us. I’m illustrating this with biological indicators.
The key question is – “Are all biological indicator failures indicative of a failed sterility cycle?”
Yes, in most cases – but rogue biological indicators exist.
This can cause false positives, and can arise due to:
Clumping of spores,
Overlaying of spores,
Incorrect D-values,
Inoculated discs having roughened edges.
One solution is to use multiple BIs in one location. The reason to use multiple BIs at each test location is it allows an assessment of microbial kill through assessing the ‘Most Probable Number.’

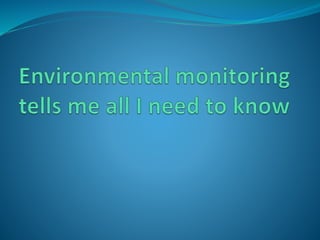

Myth – Through environmental monitoring, I can tell if my product is safe
This is not so. Environmental control is always more important as the revised Annex 1 emphasizes.
EM data only reflects a snapshot in time, representing a transient condition that may or may not persist.
A single data point cannot necessarily be extrapolated.
Trending is far more important.
The ‘art’ or ‘science’ of interpretation. You need a qualified microbiologist.
With aseptic processing, there is not often a clear connection between EM data and media fill results- and this would be the same for product fills.
For example, media fills can fail (show growth) where EM is all zero CFU; or medial fills can pass, and yet EM can be poor.
A further reason why control matters is due to the presence of viable but non-culturable organisms.
No one disputes that low recovery of lipopolysaccharide (LPS), as used for the LAL test control endotoxin, occurs in certain conditions, such as chelating buffers and detergents. However, this issue does not affect all products. Furthermore, the issue at hand is low lipopolysaccharide recovery rather than ‘low endotoxin’ recovery.
Endotoxin is more sophisticated, being composed of a hydrophilic polysaccharide covalently linked to a highly conserved, hydrophobic lipid region. LPS and endotoxin do not behave in the same way (LPS activity varies due to the presence of various salts and detergents).
Furthermore, the use of a uniform screening test can reveal conditions of concern and legitimize the use of alternative naturally occurring endotoxin preparations for endotoxin challenge studies. However, to do required regulatory approval.
Cleaning and disinfecting are the same thing.
According to the Pharmig disinfection guide, cleaning refers to removing dirt and dust from surfaces, which also removes (but does not kill) some of the bacteria present.
Cleaning is important because it reduces the number of bacteria in the environment. By removing soil it enables the disinfectant to make contact.
Disinfecting, on the other hand, kills germs on surfaces by dousing them with chemicals. The active ingredient needs to be in contact for a sufficient length of time.
Hence another myth is that disinfecting alone is more powerful than cleaning.
Cleaning and disinfecting actually go hand-in-hand. Before you disinfect, you should always clean with a detergent— remove surface dust, dirt , protein, and grime.
Surface dirt can react with the chemicals in disinfecting products and render them unable to kill bacteria and fungi effectively.
Do not let your microbial-killing efforts go to waste by failing to thoroughly clean before applying disinfectant!

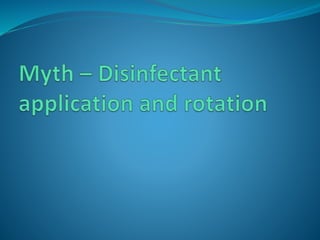

We apply disinfectants to surfaces, but it’s important to know these products do not kill microorganisms instantly.
Merely swiping a surface will not destroy the microbes there.
It is important to read the product label carefully to find the instruction titled “to disinfect.” This instruction will tell you how many minutes to leave the product on the surface to kill microbes.
The contact time is the time required for the disinfectant to bind to the microorganism, cross the cell wall and act at the target site.
Ideally you will have verified this through surface efficacy studies.
You may need to saturate the surface and leave it wet for several minutes.
Myth - Saturating a surface through spraying is just as good as wiping
Technique matters - liquid chemical disinfectants work through direct contact with cell membranes.
The mechanical action of wiping and mopping ensures this happens.
Wiping helps to address variables like surface materials and complexity, size and accessibility of areas.
There are some expressed concerns, although not support by any major study, that genetically acquired disinfectant resistance might occur in a similar way to antimicrobial resistance. Whilst the phenomenon of microbial resistance is an issue of major concern for antibiotics there are few data to support development of resistance to disinfectants.
Most disinfectants do not have a complete spectrum of activity effective against all microorganisms (spectrum of activity is the ability of the disinfectant to kill different types of microorganisms and microorganisms which are in different physiological states). The disinfectants commonly used are often effective against vegetative cells but are not sporicidal. To maintain an effective contamination, control the elimination of bacterial endospores through a sporicidal disinfectant is a recommended
Unfortunately some users think that 70% IPA will kill spores. Alcohols only work against vegetative cells; they cannot enter a bacterial spore.
Spores are resistant to many biocides:
This is because of the relative impermeability of the polypeptides which make up the spore coat. These can stop many disinfectant from penetrating.
If disinfectants get through, the inner layers – cortex and protoplast – limit chemical diffusion.
Superoxide dismutase – a protein involved in spore coat formation – helps to create the thick, striated outer layer.
It also helps protect bacteria from certain chemicals
The alcohol-based antibacterial rubs are effective enough that they do not create resistant strains, although antibacterial soaps may present a hazard.
While the alcohol rub stays on the hands and is not meant to be rinsed off, the antibacterial triclosan is rinsed off before it can do all its work and then enters the water supply. In addition, products like triclosan can cause problems once they are in the water supply, and resistant strains of bacteria have been created in labs using triclosan, although it remains to be seen if it will happen in the natural environment.
Generally, antibacterial soap does not do enough to justify its use. The objective of hand washing, by rinsing in soap and water for at least 20 seconds, is not to kill bacteria, but simply to get germs and viruses off our hands. Using a sink and washing hands thoroughly 15 to 20 seconds with regular soap and then rinsing that is the most effective method of 'de-germing', or removing bacteria and viruses from your hands.
Hand washing with soap and water does not remove all the microbes from our hands, because some are an important part of our skin, and even if we did kill them, they would return.
Given that regular soap and water removes the organisms, there is often no need for an antibacterial agent, and it probably will not work anyway. Hand sanitisers are best reserved where hand washing facilities are not readily accessible.
Next myth – I’ll look at how useful are Bunsen burners for aseptic testing.
I’m not referring to loop or slide flaming here; more to the so-called ring of protection.
The question here is whether flaming flasks for fluid transfer or having Bunsen burners on when carrying out bioburden testing, is necessary?
Although it remains common for many labs to use Bunsens, a paper issued back in 1972 argued that it is best not to "flame the mouth of the flask" when transferring fluids, or when pouring autoclaved media into Petri dishes.
This is because:
This increases the risk of generation of aerosols and create air currents for contamination transfer
So a better technique might be:
Rapid transfer,
Holding the flask or tube horizontal to avoid dust settling.;
Use single-use sterile disposable items;
Some cases testing in UDAFs.
Many microbiologists find that the use of pre-sterilized disposable tools to transfer media and bacterial cultures result in lower contamination rates compared with reusable inoculating loops. The latter is a process known to create aerosols that may increase potential air contaminants.
Depending on the organism handled, this can create an element of risk. Several studies have shown that particles of less than 5 um are most effective in establishing airborne infection in laboratory animals; and particles of 1 to 5 um can be deposited in the alveoli, with preferential deposition occurring with 1- to 2-um particles. Particles larger than 3.5 are most probably deposited in the upper respiratory tract. Particles in the 2.0- to 3.5- um range appear to offer equal opportunities for both upper respiratory and alveolar deposition.
Where Bunsen burners are used, it is optimal to flame a loop in the airspace underneath the burner flame.
Moreover, the idea that the Bunsen burner creates an upward draft of air to prevent contaminants in the air from settling on the work surface below does not always result in more robust practices, as sometimes airflow disruption leads to particles settling out.
Final myth –should we always trust the results from microbial identification systems?
With identifications there are a number of things that can go wrong.
Take the Gram-stain. Errors include:
Easy to get a mixed colony,
Old colonies lean towards Gram-positives,
Over decolorisation can occur through poor technique,
Bacillus species can appear Gram-negative.
Things can go awry with automated systems:
Phenotypic systems are, by their name, affected by phenotypic changes,
All systems are only as good as their databases,
Cross-contamination can occur.
With the actual result, the results obtained might be correct under the conditions of the test but is it the result reflective of the organism found?
Always question the result of the identification
Ask yourself if it is expected from the sample source?
E.g. a Gram-negative rod from an aseptic filling area
Have I really got Bacillus anthracis?
Remember - phenotypic identification systems work on the basis of matching and probability – what you have is the best ‘guess’
Freeze-dried cultures are safe until they are reconstituted
The number of particles aerosolized upon opening lyophilized cultures depends upon the consistency of the end product. For example, fluffier end products tend to create more concentrated aerosols. Most of the particles aerosolized upon opening lyophilized cultures are larger than 5 um. Dropping a lyophilized culture creates an extremely concentrated aerosol composed predominantly of particles larger than 5 um.
The inclusion of mother liquor in the suspending menstruum reduces the aerosol concentration approximately fourfold.
Two parameters must be established to assess the risk of handling laboratory cultures: the biological decay rate of aerosols under laboratory conditions, and the human infectious dose by the respiratory route. Several common organisms survive at least 1 hour in droplet nuclei at standard laboratory relative humidity.
A common image associated with microbiology is that of the plastic Petri dish. The ability to grow microorganisms like this is in fact the foundation of microbiology and much of our knowledge about microbial biochemistry, genetics, physiology, etc. comes from culture-based work.
However, there are several limitations to this approach, some of which can now be addressed with alternative methods.
Culturing organisms in a Petri dish meaning growing them in non-natural conditions, not only are the organisms in an artificial environment with a pre-defined collection of nutrients, they are usually grown in isolation… cut off from the normal community of microbes surrounding them in nature.
In addition, we now know that only around 1% of the microorganisms in a typical environment can even be cultured at all.
New sequence-based techniques such as metagenomics and rRNA sequencing can help address both of these concerns to varying degrees, and are an important complement to culture-based techniques. Helping with examining biofilms etc.
OK – what we have looked at quite a few myths.
I’ve selected my top seven from this presentation:
Colony Forming Units – more than meets the eye
Microbiology laboratory cabinets – must not be obscured
Media growth promotion – probably best to do something
Microbial distribution in cleanrooms – risk is with larger size particles
Environmental monitoring parameters – need to accept limitations and be consistent.
Bunsen burners– probably not necessary
Identification results– need to do a reality check on each isolate
