PCB calculator
Jay Chang

2. 2

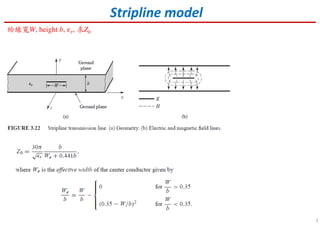

Stripline model
給線寬W, height b, ߳‫ݎ‬, 求Z0

3. 3

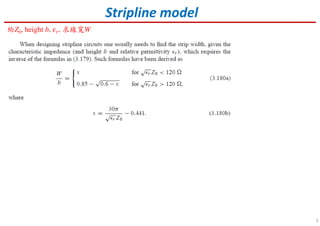

Stripline model
給Z0, height b, ߳‫ݎ‬, 求線寬W

4. 4
Stripline model
perturbation method求loss ߙ = conductor loss + dielectric loss

5. 5

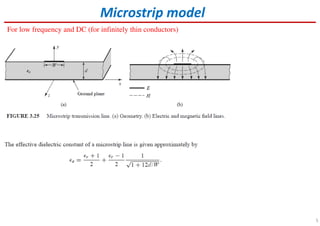

Microstrip model
For low frequency and DC (for infinitely thin conductors)

6. 6
Microstrip model
給線寬W, height d, ߳‫ݎ‬, 求Z0 (for infinitely thin conductors)

7. 7

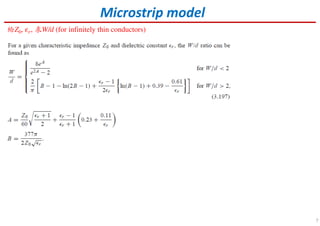

Microstrip model
給Z0, ߳‫ݎ‬, 求W/d (for infinitely thin conductors)

8. 8

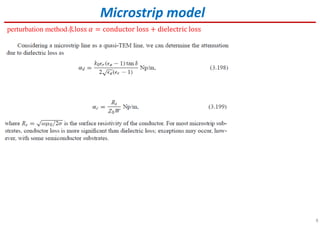

perturbation method求loss ߙ = conductor loss + dielectric loss
Microstrip model

9. 9
Microstrip model
給線寬W, height h, ߳‫ݎ‬, 求Z0 and ߳݁
(for finite thickness)

10. 10
Microstrip model
Frequency-Dependent Effects
For example:

11. 11

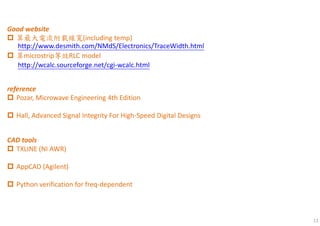

http://www.desmith.com/NMdS/Electronics/TraceWidth.html
http://wcalc.sourceforge.net/cgi-wcalc.html
Good website
算最大電流附載線寬(including temp)
算microstrip等效RLC model
reference
Pozar, Microwave Engineering 4th Edition
Hall, Advanced Signal Integrity For High-Speed Digital Designs
CAD tools
TXLINE (NI AWR)
AppCAD (Agilent)
Python verification for freq-dependent
