Transmission Line Basics

Transmission Line Basics II - Class 6

Prerequisite Reading assignment: CH2

TARA SAIKUMAR

2

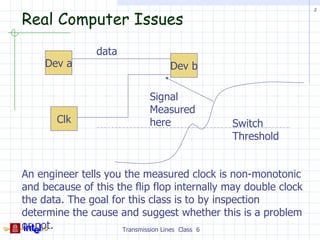

Real Computer Issues
data
Dev a Dev b

Signal
Measured
Clk here Switch
Threshold

An engineer tells you the measured clock is non-monotonic
and because of this the flip flop internally may double clock
the data. The goal for this class is to by inspection
determine the cause and suggest whether this is a problem
or not. Transmission Lines Class 6

3

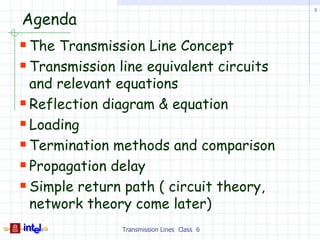

Agenda
 The Transmission Line Concept
 Transmission line equivalent circuits
and relevant equations
 Reflection diagram & equation
 Loading
 Termination methods and comparison
 Propagation delay
 Simple return path ( circuit theory,
network theory come later)
Transmission Lines Class 6

4

Two Transmission Line Viewpoints
 Steady state ( most historical view)
Frequency domain
 Transient
Time domain
Not circuit element Why?
 We mix metaphors all the time
Why convenience and history


5

Transmission Line Concept
Power Frequency (f) is @ 60 Hz Power
Wavelength (λ ) is 5× 10 m 6
Plant
( Over 3,100 Miles)

Consumer
Home

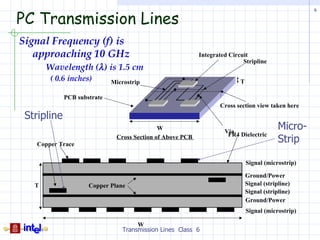

PC Transmission Lines
6

Signal Frequency (f) is
approaching 10 GHz Integrated Circuit
Stripline
Wavelength (λ ) is 1.5 cm
( 0.6 inches) Microstrip T

PCB substrate
Cross section view taken here
Stripline
W
Via
Micro-
FR4 Dielectric
Copper Trace
Cross Section of Above PCB
Strip

Signal (microstrip)

Ground/Power
T Copper Plane Signal (stripline)
Signal (stripline)
Ground/Power
Signal (microstrip)

W

7

Key point about transmission line operation
Voltage and current on a transmission line is
a function of both time and position.
I2

V = f ( z, t )
I1

I = f ( z, t )
V1 V2

dz
The major deviation from circuit theory with
transmission line, distributed networks is this
positional dependence of voltage and current!
Must think in terms of position and time to
understand transmission line behavior
This positional dependence is added when the
assumption of the size of the circuit being
small compared to the signaling wavelength

8

Examples of Transmission Line
Structures- I
 Cables and wires
(a) Coax cable
(b) Wire over ground
(c) Tri-lead wire
(d) Twisted pair (two-wire line)
 Long distance interconnects
+

+ -
(a) (b)
-

- + - + -
(c) (d)

9

Segment 2: Transmission line equivalent
circuits and relevant equations

 Physics of transmission line structures
 Basic transmission line equivalent circuit
 ?Equations for transmission line propagation


10

E & H Fields – Microstrip Case

How does the signal move Signal path

from source to load? Y

Z (into the page)
X

Electric field

Remember fields are setup given field
Magnetic

an applied forcing function.
(Source) Ground return path

The signal is really the wave
propagating between the
conductors

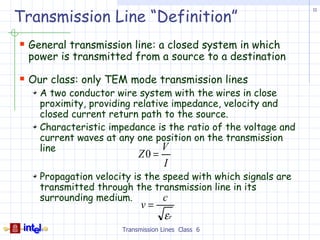

Transmission Line “Definition”
11

 General transmission line: a closed system in which
power is transmitted from a source to a destination

 Our class: only TEM mode transmission lines
A two conductor wire system with the wires in close
proximity, providing relative impedance, velocity and
closed current return path to the source.
Characteristic impedance is the ratio of the voltage and
current waves at any one position on the transmission
line V
Z0 =
I
Propagation velocity is the speed with which signals are
transmitted through the transmission line in its
surrounding medium. c
v=
εr

12

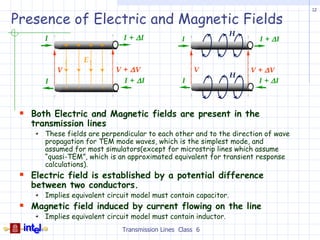

Presence of Electric and Magnetic Fields
H
I I + ∆I I I + ∆I
+ + + +

E
V V + ∆V V V + ∆V
H
I I + ∆I I I + ∆I
- - - -

 Both Electric and Magnetic fields are present in the
transmission lines
These fields are perpendicular to each other and to the direction of wave
propagation for TEM mode waves, which is the simplest mode, and
assumed for most simulators(except for microstrip lines which assume
“quasi-TEM”, which is an approximated equivalent for transient response
calculations).
 Electric field is established by a potential difference
between two conductors.
Implies equivalent circuit model must contain capacitor.
 Magnetic field induced by current flowing on the line
Implies equivalent circuit model must contain inductor.

13

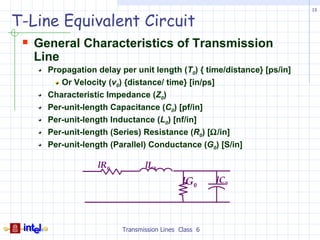

T-Line Equivalent Circuit
 General Characteristics of Transmission
Line
Propagation delay per unit length (T0) { time/distance} [ps/in]
Or Velocity (v0) {distance/ time} [in/ps]
Characteristic Impedance (Z0)
Per-unit-length Capacitance (C0) [pf/in]
Per-unit-length Inductance (L0) [nf/in]
Per-unit-length (Series) Resistance (R0) [Ω/in]
Per-unit-length (Parallel) Conductance (G0) [S/in]

lR0 lL0
lG0 lC0


14

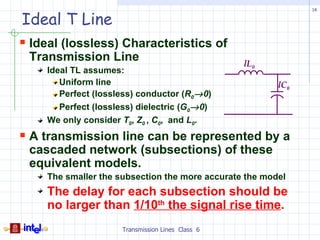

Ideal T Line
 Ideal (lossless) Characteristics of
Transmission Line lL0
Ideal TL assumes:
Uniform line lC0
Perfect (lossless) conductor (R0→ 0)
Perfect (lossless) dielectric (G0→ 0)
We only consider T0, Z0 , C0, and L0.
 A transmission line can be represented by a
cascaded network (subsections) of these
equivalent models.
The smaller the subsection the more accurate the model
The delay for each subsection should be
no larger than 1/10th the signal rise time.

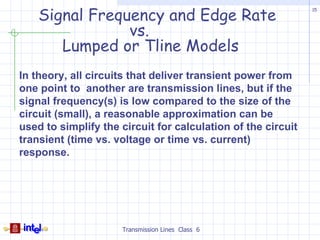

Signal Frequency and Edge Rate
15

vs.
Lumped or Tline Models
In theory, all circuits that deliver transient power from
one point to another are transmission lines, but if the
signal frequency(s) is low compared to the size of the
circuit (small), a reasonable approximation can be
used to simplify the circuit for calculation of the circuit
transient (time vs. voltage or time vs. current)
response.


16

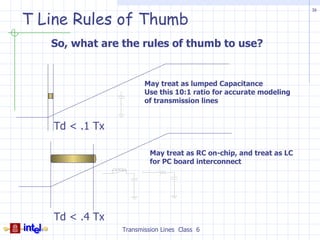

T Line Rules of Thumb
So, what are the rules of thumb to use?

May treat as lumped Capacitance
Use this 10:1 ratio for accurate modeling
of transmission lines

Td < .1 Tx

May treat as RC on-chip, and treat as LC
for PC board interconnect

Td < .4 Tx

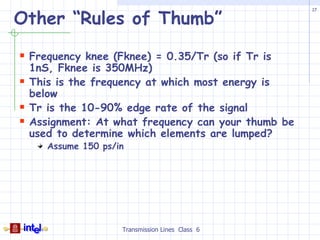

Other “Rules of Thumb”
17

 Frequency knee (Fknee) = 0.35/Tr (so if Tr is
1nS, Fknee is 350MHz)
 This is the frequency at which most energy is
below
 Tr is the 10-90% edge rate of the signal
 Assignment: At what frequency can your thumb be
used to determine which elements are lumped?
Assume 150 ps/in


When does a T-line become a T-Line?
18

 Whether it is a
bump or a
mountain depends
on the ratio of its
When do we need to size (tline) to the
use transmission line size of the vehicle
analysis techniques vs. (signal
lumped circuit wavelength)
analysis?
 Similarly, whether
or not a line is to
be considered as a
transmission line
depends on the
ratio of length of
the line (delay) to
the wavelength of
Wavelength/edge rate Tline the applied
frequency or the
rise/fall edge of the
Transmission Lines Class 6 signal

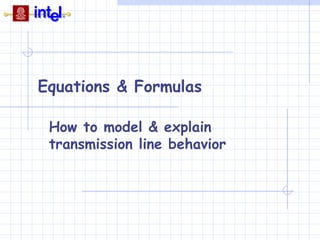

Equations & Formulas

How to model & explain
transmission line behavior

20

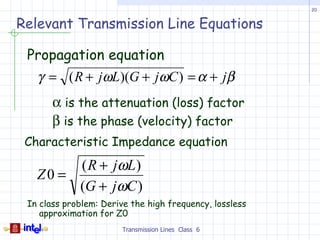

Relevant Transmission Line Equations

Propagation equation
γ = ( R + jωL)(G + jωC ) = α + jβ
α is the attenuation (loss) factor
β is the phase (velocity) factor
Characteristic Impedance equation
( R + j ωL )
Z0 =
(G + jωC )
In class problem: Derive the high frequency, lossless
approximation for Z0

21

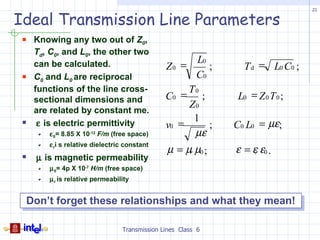

Ideal Transmission Line Parameters
 Knowing any two out of Z0,
Td, C0, and L0, the other two
L0
can be calculated. Z0 = ; T d = L0 C0 ;
 C0 and L0 are reciprocal C0
functions of the line cross- T0
sectional dimensions and C0 = ; L0 = Z 0 T 0 ;
Z0
are related by constant me.
1
 ε is electric permittivity v0 = ; C0 L0 = µε;
ε 0= 8.85 X 10-12 F/m (free space) µε
ε ri s relative dielectric constant
µ = µr µ0 ; ε = εr ε0 .
 µ is magnetic permeability
µ 0= 4p X 10-7 H/m (free space)
µ r is relative permeability

Don’t forget these relationships and what they mean!

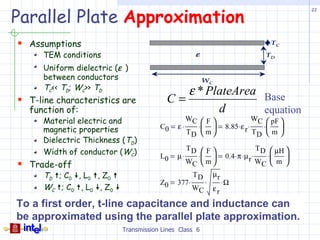

Parallel Plate Approximation
22

 Assumptions TC

TEM conditions ε TD

Uniform dielectric (ε )
between conductors WC
TC<< TD; WC>> TD
ε * PlateArea Base
 T-line characteristics are C=
function of: d equation
Material electric and WC  F  WC  pF 
magnetic properties C0 ε⋅ ⋅  8.85 ⋅ε r ⋅ ⋅ 
TD  m  TD  m 
Dielectric Thickness (TD)
TD  F  T D  µH 
Width of conductor (WC)
L0 µ⋅ ⋅  0.4 ⋅π ⋅µ r ⋅ ⋅ 
 Trade-off WC  m  WC  m 
TD ; C0 , L0 , Z0  TD µr
Z0 377 ⋅ ⋅ ⋅Ω
WC ; C0 , L0 , Z0  WC εr

To a first order, t-line capacitance and inductance can
be approximated using the parallel plate approximation.

23

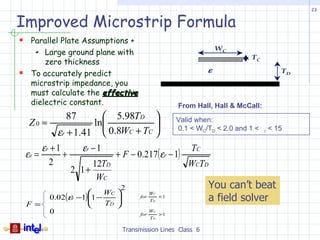

Improved Microstrip Formula
 Parallel Plate Assumptions +
WC
Large ground plane with
TC
zero thickness
ε TD
 To accurately predict
microstrip impedance, you
must calculate the effective
dielectric constant. From Hall, Hall & McCall:
87  5.98TD 
Z0 ≈ ln  Valid when:
εr + 1.41  0.8WC + TC  0.1 < WC/TD < 2.0 and 1 < r < 15

εr + 1 εr − 1 TC
εe = + + F − 0.217( εr − 1)
2 12TD WCTD
2 1+
WC
2 You can’t beat
 WC 
0.02(εr −1)1 − a field solver
WC
 for
TD
<1
F=  TD 
0 for
WC
>1
TD


24

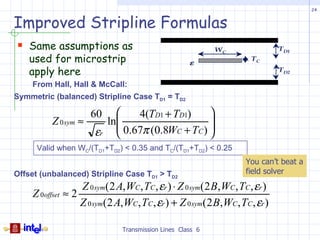

Improved Stripline Formulas
 Same assumptions as WC TD1
used for microstrip ε
TC

apply here TD2

From Hall, Hall & McCall:
Symmetric (balanced) Stripline Case TD1 = TD2

60 4(TD1 + TD1) 
Z 0 sym ≈ ln 
 0.67π (0.8WC + TC ) 
εr  
Valid when WC/(TD1+TD2) < 0.35 and TC/(TD1+TD2) < 0.25
You can’t beat a
Offset (unbalanced) Stripline Case TD1 > TD2 field solver
Z 0 sym(2 A, WC , TC , εr ) ⋅ Z 0 sym(2 B, WC , TC , εr )
Z 0offset ≈ 2
Z 0 sym(2 A,WC , TC , εr ) + Z 0 sym(2 B,WC , TC , εr )


25

Refection coefficient
 Signal on a transmission line can be analyzed by
keeping track of and adding reflections and
transmissions from the “bumps” (discontinuities)
 Refection coefficient
Amount of signal reflected from the “bump”
Frequency domain ρ=sign(S11)*|S11|
If at load or source the reflection may be called gamma (ΓL
or Γs)
Time domain ρ is only defined a location
The “bump”
Time domain analysis is causal.
Frequency domain is for all time.
We use similar terms – be careful
 Reflection diagrams – more later

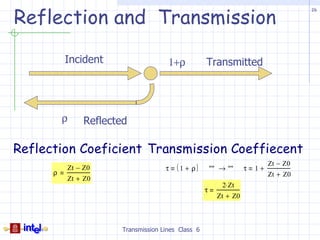

Reflection and Transmission
26

Incident 1+ρ Transmitted

ρ Reflected

Reflection Coeficient Transmission Coeffiecent
Zt − Z0
ρ
Zt − Z0 τ (1 + ρ) "" → "" τ 1+
Zt + Z0
Zt + Z0
2⋅ Zt
τ
Zt + Z0


27

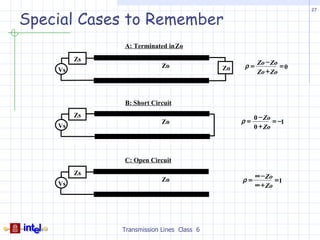

Special Cases to Remember
A: Terminated in Zo
Zs −
Zo Zo ρ = Zo Zo = 0
Vs Zo + Zo

B: Short Circuit
Zs −
Zo ρ = 0 Zo = −1
Vs 0 + Zo

C: Open Circuit
Zs ∞ − Zo
Zo ρ= =1
Vs ∞ + Zo


28

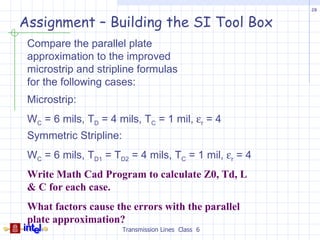

Assignment – Building the SI Tool Box
Compare the parallel plate
approximation to the improved
microstrip and stripline formulas
for the following cases:
Microstrip:
WC = 6 mils, TD = 4 mils, TC = 1 mil, εr = 4
Symmetric Stripline:
WC = 6 mils, TD1 = TD2 = 4 mils, TC = 1 mil, εr = 4
Write Math Cad Program to calculate Z0, Td, L
& C for each case.
What factors cause the errors with the parallel
plate approximation?

29

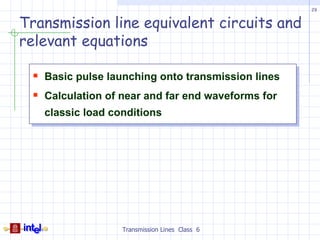

Transmission line equivalent circuits and
relevant equations

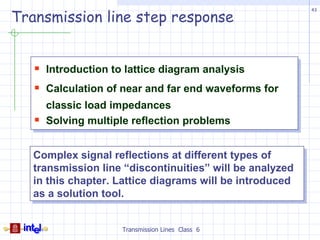

 Basic pulse launching onto transmission lines
 Calculation of near and far end waveforms for
classic load conditions

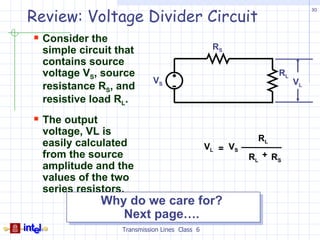

Review: Voltage Divider Circuit
30

 Consider the
simple circuit that RS
contains source
voltage VS, source RL
VS VL
resistance RS, and
resistive load RL.
 The output
voltage, VL is
RL
easily calculated VL = VS
from the source RL + R S
amplitude and the
values of the two
series resistors.
Why do we care for?
Next page….

31

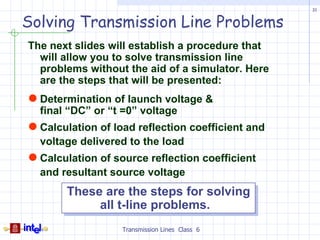

Solving Transmission Line Problems
The next slides will establish a procedure that
will allow you to solve transmission line
problems without the aid of a simulator. Here
are the steps that will be presented:
 Determination of launch voltage &
final “DC” or “t =0” voltage
 Calculation of load reflection coefficient and
voltage delivered to the load
 Calculation of source reflection coefficient
and resultant source voltage
These are the steps for solving
all t-line problems.

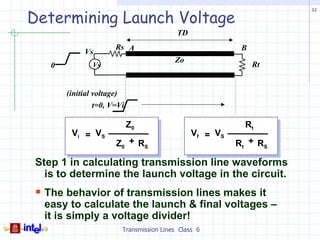

Determining Launch Voltage
32

TD
Rs A B
Vs
Zo
0 Vs Rt

(initial voltage)
t=0, V=Vi

Z0 Rt
Vi = VS Vf = VS
Z 0 + RS Rt + RS

Step 1 in calculating transmission line waveforms
is to determine the launch voltage in the circuit.
 The behavior of transmission lines makes it
easy to calculate the launch & final voltages –
it is simply a voltage divider!

33

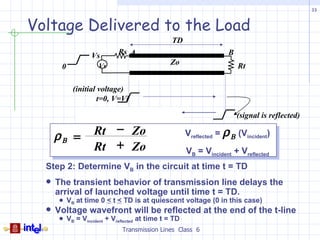

Voltage Delivered to the Load
TD
Vs Rs A B
Vs Zo Rt
0

(initial voltage)
t=0, V=Vi

(signal is reflected)
t=2TD,

ρΒ = Rt − Zo
V=Vi + ρB(Vi) +ρA(ρB)(Vi ) t=TD, V=Vi +ρB(Vi )
Vreflected = ρ Β (Vincident)
Rt + Zo VB = Vincident + Vreflected
Step 2: Determine VB in the circuit at time t = TD
 The transient behavior of transmission line delays the
arrival of launched voltage until time t = TD.
 VB at time 0 < t < TD is at quiescent voltage (0 in this case)
 Voltage wavefront will be reflected at the end of the t-line
 VB = Vincident + Vreflected at time t = TD

34

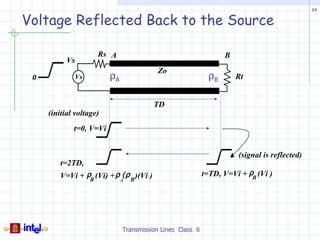

Voltage Reflected Back to the Source

Rs A B
Vs
Zo
0 Vs ρA ρB Rt

TD
(initial voltage)
t=0, V=Vi

(signal is reflected)
t=2TD,
V=Vi + ρB (Vi) + ρA B )(Vi )
(ρ t=TD, V=Vi + ρB (Vi )

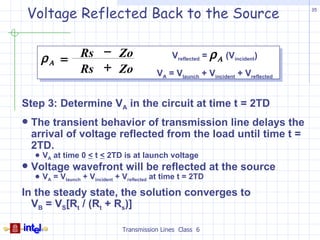

Voltage Reflected Back to the Source 35

− Zo Vreflected = ρ Α (Vincident)
ρ Α = Rs
Rs + Zo VA = Vlaunch + Vincident + Vreflected

Step 3: Determine VA in the circuit at time t = 2TD
 The transient behavior of transmission line delays the
arrival of voltage reflected from the load until time t =
2TD.
 VA at time 0 < t < 2TD is at launch voltage
 Voltage wavefront will be reflected at the source
 VA = Vlaunch + Vincident + Vreflected at time t = 2TD

In the steady state, the solution converges to
VB = VS[Rt / (Rt + Rs)]


36

Problems Solved Homework

 Consider the circuit
shown to the right
with a resistive load,
assume propagation
RS I1 I2
Z0 ,Τ 0

delay = T, RS= Z0 . VS V1
l
V2 RL

Calculate and show
the wave forms of
V1(t),I1(t),V2(t),
and I2(t) for (a) RL=
∞ and (b) RL= 3Z0


37

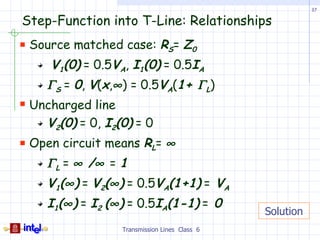

Step-Function into T-Line: Relationships
 Source matched case: RS= Z0
V1(0) = 0.5VA, I1(0) = 0.5IA
Γ S = 0, V(x,∞ ) = 0.5VA(1+ Γ L)
 Uncharged line
V2(0) = 0, I2(0) = 0
 Open circuit means RL= ∞
Γ L = ∞ /∞ = 1
V1(∞) = V2(∞) = 0.5VA(1+1) = VA
I1(∞) = I2 (∞) = 0.5IA(1-1) = 0
Solution

38

Step-Function into T-Line with Open Ckt
 At t = T, the voltage wave reaches load end
and doubled wave travels back to source end
V1(T) = 0.5VA, I1(T) = 0.5VA/Z0
V2(T) = VA, I2 (T) = 0
 At t = 2T, the doubled wave reaches the
source end and is not reflected
V1(2T) = VA, I1(2T) = 0
V2(2T) = VA, I2(2T) = 0

Solution

39

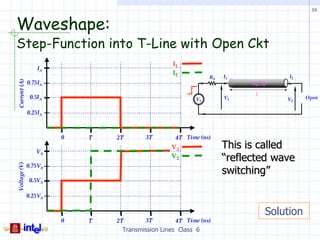

Waveshape:
Step-Function into T-Line with Open Ckt
I1
IA
I2
RS I1 I2
Current (A)

0.75IA Z0 ,Τ 0

l
0.5I A VS V1 V2 Open

0.25IA

0 Τ 2Τ 3Τ 4Τ Time (ns)

VA
V1 This is called
V2 “reflected wave
Voltage (V)

0.75VA
switching”
0.5VA

0.25VA

Solution

40

Problem 1b: Relationships
 Source matched case: RS= Z0
V1(0) = 0.5VA, I1(0) = 0.5IA
Γ S = 0, V(x,∞ ) = 0.5VA(1+ Γ L)
 Uncharged line
V2(0) = 0, I2(0) = 0
 RL= 3Z0
Γ L = (3Z0 -Z0) / (3Z0 +Z0) = 0.5
V1(∞) = V2(∞) = 0.5VA(1+0.5) = 0.75VA
I1(∞) = I2(∞) = 0.5IA(1-0.5) = 0.25IA
Solution

41

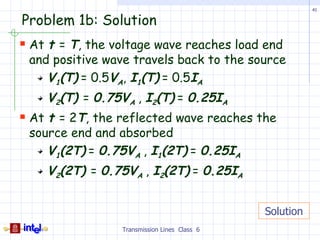

Problem 1b: Solution
 At t = T, the voltage wave reaches load end
and positive wave travels back to the source
V1(T) = 0.5VA, I1(T) = 0.5IA
V2(T) = 0.75VA , I2(T) = 0.25IA
 At t = 2T, the reflected wave reaches the
source end and absorbed
V1(2T) = 0.75VA , I1(2T) = 0.25IA
V2(2T) = 0.75VA , I2(2T) = 0.25IA

Solution

Waveshapes for Problem 1b
42

I1
IA
I2 I1 I2
RS
0.75IA Z0 ,Τ 0
Current (A)

l
0.5IA VS V1 V2 RL

0.25IA


I1
VA
I2
Note that a
0.75VA properly terminated
Voltage (V)

0.5VA
wave settle out at
0.5 V
0.25VA
Solution
Solution

Transmission line step response
43

 Introduction to lattice diagram analysis
 Calculation of near and far end waveforms for
classic load impedances
 Solving multiple reflection problems

Complex signal reflections at different types of
transmission line “discontinuities” will be analyzed
in this chapter. Lattice diagrams will be introduced
as a solution tool.


44

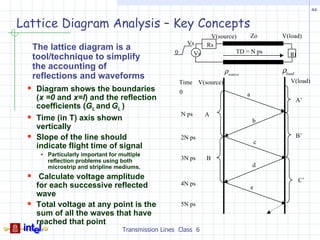

Lattice Diagram Analysis – Key Concepts
V(source) Zo V(load)
Vs Rs
The lattice diagram is a 0 TD = N ps
Vs Rt
tool/technique to simplify
the accounting of ρsource ρload
reflections and waveforms V(load)
Time V(source)
 Diagram shows the boundaries 0 a
(x =0 and x=l) and the reflection A’
coefficients (GL and GL )
N ps A
 Time (in T) axis shown b
vertically
 Slope of the line should 2N ps
c
B’
indicate flight time of signal
Particularly important for multiple
reflection problems using both 3N ps B
microstrip and stripline mediums. d
 Calculate voltage amplitude C’
for each successive reflected 4N ps
e
wave
 Total voltage at any point is the 5N ps
sum of all the waves that have
reached that point

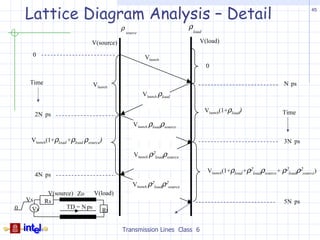

Lattice Diagram Analysis – Detail 45

ρ ρ
source load

V(source) V(load)

0 Vlaunch
0

Time Vlaunch N ps
Vlaunch ρload

Vlaunch(1+ρload) Time
2N ps
Vlaunch ρloadρsource

Vlaunch(1+ρload +ρload ρsource) 3N ps

Vlaunch ρ2loadρsource

Vlaunch(1+ρload+ρ2loadρsource+ ρ2loadρ2source)
4N ps
Vlaunch ρ2loadρ2source
V(source) Zo V(load)
Vs Rs 5N ps
0 Vs TD = N ps
Rt

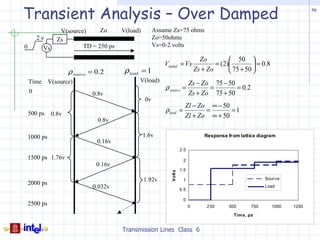

Transient Analysis – Over Damped 46

V(source) Zo V(load) Assume Zs=75 ohms
2v Zs Zo=50ohms
0 TD = 250 ps Vs=0-2 volts
Vs
Zo  50 
Vinitial = Vs = (2)  = 0.8
ρ source = 0.2 ρ load = 1 Zs + Zo  75 + 50 
Time V(source) V(load) Zs − Zo 75 − 50
0
ρ source = = = 0.2
0.8v Zs + Zo 75 + 50
0v
Zl − Zo ∞ − 50
500 ps 0.8v
ρ load = = =1
Zl + Zo ∞ + 50
0.8v

1000 ps 1.6v Response fr om lattice diagram
0.16v
2.5
1500 ps 1.76v 2
0.16v
1.5
V olt s
1.92v 1 Sour ce
2000 ps
0.032v 0.5
Load

0
2500 ps 0 2 50 500 750 1000 1250

Tim e , ps

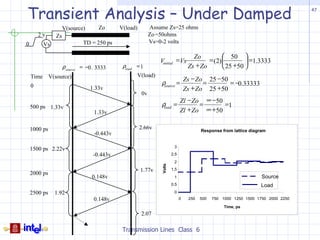

Transient Analysis – Under Damped 47

V(source) Zo V(load) Assume Zs=25 ohms
2v Zs Zo =50ohms
0 Vs TD = 250 ps Vs=0-2 volts

Zo  50 
Vinitial =Vs = (2)   =1.3333
ρsource = −0 . 3333 ρload = 1 Zs + Zo  25 +50 
Time V(source) V(load)
Zs − Zo 25 −50
0 ρsource = = = −0.33333
1.33v Zs + Zo 25 + 50
0v
Zl − Zo ∞ −50
500 ps 1.33v ρ = = =1
1.33v
load
Zl + Zo ∞ +50

1000 ps 2.66v Response from lattice diagram
-0.443v

3
1500 ps 2.22v
-0.443v 2.5
2
Volts
1.77v 1.5
2000 ps
0.148v 1 Source
0.5 Load
2500 ps 1.92 0
0.148v 0 250 500 750 1000 1250 1500 1750 2000 2250

Time, ps
2.07

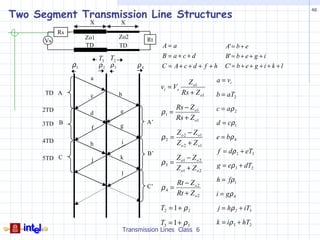

Two Segment Transmission Line Structures
48

X X
Rs
Zo1 Zo2 Rt
Vs
TD TD A= a A' = b + e
T3 T2 B = a+c+d B' = b + e + g + i
ρ1 ρ 2 ρ3 ρ4 C = A+ c+ d + f + h C' = b + e + g + i + k + l
a a = vi
Z o1
vi = Vs
TD A c b Rs + Z o1 b = aT2

2TD Rs − Z o1 c = aρ 2
d e ρ1 =
Rs + Z o1
3TD B g
A’ d = cρ 1
f
Z o 2 − Z o1
4TD
ρ2 = e = bρ 4
h i Z o 2 + Z o1
B’ f = dρ 2 + eT3
5TD C j k Z − Zo2
ρ 3 = o1 g = eρ 3 + dT2
Z o1 + Z o 2
l
Rt − Z o 2 h = fρ 1
C’ ρ4 =
Rt + Z o 2 i = gρ 4

T2 = 1 + ρ 2 j = hρ 2 + iT3

T3 = 1 + ρ 3 k = iρ 3 + hT2

49

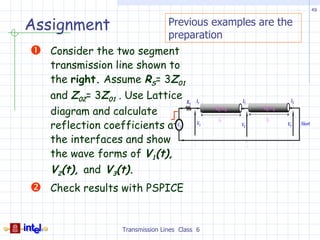

Assignment Previous examples are the
preparation
 Consider the two segment
transmission line shown to
the right. Assume RS= 3Z01
and Z02= 3Z01 . Use Lattice R I1 I2 I3
S

diagram and calculate Z01 ,Τ 01 Z02 ,Τ 02

l1 l2
reflection coefficients atV S
V1 V2 V3 Short

the interfaces and show
the wave forms of V1(t),
V2(t), and V3(t).
 Check results with PSPICE


Transmission Line Basics

More Related Content

What's hot

Similar to Transmission Line Basics

More from John Williams

Transmission Line Basics
