The document provides instructions for drawing the front elevation of a cylinder with the following specifications: 1) The diameter (d) is 3 inches and the height (h) is 3.5 inches. 2) The angle (A) is 22.5 degrees. 3) It describes drawing center lines, horizontal and vertical lines, and using a protractor to draw the angle. 4) It then provides steps to draw arcs using a compass to complete the cylinder shape.

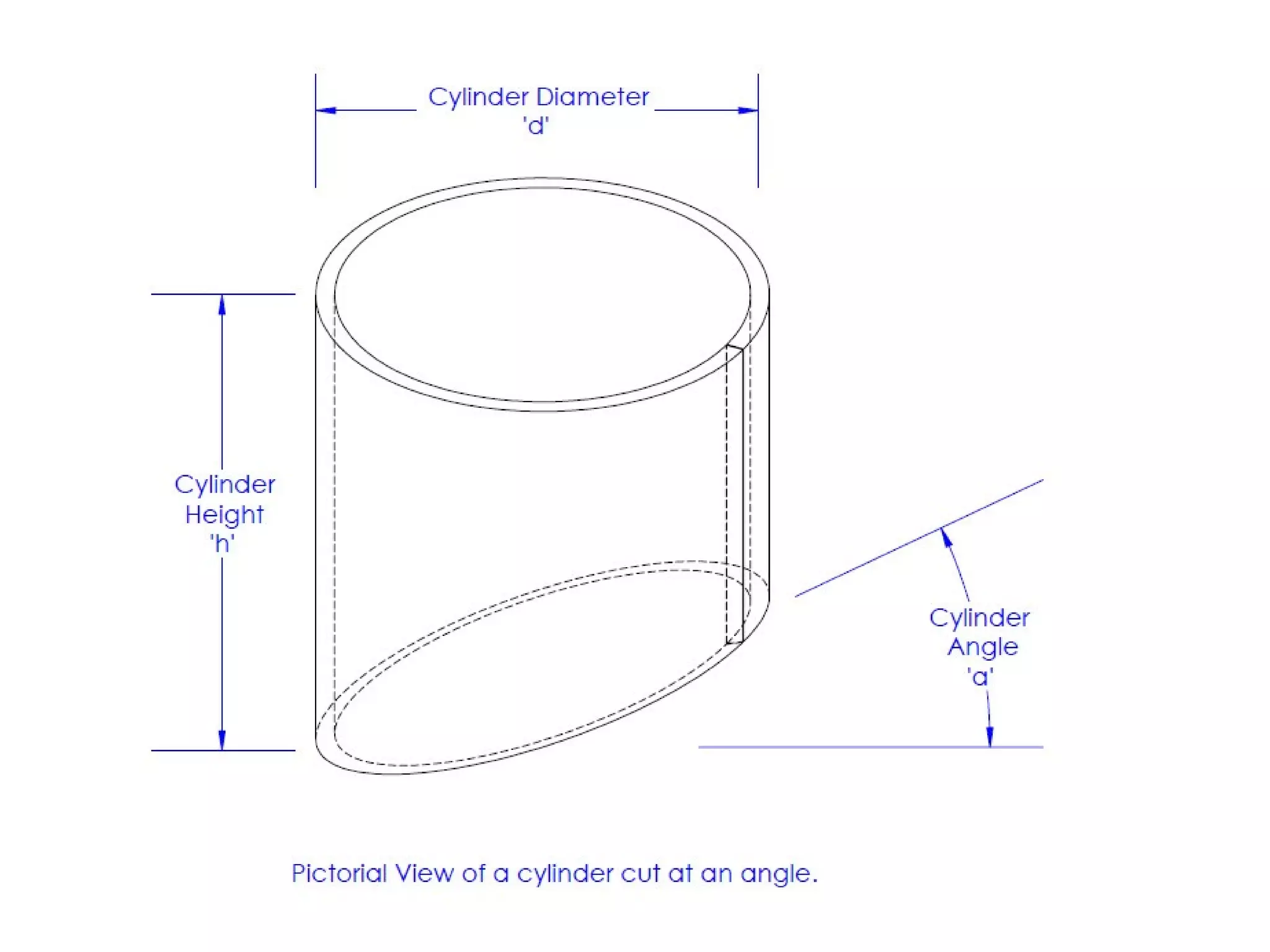

2. Step 1: Cylinder layout Draw the front elevation Using ‘d’ – diameter, ‘h’- height, ‘ a’- angle ‘A’ d= 3” h=3-1/2” a= 22-1/2” Establish a Center line to start

3. Step 1: Cylinder layout Draw the front elevation Using ‘d’ – diameter, ‘h’- height, ‘ a’- angle ‘A’ d= 3” h=3-1/2” a= 22-1/2” Establish a Center line to start

4. Draw a horizontal line perpendicular to the centre line, the length of a ‘d’ “3” long 3 .00 1.50

5. Draw a vertical line parallel to the centre line, the length of h ‘3 ½ ‘ long 3 .00 3 .50

6. 3 .00 3 .50 Using the protractor draw the angle at 22 ½” 22.5

7. 3 .00 3 .50 22.5 Complete the elevation view by connecting the last line segment

8. From Point A and using a compass draw an arc equal to the radius of the cylinder. A

9. A 1 Draw an arc centered at point 1 using the same radius as before to intersect the semi circle.

10. A 1 7 Witness the bisecting mark with a point and circle to identify.

11. A 1 7 4 Label top intersection point 4 and construct and arc intersecting 2 points on the semi circle.
