NETWORK MANAGEMENT
MADE EASY
WITH
NCM V12.3
Why do you need NCM?
Network configuration Manager(NCM) is a tool that controls the entire
life cycle of device configuration management by managing and changing
configurations,compliances etc, in routers,switches,firewall and other
network devices.
The 5 magical words to keep your network devices under check:
CONFIGURATION
BACKUP
CONFIGURATION
CHANGE
MANAGEMENT
CONFIGLETS
MANAGING
COMPLIANCE
REPORTS
N
C
M
Discovering and Adding devices in
NCM
Devices can be discovered in NCM using one of the three ways:
Device Discovery,Manual Addition,Import file.
DEVICE DISCOVERY:
Devices can be discovered by giving the IP address of any
networking device.
Steps:
1.Go to settings->
Discovery,under discovery,
Add the IP address and IP
Range,then the
Devices will be discovered.
A CSV import file can also be used
while discovering.

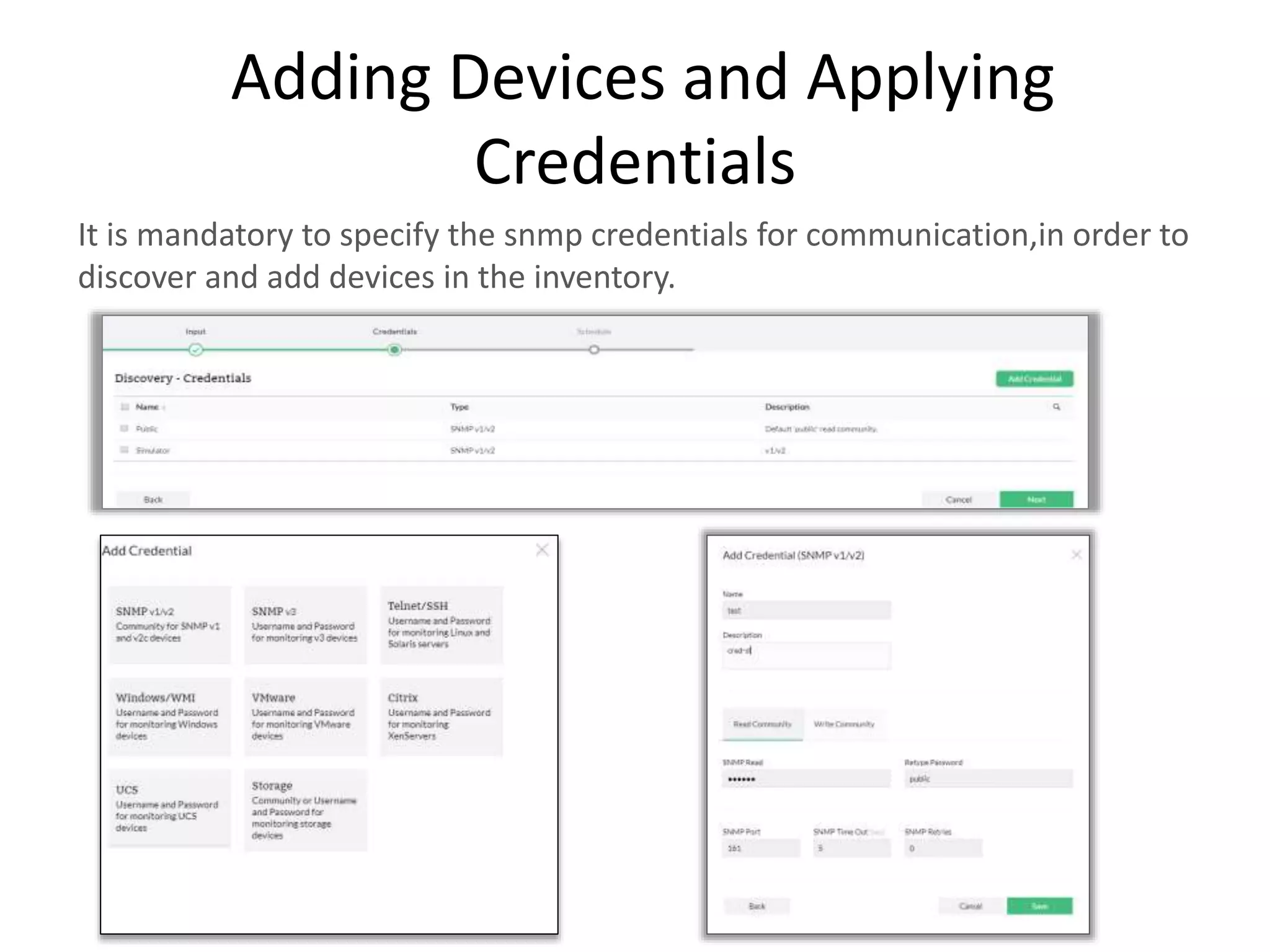

Adding Devices and Applying
Credentials
It is mandatory to specify the snmp credentials for communication,in order to
discover and add devices in the inventory.

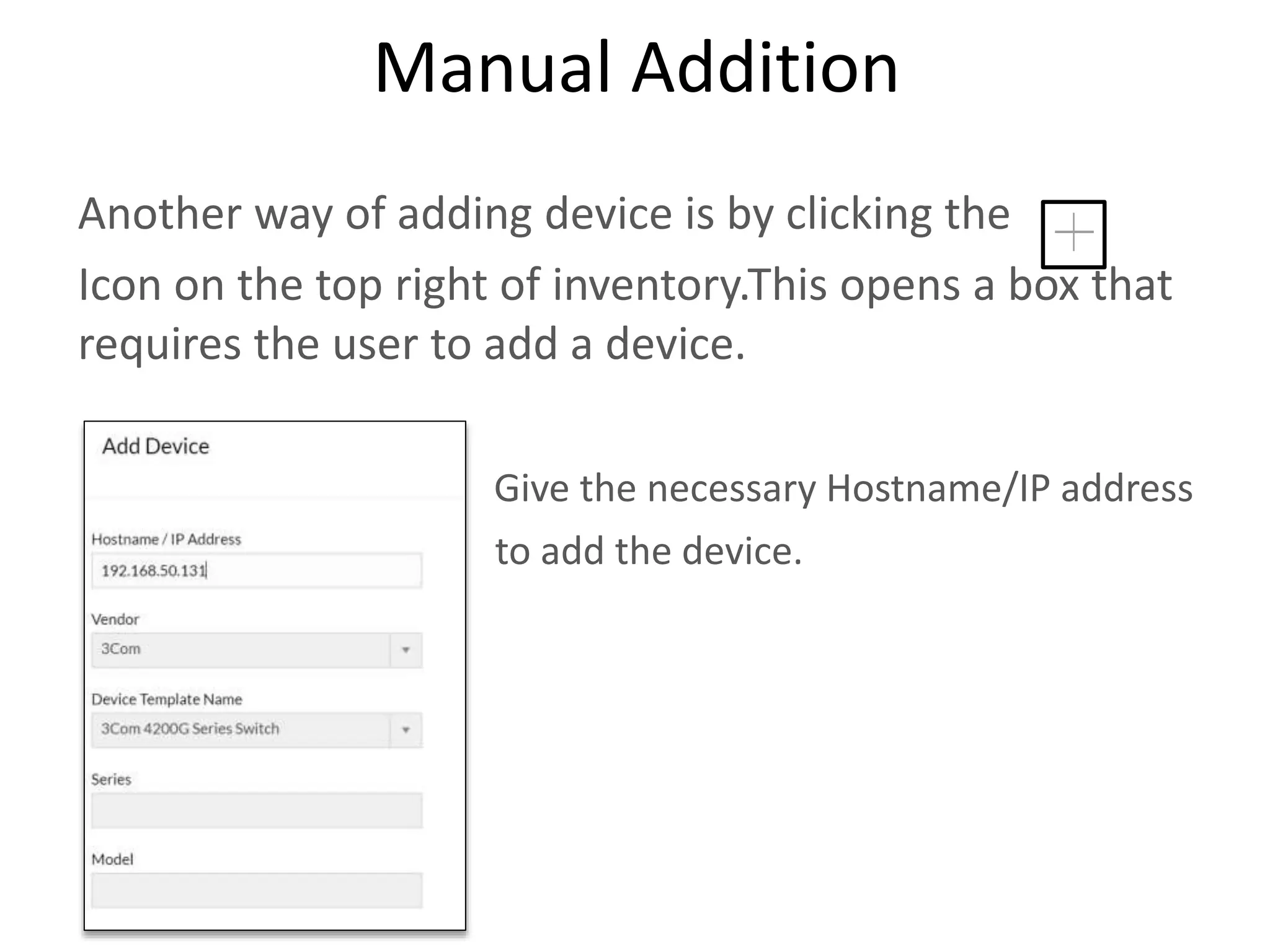

Manual Addition
Another way of adding device is by clicking the
Icon on the top right of inventory.This opens a box that
requires the user to add a device.
Give the necessary Hostname/IP address
to add the device.
Import File
Devices can be added without giving credentials,by just knowing the
device’s Host name/Ip Address and the device template name,Series
and it’s model.The file containing this can be imported.
Applying Credentials
Now,let us apply credentials.Credentials can be applied
By clicking on
all the devices
that needs to
be configured
after the devices get
added to the
Inventory.
Start managing the network devices right after the
device you discover gets added to the Inventory!
CONFIGURATION
BACKUP
WHY YOU NEED TO BACKUP?
Backing up helps to:
• Prevent Loss of data due to a disaster/Network outage
• Prevent Starting a configuration from scratch
• Compare two configurations
Backup can be done in 3 ways:
• Manual backups
• Scheduled backups
• Syslog based automatic backup
The Backup status of every configuration is updated after every backup.
Manual and Syslog based automatic
backups
Manual backup:
Selecting the devices and backing up the
devices manually.
Syslog based automatic backup:When
a user makes changes in a device
configuration, syslog notifications are
received for the actions performed and
backup will be taken.
Scheduled Backups
• NCM offers scheduled backups,where one can set up a specific time to backup
configurations
• Hourly,daily,weekly,monthly scheduled backing up is possible
• Automatically starts backing up at the given time and sends Email notifications
Baseline Configuration
A baseline version is the best among all configuration versions and
1.Can be used as a configuration after an unexpected network outage.
2.Can be used to compare with the latest configurations to see the
changes made and to check for difference between the baseline and
other configurations.
CONFIGURATION CHANGE
MANAGEMENT
REAL TIME CHANGE DETECTION(RTCD)
Any change made in a configuration of any network device triggers automatic
backup of that device by RTCD.
BENEFITS:
• Get notification on who made the change
• Get Time and date of change
• Immediate configuration back up after the changes are saved
Working of “Enabling Change Detection”
When “Enabling Change Detection” is given
• NCM tracks it when a User logs in/logs out
• Tracks the changes made and Takes a backup after the User logs out
• Compares the backup with the current version and in the event of no
change,backup gets discarded and when there is a change,a backup will be
stored in Database.
• Syslog messages are received for every action the user performs on the device
COMPARING CONFIGURATIONS
Comparison can be done between any type of configurations,any two
devices(working and non-working) also.
The image given below shows a comparison of all the changes made between a
running and a startup configuration.

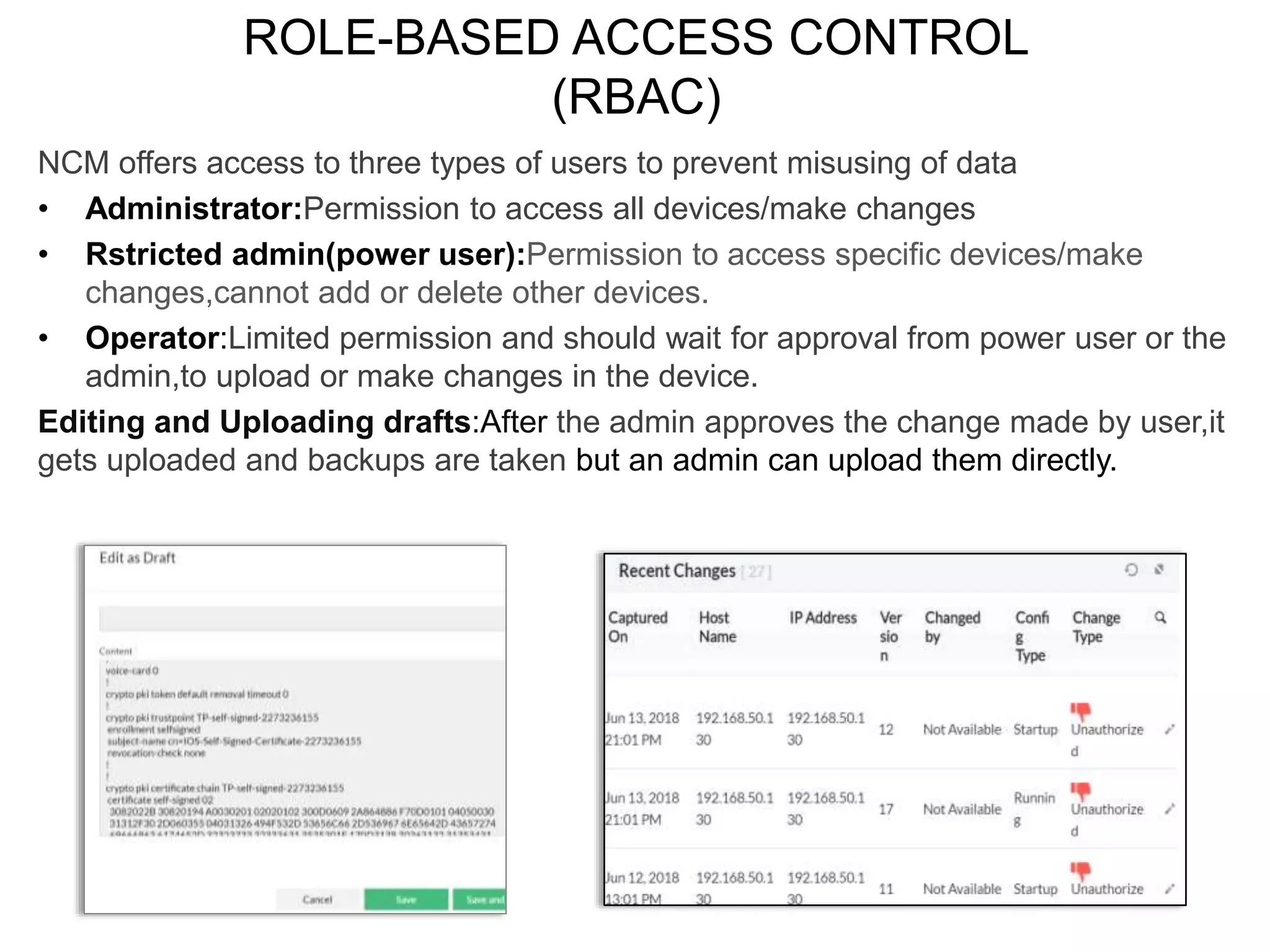

ROLE-BASED ACCESS CONTROL
(RBAC)
NCM offers access to three types of users to prevent misusing of data
• Administrator:Permission to access all devices/make changes
• Rstricted admin(power user):Permission to access specific devices/make
changes,cannot add or delete other devices.
• Operator:Limited permission and should wait for approval from power user or the
admin,to upload or make changes in the device.
Editing and Uploading drafts:After the admin approves the change made by user,it
gets uploaded and backups are taken but an admin can upload them directly.
CONFIGLETS
Configlets and its Uses
Configlets are script templates that can be executed in multiple devices at one go.
BENEFITS:
• Configlets are available as templates and can be added manually
in 3 modes-File transfer,script execution,Advanced script execution modes
• Helps to fix malfunctioning devices at one go
• Helps to execute sequence of commands in many devices at one go
TEMPLATES:
Manual Addition of Configlets
FILE TRANSFER MODE
The advantage of using file transfer mode is,it allows the user to upload the same
configuration in many devices at one go.
Script Execution Mode
Helps in:
• Executing basic trouble shooting commands
• Changing passwords,banners
• Enabling/Disabling SNMP
Example:Selecting a particular network device and Executing it in script execution
mode changes the password of all the devices associated.
Advanced Script Execution Mode
This mode is used when:
1.There is a change of prompt after command execution
2.A command requires a prompt user confirmation
3.There is a delay in response after command execution.
Example:In the given example,the command will be executed after a particular
prompt and the timeout is also set.
Executing The Configlets
• After modifying the configlets,they are executed by applying the configlets on
the respective devices and execution results can be checked in the“execution
history”.
• After creating the configlets,they can be added to “snapshots” for easy
access.
Compliance Management
Why is compliance necessary?
Benefits:
• They help to avoid vulnerabilities
• Avoids loop holes in a network
• Avoids legal consequences
Default compliance policies:
Cisco IoS policy,HIPAA,SOX,PCI.
Custom Policies
Custom policies can be added by:
• Creating a custom rule
• Grouping the custom rules to create a rule group
• Grouping rule groups to create policies
Custom rule is added based on 3 criteria:
• Simple criteria
• Advanced criteria
• Advanced custom criteria
Simple Criteria with an Example
Uses of simple Criteria:
• Checking for any line in a configuration
• Should/Should not contain exact set
• The number of times the line has to appear
Example:In the given example the word
“Public” is checked .

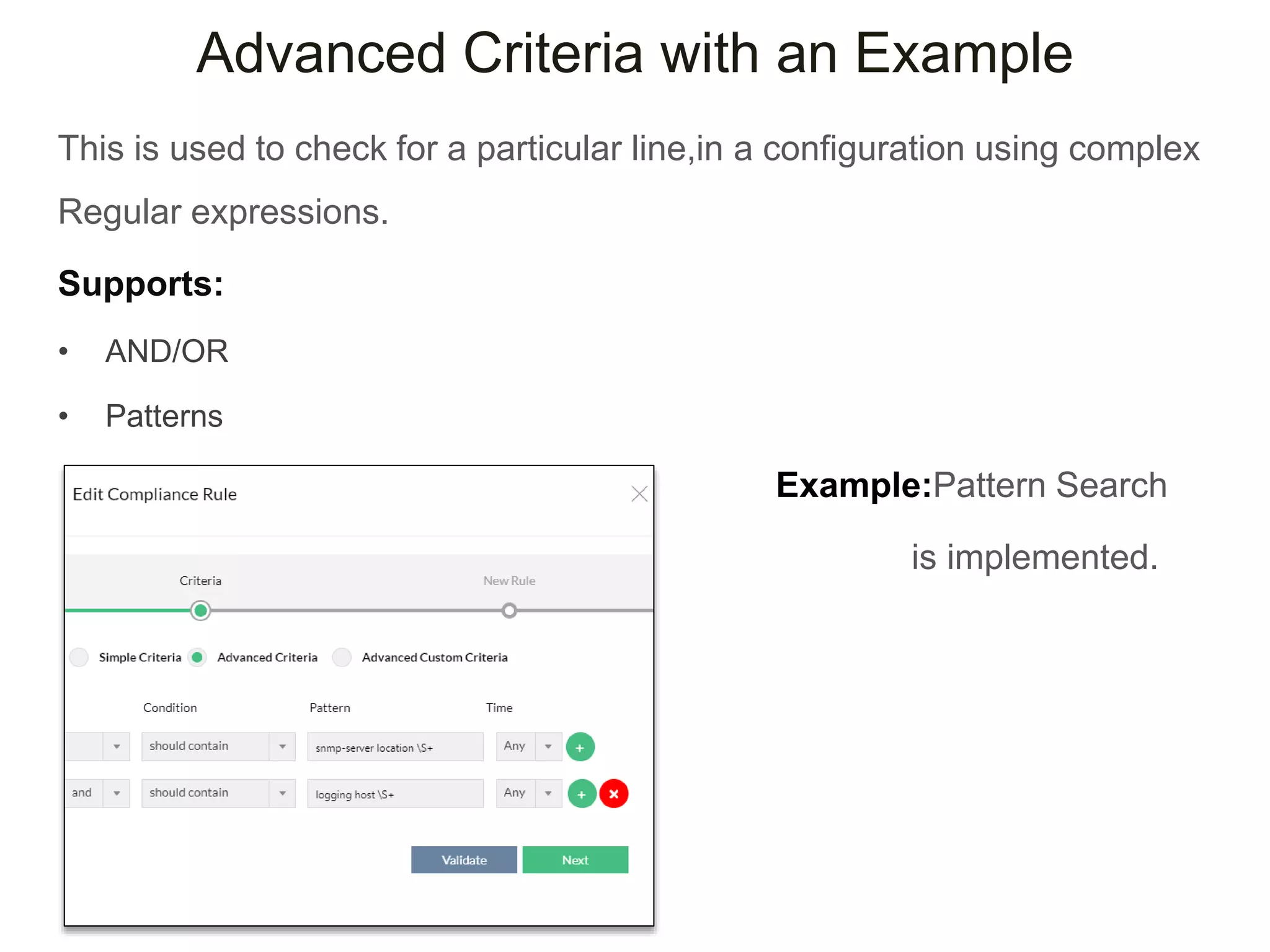

Advanced Criteria with an Example
This is used to check for a particular line,in a configuration using complex
Regular expressions.
Supports:
• AND/OR
• Patterns
Example:Pattern Search
is implemented.
Advanced Custom Criteria with an Example
This is used when you want to run a compliance check in particular sections of
the configuration file.Along with the features of Advanced Criteria it also
supports:
1.Block criteria(specifies the beginning and ending of the block)
2.Additional block criteria
Example:In this example,we are
defining the blocks for NCM to run
the compliance check only on the
interfaces that are not “shut down”
Remediation Template
Remediation Templates are used when a particular rule is violated during
Compliance check.In case of violation,remediation templates are used to fix the
issue.
Eg:While checking for “public” in snmp,if it finds a word “public” in any
configuration,this remediation template can be used to fix.
Creating Rule groups and Policies
The custom rules are grouped into rule groups which are in turn grouped into
policies.These policies can now be associated with the selected Network devices.
Compliance Reports
Once you associate the policies to the devices,you can generate reports on how
compliant the devices are using compliance reports.You can also check the violated
policies and the compliant devices.
REPORTS
NCM Reports
NCM generates reports for many operations.Some
important reports are:
1.Configuration ChangesReport
2.Configuration Change Trend
3.EOL/EOS Report
4.Compliance Report
5.Configuration Analysis Report
6.Security Audit Report
Detailed Reports
NCM generates detailed reports in Pdf format.
Eg:Device Management status Report
Scheduling in NCM
• Scheduling can be done for all operations in NCM.
• Devices to be scheduled are added,Schedule time is specified.
• Notifications are turned on for that Schedule.
Dashboard and Inventory
Dashboard in NCM displays the status of your Network,Inventory consists of the
configuration files in a hierarchical order.

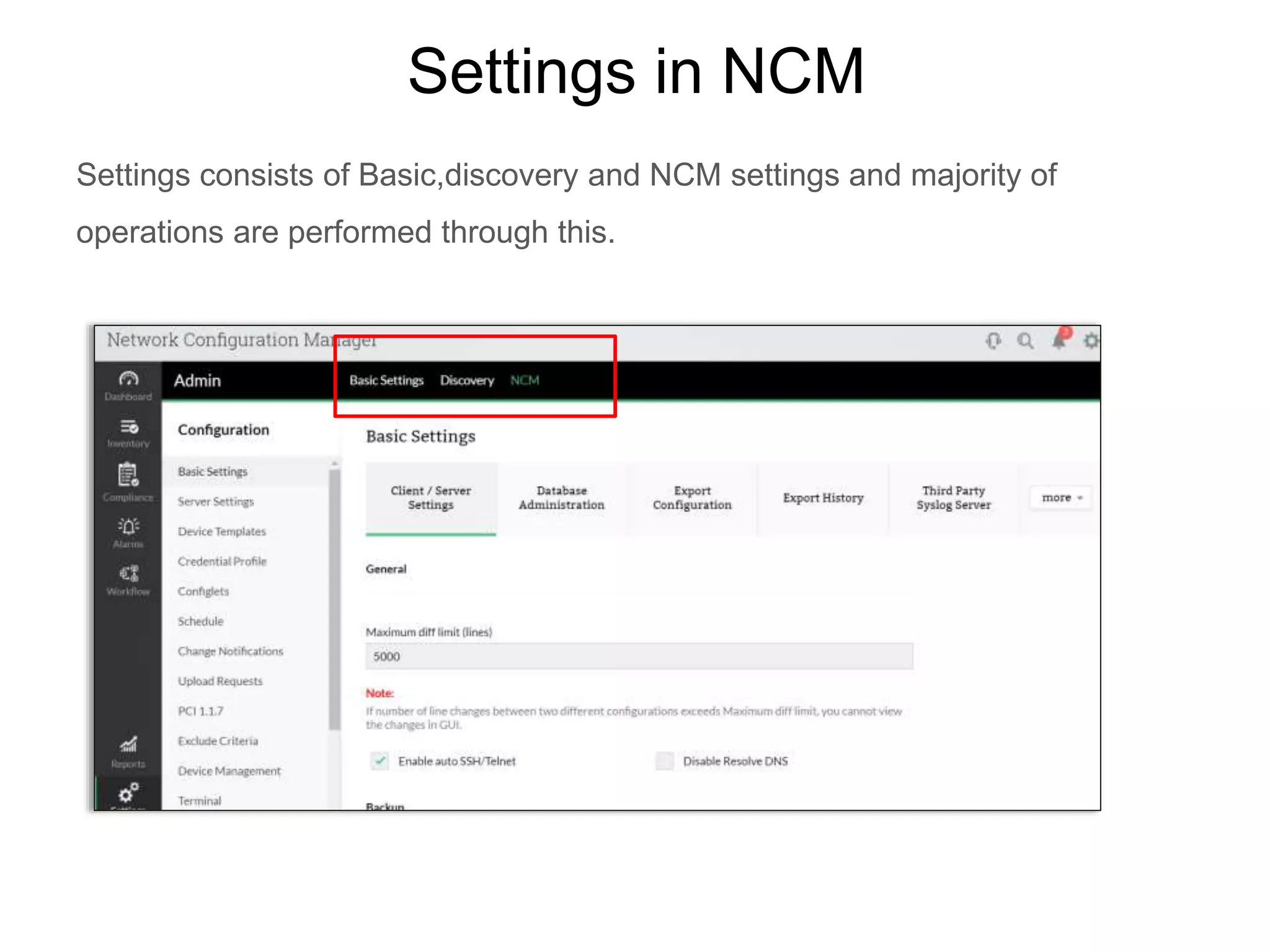

Settings in NCM
Settings consists of Basic,discovery and NCM settings and majority of
operations are performed through this.

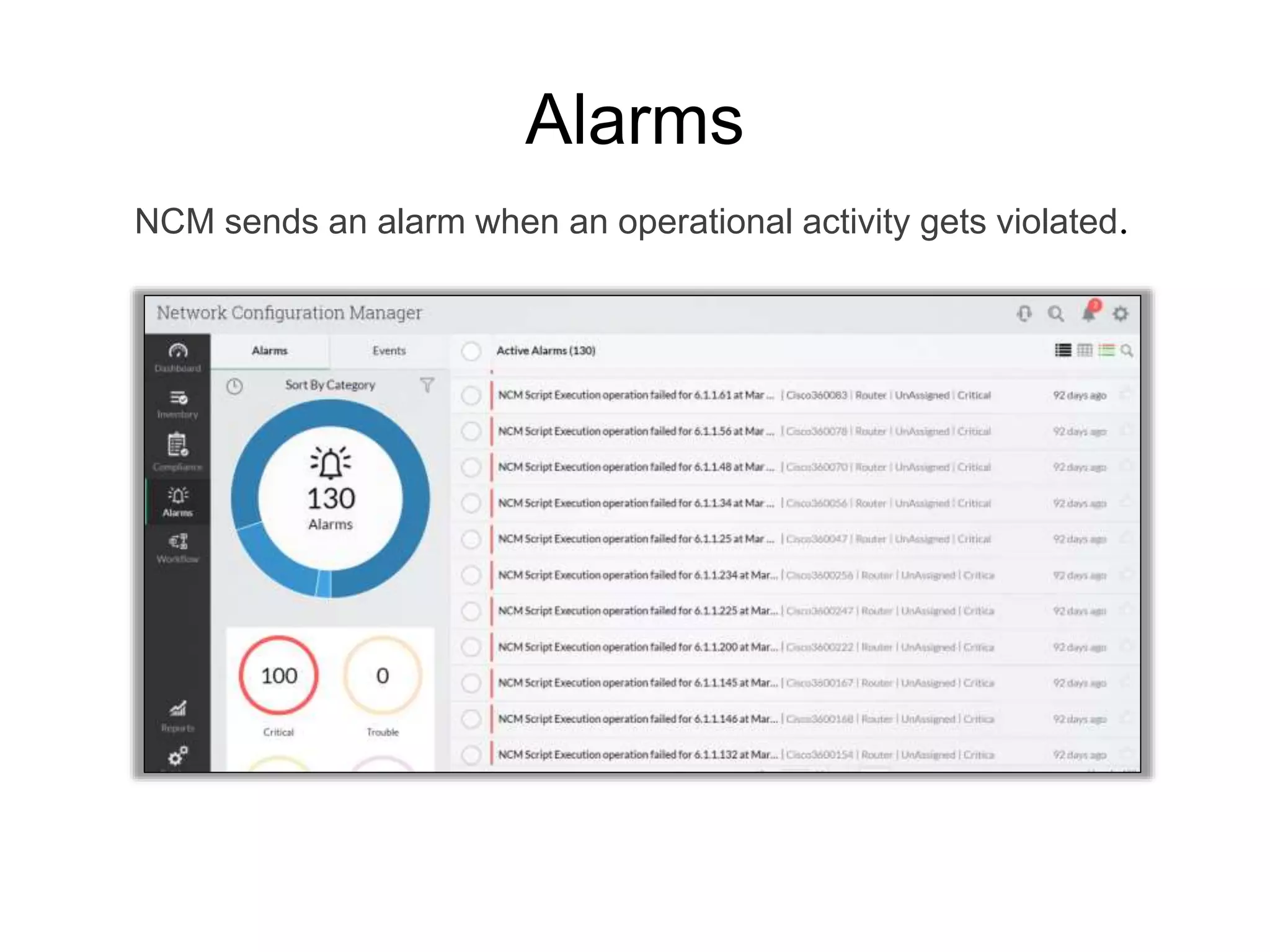

Alarms
NCM sends an alarm when an operational activity gets violated.
Benefits of NCM
User Friendly!
NCM is a user friendly GUI, it makes
the configuration change
management simple and easy with
intuitive dials and graphs.
Simple installation and usage!
NCM is easy to install and it
manages the devices right away.
Transparent Pricing!
NCM comes at an affordable and
transparent pricing based on the number
of devices to be managed.
24x5 Technical Support!
NCM offers 24x5 technical support,
making it easier for customers to gain the
maximum use of the product.
A Complete Package!
It effectively manages many network
devices thus paving way to an efficient
working platform and offers Complete
satisfaction to the clients.
Thank you
!

More Related Content

What's hot

Security in mobile ad hoc networks
Security in mobile ad hoc networksSecurity in mobile ad hoc networks
Security in mobile ad hoc networks
Piyush Mittal

Wireless Sensor Networks
Wireless Sensor NetworksWireless Sensor Networks
Wireless Sensor Networks
rajatmal4


What's hot (20)

Wireless Sensor Networks
Wireless Sensor NetworksWireless Sensor Networks
Wireless Sensor Networks

Wsn routing protocol
Wsn routing protocolWsn routing protocol
Wsn routing protocol

WAP 2.0
WAP 2.0WAP 2.0
WAP 2.0

Security in mobile ad hoc networks
Security in mobile ad hoc networksSecurity in mobile ad hoc networks
Security in mobile ad hoc networks

Wireless Sensor Networks
Wireless Sensor NetworksWireless Sensor Networks
Wireless Sensor Networks

Routing Protocols in WSN
Routing Protocols in WSNRouting Protocols in WSN
Routing Protocols in WSN

Data retrieval in sensor networks
Data retrieval in sensor networksData retrieval in sensor networks
Data retrieval in sensor networks

Wireless Sensor Network Routing Protocols
Wireless Sensor Network Routing ProtocolsWireless Sensor Network Routing Protocols
Wireless Sensor Network Routing Protocols

Network Forensic
Network ForensicNetwork Forensic
Network Forensic

Wireless sensor network
Wireless sensor networkWireless sensor network
Wireless sensor network

mobile ad-hoc network (MANET) and its applications
mobile ad-hoc network (MANET) and its applicationsmobile ad-hoc network (MANET) and its applications
mobile ad-hoc network (MANET) and its applications

WSN NETWORK -MAC PROTOCOLS - Low Duty Cycle Protocols And Wakeup Concepts – ...
WSN NETWORK -MAC PROTOCOLS - Low Duty Cycle Protocols And Wakeup Concepts –  ...WSN NETWORK -MAC PROTOCOLS - Low Duty Cycle Protocols And Wakeup Concepts –  ...
WSN NETWORK -MAC PROTOCOLS - Low Duty Cycle Protocols And Wakeup Concepts – ...

seminar report on wireless Sensor network
seminar report on wireless Sensor networkseminar report on wireless Sensor network
seminar report on wireless Sensor network

Packet sniffers
Packet sniffersPacket sniffers
Packet sniffers

Data aggregation in wireless sensor network
Data aggregation in wireless sensor networkData aggregation in wireless sensor network
Data aggregation in wireless sensor network

Multicast routing protocols in adhoc networks
Multicast routing protocols in adhoc networksMulticast routing protocols in adhoc networks
Multicast routing protocols in adhoc networks

Attacks in MANET
Attacks in MANETAttacks in MANET
Attacks in MANET

Energy efficient routing protocol
Energy efficient routing protocolEnergy efficient routing protocol
Energy efficient routing protocol

wirelss sensor network
wirelss sensor networkwirelss sensor network
wirelss sensor network

WSN network architecture -Sensor Network Scenarios & Transceiver Design Consi...
WSN network architecture -Sensor Network Scenarios & Transceiver Design Consi...WSN network architecture -Sensor Network Scenarios & Transceiver Design Consi...
WSN network architecture -Sensor Network Scenarios & Transceiver Design Consi...


Similar to Overview and features of NCM

Mdop session from Microsoft partner boot camp
Mdop session from Microsoft partner boot campMdop session from Microsoft partner boot camp
Mdop session from Microsoft partner boot camp
Olav Tvedt

Microsoft Offical Course 20410C_12
Microsoft Offical Course 20410C_12Microsoft Offical Course 20410C_12
Microsoft Offical Course 20410C_12
gameaxt


Similar to Overview and features of NCM (20)

SCCM 2019 Demo.pptx
SCCM 2019 Demo.pptxSCCM 2019 Demo.pptx
SCCM 2019 Demo.pptx

Network Configuration Management - Mumbai Seminar
Network Configuration Management - Mumbai SeminarNetwork Configuration Management - Mumbai Seminar
Network Configuration Management - Mumbai Seminar

Understanding firewall-policies-their-effectiveness-in-defending-against-netw...
Understanding firewall-policies-their-effectiveness-in-defending-against-netw...Understanding firewall-policies-their-effectiveness-in-defending-against-netw...
Understanding firewall-policies-their-effectiveness-in-defending-against-netw...

TechNet Live spor 1 sesjon 2 - sc-forefront 2
TechNet Live spor 1   sesjon 2 - sc-forefront 2TechNet Live spor 1   sesjon 2 - sc-forefront 2
TechNet Live spor 1 sesjon 2 - sc-forefront 2

Copy of learn_the_art_of_firewall_security(1)
Copy of learn_the_art_of_firewall_security(1)Copy of learn_the_art_of_firewall_security(1)
Copy of learn_the_art_of_firewall_security(1)

Network Configuration Manager Training - [Season 4] Part 1 - Configuration ba...
Network Configuration Manager Training - [Season 4] Part 1 - Configuration ba...Network Configuration Manager Training - [Season 4] Part 1 - Configuration ba...
Network Configuration Manager Training - [Season 4] Part 1 - Configuration ba...

Autonomic computing.pptx
Autonomic computing.pptxAutonomic computing.pptx
Autonomic computing.pptx

Mdop session from Microsoft partner boot camp
Mdop session from Microsoft partner boot campMdop session from Microsoft partner boot camp
Mdop session from Microsoft partner boot camp

5 Ways NCM Can Save You From A Disaster
5 Ways NCM Can Save You From A Disaster5 Ways NCM Can Save You From A Disaster
5 Ways NCM Can Save You From A Disaster

Itsummit2015 blizzard
Itsummit2015 blizzardItsummit2015 blizzard
Itsummit2015 blizzard

Network Configuration Manager Training - [Season 7] Part 1 - Configuration ba...
Network Configuration Manager Training - [Season 7] Part 1 - Configuration ba...Network Configuration Manager Training - [Season 7] Part 1 - Configuration ba...
Network Configuration Manager Training - [Season 7] Part 1 - Configuration ba...

Configuration management
Configuration managementConfiguration management
Configuration management

Aud5_Chapter-26.pptx
Aud5_Chapter-26.pptxAud5_Chapter-26.pptx
Aud5_Chapter-26.pptx

Microsoft Offical Course 20410C_12
Microsoft Offical Course 20410C_12Microsoft Offical Course 20410C_12
Microsoft Offical Course 20410C_12

Product Information - Fuse Management Central 1.0.0
Product Information - Fuse Management Central 1.0.0Product Information - Fuse Management Central 1.0.0
Product Information - Fuse Management Central 1.0.0

System design
System designSystem design
System design

What's New in NCM 7.2
What's New in NCM 7.2What's New in NCM 7.2
What's New in NCM 7.2

Introduction to Embedded Systems.pptx
Introduction to Embedded Systems.pptxIntroduction to Embedded Systems.pptx
Introduction to Embedded Systems.pptx

Understanding firewall policies and their effectiveness in defending against ...
Understanding firewall policies and their effectiveness in defending against ...Understanding firewall policies and their effectiveness in defending against ...
Understanding firewall policies and their effectiveness in defending against ...

Chapeter 2 introduction to cloud computing
Chapeter 2   introduction to cloud computingChapeter 2   introduction to cloud computing
Chapeter 2 introduction to cloud computing


More from ManageEngine, Zoho Corporation

More from ManageEngine, Zoho Corporation (20)

Create seamless customer experiences
Create seamless customer experiencesCreate seamless customer experiences
Create seamless customer experiences

From web interface to database: Monitor what matters
From web interface to database: Monitor what mattersFrom web interface to database: Monitor what matters
From web interface to database: Monitor what matters

NetFlow Analyzer Free Training Series Part I - May 2020
NetFlow Analyzer Free Training Series Part I - May 2020NetFlow Analyzer Free Training Series Part I - May 2020
NetFlow Analyzer Free Training Series Part I - May 2020

Overcome real-time server and VM monitoring challenges
Overcome real-time server and VM monitoring challengesOvercome real-time server and VM monitoring challenges
Overcome real-time server and VM monitoring challenges

Modernizing Cloud and Hyperconverged Infrastructure monitoring
Modernizing Cloud and Hyperconverged Infrastructure monitoringModernizing Cloud and Hyperconverged Infrastructure monitoring
Modernizing Cloud and Hyperconverged Infrastructure monitoring

Deliver seamless digital experience
Deliver seamless digital experienceDeliver seamless digital experience
Deliver seamless digital experience

Free NetFlow Analyzer training Season 1 Part 2 - Feb 2020
Free NetFlow Analyzer training Season 1 Part 2 - Feb 2020Free NetFlow Analyzer training Season 1 Part 2 - Feb 2020
Free NetFlow Analyzer training Season 1 Part 2 - Feb 2020

From web interface to the database:Monitor all that matters
From web interface to the database:Monitor all that mattersFrom web interface to the database:Monitor all that matters
From web interface to the database:Monitor all that matters

NetFlow Analyzer Training Season 1 Part 1 - Feb 2020 - EST
NetFlow Analyzer Training Season 1 Part 1 - Feb 2020 - ESTNetFlow Analyzer Training Season 1 Part 1 - Feb 2020 - EST
NetFlow Analyzer Training Season 1 Part 1 - Feb 2020 - EST

NetFlow Analyzer Training Season 1 Part 1 - Feb 2020 - GMT
NetFlow Analyzer Training Season 1 Part 1 - Feb 2020 - GMTNetFlow Analyzer Training Season 1 Part 1 - Feb 2020 - GMT
NetFlow Analyzer Training Season 1 Part 1 - Feb 2020 - GMT

NetFlow Analyzer Product Overview
NetFlow Analyzer Product OverviewNetFlow Analyzer Product Overview
NetFlow Analyzer Product Overview

Monitoring cloud applications and hyperconverged infrastructure
Monitoring cloud applications and hyperconverged infrastructureMonitoring cloud applications and hyperconverged infrastructure
Monitoring cloud applications and hyperconverged infrastructure

Building the right website monitoring strategy
Building the right website monitoring strategyBuilding the right website monitoring strategy
Building the right website monitoring strategy

Unlock the value of your big data infrastructure
Unlock the value of your big data infrastructureUnlock the value of your big data infrastructure
Unlock the value of your big data infrastructure

Key to optimal end user experience
Key to optimal end user experienceKey to optimal end user experience
Key to optimal end user experience

Monitoring cloud applications and containers
Monitoring cloud applications and containersMonitoring cloud applications and containers
Monitoring cloud applications and containers

implementing the right website monitoring strategy
 implementing the right website monitoring strategy implementing the right website monitoring strategy
implementing the right website monitoring strategy

Big data and non relational database
Big data and non relational databaseBig data and non relational database
Big data and non relational database

Visibility-from web application interface to the database
Visibility-from web application interface to the databaseVisibility-from web application interface to the database
Visibility-from web application interface to the database

Free OpManager training Part 4 - Monitoring Network Performance and Network Maps
Free OpManager training Part 4 - Monitoring Network Performance and Network MapsFree OpManager training Part 4 - Monitoring Network Performance and Network Maps
Free OpManager training Part 4 - Monitoring Network Performance and Network Maps


Recently uploaded

Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024
Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024
Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024
Victor Rentea

Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider  Progress from Awareness to Implementation.pptxTales from a Passkey Provider  Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
FIDO Alliance


Recently uploaded (20)

DEV meet-up UiPath Document Understanding May 7 2024 Amsterdam
DEV meet-up UiPath Document Understanding May 7 2024 AmsterdamDEV meet-up UiPath Document Understanding May 7 2024 Amsterdam
DEV meet-up UiPath Document Understanding May 7 2024 Amsterdam

WSO2 Micro Integrator for Enterprise Integration in a Decentralized, Microser...
WSO2 Micro Integrator for Enterprise Integration in a Decentralized, Microser...WSO2 Micro Integrator for Enterprise Integration in a Decentralized, Microser...
WSO2 Micro Integrator for Enterprise Integration in a Decentralized, Microser...

ADP Passwordless Journey Case Study.pptx
ADP Passwordless Journey Case Study.pptxADP Passwordless Journey Case Study.pptx
ADP Passwordless Journey Case Study.pptx

Simplifying Mobile A11y Presentation.pptx
Simplifying Mobile A11y Presentation.pptxSimplifying Mobile A11y Presentation.pptx
Simplifying Mobile A11y Presentation.pptx

Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024
Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024
Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024

Exploring Multimodal Embeddings with Milvus
Exploring Multimodal Embeddings with MilvusExploring Multimodal Embeddings with Milvus
Exploring Multimodal Embeddings with Milvus

Choreo: Empowering the Future of Enterprise Software Engineering
Choreo: Empowering the Future of Enterprise Software EngineeringChoreo: Empowering the Future of Enterprise Software Engineering
Choreo: Empowering the Future of Enterprise Software Engineering

Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider  Progress from Awareness to Implementation.pptxTales from a Passkey Provider  Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider Progress from Awareness to Implementation.pptx

Web Form Automation for Bonterra Impact Management (fka Social Solutions Apri...
Web Form Automation for Bonterra Impact Management (fka Social Solutions Apri...Web Form Automation for Bonterra Impact Management (fka Social Solutions Apri...
Web Form Automation for Bonterra Impact Management (fka Social Solutions Apri...

CNIC Information System with Pakdata Cf In Pakistan
CNIC Information System with Pakdata Cf In PakistanCNIC Information System with Pakdata Cf In Pakistan
CNIC Information System with Pakdata Cf In Pakistan

UiPath manufacturing technology benefits and AI overview
UiPath manufacturing technology benefits and AI overviewUiPath manufacturing technology benefits and AI overview
UiPath manufacturing technology benefits and AI overview

Intro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptxIntro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptx

Navigating Identity and Access Management in the Modern Enterprise
Navigating Identity and Access Management in the Modern EnterpriseNavigating Identity and Access Management in the Modern Enterprise
Navigating Identity and Access Management in the Modern Enterprise

Introduction to Multilingual Retrieval Augmented Generation (RAG)
Introduction to Multilingual Retrieval Augmented Generation (RAG)Introduction to Multilingual Retrieval Augmented Generation (RAG)
Introduction to Multilingual Retrieval Augmented Generation (RAG)

ChatGPT and Beyond - Elevating DevOps Productivity
ChatGPT and Beyond - Elevating DevOps ProductivityChatGPT and Beyond - Elevating DevOps Productivity
ChatGPT and Beyond - Elevating DevOps Productivity

Top 10 CodeIgniter Development Companies
Top 10 CodeIgniter Development CompaniesTop 10 CodeIgniter Development Companies
Top 10 CodeIgniter Development Companies

WSO2's API Vision: Unifying Control, Empowering Developers
WSO2's API Vision: Unifying Control, Empowering DevelopersWSO2's API Vision: Unifying Control, Empowering Developers
WSO2's API Vision: Unifying Control, Empowering Developers

Introduction to use of FHIR Documents in ABDM
Introduction to use of FHIR Documents in ABDMIntroduction to use of FHIR Documents in ABDM
Introduction to use of FHIR Documents in ABDM

TEST BANK For Principles of Anatomy and Physiology, 16th Edition by Gerard J....
TEST BANK For Principles of Anatomy and Physiology, 16th Edition by Gerard J....TEST BANK For Principles of Anatomy and Physiology, 16th Edition by Gerard J....
TEST BANK For Principles of Anatomy and Physiology, 16th Edition by Gerard J....

Corporate and higher education May webinar.pptx
Corporate and higher education May webinar.pptxCorporate and higher education May webinar.pptx
Corporate and higher education May webinar.pptx


Overview and features of NCM

  • 2. Why do you need NCM? Network configuration Manager(NCM) is a tool that controls the entire life cycle of device configuration management by managing and changing configurations,compliances etc, in routers,switches,firewall and other network devices. The 5 magical words to keep your network devices under check: CONFIGURATION BACKUP CONFIGURATION CHANGE MANAGEMENT CONFIGLETS MANAGING COMPLIANCE REPORTS N C M
  • 3. Discovering and Adding devices in NCM Devices can be discovered in NCM using one of the three ways: Device Discovery,Manual Addition,Import file. DEVICE DISCOVERY: Devices can be discovered by giving the IP address of any networking device. Steps: 1.Go to settings-> Discovery,under discovery, Add the IP address and IP Range,then the Devices will be discovered. A CSV import file can also be used while discovering.
  • 4. Adding Devices and Applying Credentials It is mandatory to specify the snmp credentials for communication,in order to discover and add devices in the inventory.
  • 5. Manual Addition Another way of adding device is by clicking the Icon on the top right of inventory.This opens a box that requires the user to add a device. Give the necessary Hostname/IP address to add the device.
  • 6. Import File Devices can be added without giving credentials,by just knowing the device’s Host name/Ip Address and the device template name,Series and it’s model.The file containing this can be imported.
  • 7. Applying Credentials Now,let us apply credentials.Credentials can be applied By clicking on all the devices that needs to be configured after the devices get added to the Inventory.
  • 8. Start managing the network devices right after the device you discover gets added to the Inventory!
  • 10. WHY YOU NEED TO BACKUP? Backing up helps to: • Prevent Loss of data due to a disaster/Network outage • Prevent Starting a configuration from scratch • Compare two configurations Backup can be done in 3 ways: • Manual backups • Scheduled backups • Syslog based automatic backup The Backup status of every configuration is updated after every backup.
  • 11. Manual and Syslog based automatic backups Manual backup: Selecting the devices and backing up the devices manually. Syslog based automatic backup:When a user makes changes in a device configuration, syslog notifications are received for the actions performed and backup will be taken.
  • 12. Scheduled Backups • NCM offers scheduled backups,where one can set up a specific time to backup configurations • Hourly,daily,weekly,monthly scheduled backing up is possible • Automatically starts backing up at the given time and sends Email notifications
  • 13. Baseline Configuration A baseline version is the best among all configuration versions and 1.Can be used as a configuration after an unexpected network outage. 2.Can be used to compare with the latest configurations to see the changes made and to check for difference between the baseline and other configurations.
  • 15. REAL TIME CHANGE DETECTION(RTCD) Any change made in a configuration of any network device triggers automatic backup of that device by RTCD. BENEFITS: • Get notification on who made the change • Get Time and date of change • Immediate configuration back up after the changes are saved
  • 16. Working of “Enabling Change Detection” When “Enabling Change Detection” is given • NCM tracks it when a User logs in/logs out • Tracks the changes made and Takes a backup after the User logs out • Compares the backup with the current version and in the event of no change,backup gets discarded and when there is a change,a backup will be stored in Database. • Syslog messages are received for every action the user performs on the device
  • 17. COMPARING CONFIGURATIONS Comparison can be done between any type of configurations,any two devices(working and non-working) also. The image given below shows a comparison of all the changes made between a running and a startup configuration.
  • 18. ROLE-BASED ACCESS CONTROL (RBAC) NCM offers access to three types of users to prevent misusing of data • Administrator:Permission to access all devices/make changes • Rstricted admin(power user):Permission to access specific devices/make changes,cannot add or delete other devices. • Operator:Limited permission and should wait for approval from power user or the admin,to upload or make changes in the device. Editing and Uploading drafts:After the admin approves the change made by user,it gets uploaded and backups are taken but an admin can upload them directly.
  • 20. Configlets and its Uses Configlets are script templates that can be executed in multiple devices at one go. BENEFITS: • Configlets are available as templates and can be added manually in 3 modes-File transfer,script execution,Advanced script execution modes • Helps to fix malfunctioning devices at one go • Helps to execute sequence of commands in many devices at one go TEMPLATES:
  • 21. Manual Addition of Configlets FILE TRANSFER MODE The advantage of using file transfer mode is,it allows the user to upload the same configuration in many devices at one go.
  • 22. Script Execution Mode Helps in: • Executing basic trouble shooting commands • Changing passwords,banners • Enabling/Disabling SNMP Example:Selecting a particular network device and Executing it in script execution mode changes the password of all the devices associated.
  • 23. Advanced Script Execution Mode This mode is used when: 1.There is a change of prompt after command execution 2.A command requires a prompt user confirmation 3.There is a delay in response after command execution. Example:In the given example,the command will be executed after a particular prompt and the timeout is also set.
  • 24. Executing The Configlets • After modifying the configlets,they are executed by applying the configlets on the respective devices and execution results can be checked in the“execution history”. • After creating the configlets,they can be added to “snapshots” for easy access.
  • 26. Why is compliance necessary? Benefits: • They help to avoid vulnerabilities • Avoids loop holes in a network • Avoids legal consequences Default compliance policies: Cisco IoS policy,HIPAA,SOX,PCI.
  • 27. Custom Policies Custom policies can be added by: • Creating a custom rule • Grouping the custom rules to create a rule group • Grouping rule groups to create policies Custom rule is added based on 3 criteria: • Simple criteria • Advanced criteria • Advanced custom criteria
  • 28. Simple Criteria with an Example Uses of simple Criteria: • Checking for any line in a configuration • Should/Should not contain exact set • The number of times the line has to appear Example:In the given example the word “Public” is checked .
  • 29. Advanced Criteria with an Example This is used to check for a particular line,in a configuration using complex Regular expressions. Supports: • AND/OR • Patterns Example:Pattern Search is implemented.
  • 30. Advanced Custom Criteria with an Example This is used when you want to run a compliance check in particular sections of the configuration file.Along with the features of Advanced Criteria it also supports: 1.Block criteria(specifies the beginning and ending of the block) 2.Additional block criteria Example:In this example,we are defining the blocks for NCM to run the compliance check only on the interfaces that are not “shut down”
  • 31. Remediation Template Remediation Templates are used when a particular rule is violated during Compliance check.In case of violation,remediation templates are used to fix the issue. Eg:While checking for “public” in snmp,if it finds a word “public” in any configuration,this remediation template can be used to fix.
  • 32. Creating Rule groups and Policies The custom rules are grouped into rule groups which are in turn grouped into policies.These policies can now be associated with the selected Network devices.
  • 33. Compliance Reports Once you associate the policies to the devices,you can generate reports on how compliant the devices are using compliance reports.You can also check the violated policies and the compliant devices.
  • 35. NCM Reports NCM generates reports for many operations.Some important reports are: 1.Configuration ChangesReport 2.Configuration Change Trend 3.EOL/EOS Report 4.Compliance Report 5.Configuration Analysis Report 6.Security Audit Report
  • 36. Detailed Reports NCM generates detailed reports in Pdf format. Eg:Device Management status Report
  • 37. Scheduling in NCM • Scheduling can be done for all operations in NCM. • Devices to be scheduled are added,Schedule time is specified. • Notifications are turned on for that Schedule.
  • 38. Dashboard and Inventory Dashboard in NCM displays the status of your Network,Inventory consists of the configuration files in a hierarchical order.
  • 39. Settings in NCM Settings consists of Basic,discovery and NCM settings and majority of operations are performed through this.
  • 40. Alarms NCM sends an alarm when an operational activity gets violated.
  • 41. Benefits of NCM User Friendly! NCM is a user friendly GUI, it makes the configuration change management simple and easy with intuitive dials and graphs.
  • 42. Simple installation and usage! NCM is easy to install and it manages the devices right away.
  • 43. Transparent Pricing! NCM comes at an affordable and transparent pricing based on the number of devices to be managed.
  • 44. 24x5 Technical Support! NCM offers 24x5 technical support, making it easier for customers to gain the maximum use of the product.
  • 45. A Complete Package! It effectively manages many network devices thus paving way to an efficient working platform and offers Complete satisfaction to the clients.
