Monitoring cloud applications and containers
- 1. Monitoring cloud applicationsand containers

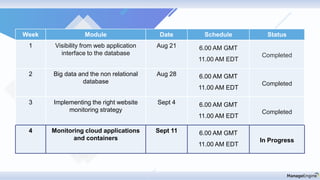

- 2. Week Module DateSchedule Status 1 Visibility from web application interface to the database Aug 21 6.00 AM GMT 11.00 AM EDT Completed 2 Big data and the non relational database Aug 28 6.00 AM GMT 11.00 AM EDT Completed 3 Implementing the right website monitoring strategy Sept 4 6.00 AM GMT 11.00 AM EDT Completed 4 Monitoring cloud applications and containers Sept 11 6.00 AM GMT 11.00 AM EDT In Progress
- 3. Monitoring cloud applicationsand containers

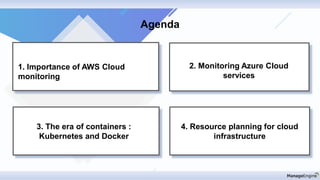

- 4. Agenda 1. Importance ofAWS Cloud monitoring 2. Monitoring Azure Cloud services 3. The era of containers : Kubernetes and Docker 4. Resource planning for cloud infrastructure
- 5.

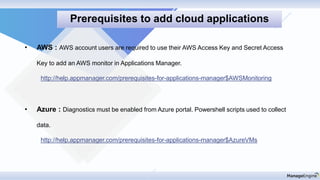

- 6. • AWS :AWS account users are required to use their AWS Access Key and Secret Access Key to add an AWS monitor in Applications Manager. http://help.appmanager.com/prerequisites-for-applications-manager$AWSMonitoring • Azure : Diagnostics must be enabled from Azure portal. Powershell scripts used to collect data. http://help.appmanager.com/prerequisites-for-applications-manager$AzureVMs Prerequisites to add cloud applications

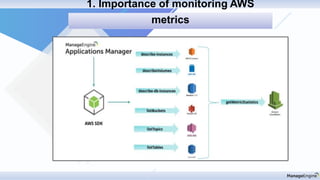

- 7. Discovery & mapping1.Importance of monitoring AWS metrics
- 8. • Visualize performancemetrics of : • Amazon Elastic Compute Cloud (EC2) • Amazon Relational Database Service (RDS) • Amazon DynamoDB • Amazon Simple Notification Service (SNS) • Amazon Elastic Load Balancer • Amazon Billing • Diagnosing the root cause of performance issues AWS monitoring

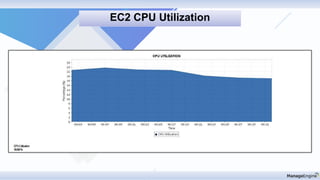

- 9.

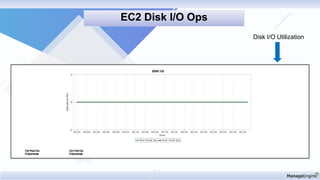

- 10. Disk I/O Utilization EC2Disk I/O Ops
- 11. Monitored metrics: Network IN/Out EC2Network Traffic

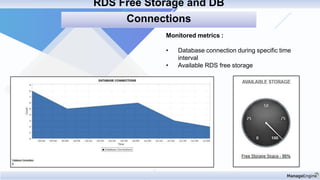

- 12. Monitored metrics : •Database connection during specific time interval • Available RDS free storage RDS Free Storage and DB Connections
- 13. Monitored metrics: • Read Latency/sec •Write Latency/sec RDS I/O Latency

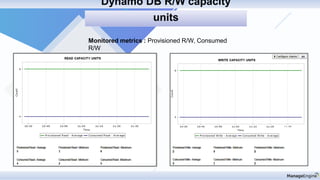

- 14. Monitored metrics :Provisioned R/W, Consumed R/W Dynamo DB R/W capacity units
- 15.

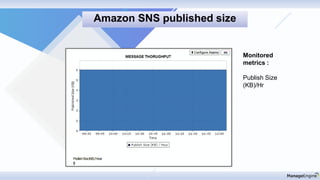

- 16. Monitored metrics : Publish Size (KB)/Hr AmazonSNS published size

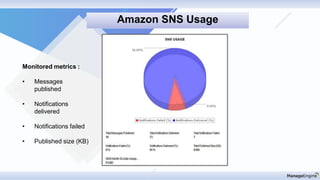

- 17. Monitored metrics : •Messages published • Notifications delivered • Notifications failed • Published size (KB) Amazon SNS Usage

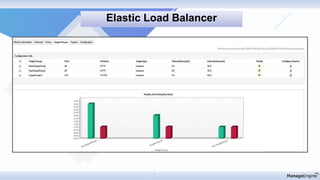

- 18.

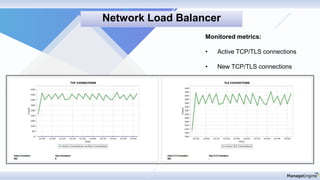

- 19. Network Load Balancer Monitoredmetrics: • Active TCP/TLS connections • New TCP/TLS connections
- 20.

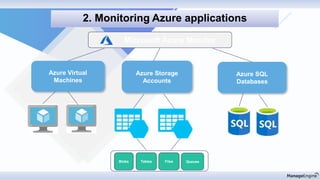

- 21. Discovery & mapping 2.Monitoring Azure applications Microsoft Azure Monitor Azure Virtual Machines Azure Storage Accounts Azure SQL Databases Blobs Tables Files Queues
- 22. • Visualize performancemetrics of : • Azure Virtual Machines • Azure Storage Account • Azure SQL DB • Configure alarms for critical metrics • Diagnosing the root cause of performance issues Azure Monitoring

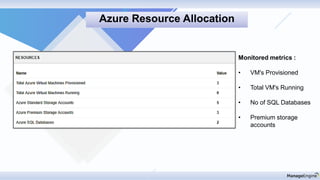

- 23. Monitored metrics : •VM's Provisioned • Total VM's Running • No of SQL Databases • Premium storage accounts Azure Resource Allocation

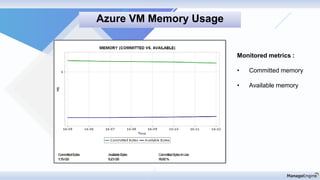

- 24. Monitored metrics : •Committed memory • Available memory Azure VM Memory Usage

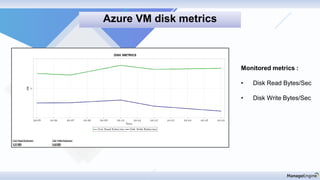

- 25. Monitored metrics : •Disk Read Bytes/Sec • Disk Write Bytes/Sec Azure VM disk metrics

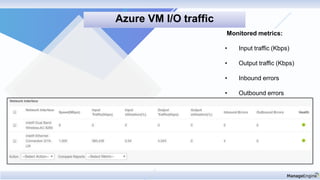

- 26. Monitored metrics: • Inputtraffic (Kbps) • Output traffic (Kbps) • Inbound errors • Outbound errors Azure VM I/O traffic

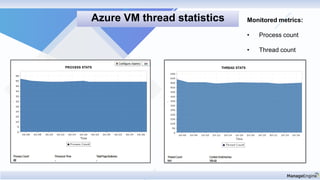

- 27. Monitored metrics: • Processcount • Thread count Azure VM thread statistics

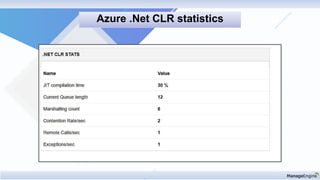

- 28. Azure .Net CLRstatistics

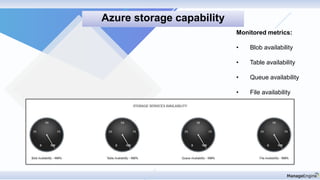

- 29. Monitored metrics: • Blobavailability • Table availability • Queue availability • File availability Azure storage capability
- 30. Monitored metrics: • Averageend-to-end latency • Average server latency Azure storage Latency
- 31. Monitored metrics: • Blobtotal ingress • Blob total Egress • Blob total requests • Blob total billable requests • Blobs data collected time Azure storage throughput

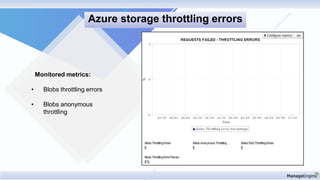

- 32. Monitored metrics: • Blobsthrottling errors • Blobs anonymous throttling Azure storage throttling errors

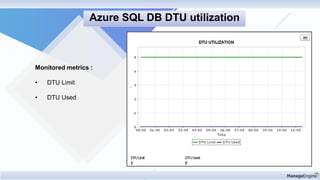

- 33. Monitored metrics : •DTU Limit • DTU Used Azure SQL DB DTU utilization
- 34.

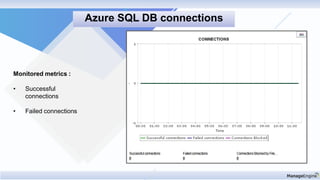

- 35. Monitored metrics : •Successful connections • Failed connections Azure SQL DB connections
- 36. Discovery & mappin 3.The era of containers: Docker and Kubernetes

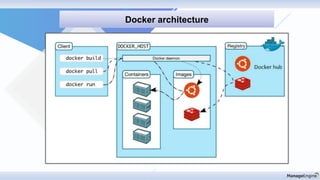

- 37. Discovery & mappin Dockerarchitecture

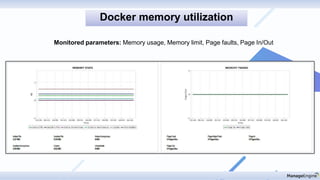

- 38. Docker memory utilization Monitoredparameters: Memory usage, Memory limit, Page faults, Page In/Out

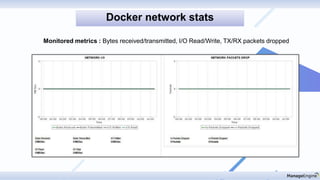

- 39. Monitored metrics :Bytes received/transmitted, I/O Read/Write, TX/RX packets dropped Docker network stats
- 40. Discovery & mappin Kubernetesarchitecture

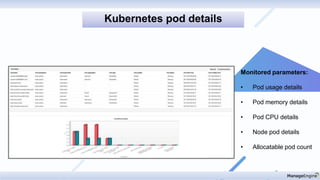

- 41. Kubernetes pod details Monitoredparameters: • Pod usage details • Pod memory details • Pod CPU details • Node pod details • Allocatable pod count
- 42. Kubernetes nodes andresource consumption Monitored metrics : Allocatable memory, Node memory limit, Node memory request, CPU details

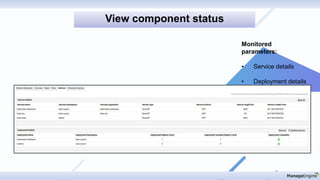

- 43. View component status Monitored parameters: •Service details • Deployment details
- 44. 4. Resource planningfor cloud infrastructure

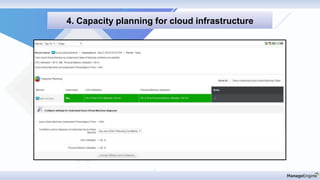

- 45. 4. Capacity planningfor cloud infrastructure
- 46. Forecast by growthtrend

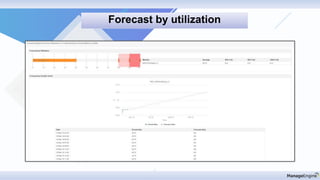

- 47.
- 48. Drop us aline at: Support appmanager-support@manageengine.com Eval eval-apm@manageengine.com Online Demo demo.appmanager.com Quick Recap: • Importance of monitoring AWS metrics • Monitoring Azure cloud services. • The era of containers : Docker and Kubernetes. • Resource planning for Cloud infrastructure.
- 49.
