- 1. #ATM16 WLAN Design 101: Fundamentalsin the Campus Introduction to WLAN design Peter Lane, Director Product Management @ArubaNetworks |
- 2.
- 3.
- 4. 4#ATM16 Airheads Community inQ1 16 • New Members: 2645, 103% YoY • Page Views (Human): 1.45M, 23.5% YoY • Accepted Solution Views: 335K, 62.6% YoY • Knowledge Base Views: 275.7K, 124% YoY • 41,000+ Members • 10,000+ New Members in 2015 • 7000+ Accepted Solutions • 30,000+ Kudos Given • 6000+ Knowledge Base Articles • 115,000+ Total Forum Posts • 170+ Countries Represented

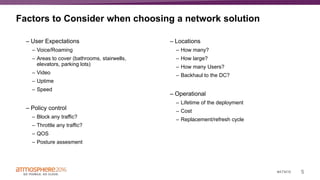

- 5. 5#ATM16 Factors to Considerwhen choosing a network solution – User Expectations – Voice/Roaming – Areas to cover (bathrooms, stairwells, elevators, parking lots) – Video – Uptime – Speed – Policy control – Block any traffic? – Throttle any traffic? – QOS – Posture assesment – Locations – How many? – How large? – How many Users? – Backhaul to the DC? – Operational – Lifetime of the deployment – Cost – Replacement/refresh cycle

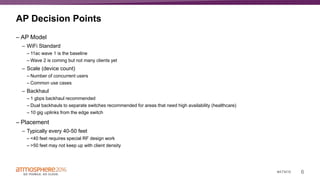

- 6. 6#ATM16 AP Decision Points –AP Model – WiFi Standard – 11ac wave 1 is the baseline – Wave 2 is coming but not many clients yet – Scale (device count) – Number of concurrent users – Common use cases – Backhaul – 1 gbps backhaul recommended – Dual backhauls to separate switches recommended for areas that need high availability (healthcare) – 10 gig uplinks from the edge switch – Placement – Typically every 40-50 feet – <40 feet requires special RF design work – >50 feet may not keep up with client density

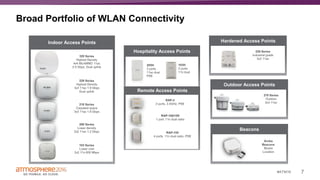

- 7. 7#ATM16 Broad Portfolio ofWLAN Connectivity Beacons Hospitality Access Points Remote Access Points Indoor Access Points Outdoor Access Points Hardened Access Points Broad Portfolio of WLAN Connectivity

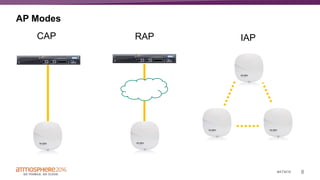

- 8.

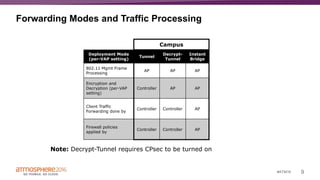

- 9. 9#ATM16 Forwarding Modes andTraffic Processing Campus Remote Deployment Mode (per-VAP setting) Tunnel Decrypt- Tunnel Bridge Tunnel Decrypt- Tunnel Split- Tunnel Bridge 802.11 Mgmt Frame Processing AP AP AP AP AP AP AP Encryption and Decryption (per-VAP setting) Controller AP AP Controller AP AP AP Client Traffic Forwarding done by Controller Controller AP Controller Controller AP AP Firewall policies applied by Controller Controller AP Controller Controller AP AP Note: Decrypt-Tunnel requires CPsec to be turned on Campus Deployment Mode (per-VAP setting) Tunnel Decrypt- Tunnel Instant Bridge 802.11 Mgmt Frame Processing AP AP AP Encryption and Decryption (per-VAP setting) Controller AP AP Client Traffic Forwarding done by Controller Controller AP Firewall policies applied by Controller Controller AP

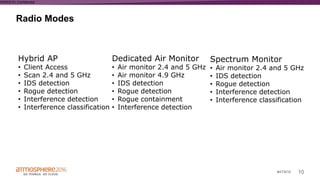

- 10. 10#ATM16 Radio Modes WWAS16 |Confidential Hybrid AP • Client Access • Scan 2.4 and 5 GHz • IDS detection • Rogue detection • Interference detection • Interference classification Dedicated Air Monitor • Air monitor 2.4 and 5 GHz • Air monitor 4.9 GHz • IDS detection • Rogue detection • Rogue containment • Interference detection Spectrum Monitor • Air monitor 2.4 and 5 GHz • IDS detection • Rogue detection • Interference detection • Interference classification

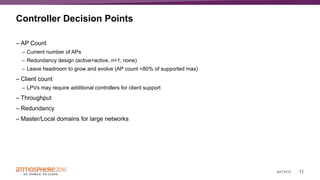

- 11. 11#ATM16 Controller Decision Points –AP Count – Current number of APs – Redundancy design (active+active, n+1, none) – Leave headroom to grow and evolve (AP count <80% of supported max) – Client count – LPVs may require additional controllers for client support – Throughput – Redundancy – Master/Local domains for large networks

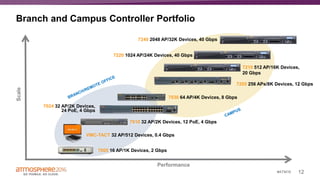

- 12. 12#ATM16 Branch and CampusController Portfolio Performance Scale 7005 16 AP/1K Devices, 2 Gbps 7010 32 AP/2K Devices, 12 PoE, 4 Gbps 7030 64 AP/4K Devices, 8 Gbps 7210 512 AP/16K Devices, 20 Gbps 7205 256 APs/8K Devices, 12 Gbps 7220 1024 AP/24K Devices, 40 Gbps 7024 32 AP/2K Devices, 24 PoE, 4 Gbps VMC-TACT 32 AP/512 Devices, 0.4 Gbps 7240 2048 AP/32K Devices, 40 Gbps

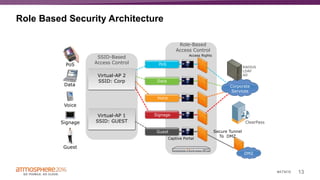

- 13. 13#ATM16 Role Based SecurityArchitecture Corporate Services Signage Voice Data PoS Virtual-AP 2 SSID: Corp Virtual-AP 1 SSID: GUEST DMZ ClearPass Guest Captive Portal Role-Based Access Control Access Rights Secure Tunnel To DMZ SSID-Based Access ControlPoS Data Voice Signage Guest RADIUS LDAP AD

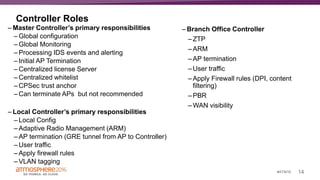

- 14. 14#ATM16 Controller Roles – MasterController’s primary responsibilities – Global configuration – Global Monitoring – Processing IDS events and alerting – Initial AP Termination – Centralized license Server – Centralized whitelist – CPSec trust anchor – Can terminate APs but not recommended – Local Controller’s primary responsibilities – Local Config – Adaptive Radio Management (ARM) – AP termination (GRE tunnel from AP to Controller) – User traffic – Apply firewall rules – VLAN tagging – Branch Office Controller – ZTP – ARM – AP termination – User traffic – Apply Firewall rules (DPI, content filtering) – PBR – WAN visibility
- 15. 15#ATM16 Large Campus WWAS16 |Confidential – Definition – Large number of buildings (3 – 500+) – Large number of users (2,000+) – Good backhaul between buildings. 10 gig or higher depending on building type and device usage – Universities, Healthcare, Global HQs, etc. – Typical Deployment – Centralized controllers. – Master/Local Architecture – . Up to 15k APs, 150k users in one master local domain – If you need to have multiple master/locals, break it based on natural RF dead zones – DHCP controller discovery – AP fast failover: Acitve:Active – VRRP for LMS IP, centralized licensing master/backup and Master controller Master/backup master
- 16.

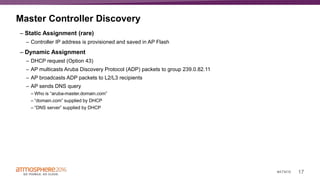

- 17. 17#ATM16 Master Controller Discovery –Static Assignment (rare) – Controller IP address is provisioned and saved in AP Flash – Dynamic Assignment – DHCP request (Option 43) – AP multicasts Aruba Discovery Protocol (ADP) packets to group 239.0.82.11 – AP broadcasts ADP packets to L2/L3 recipients – AP sends DNS query – Who is “aruba-master.domain.com” – “domain.com” supplied by DHCP – “DNS server” supplied by DHCP

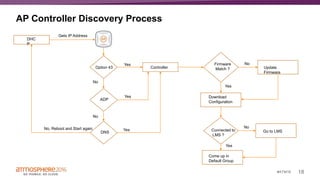

- 18. 18#ATM16 AP Controller DiscoveryProcess DHC P Gets IP Address Option 43 Controller Yes ADP Yes No DNS No YesNo, Reboot and Start again Firmware Match ? Download Configuration Update Firmware No Yes Connected to LMS ? Come up in Default Group Yes Go to LMS No

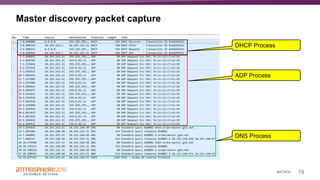

- 19. 19#ATM16 Master discovery packetcapture DHCP Process ADP Process DNS Process

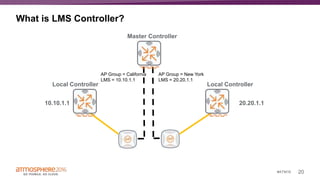

- 20. 20#ATM16 What is LMSController? Master Controller Local Controller Local Controller AP Group = New York LMS = 20.20.1.1 10.10.1.1 20.20.1.1 AP Group = California LMS = 10.10.1.1

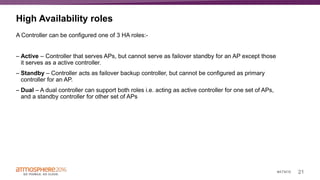

- 21. 21#ATM16 High Availability roles AController can be configured one of 3 HA roles:- – Active – Controller that serves APs, but cannot serve as failover standby for an AP except those it serves as a active controller. – Standby – Controller acts as failover backup controller, but cannot be configured as primary controller for an AP. – Dual – A dual controller can support both roles i.e. acting as active controller for one set of APs, and a standby controller for other set of APs

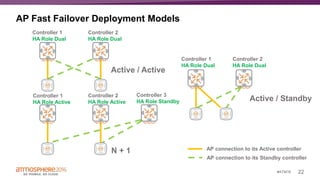

- 22. 22#ATM16 AP Fast FailoverDeployment Models Controller 1 HA Role Dual Controller 2 HA Role Dual Controller 1 HA Role Active Controller 1 HA Role Dual Controller 2 HA Role Active Controller 2 HA Role Dual Controller 3 HA Role Standby Active / Active Active / Standby N + 1 AP connection to its Active controller AP connection to its Standby controller
- 23. 23#ATM16 AP Fast Failover– AOS 6.4 – Inter Controller Heartbeat – Client state sync – N+1 Oversubscription

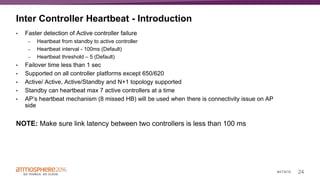

- 24. 24#ATM16 Inter Controller Heartbeat- Introduction • Faster detection of Active controller failure – Heartbeat from standby to active controller – Heartbeat interval - 100ms (Default) – Heartbeat threshold – 5 (Default) • Failover time less than 1 sec • Supported on all controller platforms except 650/620 • Active/ Active, Active/Standby and N+1 topology supported • Standby can heartbeat max 7 active controllers at a time • AP’s heartbeat mechanism (8 missed HB) will be used when there is connectivity issue on AP side NOTE: Make sure link latency between two controllers is less than 100 ms

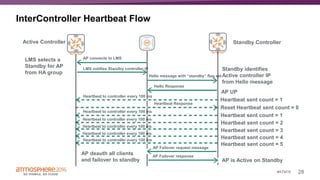

- 25. 28#ATM16 InterController Heartbeat Flow ActiveController Standby Controller LMS selects a Standby for AP from HA group AP connects to LMS LMS notifies Standby controller IP Hello message with “standby” flag set Hello Response Heartbeat to controller every 100 ms Heartbeat to controller every 100 ms Heartbeat to controller every 100 ms Heartbeat to controller every 100 ms Heartbeat to controller every 100 ms Heartbeat to controller every 100 ms Heartbeat Response AP Failover request message AP Failover response AP is Active on Standby AP deauth all clients and failover to standby Standby identifies Active controller IP from Hello message AP UP Heartbeat sent count = 1 Heartbeat sent count = 1 Heartbeat sent count = 2 Heartbeat sent count = 3 Heartbeat sent count = 4 Heartbeat sent count = 5 Reset Heartbeat sent count = 0

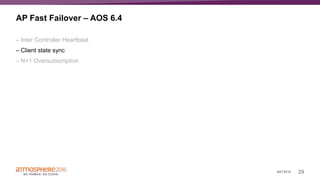

- 26. 29#ATM16 AP Fast Failover– AOS 6.4 – Inter Controller Heartbeat – Client state sync – N+1 Oversubscription
- 27. 30#ATM16 Client State Sync- Introduction • PMKID, Role and Vlan synced between controllers • Controllers sync keys through IPSec tunnel • Supported on 72xx, M3 and 3600 controllers • Supported on Active : Active, Active : Standby and Master : Standby Master topology • NOT supported for N+1 over subscription model

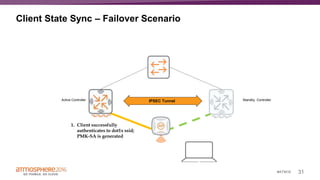

- 28. 31#ATM16 Client State Sync– Failover Scenario Active Controller Standby ControllerIPSEC Tunnel 1. Client successfully authenticates to dot1x ssid; PMK-SA is generated

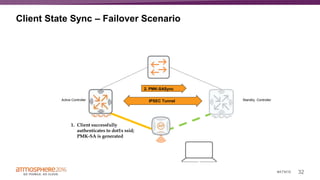

- 29. 32#ATM16 Client State Sync– Failover Scenario Active Controller Standby ControllerIPSEC Tunnel 1. Client successfully authenticates to dot1x ssid; PMK-SA is generated 2. PMK-SASync

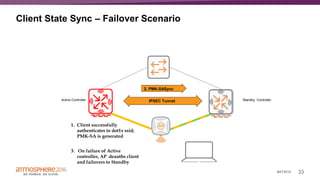

- 30. 33#ATM16 Client State Sync– Failover Scenario Active Controller Standby ControllerIPSEC Tunnel 1. Client successfully authenticates to dot1x ssid; PMK-SA is generated 2. PMK-SASync 3. On failure of Active controller, AP deauths client and failovers to Standby

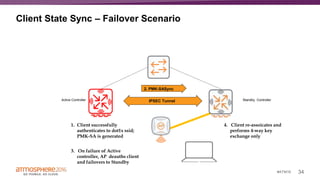

- 31. 34#ATM16 Client State Sync– Failover Scenario Active Controller Standby ControllerIPSEC Tunnel 1. Client successfully authenticates to dot1x ssid; PMK-SA is generated 2. PMK-SASync 3. On failure of Active controller, AP deauths client and failovers to Standby 4. Client re-assoicates and performs 4-way key exchange only

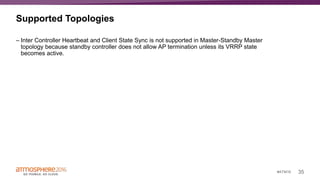

- 32. 35#ATM16 Supported Topologies – InterController Heartbeat and Client State Sync is not supported in Master-Standby Master topology because standby controller does not allow AP termination unless its VRRP state becomes active.

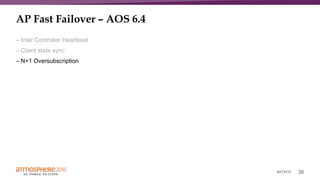

- 33. 36#ATM16 AP Fast Failover– AOS 6.4 – Inter Controller Heartbeat – Client state sync – N+1 Oversubscription

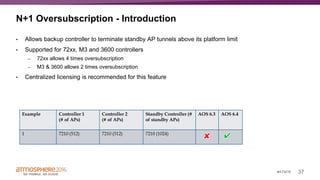

- 34. 37#ATM16 N+1 Oversubscription -Introduction • Allows backup controller to terminate standby AP tunnels above its platform limit • Supported for 72xx, M3 and 3600 controllers – 72xx allows 4 times oversubscription – M3 & 3600 allows 2 times oversubscription • Centralized licensing is recommended for this feature Example Controller 1 (# of APs) Controller 2 (# of APs) Standby Controller (# of standby APs) AOS 6.3 AOS 6.4 1 7210 (512) 7210 (512) 7210 (1024)

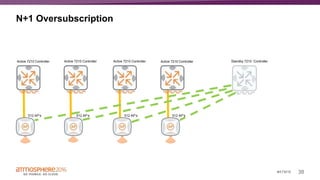

- 35. 38#ATM16 N+1 Oversubscription Active 7210Controller Active 7210 Controller Standby 7210 ControllerActive 7210 Controller 512 AP’s 512 AP’s 512 AP’s 512 AP’s Active 7210 Controller
- 36. 39#ATM16 N+1 Oversubscription Active 7210Controller Active 7210 Controller Standby 7210 ControllerActive 7210 Controller 512 AP’s 512 AP’s 512 AP’s 512 AP’s Active 7210 Controller 512 AP’s

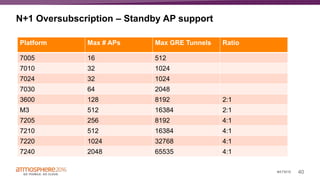

- 37. 40#ATM16 N+1 Oversubscription –Standby AP support Platform Max # APs Max GRE Tunnels Ratio 7005 16 512 7010 32 1024 7024 32 1024 7030 64 2048 3600 128 8192 2:1 M3 512 16384 2:1 7205 256 8192 4:1 7210 512 16384 4:1 7220 1024 32768 4:1 7240 2048 65535 4:1

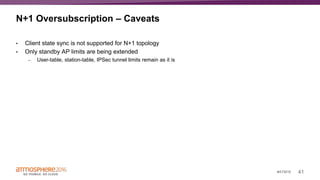

- 38. 41#ATM16 N+1 Oversubscription –Caveats • Client state sync is not supported for N+1 topology • Only standby AP limits are being extended – User-table, station-table, IPSec tunnel limits remain as it is

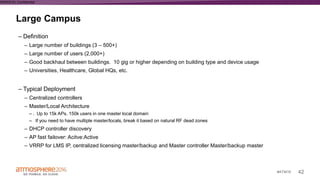

- 39. 42#ATM16 Large Campus WWAS16 |Confidential – Definition – Large number of buildings (3 – 500+) – Large number of users (2,000+) – Good backhaul between buildings. 10 gig or higher depending on building type and device usage – Universities, Healthcare, Global HQs, etc. – Typical Deployment – Centralized controllers – Master/Local Architecture – . Up to 15k APs, 150k users in one master local domain – If you need to have multiple master/locals, break it based on natural RF dead zones – DHCP controller discovery – AP fast failover: Acitve:Active – VRRP for LMS IP, centralized licensing master/backup and Master controller Master/backup master

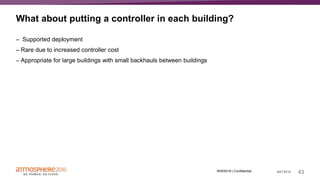

- 40. 43#ATM16 What about puttinga controller in each building? – Supported deployment – Rare due to increased controller cost – Appropriate for large buildings with small backhauls between buildings WWAS16 | Confidential

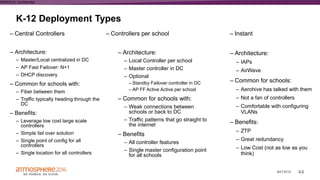

- 41. 44#ATM16 K-12 Deployment Types –Central Controllers – Architecture: – Master/Local centralized in DC – AP Fast Failover: N+1 – DHCP discovery – Common for schools with: – Fiber between them – Traffic typically heading through the DC – Benefits: – Leverage low cost large scale controllers – Simple fail over solution – Single point of config for all controllers – Single location for all controllers – Controllers per school – Architecture: – Local Controller per school – Master controller in DC – Optional – Standby Failover controller in DC – AP FF Active Active per school – Common for schools with: – Weak connections between schools or back to DC – Traffic patterns that go straight to the internet – Benefits – All controller features – Single master configuration point for all schools – Instant – Architecture: – IAPs – AirWave – Common for schools: – Aerohive has talked with them – Not a fan of controllers – Comfortable with configuring VLANs – Benefits: – ZTP – Great redundancy – Low Cost (not as low as you think) WWAS16 | Confidential
Editor's Notes
- #3 Many of the concepts, and much of the content in this presentation is pulled from the VRDs posted on the AirHeads Community.
- #6 At this point the user expectations discussion is very simple. The answer is ‘yes’. Users expect it all. You have no choice but to plan for Voice (WIFI calling), Video (Youtube, Netflix, company updates, etc.), Uptime is always (someone is always in the building and will always need access. Janitors, night shift, security guards, works stuck in the office late etc.) Refresh cycle – Important to have a plan early. Networks do not last forever. Even if you have a 10 year refresh cycle, have plans for when to start allocating new budget and what users can expect in between.
- #9 GRE for campus can be IPSEC if using CPSEC IPSEC for RAP
- #13 ** change to a higher level version of families and fit to customer (like APs)
- #14 Basis of a lot of the aruba features role based firewall DPI QOS Per Port Tunnel node
- #15 7000 seies controllers can be used as master in lab environments Aruba Mobility Controllers can be deployed either in Master mode or Local mode. The master controller is responsible for all global configuration. This includes the AP groups, WLAN settings, firewall roles and policies, RF radio settings, and many more configurations options. On a local controller VLANs and the IP address need to be configured for connectivity. From the master controller GUI, you can monitor the entire WLAN environment. The master can also terminate APs but when the controller is running two functions there are scalability limits. When APs boot they look for a controller and are initially directed to the master controller. This is not a requirement but is done in the majority of networks. The master controller acts as the control-plane-security trust anchor. It issues certificates to the local controllers, which in turn issues certificates to the APs. Local controllers terminate APs up the limit of the controllers capabilities. All user traffic is decrypted/encrypted , firewalled and switched or routed in and out of the local controller. ARM (Adaptive Radio Management) allows all APs to scan for better channels and power levels. They inform their local controller of the wanted change. The local controller then confirms the change by issuing the actual channel power change as a config override.

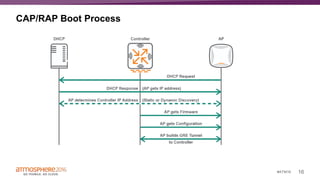

- #17 AP Boot Process AP sends DHCP Request and receives IP address Determines Master controller IP address (Static or Dynamic process) AP downloads firmware from controller AP gets configuration from controller Creates GRE tunnel through which user traffic will be sent
