This chapter discusses linear regression and the least squares regression line (LSRL). The LSRL is a straight line that minimizes the vertical distance between the data points and the line. It serves as a mathematical model for predicting a response variable (y) based on an explanatory variable (x). The coefficient of determination (r^2) indicates how much of the variation in y is explained by the linear relationship with x. Residual plots and identifying outliers and influential points are also covered.

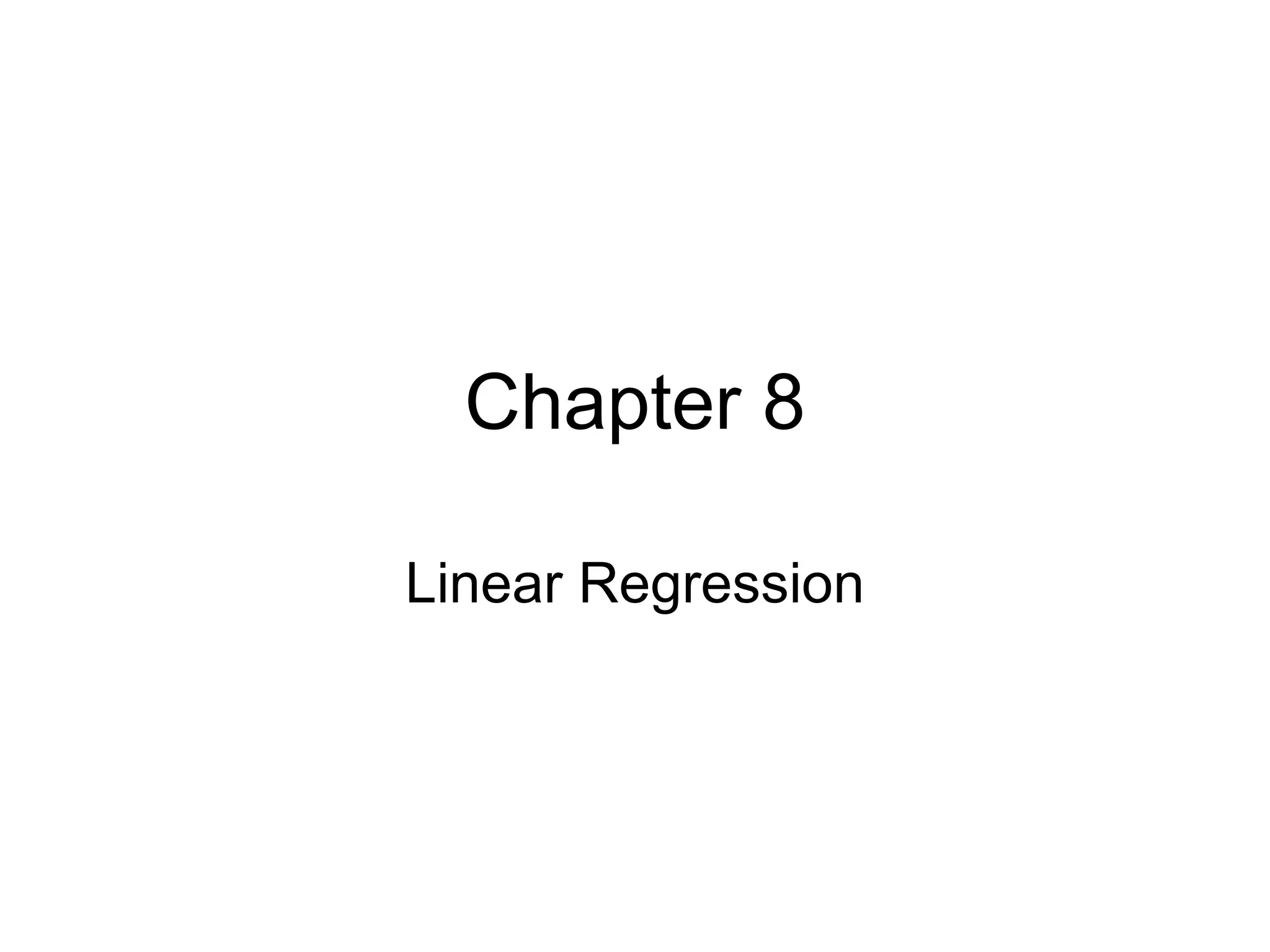

1. Chapter 8 Linear Regression

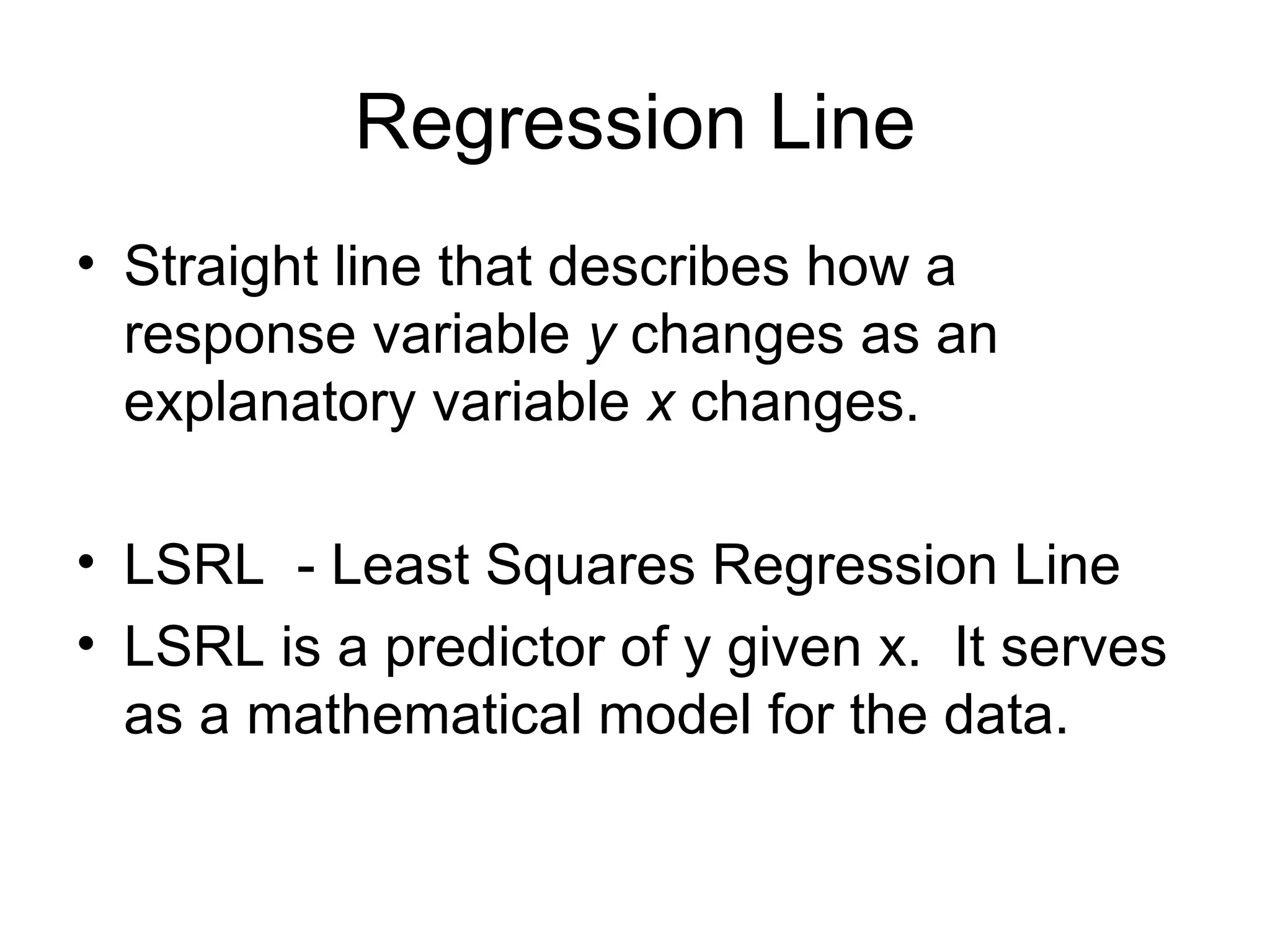

2. Regression Line Straight line that describes how a response variable y changes as an explanatory variable x changes. LSRL - Least Squares Regression Line LSRL is a predictor of y given x. It serves as a mathematical model for the data.

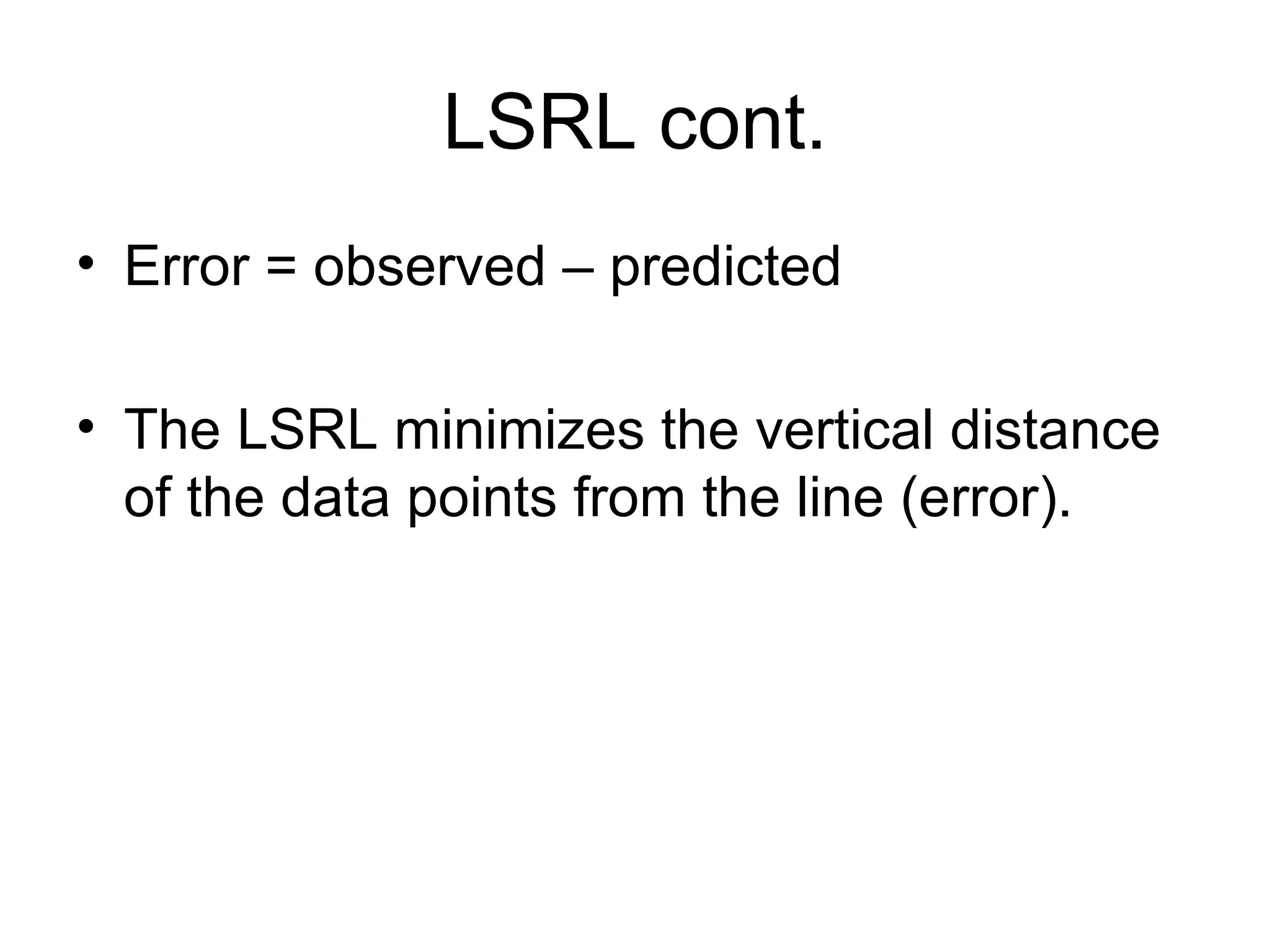

3. LSRL cont. Error = observed – predicted The LSRL minimizes the vertical distance of the data points from the line (error).

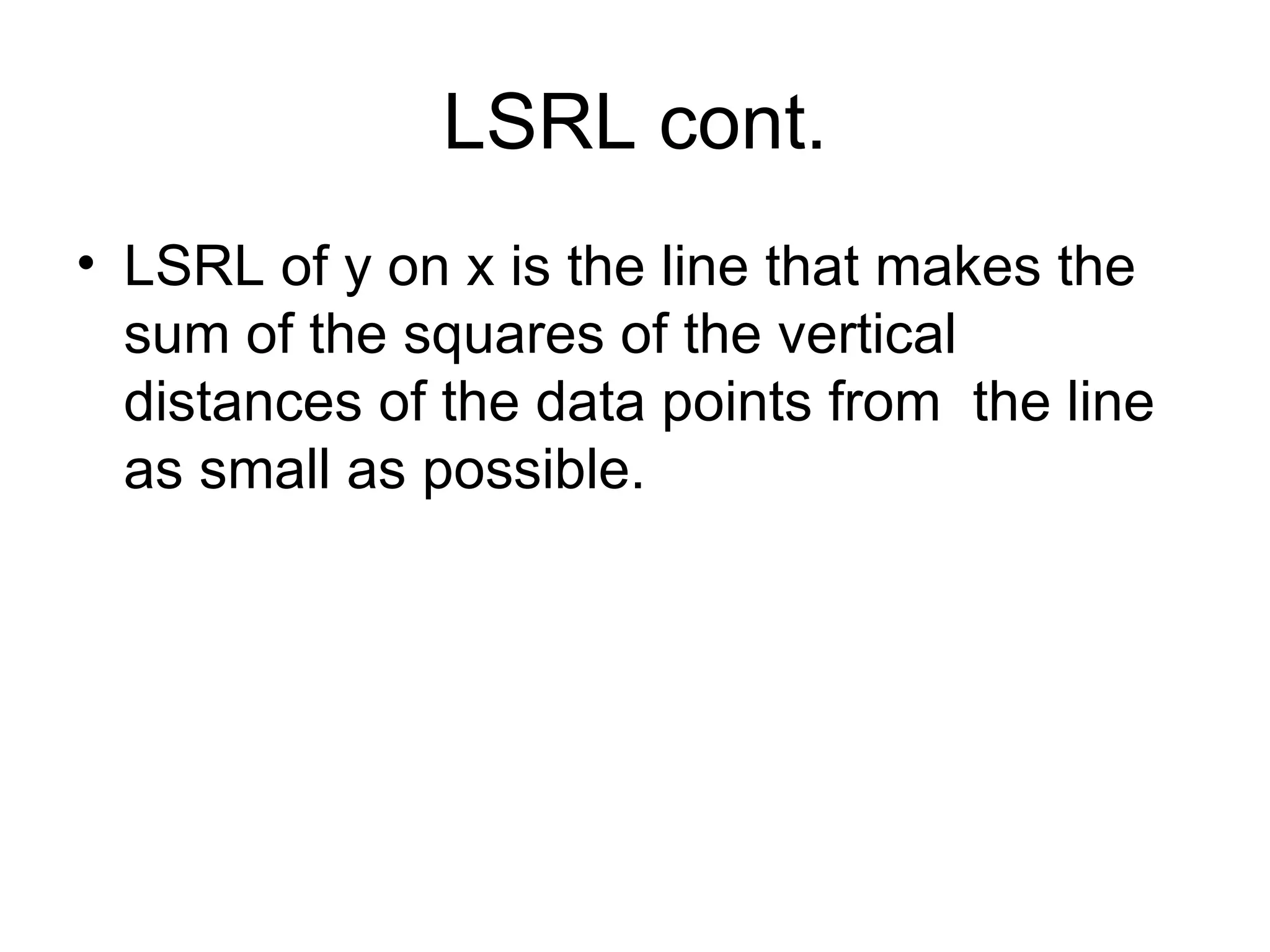

4. LSRL cont. LSRL of y on x is the line that makes the sum of the squares of the vertical distances of the data points from the line as small as possible.

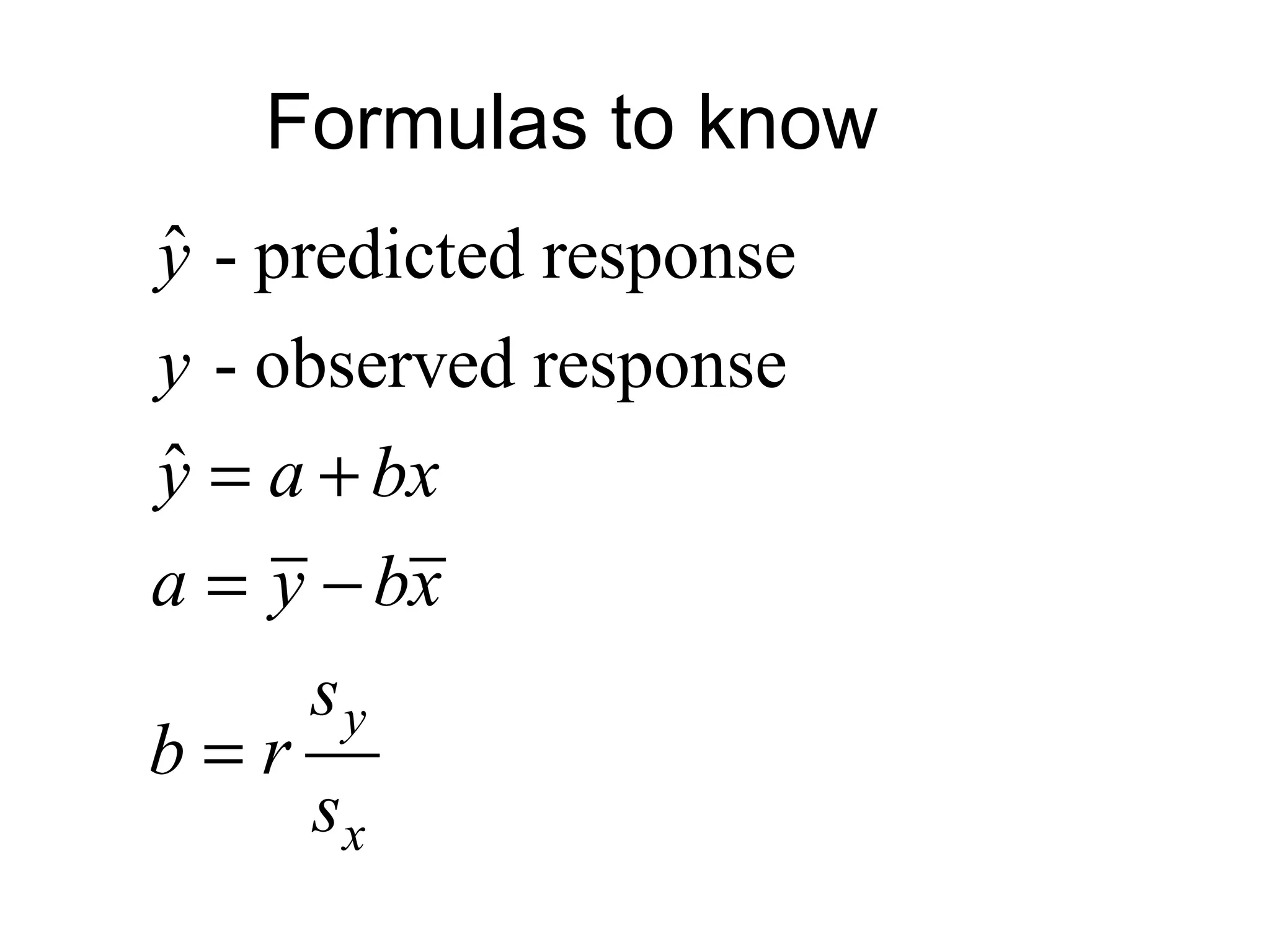

5. Formulas to know

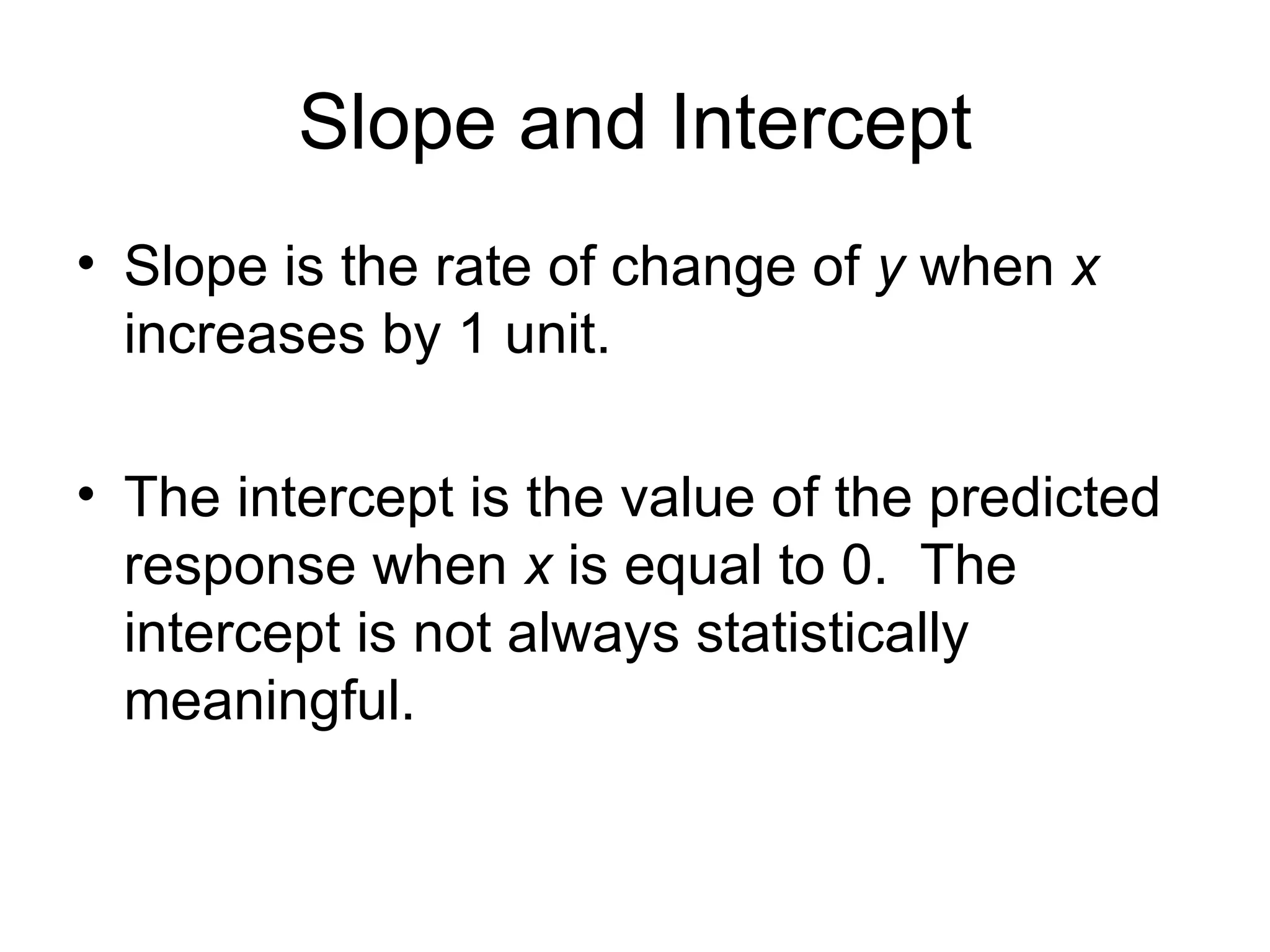

6. Slope and Intercept Slope is the rate of change of y when x increases by 1 unit. The intercept is the value of the predicted response when x is equal to 0. The intercept is not always statistically meaningful.

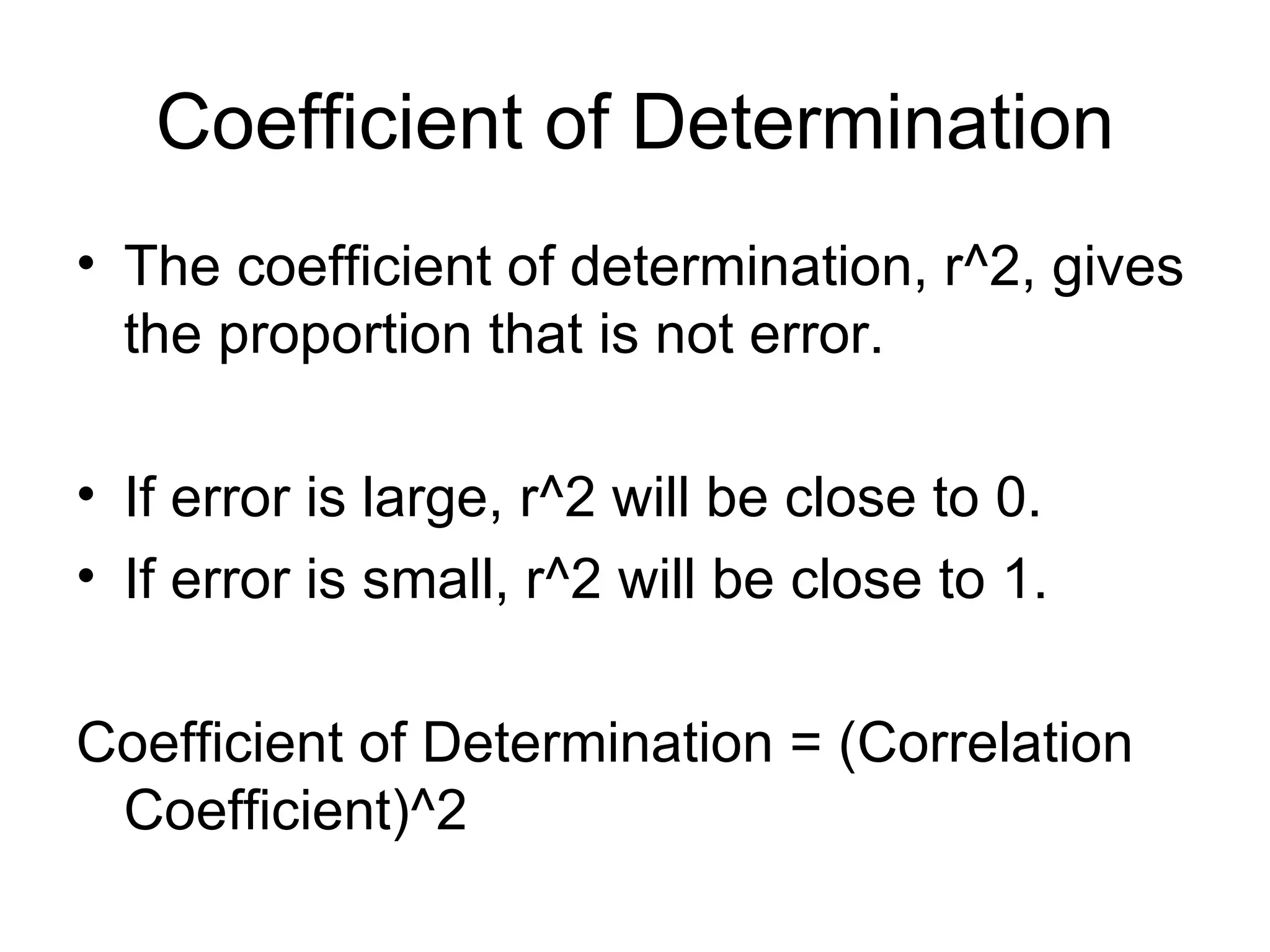

7. Coefficient of Determination The coefficient of determination, r^2, gives the proportion that is not error. If error is large, r^2 will be close to 0. If error is small, r^2 will be close to 1. Coefficient of Determination = (Correlation Coefficient)^2

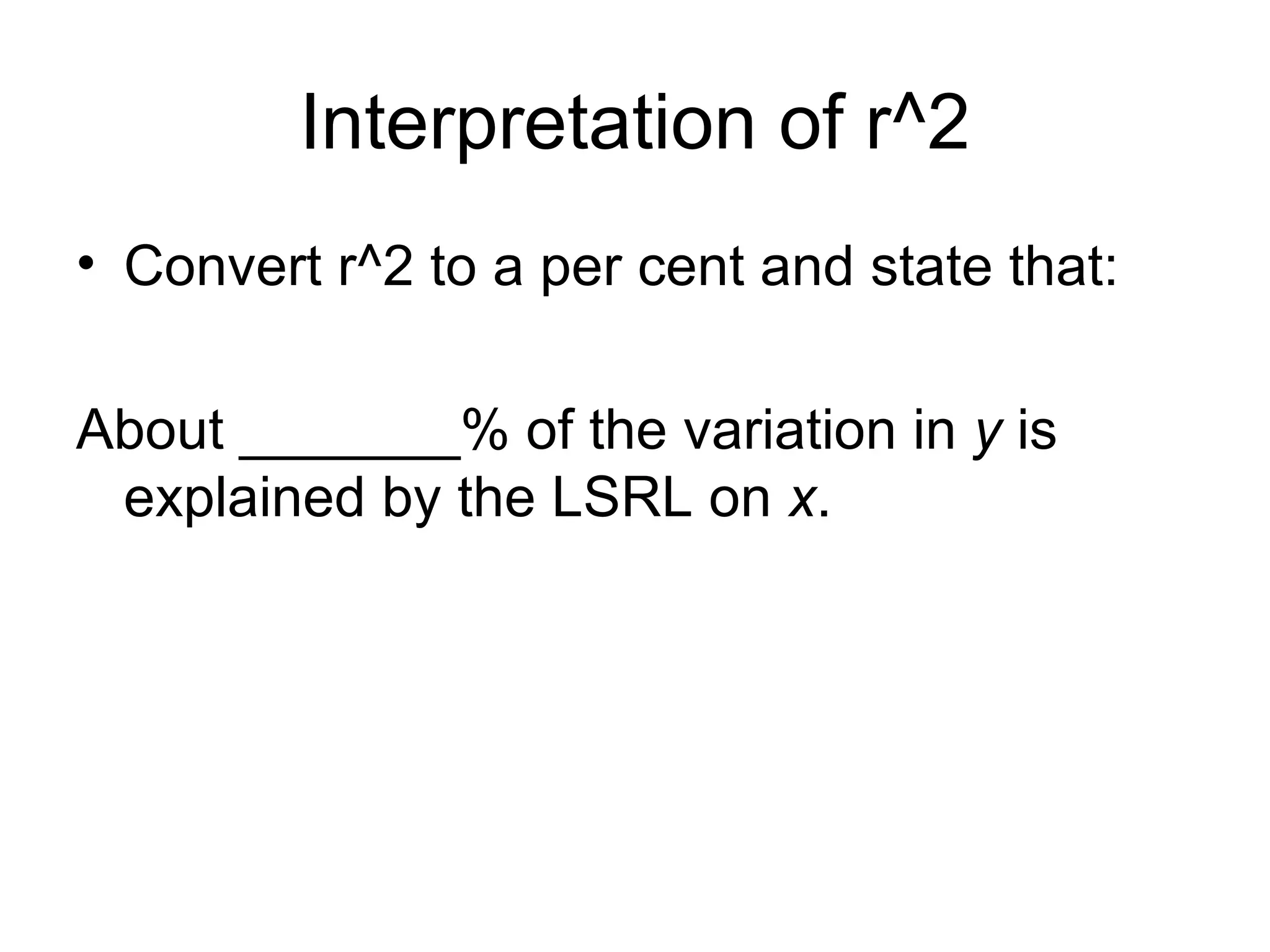

8. Interpretation of r^2 Convert r^2 to a per cent and state that: About _______% of the variation in y is explained by the LSRL on x .

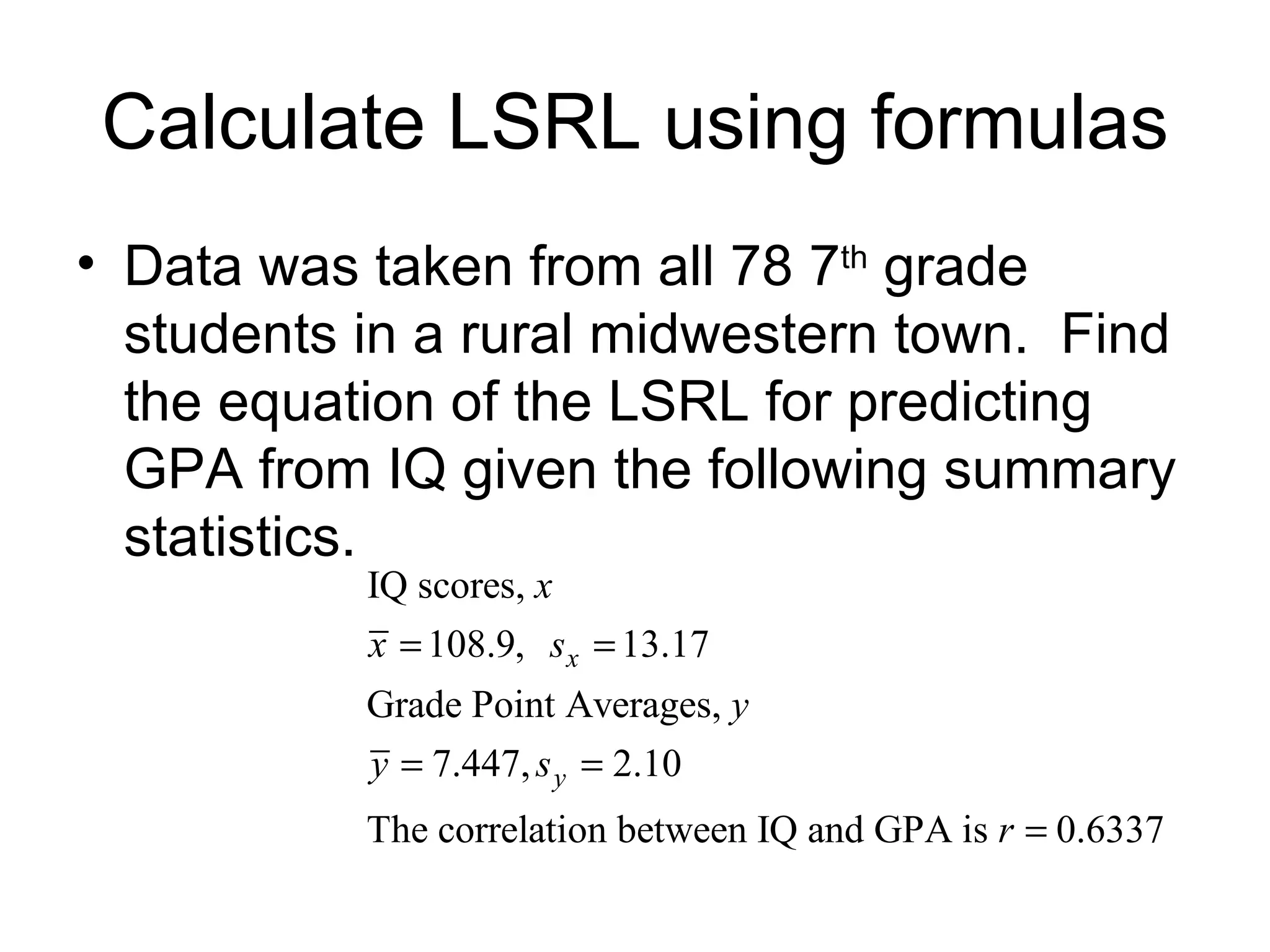

9. Calculate LSRL using formulas Data was taken from all 78 7 th grade students in a rural midwestern town. Find the equation of the LSRL for predicting GPA from IQ given the following summary statistics.

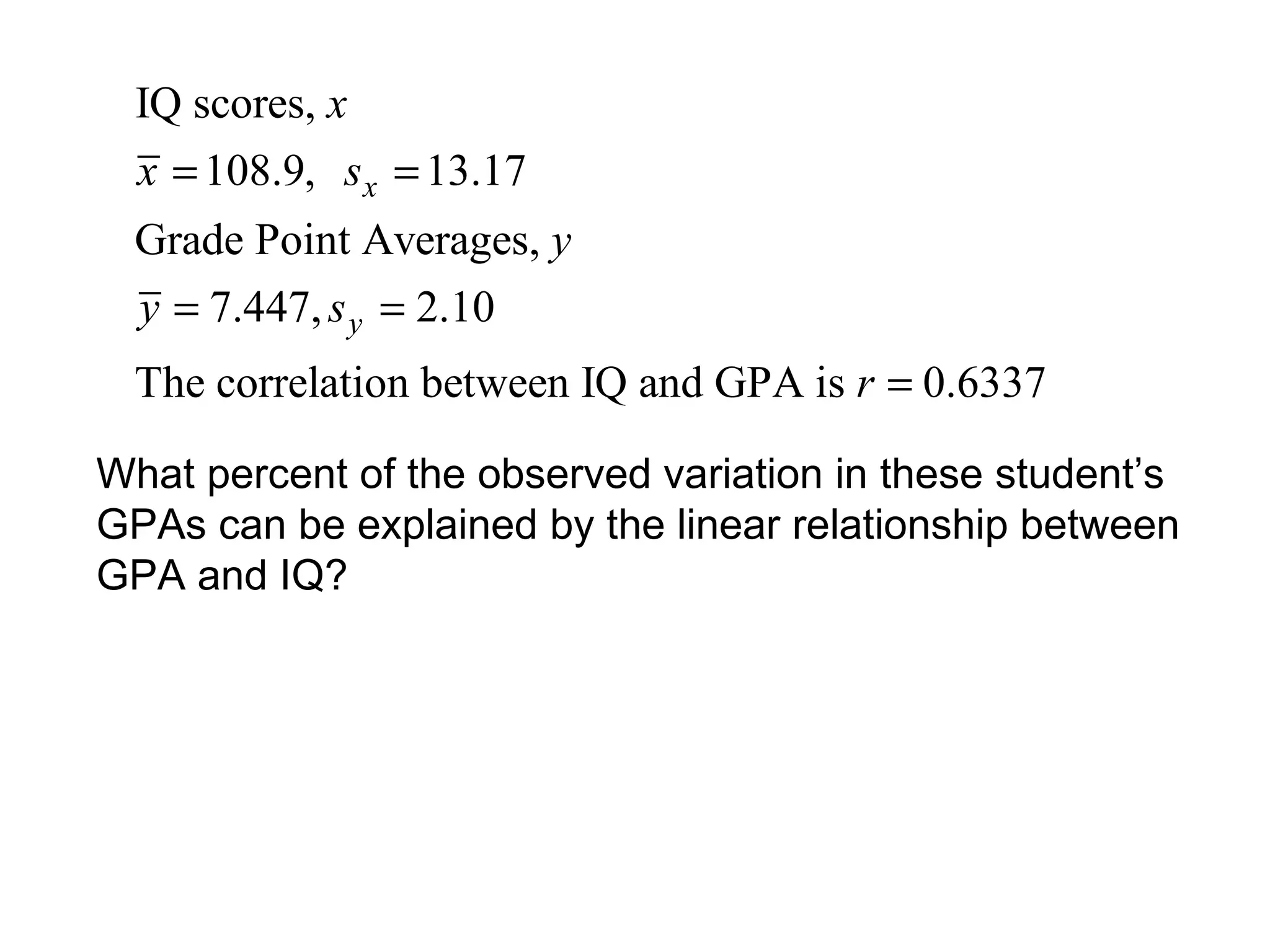

10. What percent of the observed variation in these student’s GPAs can be explained by the linear relationship between GPA and IQ?

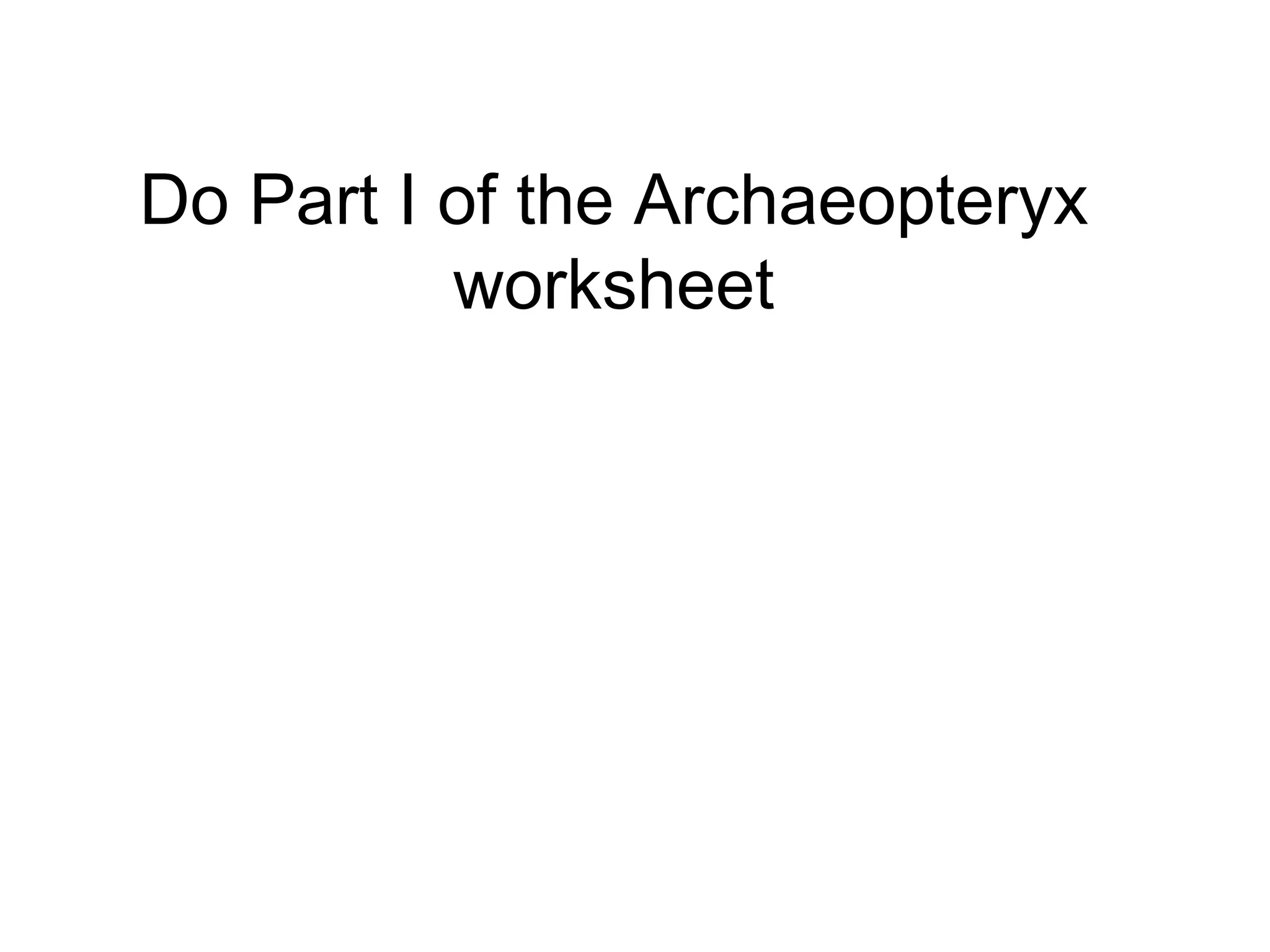

11. Do Part I of the Archaeopteryx worksheet

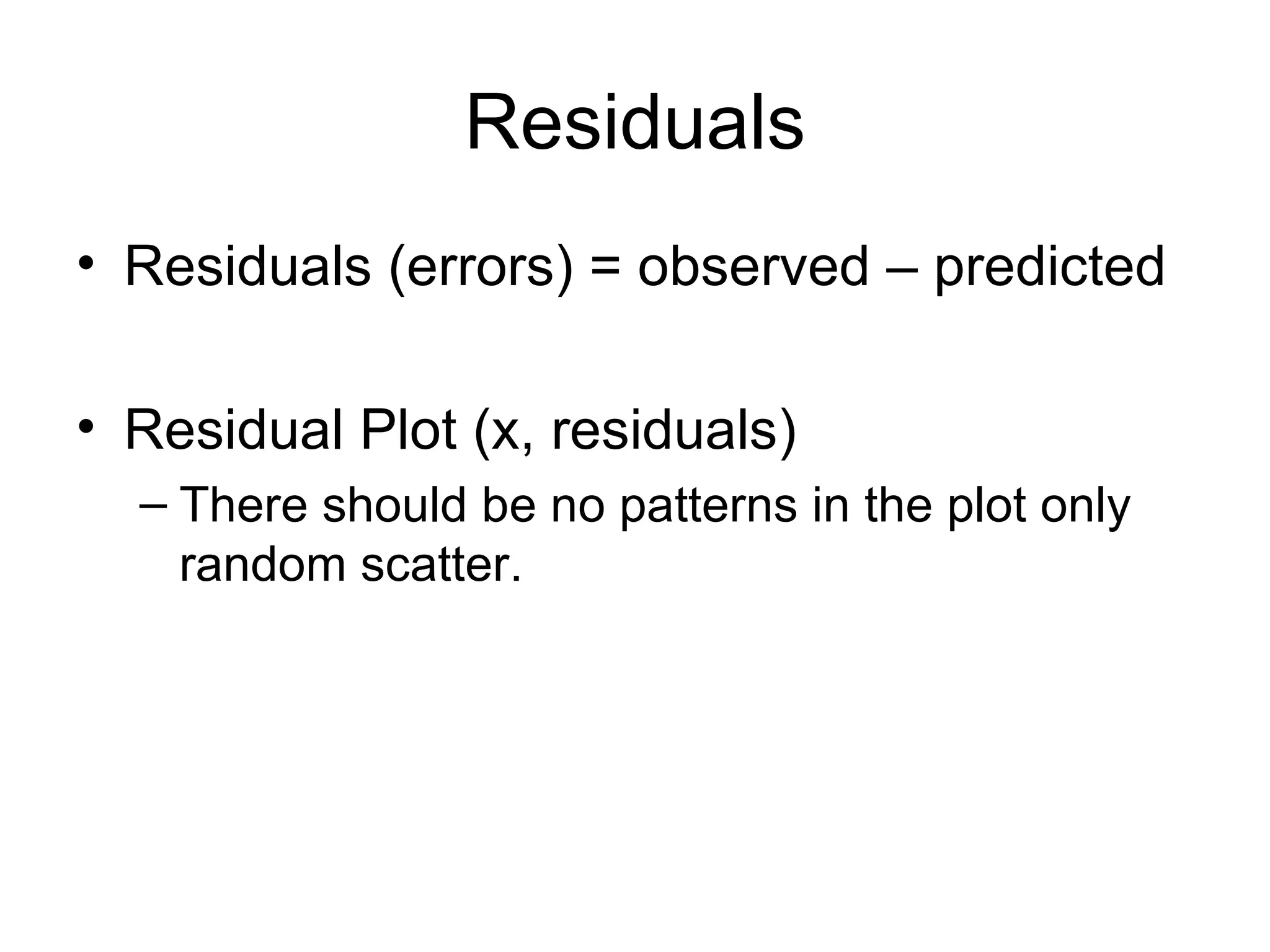

12. Residuals Residuals (errors) = observed – predicted Residual Plot (x, residuals) There should be no patterns in the plot only random scatter.

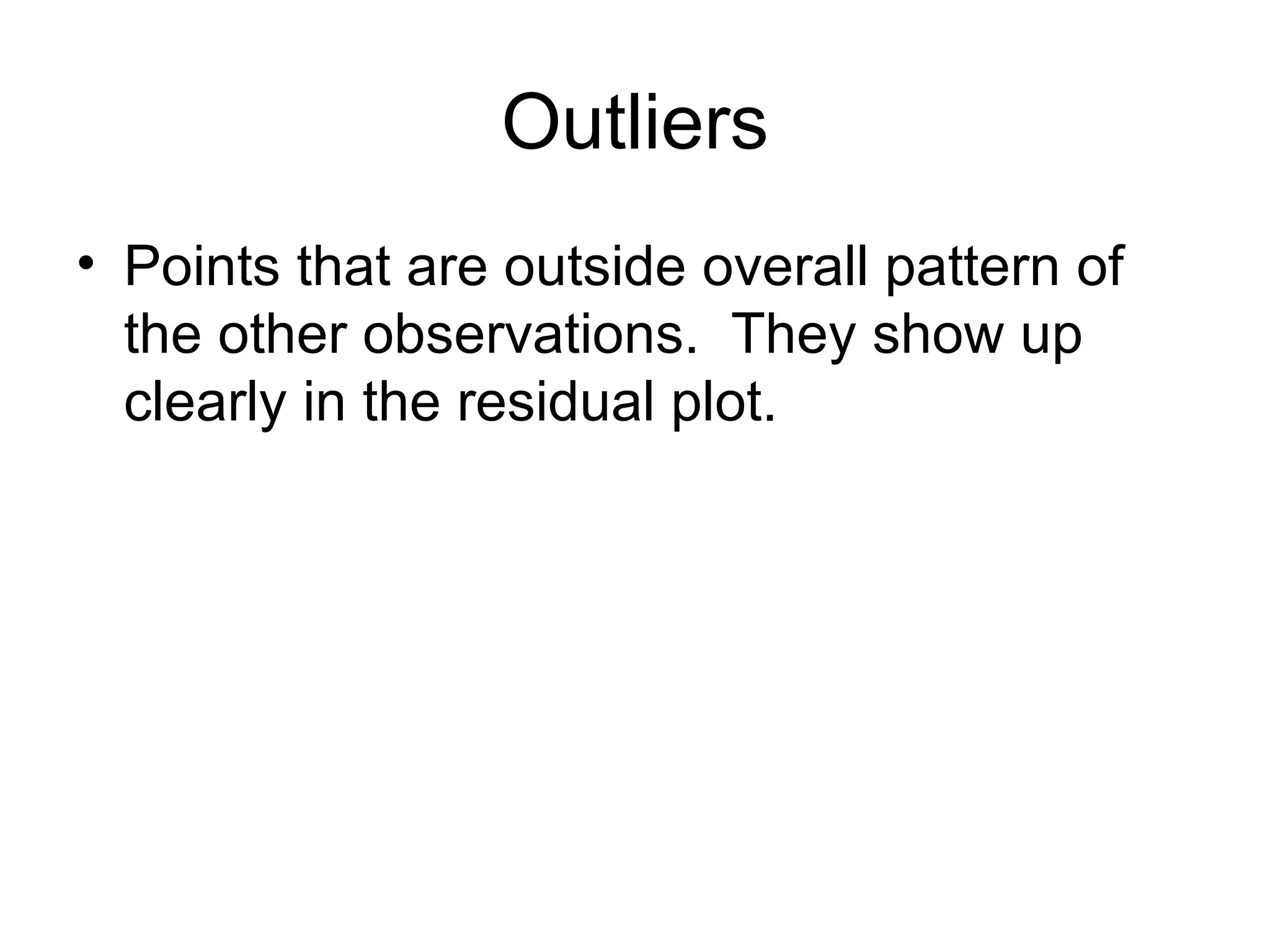

13. Outliers Points that are outside overall pattern of the other observations. They show up clearly in the residual plot.

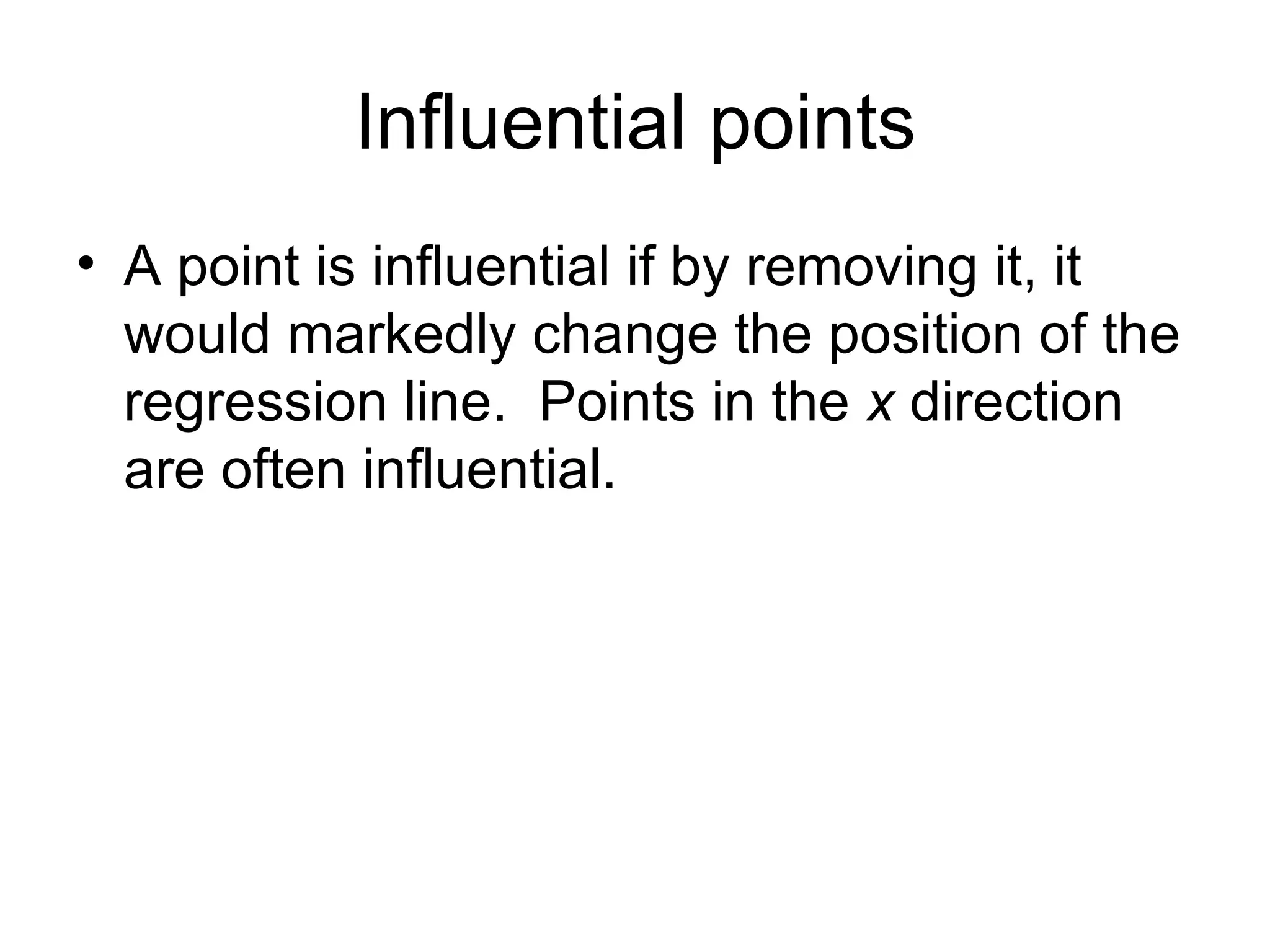

14. Influential points A point is influential if by removing it, it would markedly change the position of the regression line. Points in the x direction are often influential.
