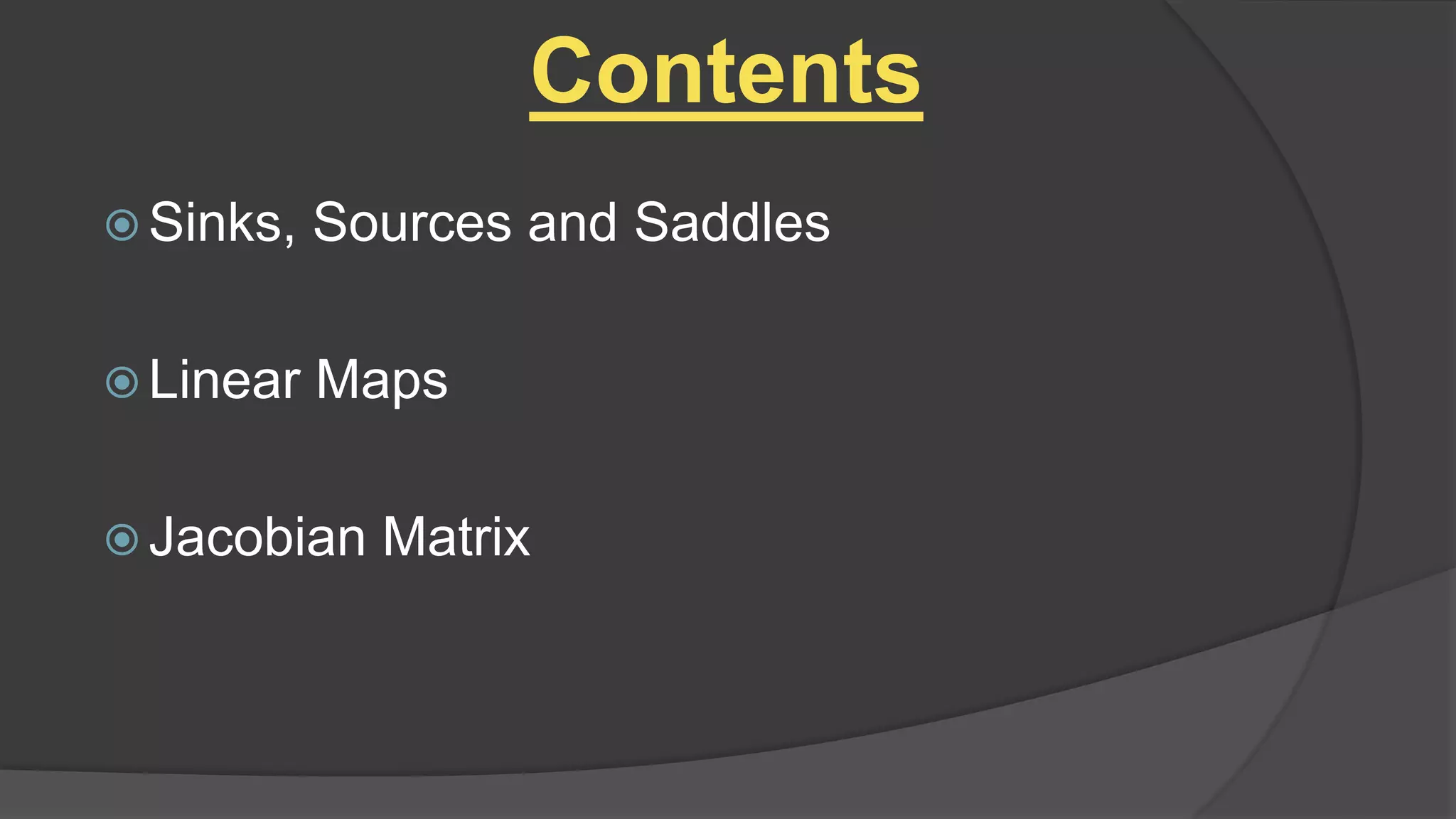

Contents

3.  Let f be a map on ℝ 𝑚
and let p in ℝ 𝑚
such that f(p)=p then
p is called fixed point.
 If there is 𝜖 > 0 such that for all v in the 𝜖-neighborhood
𝑁𝜖(p), lim
𝒌→∞
𝐟 𝒌
𝐯 = 𝐩, then p is a sink or attracting fixed
point.
 If the 𝜖-neighborhood 𝑁𝜖(p) is such that each v in 𝑁𝜖(p)
except for p itself eventually maps outside of 𝑁𝜖(p) then p is
a source or repelling fixed point.
 If v in 𝑁𝜖(p) is such that it has at least one attracting
direction and at least one repelling direction then p is a
saddle point.
Sinks, Sources and Saddles

4. Fig. :Local dynamics near a fixed point.

5. Example of source fixed point with
Mathematica

7. Example of sink fixed point with
Mathematica

9. Example of saddle fixed point with
Mathematica

11. Linear Maps
 A map A(v) from ℝ 𝑚
to ℝ 𝑚
is linear if for each a, b ∈ ℝ,
and v, w ∈ ℝ 𝑚
, A(av+bw) = aA(v) + bA(w). Equivalently, a
linear map A(v) can be represented as multiplication by an
m×m matrix.
 Every linear map has a fixed point at the origin.

12.  If A(v) be a linear map on ℝ 𝑚
, which is represented by the
matrix A then,
1. The origin is a sink if all eigenvalues of A are smaller than
one in absolute value.
2. The origin is a source if all eigenvalues of A are larger than
one in absolute value.
3. The origin is called a saddle, if a hyperbolic map A has at
least one eigenvalue of absolute value greater than one and
at least one eigenvalue of absolute value smaller than one.

13. Jacobian Matrix
 Let f = (𝑓1, 𝑓2,…., 𝑓𝑚) be a map on ℝ 𝑚
, and let p ∈ ℝ 𝑚
than
the Jacobian matrix of f at p, denoted Df(p), is the matrix
Df 𝐩 =
𝜕𝑓1
𝜕𝑥1
(𝐩) … . .
𝜕𝑓1
𝜕𝑥 𝑚
(𝐩)
: … . . :
𝜕𝑓𝑚
𝜕𝑥1
(𝐩) … . .
𝜕𝑓𝑚
𝜕𝑥 𝑚
(𝐩)

14. f(p + h) − f(p) ~ Df(p).h
 Let f be a map on m, and assume f(p) = p.
1. If the magnitude of each eigenvalue of Df(p) is less than 1,
then p is a sink.
2. If the magnitude of each eigenvalue of Df(p) is greater than
1, then p is a source.
3. If p is hyperbolic and if at least one eigenvalue of Df(p) has
magnitude greater than 1 and at least one eigenvalue has
magnitude less than 1, then p is called a saddle.

15.  If there is a periodic orbit {𝐩1, 𝐩2,….., 𝐩 𝑘} of period k for a
map on ℝ 𝑚
. Using the chain rule,
𝐃𝐟 𝒌
𝐩1 = 𝐃𝐟 𝐩1 . 𝐃𝐟 𝐩2 …. 𝐃𝐟 𝐩 𝑘
The eigenvalues of m×m Jacobian matrix evaluated at 𝐩1,
𝐃𝐟 𝒌
𝐩1 will determine the stability of the period – k orbit.
