1. Network Application
Performance
Deke Kassabian and Shumon Huque
ISC Networking & Telecommunications
February 2002 - Super Users Group

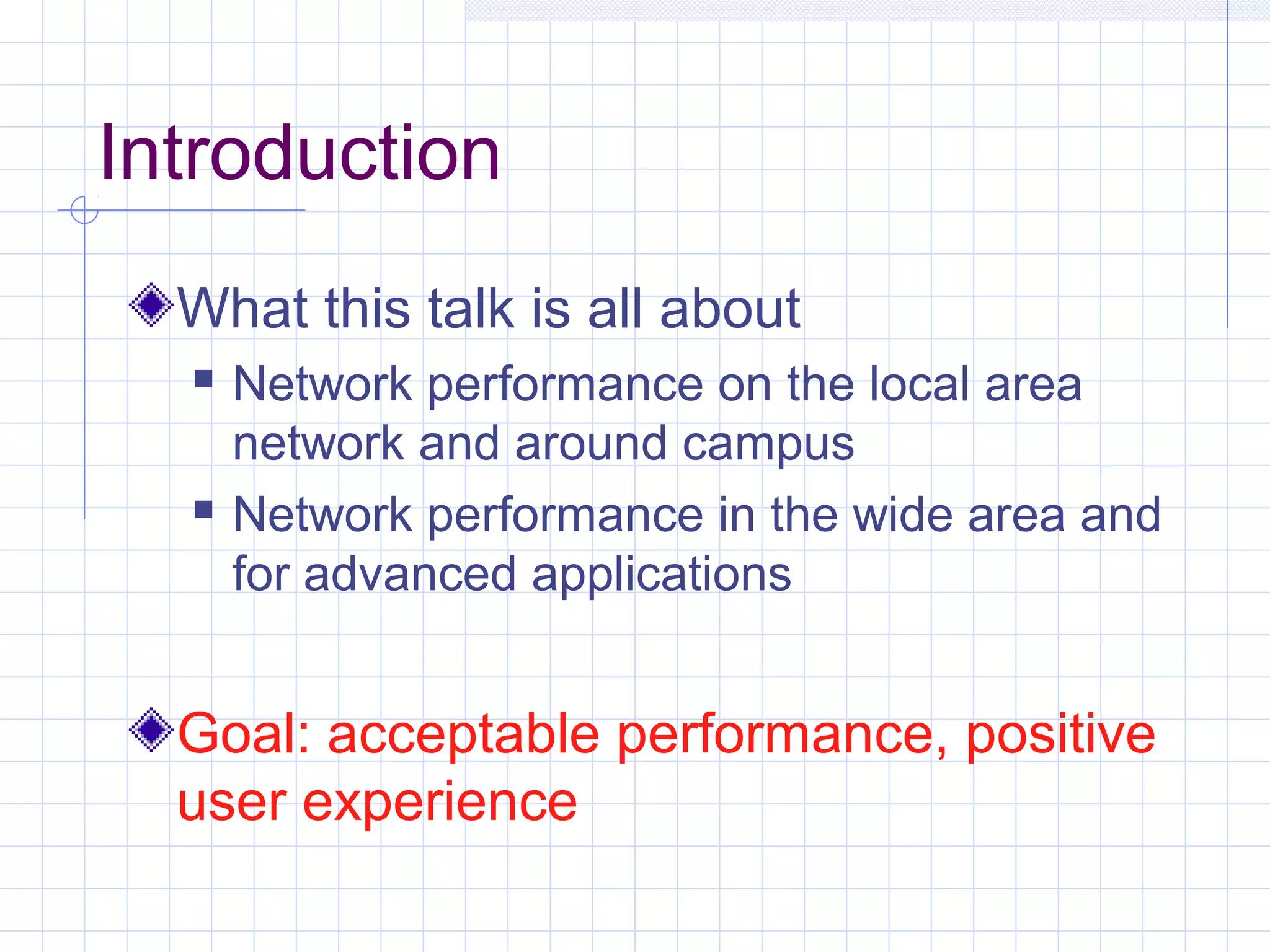

2. Introduction
What this talk is all about
 Network performance on the local area
network and around campus
 Network performance in the wide area and
for advanced applications
Goal: acceptable performance, positive
user experience

3. Who needs to be involved?
End Users
Researchers
Local Support Providers
Application Developers
System Programmers/Administrators
Network Engineers

4. What is performance?
“Performance” might mean …
 Elapsed time for file transfers
 Packet loss over a period of time
 Percentage of data needing retransmission
 Drop outs in video or audio
 Subjective “feeling” that feedback is “on
time”

5. Throughput
Throughput is the amount of data that
arrives per unit time.
“Goodput” is the amount of data that
arrives per unit time, minus the amount
of that data that was retransmitted.

6. Delay
Delay is a time measurement for data
transfer
 One way network delay for a bit in transit
 Delay for a total transfer
 Time from mouse click to screen message
that the “operation is complete”
NIC to NIC
Stack to Stack
Eyeball to eyeball

7. Jitter
Variation in delay over time
 Non-issue for non-realtime applications
 May be problematic for some applications with real-time
interactive requirements, such as video conferencing
 E2E delay of 70 ms +/- 5 ms -> low jitter
 E2E delay of 35 ms +/- 20 ms -> higher jitter

8. Some Contributors to Delay
Slow networks
Slow computers
Poor TCP/IP stacks on end-stations
Poorly written applications

9. Analysis of Delay
A B
(1)Insertion time
(2) Propagation Delay
(3) Processing Delay

10. Analysis of Delay
A B
(1)Insertion time
(2) Propagation Delay
(3) Processing Delay
Send 1,000 bits from A to B,
With an acknowledgement,
Over 100 meters of fiber
0.0001 sec
0.0000004 sec
0.01 sec
From: Deke
To: Ira
Date: Mon Feb 12, 2002, 11:00AM EST
Subject: Lunch
Hey Ira,
Meet you at the food trucks at noon!
^Deke

11. Analysis of Delay
A B
Send 1,000 bits from A to B,
With an acknowledgement,
Over 100 meters of fiber
•Data Insertion • 0.0001 sec
•Propagation • 0.0000004 sec
•Processing (B) • 0.01 sec
•Ack Insertion • 0.001 sec
•Propagation • 0.0000004 sec
•Processing (A) • 0.01 sec
Total Elapsed Time: 0.0211008 secondsTotal Elapsed Time: 0.0211008 seconds

12. Analysis of Delay
A BAdd 2 switches and a
router to the path
New Total Elapsed Time: 0.0231408 secondsNew Total Elapsed Time: 0.0231408 seconds
S S
R
Add 0.00002 secAdd 0.00002 sec Add 0.00002 secAdd 0.00002 sec
Add 0.002 secAdd 0.002 sec

13. Summary of Delay Analysis
Propagation delay is of little consequence in LANs,
more of an issue for high bandwidth WANs.
Queueing delays are rarely major contributors.
Processing delay is almost always an issue.
Retransmission delays can be major contributors to
poor network performance.

14. Speaker Change

15. What I’m going to talk about
More on delay contributors, their causes and
how to minimize them
Protocol Stack behavior & tuning
Quality of Service (QoS)
Performance measurement tools
Operating System tuning examples
General comments about things you can do

16. Recap: Delay Contributors
Processing Delay
Retransmission Delay
Queueing Delay
Propagation Delay

17. Processing Delay
Time it takes to process a packet at an end-
station or network node. Depends on:
 Network protocol complexity, application code,
computational power at node, NIC efficiency etc
Endstation Tuning
Application Tuning

18. Endstation Tuning
Good network hardware/NICs
Correct speed/duplex settings
 Auto-negotiation problems
Sufficient CPU
Sufficient Memory
Network Protocol Stack tuning
 Path MTU discovery, Jumbo Frames, TCP
Window Scaling, SACK etc

19. Ethernet Bandwidth/Duplex mode
Ethernet bandwidth: 10, 100, 1000
 10 Gigabit Ethernet soon
Duplex modes: half-duplex, full-duplex
Auto-Negotiation
Mismatch Detection:
 CRC/Alignment errors
 Late Collisions

20. Application Tuning
Optimize access to host resources
Pay attention to Disk I/O issues
Pay attention to Bus and Memory issues
Know what concurrent activity may be
interfering with performance of app
Tuning application send/receive buffers
Efficient application protocol design
Positive end user feedback
 Subjective perception of performance

21. Retransmission Delay
Causes
 Packet loss
 Bad hardware: NICs, switches, routers, transmission
lines
 Congestion and Queue drops
 Out of order packet delivery
 May be considered packet loss from application’s
perspective if it can’t re-order packets
 Untimely delivery (delay)
 Some apps may consider a packet to be lost if they don’t
receive it in a timely fashion

22. Retransmission Delay (cont)
Mitigating retransmission delay
 Ensure working equipment
 Although some packet loss is unavoidable; eg. most
transmission lines have a BER (Bit Error Rate)
 Reduce time to recover from packet loss
 Eg. Highly tuned network stack with more aggressive
retransmission and recovery behavior
 Forward Error Correction (FEC)
 Very useful for time/delay sensitive applications
 Also, for cases when it’s expensive to retransmit data

23. Bit Errors on WAN paths
Bit Error Rate (BER) specs for networking
interfaces/circuits may not be low enough:
 1 bit-error in 10 billion bits
 Assuming 1500 byte packets
 Packet error rate: 1 in 1 million
 10 hops => 1 in 100,000 packet drop rate

24. Queueing Delay
Long queueing delays could be caused
by lame hardware (switches/routers)
 Head of line blocking
 Insufficient switching fabric
 Insufficient horse power
Unfavorable QoS treatment

25. Queueing Delay (cont)
How to reduce
 Use good network hardware
 Improved network architecture
 Reduce number of switching/routing elements on the
network path
 Richer network topology, more interconnections
 End user may not have influence over architecture
 Employ preferential queue scheduling algorithms
 Will discuss later in QoS section of talk

26. Propagation Delay
Restricted by speed of light through
transmission medium
 Can’t be changed, but rarely a concern in
the campus/LAN environment
 A concern in long distance paths (WAN),
but
 Some steps can be taken to increase
performance (throughput) on such paths

27. Other delays and bottlenecks
Intermediary systems
 DNS
 Routing issues
 Route availability, asymmetric routing, routing
protocol stability and convergence time
 Firewalls
 Tunnels (IPSec VPNs, IP in IP tunnels etc)
 Router hardware poor at encap/decap

28. Throughput
Influenced by a number of variables:
 All the delay factors we discussed
 Window size (for TCP)
 Bottleneck link capacity
 End station processing and buffering
capacity

29. What I’m going to talk about next
• Brief description of TCP/IP protocol
• How to improve TCP/IP performance

30. Transport: TCP vs UDP
Network apps use 2 main transport protocols:
TCP (Transmission Control Protocol)
 Connection oriented (telephone like service)
 Reliable: guarantees delivery of data
 Flow control
 Examples: Web (HTTP), Email (SMTP, IMAP)
UDP (User Datagram Protocol)
 Connectionless (postal system like)
 Unreliable: no guarantees of delivery
 Examples: DNS, various types of streaming media

31. When to use TCP or UDP?
Many common apps use TCP because it’s
convenient
 TCP handles reliable delivery, retransmissions of lost
packets, re-ordering, flow control etc
You may want to use UDP if:
 Delays introduced by ACKs are unacceptable
 TCP congestion avoidance and flow control measures
are unsuitable for your application
 You want more control of how your data is transported
over the network
 Highly delay/jitter sensitive apps often use UDP
 Audio-video conferencing etc

32. Network Stack Tuning
Jumbo Frames
Path MTU Discovery
TCP Extensions:
 Window Scaling - RFC 1323
 Fast Retransmit Fast Recovery
 Selective Acknowledgements

33. Jumbo Frames
Increase MTU used at link layer, allowing
larger maximum sized frames
Increases Network Throughput
Fewer larger frames means:
 Fewer CPU interrupts and less processing overhead for
a given data transfer size
Some studies have shown Gigabit Ethernet
using 9000 byte jumbo frames provided 50%
more throughput and used 50% less CPU!
 (default Ethernet MTU is 1500 bytes)

34. Jumbo Frames (cont)
Pitfalls:
 Not widely deployed yet
 Many network devices may not be capable of jumbo
frames (they’ll look like bad frames)
 May cause excessive IP fragmentation
 BER may have more impact on jumbo frames
 Eg. A single bit-error can cause a large amount of data to
be lost and retransmitted
 May have negative impact on host processing
requirements:
 More memory for buffering, newer NICs

35. Path MTU Discovery
MTU (Max Transmission Unit)
 Max sized frame allowed on the link
Path MTU
 Min MTU on any network in the path between 2 hosts
IP Fragmentation & Reassembly
Path MTU Discovery
MSS (Max Segment Size)
What happens without PMTU discovery?
 Might select wrong MTU and cause fragmentation
 Suboptimal selection of TCP MSS (536 default?)

36. Path MTU Discovery (cont)
A
B
R1
R3
R2
MTU=4474
MTU=9000
MTU=1500
MTU=9000
Path MTU is 1500
IP fragmentation may occur

37. TCP Sliding Window
TCP uses a flow control method called
“Sliding Window”
 Allows sender to send multiple segments before it
has to wait for an ACK
 Results in faster transfer rate coz sender doesn’t
have to wait for an ACK each time a packet is sent
 Receiver advertises a window size that tells the
sender how much data it can send without waiting
for ACK

38. TCP Sliding Window (cont)

39. Slow Start
In actuality, TCP starts with small window and
slowly ramps it up (upto rwin)
Congestion Window (cwnd)
 controls startup and limits throughput in the face of
congestion
 cwnd initialized to 1 segment
 cwnd gets larger after every new ACK
 cwnd gets smaller when packet loss is detected
Slow Start is actually exponential

40. Congestion Avoidance
Assumption: packet loss is caused by
congestion
When congestion occurs, slow down
transmission rate
 Reset cwnd to 1 if timeout
 Use slowstart until we reach the half way point
where congestion occurred.
 Then use linear increase
 Increase cwnd by ~ 1 segment/RTT

41. TCP Behavior
Recovery after a loss can be very slow
on today’s high delay/bandwidth links
 (graph from Peter O’Neill, NCAR)
CWND
slow start:
exponential
increase
congestion
avoidance:
linear
increase
packet loss, D-ACK
time
retransmit:
slow start
again
timeout

42. TCP Throughput Acceleration
rtt (msec) 0-100Mbps (sec)
5 0.216
10 0.864
20 3.45
50 21.6
100 86.4
200 345
(From Phil Dykstra)

43. TCP Window Size Tuning
TCP performance depends on:
 Transfer rate (bandwidth)
 Round trip time
BW*Delay product
TCP Window should be sized to be at
least as large as the BW*Delay product

44. BW*Delay Product
BW*Delay product measures:
 Amount of data that would fill the network
pipe
 Buffer space required at sender and
receiver to achieve the max possible TCP
throughput
 Amount of unacknowledged data that TCP
must handle in order to keep pipe full

45. BW*Delay example
A path from Penn to Stanford has:
 Round trip time: 60 ms
 Bandwidth: 120 Mbps
BW * Delay =
 60/1000 sec * 120 * 1000000 bits/sec
 = 7200000 bits = 7200 Kbits
 = 900 Kbytes
So TCP window should be at least 900KB

46. TCP Window Scaling
RFC 1323: TCP Extensions for High
Performance
Allows scaling of TCP window size beyond
64KB (16 bit window field)
 Introduces new TCP option
Note: In previous example, TCP needs to
support Window Scaling to use 900KB
window

47. Window Scaling Pitfalls
Why not use large windows always?
 Might consume large memory resources
 May not be useful for all applications
 Isn’t useful in the campus/LAN
environment

48. Fast Retransmit Fast Recovery
TCP required to send immediate D-ACK when out-of-
order packet received
After 3 D-ACKs, sending TCP retransmits only one
segment
Also perform congestion avoidance but not slow start
1 2 73 4 5 6
Packet loss, causing D-ACK

49. TCP Selective Acks (SACK)
RFC 2018
Allows TCP to efficiently recover from
multiple segment losses within a
window
Without retransmitting entire window

50. Enough about TCP

51. Performance depends on App
So, understand application’s requirements
(high throughput, low latency, low jitter), eg:
 File Transfer using TCP
 Needs high throughput
 Intolerant of packet loss
 May be more tolerant of delay
 Interactive Video Conferencing application
 Tolerant of some loss
 More intolerant of delay and jitter

52. Quality of Service (QoS)
A method to selectively allocate scarce
network resources
A mechanism to offer varying degrees of
service to varying classes of traffic
Service: delay, jitter, proportion of link
bandwidth etc

53. Quality of Service (QoS) cont
Requires deployed QoS infrastructure
 Might require
 Traffic marking capabilities in hosts and network
hardware
 Traffic classification and identification capabilities
 Multiple traffic queues with different service
characteristics
 Different queue servicing algorithms
 Mechanisms to specify and enforce QoS policy
 Signalling mechanisms
IEEE 802.1p, IP precedence, IntServ/RSVP,
DiffServ, MPLS

54. Performance Measurement Tools
To measure “real” performance of an
app, you need to instrument the app
with measurement code!
However, independent measurement of
some common network perf metrics can
be done
Two kinds:
 Active and Passive measurement

55. Active Measurement
Ping
Traceroute
Netperf http://www.netperf.org/
Iperf http://dast.nlanr.net/Projects/Iperf/
Pathchar ftp://ftp.ee.lbl.gov/pathchar/
Pathrate http://www.pathrate.org/
Mping

56. Passive Measurement
OCxMON/PCMon
Router/switch stats collected via
 SNMP
 Netflow, etc
tcpdump, snoop, etherfind

57. Some tuning examples
Microsoft Windows
 Newer versions: Win98, Win2K, WinXP
support many of the features (window
scaling, PMTU discovery, SACK etc)
 May require registry tweaks to turn some of
them on
 TCPTune: A TCP Stack Tuner for Windows
 http://moat.nlanr.net/Software/TCPtune/

58. More tuning examples
MacOS X
 [need to find out more, who knows?]
 Supports window scaling:
 $ sysctl net.inet.tcp.rfc1323
 net.inet.tcp.rfc1323: 1
 Socket buffer raising:
 Kernel tunable kern.ipc.maxsockbuf
 TCP send/receive buffer tuning:
 Tunables supported:
 net.inet.tcp.sendspace
 net.inet.tcp.recvspace

59. More tuning examples
Linux
 In /proc/sys/net/core/ set:
 rmem_default
 rmem_max
 wmem_default
 wmem_max
 In /proc/sys/net/ipv4 set:
 tcp_windowscaling
 tcp_sack

60. More tuning examples
Solaris 2.x - 8
 ndd -set /dev/tcp tcp_max_buf xxx
 ndd -set /dev/tcp tcp_xmit_hiwat xxx
 ndd -set /dev/tcp tcp_recv_hiwat xxx
 ndd -set /dev/ip ip_path_mtu_discovery 1
 ndd -set /dev/tcp tcp_sack_permitted 2

61. Web100 Project
http://www.web100.org/
Enhance TCP capabilities with:
 Better (finer grain) kernel instrumentation
 Automatic controls
Availability:
 Today: Linux (patches for 2.4.16 kernel)
 Being ported to other operating systems.

62. Things you can do (WAN)
Make sure app offers adequately sized
receive windows and send buffers
But don’t run your system out of memory
Find out your path RTT with ping
Check your path with traceroute
Determine bottleneck capacity and available
bandwidth on path
Make sure your OS uses Path MTU discovery
Make sure your OS uses TCP Large
Windows, Fast Retransmit, SACK

63. Things you can do (Campus)
Check your host
 (80% of the problems)
Check your host
 Bandwidth/Duplex problems
 Network stack tuning
 Application tuning
Talk to campus networking folks

64. Conclusion
Understand performance requirements
of your application
What are the issues?
 Campus/LAN environment
 WAN environment
What can you do to ask for help?

65. Any Questions?
Deke Kassabian
 deke@isc.upenn.edu
Shumon Huque
 shuque@isc.upenn.edu
