Naxsi is an open source web application firewall (WAF) built for Nginx. It uses a simple rule-based approach that relies on a small set of rules targeting common vulnerabilities like SQL injection and cross-site scripting rather than complex signatures. This makes it fast, predictable, and able to protect websites against attacks without needing frequent signature updates. However, it requires whitelisting to avoid blocking legitimate requests. Naxsi also offers flexible options for handling blocked requests.

1. Naxsi, an open source WAF
for Nginx
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 1

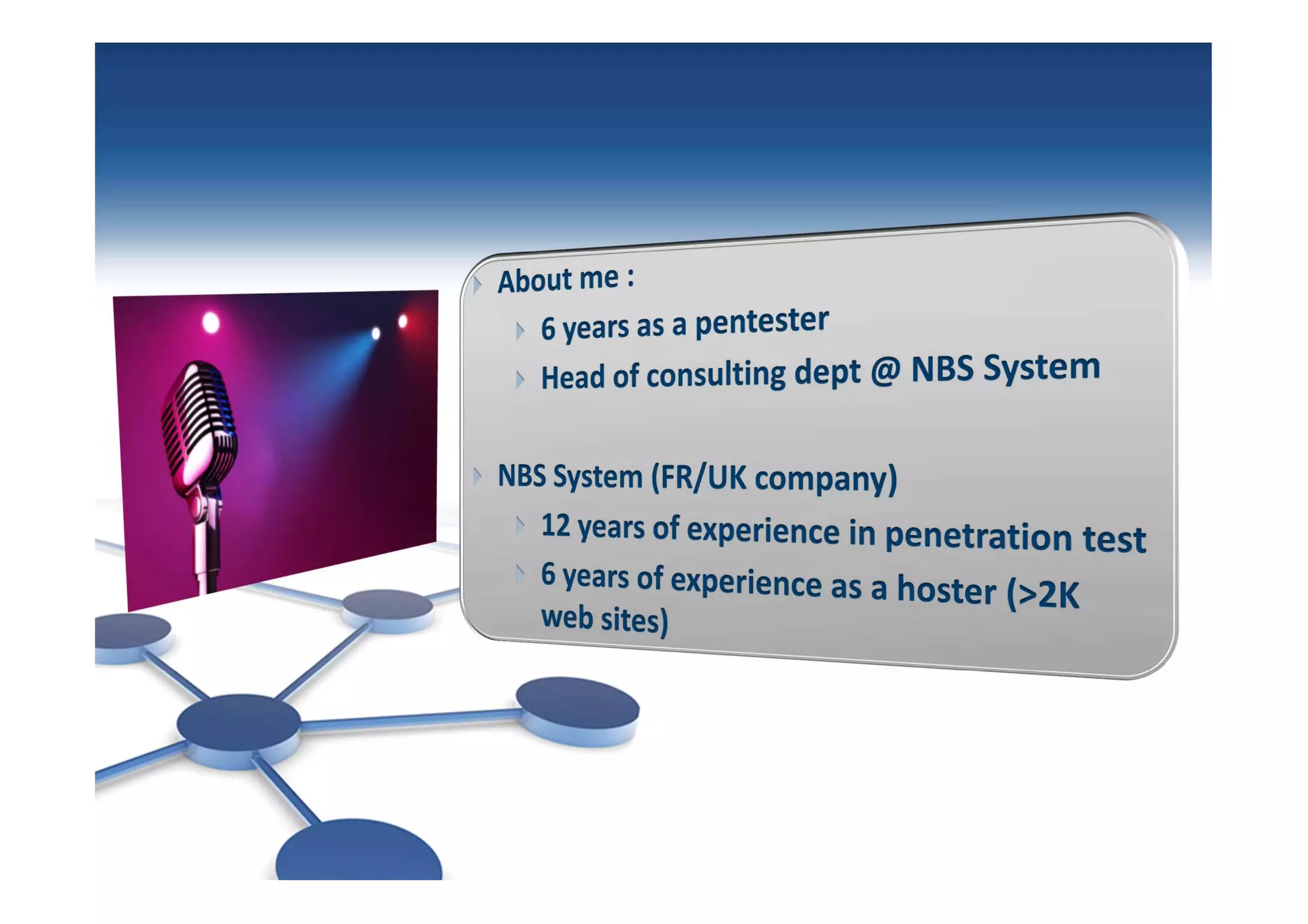

2. ©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 2

3. A bit of background
(Seems webapp security is a good starter to talk about WAFs)
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 3

4. Overall security level of web applications evolves slowly , or at least not fast enough
• Low technical skill needed to exploit
most vulnerabilities (SQLi)
• Most actors did not reach a good
awarness level yet
(Nb of annual defaces, source: zone-h)
Because of these factors, number of attacks is dramatically growing
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 4

5. Just for May 2012 :
Govs or affiliated :
France
Bahrain
US
Thailand
Canada
Israel
… In Russia files includes you …
More than 300k accounts dumped each month
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 5

6. Web apps Classic IT
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 6

7. • Best mitigation : Patch
Not always possible :
Very complex or critical webapp
Lack of skill, knowledge lost
Your webapp security level can only be
known once you performed an (expensive ?)
security test on it.
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 7

8. • When code patching is not an option: Web Application Firewalls
Commercial WAFs :
Not very affordable for small companies
or big infrastructures
Extremely unequal quality
Open source WAFs :
Performance issues
Maybe not « corporate » enough for most
users ?
Maintenance time
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 8

9. As a pentester :
Web sites are still one of the most vulnerable
entry points on a network
And one of the most exposed as well !
As a hoster :
WebSite owners, even when web is their core
business, lack security awareness … and get
owned
As a security consultant :
CISO / Administrators are still frighten of
WHY U NO PROTECT ? WAF’s side effects
And the one using WAFs will only go for big,
expensive, corporate solutions (Hi Imperva!)
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 9

10. Enough teasing !
(and enough jokes)
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 10

11. When studying the idea of offering hardened web hosting for some of our clients,
we came accros several problems :
Commercial WAF are way too expensive for big infrastructures (especially with
a lot of small/medium clients)
Open Source WAFs (mod_security) are not fast enough (means: filtering POST
requests only if you don’t want to damage user experience)
Both kinds requires a huge investment to keep security signatures up-to-date
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 11

12. (Apr 2011) Naxsi project idea was born :
Hoster compliant WAF :
Performances / Scalability
Production grade WAF
A WAF that doesn’t require signatures / updates
Only when your site code base change
And because defense is for once funnier than attack
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 12

13. Naxsi’s design is closer to a sateless firewall than an anti-virus
Most WAFs are more web anti-viruses than firewalls
Relies on a big, heavy, frequently updated base of signatures
On the other hand, Naxsi does rely on signatures, but not in the way you might think
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 13

14. Naxsi relies on ~35 rules, targetting : SQLi, XSS, RFI/LFI, file uploads …
A rule is defined as :
A pattern (most of the time, one character, here : ‘ )
Scores (indicating the kind of threat it’s linked to, here both SQL and XSS)
Match Zones
And a unique ID
str:'" "msg:simple quote"
MainRule "str:'" "msg:simple quote"
mz:ARGS|BODY|URL|$HEADERS_VAR:Cookie"
|$HEADERS_VAR:Cookie id:1013;
"mz:ARGS|BODY|URL|$HEADERS_VAR:Cookie" "s:$SQL:4,$XSS:8" id:1013
When a request reaches a « limit » score, an action si taken upon the request :
CheckRule "$SQL >= 8" BLOCK;
Leaves a lot of room for fine-tuning
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 14

15. This naive approach has several advantages :
Fast : No massive, expensive regex set to process
Naive design : Naxsi doesn’t try to understand incoming requests. No need for
complex/costly transformation functions
Predictability : Not relying on « real » signatures makes bypass less likely to
happen
Small & Auditable code : <4K LOC
But comes with a price :
Whitelist configuration !
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 15

16. Naxsi, a tweakable WAF
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 16

17. Naxsi offers two « main » modes :
Normal mode : « Blocked » requests are redirected to a specific location
Learning mode : « To-be-blocked » requests are simply « copied » to a specific
location, and the original request is processed transparently
Redirecting requests rather than « blocking » them offers various possibilities for
blocked requests :
Return a specific error code to the user (HTTP 418: I'm a teapot)
Return a static page
Redirect user to a dynamic page (with captcha) to report false positives
Anything LUA/PHP/<language> allows you to do
Redirected requests contains both original request arguments, as well as « naxsi
signature » (in HTTP headers) :
ip=x.x.x.x&server=xx.ru&uri=/&total_processed=1&total_blocked=1&zone0=HEADER
S&id0=1308&var_name0=cookie&zone1=HEADERS&id1=1309&var_name1=cookie
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 17

18. Naxsi in test bed
« Reliability of naxsi model
versus obfuscated patterns »
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 18

19. 0 div 1 union#foo*/*bar
select#foo 0 div 1 union select 1,2,current_user
1,2,current_user
mod_sec : Transformation on comments leading to a
bypass.
Naxsi : 2 SQL keywords, 4 SQL comments,
blocked early
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 19

20. hUserId=22768&From hUserId=22768&From
Date=a1%27+or&ToDa Date=a1'+or&ToDate=<
te=%3C%3Eamount+a >amount+and'')
nd%27
mod_sec : Victim of fragmentation (attack splitted
accross several parameters)
Naxsi : Evaluates the whole request, sees
multiple quotes, brackets, parenthesis
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 20

21. Naxsi in test bed
« Performances of the naxsi model »
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 21

22. Requests Per Second 6000
5000
4000
NGINX
3000 NGINX+NAXSI
APACHE
2000
APACHE+MODSEC
1000
0
100 300 500 1000 Plateform:
Concurrent connections my laptop
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 22

23. With apache-bench (1k concurrent requests, 10k total requests, long URL with
arguments) :
Nginx Nginx+Naxsi Diff (%)
Total time 1.151 s 1.271 s 9,4%
RPS 8687.21 7866.73 9,4%
TPR (mean) 0.115 0.127 9,4%
Transfert Rate 1220.48 1198.45 1,8%
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 23

24. Naxsi usage
« Hands on »
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 24

25. Learning
Daemon MySQL/Sqlite
(nx_intercept)
User(s)
Naxsi WebSite
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 25

26. Learning
Daemon
(nx_extract)
MySQL/Sqlite
BasicRule wl:1100 "mz:$BODY_VAR:redirect_to";
BasicRule wl:1005 "mz:$HEADERS_VAR:cookie" ;
BasicRule wl:1010 "mz:$HEADERS_VAR:cookie" ;
Naxsinaxsi
configuration
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 26

27. I won’t cover Ngnix setup, so let’s assume our setup is the following :
Nginx+Naxsi is used as a reverse proxy to an existing website
Naxsi setup is as :
SecRulesEnabled;
DeniedUrl "/RequestDenied"; server {
LearningMode; …
CheckRule "$SQL >= 8" BLOCK; location / {
CheckRule "$RFI >= 8" BLOCK; include "naxsi.conf";
CheckRule "$TRAVERSAL >= 5" BLOCK; proxy_pass http://x.x.x.x;
CheckRule "$UPLOAD >= 5" BLOCK; }
CheckRule "$XSS >= 10" BLOCK; location /RequestDenied {
proxy_pass http://x.x.y.z:8080;
}
…
}
Pointing to nx_intercept :
$ python nx_intercept.py -c ./naxsi-ui.conf
…
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 27

28. Naxsi’s learning daemons :
Nx_intercept : http requests interception daemon, feeds the database
Nx_extract : whitelist & statistics generation, fed from the database
[nx_extract]
username = naxsi_web
password = test
port = 8081
rules_path = /etc/nginx/core.rules
[nx_intercept]
port = 8080
[mysql]
username = naxsi
password = trivialpasswordormaybenot
hostname = 127.0.0.1
dbname = naxsi_sig
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 28

29. While the user is browsing,
exceptions are generated by
Naxsi, and HTTP requests
are forwarded to nx_intercept.
Nx_intercept extracts
signatures from forwarded
HTTP requests, and put them
into the database.
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 29

30. After browsing a bit (here two different pages), we can fire nx_extract, the whitelist
generation daemon :
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 30

31. Clicking on whitelist generation will get you there :
########### Rules Before Optimisation ##################
#1 hits on rule 1005 (mysql keyword (|)) on url / from 1 different peers
#BasicRule wl:1005 "mz:$URL:/|$HEADERS_VAR:cookie";
….
#BasicRule wl:1010 "mz:$URL:/test_securite_web|$HEADERS_VAR:cookie";
#1 hits on rule 1011 (parenthesis, probable sql/xss) on url /test_securite_web from 1
different peers
########### End Of Rules Before Optimisation ###########
# (mysql keyword (|))
BasicRule wl:1005 "mz:$HEADERS_VAR:cookie";
# open parenthesis
BasicRule wl:1010 "mz:$HEADERS_VAR:cookie";
# close parenthesis
BasicRule wl:1011 "mz:$HEADERS_VAR:cookie";
BasicRule wl:1315 "mz:$HEADERS_VAR:cookie";
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 31

32. Naxsi usage
« Hands on : User forms »
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 32

33. But the real deal, with learning mode, is user forms !
Cookies, URL and so on will be detected in one browsing session, but what about
user forms ? You need to fill them, with all « authorized » characters, which can be
boring.
Thanks to Naxsi naive architecture, you can easilly fool him to reach your goal.
Let’s add a rule or two in our naxsi’s location configuration :
BasicRule id:0 "str:123FREETEXT" "s:BLOCK" "mz:ARGS|BODY|URL";
BasicRule id:42 "str:123EMAIL" "s:BLOCK" "mz:ARGS|BODY|URL";
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 33

34. This two rules will allow us, whenever we will type « 123FREETEXT » or « 123EMAIL »
within a field (GET/POST) to trigger naxsi, and output whitelist for :
Id:0 (which means *all* rules) whenever you input « 123FREETEXT »
Id:42 (which doesn’t exist) whenever you input « 123EMAIL »
The idea here is to be able to simply tell naxsi « whitelist everything » in this field, in a
convenient way.
And regarding id:42, replacing it by the Ids you want to whitelist is left as an exercice to
the audience (mainly because it’s not supported by nx_extract yet ;p)
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 34

35. Using the pattern « 123FREETEXT » in the website will thus generate a whitelist for
« all » rules, on specific element :
BasicRule wl:0 "mz:$URL:/|$ARGS_VAR:s";
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 35

36. Naxsi usage
« Hands on : User forms – another approach »
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 36

37. Naxsi is parsing both variable names and content
And most frameworks (magento, drupal etc.) provide « default » names, for several
kind of fields !
Do you see my point ? Not yet maybe …
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 37

38. In the case of magento, form fields use hardcoded name depending on type of field,
such as :
Firstname
Lastname
Email
Password
…
As a specific example, « search » field will always be passed as « q » :
BasicRule id:9002 "rx:^q$" "s:BLOCK" "mz:ARGS|BODY|URL";
And name fields are always named « firstname » in HTML forms :
BasicRule id:9003 "rx:^firstname$" "s:BLOCK" "mz:ARGS|BODY|URL";
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 38

39. Thus, browsing the website, and using the forms, even without specific patterns, will
trigger the rules, and you will see in whitelist generation :
BasicRule wl:9002 "mz:$URL:/catalogsearch/result/|$ARGS_VAR:q|NAME";
BasicRule wl:9003
"mz:$URL:/customer/account/createpost/|$BODY_VAR:firstname|NAME";
This allows you to perform « passive » learning. Let users use the website (in learning
mode), let them write your whitelist rules ;)
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 39

40. Naxsi usage
« Reporting, because bosses love reporting »
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 40

41. Nx_intercept can as well be fed by logfiles, nginx logfiles.
As Naxsi writes its signatures into Nginx’s error log :
ip=x.x.x.&server=xxx.ro&uri=/wp-
cron.php&total_processed=8140&total_blocked=1954&
It means two things :
You can use LearningMode, even without nx_intercept
You can get cool & nice reporting on the period you want (just inject Nginx’s log
files for this period !)
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 41

42. ©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 42

43. ©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 43

44. Naxsi usage
« More ! More ! »
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 44

45. Naxsi simplicity and naive design allows you to simply write rules for whatever you
want :
Blocking robots ?
BasicRule id:X ‘str:BOT_USER_AGENT’ ‘mz:$HEADERS_VAR:user-agent’ ‘s:BLOCK’;
People looking for PhpMyAdmin ?
Basicrule id:X ‘rx:*phpmy*’ ‘mz:URL’ ‘s:BLOCK’;
As Naxsi writes signatures of attacks to Nginx’s error log, it’s fail2ban-friendly ;)
Why not let the learning mode on, and simply rely on fail2ban to push away insisting
attackers ?
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 45

46. Back to reality
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 46

47. November 2011 : « Charlie Hebdo » a french satiric newpaper, gets heavily targeted
by muslim hacktivists after an edition – representing Muhammad– was published.
Their office was burned, and …
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 47

48. Their website gets targeted and is defaced twice within 24h of time
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 48

49. Then Dos and Ddos follows …
Their actual hoster decides to shut down the website, by fear of retaliation
Migration was planned, but it became much more urgent
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 49

50. A small hardened infrastructure was setup within 8 hours :
Two RP NGINX + NAXSI (for redundancy)
A LAMP server
And here we go for first « fire experience » of naxsi !
At the time we migrated the website, we were already aware of some vulnerabilities
that were not possible to patch within such short delay, so all our hope was within
naxsi ☺
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 50

51. D+1 : Architecture is ready, dns migration ongoing
As stated earlier, we knew some vulnerabilities were present. Attackers did
know as well (as they already defaced the website twice)
D+1,5 : DNS migration is over
A small analysis of Naxsi’s logs on the first week
Over 32 000 HTTP requests blocked
Over 200 IP blacklisted
And the cool thing is that we didn’t get any false positives, and the website
remained safe.
Thanks for the bench !
©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com 51

52. ©NBS System
Sécurité – Hébergement - Infogérance
www.nbs-system.com
Document confidentiel
52
