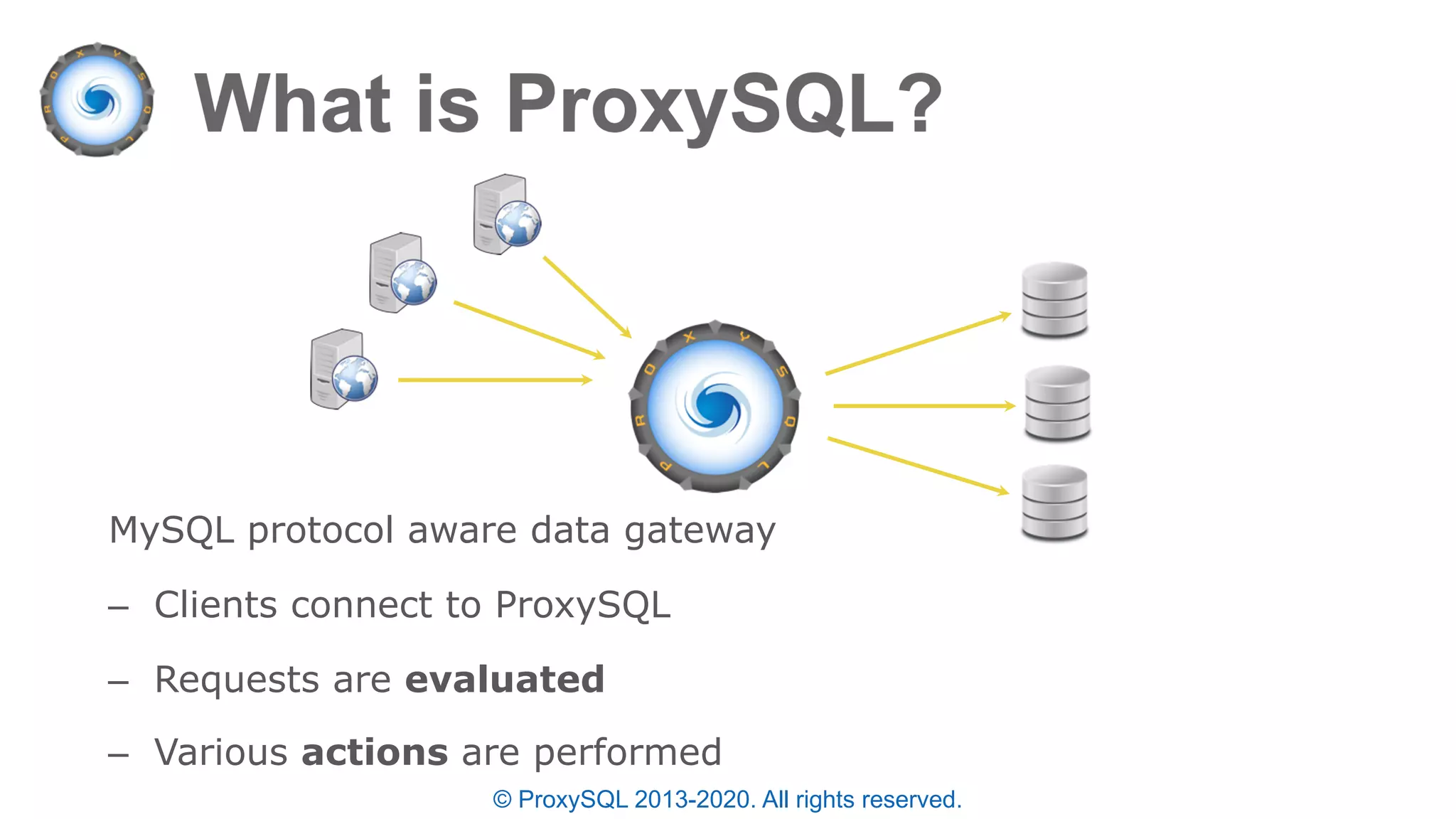

MySQL protocol aware data gateway
– Clients connect to ProxySQL
– Requests are evaluated
– Various actions are performed

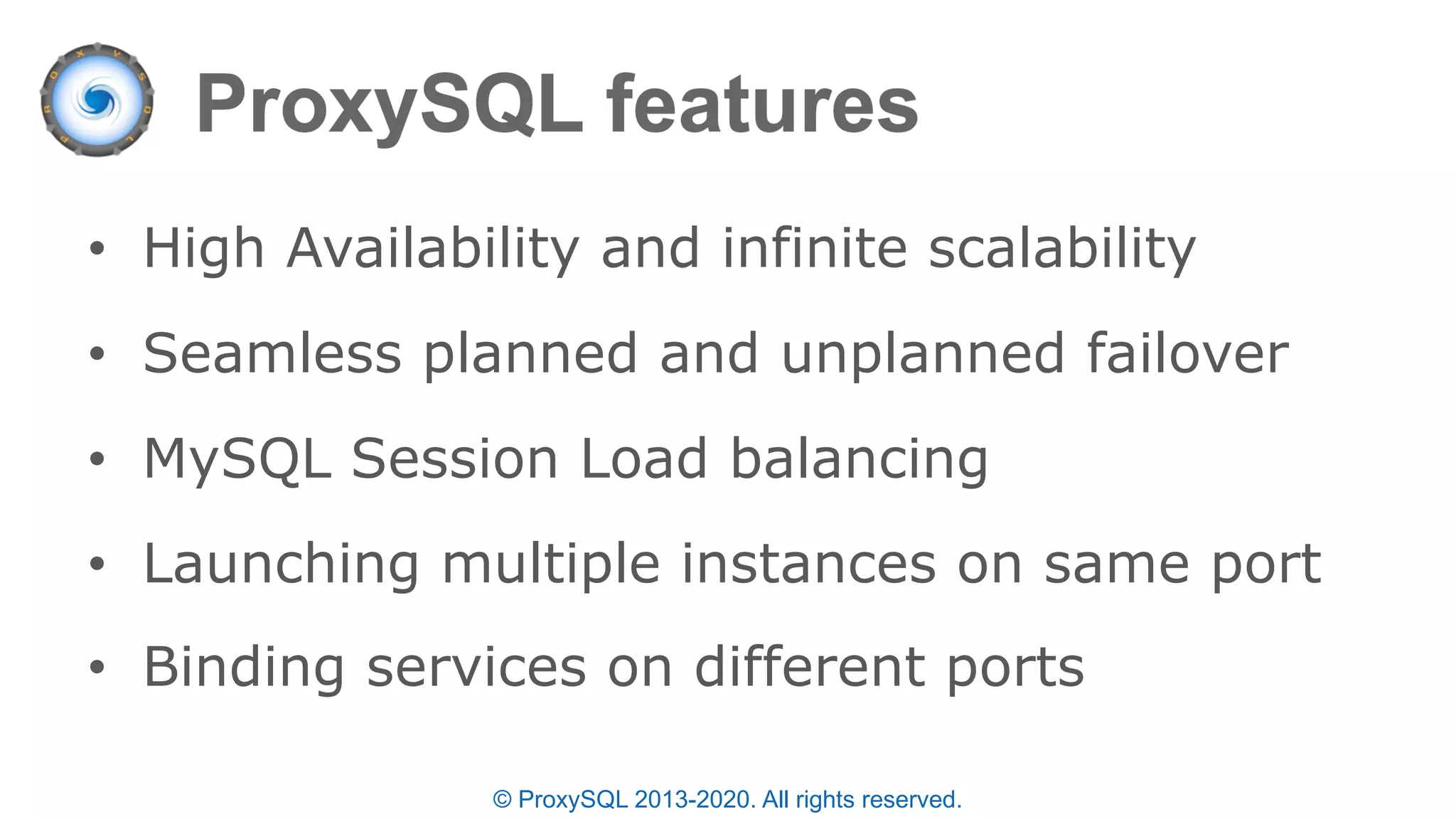

• High Availability and infinite scalability
• Seamless planned and unplanned failover

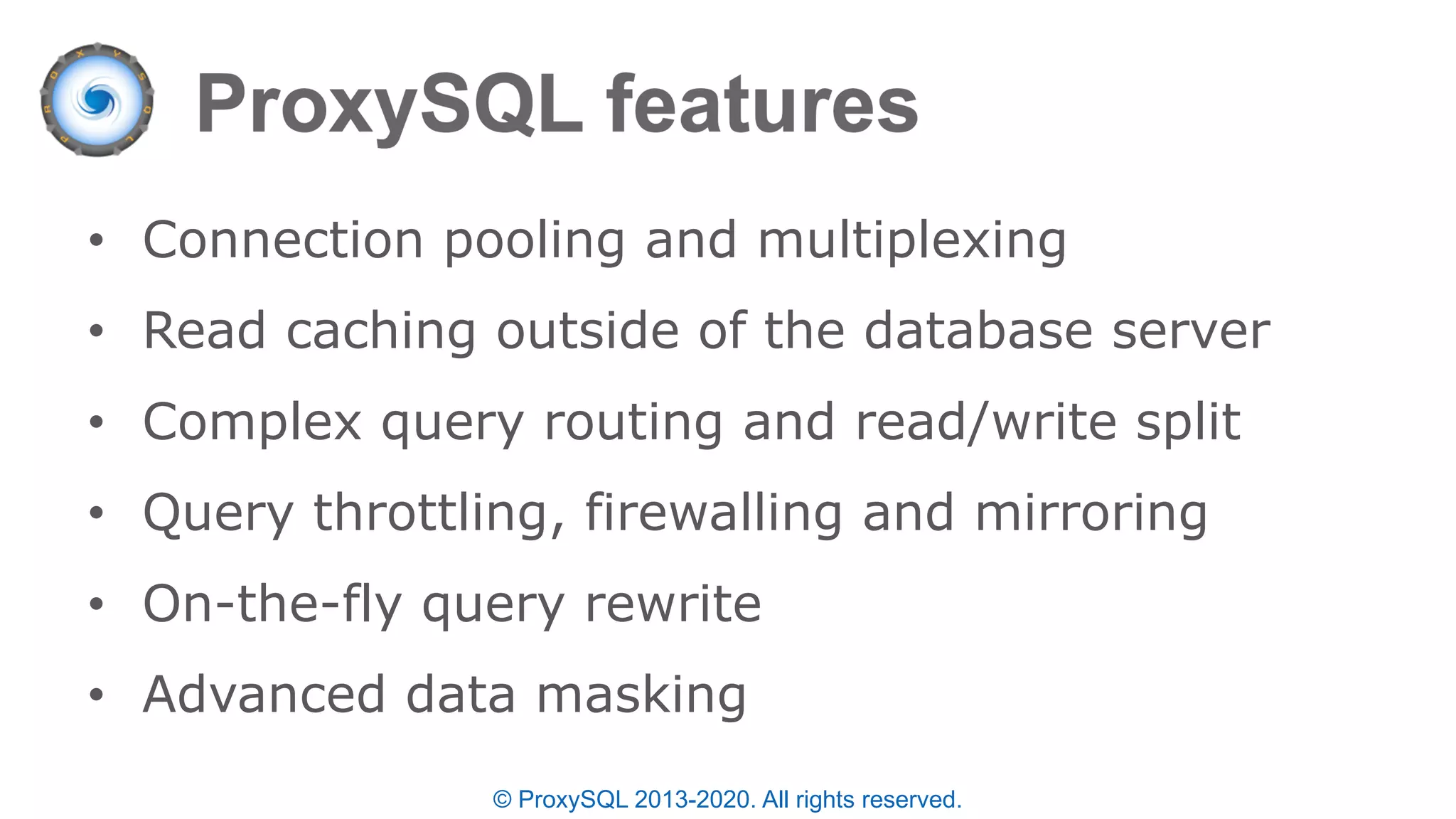

• MySQL Session Load balancing
• Launching multiple instances on same port
• Binding services on different ports

• Connection pooling and multiplexing
• Read caching outside of the database server
• Complex query routing and read/write split
• Query throttling, firewalling and mirroring
• On-the-fly query rewrite
• Advanced data masking

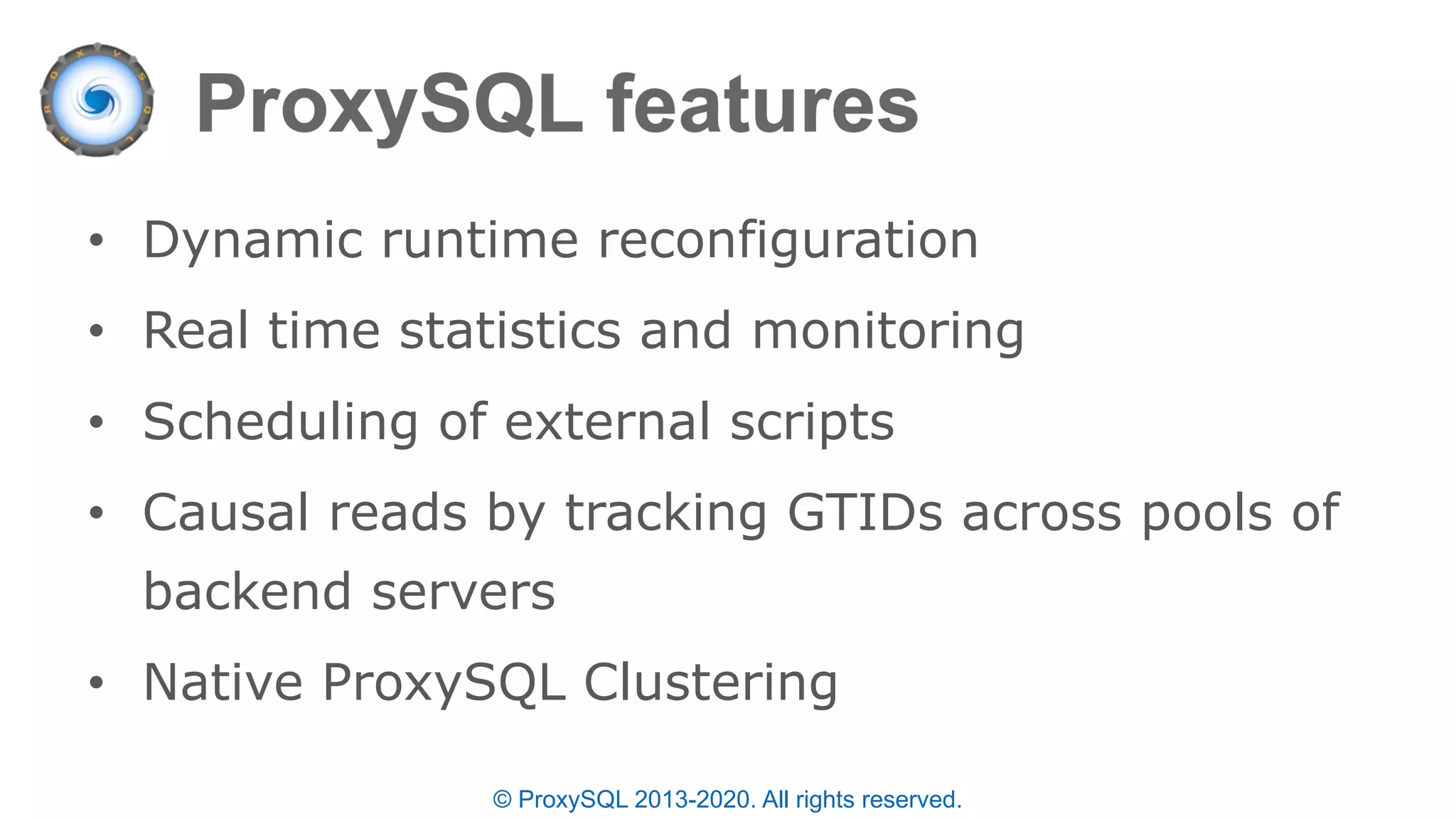

• Dynamic runtime reconfiguration
• Real time statistics and monitoring
• Scheduling of external scripts
• Causal reads by tracking GTIDs across pools of
backend servers
• Native ProxySQL Clustering

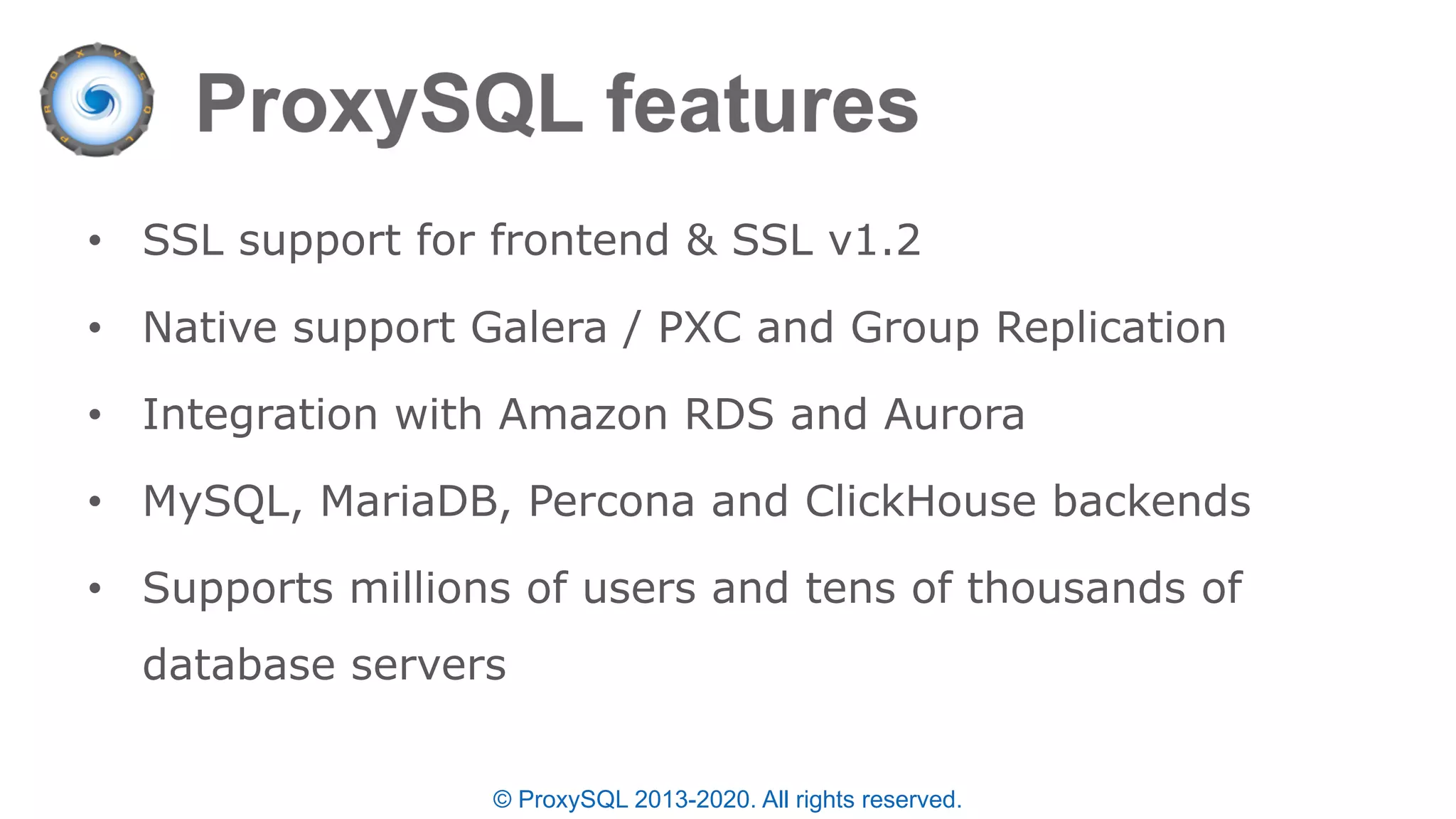

• SSL support for frontend & SSL v1.2
• Native support Galera / PXC and Group Replication
• Integration with Amazon RDS and Aurora
• MySQL, MariaDB, Percona and ClickHouse backends
• Supports millions of users and tens of thousands of
database servers

Deployment and HA for
ProxySQL

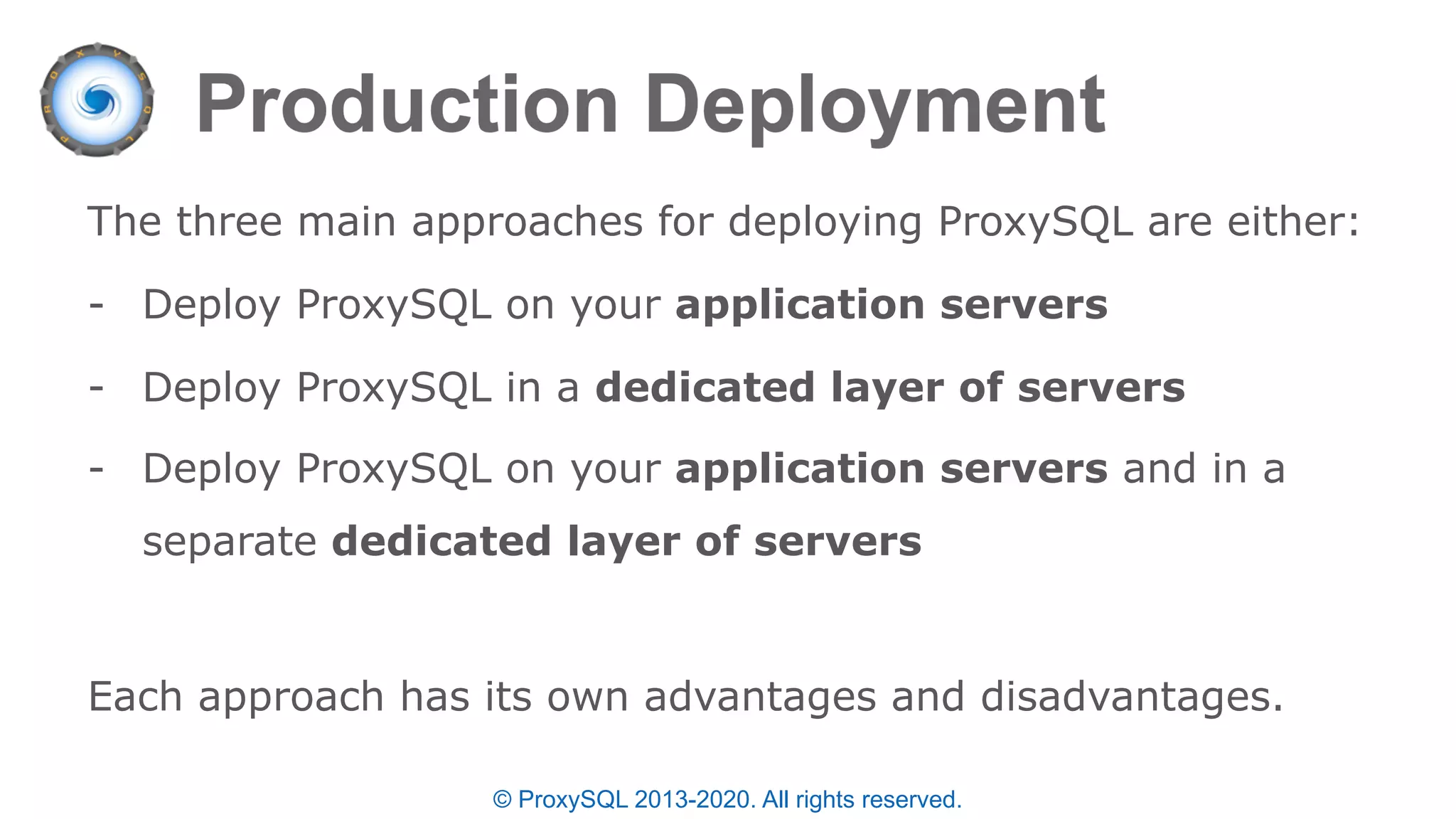

The three main approaches for deploying ProxySQL are either:
- Deploy ProxySQL on your application servers
- Deploy ProxySQL in a dedicated layer of servers
- Deploy ProxySQL on your application servers and in a
separate dedicated layer of servers
Each approach has its own advantages and disadvantages.

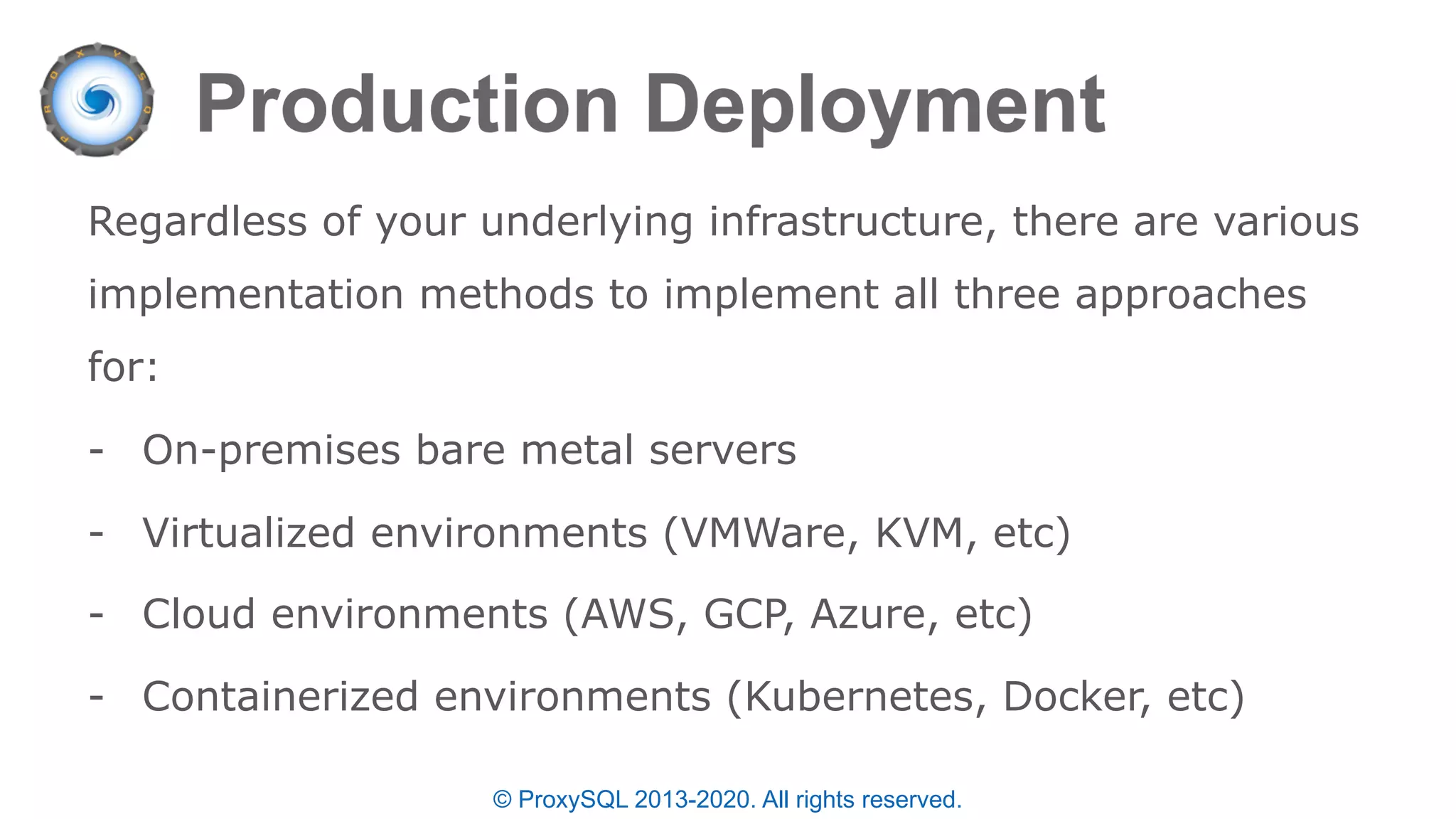

Regardless of your underlying infrastructure, there are various
implementation methods to implement all three approaches
for:
- On-premises bare metal servers
- Virtualized environments (VMWare, KVM, etc)
- Cloud environments (AWS, GCP, Azure, etc)
- Containerized environments (Kubernetes, Docker, etc)

ProxySQL is deployed locally
• No network overhead
• No single point of failure
• Isolated configuration
• Rolling upgrades
2

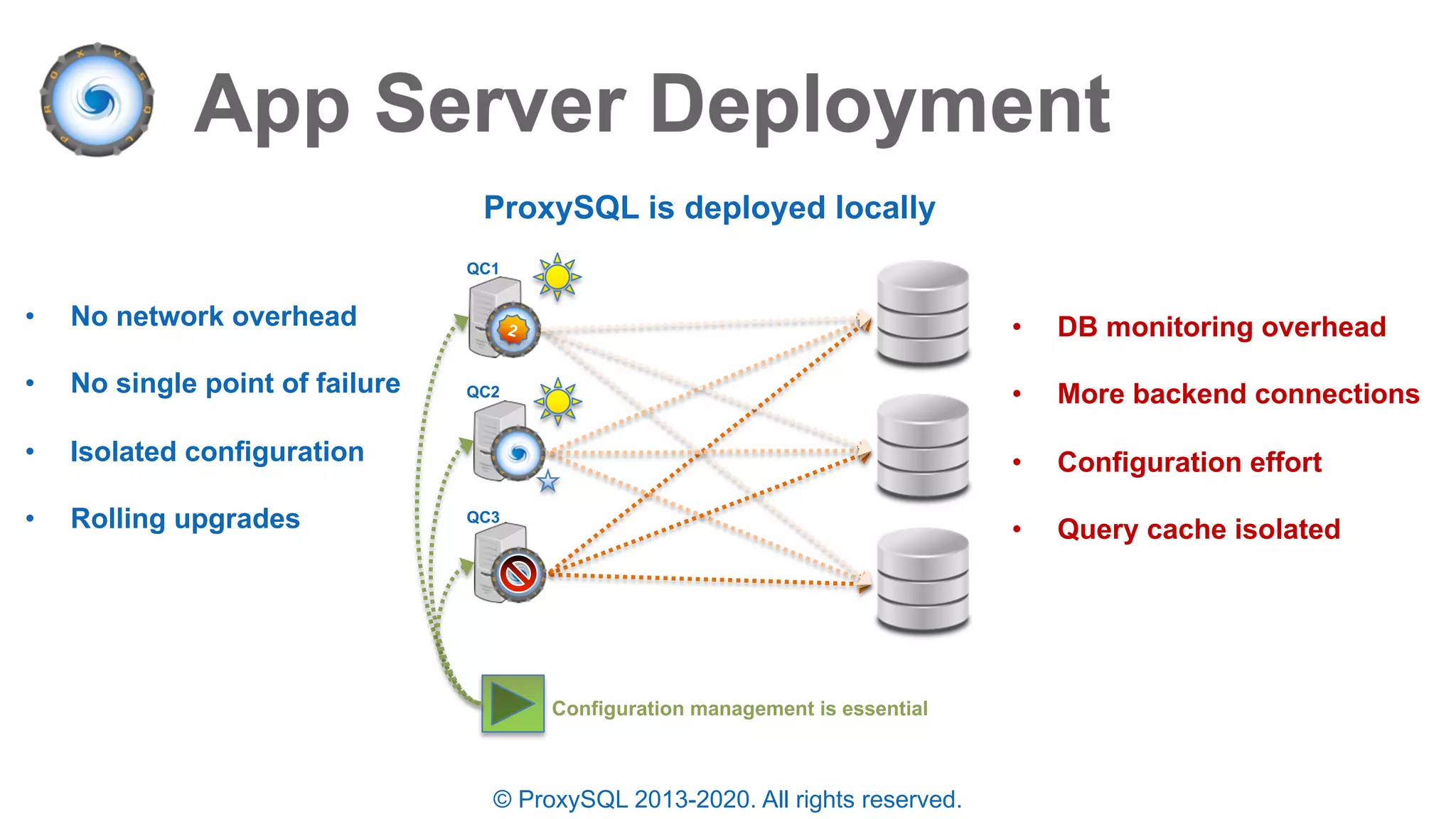

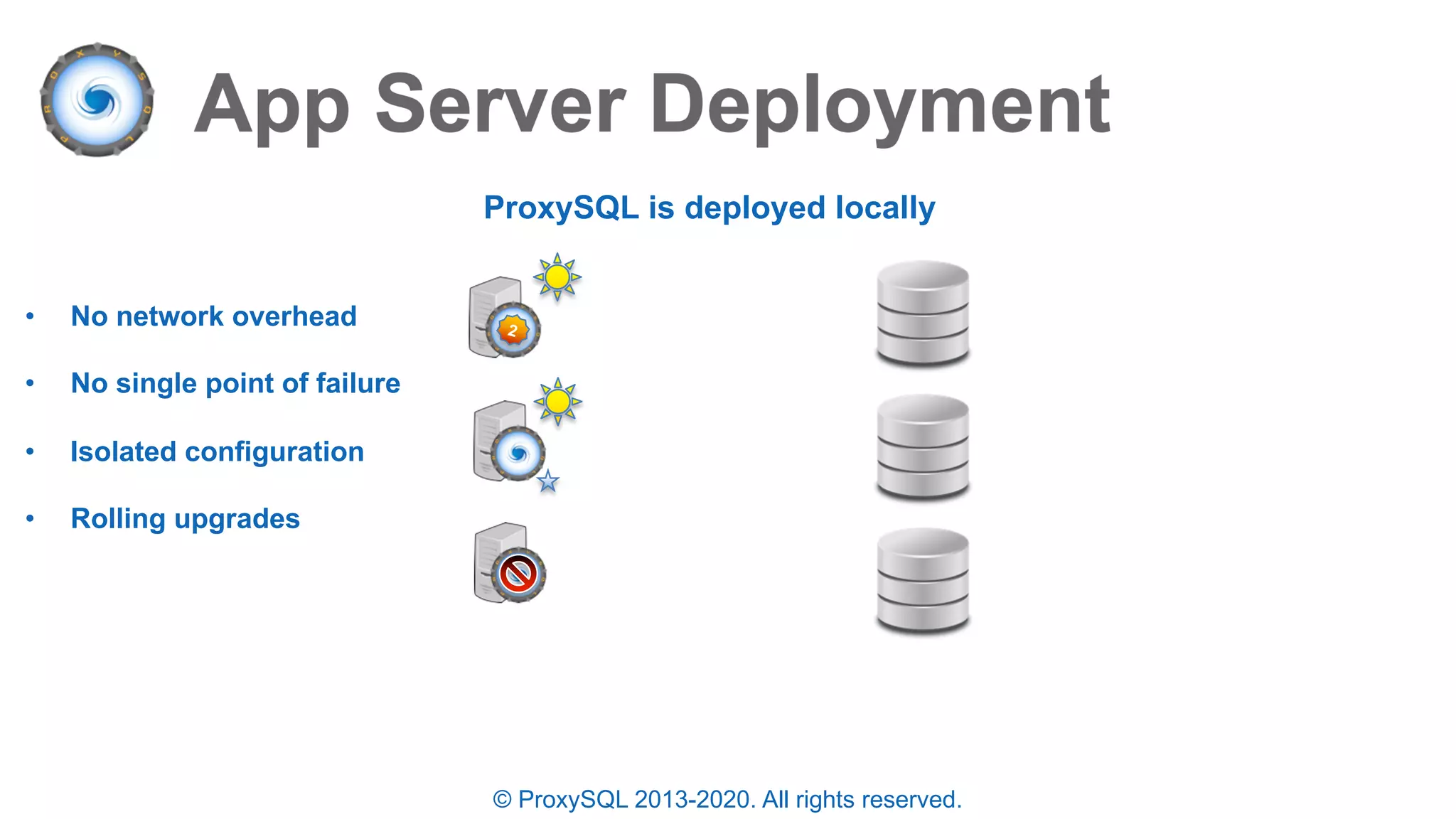

ProxySQL is deployed locally
• No network overhead
• No single point of failure
• Isolated configuration
• Rolling upgrades
2 • DB monitoring overhead
• More backend connections
• Configuration effort
• Query cache isolated
Configuration management is essential
QC1
QC2
QC3

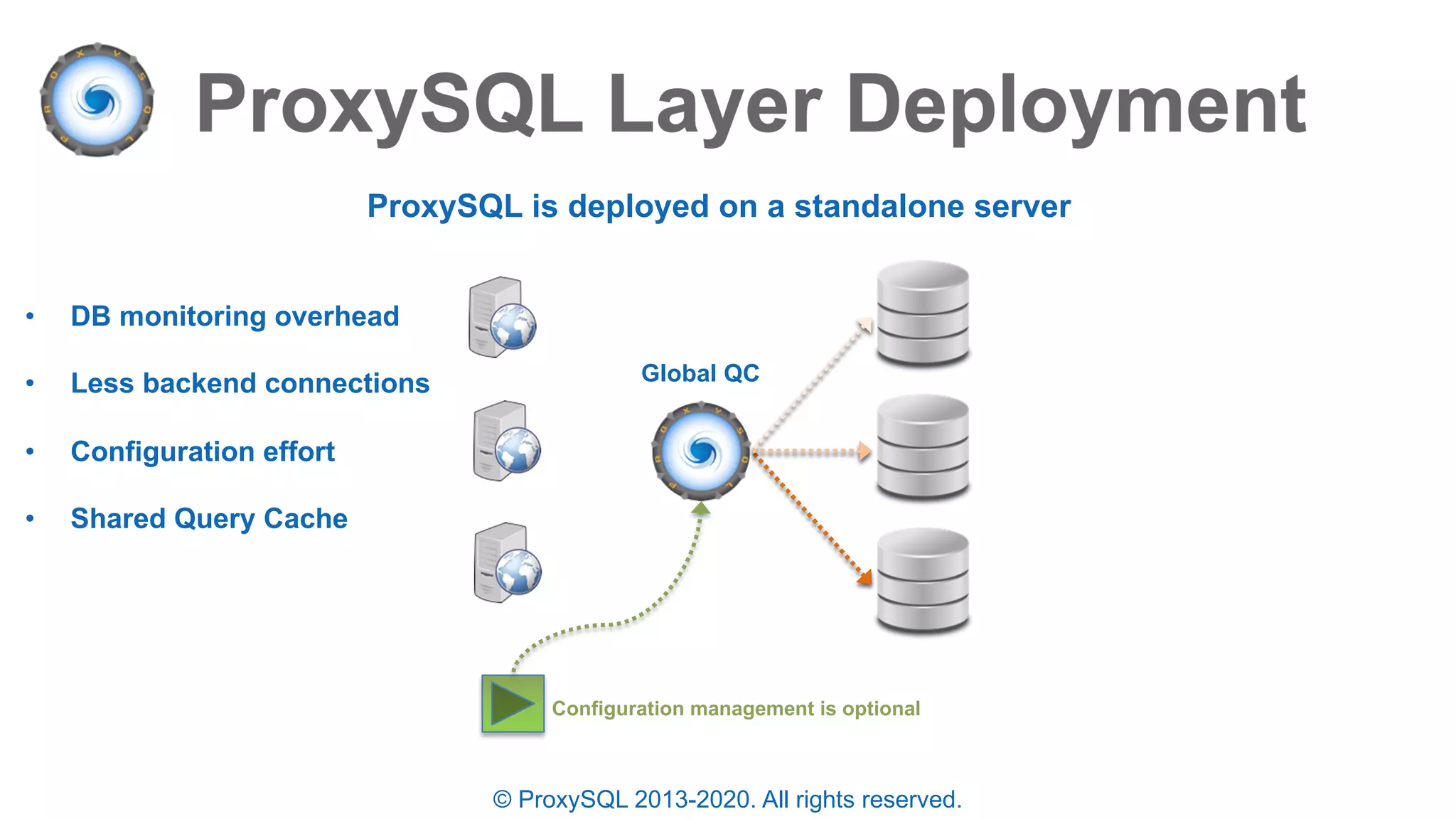

ProxySQL is deployed on a standalone server
• DB monitoring overhead
• Less backend connections
• Shared Query Cache
Configuration management is optional
Global QC

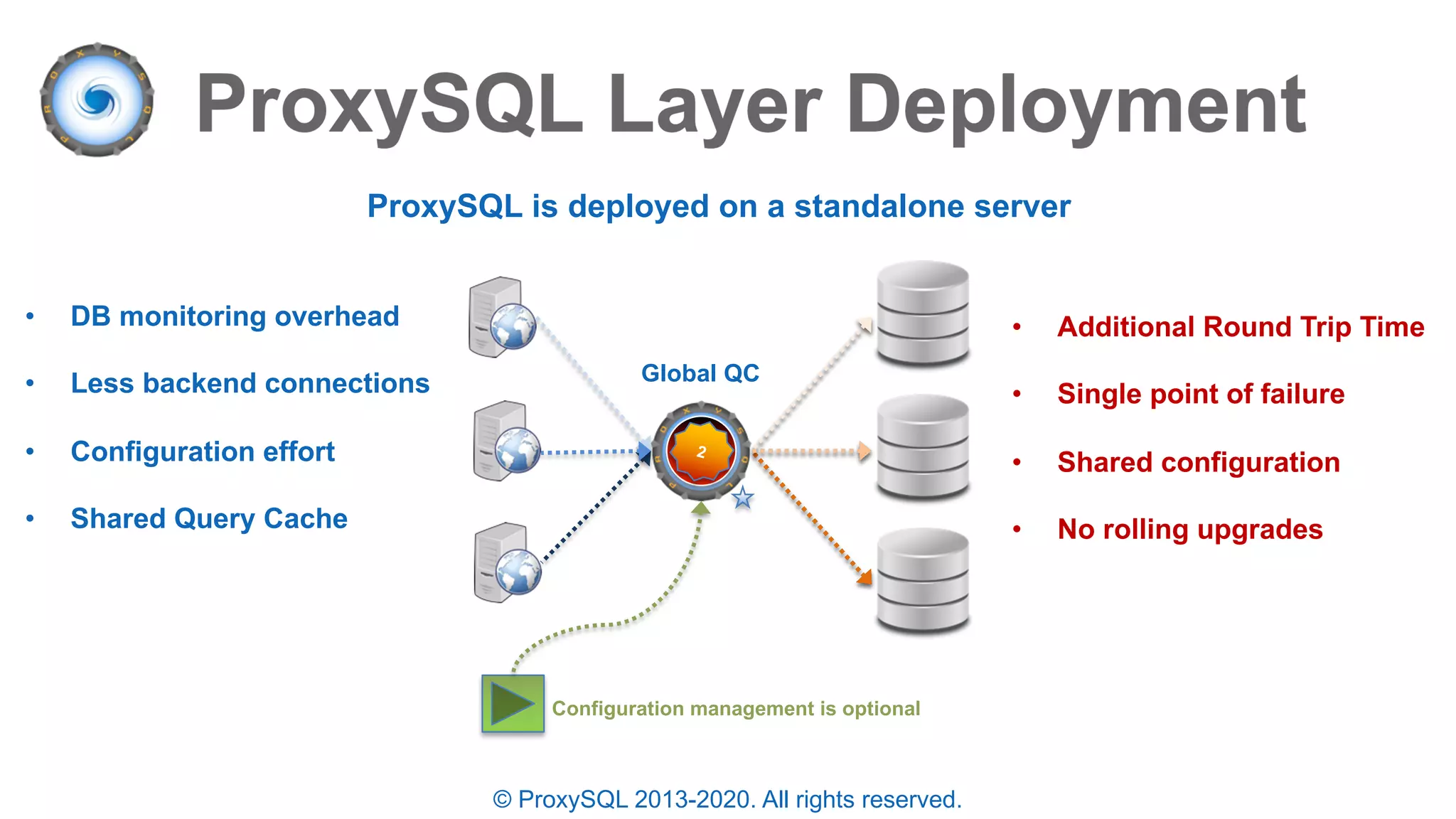

ProxySQL is deployed on a standalone server
• DB monitoring overhead
• Less backend connections
• Shared Query Cache
Global QC
• Additional Round Trip Time
• Single point of failure
• Shared configuration
• No rolling upgrades
2
Configuration management is optional

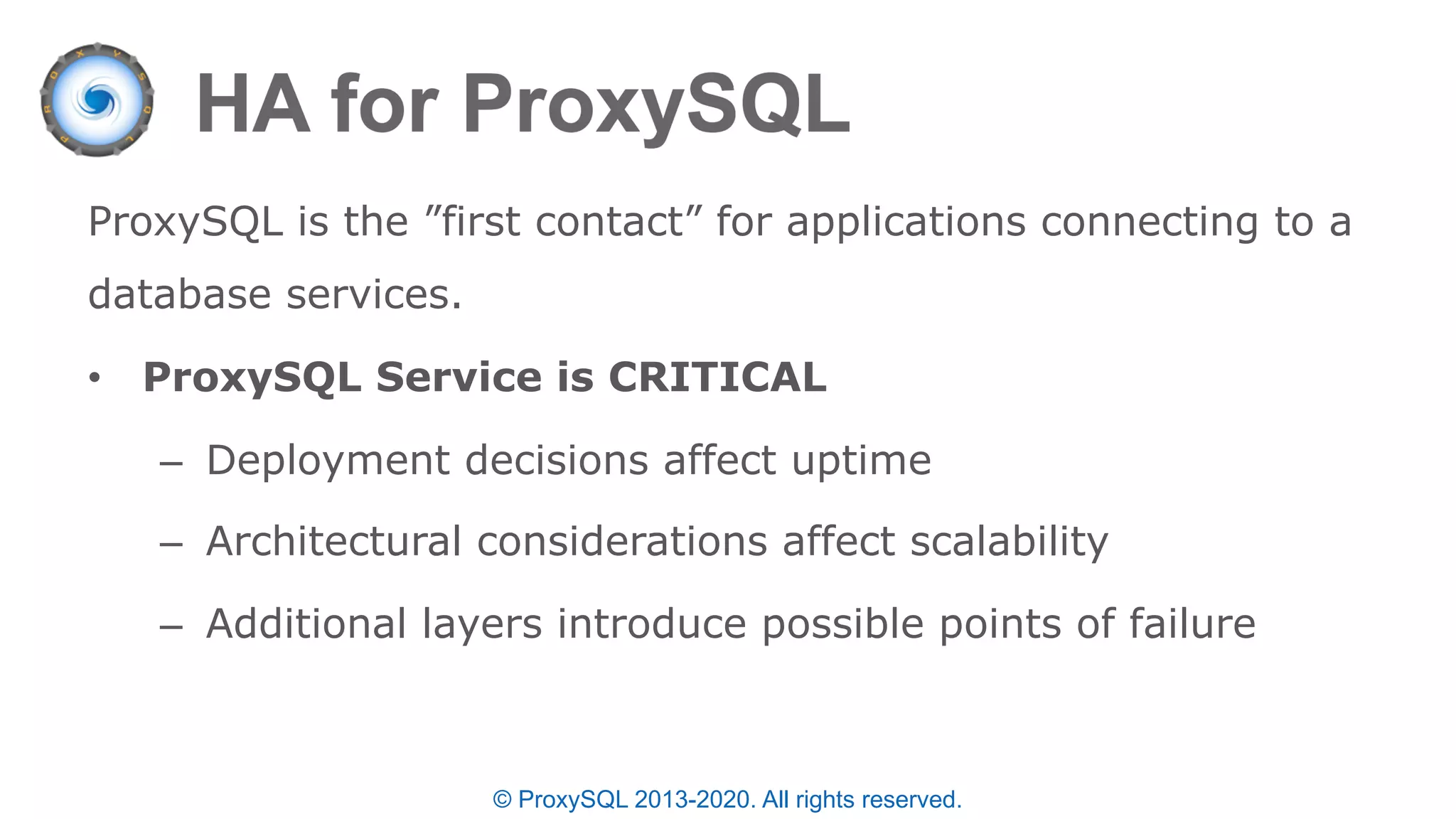

ProxySQL is the ”first contact” for applications connecting to a
database services.
• ProxySQL Service is CRITICAL
– Deployment decisions affect uptime
– Architectural considerations affect scalability
– Additional layers introduce possible points of failure

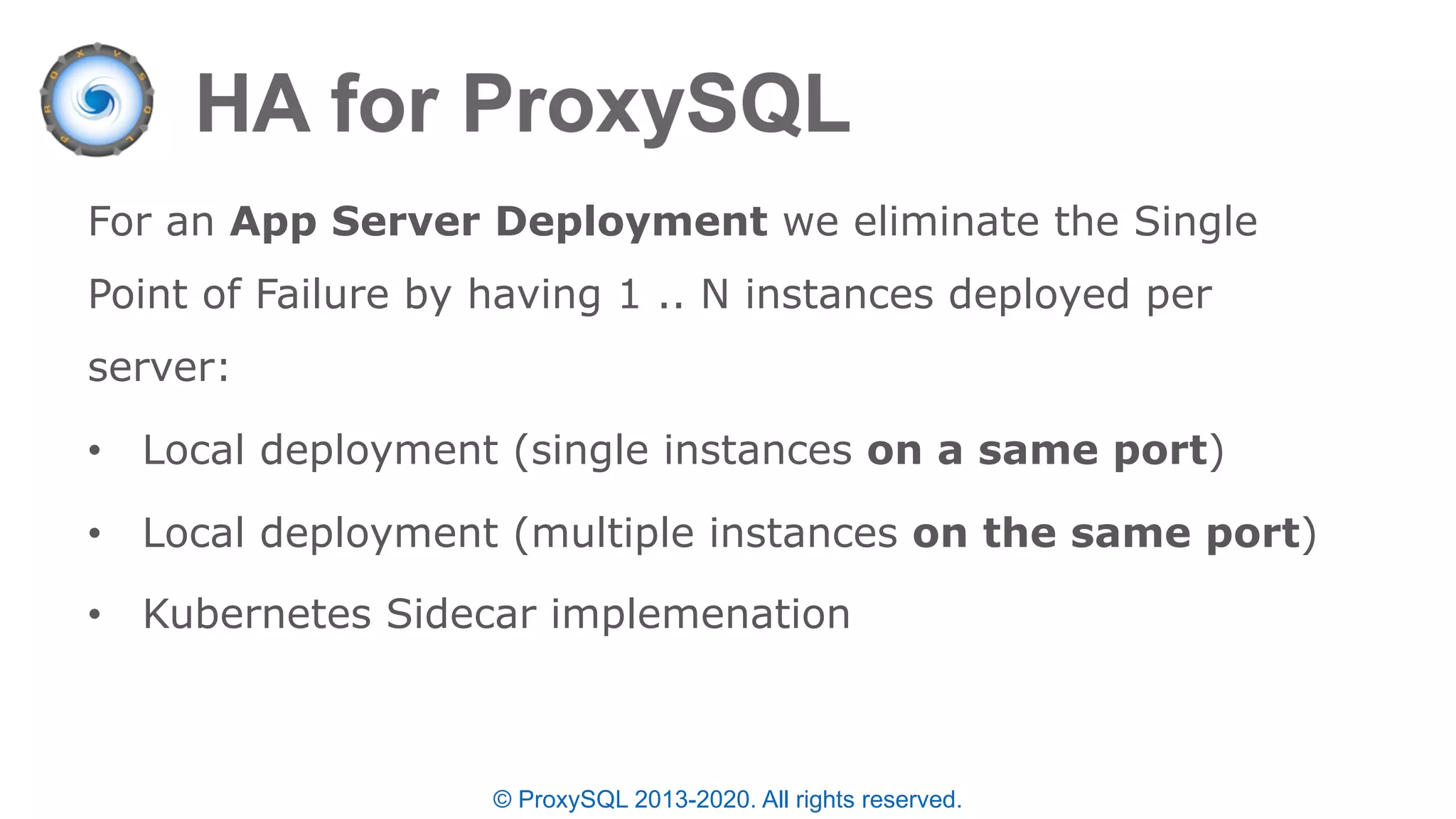

For an App Server Deployment we eliminate the Single
Point of Failure by having 1 .. N instances deployed per
server:
• Local deployment (single instances on a same port)
• Local deployment (multiple instances on the same port)
• Kubernetes Sidecar implemenation

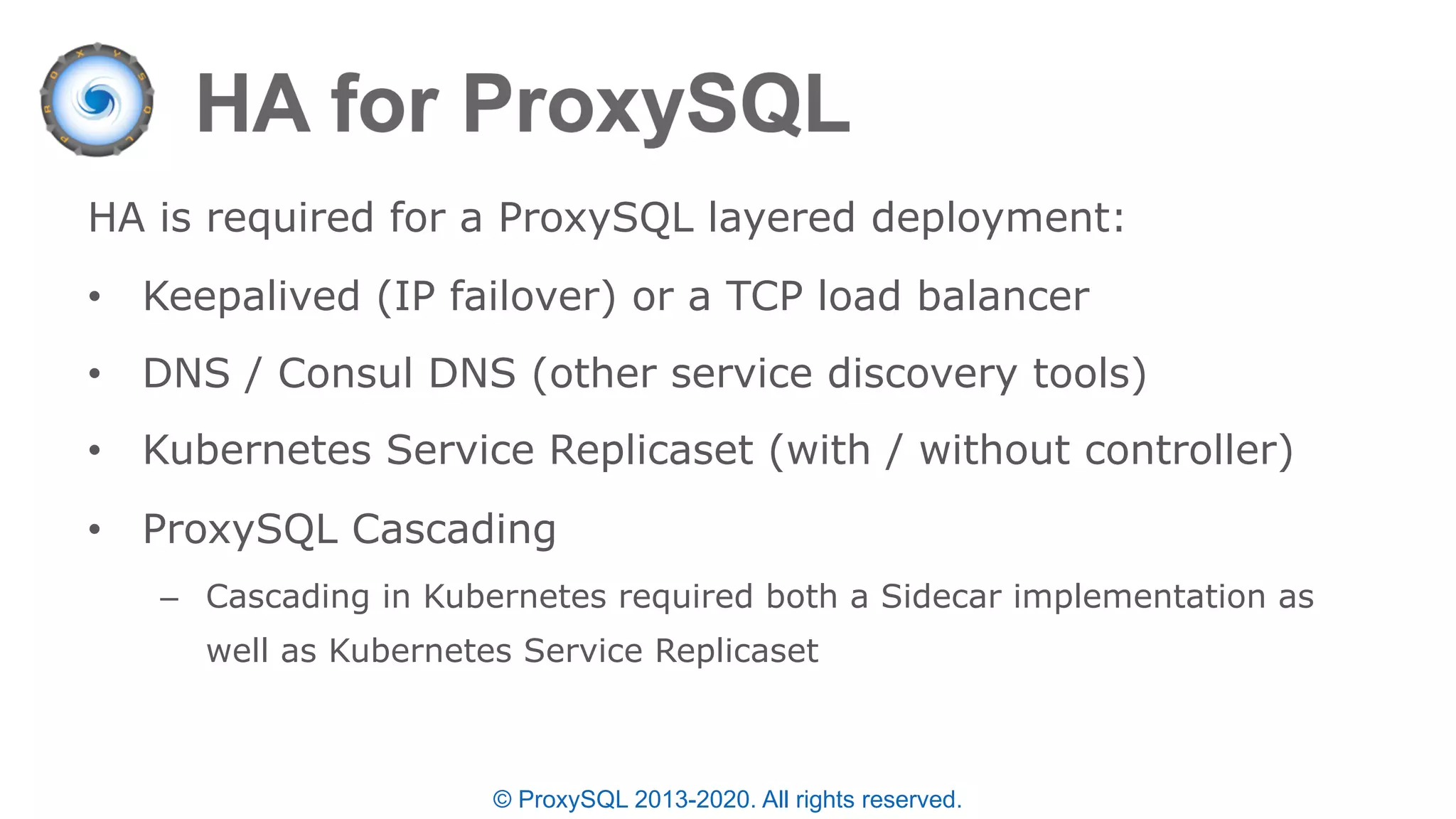

HA is required for a ProxySQL layered deployment:
• Keepalived (IP failover) or a TCP load balancer
• DNS / Consul DNS (other service discovery tools)
• Kubernetes Service Replicaset (with / without controller)
• ProxySQL Cascading
– Cascading in Kubernetes required both a Sidecar implementation as
well as Kubernetes Service Replicaset

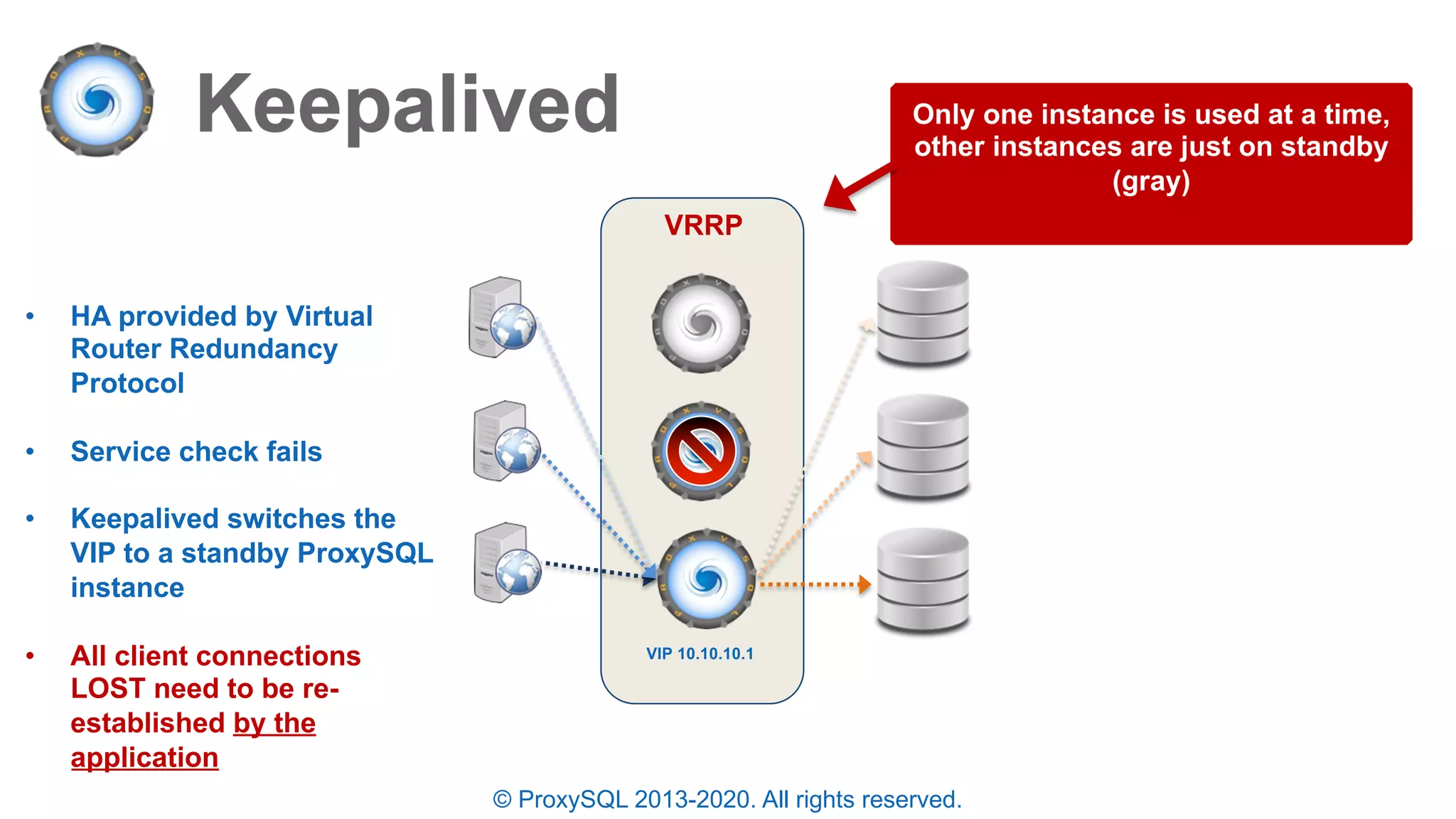

VRRP
VIP 10.10.10.1

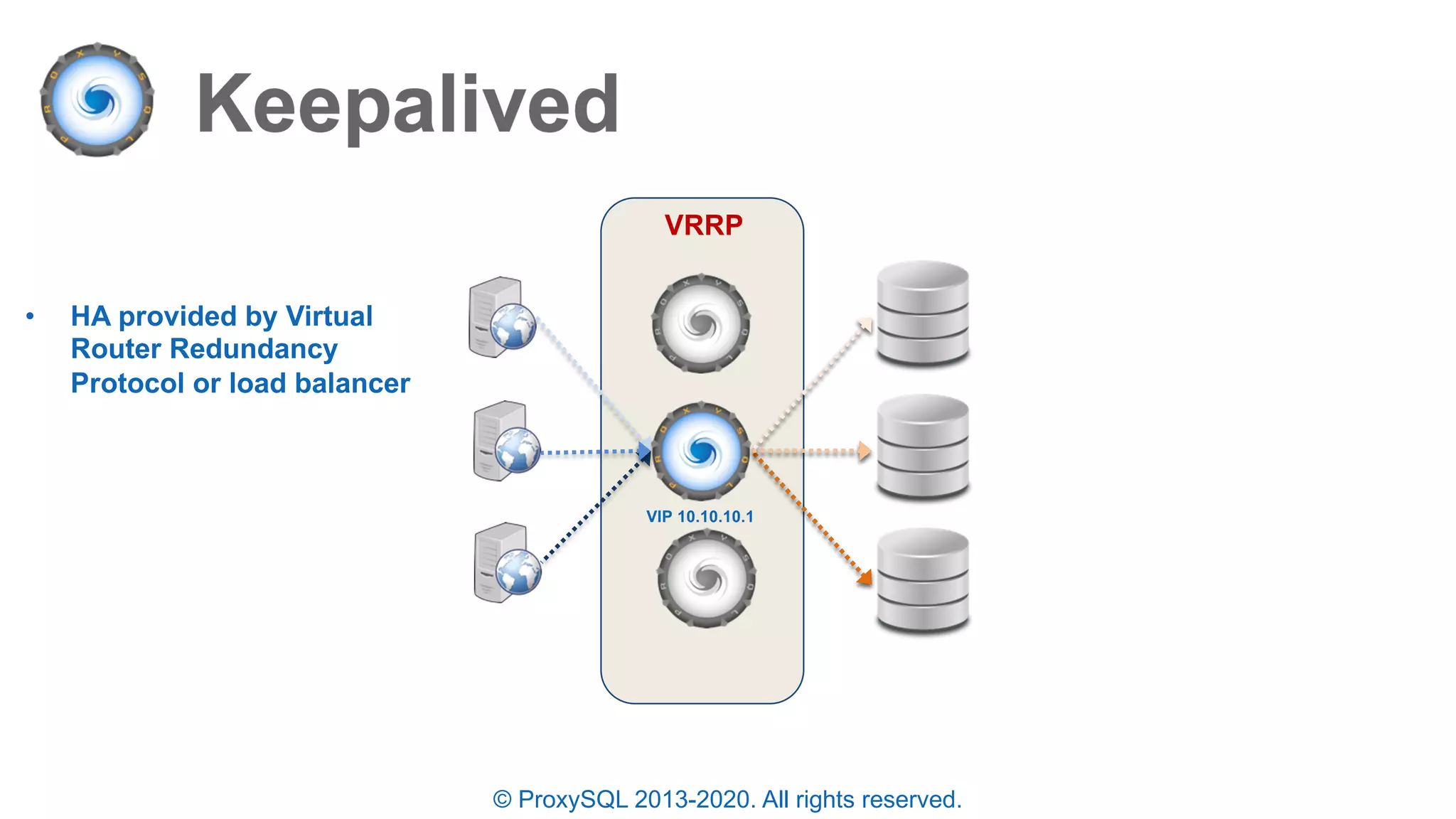

• HA provided by Virtual
Router Redundancy
Protocol or load balancer

VIP 10.10.10.1
• HA provided by Virtual
Router Redundancy
Protocol
• Service check fails
• Keepalived switches the
VIP to a standby ProxySQL
instance
• All client connections
LOST need to be re-
established by the
application
VRRP
Only one instance is used at a time,
other instances are just on standby
(gray)

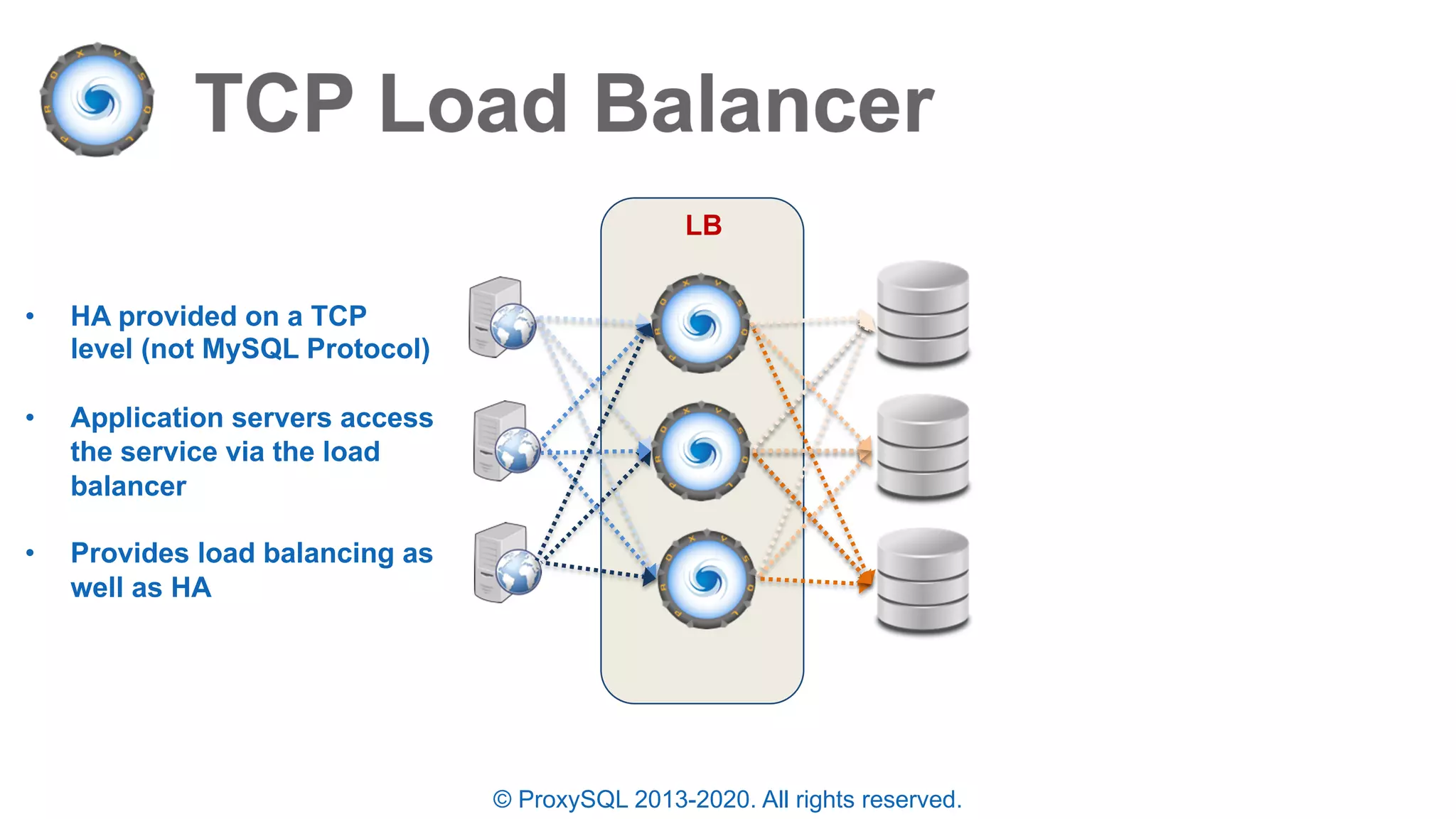

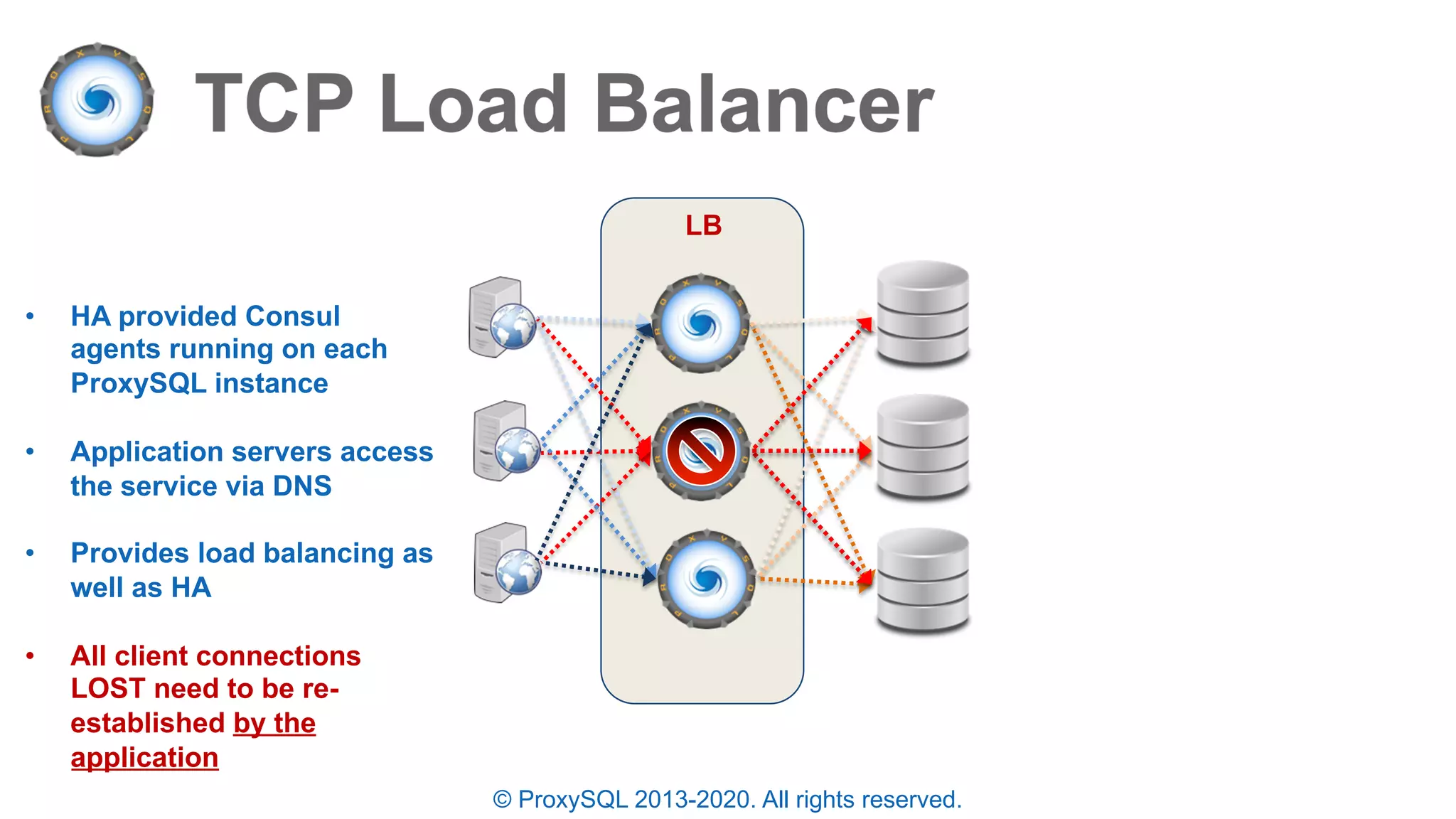

• HA provided on a TCP
level (not MySQL Protocol)
• Application servers access
the service via the load
balancer
• Provides load balancing as
well as HA
LB

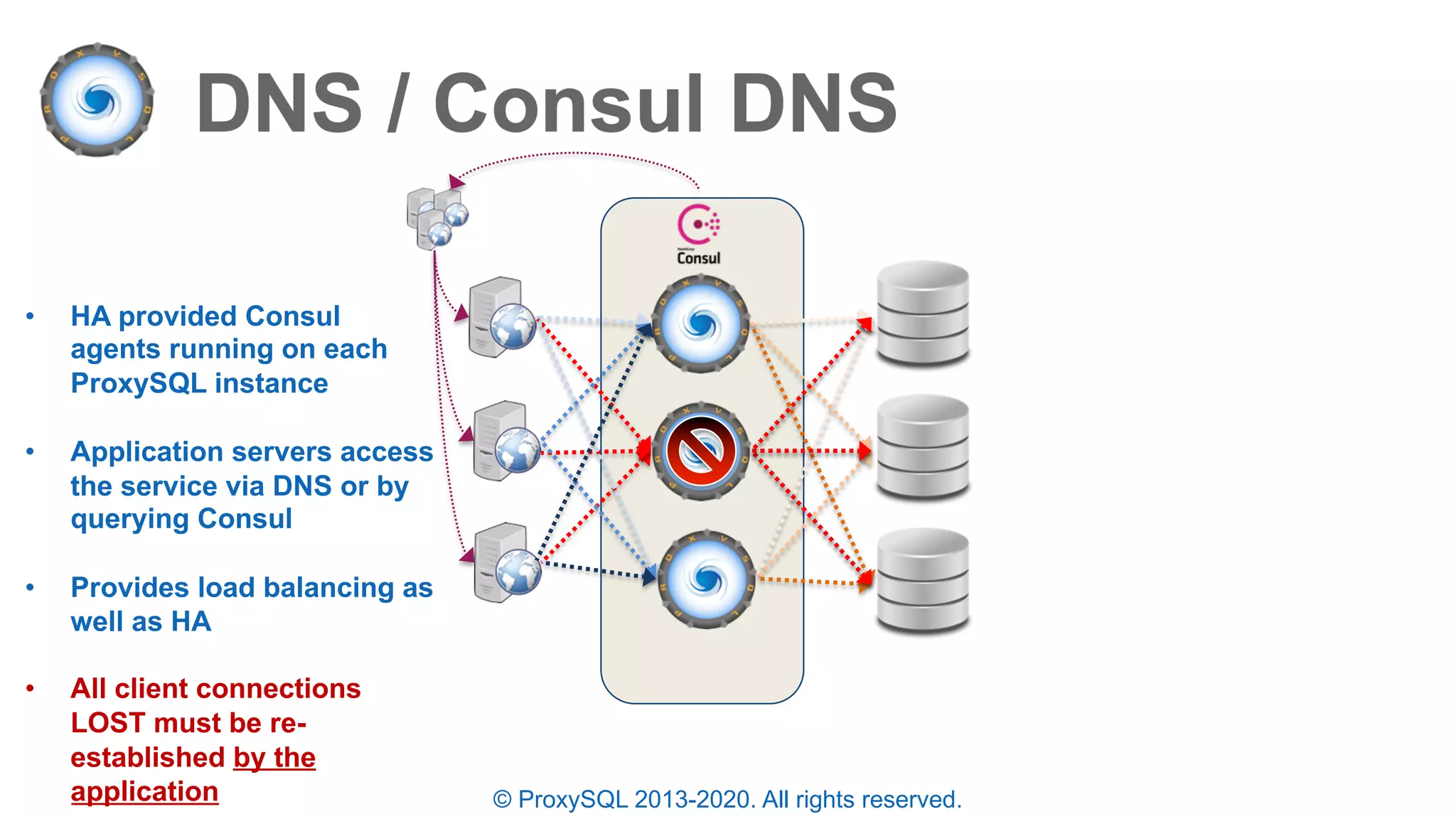

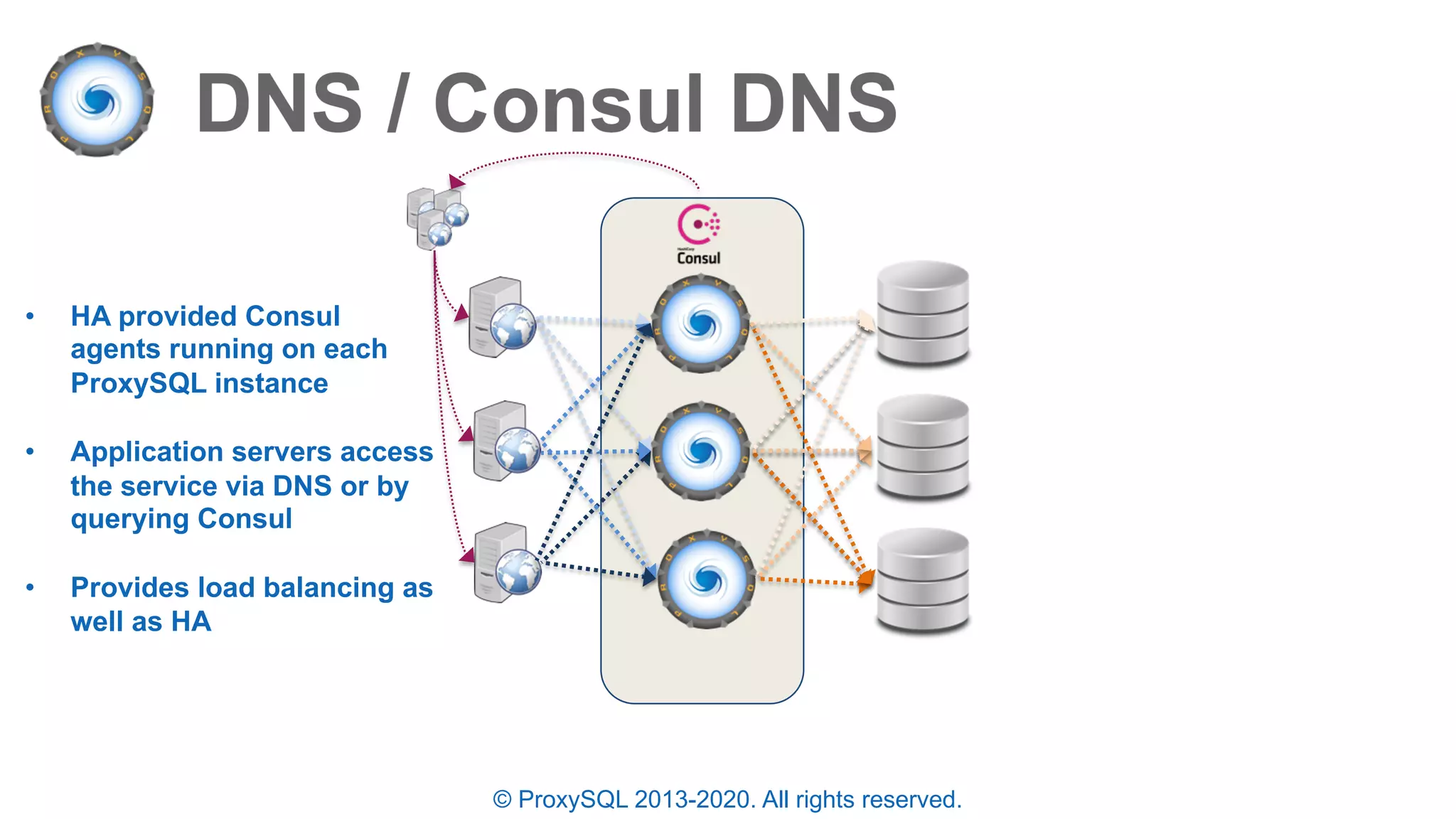

• HA provided Consul
agents running on each
ProxySQL instance
the service via DNS
well as HA
LOST need to be re-
established by the
application
LB

ProxySQL instance
the service via DNS or by
querying Consul
well as HA

ProxySQL instance
the service via DNS or by
querying Consul
well as HA
LOST must be re-
established by the
application

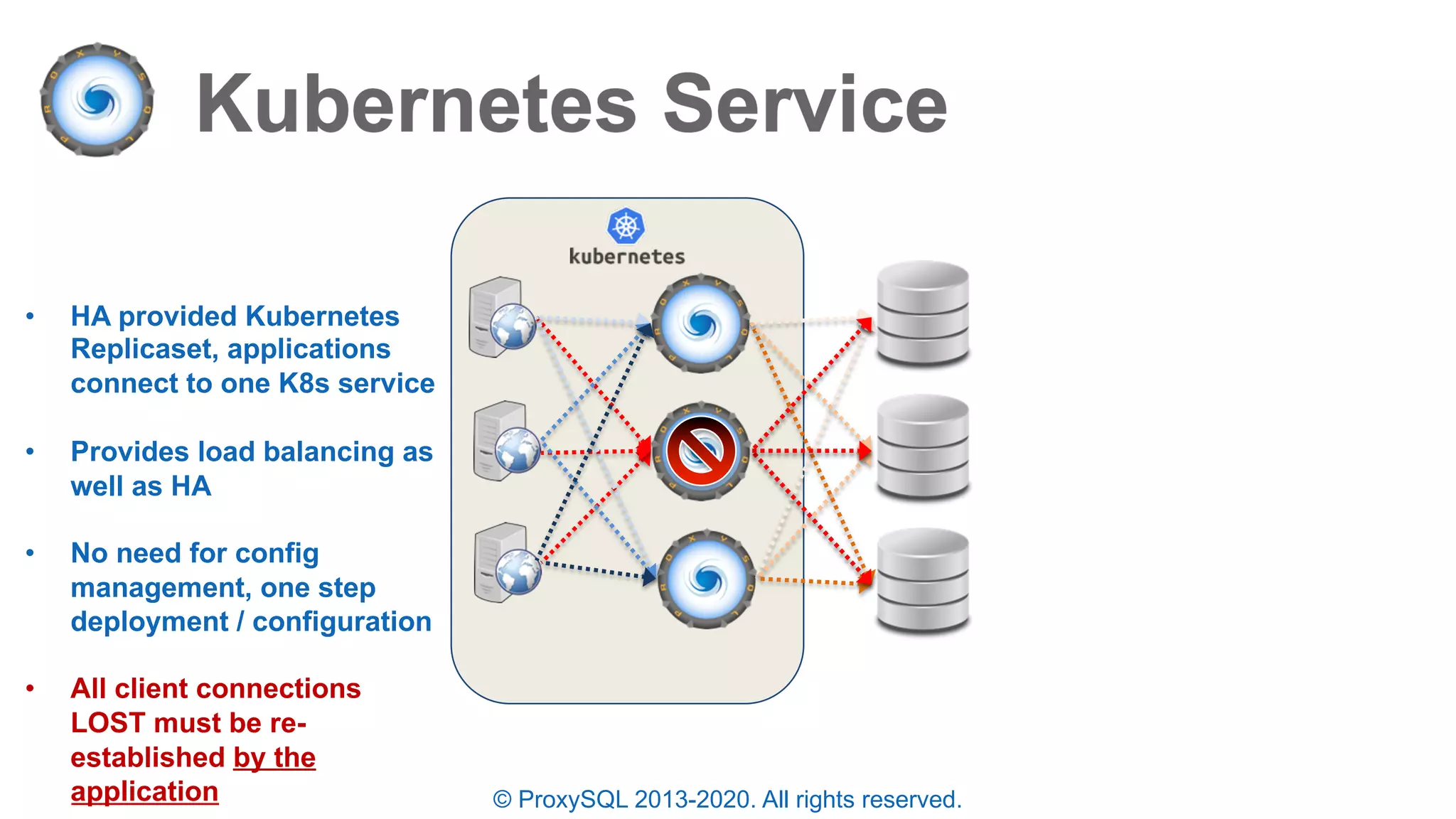

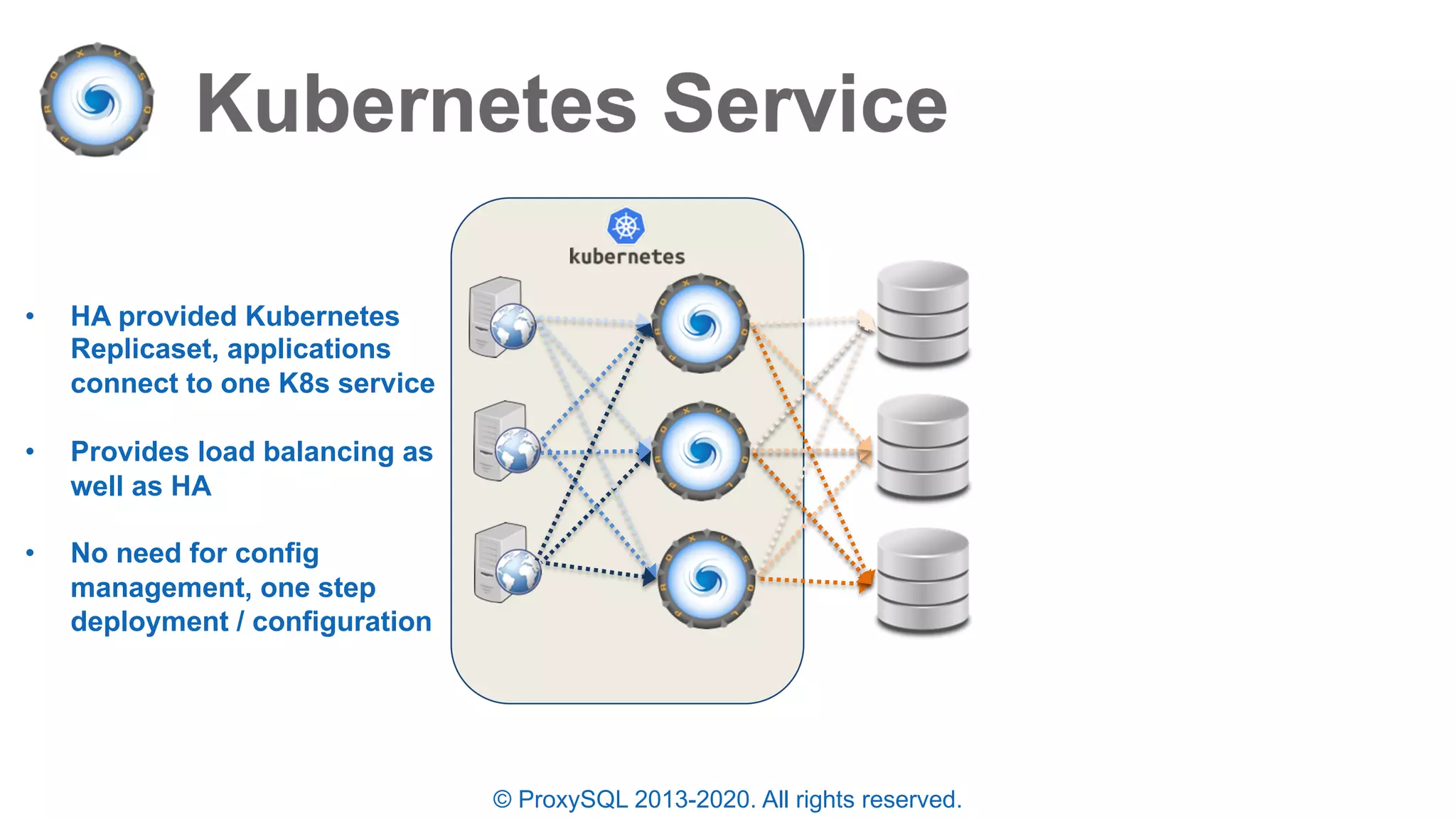

• HA provided Kubernetes
Replicaset, applications
connect to one K8s service
well as HA
• No need for config
management, one step
deployment / configuration

• HA provided Kubernetes
Replicaset, applications
connect to one K8s service
well as HA
• No need for config
management, one step
deployment / configuration
LOST must be re-
established by the
application

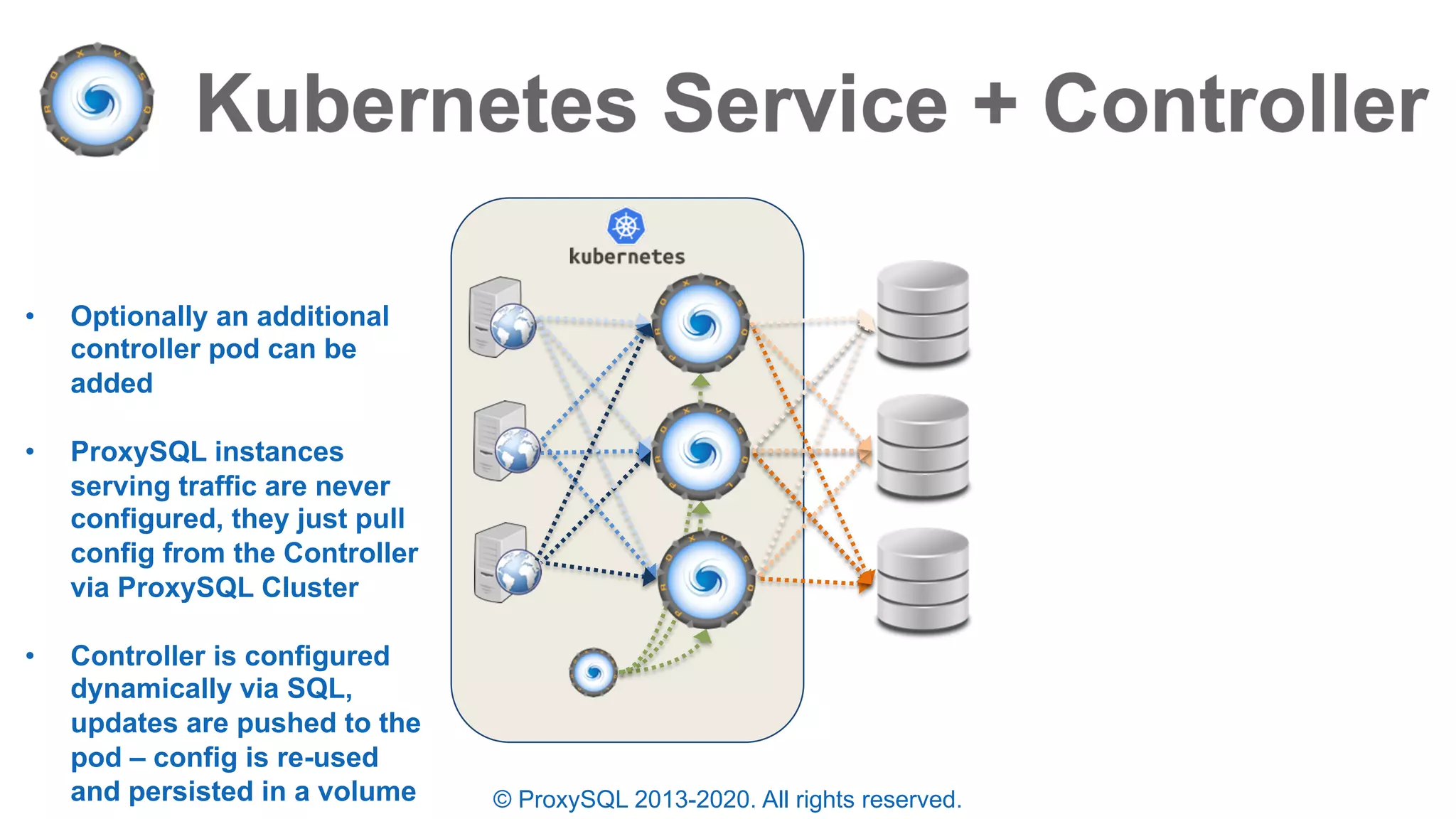

• Optionally an additional
controller pod can be
added
• ProxySQL instances
serving traffic are never
configured, they just pull
config from the Controller
via ProxySQL Cluster
• Controller is configured
dynamically via SQL,
updates are pushed to the
pod – config is re-used
and persisted in a volume

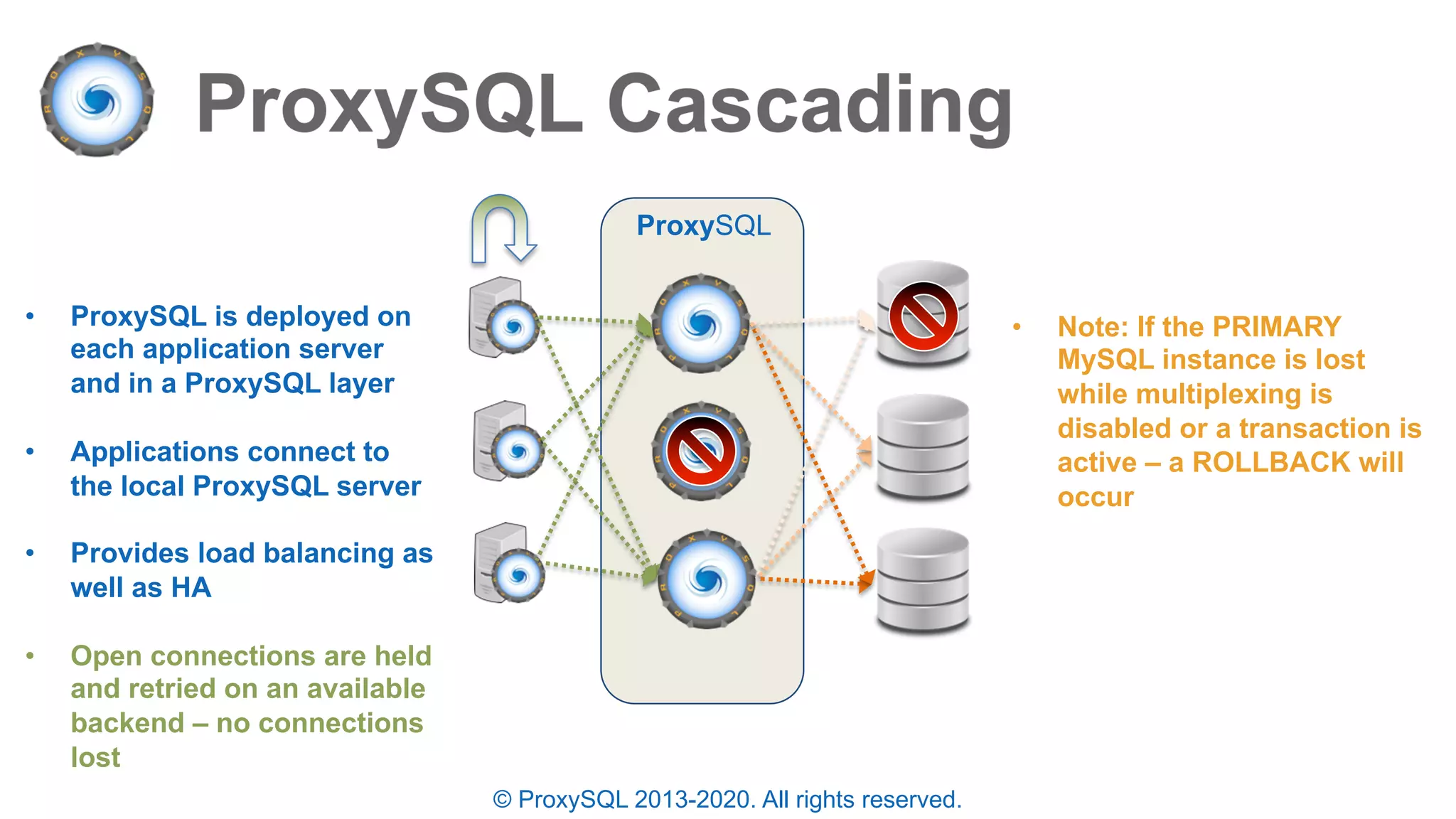

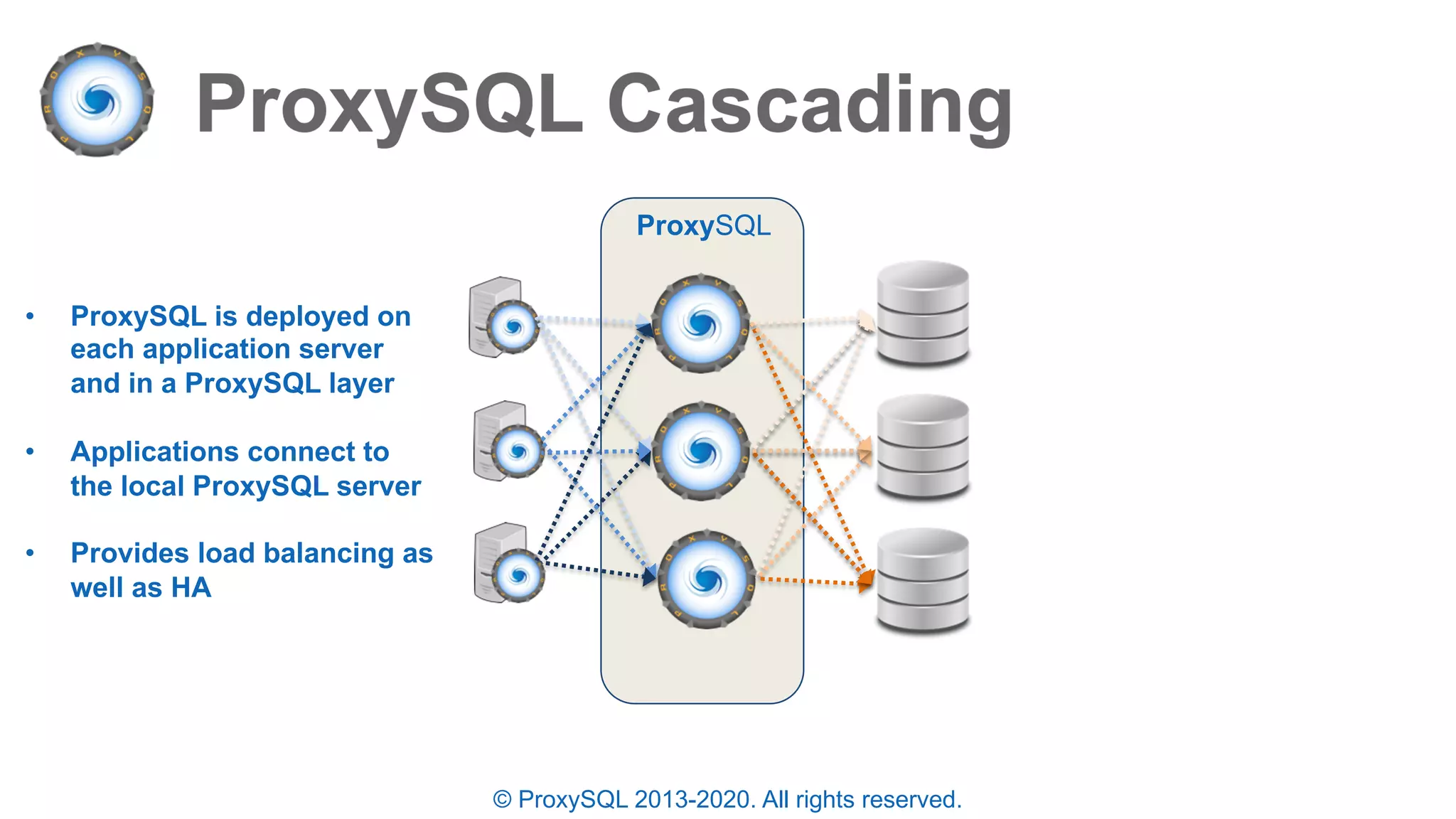

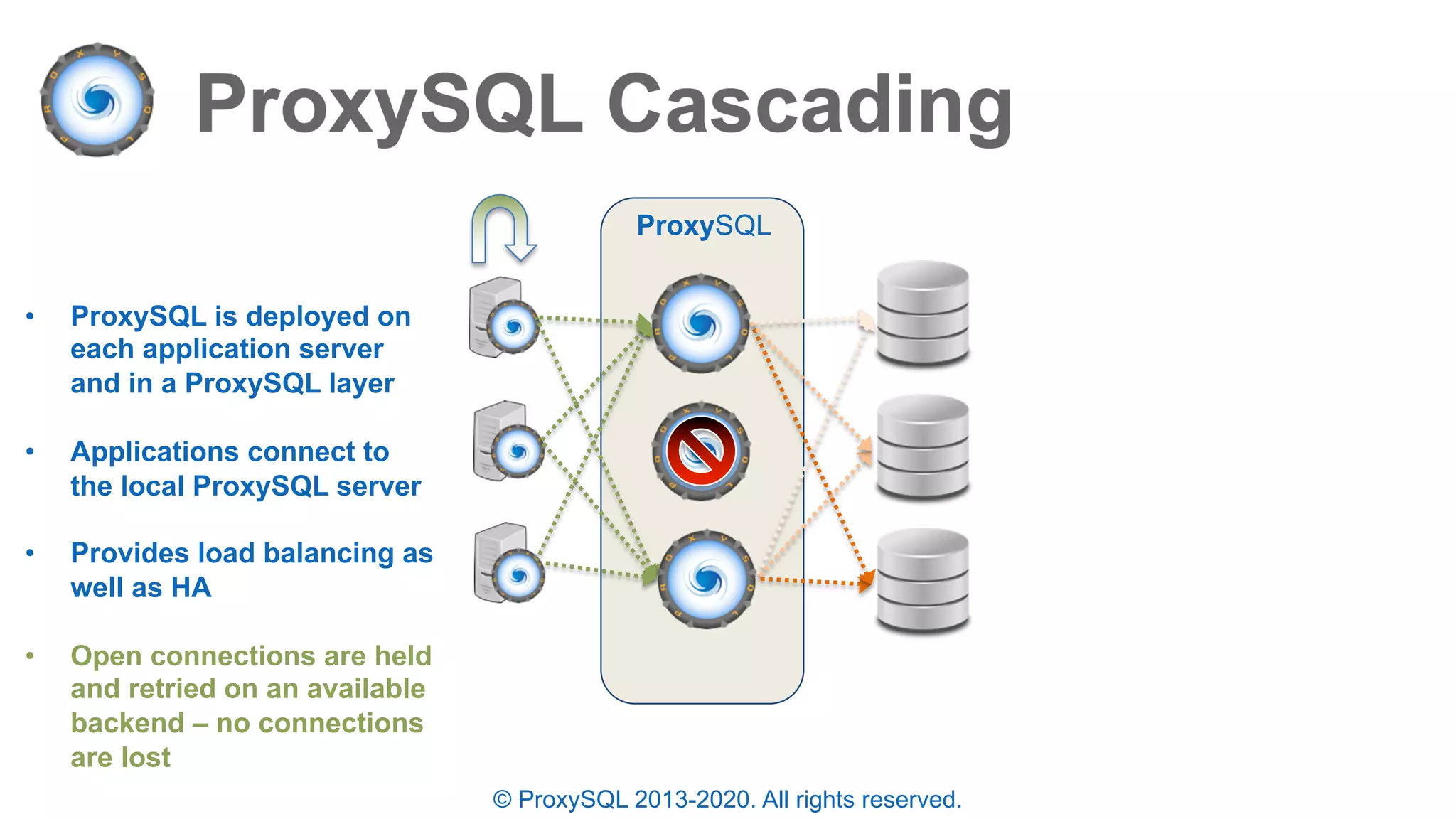

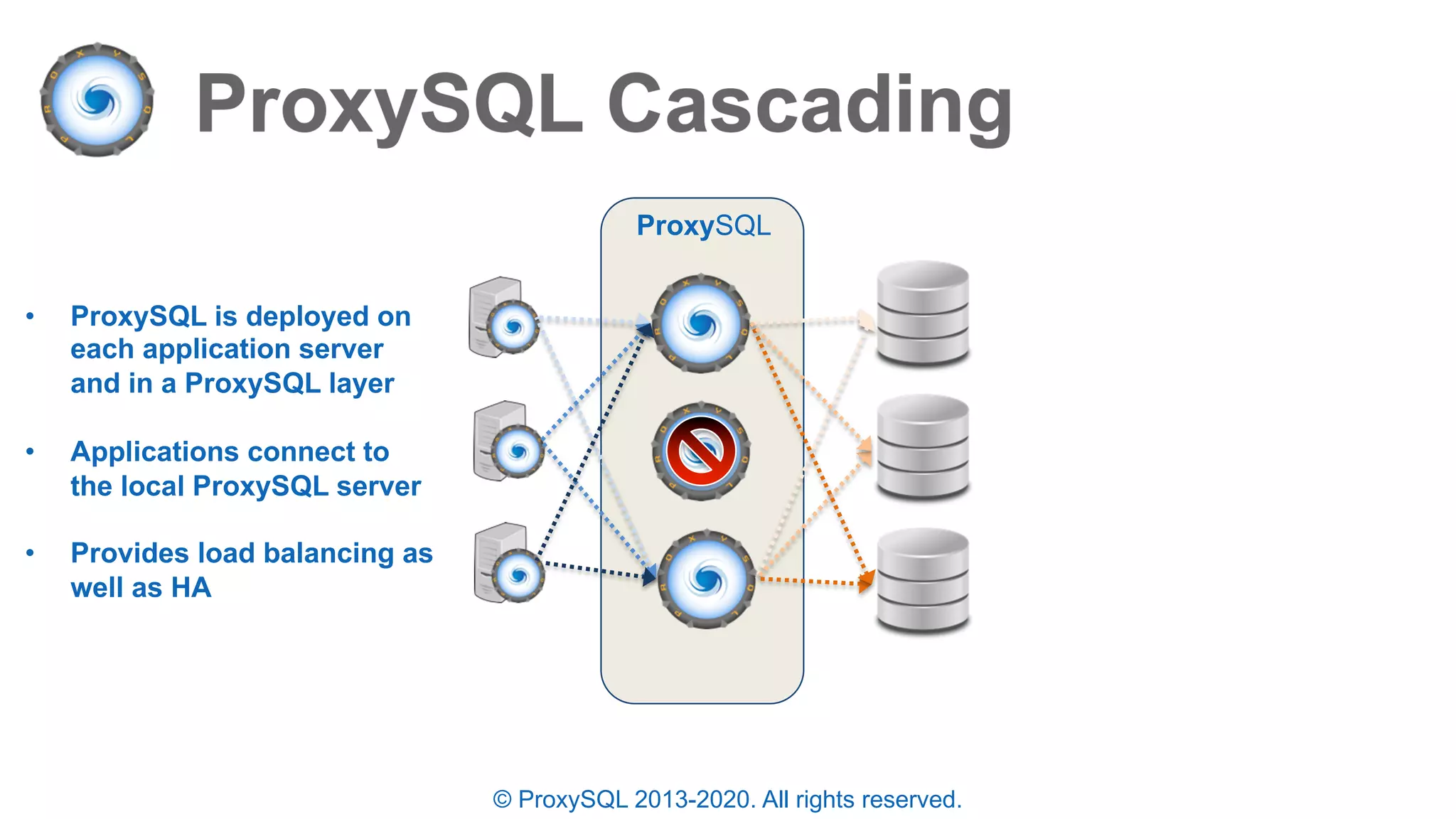

• ProxySQL is deployed on
each application server
and in a ProxySQL layer
• Applications connect to
the local ProxySQL server
well as HA
ProxySQL

well as HA
• Open connections are held
and retried on an available
backend – no connections
are lost
ProxySQL

well as HA
• Open connections are held
and retried on an available
backend – no connections
lost
• Note: If the PRIMARY
MySQL instance is lost
while multiplexing is
disabled or a transaction is
active – a ROLLBACK will
occur
ProxySQL

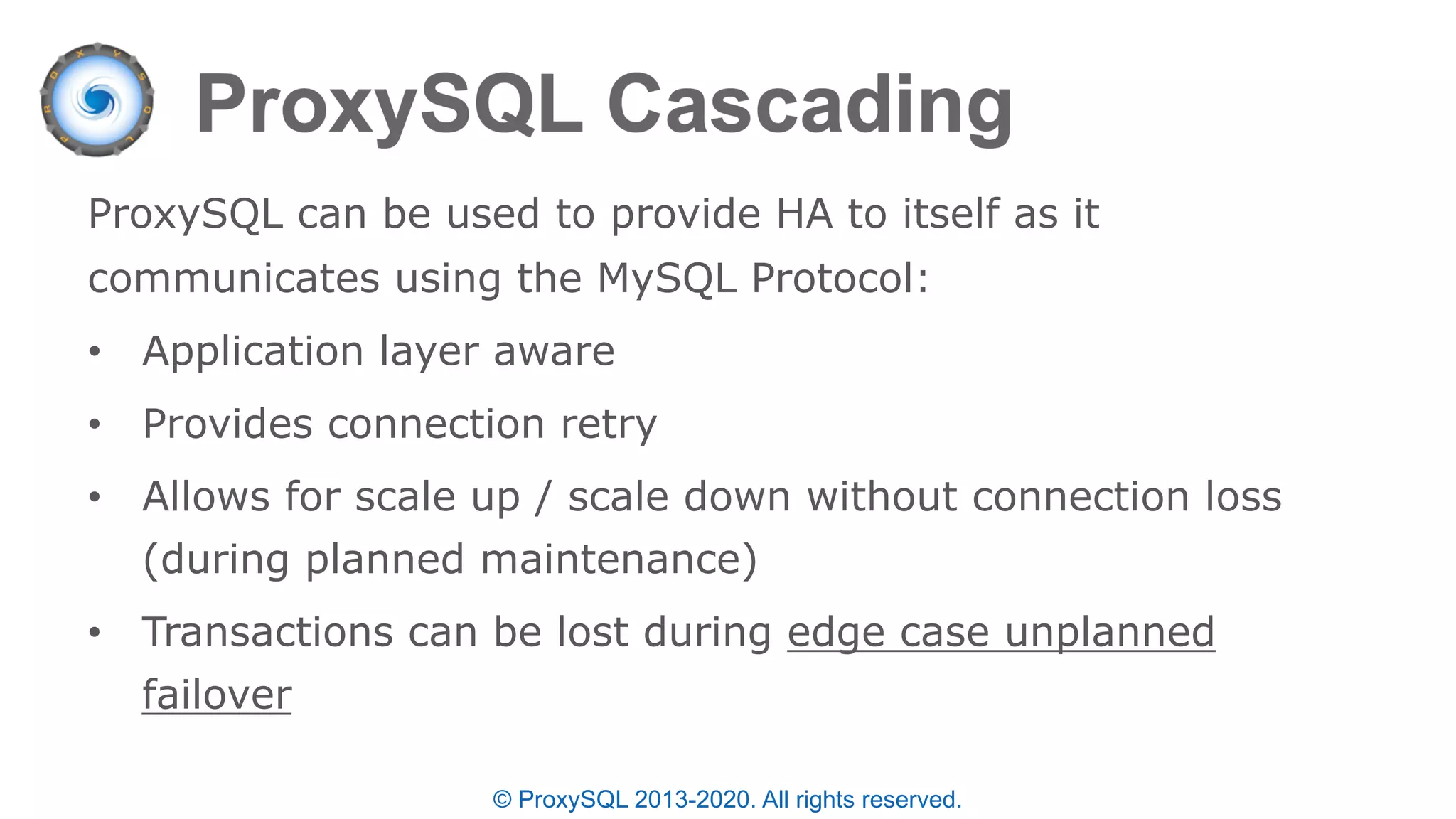

ProxySQL can be used to provide HA to itself as it
communicates using the MySQL Protocol:
• Application layer aware
• Provides connection retry
• Allows for scale up / scale down without connection loss
(during planned maintenance)
• Transactions can be lost during edge case unplanned
failover

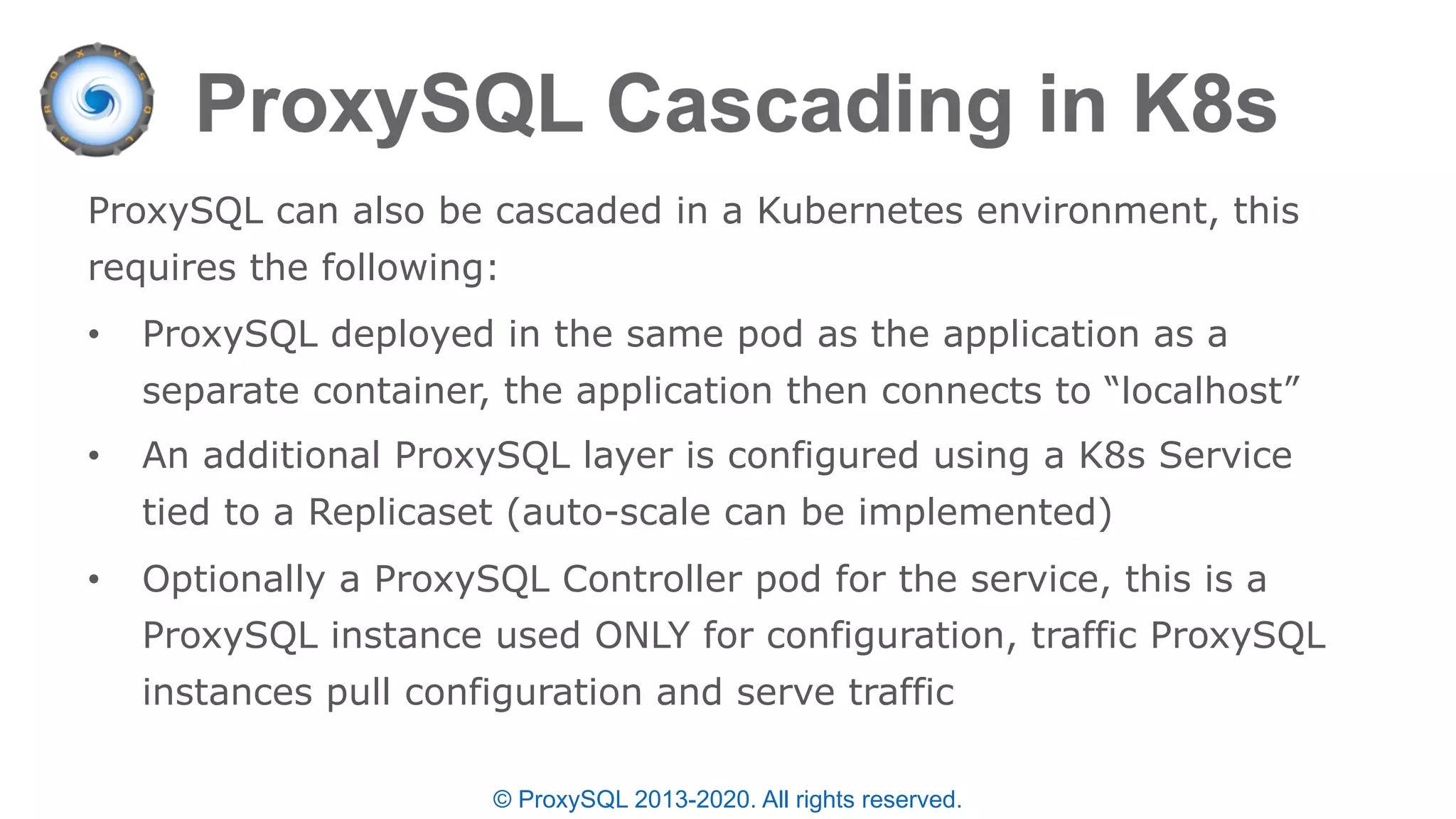

ProxySQL can also be cascaded in a Kubernetes environment, this
requires the following:
• ProxySQL deployed in the same pod as the application as a
separate container, the application then connects to “localhost”
• An additional ProxySQL layer is configured using a K8s Service
tied to a Replicaset (auto-scale can be implemented)
• Optionally a ProxySQL Controller pod for the service, this is a
ProxySQL instance used ONLY for configuration, traffic ProxySQL
instances pull configuration and serve traffic

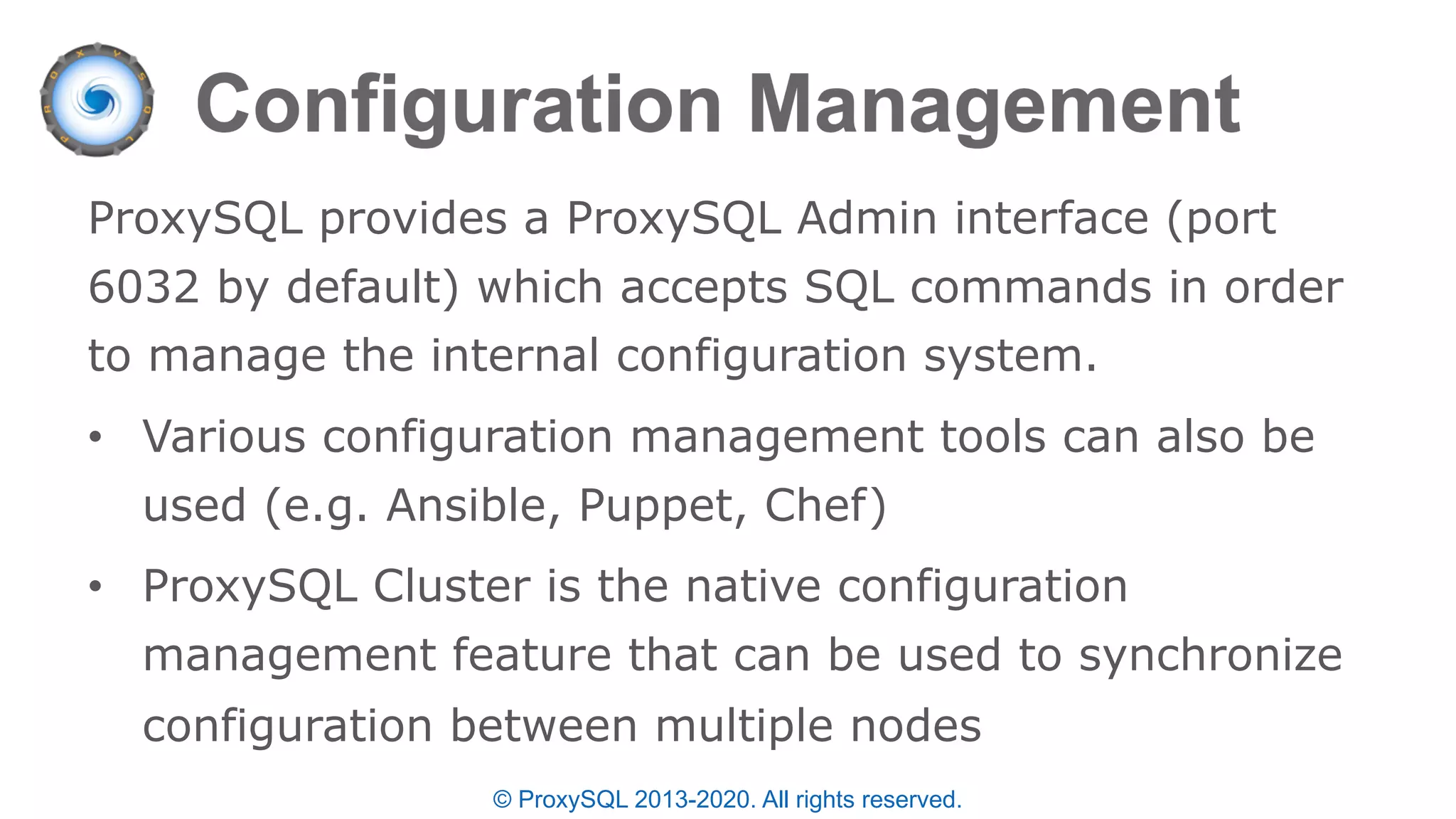

ProxySQL provides a ProxySQL Admin interface (port
6032 by default) which accepts SQL commands in order
to manage the internal configuration system.
• Various configuration management tools can also be
used (e.g. Ansible, Puppet, Chef)
• ProxySQL Cluster is the native configuration
management feature that can be used to synchronize
configuration between multiple nodes

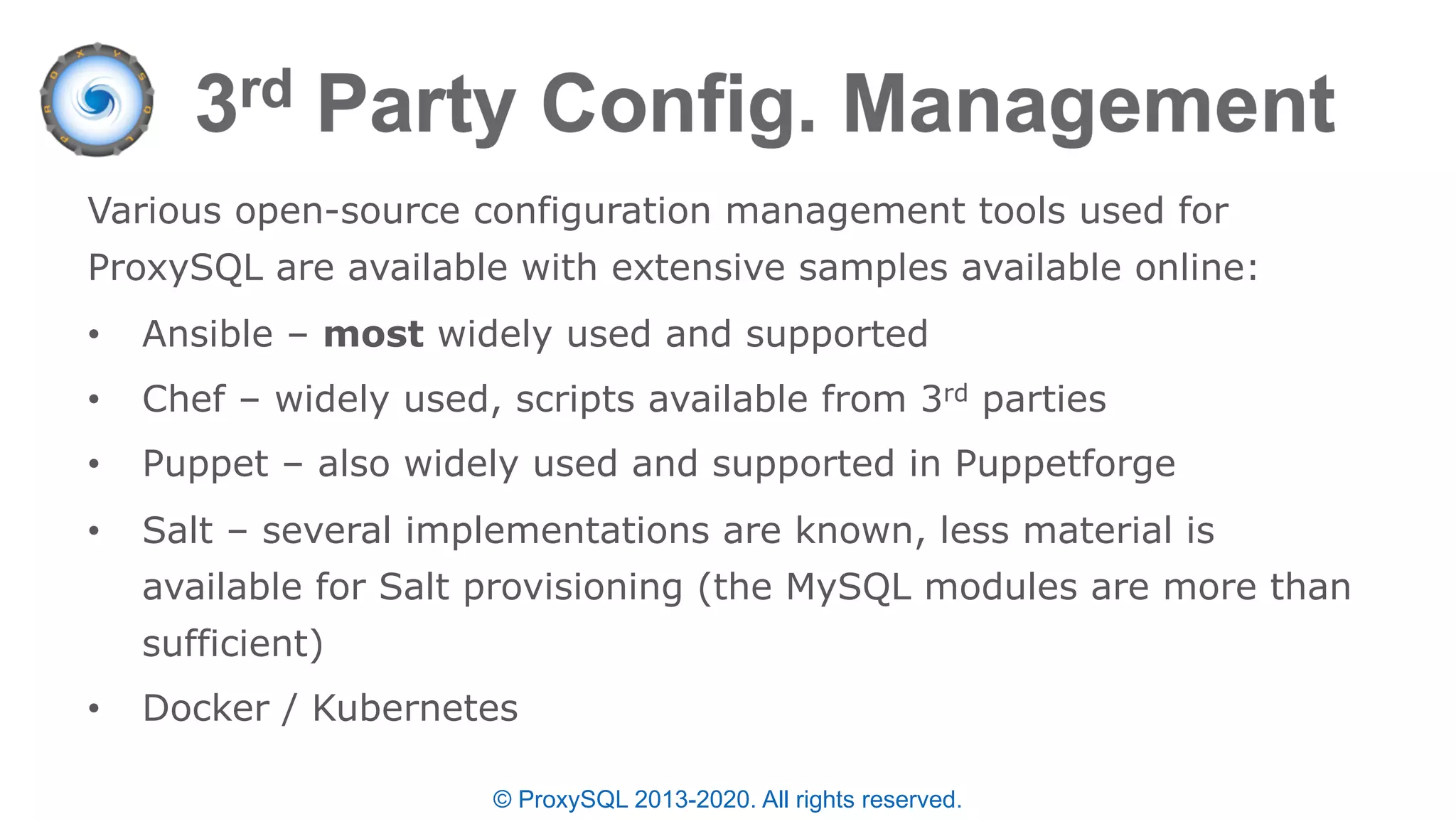

Various open-source configuration management tools used for
ProxySQL are available with extensive samples available online:
• Ansible – most widely used and supported
• Chef – widely used, scripts available from 3rd parties
• Puppet – also widely used and supported in Puppetforge
• Salt – several implementations are known, less material is
available for Salt provisioning (the MySQL modules are more than
sufficient)
• Docker / Kubernetes

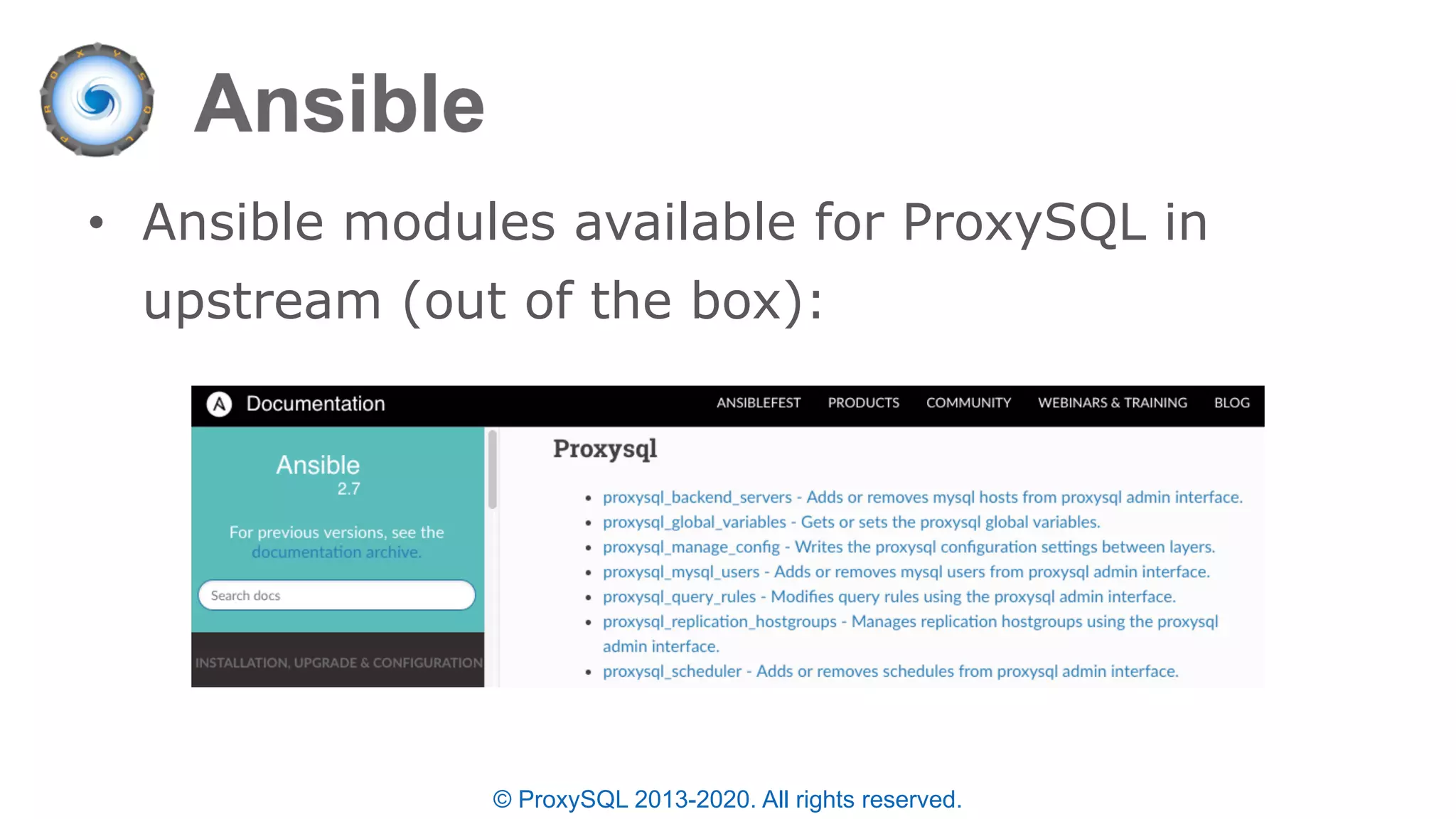

• Ansible modules available for ProxySQL in
upstream (out of the box):

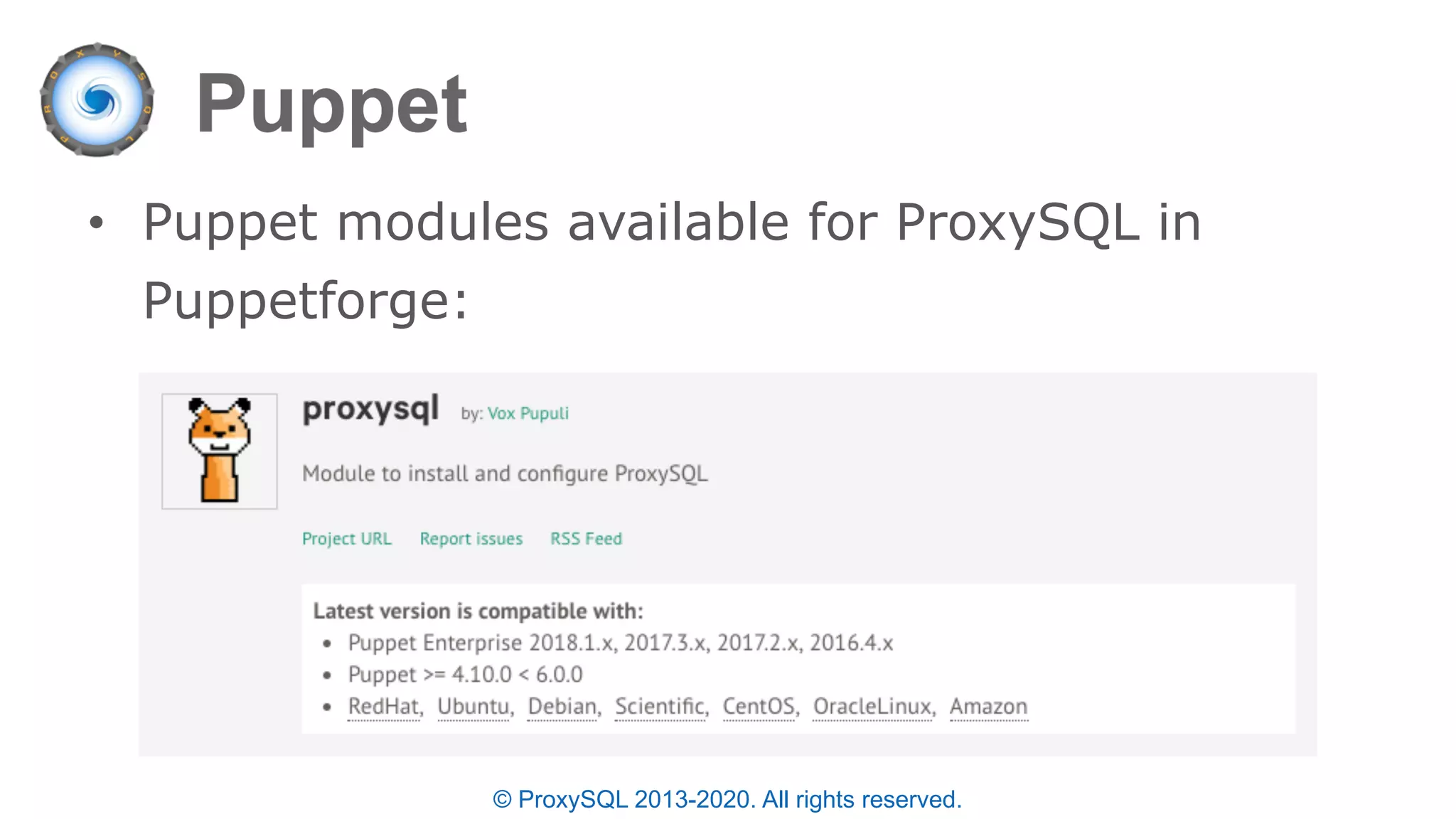

• Puppet modules available for ProxySQL in
Puppetforge:

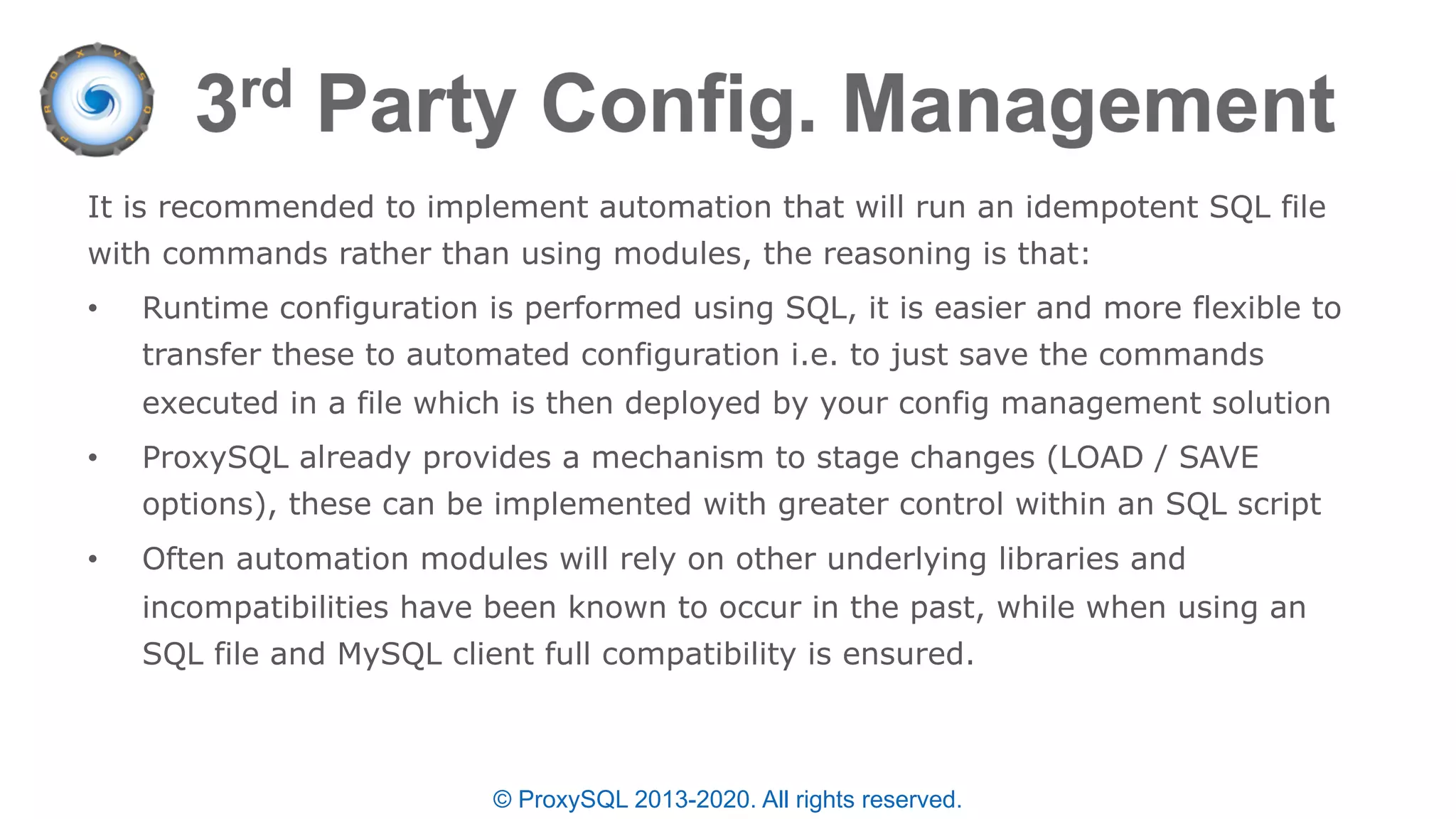

It is recommended to implement automation that will run an idempotent SQL file
with commands rather than using modules, the reasoning is that:
• Runtime configuration is performed using SQL, it is easier and more flexible to
transfer these to automated configuration i.e. to just save the commands
executed in a file which is then deployed by your config management solution
• ProxySQL already provides a mechanism to stage changes (LOAD / SAVE
options), these can be implemented with greater control within an SQL script
• Often automation modules will rely on other underlying libraries and
incompatibilities have been known to occur in the past, while when using an
SQL file and MySQL client full compatibility is ensured.

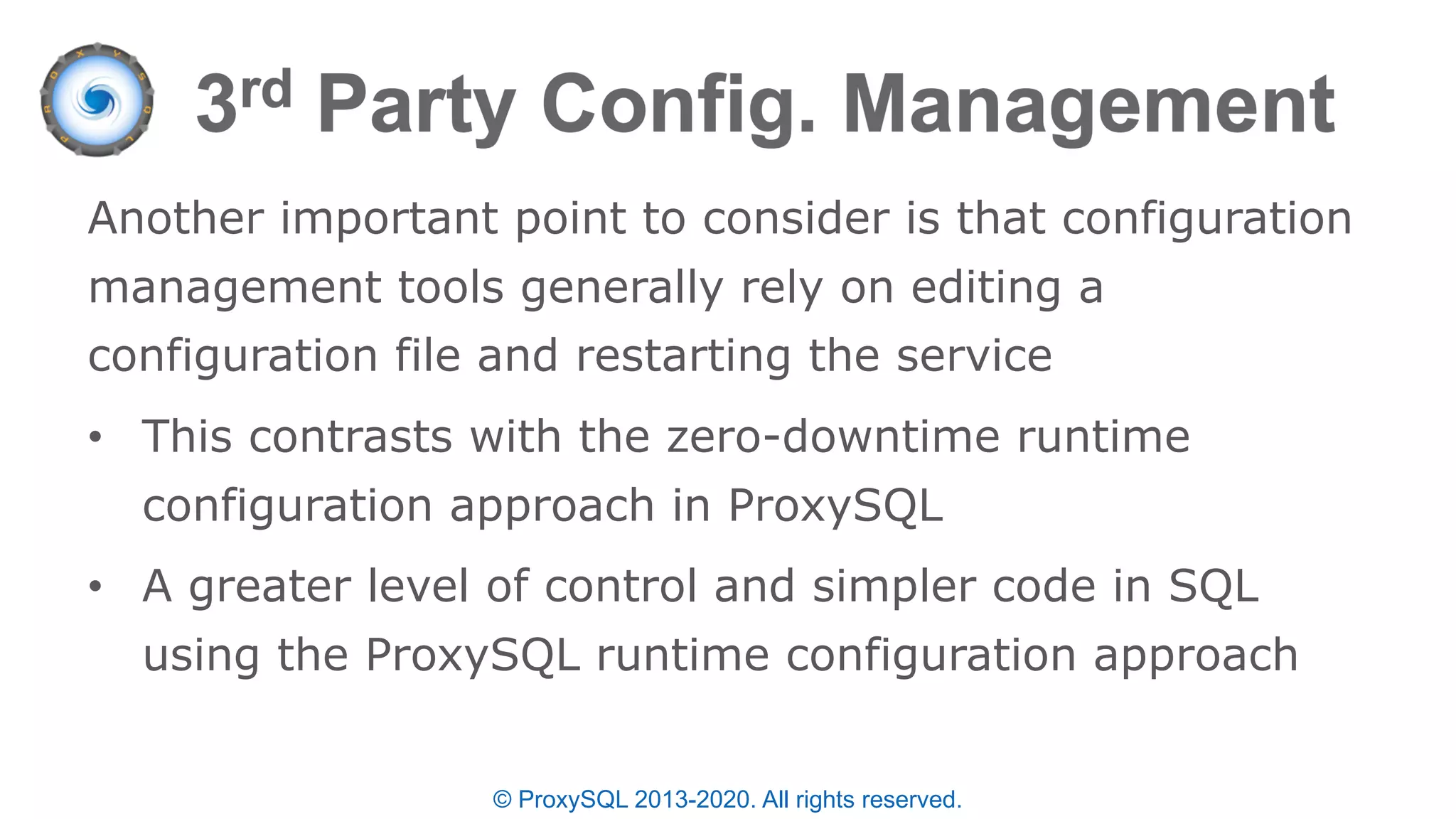

Another important point to consider is that configuration
management tools generally rely on editing a
configuration file and restarting the service
• This contrasts with the zero-downtime runtime
configuration approach in ProxySQL
• A greater level of control and simpler code in SQL
using the ProxySQL runtime configuration approach

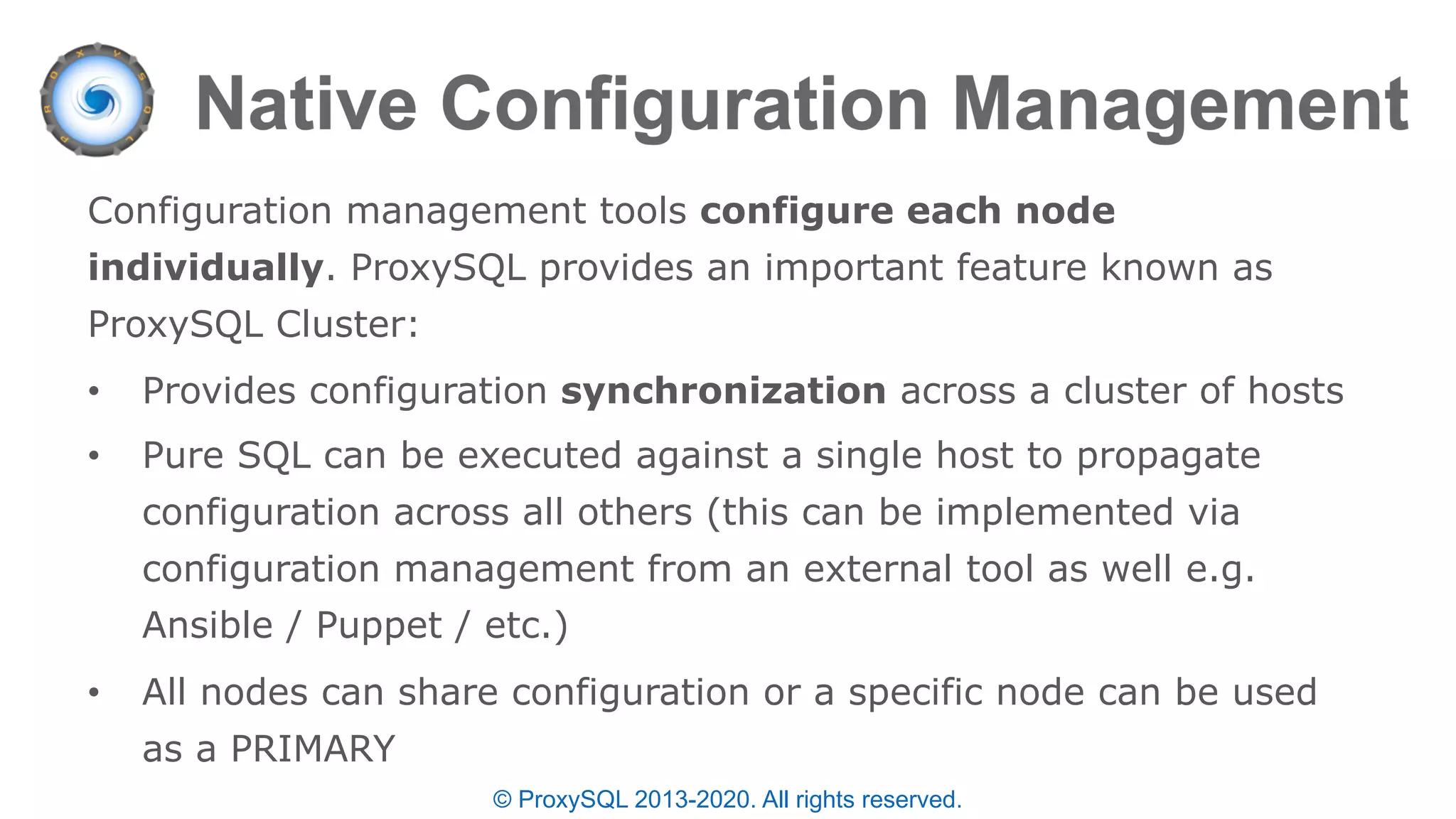

Configuration management tools configure each node
individually. ProxySQL provides an important feature known as
ProxySQL Cluster:
• Provides configuration synchronization across a cluster of hosts
• Pure SQL can be executed against a single host to propagate
configuration across all others (this can be implemented via
configuration management from an external tool as well e.g.
Ansible / Puppet / etc.)
• All nodes can share configuration or a specific node can be used
as a PRIMARY

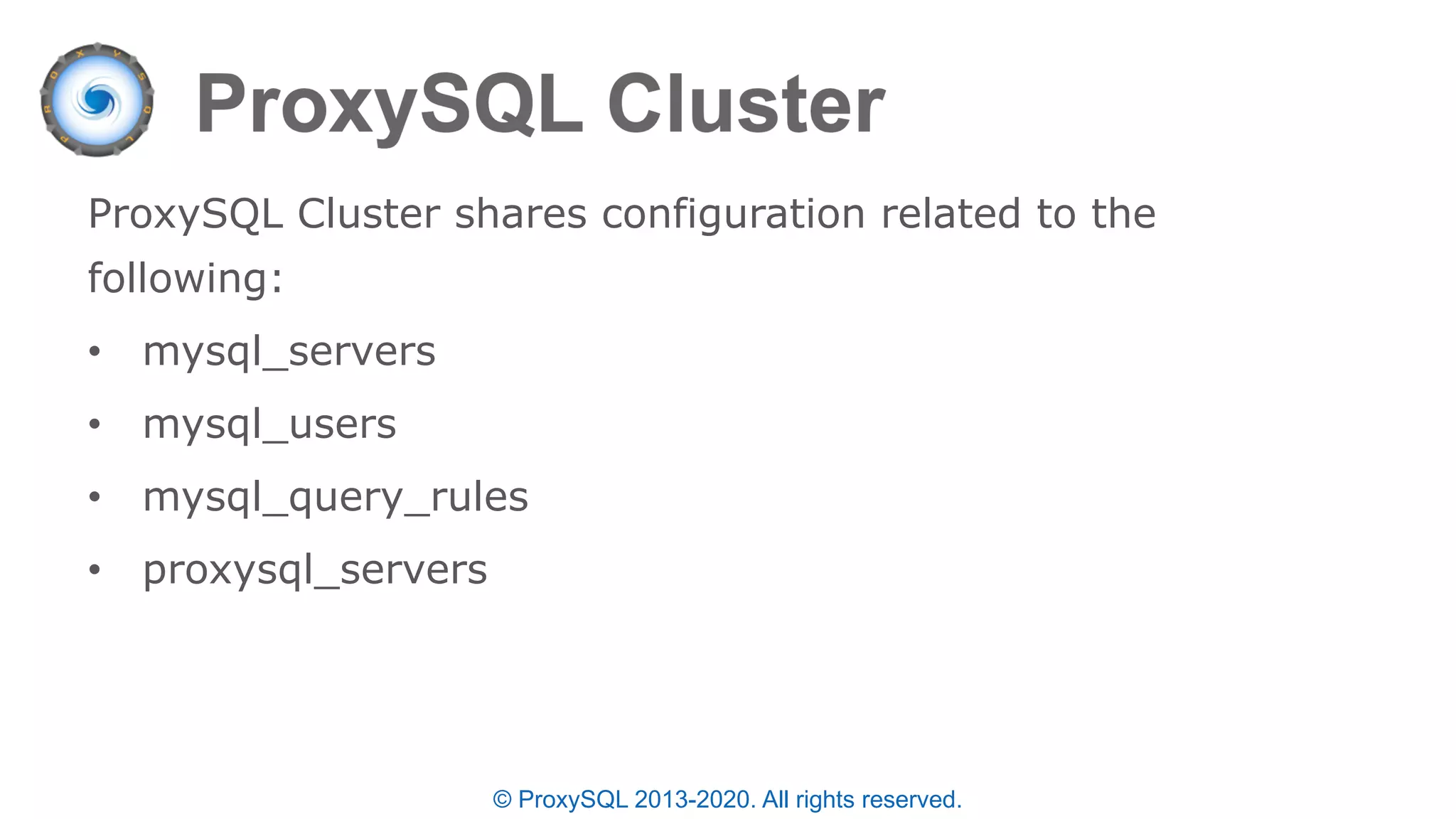

ProxySQL Cluster shares configuration related to the
following:
• mysql_servers
• mysql_users
• mysql_query_rules
• proxysql_servers

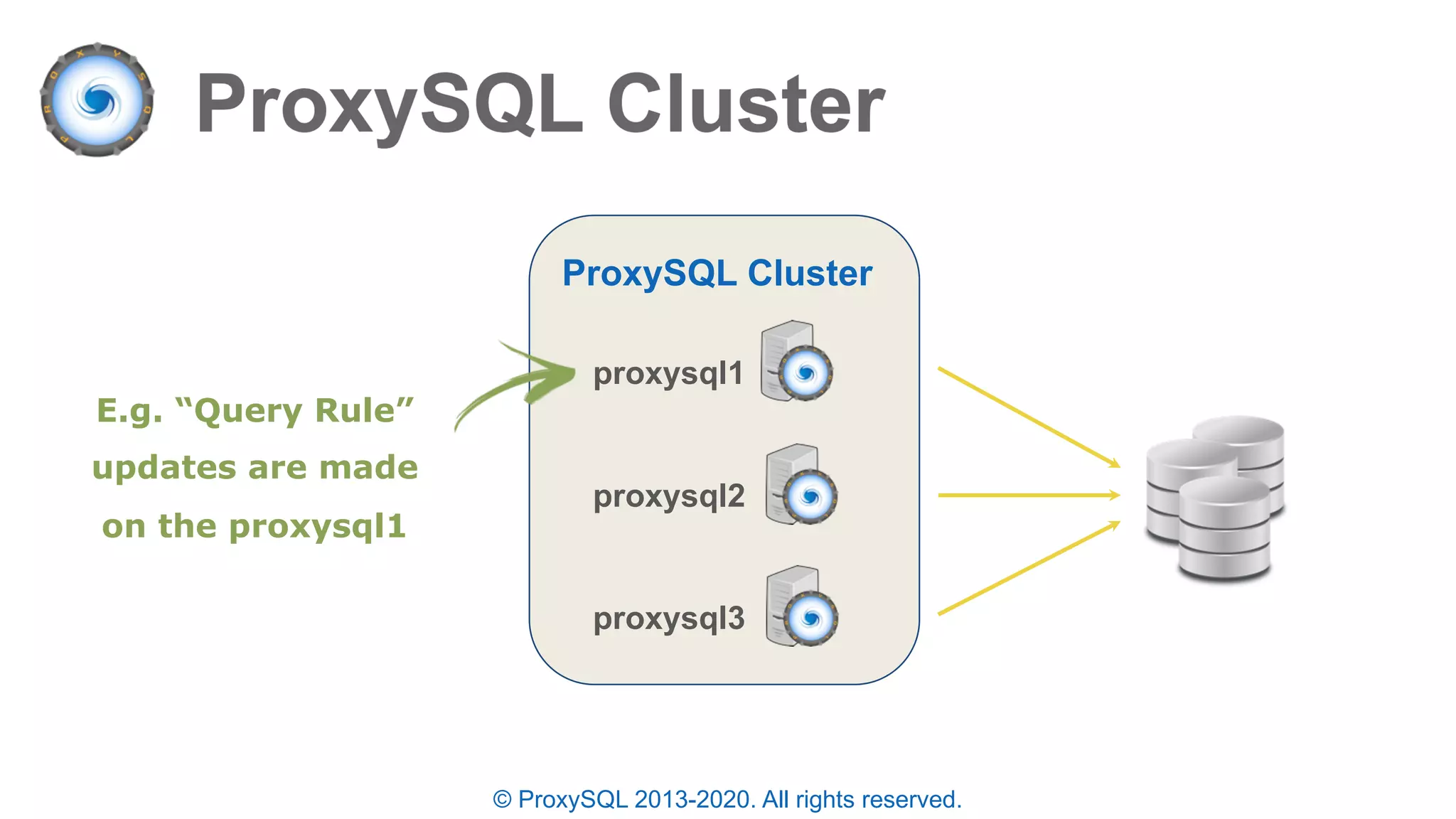

ProxySQL Cluster
proxysql1
proxysql2
proxysql3
E.g. “Query Rule”
updates are made
on the proxysql1

ProxySQL Cluster
proxysql1
proxysql2
proxysql3

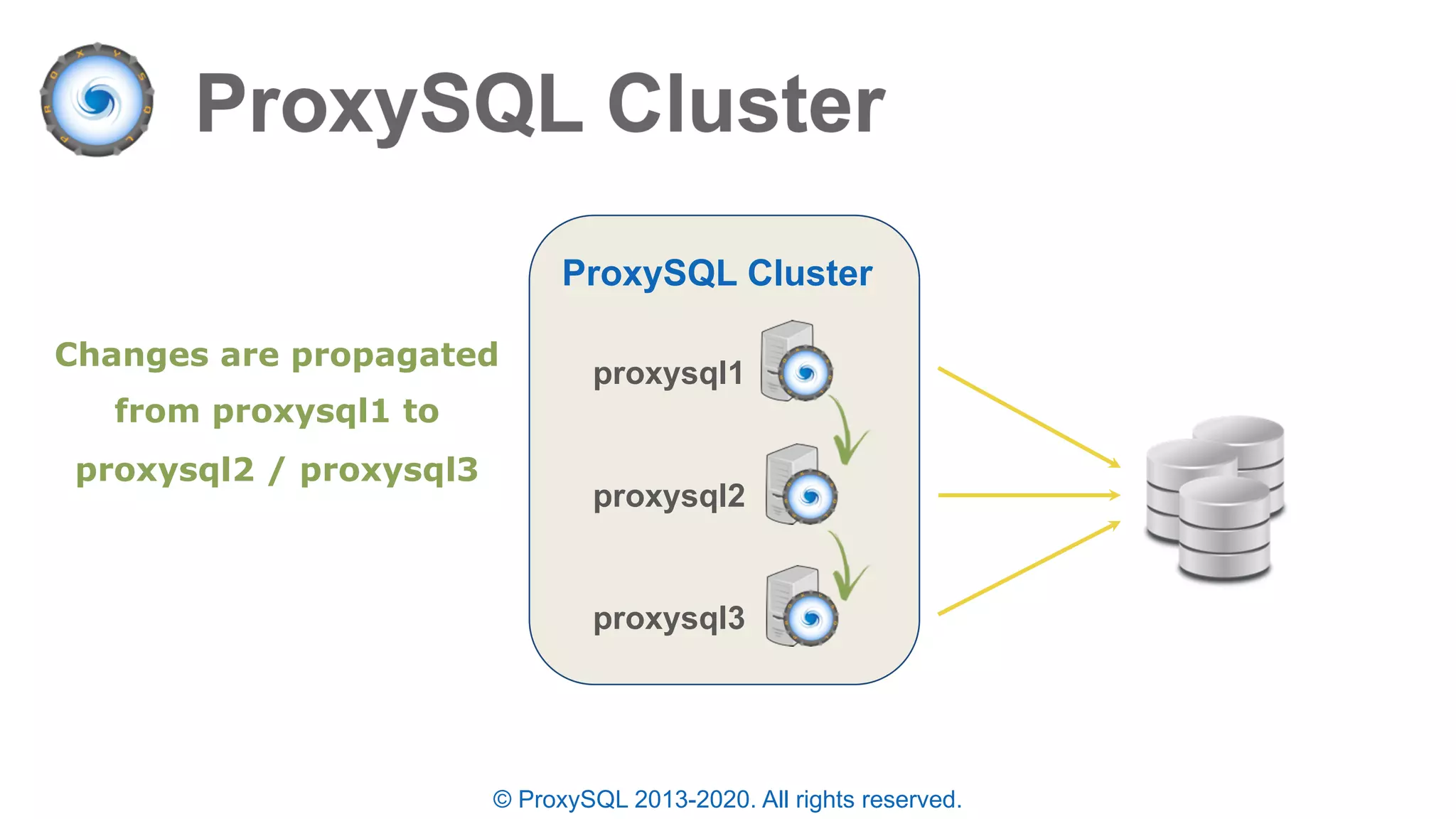

Changes are propagated
from proxysql1 to
proxysql2 / proxysql3

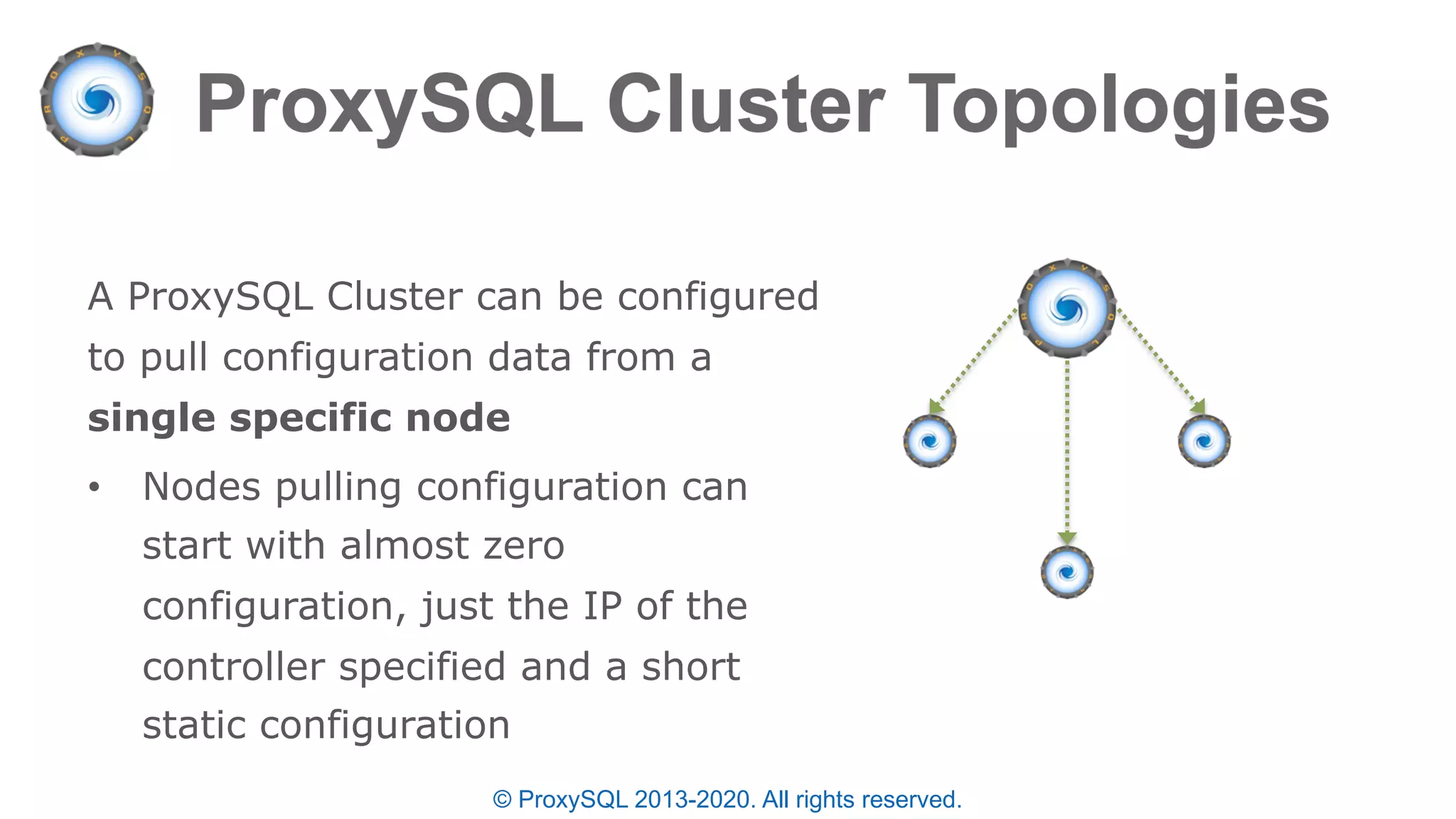

A ProxySQL Cluster can be configured
to pull configuration data from a
single specific node
• Nodes pulling configuration can
start with almost zero
configuration, just the IP of the
controller specified and a short
static configuration

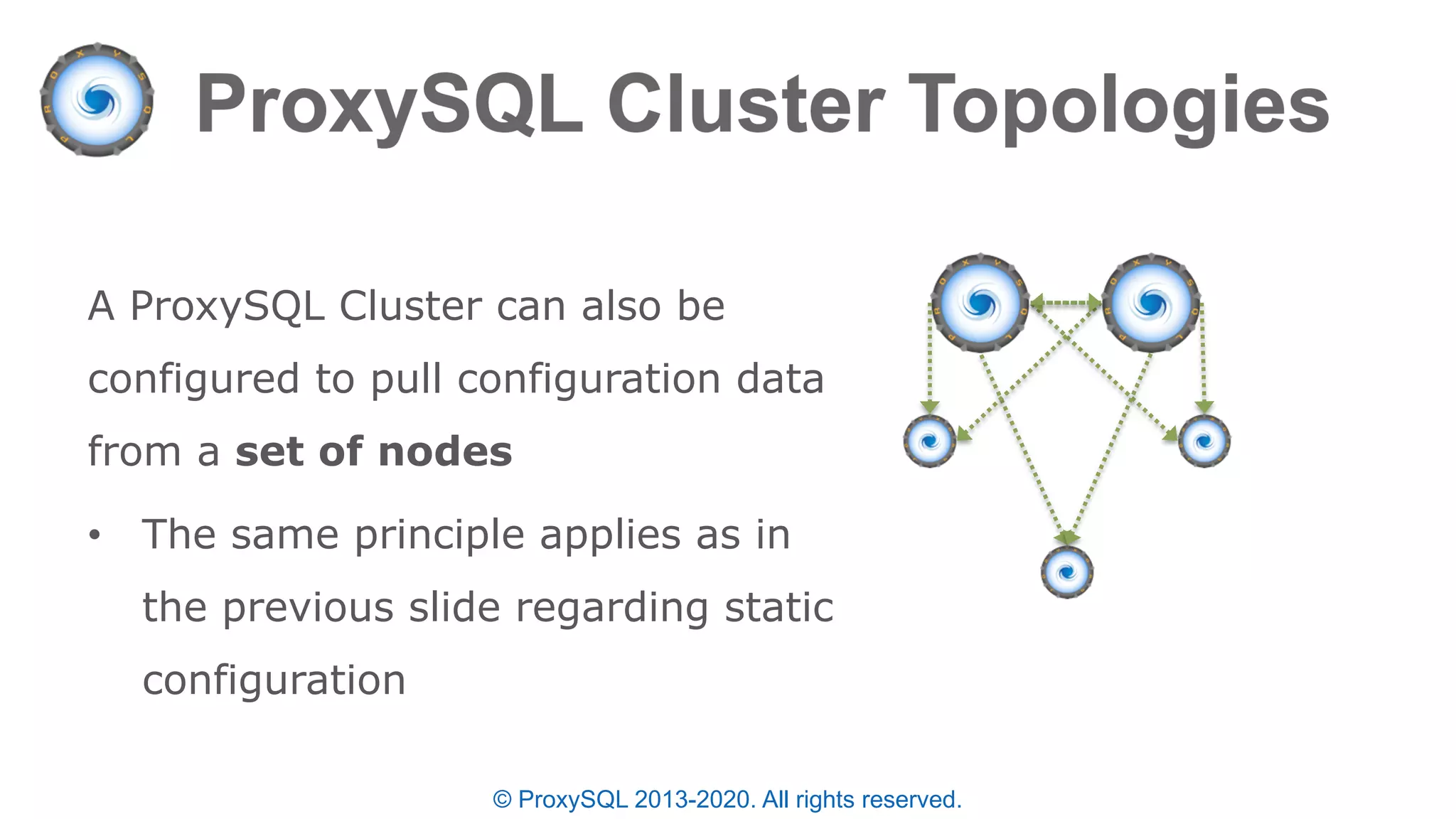

A ProxySQL Cluster can also be
configured to pull configuration data
from a set of nodes
• The same principle applies as in
the previous slide regarding static
configuration

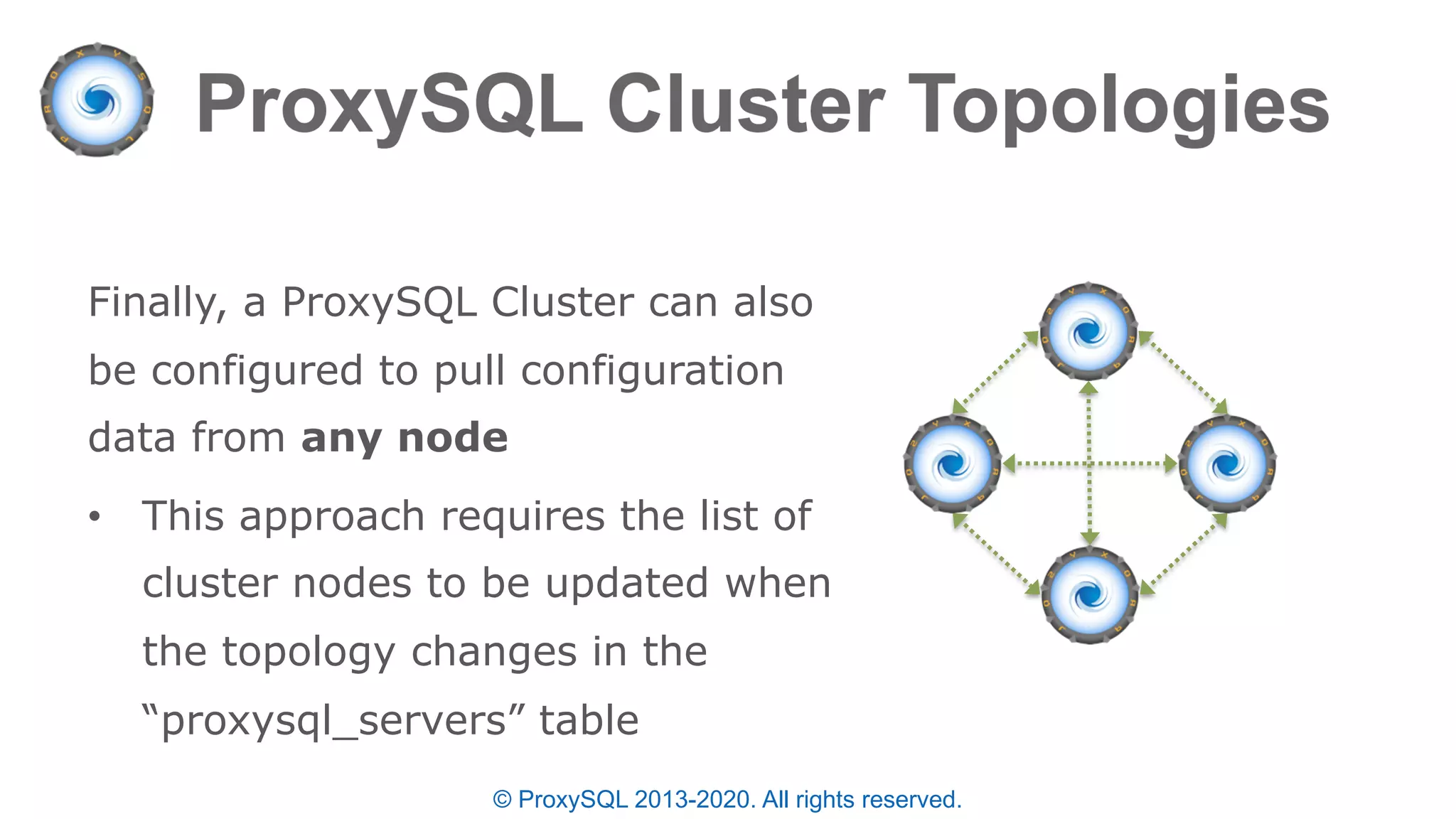

Finally, a ProxySQL Cluster can also
be configured to pull configuration
data from any node
• This approach requires the list of
cluster nodes to be updated when
the topology changes in the
“proxysql_servers” table

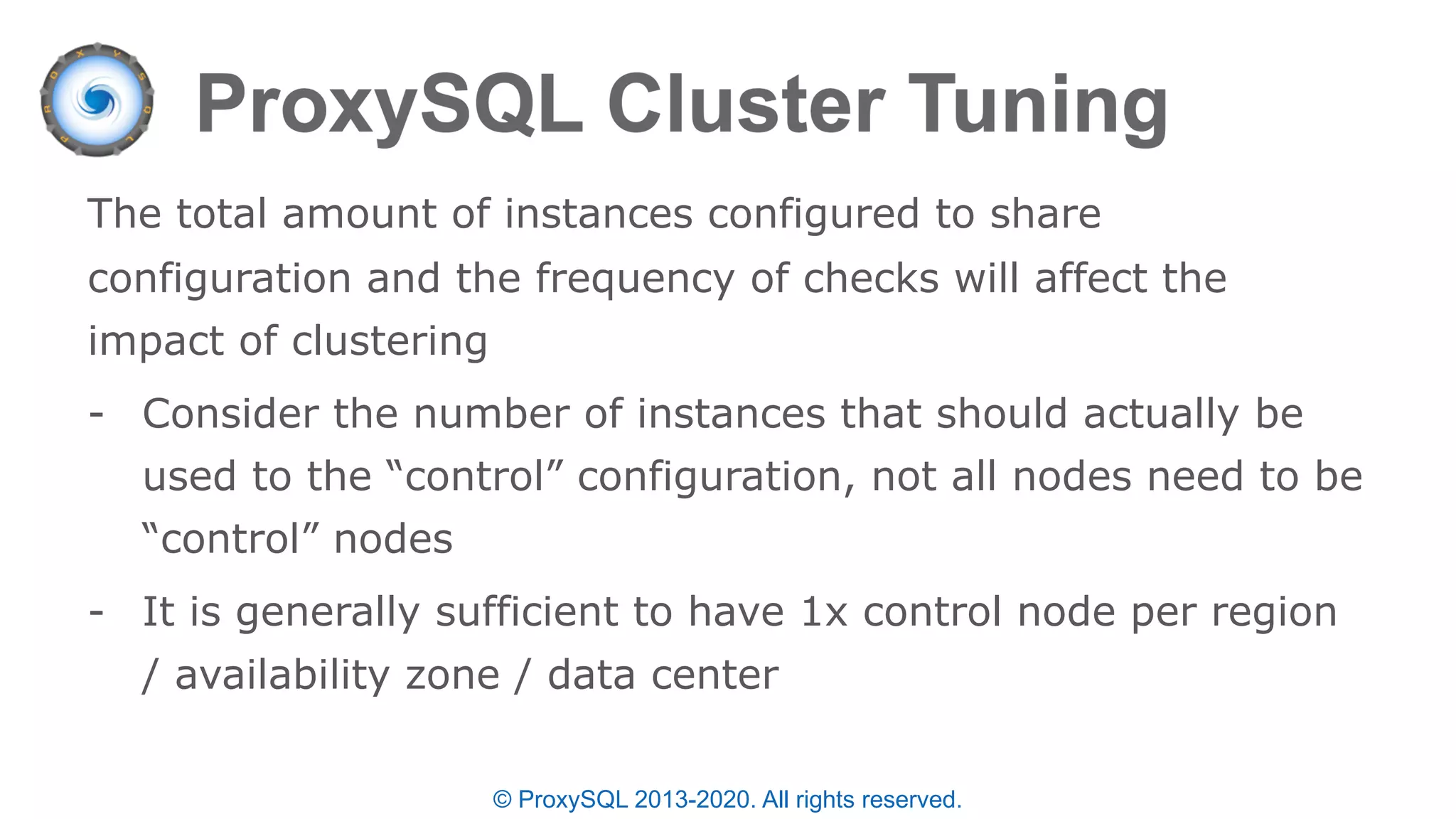

The total amount of instances configured to share
configuration and the frequency of checks will affect the
impact of clustering
- Consider the number of instances that should actually be
used to the “control” configuration, not all nodes need to be
“control” nodes
- It is generally sufficient to have 1x control node per region
/ availability zone / data center

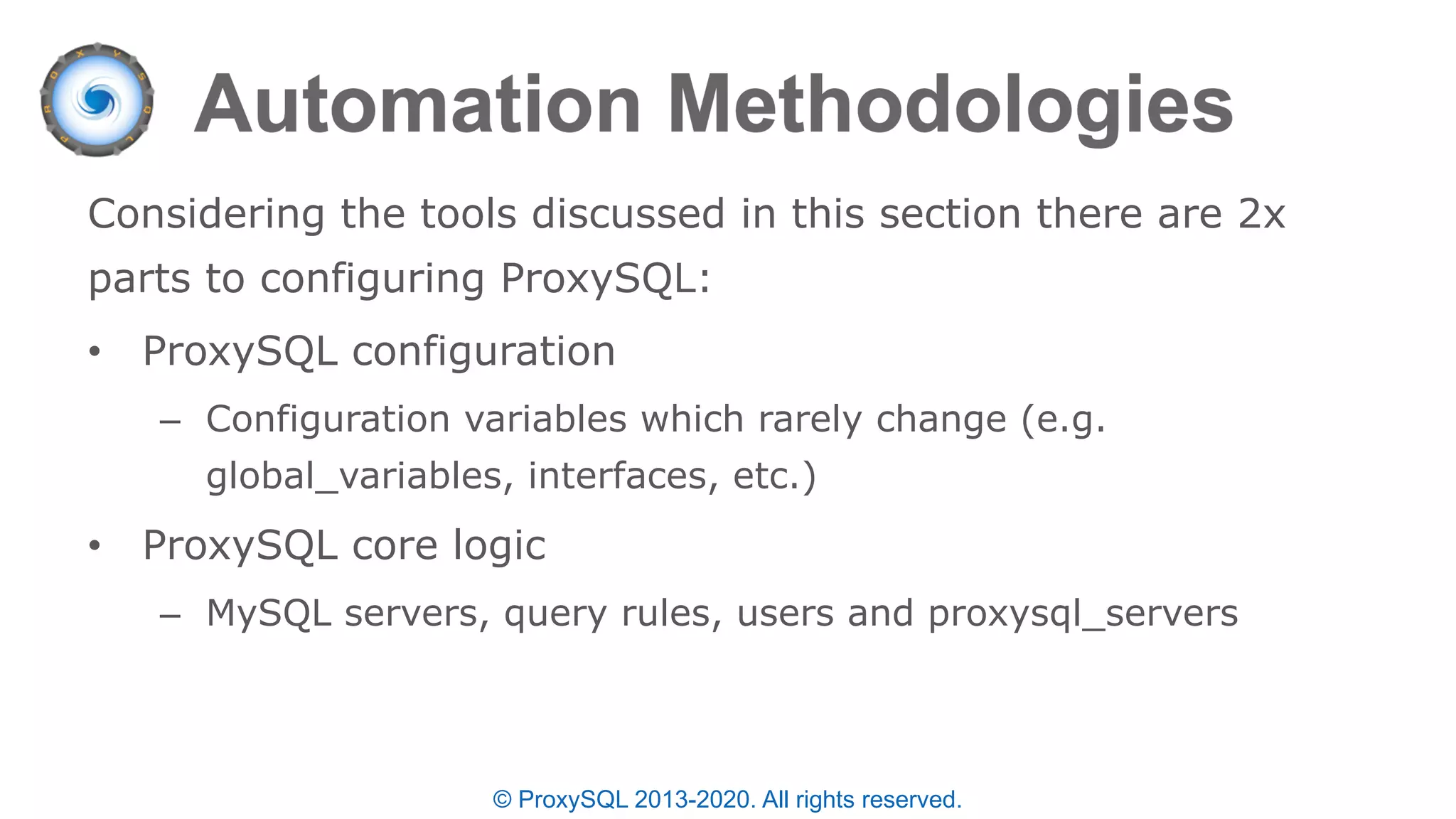

Considering the tools discussed in this section there are 2x
parts to configuring ProxySQL:
• ProxySQL configuration
– Configuration variables which rarely change (e.g.
global_variables, interfaces, etc.)
• ProxySQL core logic
– MySQL servers, query rules, users and proxysql_servers

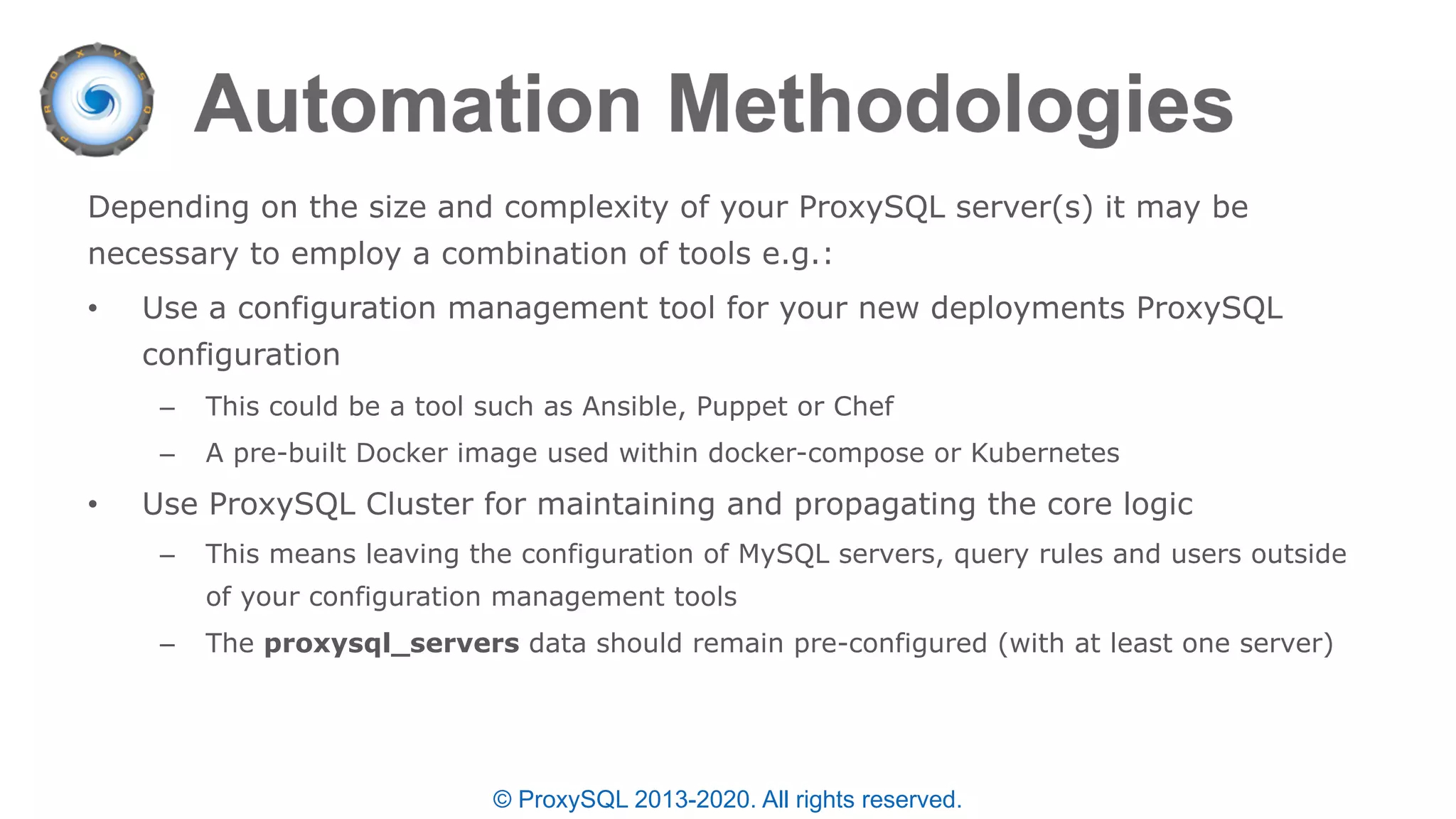

Depending on the size and complexity of your ProxySQL server(s) it may be
necessary to employ a combination of tools e.g.:
• Use a configuration management tool for your new deployments ProxySQL
configuration
– This could be a tool such as Ansible, Puppet or Chef
– A pre-built Docker image used within docker-compose or Kubernetes
• Use ProxySQL Cluster for maintaining and propagating the core logic
– This means leaving the configuration of MySQL servers, query rules and users outside
of your configuration management tools
– The proxysql_servers data should remain pre-configured (with at least one server)

ProxySQL High Avalability and Configuration Management Overview

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to ProxySQL High Avalability and Configuration Management Overview

Similar to ProxySQL High Avalability and Configuration Management Overview (20)

Recently uploaded

Recently uploaded (20)

ProxySQL High Avalability and Configuration Management Overview
