OpenZFS

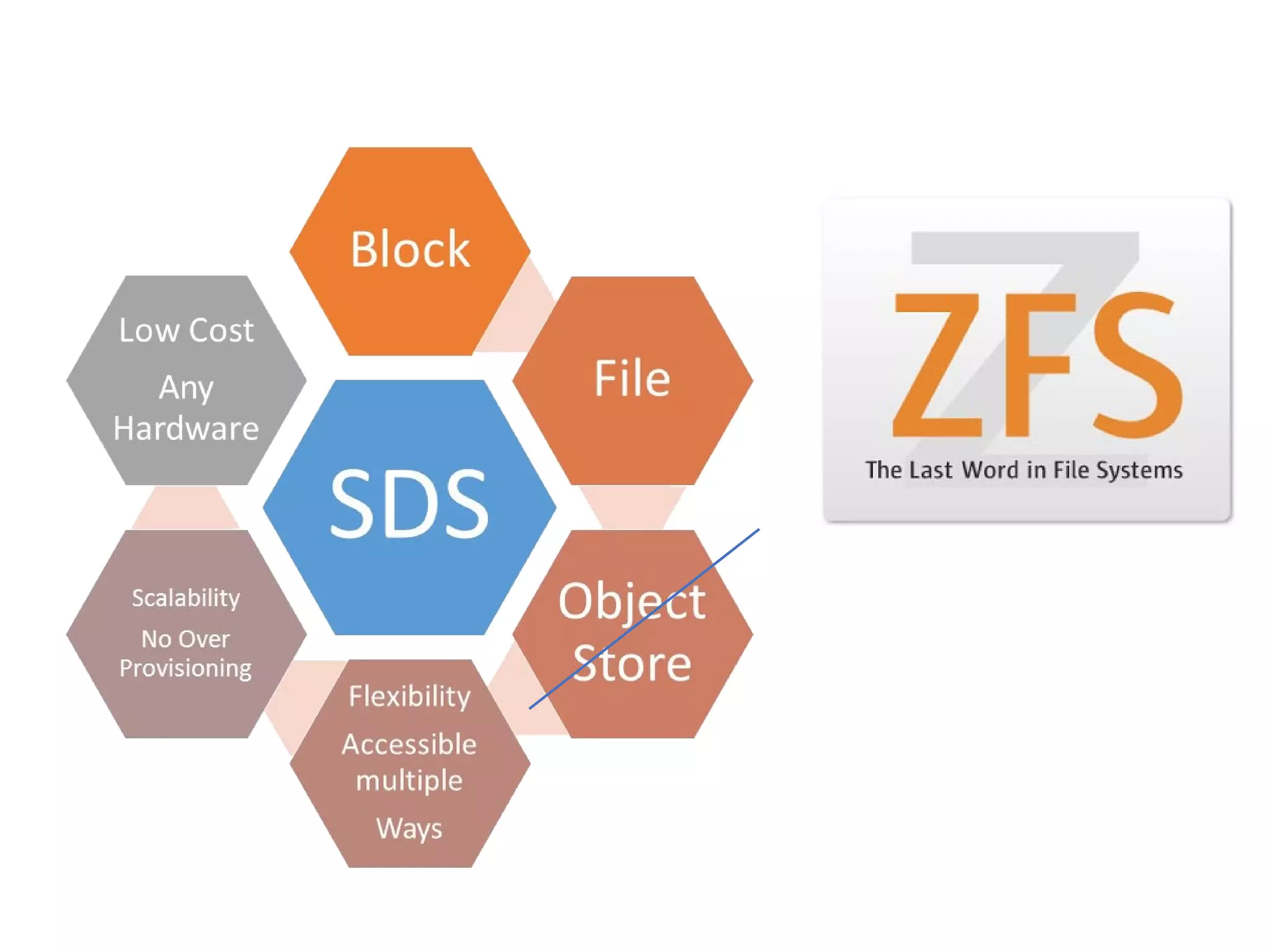

Software defind storage

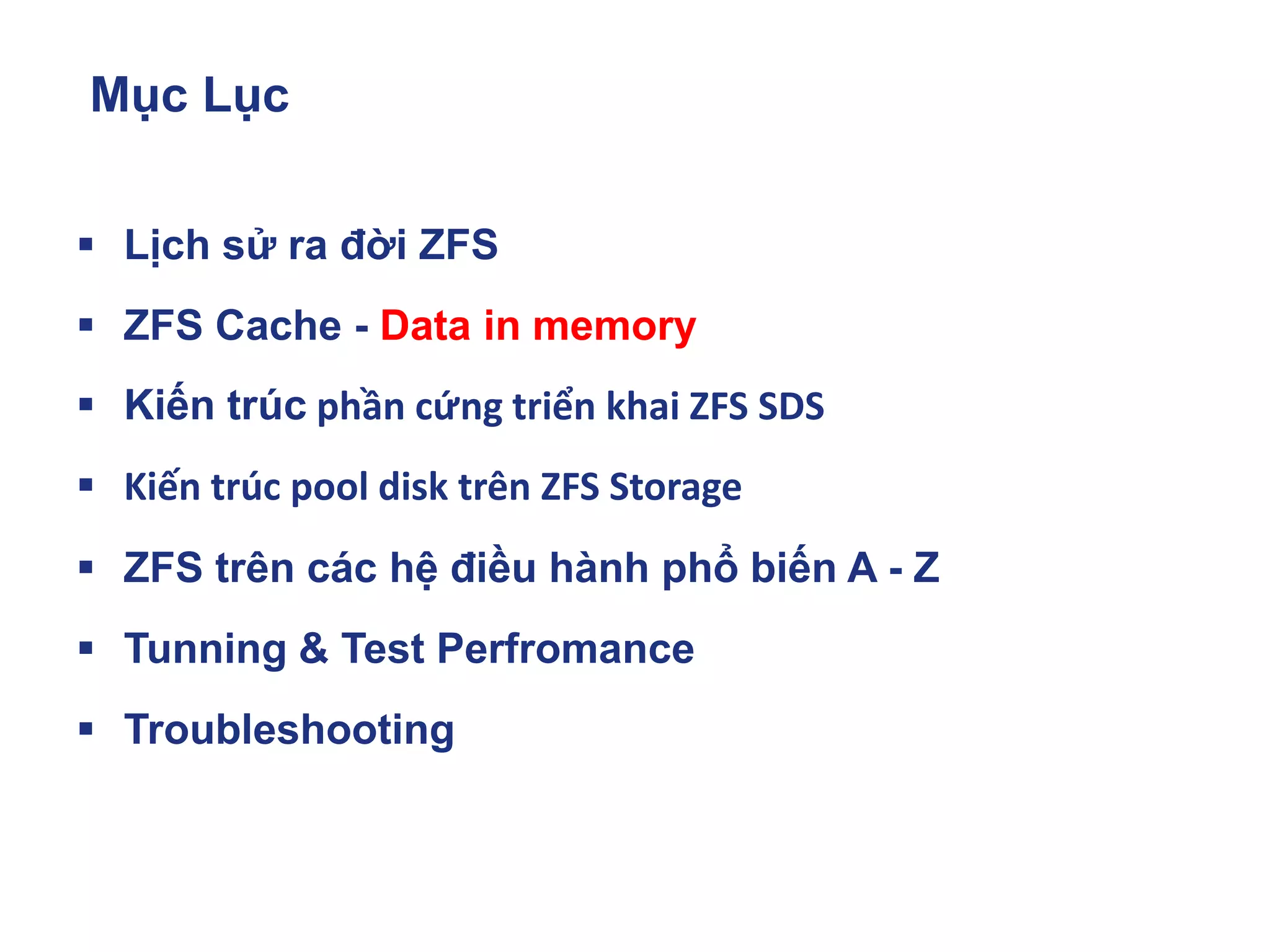

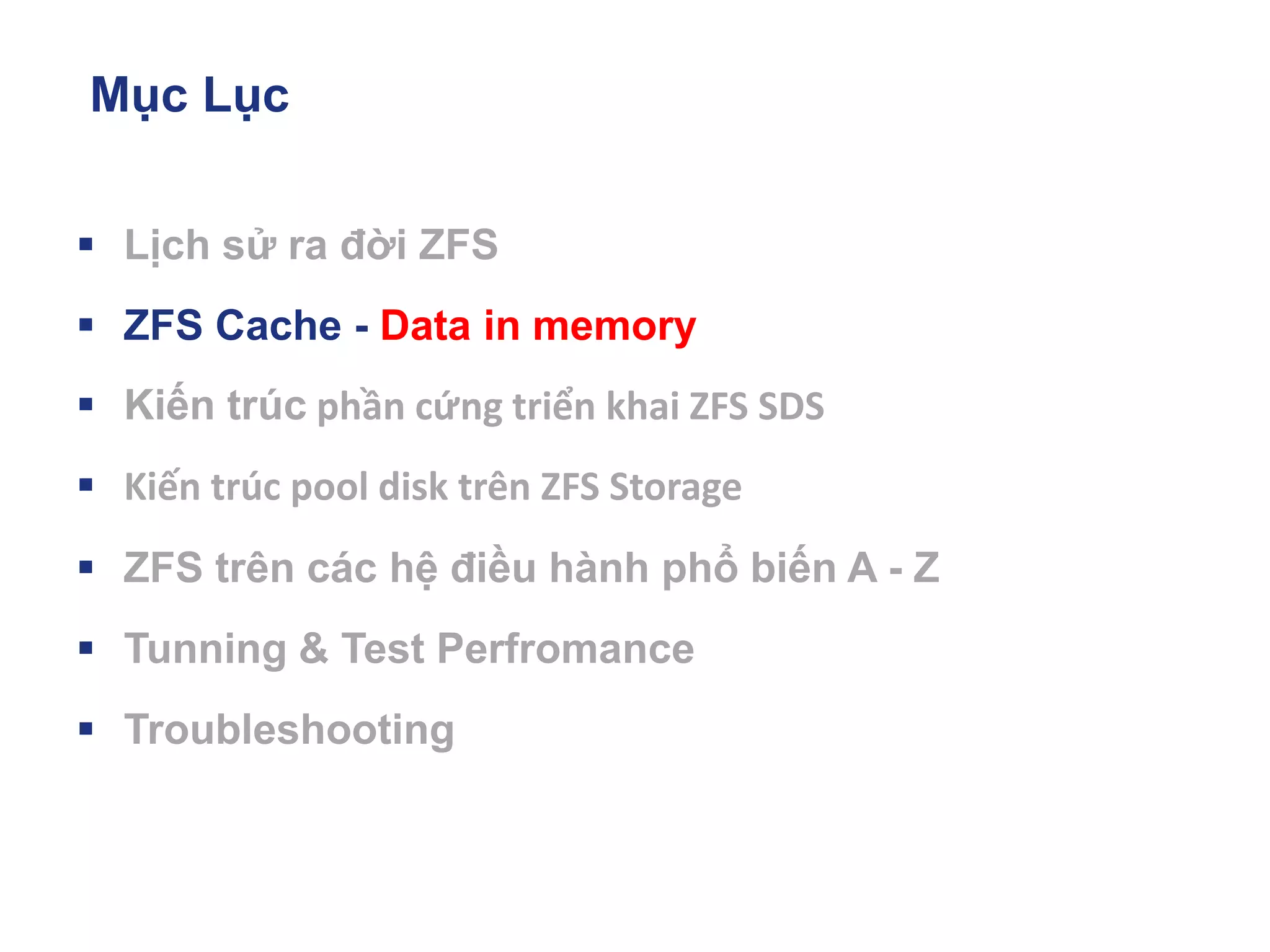

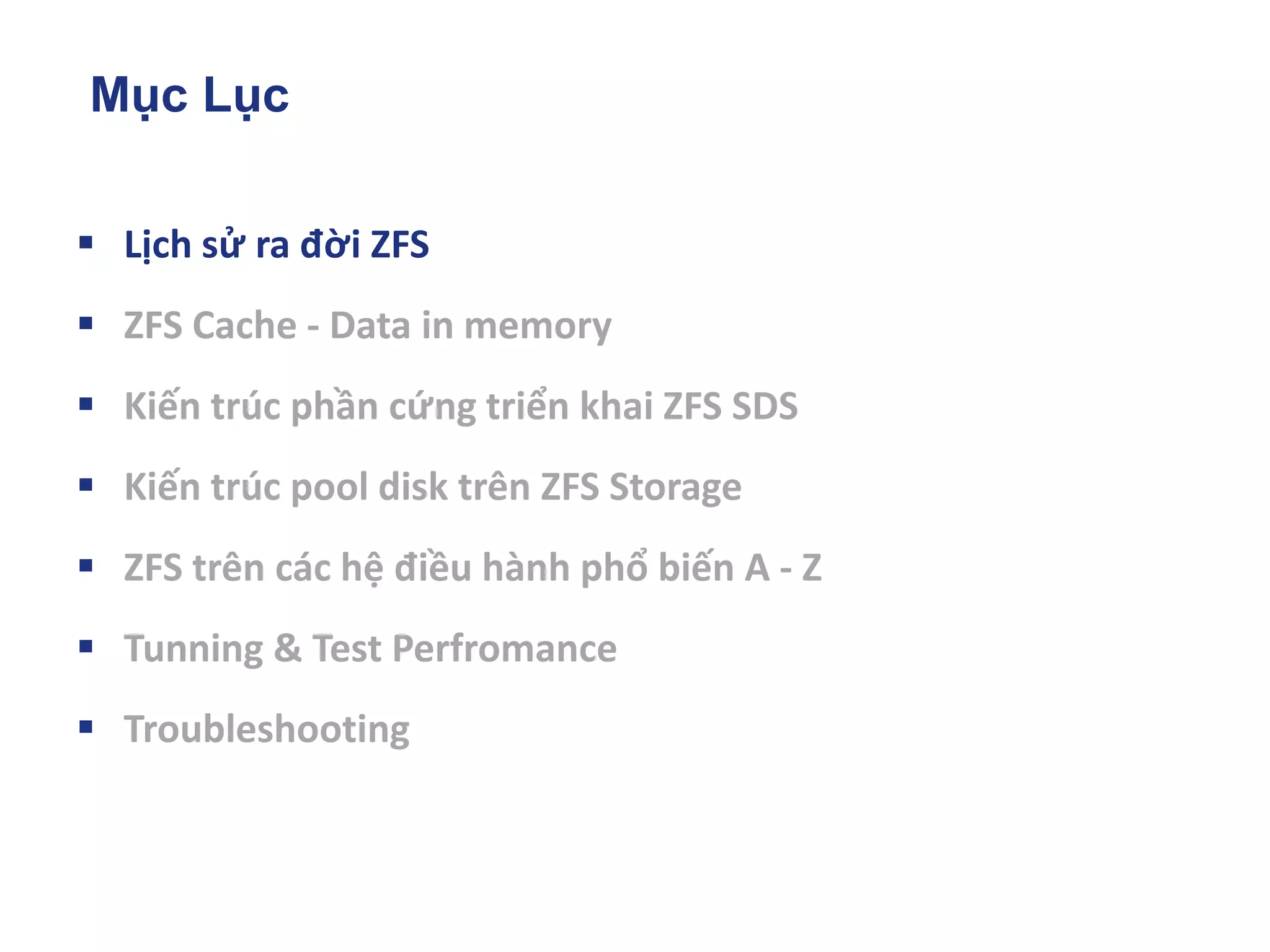

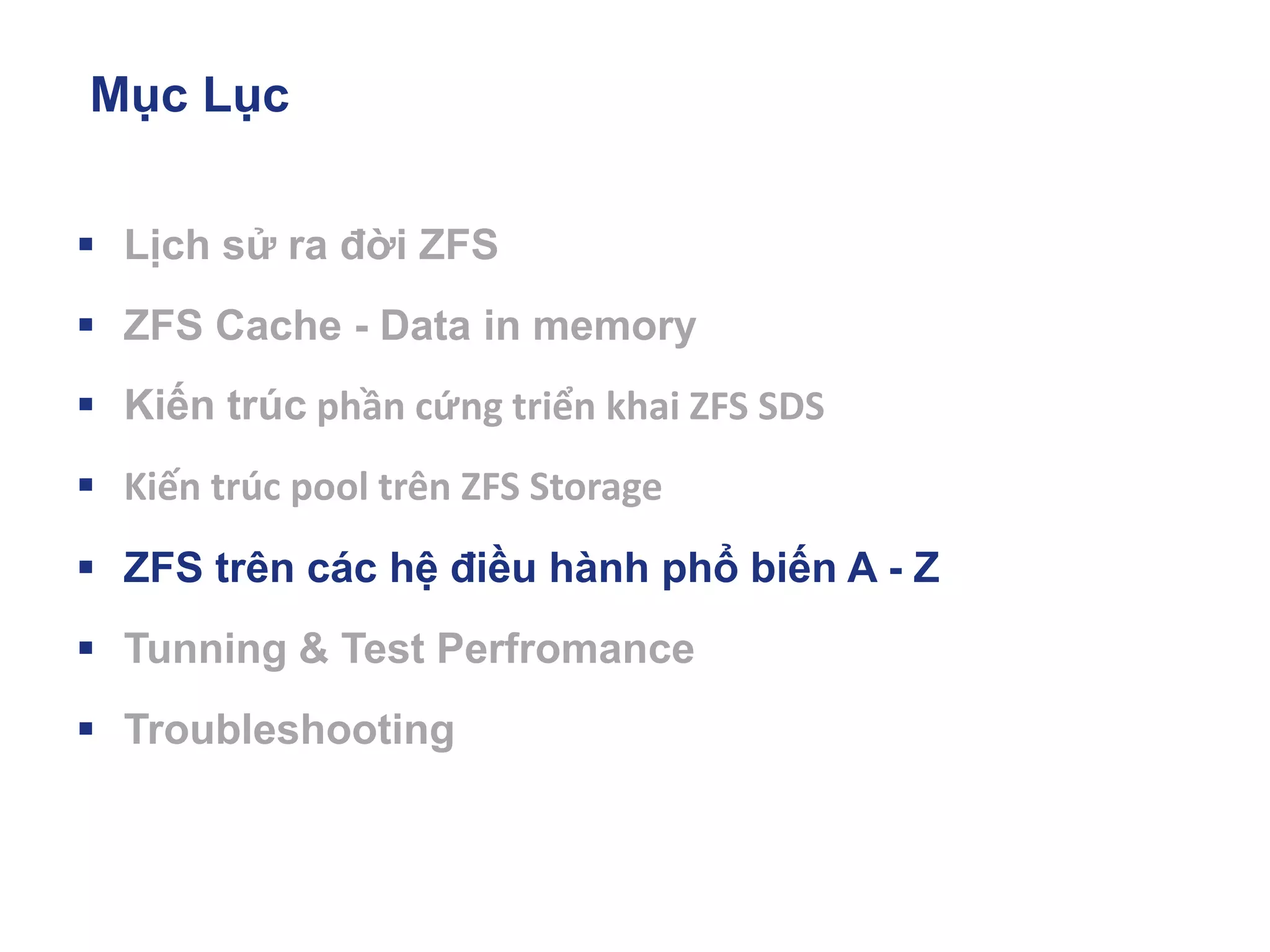

Mục Lục
▪ Lịch sử ra đời ZFS
▪ ZFS Cache - Data in memory
▪ Kiến trúc phần cứng triển khai ZFS SDS

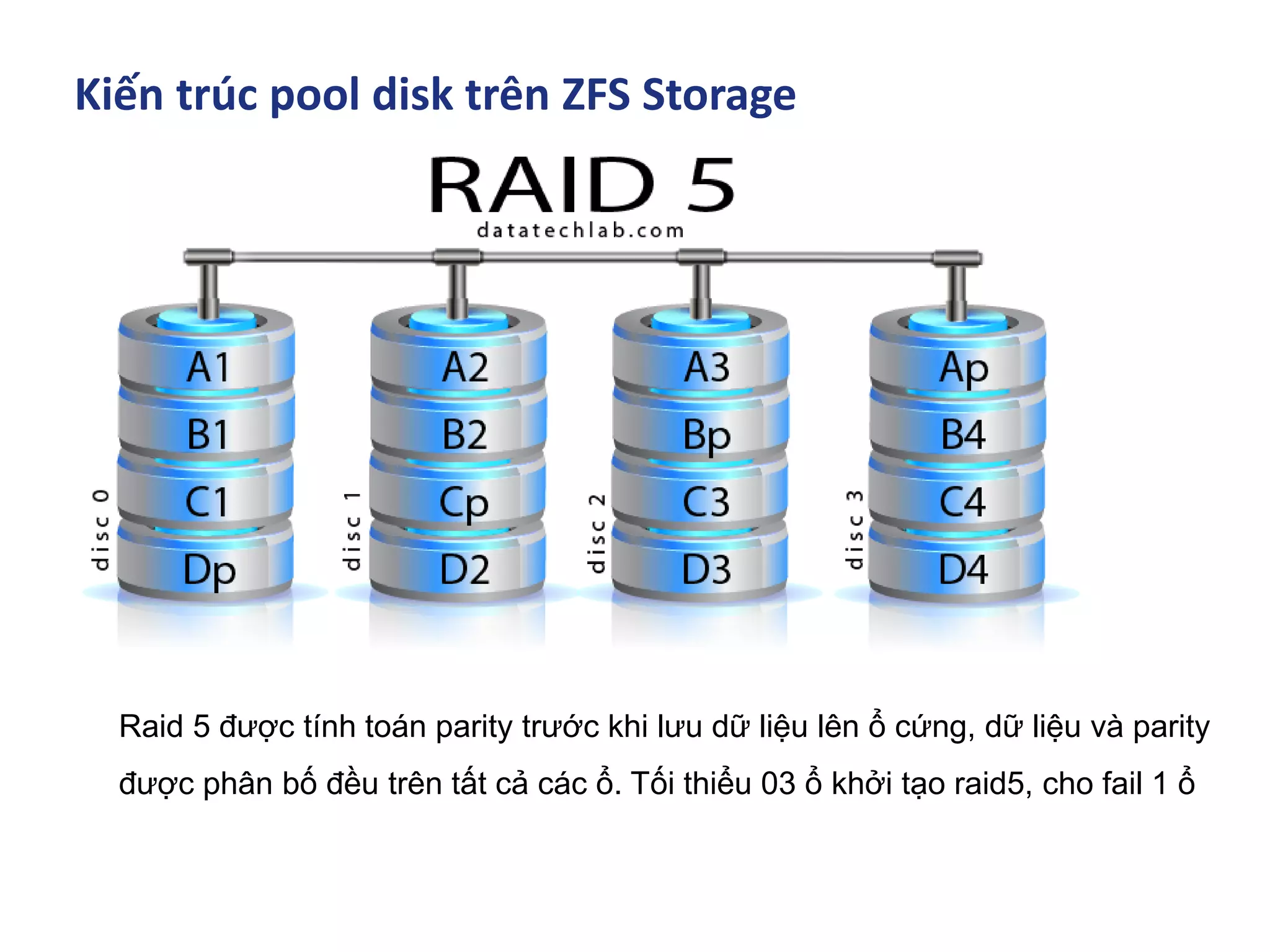

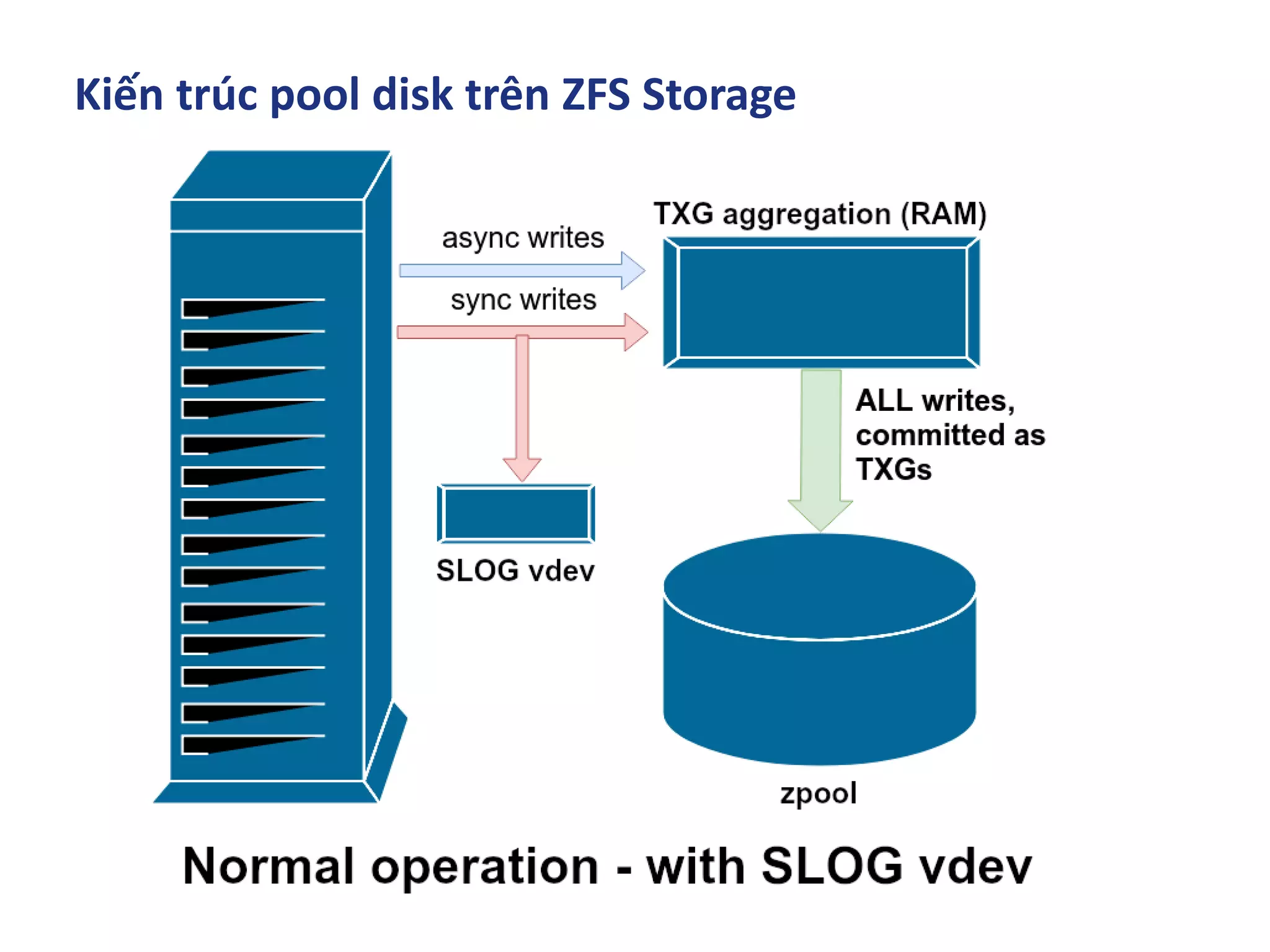

▪ Kiến trúc pool disk trên ZFS Storage

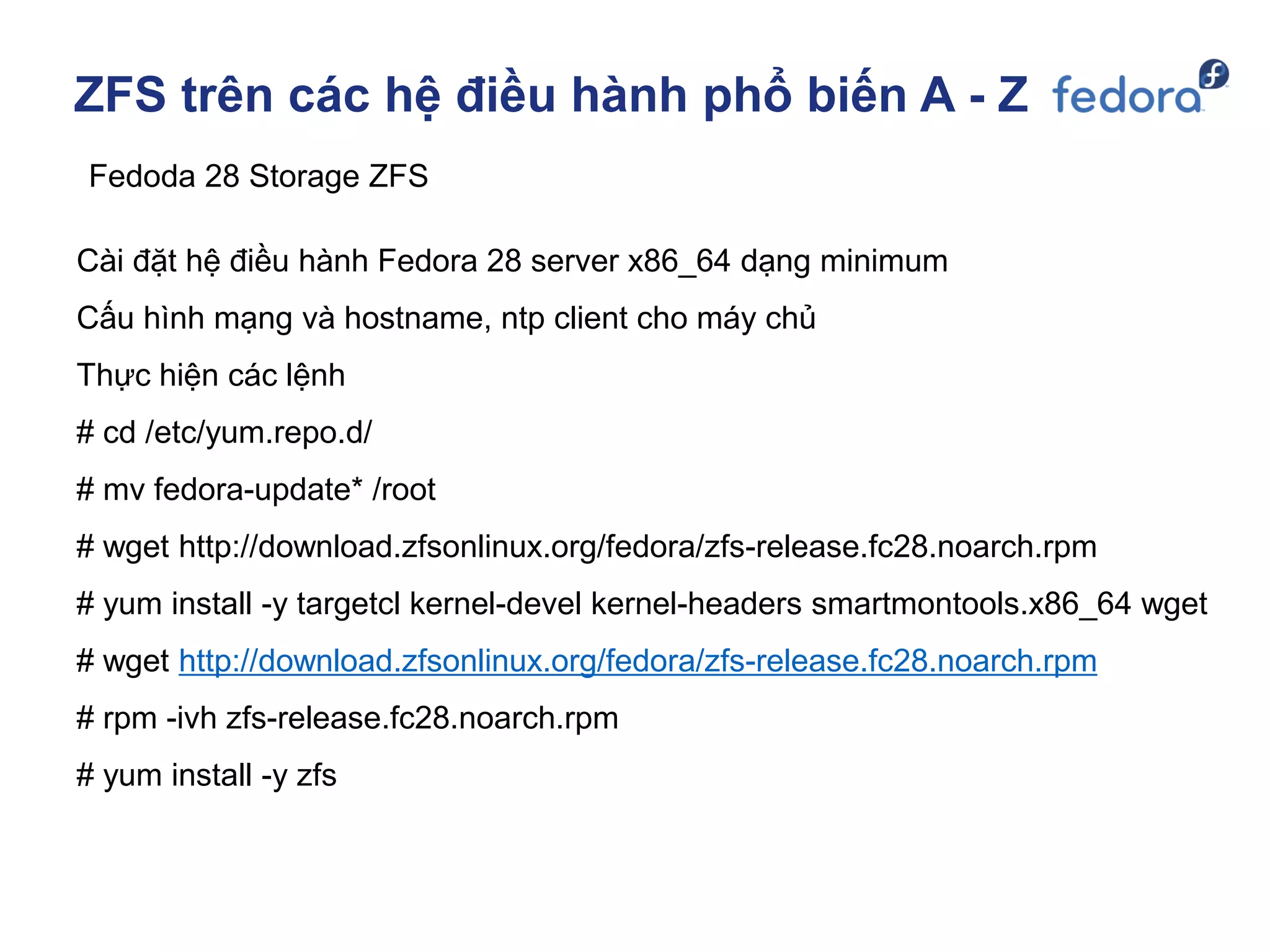

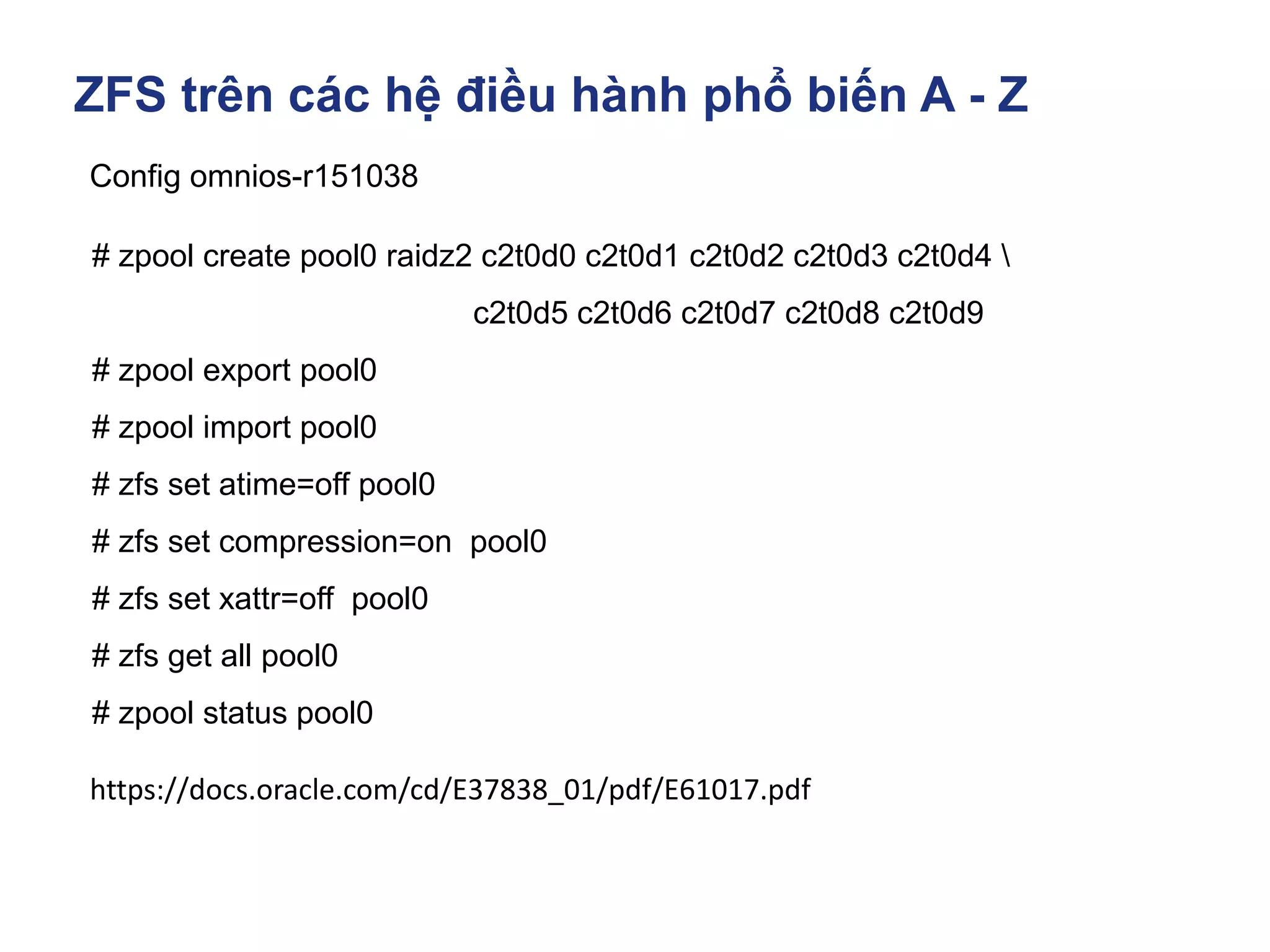

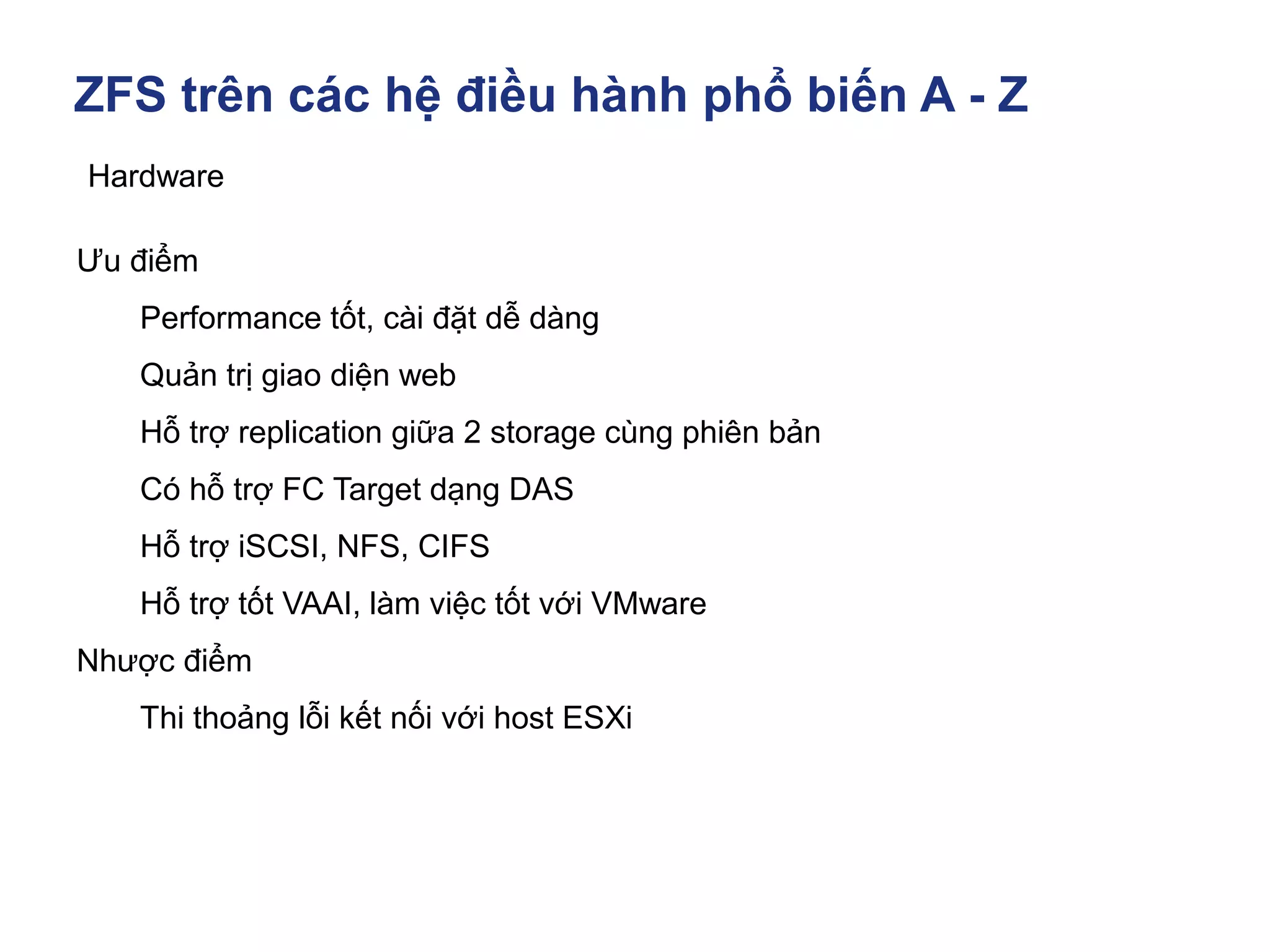

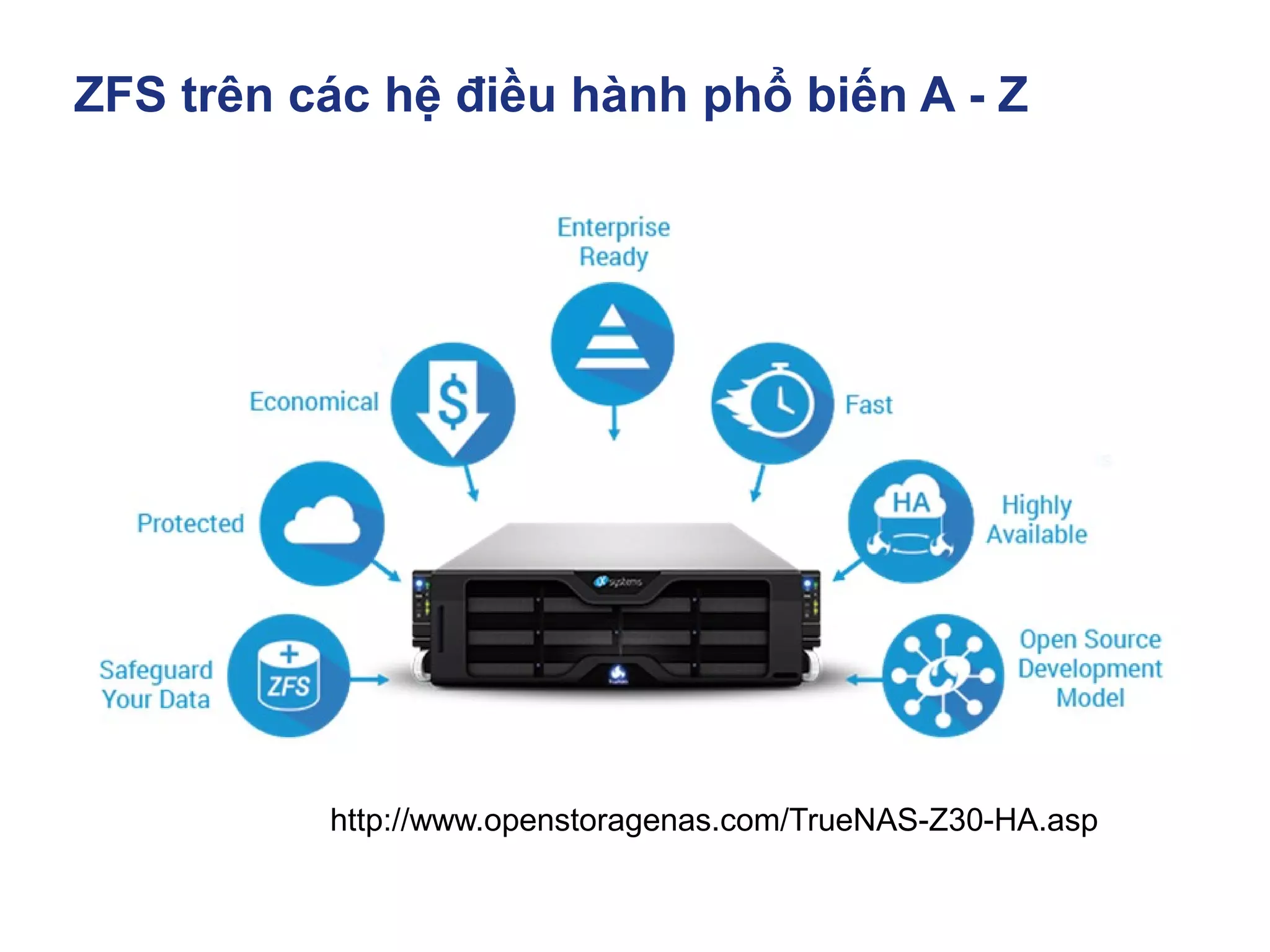

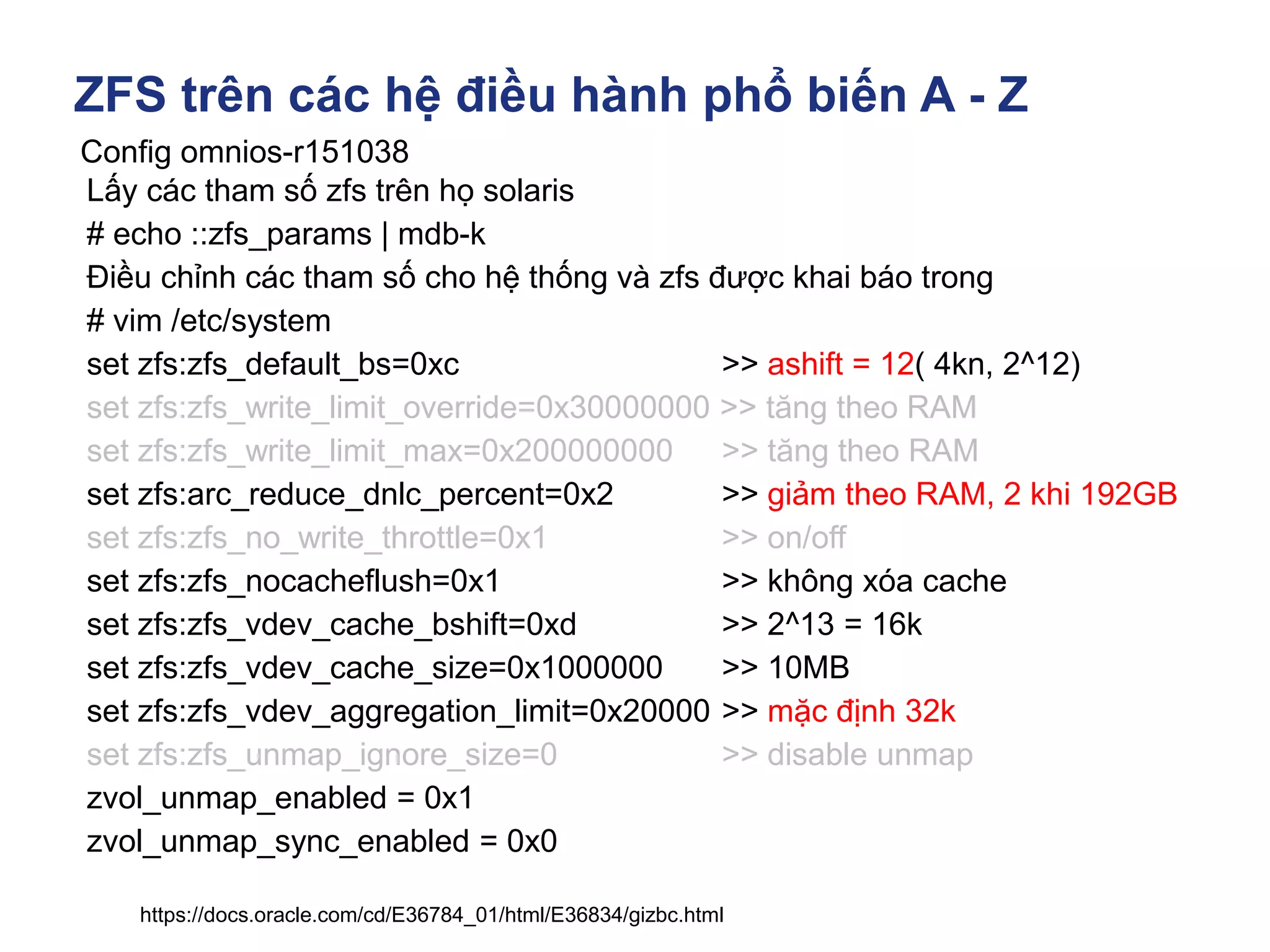

▪ ZFS trên các hệ điều hành phổ biến A - Z

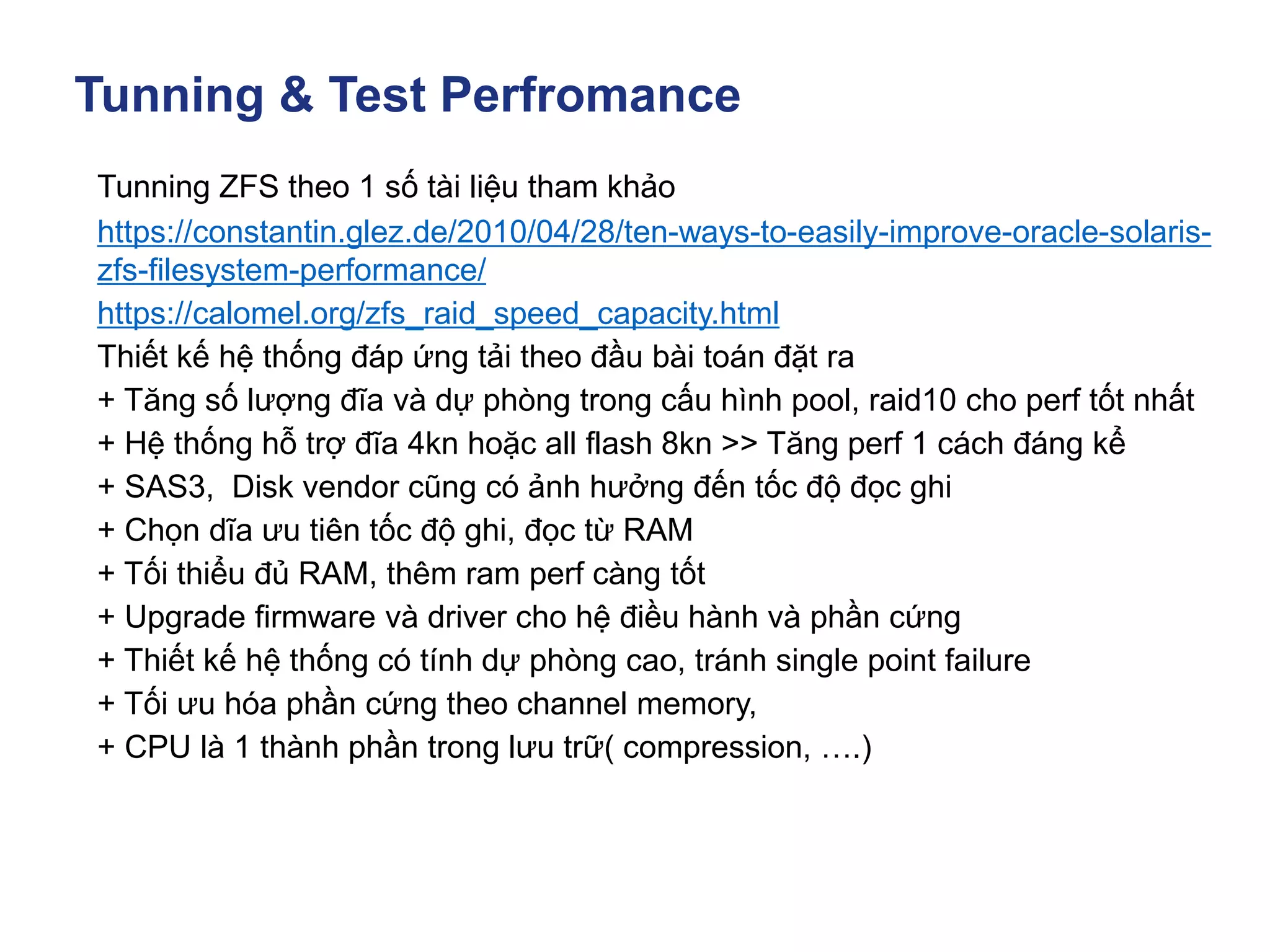

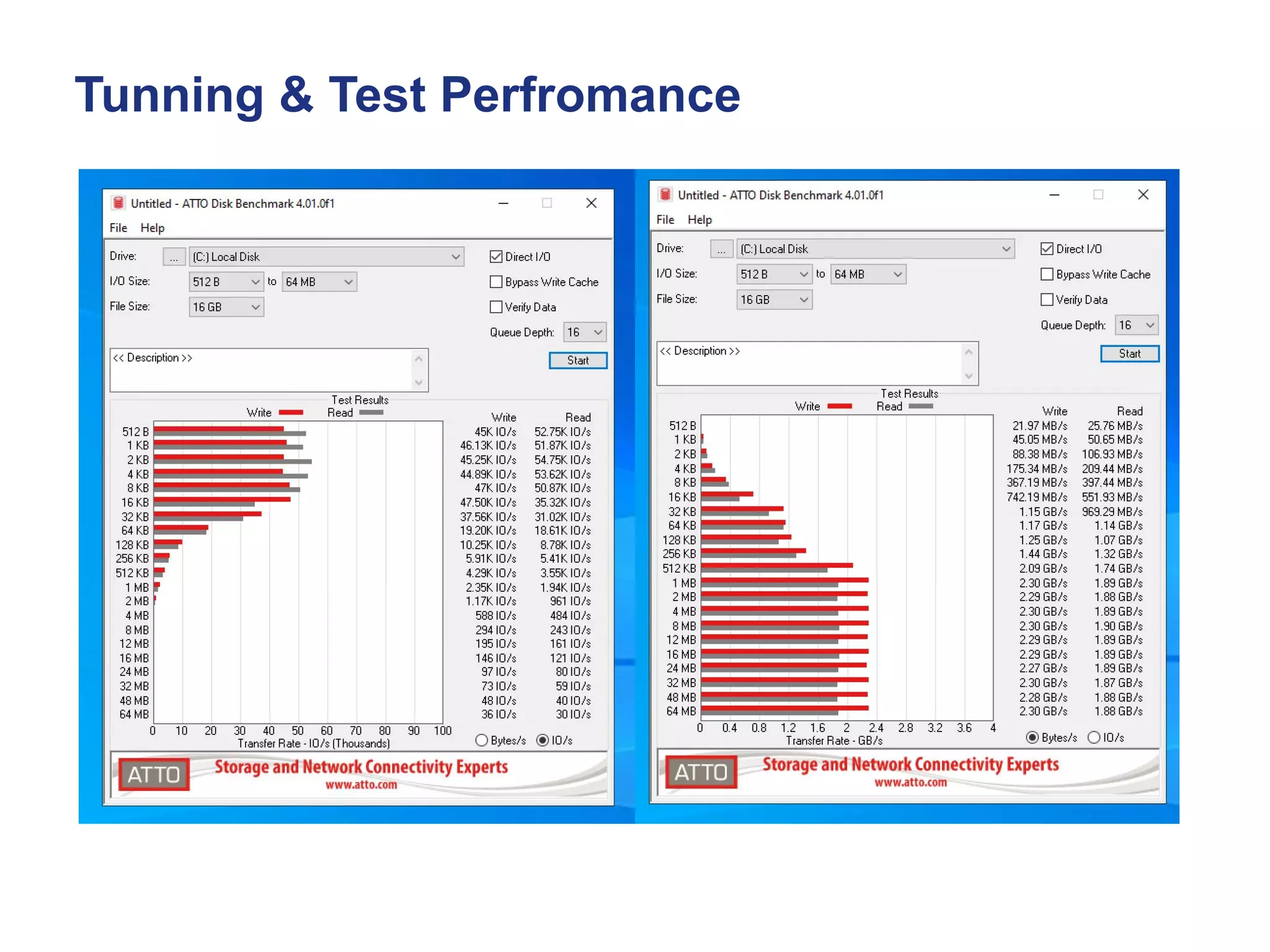

▪ Tunning & Test Perfromance
▪ Troubleshooting

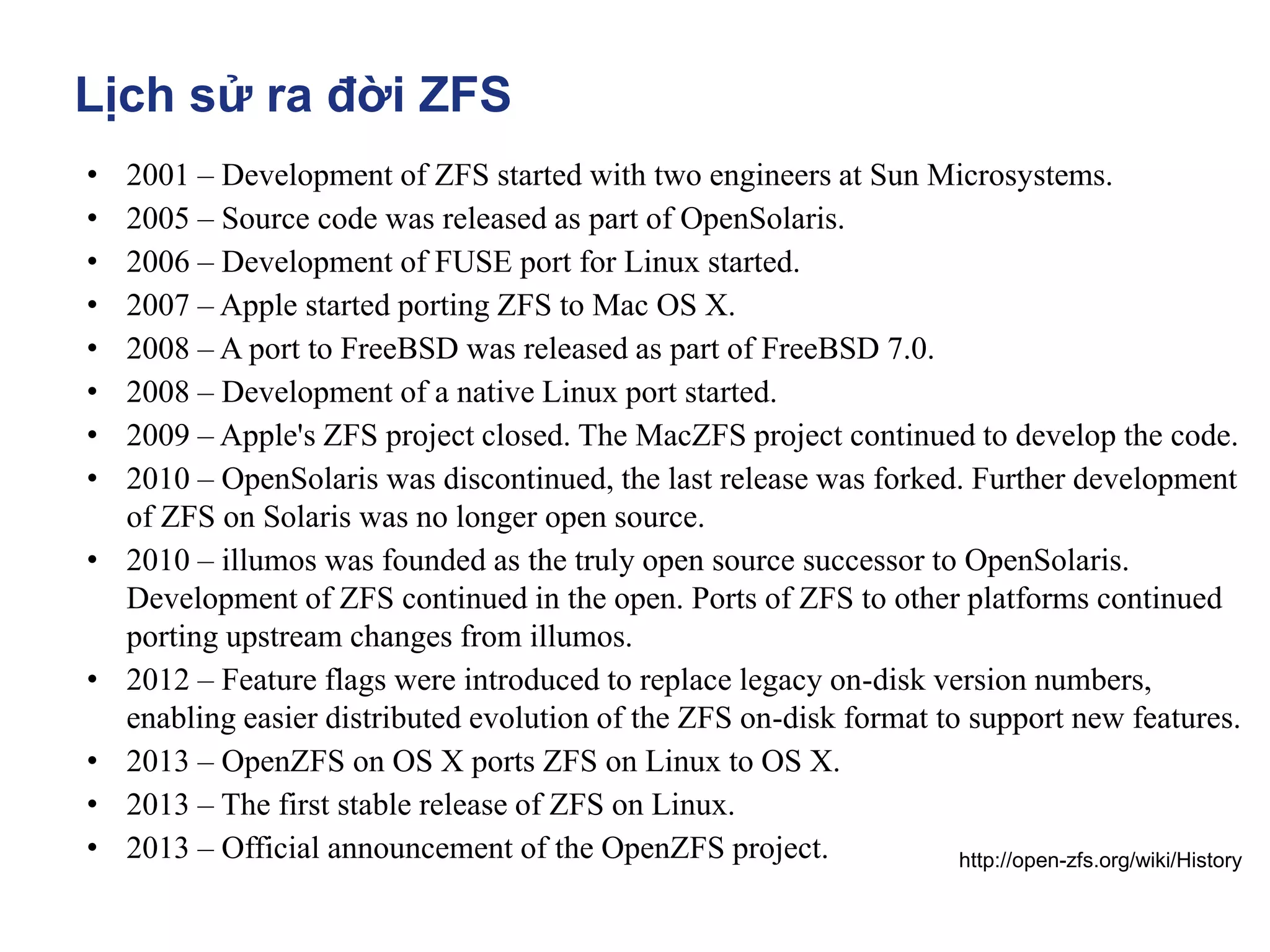

Lịch sử ra đời ZFS
• 2001 – Development of ZFS started with two engineers at Sun Microsystems.
• 2005 – Source code was released as part of OpenSolaris.
• 2006 – Development of FUSE port for Linux started.
• 2007 – Apple started porting ZFS to Mac OS X.
• 2008 – A port to FreeBSD was released as part of FreeBSD 7.0.
• 2008 – Development of a native Linux port started.
• 2009 – Apple's ZFS project closed. The MacZFS project continued to develop the code.
• 2010 – OpenSolaris was discontinued, the last release was forked. Further development
of ZFS on Solaris was no longer open source.
• 2010 – illumos was founded as the truly open source successor to OpenSolaris.
Development of ZFS continued in the open. Ports of ZFS to other platforms continued
porting upstream changes from illumos.
• 2012 – Feature flags were introduced to replace legacy on-disk version numbers,
enabling easier distributed evolution of the ZFS on-disk format to support new features.
• 2013 – OpenZFS on OS X ports ZFS on Linux to OS X.
• 2013 – The first stable release of ZFS on Linux.
• 2013 – Official announcement of the OpenZFS project. http://open-zfs.org/wiki/History

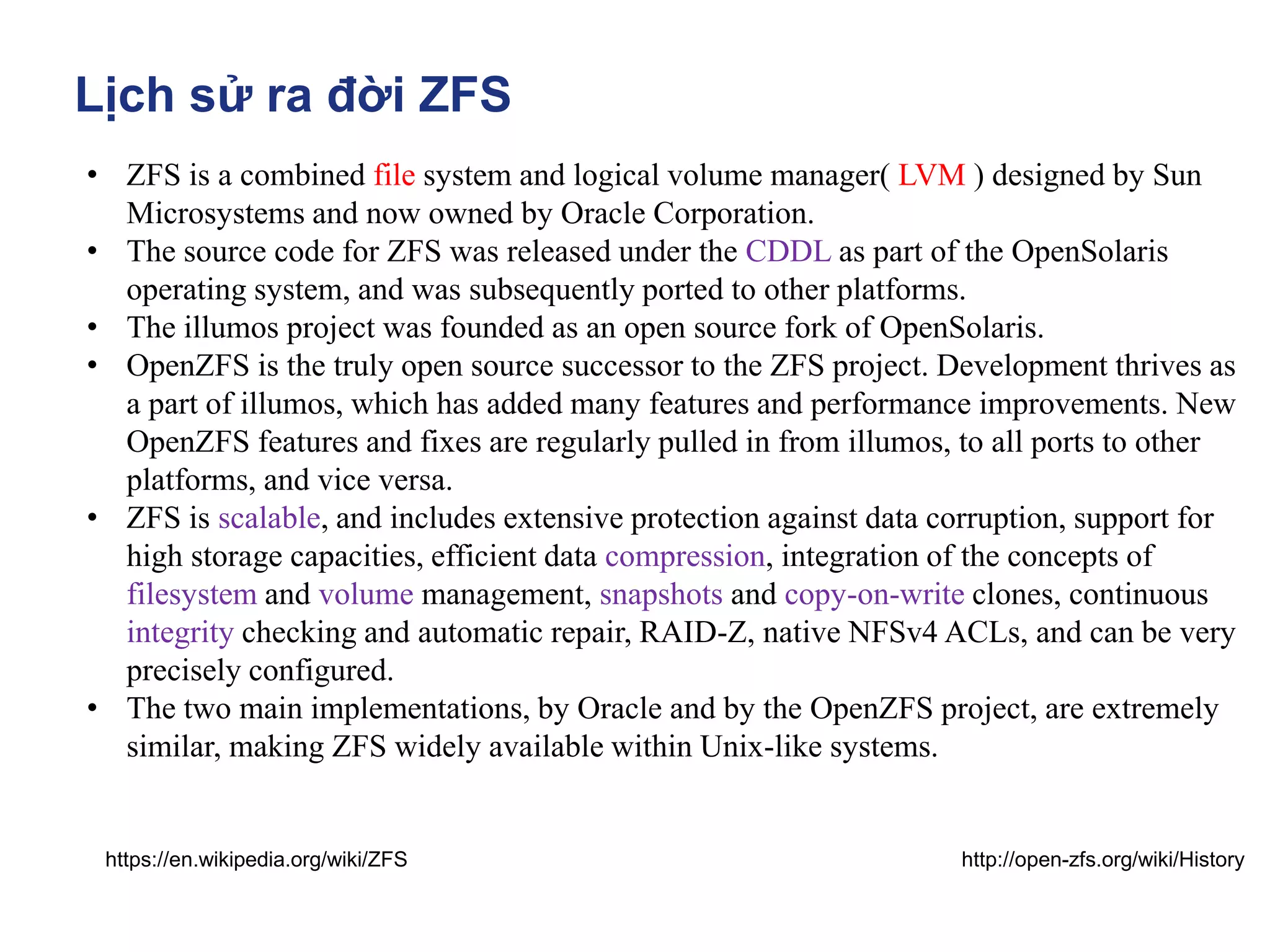

Lịch sử ra đời ZFS
• ZFS is a combined file system and logical volume manager( LVM ) designed by Sun
Microsystems and now owned by Oracle Corporation.
• The source code for ZFS was released under the CDDL as part of the OpenSolaris
operating system, and was subsequently ported to other platforms.
• The illumos project was founded as an open source fork of OpenSolaris.
• OpenZFS is the truly open source successor to the ZFS project. Development thrives as
a part of illumos, which has added many features and performance improvements. New
OpenZFS features and fixes are regularly pulled in from illumos, to all ports to other
platforms, and vice versa.
• ZFS is scalable, and includes extensive protection against data corruption, support for
high storage capacities, efficient data compression, integration of the concepts of
filesystem and volume management, snapshots and copy-on-write clones, continuous
integrity checking and automatic repair, RAID-Z, native NFSv4 ACLs, and can be very
precisely configured.
• The two main implementations, by Oracle and by the OpenZFS project, are extremely
similar, making ZFS widely available within Unix-like systems.
http://open-zfs.org/wiki/History
https://en.wikipedia.org/wiki/ZFS

ZFS Storage Data in memory
https://pthree.org/2012/12/07/zfs-administration-part-iv-the-adjustable-replacement-cache/

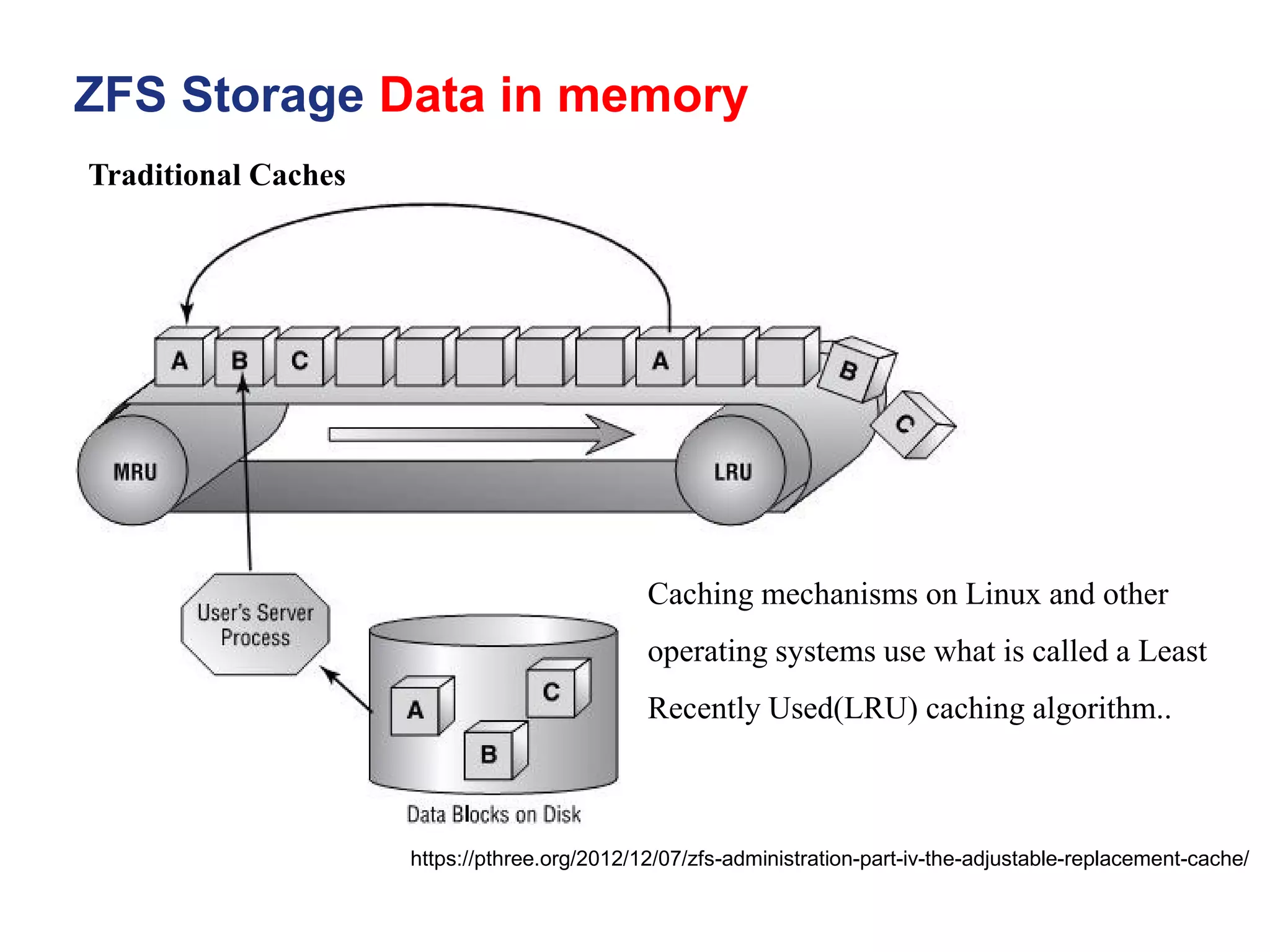

Traditional Caches
Caching mechanisms on Linux and other
operating systems use what is called a Least
Recently Used(LRU) caching algorithm..

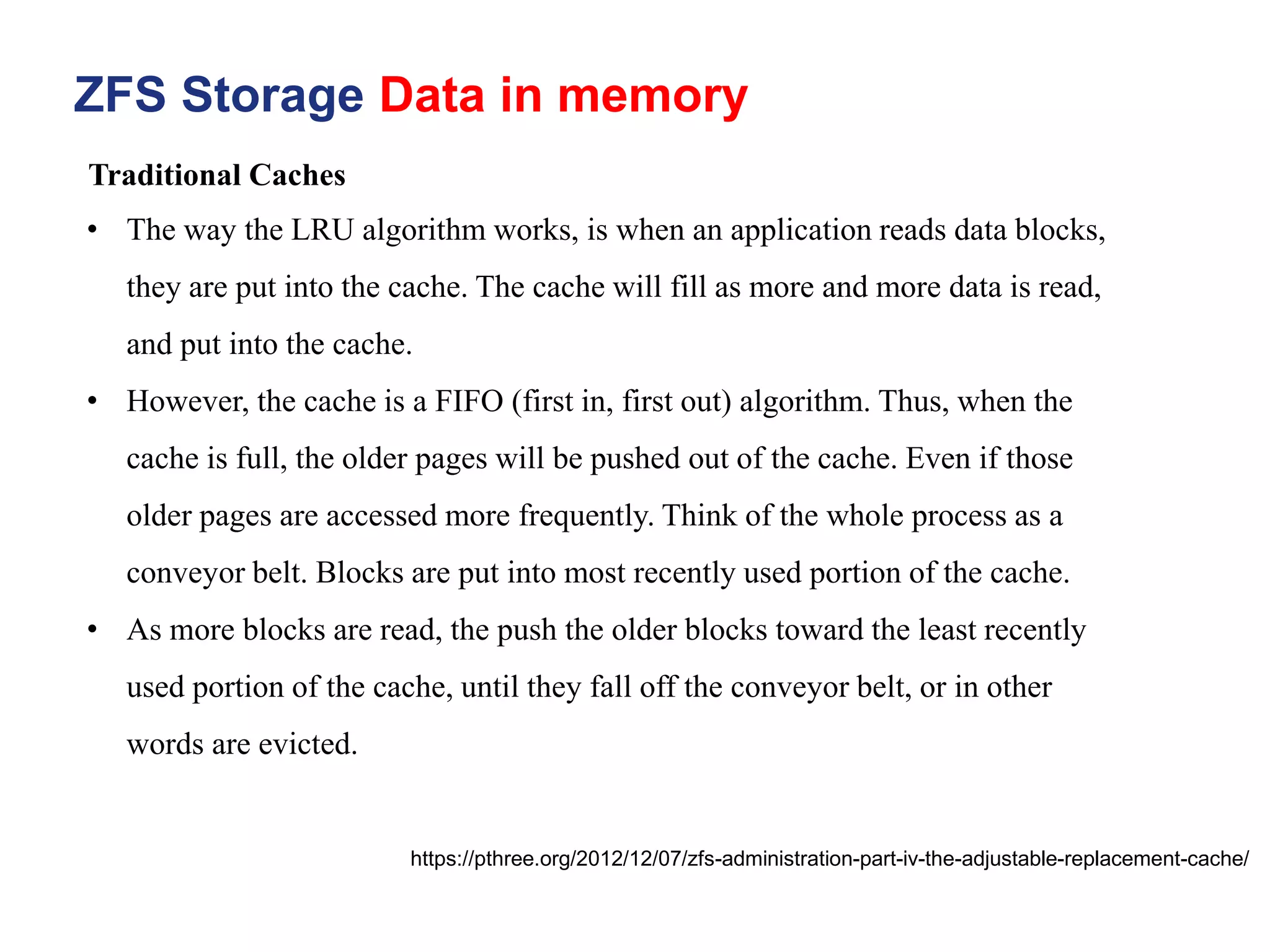

• The way the LRU algorithm works, is when an application reads data blocks,
they are put into the cache. The cache will fill as more and more data is read,
and put into the cache.
• However, the cache is a FIFO (first in, first out) algorithm. Thus, when the
cache is full, the older pages will be pushed out of the cache. Even if those
older pages are accessed more frequently. Think of the whole process as a
conveyor belt. Blocks are put into most recently used portion of the cache.
• As more blocks are read, the push the older blocks toward the least recently
used portion of the cache, until they fall off the conveyor belt, or in other
words are evicted.

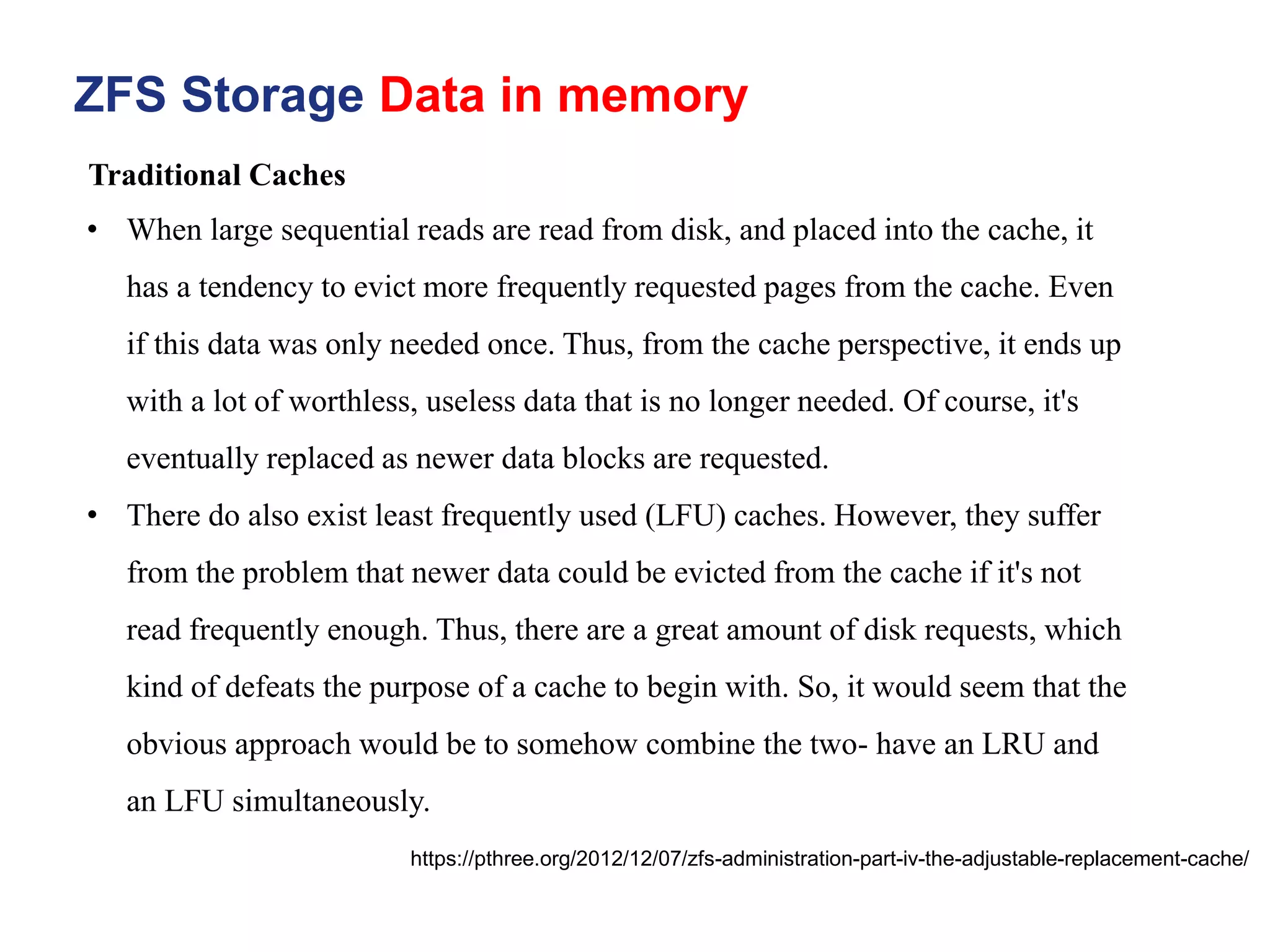

Traditional Caches

• When large sequential reads are read from disk, and placed into the cache, it
has a tendency to evict more frequently requested pages from the cache. Even
if this data was only needed once. Thus, from the cache perspective, it ends up
with a lot of worthless, useless data that is no longer needed. Of course, it's
eventually replaced as newer data blocks are requested.
• There do also exist least frequently used (LFU) caches. However, they suffer
from the problem that newer data could be evicted from the cache if it's not
read frequently enough. Thus, there are a great amount of disk requests, which
kind of defeats the purpose of a cache to begin with. So, it would seem that the
obvious approach would be to somehow combine the two- have an LRU and
an LFU simultaneously.
Traditional Caches

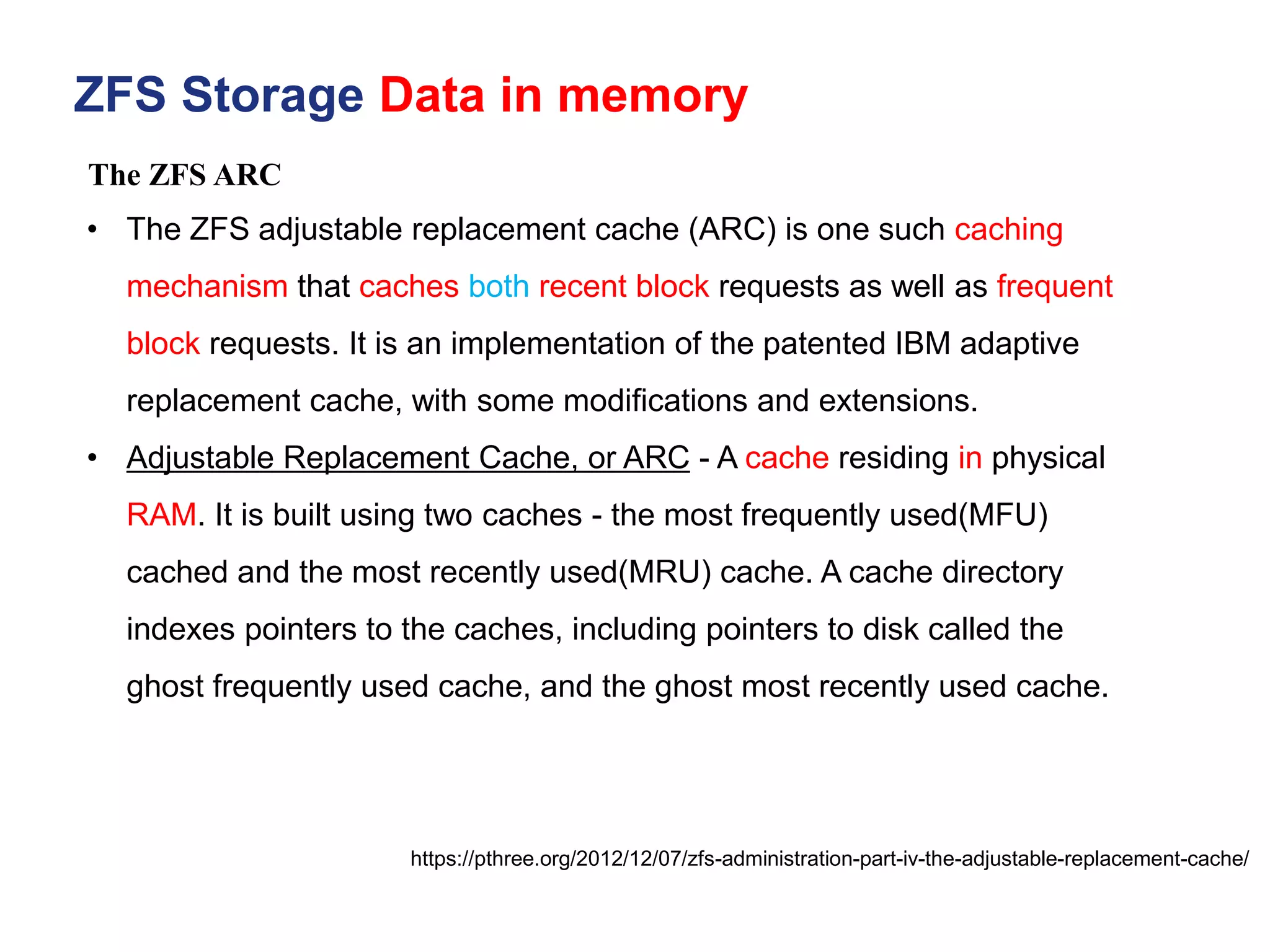

• The ZFS adjustable replacement cache (ARC) is one such caching
mechanism that caches both recent block requests as well as frequent
block requests. It is an implementation of the patented IBM adaptive
replacement cache, with some modifications and extensions.
• Adjustable Replacement Cache, or ARC - A cache residing in physical
RAM. It is built using two caches - the most frequently used(MFU)
cached and the most recently used(MRU) cache. A cache directory
indexes pointers to the caches, including pointers to disk called the
ghost frequently used cache, and the ghost most recently used cache.
The ZFS ARC

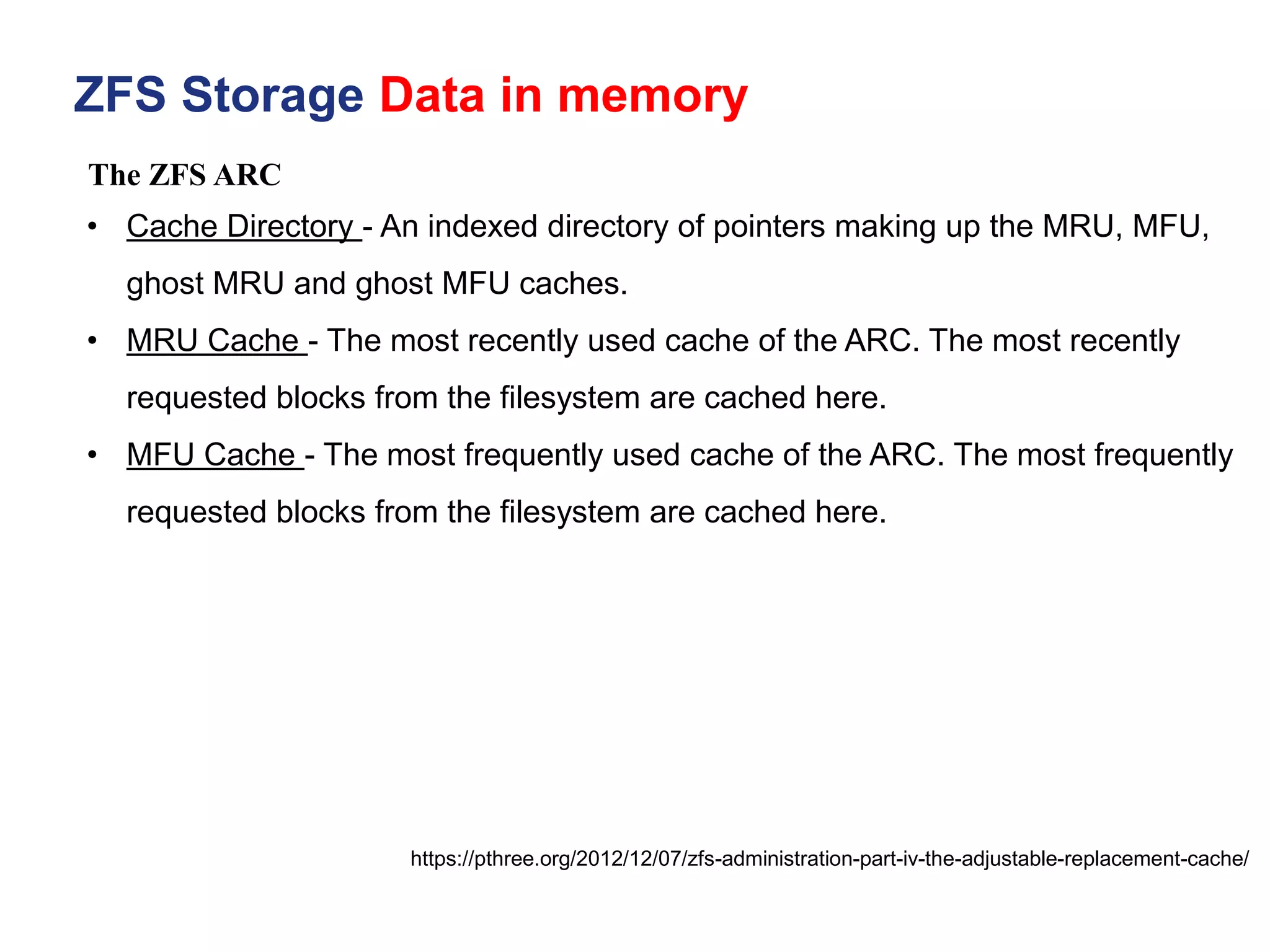

The ZFS ARC
• Cache Directory - An indexed directory of pointers making up the MRU, MFU,
ghost MRU and ghost MFU caches.
• MRU Cache - The most recently used cache of the ARC. The most recently
requested blocks from the filesystem are cached here.
• MFU Cache - The most frequently used cache of the ARC. The most frequently
requested blocks from the filesystem are cached here.

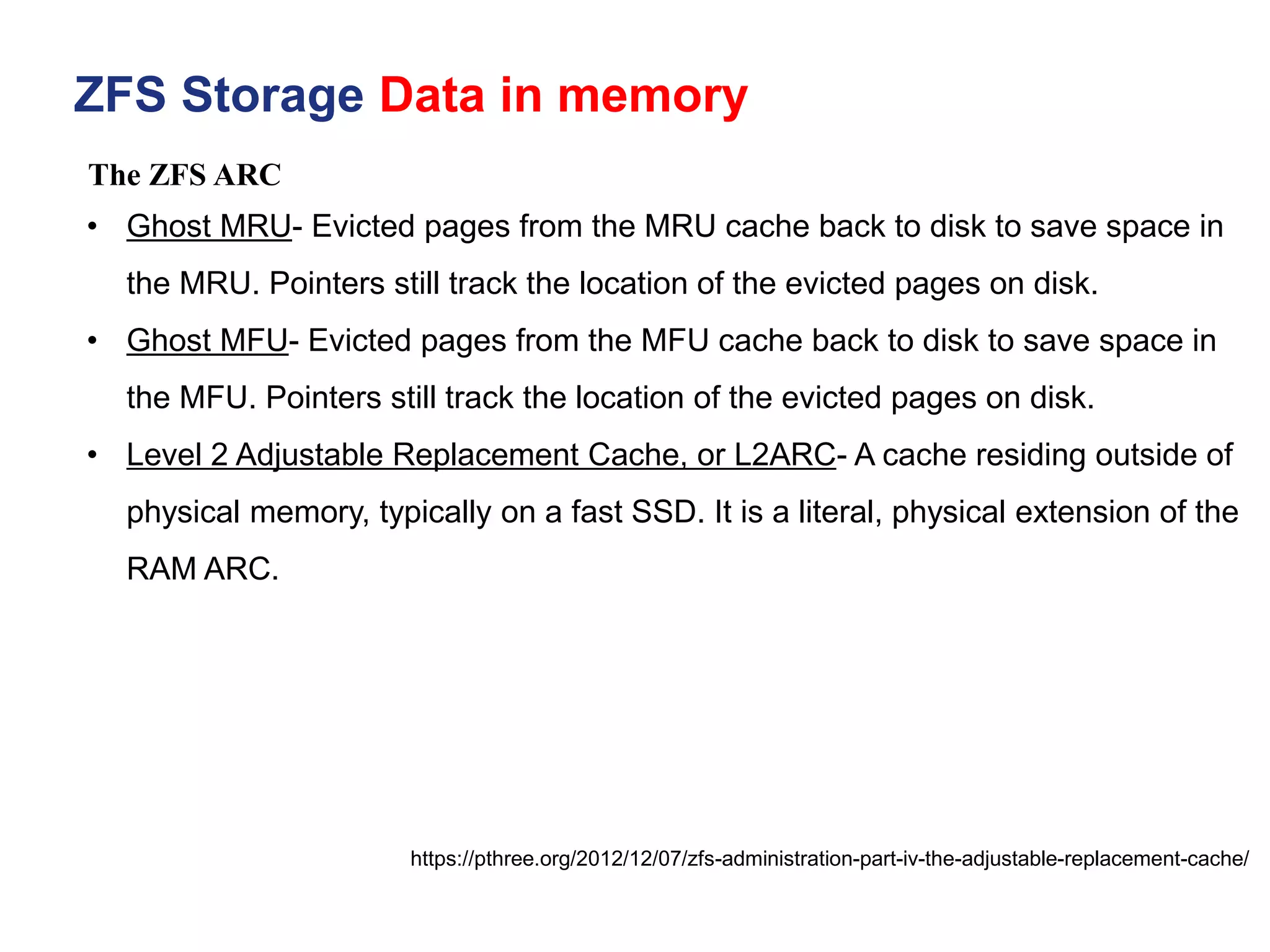

• Ghost MRU- Evicted pages from the MRU cache back to disk to save space in
the MRU. Pointers still track the location of the evicted pages on disk.
• Ghost MFU- Evicted pages from the MFU cache back to disk to save space in
the MFU. Pointers still track the location of the evicted pages on disk.
• Level 2 Adjustable Replacement Cache, or L2ARC- A cache residing outside of
physical memory, typically on a fast SSD. It is a literal, physical extension of the
RAM ARC.
The ZFS ARC

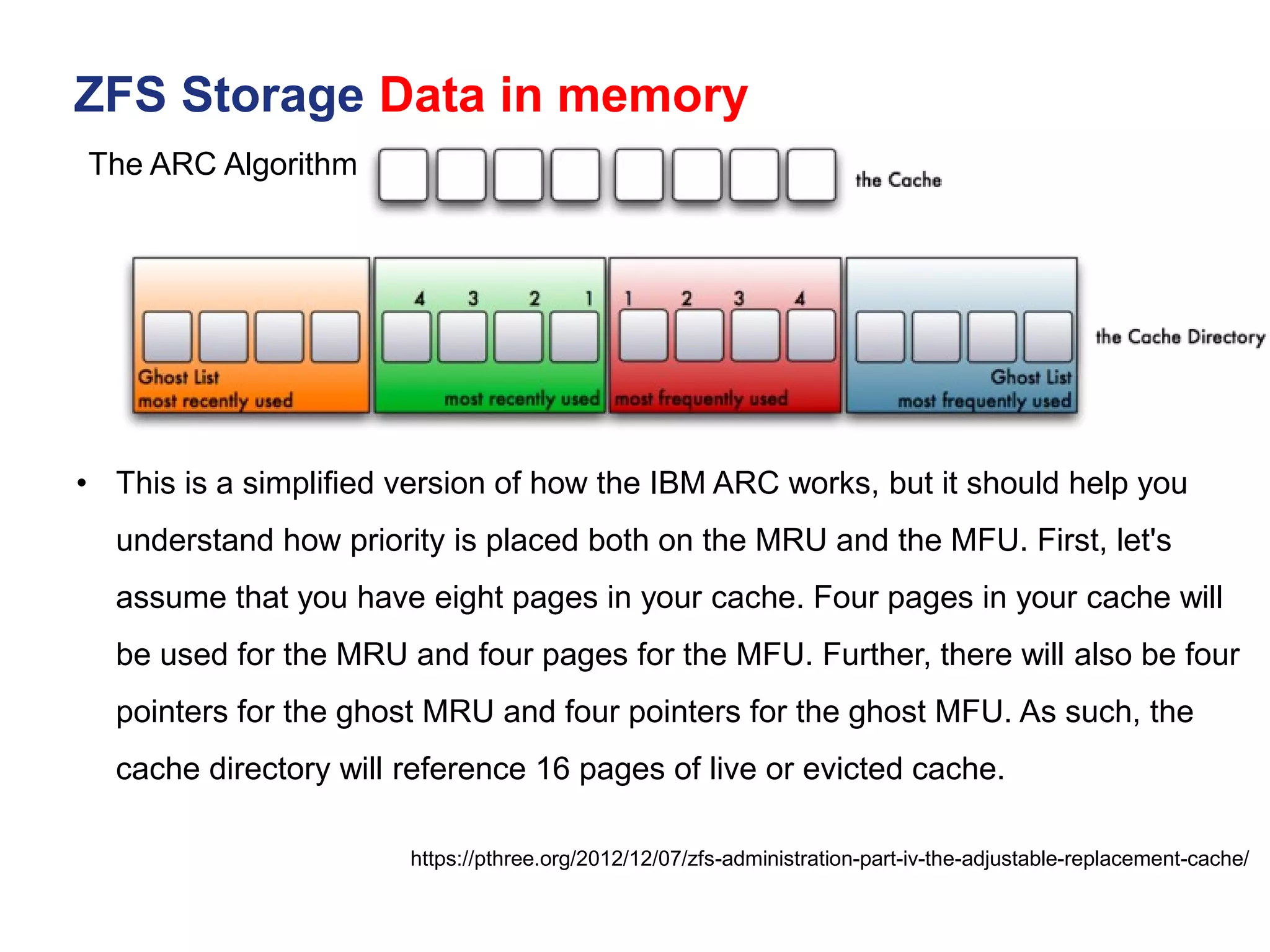

• This is a simplified version of how the IBM ARC works, but it should help you
understand how priority is placed both on the MRU and the MFU. First, let's
assume that you have eight pages in your cache. Four pages in your cache will
be used for the MRU and four pages for the MFU. Further, there will also be four
pointers for the ghost MRU and four pointers for the ghost MFU. As such, the
cache directory will reference 16 pages of live or evicted cache.
The ARC Algorithm

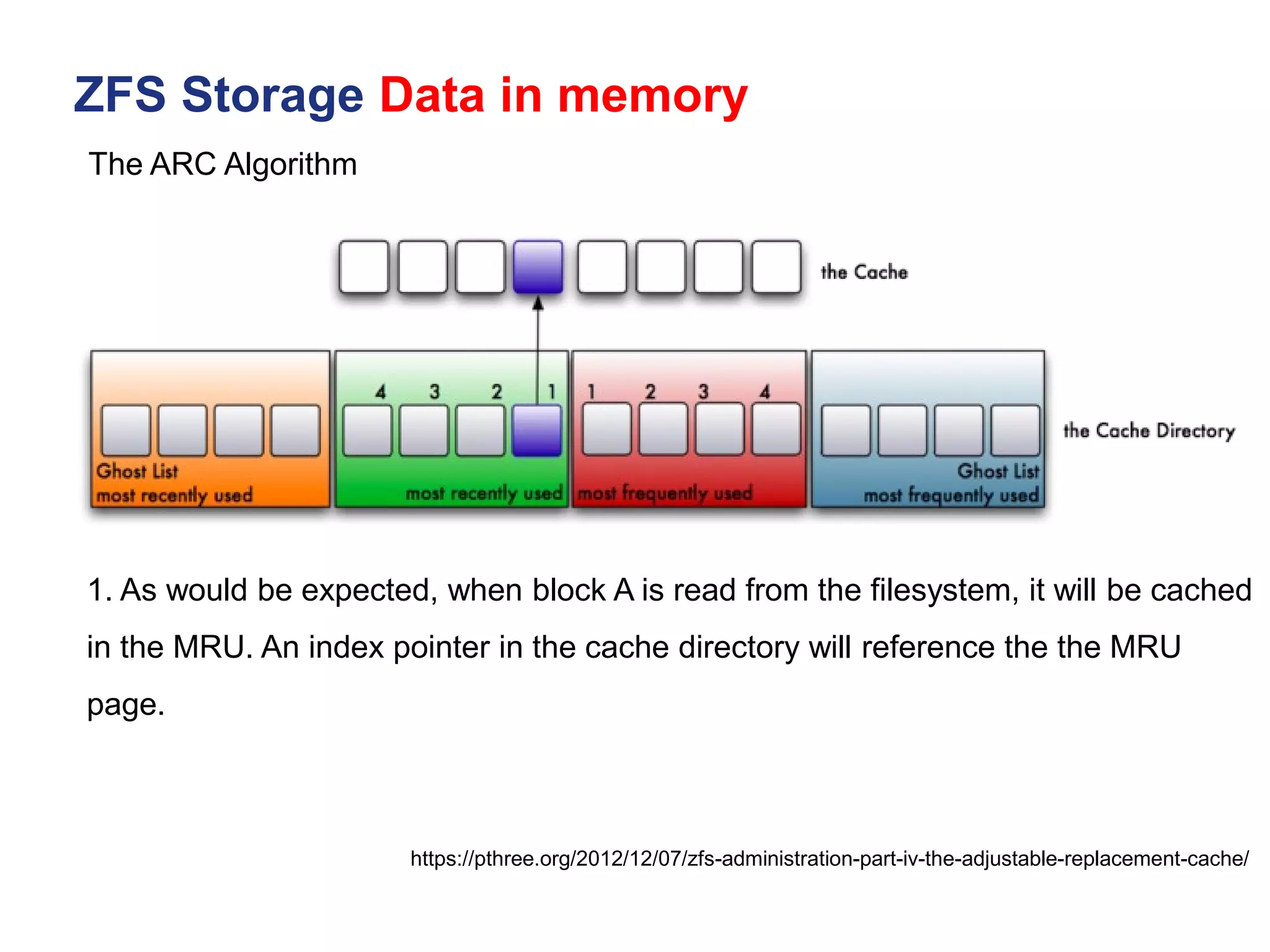

1. As would be expected, when block A is read from the filesystem, it will be cached
in the MRU. An index pointer in the cache directory will reference the the MRU
page.
The ARC Algorithm

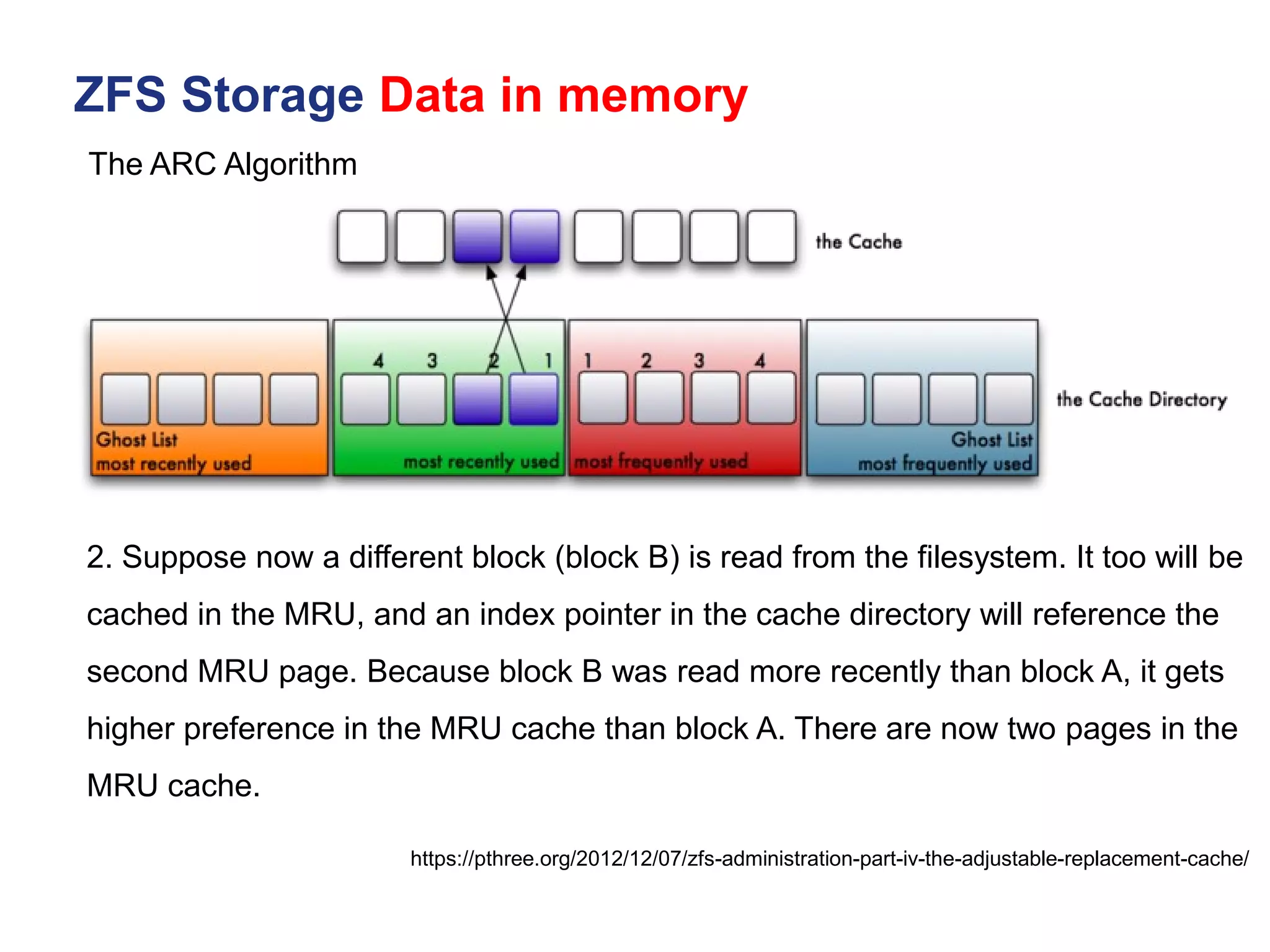

2. Suppose now a different block (block B) is read from the filesystem. It too will be
cached in the MRU, and an index pointer in the cache directory will reference the
second MRU page. Because block B was read more recently than block A, it gets
higher preference in the MRU cache than block A. There are now two pages in the
MRU cache.
The ARC Algorithm

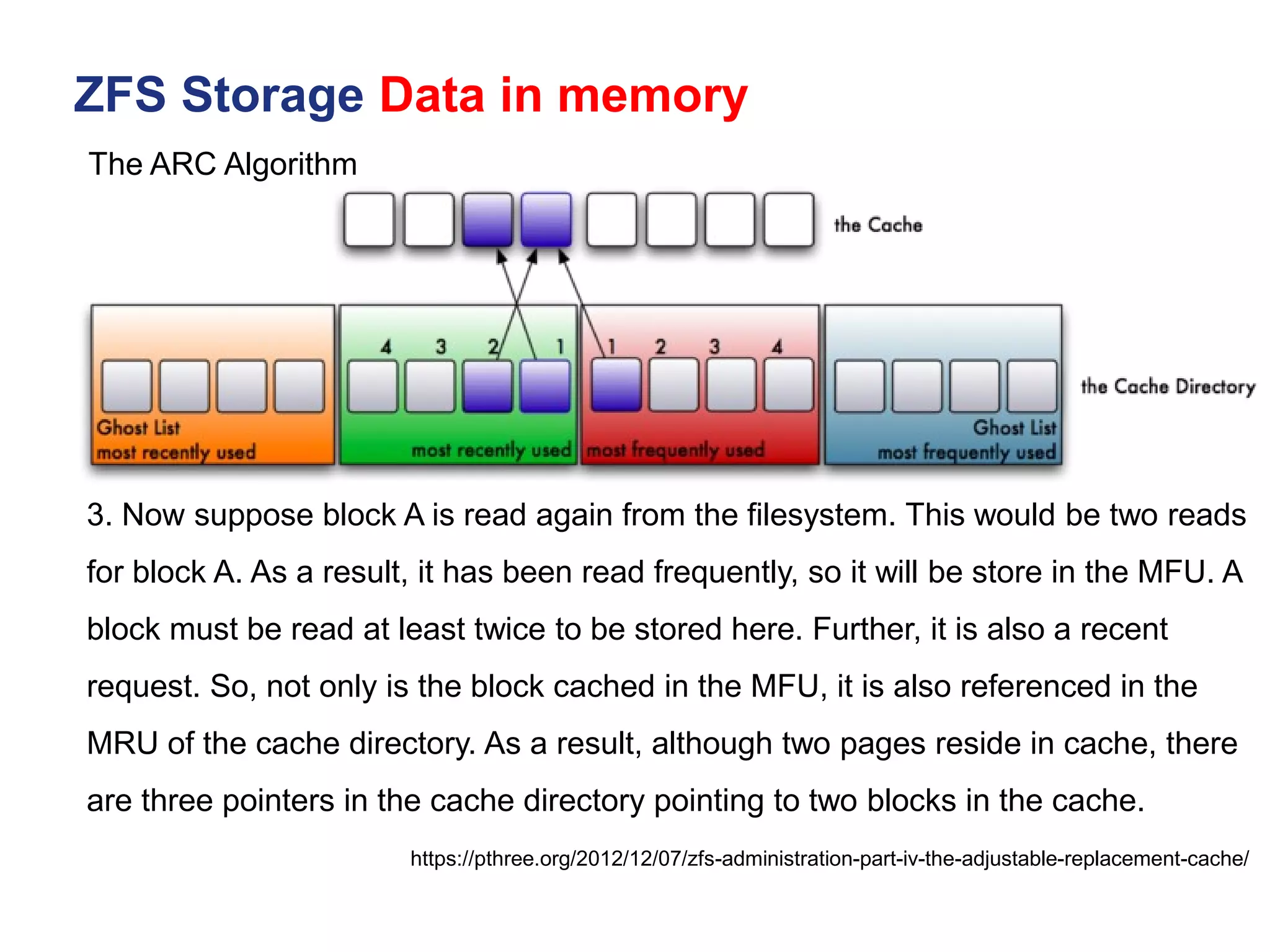

3. Now suppose block A is read again from the filesystem. This would be two reads
for block A. As a result, it has been read frequently, so it will be store in the MFU. A
block must be read at least twice to be stored here. Further, it is also a recent
request. So, not only is the block cached in the MFU, it is also referenced in the
MRU of the cache directory. As a result, although two pages reside in cache, there
are three pointers in the cache directory pointing to two blocks in the cache.
The ARC Algorithm

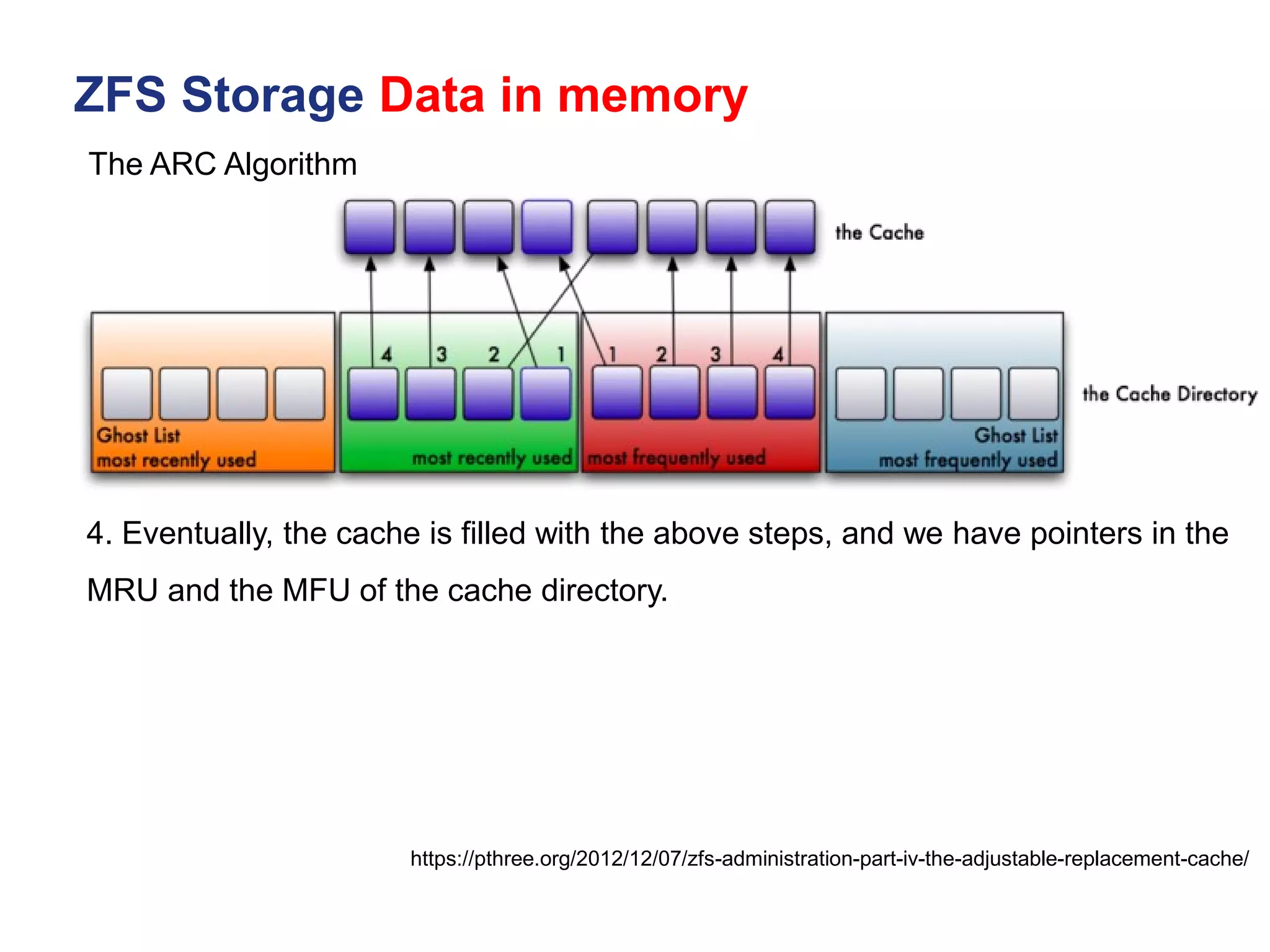

4. Eventually, the cache is filled with the above steps, and we have pointers in the
MRU and the MFU of the cache directory.
The ARC Algorithm

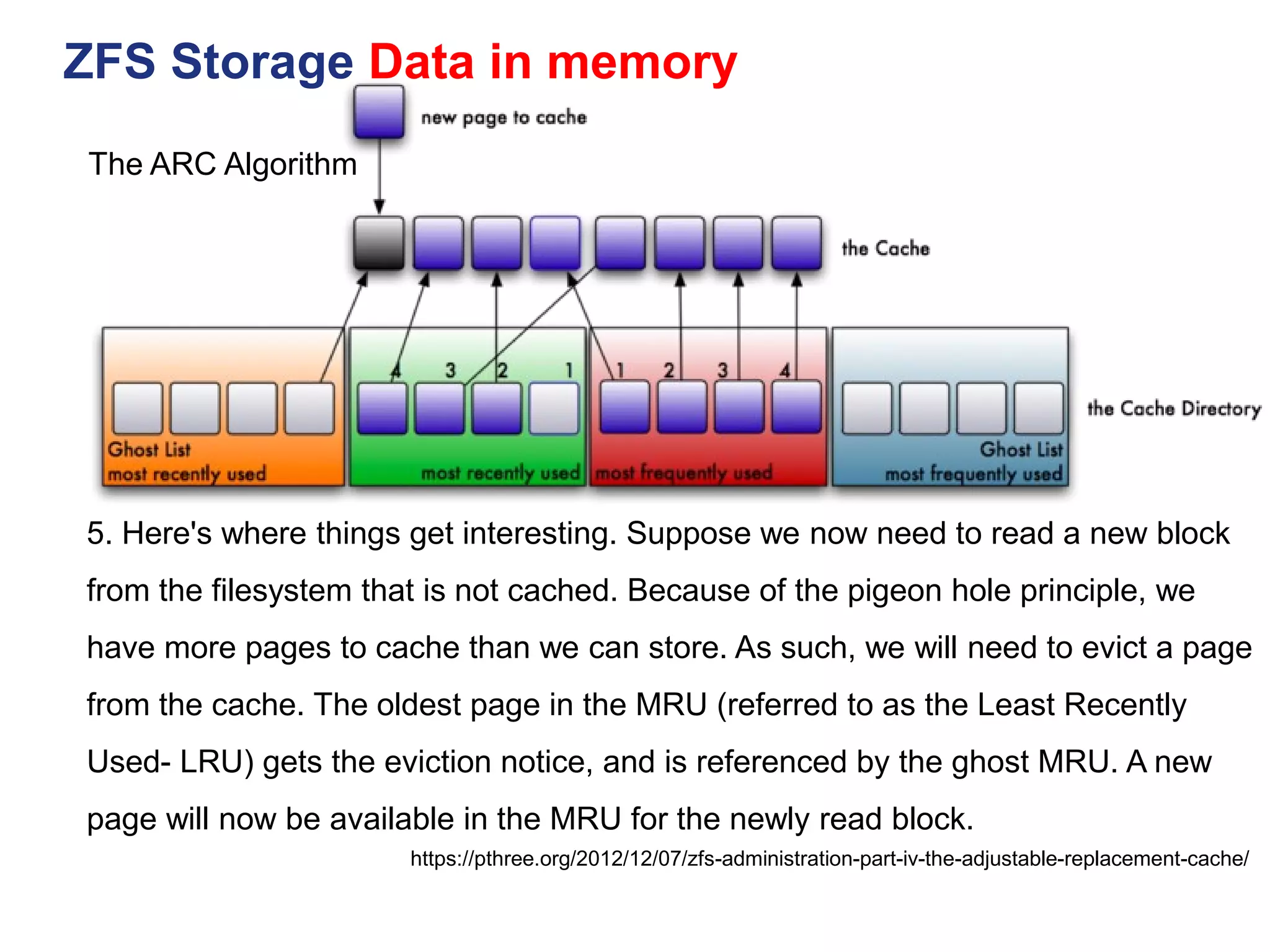

5. Here's where things get interesting. Suppose we now need to read a new block
from the filesystem that is not cached. Because of the pigeon hole principle, we
have more pages to cache than we can store. As such, we will need to evict a page
from the cache. The oldest page in the MRU (referred to as the Least Recently
Used- LRU) gets the eviction notice, and is referenced by the ghost MRU. A new
page will now be available in the MRU for the newly read block.
The ARC Algorithm

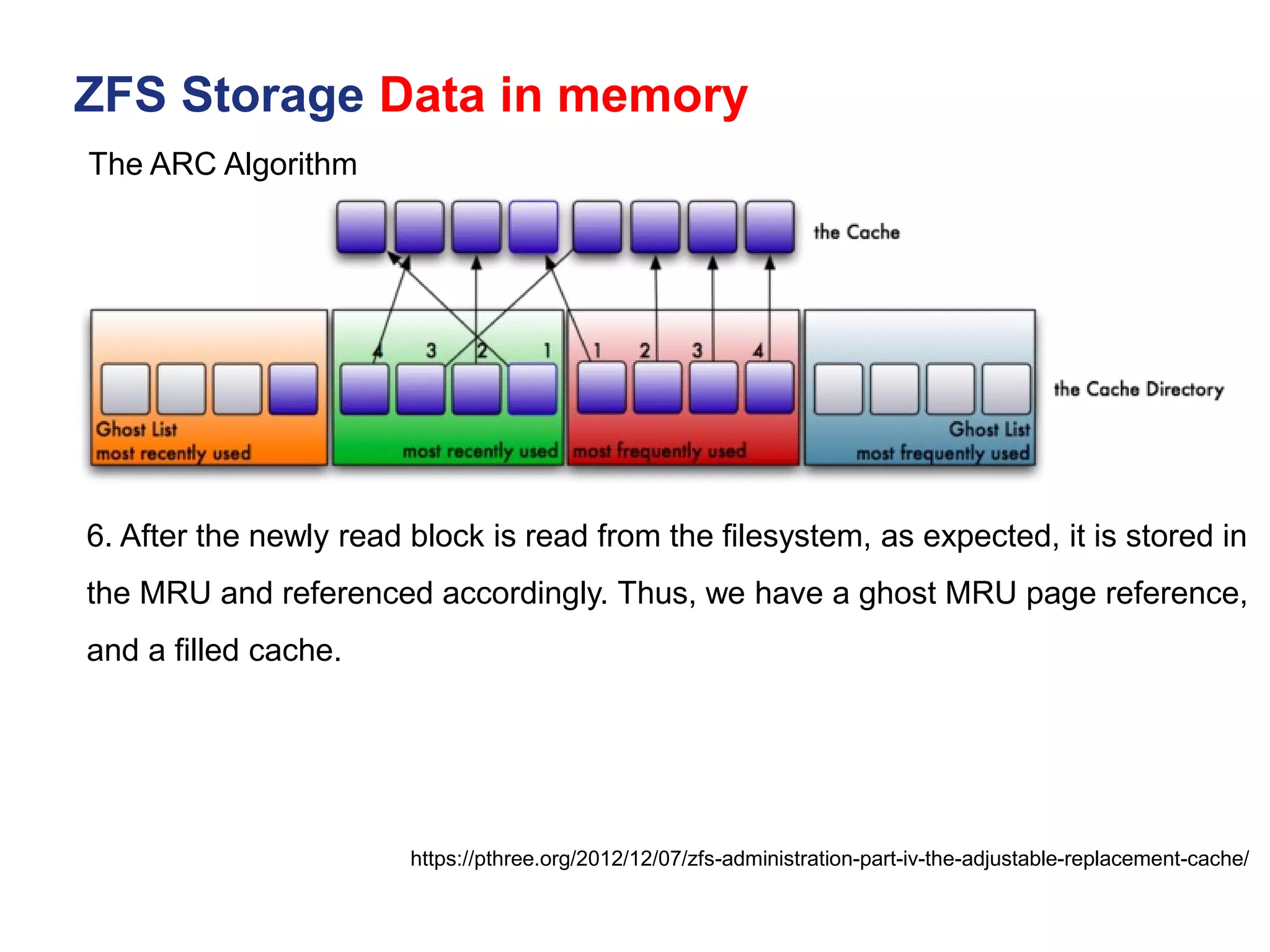

6. After the newly read block is read from the filesystem, as expected, it is stored in
the MRU and referenced accordingly. Thus, we have a ghost MRU page reference,
and a filled cache.
The ARC Algorithm

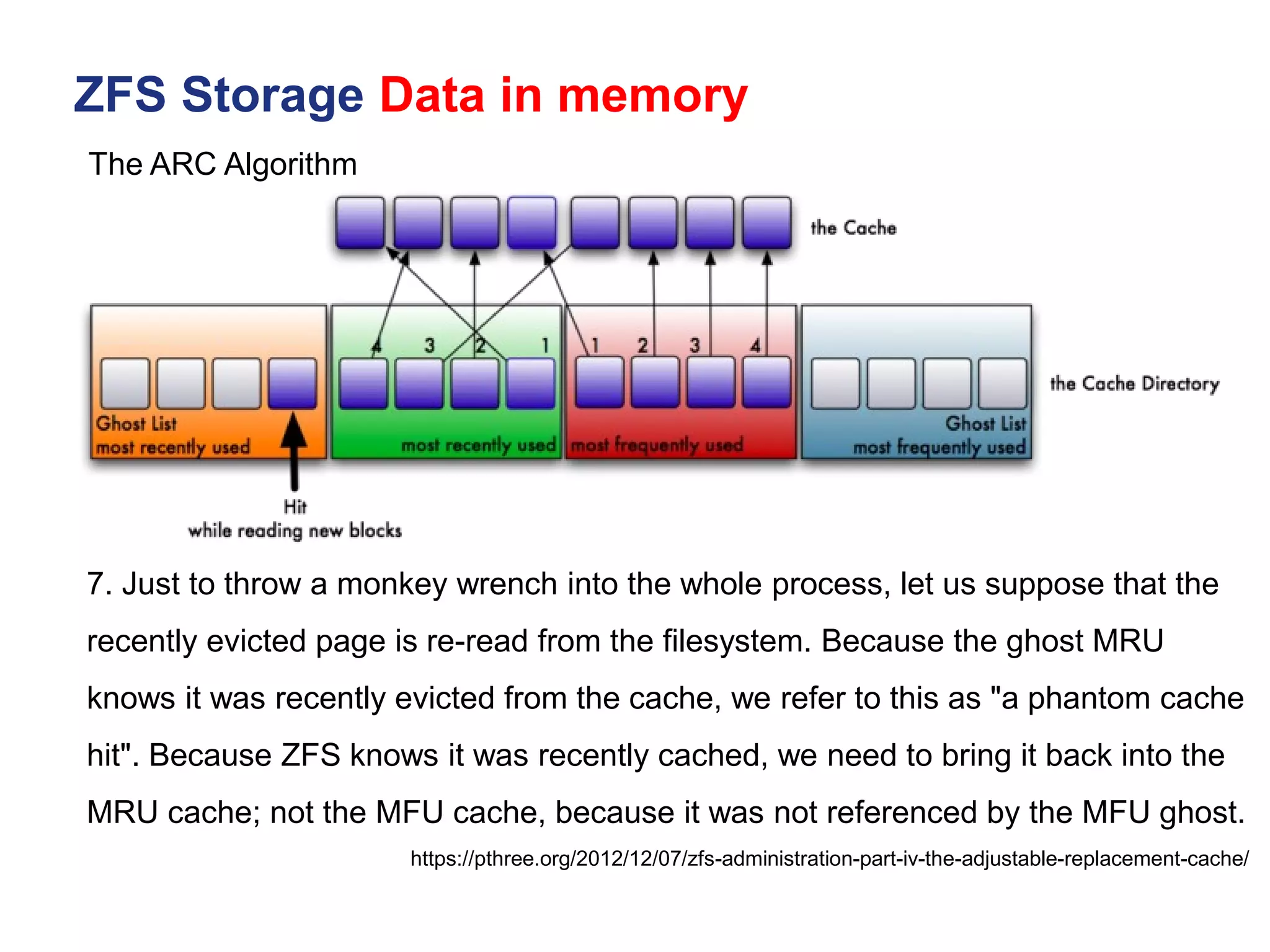

7. Just to throw a monkey wrench into the whole process, let us suppose that the
recently evicted page is re-read from the filesystem. Because the ghost MRU
knows it was recently evicted from the cache, we refer to this as "a phantom cache
hit". Because ZFS knows it was recently cached, we need to bring it back into the
MRU cache; not the MFU cache, because it was not referenced by the MFU ghost.
The ARC Algorithm

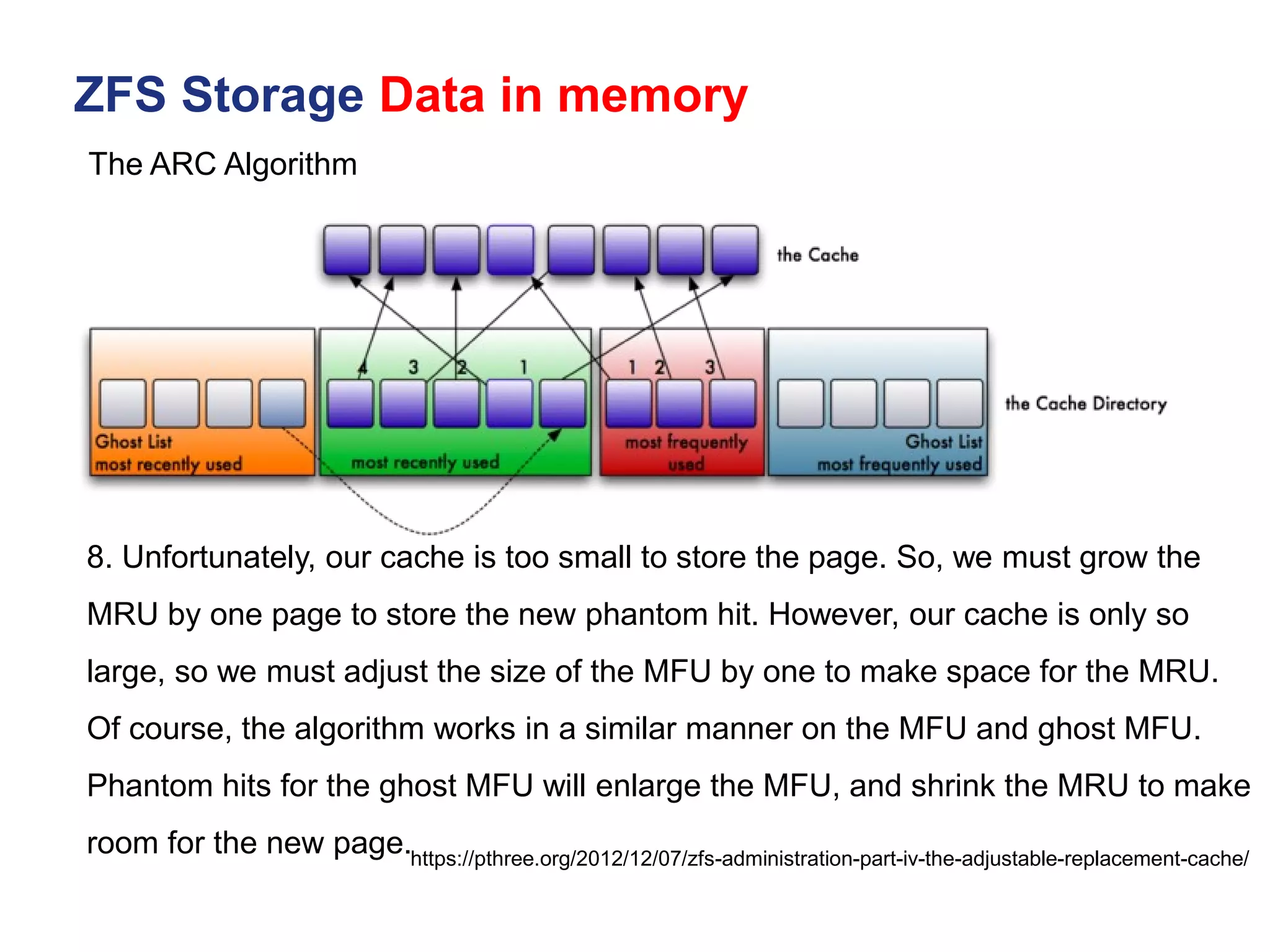

8. Unfortunately, our cache is too small to store the page. So, we must grow the
MRU by one page to store the new phantom hit. However, our cache is only so
large, so we must adjust the size of the MFU by one to make space for the MRU.
Of course, the algorithm works in a similar manner on the MFU and ghost MFU.
Phantom hits for the ghost MFU will enlarge the MFU, and shrink the MRU to make
room for the new page.
The ARC Algorithm

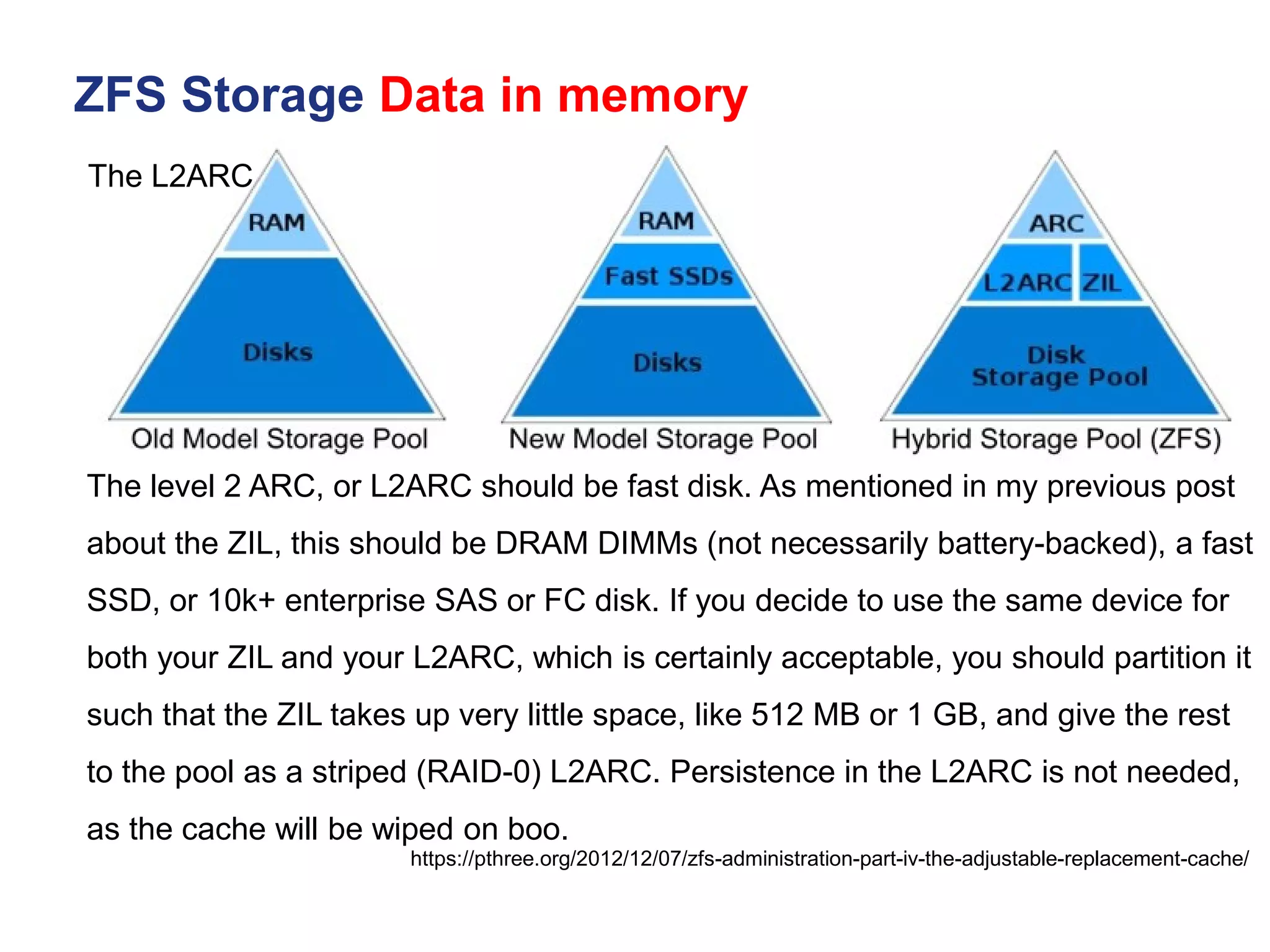

The L2ARC
The level 2 ARC, or L2ARC should be fast disk. As mentioned in my previous post
about the ZIL, this should be DRAM DIMMs (not necessarily battery-backed), a fast
SSD, or 10k+ enterprise SAS or FC disk. If you decide to use the same device for
both your ZIL and your L2ARC, which is certainly acceptable, you should partition it
such that the ZIL takes up very little space, like 512 MB or 1 GB, and give the rest
to the pool as a striped (RAID-0) L2ARC. Persistence in the L2ARC is not needed,
as the cache will be wiped on boo.

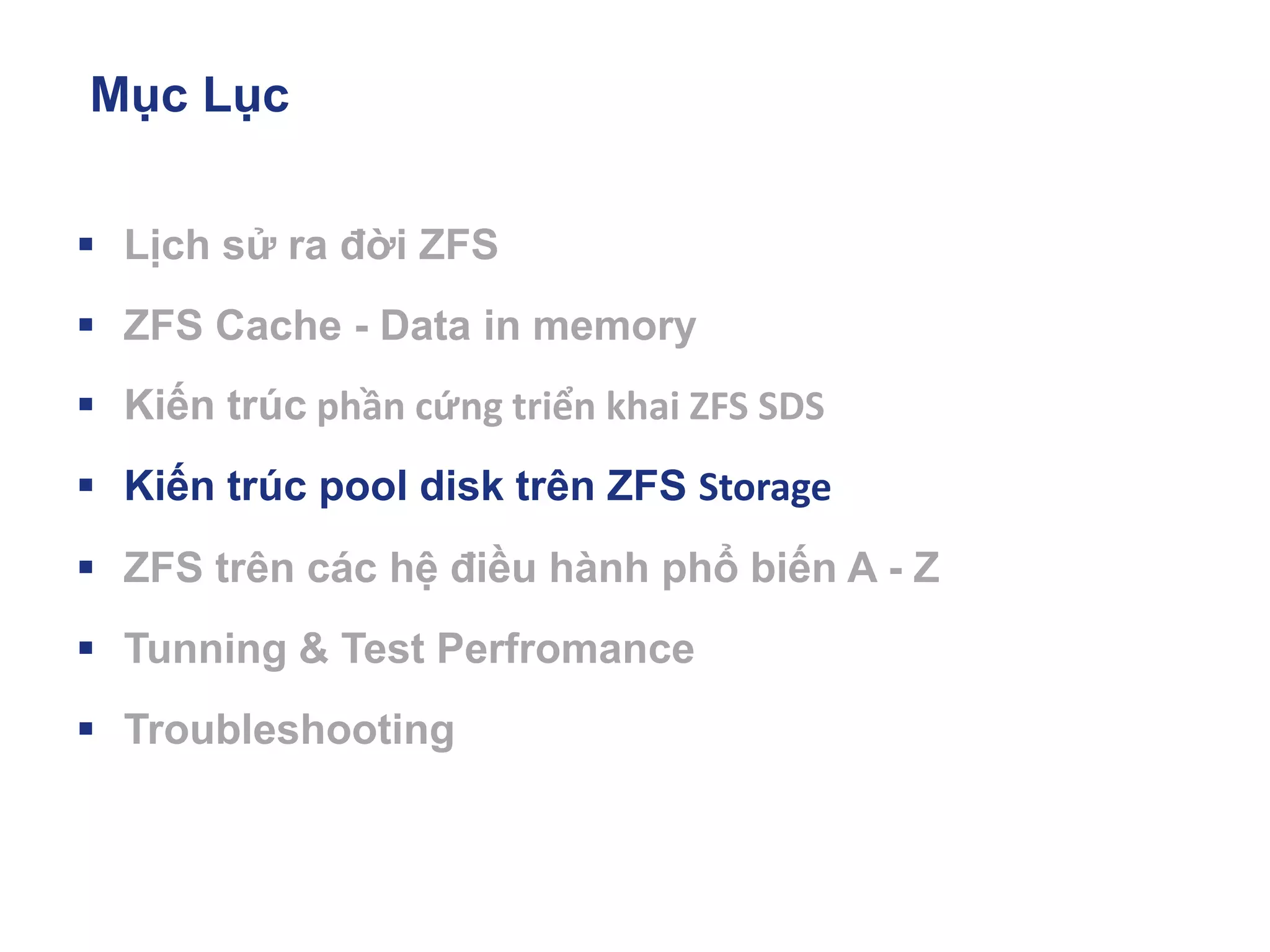

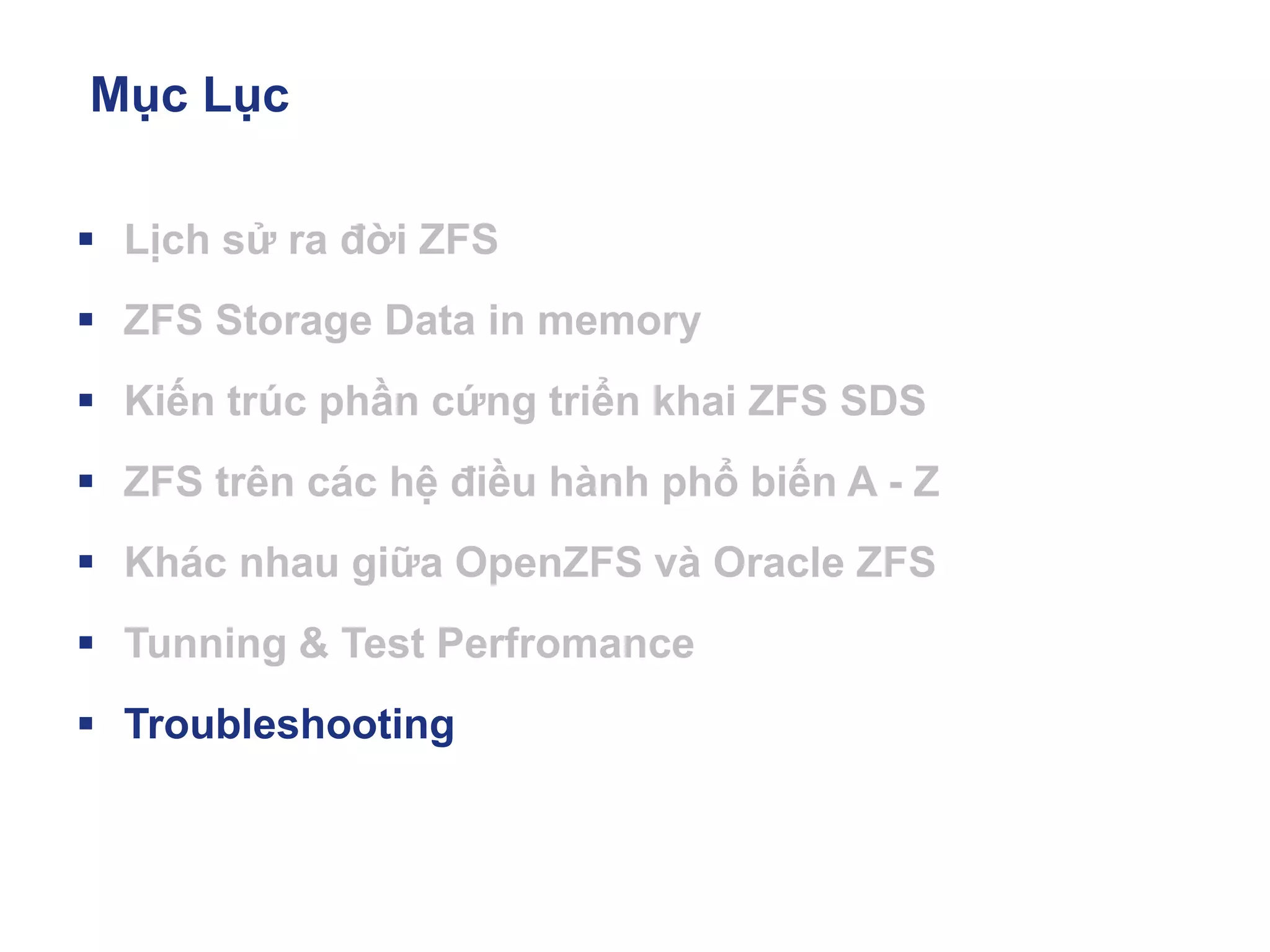

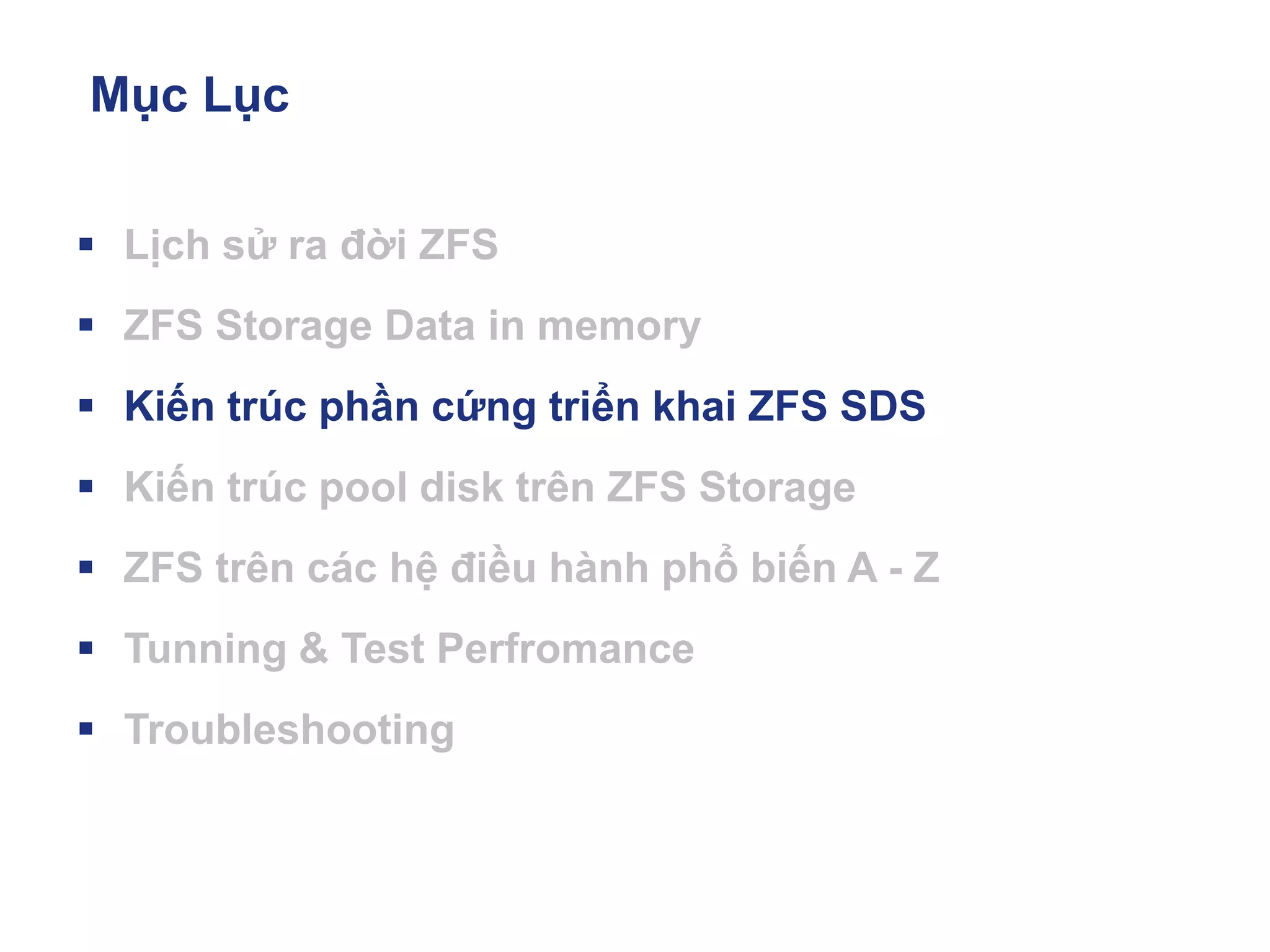

Mục Lục
▪ ZFS Storage Data in memory

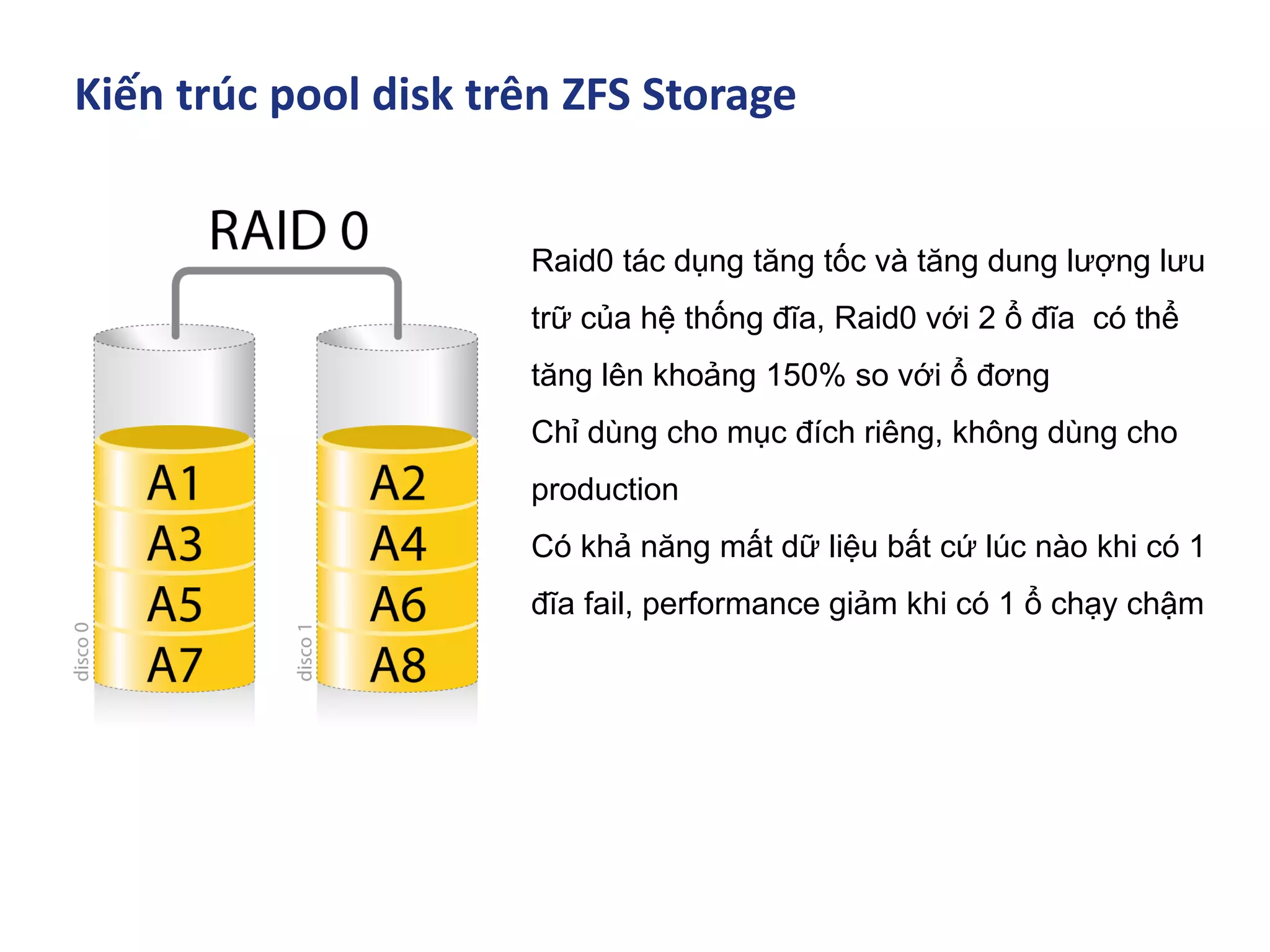

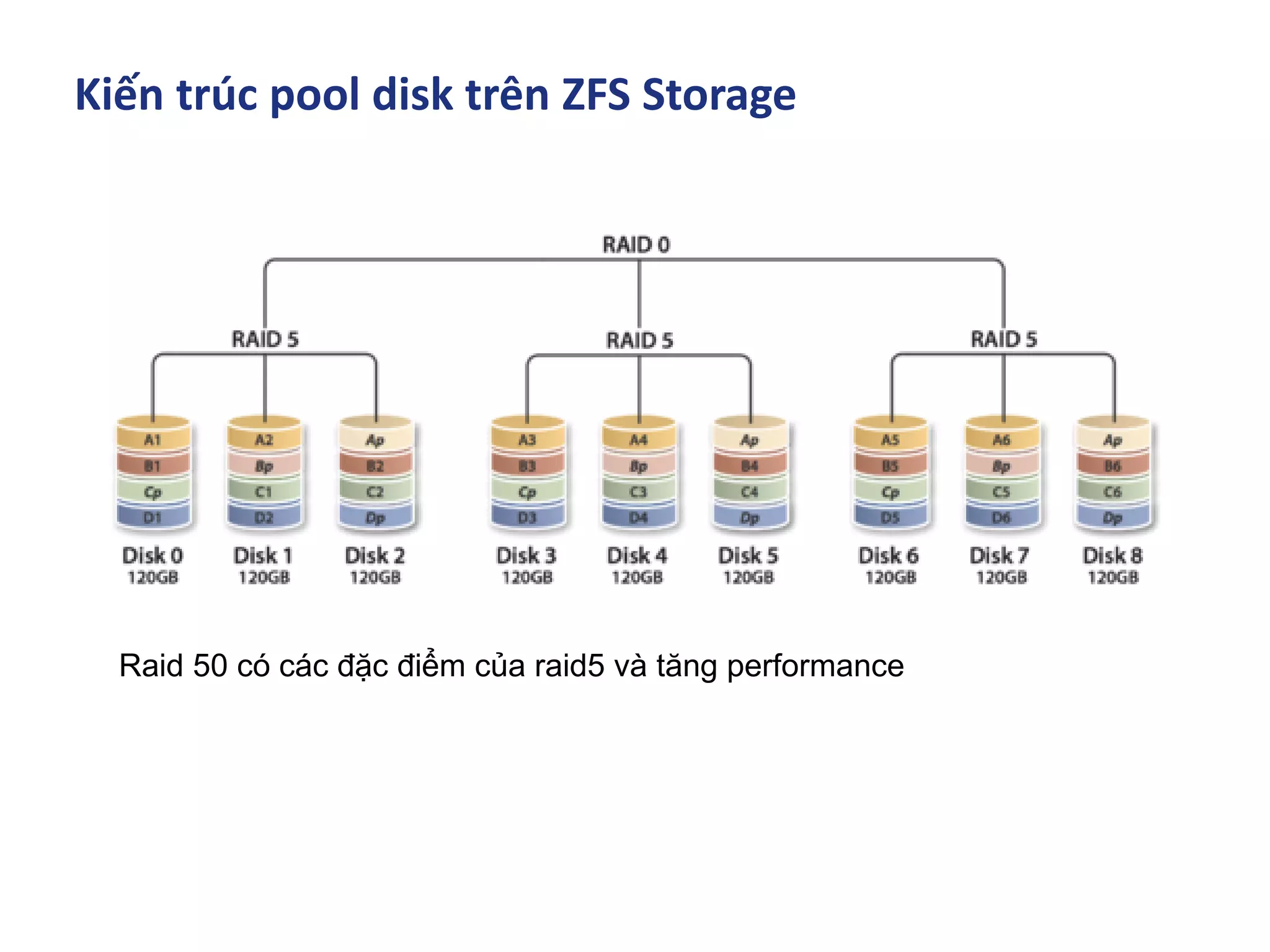

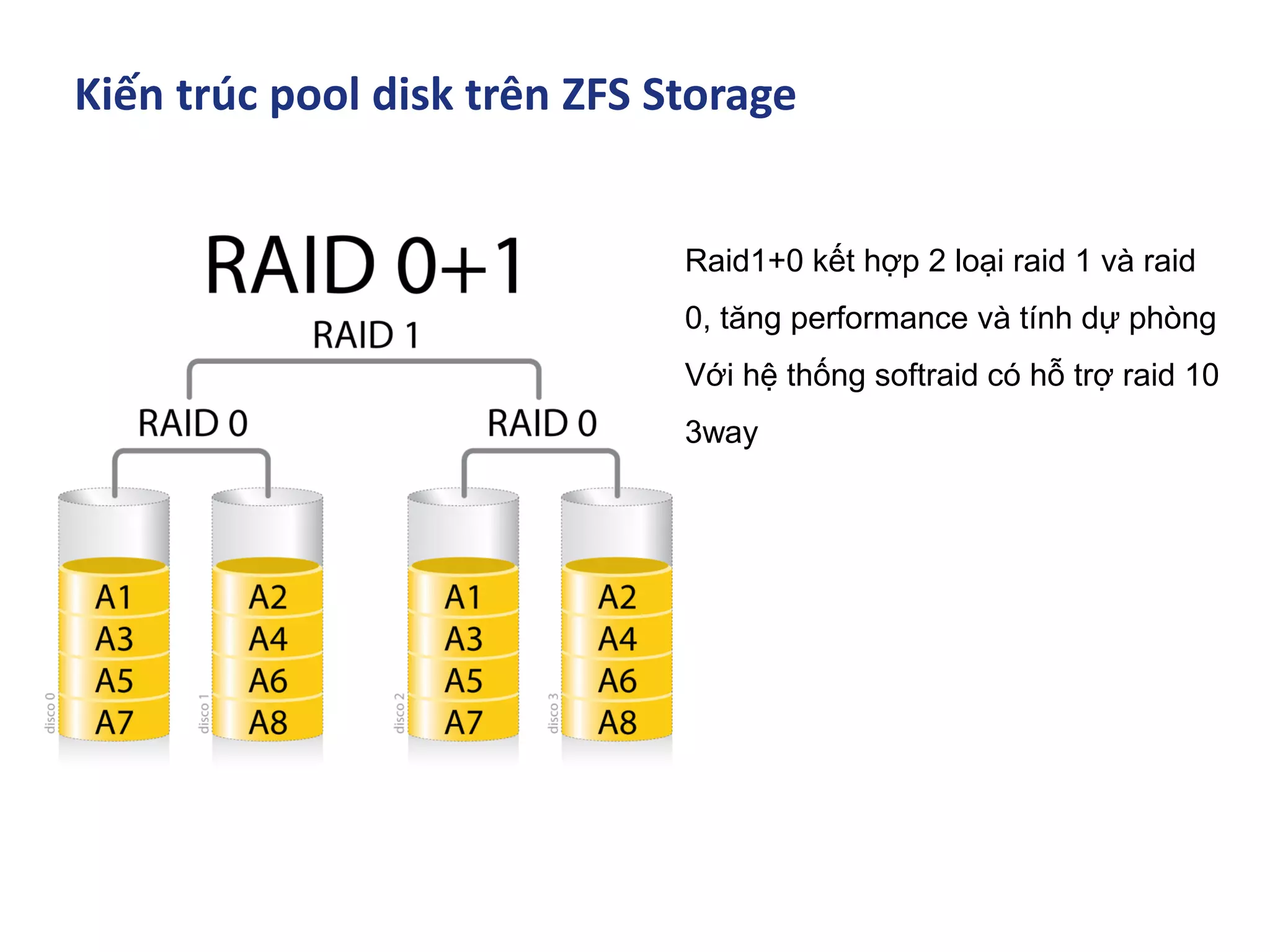

▪ Kiến trúc pool disk trên ZFS Storage

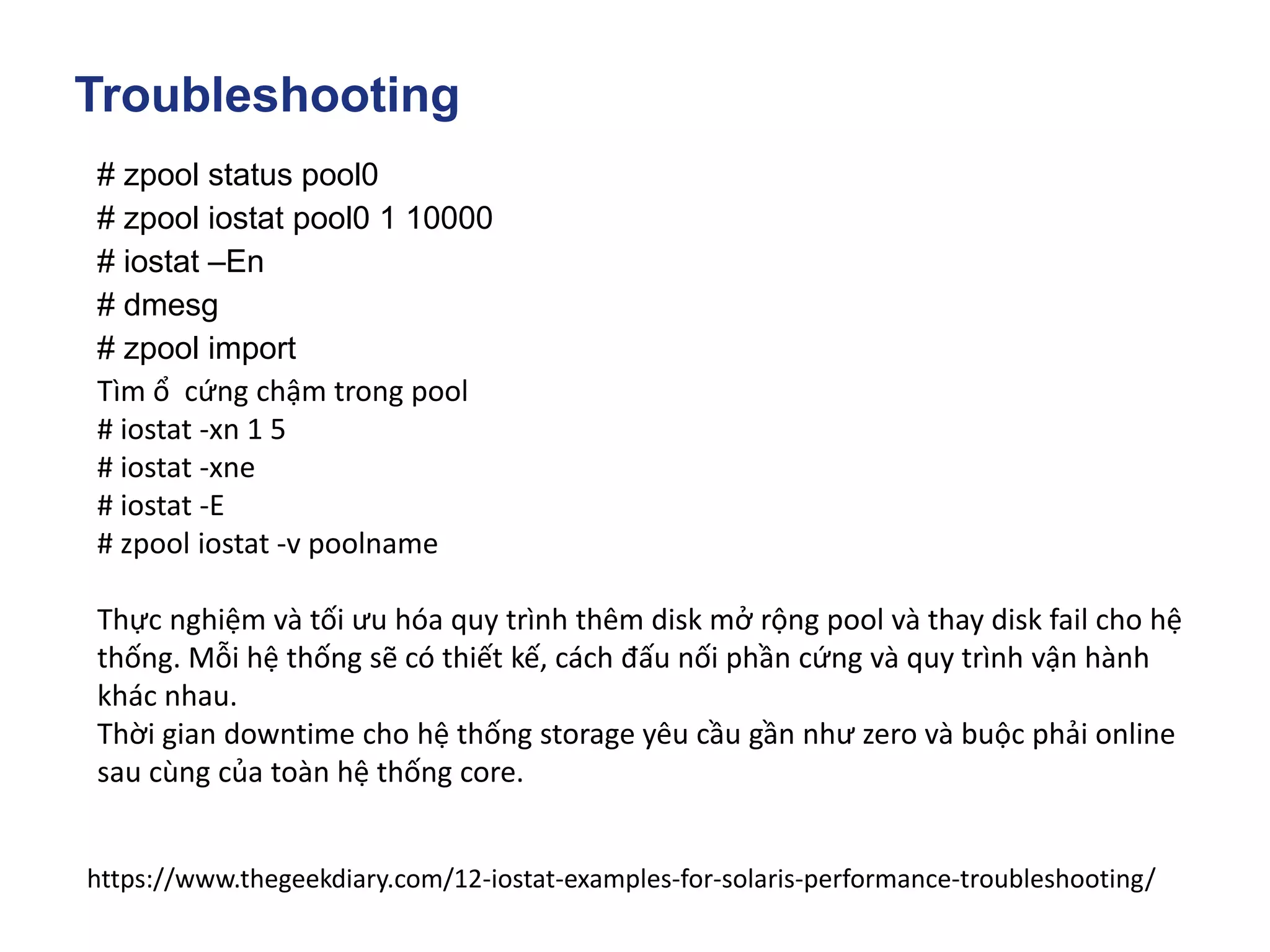

▪ Troubleshooting

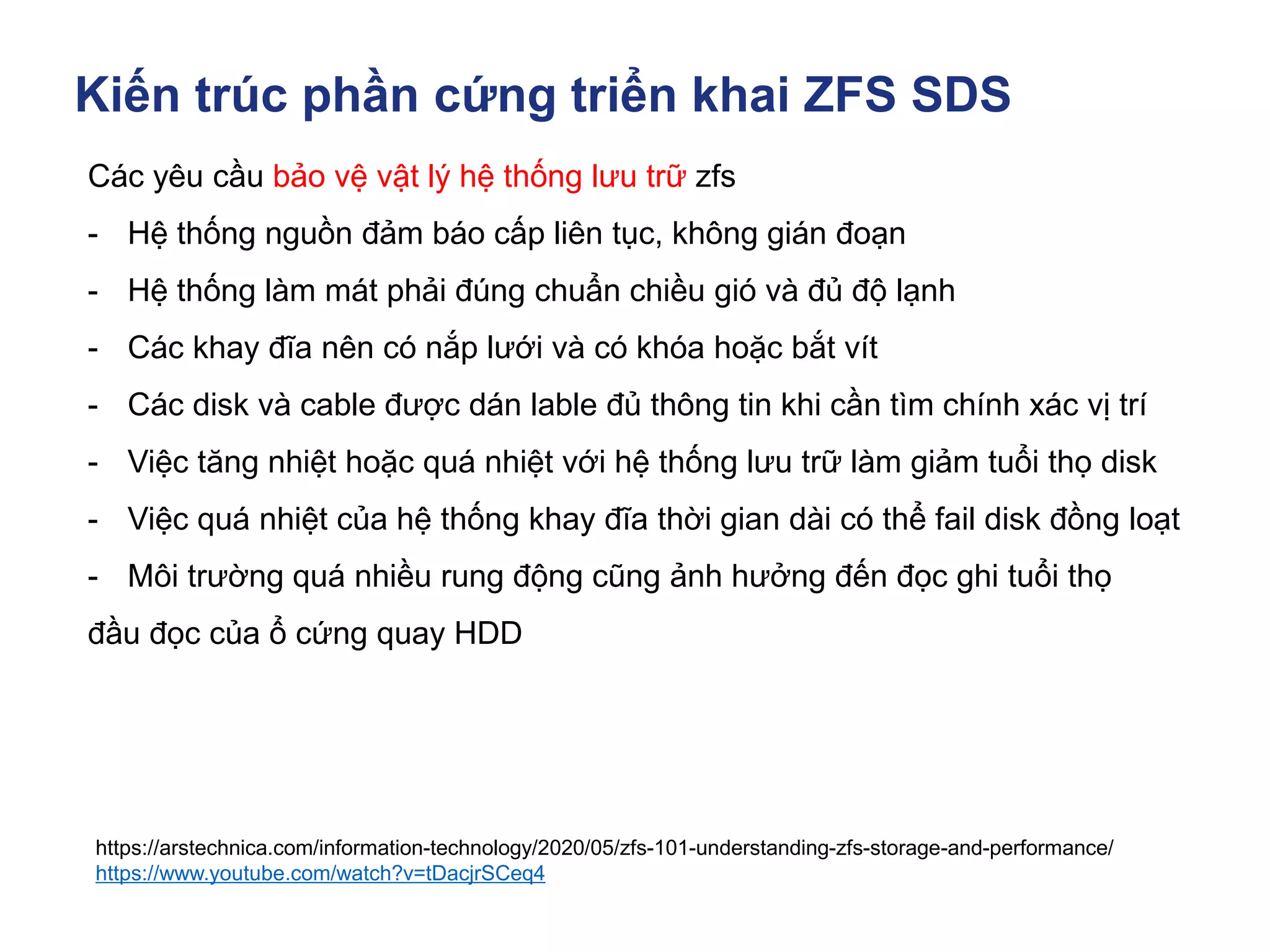

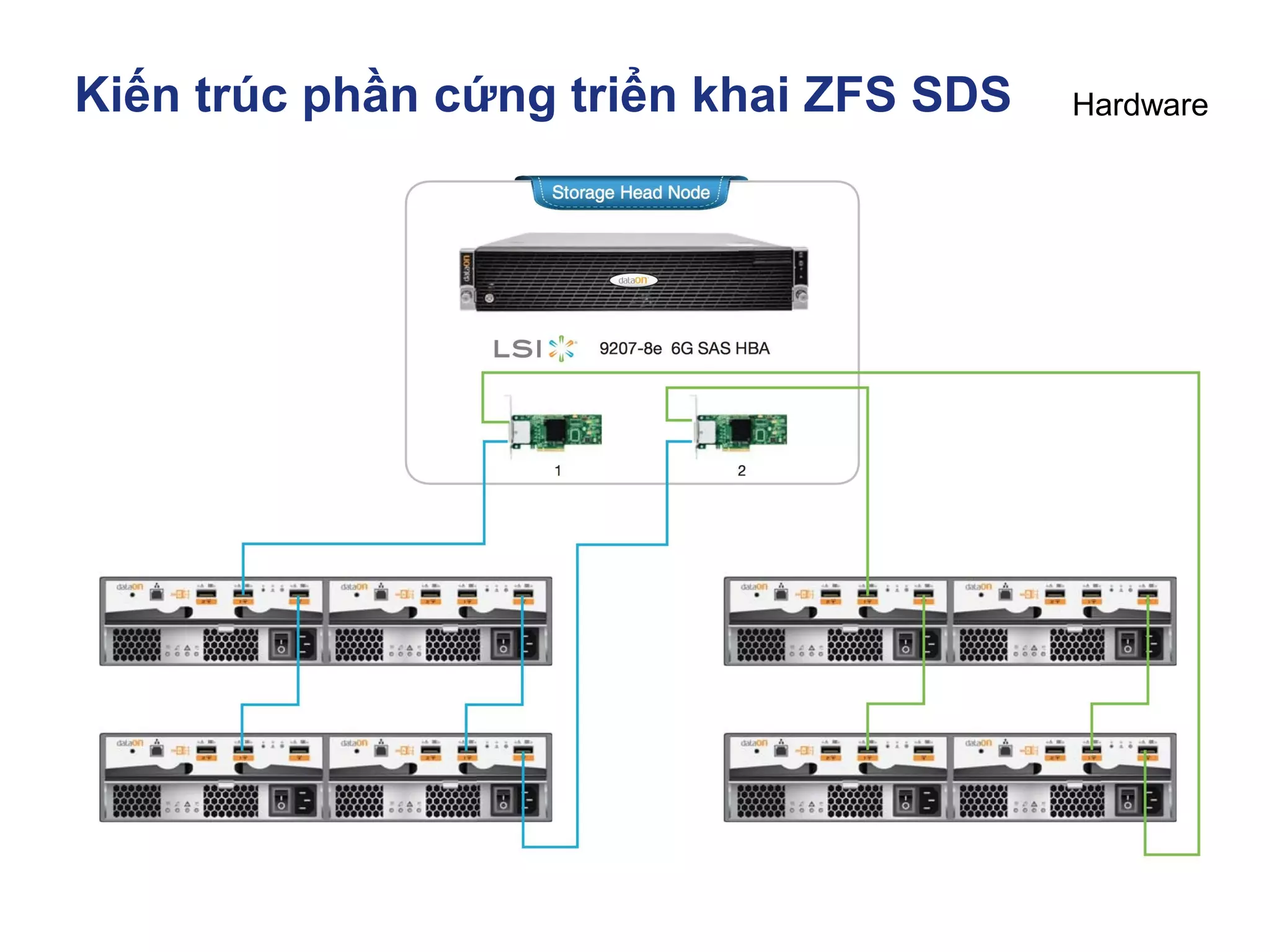

Kiến trúc phần cứng triển khai ZFS SDS
Hardware

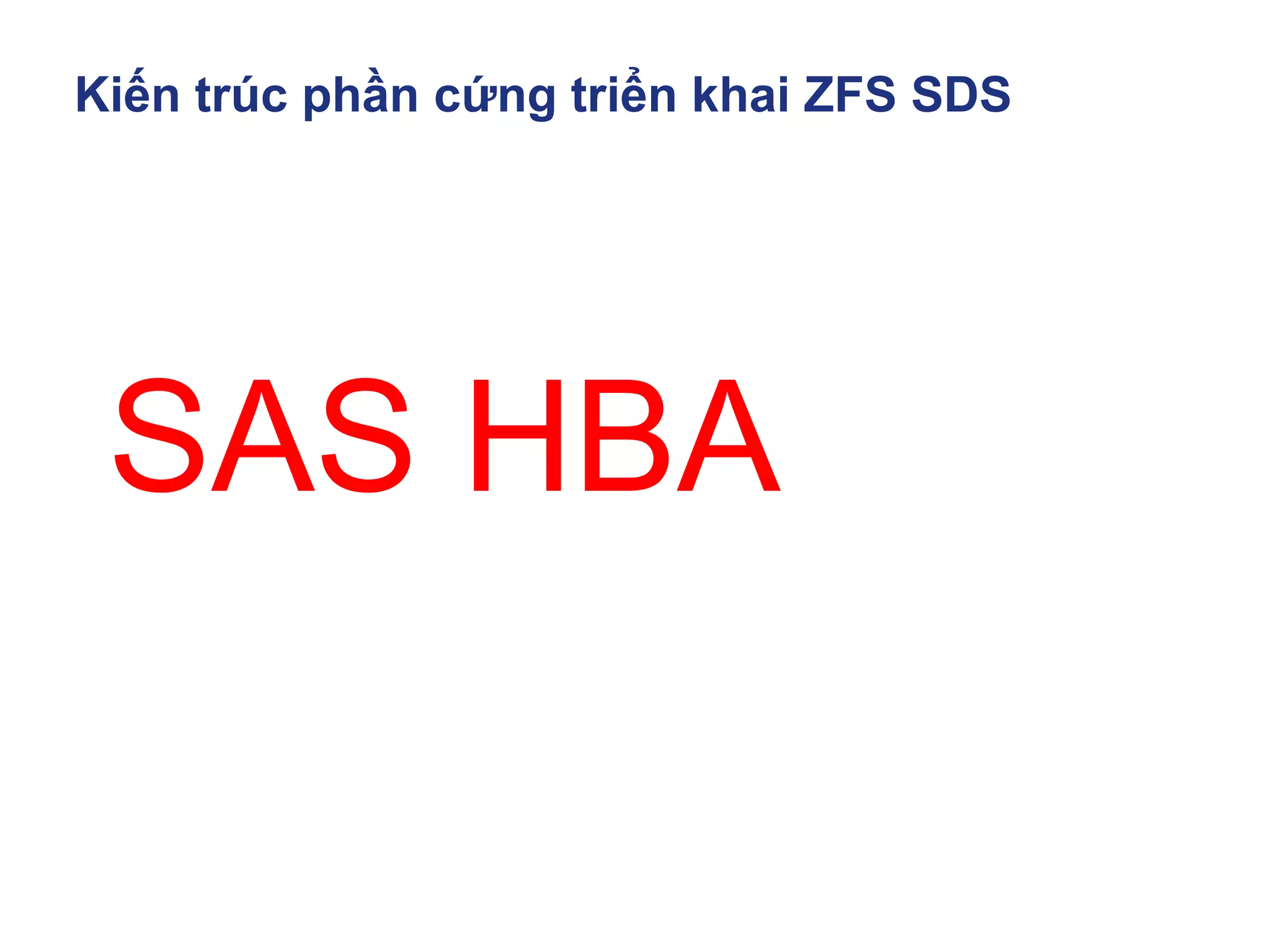

SAS HBA

https://www.broadcom.com/products/storage/host-bus-adapters/sas-9207-8i#downloads

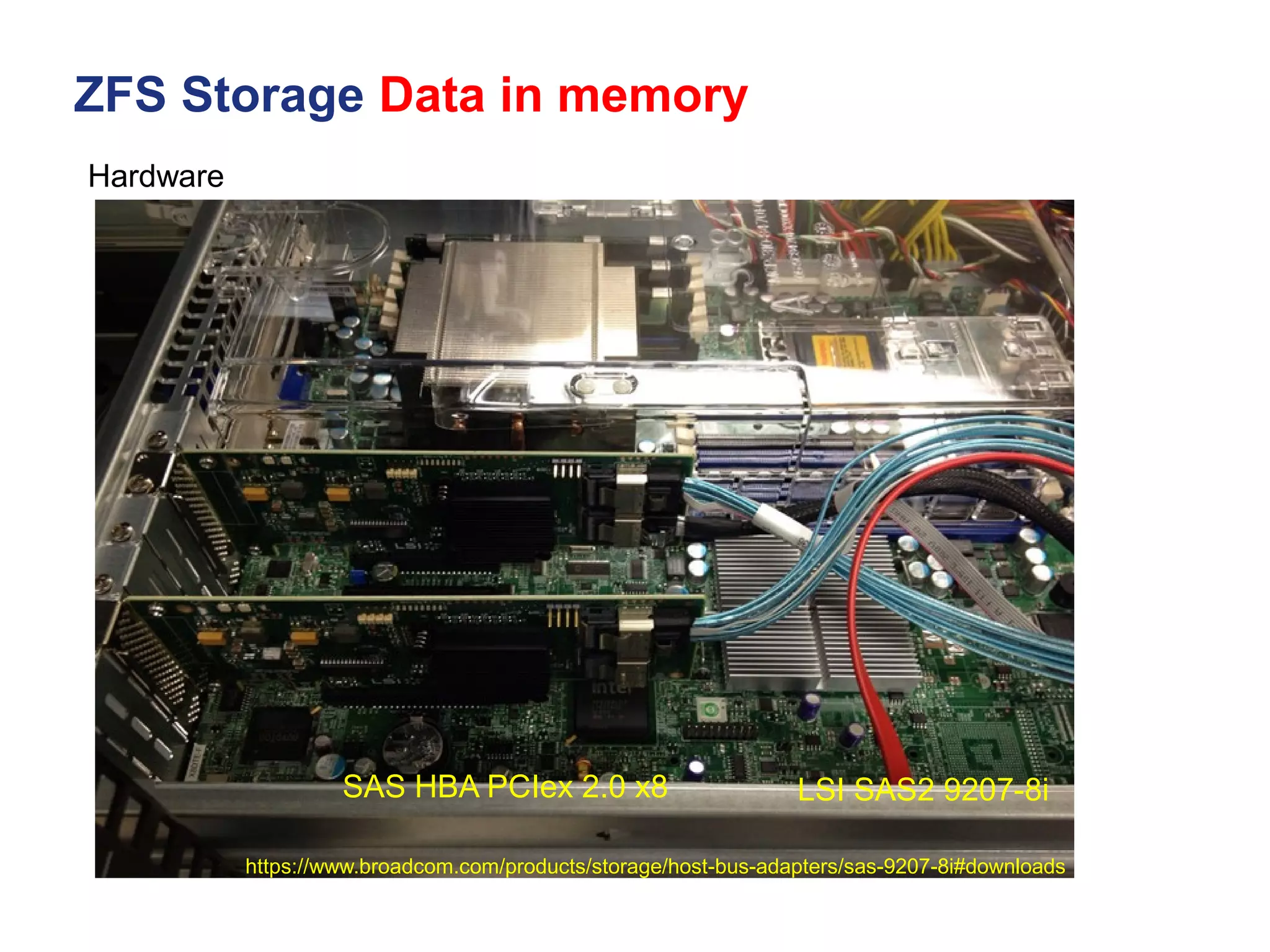

Hardware

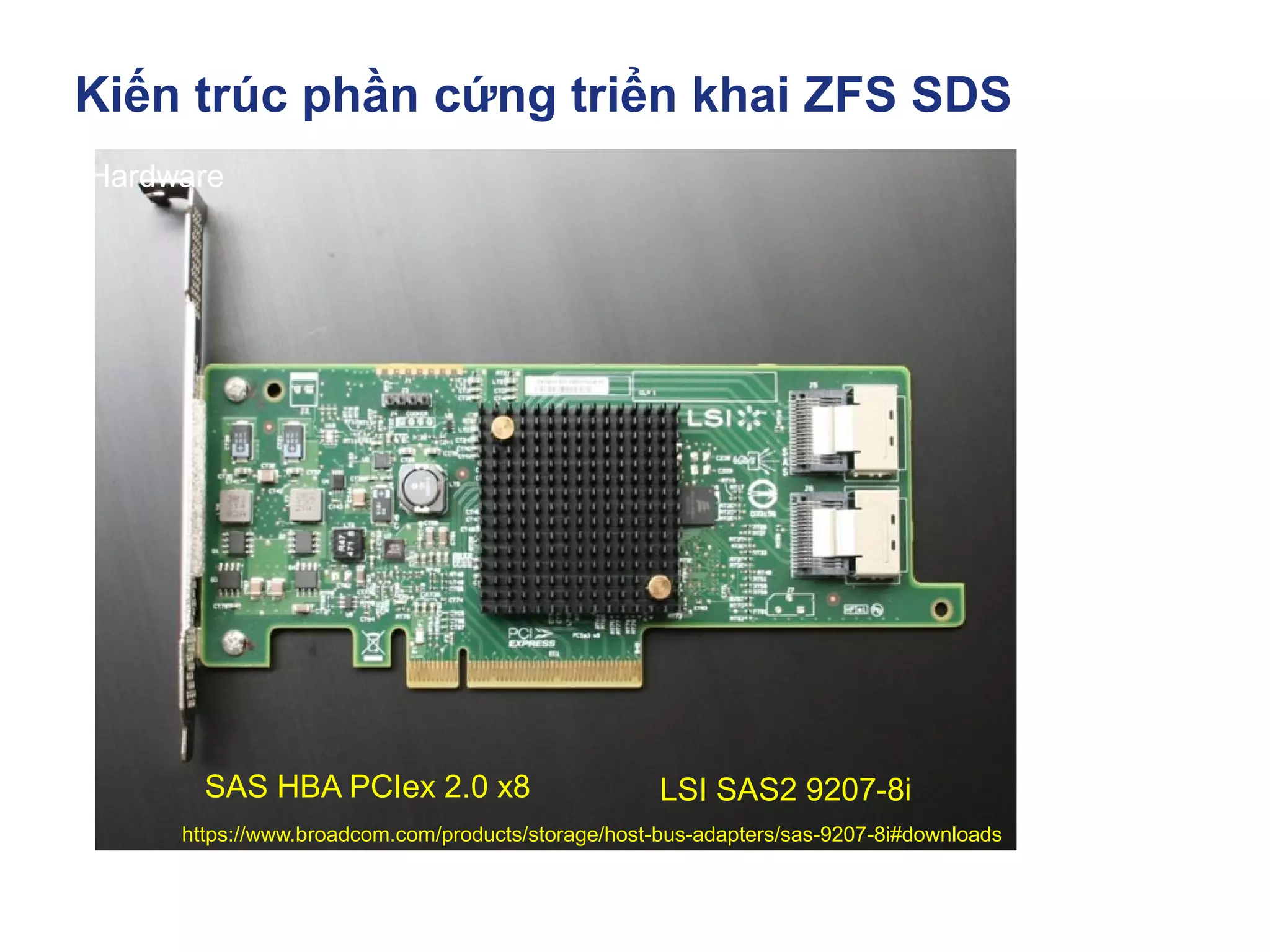

LSI SAS2 9207-8i
SAS HBA PCIex 2.0 x8

https://www.broadcom.com/products/storage/host-bus-adapters/sas-9207-8i#downloads
Hardware
LSI SAS2 9207-8i

https://www.broadcom.com/products/storage/host-bus-adapters/sas-9201-16e#downloads

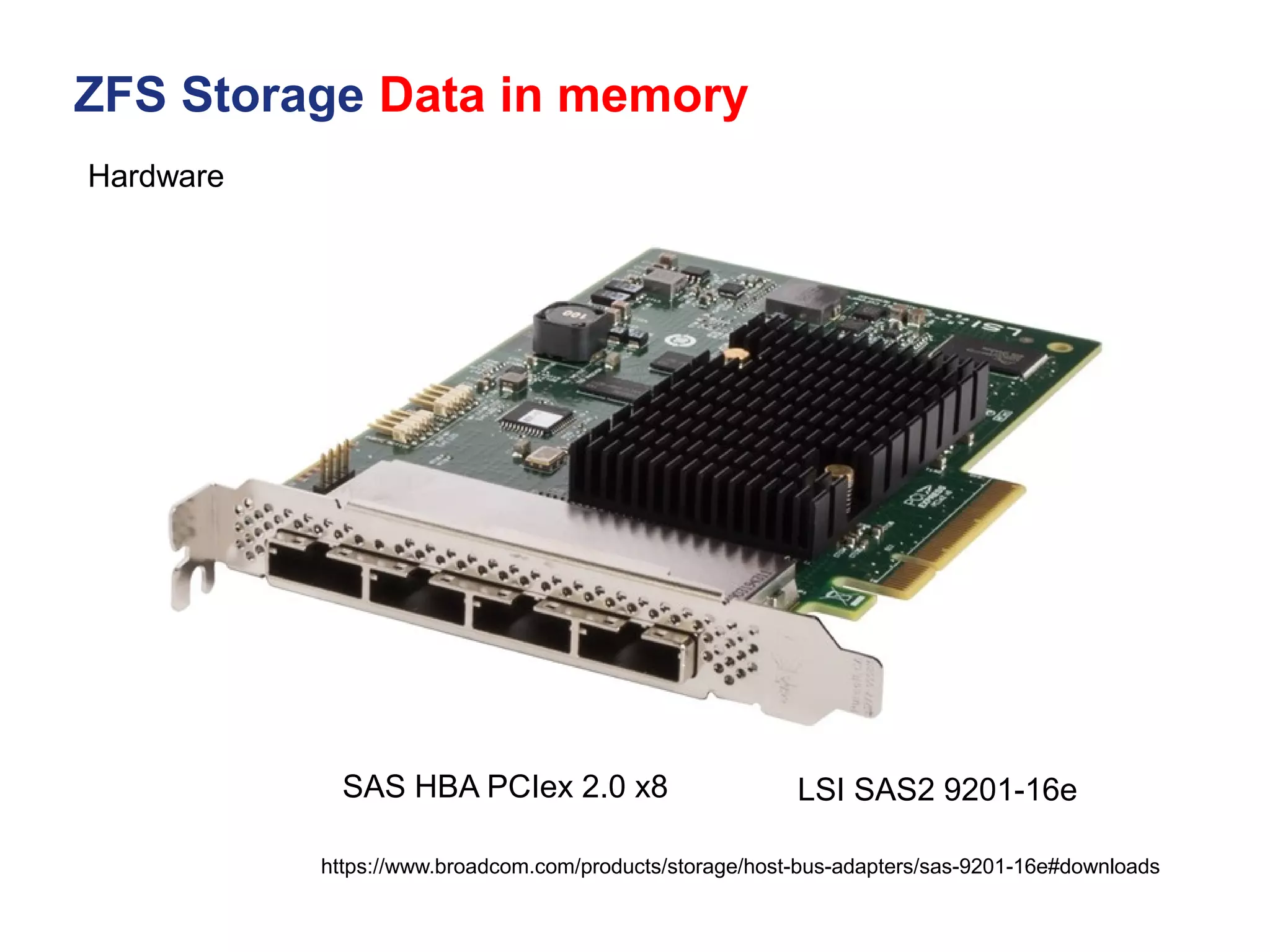

Hardware
LSI SAS2 9201-16e

https://www.broadcom.com/products/storage/host-bus-adapters/sas-9202-16e
Hardware

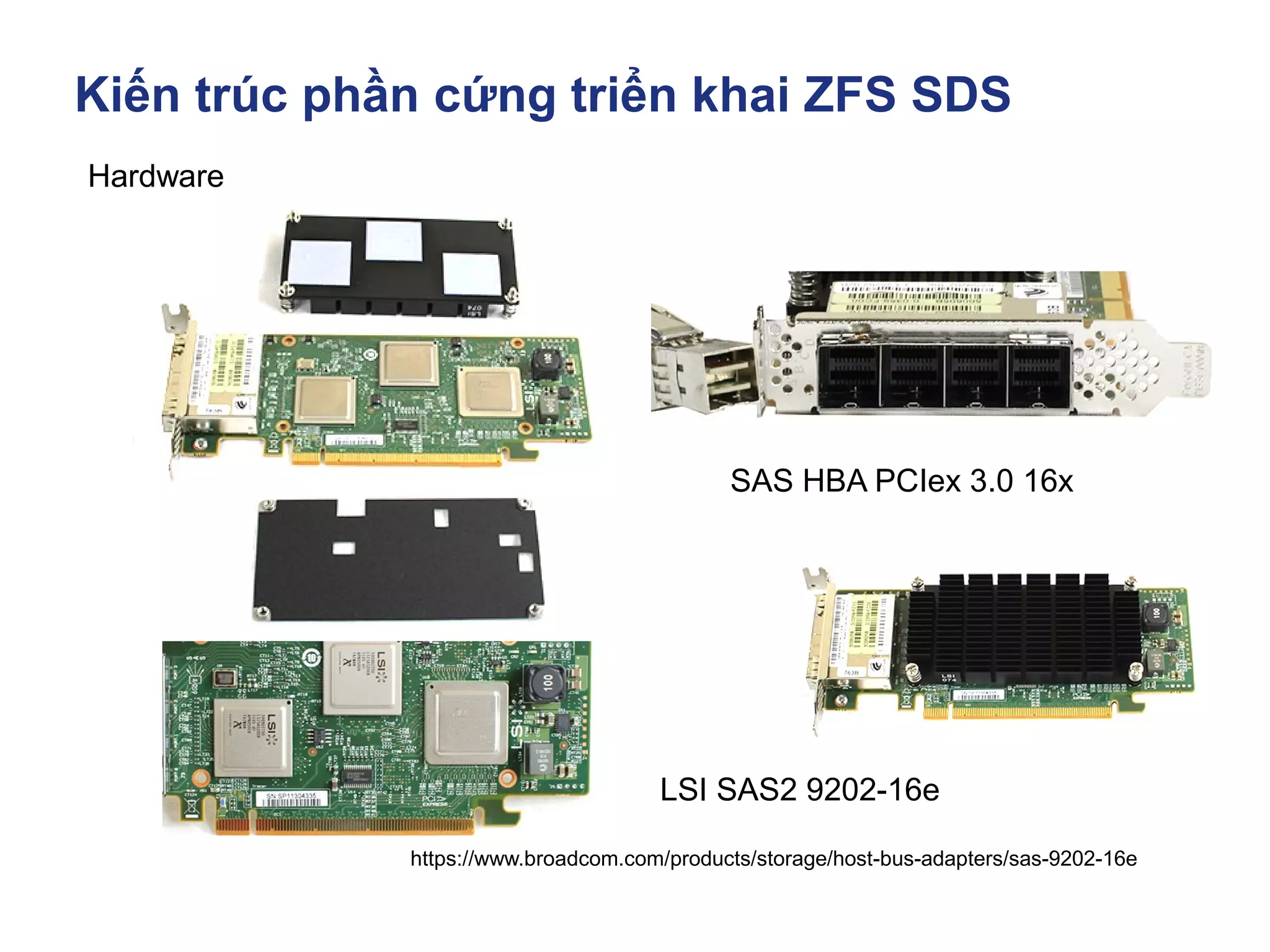

LSI SAS2 9202-16e
SAS HBA PCIex 3.0 16x

https://docs.broadcom.com/doc/12353313

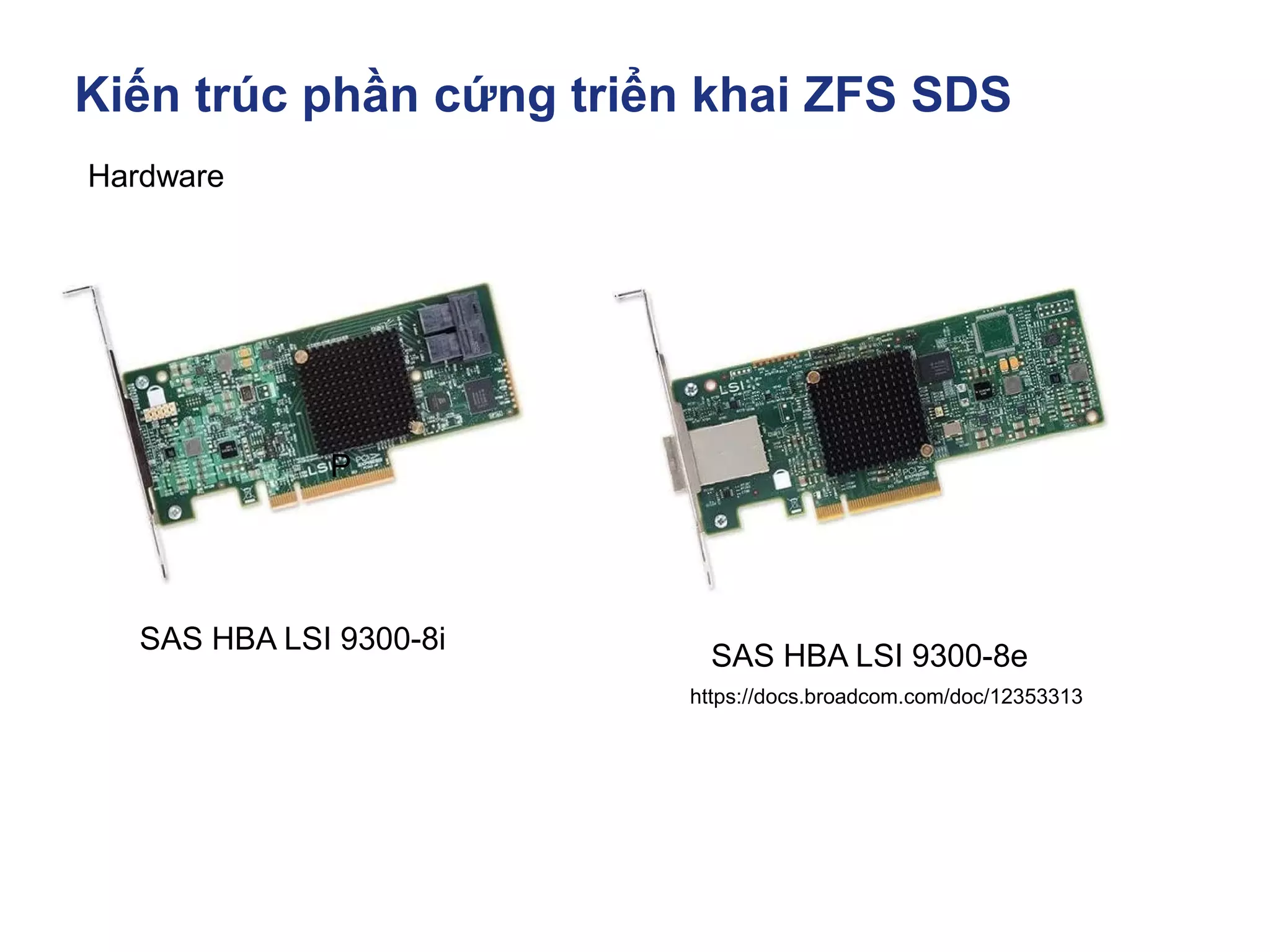

Hardware
SAS HBA LSI 9300-8i
P
SAS HBA LSI 9300-8e

https://www.broadcom.com/products/storage/host-bus-adapters/sas-nvme-9405w-16e
Hardware
HBAs with Tri-Mode SerDes SAS3 12Gbps PCIex 3.0
Models: 9400-16i | 9400-8i | 9400-16e | 9400-8e
HBAs 9400-16e
HBA 9405W-16E

Hardware

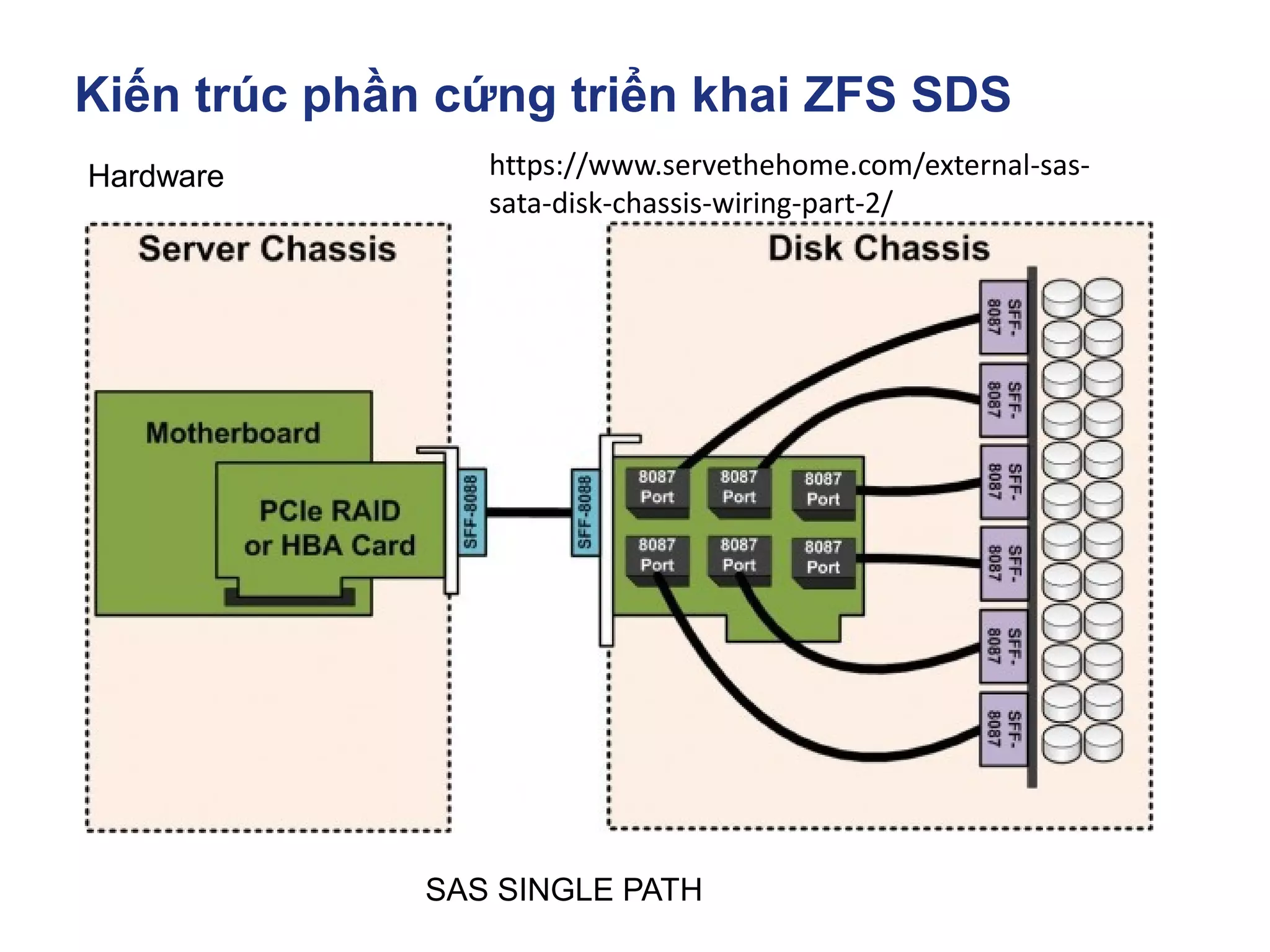

SAS SINGLE PATH
https://www.servethehome.com/external-sas-
sata-disk-chassis-wiring-part-2/

Hardware

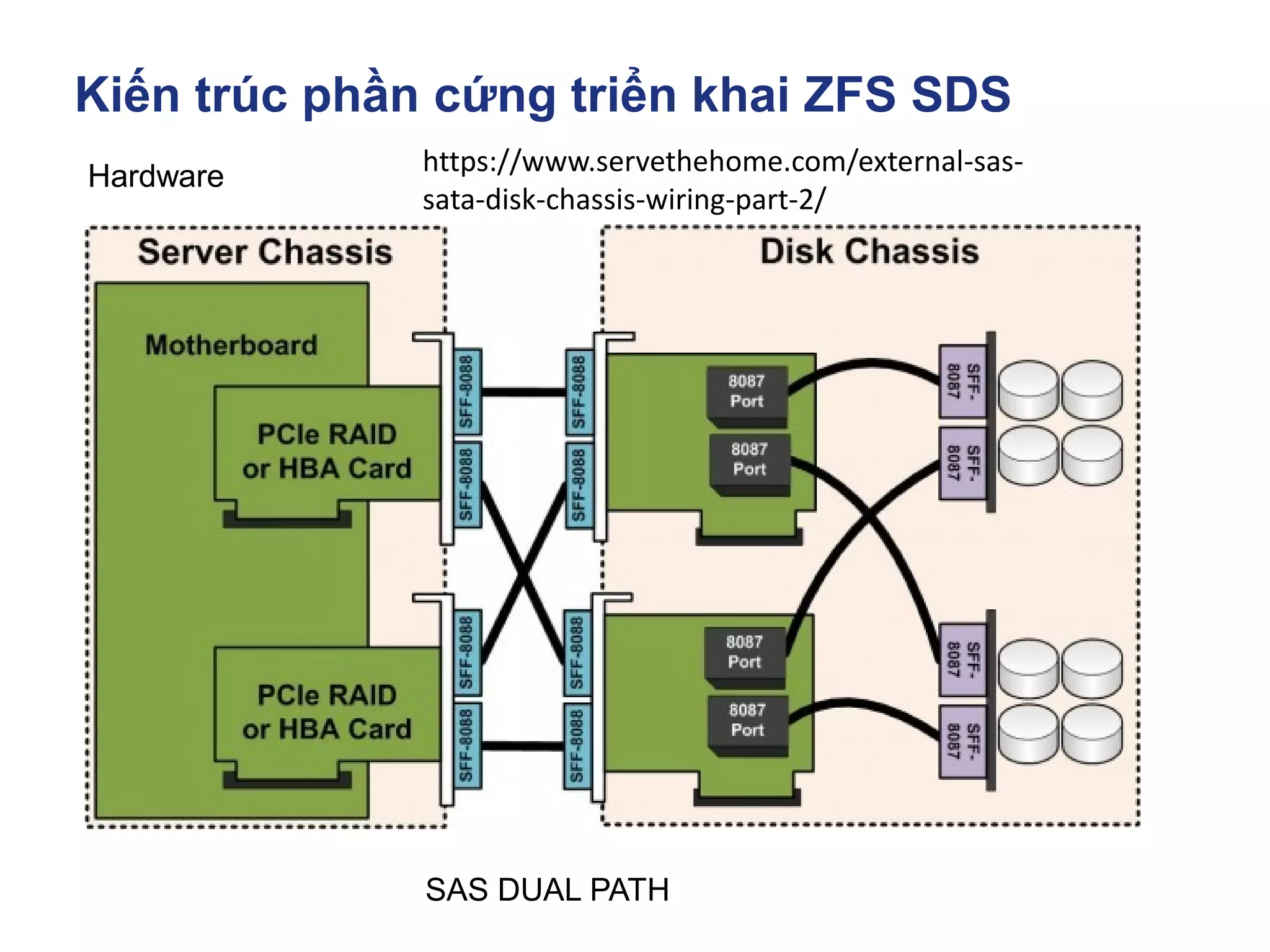

SAS DUAL PATH
https://www.servethehome.com/external-sas-
sata-disk-chassis-wiring-part-2/

Hardware

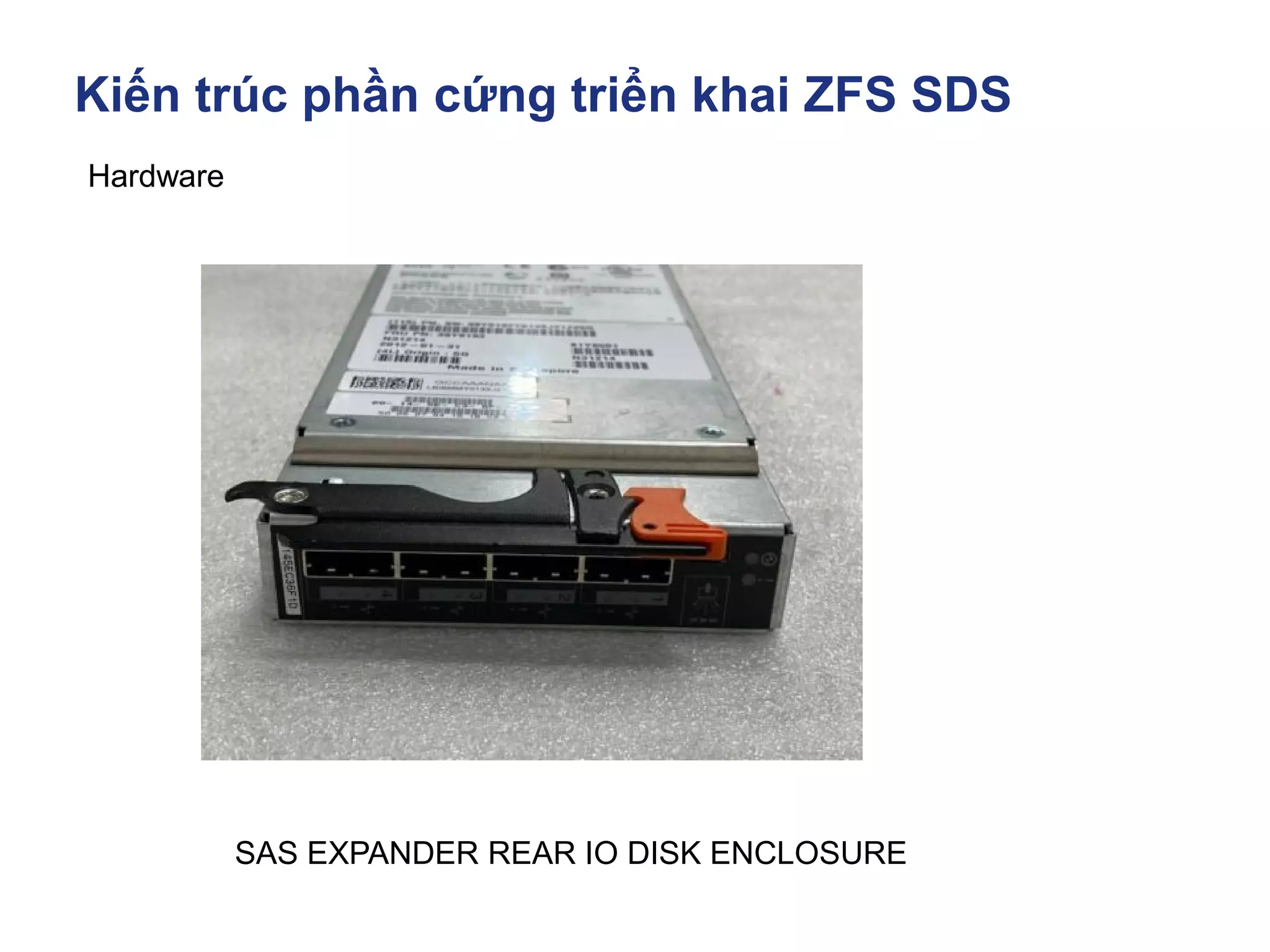

SAS EXPANDER REAR IO DISK ENCLOSURE

Hardware

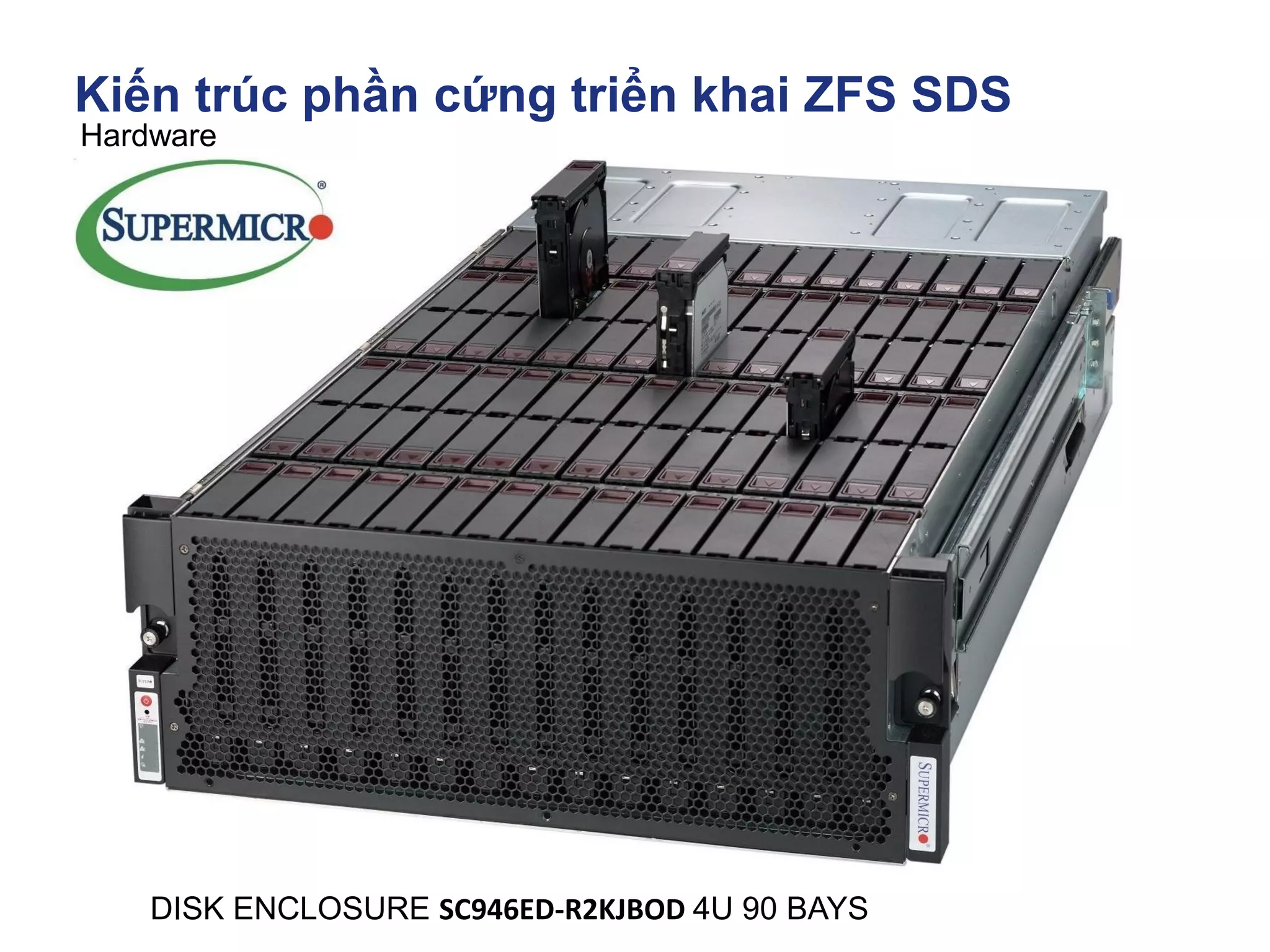

DISK ENCLOSURE SC946ED-R2KJBOD 4U 90 BAYS

Hardware

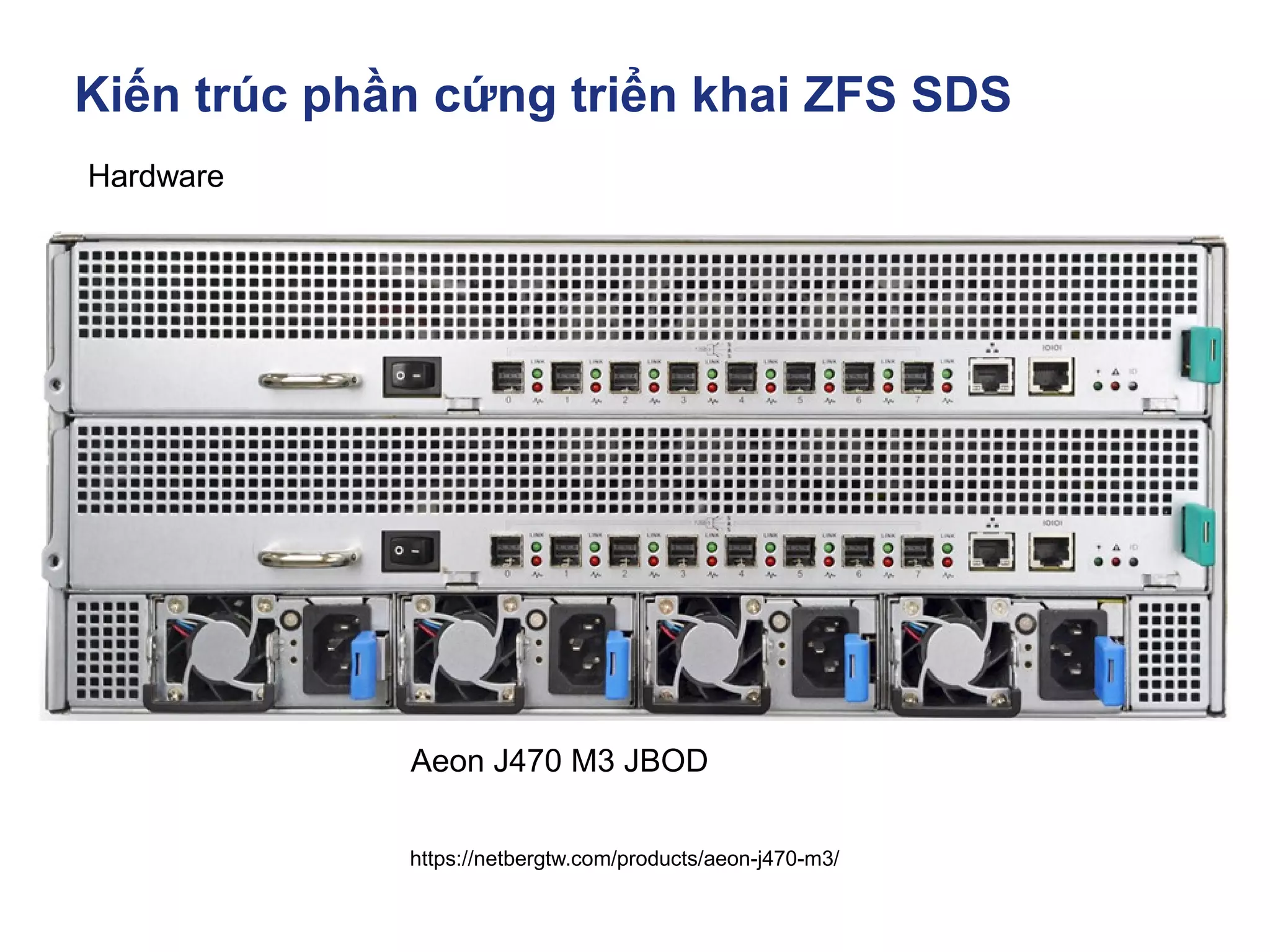

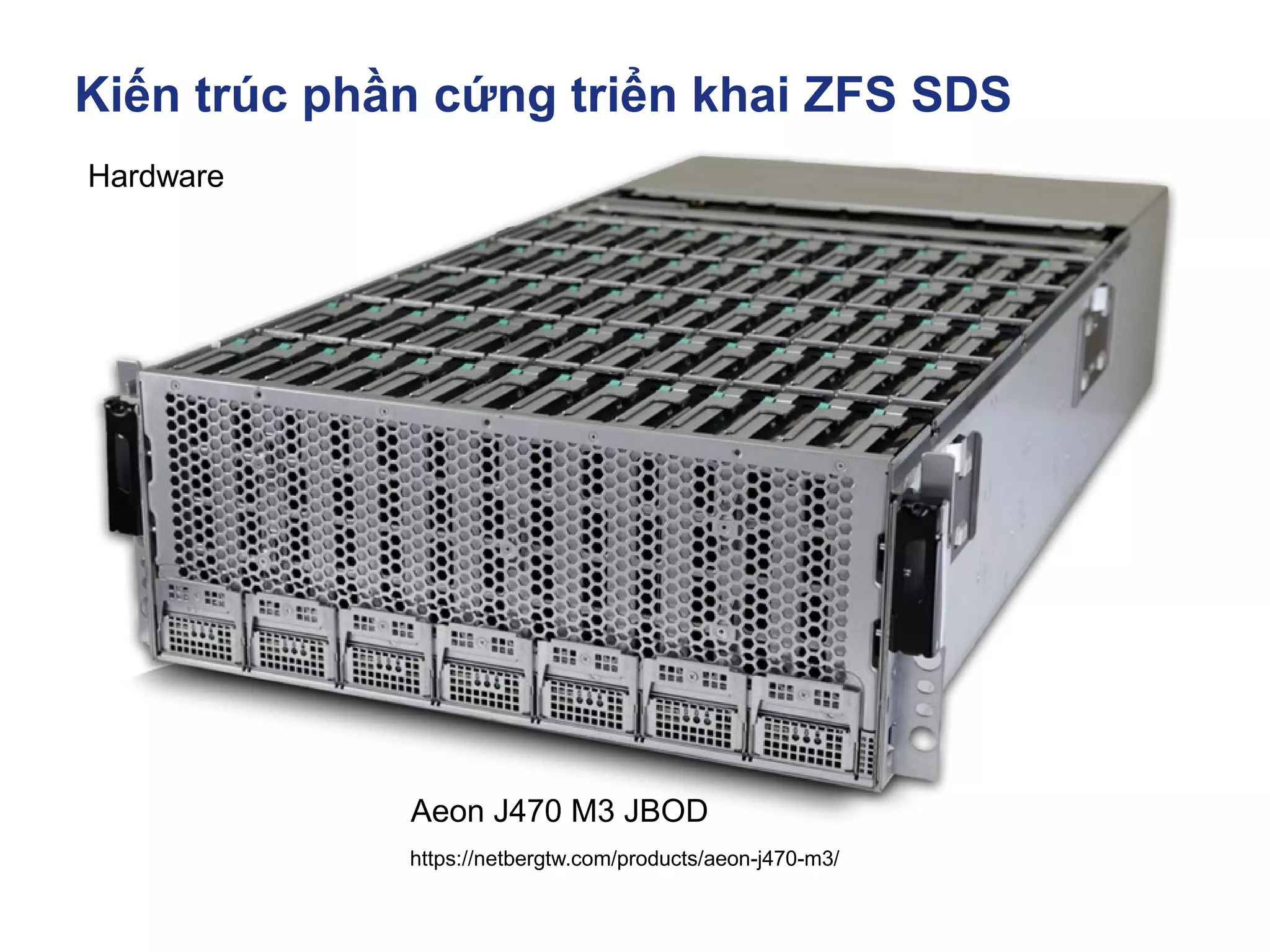

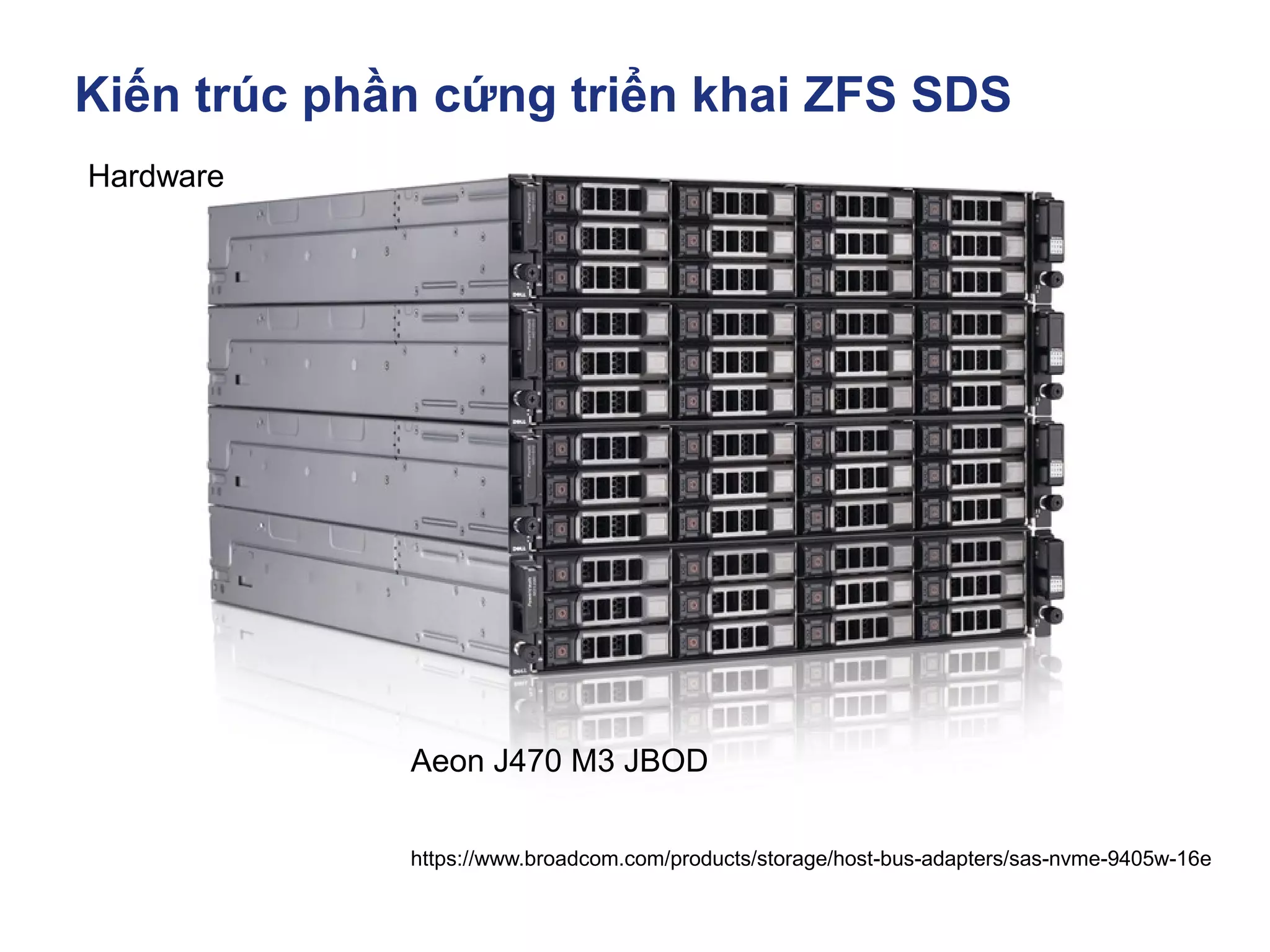

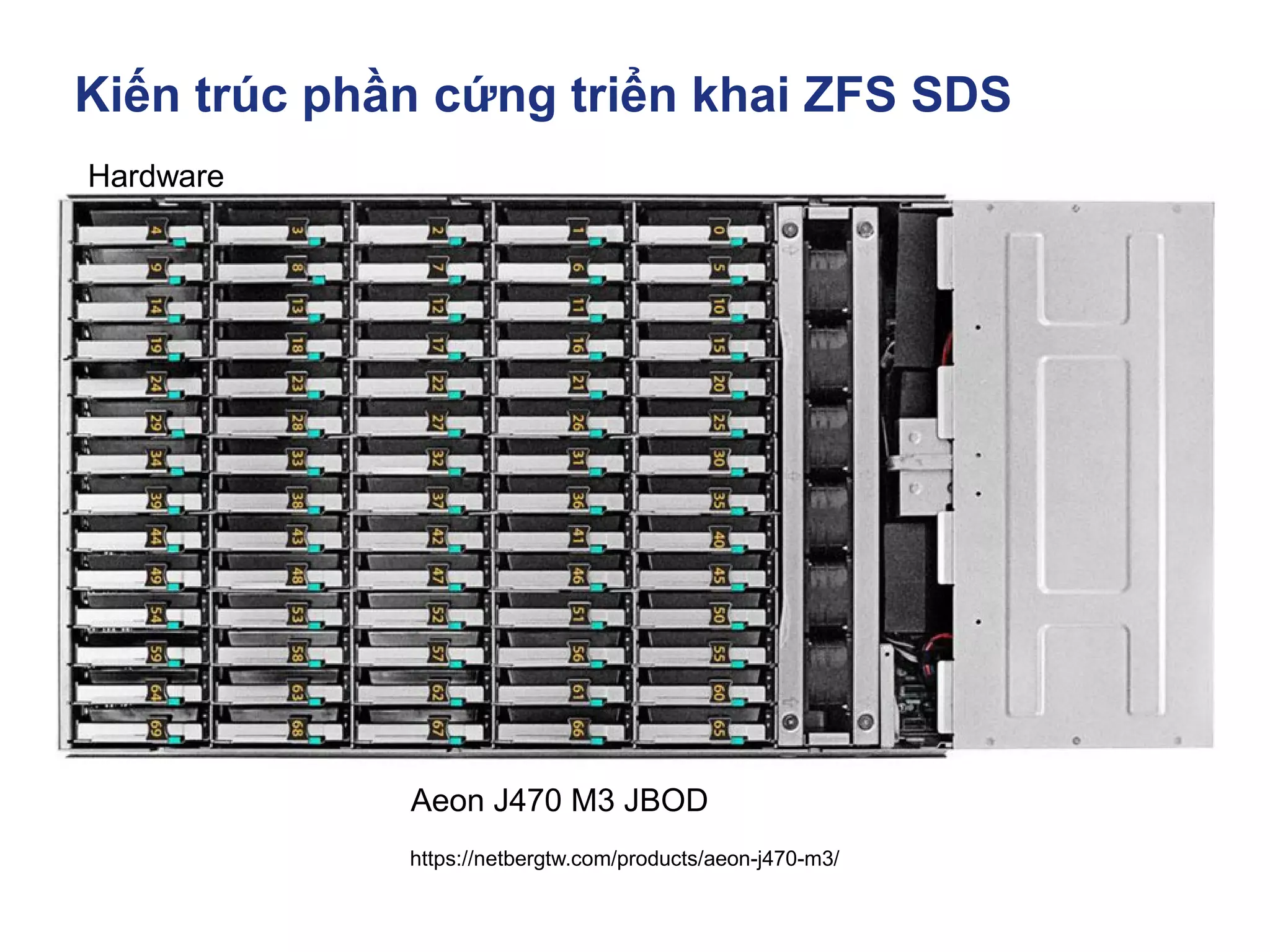

Aeon J470 M3 JBOD

https://netbergtw.com/products/aeon-j470-m3/
Hardware
Aeon J470 M3 JBOD

Hardware

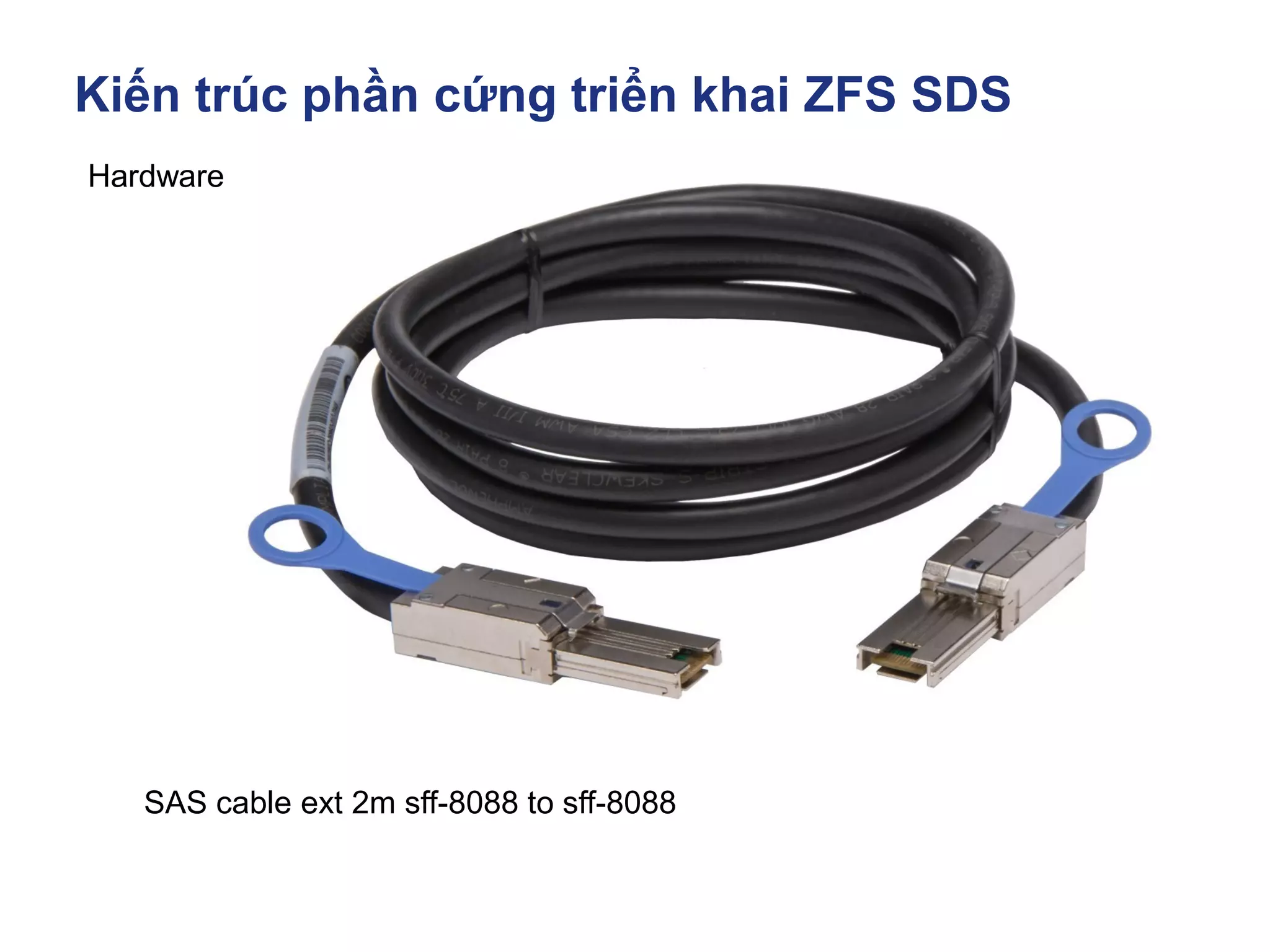

SAS cable ext 2m sff-8088 to sff-8088

Dell.com
Hardware

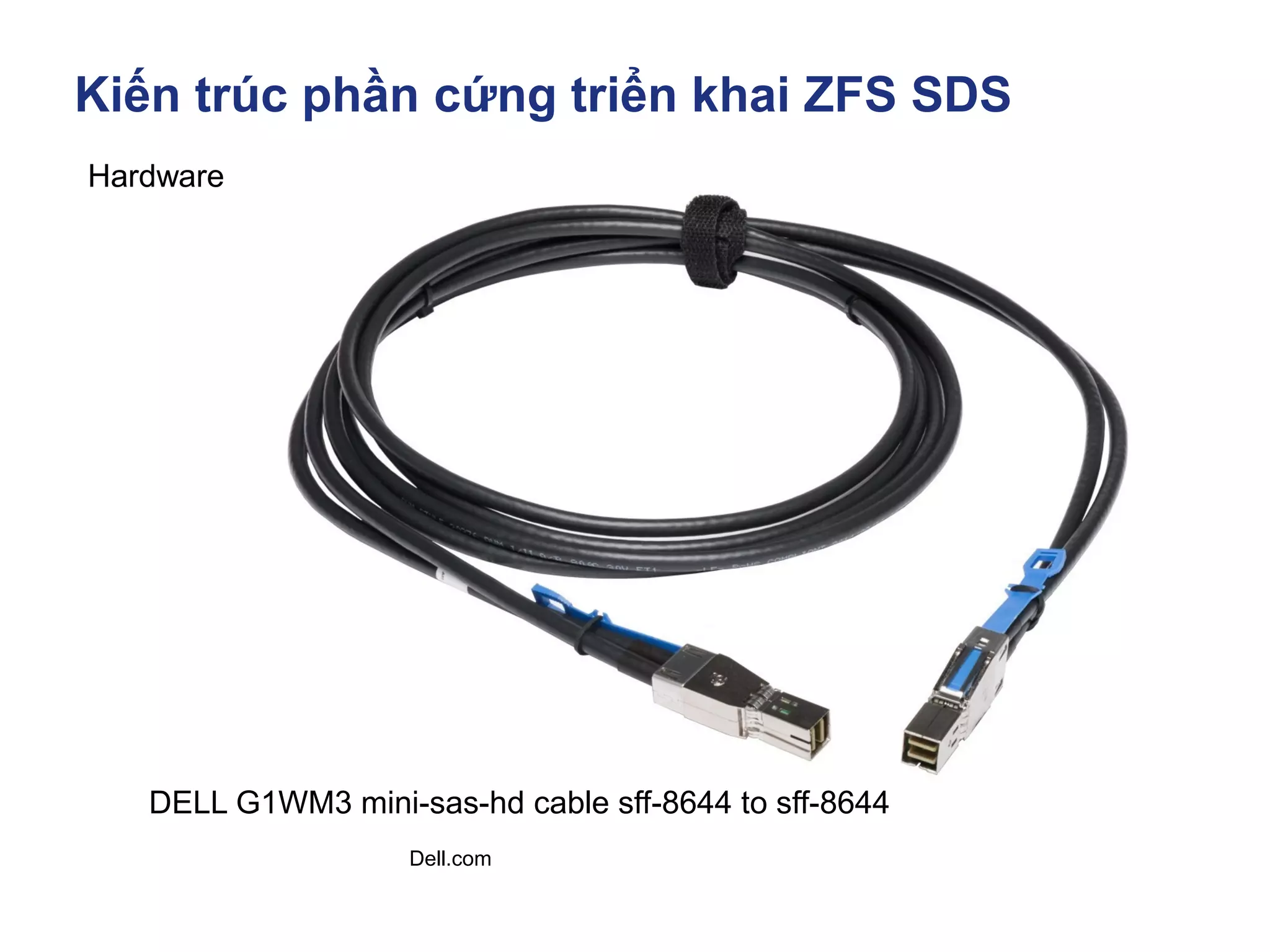

DELL G1WM3 mini-sas-hd cable sff-8644 to sff-8644

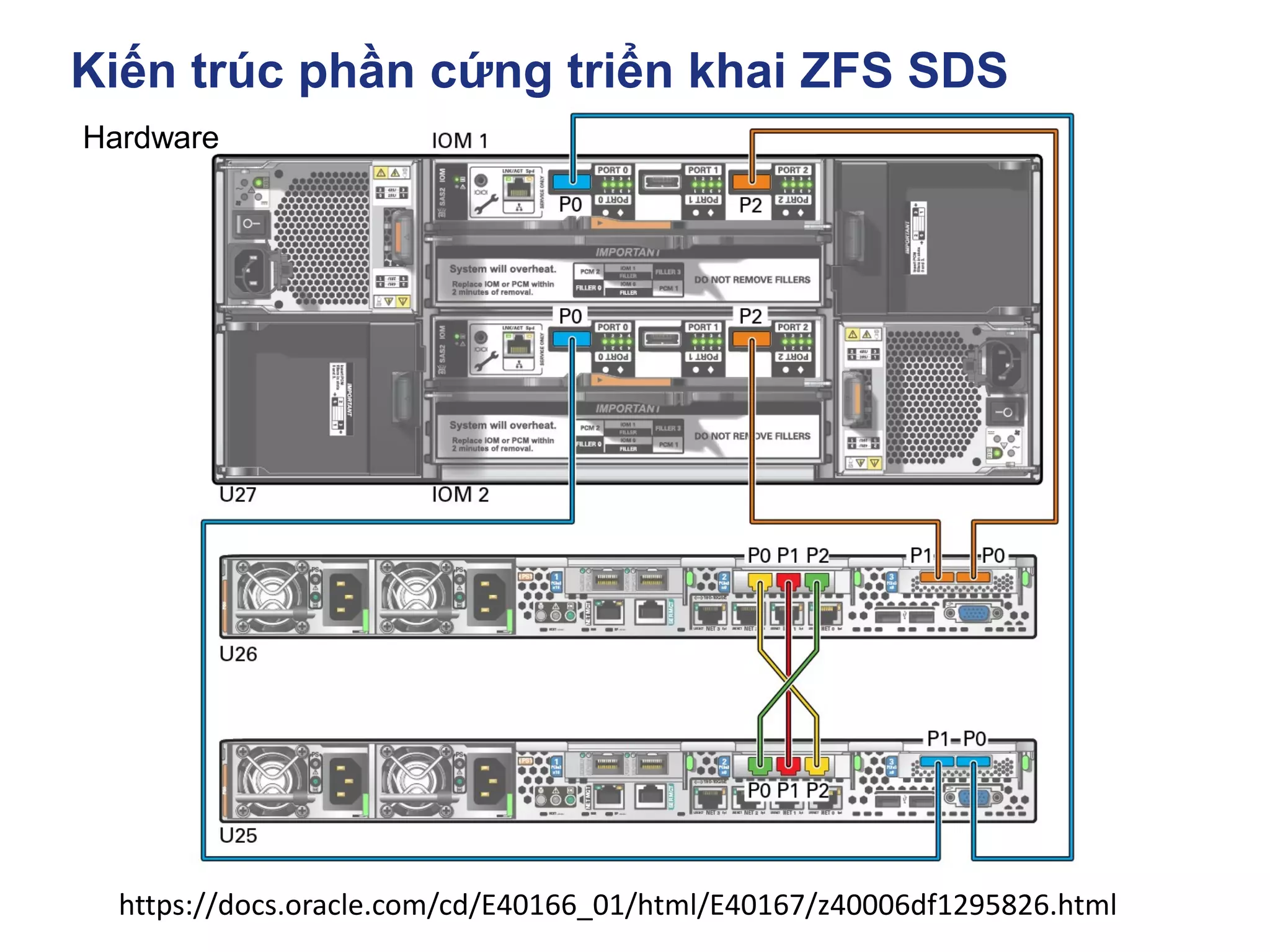

Hardware
https://docs.oracle.com/cd/E40166_01/html/E40167/z40006df1295826.html

Hardware

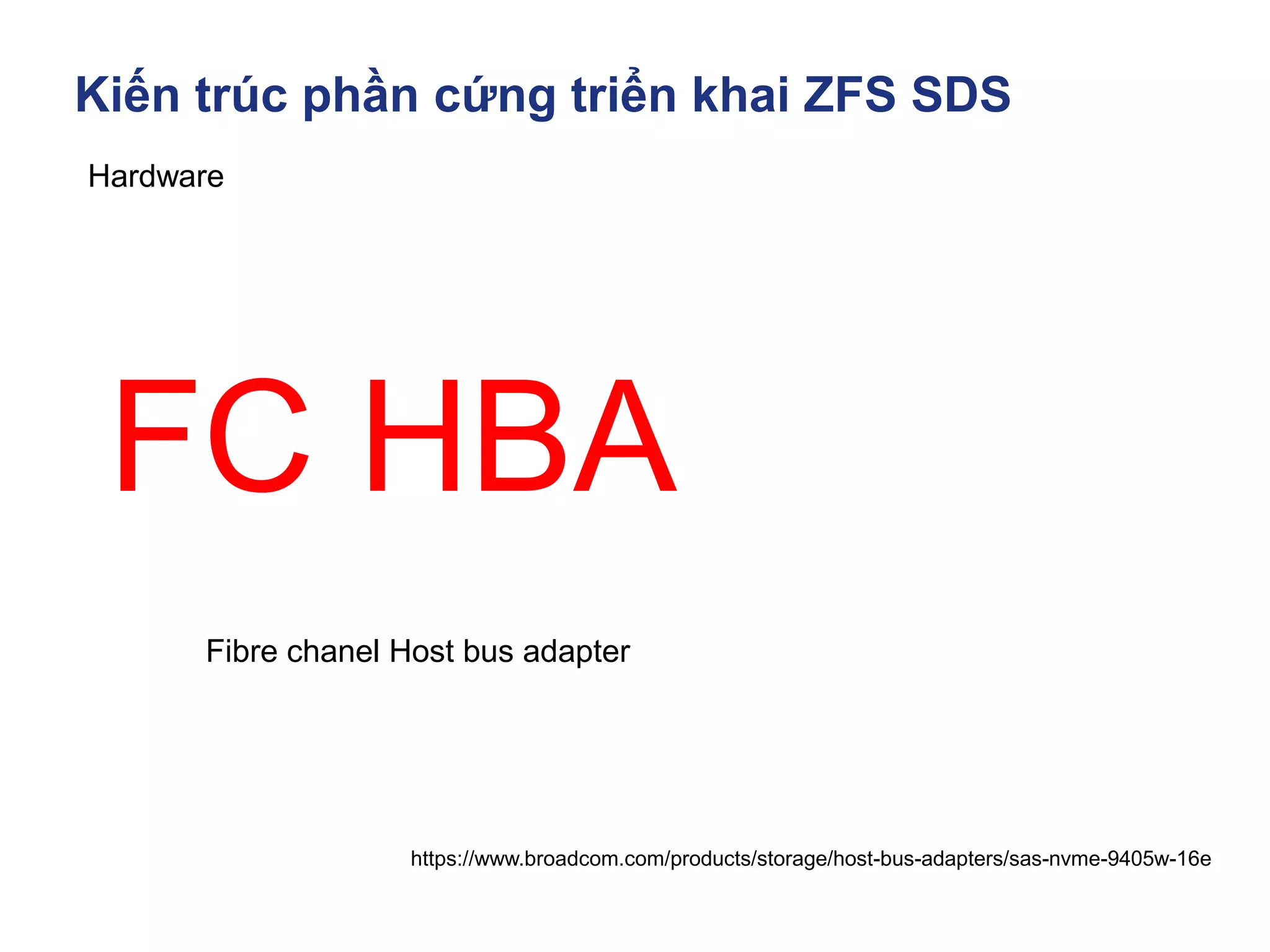

FC HBA
Fibre chanel Host bus adapter

https://www.cavium.com/fc-adapters-products.html
Hardware

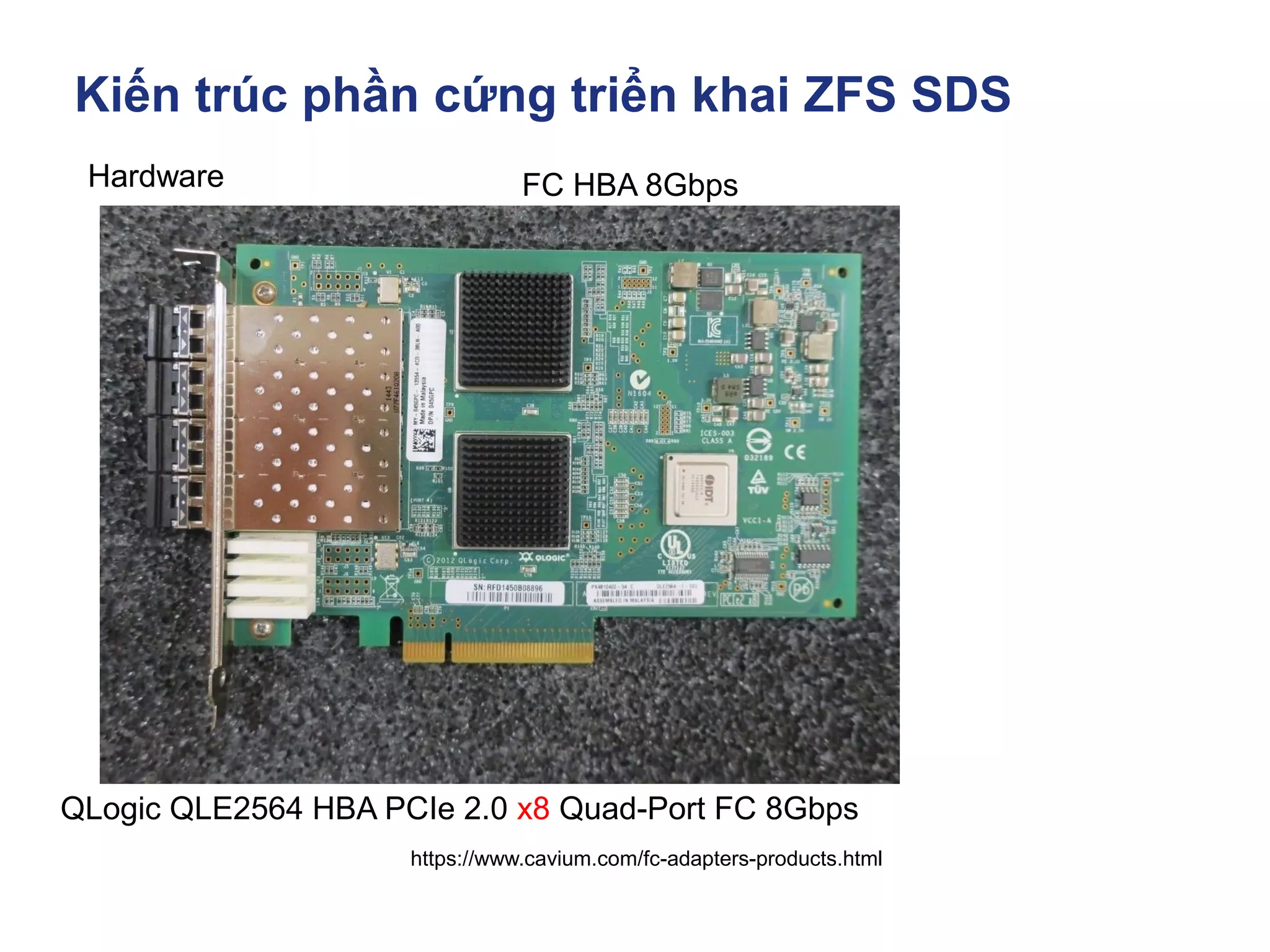

QLogic QLE2564 HBA PCIe 2.0 x8 Quad-Port FC 8Gbps
FC HBA 8Gbps

https://www.cavium.com/fc-adapters-products.html
Hardware

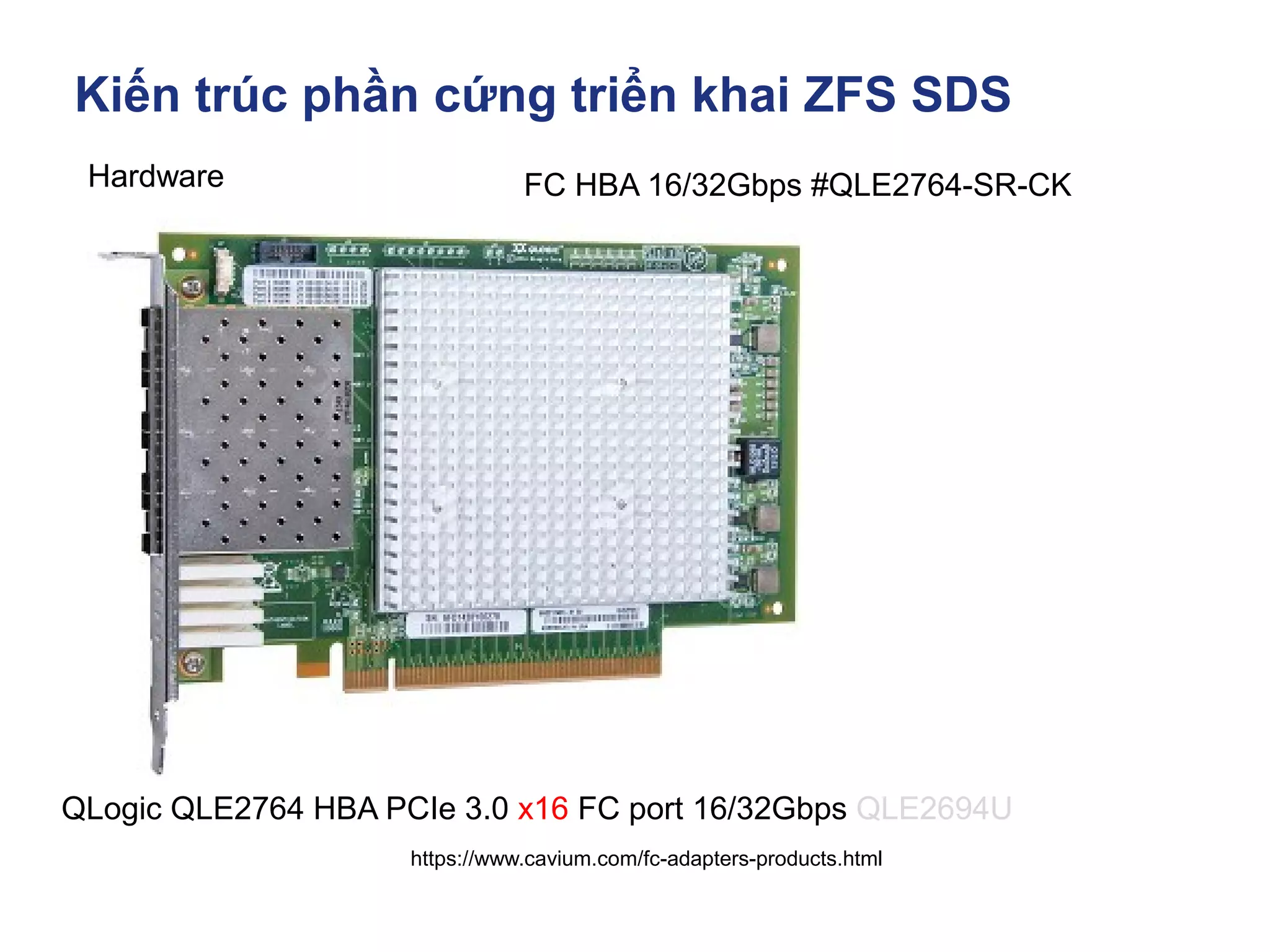

QLogic QLE2764 HBA PCIe 3.0 x16 FC port 16/32Gbps QLE2694U
FC HBA 16/32Gbps #QLE2764-SR-CK

Hardware

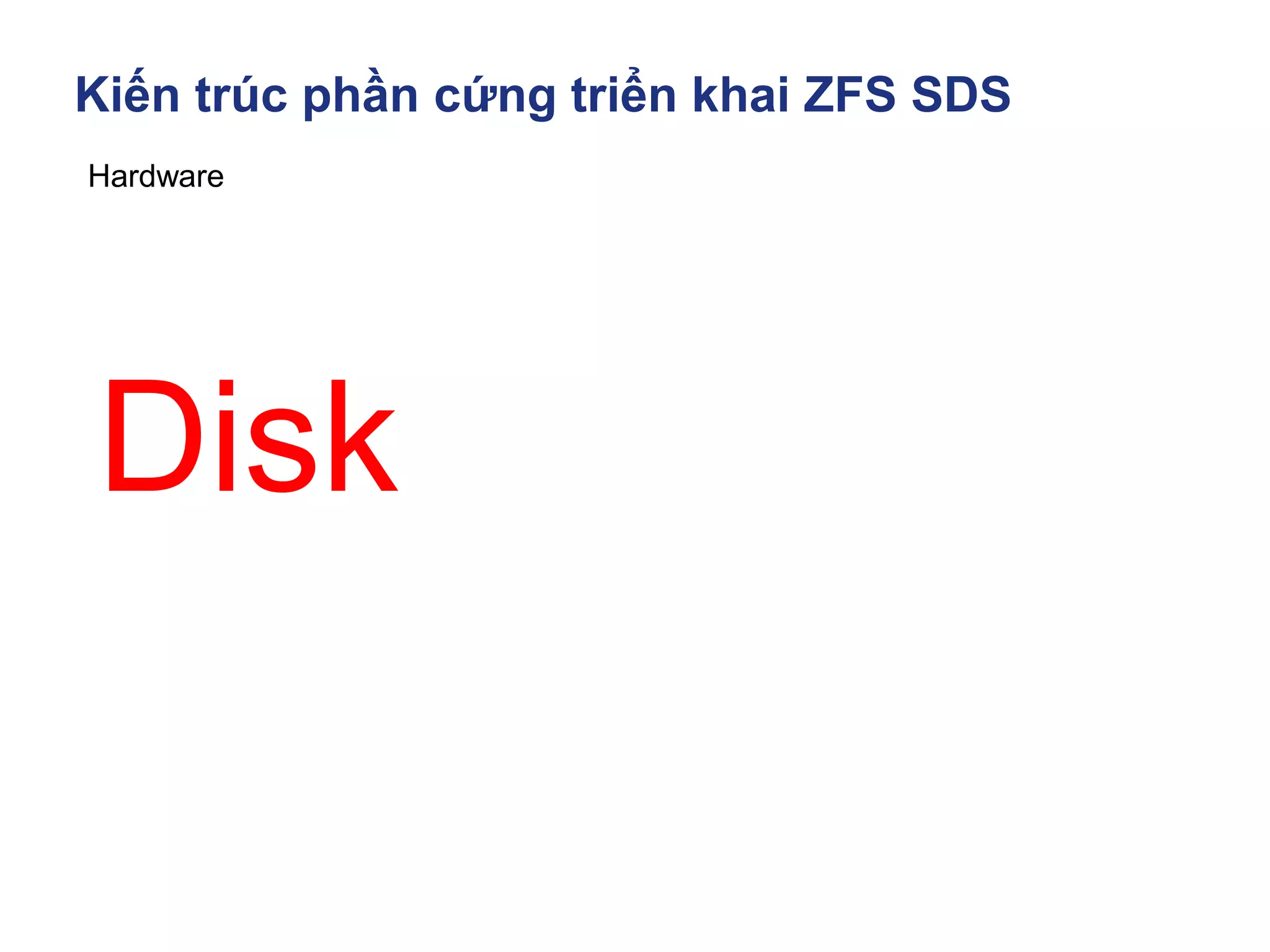

Disk

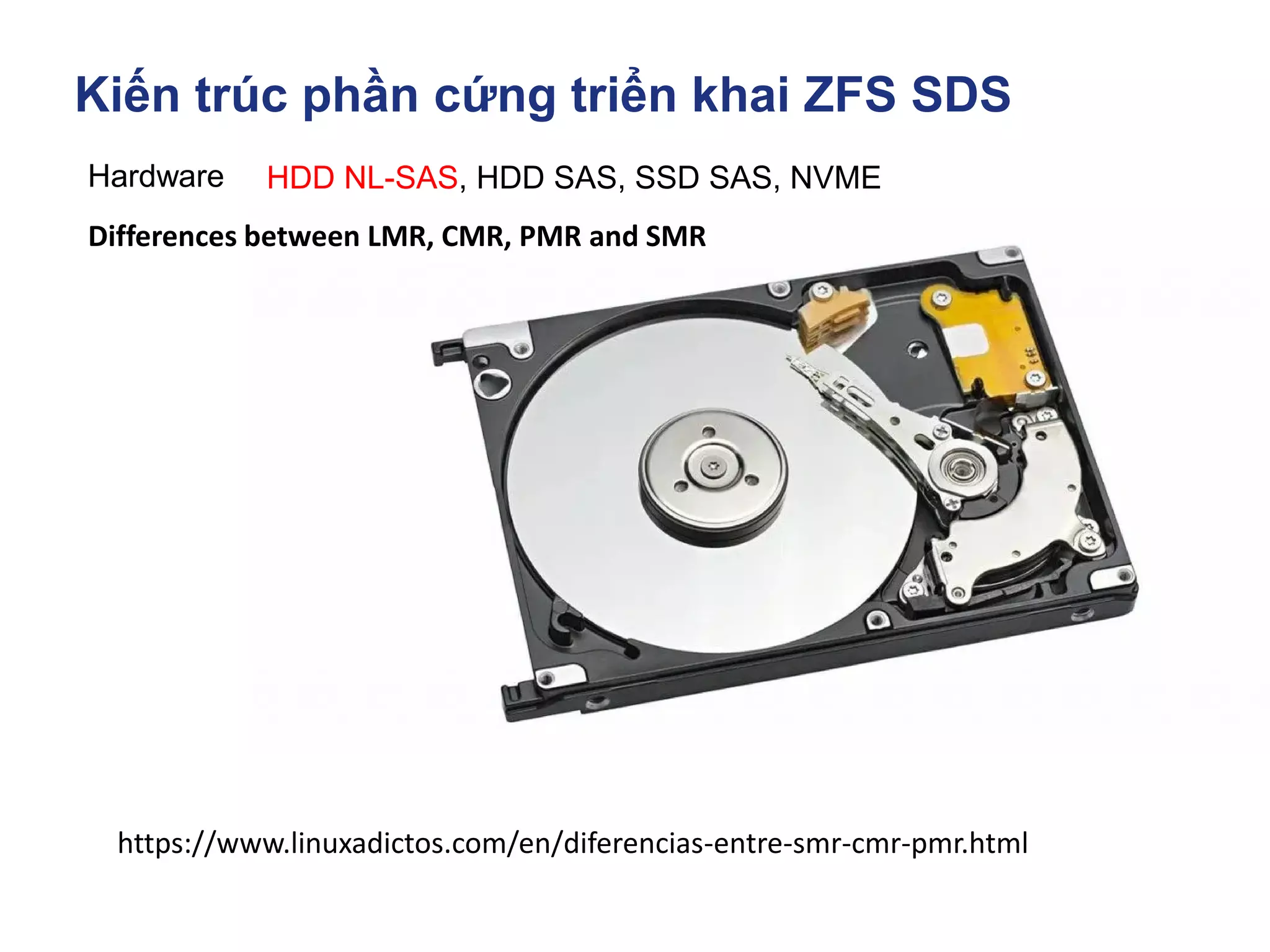

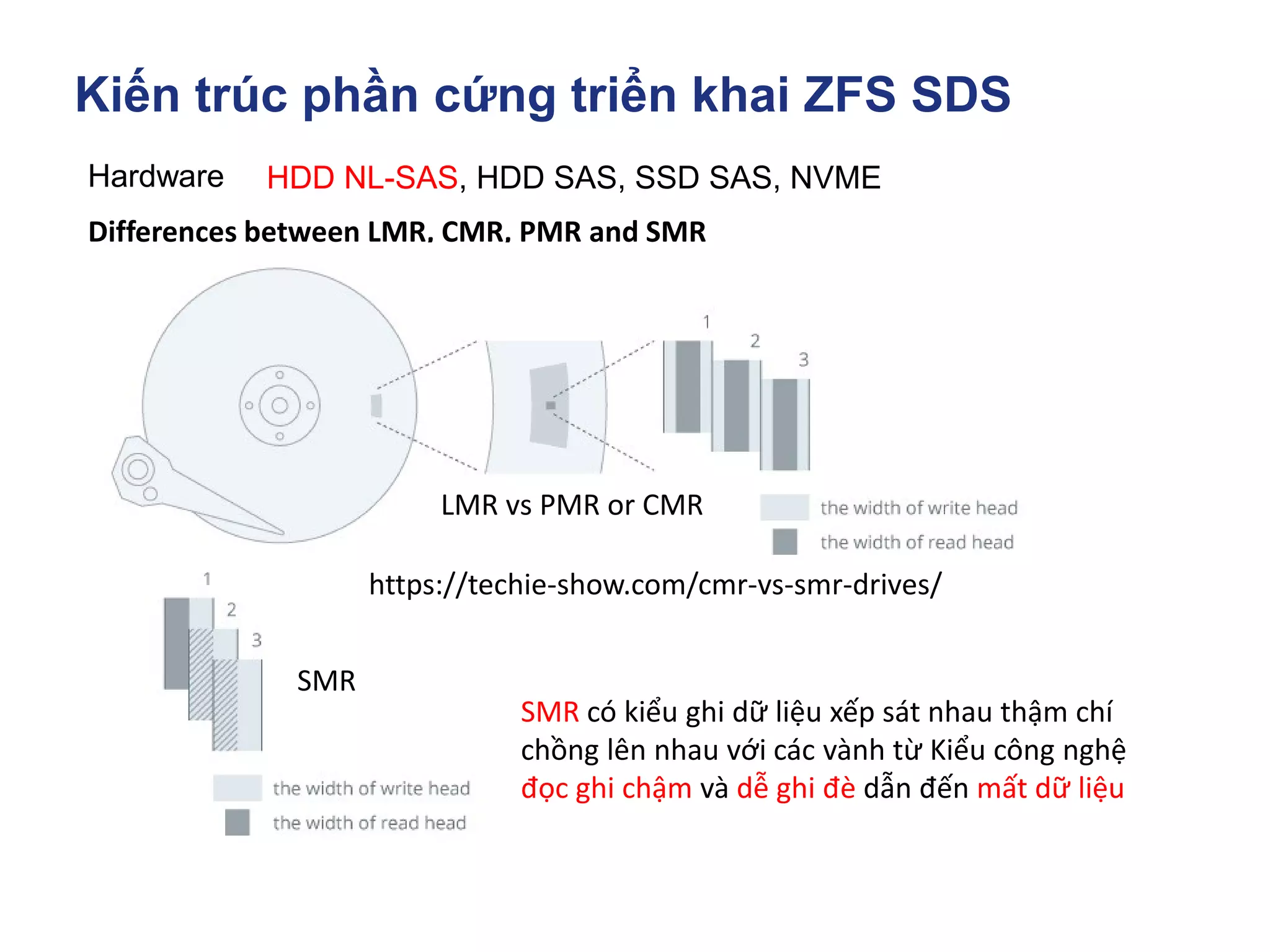

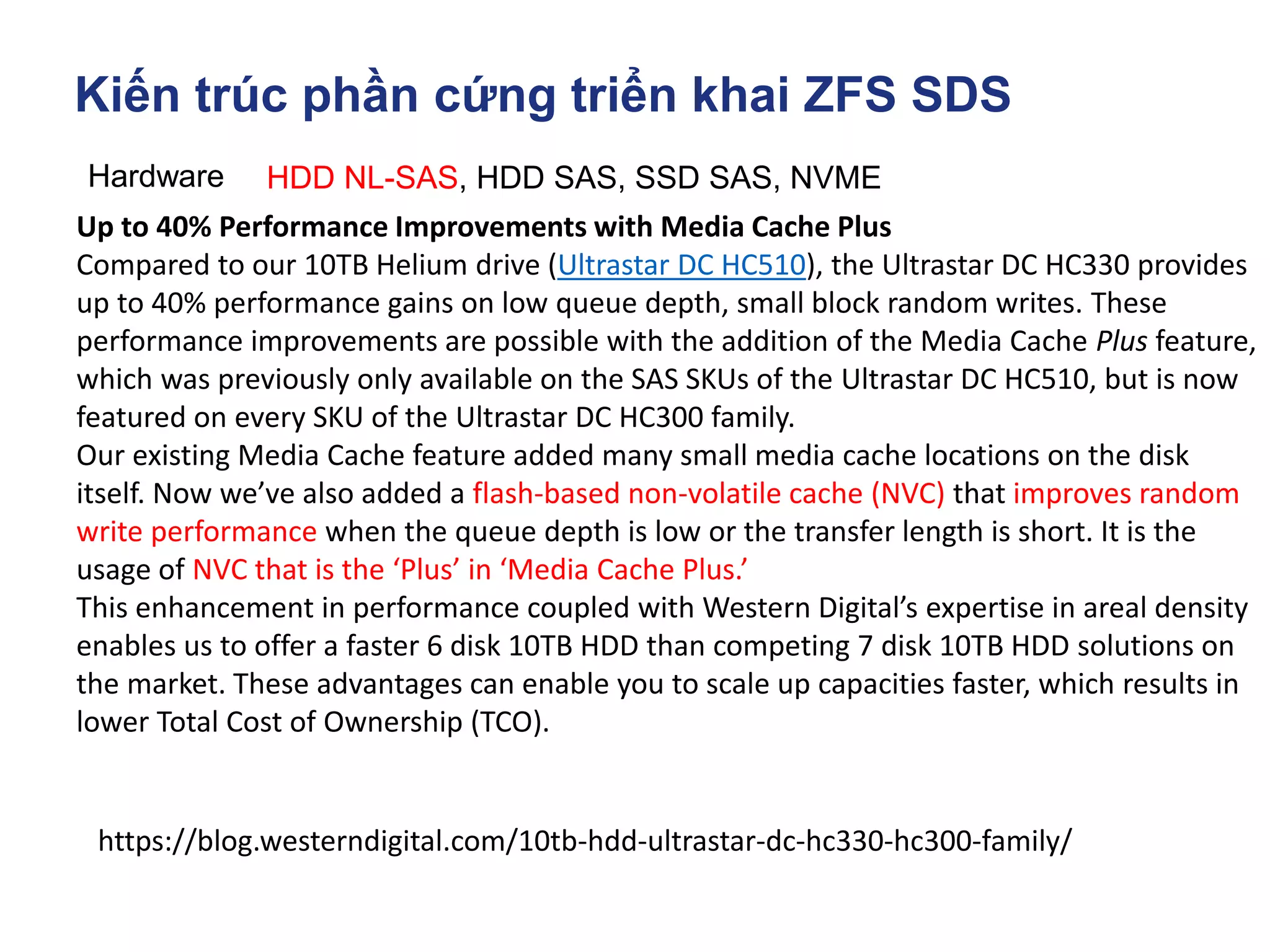

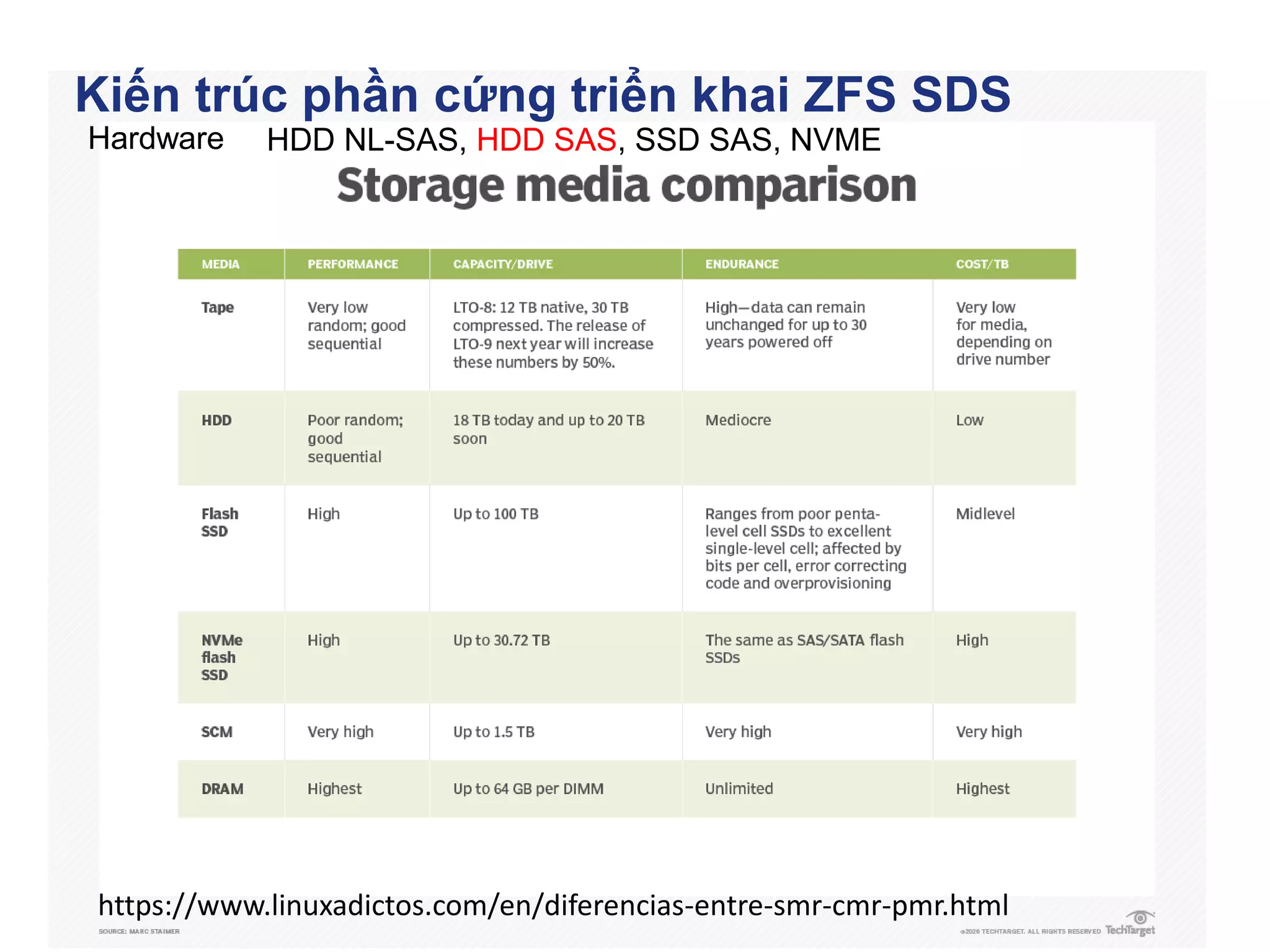

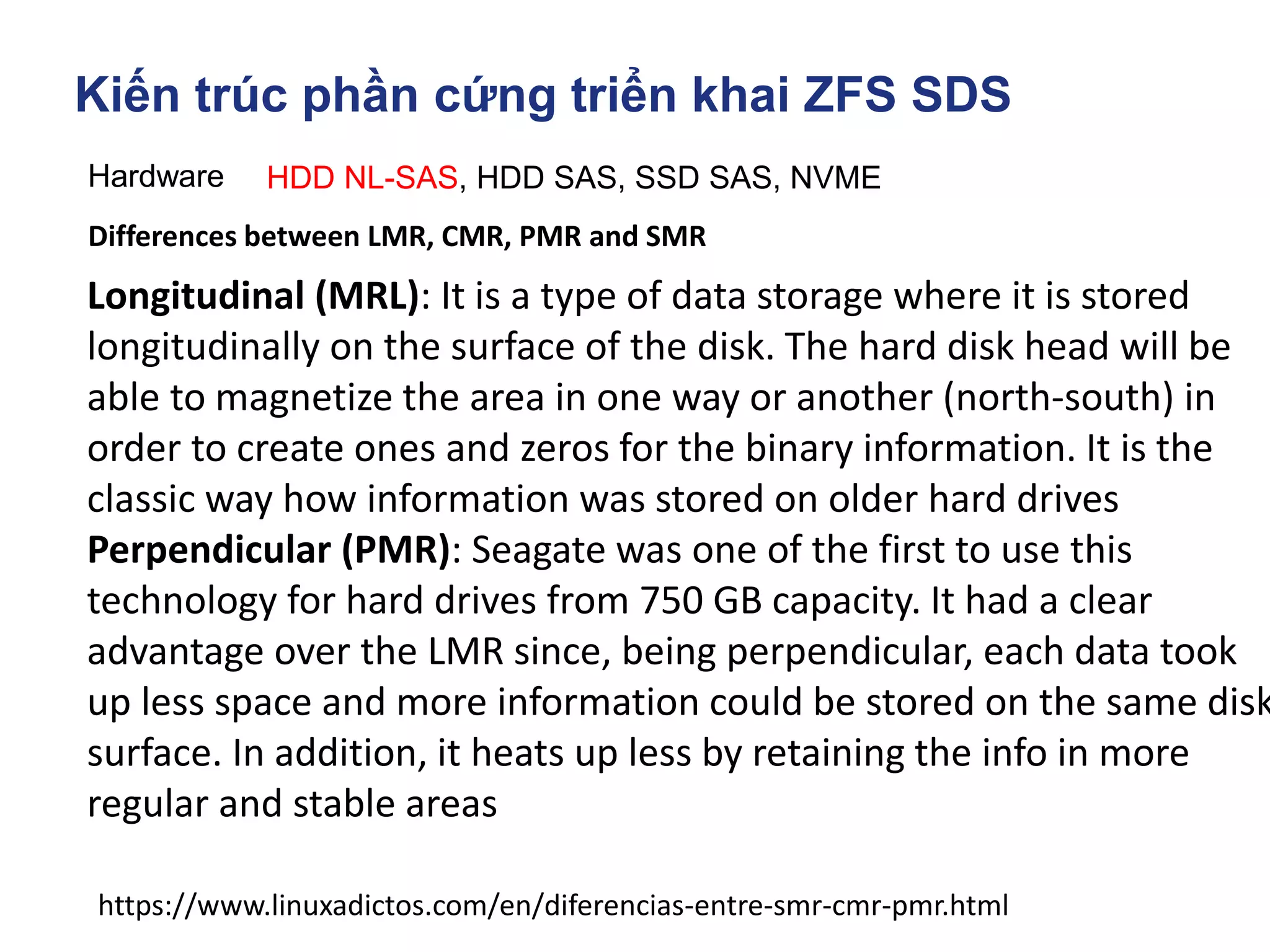

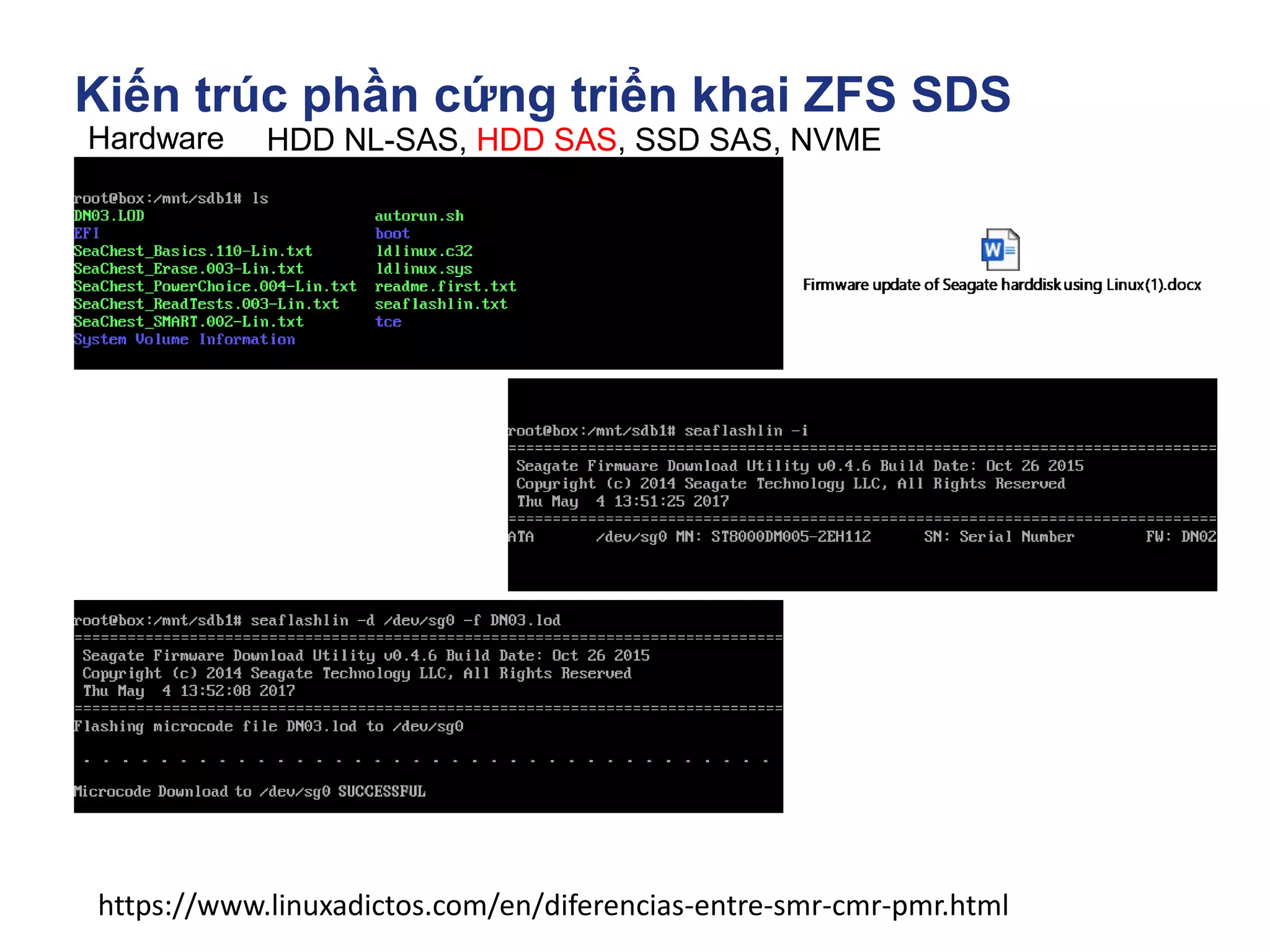

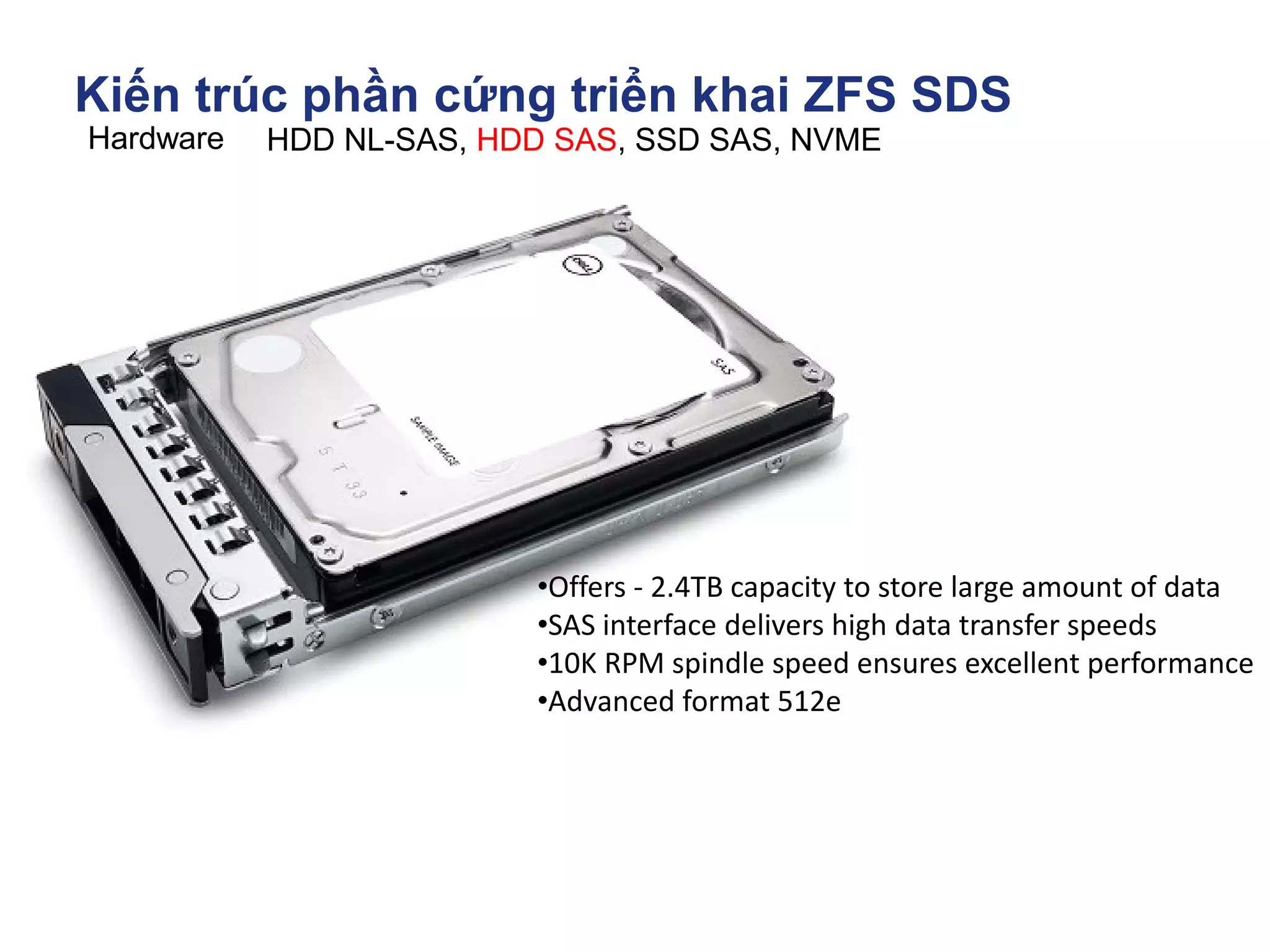

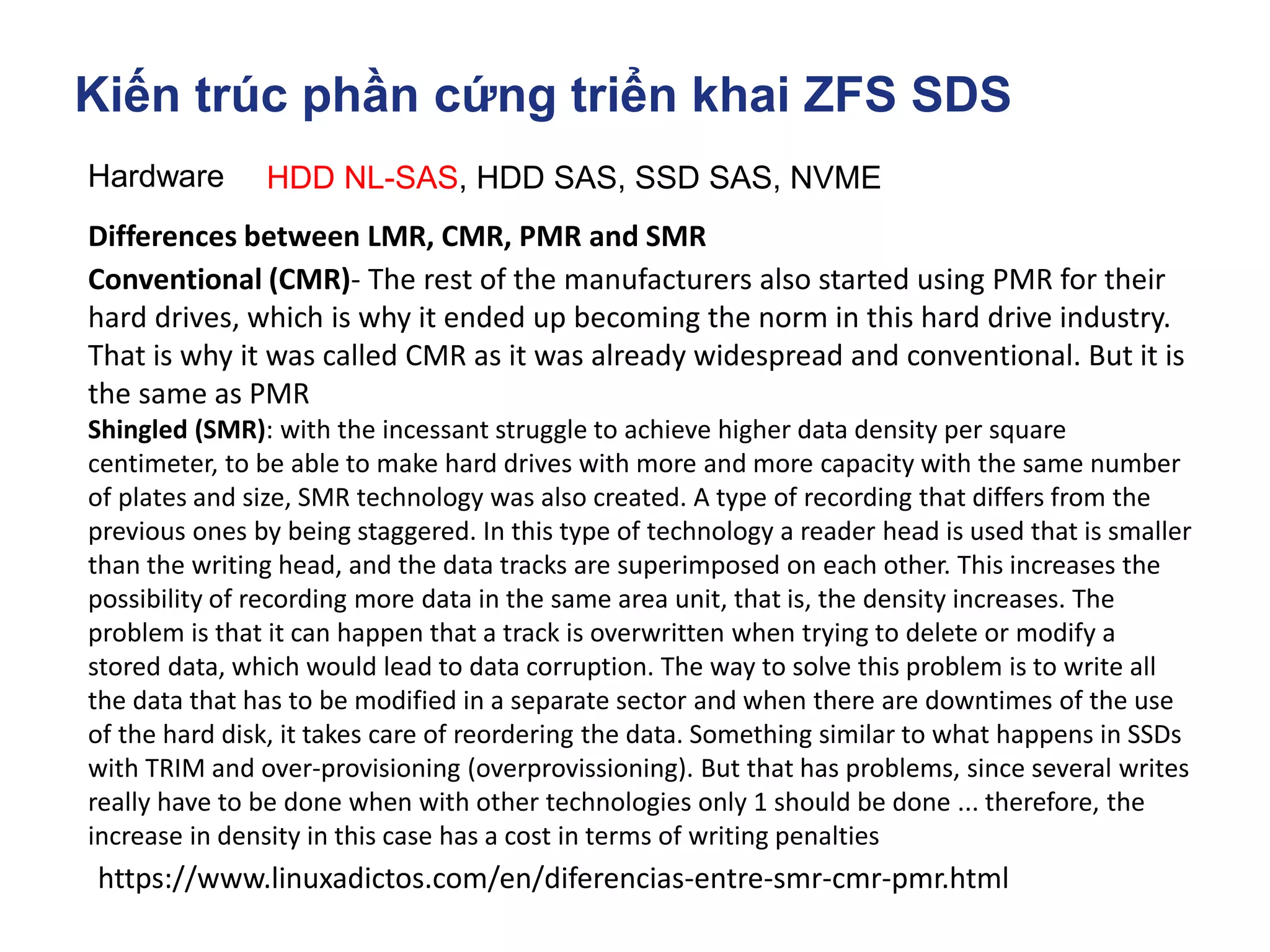

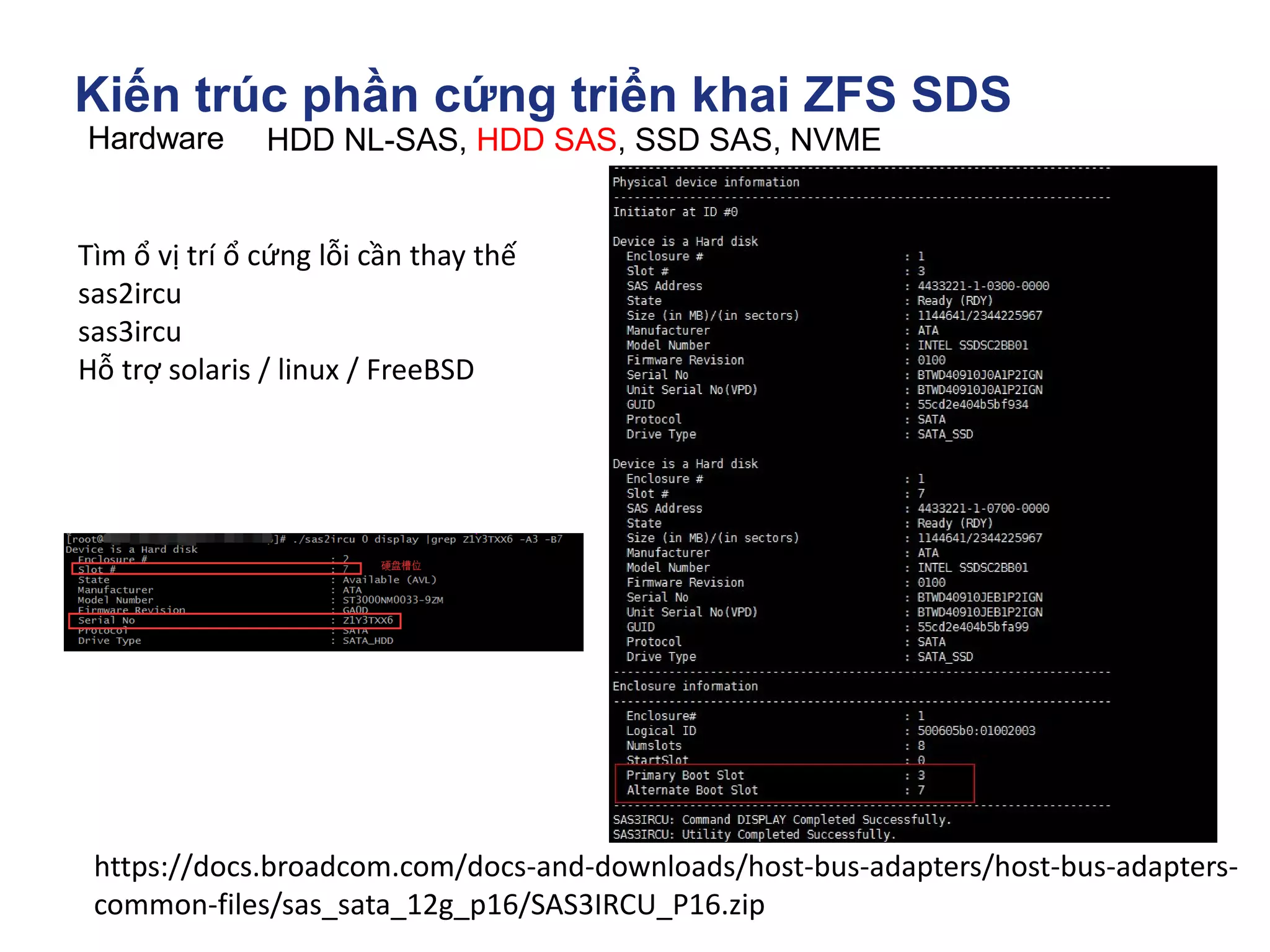

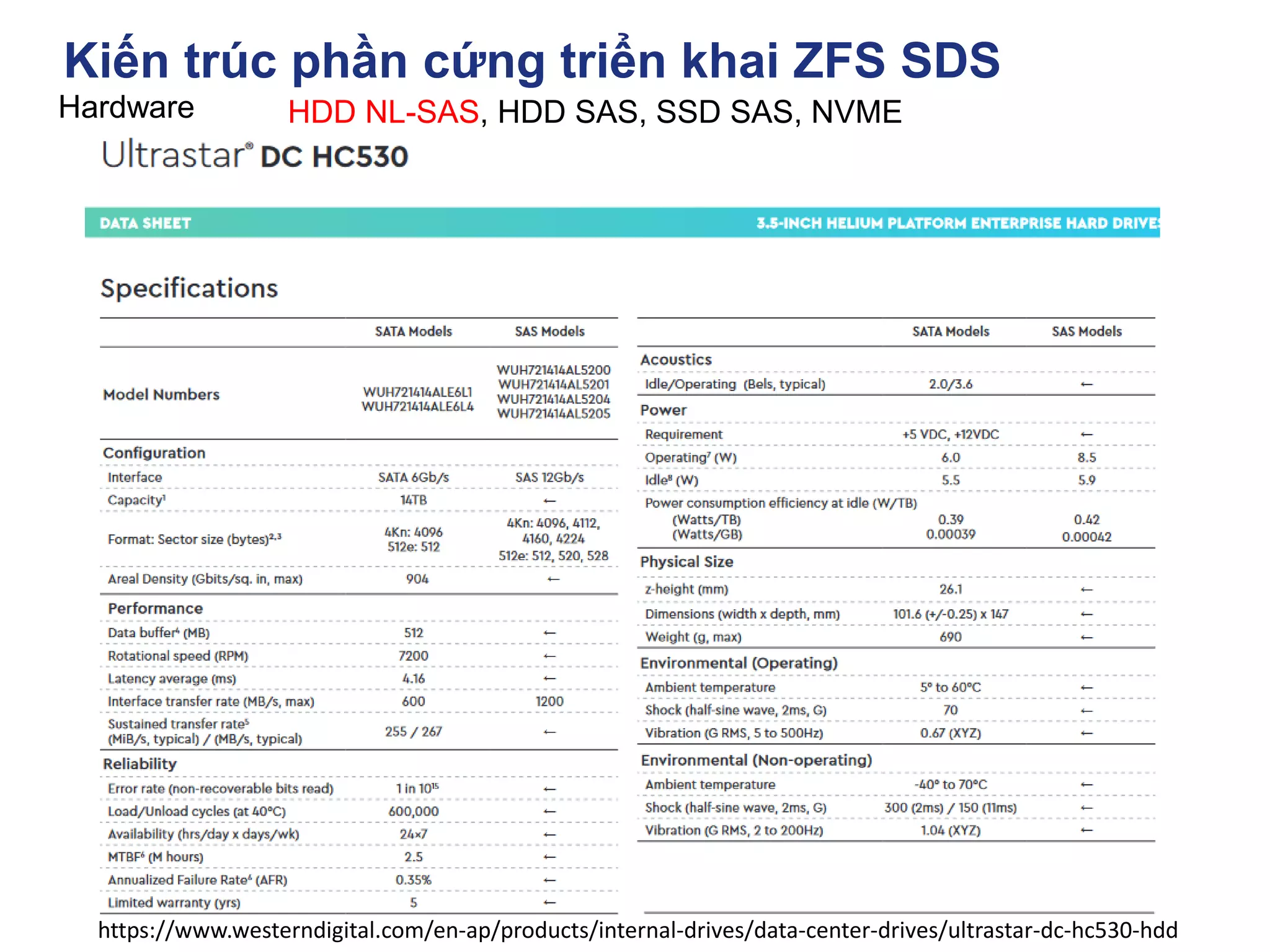

Hardware HDD NL-SAS, HDD SAS, SSD SAS, NVME

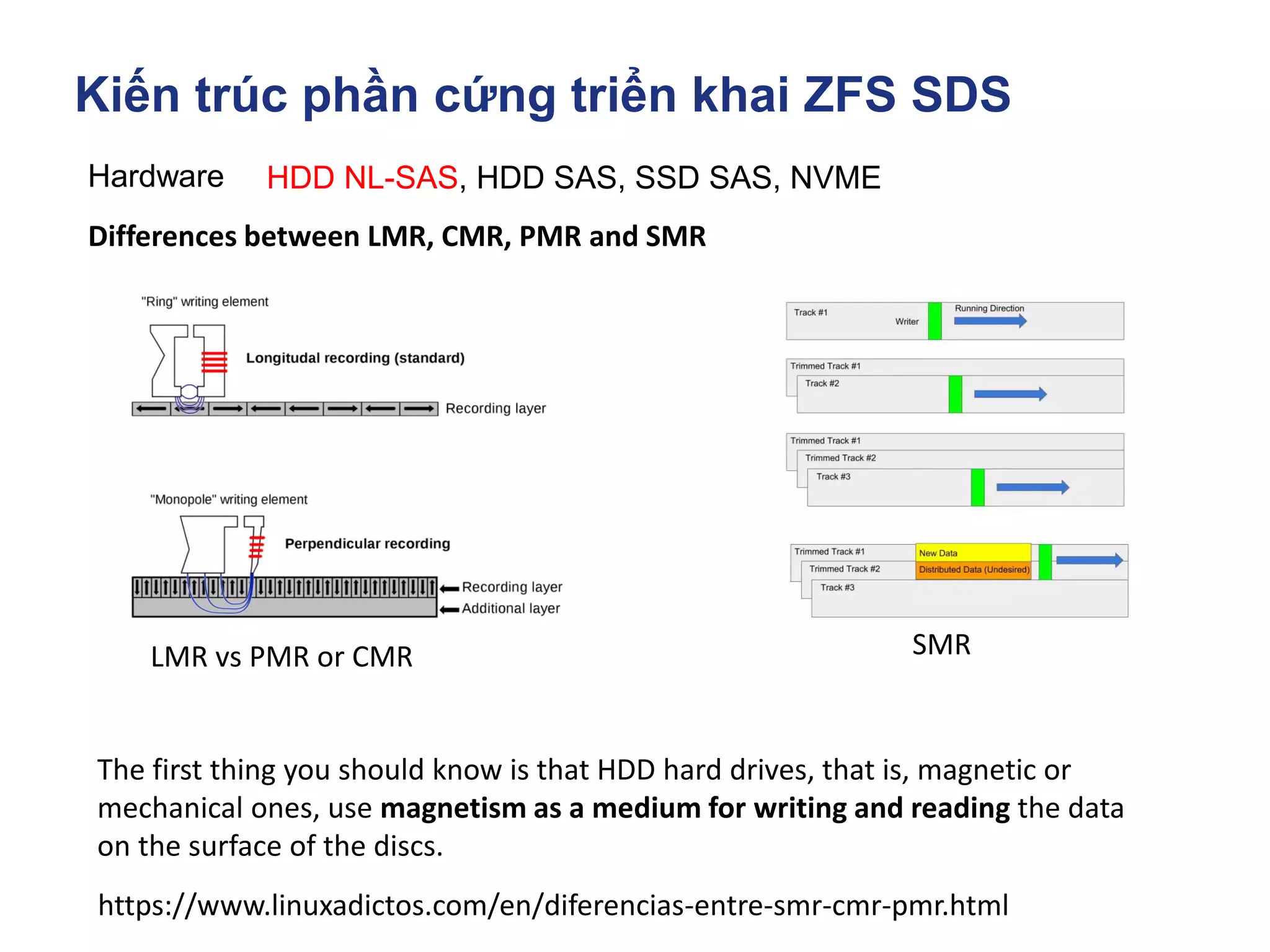

https://www.linuxadictos.com/en/diferencias-entre-smr-cmr-pmr.html

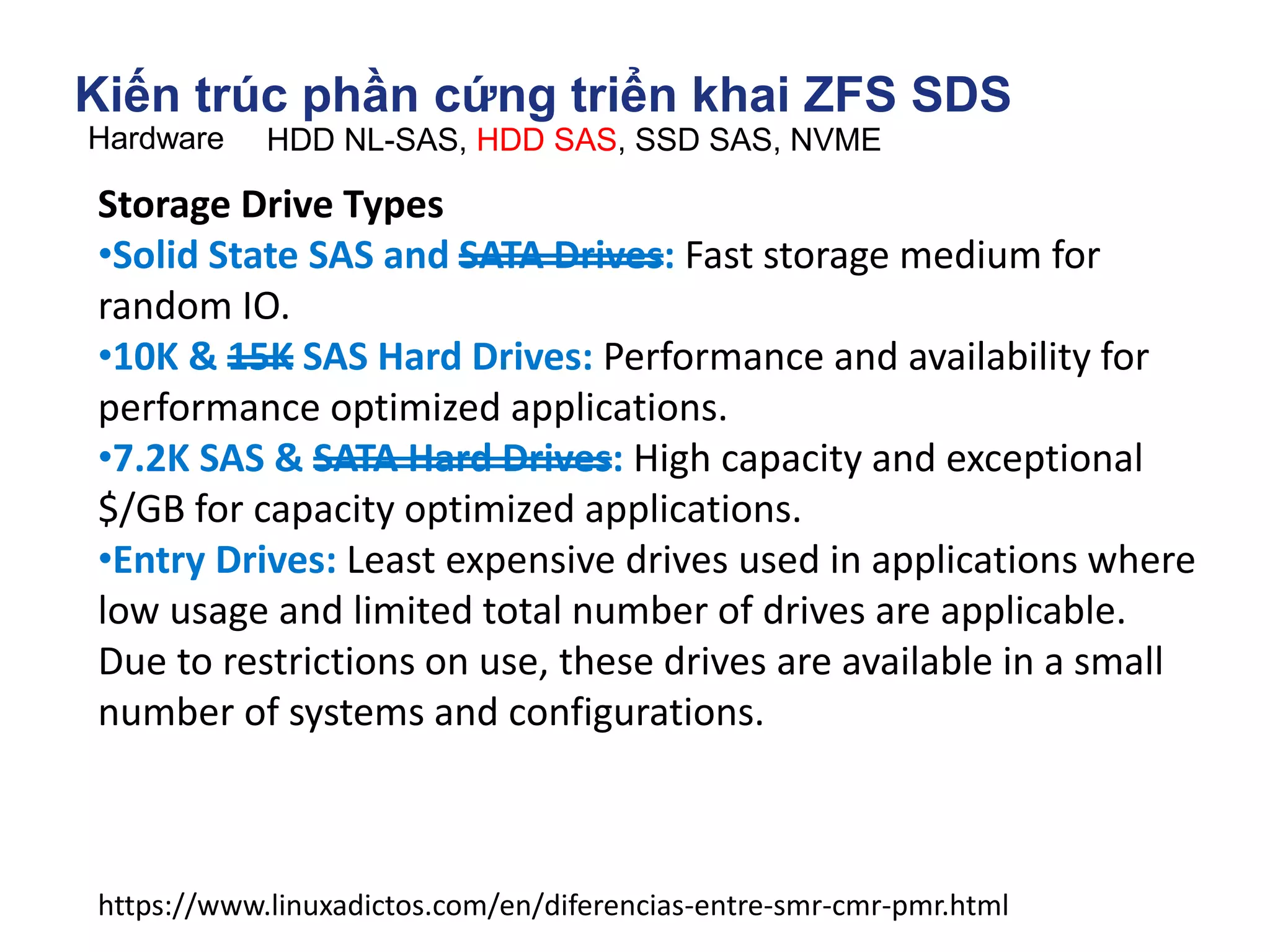

Storage Drive Types
•Solid State SAS and SATA Drives: Fast storage medium for
random IO.
•10K & 15K SAS Hard Drives: Performance and availability for
performance optimized applications.
•7.2K SAS & SATA Hard Drives: High capacity and exceptional
$/GB for capacity optimized applications.
•Entry Drives: Least expensive drives used in applications where
low usage and limited total number of drives are applicable.
Due to restrictions on use, these drives are available in a small
number of systems and configurations.

https://blog.westerndigital.com/10tb-hdd-ultrastar-dc-hc330-hc300-family/
Up to 40% Performance Improvements with Media Cache Plus
Compared to our 10TB Helium drive (Ultrastar DC HC510), the Ultrastar DC HC330 provides
up to 40% performance gains on low queue depth, small block random writes. These
performance improvements are possible with the addition of the Media Cache Plus feature,
which was previously only available on the SAS SKUs of the Ultrastar DC HC510, but is now
featured on every SKU of the Ultrastar DC HC300 family.
Our existing Media Cache feature added many small media cache locations on the disk
itself. Now we’ve also added a flash-based non-volatile cache (NVC) that improves random
write performance when the queue depth is low or the transfer length is short. It is the
usage of NVC that is the ‘Plus’ in ‘Media Cache Plus.’
This enhancement in performance coupled with Western Digital’s expertise in areal density
enables us to offer a faster 6 disk 10TB HDD than competing 7 disk 10TB HDD solutions on
the market. These advantages can enable you to scale up capacities faster, which results in
lower Total Cost of Ownership (TCO).

Differences between LMR, CMR, PMR and SMR

The first thing you should know is that HDD hard drives, that is, magnetic or
mechanical ones, use magnetism as a medium for writing and reading the data
on the surface of the discs.
LMR vs PMR or CMR SMR

LMR vs PMR or CMR
SMR
SMR có kiểu ghi dữ liệu xếp sát nhau thậm chí
chồng lên nhau với các vành từ Kiểu công nghệ
đọc ghi chậm và dễ ghi đè dẫn đến mất dữ liệu
https://techie-show.com/cmr-vs-smr-drives/

Longitudinal (MRL): It is a type of data storage where it is stored
longitudinally on the surface of the disk. The hard disk head will be
able to magnetize the area in one way or another (north-south) in
order to create ones and zeros for the binary information. It is the
classic way how information was stored on older hard drives
Perpendicular (PMR): Seagate was one of the first to use this
technology for hard drives from 750 GB capacity. It had a clear
advantage over the LMR since, being perpendicular, each data took
up less space and more information could be stored on the same disk
surface. In addition, it heats up less by retaining the info in more
regular and stable areas

Conventional (CMR)- The rest of the manufacturers also started using PMR for their
hard drives, which is why it ended up becoming the norm in this hard drive industry.
That is why it was called CMR as it was already widespread and conventional. But it is
the same as PMR
Shingled (SMR): with the incessant struggle to achieve higher data density per square
centimeter, to be able to make hard drives with more and more capacity with the same number
of plates and size, SMR technology was also created. A type of recording that differs from the
previous ones by being staggered. In this type of technology a reader head is used that is smaller
than the writing head, and the data tracks are superimposed on each other. This increases the
possibility of recording more data in the same area unit, that is, the density increases. The
problem is that it can happen that a track is overwritten when trying to delete or modify a
stored data, which would lead to data corruption. The way to solve this problem is to write all
the data that has to be modified in a separate sector and when there are downtimes of the use
of the hard disk, it takes care of reordering the data. Something similar to what happens in SSDs
with TRIM and over-provisioning (overprovissioning). But that has problems, since several writes
really have to be done when with other technologies only 1 should be done ... therefore, the
increase in density in this case has a cost in terms of writing penalties

https://www.westerndigital.com/en-ap/products/internal-drives/data-center-drives/ultrastar-dc-hc530-hdd

•Offers - 2.4TB capacity to store large amount of data
•SAS interface delivers high data transfer speeds
•10K RPM spindle speed ensures excellent performance
•Advanced format 512e

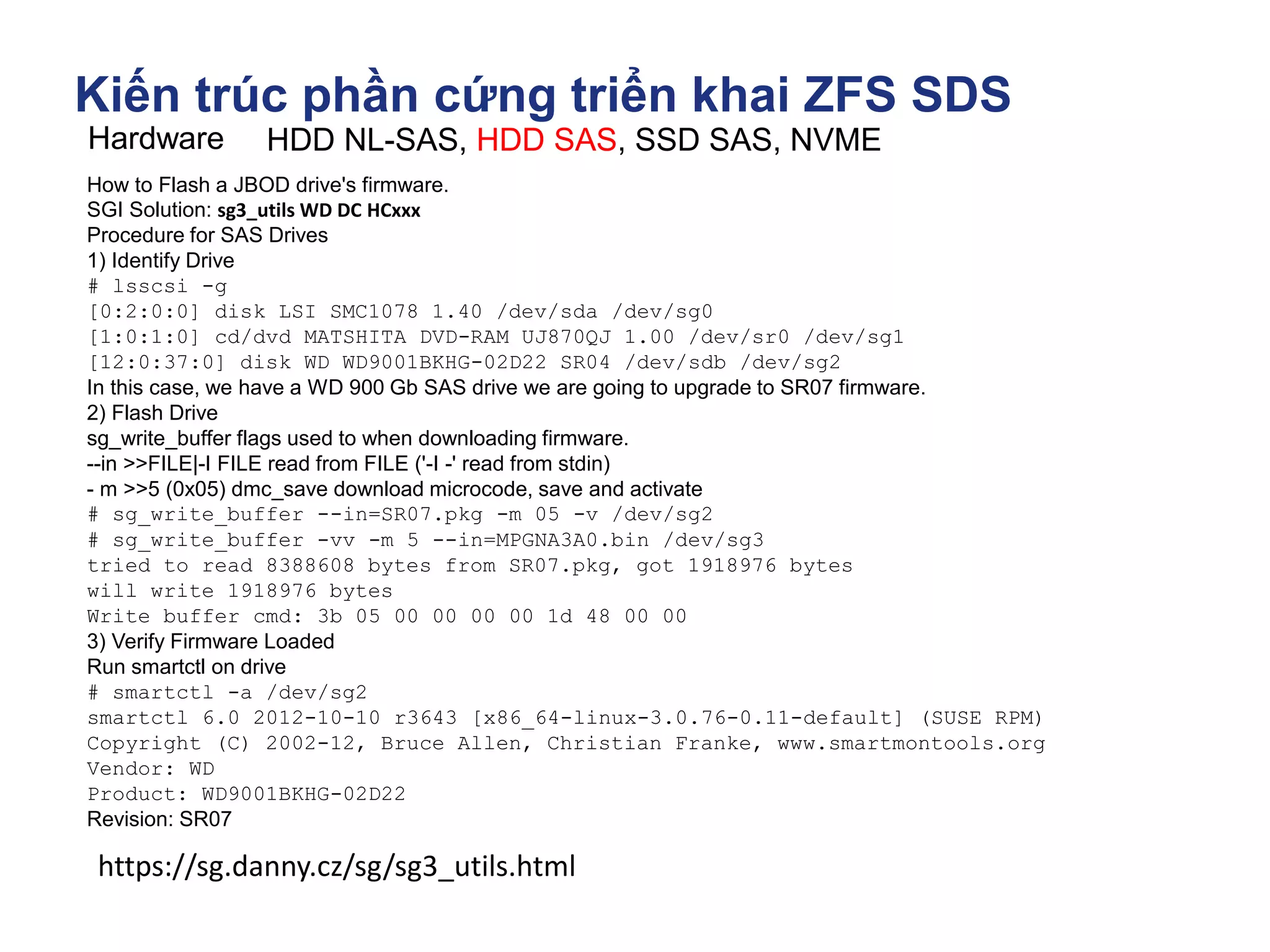

How to Flash a JBOD drive's firmware.
SGI Solution: sg3_utils WD DC HCxxx
Procedure for SAS Drives
1) Identify Drive
# lsscsi -g
[0:2:0:0] disk LSI SMC1078 1.40 /dev/sda /dev/sg0
[1:0:1:0] cd/dvd MATSHITA DVD-RAM UJ870QJ 1.00 /dev/sr0 /dev/sg1
[12:0:37:0] disk WD WD9001BKHG-02D22 SR04 /dev/sdb /dev/sg2
In this case, we have a WD 900 Gb SAS drive we are going to upgrade to SR07 firmware.
2) Flash Drive
sg_write_buffer flags used to when downloading firmware.
--in >>FILE|-I FILE read from FILE ('-I -' read from stdin)
- m >>5 (0x05) dmc_save download microcode, save and activate
# sg_write_buffer --in=SR07.pkg -m 05 -v /dev/sg2
# sg_write_buffer -vv -m 5 --in=MPGNA3A0.bin /dev/sg3
tried to read 8388608 bytes from SR07.pkg, got 1918976 bytes
will write 1918976 bytes
Write buffer cmd: 3b 05 00 00 00 00 1d 48 00 00
3) Verify Firmware Loaded
Run smartctl on drive
# smartctl -a /dev/sg2
smartctl 6.0 2012-10-10 r3643 [x86_64-linux-3.0.76-0.11-default] (SUSE RPM)
Copyright (C) 2002-12, Bruce Allen, Christian Franke, www.smartmontools.org
Vendor: WD
Product: WD9001BKHG-02D22
Revision: SR07
https://sg.danny.cz/sg/sg3_utils.html

Tìm ổ vị trí ổ cứng lỗi cần thay thế
sas2ircu
sas3ircu
Hỗ trợ solaris / linux / FreeBSD
https://docs.broadcom.com/docs-and-downloads/host-bus-adapters/host-bus-adapters-
common-files/sas_sata_12g_p16/SAS3IRCU_P16.zip

Hardware
NETWORK I/O
Fibre chanel Host bus adapter

Hardware

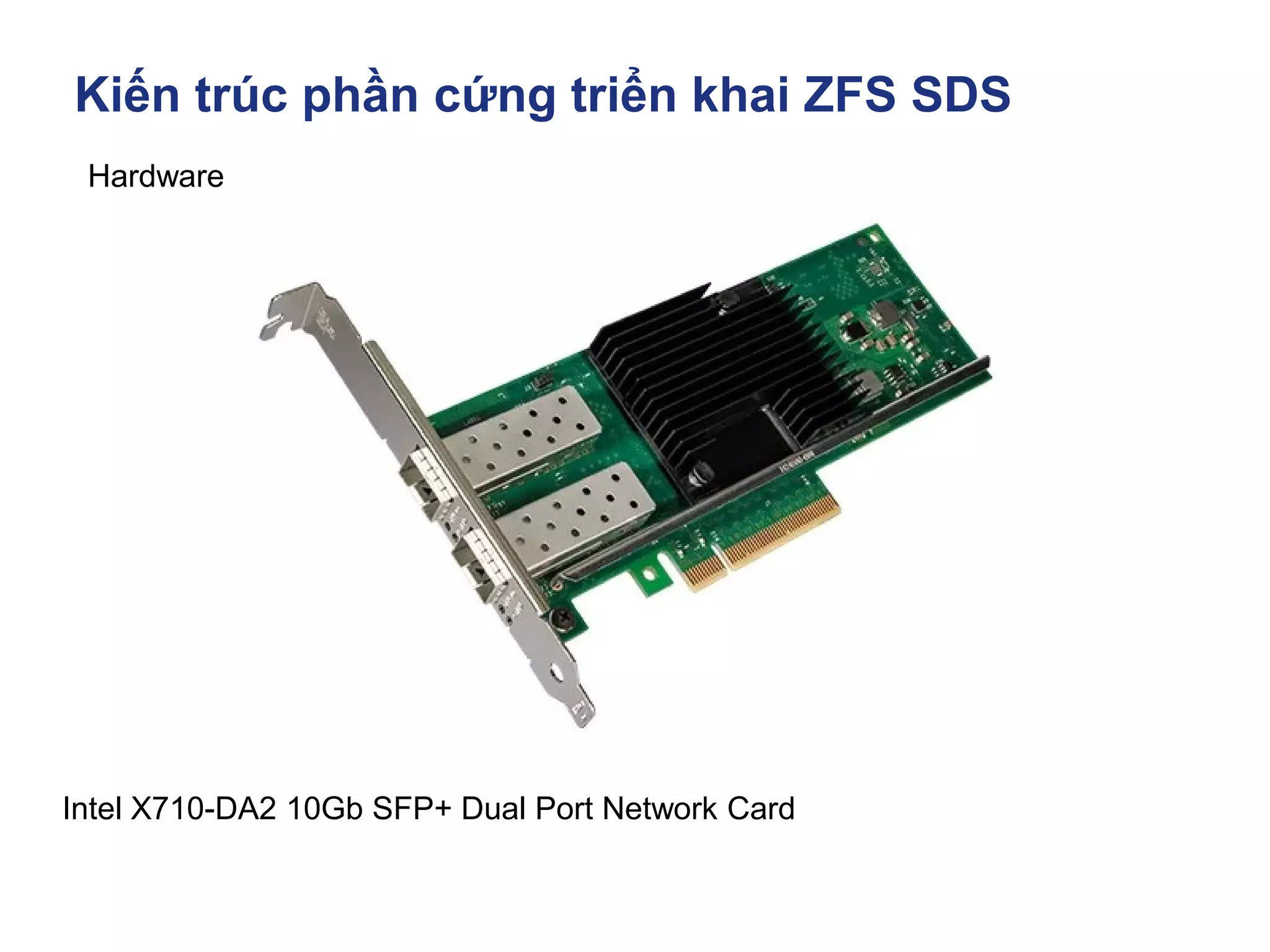

Intel X710-DA2 10Gb SFP+ Dual Port Network Card

Hardware

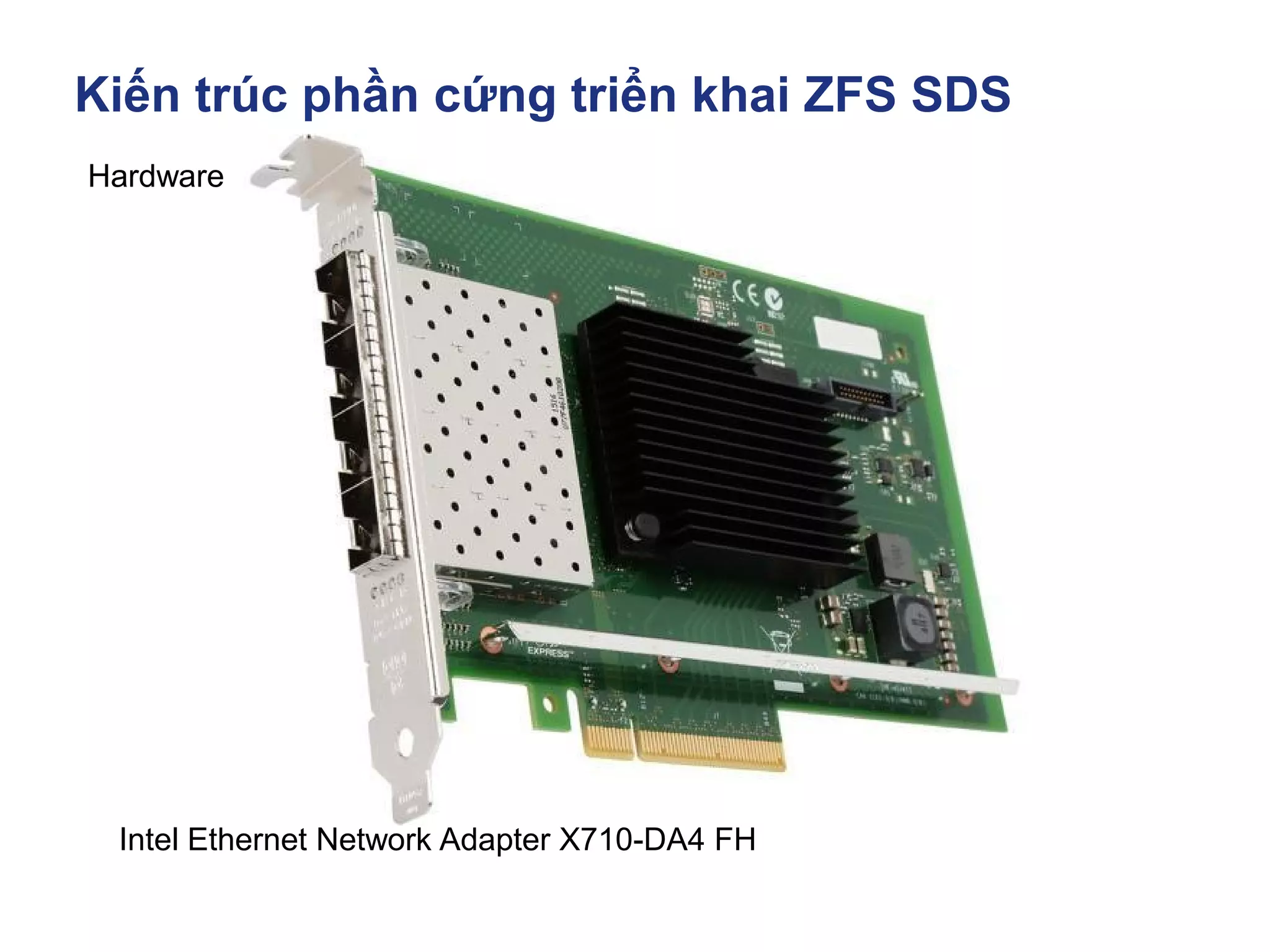

Intel Ethernet Network Adapter X710-DA4 FH

Hardware

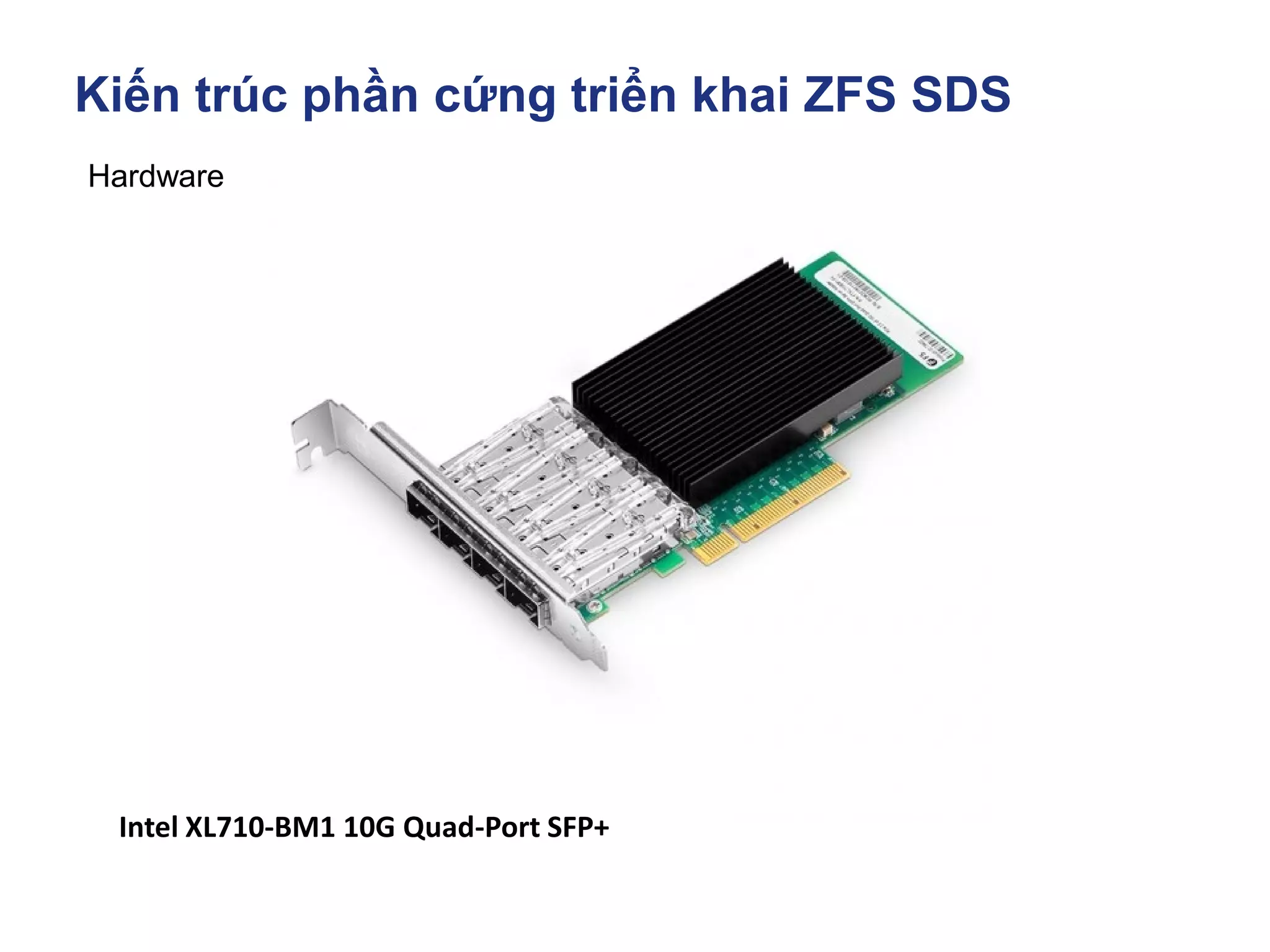

Intel XL710-BM1 10G Quad-Port SFP+

Hardware

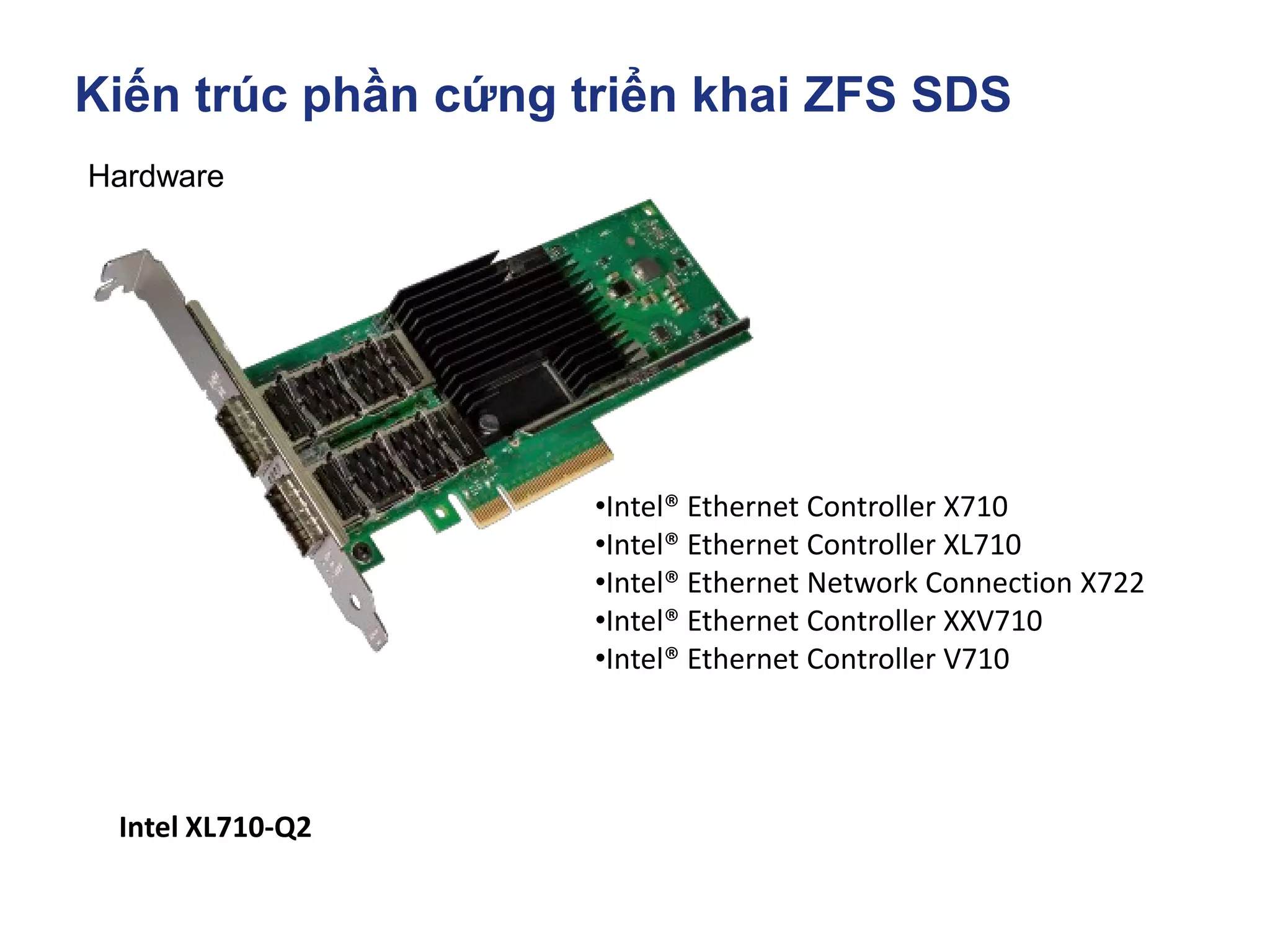

Intel XL710-Q2
•Intel® Ethernet Controller X710
•Intel® Ethernet Controller XL710
•Intel® Ethernet Network Connection X722
•Intel® Ethernet Controller XXV710
•Intel® Ethernet Controller V710

Hardware

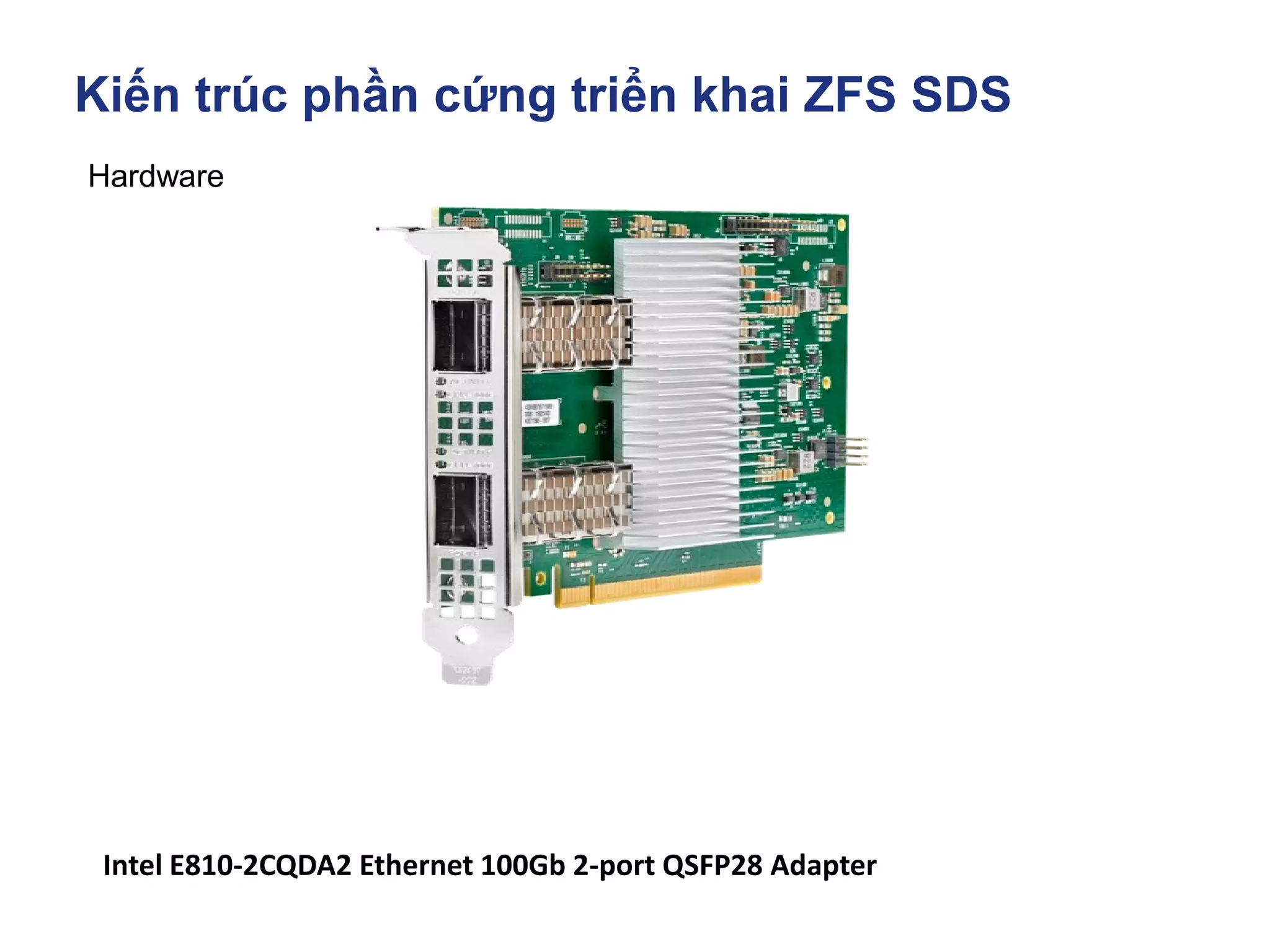

Intel E810-2CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter

Hardware

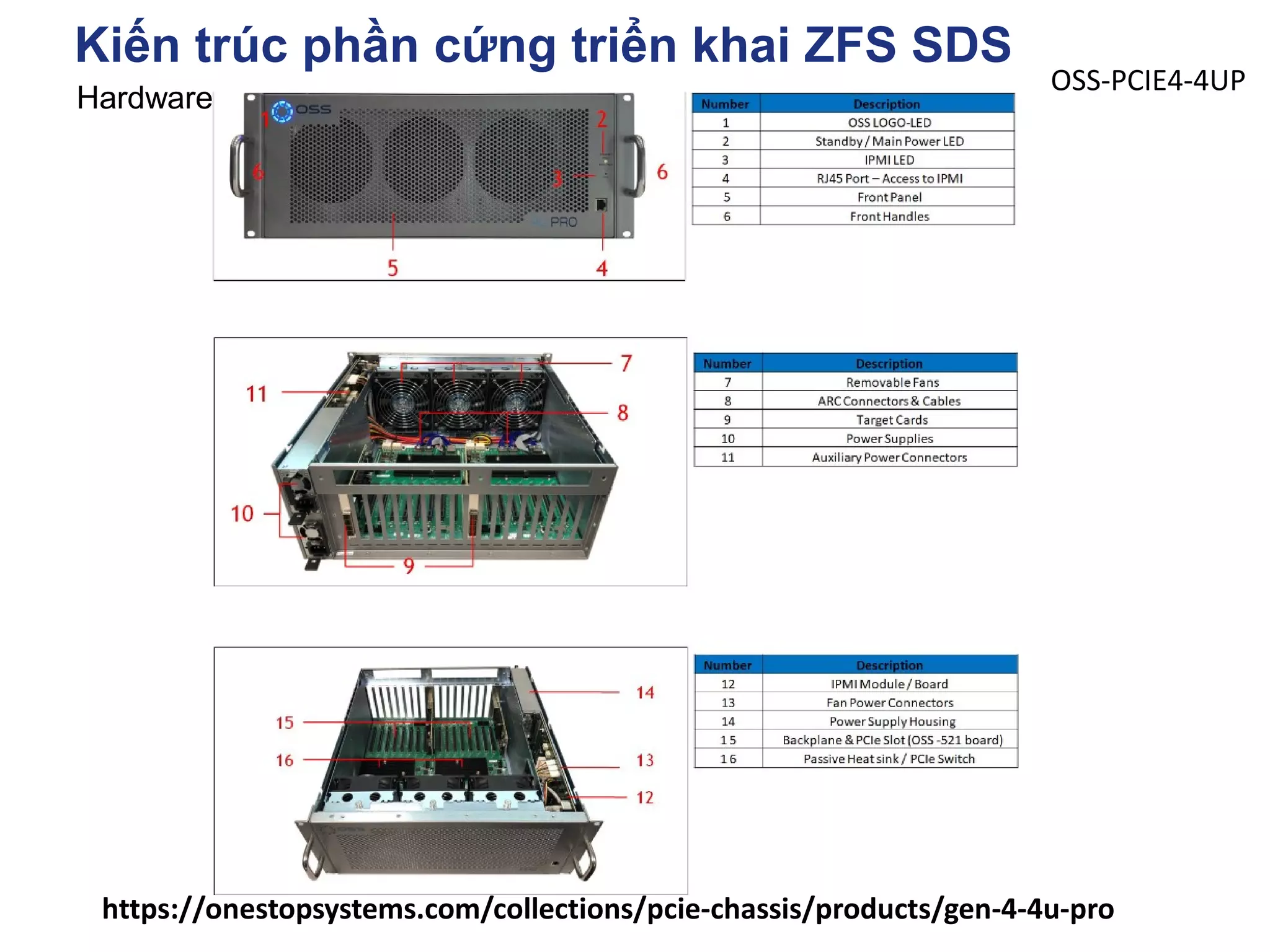

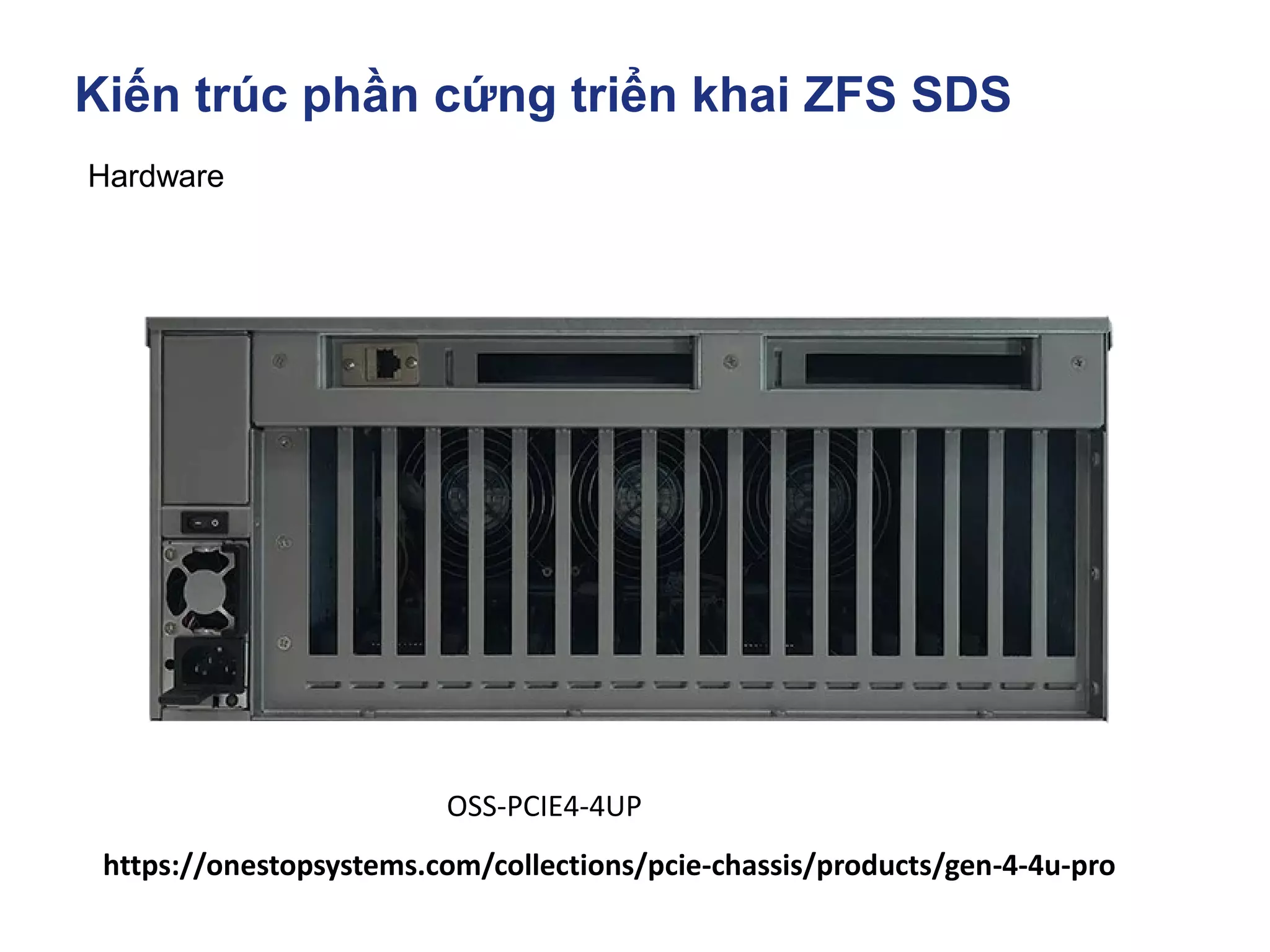

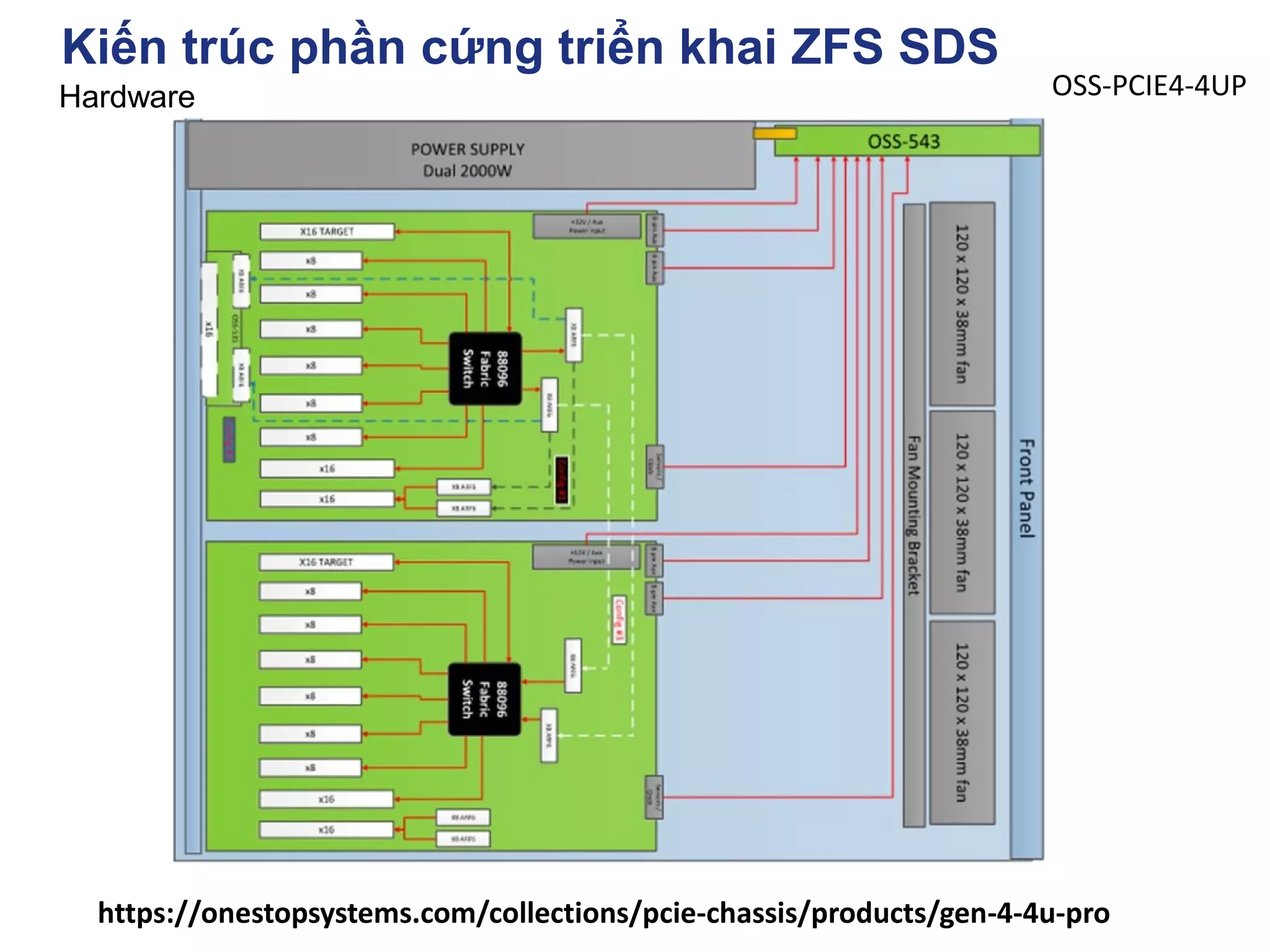

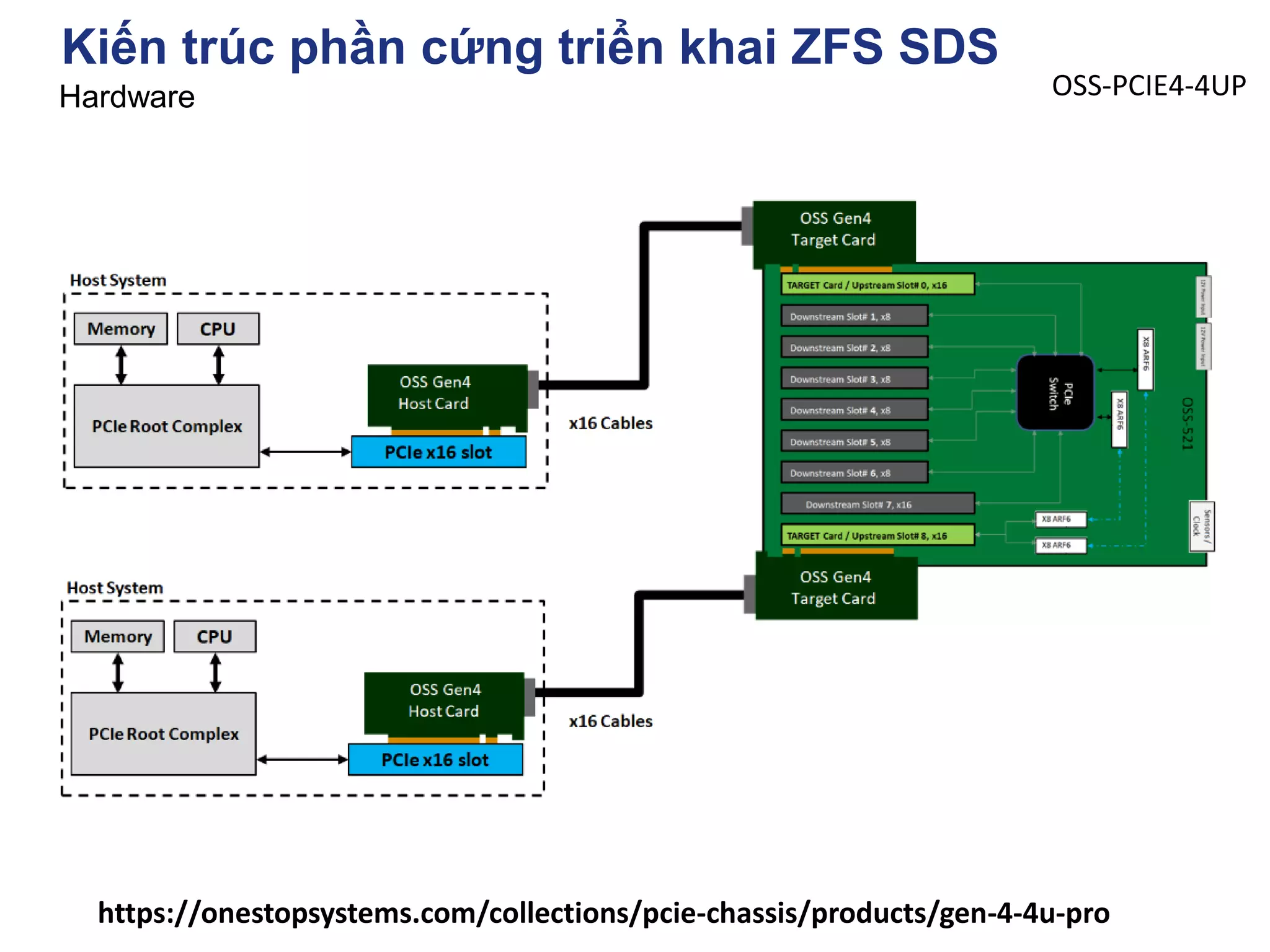

https://onestopsystems.com/collections/pcie-chassis/products/gen-4-4u-pro
OSS-PCIE4-4UP

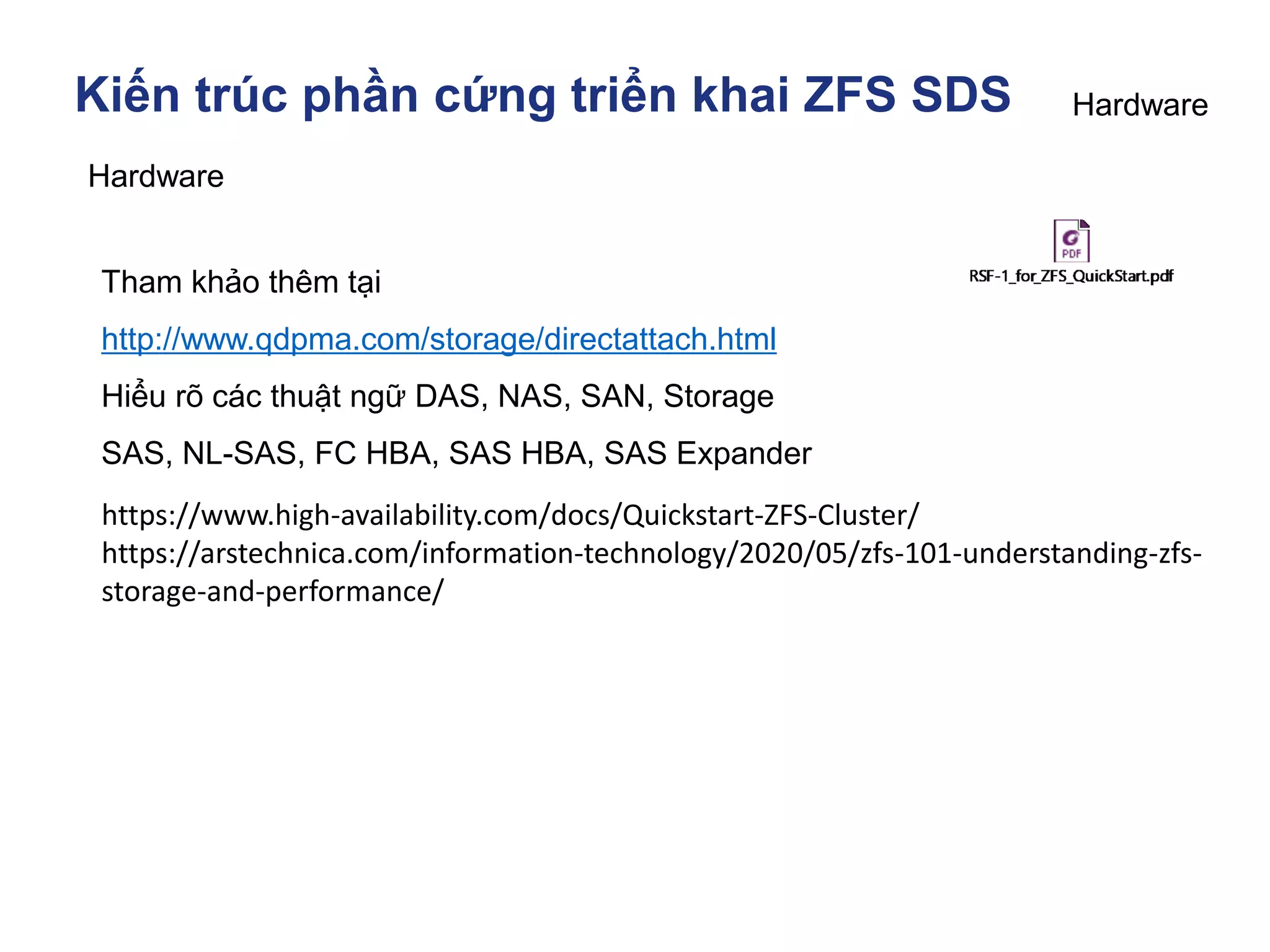

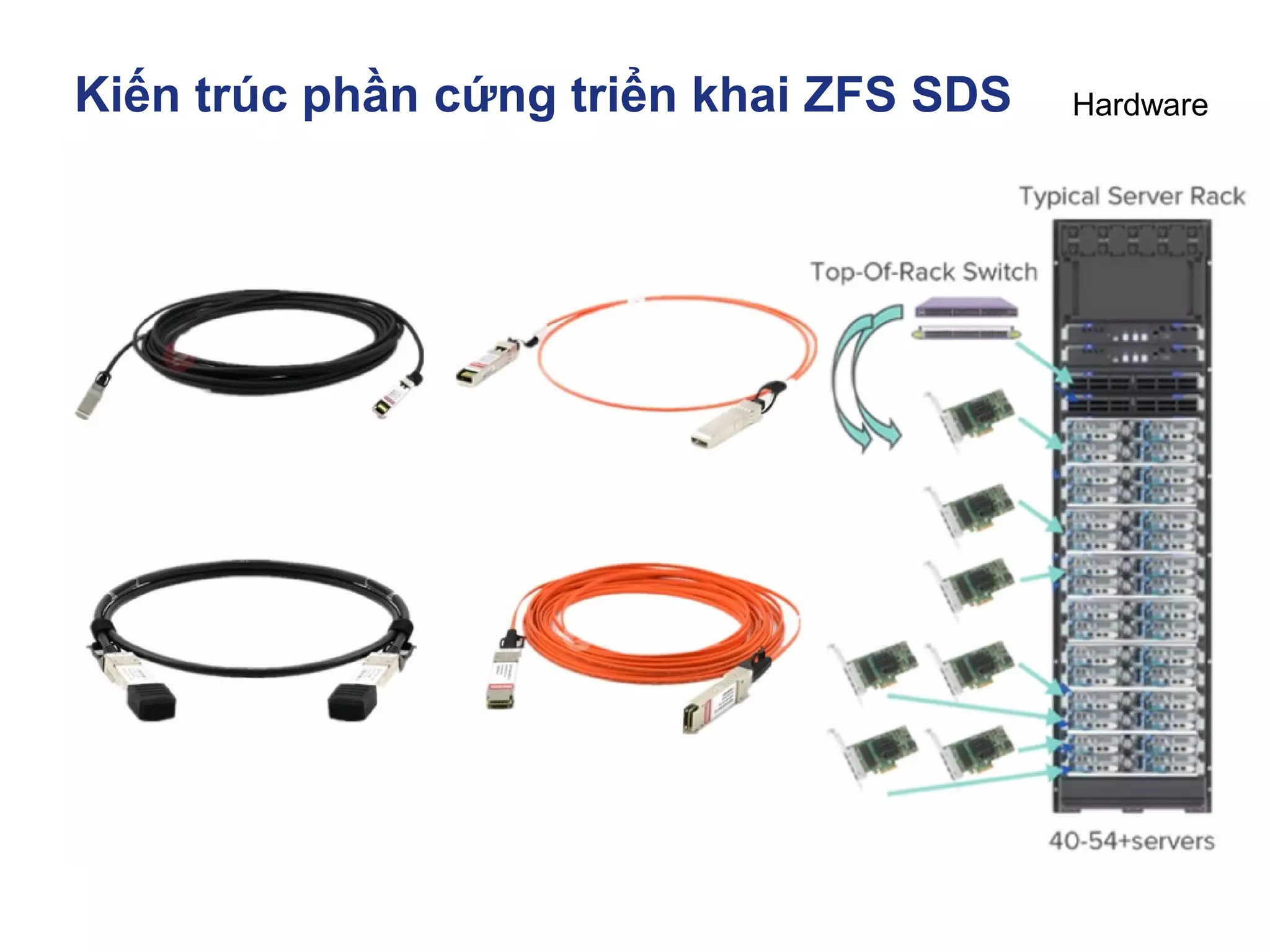

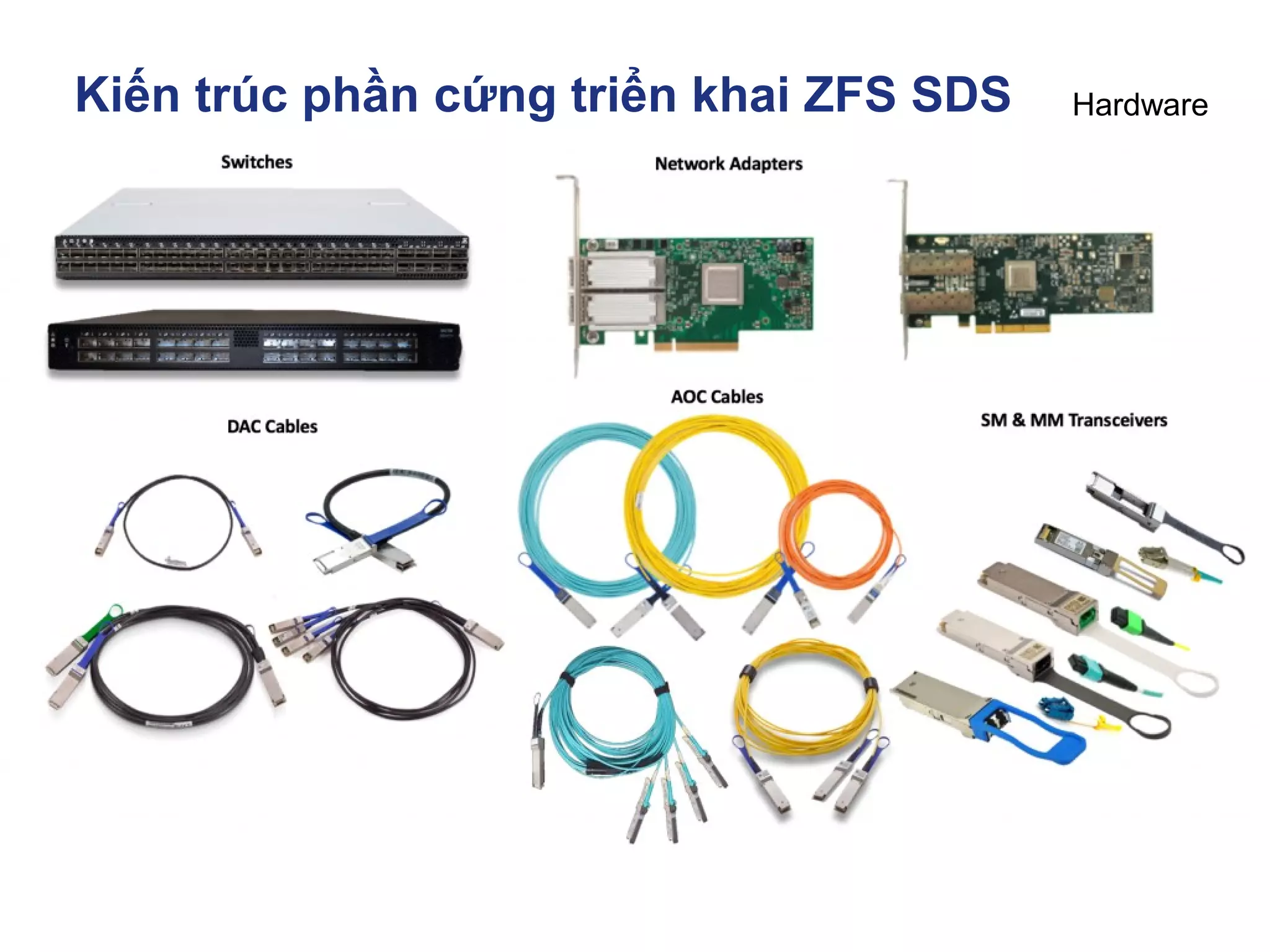

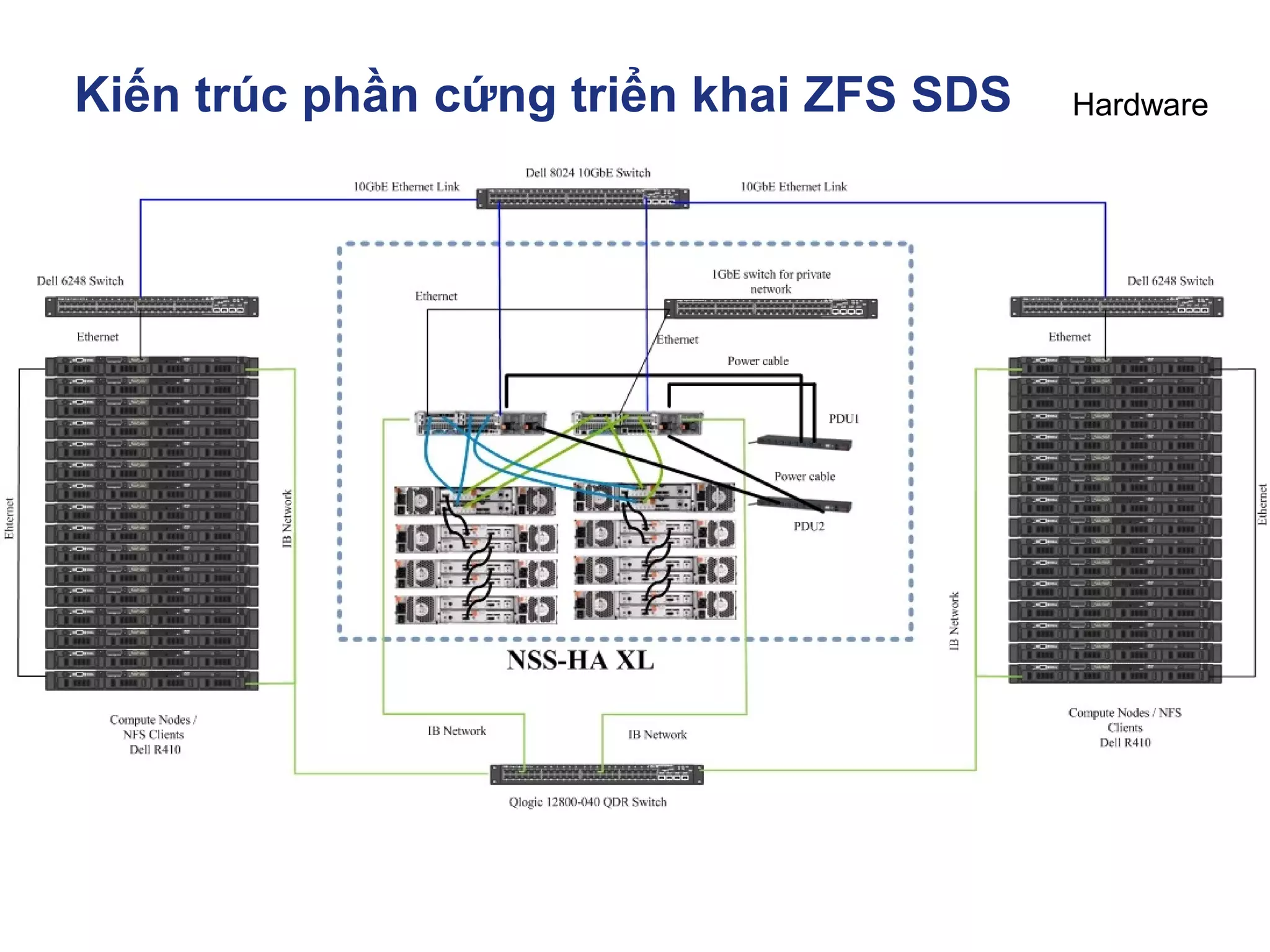

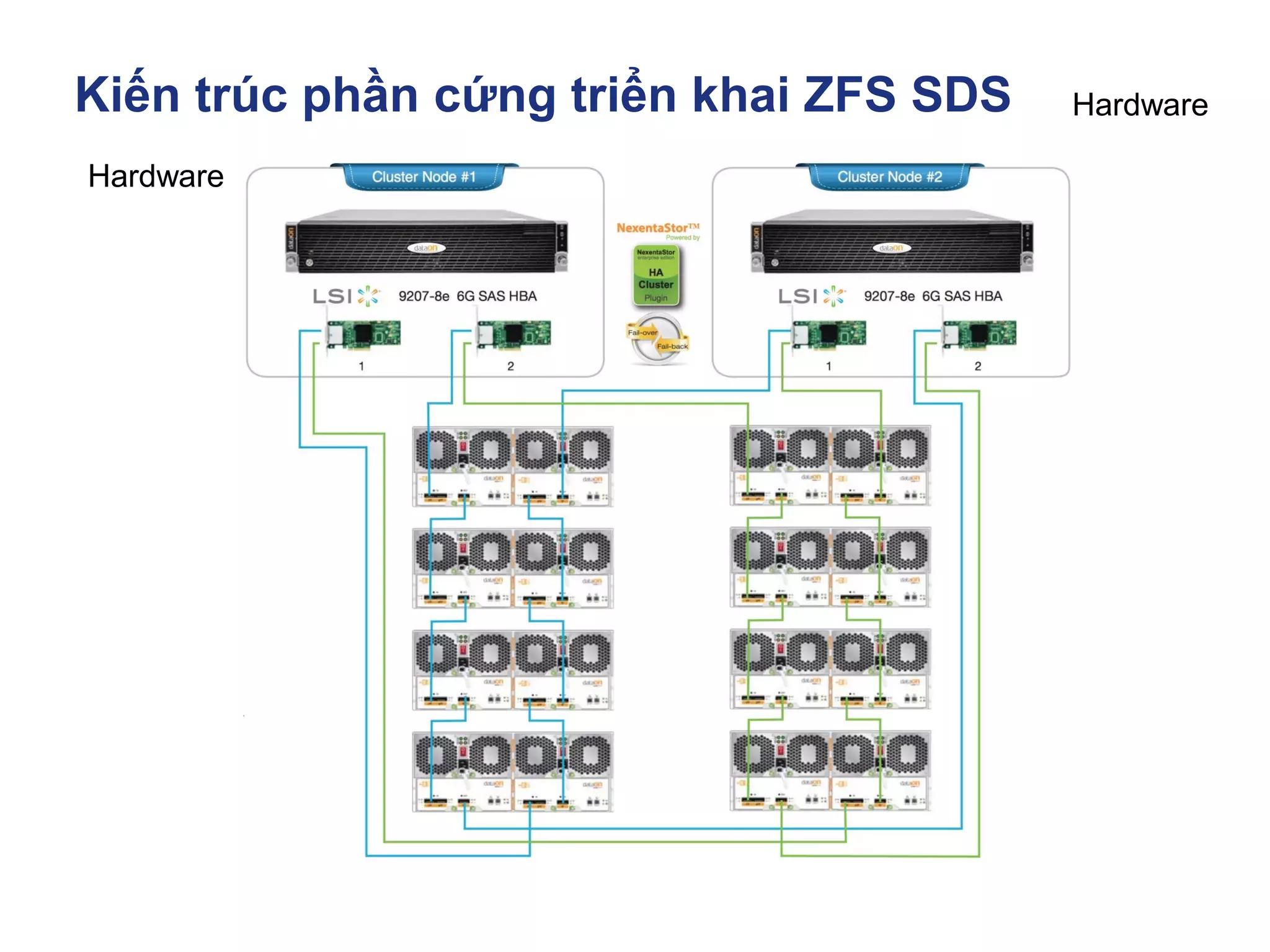

Kiến trúc phần cứng triển khai ZFS SDS Hardware

Hardware
Dell PowerVault MD1200
Hardware

Hardware
Tham khảo thêm tại
http://www.qdpma.com/storage/directattach.html
Hiểu rõ các thuật ngữ DAS, NAS, SAN, Storage
SAS, NL-SAS, FC HBA, SAS HBA, SAS Expander
Hardware
https://www.high-availability.com/docs/Quickstart-ZFS-Cluster/
https://arstechnica.com/information-technology/2020/05/zfs-101-understanding-zfs-
storage-and-performance/

https://arstechnica.com/information-technology/2020/05/zfs-101-understanding-zfs-storage-and-performance/
https://www.youtube.com/watch?v=tDacjrSCeq4
Các yêu cầu bảo vệ vật lý hệ thống lưu trữ zfs
- Hệ thống nguồn đảm báo cấp liên tục, không gián đoạn
- Hệ thống làm mát phải đúng chuẩn chiều gió và đủ độ lạnh
- Các khay đĩa nên có nắp lưới và có khóa hoặc bắt vít
- Các disk và cable được dán lable đủ thông tin khi cần tìm chính xác vị trí
- Việc tăng nhiệt hoặc quá nhiệt với hệ thống lưu trữ làm giảm tuổi thọ disk
- Việc quá nhiệt của hệ thống khay đĩa thời gian dài có thể fail disk đồng loạt
- Môi trường quá nhiều rung động cũng ảnh hưởng đến đọc ghi tuổi thọ
đầu đọc của ổ cứng quay HDD

Kiến trúc pool disk trên ZFS Storage
Raid0 tác dụng tăng tốc và tăng dung lượng lưu
trữ của hệ thống đĩa, Raid0 với 2 ổ đĩa có thể
tăng lên khoảng 150% so với ổ đơng
Chỉ dùng cho mục đích riêng, không dùng cho
production
Có khả năng mất dữ liệu bất cứ lúc nào khi có 1
đĩa fail, performance giảm khi có 1 ổ chạy chậm

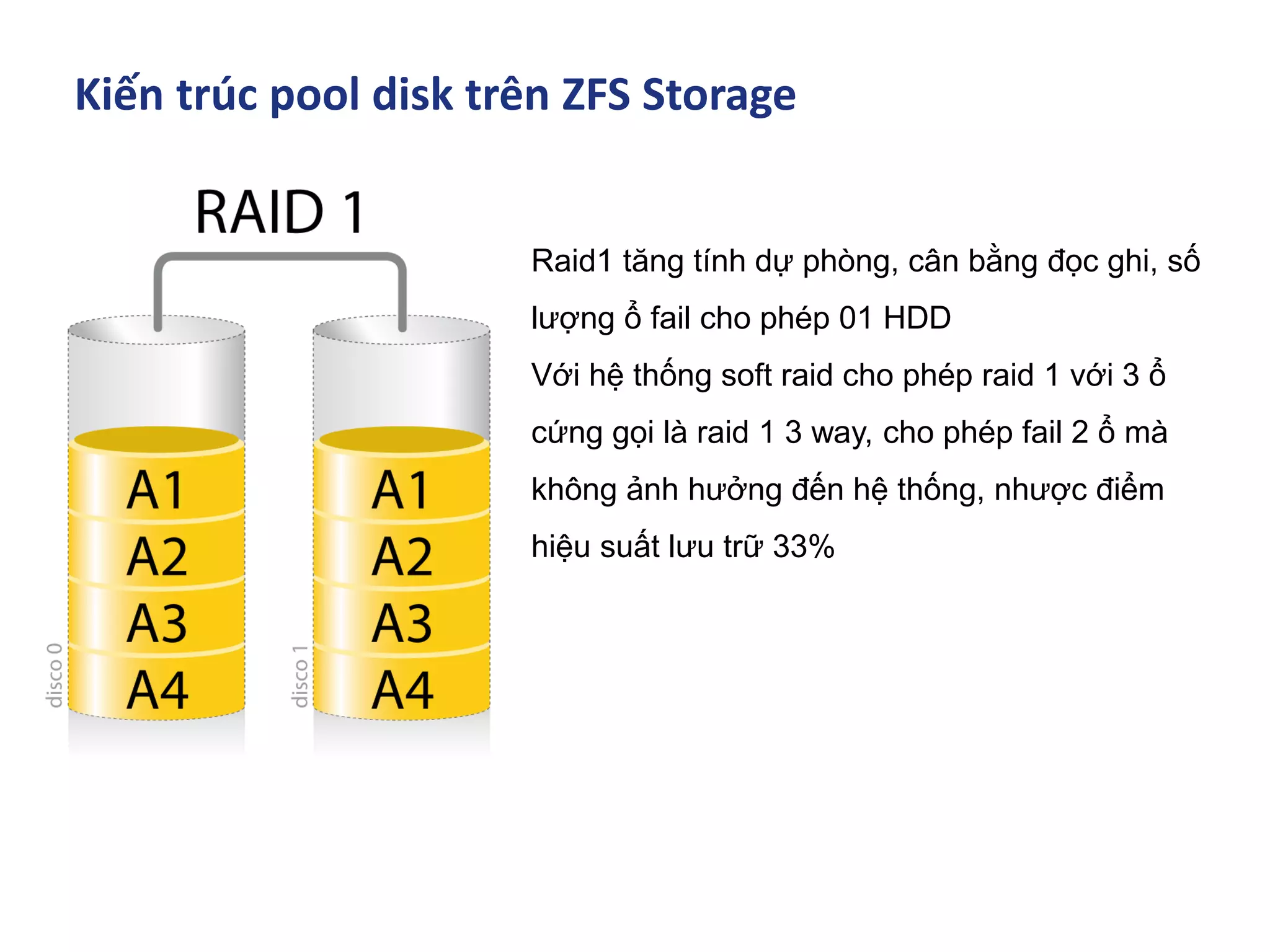

Raid1 tăng tính dự phòng, cân bằng đọc ghi, số
lượng ổ fail cho phép 01 HDD
Với hệ thống soft raid cho phép raid 1 với 3 ổ
cứng gọi là raid 1 3 way, cho phép fail 2 ổ mà
không ảnh hưởng đến hệ thống, nhược điểm
hiệu suất lưu trữ 33%

Raid1+0 kết hợp 2 loại raid 1 và raid
0, tăng performance và tính dự phòng
Với hệ thống softraid có hỗ trợ raid 10
3way

Raid 5 được tính toán parity trước khi lưu dữ liệu lên ổ cứng, dữ liệu và parity
được phân bố đều trên tất cả các ổ. Tối thiểu 03 ổ khởi tạo raid5, cho fail 1 ổ

Raid 50 có các đặc điểm của raid5 và tăng performance

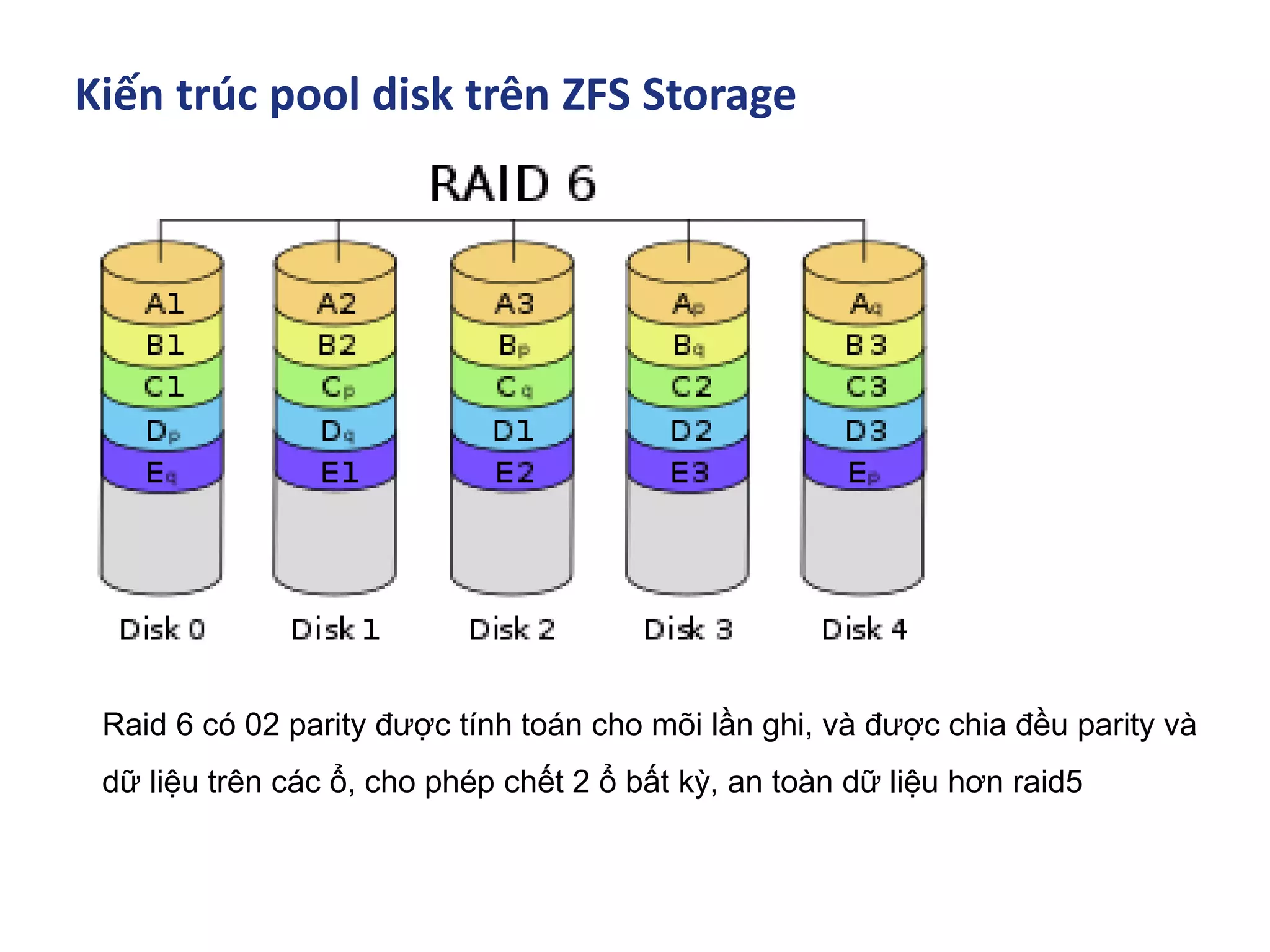

Raid 6 có 02 parity được tính toán cho mõi lần ghi, và được chia đều parity và
dữ liệu trên các ổ, cho phép chết 2 ổ bất kỳ, an toàn dữ liệu hơn raid5

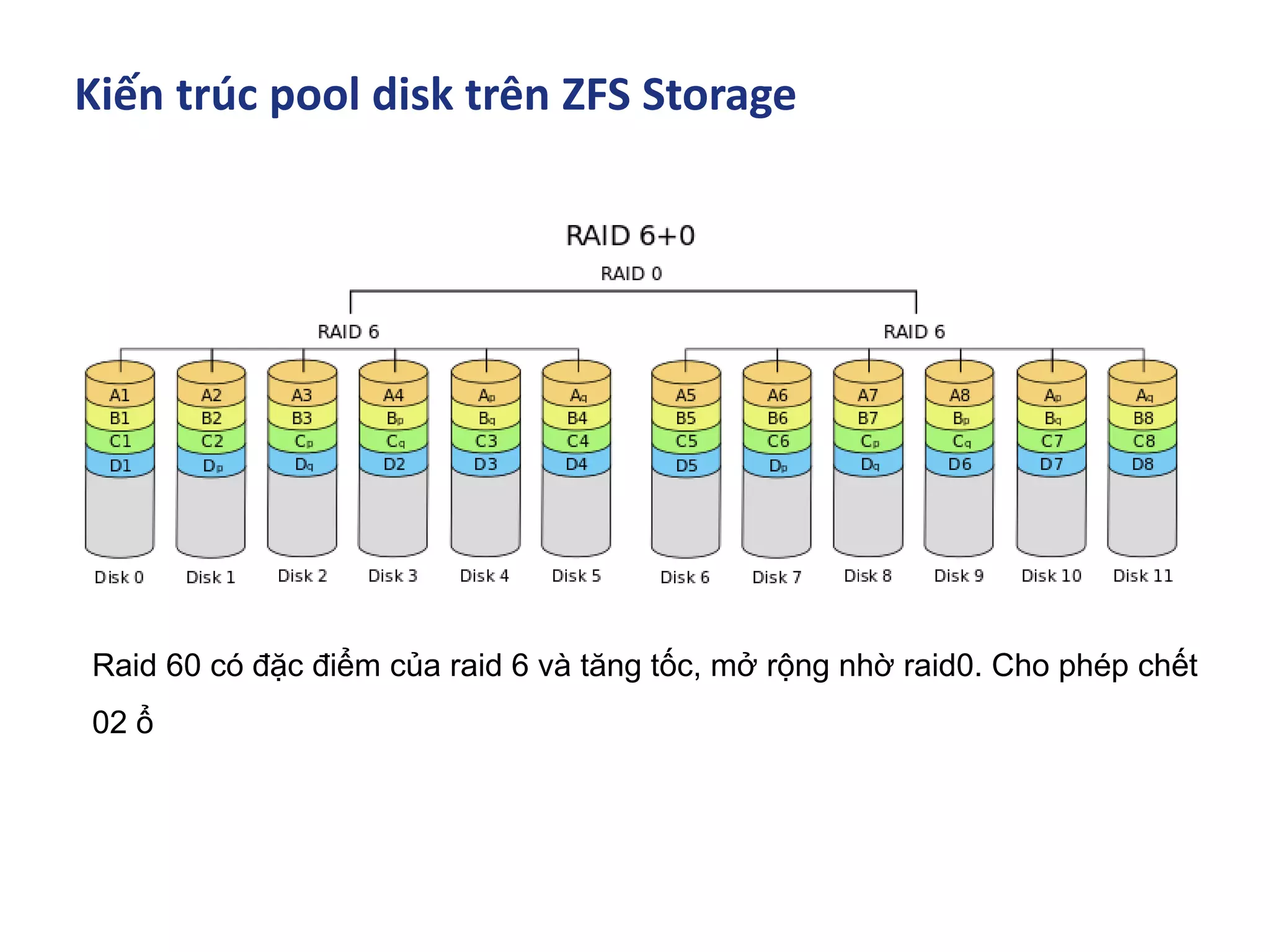

Raid 60 có đặc điểm của raid 6 và tăng tốc, mở rộng nhờ raid0. Cho phép chết
02 ổ

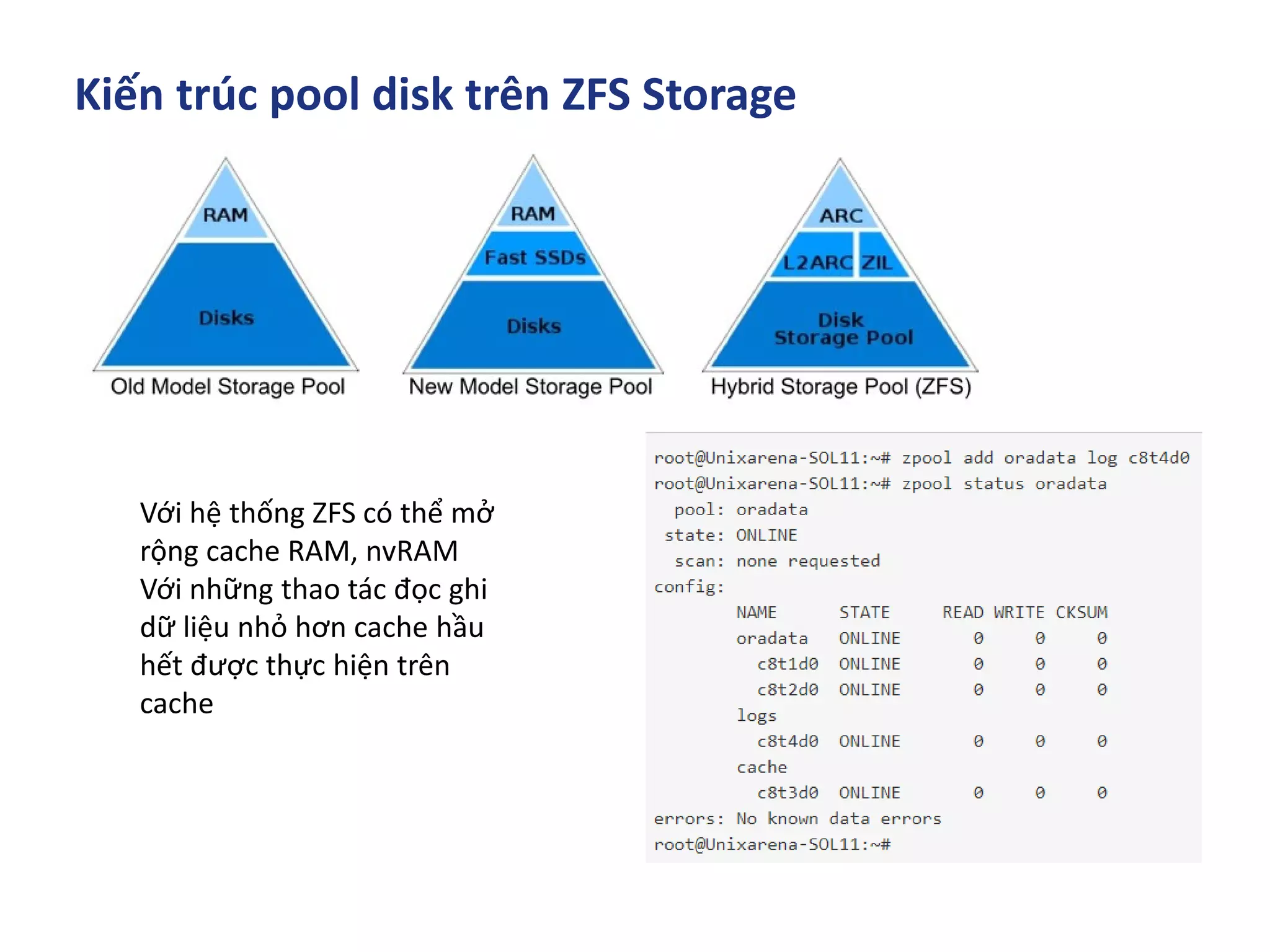

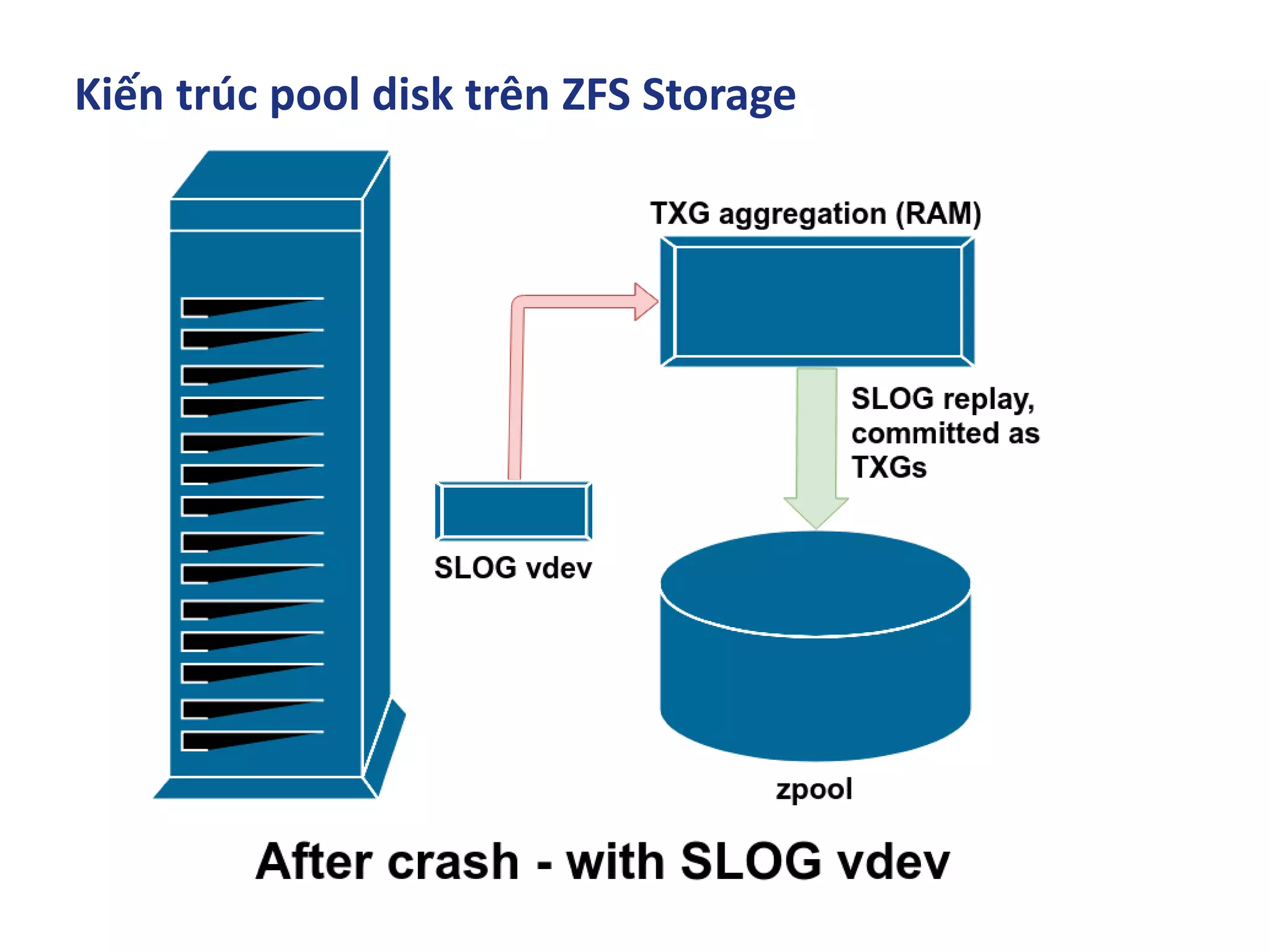

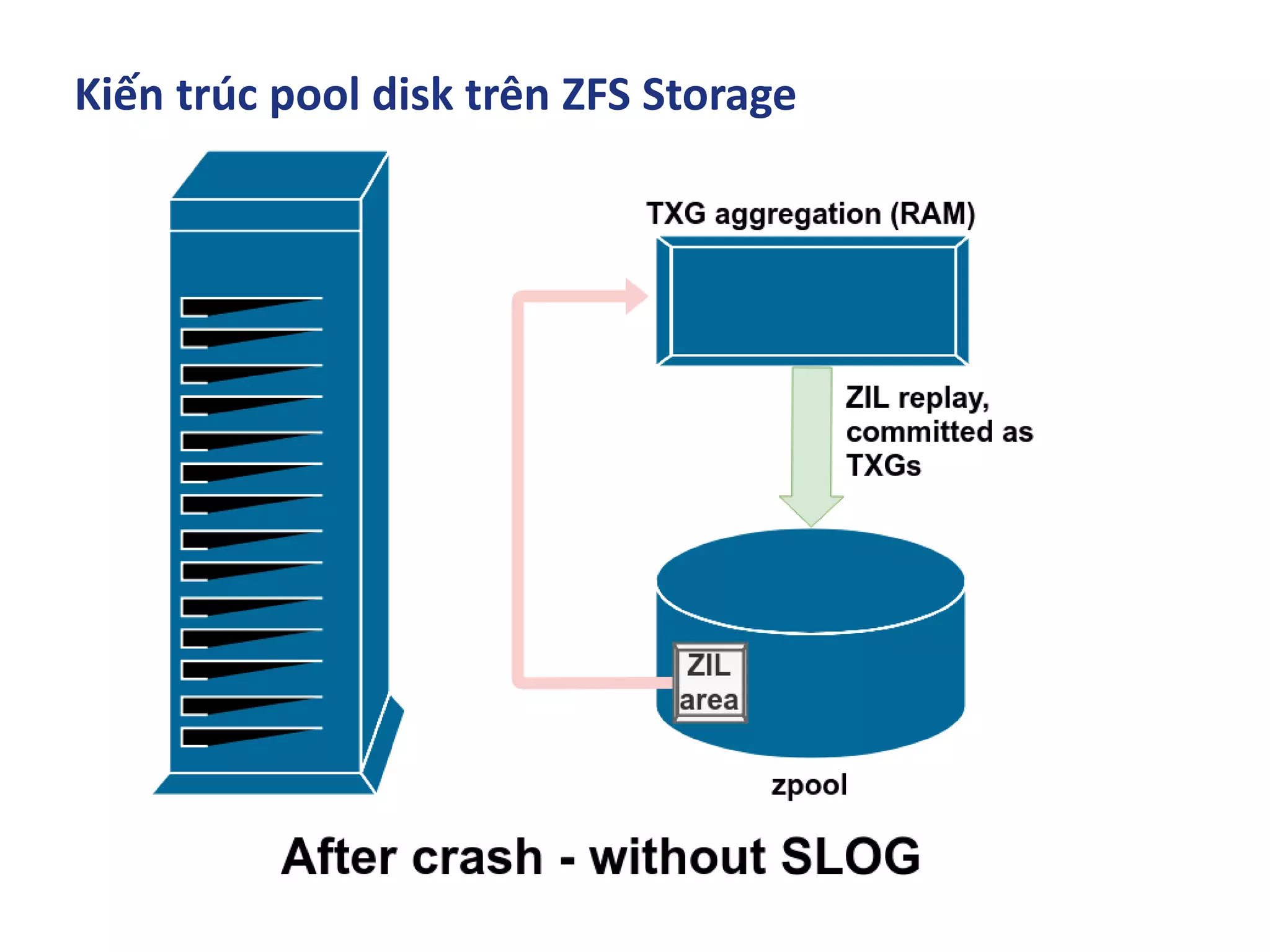

Với hệ thống ZFS có thể mở
rộng cache RAM, nvRAM
Với những thao tác đọc ghi
dữ liệu nhỏ hơn cache hầu
hết được thực hiện trên
cache

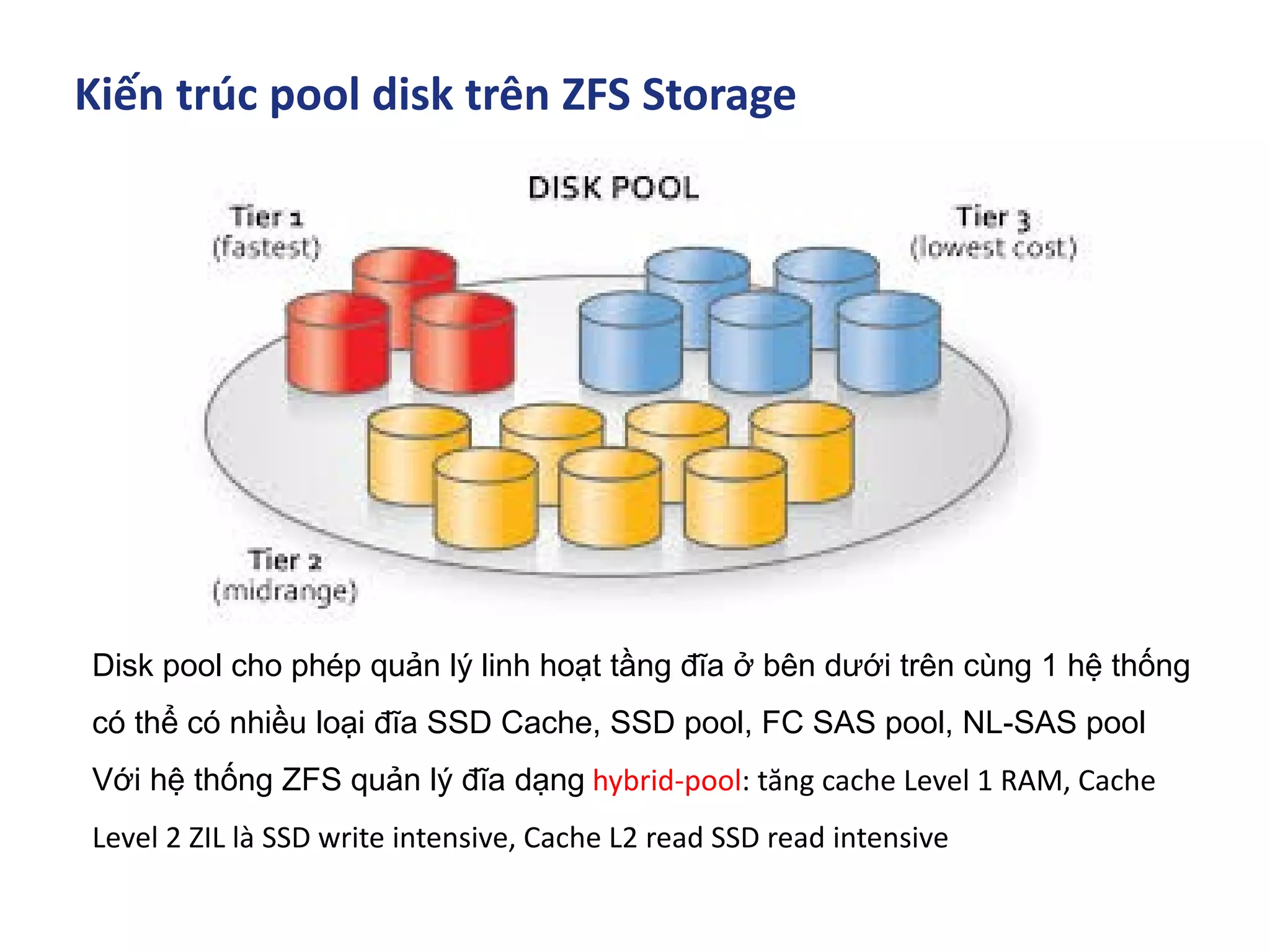

Disk pool cho phép quản lý linh hoạt tầng đĩa ở bên dưới trên cùng 1 hệ thống
có thể có nhiều loại đĩa SSD Cache, SSD pool, FC SAS pool, NL-SAS pool

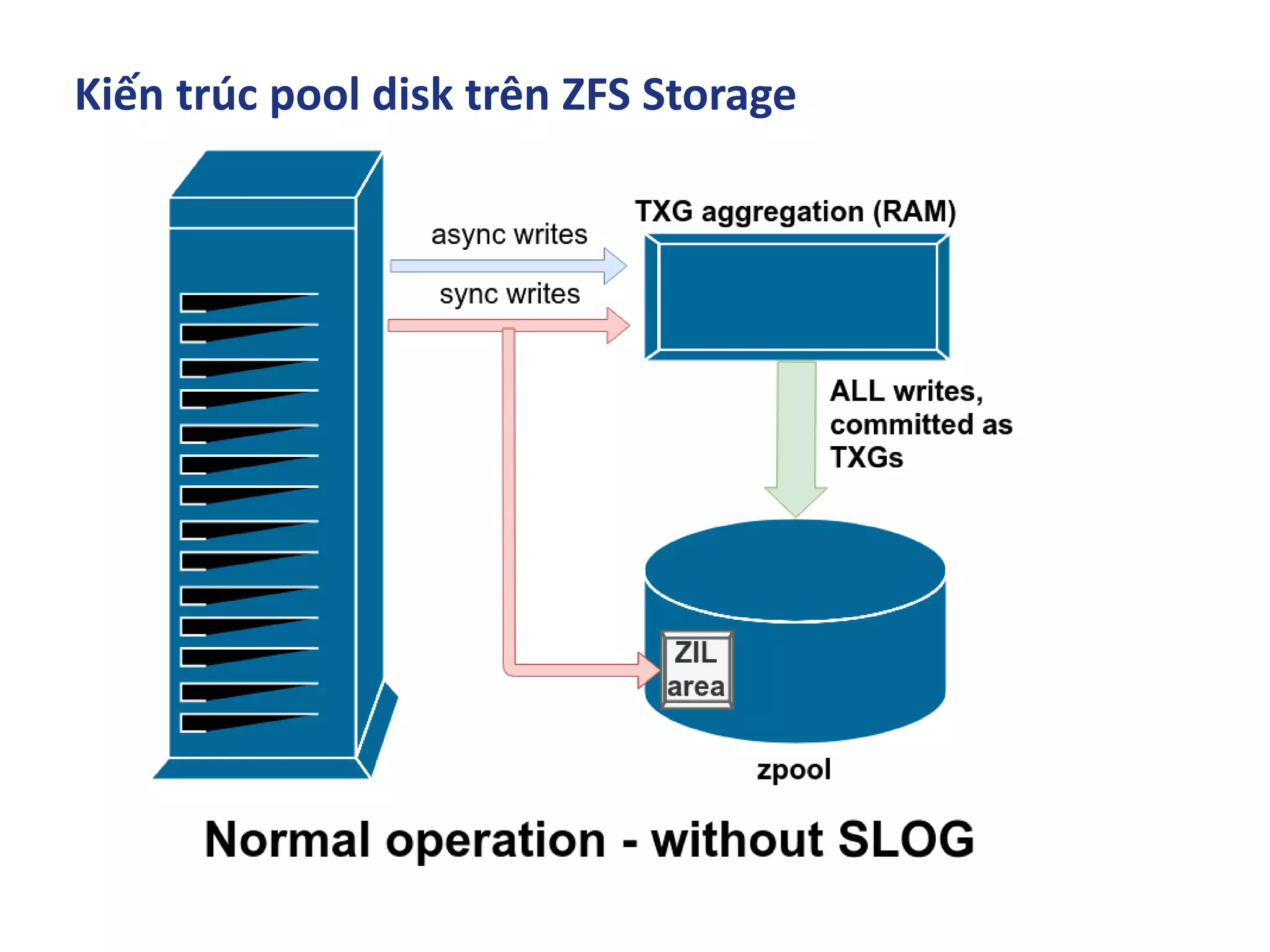

Với hệ thống ZFS quản lý đĩa dạng hybrid-pool: tăng cache Level 1 RAM, Cache
Level 2 ZIL là SSD write intensive, Cache L2 read SSD read intensive

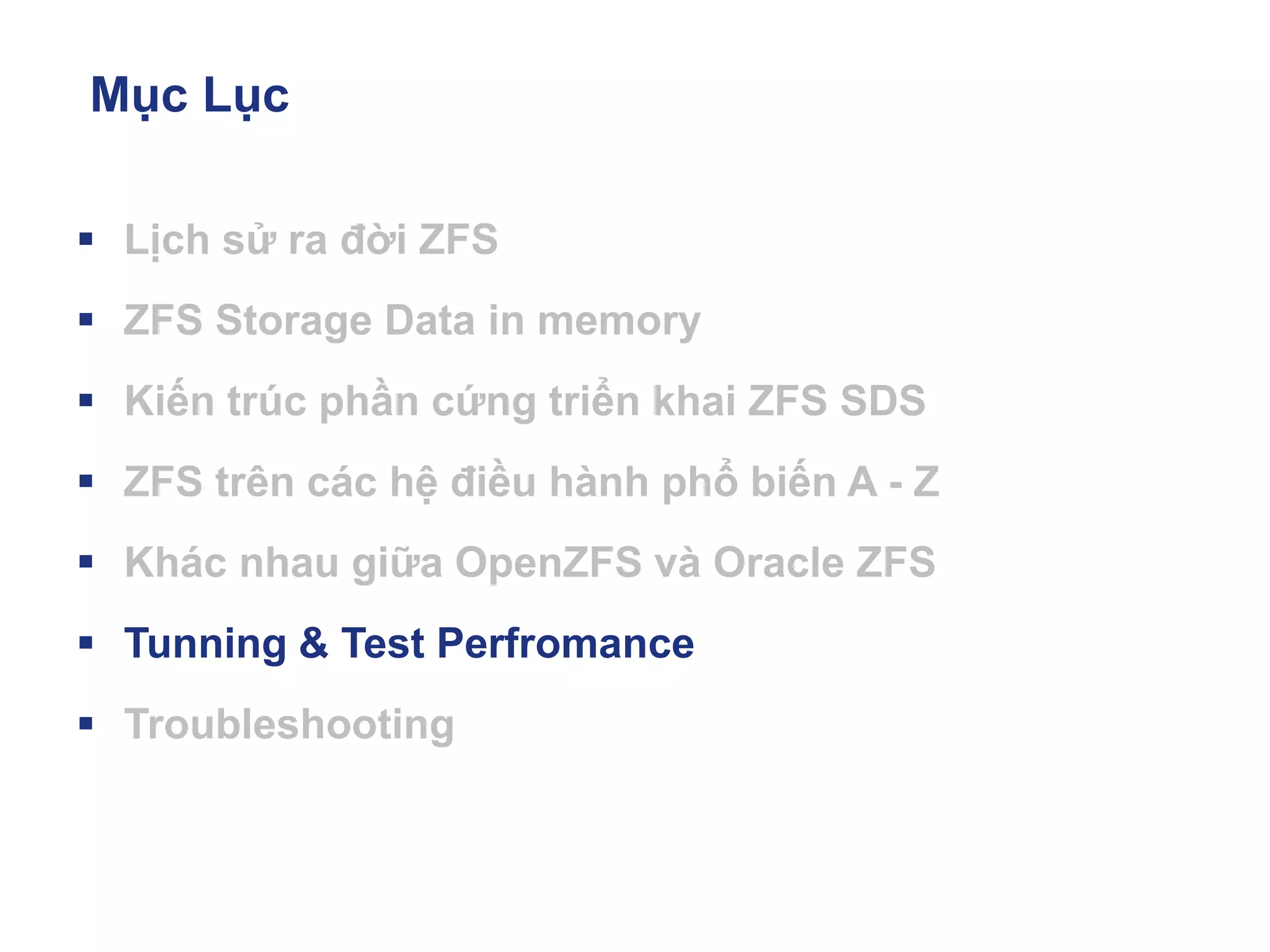

Mục Lục
▪ ZFS Cache - Data in memory
▪ Kiến trúc pool trên ZFS Storage
▪ Troubleshooting

ZFS trên các hệ điều hành phổ biến A - Z

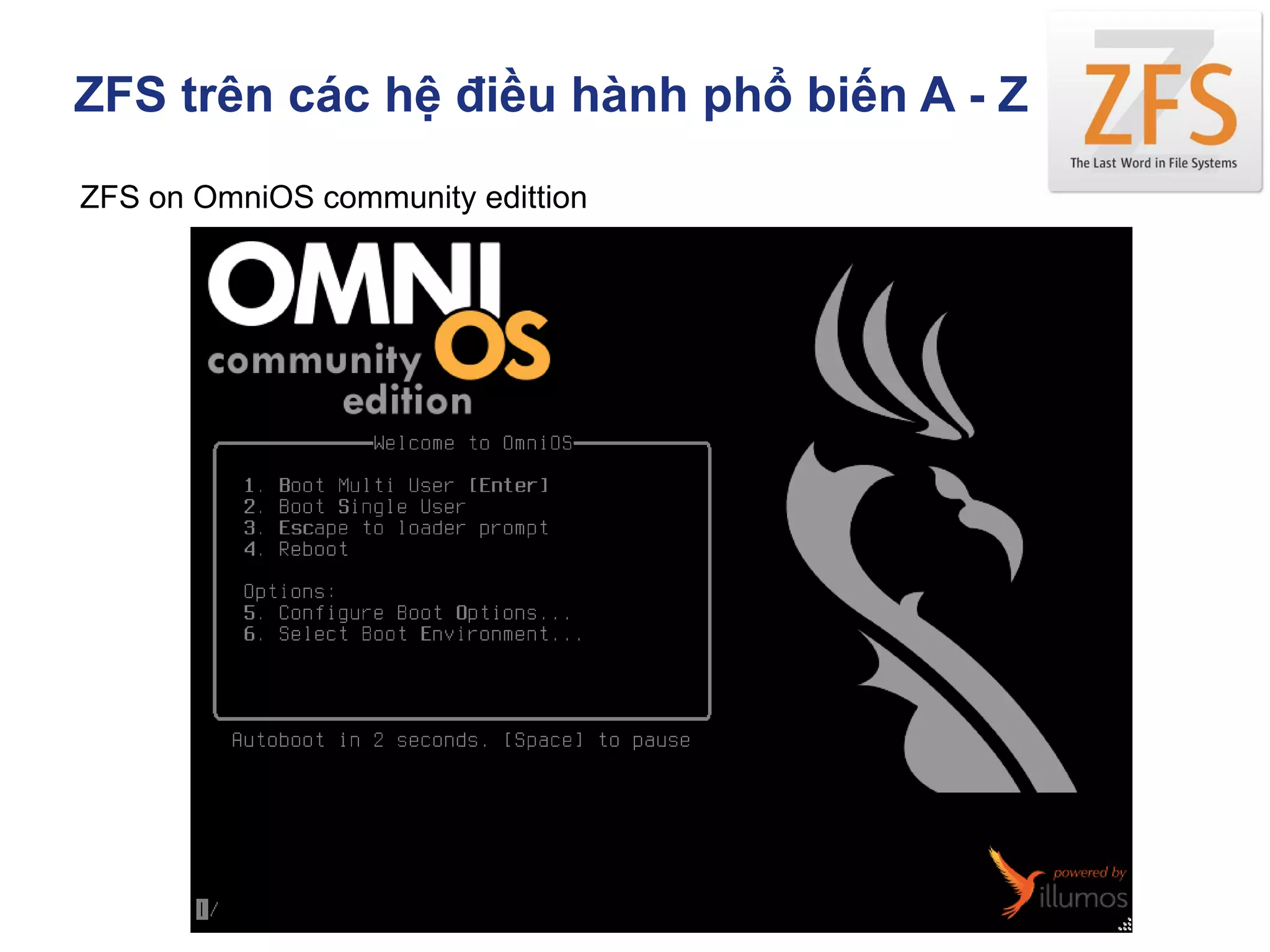

ZFS on OmniOS community edittion

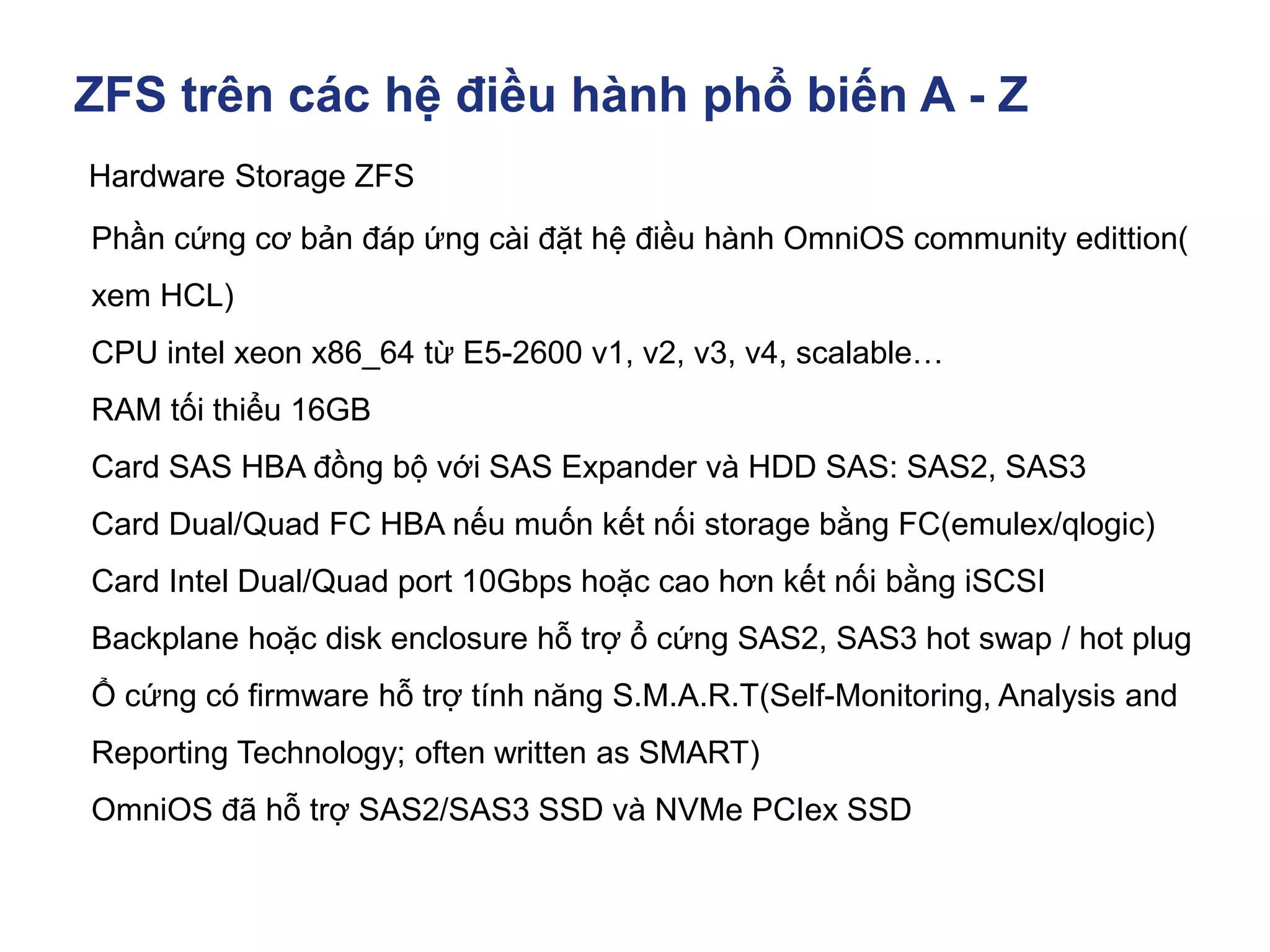

Hardware Storage ZFS
Phần cứng cơ bản đáp ứng cài đặt hệ điều hành OmniOS community edittion(
xem HCL)
CPU intel xeon x86_64 từ E5-2600 v1, v2, v3, v4, scalable…
RAM tối thiểu 16GB
Card SAS HBA đồng bộ với SAS Expander và HDD SAS: SAS2, SAS3
Card Dual/Quad FC HBA nếu muốn kết nối storage bằng FC(emulex/qlogic)
Card Intel Dual/Quad port 10Gbps hoặc cao hơn kết nối bằng iSCSI
Backplane hoặc disk enclosure hỗ trợ ổ cứng SAS2, SAS3 hot swap / hot plug
Ổ cứng có firmware hỗ trợ tính năng S.M.A.R.T(Self-Monitoring, Analysis and
Reporting Technology; often written as SMART)
OmniOS đã hỗ trợ SAS2/SAS3 SSD và NVMe PCIex SSD

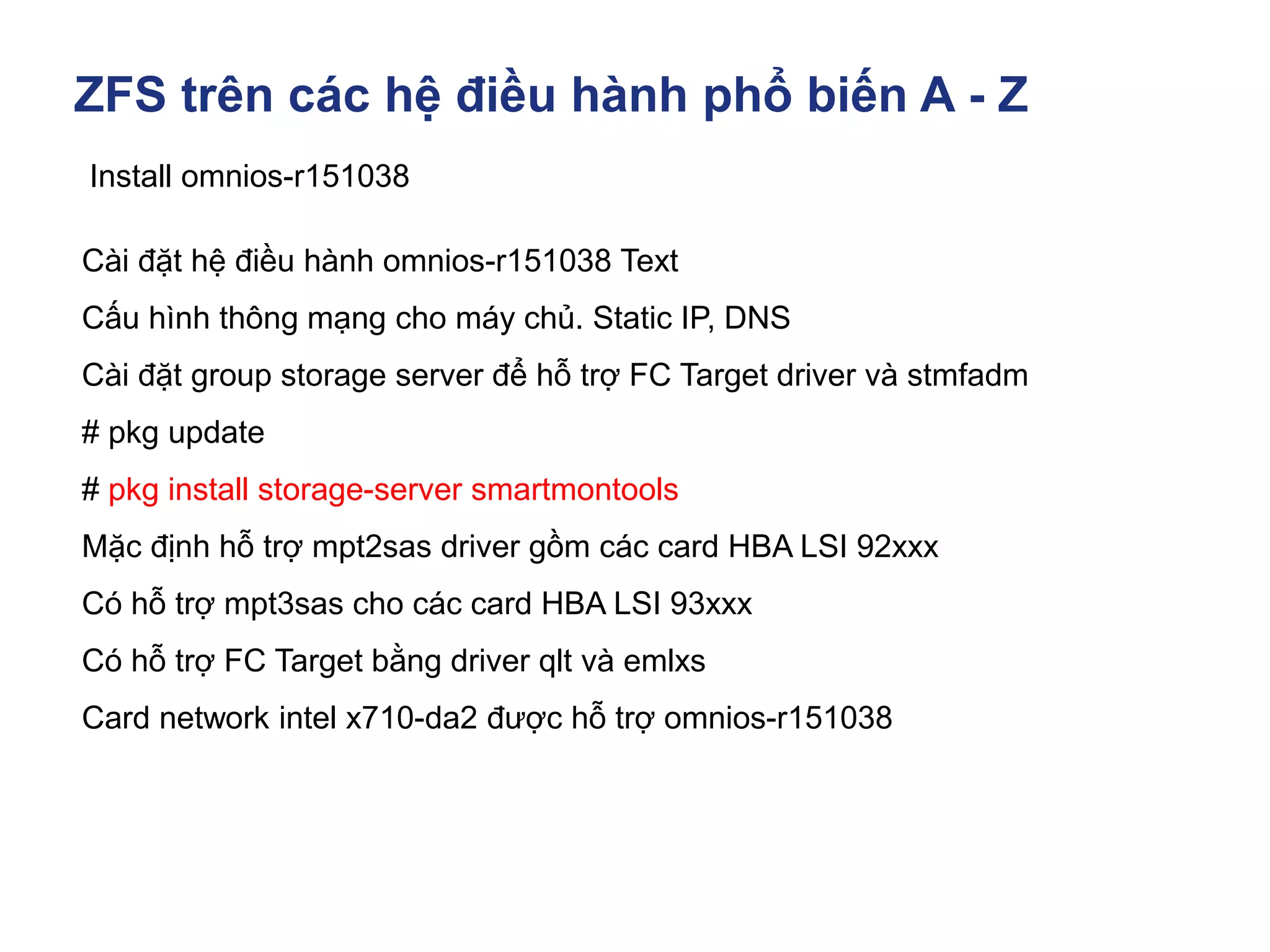

Install omnios-r151038
Cài đặt hệ điều hành omnios-r151038 Text
Cấu hình thông mạng cho máy chủ. Static IP, DNS
Cài đặt group storage server để hỗ trợ FC Target driver và stmfadm
# pkg update
# pkg install storage-server smartmontools
Mặc định hỗ trợ mpt2sas driver gồm các card HBA LSI 92xxx
Có hỗ trợ mpt3sas cho các card HBA LSI 93xxx
Có hỗ trợ FC Target bằng driver qlt và emlxs
Card network intel x710-da2 được hỗ trợ omnios-r151038

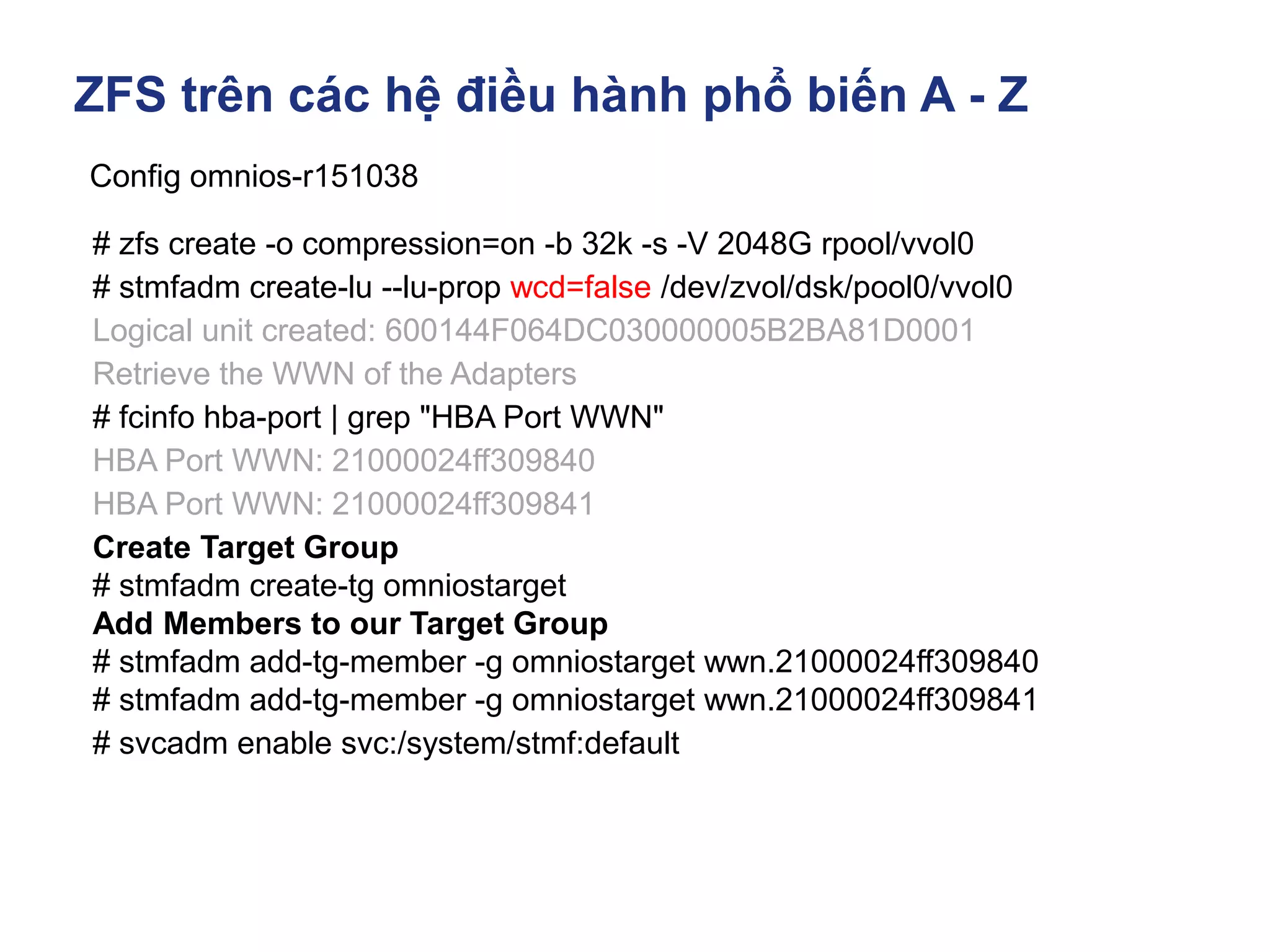

Config omnios-r151038

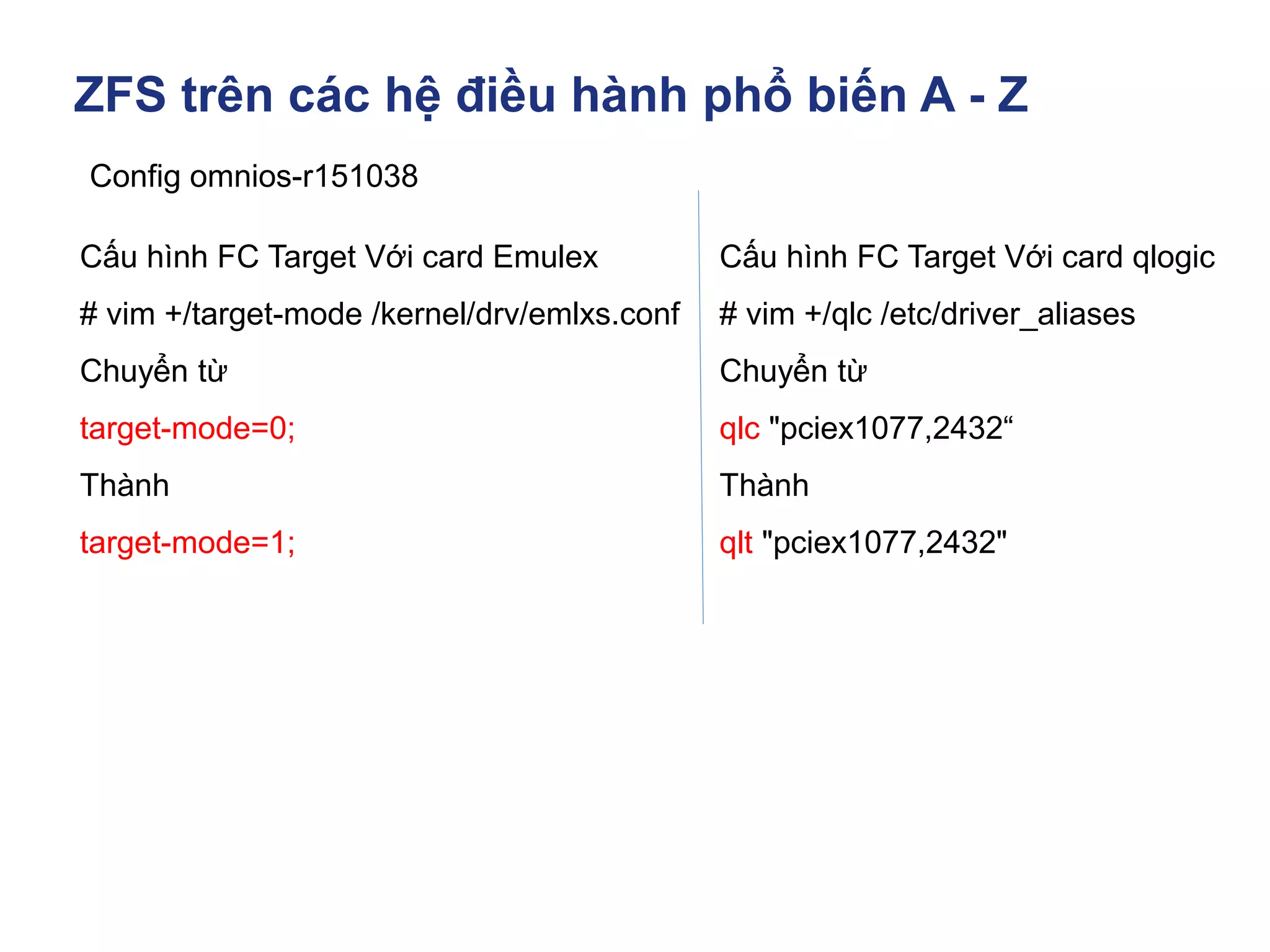

Cấu hình FC Target Với card Emulex
# vim +/target-mode /kernel/drv/emlxs.conf
Chuyển từ
target-mode=0;
Thành
target-mode=1;
Cấu hình FC Target Với card qlogic
# vim +/qlc /etc/driver_aliases
Chuyển từ
qlc "pciex1077,2432“
Thành
qlt "pciex1077,2432"

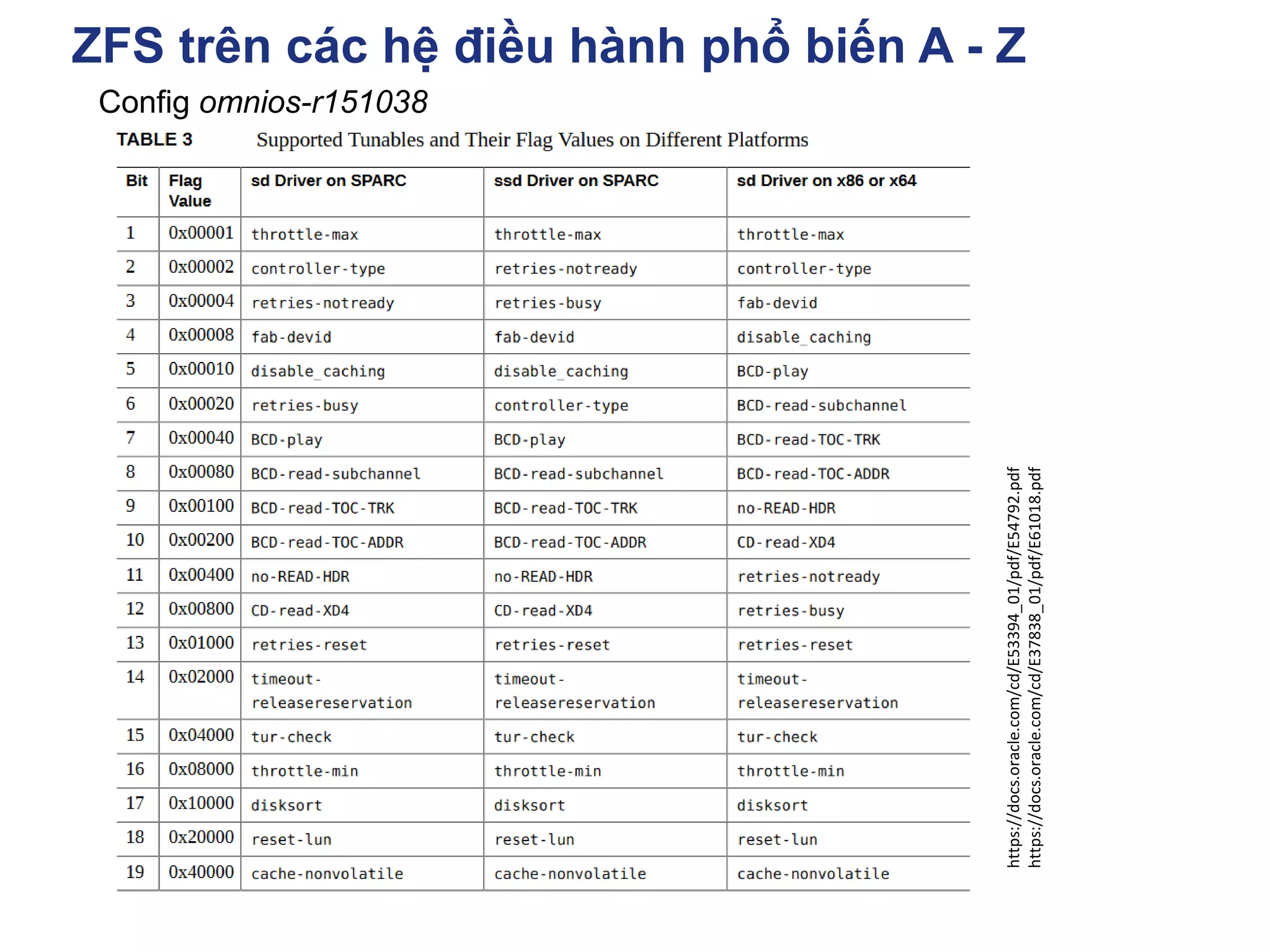

https://docs.oracle.com/cd/E53394_01/pdf/E54792.pdf

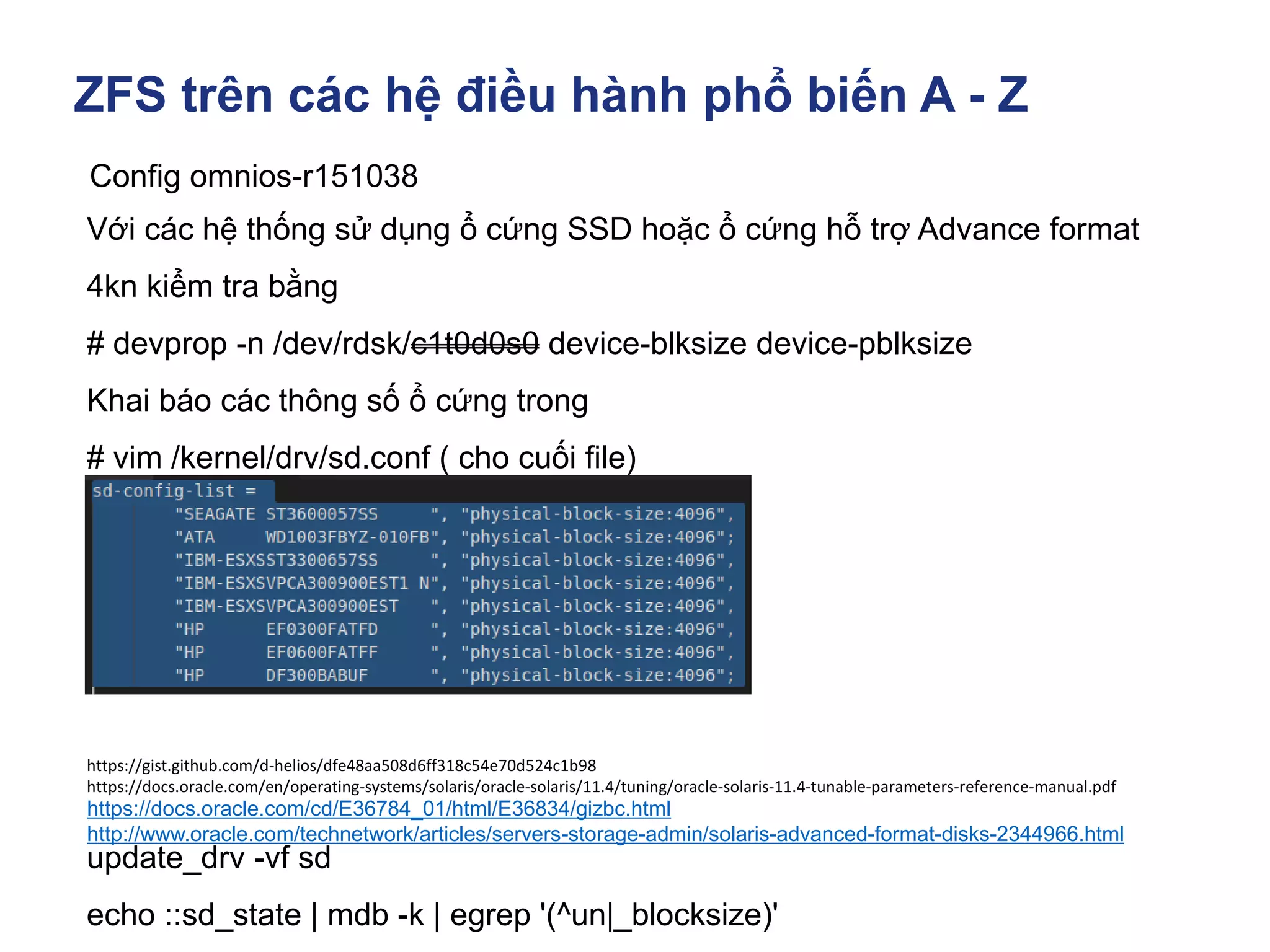

Với các hệ thống sử dụng ổ cứng SSD hoặc ổ cứng hỗ trợ Advance format
4kn kiểm tra bằng
# devprop -n /dev/rdsk/c1t0d0s0 device-blksize device-pblksize
Khai báo các thông số ổ cứng trong
# vim /kernel/drv/sd.conf ( cho cuối file)
update_drv -vf sd
echo ::sd_state | mdb -k | egrep '(^un|_blocksize)'
https://docs.oracle.com/cd/E36784_01/html/E36834/gizbc.html
http://www.oracle.com/technetwork/articles/servers-storage-admin/solaris-advanced-format-disks-2344966.html
https://gist.github.com/d-helios/dfe48aa508d6ff318c54e70d524c1b98
https://docs.oracle.com/en/operating-systems/solaris/oracle-solaris/11.4/tuning/oracle-solaris-11.4-tunable-parameters-reference-manual.pdf

Lấy các tham số zfs trên họ solaris
# echo ::zfs_params | mdb-k
Điều chỉnh các tham số cho hệ thống và zfs được khai báo trong
# vim /etc/system
set zfs:zfs_default_bs=0xc >> ashift = 12( 4kn, 2^12)
set zfs:zfs_write_limit_override=0x30000000 >> tăng theo RAM
set zfs:zfs_write_limit_max=0x200000000 >> tăng theo RAM
set zfs:arc_reduce_dnlc_percent=0x2 >> giảm theo RAM, 2 khi 192GB
set zfs:zfs_no_write_throttle=0x1 >> on/off
set zfs:zfs_nocacheflush=0x1 >> không xóa cache
set zfs:zfs_vdev_cache_bshift=0xd >> 2^13 = 16k
set zfs:zfs_vdev_cache_size=0x1000000 >> 10MB
set zfs:zfs_vdev_aggregation_limit=0x20000 >> mặc định 32k
set zfs:zfs_unmap_ignore_size=0 >> disable unmap
zvol_unmap_enabled = 0x1
zvol_unmap_sync_enabled = 0x0

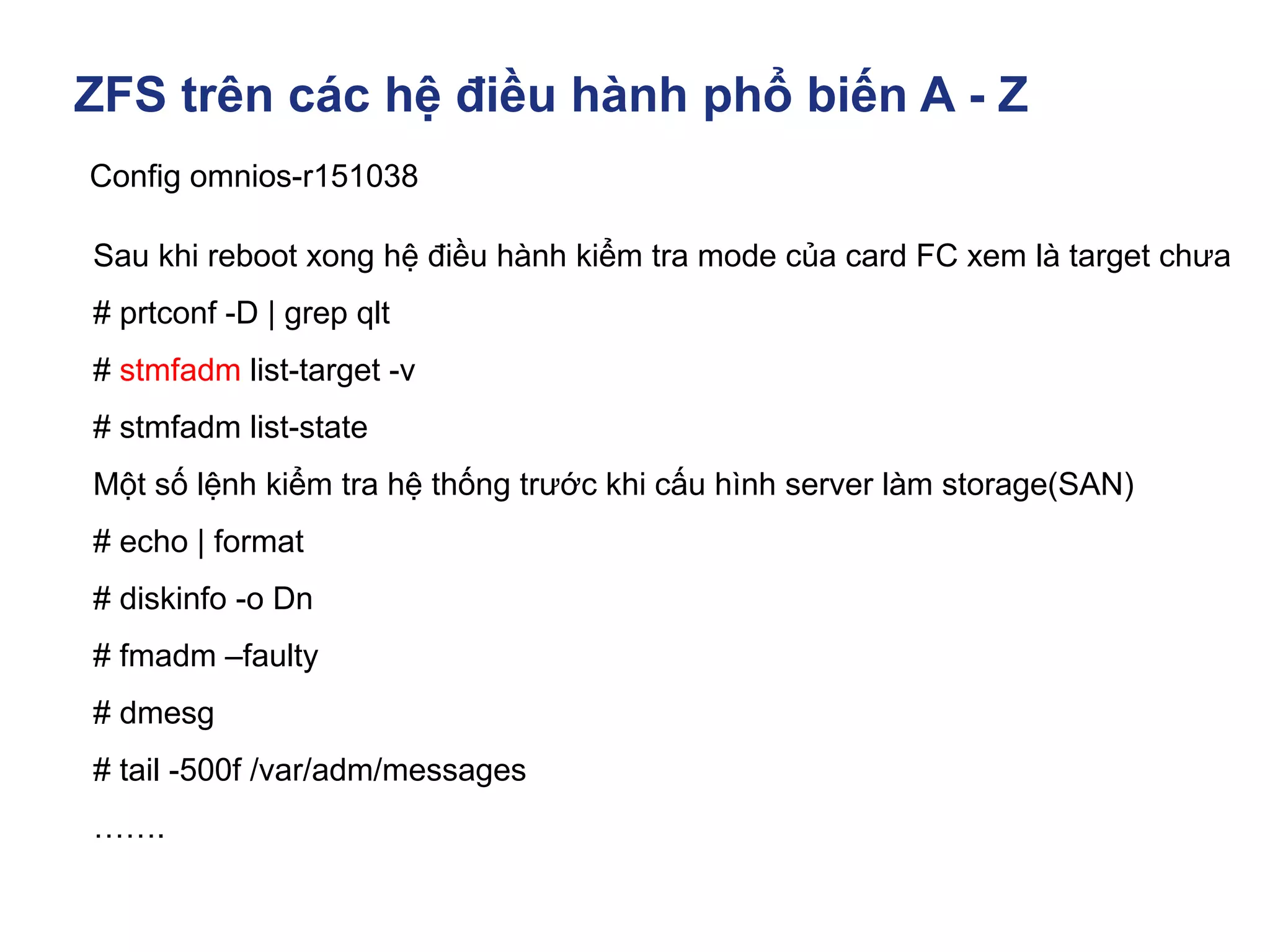

Sau khi reboot xong hệ điều hành kiểm tra mode của card FC xem là target chưa
# prtconf -D | grep qlt
# stmfadm list-target -v
# stmfadm list-state
Một số lệnh kiểm tra hệ thống trước khi cấu hình server làm storage(SAN)
# echo | format
# diskinfo -o Dn
# fmadm –faulty
# dmesg
# tail -500f /var/adm/messages
…….

# zpool create pool0 raidz2 c2t0d0 c2t0d1 c2t0d2 c2t0d3 c2t0d4
c2t0d5 c2t0d6 c2t0d7 c2t0d8 c2t0d9
# zpool export pool0
# zpool import pool0
# zfs set atime=off pool0
# zfs set compression=on pool0
# zfs set xattr=off pool0
# zfs get all pool0
# zpool status pool0

# zfs create -o compression=on -b 32k -s -V 2048G rpool/vvol0
# stmfadm create-lu --lu-prop wcd=false /dev/zvol/dsk/pool0/vvol0
Logical unit created: 600144F064DC030000005B2BA81D0001
Retrieve the WWN of the Adapters
# fcinfo hba-port | grep "HBA Port WWN"
HBA Port WWN: 21000024ff309840
HBA Port WWN: 21000024ff309841
Create Target Group
# stmfadm create-tg omniostarget
Add Members to our Target Group
# stmfadm add-tg-member -g omniostarget wwn.21000024ff309840
# stmfadm add-tg-member -g omniostarget wwn.21000024ff309841
# svcadm enable svc:/system/stmf:default

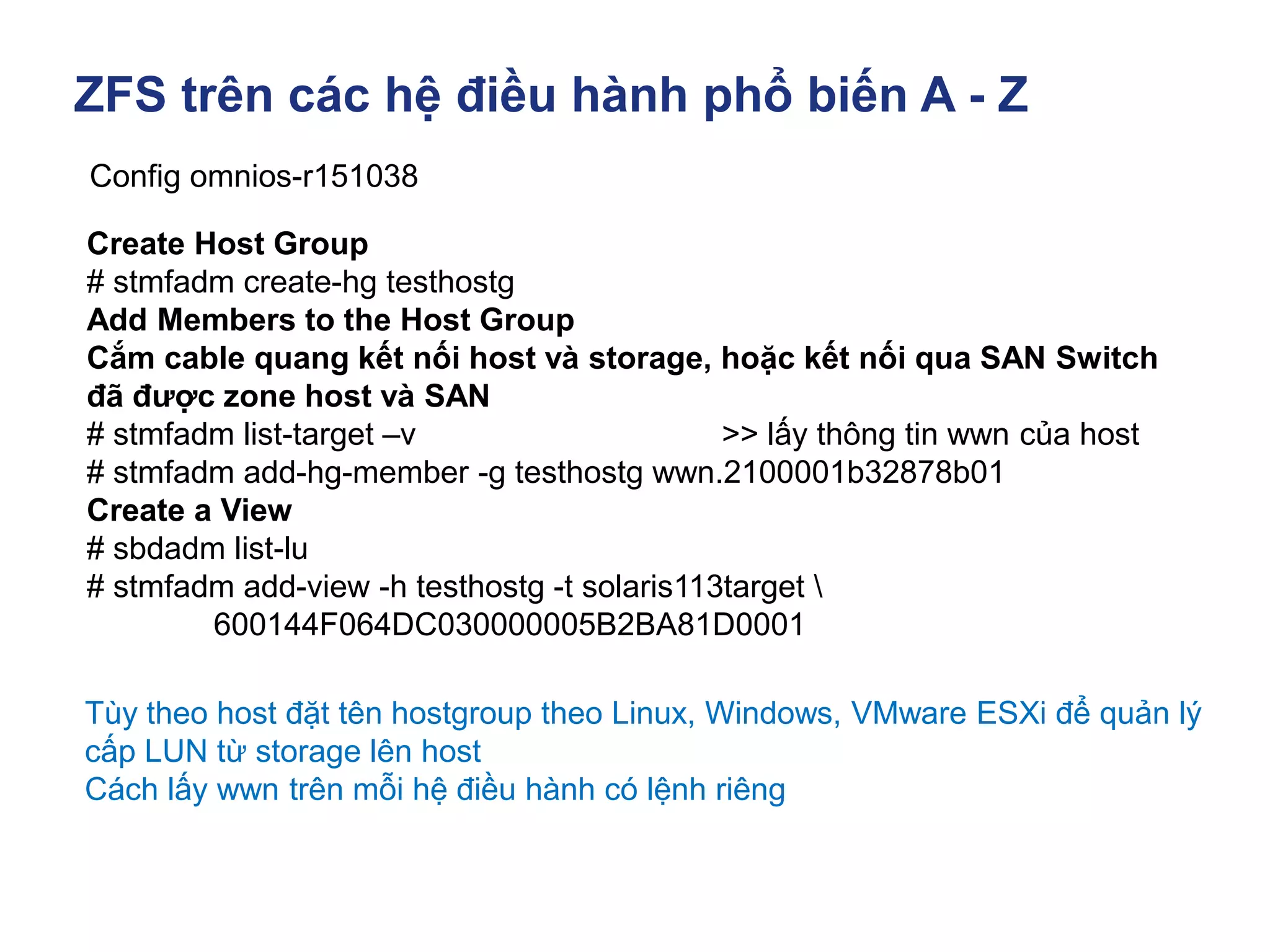

Create Host Group
# stmfadm create-hg testhostg
Add Members to the Host Group
Cắm cable quang kết nối host và storage, hoặc kết nối qua SAN Switch
đã được zone host và SAN
# stmfadm list-target –v >> lấy thông tin wwn của host
# stmfadm add-hg-member -g testhostg wwn.2100001b32878b01
Create a View
# sbdadm list-lu
# stmfadm add-view -h testhostg -t solaris113target
600144F064DC030000005B2BA81D0001
Tùy theo host đặt tên hostgroup theo Linux, Windows, VMware ESXi để quản lý
cấp LUN từ storage lên host
Cách lấy wwn trên mỗi hệ điều hành có lệnh riêng

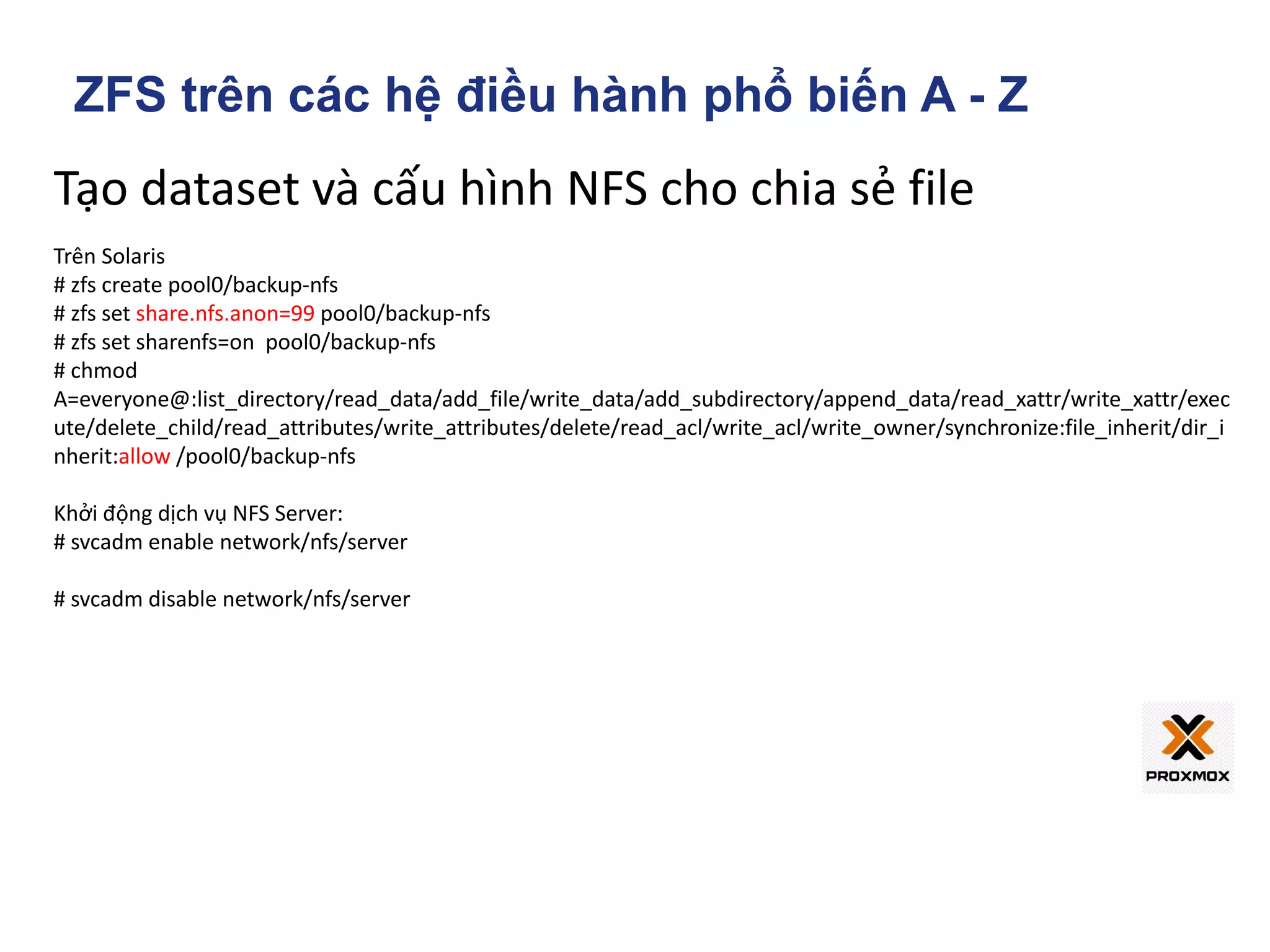

Tạo dataset và cấu hình NFS cho chia sẻ file
Trên Solaris
# zfs create pool0/backup-nfs
# zfs set share.nfs.anon=99 pool0/backup-nfs
# zfs set sharenfs=on pool0/backup-nfs
# chmod
A=everyone@:list_directory/read_data/add_file/write_data/add_subdirectory/append_data/read_xattr/write_xattr/exec
ute/delete_child/read_attributes/write_attributes/delete/read_acl/write_acl/write_owner/synchronize:file_inherit/dir_i
nherit:allow /pool0/backup-nfs
Khởi động dịch vụ NFS Server:
# svcadm enable network/nfs/server
# svcadm disable network/nfs/server

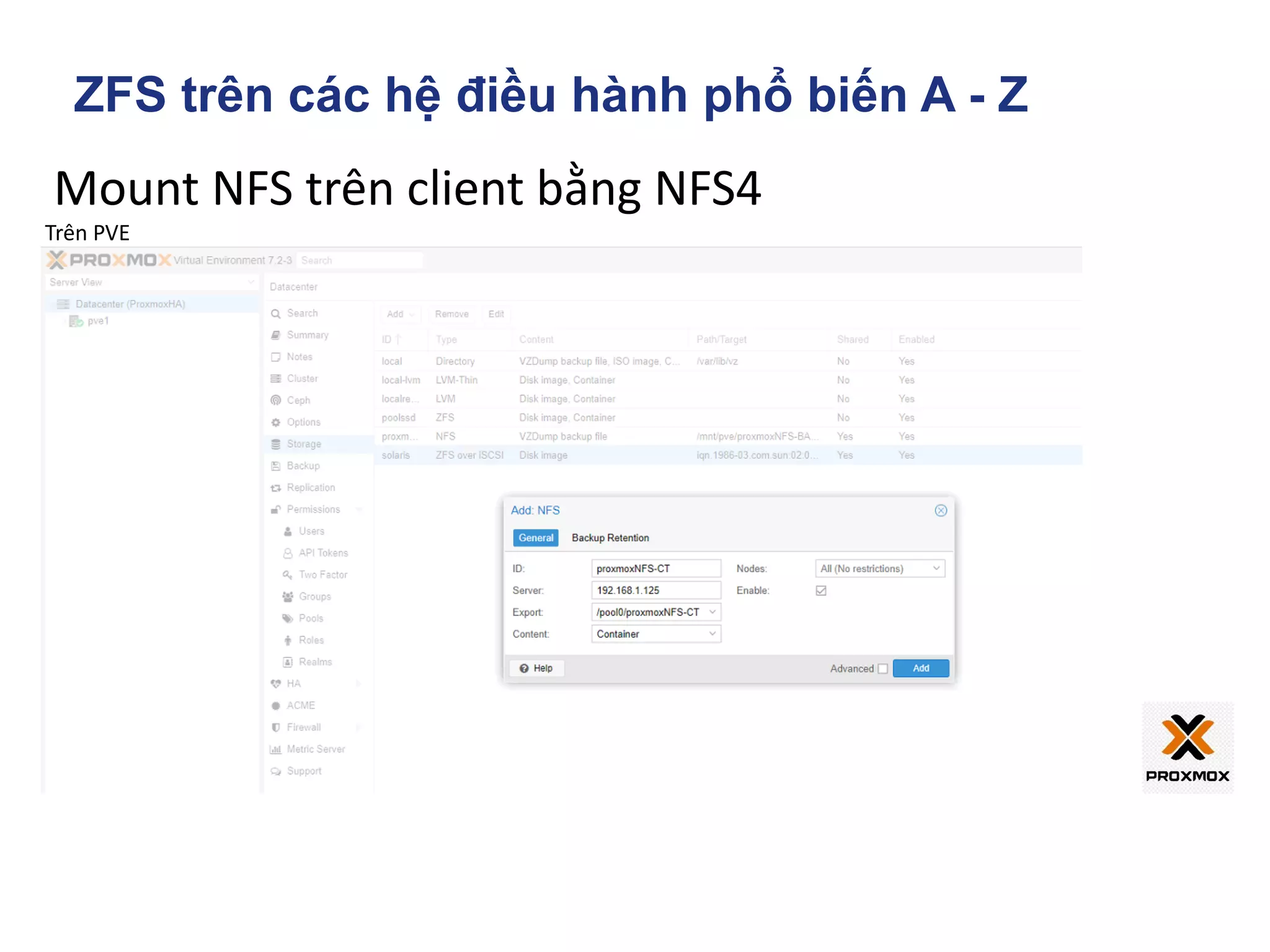

Mount NFS trên client bằng NFS4
Trên PVE

https://docs.oracle.com/cd/E86824_01/html/E54764/smartctl-1m.html

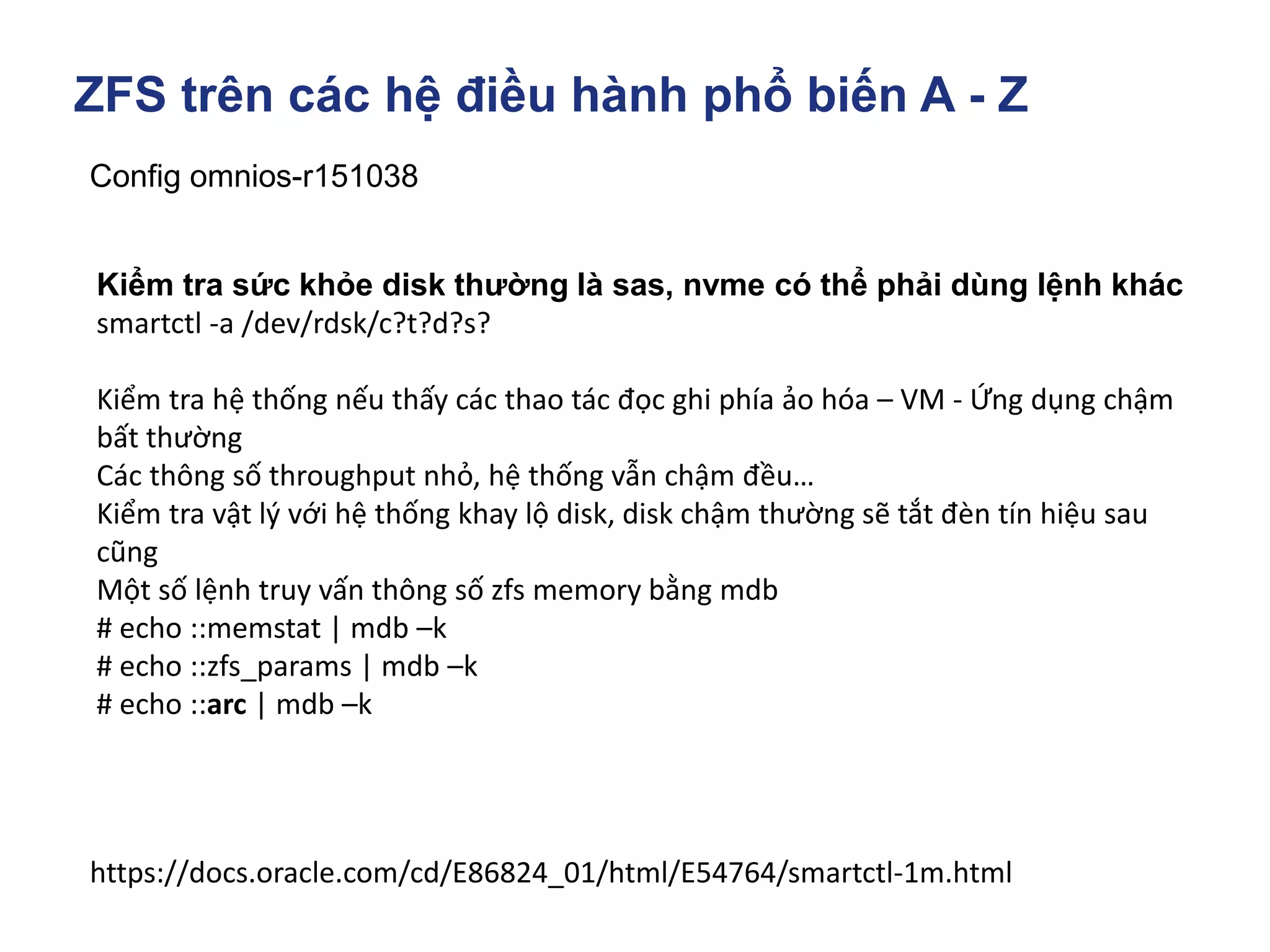

Kiểm tra sức khỏe disk thường là sas, nvme có thể phải dùng lệnh khác
smartctl -a /dev/rdsk/c?t?d?s?
Kiểm tra hệ thống nếu thấy các thao tác đọc ghi phía ảo hóa – VM - Ứng dụng chậm
bất thường
Các thông số throughput nhỏ, hệ thống vẫn chậm đều…
Kiểm tra vật lý với hệ thống khay lộ disk, disk chậm thường sẽ tắt đèn tín hiệu sau
cũng
Một số lệnh truy vấn thông số zfs memory bằng mdb
# echo ::memstat | mdb –k
# echo ::zfs_params | mdb –k
# echo ::arc | mdb –k

https://utcc.utoronto.ca/~cks/space/blog/solaris/ZFSScrubsOurSpeedup

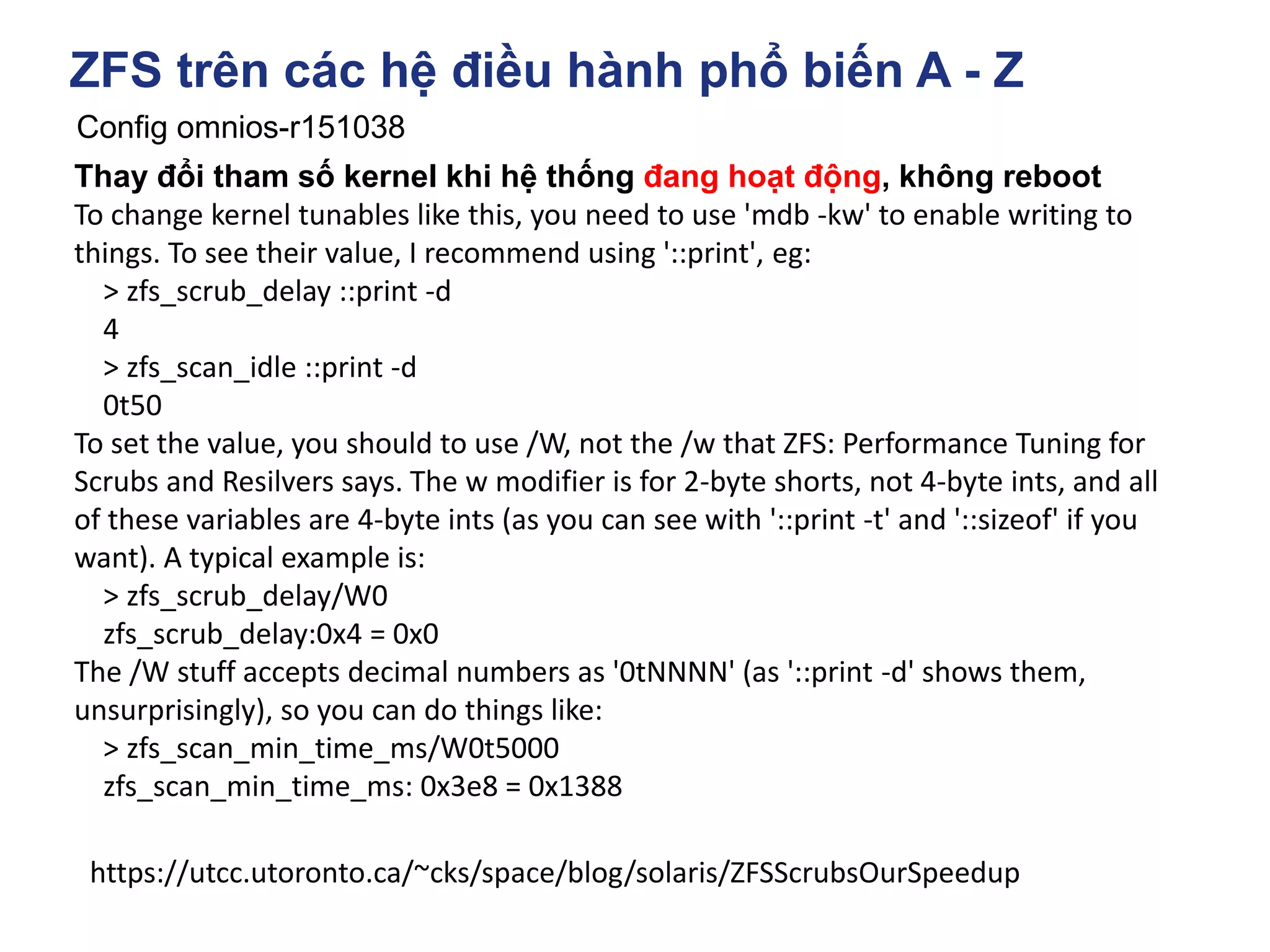

Thay đổi tham số kernel khi hệ thống đang hoạt động, không reboot
To change kernel tunables like this, you need to use 'mdb -kw' to enable writing to
things. To see their value, I recommend using '::print', eg:
> zfs_scrub_delay ::print -d
4
> zfs_scan_idle ::print -d
0t50
To set the value, you should to use /W, not the /w that ZFS: Performance Tuning for
Scrubs and Resilvers says. The w modifier is for 2-byte shorts, not 4-byte ints, and all
of these variables are 4-byte ints (as you can see with '::print -t' and '::sizeof' if you
want). A typical example is:
> zfs_scrub_delay/W0
zfs_scrub_delay:0x4 = 0x0
The /W stuff accepts decimal numbers as '0tNNNN' (as '::print -d' shows them,
unsurprisingly), so you can do things like:
> zfs_scan_min_time_ms/W0t5000
zfs_scan_min_time_ms: 0x3e8 = 0x1388

ZFS on Omniosce

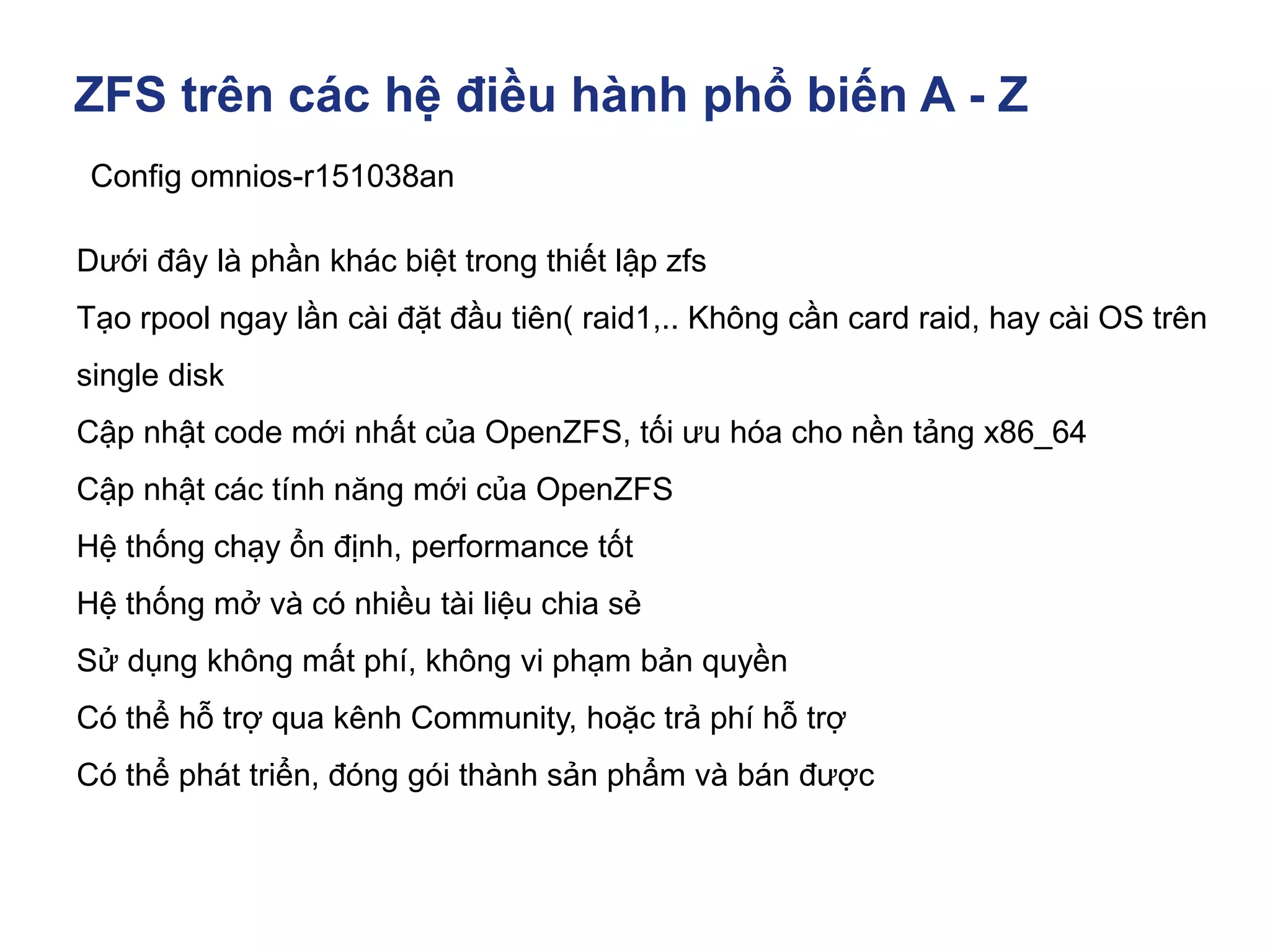

Config omnios-r151038an
Dưới đây là phần khác biệt trong thiết lập zfs
Tạo rpool ngay lần cài đặt đầu tiên( raid1,.. Không cần card raid, hay cài OS trên
single disk
Cập nhật code mới nhất của OpenZFS, tối ưu hóa cho nền tảng x86_64
Cập nhật các tính năng mới của OpenZFS
Hệ thống chạy ổn định, performance tốt
Hệ thống mở và có nhiều tài liệu chia sẻ
Sử dụng không mất phí, không vi phạm bản quyền
Có thể hỗ trợ qua kênh Community, hoặc trả phí hỗ trợ
Có thể phát triển, đóng gói thành sản phẩm và bán được

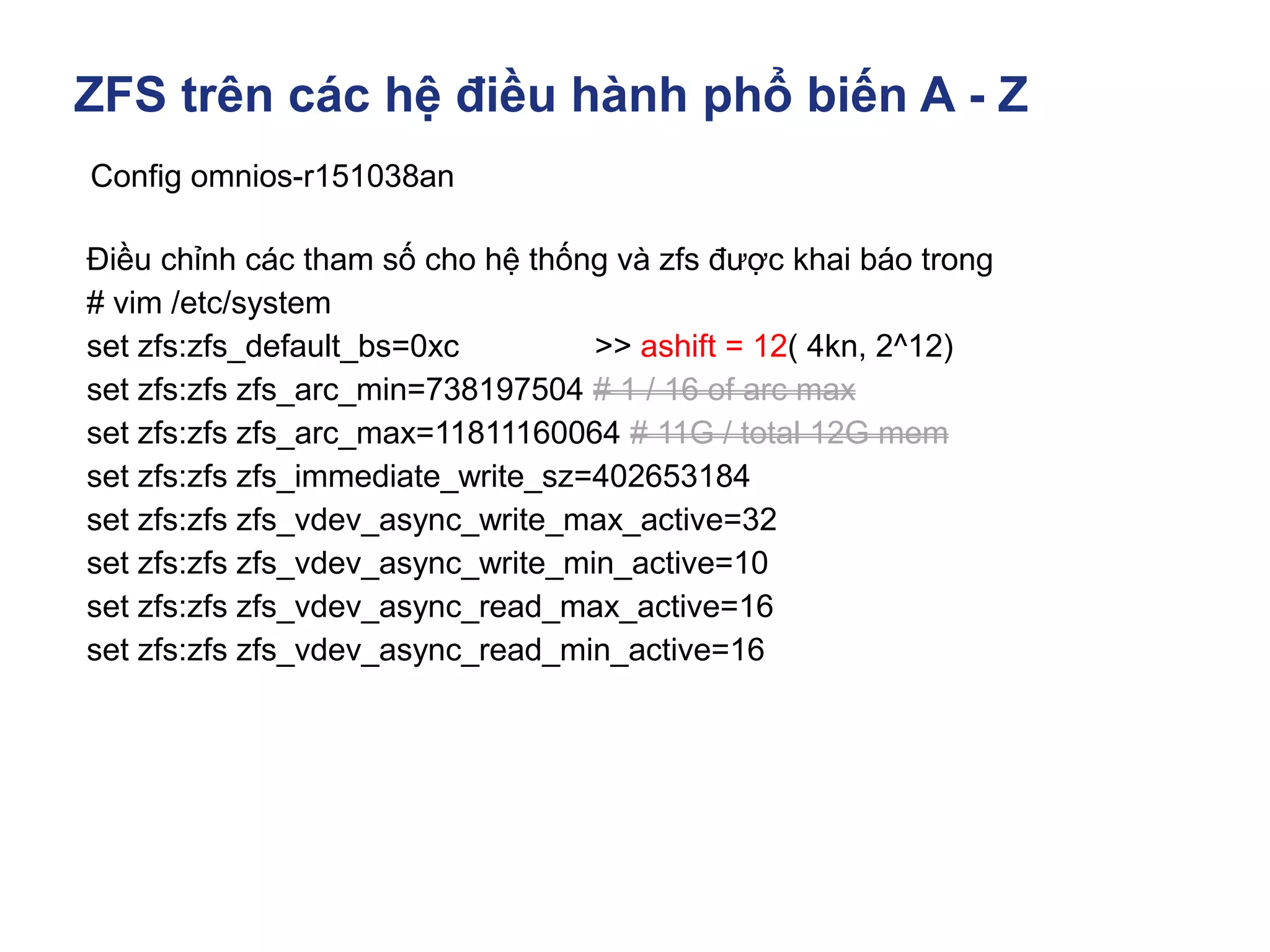

Config omnios-r151038an
Điều chỉnh các tham số cho hệ thống và zfs được khai báo trong
# vim /etc/system
set zfs:zfs_default_bs=0xc >> ashift = 12( 4kn, 2^12)
set zfs:zfs zfs_arc_min=738197504 # 1 / 16 of arc max
set zfs:zfs zfs_arc_max=11811160064 # 11G / total 12G mem
set zfs:zfs zfs_immediate_write_sz=402653184
set zfs:zfs zfs_vdev_async_write_max_active=32
set zfs:zfs zfs_vdev_async_write_min_active=10
set zfs:zfs zfs_vdev_async_read_max_active=16
set zfs:zfs zfs_vdev_async_read_min_active=16

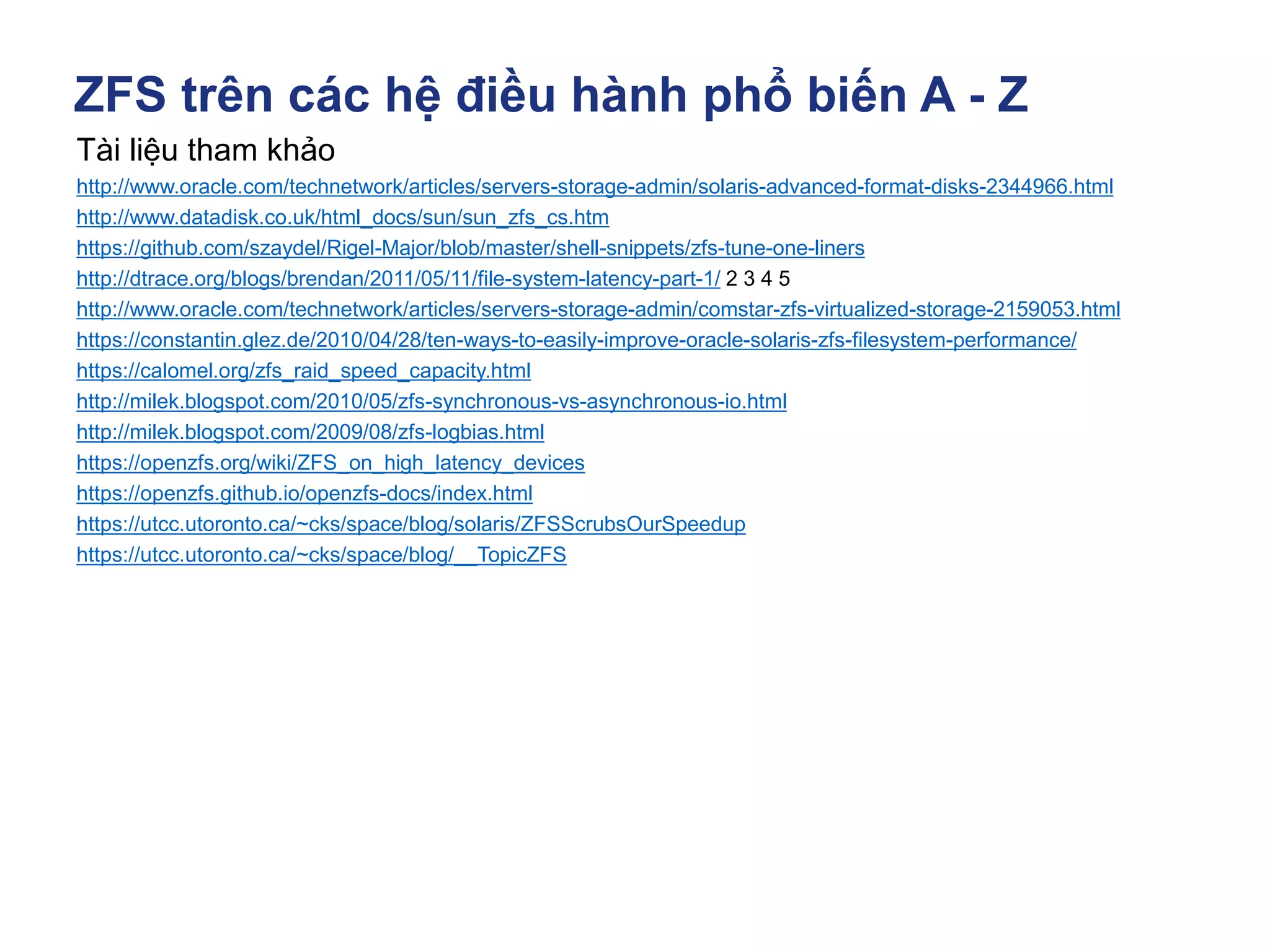

Tài liệu tham khảo
http://www.oracle.com/technetwork/articles/servers-storage-admin/solaris-advanced-format-disks-2344966.html
http://www.datadisk.co.uk/html_docs/sun/sun_zfs_cs.htm
https://github.com/szaydel/Rigel-Major/blob/master/shell-snippets/zfs-tune-one-liners
http://dtrace.org/blogs/brendan/2011/05/11/file-system-latency-part-1/ 2 3 4 5
http://www.oracle.com/technetwork/articles/servers-storage-admin/comstar-zfs-virtualized-storage-2159053.html
https://constantin.glez.de/2010/04/28/ten-ways-to-easily-improve-oracle-solaris-zfs-filesystem-performance/
https://calomel.org/zfs_raid_speed_capacity.html
http://milek.blogspot.com/2010/05/zfs-synchronous-vs-asynchronous-io.html
http://milek.blogspot.com/2009/08/zfs-logbias.html
https://openzfs.org/wiki/ZFS_on_high_latency_devices
https://openzfs.github.io/openzfs-docs/index.html
https://utcc.utoronto.ca/~cks/space/blog/solaris/ZFSScrubsOurSpeedup
https://utcc.utoronto.ca/~cks/space/blog/__TopicZFS

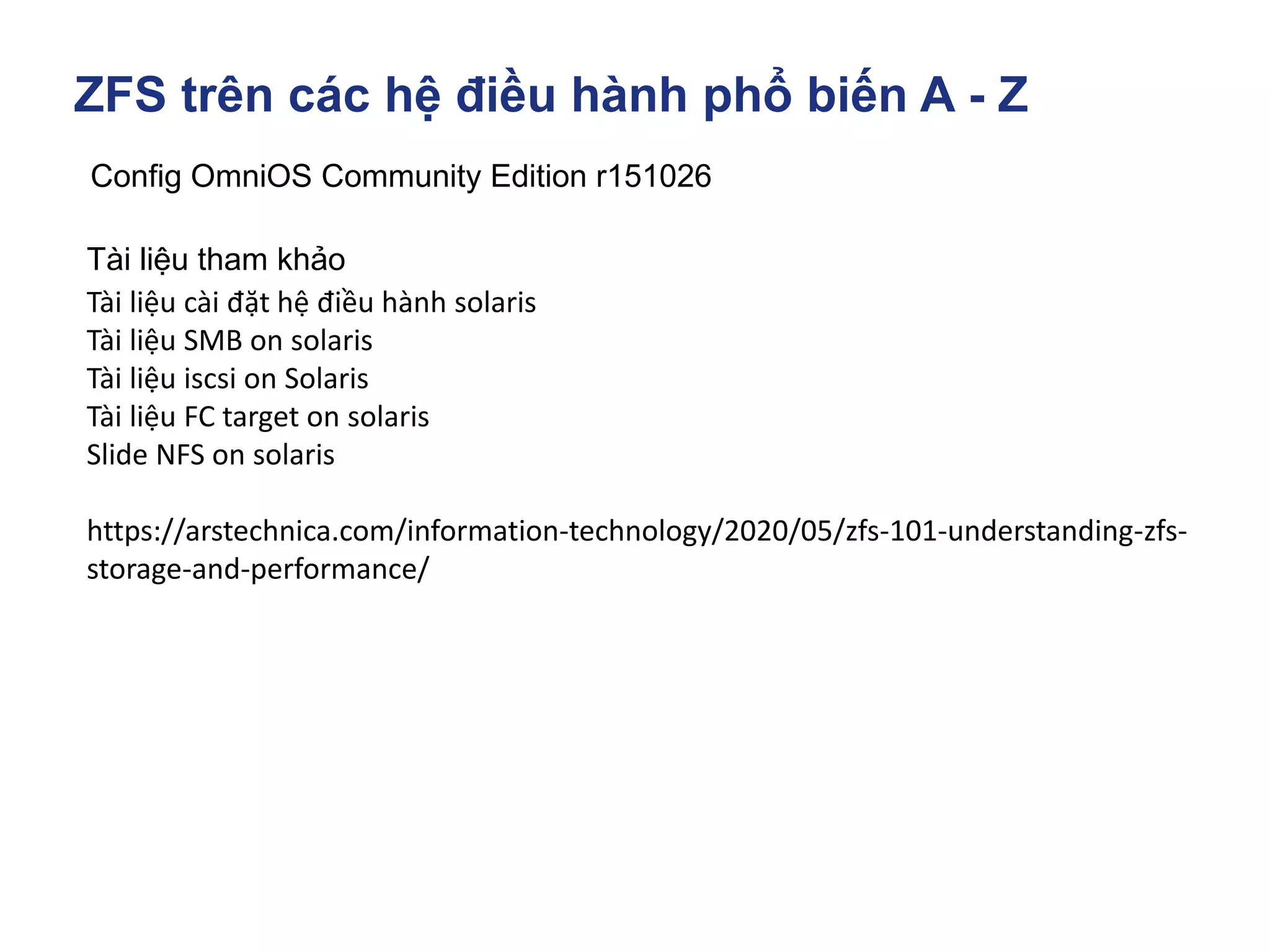

Config OmniOS Community Edition r151026
Tài liệu tham khảo
Tài liệu cài đặt hệ điều hành solaris
Tài liệu SMB on solaris
Tài liệu iscsi on Solaris
Tài liệu FC target on solaris
Slide NFS on solaris
https://arstechnica.com/information-technology/2020/05/zfs-101-understanding-zfs-
storage-and-performance/

ZFS on Linux

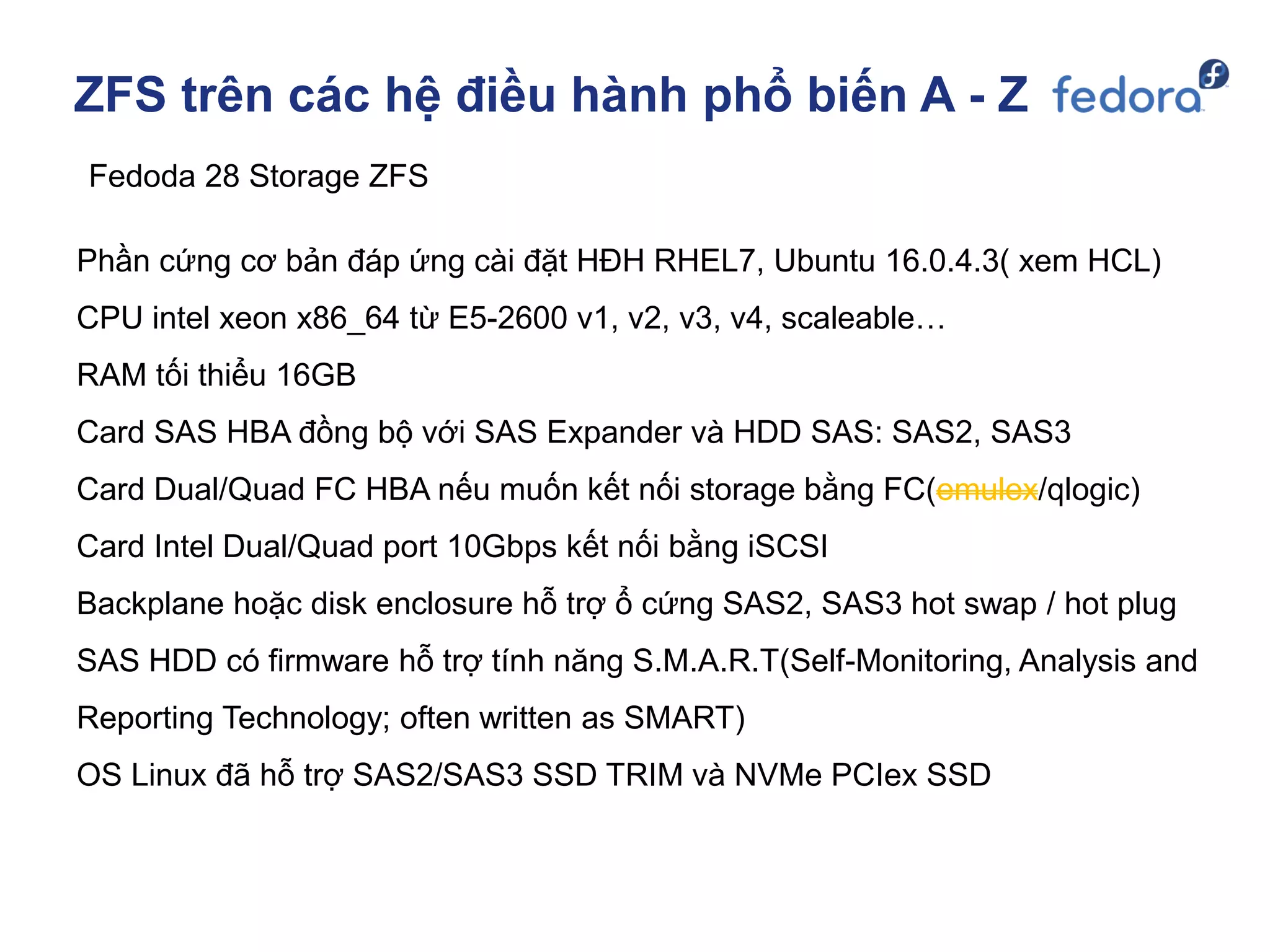

Fedoda 28 Storage ZFS
Phần cứng cơ bản đáp ứng cài đặt HĐH RHEL7, Ubuntu 16.0.4.3( xem HCL)
CPU intel xeon x86_64 từ E5-2600 v1, v2, v3, v4, scaleable…
Card Intel Dual/Quad port 10Gbps kết nối bằng iSCSI
SAS HDD có firmware hỗ trợ tính năng S.M.A.R.T(Self-Monitoring, Analysis and
OS Linux đã hỗ trợ SAS2/SAS3 SSD TRIM và NVMe PCIex SSD

Cài đặt hệ điều hành Fedora 28 server x86_64 dạng minimum
Cấu hình mạng và hostname, ntp client cho máy chủ
Thực hiện các lệnh
# cd /etc/yum.repo.d/
# mv fedora-update* /root
# wget http://download.zfsonlinux.org/fedora/zfs-release.fc28.noarch.rpm
# yum install -y targetcl kernel-devel kernel-headers smartmontools.x86_64 wget
# wget http://download.zfsonlinux.org/fedora/zfs-release.fc28.noarch.rpm
# rpm -ivh zfs-release.fc28.noarch.rpm
# yum install -y zfs

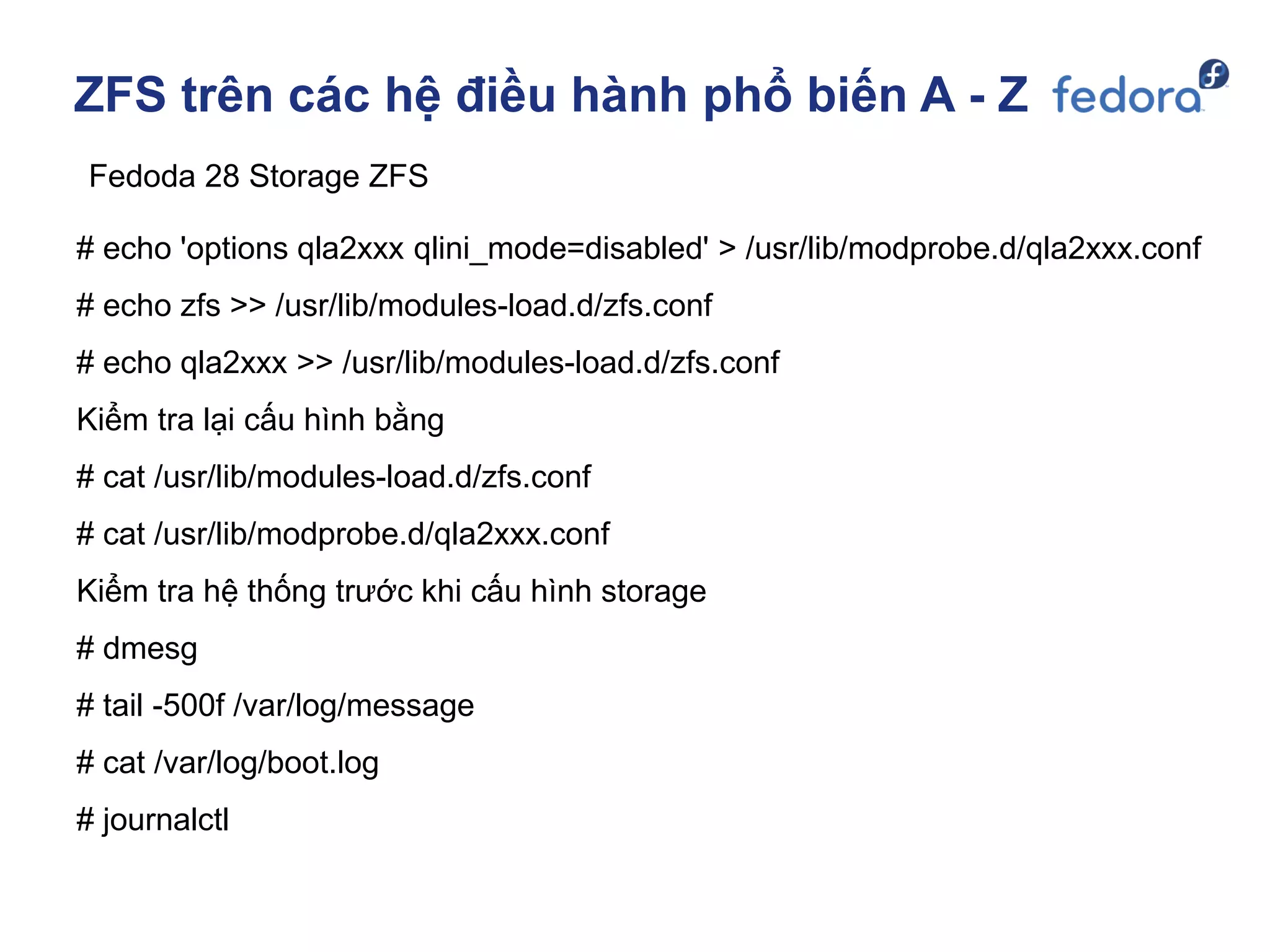

# echo 'options qla2xxx qlini_mode=disabled' > /usr/lib/modprobe.d/qla2xxx.conf
# echo zfs >> /usr/lib/modules-load.d/zfs.conf
# echo qla2xxx >> /usr/lib/modules-load.d/zfs.conf
Kiểm tra lại cấu hình bằng
# cat /usr/lib/modules-load.d/zfs.conf
# cat /usr/lib/modprobe.d/qla2xxx.conf
Kiểm tra hệ thống trước khi cấu hình storage
# dmesg
# tail -500f /var/log/message
# cat /var/log/boot.log
# journalctl

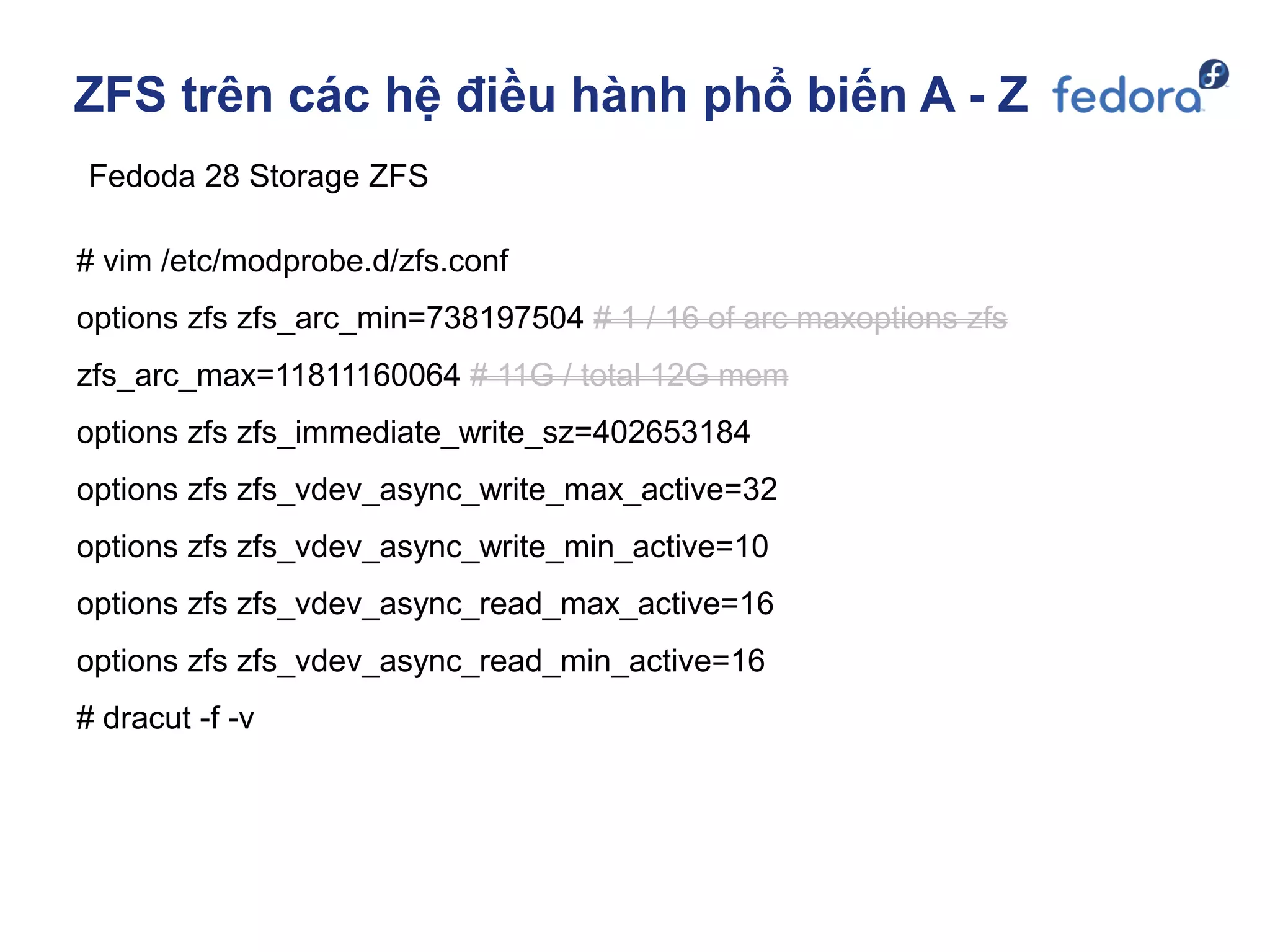

# vim /etc/modprobe.d/zfs.conf
options zfs zfs_arc_min=738197504 # 1 / 16 of arc maxoptions zfs
zfs_arc_max=11811160064 # 11G / total 12G mem
options zfs zfs_immediate_write_sz=402653184
options zfs zfs_vdev_async_write_max_active=32
options zfs zfs_vdev_async_write_min_active=10
options zfs zfs_vdev_async_read_max_active=16
options zfs zfs_vdev_async_read_min_active=16
# dracut -f -v

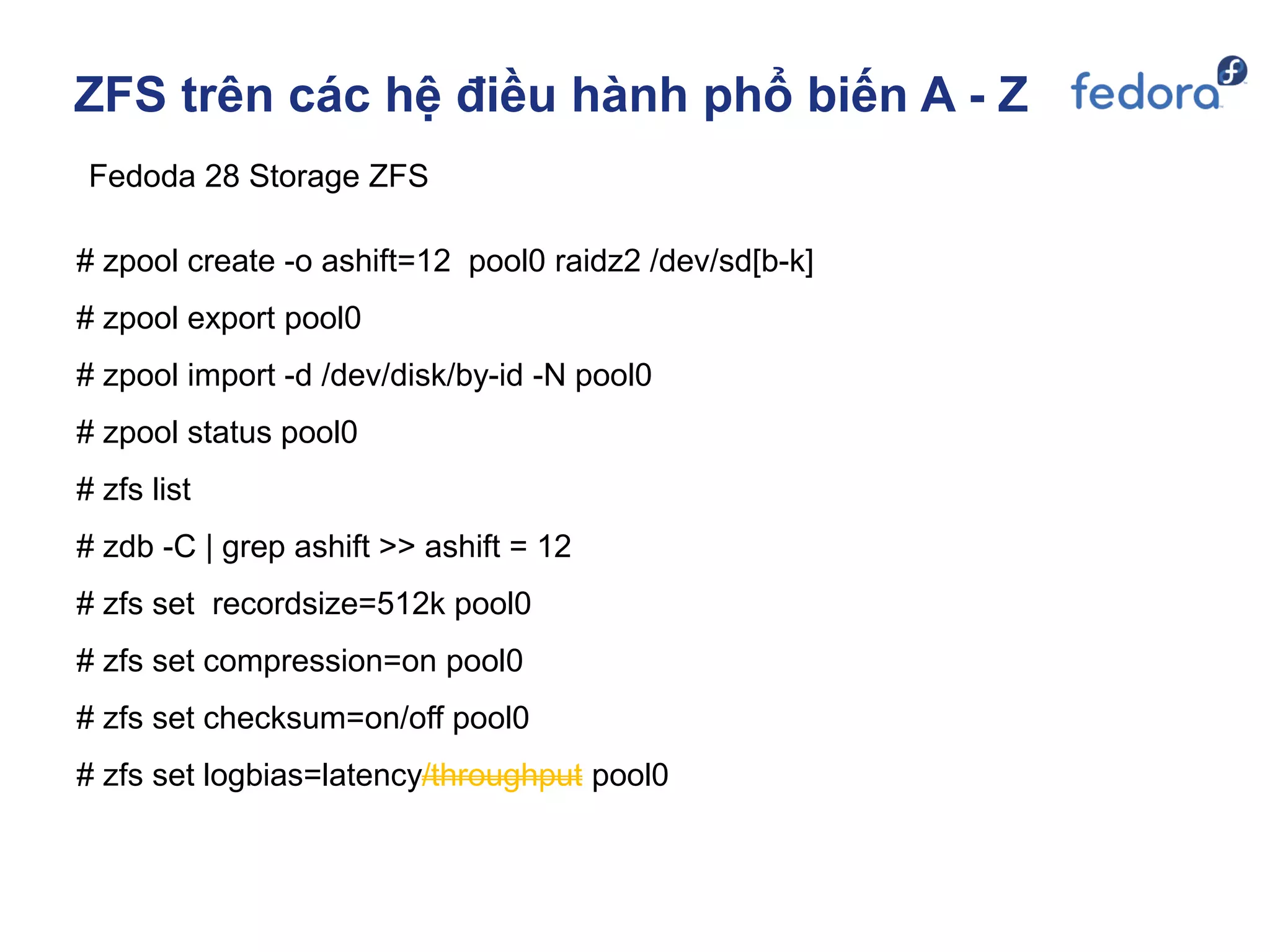

# zpool create -o ashift=12 pool0 raidz2 /dev/sd[b-k]
# zpool export pool0
# zpool import -d /dev/disk/by-id -N pool0
# zfs list
# zdb -C | grep ashift >> ashift = 12
# zfs set recordsize=512k pool0
# zfs set compression=on pool0
# zfs set checksum=on/off pool0
# zfs set logbias=latency/throughput pool0

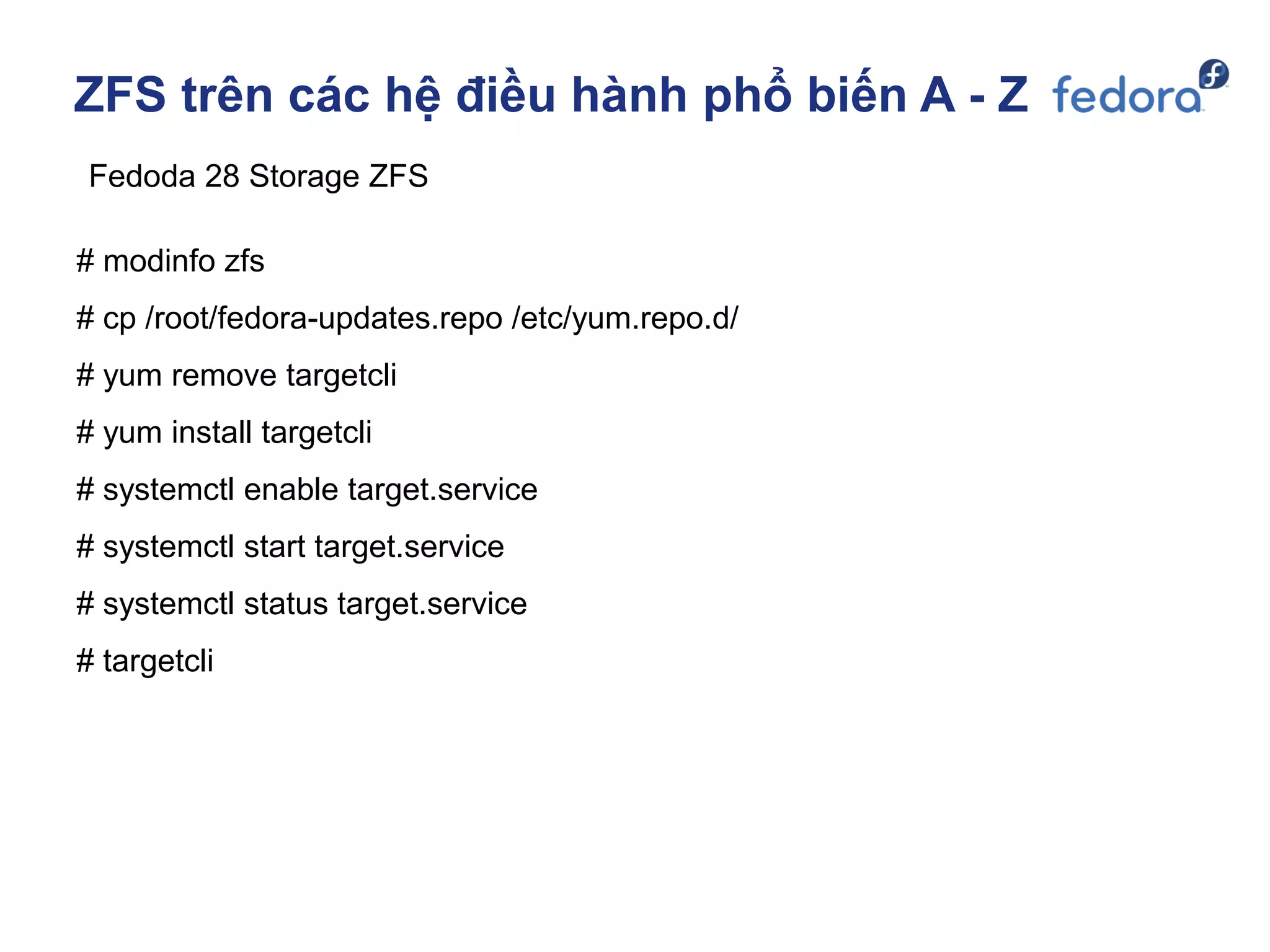

# modinfo zfs
# cp /root/fedora-updates.repo /etc/yum.repo.d/
# yum remove targetcli
# yum install targetcli
# systemctl enable target.service
# systemctl start target.service
# systemctl status target.service
# targetcli

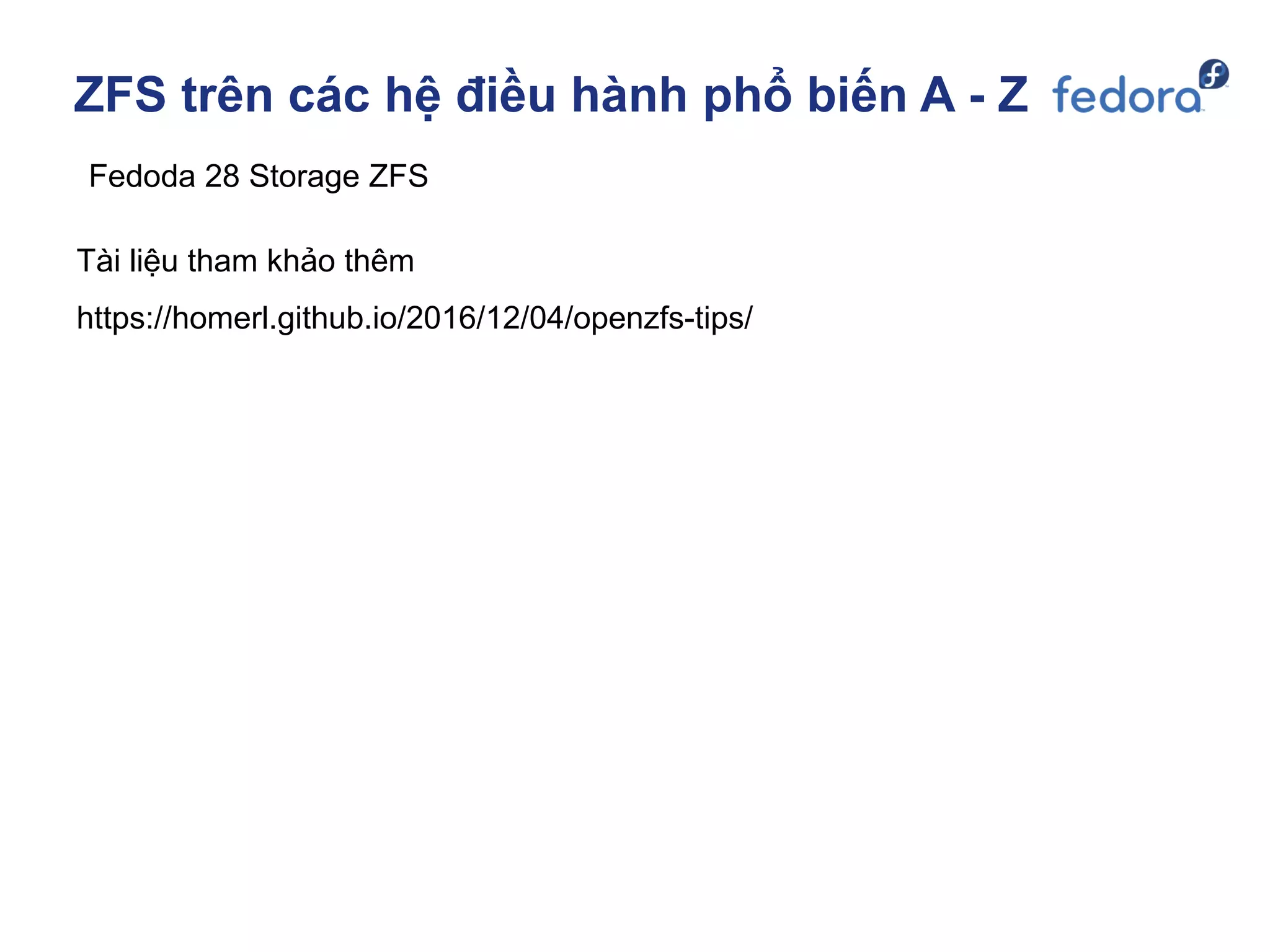

Tài liệu tham khảo thêm
https://homerl.github.io/2016/12/04/openzfs-tips/

ZFS on FreeBSD / FreeNAS

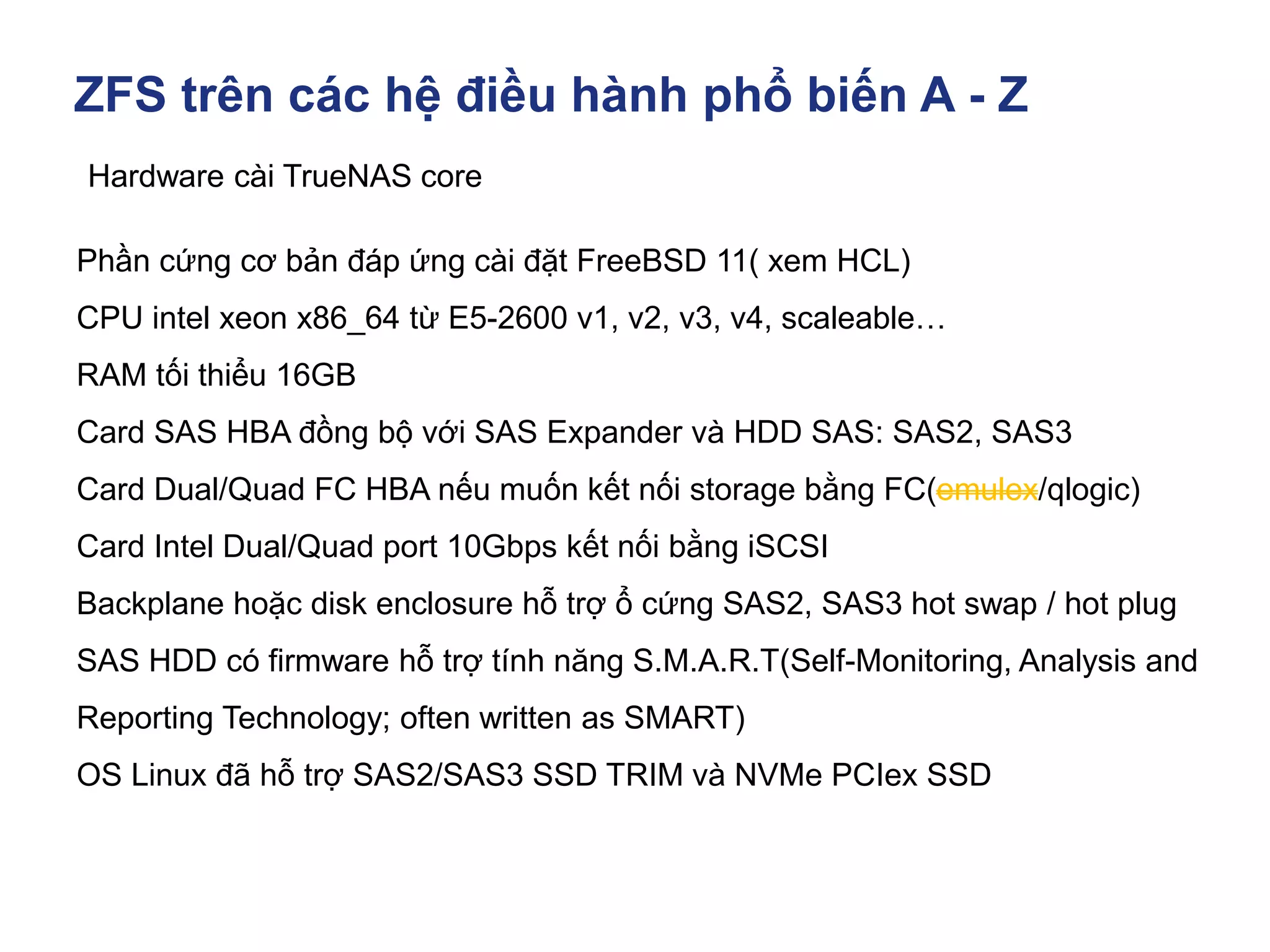

Hardware cài TrueNAS core
Phần cứng cơ bản đáp ứng cài đặt FreeBSD 11( xem HCL)
CPU intel xeon x86_64 từ E5-2600 v1, v2, v3, v4, scaleable…
Card Intel Dual/Quad port 10Gbps kết nối bằng iSCSI
SAS HDD có firmware hỗ trợ tính năng S.M.A.R.T(Self-Monitoring, Analysis and
OS Linux đã hỗ trợ SAS2/SAS3 SSD TRIM và NVMe PCIex SSD

Hardware
Ưu điểm
Performance tốt, cài đặt dễ dàng
Quản trị giao diện web
Hỗ trợ replication giữa 2 storage cùng phiên bản
Có hỗ trợ FC Target dạng DAS
Hỗ trợ iSCSI, NFS, CIFS
Hỗ trợ tốt VAAI, làm việc tốt với VMware
Nhược điểm
Thi thoảng lỗi kết nối với host ESXi

http://www.openstoragenas.com/TrueNAS-Z30-HA.asp

Mục Lục
▪ ZFS Storage Data in memory
▪ Khác nhau giữa OpenZFS và Oracle ZFS
▪ Troubleshooting

Tunning & Test Perfromance
Các hệ điều hành họ Solaris được biết đến Oracle Solaris, omnios,
Openindiana, smartos… Có đặc trưng là native zfs, phần mềm scsi target là
COMSTAR. Đặc trưng của Solaris COMSTAR là có thể target FC, iscsi TCP/IP
với cú pháp lệnh chuẩn và có thêm tùy chỉnh wcd=false của riêng dịch vụ.
Đặc trưng của native zfs là tùy biến được nhiều tham số
+ Tùy biến nhận biết disk trong /kernel/drv/sd.conf
+ Tùy biến các tham số zfs trước khi tạo pool trong /etc/system
+ Tùy biến các tham số zpool, zvol bằng zfs set
+ Tùy biến các tham số của kernel bằng mdb -kw khi hệ thống đang chạy
+ Tùy biến các tham số wcd=fail khi tạo lun trong COMSTAR

Tunning & Test Perfromance
Tunning ZFS theo 1 số tài liệu tham khảo
https://constantin.glez.de/2010/04/28/ten-ways-to-easily-improve-oracle-solaris-
zfs-filesystem-performance/
https://calomel.org/zfs_raid_speed_capacity.html
Thiết kế hệ thống đáp ứng tải theo đầu bài toán đặt ra
+ Tăng số lượng đĩa và dự phòng trong cấu hình pool, raid10 cho perf tốt nhất
+ Hệ thống hỗ trợ đĩa 4kn hoặc all flash 8kn >> Tăng perf 1 cách đáng kể
+ SAS3, Disk vendor cũng có ảnh hưởng đến tốc độ đọc ghi
+ Chọn dĩa ưu tiên tốc độ ghi, đọc từ RAM
+ Tối thiểu đủ RAM, thêm ram perf càng tốt
+ Upgrade firmware và driver cho hệ điều hành và phần cứng
+ Thiết kế hệ thống có tính dự phòng cao, tránh single point failure
+ Tối ưu hóa phần cứng theo channel memory,
+ CPU là 1 thành phần trong lưu trữ( compression, ….)

Troubleshooting
# zpool iostat pool0 1 10000
# iostat –En
# dmesg
# zpool import
Tìm ổ cứng chậm trong pool
# iostat -xn 1 5
# iostat -xne
# iostat -E
# zpool iostat -v poolname
Thực nghiệm và tối ưu hóa quy trình thêm disk mở rộng pool và thay disk fail cho hệ
thống. Mỗi hệ thống sẽ có thiết kế, cách đấu nối phần cứng và quy trình vận hành
khác nhau.
Thời gian downtime cho hệ thống storage yêu cầu gần như zero và buộc phải online
sau cùng của toàn hệ thống core.
https://www.thegeekdiary.com/12-iostat-examples-for-solaris-performance-troubleshooting/

Các phần mềm, dịch vụ tích hợp với OpenStack
Lab Demo

Room 3 - 6 - Nguyễn Văn Thắng & Dzung Nguyen - Ứng dụng openzfs làm lưu trữ tập trung

More Related Content

What's hot

More from Vietnam Open Infrastructure User Group

Room 3 - 6 - Nguyễn Văn Thắng & Dzung Nguyen - Ứng dụng openzfs làm lưu trữ tập trung
