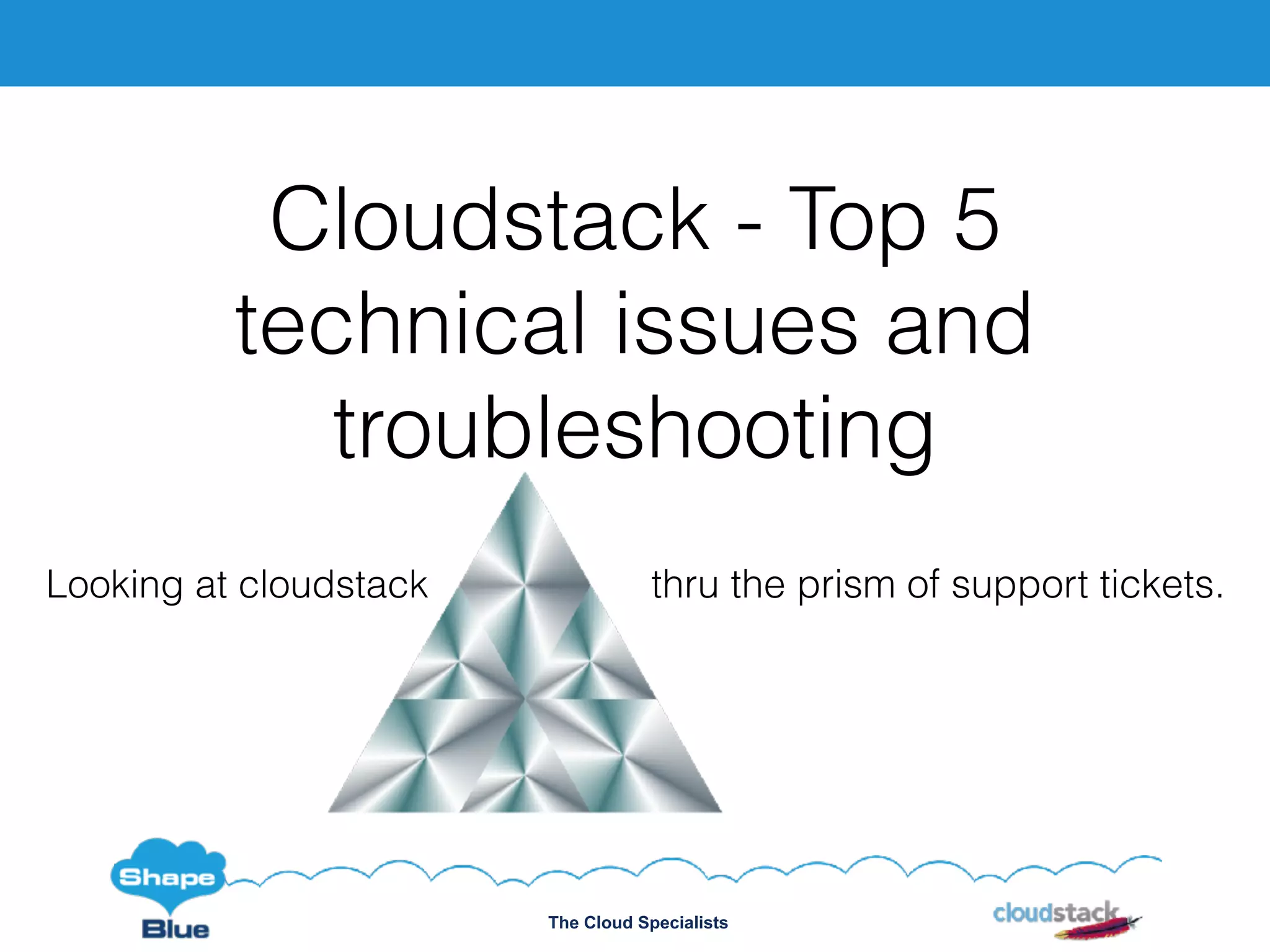

Cloudstack - Top 5
technical issues and
troubleshooting
Looking at cloudstack thru the prism of support tickets.

C l i c k t o e d i t
The Cloud
Specialists
ShapeBlue.com @ShapeBlue
A b h i n a n d a n P r a t e e k
Software Architect @ Shapeblue
Tinkering with cloudstack since 2011
Based out of Hyderabad, India
Apache cloudstack committer since 2012
aprateek@apache.org
abhinandan.prateek@shapeblue.com
Charminar - 1591
18m high monolithic Buddha statue

The Cloud
Specialists ShapeBlue.com @ShapeBlue
“ShapeBlue are expert builders of public
& private clouds. They are the leading
global CloudStack services company.”
A b o u t S h a p e B l u e

The Cloud
Specialists
ShapeBlue.com @ShapeBlue
S h a p e B l u e c u s t o m e r s

Amongst other things, we provide 2nd to 4th line remote
support of the entire Cloudstack Infrastructure.
We have helped build some of the biggest cloudstack
deployments.
We regularly work round the clock with enterprises around
the world trouble-shooting live, production environments.
What do we do ?

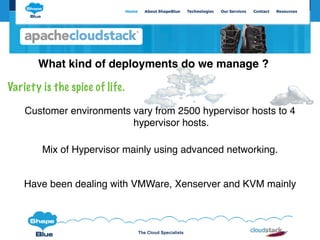

Variety is the spice of life.
Mix of Hypervisor mainly using advanced networking.
Customer environments vary from 2500 hypervisor hosts to 4
hypervisor hosts.
What kind of deployments do we manage ?
Have been dealing with VMWare, Xenserver and KVM mainly

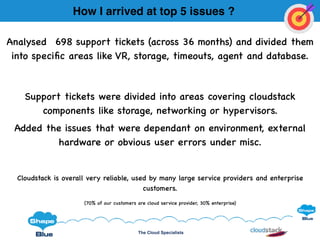

Analysed 698 support tickets (across 36 months) and divided them
into speciﬁc areas like VR, storage, timeouts, agent and database.
Support tickets were divided into areas covering cloudstack
components like storage, networking or hypervisors.
Added the issues that were dependant on environment, external
hardware or obvious user errors under misc.
Cloudstack is overall very reliable, used by many large service providers and enterprise
customers.
(70% of our customers are cloud service provider, 30% enterprise)
How I arrived at top 5 issues ?

Support %
Virtual Router
Storage
Misc
Upgrade
Timeouts
Hypervisor
Offering
0 10 20 30 40
Service tickets by logical areas
Thus after doing an analysis of such support issues, 5 areas
were picked up for deep dive.

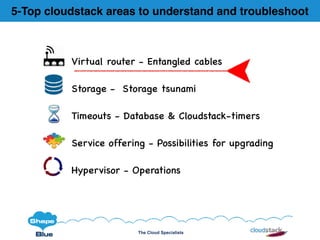

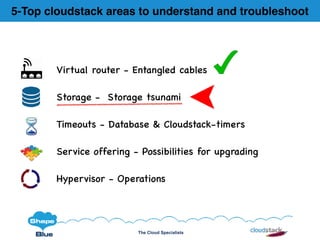

Virtual router - Entangled cables
Storage - Storage tsunami
Timeouts - Database & Cloudstack-timers
Service offering - Possibilities for upgrading
Hypervisor - Operations

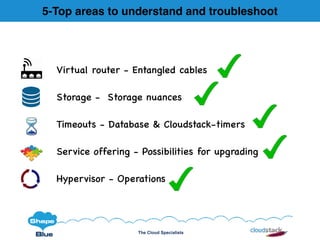

5-Top cloudstack areas to understand and troubleshoot

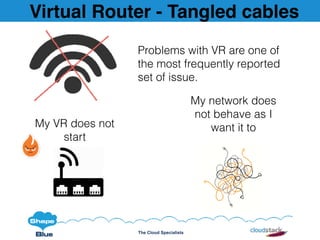

Virtual Router - Tangled cables
Problems with VR are one of
the most frequently reported
set of issue.
My VR does not
start
My network does
not behave as I
want it to

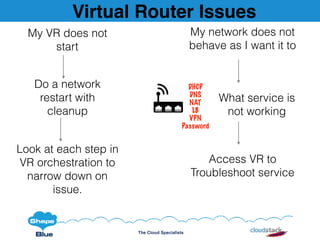

Virtual Router Issues
My VR does not
start
Look at each step in
VR orchestration to
narrow down on
issue.
Do a network
restart with
cleanup
My network does not
behave as I want it to
What service is
not working
Access VR to
Troubleshoot service
DHCP
DNS
NAT
LB
VPN
Password

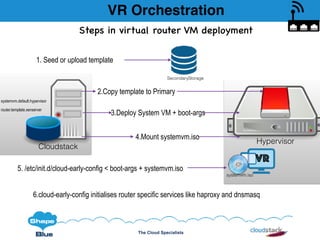

VR Orchestration
SecondaryStorage
1. Seed or upload template
VR
systemvm.iso
5. /etc/init.d/cloud-early-config < boot-args + systemvm.iso
Cloudstack
Hypervisor
3.Deploy System VM + boot-args
2.Copy template to Primary
4.Mount systemvm.iso
systemvm.default.hypervisor
router.template.xenserver
6.cloud-early-config initialises router specific services like haproxy and dnsmasq
Steps in virtual router VM deployment

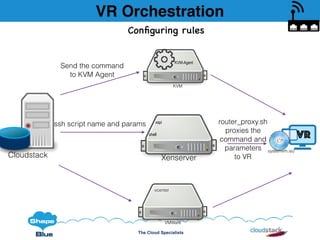

VR Orchestration
Cloudstack
VR
systemvm.iso
KVM
KVM-Agent
VMWare
vcenter
Xenserver
xapi
shell
ssh script name and params router_proxy.sh
proxies the
command and
parameters
to VR
Send the command
to KVM Agent
Conﬁguring rules

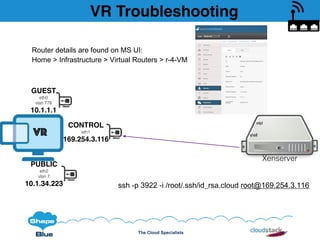

VR Troubleshooting
Xenserver
xapi
shellVR
GUEST
eth0
vlan 778
10.1.1.1
CONTROL
eth1
169.254.3.116
PUBLIC
eth2
vlan 7
10.1.34.223 ssh -p 3922 -i /root/.ssh/id_rsa.cloud root@169.254.3.116
Router details are found on MS UI:
Home > Infrastructure > Virtual Routers > r-4-VM

VR Troubleshooting

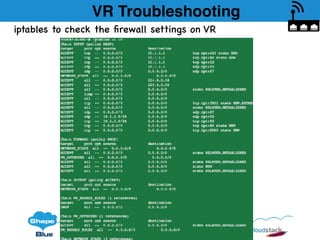

iptables to check the ﬁrewall settings on VR

VR Troubleshooting
watch -n1 -d "iptables -vnxL -t nat | grep -v -e pkts -e Chain | sort -nk1 | tac | column -t"

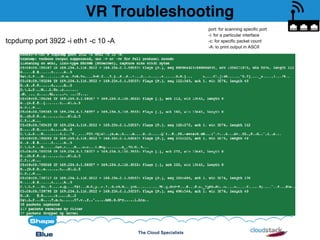

VR Troubleshooting
port: for scanning specific port
-i: for a particular interface
-c: for specific packet count
-A: to print output in ASCII
tcpdump port 3922 -i eth1 -c 10 -A

VR Troubleshooting
Q&A

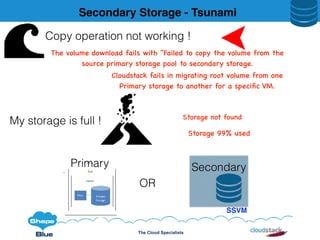

Secondary Storage - Tsunami
My storage is full !
Storage 99% used
Storage not found
Copy operation not working !
The volume download fails with "Failed to copy the volume from the
source primary storage pool to secondary storage.
Cloudstack fails in migrating root volume from one
Primary storage to another for a speciﬁc VM.
Primary
SSVM
Secondary
OR

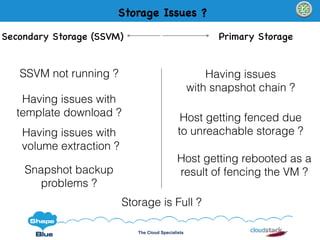

Storage Issues ?
Having issues with
template download ?
Having issues with
volume extraction ?
Host getting fenced due
to unreachable storage ?
Storage is Full ?
Having issues
with snapshot chain ?
Snapshot backup
problems ?
Primary StorageSecondary Storage (SSVM)
SSVM not running ?
Host getting rebooted as a
result of fencing the VM ?

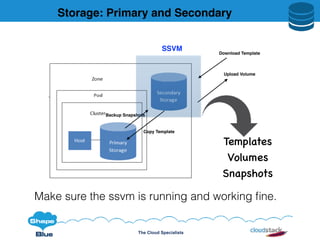

Storage: Primary and Secondary
Make sure the ssvm is running and working ﬁne.
Backup Snapshots
Copy Template
Download Template
Upload Volume
SSVM
Templates
Volumes
Snapshots

Secondary storage troubleshooting
1. Login: ssh -i /root/.ssh/id_rsa -p 3922 root@169.254.3.178
SSVM
GUEST
eth1
10.2.6.32
CONTROL
eth0
169.254.3.178
PUBLIC
eth2
10.1.34.221
STORAGE
eth3
10.3.34.221

Secondary storage troubleshooting

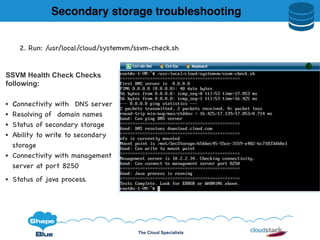

2. Run: /usr/local/cloud/systemvm/ssvm-check.sh
SSVM Health Check Checks
following:
• Connectivity with DNS server
• Resolving of domain names
• Status of secondary storage
• Ability to write to secondary
storage
• Connectivity with management
server at port 8250
• Status of java process.

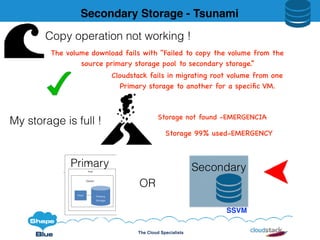

Storage 99% used-EMERGENCY
Storage not found -EMERGENCIA
source primary storage pool to secondary storage.”
Primary storage to another for a speciﬁc VM.
Primary
SSVM
Secondary
OR

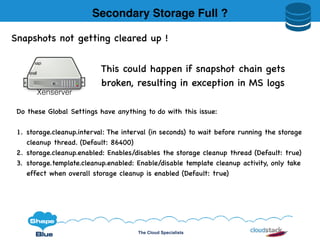

Secondary Storage Full ?
Snapshots not getting cleared up !
This could happen if snapshot chain gets
broken, resulting in exception in MS logs
Xenserver
xapi
shell
Do these Global Settings have anything to do with this issue:
1. storage.cleanup.interval: The interval (in seconds) to wait before running the storage
cleanup thread. (Default: 86400)
2. storage.cleanup.enabled: Enables/disables the storage cleanup thread (Default: true)
3. storage.template.cleanup.enabled: Enable/disable template cleanup activity, only take
effect when overall storage cleanup is enabled (Default: true)

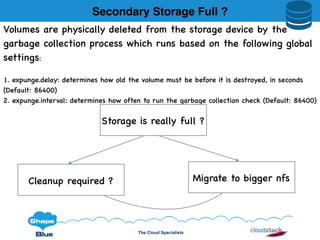

Volumes are physically deleted from the storage device by the
garbage collection process which runs based on the following global
settings:
1. expunge.delay: determines how old the volume must be before it is destroyed, in seconds
(Default: 86400)
2. expunge.interval: determines how often to run the garbage collection check (Default: 86400)
Secondary Storage Full ?
Storage is really full ?
Cleanup required ? Migrate to bigger nfs

Secondary Storage Cleanup
For secondary storage cleanup you need to determine the items that
are no longer in use or obsolete.
For that you need to understand the mapping from cloud db to
hypervisor resources
image_store
snapshot_store_ref
volume_store_ref
template_store_ref
SSVM

MariaDB [cloud]> select id, store_id, physical_size, install_path from template_store_ref;
+----+----------+---------------+------------------------------------------------------------+
| id | store_id | physical_size | install_path |
+----+----------+---------------+------------------------------------------------------------+
| 4 | 1 | 356694016 | template/tmpl/1/8/77c47de2-e745-4618-a7ad-786d0c5f71e2.ova |
| 7 | 1 | 459320832 | template/tmpl/1/7/ed62b12f-5d01-3469-8ac4-3d42c4d3fdcb.ova |
+----+----------+---------------+------------------------------------------------------------+

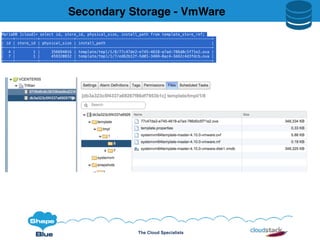

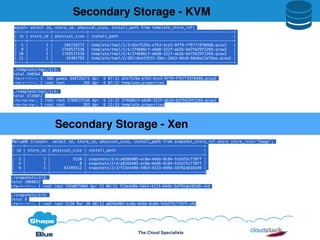

Secondary Storage - VmWare

mysql> select id, store_id, physical_size, install_path from template_store_ref;
+----+----------+---------------+----------------------------------------------------------------+
+----+----------+---------------+----------------------------------------------------------------+
| 5 | 1 | 348726272 | template/tmpl/1/3/d2e7529a-e7b3-4ce3-9ff9-ff6771970460.qcow2 |
| 9 | 1 | 1769537536 | template/tmpl/1/4/374b86cf-e6d8-322f-ab2b-bd75629f2269.qcow2 |
| 10 | 1 | 1769537536 | template/tmpl/1/4/374b86cf-e6d8-322f-ab2b-bd75629f2269.qcow2 |
| 11 | 1 | 42401792 | template/tmpl/2/201/deafd531-39ec-3bb3-9dc0-9de6a21d76ae.qcow2 |
+----+----------+---------------+----------------------------------------------------------------+
./template/tmpl/1/3:
total 340564
-rw-r--r--. 1 502 games 348726272 Apr 6 07:12 d2e7529a-e7b3-4ce3-9ff9-ff6771970460.qcow2
-rw-r--r--. 1 root root 295 Apr 6 07:12 template.properties
./template/tmpl/1/4:
total 1728072
-rw-rw-rw-. 1 root root 1769537536 Apr 6 12:33 374b86cf-e6d8-322f-ab2b-bd75629f2269.qcow2
-rw-rw-rw-. 1 root root 383 Apr 6 12:33 template.properties
Secondary Storage - KVM
MariaDB [cloud]> select id, store_id, physical_size, install_path from snapshot_store_ref where store_role='Image';
+----+----------+---------------+----------------------------------------------------+
+----+----------+---------------+----------------------------------------------------+
| 2 | 1 | 5120 | snapshots/2/4/a826b905-ec0a-4e6b-9c84-fe5d75c778ff |
| 4 | 1 | 0 | snapshots/2/4/a826b905-ec0a-4e6b-9c84-fe5d75c778ff |
| 6 | 1 | 62349312 | snapshots/2/3/f23e4d9b-54b3-4123-b94b-3d792ab102d9 |
+----+----------+---------------+----------------------------------------------------+
./snapshots/2/3:
total 2080832
-rw-r--r--. 1 root root 1910075904 Apr 13 06:11 f23e4d9b-54b3-4123-b94b-3d792ab102d9.vhd
./snapshots/2/4:
total 8
-rw-r--r--. 1 root root 5120 Mar 28 08:13 a826b905-ec0a-4e6b-9c84-fe5d75c778ff.vhd
Secondary Storage - Xen

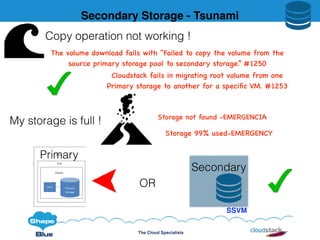

Storage 99% used-EMERGENCY
Storage not found -EMERGENCIA
source primary storage pool to secondary storage.” #1250
Primary storage to another for a speciﬁc VM. #1253
Primary
SSVM
Secondary
OR

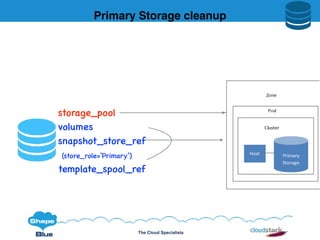

Primary Storage cleanup
storage_pool
volumes
snapshot_store_ref
(store_role=‘Primary’)
template_spool_ref

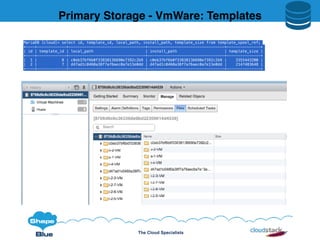

Primary Storage - VmWare: Templates
MariaDB [cloud]> select id, template_id, local_path, install_path, template_size from template_spool_ref;
+----+-------------+----------------------------------+----------------------------------+---------------+
| id | template_id | local_path | install_path | template_size |
+----+-------------+----------------------------------+----------------------------------+---------------+
| 1 | 8 | c0eb37bf6b0f33838136690e7392c2b9 | c0eb37bf6b0f33838136690e7392c2b9 | 3355443200 |
| 2 | 7 | d47ad1c0460a38f7a76aec0a7e13e0dd | d47ad1c0460a38f7a76aec0a7e13e0dd | 2147483648 |
+----+-------------+----------------------------------+----------------------------------+---------------+

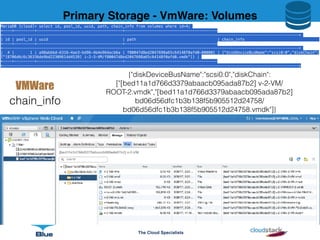

{"diskDeviceBusName":"scsi0:0","diskChain":
["[bed11a1d766d3379abaacb095ada87b2] v-2-VM/
ROOT-2.vmdk","[bed11a1d766d3379abaacb095ada87b2]
bd06d56dfc1b3b138f5b905512d24758/
bd06d56dfc1b3b138f5b905512d24758.vmdk"]}
chain_info

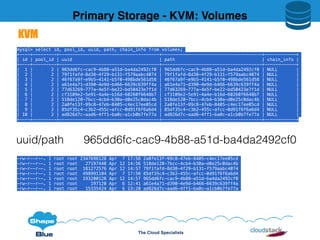

Primary Storage - VmWare: Volumes
VMWare
MariaDB [cloud]> select id, pool_id, uuid, path, chain_info from volumes where id=4;
+----+---------+--------------------------------------+-----------------------------------------
+-----------------------------------------------------------------------------------------------------------------------------------+
| id | pool_id | uuid | path | chain_info
+----+---------+--------------------------------------+-----------------------------------------
+-----------------------------------------------------------------------------------------------------------------------------------+
| 4 | 1 | a98abbbd-6316-4ae3-bd96-4b4e964acb6a | f80047d8ed2047698a65c64148f0afd0-000001 | {"diskDeviceBusName":"scsi0:0","diskChain":
["[8706d6c6c36336de9bd22309614d4539] i-2-3-VM/f80047d8ed2047698a65c64148f0afd0.vmdk"]} |
+----+---------+--------------------------------------+-----------------------------------------
+-----------------------------------------------------------------------------------------------------------------------------------+

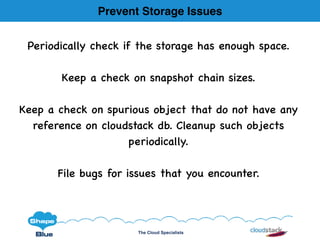

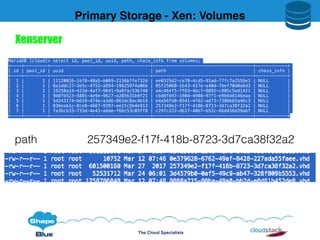

Prevent Storage Issues
Periodically check if the storage has enough space.
Keep a check on snapshot chain sizes.
Keep a check on spurious object that do not have any
reference on cloudstack db. Cleanup such objects
periodically.
File bugs for issues that you encounter.

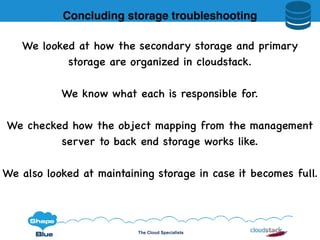

We looked at how the secondary storage and primary
storage are organized in cloudstack.
We know what each is responsible for.
We checked how the object mapping from the management
server to back end storage works like.
We also looked at maintaining storage in case it becomes full.
Concluding storage troubleshooting

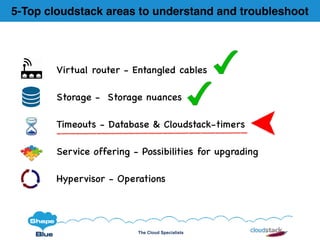

Storage - Storage nuances

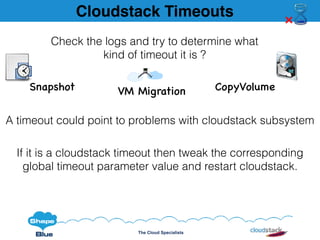

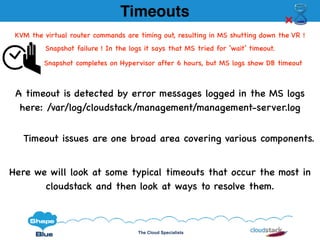

Timeouts
Timeout issues are one broad area covering various components.
Here we will look at some typical timeouts that occur the most in
cloudstack and then look at ways to resolve them.
A timeout is detected by error messages logged in the MS logs
here: /var/log/cloudstack/management/management-server.log

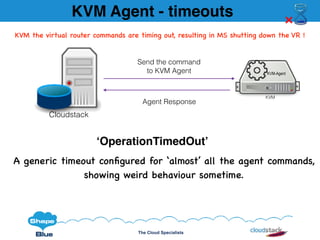

KVM the virtual router commands are timing out, resulting in MS shutting down the VR !
Snapshot failure ! In the logs it says that MS tried for ‘wait’ timeout.
Snapshot completes on Hypervisor after 6 hours, but MS logs show DB timeout

• The timeout can happen due to cloudstack aborting an operation
that is taking longer than expected.
• A timeout can also happen because one of the cloudstack
component failed to respond in time, like the agent or Hypervisor.
A timeout can happen due to external timeout conditions like a
database connection timeout or ssh script execution timeout.
Timeout
Management Server Timeout
External Timeouts

Cloudstack Timeouts
Check the logs and try to determine what
kind of timeout it is ?
A timeout could point to problems with cloudstack subsystem
If it is a cloudstack timeout then tweak the corresponding
global timeout parameter value and restart cloudstack.

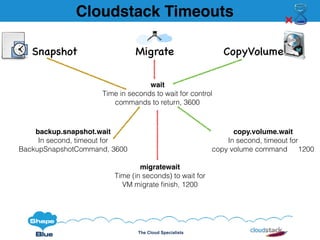

Snapshot VM Migration CopyVolume

Cloudstack Timeouts
Snapshot Migrate CopyVolume
wait
Time in seconds to wait for control
commands to return, 3600
backup.snapshot.wait
In second, timeout for
BackupSnapshotCommand, 3600
migratewait
Time (in seconds) to wait for
VM migrate ﬁnish, 1200
copy.volume.wait
In second, timeout for
copy volume command 1200

KVM Agent - timeouts
A generic timeout conﬁgured for ‘almost’ all the agent commands,
showing weird behaviour sometime.
‘OperationTimedOut’
Cloudstack
KVM
KVM-Agent
Send the command
to KVM Agent
Agent Response

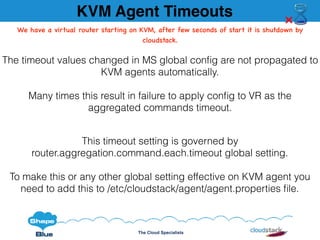

KVM Agent Timeouts
The timeout values changed in MS global config are not propagated to
KVM agents automatically.
Many times this result in failure to apply config to VR as the
aggregated commands timeout.
This timeout setting is governed by
router.aggregation.command.each.timeout global setting.
To make this or any other global setting effective on KVM agent you
need to add this to /etc/cloudstack/agent/agent.properties file.
We have a virtual router starting on KVM, after few seconds of start it is shutdown by
cloudstack.

Database - timeouts
Cloudstack
Xenserver
xapi
shell
1. Get connection from pool
2. Start long winded resource action
3. MySql expires the connection
4. Even though the action ﬁnished properly,
cloudstack rolled back the transaction on
completion
Even though the snapshot operation succeed on Xenserver, cloudstack rolls back the transaction
on completion, thereby failing it.

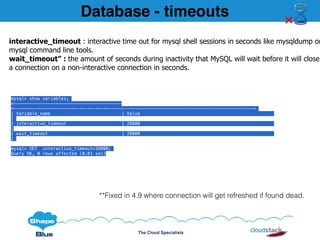

mysql> show variables;
+-----------------------------------------
+-------------------------------------------------------------------------------------------+
| Variable_name | Value
|
| interactive_timeout | 28800
|
| wait_timeout | 28800
|
mysql> SET interactive_timeout=36000;
Query OK, 0 rows affected (0.01 sec)
interactive_timeout : interactive time out for mysql shell sessions in seconds like mysqldump or
mysql command line tools.
wait_timeout” : the amount of seconds during inactivity that MySQL will wait before it will close
a connection on a non-interactive connection in seconds.
**Fixed in 4.9 where connection will get refreshed if found dead.
Database - timeouts

Agent - Operations

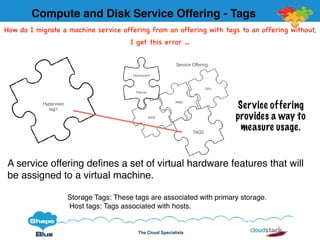

How do I migrate a machine service offering from an offering with tags to an offering without,
I get this error …
RAM
TAGS
CPU
RATE
Hypervisor
tag1
Deployment
Planner
Service Offering
A service offering deﬁnes a set of virtual hardware features that will
be assigned to a virtual machine.
Storage Tags: These tags are associated with primary storage.
Host tags: Tags associated with hosts.

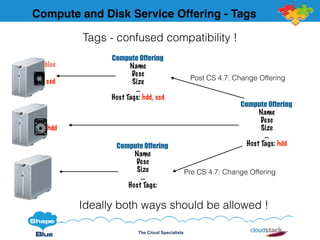

Compute and Disk Service Offering - Tags
Service offering
provides a way to
measure usage.

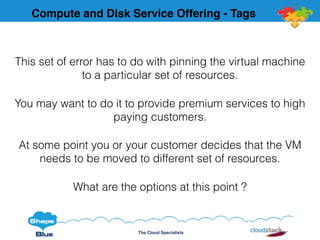

This set of error has to do with pinning the virtual machine
to a particular set of resources.
You may want to do it to provide premium services to high
paying customers.
At some point you or your customer decides that the VM
needs to be moved to different set of resources.
What are the options at this point ?

hdd
ssd
blue
Compute Offering
Name
Desc
Size
…
Host Tags: hdd
Post CS 4.7: Change Offering
Pre CS 4.7: Change Offering
Ideally both ways should be allowed !
Compute Offering
Name
Desc
Size
…
Host Tags: hdd, ssd
Compute Offering
Name
Desc
Size
…
Host Tags:
Tags - confused compatibility !

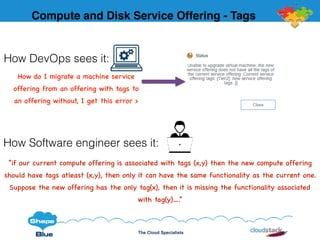

How do I migrate a machine service
offering from an offering with tags to
an offering without, I get this error >
“if our current compute offering is associated with tags (x,y) then the new compute offering
should have tags atleast (x,y), then only it can have the same functionality as the current one.
Suppose the new offering has the only tag(x), then it is missing the functionality associated
with tag(y)….”
How DevOps sees it:
How Software engineer sees it:

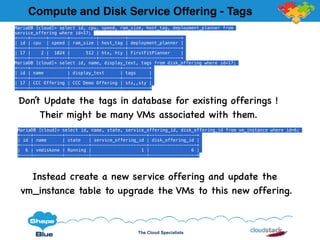

MariaDB [cloud]> select id, cpu, speed, ram_size, host_tag, deployment_planner from
service_offering where id=17;
+----+------+-------+----------+----------+--------------------+
| id | cpu | speed | ram_size | host_tag | deployment_planner |
+----+------+-------+----------+----------+--------------------+
| 17 | 2 | 1024 | 512 | htx, hty | FirstFitPlanner |
+----+------+-------+----------+----------+--------------------+
MariaDB [cloud]> select id, name, display_text, tags from disk_offering where id=17;
+----+--------------+-------------------+----------+
| id | name | display_text | tags |
+----+--------------+-------------------+----------+
| 17 | CCC Offering | CCC Demo Offering | stx,,sty |
+----+--------------+-------------------+----------+
Don’t Update the tags in database for existing offerings !
Their might be many VMs associated with them.
MariaDB [cloud]> select id, name, state, service_offering_id, disk_offering_id from vm_instance where id=6;
+----+-----------+---------+---------------------+------------------+
| id | name | state | service_offering_id | disk_offering_id |
+----+-----------+---------+---------------------+------------------+
| 6 | vmdiskone | Running | 1 | 6 |
+----+-----------+---------+---------------------+------------------+
Instead create a new service offering and update the
vm_instance table to upgrade the VMs to this new offering.

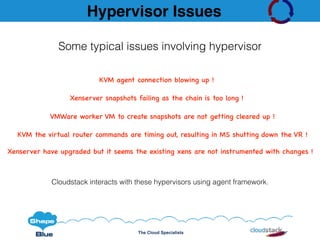

Hypervisor Issues
KVM agent connection blowing up !
Xenserver snapshots failing as the chain is too long !
VMWare worker VM to create snapshots are not getting cleared up !
Xenserver have upgraded but it seems the existing xens are not instrumented with changes !
Some typical issues involving hypervisor
Cloudstack interacts with these hypervisors using agent framework.

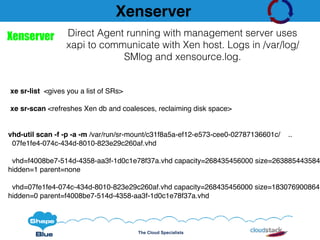

Xenserver
xe sr-list <gives you a list of SRs>
xe sr-scan <refreshes Xen db and coalesces, reclaiming disk space>
vhd-util scan -f -p -a -m /var/run/sr-mount/c31f8a5a-ef12-e573-cee0-02787136601c/ ..
07fe1fe4-074c-434d-8010-823e29c260af.vhd
vhd=f4008be7-514d-4358-aa3f-1d0c1e78f37a.vhd capacity=268435456000 size=263885443584
hidden=1 parent=none
vhd=07fe1fe4-074c-434d-8010-823e29c260af.vhd capacity=268435456000 size=183076900864
hidden=0 parent=f4008be7-514d-4358-aa3f-1d0c1e78f37a.vhd
Xenserver Direct Agent running with management server uses
xapi to communicate with Xen host. Logs in /var/log/
SMlog and xensource.log.

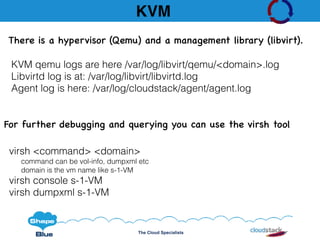

KVM
KVM qemu logs are here /var/log/libvirt/qemu/<domain>.log
Libvirtd log is at: /var/log/libvirt/libvirtd.log
Agent log is here: /var/log/cloudstack/agent/agent.log
For further debugging and querying you can use the virsh tool
virsh <command> <domain>
command can be vol-info, dumpxml etc
domain is the vm name like s-1-VM
virsh console s-1-VM
virsh dumpxml s-1-VM
There is a hypervisor (Qemu) and a management library (libvirt).

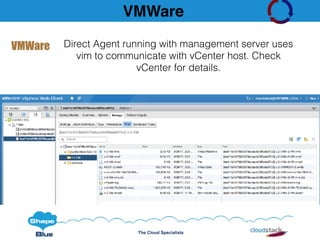

VMWare
VMWare Direct Agent running with management server uses
vim to communicate with vCenter host. Check
vCenter for details.

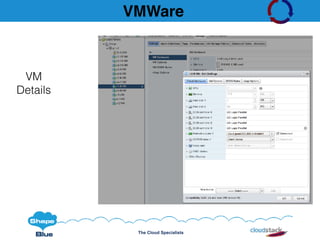

VMWare
VM
Details

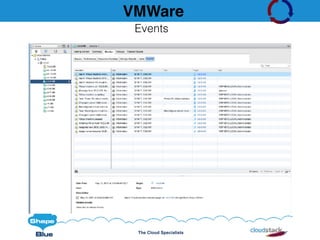

Events
VMWare

Event triggers
VMWare

VMWare

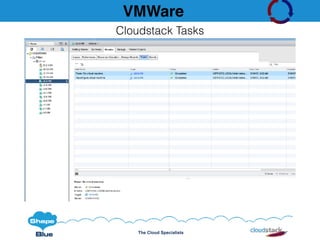

Cloudstack Tasks

5-Top areas to understand and troubleshoot

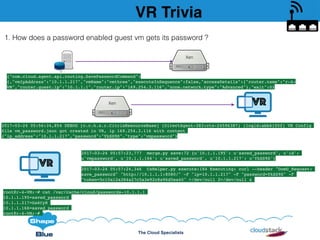

VR Trivia
1. How does a password enabled guest vm gets its password ?
{"com.cloud.agent.api.routing.SavePasswordCommand":
{,"vmIpAddress":"10.1.1.217","vmName":"vmthree","executeInSequence":false,"accessDetails":{"router.name":"r-4-
VM","router.guest.ip":"10.1.1.1","router.ip":"169.254.3.116","zone.network.type":"Advanced"},"wait":0}
2017-03-24 05:56:34,854 DEBUG [c.c.h.x.r.CitrixResourceBase] (DirectAgent-383:ctx-24596387) (logid:abb6150f) VR Config
file vm_password.json got created in VR, ip 169.254.3.116 with content
{"ip_address":"10.1.1.217","password":"YkSS9S","type":"vmpassword"}
Clo
Xen VR
VR
2017-03-24 05:57:23,777 merge.py save:72 {u'10.1.1.195': u'saved_password', u'id':
u'vmpassword', u'10.1.1.166': u'saved_password', u'10.1.1.217': u’YkSS9S'}
2017-03-24 05:57:24,346 CsHelper.py execute:184 Executing: curl --header "DomU_Request:
save_password" "http://10.1.1.1:8080/" -F "ip=10.1.1.217" -F "password=YkSS9S" -F
"token=5c10a12a384a27c5a3e92c8a96d5ea40" >/dev/null 2>/dev/null &
Xen
root@r-4-VM:~# cat /var/cache/cloud/passwords-10.1.1.1
10.1.1.195=saved_password
10.1.1.217=Ga6CyR
10.1.1.166=saved_password
root@r-4-VM:~#

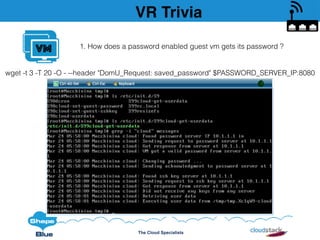

VM
wget -t 3 -T 20 -O - --header "DomU_Request: saved_password" $PASSWORD_SERVER_IP:8080
VR Trivia
1. How does a password enabled guest vm gets its password ?

CloudStack - Top 5 Technical Issues and Troubleshooting

More Related Content

What's hot

Similar to CloudStack - Top 5 Technical Issues and Troubleshooting

More from ShapeBlue

Recently uploaded

CloudStack - Top 5 Technical Issues and Troubleshooting
