Due to the large amounts of Multimedia data on the Internet, Multimedia mining has become a very active area of research. Multimedia mining is a form of data mining. Data mining uses algorithms to segment data to identify useful patterns and to make predictions. Despite the successes in many areas, data mining remains a challenging task. In the past, multimedia mining was one of the fields where the results were often not satisfactory. Multimedia Data Mining extracts relevant data from multimedia files such as audio, video and still images to perform similarity searches, identify associations, entity resolution and for classification. As the mining techniques have matured, new techniques were developed. A lot of progress has been made in areas such as visual data mining and natural language processing using deep learning techniques. Deep learning is a branch of machine learning and has been used among other on Smartphones for face recognition and voice commands. Deep learners are a type of artificial neural networks with multiple data processing layers that learn representations by increasing the level of abstraction from one layer to the next. These methods have improved the state-of-the-art in multimedia mining, in speech recognition, visual object recognition, natural language processing and other areas such as genome mining and predicting the efficacy of drug molecules.

1. Multimedia Data Mining
using deep learning
Peter Wlodarczak
wlodarczak@gmail.com

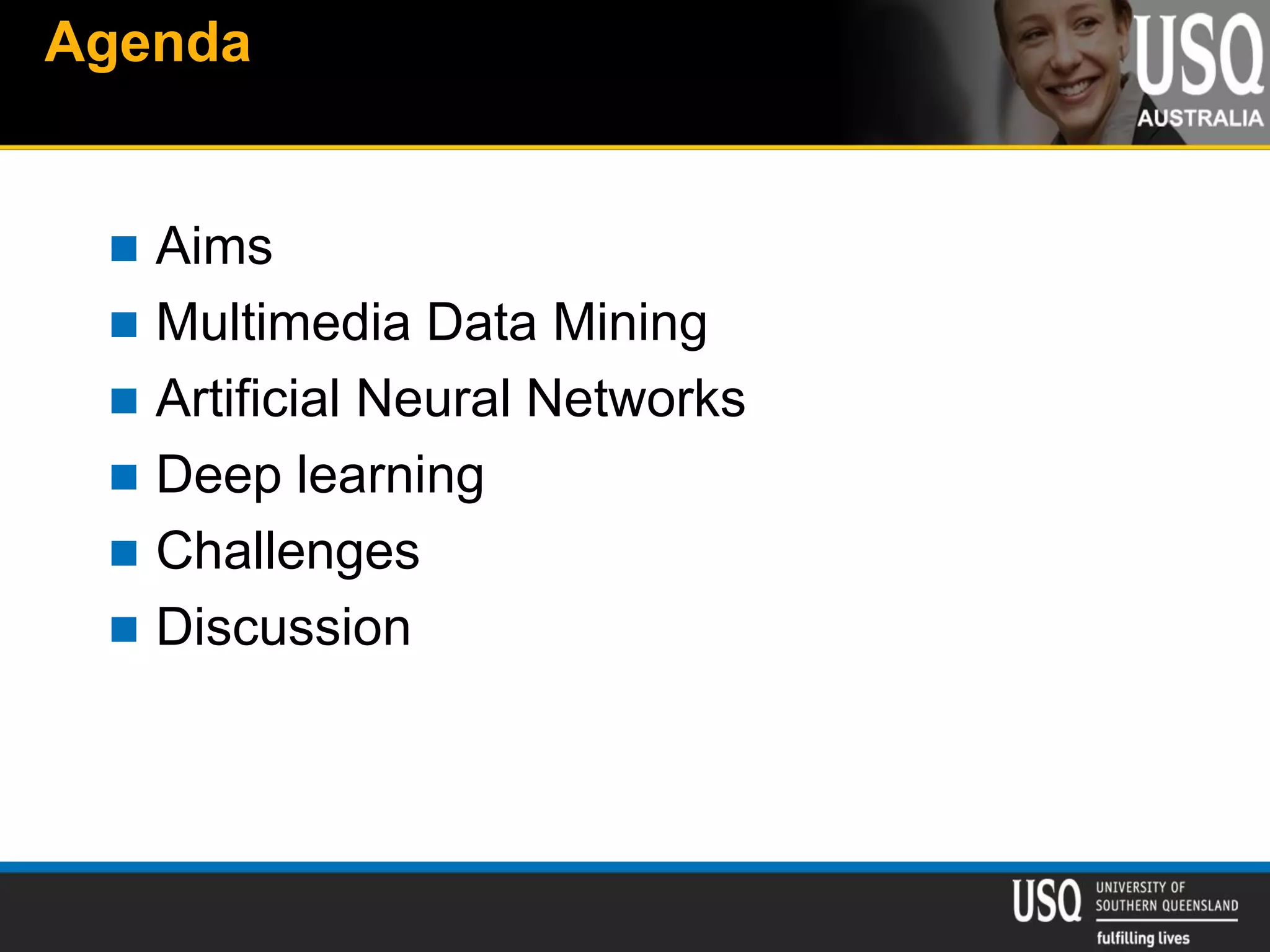

2. Agenda
 Aims
 Multimedia Data Mining
 Artificial Neural Networks
 Deep learning
 Challenges
 Discussion

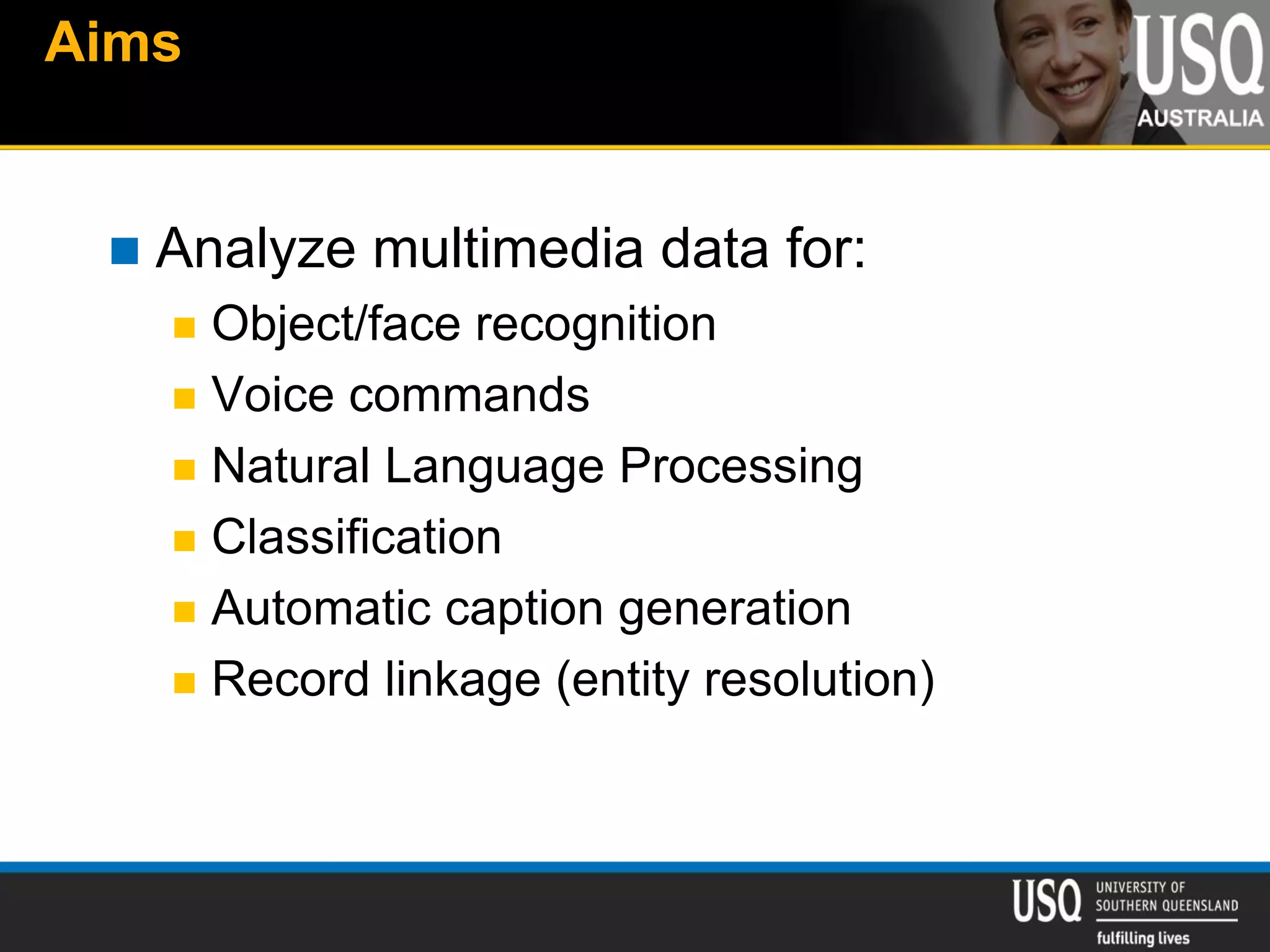

3. Aims
 Analyze multimedia data for:
 Object/face recognition
 Voice commands
 Natural Language Processing
 Classification
 Automatic caption generation
 Record linkage (entity resolution)

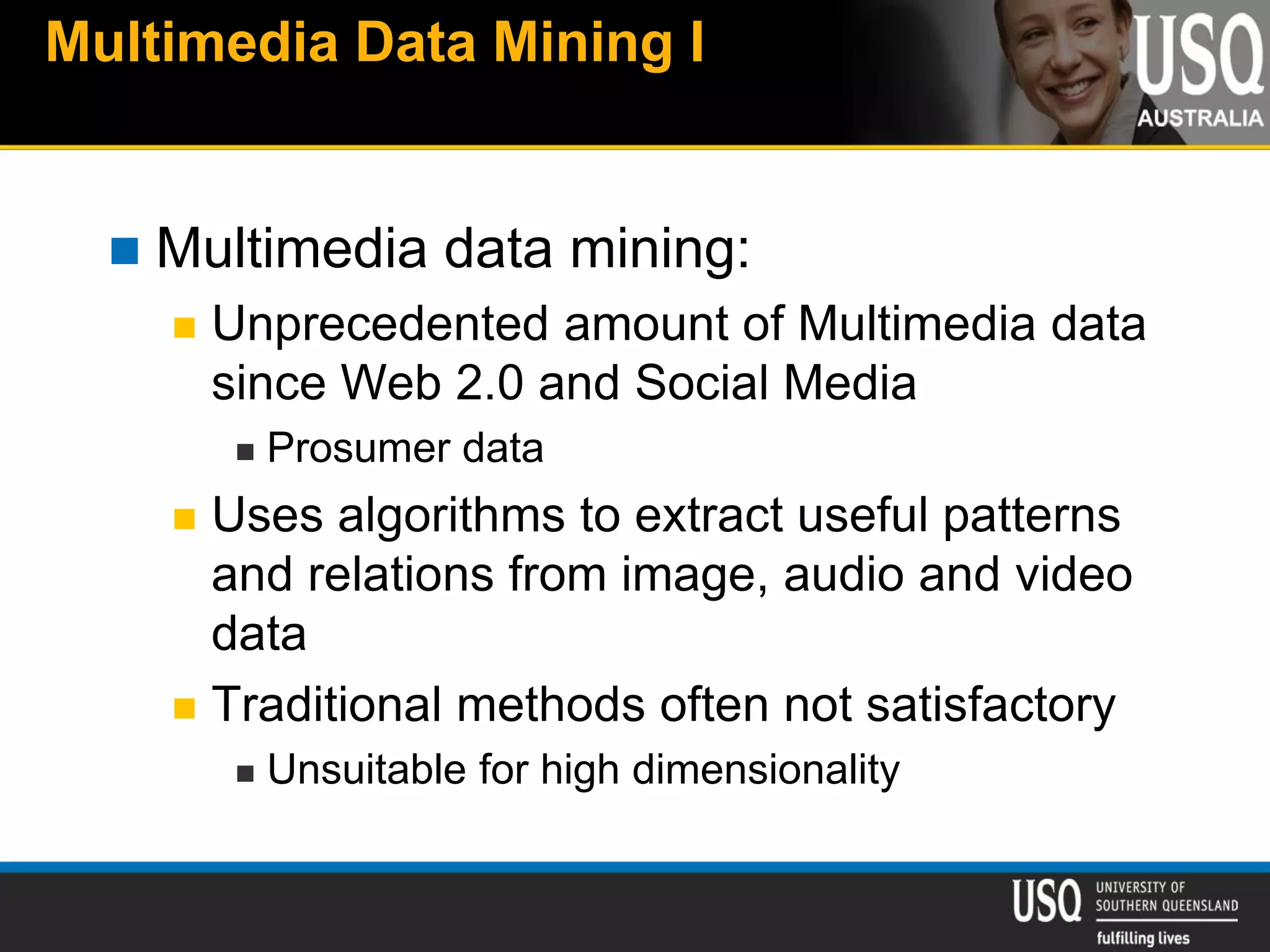

4. Multimedia Data Mining I
 Multimedia data mining:
 Unprecedented amount of Multimedia data
since Web 2.0 and Social Media
 Prosumer data
 Uses algorithms to extract useful patterns
and relations from image, audio and video
data
 Traditional methods often not satisfactory
 Unsuitable for high dimensionality

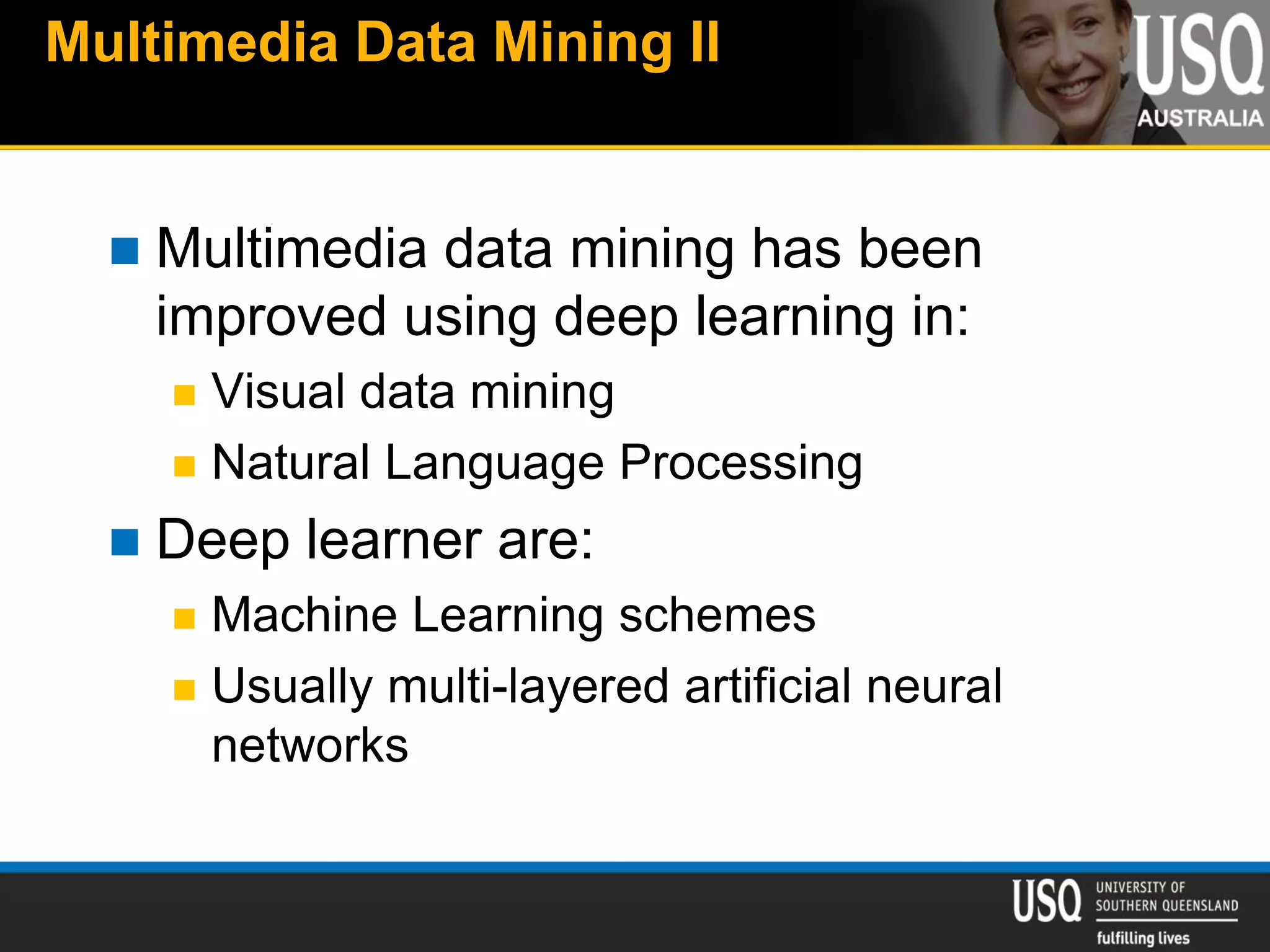

5. Multimedia Data Mining II
 Multimedia data mining has been
improved using deep learning in:
 Visual data mining
 Natural Language Processing
 Deep learner are:
 Machine Learning schemes
 Usually multi-layered artificial neural
networks

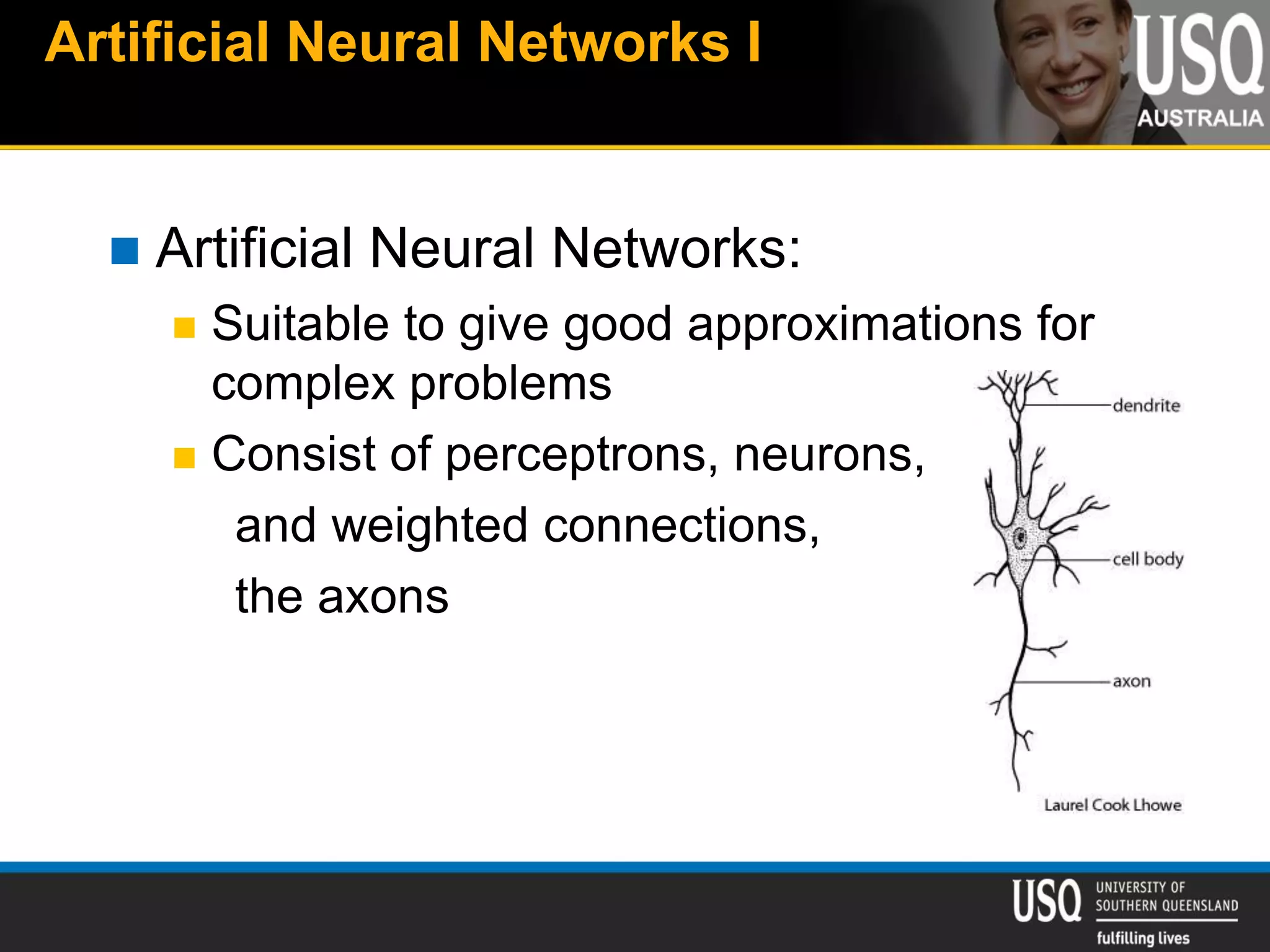

6. Artificial Neural Networks I
 Artificial Neural Networks:
 Suitable to give good approximations for
complex problems
 Consist of perceptrons, neurons,
and weighted connections,
the axons

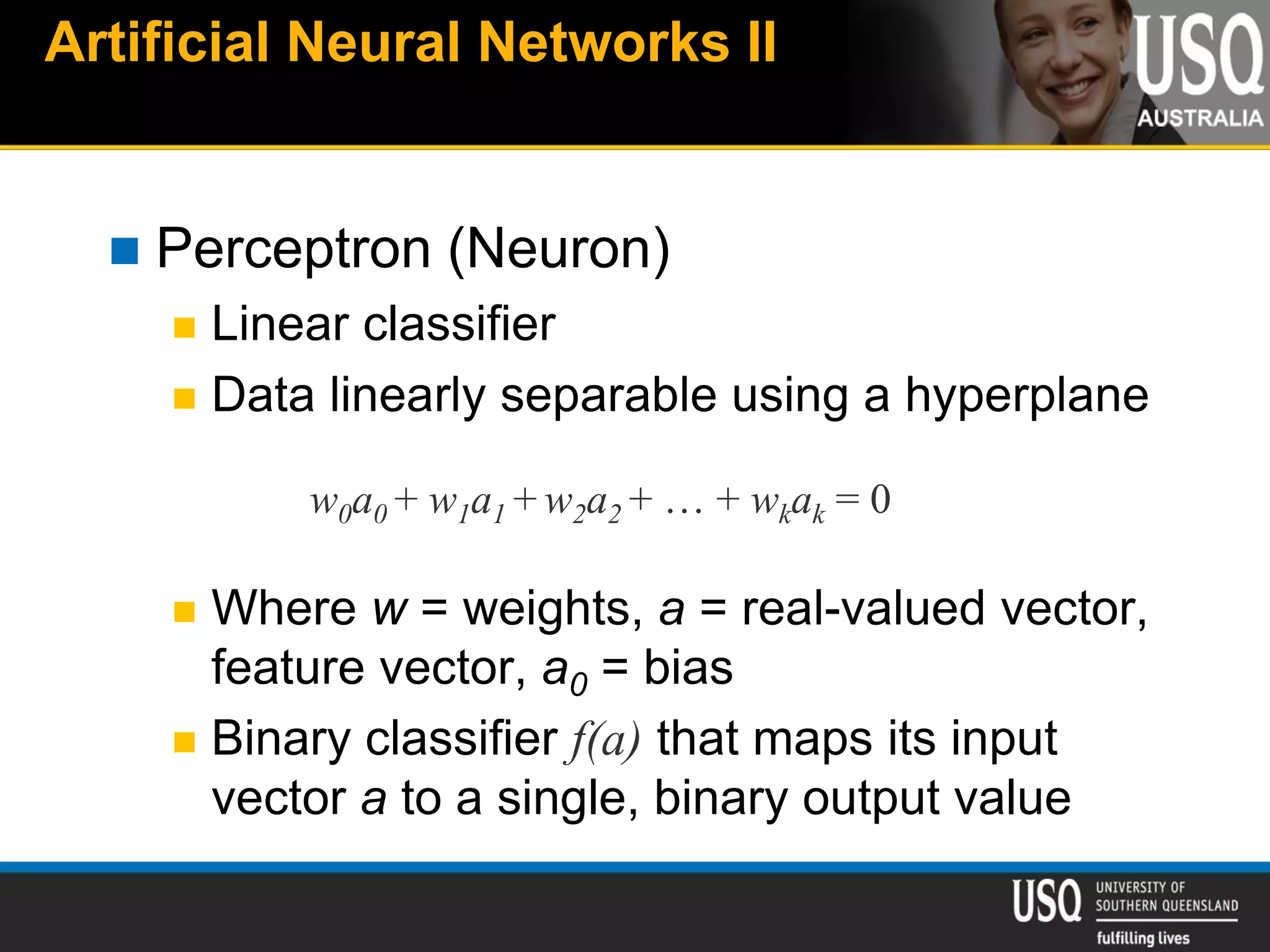

7. Artificial Neural Networks II
 Perceptron (Neuron)
 Linear classifier
 Data linearly separable using a hyperplane
 Where w = weights, a = real-valued vector,
feature vector, a0 = bias
 Binary classifier f(a) that maps its input
vector a to a single, binary output value
w0a0 + w1a1 + w2a2 + … + wkak = 0

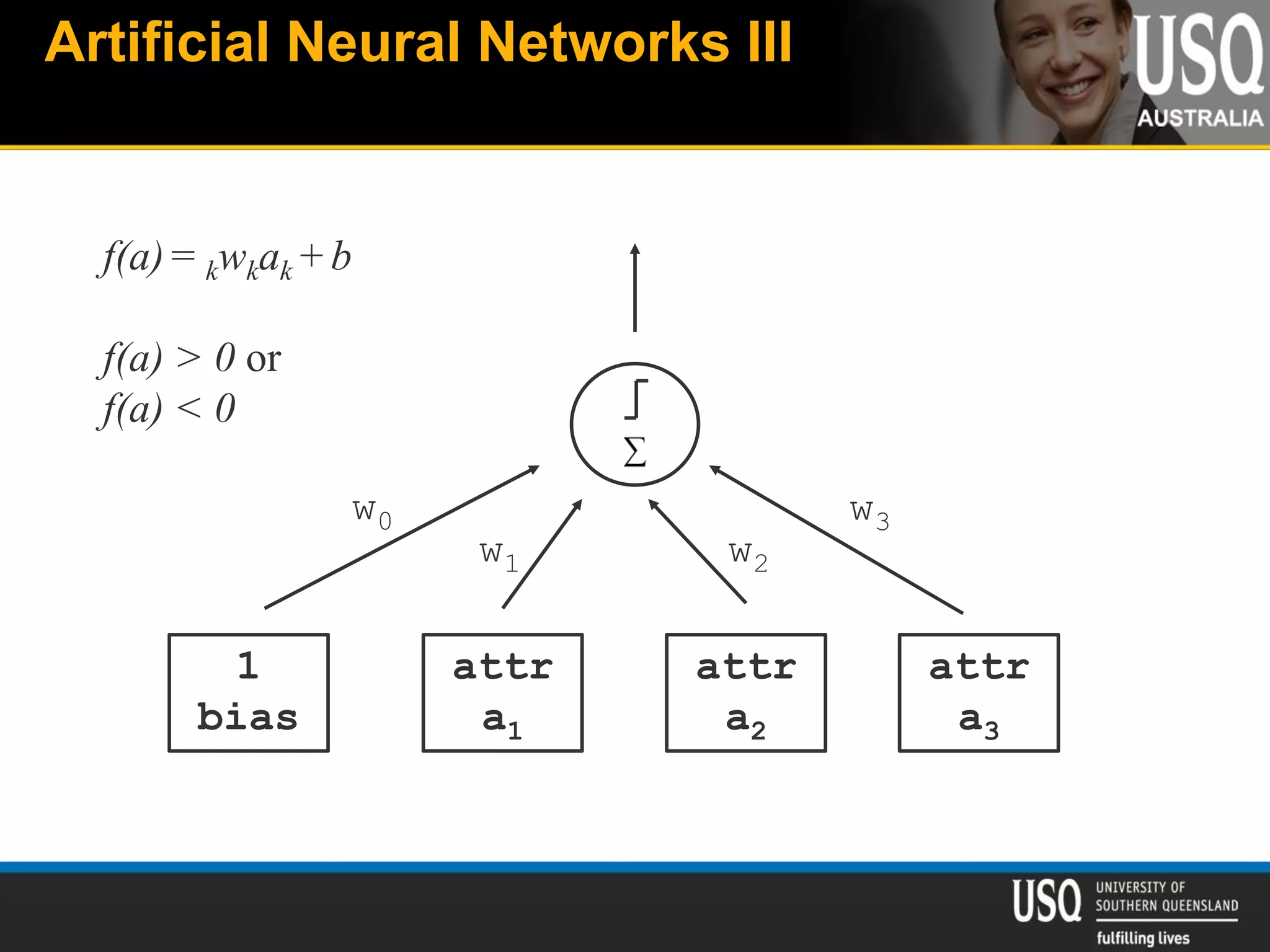

8. Artificial Neural Networks III
w0
1
bias
attr
a1
attr
a2
attr
a3
w1 w2
w3
f(a) = kwkak + b
f(a) > 0 or
f(a) < 0

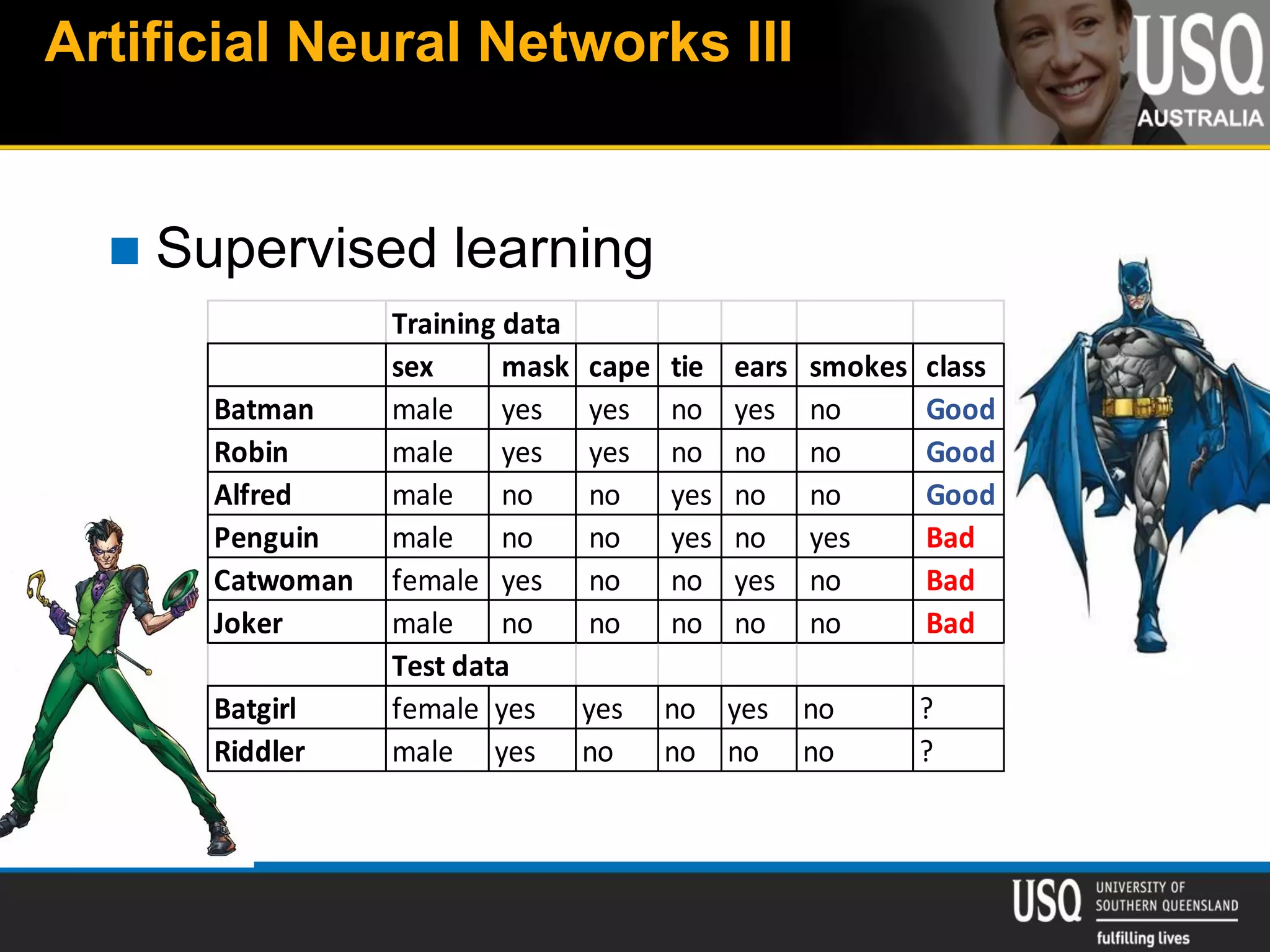

9. Artificial Neural Networks III
Training data
sex mask cape tie ears smokes class
Batman male yes yes no yes no Good
Robin male yes yes no no no Good
Alfred male no no yes no no Good
Penguin male no no yes no yes Bad
Catwoman female yes no no yes no Bad
Joker male no no no no no Bad
Test data
Batgirl female yes yes no yes no ?
Riddler male yes no no no no ?
 Supervised learning

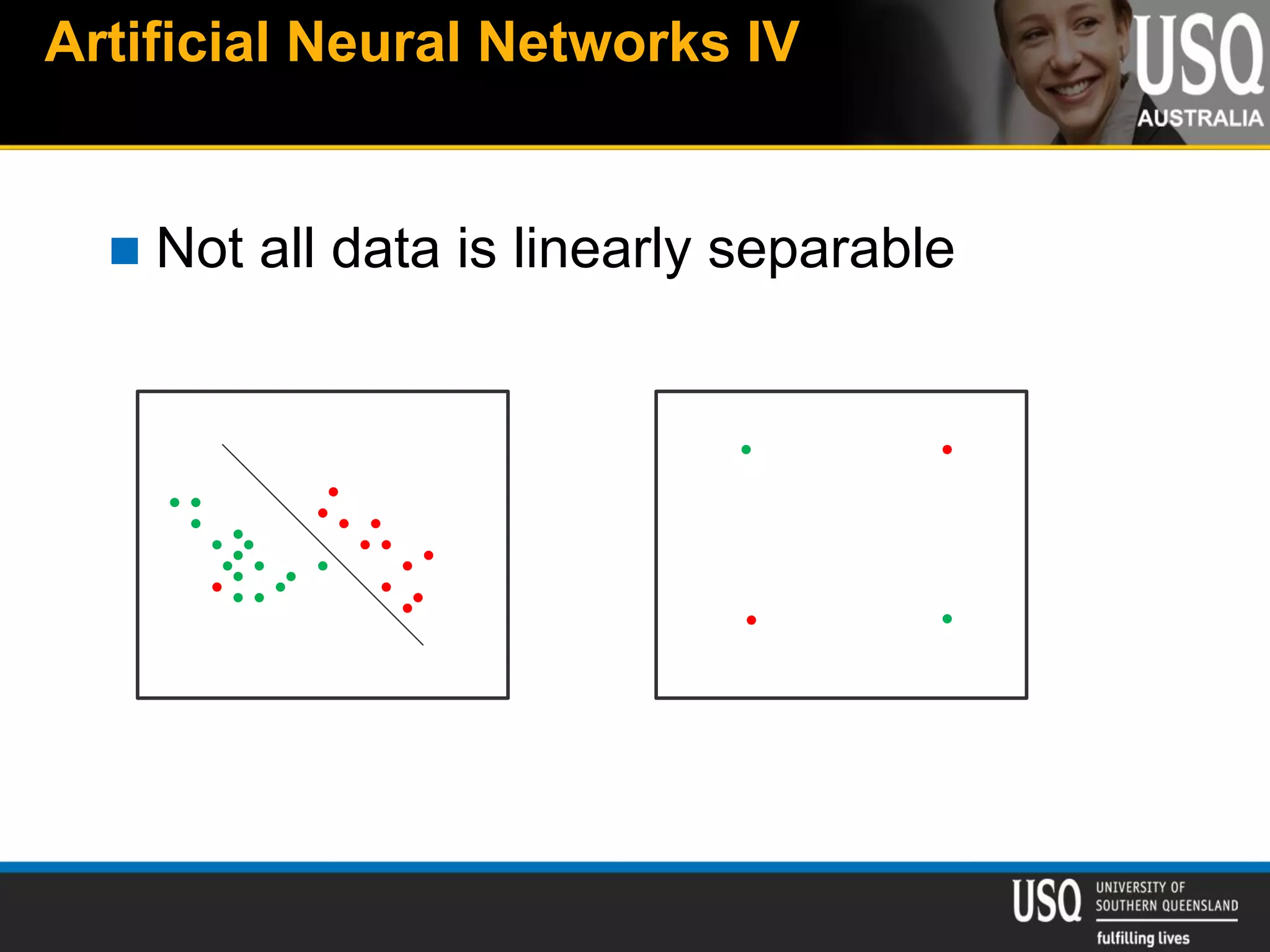

10. Artificial Neural Networks IV
 Not all data is linearly separable

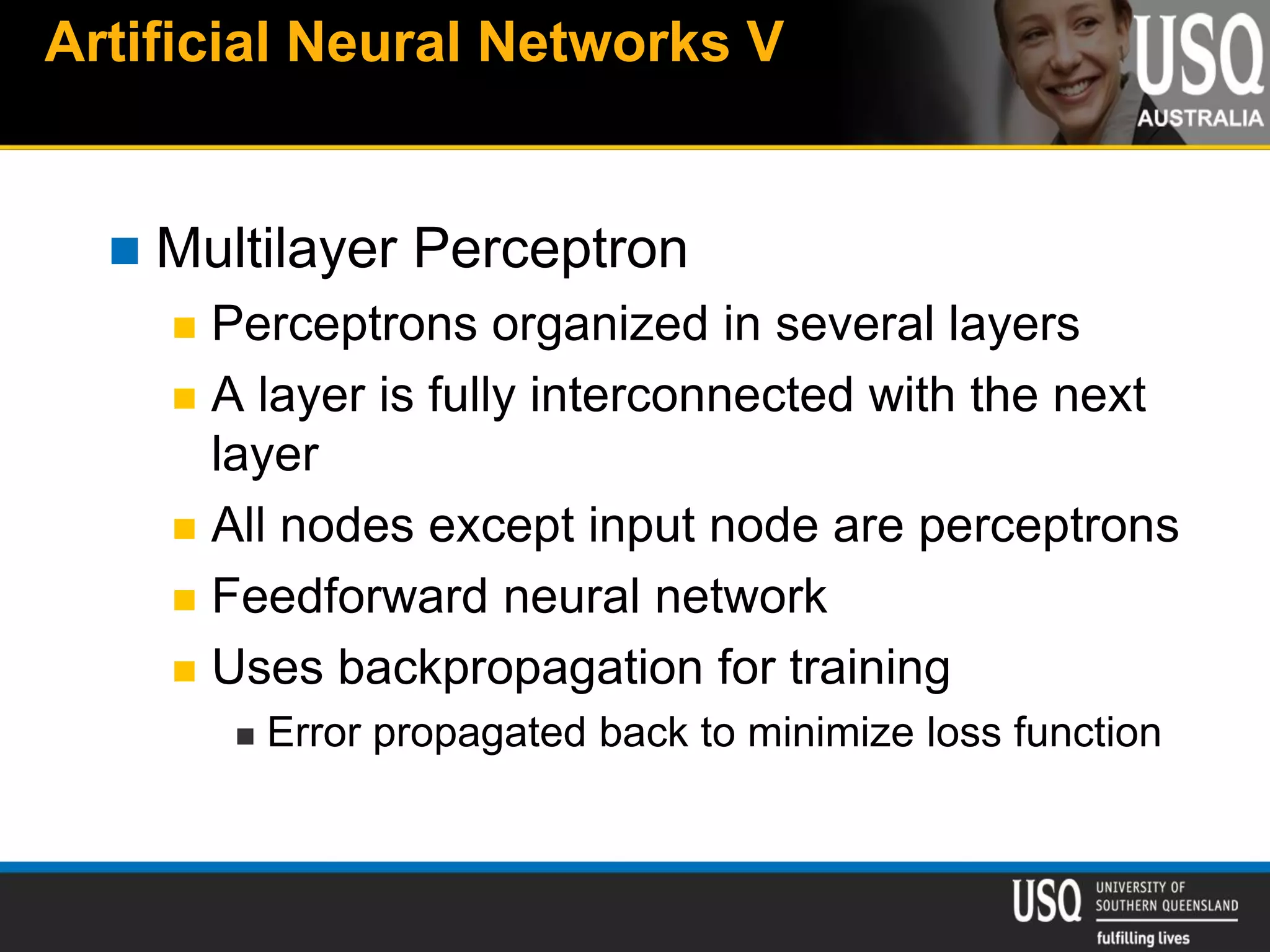

11. Artificial Neural Networks V
 Multilayer Perceptron
 Perceptrons organized in several layers
 A layer is fully interconnected with the next
layer
 All nodes except input node are perceptrons
 Feedforward neural network
 Uses backpropagation for training
 Error propagated back to minimize loss function

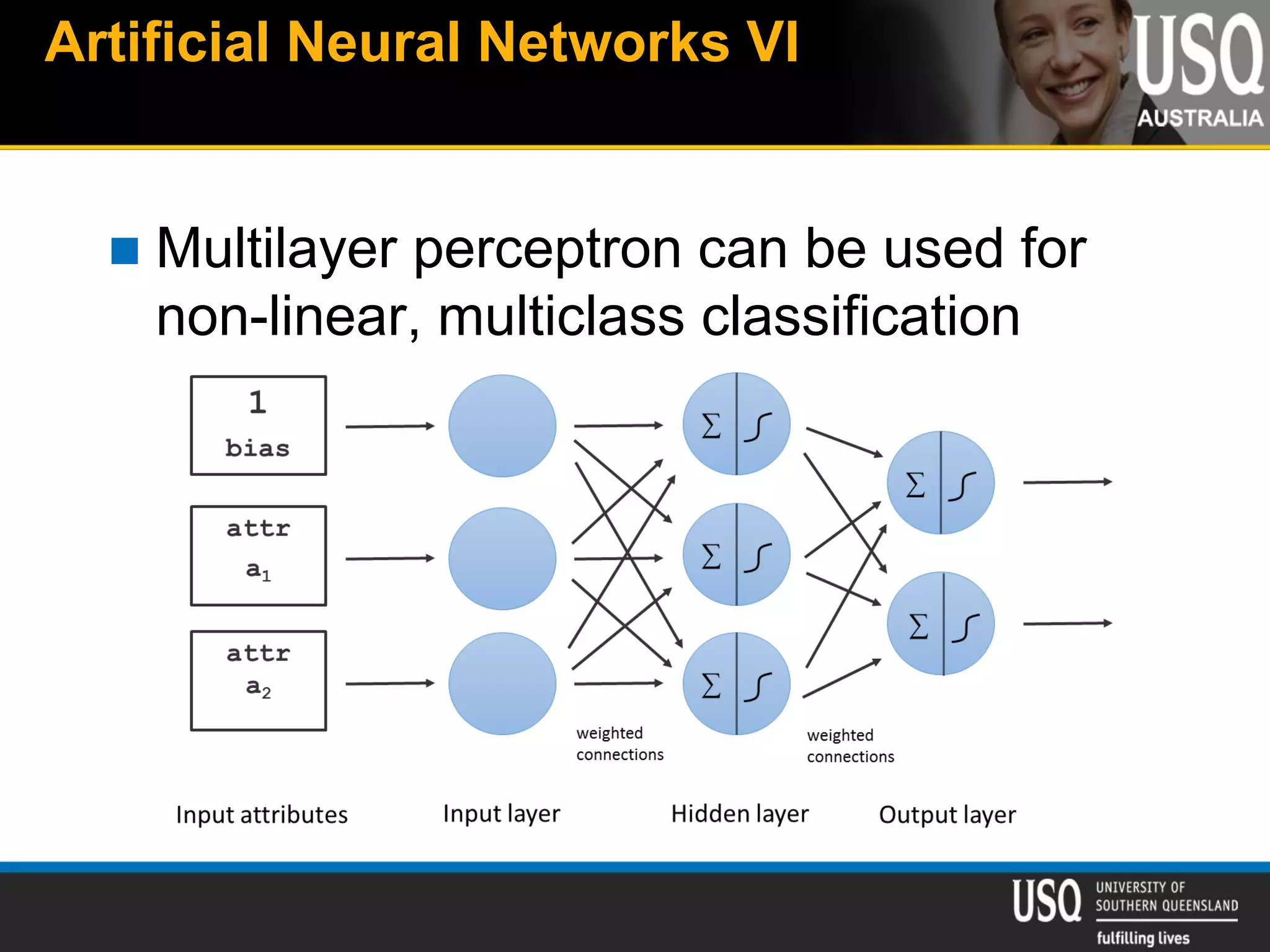

12. Artificial Neural Networks VI
 Multilayer perceptron can be used for
non-linear, multiclass classification

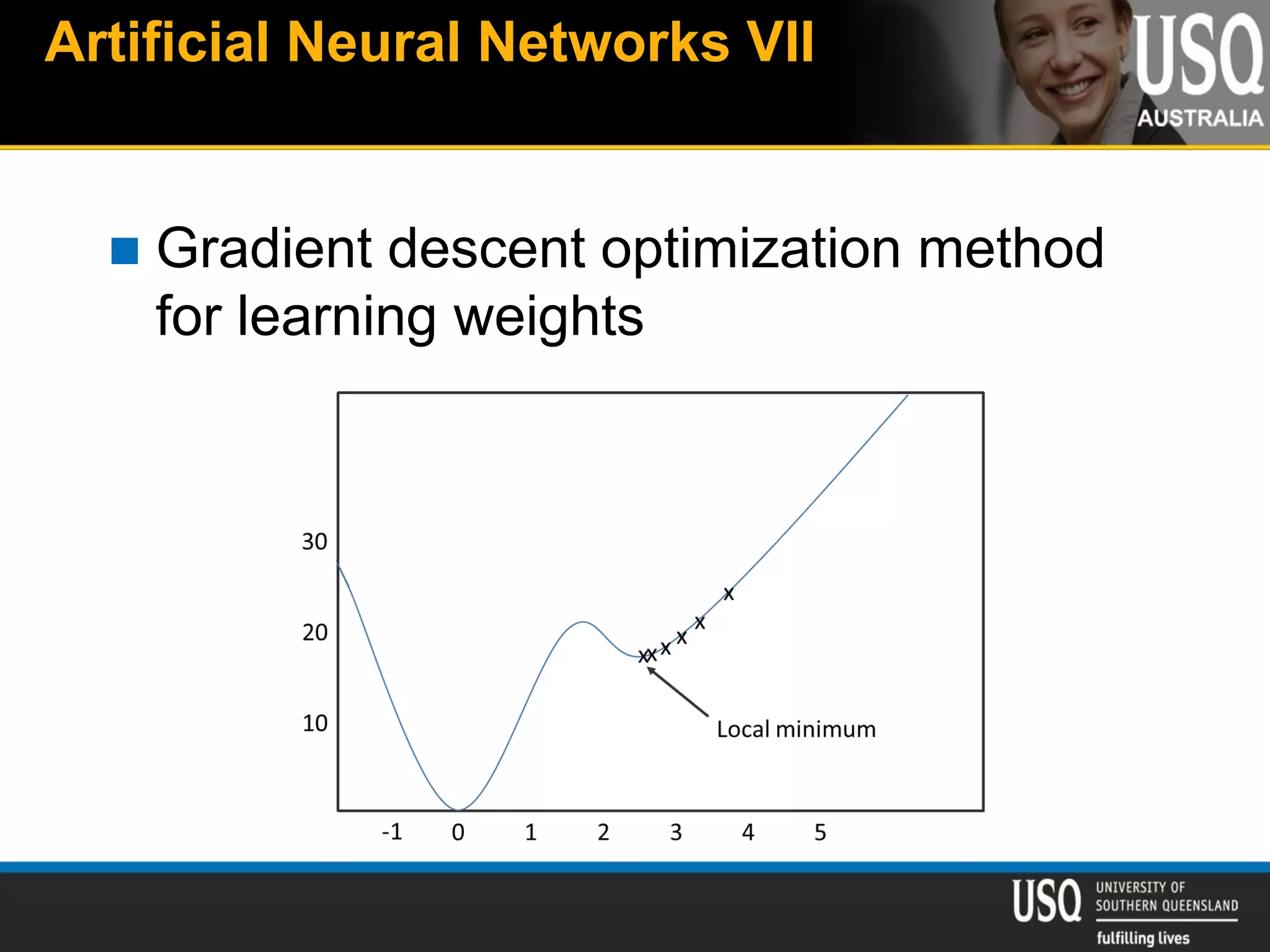

13. Artificial Neural Networks VII
 Gradient descent optimization method
for learning weights

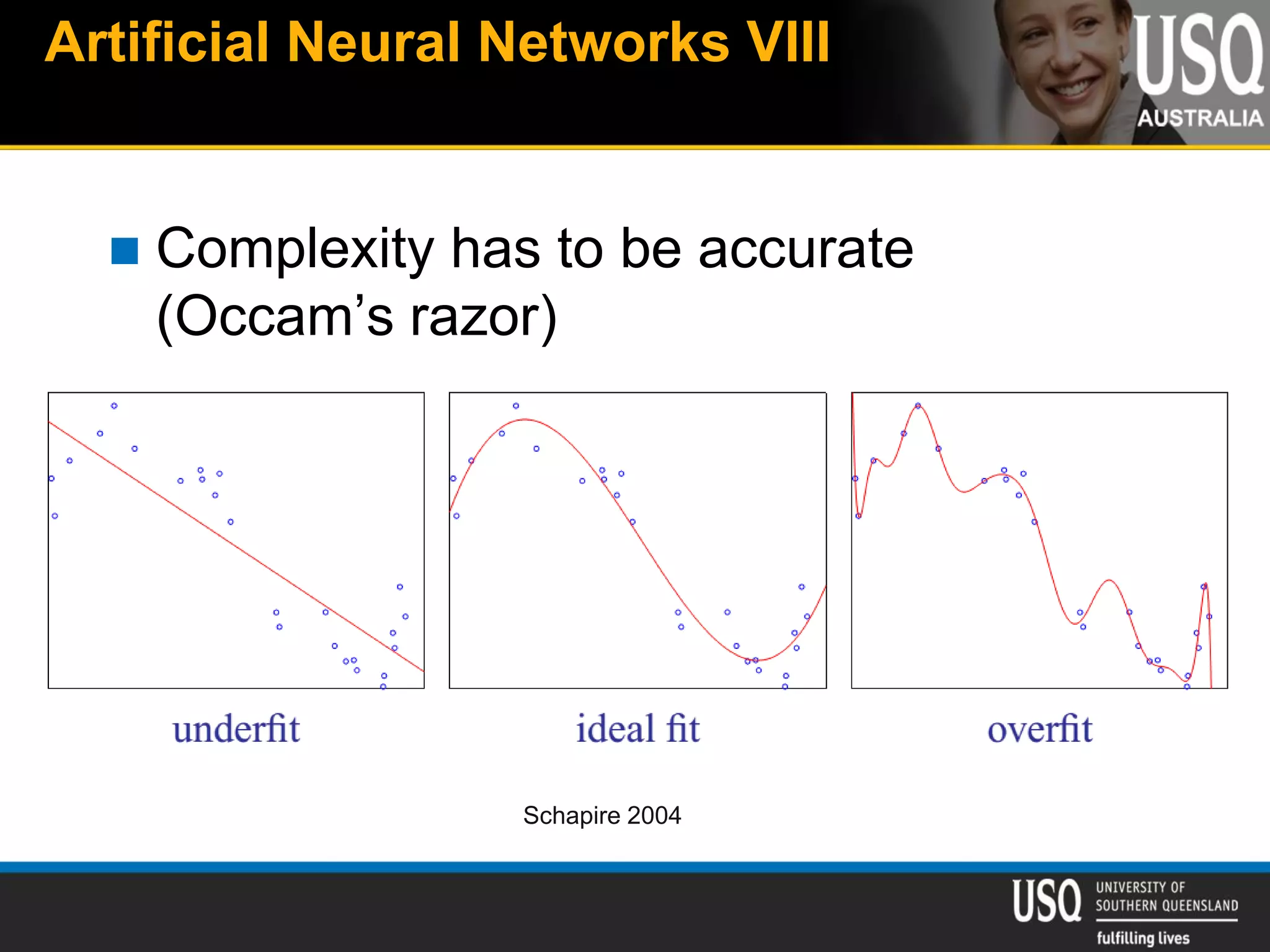

14. Artificial Neural Networks VIII
 Complexity has to be accurate
(Occam’s razor)
Schapire 2004

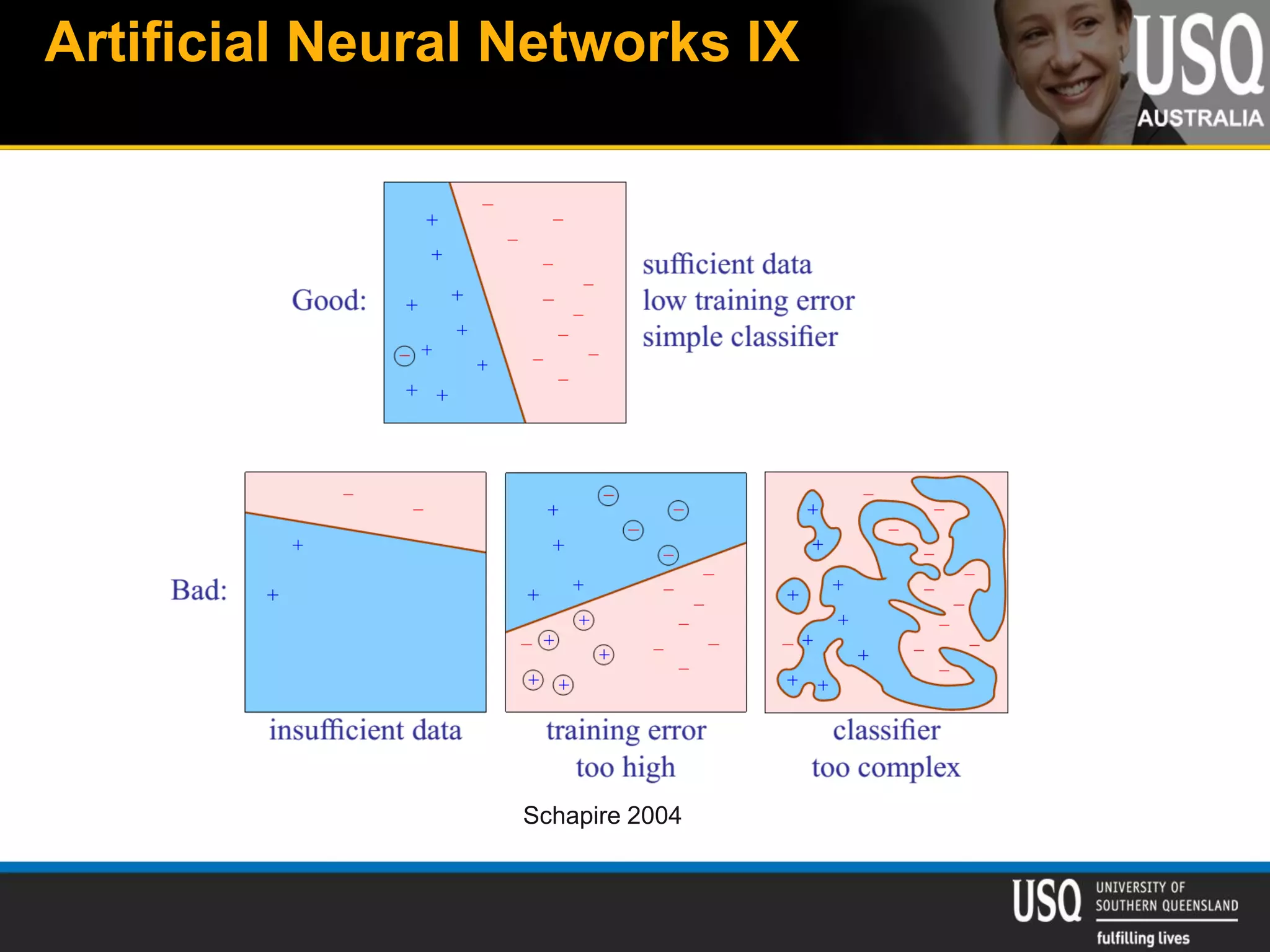

15. Artificial Neural Networks IX
Schapire 2004

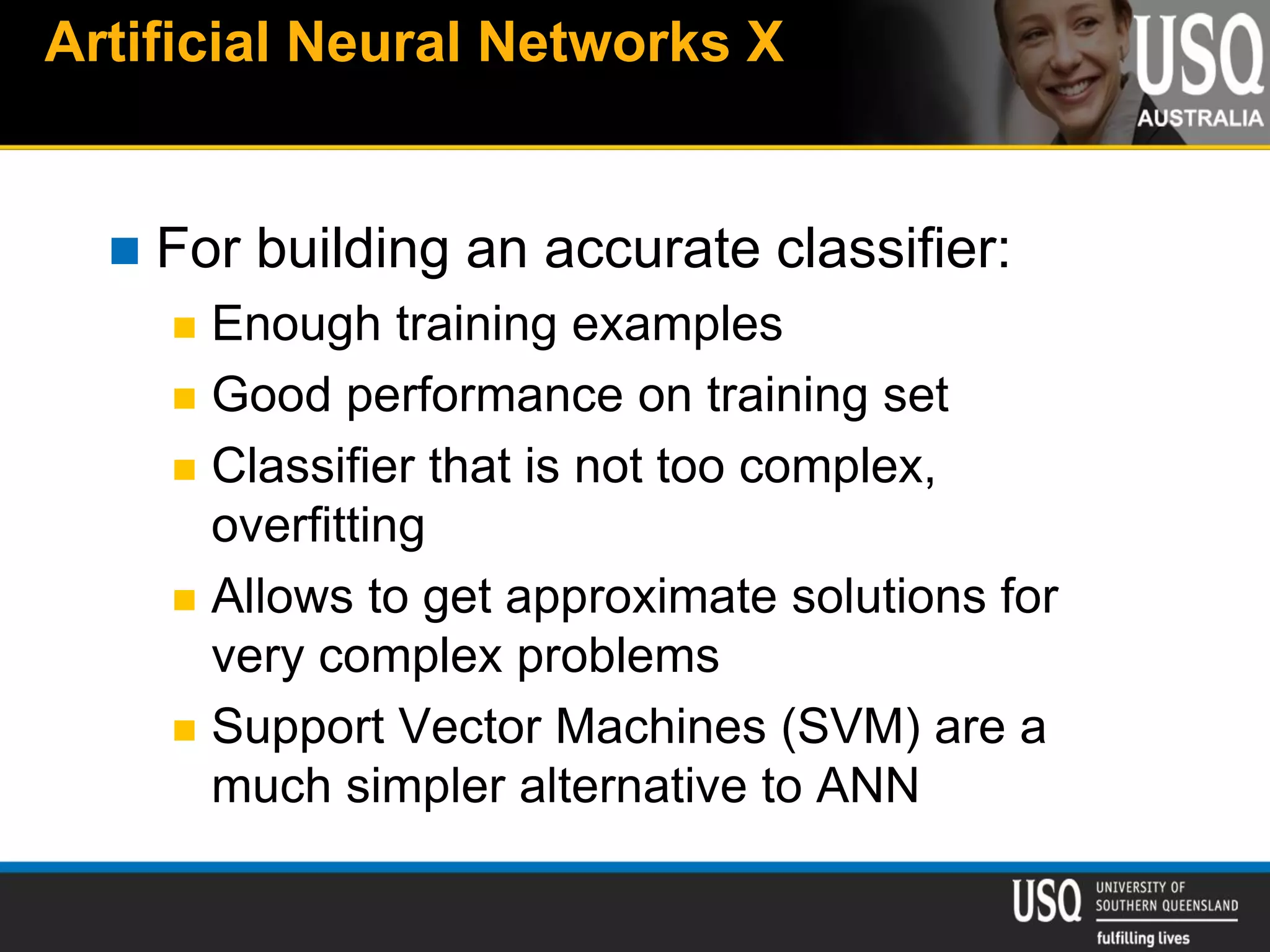

16. Artificial Neural Networks X
 For building an accurate classifier:
 Enough training examples
 Good performance on training set
 Classifier that is not too complex,
overfitting
 Allows to get approximate solutions for
very complex problems
 Support Vector Machines (SVM) are a
much simpler alternative to ANN

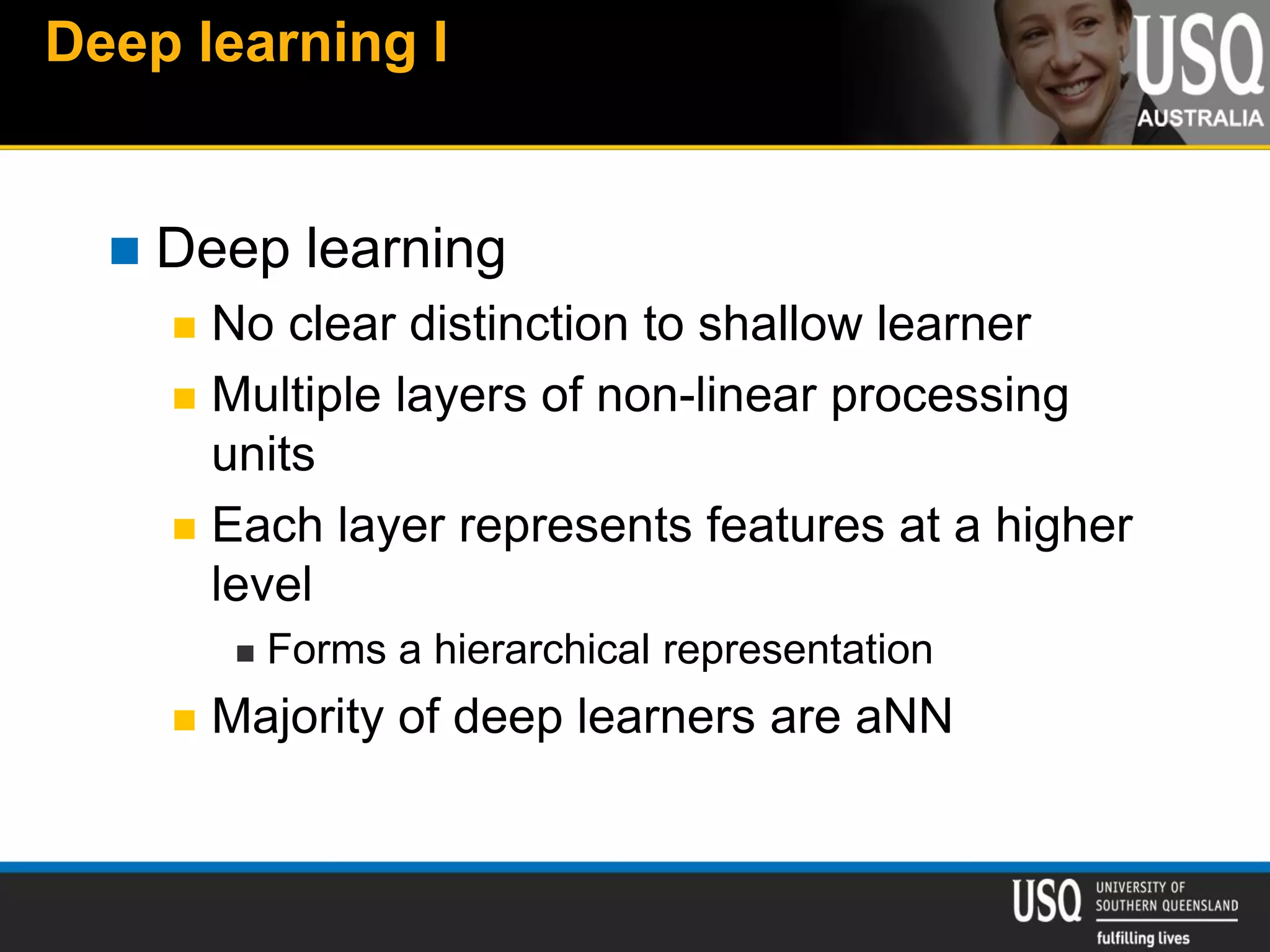

17. Deep learning I
 Deep learning
 No clear distinction to shallow learner
 Multiple layers of non-linear processing
units
 Each layer represents features at a higher
level
 Forms a hierarchical representation
 Majority of deep learners are aNN

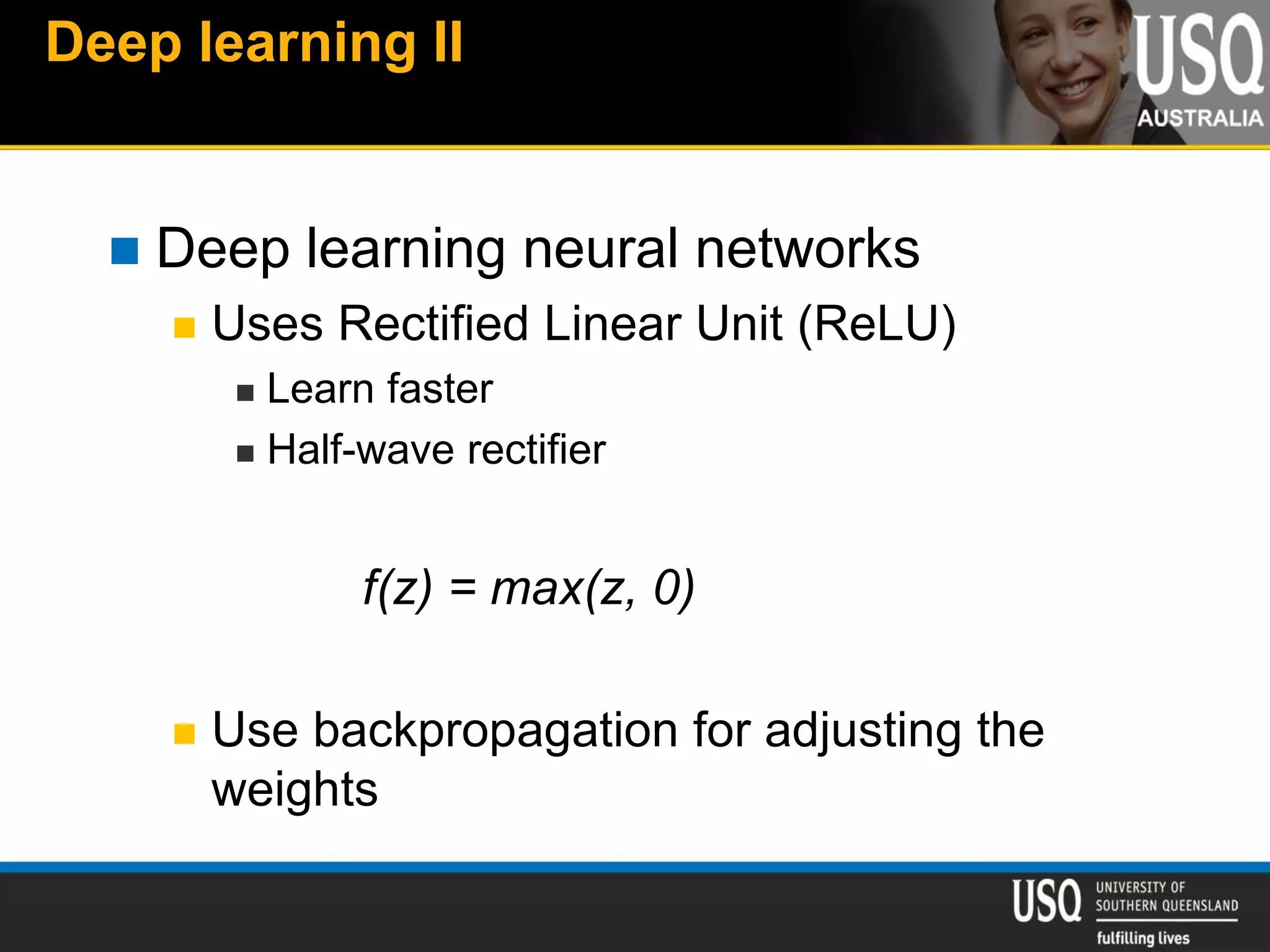

18. Deep learning II
 Deep learning neural networks
 Uses Rectified Linear Unit (ReLU)
 Learn faster
 Half-wave rectifier
f(z) = max(z, 0)
 Use backpropagation for adjusting the
weights

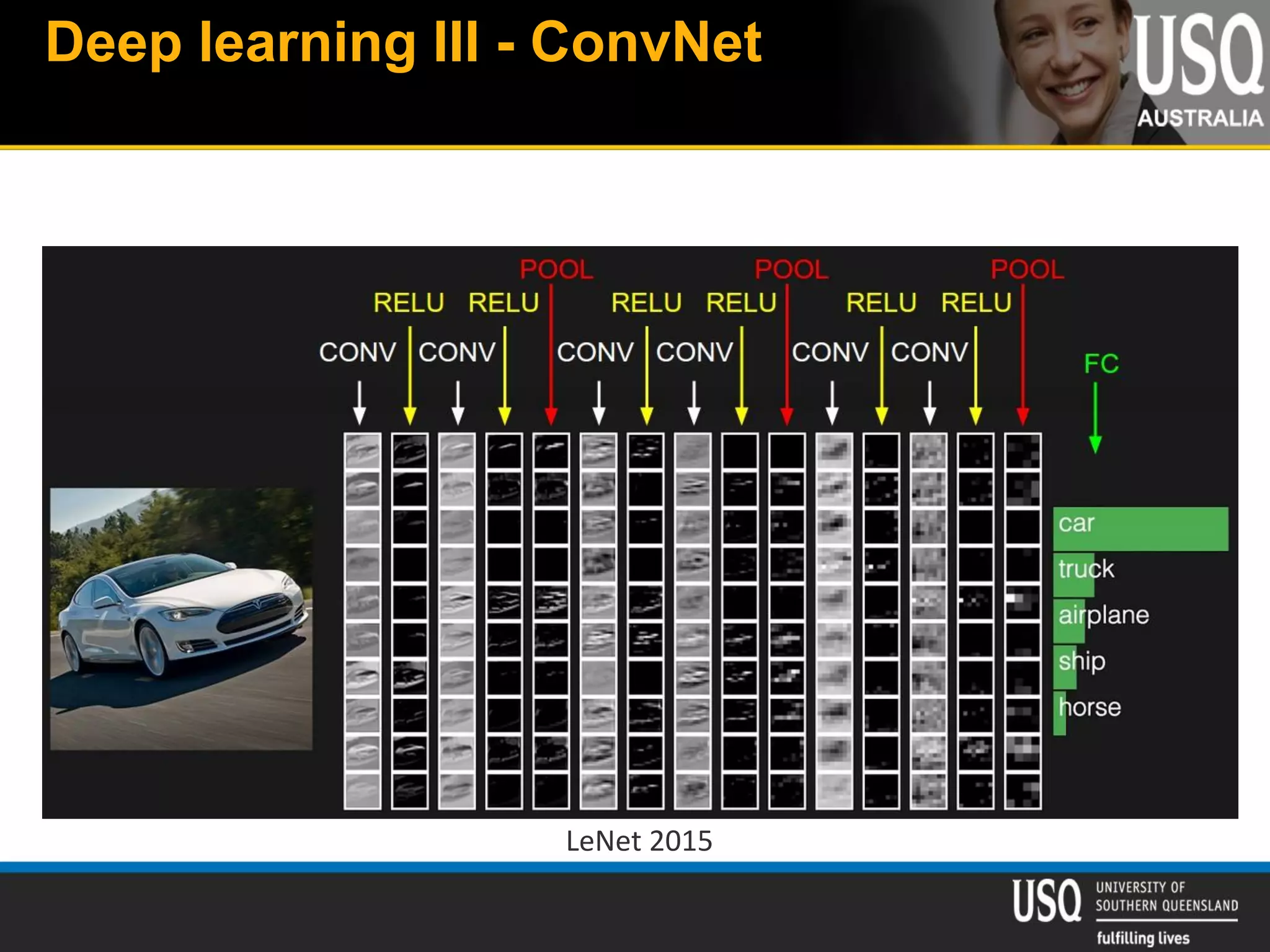

19. Deep learning III - ConvNet
LeNet 2015

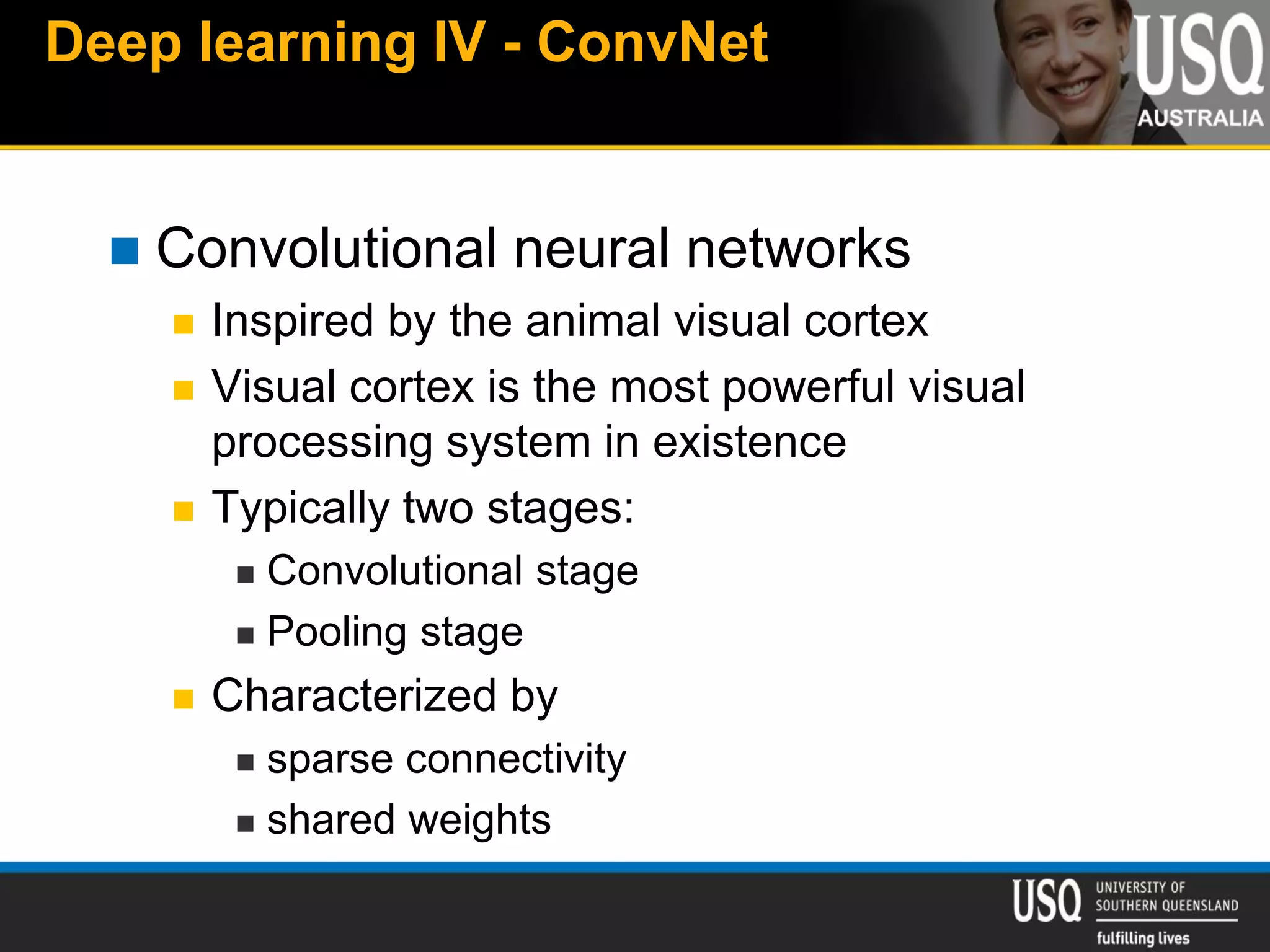

20. Deep learning IV - ConvNet
 Convolutional neural networks
 Inspired by the animal visual cortex
 Visual cortex is the most powerful visual
processing system in existence
 Typically two stages:
 Convolutional stage
 Pooling stage
 Characterized by
 sparse connectivity
 shared weights

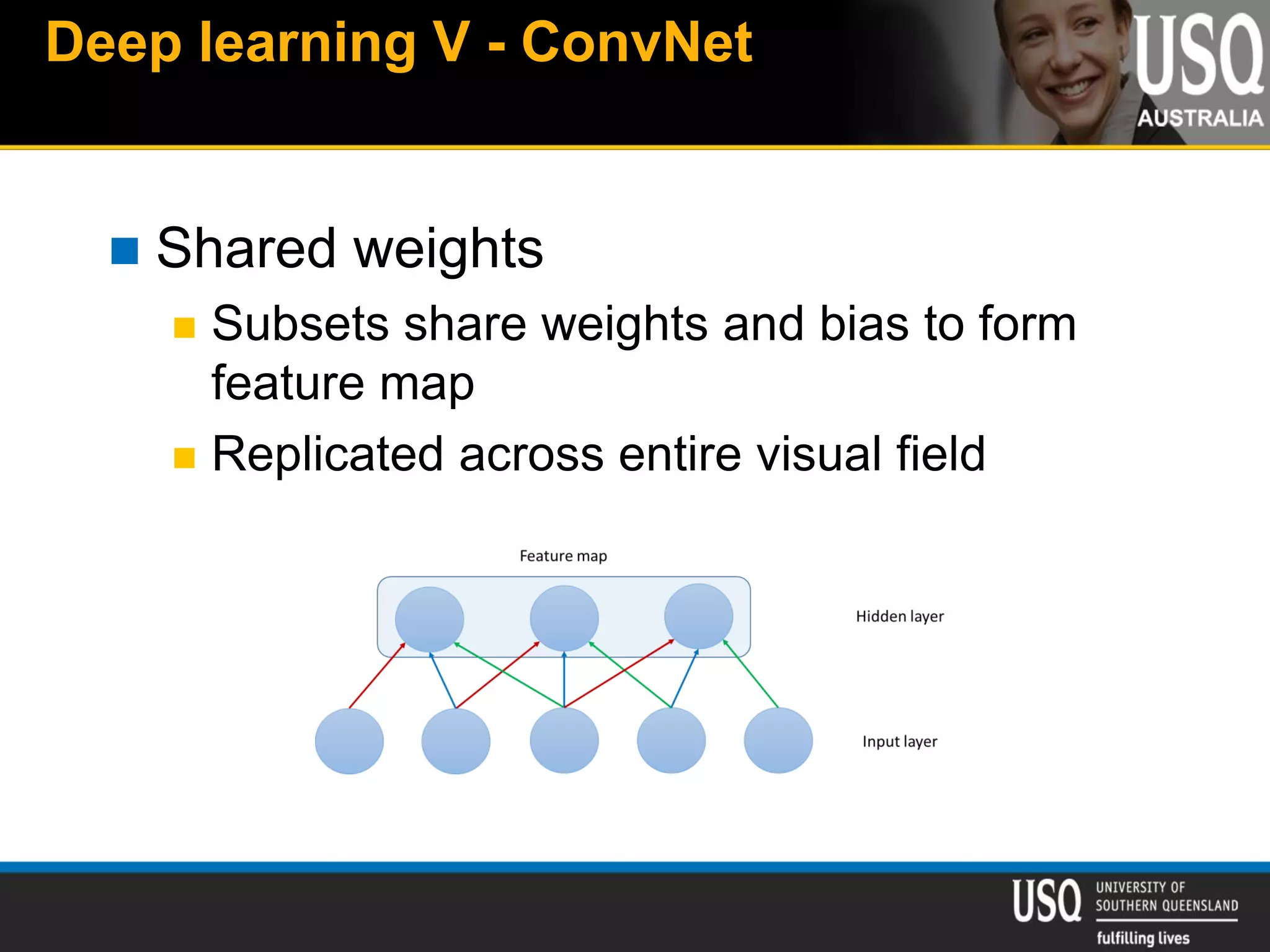

21. Deep learning V - ConvNet
 Shared weights
 Subsets share weights and bias to form
feature map
 Replicated across entire visual field

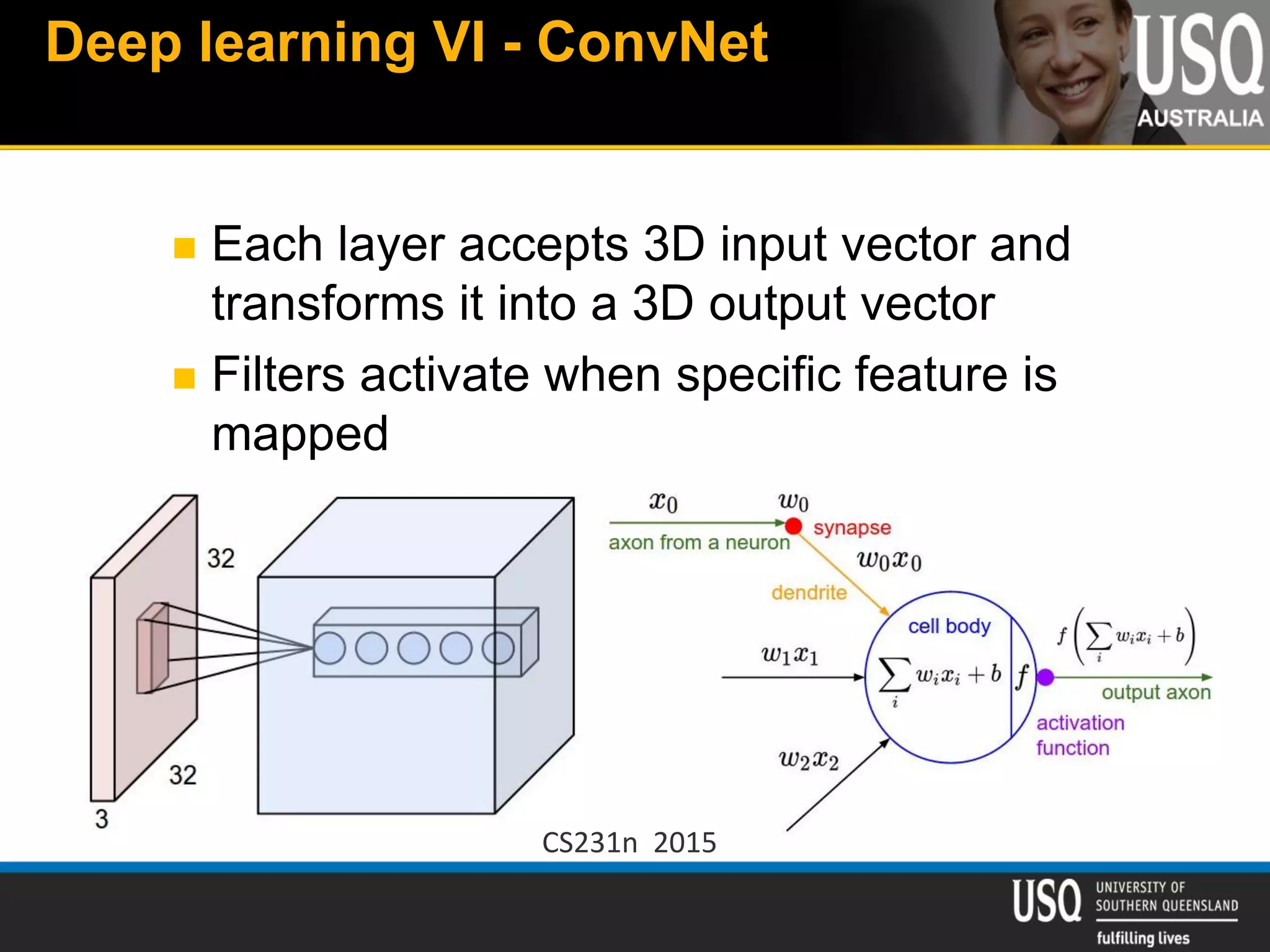

22. Deep learning VI - ConvNet
 Each layer accepts 3D input vector and
transforms it into a 3D output vector
 Filters activate when specific feature is
mapped
CS231n 2015

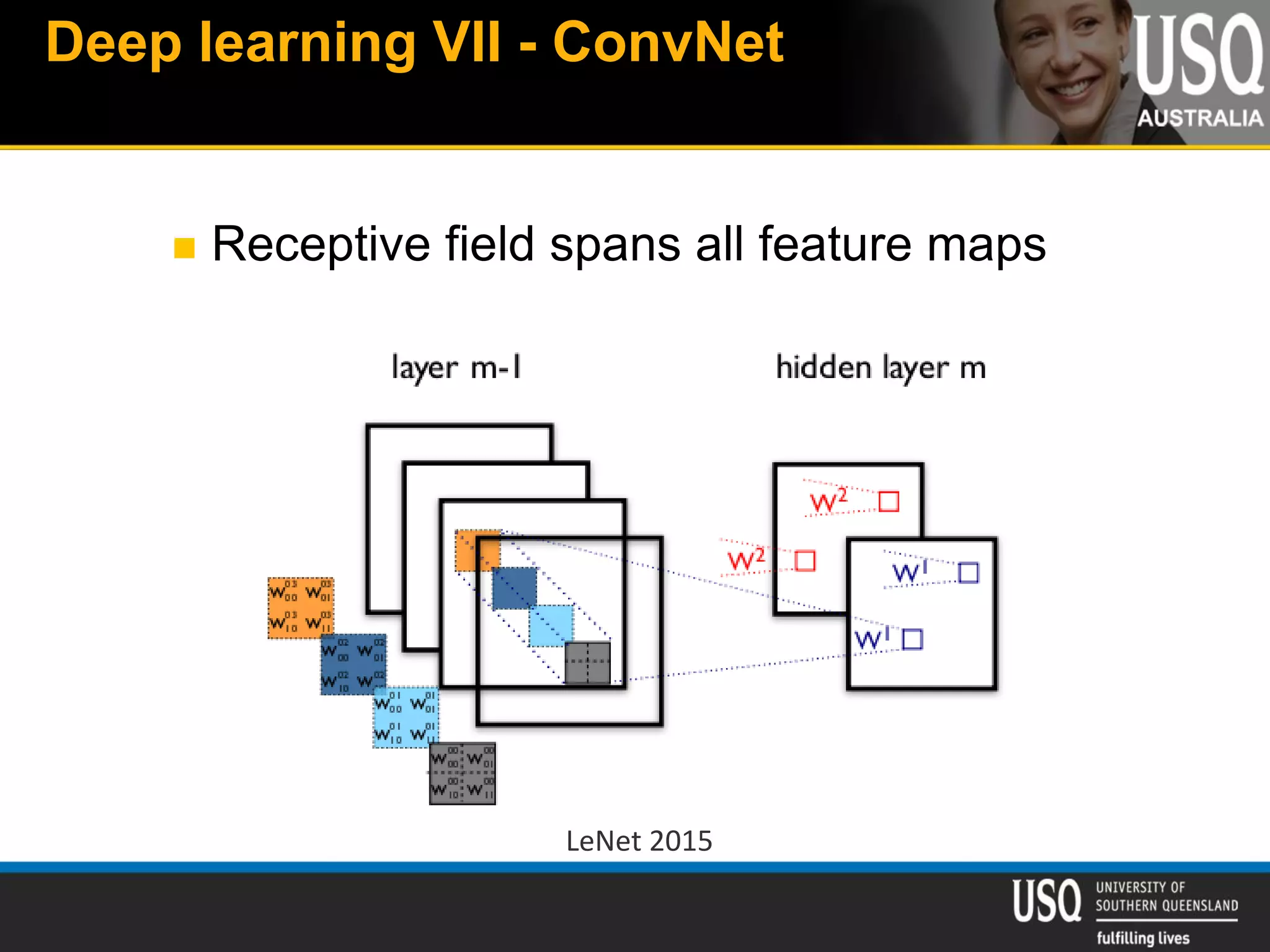

23. Deep learning VII - ConvNet
 Receptive field spans all feature maps
LeNet 2015

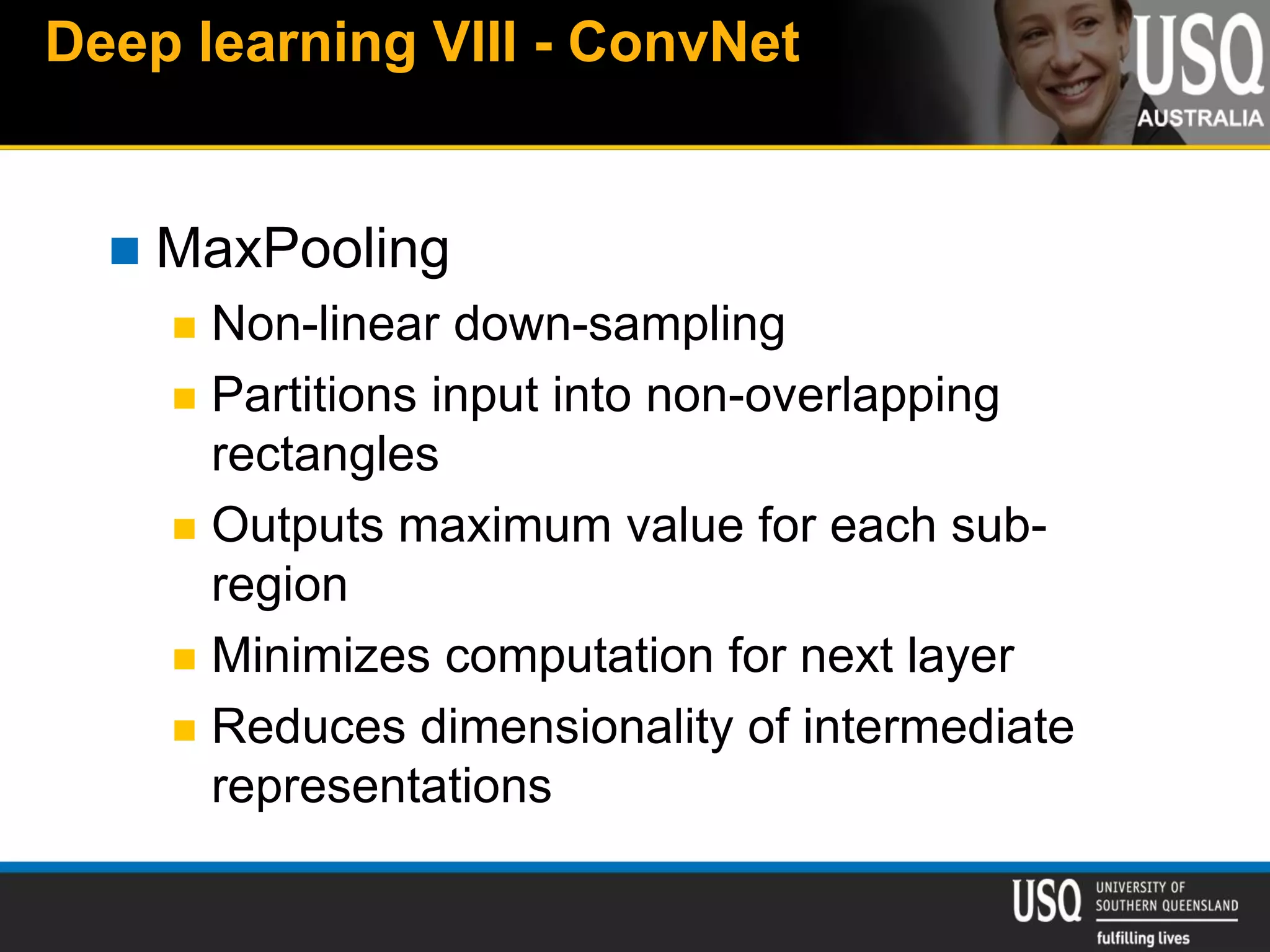

24. Deep learning VIII - ConvNet
 MaxPooling
 Non-linear down-sampling
 Partitions input into non-overlapping
rectangles
 Outputs maximum value for each sub-
region
 Minimizes computation for next layer
 Reduces dimensionality of intermediate
representations

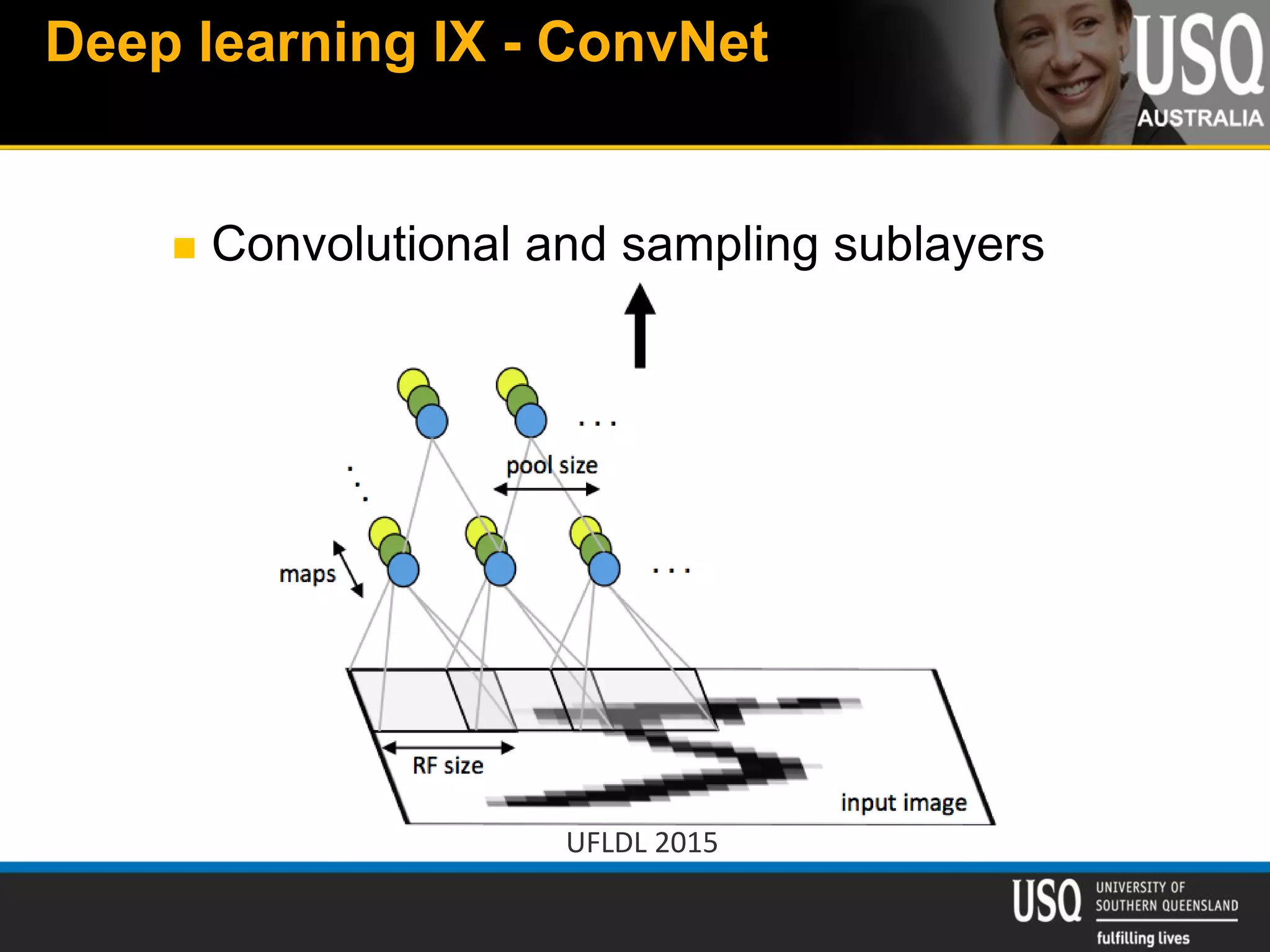

25. Deep learning IX - ConvNet
 Convolutional and sampling sublayers
UFLDL 2015

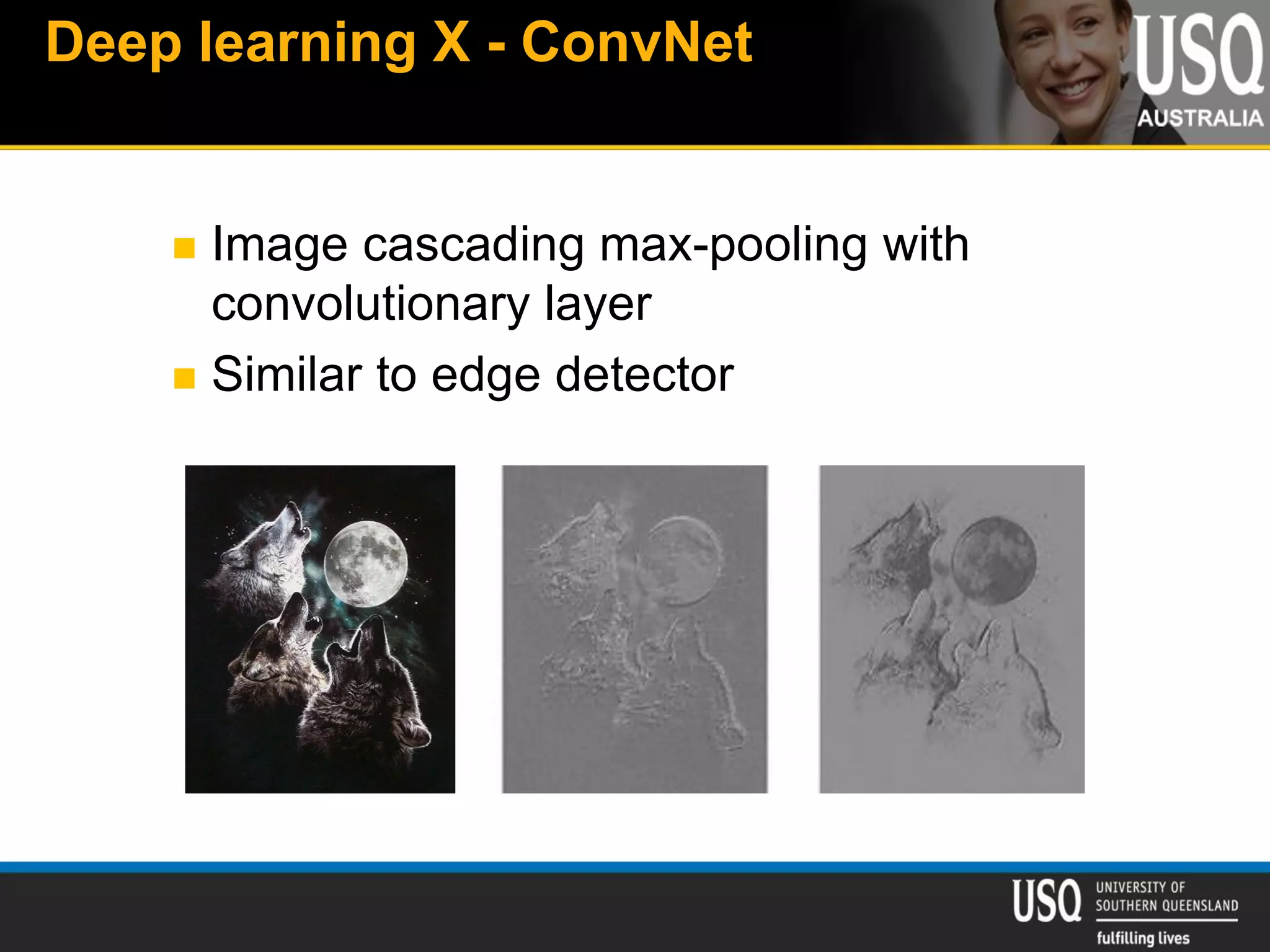

26. Deep learning X - ConvNet
 Image cascading max-pooling with
convolutionary layer
 Similar to edge detector

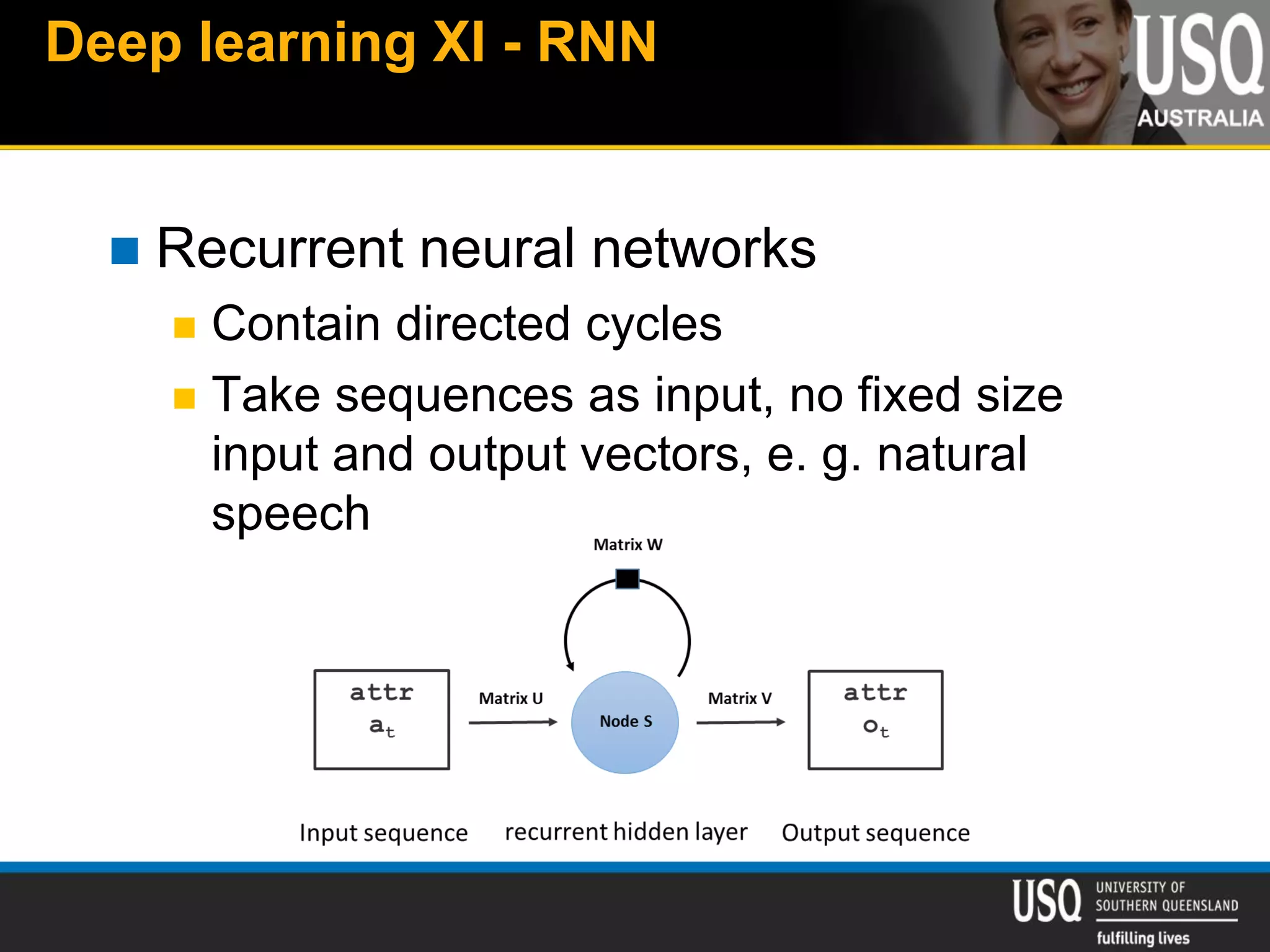

27. Deep learning XI - RNN
 Recurrent neural networks
 Contain directed cycles
 Take sequences as input, no fixed size
input and output vectors, e. g. natural
speech

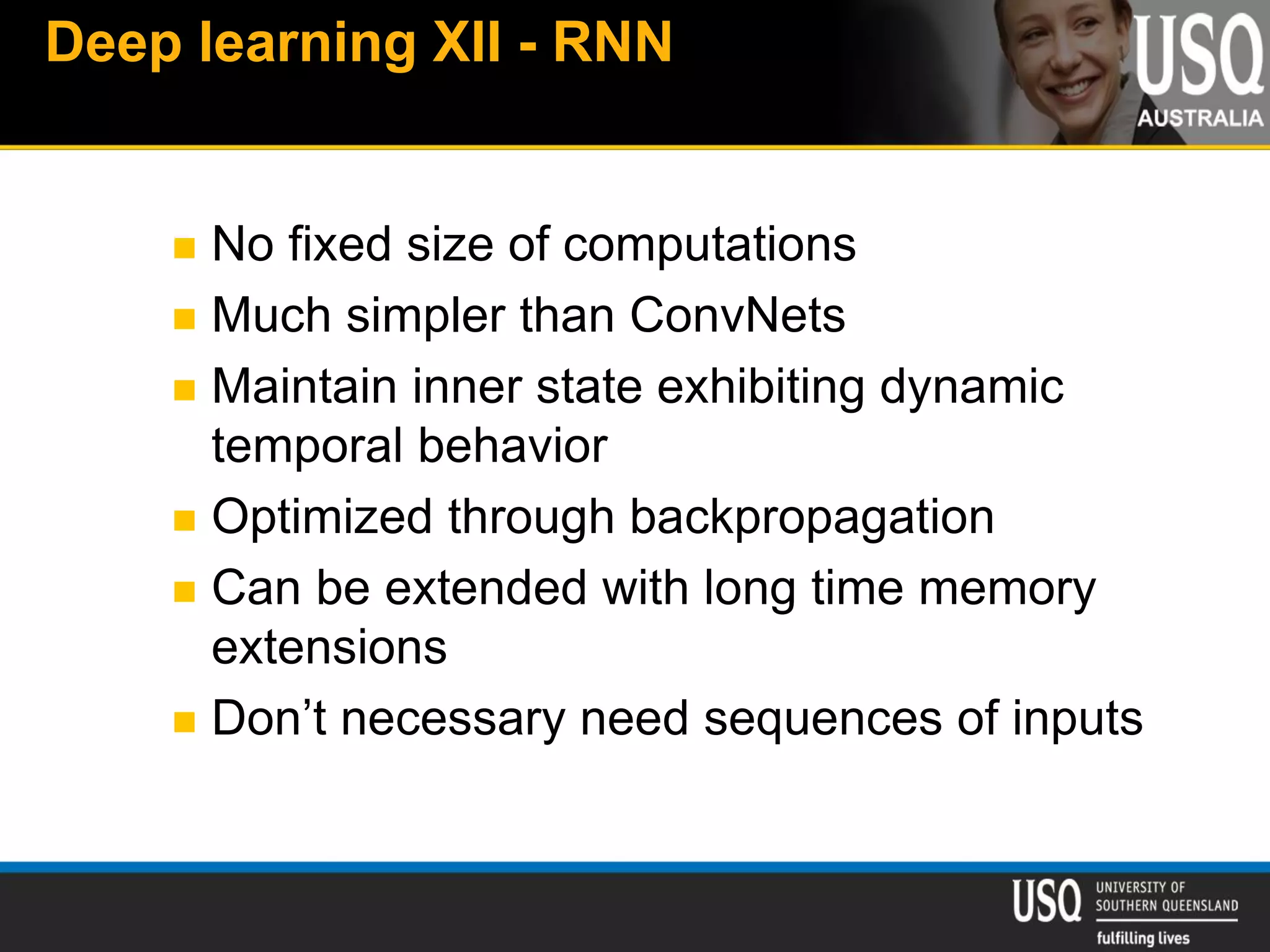

28. Deep learning XII - RNN
 No fixed size of computations
 Much simpler than ConvNets
 Maintain inner state exhibiting dynamic
temporal behavior
 Optimized through backpropagation
 Can be extended with long time memory
extensions
 Don’t necessary need sequences of inputs

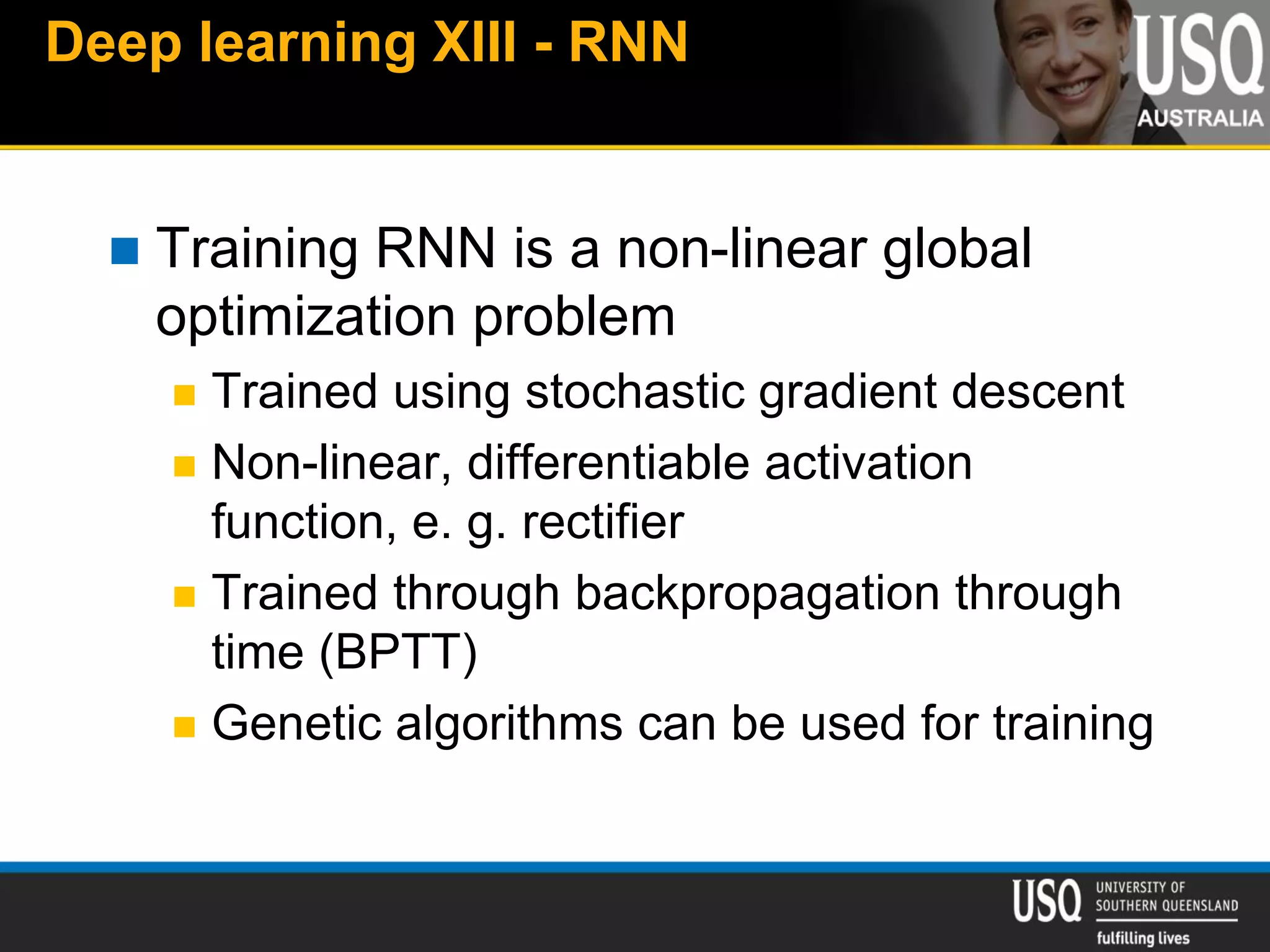

29. Deep learning XIII - RNN
 Training RNN is a non-linear global
optimization problem
 Trained using stochastic gradient descent
 Non-linear, differentiable activation
function, e. g. rectifier
 Trained through backpropagation through
time (BPTT)
 Genetic algorithms can be used for training

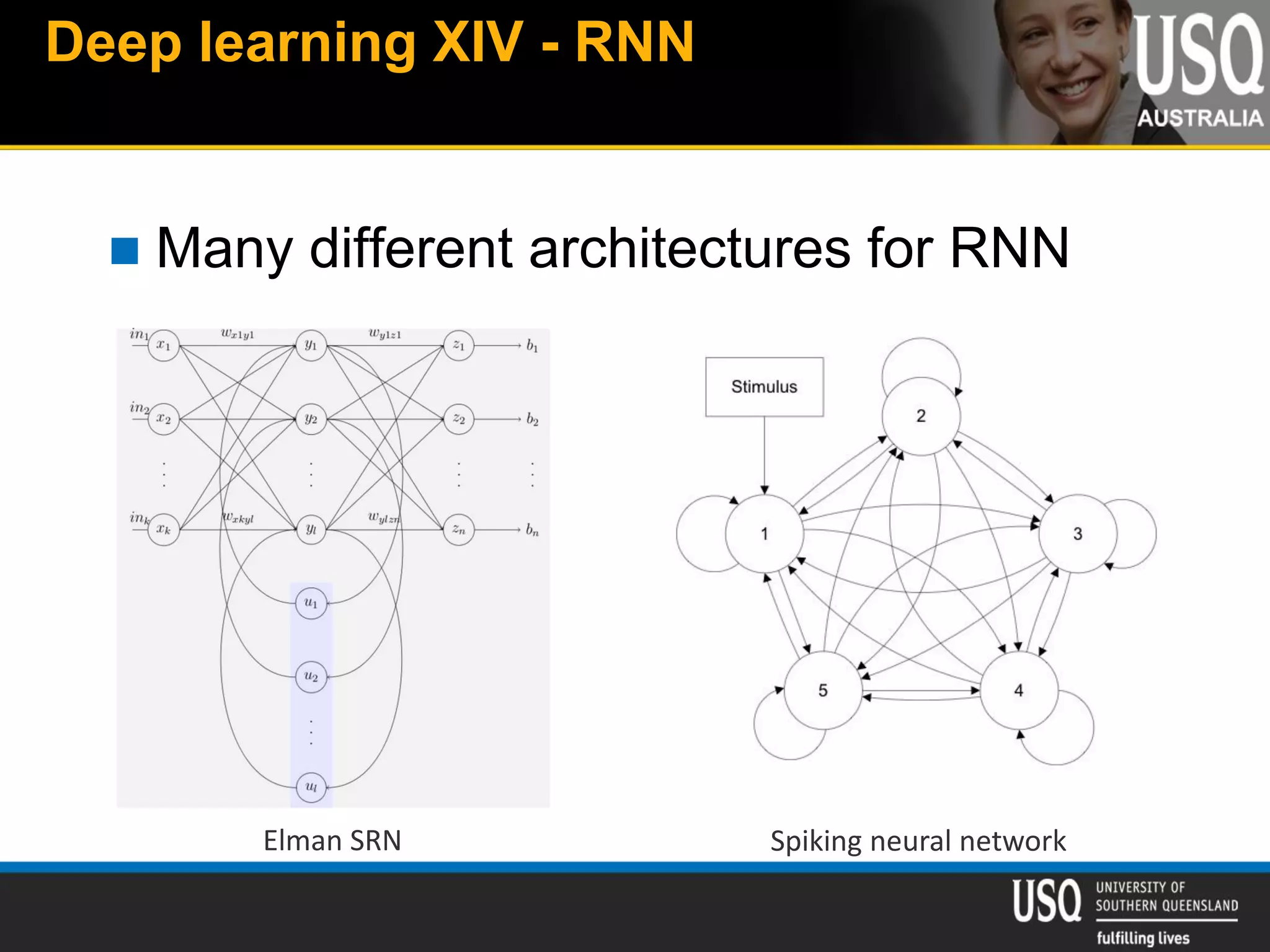

30. Deep learning XIV - RNN
 Many different architectures for RNN
Elman SRN Spiking neural network

31. Deep learning XV - RNN
RNN learns to read house
numbers
RNN learns to paint
house numbers
Karpathy 2015

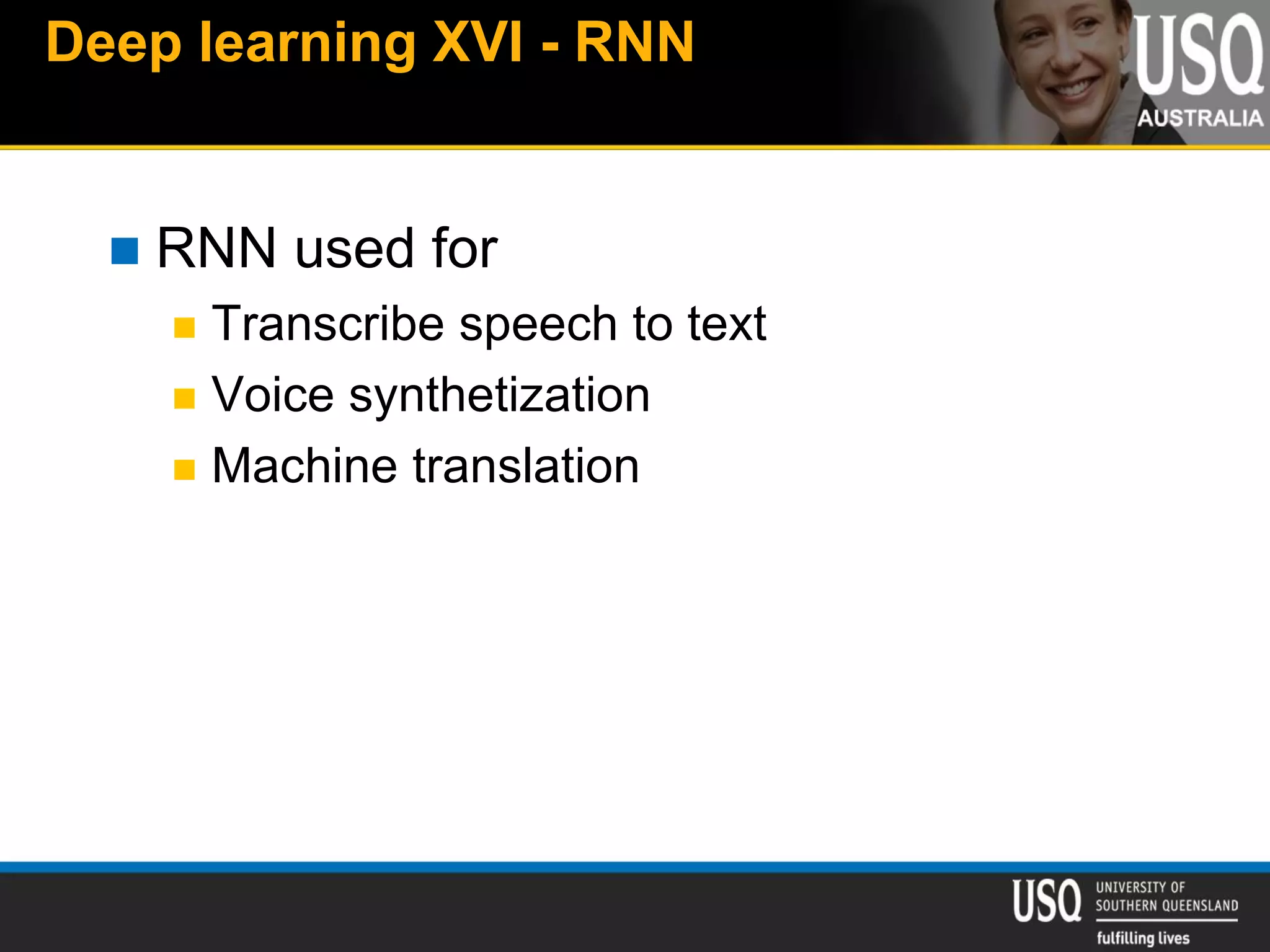

32. Deep learning XVI - RNN
 RNN used for
 Transcribe speech to text
 Voice synthetization
 Machine translation

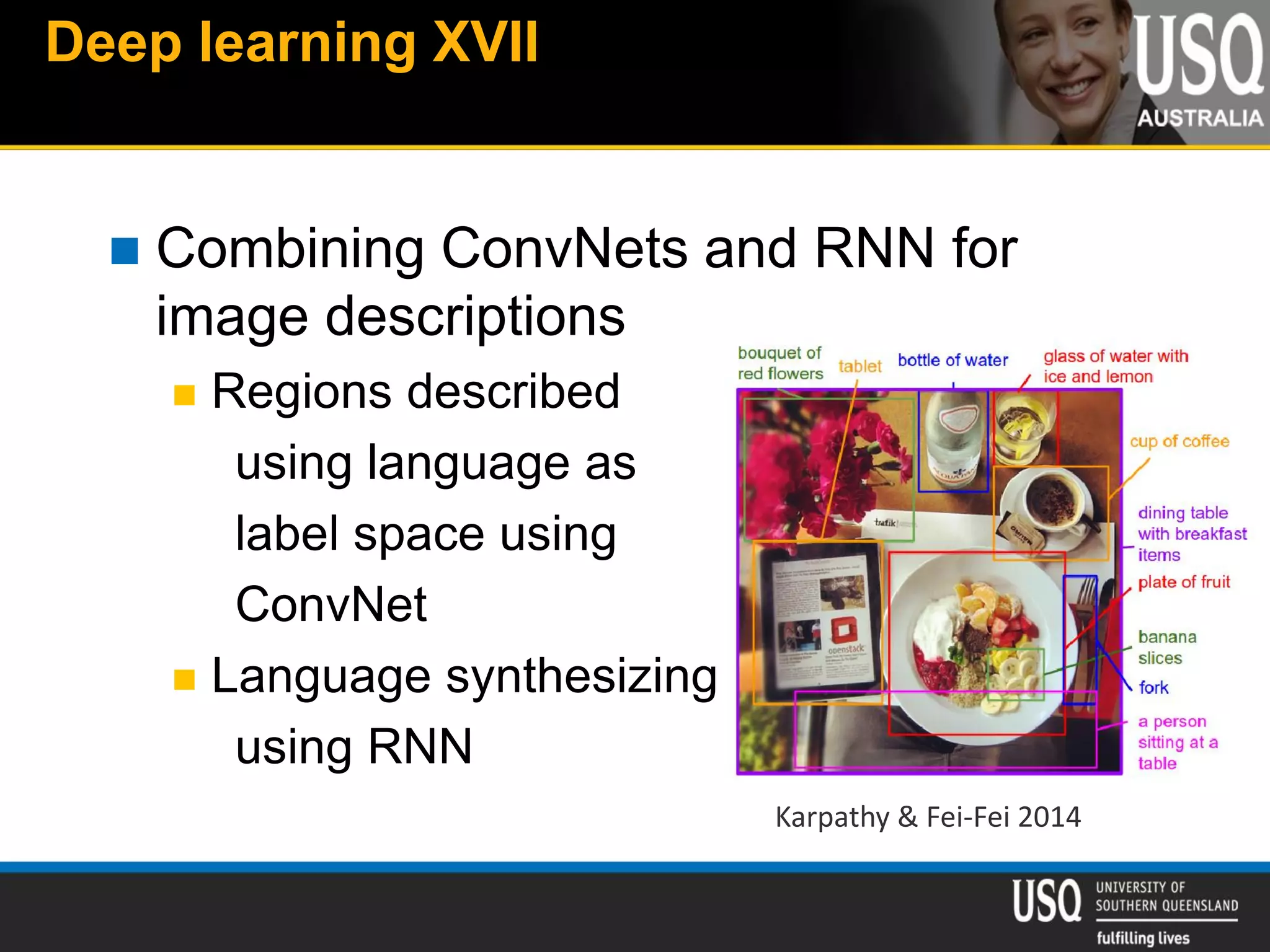

33. Deep learning XVII
 Combining ConvNets and RNN for
image descriptions
 Regions described
using language as
label space using
ConvNet
 Language synthesizing
using RNN
Karpathy & Fei-Fei 2014

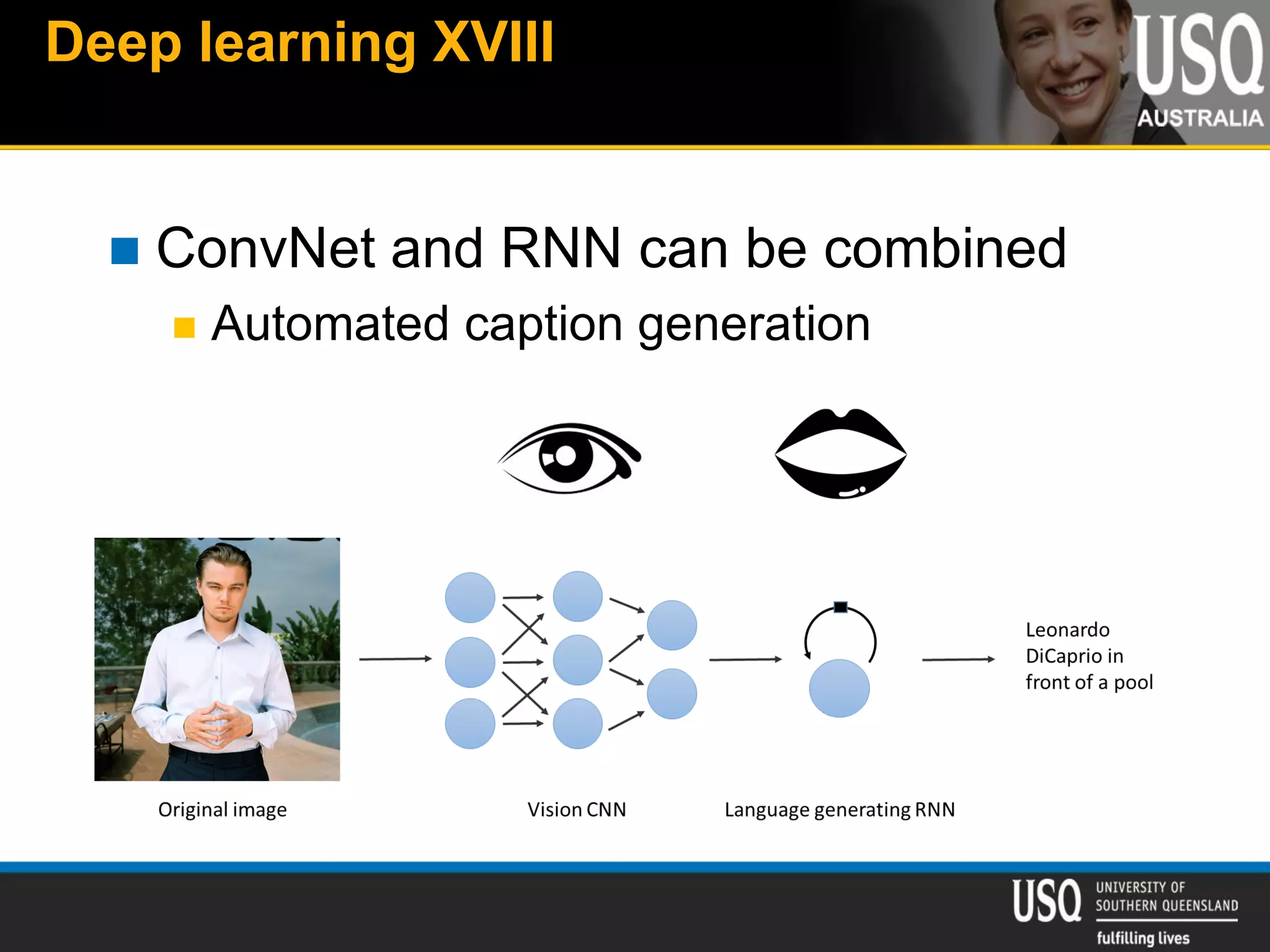

34. Deep learning XVIII
 ConvNet and RNN can be combined
 Automated caption generation

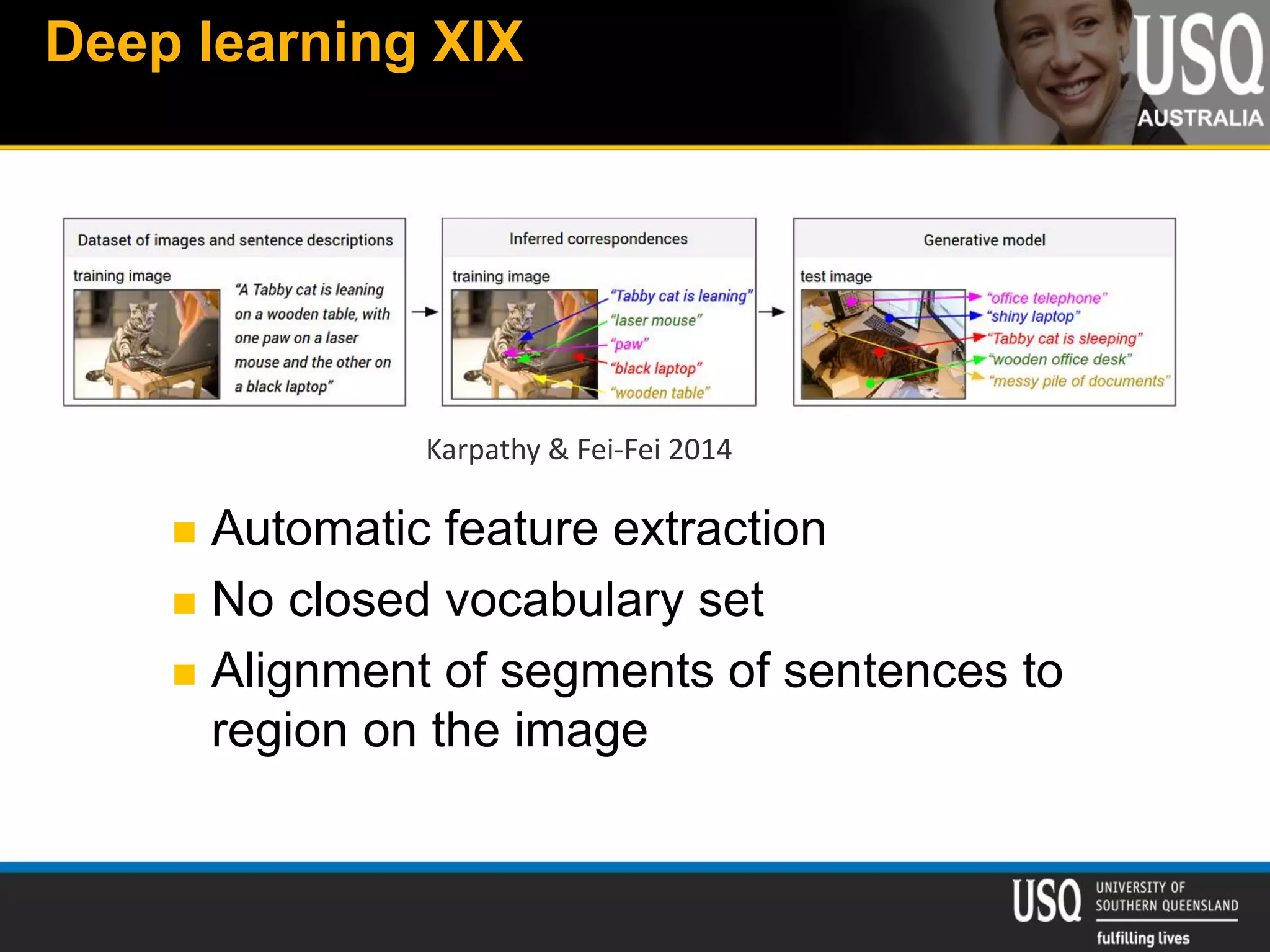

35. Deep learning XIX
 Automatic feature extraction
 No closed vocabulary set
 Alignment of segments of sentences to
region on the image
Karpathy & Fei-Fei 2014

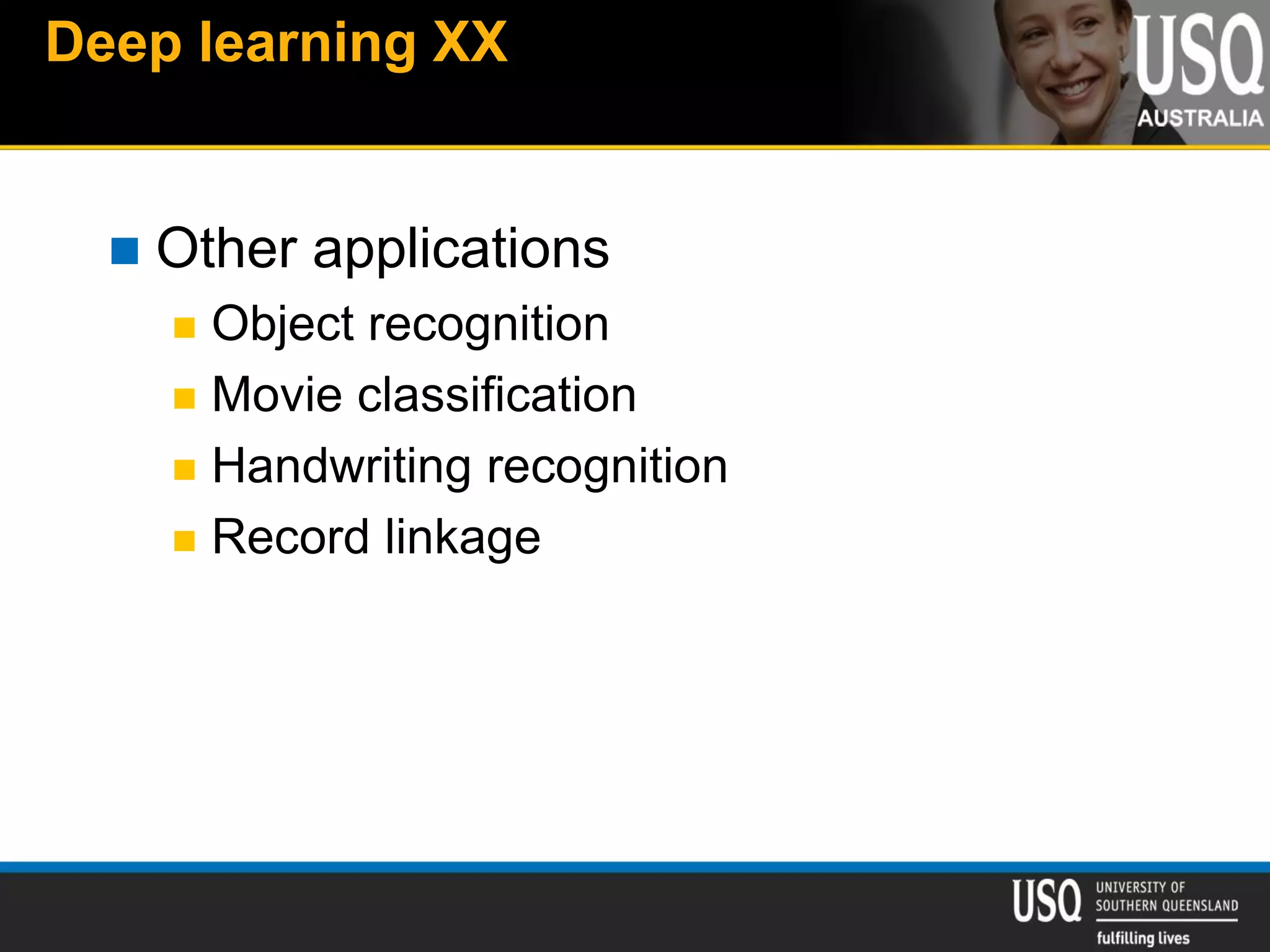

36. Deep learning XX
 Other applications
 Object recognition
 Movie classification
 Handwriting recognition
 Record linkage

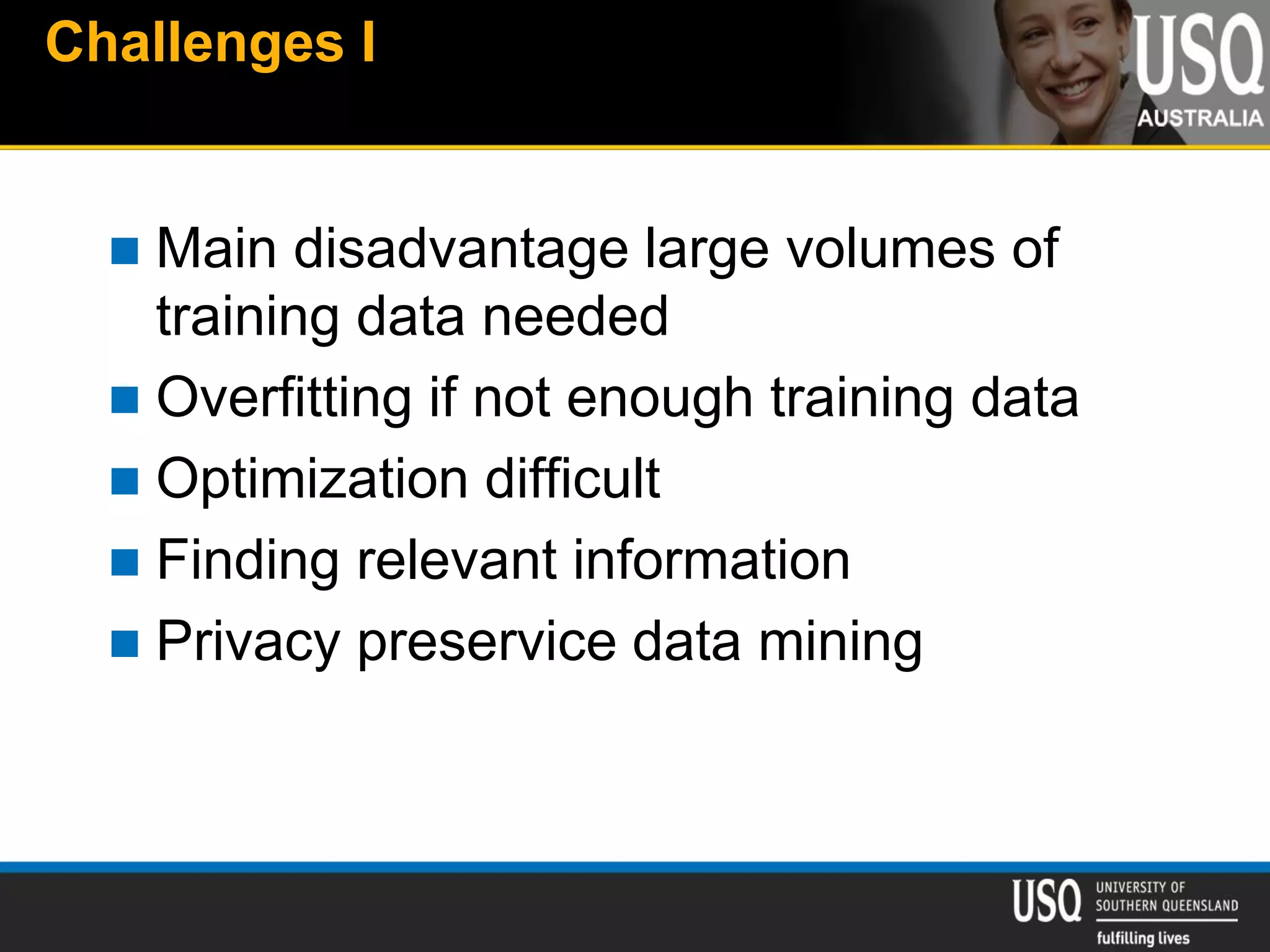

37. Challenges I
 Main disadvantage large volumes of
training data needed
 Overfitting if not enough training data
 Optimization difficult
 Finding relevant information
 Privacy preservice data mining

38. Challenges II
 Describing actions

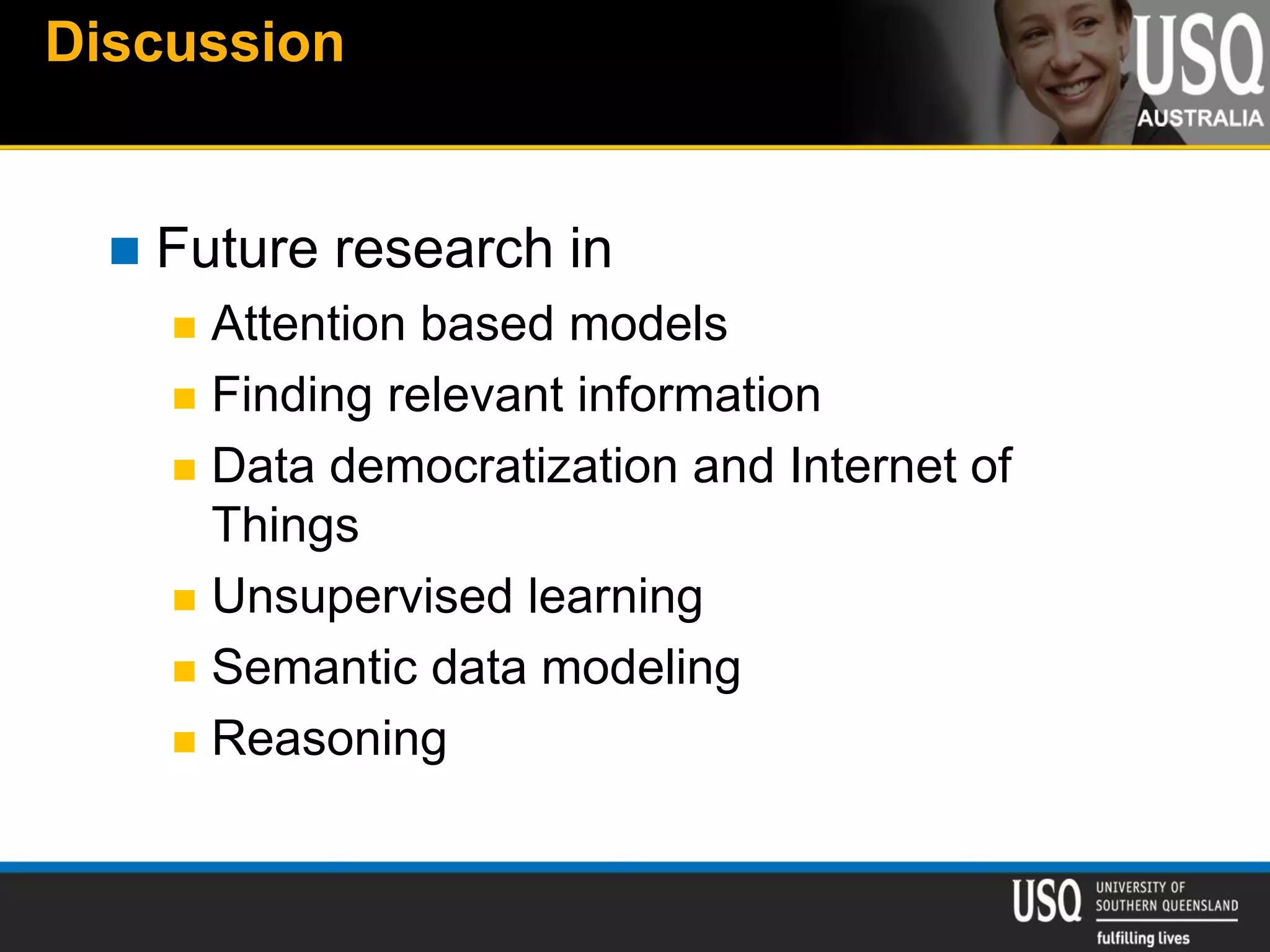

39. Discussion
 Future research in
 Attention based models
 Finding relevant information
 Data democratization and Internet of
Things
 Unsupervised learning
 Semantic data modeling
 Reasoning

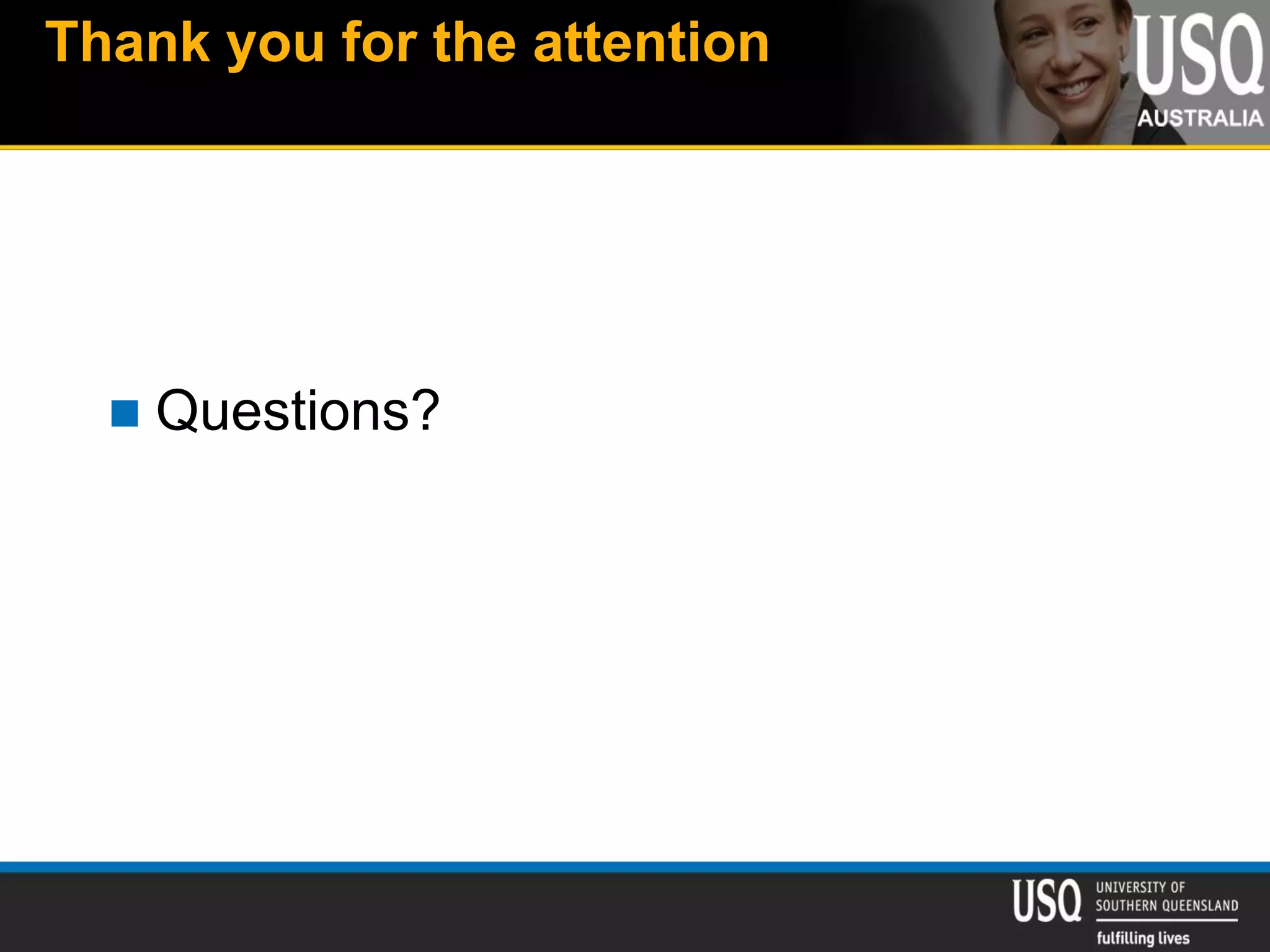

40. Thank you for the attention
 Questions?

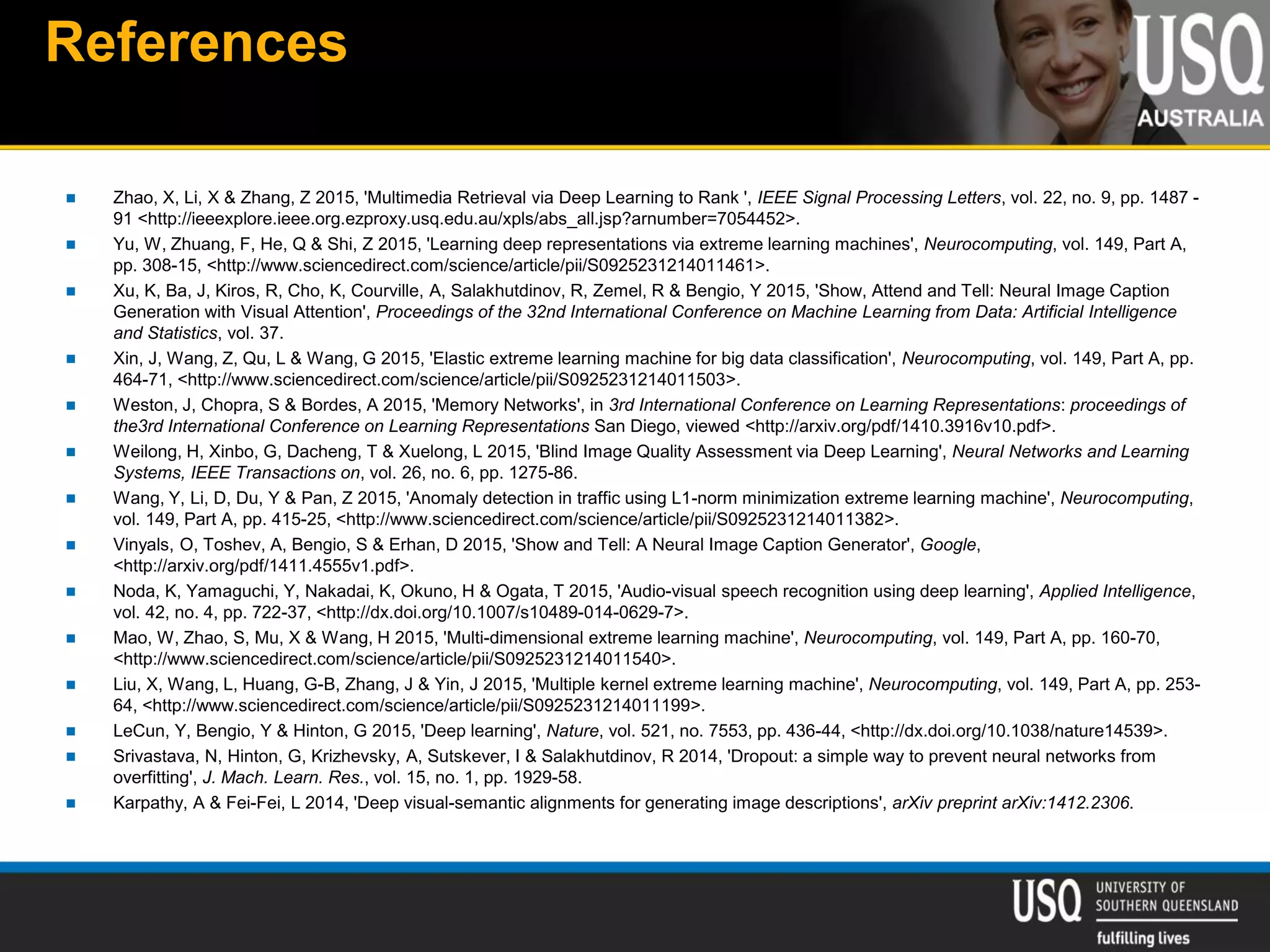

41. References
 Zhao, X, Li, X & Zhang, Z 2015, 'Multimedia Retrieval via Deep Learning to Rank ', IEEE Signal Processing Letters, vol. 22, no. 9, pp. 1487 -
91 <http://ieeexplore.ieee.org.ezproxy.usq.edu.au/xpls/abs_all.jsp?arnumber=7054452>.
 Yu, W, Zhuang, F, He, Q & Shi, Z 2015, 'Learning deep representations via extreme learning machines', Neurocomputing, vol. 149, Part A,
pp. 308-15, <http://www.sciencedirect.com/science/article/pii/S0925231214011461>.
 Xu, K, Ba, J, Kiros, R, Cho, K, Courville, A, Salakhutdinov, R, Zemel, R & Bengio, Y 2015, 'Show, Attend and Tell: Neural Image Caption
Generation with Visual Attention', Proceedings of the 32nd International Conference on Machine Learning from Data: Artificial Intelligence
and Statistics, vol. 37.
 Xin, J, Wang, Z, Qu, L & Wang, G 2015, 'Elastic extreme learning machine for big data classification', Neurocomputing, vol. 149, Part A, pp.
464-71, <http://www.sciencedirect.com/science/article/pii/S0925231214011503>.
 Weston, J, Chopra, S & Bordes, A 2015, 'Memory Networks', in 3rd International Conference on Learning Representations: proceedings of
the3rd International Conference on Learning Representations San Diego, viewed <http://arxiv.org/pdf/1410.3916v10.pdf>.
 Weilong, H, Xinbo, G, Dacheng, T & Xuelong, L 2015, 'Blind Image Quality Assessment via Deep Learning', Neural Networks and Learning
Systems, IEEE Transactions on, vol. 26, no. 6, pp. 1275-86.
 Wang, Y, Li, D, Du, Y & Pan, Z 2015, 'Anomaly detection in traffic using L1-norm minimization extreme learning machine', Neurocomputing,
vol. 149, Part A, pp. 415-25, <http://www.sciencedirect.com/science/article/pii/S0925231214011382>.
 Vinyals, O, Toshev, A, Bengio, S & Erhan, D 2015, 'Show and Tell: A Neural Image Caption Generator', Google,
<http://arxiv.org/pdf/1411.4555v1.pdf>.
 Noda, K, Yamaguchi, Y, Nakadai, K, Okuno, H & Ogata, T 2015, 'Audio-visual speech recognition using deep learning', Applied Intelligence,
vol. 42, no. 4, pp. 722-37, <http://dx.doi.org/10.1007/s10489-014-0629-7>.
 Mao, W, Zhao, S, Mu, X & Wang, H 2015, 'Multi-dimensional extreme learning machine', Neurocomputing, vol. 149, Part A, pp. 160-70,
<http://www.sciencedirect.com/science/article/pii/S0925231214011540>.
 Liu, X, Wang, L, Huang, G-B, Zhang, J & Yin, J 2015, 'Multiple kernel extreme learning machine', Neurocomputing, vol. 149, Part A, pp. 253-
64, <http://www.sciencedirect.com/science/article/pii/S0925231214011199>.
 LeCun, Y, Bengio, Y & Hinton, G 2015, 'Deep learning', Nature, vol. 521, no. 7553, pp. 436-44, <http://dx.doi.org/10.1038/nature14539>.
 Srivastava, N, Hinton, G, Krizhevsky, A, Sutskever, I & Salakhutdinov, R 2014, 'Dropout: a simple way to prevent neural networks from
overfitting', J. Mach. Learn. Res., vol. 15, no. 1, pp. 1929-58.
 Karpathy, A & Fei-Fei, L 2014, 'Deep visual-semantic alignments for generating image descriptions', arXiv preprint arXiv:1412.2306.
