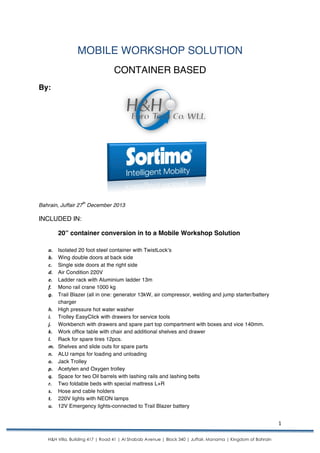

MOBILE WORKSHOP SOLUTION
CONTAINER BASED
By:
Bahrain, Juffair 27
th
December 2013
INCLUDED IN:
20” container conversion in to a Mobile Workshop Solution
a. Isolated 20 foot steel container with TwistLock’s
b. Wing double doors at back side
c. Single side doors at the right side
d. Air Condition 220V
e. Ladder rack with Aluminium ladder 13m
f. Mono rail crane 1000 kg
g. Trail Blazer (all in one: generator 13kW, air compressor, welding and jump starter/battery
charger
h. High pressure hot water washer
i. Trolley EasyClick with drawers for service tools
j. Workbench with drawers and spare part top compartment with boxes and vice 140mm.
k. Work office table with chair and additional shelves and drawer
l. Rack for spare tires 12pcs.
m. Shelves and slide outs for spare parts
n. ALU ramps for loading and unloading
o. Jack Trolley
p. Acetylen and Oxygen trolley
q. Space for two Oil barrels with lashing rails and lashing belts
r. Two foldable beds with special mattress L+R
s. Hose and cable holders
t. 220V lights with NEON lamps
u. 12V Emergency lights-connected to Trail Blazer battery

2.
2
H&H Villa, Building 417 | Road 41 | Al Shabab Avenue | Block 340 | Juffair, Manama | Kingdom of Bahrain
v. First aid kit in case
w. Fire extinguisher 3x
x. Wall hanged cases with small colored boxes for small material 4x
y. Perforated ALU wall panels for “quick” tools and material
INSULATED DRY BODY CONTAINER
-External Dimensions: L 6058 x W 2438 x H 2591mm
-20 foot new container (fitted with corner blocks and fork pockets)
-One man door on side, steel / insulated
-Container existing plywood floor finished with 3mm thick aluminium checkered plate
-Internal wall and ceiling insulated with 60mm sandwich panel, one side aluminium foil and Finish
-side 2mm steel plate powder coated sheet (exterior of the container is 1.6mm corrugated panel),
joints are covered with aluminium profiles.
-Installed monorail of 250mm high with sliding mechanism as shown below
-Recessed power supply box, power sockets with changeover switch, as shown below in Sample
(Picture 3)
-Recessed condenser space on top left corner
-Steel step ladder, sliding into container floor
-Exterior painted with color of your choice
-Supply and install 24000BTU split Air conditioner
-Roof will be specially reinforced for sliding rail
-1x aluminium folding ladder rack with ALU ladder 13m on top of the container
-1x electrical distribution box with 6 breakers (3x 15 Amp + 3x 10 Amp)
-2x electrical 3pin socket (one inside and one outside)
-1x float switch as exchanger (outsourcing or/to inner generator)
-Body of the container will be colored to your company color
-1x Split air conditioner for the container 220V on the roof
-One year warranty for any kind of manufacturing defects of the body. However the
warranty will not cover defects due to mishandling.
Sample picture of container

3.
3
H&H Villa, Building 417 | Road 41 | Al Shabab Avenue | Block 340 | Juffair, Manama | Kingdom of Bahrain
Technical Drawings of container:

4.
4
H&H Villa, Building 417 | Road 41 | Al Shabab Avenue | Block 340 | Juffair, Manama | Kingdom of Bahrain

5.
5
H&H Villa, Building 417 | Road 41 | Al Shabab Avenue | Block 340 | Juffair, Manama | Kingdom of Bahrain
Conception drawings of Mobile Workshop Solution

6.
6
H&H Villa, Building 417 | Road 41 | Al Shabab Avenue | Block 340 | Juffair, Manama | Kingdom of Bahrain

7.
7
H&H Villa, Building 417 | Road 41 | Al Shabab Avenue | Block 340 | Juffair, Manama | Kingdom of Bahrain

8.
8
H&H Villa, Building 417 | Road 41 | Al Shabab Avenue | Block 340 | Juffair, Manama | Kingdom of Bahrain

9.
9
H&H Villa, Building 417 | Road 41 | Al Shabab Avenue | Block 340 | Juffair, Manama | Kingdom of Bahrain

10.
10
H&H Villa, Building 417 | Road 41 | Al Shabab Avenue | Block 340 | Juffair, Manama | Kingdom of Bahrain
Trailblazer® 302 Air Pak™
The all-in-one tool that delivers multiprocess output for welding, plasma cutting, gouging, air tools,
and12/24-volt battery charger/jump starter.
Welder/generator/air compressor/battery charger is warranted for 3 years, parts and labor.
Engine is warranted separately by the engine manufacturer.
Trailblazer® 302 Air Pak™ Features
Size and Weight
Takes only half the bed space of a separate engine-driven air compressor and welder, freeing up to
50 % more room on your truck for equipment and supplies. Plus decreases axle weight up to 25 %.
Independent Weld and Generator Advantages
• 13,000 watts of voltage-regulated power
• No interaction between grinders, power tools, etc. and the welding arc
• Generator power is independent of weld
• Four-pole weld generator produces the best arc quality
Output Range Welding
DC Stick 25 – 300 A DC TIG 10 – 300 A
AC TIG/Stick 10 – 225 A MIG/FCAW 13 – 35 V, 350 A
Generator Power Output Rated at 104° F (40° C)
Peak: 13,000 W — Continuous: 11,000 W
Industrial Rotary-Screw Air Compressor
• Runs most air impact wrenches at idle
• Produces 31 CFM of air at 100 percent duty cycle
• Delivers 80 –160 PSI of air with no storage tank
• Gives 100 percent deliverable air
• Compressor is warranted by Miller for three years
Battery Charger/Jump Starter
• Provides selectable 12- or 24-volt battery charging capability
• Provides up to 450 amps of battery jump-starting capability
• Convenient front panel battery charger/jump starter access
• 25-foot battery jumper cables available (#300 422)

11.
11
H&H Villa, Building 417 | Road 41 | Al Shabab Avenue | Block 340 | Juffair, Manama | Kingdom of Bahrain
AR
Blue
1550
Washer
Hot water – high pressure washer
• MAX pressure 110bar/1600psi
• Flow rate 370lt/h
• Power input 1.8kW
• Supply 230V / 50Hz / 1ph
• RPM 2800
• Weight 44kg
• Outer dimensions: 40 x 61 x 94 (L x W x H) cm
Additional accessories for compressor
• Inflating gun with gauge and aluminium body with PVC hose 30 cm long
• Aluminium blowing gun
• TCS-210NR Air Hose reel with 10 meter hose
• Air high pressure hose 50m
• Impact wrench ½”
Jacking trolley - Hand pallet truck
Details – MITSHUBISHI MBF 25
• Ergonomic rubber handle offers comfort, safety and high productivity
• Compact design combined with a 210-degree steering angle gives maximum manoeuvrability
• Sturdy fork design with welded construction gives extra strength and durability
• 2500 kg capacity
• Weight 65 kg

12.
12
H&H Villa, Building 417 | Road 41 | Al Shabab Avenue | Block 340 | Juffair, Manama | Kingdom of Bahrain
Aluminium Ladder
Rope operated extension ladder
• Ergonomic
• Specifically for heavy duty use within tough and rigorous environments
• These ladders are produced to BS2037 Class 1.
• With a Class 1 Rating, the highest ladder rating available
• These ladder will safely support a maximum static load of 175kg
• Fitted with rope operation, these ladders can be easily extended with a smooth operation and
minimum amount of effort
• The heavy duty round rungs are securely fitted into the ladder stiles and offer a safe and secure
Foothold
