1. Wong Fong Engineering ‘14

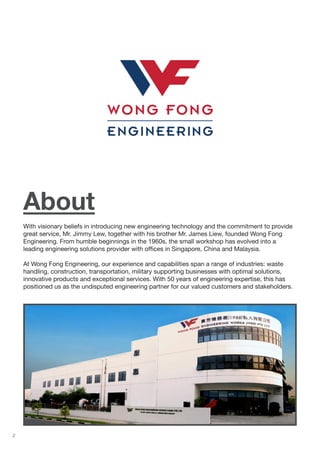

2. 2
About
With visionary beliefs in introducing new engineering technology and the commitment to provide
great service, Mr. Jimmy Lew, together with his brother Mr. James Liew, founded Wong Fong
Engineering. From humble beginnings in the 1960s, the small workshop has evolved into a
leading engineering solutions provider with offices in Singapore, China and Malaysia.
At Wong Fong Engineering, our experience and capabilities span a range of industries: waste
handling, construction, transportation, military supporting businesses with optimal solutions,
innovative products and exceptional services. With 50 years of engineering expertise, this has
positioned us as the undisputed engineering partner for our valued customers and stakeholders.

3. 3
As a leading solutions and equipment provider in solid waste management, Wong Fong
Engineering is continuously improving and reinventing waste collection and disposal solutions,
using the latest technology to generate efficient yet cost-effective solutions for waste
management.
While keeping sustainability at the core of every solution, we provide holistic solutions
that combine state-of-the-art technologies and machinery. Pairing this with our after-sales
maintenance and repair services, Wong Fong Engineering aims to make waste management easy,
efficient, and effective.
Our Services
Our Products
Hektor 5
Pöttinger Compactors 9
Palfinger Hookloaders 13
Palfinger Skiploaders 15
Roll-Rite Bin Covers 17
Tramanco Weighing Systems 19
Design Customisation 21
Maintenance Repair 23
Waste Management

4. 4
Hektor
Press Compactor
Fully designed and built by Wong Fong Engineering, the entire range of Hektor waste compaction
systems provide a smarter solution for all your waste management needs. It is ideal for a diverse
range of applications such as food manufacturers, hotels, distribution centres or others that
require large-scale waste management technology.
Our high-strength steel compactors are built for easy maintenance, high resilience and maximum
safety. Each Hektor compactor is equipped with smart features that contribute to real cost-
effectiveness, convenience and simplicity, allowing for substantial reduction of waste volume
while minimizing transportation cost:
• A closed design that combines the compaction unit with the compactor tank,
seals components seamlessly into one integral unit.
• Increased hygiene standards crucial for urban areas.
• In-built PLC control coupled with indicators for low oil levels and volume
levels at 75% and 100%.
• Electrohydraulic Power Pack is easily accesible for quick and fuss-free
maintenance

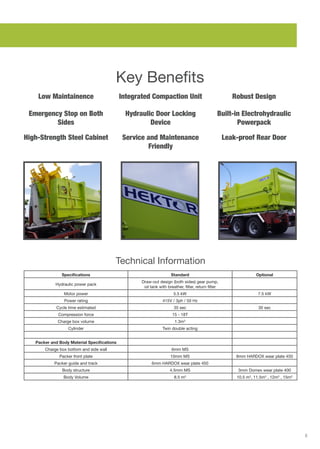

5. 5
Key Benefits
Low Maintainence Robust Design
Hydraulic Door Locking
Device
Integrated Compaction Unit
Leak-proof Rear Door
Emergency Stop on Both
Sides
High-Strength Steel Cabinet
Built-in Electrohydraulic
Powerpack
Service and Maintenance
Friendly
Technical Information
Specifications Standard Optional
Hydraulic power pack
Draw-out design (both sides) gear pump,
oil tank with breather, filter, return filter
Motor power 5.5 kW 7.5 kW
Power rating 415V / 3ph / 50 Hz
Cycle time estimated 35 sec 30 sec
Compression force 15 - 18T
Charge box volume 1.3m3
Cylinder Twin double acting
Packer and Body Material Specifications
Charge box bottom and side wall 6mm MS
Packer front plate 10mm MS 8mm HARDOX wear plate 450
Packer guide and track 6mm HARDOX wear plate 450
Body structure 4.5mm MS 3mm Domex wear plate 400
Body Volume 8.5 m3
10.5 m3
, 11.5m3
, 12m3
, 15m3

6. 6

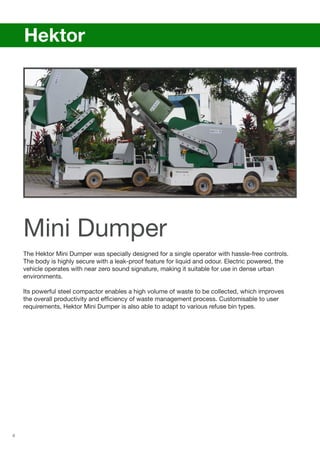

The Hektor Mini Dumper was specially designed for a single operator with hassle-free controls.
The body is highly secure with a leak-proof feature for liquid and odour. Electric powered, the
vehicle operates with near zero sound signature, making it suitable for use in dense urban
environments.
Its powerful steel compactor enables a high volume of waste to be collected, which improves
the overall productivity and efficiency of waste management process. Customisable to user
requirements, Hektor Mini Dumper is also able to adapt to various refuse bin types.
Hektor
Mini Dumper

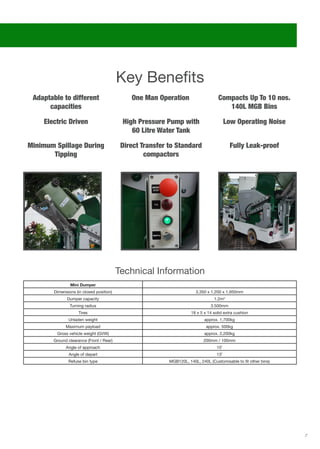

7. 7
Mini Dumper
Dimensions (in closed position) 3,350 x 1,200 x 1,950mm
Dumper capacity 1.2m3
Turning radius 3.500mm
Tires 18 x 5 x 14 solid extra cushion
Unladen weight approx. 1,700kg
Maximum payload approx. 500kg
Gross vehicle weight (GVW) approx. 2,200kg
Ground clearance (Front / Rear) 200mm / 100mm
Angle of approach 15˚
Angle of depart 13˚
Refuse bin type MGB120L, 140L, 240L (Customisable to fit other bins)
Key Benefits
Electric Driven Low Operating Noise
Fully Leak-proof
One Man Operation
High Pressure Pump with
60 Litre Water Tank
Direct Transfer to Standard
compactors
Adaptable to different
capacities
Minimum Spillage During
Tipping
Compacts Up To 10 nos.
140L MGB Bins
Technical Information

8. 8

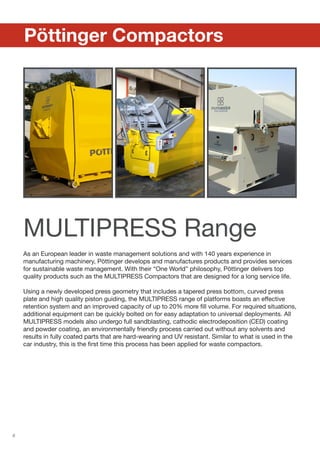

Pöttinger Compactors
MULTIPRESS Range
As an European leader in waste management solutions and with 140 years experience in
manufacturing machinery, Pöttinger develops and manufactures products and provides services
for sustainable waste management. With their “One World” philosophy, Pöttinger delivers top
quality products such as the MULTIPRESS Compactors that are designed for a long service life.
Using a newly developed press geometry that includes a tapered press bottom, curved press
plate and high quality piston guiding, the MULTIPRESS range of platforms boasts an effective
retention system and an improved capacity of up to 20% more fill volume. For required situations,
additional equipment can be quickly bolted on for easy adaptation to universal deployments. All
MULTIPRESS models also undergo full sandblasting, cathodic electrodeposition (CED) coating
and powder coating, an environmentally friendly process carried out without any solvents and
results in fully coated parts that are hard-wearing and UV resistant. Similar to what is used in the
car industry, this is the first time this process has been applied for waste compactors.

9. 9

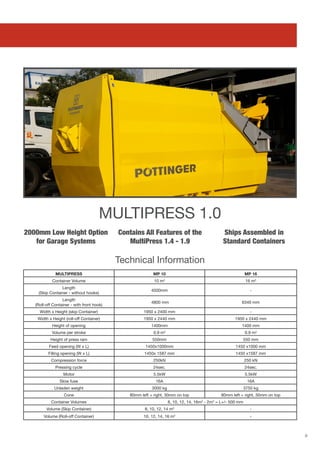

Contains All Features of the
MultiPress 1.4 - 1.9
MULTIPRESS 1.0
MULTIPRESS MP 10 MP 16
Container Volume 10 m3
16 m3
Length
(Skip Container - without hooks)
4500mm -
Length
(Roll-off Container - with front hook)
4800 mm 6340 mm
Width x Height (skip Container) 1950 x 2400 mm -
Width x Height (roll-off Container) 1950 x 2440 mm 1950 x 2440 mm
Height of opening 1400mm 1400 mm
Volume per stroke 0.9 m3
0.9 m3
Height of press ram 550mm 550 mm
Feed opening (W x L) 1450x1000mm 1450 x1000 mm
Filling opening (W x L) 1450x 1587 mm 1450 x1587 mm
Compression force 250kN 250 kN
Pressing cycle 24sec. 24sec.
Motor 5.5kW 5.5kW
Slow fuse 16A 16A
Unladen weight 3000 kg 3750 kg
Cone 80mm left + right, 30mm on top 80mm left + right, 30mm on top
Container Volumes 8, 10, 12, 14, 16m3
- 2m3
= L+/- 500 mm
Volume (Skip Container) 8, 10, 12, 14 m3
-
Volume (Roll-off Container) 10, 12, 14, 16 m3
-
2000mm Low Height Option
for Garage Systems
Ships Assembled in
Standard Containers
Technical Information

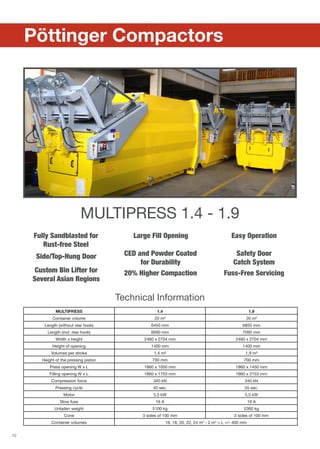

10. 10
Pöttinger Compactors
MULTIPRESS 1.4 - 1.9
MULTIPRESS 1.4 1.9
Container volume 20 m³ 20 m³
Length (without rear hook) 6450 mm 6850 mm
Length (incl. rear hook) 6690 mm 7090 mm
Width x height 2460 x 2704 mm 2460 x 2704 mm
Height of opening 1400 mm 1400 mm
Volumes per stroke 1,4 m³ 1,9 m³
Height of the pressing piston 700 mm 700 mm
Press opening W x L 1860 x 1050 mm 1860 x 1450 mm
Filling opening W x L 1860 x 1753 mm 1860 x 2153 mm
Compression force 340 kN 340 kN
Pressing cycle 40 sec. 55 sec.
Motor 5,5 kW 5,5 kW
Slow fuse 16 A 16 A
Unladen weight 5100 kg 5360 kg
Cone 3 sides of 100 mm 3 sides of 100 mm
Container volumes 16, 18, 20, 22, 24 m3
- 2 m3
= L +/- 400 mm
Large Fill Opening
Custom Bin Lifter for
Several Asian Regions
Side/Top-Hung Door
Fully Sandblasted for
Rust-free Steel
20% Higher Compaction
CED and Powder Coated
for Durability
Easy Operation
Fuss-Free Servicing
Safety Door
Catch System
Technical Information

11. 11

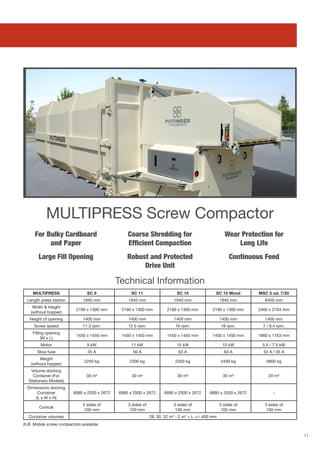

MULTIPRESS Screw Compactor
MULTIPRESS SC 9 SC 11 SC 15 SC 15 Wood MSC 5 od. 7/20
Length press station 1940 mm 1940 mm 1940 mm 1940 mm 6450 mm
Width Height
(without hopper)
2190 x 1300 mm 2190 x 1300 mm 2190 x 1300 mm 2190 x 1300 mm 2460 x 2704 mm
Height of opening 1400 mm 1400 mm 1400 mm 1400 mm 1400 mm
Screw speed 11.3 rpm. 12.5 rpm. 16 rpm. 16 rpm. 7 / 8.4 rpm.
Filling opening
(W x L)
1450 x 1450 mm 1450 x 1450 mm 1450 x 1450 mm 1450 x 1450 mm 1860 x 1753 mm
Motor 9 kW 11 kW 15 kW 15 kW 5.5 / 7.5 kW
Slow fuse 35 A 50 A 63 A 63 A 32 A / 35 A
Weight
(without hopper)
2250 kg 2300 kg 2350 kg 2400 kg 5800 kg
Volume docking
Container (For
Stationary Models)
30 m³ 30 m³ 30 m³ 30 m³ 20 m³
Dimensions docking
Container
(L x W x H)
6880 x 2500 x 2672 6880 x 2500 x 2672 6880 x 2500 x 2672 6880 x 2500 x 2672 -
Conical
3 sides of
100 mm
3 sides of
100 mm
3 sides of
100 mm
3 sides of
100 mm
3 sides of
100 mm
Container volumes 28, 30, 32 m3
- 2 m3
= L +/- 400 mm
For Bulky Cardboard
and Paper
Large Fill Opening
Coarse Shredding for
Efficient Compaction
Robust and Protected
Drive Unit
Continuous Feed
Wear Protection for
Long Life
Technical Information
N.B. Mobile screw compactors available

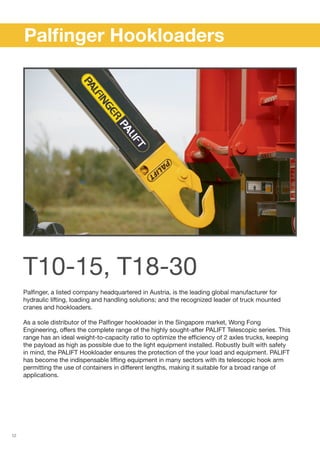

12. 12
Palfinger, a listed company headquartered in Austria, is the leading global manufacturer for
hydraulic lifting, loading and handling solutions; and the recognized leader of truck mounted
cranes and hookloaders.
As a sole distributor of the Palfinger hookloader in the Singapore market, Wong Fong
Engineering, offers the complete range of the highly sought-after PALIFT Telescopic series. This
range has an ideal weight-to-capacity ratio to optimize the efficiency of 2 axles trucks, keeping
the payload as high as possible due to the light equipment installed. Robustly built with safety
in mind, the PALIFT Hookloader ensures the protection of the your load and equipment. PALIFT
has become the indispensable lifting equipment in many sectors with its telescopic hook arm
permitting the use of containers in different lengths, making it suitable for a broad range of
applications.
Palfinger Hookloaders
T10-15, T18-30

13. 13
Key Benefits
Progressive Cab Control
Designed to International
Standards
Hook Safety Catch
Long Durability Adjustable Hook Height
Roller Stabilizer
Technical Information
Type
Lifting Capacity
(tons)
Weight (kg)
Container Length
(mm)
Transport height
(mm)
Max Tipping
Angle
Permissible Total
Weight (tons)
T10 10 1025 3000 - 5750 200 54o
15
T10 DUO 10 1100 3000 - 5750 250 54o
15
T13 13 1410 3000 - 6500 220 53o
19
T15 15 1460 3000 - 6500 220 53o
19
T10A 10 1160 2500 - 5700 200 54o
15
T13A 13 1580 2500 - 6500 220 53o
19
T15A 15 1630 2500 - 6500 220 53o
19
T18 18 2000 4000 - 7250 240 53o
26
T20 20 2100 4000 - 7250 240 53o
26
T22 22 2300 4000 - 7500 240 53o
26/32
T24 24 2350 4000 - 6750 240 53o
32
T26 26 2500 4000 - 7500 280 53o
32
T30 30 3050 4750 - 7750 280 53o
32/34
T18A 18 2200 3500 - 7250 240 53o
26
T20A 20 2300 3500 - 7250 240 53o
26
T22A 22 2500 3500 - 7750 240 53o
26/32
T24A 24 2600 3500 - 6750 240 50o
32
T26A 26 2900 3500 - 7750 280 53o
32
T18 ACTS 18 2500 3250 - 7250 250 53o
26
T20 ACTS 20 2600 3250 - 7250 250 53o
26
T22 ACTS 22 2700 3250 - 7500 250 53o
26/32
T24 ACTS 24 2750 3500 - 7250 250 50o
32
T26 ACTS 26 3050 3500 - 7750 250 50o
32

14. 14

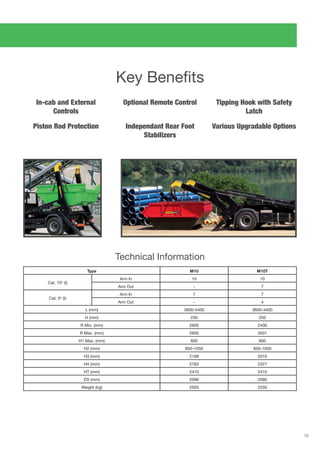

The PALIFT Skiploader is a member of the huge Palfinger product family and is designed
and produced to meet Palfinger high international quality standards. An ideal equipment for
general waste disposal and collection, the PALIFT Skiploader is commonly used for transporting
skip-bins stationed at the work sites to their designated waste disposal facilities.
The M10 model offers the ideal weight-to-capacity ratio to optimize the efficiency of your truck.
Featuring up to 3 types of control systems for a safer and easier operation, its low transport
height, long outreach and power reserve guarantees that you will get the greatest possible use
out of your truck.
Palfinger Skiploaders
M10/10T

15. 15
Key Benefits
Type M10 M10T
Cat. 15o
(t)
Arm In 10 10
Arm Out - 7
Cat. 0o
(t)
Arm In 7 7
Arm Out - 4
L (mm) 3600-4400 3600-4400
H (mm) 250 250
R Min. (mm) 2600 2400
R Max. (mm) 2600 3501
H1 Max. (mm) 600 600
H2 (mm) 850-1050 850-1050
H3 (mm) 2168 2010
H4 (mm) 2783 2327
HT (mm) 2410 2410
ED (mm) 2096 2080
Weight (kg) 2050 2250
Technical Information
In-cab and External
Controls
Independant Rear Foot
Stabilizers
Piston Rod Protection
Optional Remote Control
Various Upgradable Options
Tipping Hook with Safety
Latch

16. 16
Incorporated in 1991, Roll Rite, LLC, is the leading manufacturer of tarp systems and
components, making history by engineering the original direct-drive electric tarp system.
Wong Fong Engineering is the sole distributor of Roll Rite DC Electric Tarp Series in Singapore.
Compared to the traditional manual handling of tarps, Roll Rite greatly increases the operational
efficiency, productivity and safety during transportation in trucks and containers. This is especially
helpful for the freight transportation, construction and manufacturing industries where there is a
high demand for gear motor automation.
Roll-Rite Bin Covers
DC 350, 400

17. 17

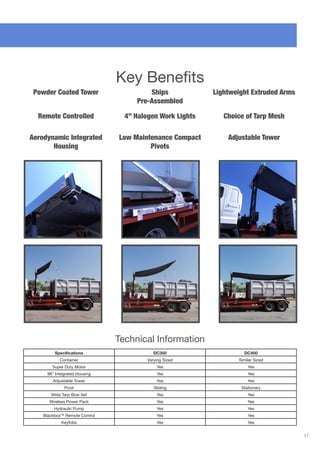

Key Benefits
Specifications DC350 DC400
Container Varying Sized Similar Sized
Super Duty Motor Yes Yes
98” Integrated Housing Yes Yes
Adjustable Tower Yes Yes
Pivot Sliding Stationary
Wide Tarp Bow Set Yes Yes
Wireless Power Pack Yes Yes
Hydraulic Pump Yes Yes
BlackboxTM
Remote Control Yes Yes
Keyfobs Yes Yes
Powder Coated Tower
Aerodynamic Integrated
Housing
Remote Controlled 4” Halogen Work Lights
Low Maintenance Compact
Pivots
Ships
Pre-Assembled
Choice of Tarp Mesh
Adjustable Tower
Lightweight Extruded Arms
Technical Information

18. 18

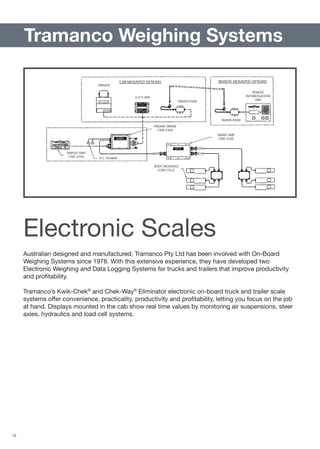

Australian designed and manufactured, Tramanco Pty Ltd has been involved with On-Board
Weighing Systems since 1978. With this extensive experience, they have developed two
Electronic Weighing and Data Logging Systems for trucks and trailers that improve productivity
and profitability.
Tramanco’s Kwik-Chek®
and Chek-Way®
Eliminator electronic on-board truck and trailer scale
systems offer convenience, practicality, productivity and profitability, letting you focus on the job
at hand. Displays mounted in the cab show real time values by monitoring air suspensions, steer
axles, hydraulics and load cell systems.
Tramanco Weighing Systems
Electronic Scales
PRINTER
G.P.S UNIT
TRANSCEIVER
TRANSCEIVER
ENGINE DRIVER
CWE-5300
D.C. POWER
BODY MOUNTED
LOAD CELLS
DISPLAY UNIT
CWE-5100
SMART AMP
CWE-5200
REMOTE
INTERROGATION
UNIT
CAB MOUNTED OPTIONS REMOTE MOUNTED OPTIONS

19. 19

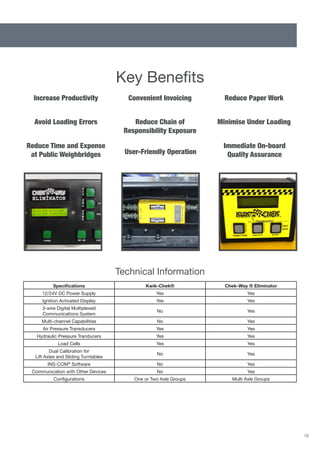

Specifications Kwik-Chek® Chek-Way ® Eliminator
12/24V DC Power Supply Yes Yes
Ignition Activated Display Yes Yes
3-wire Digital Multiplexed
Communications System
No Yes
Multi-channel Capabilities No Yes
Air Pressure Transducers Yes Yes
Hydraulic Pressure Tranducers Yes Yes
Load Cells Yes Yes
Dual Calibration for
Lift Axles and Sliding Turntables
No Yes
INS-COM®
Software No Yes
Communication with Other Devices No Yes
Configurations One or Two Axle Groups Multi Axle Groups
Technical Information
Increase Productivity Reduce Paper Work
Minimise Under Loading
Immediate On-board
Quality Assurance
Convenient Invoicing
Reduce Chain of
Responsibility Exposure
User-Friendly Operation
Avoid Loading Errors
Reduce Time and Expense
at Public Weighbridges
Key Benefits

20. 20

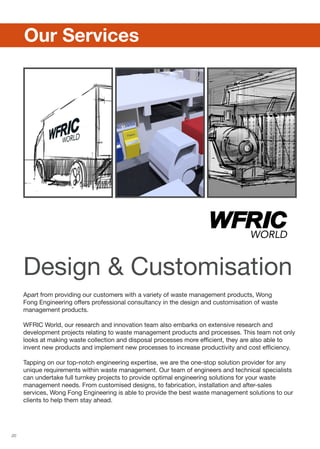

Apart from providing our customers with a variety of waste management products, Wong
Fong Engineering offers professional consultancy in the design and customisation of waste
management products.
WFRIC World, our research and innovation team also embarks on extensive research and
development projects relating to waste management products and processes. This team not only
looks at making waste collection and disposal processes more efficient, they are also able to
invent new products and implement new processes to increase productivity and cost efficiency.
Tapping on our top-notch engineering expertise, we are the one-stop solution provider for any
unique requirements within waste management. Our team of engineers and technical specialists
can undertake full turnkey projects to provide optimal engineering solutions for your waste
management needs. From customised designs, to fabrication, installation and after-sales
services, Wong Fong Engineering is able to provide the best waste management solutions to our
clients to help them stay ahead.
Our Services
Design Customisation

21. 21

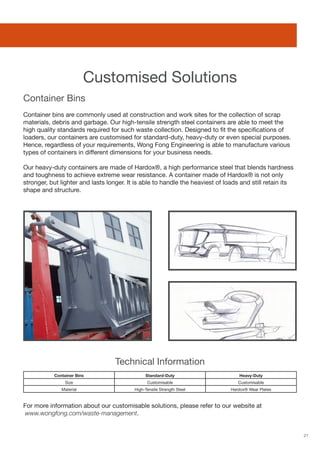

Container bins are commonly used at construction and work sites for the collection of scrap
materials, debris and garbage. Our high-tensile strength steel containers are able to meet the
high quality standards required for such waste collection. Designed to fit the specifications of
loaders, our containers are customised for standard-duty, heavy-duty or even special purposes.
Hence, regardless of your requirements, Wong Fong Engineering is able to manufacture various
types of containers in different dimensions for your business needs.
Our heavy-duty containers are made of Hardox®, a high performance steel that blends hardness
and toughness to achieve extreme wear resistance. A container made of Hardox® is not only
stronger, but lighter and lasts longer. It is able to handle the heaviest of loads and still retain its
shape and structure.
For more information about our customisable solutions, please refer to our website at
www.wongfong.com/waste-management.
Customised Solutions
Container Bins
Technical Information
Container Bins Standard-Duty Heavy-Duty
Size Customisable Customisable
Material High-Tensile Strength Steel Hardox® Wear Plates

22. 22
While striving to provide top quality products for our valued customers, we are also conscious of
the need to provide quality maintenance and repair services for our products.
At Wong Fong Engineering, we believe in being a complete service provider. Our in-house
maintenance and repair team is well trained to provide solutions whenever you may face
technical or mechanical issues with your equipment.
Our service extends to after sales with the WFRIC mobile service, a quality initiative by our
research and innovation arm, Wong Fong Research Innovation Centre (WFRIC). This value-
added service offers onsite inspection and repair services by our experienced team of service
engineers for all models of Pöttinger and Hektor compactors.
Any equipment issues with the Pöttinger or Hektor compactors can be directed to our service
hotline, 6861 1488, and our service technicians will assist you.
Here at Wong Fong Engineering, we strive to provide excellent and reliable service that ensures
your business continuity.
Our Services
Maintenance Repair

23. 23

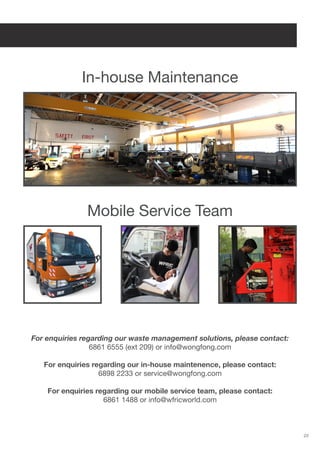

In-house Maintenance
Mobile Service Team
For enquiries regarding our waste management solutions, please contact:
6861 6555 (ext 209) or info@wongfong.com
For enquiries regarding our in-house maintenence, please contact:
6898 2233 or service@wongfong.com
For enquiries regarding our mobile service team, please contact:
6861 1488 or info@wfricworld.com

24. WONG FONG ENGINEERING WORKS (1988) PTE LTD
T. (65) 6861 6555 | F. (65) 6861 3230 | E. sales@wongfong.com | W. www.wongfong.com
A. 79 Joo Koon Circle, Singapore 629107
