Microsoft Excel 2010 - Useful formula & functions. Learn to user Sum, SumIF, IF, arithmetic operator, Pivot table and more.

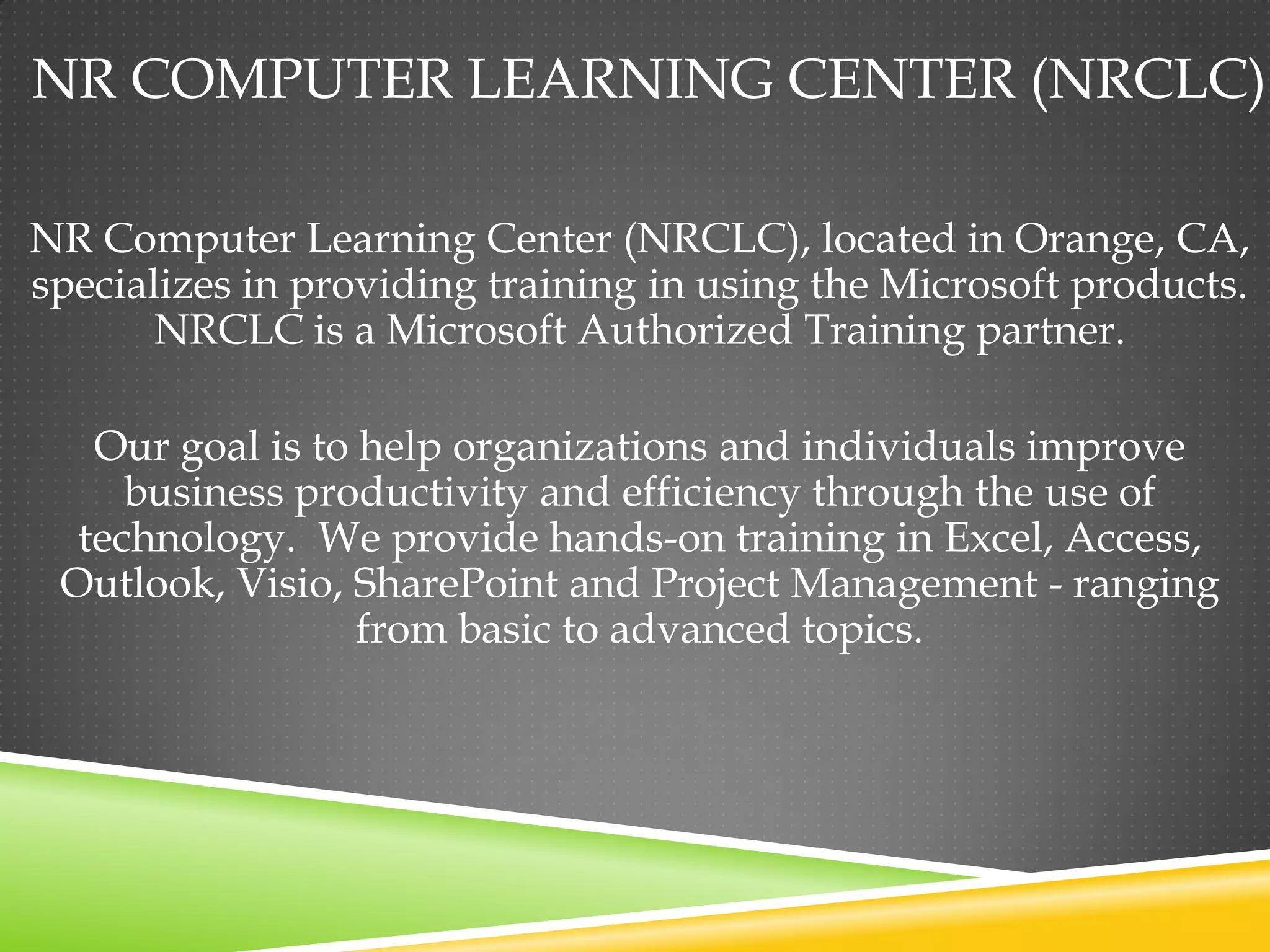

2. NR COMPUTER LEARNING CENTER (NRCLC)
NR Computer Learning Center (NRCLC), located in Orange, CA,
specializes in providing training in using the Microsoft products.
NRCLC is a Microsoft Authorized Training partner.
Our goal is to help organizations and individuals improve
business productivity and efficiency through the use of
technology. We provide hands-on training in Excel, Access,
Outlook, Visio, SharePoint and Project Management - ranging
from basic to advanced topics.

3. VAZI OKHANDIAR
 Microsoft Certified Trainer (MCT)
 Project Management Professional (PMP)
 MBA, MSCS and BSEE
 Over 20 years of IT Project Management, Software Development
and Training experience.
 Worked for EDS (HP), CSC, Toyota

4. MICROSOFT EXCEL 2010
 Microsoft Excel 2010 is a powerful spreadsheet tool used for
analyzing, managing and transforming data in a format that
presentable and easy to understand for decision makers.

5. EXCEL 2010
 Microsoft Excel 2010, includes over 450 functions and 7
categories to help users to easily embed functions into their
formula for quickly and easily generate result without
programming.
Formula Tab > Function Library Group > Logical Library

6. OBJECTIVE
1. Formula
2. Relative vs Absolute Cell Reference
3. Using AutoFill
4. Using IF statement
5. Using Multiplication operator
6. Using Sum & Sumifs function
7. Using Pivot Table

7. FORMULA
 A Formula start with an equal sign (=)
 The equal sign goes in the cell where the formula needs to
appear.
 The equal sign informs Excel what follows is part of a formula
 The formula can consist of Cell Address, value and/or function

8. EXAMPLE
The formula to add all the numbers in
the cell address C3 through C10 using
function sum is
= Sum ( C3 : C10 )
Using Excel From cell C3
Function Sum to Cell C10

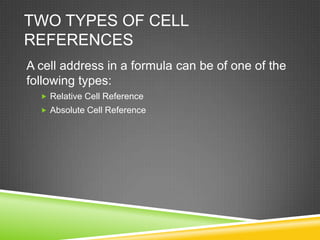

9. TWO TYPES OF CELL
REFERENCES
A cell address in a formula can be of one of the
following types:
 Relative Cell Reference
 Absolute Cell Reference

10. RELATIVE CELL ADDRESS
A cell address in a formula without a ‘$’ sign is
referred to as relative cell address.
When a formula with relative cell address is
copy and pasted on another cell in the
spreadsheet, Excel automatically updates the
cell address in the formula based on the new
location of the formula.

11. ABSOLUTE CELL ADDRESS
A cell address in a formula with a ‘$’ sign is
referred to as absolute cell address.
An absolute cell address consists of $ symbol
before column letter, row number or both.
For example: = $D$5
When a formula with absolute cell address is
copy and pasted on another cell, Excel does
not update the cell address in the formula.

12. AUTOFILL
 The Auto Fill feature in Excel automatically fill cell with
data, based on a pattern.
 You can select cells and drag the fill handle across or down
the cells that you want to fill.
 Example, type Sun in Cell A1, hold down the autofill handle
and drag it to the right. Excel will automatically fill the cell
from A1 to G1.

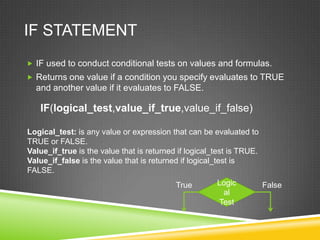

13. IF STATEMENT
 IF used to conduct conditional tests on values and formulas.
 Returns one value if a condition you specify evaluates to TRUE
and another value if it evaluates to FALSE.
IF(logical_test,value_if_true,value_if_false)
Logical_test: is any value or expression that can be evaluated to
TRUE or FALSE.
Value_if_true is the value that is returned if logical_test is TRUE.
Value_if_false is the value that is returned if logical_test is
FALSE.
True Logic False
al
Test

14. IF FUNCTION
Formula Tab > Function Library Group > Logical Library

15. EXAMPLE 1: USING IF FUNCTION
Sales Rep Table
Unit Price Table
Using IF function, update Sales Rep
Table with the price of the product listed
in the Unit Price Table

16. Sales Rep Table
Unit Price Table
Is cell D2 Is cell D2 Is cell D2 Is cell D2
= N = N = N =
Microsoft Microsoft Microsoft Microsoft
OneNote Office Project Excel
2010 2010 2010 2010
Y Y Y Y
F2 = $79 F2 = F2 = F2 =
$350 $599 $139
=IF(D2=$I$2,$J$2,IF(D2=$I$3,$J$3,IF(D2=$I$4,$J$4,IF(D2=$I$5,$J$5,"N
A"))))

17. F2
=IF(D2=$I$2,$J$2,IF(D2=$I$3,$J$3,IF(D2=$I$4,$J$4,IF(D2=$I$5,$J$5,"NA")))
)
update the Unit price for each
sale

18. EXAMPLE 2: USING MULTIPLICATION
OPERATOR
Using Multiplication (*) operator,
update cost column in the Sales Rep
Table.
Sales Rep
Table Cost: G2 = E2 *
F2
Cost = unit price * units sold

19. EXAMPLE 3 : USING SUMIF FUNCTION
Sales Rep Table
Unit Price Table
Using SUMIF function, update Unit
Price Table with the number of product
sold

20. Total Unit: K2 = SUMIFS($E$2:$E$44,$D$2:$D$44,I2)
Add the quantity listed in cell E2 to E44
only if the product listed in column D
matches with the item listed in column I.

21. EXAMPLE 4: USING SUM
FUNCTION
Using Sum function to find the grand total for the product
sold.
Cell L2 = J2 * K2
Grand Total L6=sum(L2:L5)

22. PIVOT TABLE
Pivot tables are used for summarizing
huge amounts of data.
It is also used for analyzing data,
identifying trends and relationships.

23. PIVOT TABLE
To create pivot table, select the table with data, click on
Insert Tab and then click on Pivot Table.
Original Table Pivot Table
Table 1: Price
Table

24. REPORT 1: UNIT SOLD AND SALES
LISTED BY PRODUCT
Pivot Table

25. REPORT 2: UNIT & REVENUE BY
PRODUCT SOLD
Pivot Table

26. REPORT 3: UNIT SOLD & REVENUE
GENERATED BY EACH OF THE SALE
REPRESENTATIVE
Pivot Table

27. MICROSOFT EXCEL 2010
USEFUL FORMULA & FUNCTIONS
 Microsoft Course #: 50449
 Number of Days: 1
 Format: Instructor-Led
 Prerequisites: Excel 2010 Basic
 Description: Provides students with the knowledge
and skills in using Formula & Functions in Microsoft
Excel 2010.
www.nrclc.com/Excel2010
