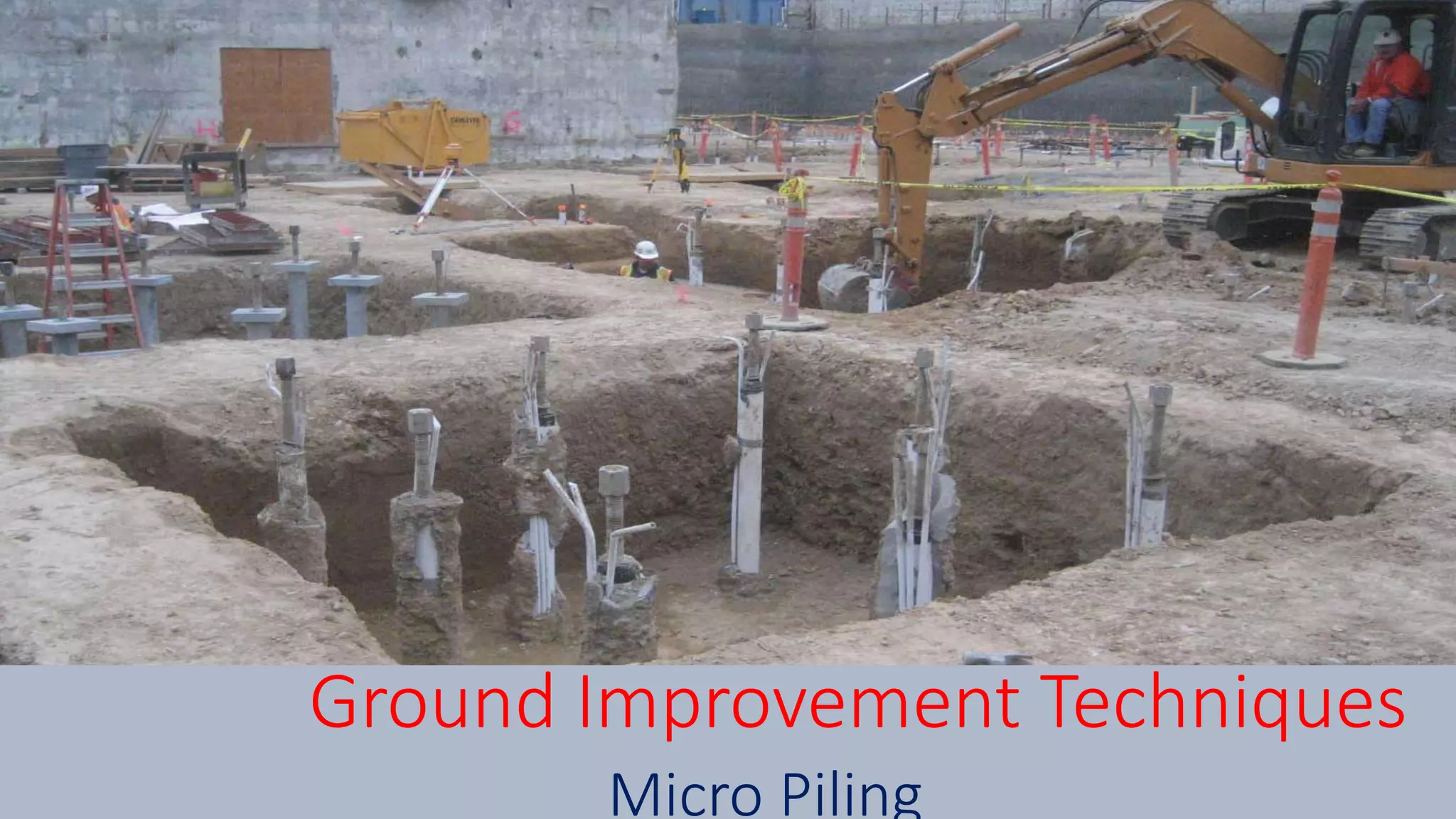

Micro-piling is one of the efficient and cost effective ground improvement technique which can be use various condition. It can use to support foundation as well as soil retention.

1. Ground Improvement Techniques
Micro Piling

2. History
• Micro-piles were conceived in Italy in the early 1950s,
• In response to the demand for innovative techniques for
underpinning historic buildings and monuments that had sustained
damage during World War II.
• It is used to support foundation to resist static and seismic loading
conditions, and as in-situ reinforcements for slope and excavation
stability.

3. Introduction
• A Micro pile have a small diameter, typically less than 300mm.
• It is a drilled and grouted non-displacement pile which is heavily reinforced and
carries most of its loading on the high capacity steel reinforcement
• Reinforcement and cement grout are the major component of micro pile.
• It also known as mini pile.

4. Favorable use of Micropile
• Hard strata is available at higher depth
• Damaged structure
• Hilly area
• Uneven settlement
• Space is less
• Excavation support

6. Classification
• Based on Design Criteria/Application
• Based on Construction

7. Based on Design Criteria/Application
1. Takes directly applied load
2. Provide reinforcement to the soil to
resist load.

8. Based on Construction type
1. Type A: Gravity Grout
2. Type B: Pressure through Casing
3. Type C: Single Global Post Grout
4. Type D: Multiple Repeatable Post Grout

9. Type A: Gravity Grout
• Gravity head only using sand-cement motors or neat cement
Type B: Pressure through Casing
• Cement grout is placed into the hole as the temporary steel casing
is with drawn.
• Injection pressures varies from 0.5 to 1.0 MPa. The pressure is
limited to avoid fracturing of the surrounding ground.
Type C: Single Global Post Grout
This is done in two step process:
• As of Type A
• Prior to hardening of the primary grout, similar grouts injected one
time via a sleeve grout pipe at pressure of at least 1.0MPa.
Type D: Multiple Repeatable Post Grout
This is done in two step process:
• As of Type A
• Prior to hardening of the primary grout, similar grouts injected one
time via a sleeve grout pipe at pressure of at 2.0 to 8.0MPa

11. Construction of micro pile
• Following step are carried out for construction of micro pile.
 Drilling and/or installation of temporary casing
 Remove inner drilling bit rod.
 Placing reinforcement and grouting by tremie.
 Remove temporary casing, inject further grout under pressure.
 Complete pile (casing may be left in place of compressible stratum)

14. Application of micro pile
• For structure support
• New foundation
• Under pinning of existing
foundation
• Seismic retrofitting of existing
structure
• Scour protection
• Excavation support in confined
area
• For situ reinforcement
• Slope stabilization
• Earth retention
• Ground strengthening and
protection
• Settlement reduction

16. Advantages of micro pile
• It used to underpin the existing structure where need of minimum
vibration.
• It can be easily laid where low head room is constraint.
• It can be installed at any angle.
• It offers practical and cost effective solution to costly alternative pile
system.
• Not require large access road or drilling platforms.

17. Case Study
KM 150.00 D-S-DBO Road
• The site at KM 150.00 is a deserted zone at elevation of 14500 feet with
glacier valleys and during summer season glacier melts which increases the
water level of Shyok River and damages the road which ultimately leads to
difficulty in transportation.
• The site located along hilly terrain, a highly remote area where accessibility is
very hard and climatic conditions are very harsh for humans.
• Government of India had tried various techniques for the foundation purpose
of the bridge such as deep (well, pile, etc.) and shallow foundations (open
cast foundation).
• Well foundation is not suitable due to higher water level
• Due to requirement of mobilization of heavy machinery pile foundation is not
feasible
• In case of shallow foundation the concrete is not setting due to the presence
of high water table, dewatering is required continuously which is not
considered to be a good option.

18. Site Location

19. Proposed Site Like this

20. Solution- (Micro pile)
• The company Spar Geo planned to construct 42 micro-piles as a
foundation each for 9 in river piers and 2 abutments. Each micro-pile
will have 273 mm diameter socketed 21 meters into soil.
• Grouting will be carried out using cement (53 grade OPC) with
addition of 1% special admixture of the total weight of cement to
increase the strength of grout mix with the help of double packer for
1.5 m section which helps to maintain almost a uniform thickness of
grout along the length.
• The pile testing will be conducted for vertical and lateral load up to
two times of designed load as per IS: 2911 (part 4).

21. • (http://www.spargrp.com/casestudy/micropile-foundation-at-150-00km-d-s-dbo-road/)

23. Inclined Piling

24. Pile Load Test

25. Preperd b : Thaiyam Sameer
