11. UMESH SIR

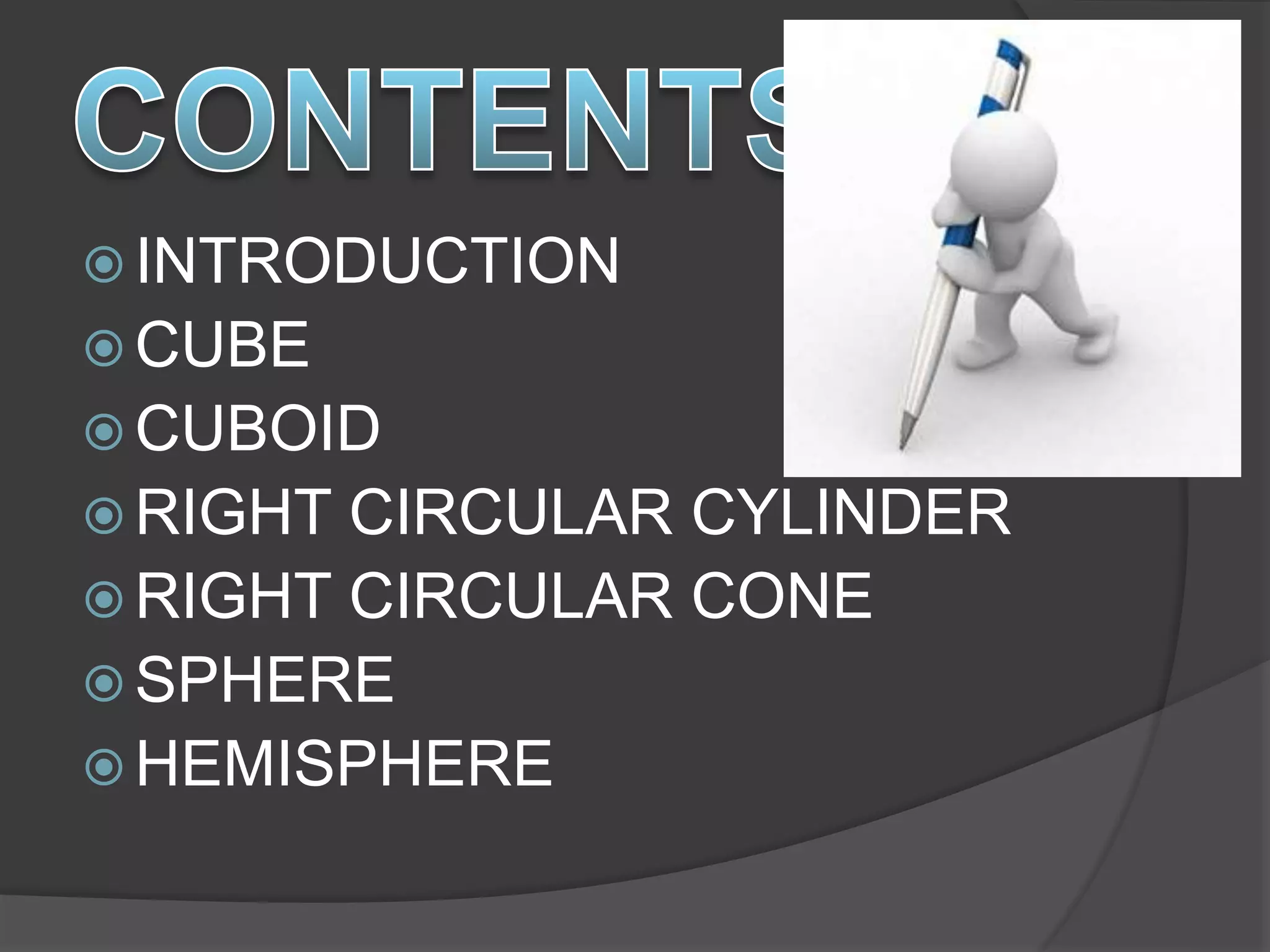

13.  INTRODUCTION
 CUBE
 CUBOID
 RIGHT CIRCULAR CYLINDER
 RIGHT CIRCULAR CONE
 SPHERE
 HEMISPHERE

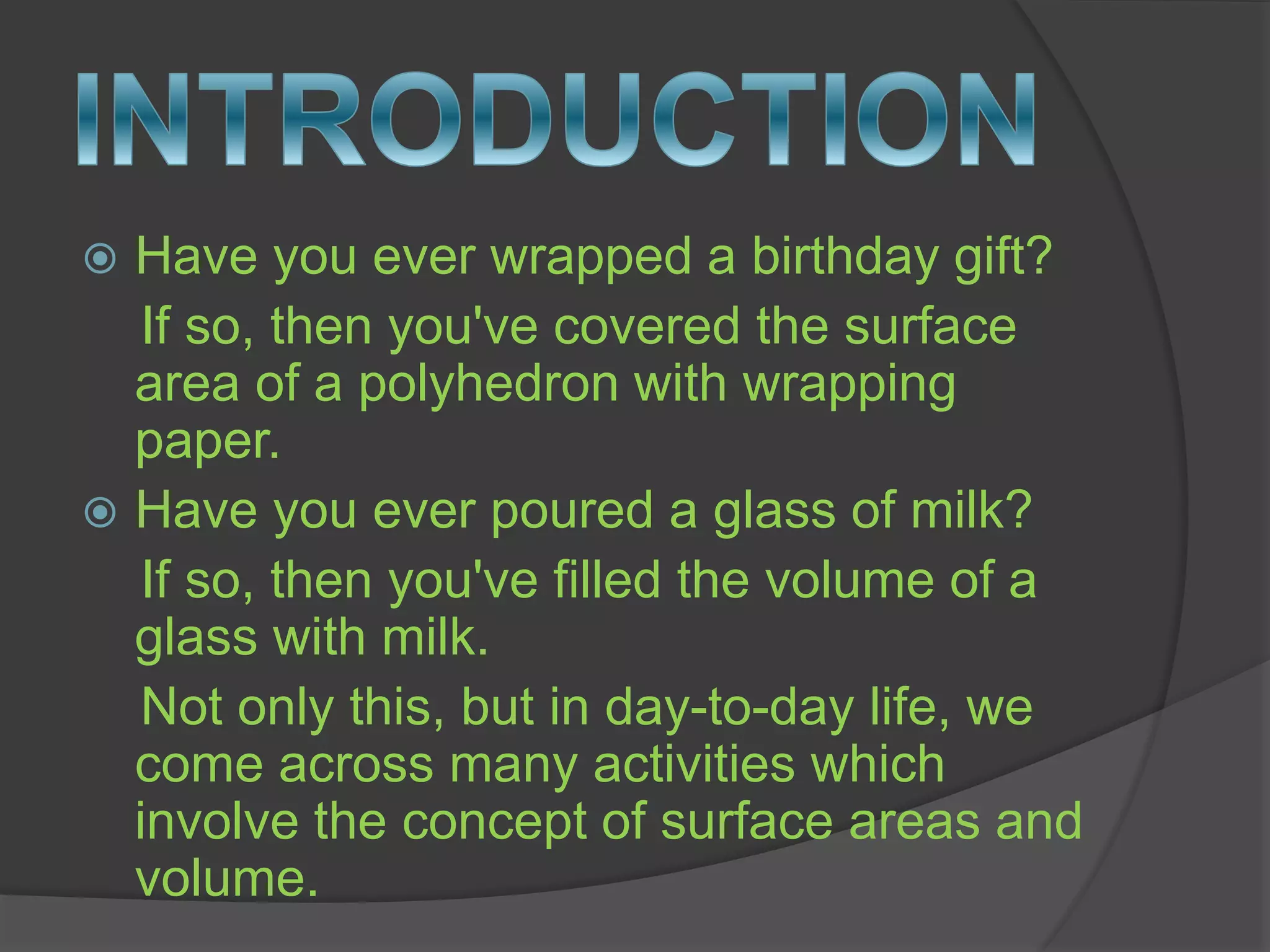

14.  Have you ever wrapped a birthday gift?
If so, then you've covered the surface
area of a polyhedron with wrapping
paper.
 Have you ever poured a glass of milk?
If so, then you've filled the volume of a
glass with milk.
Not only this, but in day-to-day life, we
come across many activities which
involve the concept of surface areas and
volume.

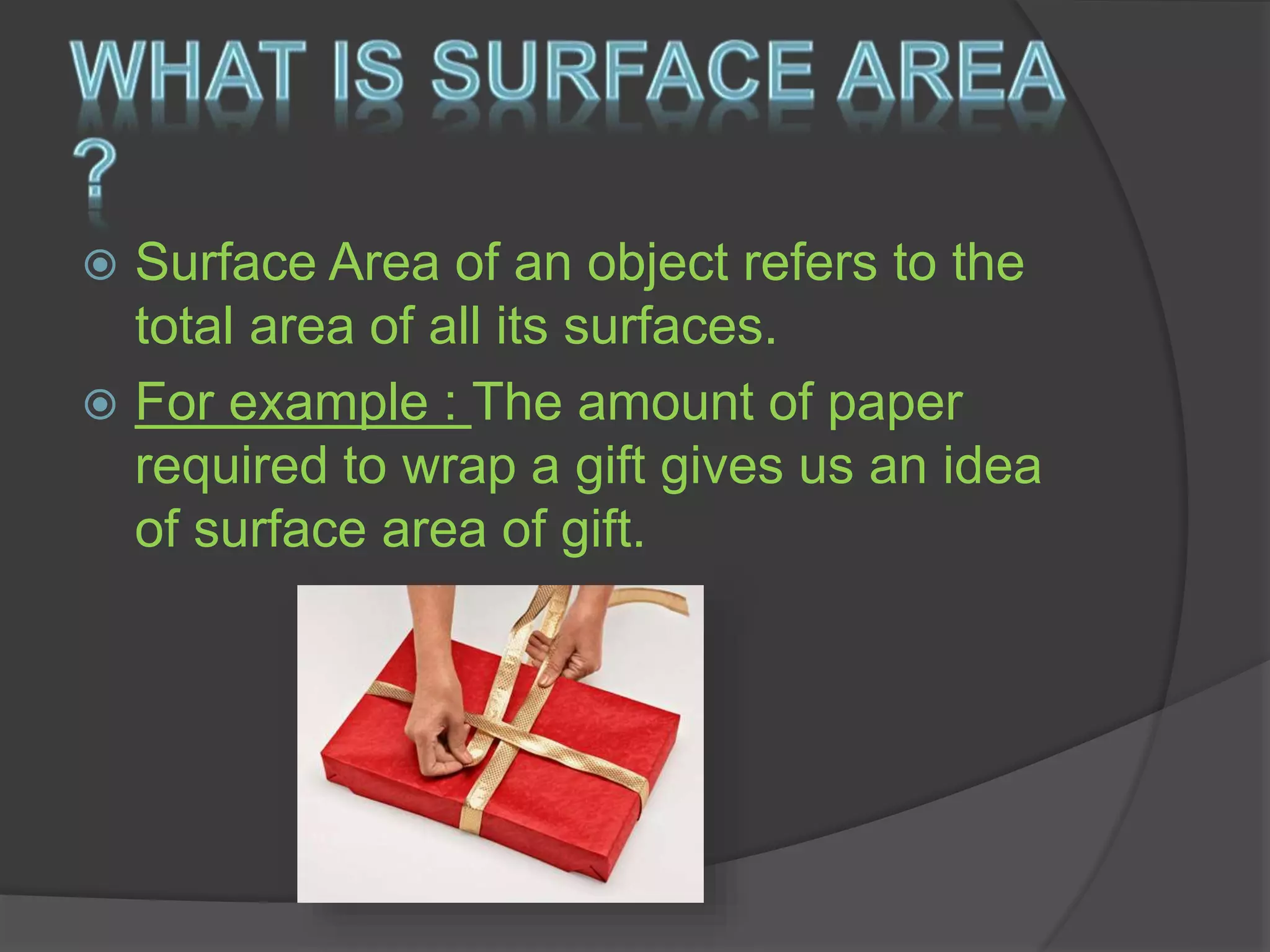

15.  Surface Area of an object refers to the
total area of all its surfaces.
 For example : The amount of paper
required to wrap a gift gives us an idea
of surface area of gift.

16.  Volume of a solid
object refers to the
amount of space it
occupies or
contains.
 For example : The
amount of water a
swimming pool can
hold gives us an
idea of the volume
of the swimming
pool.

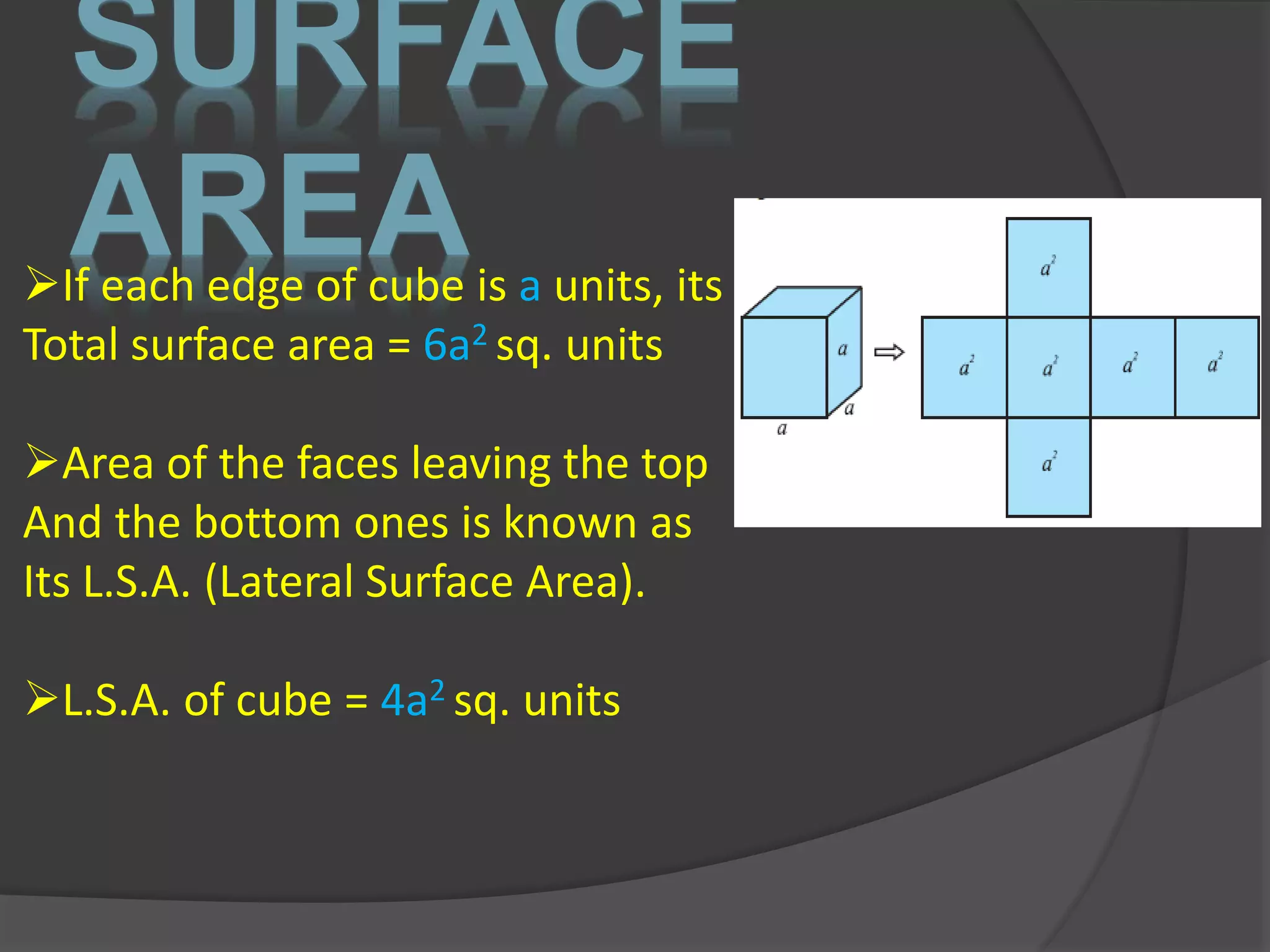

18. SURFACE
AREAIf each edge of cube is a units, its
Total surface area = 6a2 sq. units
Area of the faces leaving the top
And the bottom ones is known as
Its L.S.A. (Lateral Surface Area).
L.S.A. of cube = 4a2 sq. units

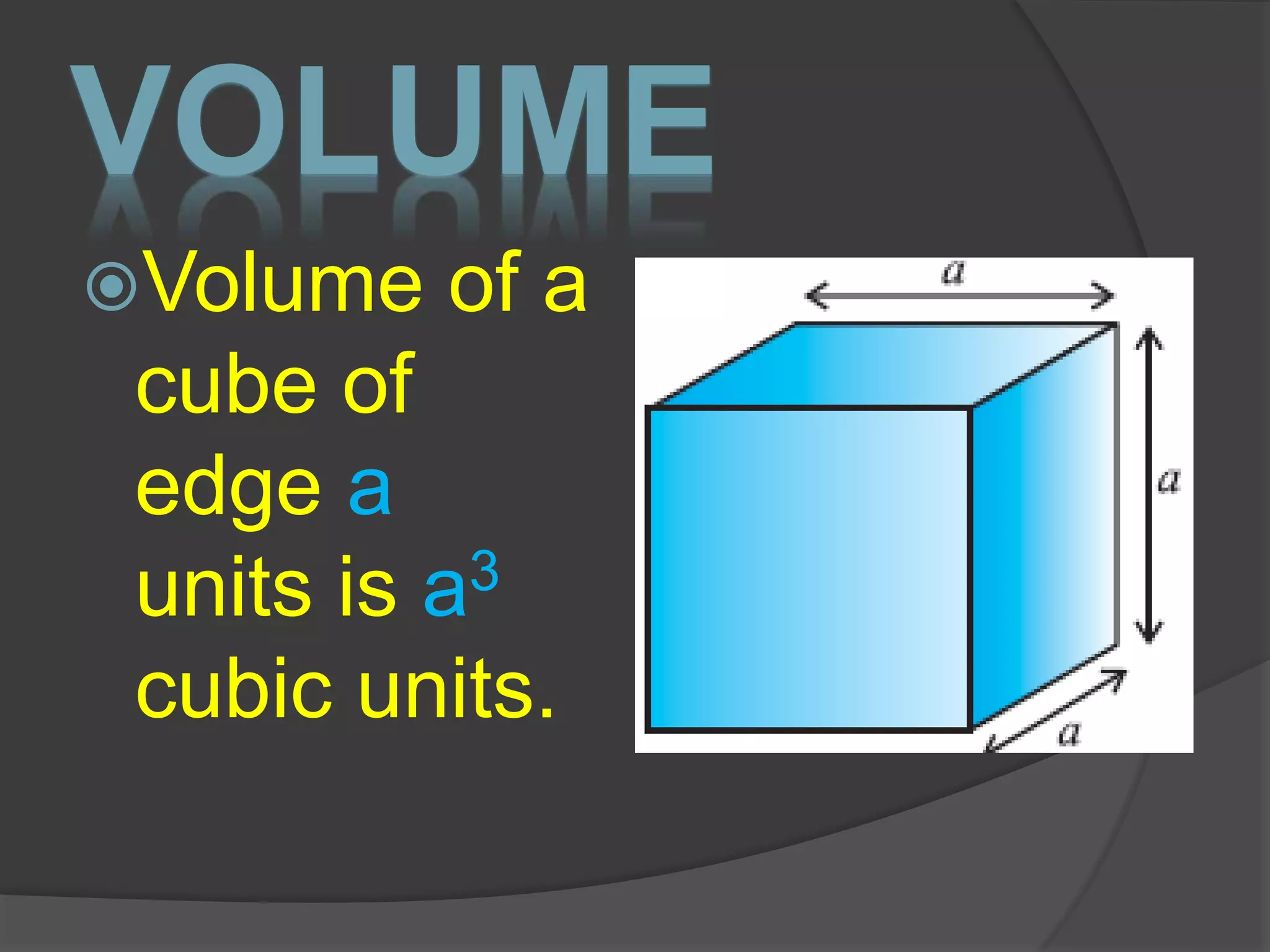

19. VOLUME
Volume of a
cube of
edge a
units is a3
cubic units.

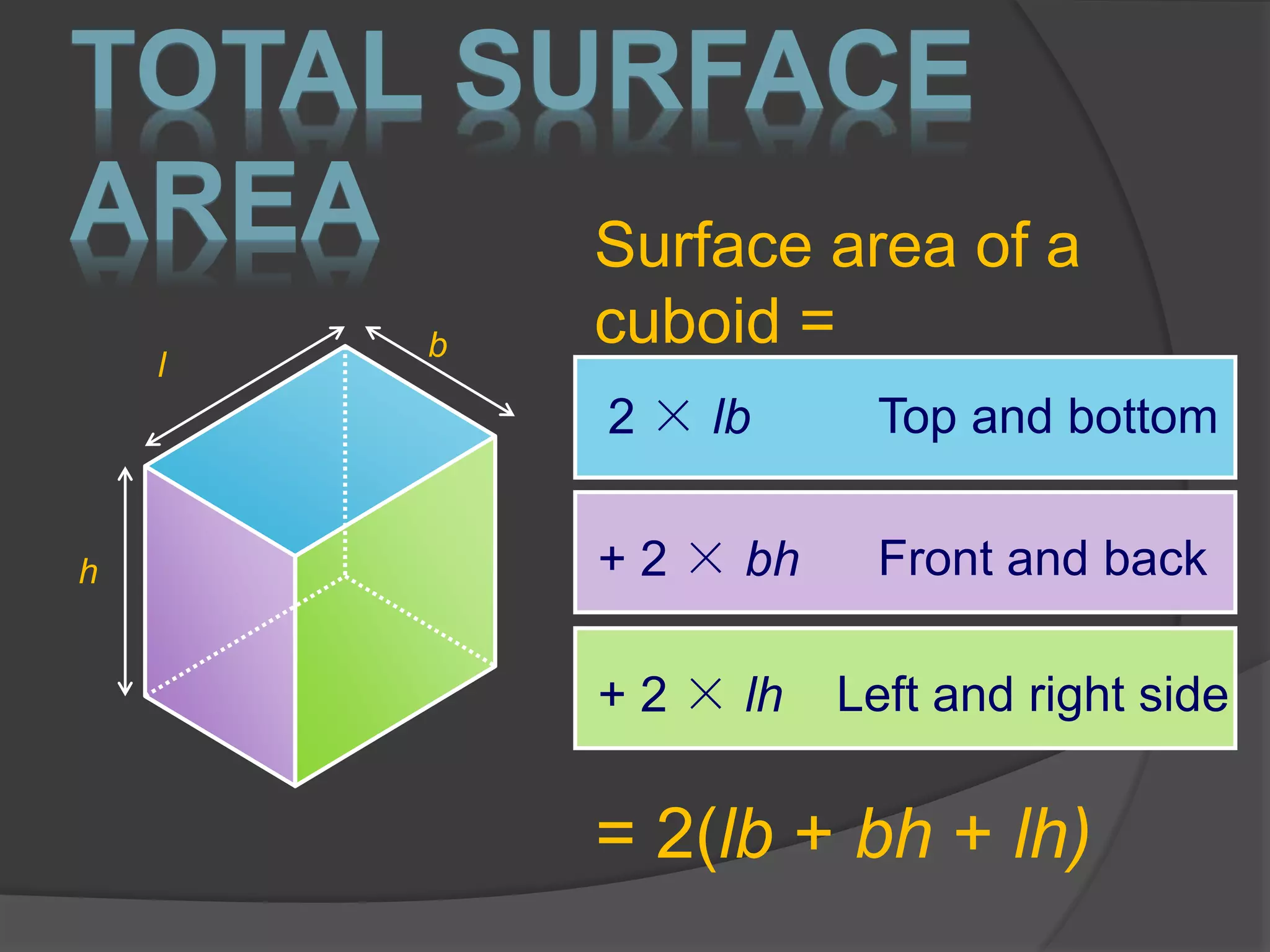

21. TOTAL SURFACE
AREA Surface area of a
cuboid =
2 × lb Top and bottom
+ 2 × bh Front and back
+ 2 × lh Left and right side
= 2(lb + bh + lh)
h
l
b

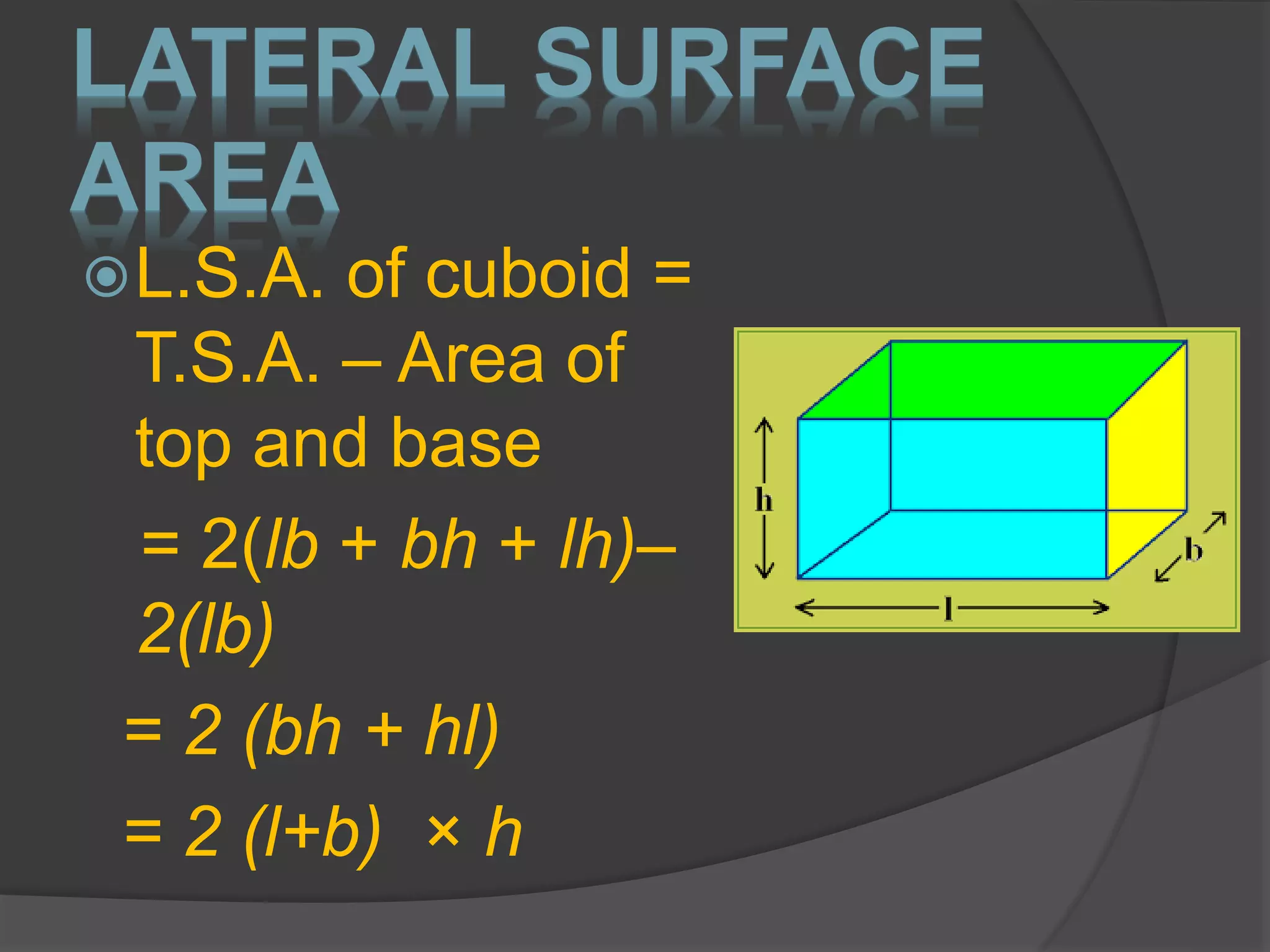

22. LATERAL SURFACE
AREA
L.S.A. of cuboid =
T.S.A. – Area of
top and base
= 2(lb + bh + lh)–
2(lb)
= 2 (bh + hl)
= 2 (l+b) × h

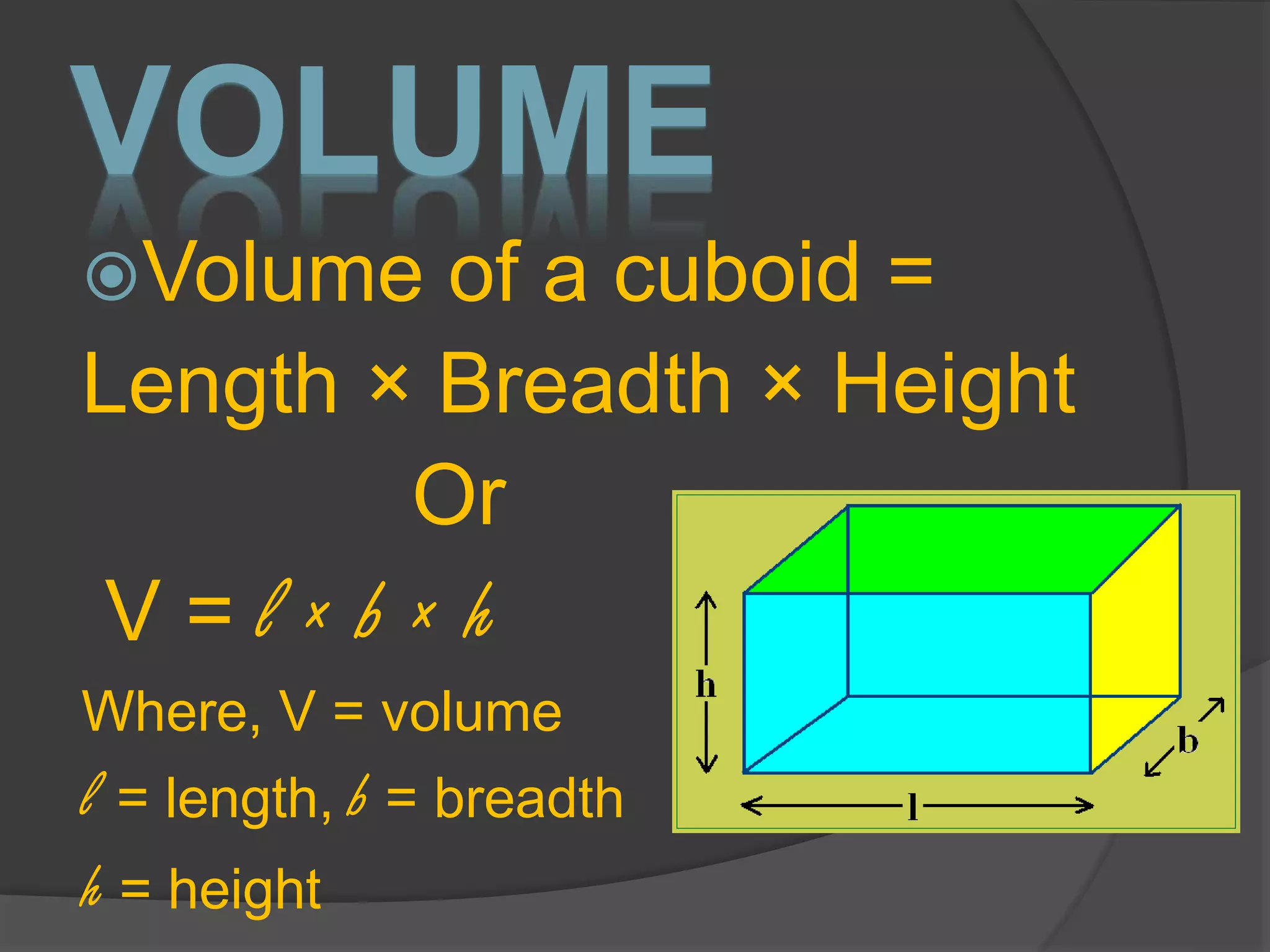

23. VOLUME
Volume of a cuboid =
Length × Breadth × Height
Or
V = l × b × h
Where, V = volume
l = length, b = breadth
h = height

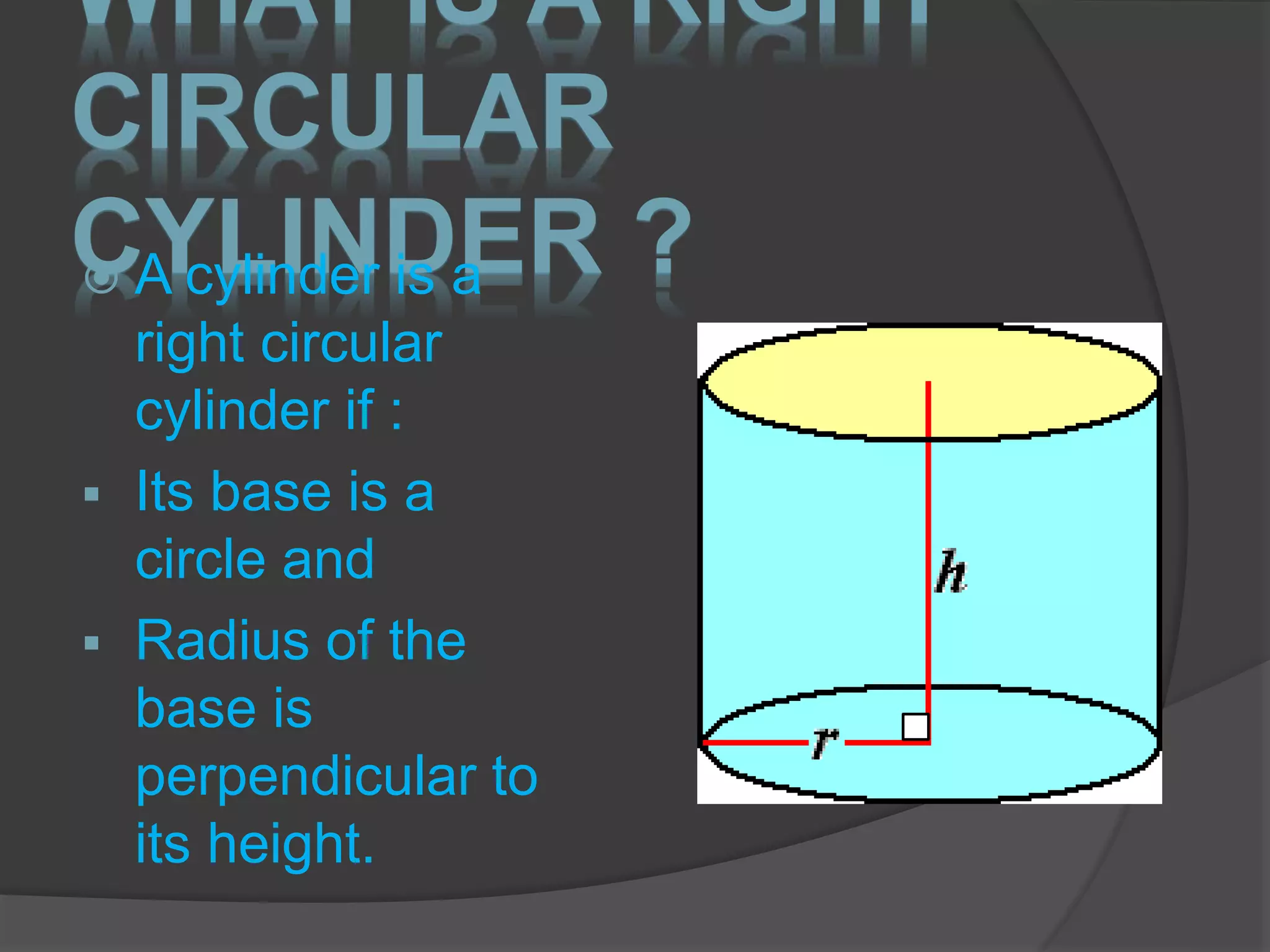

25. WHAT IS A RIGHT
CIRCULAR
CYLINDER ? A cylinder is a
right circular
cylinder if :
 Its base is a
circle and
 Radius of the
base is
perpendicular to
its height.

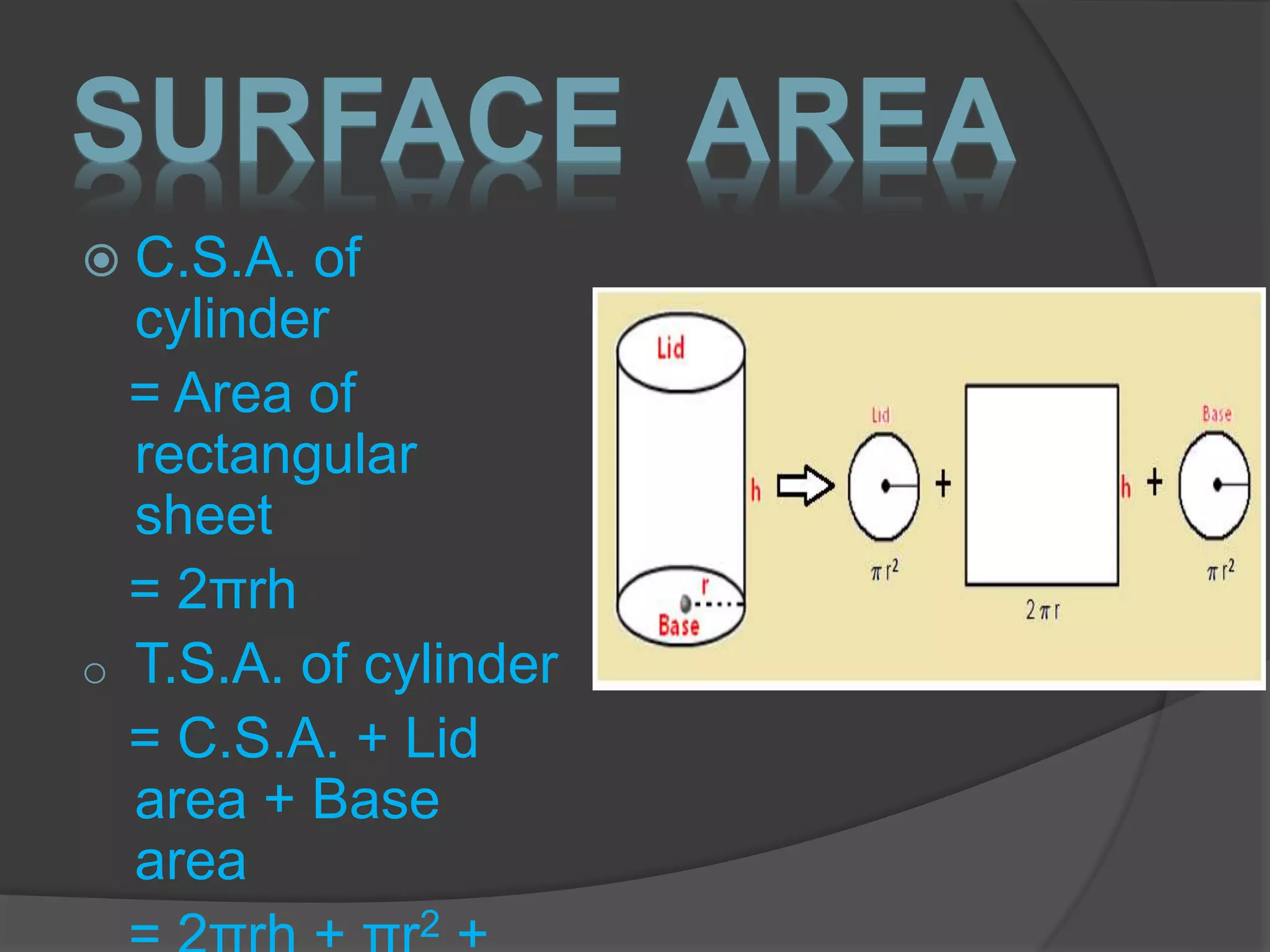

26. SURFACE AREA
 C.S.A. of
cylinder
= Area of
rectangular
sheet
= 2πrh
o T.S.A. of cylinder
= C.S.A. + Lid
area + Base
area
2

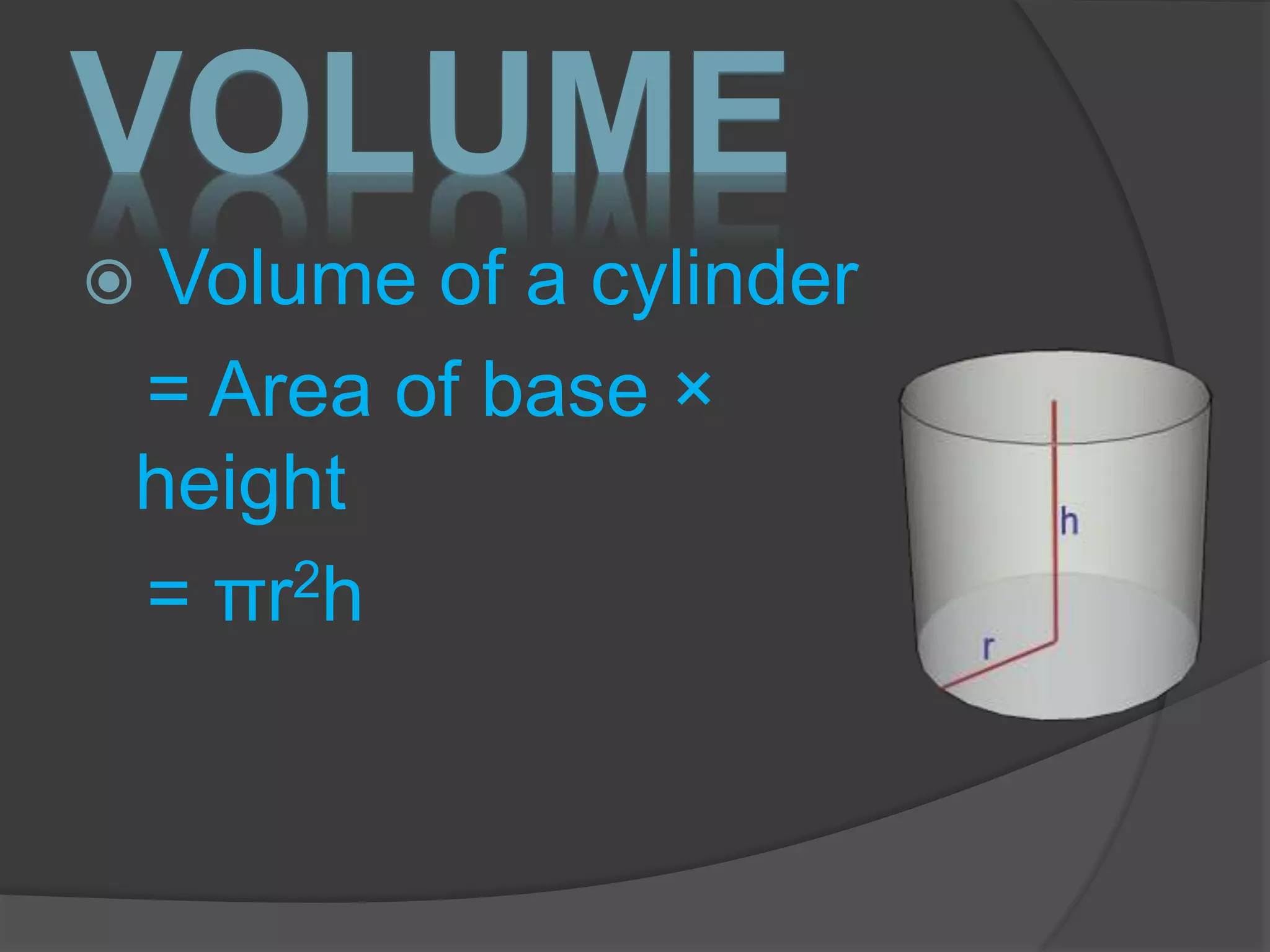

27. VOLUME
 Volume of a cylinder
= Area of base ×
height
= πr2h

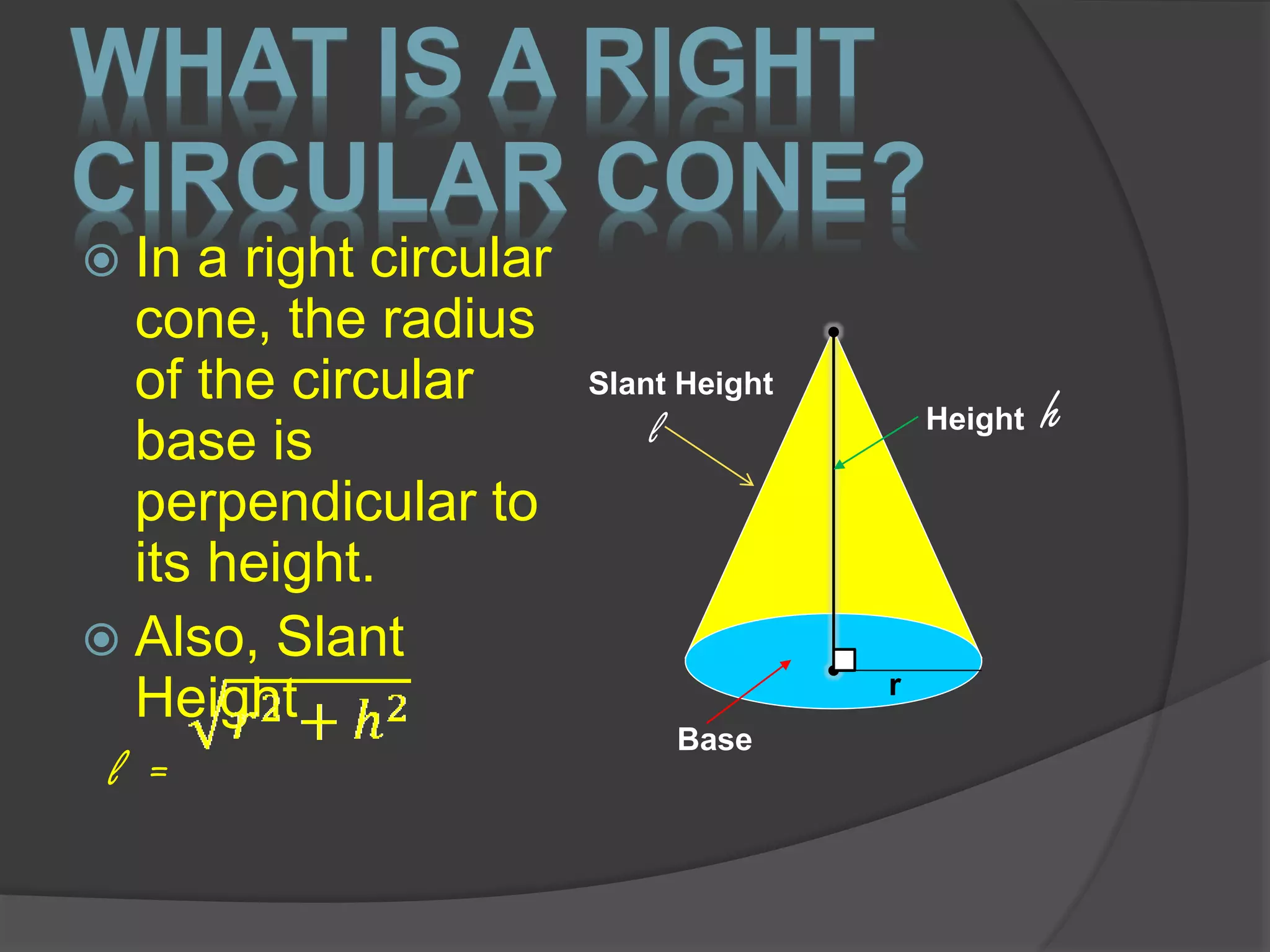

29. WHAT IS A RIGHT
CIRCULAR CONE?
 In a right circular
cone, the radius
of the circular
base is
perpendicular to
its height.
 Also, Slant
Height
l =
Height h
Base
r
Slant Height
l

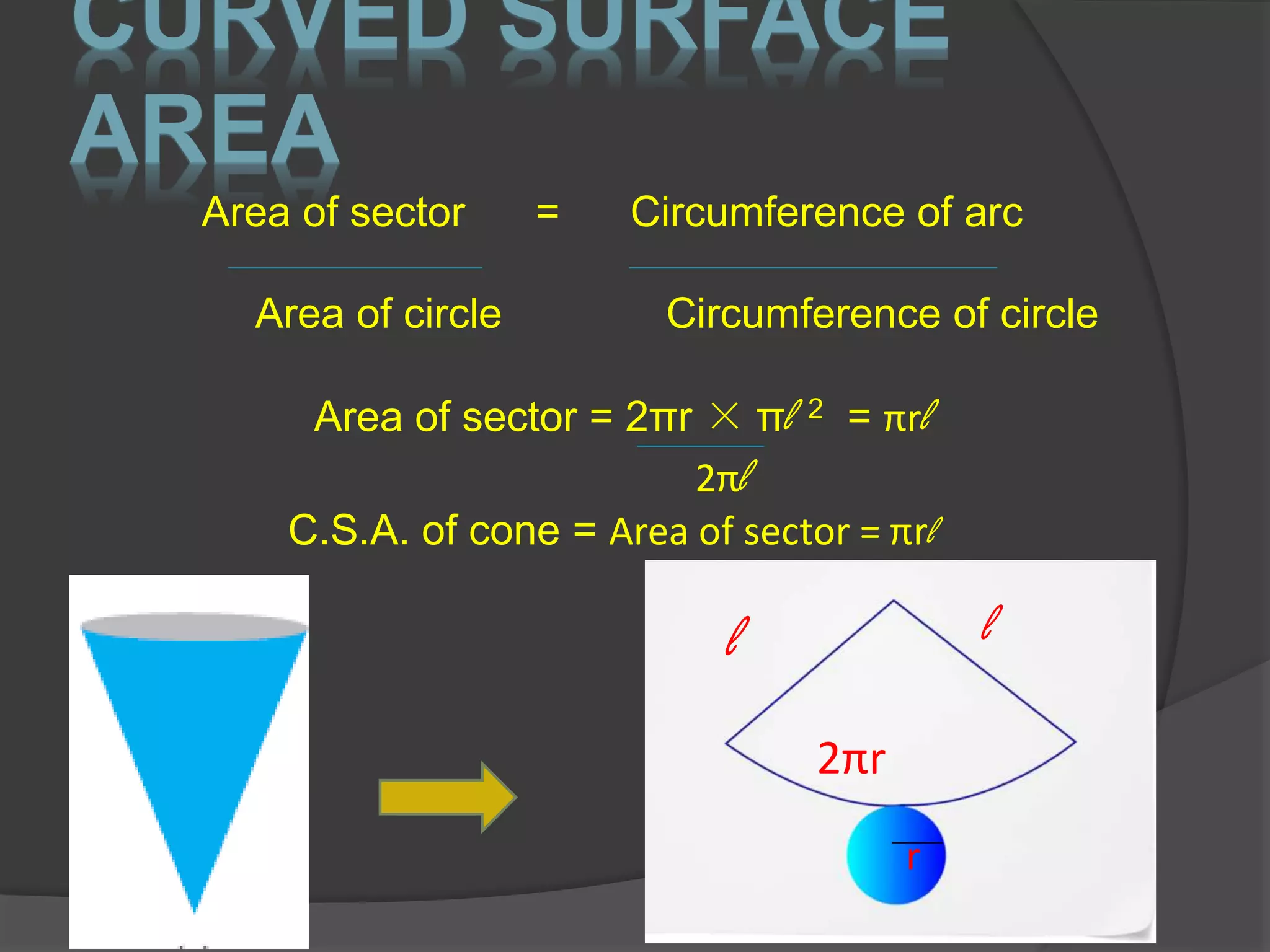

30. CURVED SURFACE
AREA
l l
2πr
r
Area of sector = Circumference of arc
Area of circle Circumference of circle
Area of sector = 2πr × πl 2 = πrl
2πl
C.S.A. of cone = Area of sector = πrl

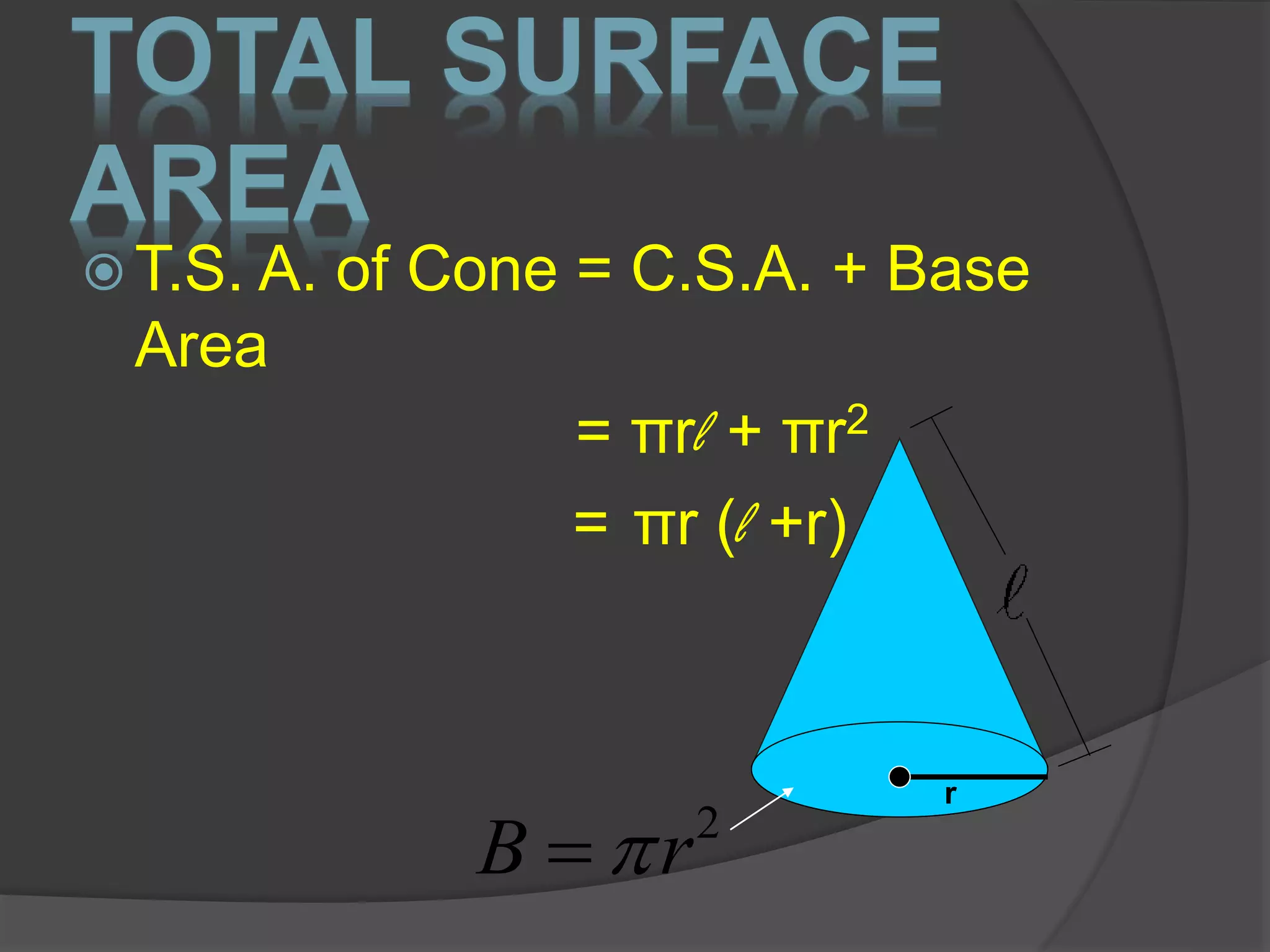

31. TOTAL SURFACE
AREA
 T.S. A. of Cone = C.S.A. + Base
Area
= πrl + πr2
= πr (l +r)
2
B r
r

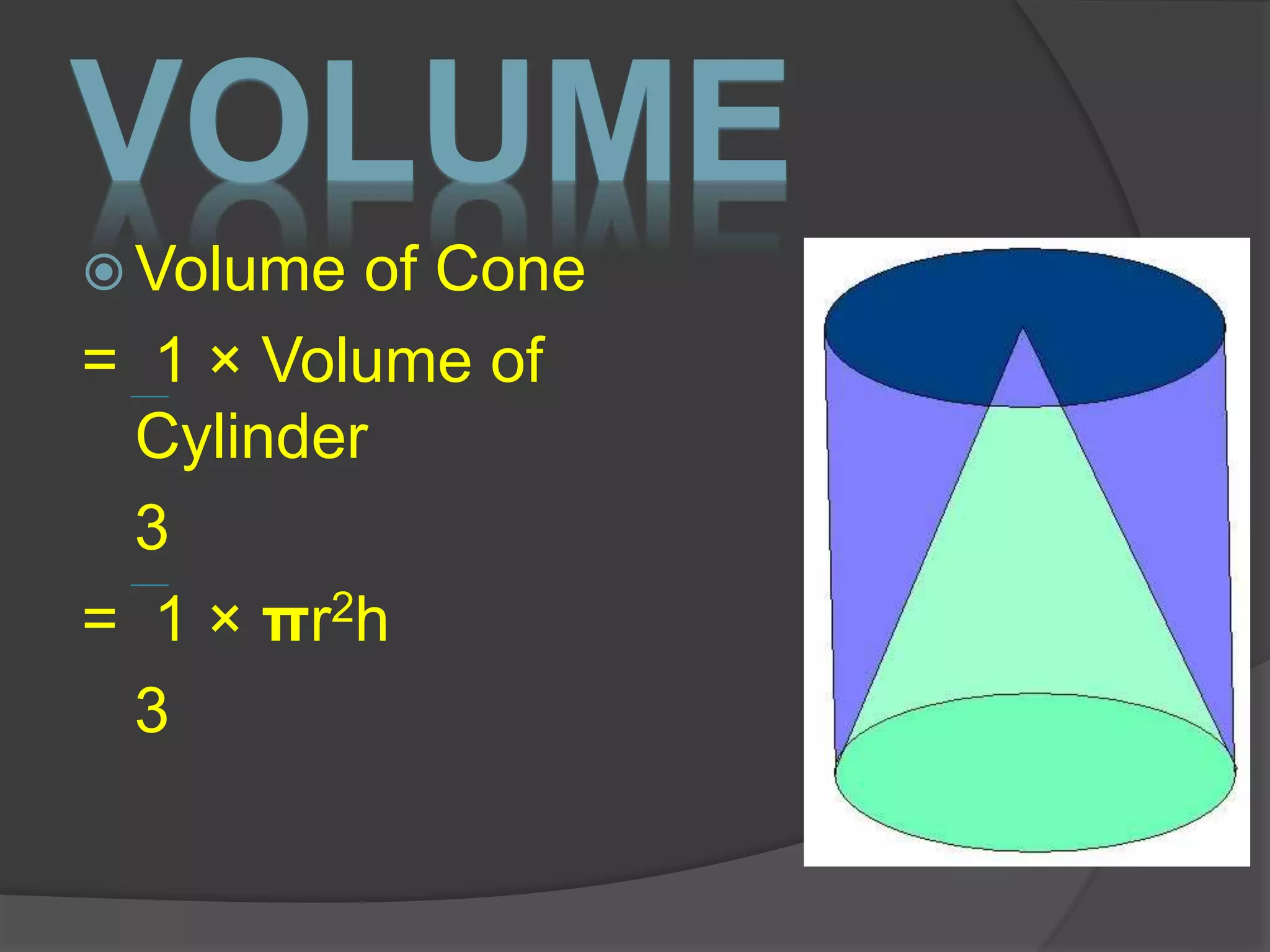

32. VOLUME
 Volume of Cone
= 1 × Volume of
Cylinder
3
= 1 × πr2h
3

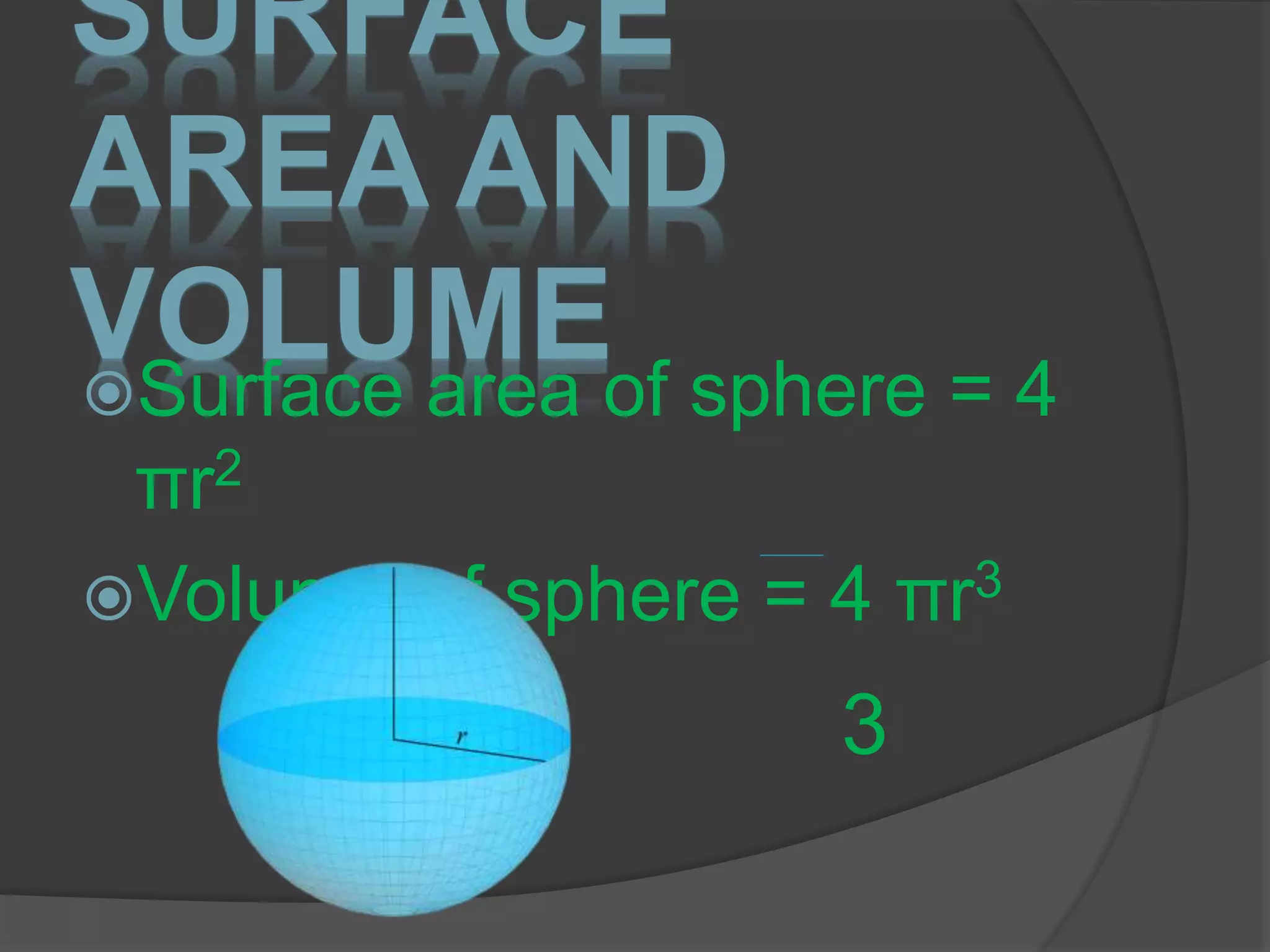

34. SURFACE
AREA AND
VOLUMESurface area of sphere = 4
πr2
Volume of sphere = 4 πr3
3

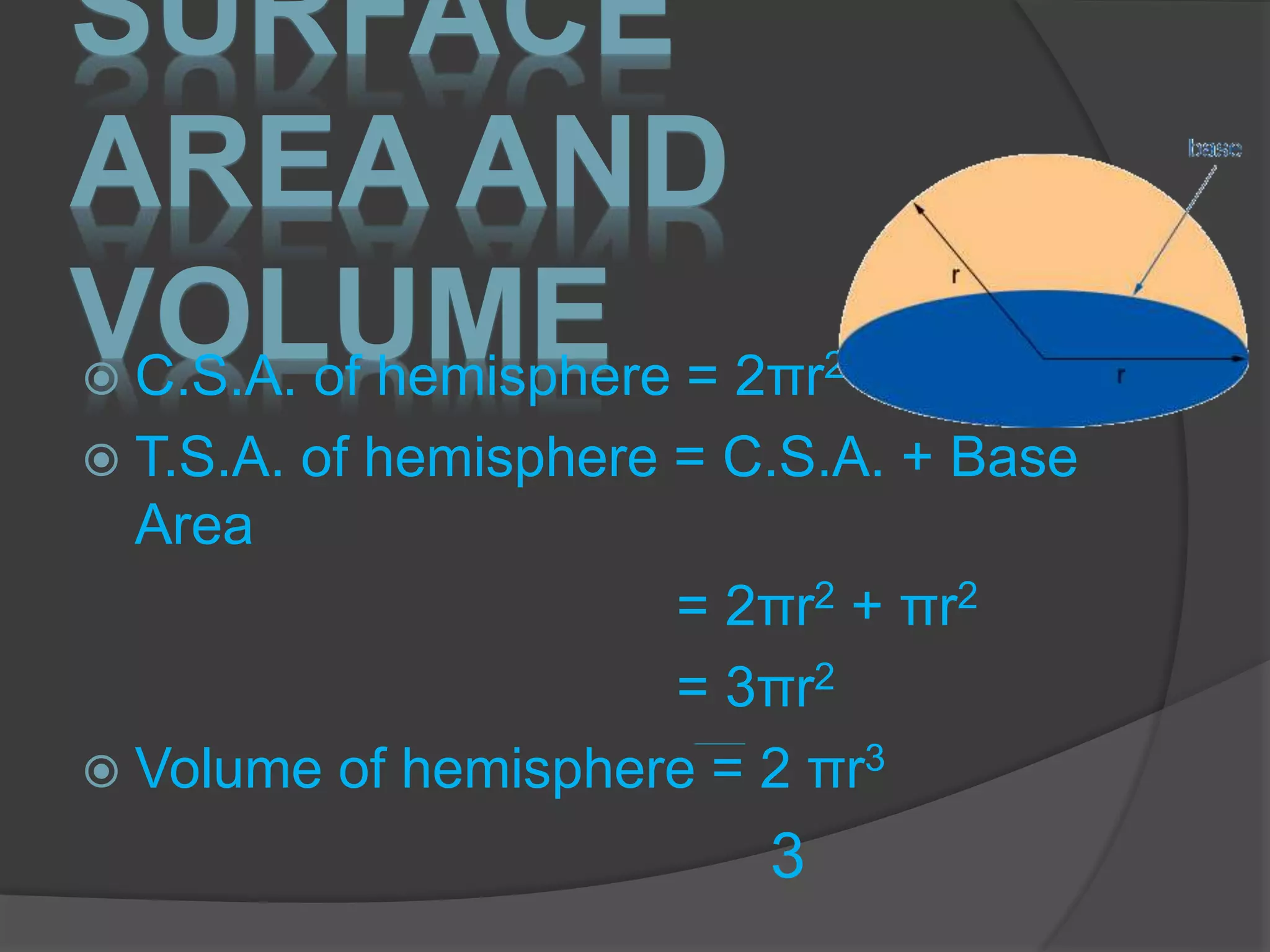

36. SURFACE
AREA AND
VOLUME C.S.A. of hemisphere = 2πr2
 T.S.A. of hemisphere = C.S.A. + Base
Area
= 2πr2 + πr2
= 3πr2
 Volume of hemisphere = 2 πr3
3
