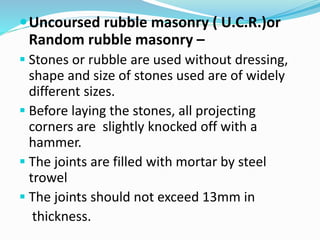

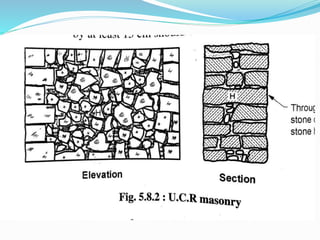

Uncoursed Random Rubble Masonry
BUILT TO COURSES RANDOM RUBBLE MASONRY
SQUARED RUBBLE MASONRY
UNCOURSED SQUARED RUBBLE MASONRY
BUILT TO COURSES SQUARED RUBBLE MASONRY
REGULAR COURSED SQUARED RUBBLE MASONRY

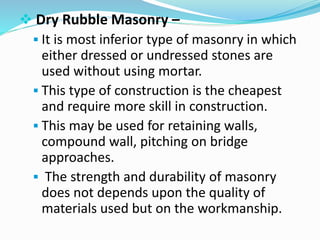

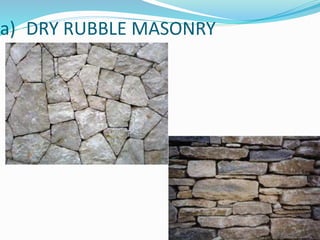

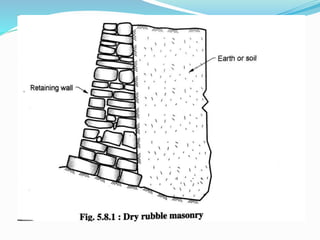

DRY RUBBLE MASONRY
ASHLAR MASONRY

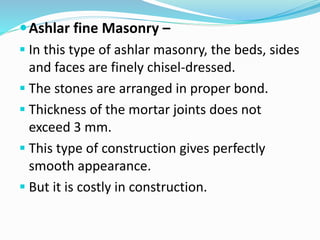

ASHLER FINE / COURSED ASHLAR MASONRY
RANDOM COURSED ASHLAR MASONRY
ROUGH TOOLED ASHLER MASONRY

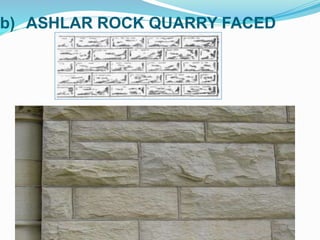

QUARRY FACED ASHLAR MASONRY

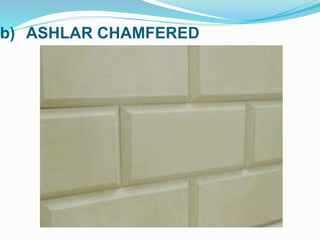

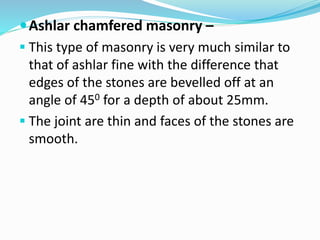

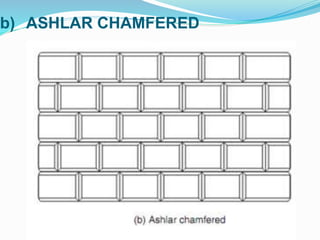

CHAMFERED ASHLAR MASONRY

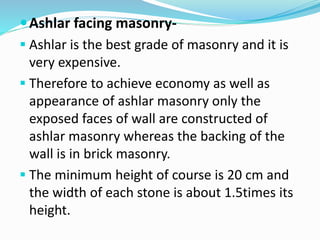

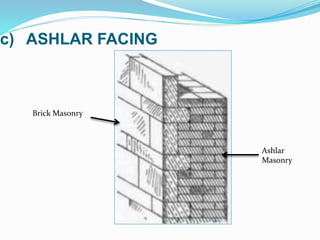

ASHLAR FACING
rough ashlar stone masonic rough ashlarrough and pe
Purpose of brick bonds
Types of bonds in Brick Masonry in Civil Engineering
Types of bonds in brick masonry with Application
Advantages and Disadvantages of each type
What is pointing?
Scope of pointing
Method of pointing
What is plastering?
Objective of plastering
Lime plaster
Cement plaster
Gypsum plaster (plaster of Paris)
Water proof plaster of Mortar
Heat resistant plasters
Defects in plastering

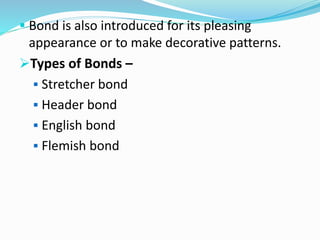

1.Stretcher bond
2.Header bond
3.English bond and
4.Flemish bond.
Rock, that is removed from its natural site and generally, cut or dressed and then finished for building purposes, is called “Stone” and the art of building the structure with stones as constructional units is called “Stone Masonry”.
nry
Types of Rubble Masonry
Random Rubble Masonry
Uncoursed Random Rubble Masonry
BUILT TO COURSES RANDOM RUBBLE MASONRY
SQUARED RUBBLE MASONRY
UNCOURSED SQUARED RUBBLE MASONRY
BUILT TO COURSES SQUARED RUBBLE MASONRY
REGULAR COURSED SQUARED RUBBLE MASONRY
DRY RUBBLE MASONRY
ASHLAR MASONRY
ASHLER FINE / COURSED ASHLAR MASONRY
RANDOM COURSED ASHLAR MASONRY
ROUGH TOOLED ASHLER MASONRY
QUARRY FACED ASHLAR MASONRY
CHAMFERED ASHLAR MASONRY
ASHLAR FACING
rough ashlar stone masonic rough ashlarrough and pe
Purpose of brick bonds
Types of bonds in Brick Masonry in Civil Engineering
Types of bonds in brick masonry with Application
Advantages and Disadvantages of each type
What is pointing?
Scope of pointing
Method of pointing
What is plastering?
Objective of plastering
Lime plaster
Cement plaster
Gypsum plaster (plaster of Paris)
Water proof plaster of Mortar
Heat resistant plasters
Defects in plastering
1.Stretcher bond
2.Header bond
3.English bond and
4.Flemish bond.
Design & Construction Errors- How it Affects Repair and Rehabilitation of Str...Srishti Wakhloo
The ultimate guide to design and construction errors and how it affects the repair and rehabilitation of structures. This data has been compiled after visiting several websites and reading books. It is mainly for the purpose of civil engineering students for the subject "Building Maintenance and Repairs".
Earthquake Resistant Building ConstructionRohan Narvekar
This File comprises of a general information and guidelines for construction of Earthquake Resistant buildings, Its a basic study of the same and may help students and learners for overall information of this technology.
Brick masonry, stone masonry and its manufacturingAdarshChatra1
Brick masonry is made of brick units bonded together with
mortar
• Components: i) Bricks ii) Mortar
• Mortar Act as a cementing material and units the individual
brick units together to act as a homogeneous mass

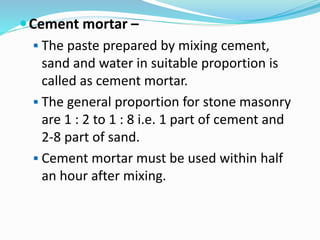

Cement mortar
Mud mortar

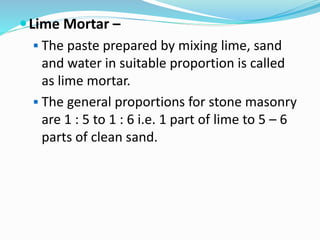

Lime mortar
Lime-surkhi mortar
1.Stretcher
• Brick laid with its length parallel to the front or direction of a wall.
• The course containing stretchers is called a stretcher course
2.Header
• Brick laid with its breadth or width parallel to the front or direction of the wall.
• Course containing headers is called a header course

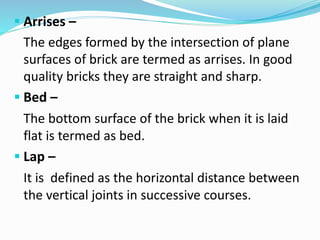

3.Arrises
• Edges formed by the intersection of plane surfaces of brick
4. Bed
• Lower surface of the brick when laid flat
5. Bed joint
• Horizontal layer of mortar upon which the bricks are
laid
6. Perpends
• Vertical joints separating bricks in either length or cross directions
• For good bond, perpends in alternate courses should be vertically one
above the other
7. Lap
• Horizontal distance between the vertical joints in successive courses
• For good bond, lap should not be less than one-fourth of a brick
8. Closer
• Piece of brick with the cut made longitudinally used to close
up the bond at the end of brick courses
• Helps in preventing the joints of successive courses to come
in a vertical line
• Generally closer is not specially moulded but it is
prepared by the mason with the edge of the trowel

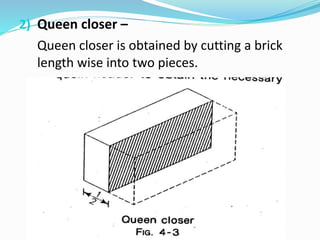

9. Queen closer
• Obtained by cutting the brick longitudinally
in 2 equal parts

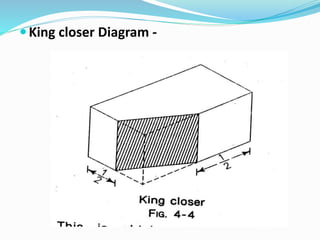

10. King closer
• Obtained by cutting a triangular portion of the brick such that half a header
and half a stretcher are obtained on adjoining cut faces
• Used near door and window openings

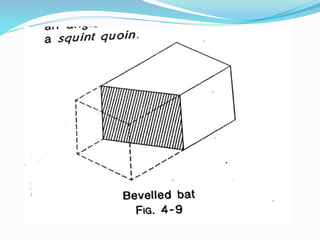

11. Bevelled closer
• Obtained by cutting a triangular portion of half the width but of full length
• Used for splayed brickwork

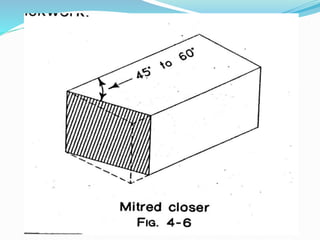

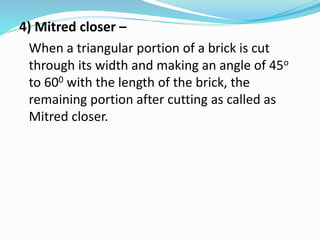

12. Mitred closer
• Obtained by cutting a triangular portion of the brick through its width and
making an angle of 45-60 degree with the length of brick
• Used at corners, junctions etc.

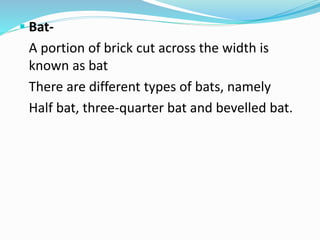

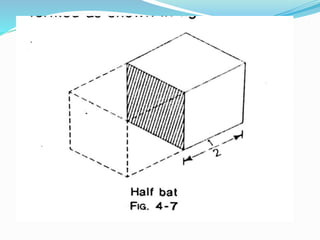

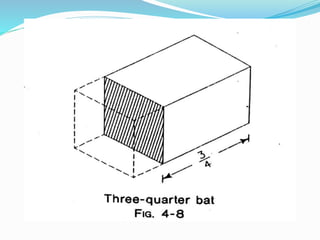

13. Bat
• It is portion of brick cut across the width

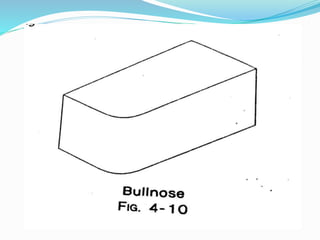

14.Bullnose
• Brick moulded with a rounded angle
• Used for a rounded quoin
external angle on the face side of wall
15.Cownose
• Brick moulded with a double bullnose on end
16. Frog
• Is a mark of depth about 10-20mm which is placed
brick to form a key for holding the mortar

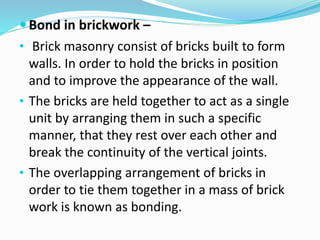

Method of arranging the bricks in courses
• Individual units are tied together and the vertical joints of the successive
courses do not lie in same vertical line
• Bond types are distinguished by their elevation
• Bond types:
i. Stretcher bond v. English cross bond
ii. Header bond vi. Dutch bond
iii. English bond vii. Brick on edge bond
iv. Flemish bond viii. Raking bond
ix. Garden wall bond

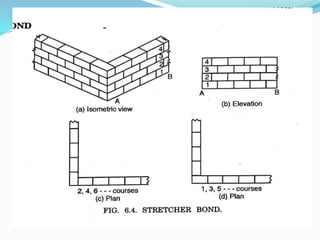

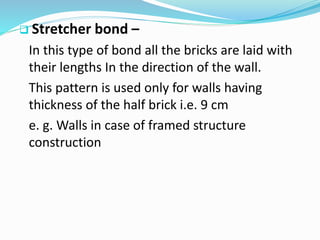

1. Stretcher bond
• All bricks are laid with their lengths in the longitudinal direction of the
wall; Thickness = half brick
• Only stretcher is visible in elevation
• Use: partition wall, sleeper walls

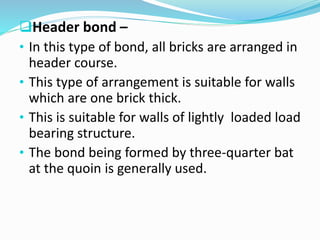

2. Header bond
• All bricks are laid as headers towards the face of the wall.
• Suitable for one b
This Presentation about Brick Masonry with a Beautiful Slides. This presentation covers - Brick Masonry Definition, Type of Bricks, General Principals, Bonds of Bricks, Other Bonds, Junction in Walls, Bonds in Pires, Retraining Wall, Design of Retraining Wall, Strength of Brick Masonry, Reinforced Brickwork. Hope You Enjoy!
▶️ YouTube: https://www.youtube.com/c/JoynulAbadinRasel
☕ Buy me a Coffee: https://www.buymeacoffee.com/JoynulAbadinR
About Brick - definition, manufacturing process, classification, types and Brick Masonry - terminology, types of bonds. ( Stretcher, Header, English and Flemish)
The Internet of Things (IoT) is a revolutionary concept that connects everyday objects and devices to the internet, enabling them to communicate, collect, and exchange data. Imagine a world where your refrigerator notifies you when you’re running low on groceries, or streetlights adjust their brightness based on traffic patterns – that’s the power of IoT. In essence, IoT transforms ordinary objects into smart, interconnected devices, creating a network of endless possibilities.
Here is a blog on the role of electrical and electronics engineers in IOT. Let's dig in!!!!
For more such content visit: https://nttftrg.com/
Student information management system project report ii.pdfKamal Acharya
Our project explains about the student management. This project mainly explains the various actions related to student details. This project shows some ease in adding, editing and deleting the student details. It also provides a less time consuming process for viewing, adding, editing and deleting the marks of the students.
Using recycled concrete aggregates (RCA) for pavements is crucial to achieving sustainability. Implementing RCA for new pavement can minimize carbon footprint, conserve natural resources, reduce harmful emissions, and lower life cycle costs. Compared to natural aggregate (NA), RCA pavement has fewer comprehensive studies and sustainability assessments.
NUMERICAL SIMULATIONS OF HEAT AND MASS TRANSFER IN CONDENSING HEAT EXCHANGERS...ssuser7dcef0
Power plants release a large amount of water vapor into the
atmosphere through the stack. The flue gas can be a potential
source for obtaining much needed cooling water for a power
plant. If a power plant could recover and reuse a portion of this
moisture, it could reduce its total cooling water intake
requirement. One of the most practical way to recover water
from flue gas is to use a condensing heat exchanger. The power
plant could also recover latent heat due to condensation as well
as sensible heat due to lowering the flue gas exit temperature.
Additionally, harmful acids released from the stack can be
reduced in a condensing heat exchanger by acid condensation. reduced in a condensing heat exchanger by acid condensation.
Condensation of vapors in flue gas is a complicated
phenomenon since heat and mass transfer of water vapor and
various acids simultaneously occur in the presence of noncondensable
gases such as nitrogen and oxygen. Design of a
condenser depends on the knowledge and understanding of the
heat and mass transfer processes. A computer program for
numerical simulations of water (H2O) and sulfuric acid (H2SO4)
condensation in a flue gas condensing heat exchanger was
developed using MATLAB. Governing equations based on
mass and energy balances for the system were derived to
predict variables such as flue gas exit temperature, cooling
water outlet temperature, mole fraction and condensation rates
of water and sulfuric acid vapors. The equations were solved
using an iterative solution technique with calculations of heat
and mass transfer coefficients and physical properties.
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Dr.Costas Sachpazis
Terzaghi's soil bearing capacity theory, developed by Karl Terzaghi, is a fundamental principle in geotechnical engineering used to determine the bearing capacity of shallow foundations. This theory provides a method to calculate the ultimate bearing capacity of soil, which is the maximum load per unit area that the soil can support without undergoing shear failure. The Calculation HTML Code included.
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
Hierarchical Digital Twin of a Naval Power SystemKerry Sado
A hierarchical digital twin of a Naval DC power system has been developed and experimentally verified. Similar to other state-of-the-art digital twins, this technology creates a digital replica of the physical system executed in real-time or faster, which can modify hardware controls. However, its advantage stems from distributing computational efforts by utilizing a hierarchical structure composed of lower-level digital twin blocks and a higher-level system digital twin. Each digital twin block is associated with a physical subsystem of the hardware and communicates with a singular system digital twin, which creates a system-level response. By extracting information from each level of the hierarchy, power system controls of the hardware were reconfigured autonomously. This hierarchical digital twin development offers several advantages over other digital twins, particularly in the field of naval power systems. The hierarchical structure allows for greater computational efficiency and scalability while the ability to autonomously reconfigure hardware controls offers increased flexibility and responsiveness. The hierarchical decomposition and models utilized were well aligned with the physical twin, as indicated by the maximum deviations between the developed digital twin hierarchy and the hardware.
We have compiled the most important slides from each speaker's presentation. This year’s compilation, available for free, captures the key insights and contributions shared during the DfMAy 2024 conference.
Water billing management system project report.pdfKamal Acharya
Our project entitled “Water Billing Management System” aims is to generate Water bill with all the charges and penalty. Manual system that is employed is extremely laborious and quite inadequate. It only makes the process more difficult and hard.
The aim of our project is to develop a system that is meant to partially computerize the work performed in the Water Board like generating monthly Water bill, record of consuming unit of water, store record of the customer and previous unpaid record.
We used HTML/PHP as front end and MYSQL as back end for developing our project. HTML is primarily a visual design environment. We can create a android application by designing the form and that make up the user interface. Adding android application code to the form and the objects such as buttons and text boxes on them and adding any required support code in additional modular.
MySQL is free open source database that facilitates the effective management of the databases by connecting them to the software. It is a stable ,reliable and the powerful solution with the advanced features and advantages which are as follows: Data Security.MySQL is free open source database that facilitates the effective management of the databases by connecting them to the software.
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdffxintegritypublishin
Advancements in technology unveil a myriad of electrical and electronic breakthroughs geared towards efficiently harnessing limited resources to meet human energy demands. The optimization of hybrid solar PV panels and pumped hydro energy supply systems plays a pivotal role in utilizing natural resources effectively. This initiative not only benefits humanity but also fosters environmental sustainability. The study investigated the design optimization of these hybrid systems, focusing on understanding solar radiation patterns, identifying geographical influences on solar radiation, formulating a mathematical model for system optimization, and determining the optimal configuration of PV panels and pumped hydro storage. Through a comparative analysis approach and eight weeks of data collection, the study addressed key research questions related to solar radiation patterns and optimal system design. The findings highlighted regions with heightened solar radiation levels, showcasing substantial potential for power generation and emphasizing the system's efficiency. Optimizing system design significantly boosted power generation, promoted renewable energy utilization, and enhanced energy storage capacity. The study underscored the benefits of optimizing hybrid solar PV panels and pumped hydro energy supply systems for sustainable energy usage. Optimizing the design of solar PV panels and pumped hydro energy supply systems as examined across diverse climatic conditions in a developing country, not only enhances power generation but also improves the integration of renewable energy sources and boosts energy storage capacities, particularly beneficial for less economically prosperous regions. Additionally, the study provides valuable insights for advancing energy research in economically viable areas. Recommendations included conducting site-specific assessments, utilizing advanced modeling tools, implementing regular maintenance protocols, and enhancing communication among system components.
Understanding Inductive Bias in Machine LearningSUTEJAS
This presentation explores the concept of inductive bias in machine learning. It explains how algorithms come with built-in assumptions and preferences that guide the learning process. You'll learn about the different types of inductive bias and how they can impact the performance and generalizability of machine learning models.
The presentation also covers the positive and negative aspects of inductive bias, along with strategies for mitigating potential drawbacks. We'll explore examples of how bias manifests in algorithms like neural networks and decision trees.
By understanding inductive bias, you can gain valuable insights into how machine learning models work and make informed decisions when building and deploying them.

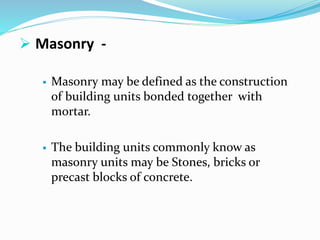

3. Masonry -
Masonry may be defined as the construction
of building units bonded together with
mortar.
The building units commonly know as
masonry units may be Stones, bricks or
precast blocks of concrete.

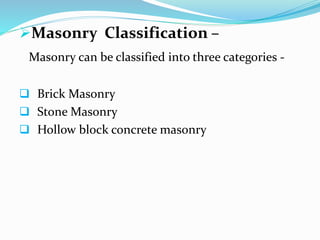

4. Masonry Classification –
Masonry can be classified into three categories -
Brick Masonry
Stone Masonry
Hollow block concrete masonry

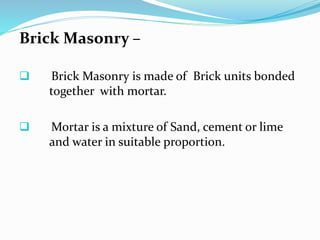

5. Brick Masonry –
Brick Masonry is made of Brick units bonded
together with mortar.
Mortar is a mixture of Sand, cement or lime
and water in suitable proportion.
6. Types of Bricks –
Modular bricks
Traditional or Convectional bricks
The dimensions of traditional bricks
varies from 20 to 25 cm in length, 10 to
13 cm in width and 7.5 cm to 10 cm in
height.
The commonly adopted size of brick 23
cm × 11.4 cm × 7.5 cm

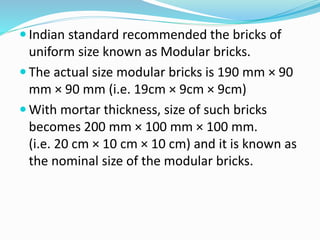

7. Indian standard recommended the bricks of
uniform size known as Modular bricks.
The actual size modular bricks is 190 mm × 90
mm × 90 mm (i.e. 19cm × 9cm × 9cm)
With mortar thickness, size of such bricks
becomes 200 mm × 100 mm × 100 mm.
(i.e. 20 cm × 10 cm × 10 cm) and it is known as
the nominal size of the modular bricks.

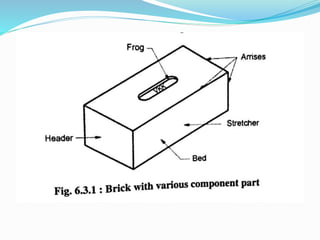

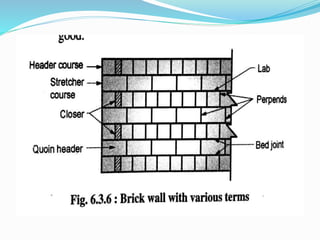

8. Common Terms used in Brick
Masonry -
Stretcher –
This is the brick laid with its length parallel to
face or front or direction of wall.
Header –
This is brick laid with its width parallel to the
face or front or direction of wall.
Course –
A course is a horizontal layer of brick in a wall.

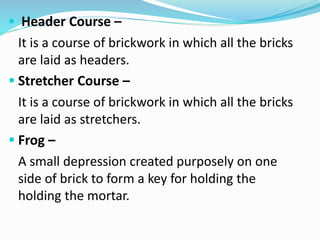

9. Header Course –
It is a course of brickwork in which all the bricks
are laid as headers.
Stretcher Course –
It is a course of brickwork in which all the bricks
are laid as stretchers.
Frog –
A small depression created purposely on one
side of brick to form a key for holding the
holding the mortar.

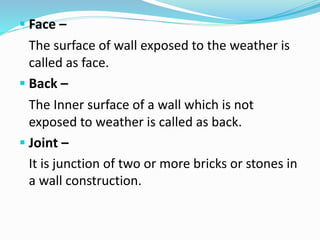

10. Face –
The surface of wall exposed to the weather is
called as face.
Back –
The Inner surface of a wall which is not
exposed to weather is called as back.
Joint –
It is junction of two or more bricks or stones in
a wall construction.

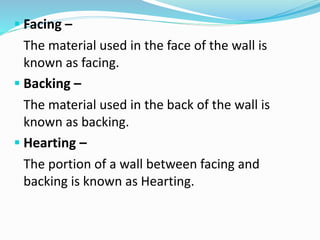

11. Facing –
The material used in the face of the wall is
known as facing.
Backing –
The material used in the back of the wall is
known as backing.
Hearting –
The portion of a wall between facing and
backing is known as Hearting.
12. Arrises –
The edges formed by the intersection of plane
surfaces of brick are termed as arrises. In good
quality bricks they are straight and sharp.
Bed –
The bottom surface of the brick when it is laid
flat is termed as bed.
Lap –
It is defined as the horizontal distance between
the vertical joints in successive courses.
13.
14.

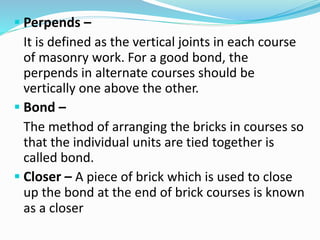

15. Perpends –
It is defined as the vertical joints in each course
of masonry work. For a good bond, the
perpends in alternate courses should be
vertically one above the other.
Bond –
The method of arranging the bricks in courses so
that the individual units are tied together is
called bond.
Closer – A piece of brick which is used to close
up the bond at the end of brick courses is known
as a closer
16. It helps in preventing the joint of
successive courses to come in vertical line.
Types of closers –
1) King Closer
2) Queen Closer
3) Mitred Closer
4) Bevelled Closer
1) King closer –
This is obtained by cutting a piece of brick
in triangular in shape between the center
of header and stretcher.
18. 2) Queen closer –
Queen closer is obtained by cutting a brick
length wise into two pieces.
19. 3) Bevelled closer –
When a triangular portion of a brick is cut
through its half width and to a full length,
then remaining portion after cutting is called
as bevelled closer.
20.
21. 4) Mitred closer –
When a triangular portion of a brick is cut
through its width and making an angle of 45o
to 600 with the length of the brick, the
remaining portion after cutting as called as
Mitred closer.
22.
23. Bat-
A portion of brick cut across the width is
known as bat
There are different types of bats, namely
Half bat, three-quarter bat and bevelled bat.
24.
25.
26.
27. Bullnose –
The bricks with one edge rounded is
known as single bullnose and the bricks
with two edge rounded are known as
double bullnose.
28.

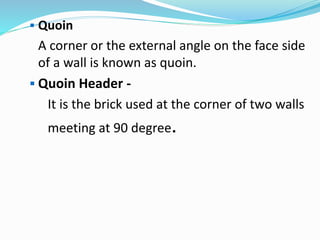

29. Quoin
A corner or the external angle on the face side
of a wall is known as quoin.
Quoin Header -
It is the brick used at the corner of two walls
meeting at 90 degree.
30.
31. Requirement of good brickwork –
1) A good brick masonry should utilize bricks
which are hard, well burnt and tough with
uniform colour, shape and size.
2) The bricks should be compact,
homogeneous, free from holes and cracks.
3) A good brickwork should have maximum
compressive strength and durability.
4) A good brick work should have maximum
resistance to weathering.

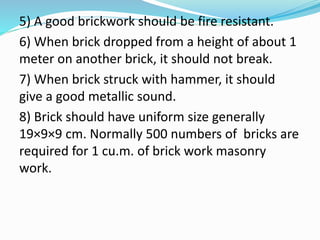

32. 5) A good brickwork should be fire resistant.
6) When brick dropped from a height of about 1
meter on another brick, it should not break.
7) When brick struck with hammer, it should
give a good metallic sound.
8) Brick should have uniform size generally
19×9×9 cm. Normally 500 numbers of bricks are
required for 1 cu.m. of brick work masonry
work.
33. Bond in brickwork –
• Brick masonry consist of bricks built to form
walls. In order to hold the bricks in position
and to improve the appearance of the wall.
• The bricks are held together to act as a single
unit by arranging them in such a specific
manner, that they rest over each other and
break the continuity of the vertical joints.
• The overlapping arrangement of bricks in
order to tie them together in a mass of brick
work is known as bonding.
34. Bond is also introduced for its pleasing
appearance or to make decorative patterns.
Types of Bonds –
Stretcher bond
Header bond
English bond
Flemish bond
35. Stretcher bond –
In this type of bond all the bricks are laid with
their lengths In the direction of the wall.
This pattern is used only for walls having
thickness of the half brick i.e. 9 cm
e. g. Walls in case of framed structure
construction
36.
37.

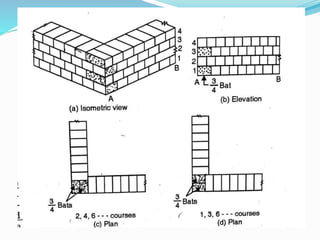

38. Header bond –
• In this type of bond, all bricks are arranged in
header course.
• This type of arrangement is suitable for walls
which are one brick thick.
• This is suitable for walls of lightly loaded load
bearing structure.
• The bond being formed by three-quarter bat
at the quoin is generally used.
39.
40.

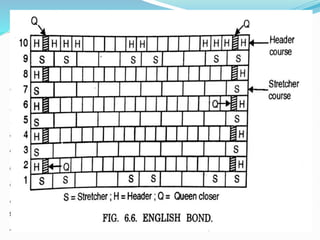

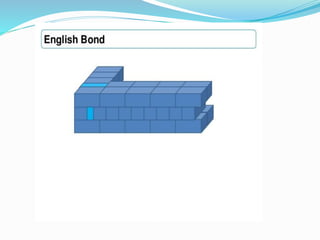

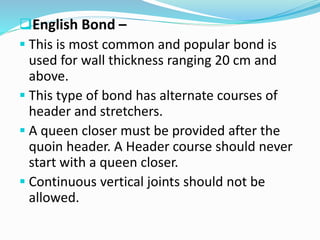

41. English Bond –
This is most common and popular bond is
used for wall thickness ranging 20 cm and
above.
This type of bond has alternate courses of
header and stretchers.
A queen closer must be provided after the
quoin header. A Header course should never
start with a queen closer.
Continuous vertical joints should not be
allowed.
42.
43.

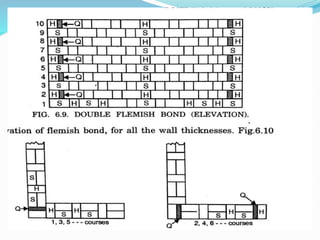

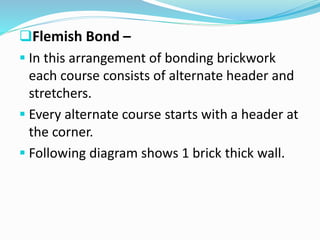

44. Flemish Bond –
In this arrangement of bonding brickwork
each course consists of alternate header and
stretchers.
Every alternate course starts with a header at
the corner.

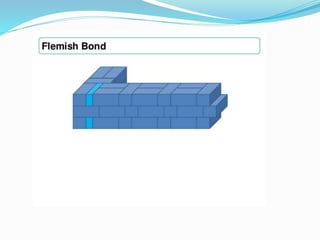

Following diagram shows 1 brick thick wall.
45.
46.

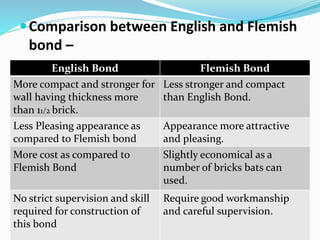

47. Comparison between English and Flemish
bond –
English Bond Flemish Bond
More compact and stronger for
wall having thickness more
than 11/2 brick.
Less stronger and compact
than English Bond.
Less Pleasing appearance as
compared to Flemish bond
Appearance more attractive
and pleasing.
More cost as compared to
Flemish Bond
Slightly economical as a
number of bricks bats can
used.
No strict supervision and skill
required for construction of
this bond
Require good workmanship
and careful supervision.
48. Requirement of good brick masonry –
A good brick masonry should utilise bricks
which are Sound, hard, well burnt and tough
with uniform colour, shape and size.
The bricks should be compact,
homogeneous, free from holes, cracks.
These bricks should be properly soaked in
water for at least two hours before use.
The bricks should be laid on their beds with
the frogs pointing upwards.
The brick course should be laid truly
horizontal.

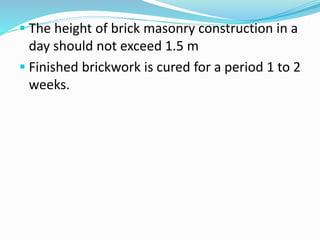

49. The height of brick masonry construction in a
day should not exceed 1.5 m
Finished brickwork is cured for a period 1 to 2
weeks.

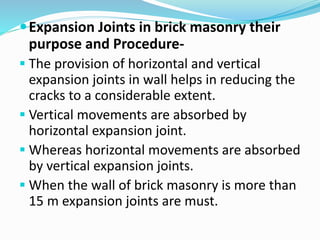

50. Expansion Joints in brick masonry their
purpose and Procedure-
The provision of horizontal and vertical
expansion joints in wall helps in reducing the
cracks to a considerable extent.
Vertical movements are absorbed by
horizontal expansion joint.
Whereas horizontal movements are absorbed
by vertical expansion joints.
When the wall of brick masonry is more than
15 m expansion joints are must.

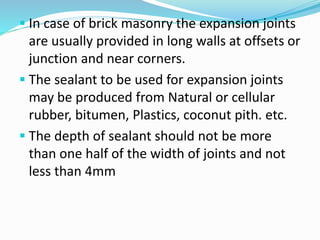

51. In case of brick masonry the expansion joints
are usually provided in long walls at offsets or
junction and near corners.
The sealant to be used for expansion joints
may be produced from Natural or cellular
rubber, bitumen, Plastics, coconut pith. etc.
The depth of sealant should not be more
than one half of the width of joints and not
less than 4mm
52.
53.

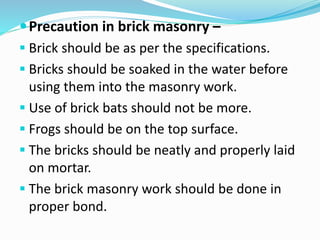

54. Precaution in brick masonry –
Brick should be as per the specifications.
Bricks should be soaked in the water before
using them into the masonry work.
Use of brick bats should not be more.
Frogs should be on the top surface.
The bricks should be neatly and properly laid
on mortar.
The brick masonry work should be done in
proper bond.

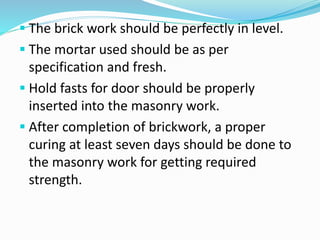

55. The brick work should be perfectly in level.
The mortar used should be as per
specification and fresh.
Hold fasts for door should be properly
inserted into the masonry work.
After completion of brickwork, a proper
curing at least seven days should be done to
the masonry work for getting required
strength.

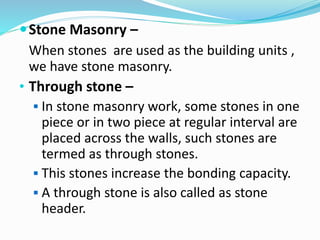

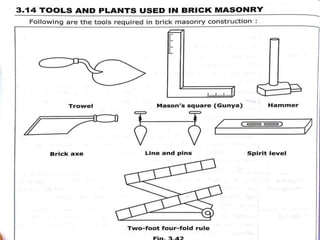

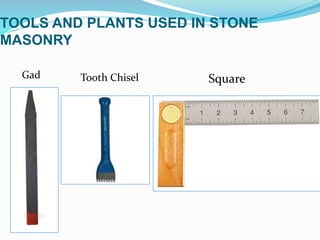

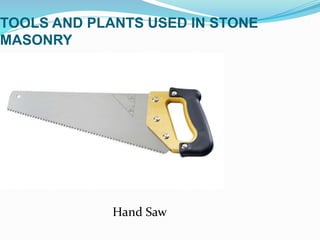

58. Stone Masonry –
When stones are used as the building units ,
we have stone masonry.

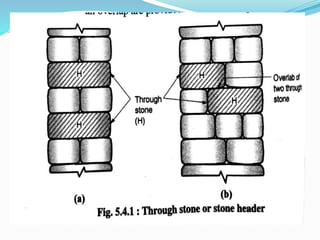

• Through stone –
In stone masonry work, some stones in one
piece or in two piece at regular interval are
placed across the walls, such stones are
termed as through stones.
This stones increase the bonding capacity.
A through stone is also called as stone
header.
59.

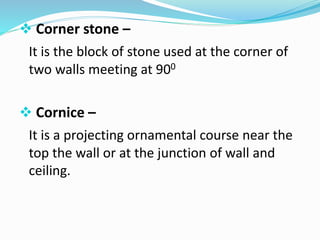

60. Corner stone –
It is the block of stone used at the corner of
two walls meeting at 900
Cornice –
It is a projecting ornamental course near the
top the wall or at the junction of wall and
ceiling.

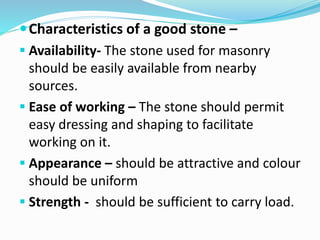

61. Characteristics of a good stone –
Availability- The stone used for masonry
should be easily available from nearby
sources.
Ease of working – The stone should permit
easy dressing and shaping to facilitate
working on it.
Appearance – should be attractive and colour
should be uniform
Strength - should be sufficient to carry load.

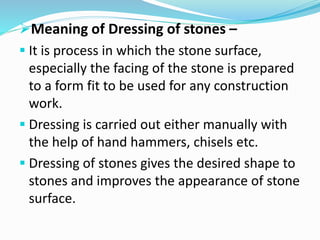

62. Meaning of Dressing of stones –
It is process in which the stone surface,
especially the facing of the stone is prepared
to a form fit to be used for any construction
work.
Dressing is carried out either manually with
the help of hand hammers, chisels etc.
Dressing of stones gives the desired shape to
stones and improves the appearance of stone
surface.
63. Classification of stone masonry –
Rubble Masonry
Ashlar masonry
Rubble Masonry –
According to the degree of dressing-
Dry rubble masonry
Uncoursed rubble masonry (U.C.R Masonry)
Coursed rubble masonry (C.R. Masonry)
Polygonal rubble masonry
64. Dry Rubble Masonry –
It is most inferior type of masonry in which
either dressed or undressed stones are
used without using mortar.
This type of construction is the cheapest
and require more skill in construction.
This may be used for retaining walls,
compound wall, pitching on bridge
approaches.
The strength and durability of masonry
does not depends upon the quality of
materials used but on the workmanship.
67. Uncoursed rubble masonry ( U.C.R.)or
Random rubble masonry –
Stones or rubble are used without dressing,
shape and size of stones used are of widely
different sizes.
Before laying the stones, all projecting
corners are slightly knocked off with a
hammer.
The joints are filled with mortar by steel
trowel
The joints should not exceed 13mm in
thickness.
68. Large stones are used at corners to increase
strength.
Through stones are also provided at intervals
to interlock the portion in between facing
and backing.
This type of masonry have rough appearance.
This type of masonry is used for constructing
the compound wall or boundary wall, plinth
wall, retaining walls, etc.
69.
70.

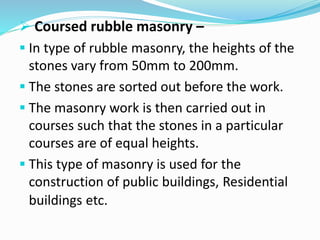

71. Coursed rubble masonry –
In type of rubble masonry, the heights of the
stones vary from 50mm to 200mm.
The stones are sorted out before the work.
The masonry work is then carried out in
courses such that the stones in a particular
courses are of equal heights.
This type of masonry is used for the
construction of public buildings, Residential
buildings etc.

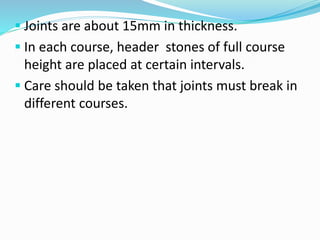

72. Joints are about 15mm in thickness.
In each course, header stones of full course
height are placed at certain intervals.
Care should be taken that joints must break in
different courses.
73.

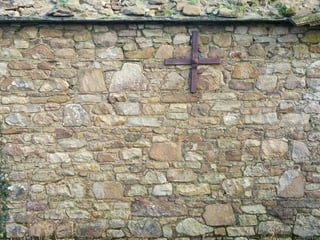

74.

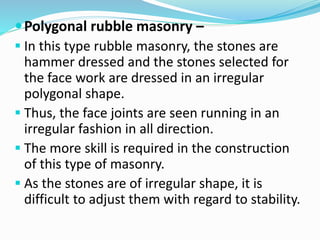

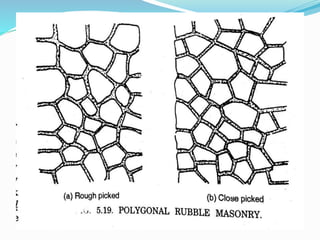

75. Polygonal rubble masonry –
In this type rubble masonry, the stones are
hammer dressed and the stones selected for
the face work are dressed in an irregular
polygonal shape.
Thus, the face joints are seen running in an
irregular fashion in all direction.
The more skill is required in the construction
of this type of masonry.

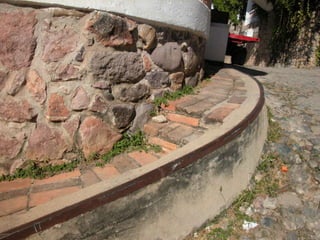

As the stones are of irregular shape, it is
difficult to adjust them with regard to stability.
76.
77.
78. Ashlar Masonry –
• Ashlar masonry is the type of masonry in which
well dressed stones having sharp and straight
edges and smooth faces are used i.e. square and
rectangular blocks of stones are used.
• This type of masonry is expensive and required
highly skilled labour.
Ashlar fine masonry
Ashlar chamfered masonry
Ashlar rock quarry faced
Ashlar facing
Ashlar rough tooled

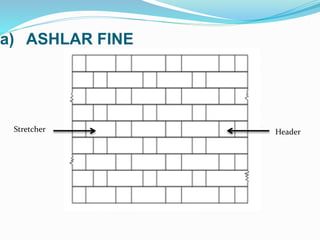

79. Ashlar fine Masonry –
In this type of ashlar masonry, the beds, sides
and faces are finely chisel-dressed.
The stones are arranged in proper bond.
Thickness of the mortar joints does not
exceed 3 mm.
This type of construction gives perfectly
smooth appearance.
But it is costly in construction.
81. Ashlar chamfered masonry –
This type of masonry is very much similar to
that of ashlar fine with the difference that
edges of the stones are bevelled off at an
angle of 450 for a depth of about 25mm.
The joint are thin and faces of the stones are
smooth.
84. Ashlar rock quarry faced –
In this type of masonry the edges of stones
are made straight and sharp so as to have
thin mortar joints, but the faces are left in a
condition as obtained from quarry.
This means the faces of stones will have
natural rock like appearance.
The advantage in this method is that it
increases the architectural appearance.
And reduces the cost of dressing.
86. Ashlar facing masonry-
Ashlar is the best grade of masonry and it is
very expensive.
Therefore to achieve economy as well as
appearance of ashlar masonry only the
exposed faces of wall are constructed of
ashlar masonry whereas the backing of the
wall is in brick masonry.
The minimum height of course is 20 cm and
the width of each stone is about 1.5times its
height.

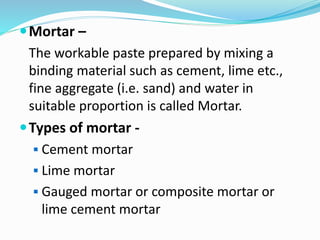

88. Mortar –
The workable paste prepared by mixing a
binding material such as cement, lime etc.,
fine aggregate (i.e. sand) and water in
suitable proportion is called Mortar.
Types of mortar -
Cement mortar
Lime mortar
Gauged mortar or composite mortar or
lime cement mortar
89. Cement mortar –
The paste prepared by mixing cement,
sand and water in suitable proportion is
called as cement mortar.
The general proportion for stone masonry
are 1 : 2 to 1 : 8 i.e. 1 part of cement and
2-8 part of sand.
Cement mortar must be used within half
an hour after mixing.
90. Lime Mortar –
The paste prepared by mixing lime, sand
and water in suitable proportion is called
as lime mortar.
The general proportions for stone masonry
are 1 : 5 to 1 : 6 i.e. 1 part of lime to 5 – 6
parts of clean sand.

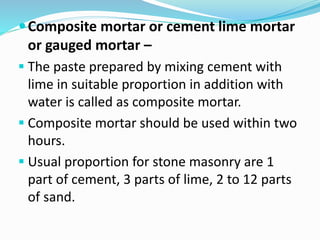

91. Composite mortar or cement lime mortar
or gauged mortar –
The paste prepared by mixing cement with
lime in suitable proportion in addition with
water is called as composite mortar.
Composite mortar should be used within two
hours.
Usual proportion for stone masonry are 1
part of cement, 3 parts of lime, 2 to 12 parts
of sand.
