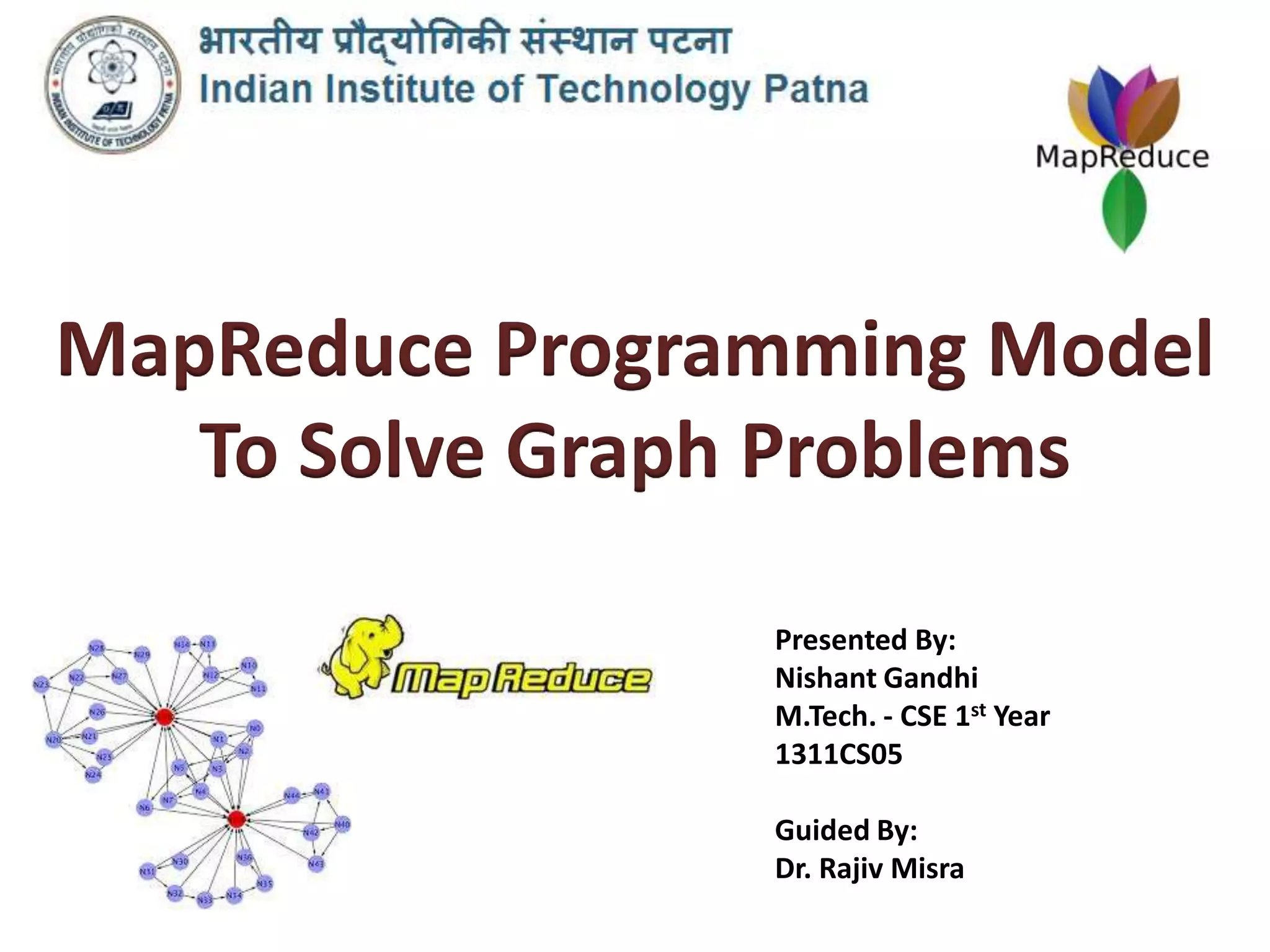

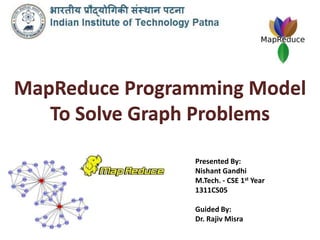

1. MapReduce Programming Model
To Solve Graph Problems
Presented By:
Nishant Gandhi
M.Tech. - CSE 1st Year
1311CS05
Guided By:
Dr. Rajiv Misra

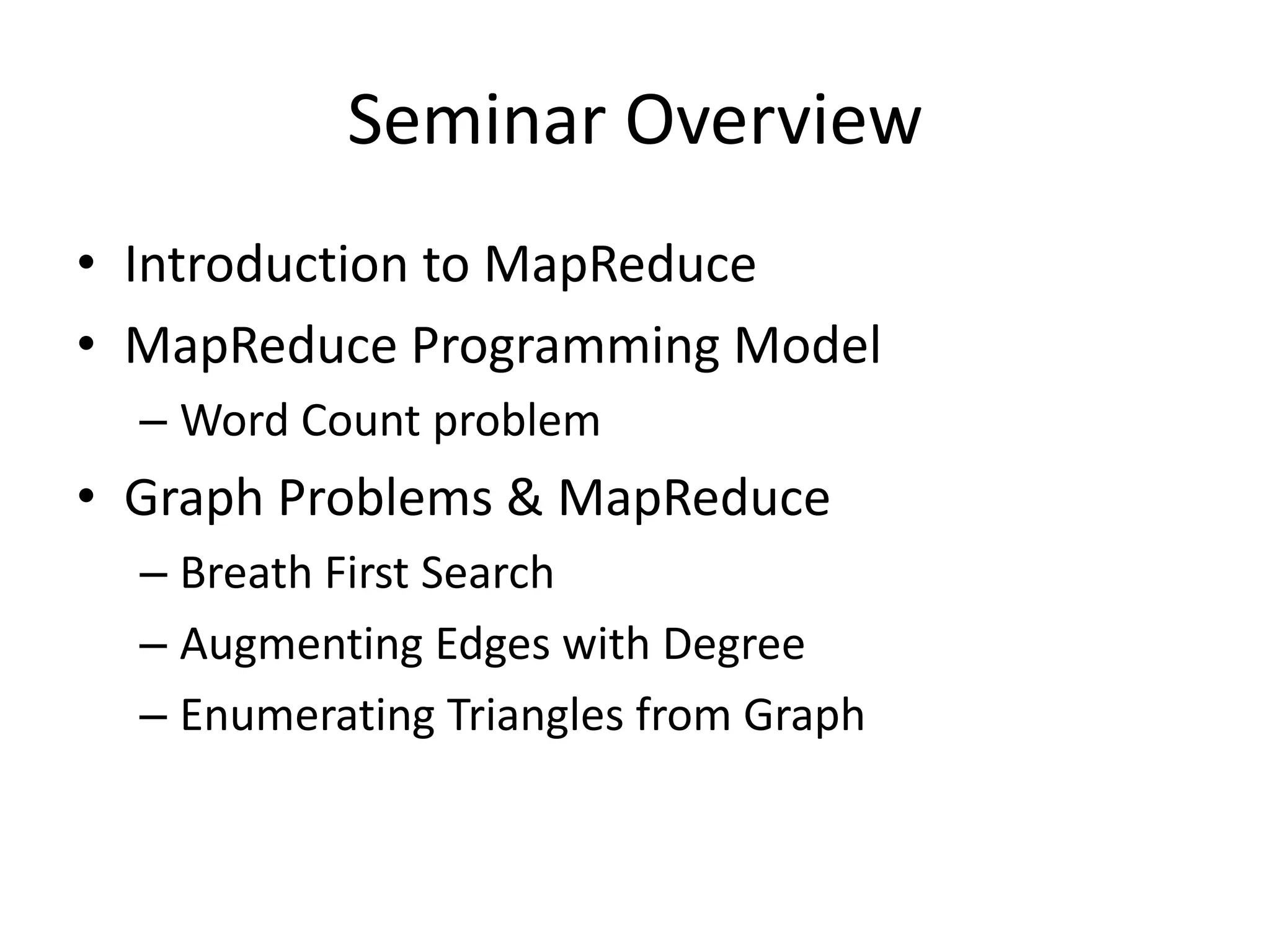

2. Seminar Overview
• Introduction to MapReduce
• MapReduce Programming Model
– Word Count problem
• Graph Problems & MapReduce
– Breath First Search
– Augmenting Edges with Degree
– Enumerating Triangles from Graph

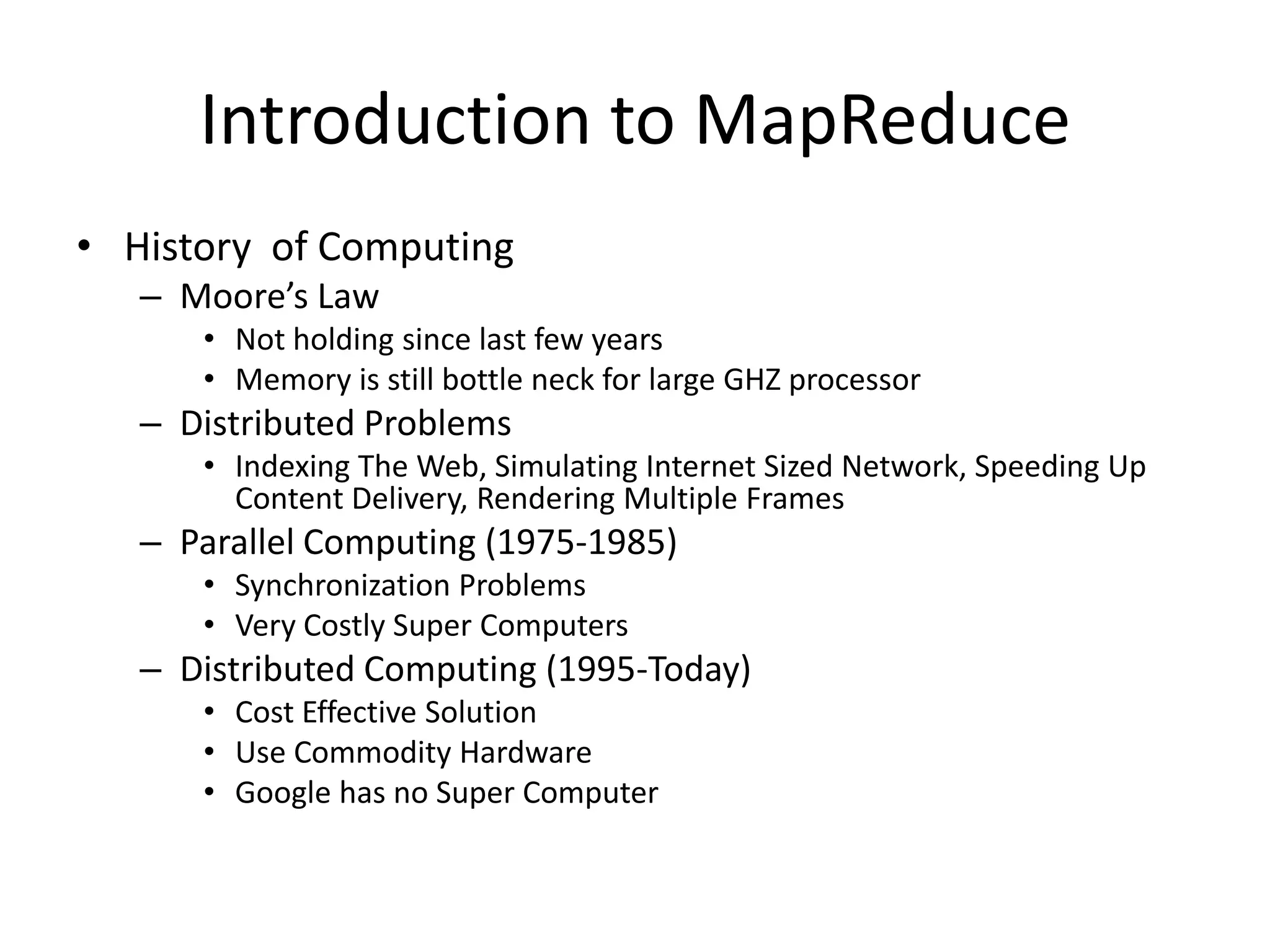

3. Introduction to MapReduce
• History of Computing
– Moore’s Law
• Not holding since last few years
• Memory is still bottle neck for large GHZ processor
– Distributed Problems
• Indexing The Web, Simulating Internet Sized Network, Speeding Up
Content Delivery, Rendering Multiple Frames
– Parallel Computing (1975-1985)
• Synchronization Problems
• Very Costly Super Computers
– Distributed Computing (1995-Today)
• Cost Effective Solution
• Use Commodity Hardware
• Google has no Super Computer

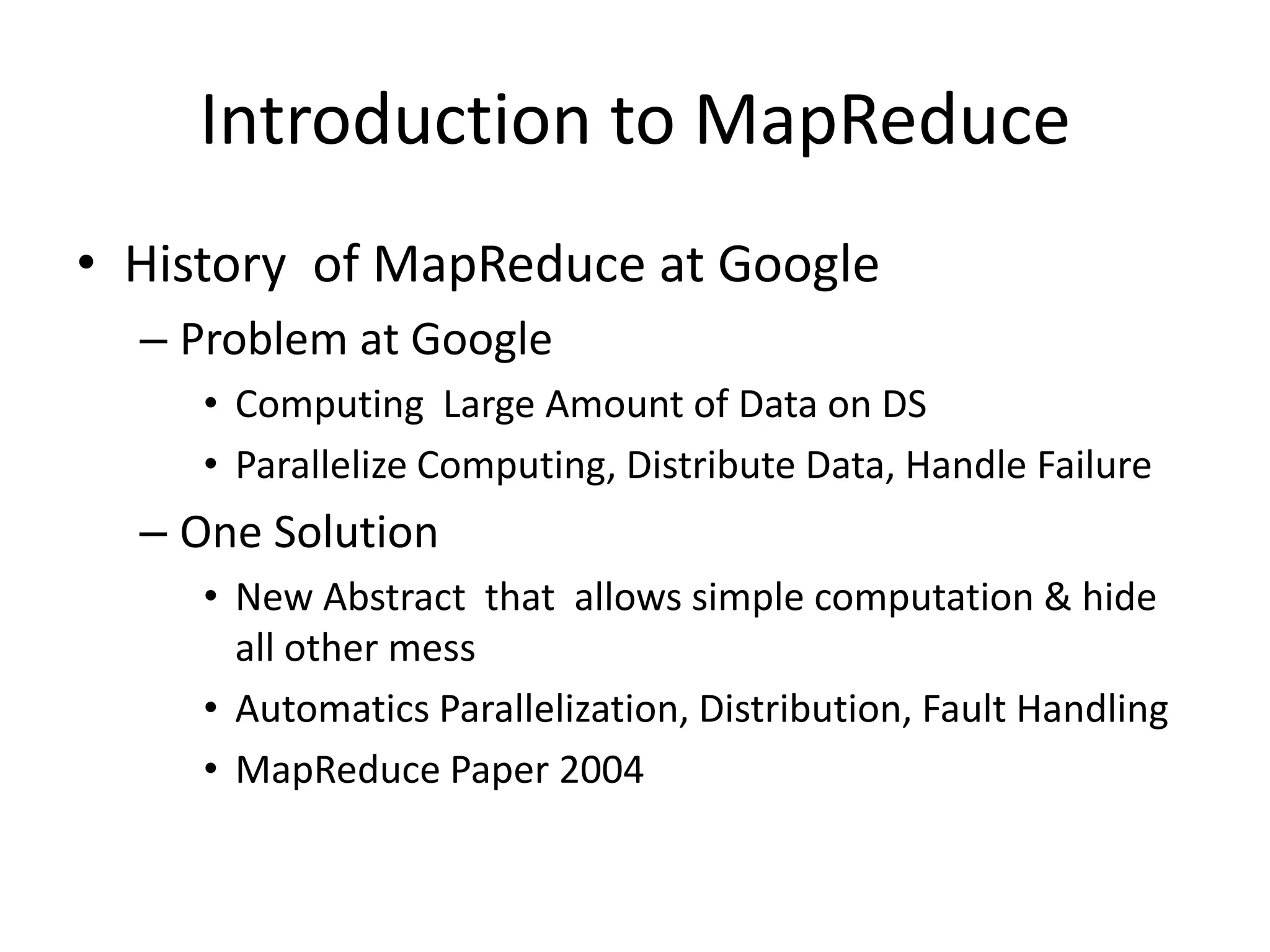

4. Introduction to MapReduce
• History of MapReduce at Google
– Problem at Google
• Computing Large Amount of Data on DS
• Parallelize Computing, Distribute Data, Handle Failure
– One Solution
• New Abstract that allows simple computation & hide
all other mess
• Automatics Parallelization, Distribution, Fault Handling
• MapReduce Paper 2004

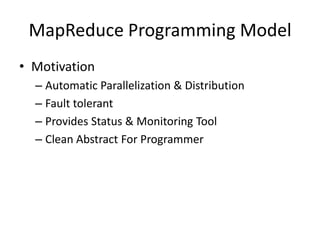

5. MapReduce Programming Model
• Motivation
– Automatic Parallelization & Distribution
– Fault tolerant
– Provides Status & Monitoring Tool
– Clean Abstract For Programmer

6. MapReduce Programming Model

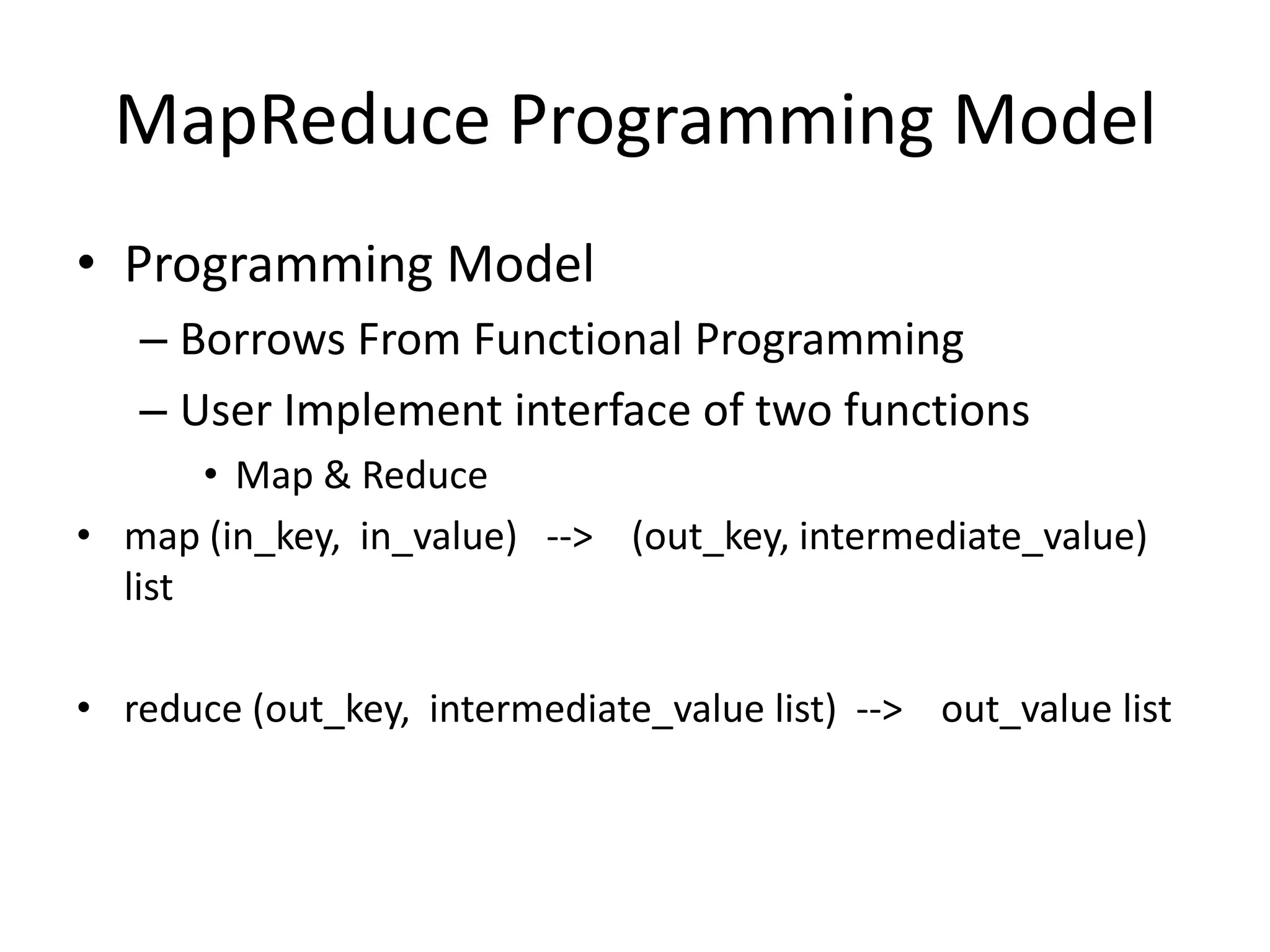

• Programming Model
– Borrows From Functional Programming
– User Implement interface of two functions
• Map & Reduce
• map (in_key, in_value) --> (out_key, intermediate_value)
list
• reduce (out_key, intermediate_value list) --> out_value list

7. MapReduce Programming Model

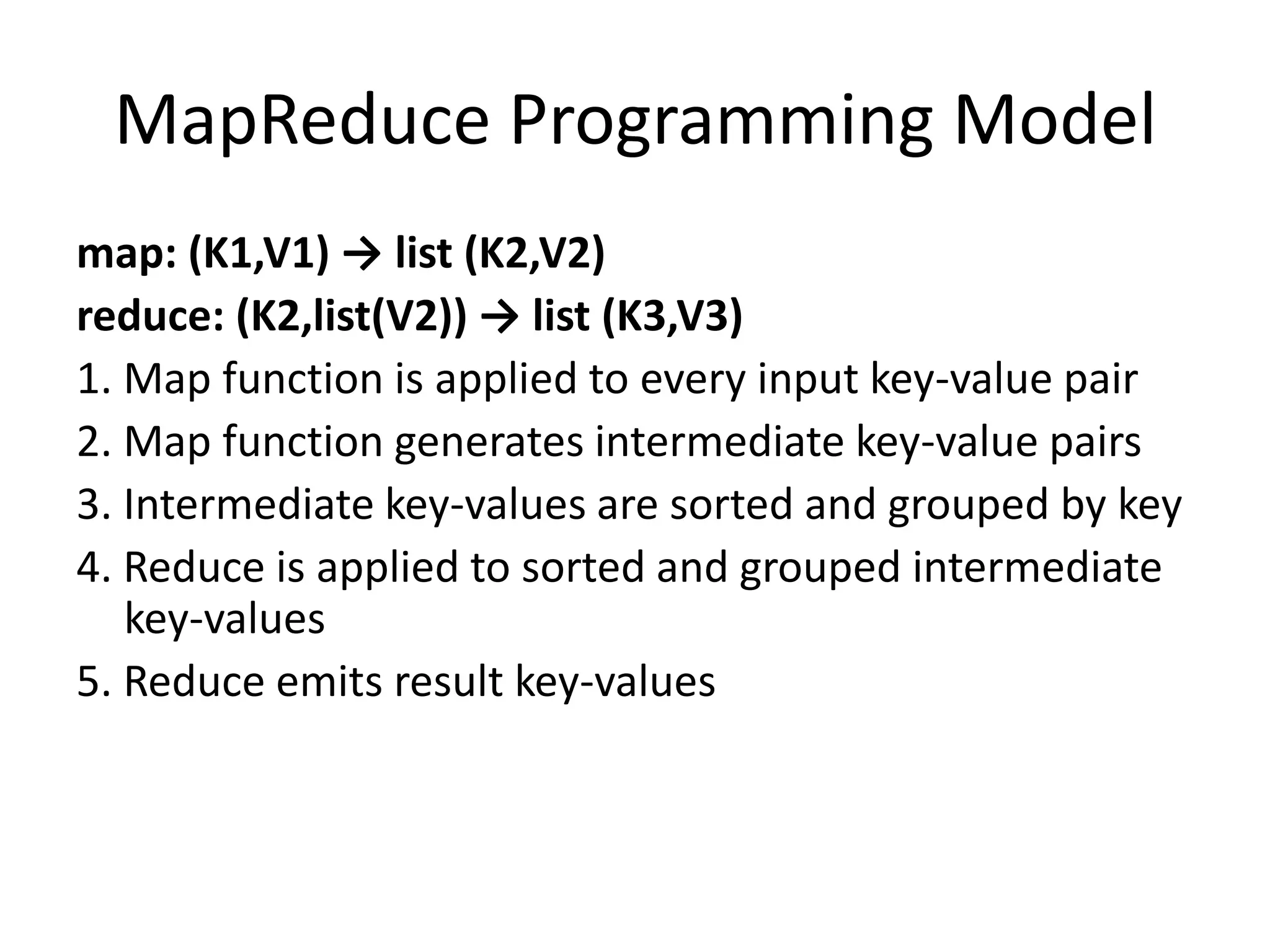

map: (K1,V1) → list (K2,V2)
reduce: (K2,list(V2)) → list (K3,V3)
1. Map function is applied to every input key-value pair
2. Map function generates intermediate key-value pairs
3. Intermediate key-values are sorted and grouped by key
4. Reduce is applied to sorted and grouped intermediate
key-values
5. Reduce emits result key-values

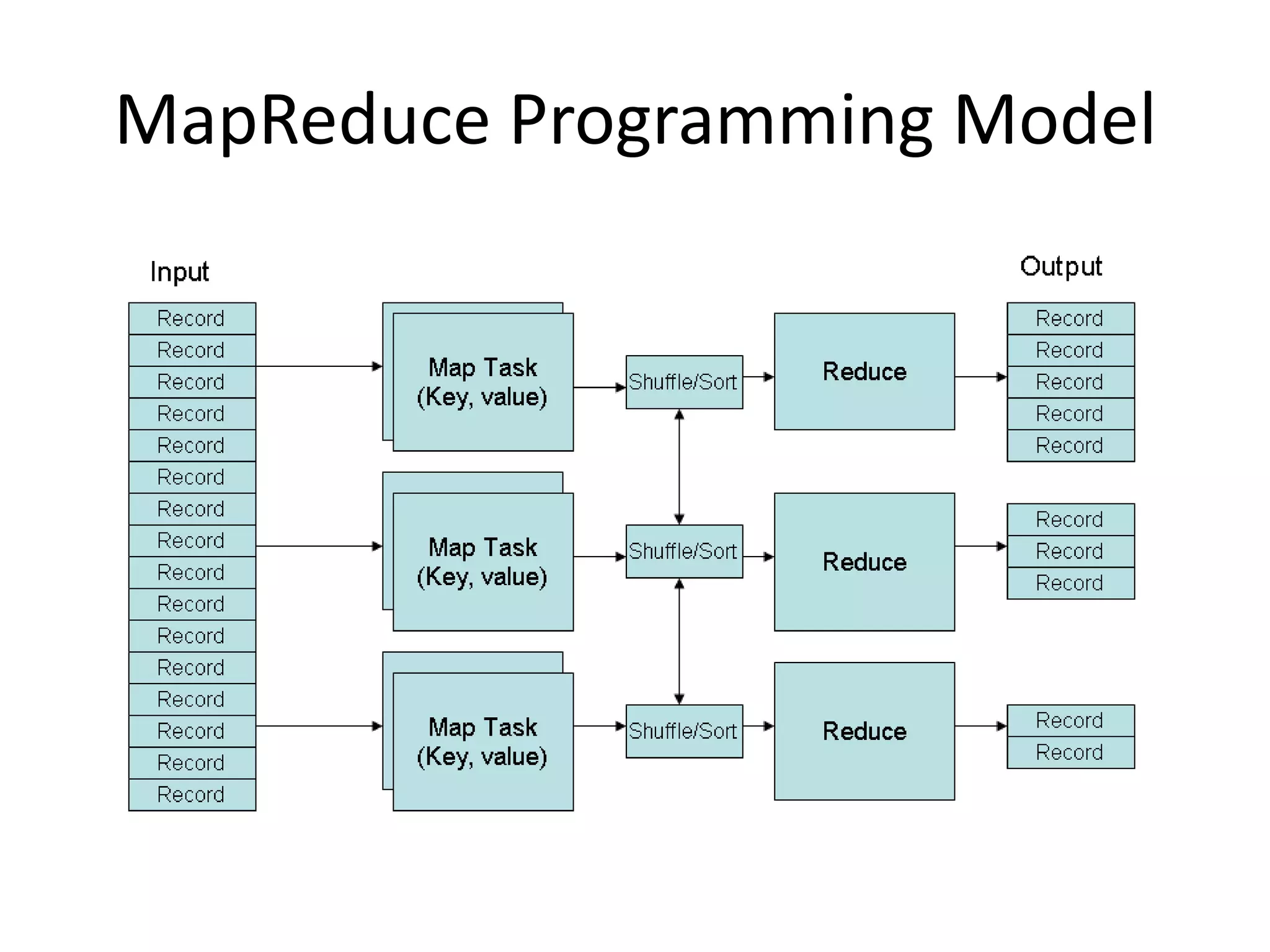

8. MapReduce Programming Model

9. MapReduce Programming Model

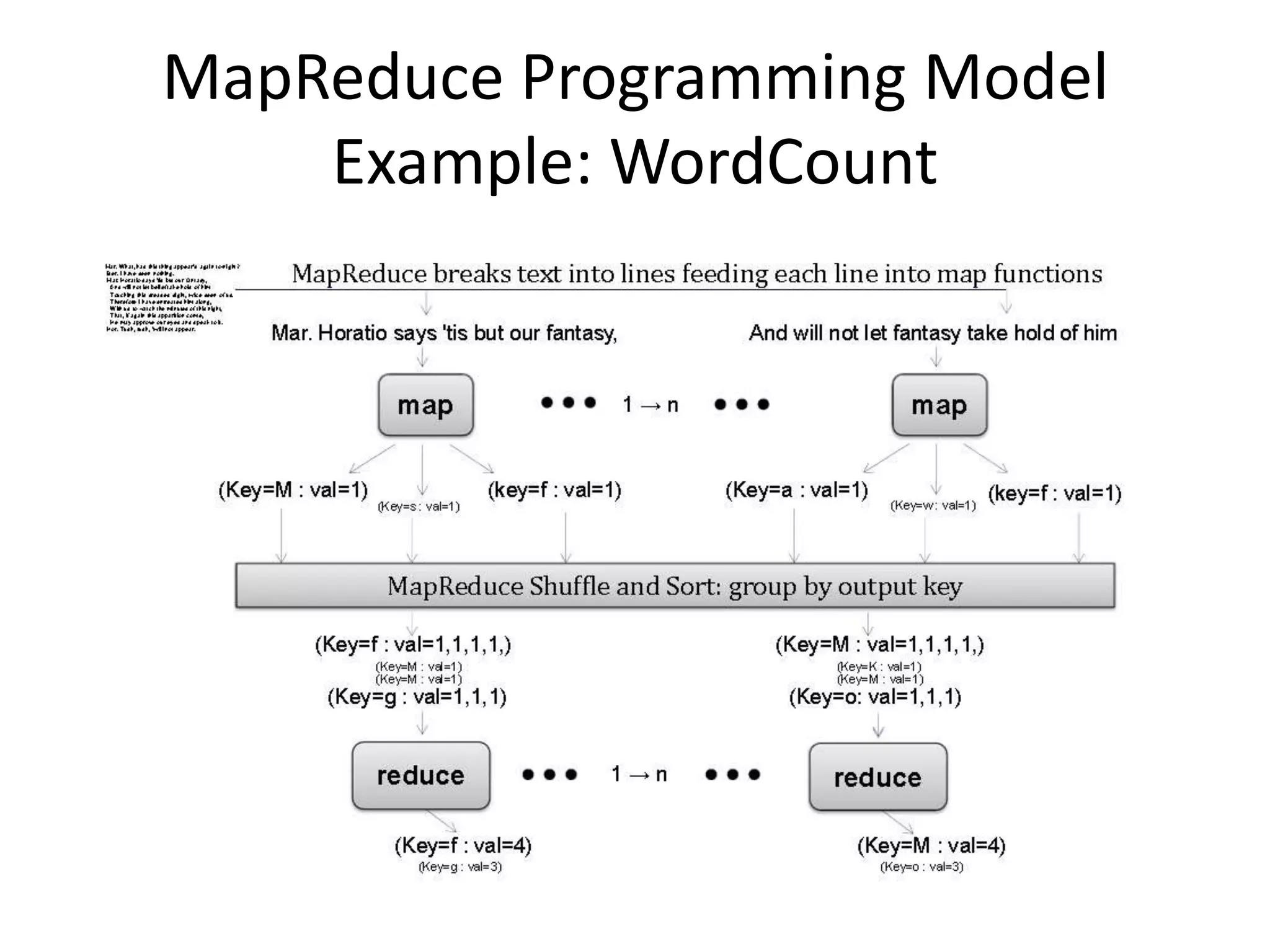

Example: WordCount

10. Graph Problems

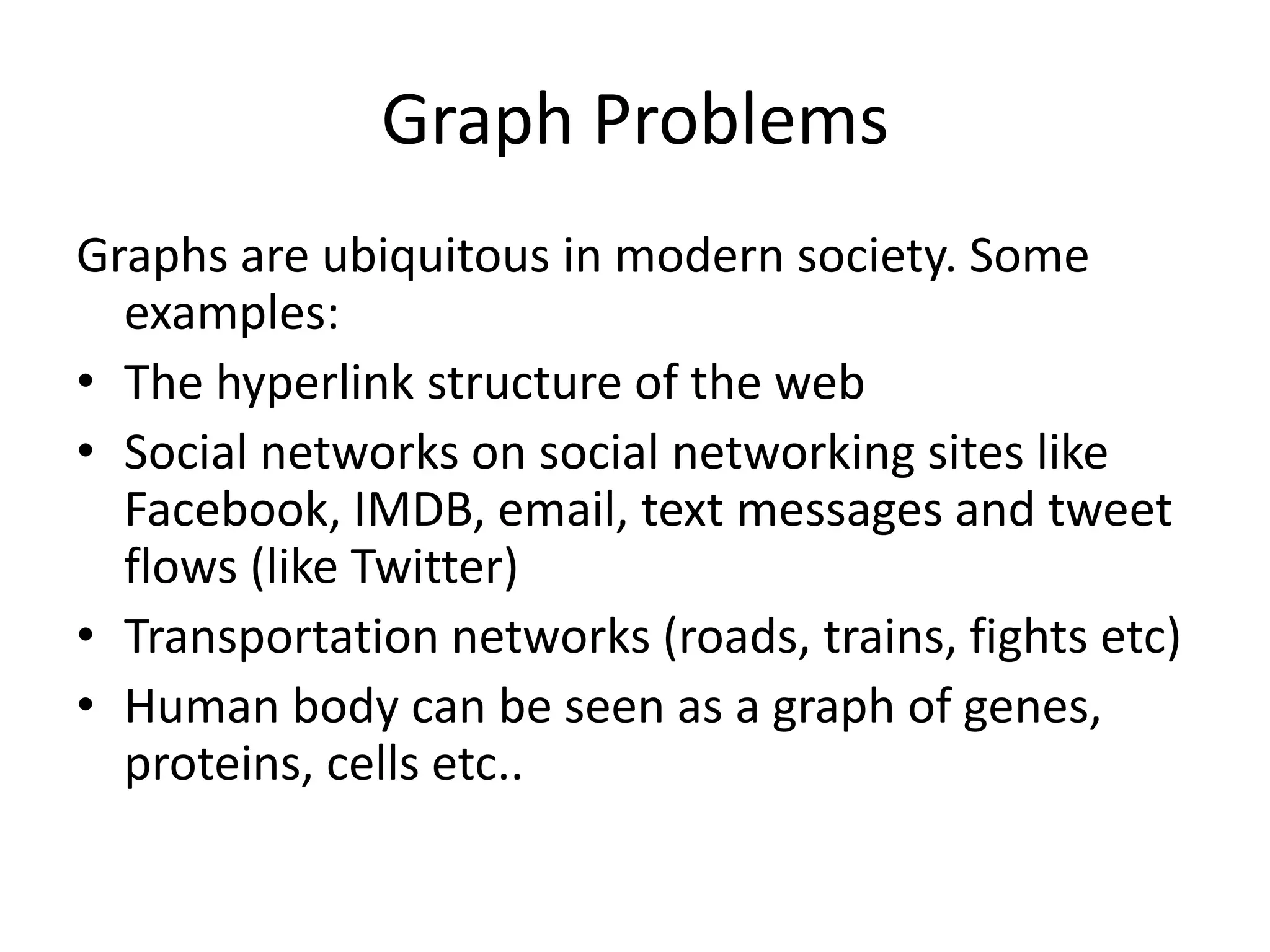

Graphs are ubiquitous in modern society. Some
examples:
• The hyperlink structure of the web
• Social networks on social networking sites like
Facebook, IMDB, email, text messages and tweet
flows (like Twitter)
• Transportation networks (roads, trains, fights etc)
• Human body can be seen as a graph of genes,
proteins, cells etc..

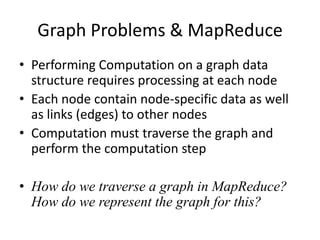

11. Graph Problems & MapReduce
• Performing Computation on a graph data
structure requires processing at each node
• Each node contain node-specific data as well
as links (edges) to other nodes
• Computation must traverse the graph and
perform the computation step
• How do we traverse a graph in MapReduce?
How do we represent the graph for this?

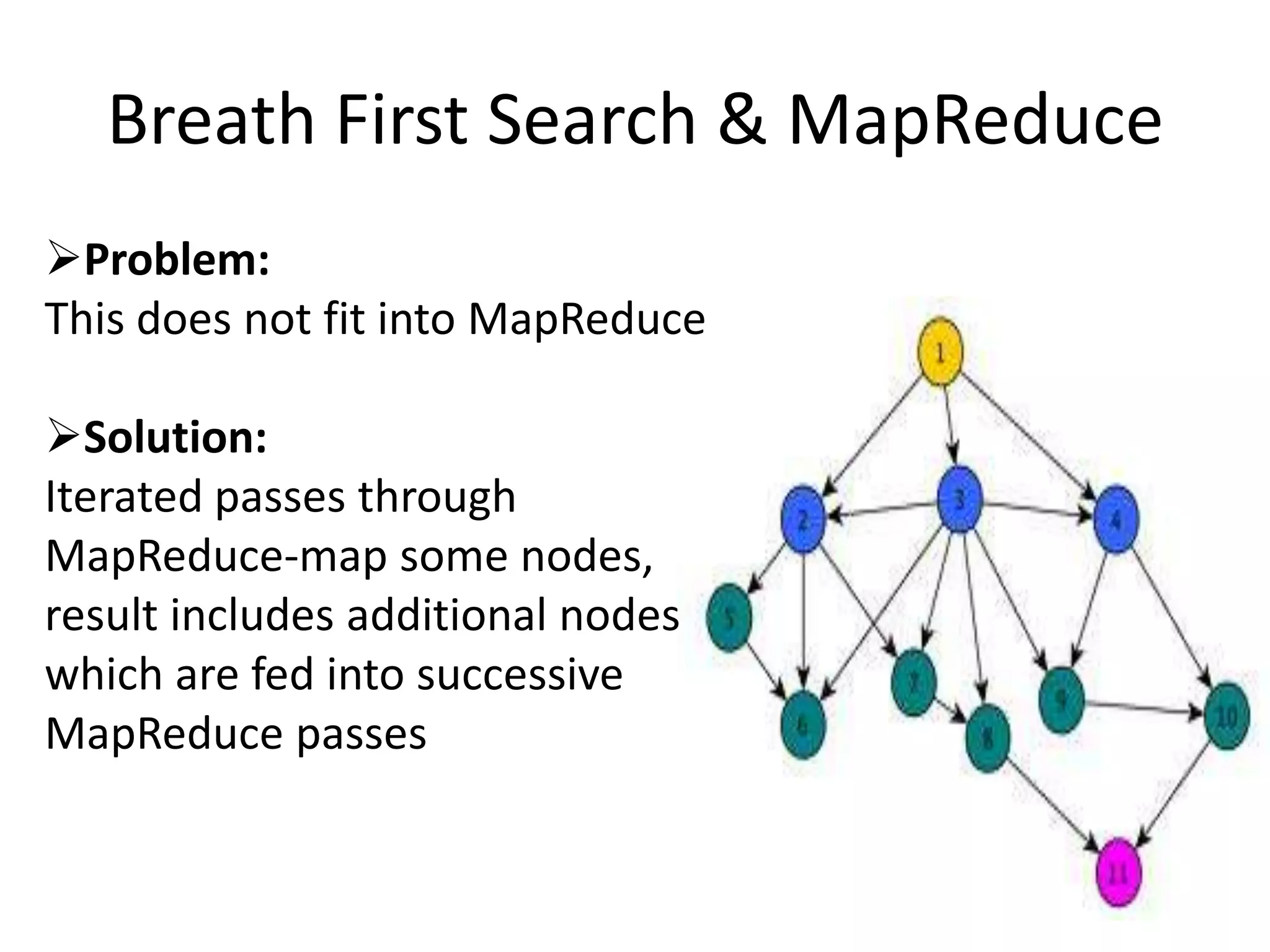

12. Breath First Search & MapReduce
Problem:
This does not fit into MapReduce
Solution:
Iterated passes through
MapReduce-map some nodes,
result includes additional nodes
which are fed into successive
MapReduce passes

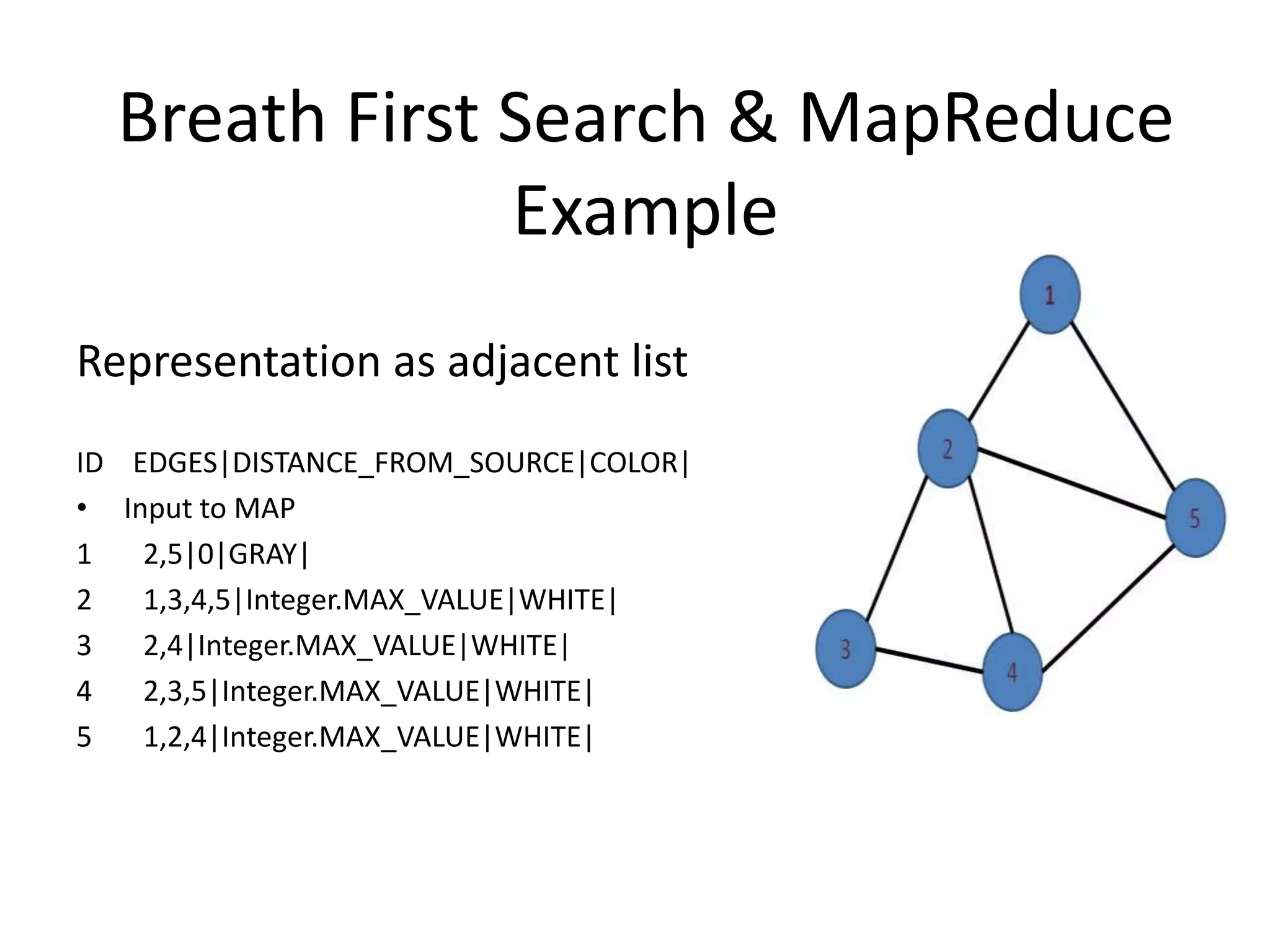

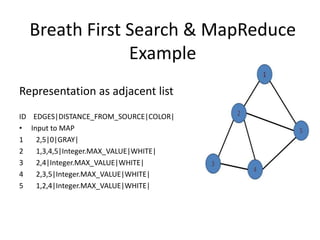

13. Breath First Search & MapReduce
Example
Representation as adjacent list
ID EDGES|DISTANCE_FROM_SOURCE|COLOR|
• Input to MAP
1 2,5|0|GRAY|
2 1,3,4,5|Integer.MAX_VALUE|WHITE|
3 2,4|Integer.MAX_VALUE|WHITE|
4 2,3,5|Integer.MAX_VALUE|WHITE|
5 1,2,4|Integer.MAX_VALUE|WHITE|

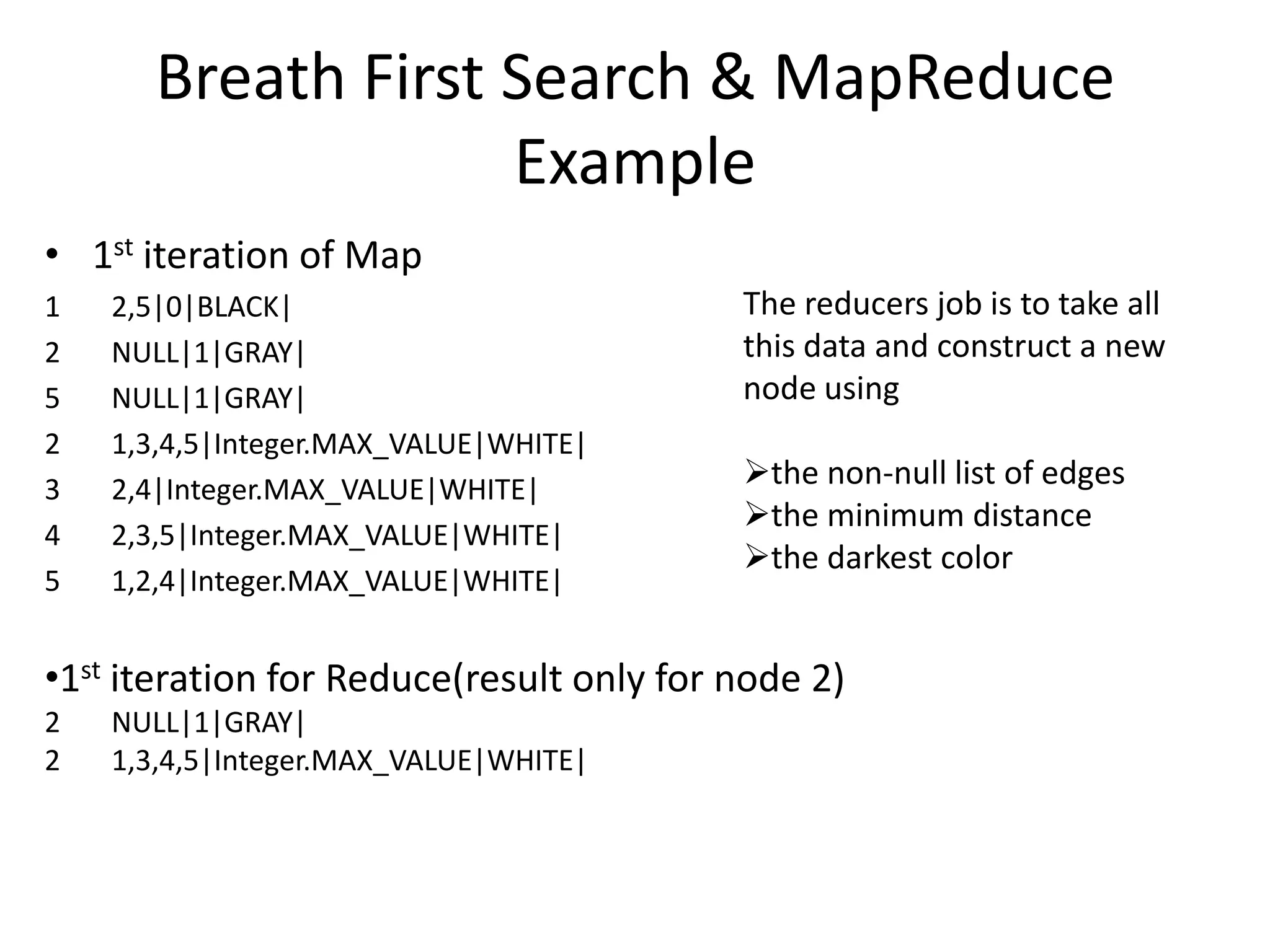

14. Breath First Search & MapReduce
Example
• 1st iteration of Map
1 2,5|0|BLACK|
2 NULL|1|GRAY|
5 NULL|1|GRAY|
2 1,3,4,5|Integer.MAX_VALUE|WHITE|
3 2,4|Integer.MAX_VALUE|WHITE|
4 2,3,5|Integer.MAX_VALUE|WHITE|
5 1,2,4|Integer.MAX_VALUE|WHITE|
•1st iteration for Reduce(result only for node 2)
2 NULL|1|GRAY|
2 1,3,4,5|Integer.MAX_VALUE|WHITE|
The reducers job is to take all
this data and construct a new
node using
the non-null list of edges
the minimum distance
the darkest color

15. Breath First Search & MapReduce
Example

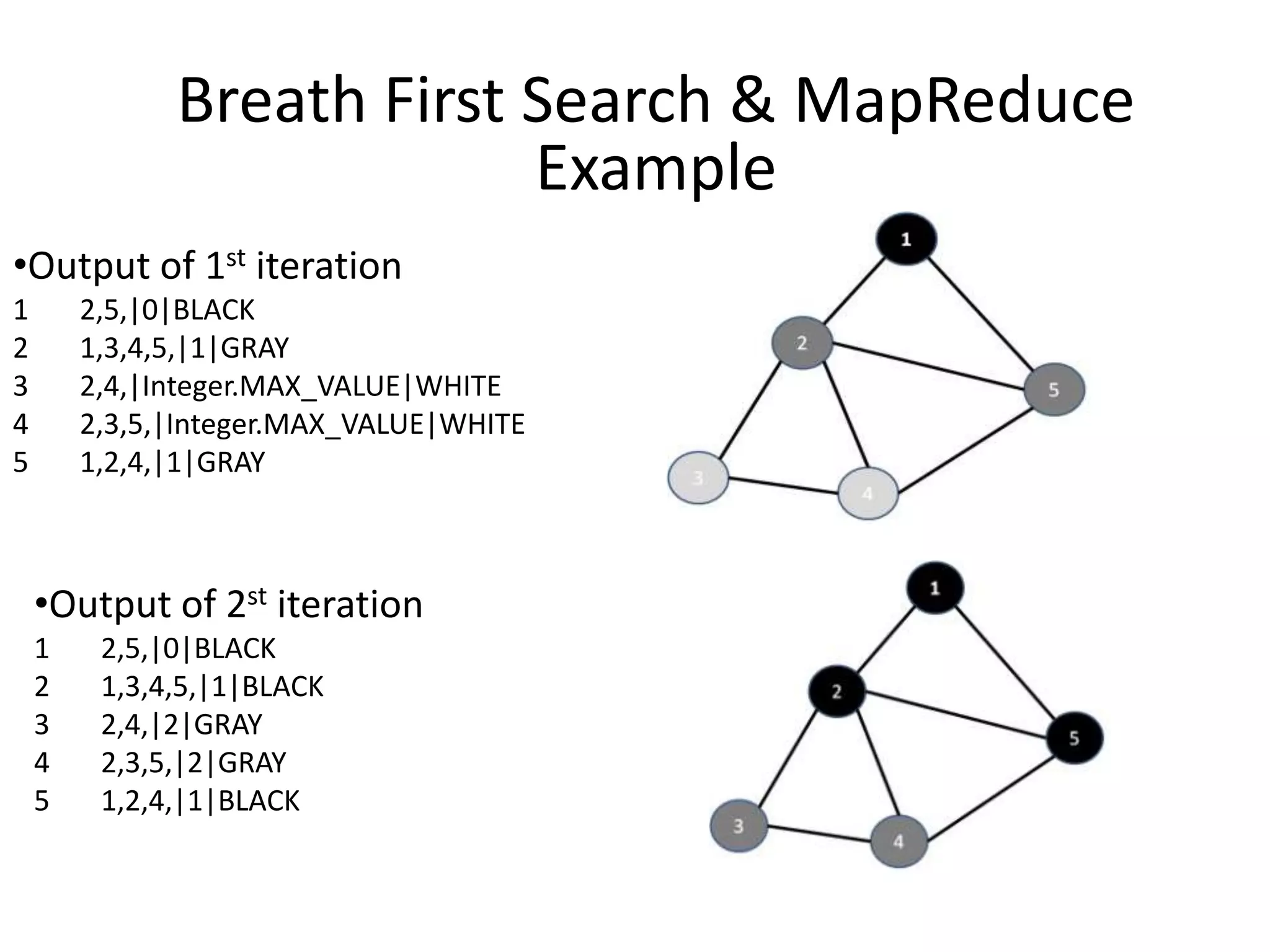

•Output of 1st iteration
1 2,5,|0|BLACK
2 1,3,4,5,|1|GRAY
3 2,4,|Integer.MAX_VALUE|WHITE
4 2,3,5,|Integer.MAX_VALUE|WHITE
5 1,2,4,|1|GRAY
•Output of 2st iteration
1 2,5,|0|BLACK
2 1,3,4,5,|1|BLACK
3 2,4,|2|GRAY
4 2,3,5,|2|GRAY
5 1,2,4,|1|BLACK

16. Breath First Search & MapReduce
Example

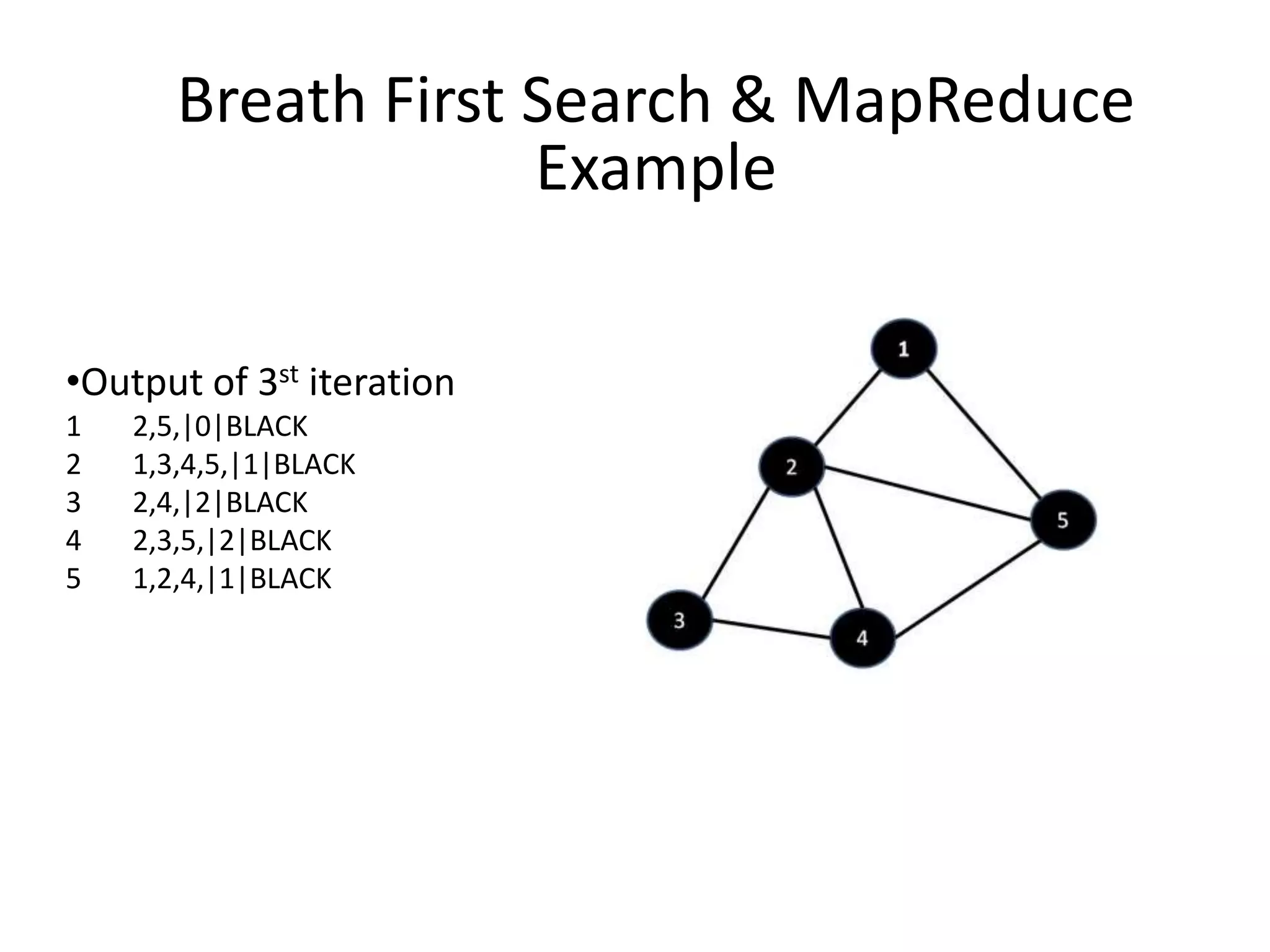

•Output of 3st iteration
1 2,5,|0|BLACK
2 1,3,4,5,|1|BLACK
3 2,4,|2|BLACK
4 2,3,5,|2|BLACK
5 1,2,4,|1|BLACK

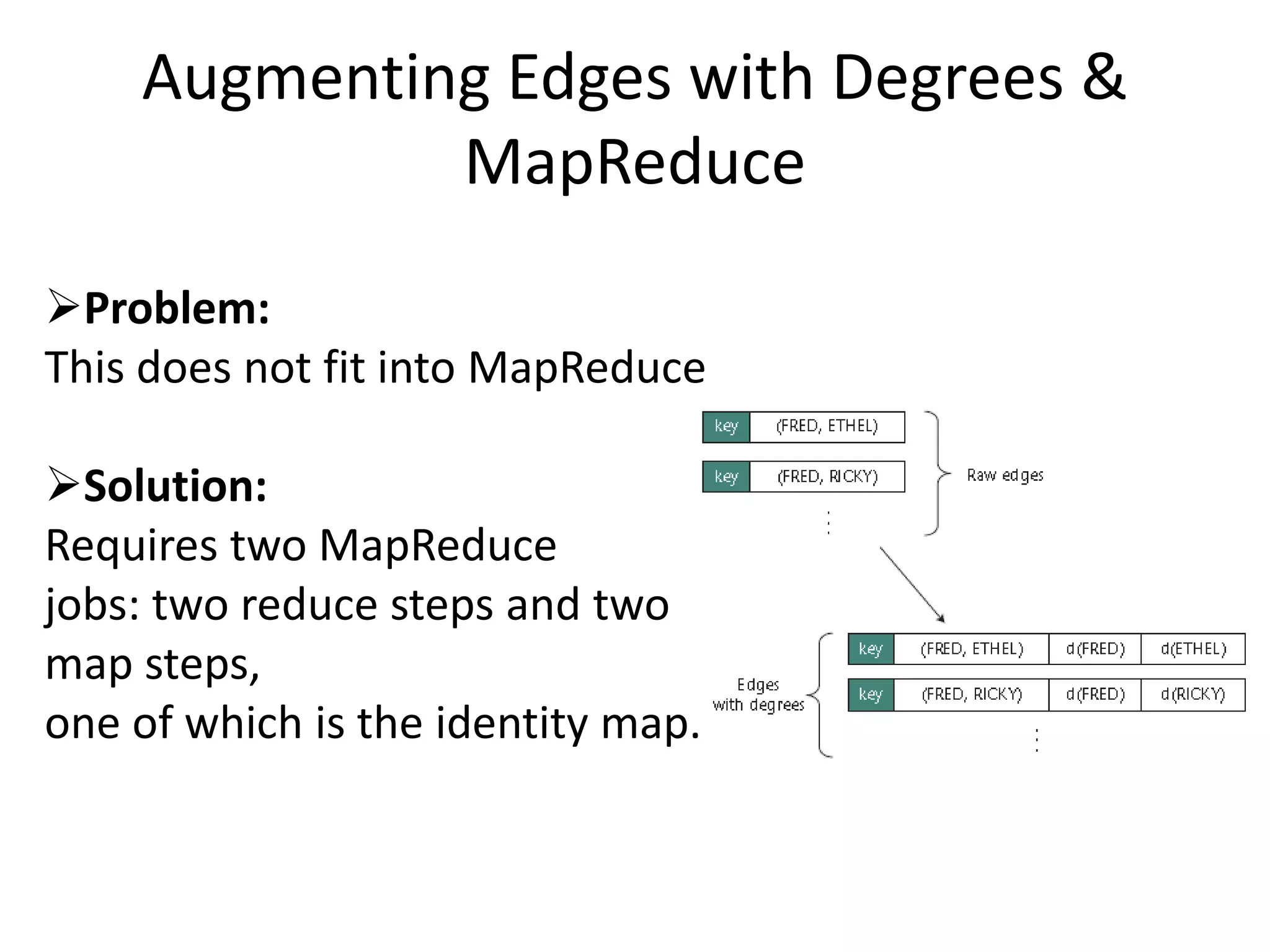

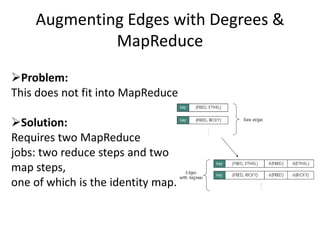

17. Augmenting Edges with Degrees &
MapReduce
Problem:
This does not fit into MapReduce
Solution:
Requires two MapReduce
jobs: two reduce steps and two
map steps,
one of which is the identity map.

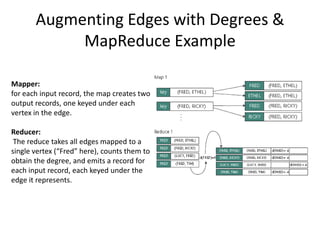

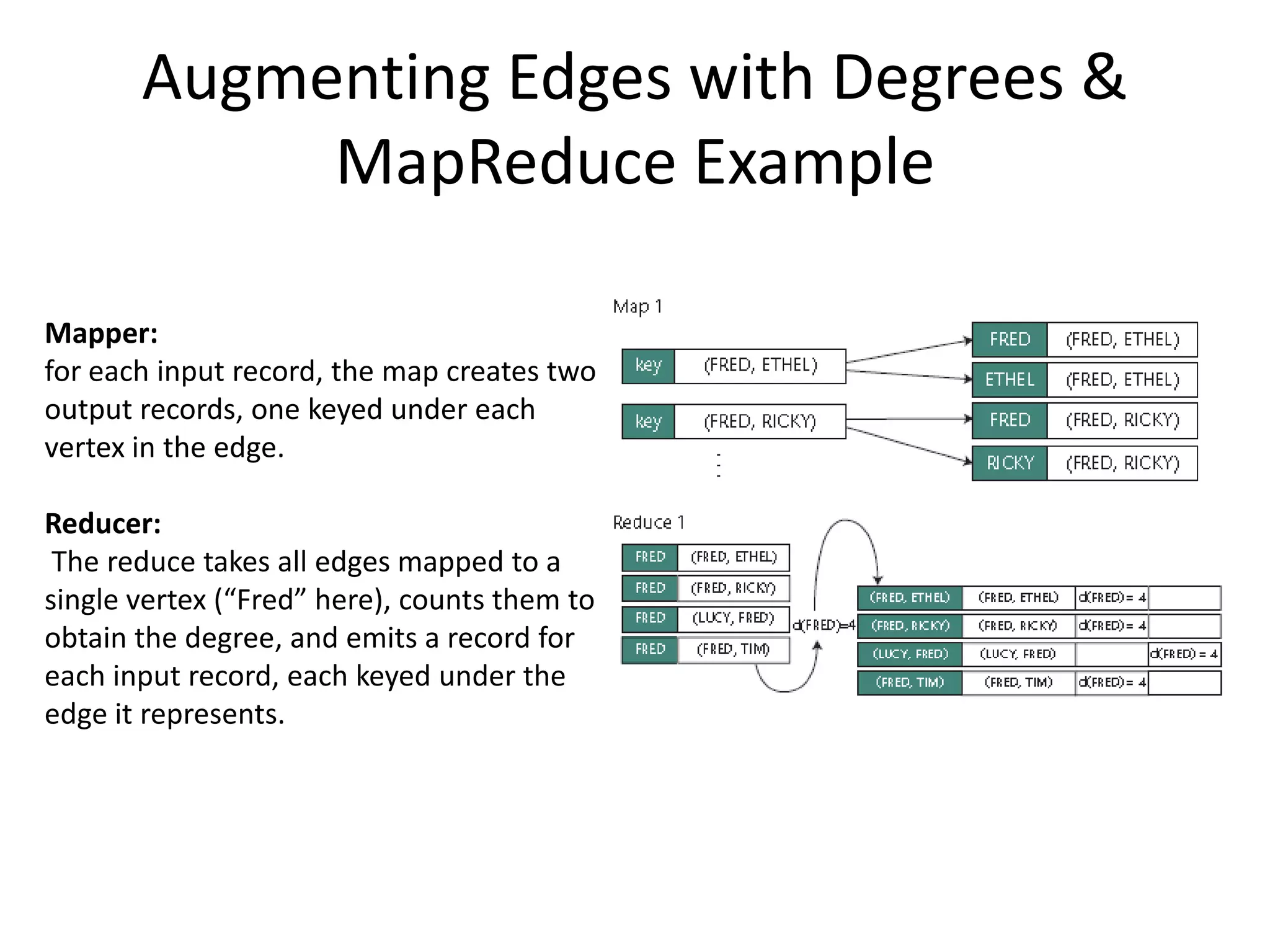

18. Augmenting Edges with Degrees &
MapReduce Example
Mapper:
for each input record, the map creates two
output records, one keyed under each
vertex in the edge.
Reducer:
The reduce takes all edges mapped to a
single vertex (“Fred” here), counts them to
obtain the degree, and emits a record for
each input record, each keyed under the
edge it represents.

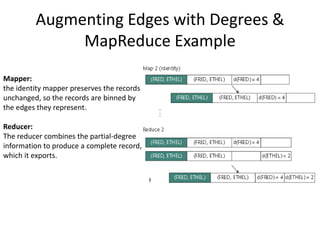

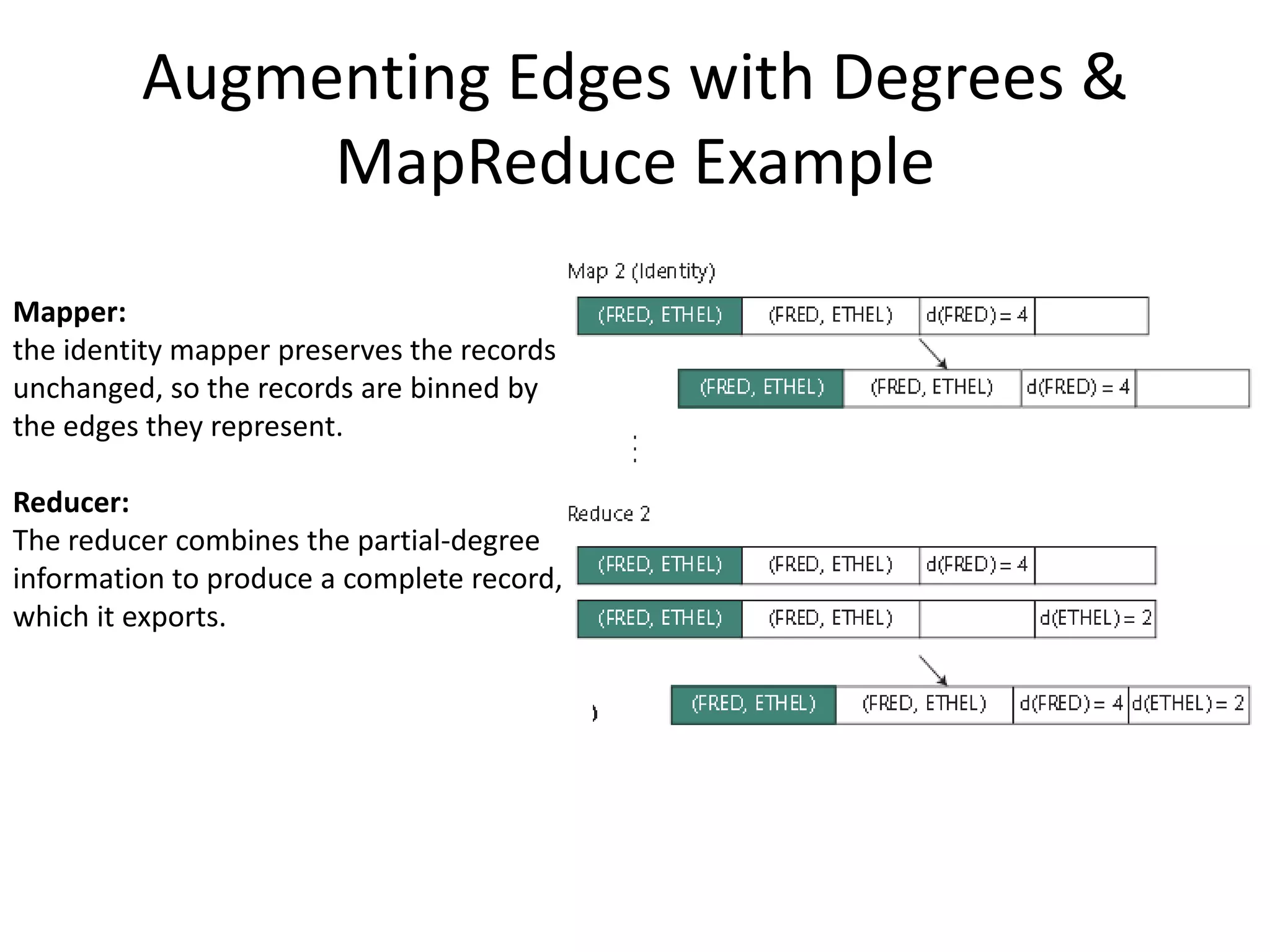

19. Augmenting Edges with Degrees &
MapReduce Example
Mapper:
the identity mapper preserves the records
unchanged, so the records are binned by
the edges they represent.
Reducer:
The reducer combines the partial-degree
information to produce a complete record,
which it exports.

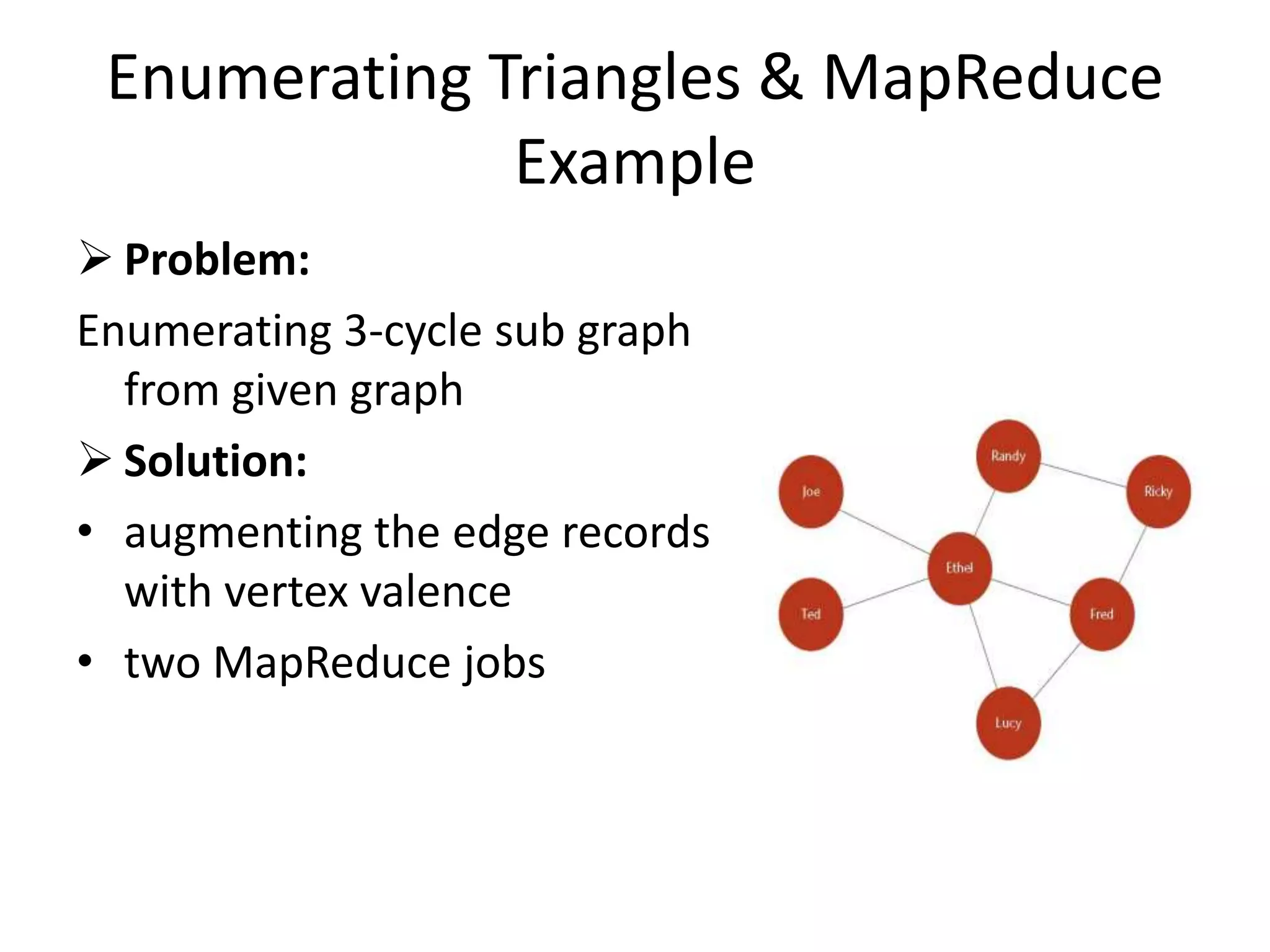

20. Enumerating Triangles & MapReduce
Example
 Problem:
Enumerating 3-cycle sub graph
from given graph
 Solution:
• augmenting the edge records
with vertex valence
• two MapReduce jobs

21. Enumerating Triangles & MapReduce
Example

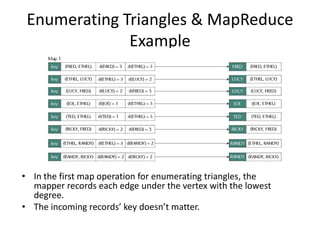

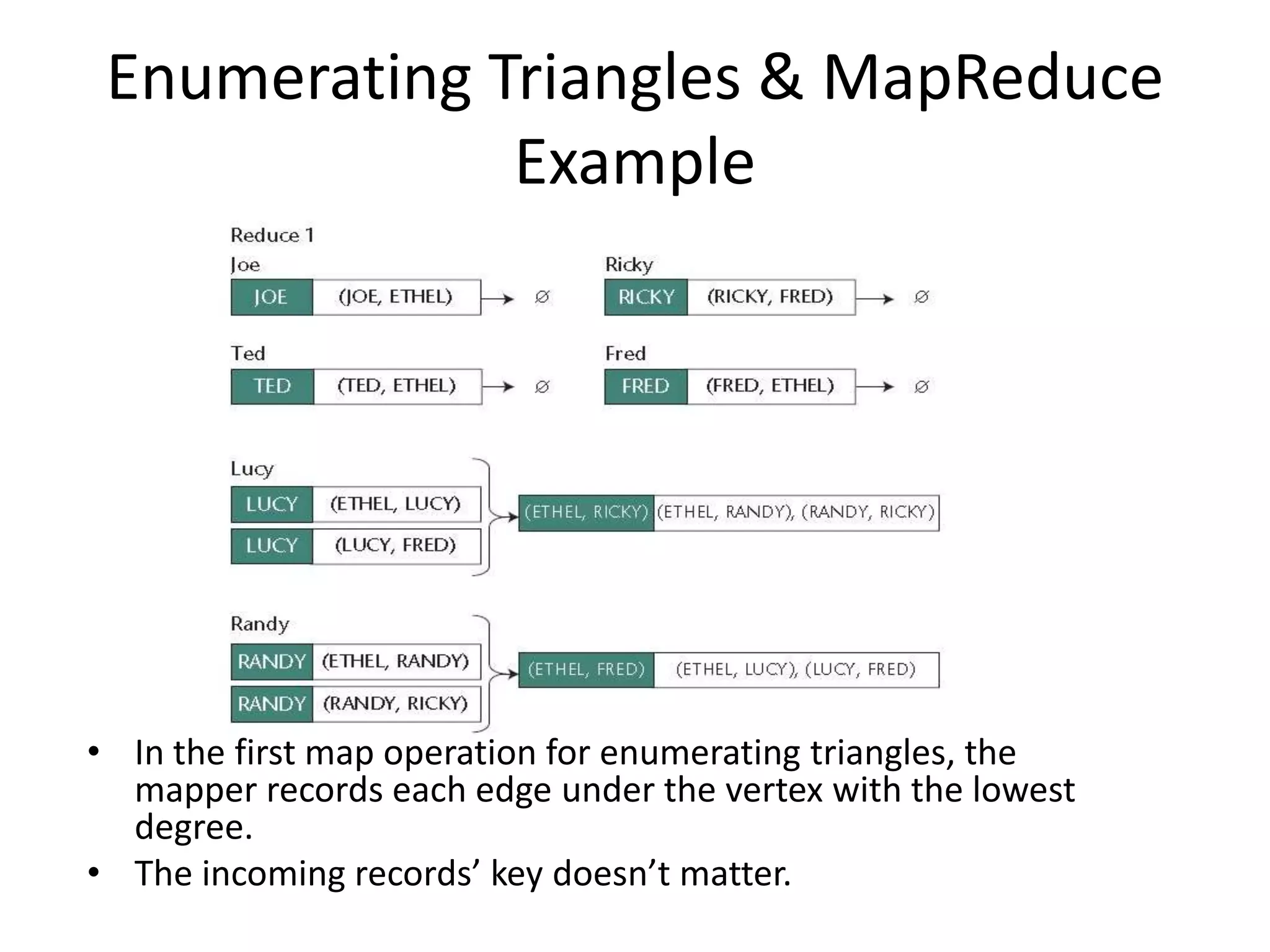

• In the first map operation for enumerating triangles, the
mapper records each edge under the vertex with the lowest
degree.
• The incoming records’ key doesn’t matter.

22. Enumerating Triangles & MapReduce
Example
• In the first map operation for enumerating triangles, the
mapper records each edge under the vertex with the lowest
degree.
• The incoming records’ key doesn’t matter.

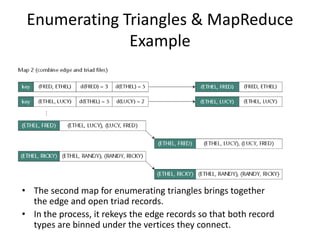

23. Enumerating Triangles & MapReduce
Example

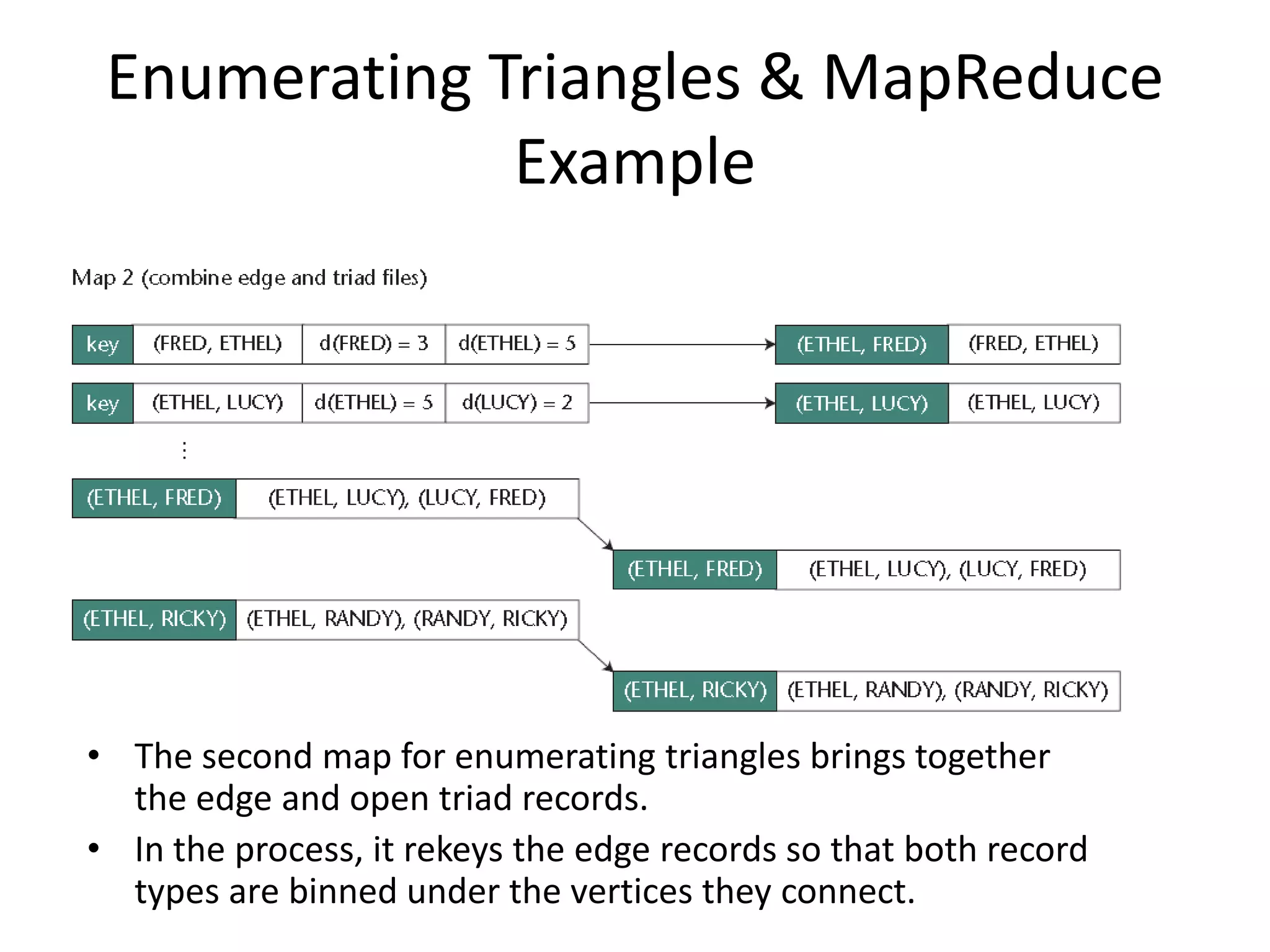

• The second map for enumerating triangles brings together
the edge and open triad records.
• In the process, it rekeys the edge records so that both record
types are binned under the vertices they connect.

24. Enumerating Triangles & MapReduce
Example

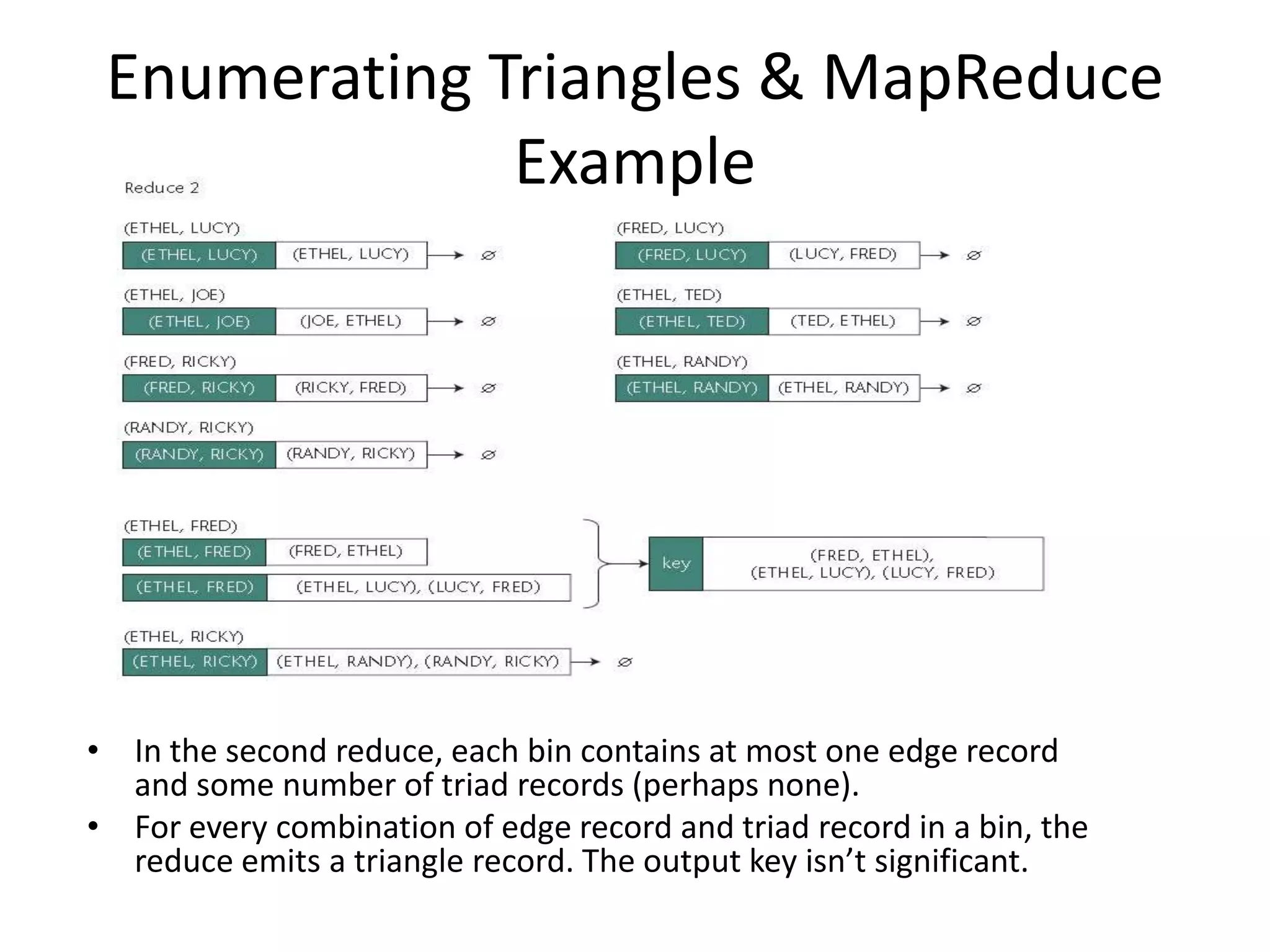

• In the second reduce, each bin contains at most one edge record
and some number of triad records (perhaps none).
• For every combination of edge record and triad record in a bin, the
reduce emits a triangle record. The output key isn’t significant.

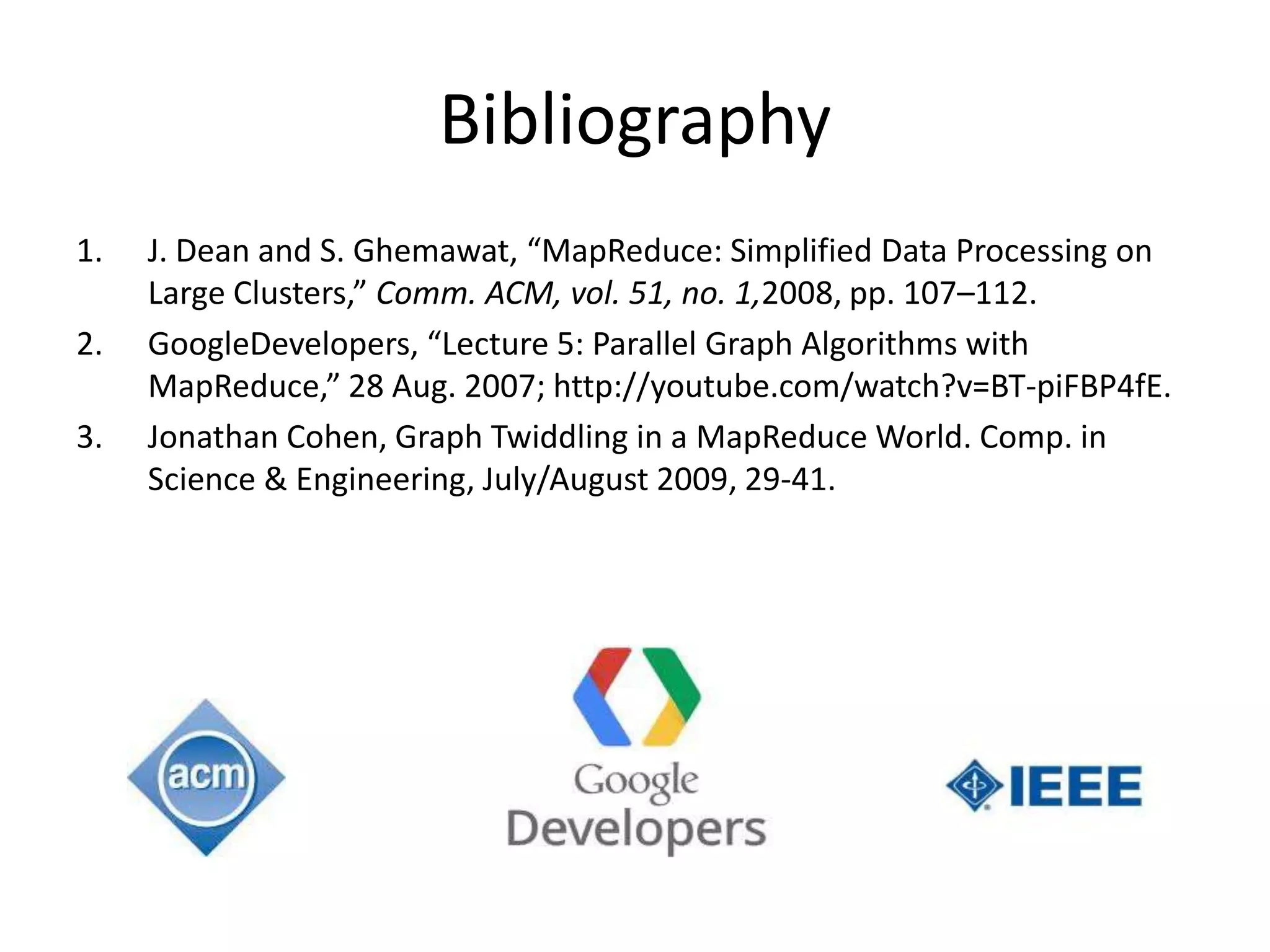

25. Bibliography
