Uploaded bySpark Summit
Machine Learning Pipelines - Joseph Bradley - Databricks
This document discusses Spark MLlib's goal of making practical machine learning easy and scalable. It introduces key concepts in Spark ML Pipelines including DataFrames, transformers, estimators, and evaluators. DataFrames provide a structured dataset with named columns. Transformers, estimators, and evaluators are abstractions that define different steps in a machine learning workflow. Pipelines allow assembling these abstractions into reusable workflows. The document demonstrates an example text classification pipeline and discusses ongoing work to improve parameter tuning and feature engineering support.
More Related Content
Similar to Machine Learning Pipelines - Joseph Bradley - Databricks
Machine Learning Pipelines - Joseph Bradley - Databricks
- 1. Practical Machine Learning Pipelineswith MLlib Joseph K. Bradley March 18, 2015 Spark Summit East 2015
- 2. About Spark MLlib Startedin UC Berkeley AMPLab • Shipped with Spark 0.8 Currently (Spark 1.3) • Contributions from 50+ orgs, 100+ individuals • Good coverage of algorithms classification regression clustering recommendation feature extraction, selection frequent itemsets statistics linear algebra

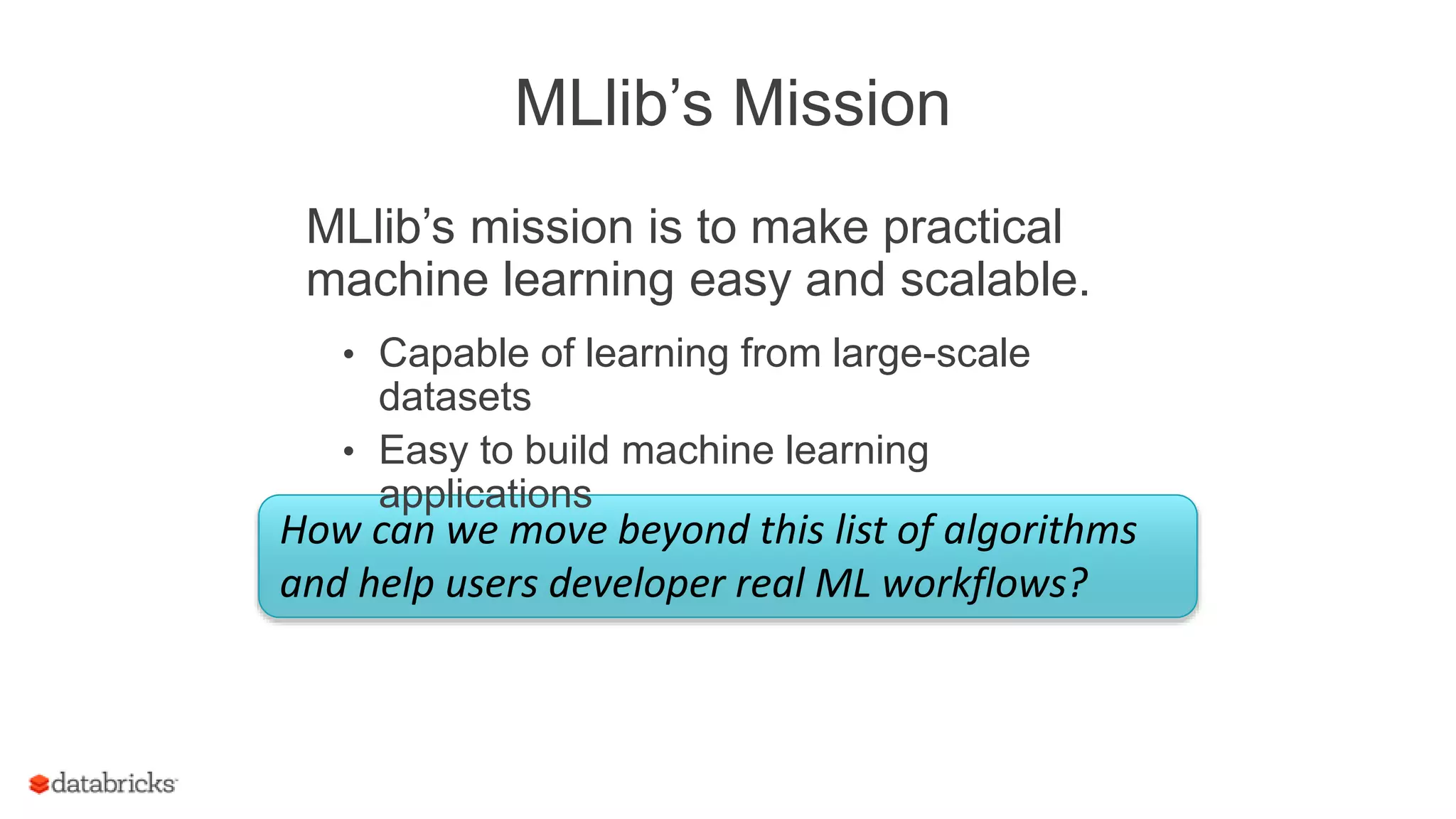

- 3. MLlib’s Mission How canwe move beyond this list of algorithms and help users developer real ML workflows? MLlib’s mission is to make practical machine learning easy and scalable. • Capable of learning from large-scale datasets • Easy to build machine learning applications
- 4.
- 5.

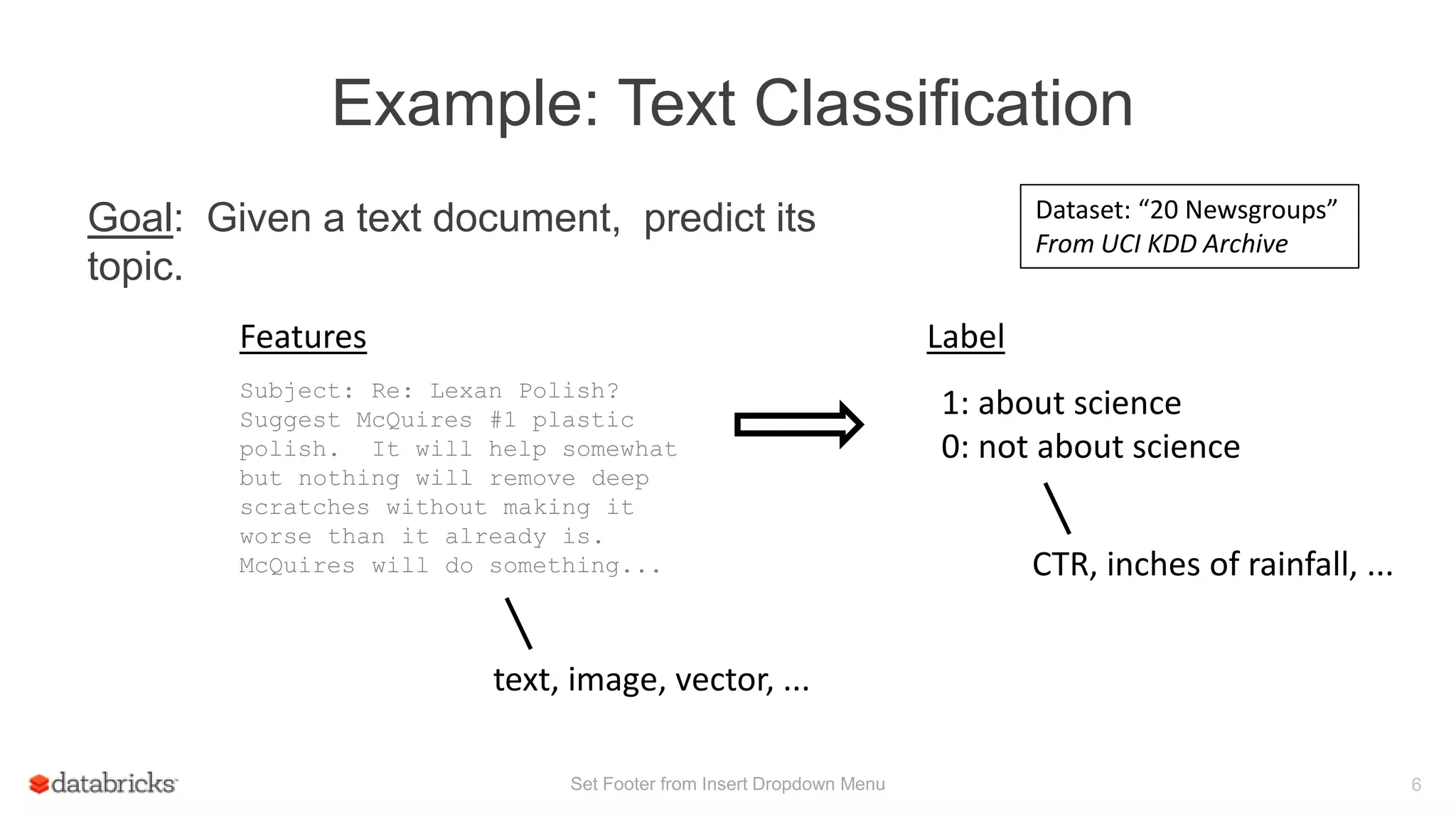

- 6. Example: Text Classification SetFooter from Insert Dropdown Menu 6 Goal: Given a text document, predict its topic. Subject: Re: Lexan Polish? Suggest McQuires #1 plastic polish. It will help somewhat but nothing will remove deep scratches without making it worse than it already is. McQuires will do something... 1: about science 0: not about science LabelFeatures text, image, vector, ... CTR, inches of rainfall, ... Dataset: “20 Newsgroups” From UCI KDD Archive

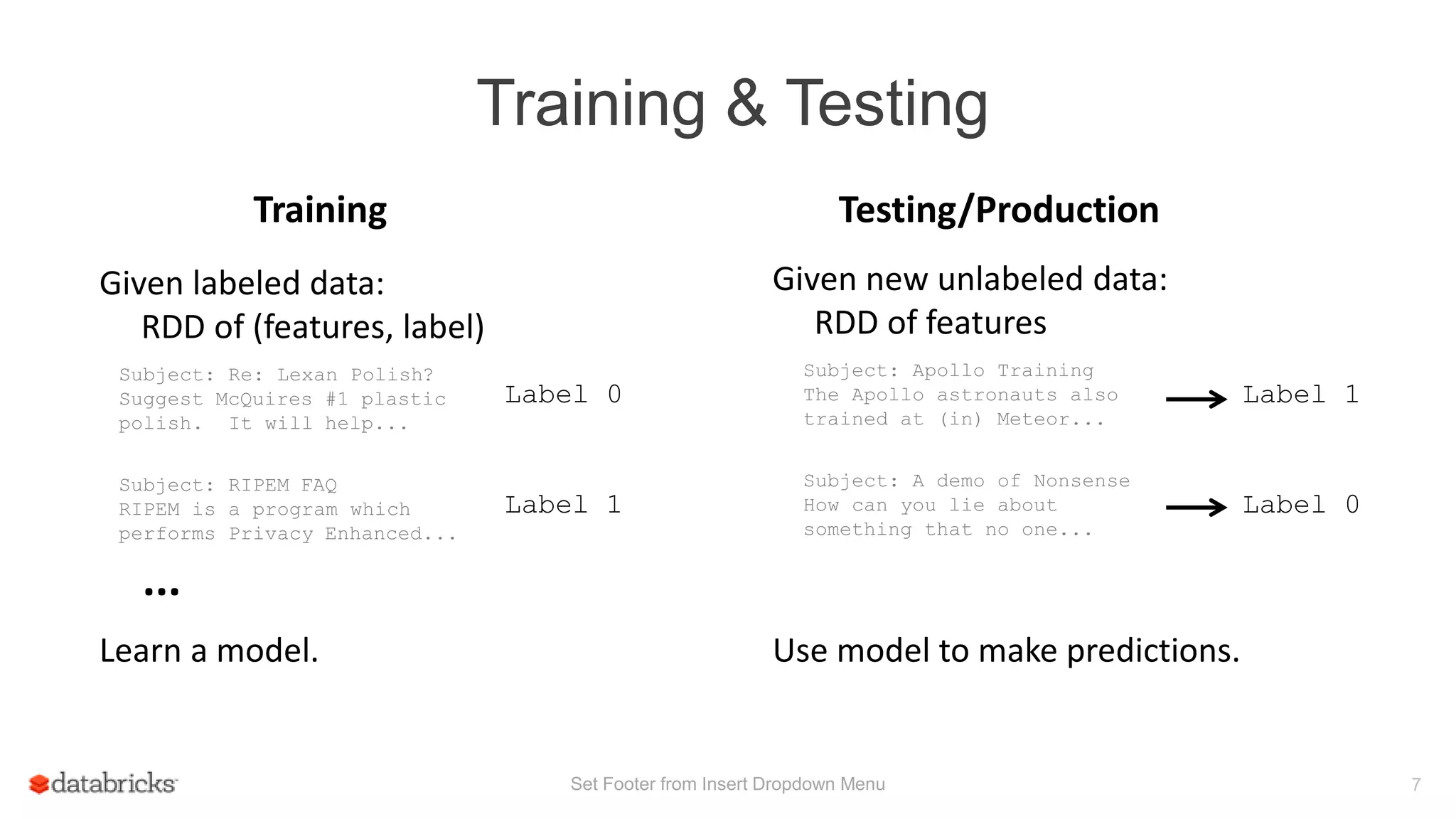

- 7. Training & Testing SetFooter from Insert Dropdown Menu 7 Training Testing/Production Given labeled data: RDD of (features, label) Subject: Re: Lexan Polish? Suggest McQuires #1 plastic polish. It will help... Subject: RIPEM FAQ RIPEM is a program which performs Privacy Enhanced... ... Label 0 Label 1 Learn a model. Given new unlabeled data: RDD of features Subject: Apollo Training The Apollo astronauts also trained at (in) Meteor... Subject: A demo of Nonsense How can you lie about something that no one... Use model to make predictions. Label 1 Label 0

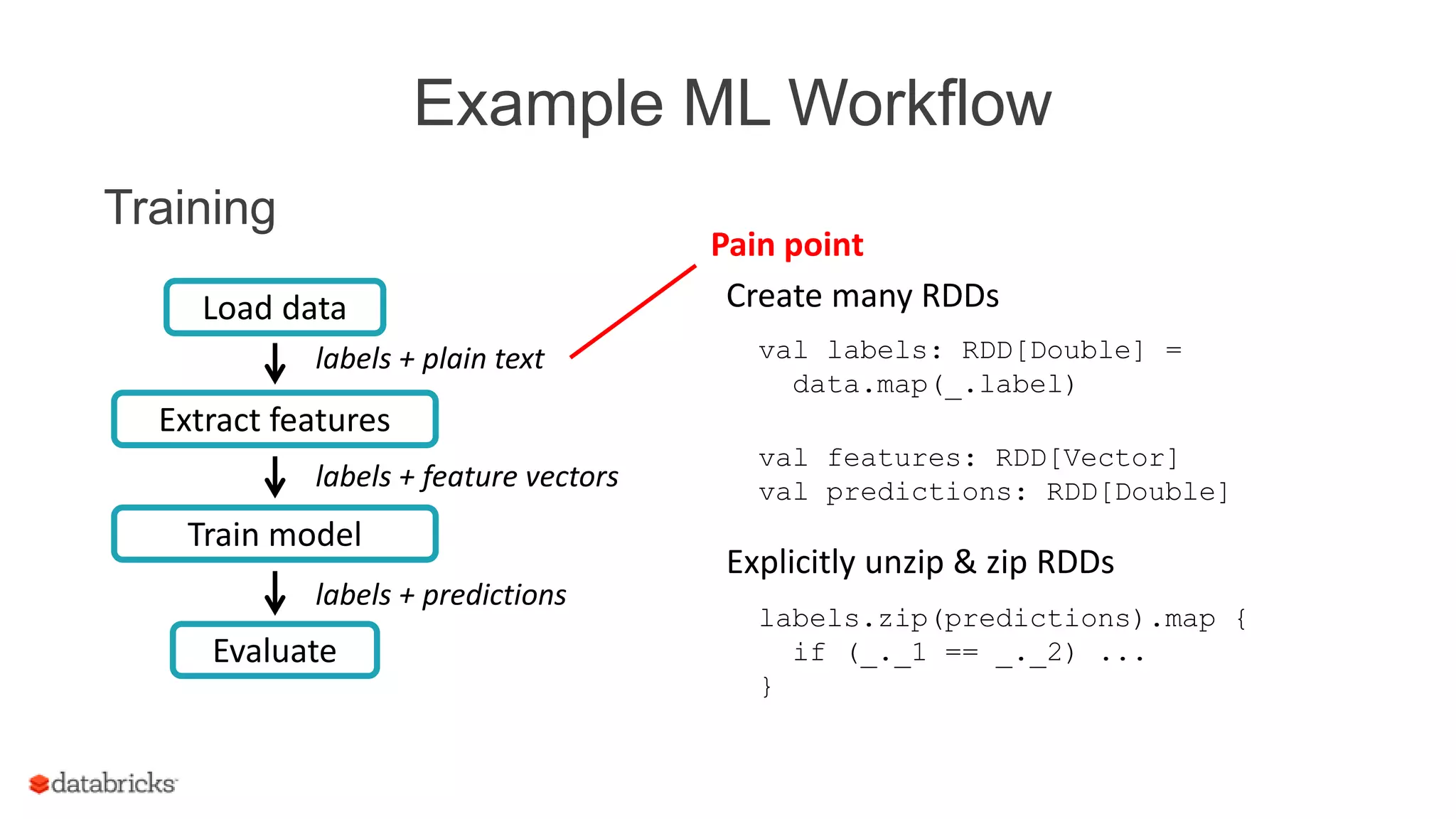

- 8. Example ML Workflow Training Trainmodel labels + predictions Evaluate Load data labels + plain text labels + feature vectors Extract features Explicitly unzip & zip RDDs labels.zip(predictions).map { if (_._1 == _._2) ... } val features: RDD[Vector] val predictions: RDD[Double] Create many RDDs val labels: RDD[Double] = data.map(_.label) Pain point

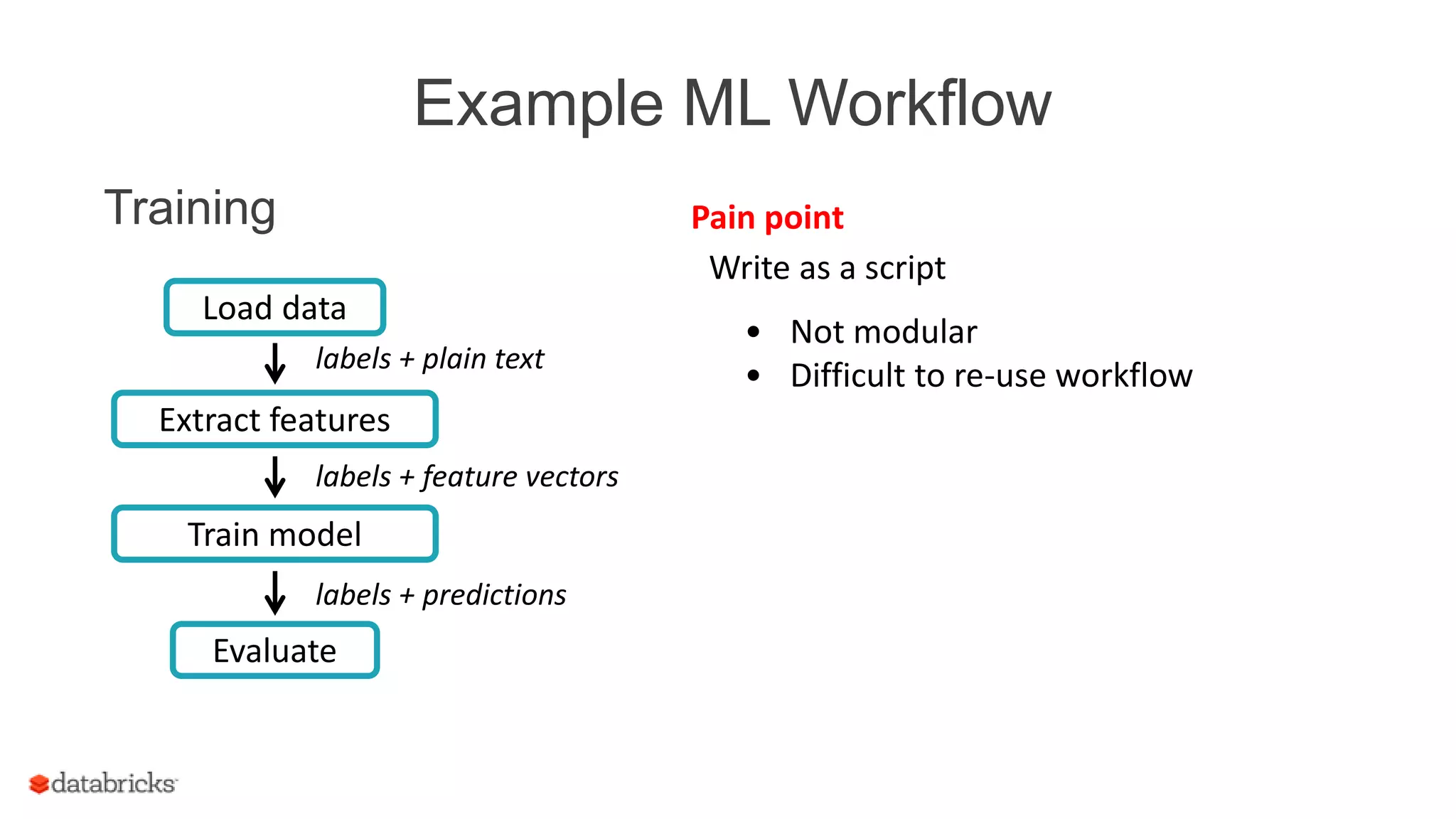

- 9. Example ML Workflow Writeas a script Pain point • Not modular • Difficult to re-use workflow Training labels + feature vectors Train model labels + predictions Evaluate Load data labels + plain text Extract features

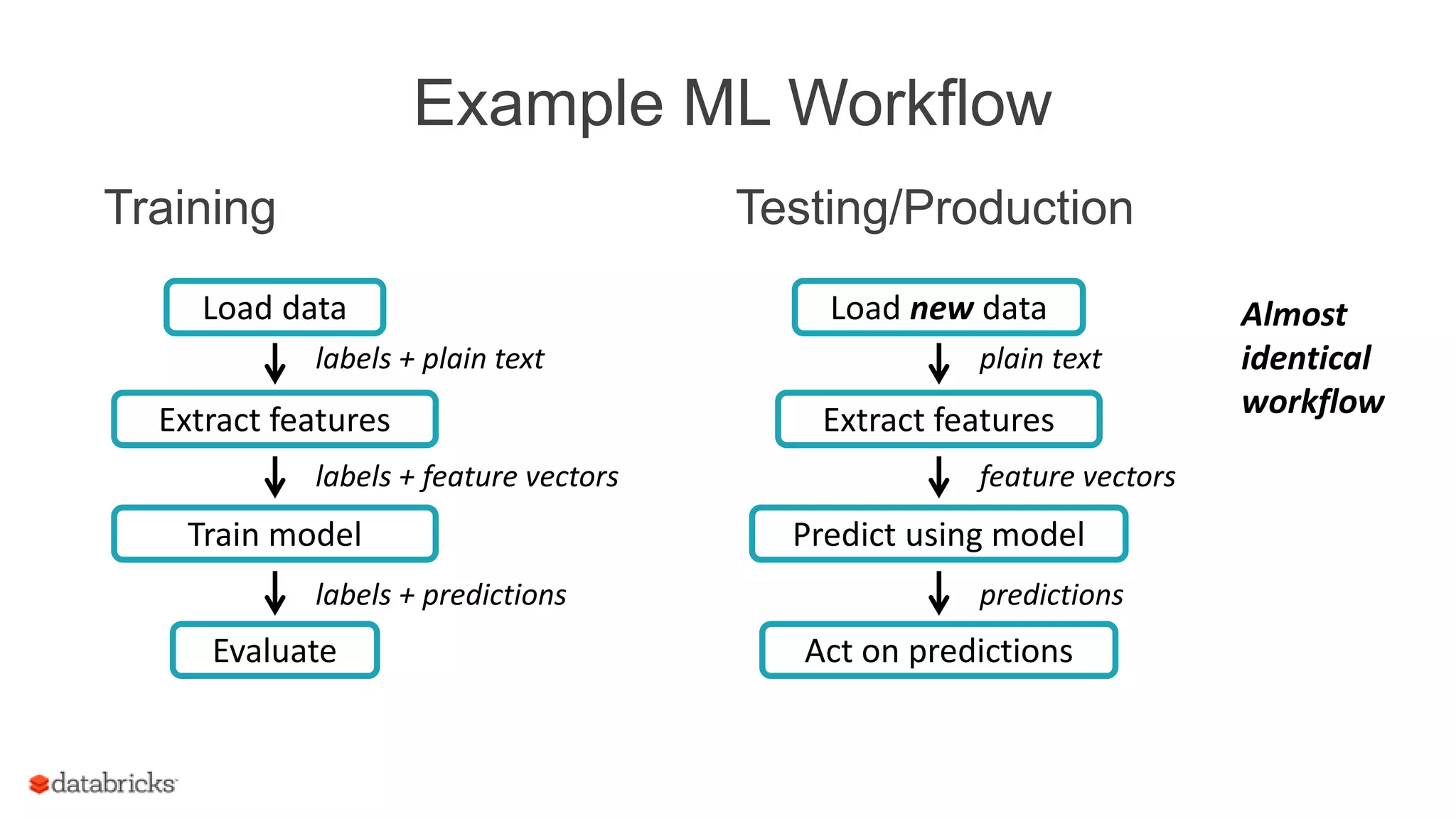

- 10. Example ML Workflow Training labels+ feature vectors Train model labels + predictions Evaluate Load data labels + plain text Extract features Testing/Production feature vectors Predict using model predictions Act on predictions Load new data plain text Extract features Almost identical workflow

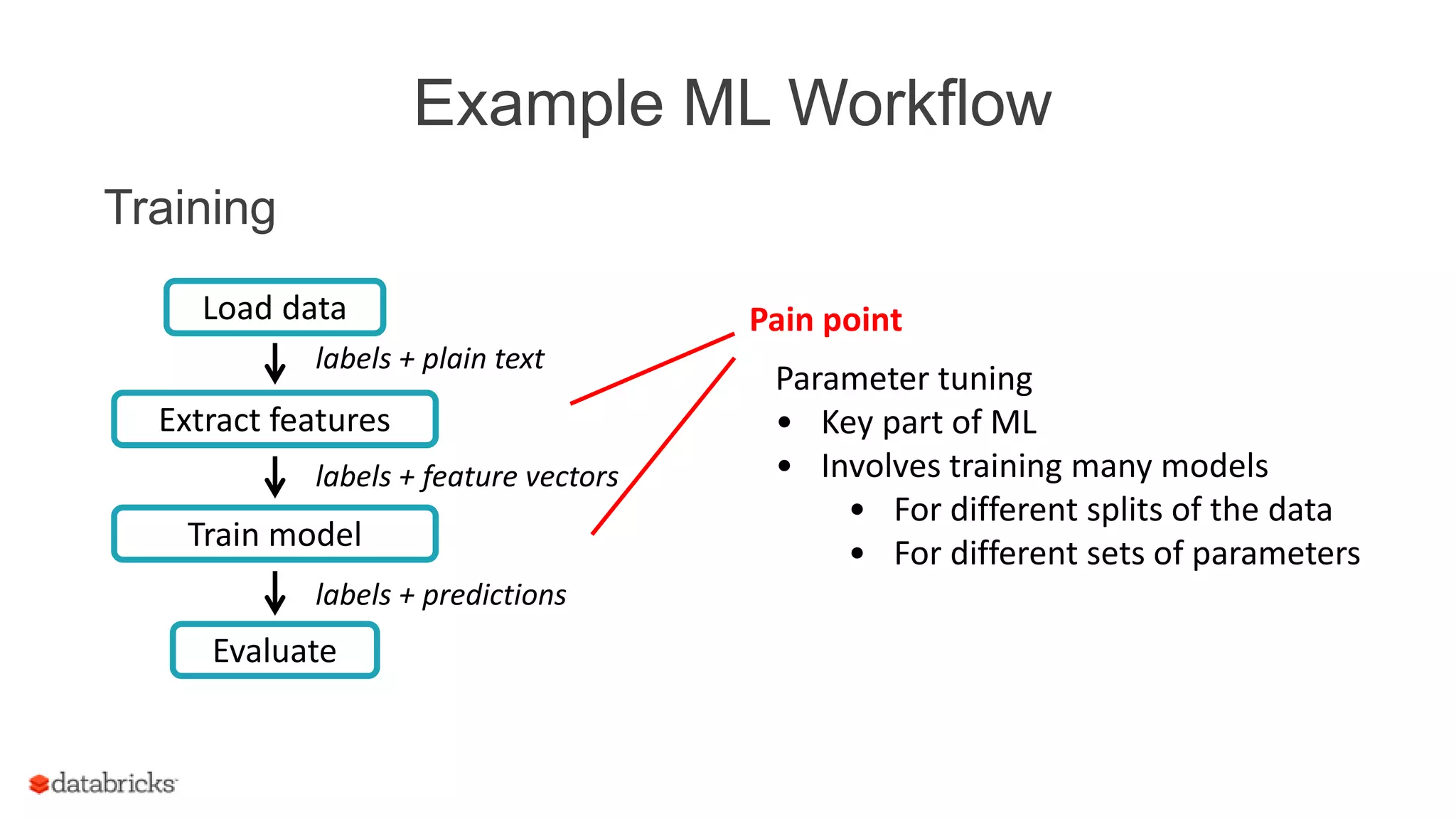

- 11. Example ML Workflow Training labels+ feature vectors Train model labels + predictions Evaluate Load data labels + plain text Extract features Pain point Parameter tuning • Key part of ML • Involves training many models • For different splits of the data • For different sets of parameters
- 12. Pain Points Create &handle many RDDs and data types Write as a script Tune parameters Enter... Pipelines! in Spark 1.2 & 1.3
- 13.

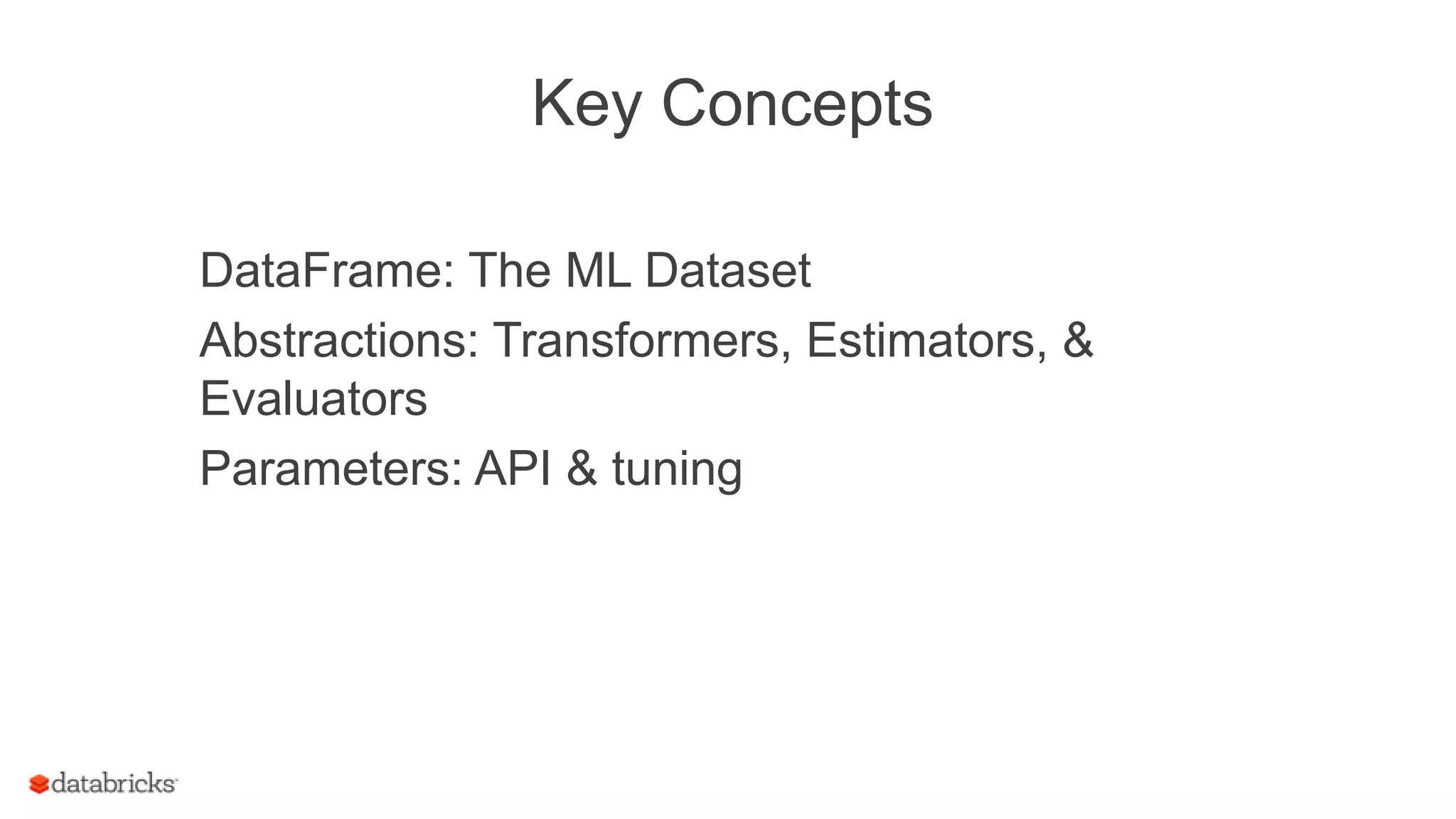

- 14. Key Concepts DataFrame: TheML Dataset Abstractions: Transformers, Estimators, & Evaluators Parameters: API & tuning

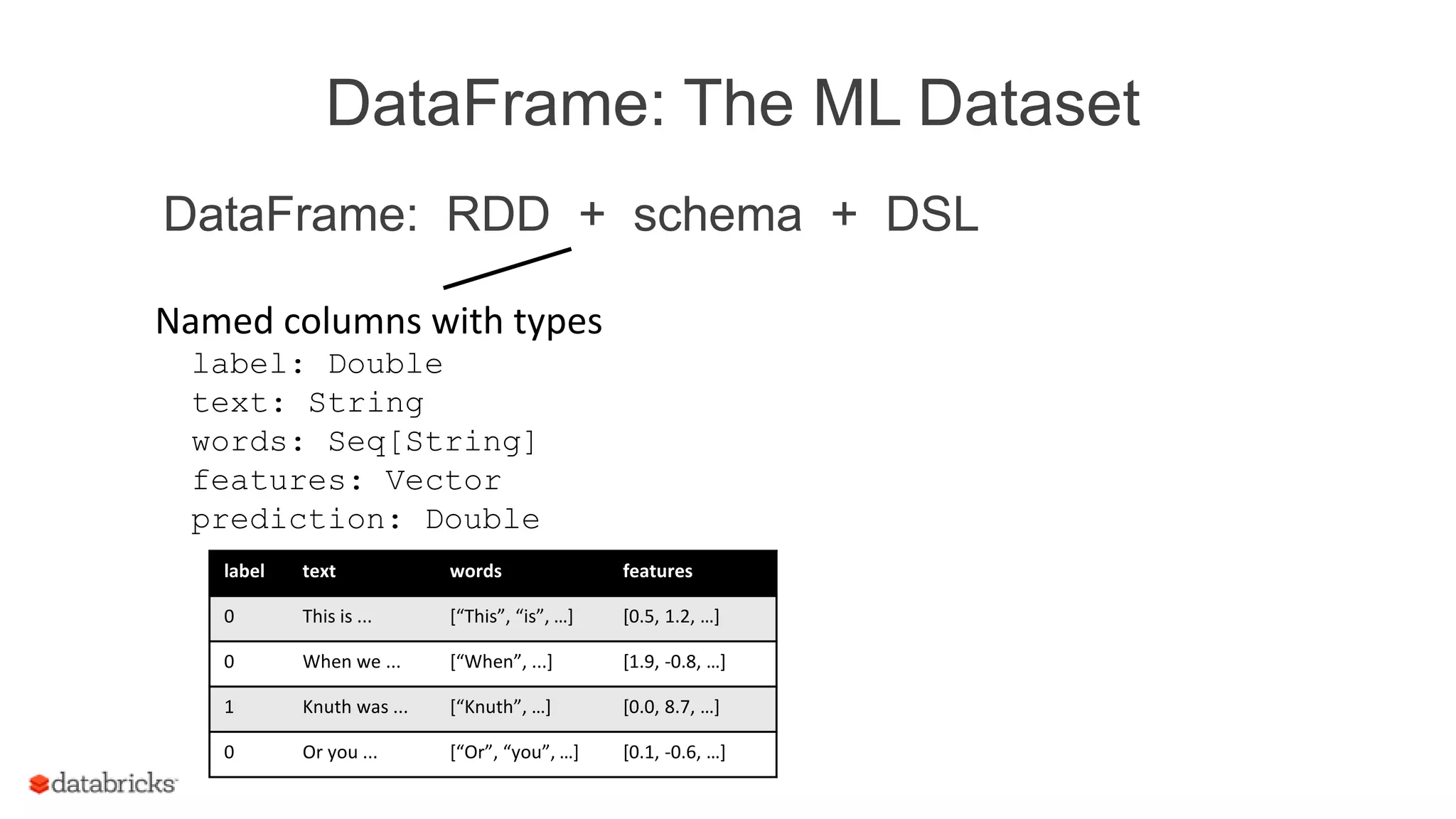

- 15. DataFrame: The MLDataset DataFrame: RDD + schema + DSL Named columns with types label: Double text: String words: Seq[String] features: Vector prediction: Double label text words features 0 This is ... [“This”, “is”, …] [0.5, 1.2, …] 0 When we ... [“When”, ...] [1.9, -0.8, …] 1 Knuth was ... [“Knuth”, …] [0.0, 8.7, …] 0 Or you ... [“Or”, “you”, …] [0.1, -0.6, …]

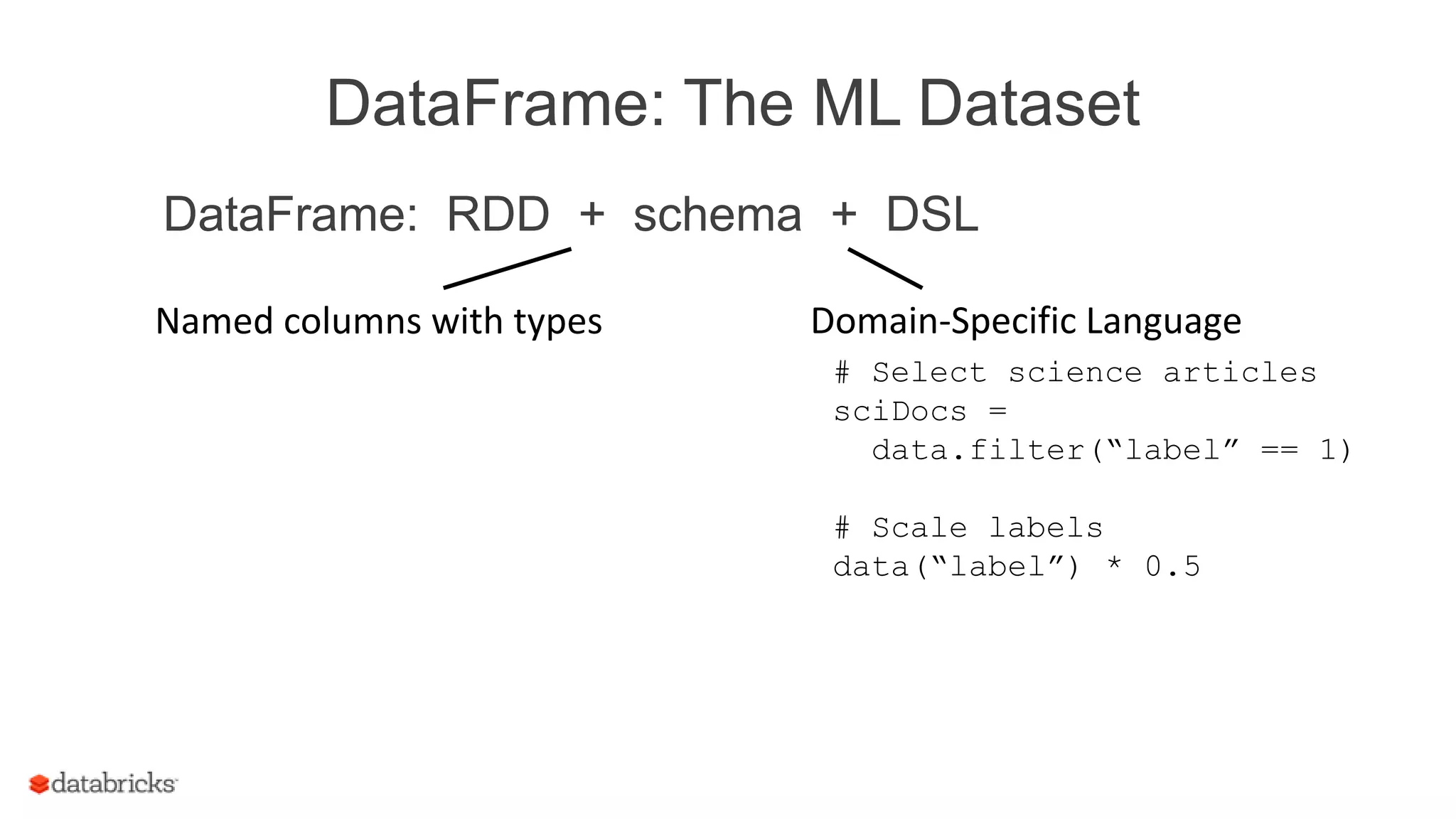

- 16. DataFrame: The MLDataset DataFrame: RDD + schema + DSL Named columns with types Domain-Specific Language # Select science articles sciDocs = data.filter(“label” == 1) # Scale labels data(“label”) * 0.5

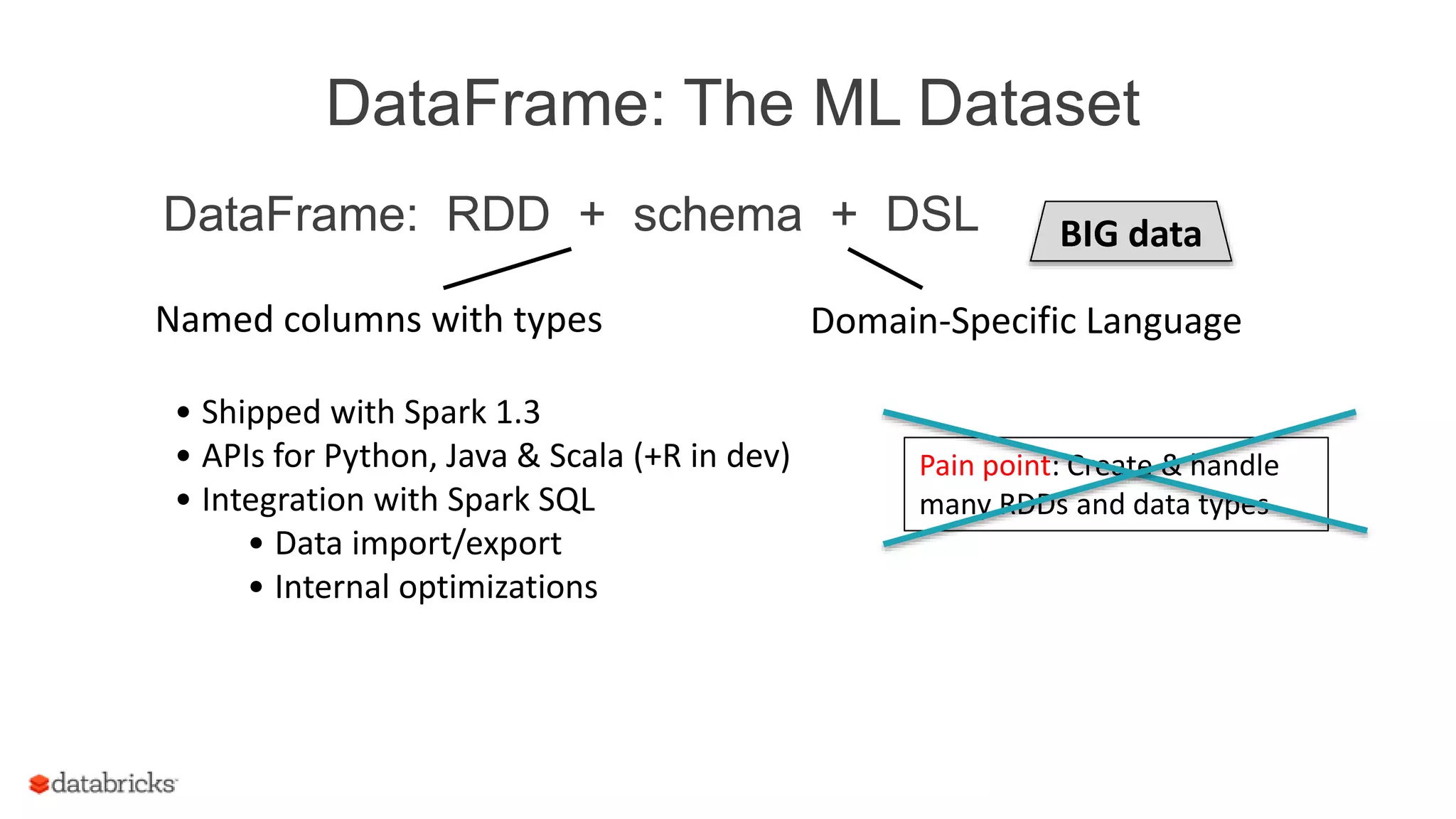

- 17. DataFrame: The MLDataset DataFrame: RDD + schema + DSL • Shipped with Spark 1.3 • APIs for Python, Java & Scala (+R in dev) • Integration with Spark SQL • Data import/export • Internal optimizations Named columns with types Domain-Specific Language Pain point: Create & handle many RDDs and data types BIG data

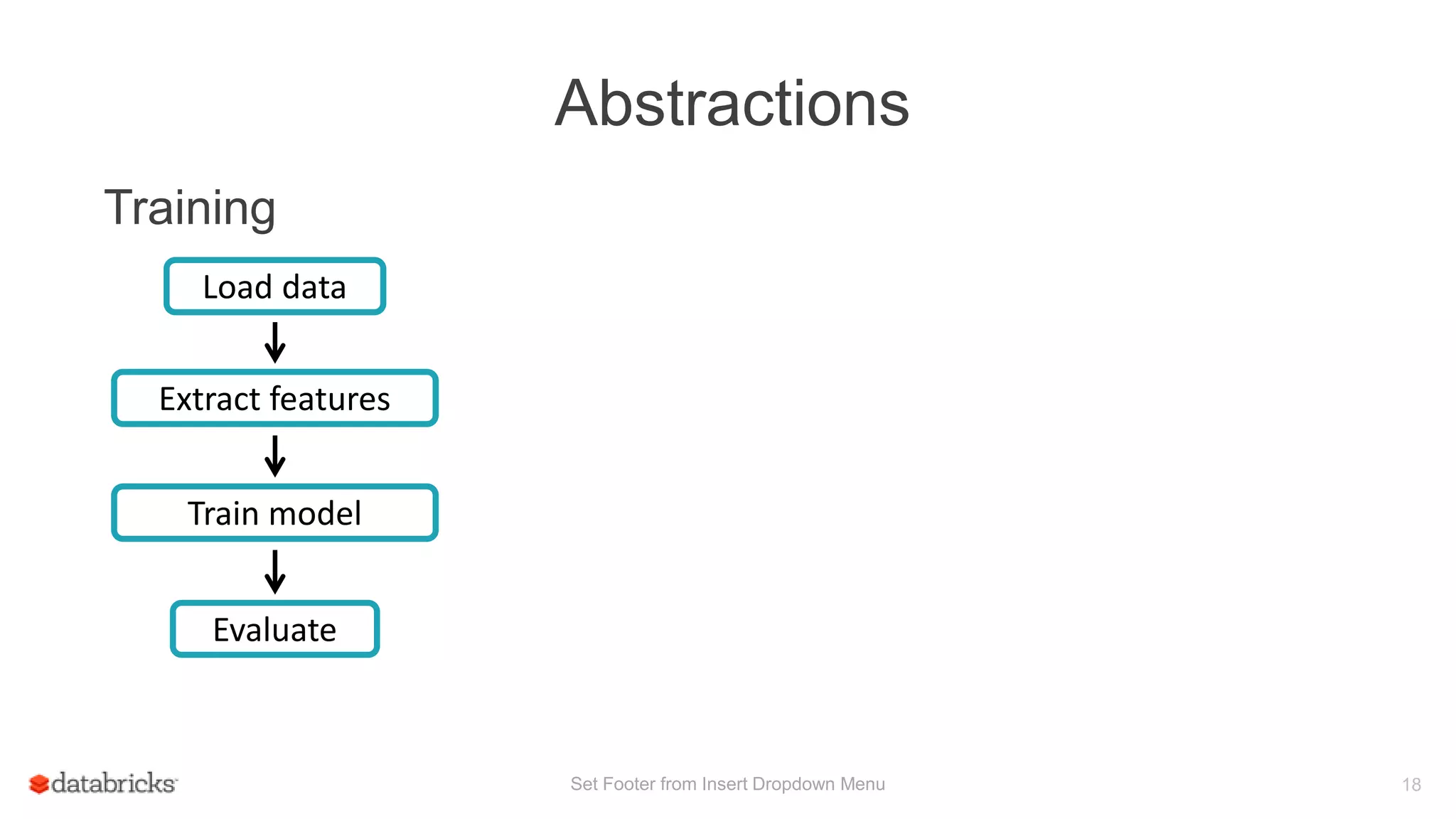

- 18. Abstractions Set Footer fromInsert Dropdown Menu 18 Training Train model Evaluate Load data Extract features

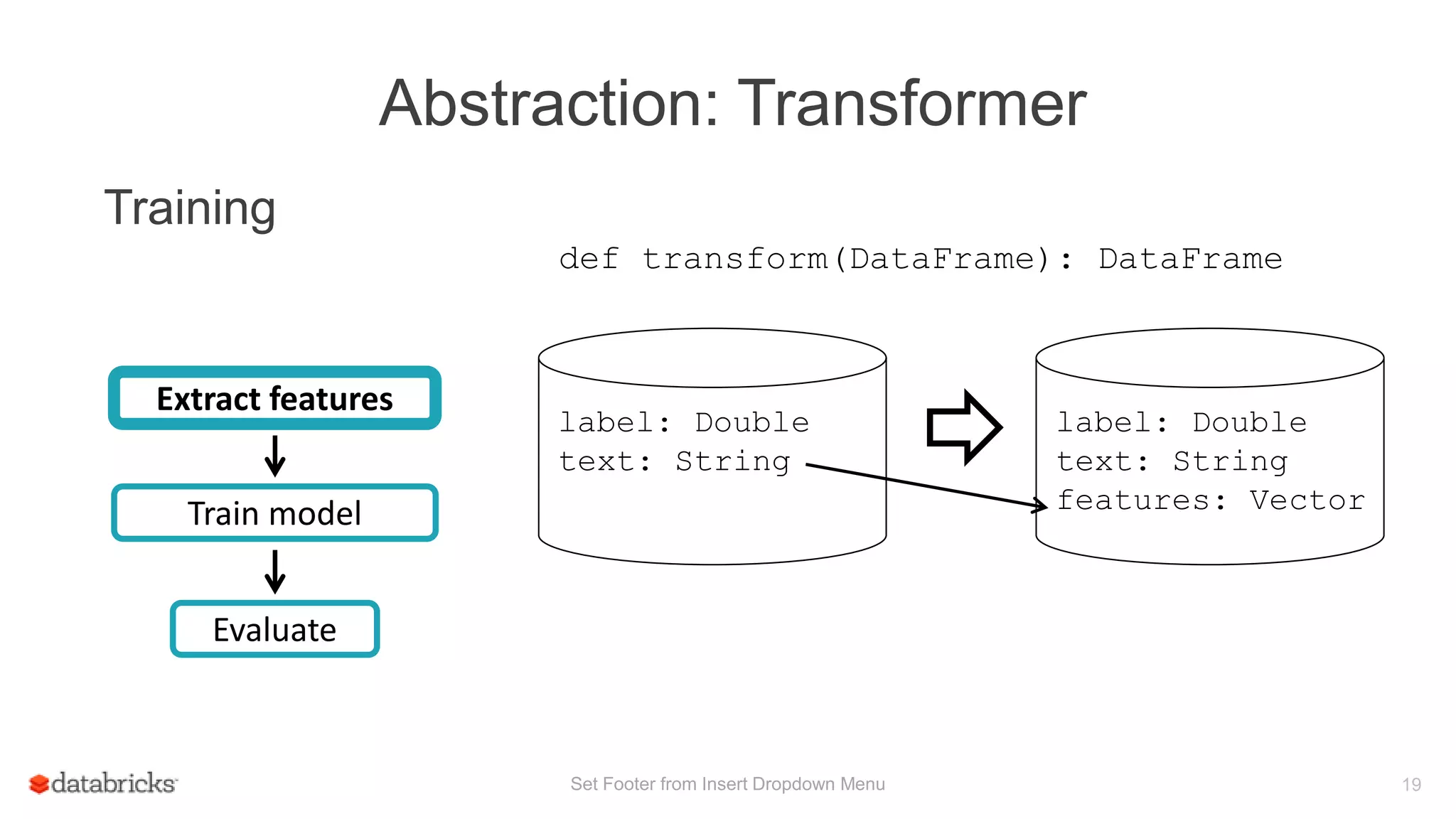

- 19. Abstraction: Transformer Set Footerfrom Insert Dropdown Menu 19 Training Train model Evaluate Extract features def transform(DataFrame): DataFrame label: Double text: String label: Double text: String features: Vector

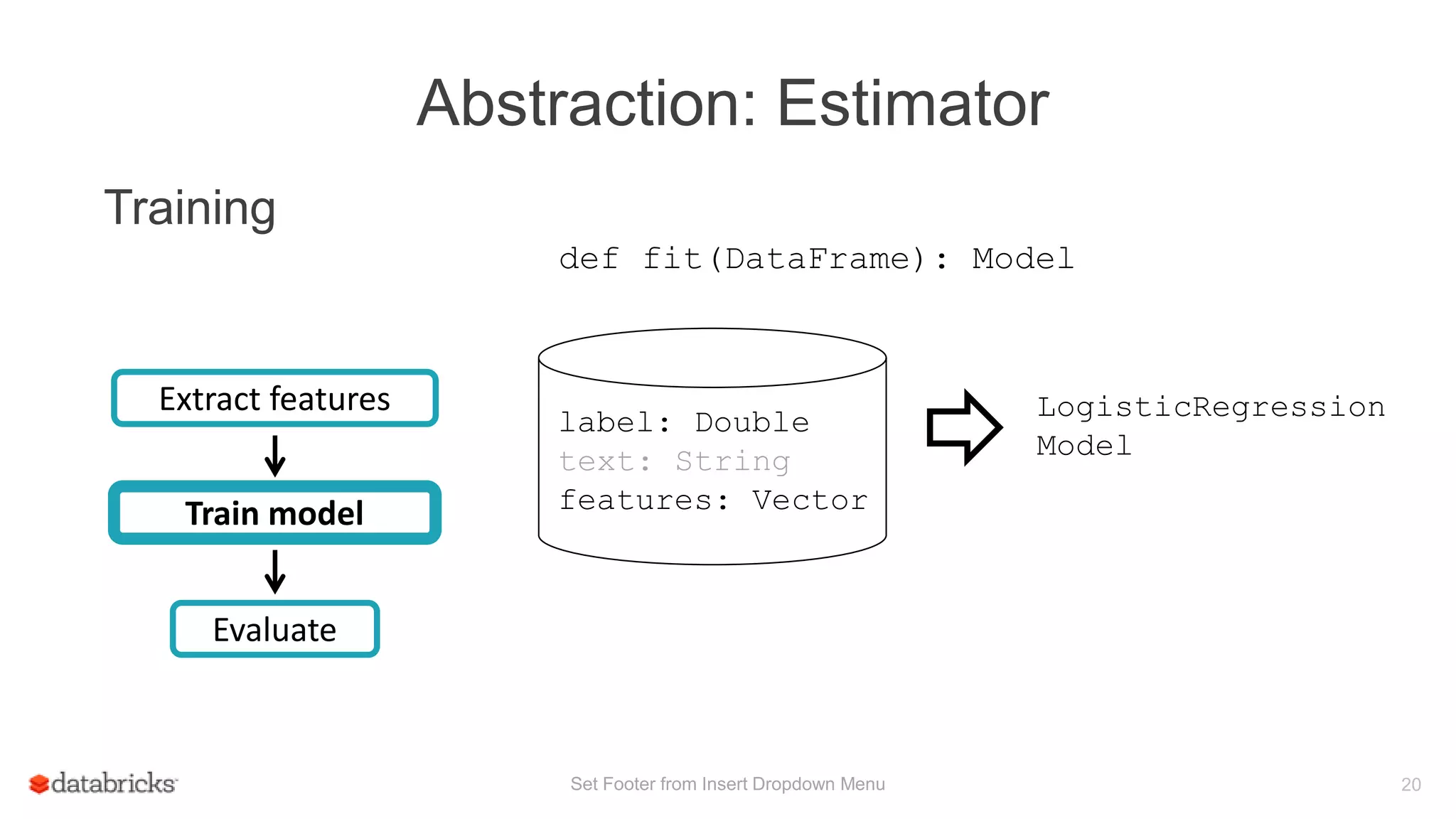

- 20. Abstraction: Estimator Set Footerfrom Insert Dropdown Menu 20 Training Train model Evaluate Extract features label: Double text: String features: Vector LogisticRegression Model def fit(DataFrame): Model

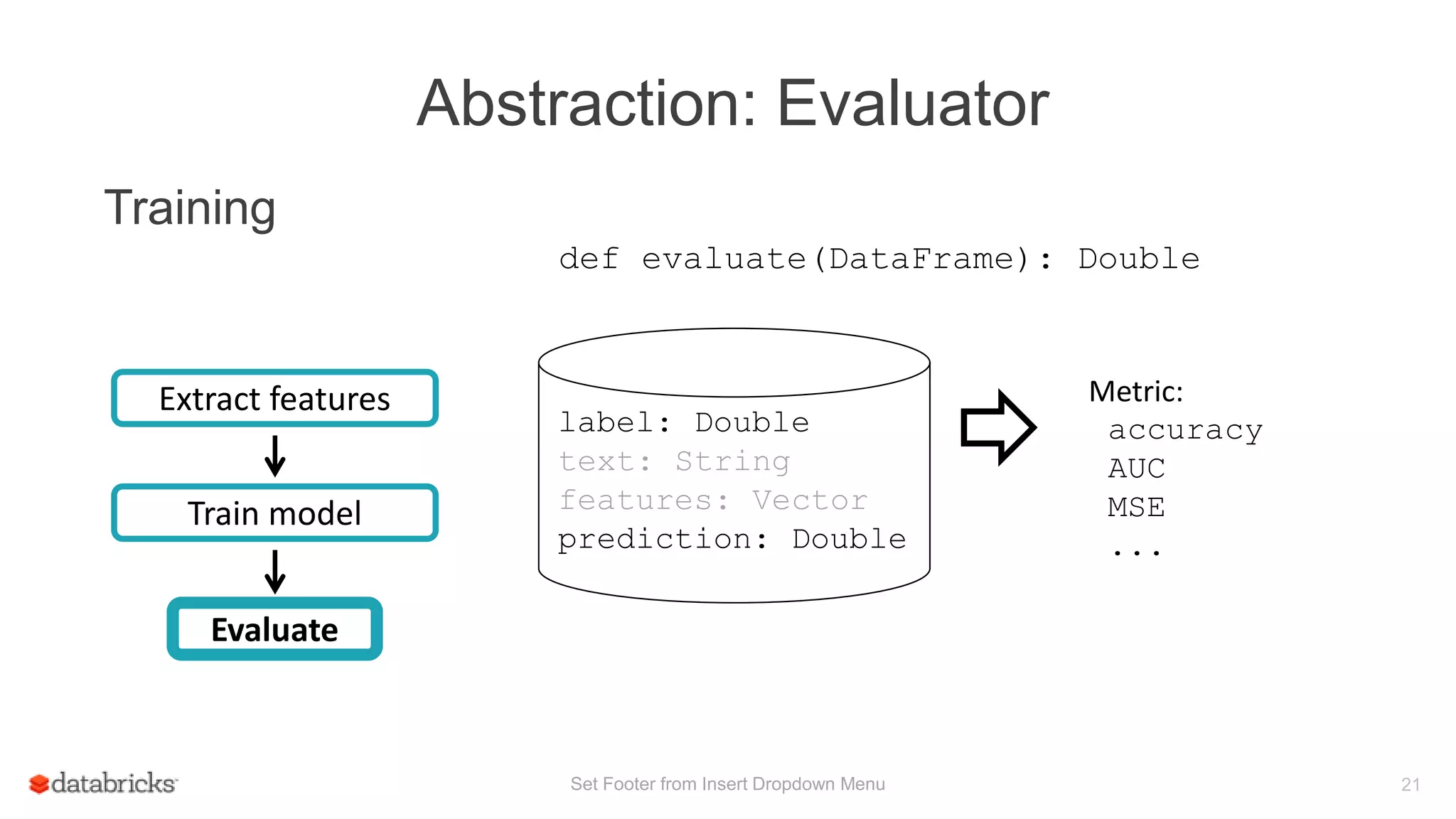

- 21. Train model Abstraction: Evaluator SetFooter from Insert Dropdown Menu 21 Training Evaluate Extract features label: Double text: String features: Vector prediction: Double Metric: accuracy AUC MSE ... def evaluate(DataFrame): Double

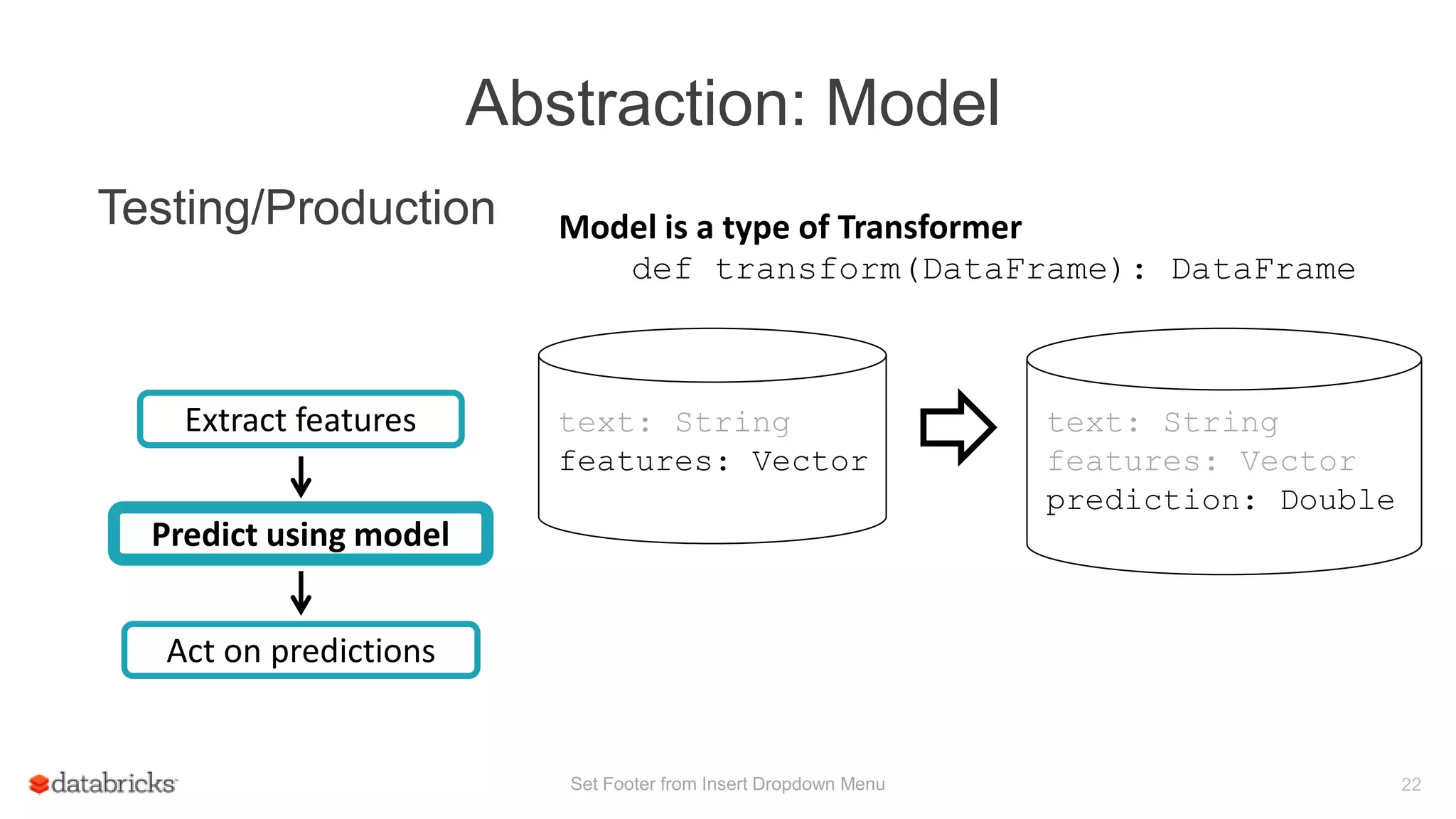

- 22. Act on predictions Abstraction:Model Set Footer from Insert Dropdown Menu 22 Model is a type of Transformer def transform(DataFrame): DataFrame text: String features: Vector Testing/Production Predict using model Extract features text: String features: Vector prediction: Double

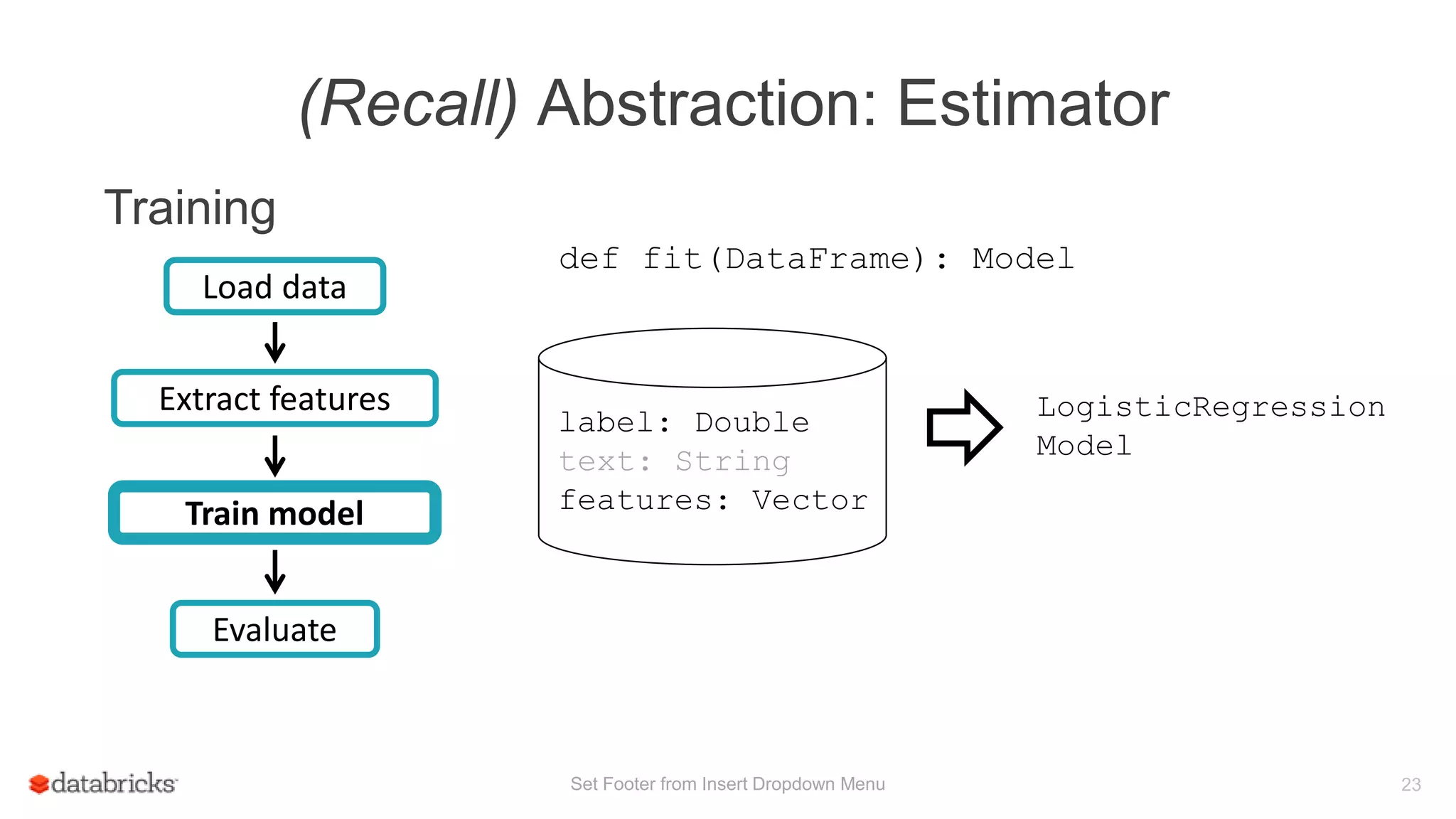

- 23. (Recall) Abstraction: Estimator SetFooter from Insert Dropdown Menu 23 Training Train model Evaluate Load data Extract features label: Double text: String features: Vector LogisticRegression Model def fit(DataFrame): Model

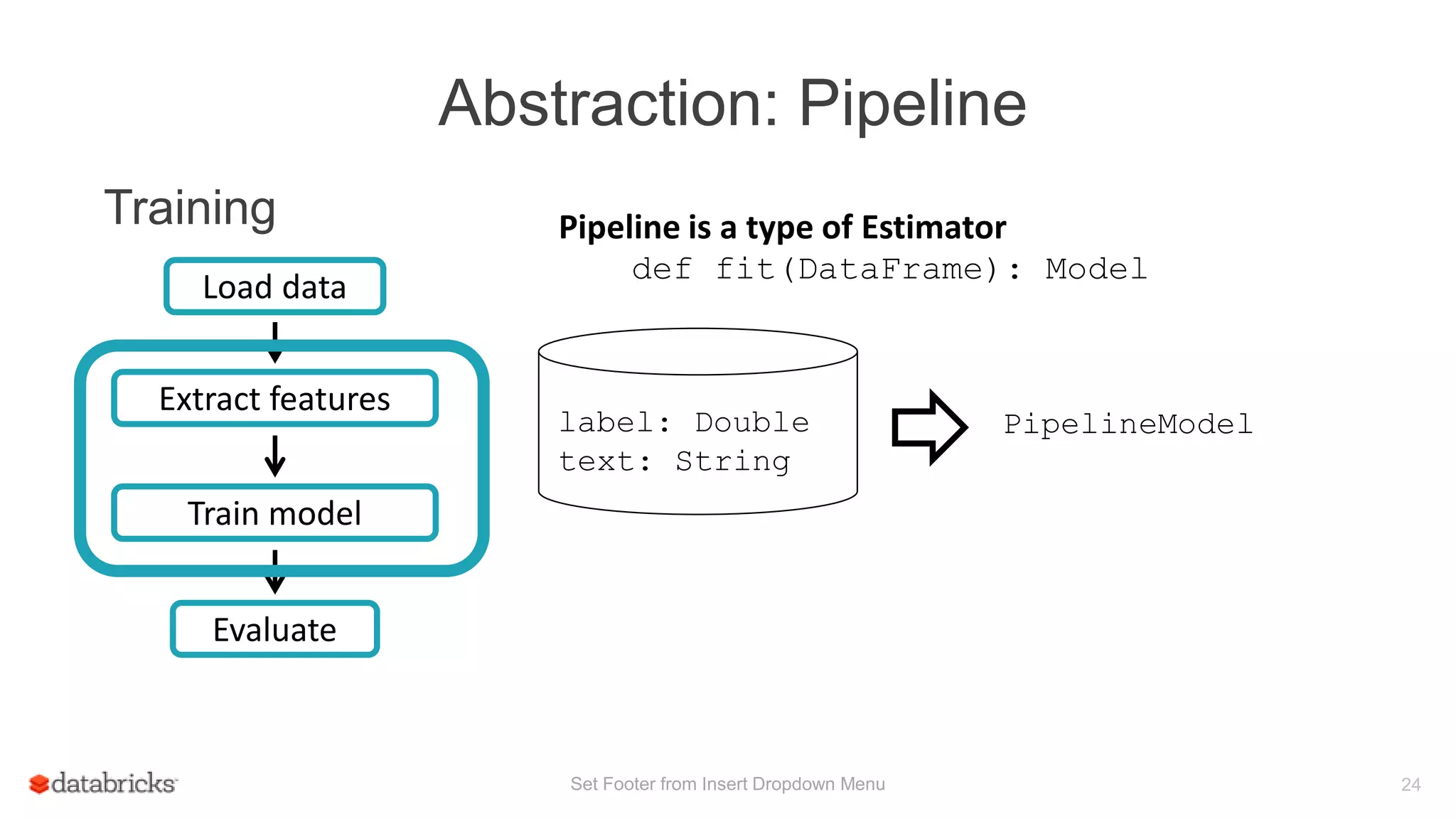

- 24. Abstraction: Pipeline Set Footerfrom Insert Dropdown Menu 24 Training Train model Evaluate Load data Extract features label: Double text: String PipelineModel Pipeline is a type of Estimator def fit(DataFrame): Model
- 25. Abstraction: PipelineModel Set Footerfrom Insert Dropdown Menu 25 text: String PipelineModel is a type of Transformer def transform(DataFrame): DataFrame Testing/Production Predict using model Load data Extract features text: String features: Vector prediction: Double Act on predictions
- 26. Abstractions: Summary Set Footerfrom Insert Dropdown Menu 26 Training Train model Evaluate Load data Extract featuresTransformer DataFrame Estimator Evaluator Testing Predict using model Evaluate Load data Extract features

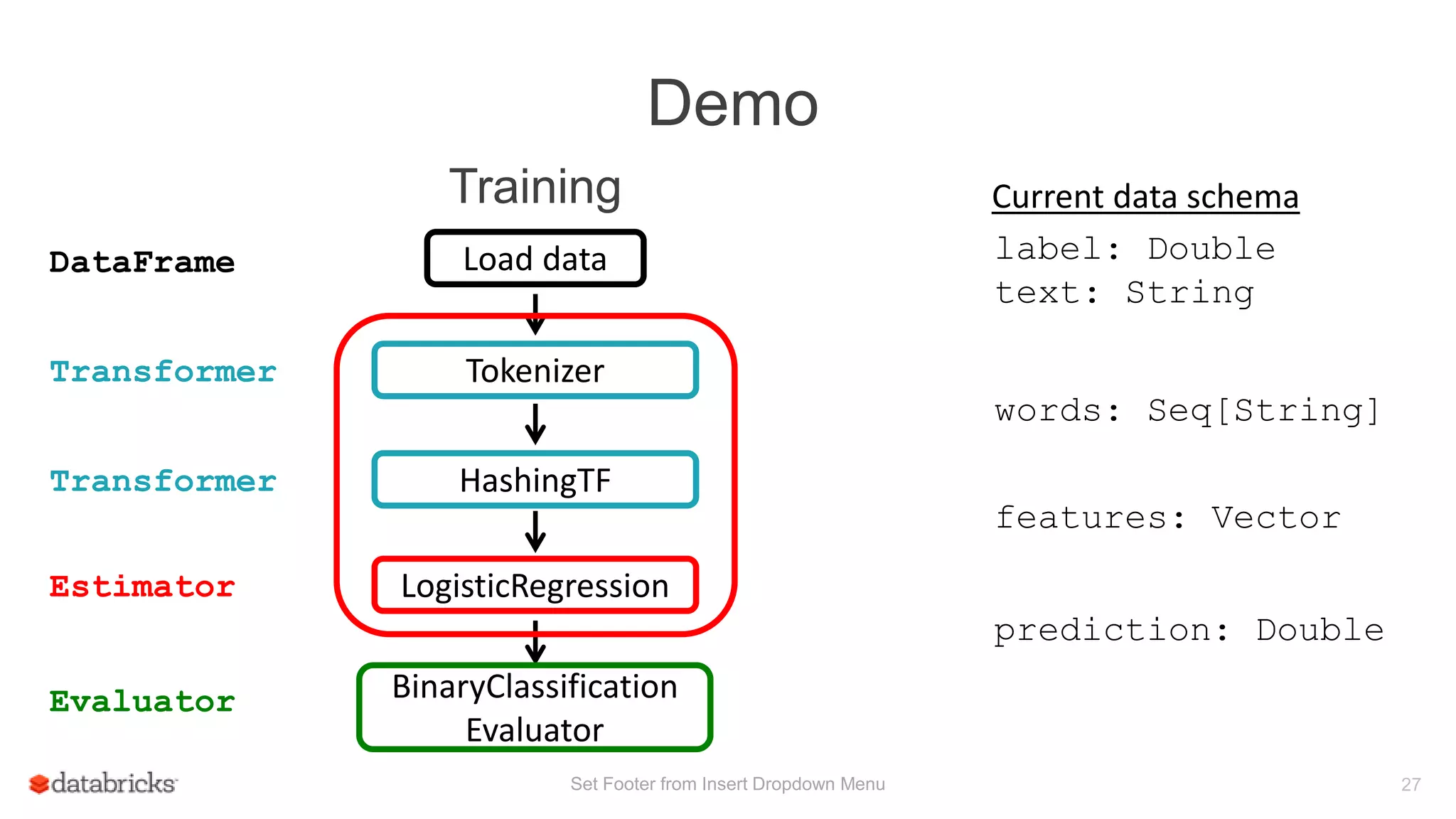

- 27. Demo Set Footer fromInsert Dropdown Menu 27 Transformer DataFrame Estimator Evaluator label: Double text: String features: Vector Current data schema prediction: Double Training LogisticRegression BinaryClassification Evaluator Load data Tokenizer Transformer HashingTF words: Seq[String]

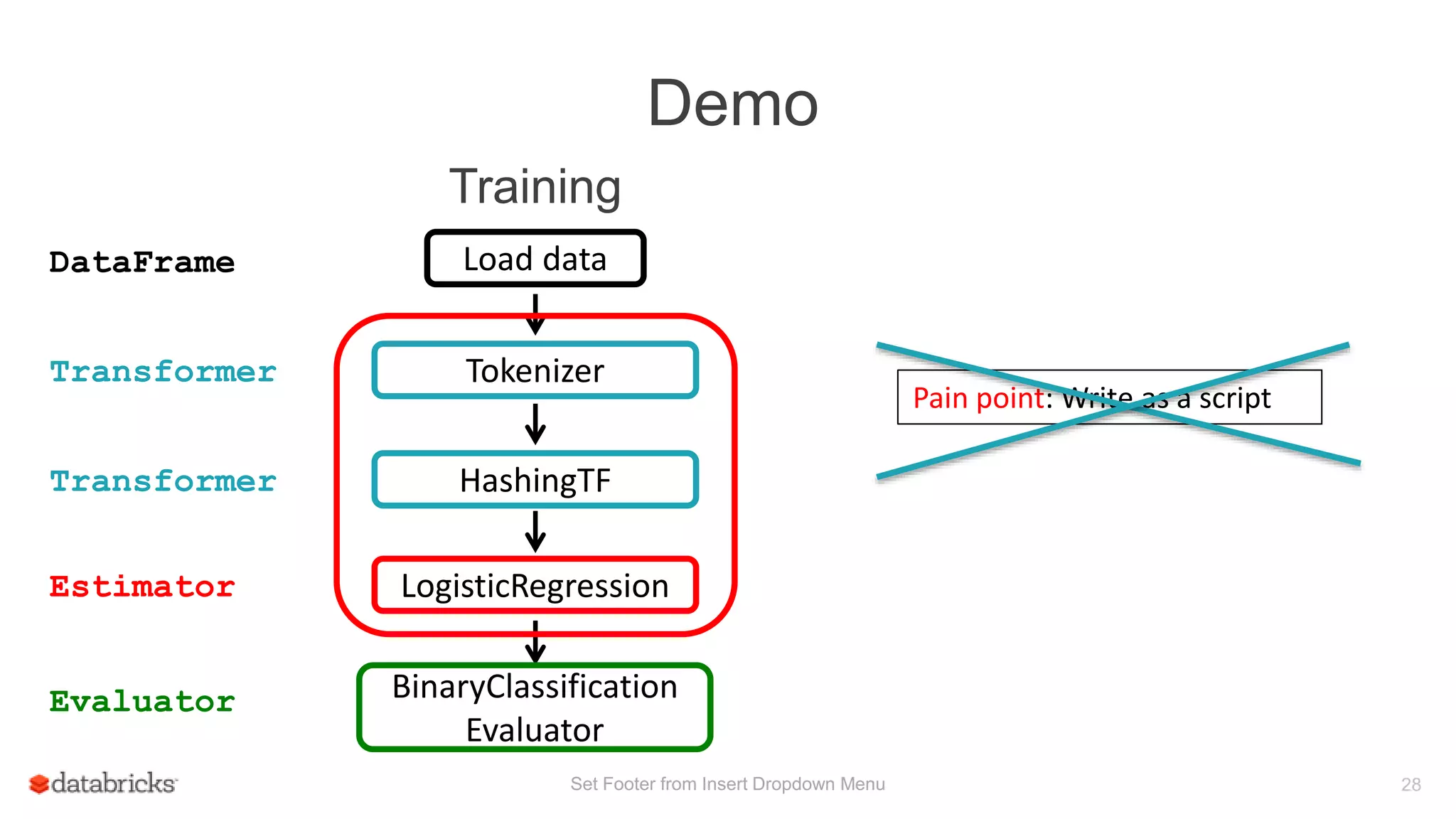

- 28. Demo Set Footer fromInsert Dropdown Menu 28 Transformer DataFrame Estimator Evaluator Training LogisticRegression BinaryClassification Evaluator Load data Tokenizer Transformer HashingTF Pain point: Write as a script

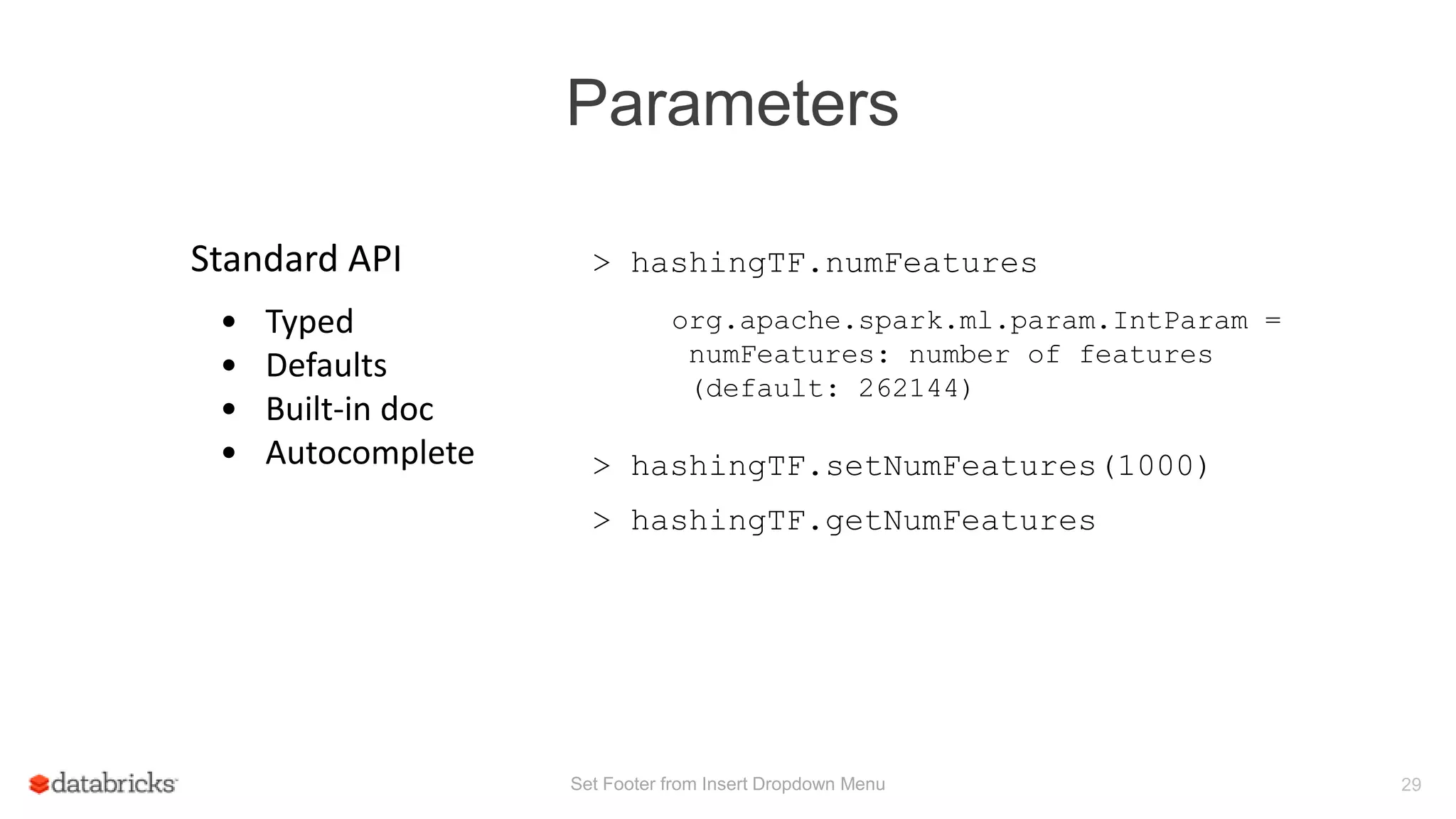

- 29. Parameters Set Footer fromInsert Dropdown Menu 29 > hashingTF.numFeaturesStandard API • Typed • Defaults • Built-in doc • Autocomplete org.apache.spark.ml.param.IntParam = numFeatures: number of features (default: 262144) > hashingTF.setNumFeatures(1000) > hashingTF.getNumFeatures

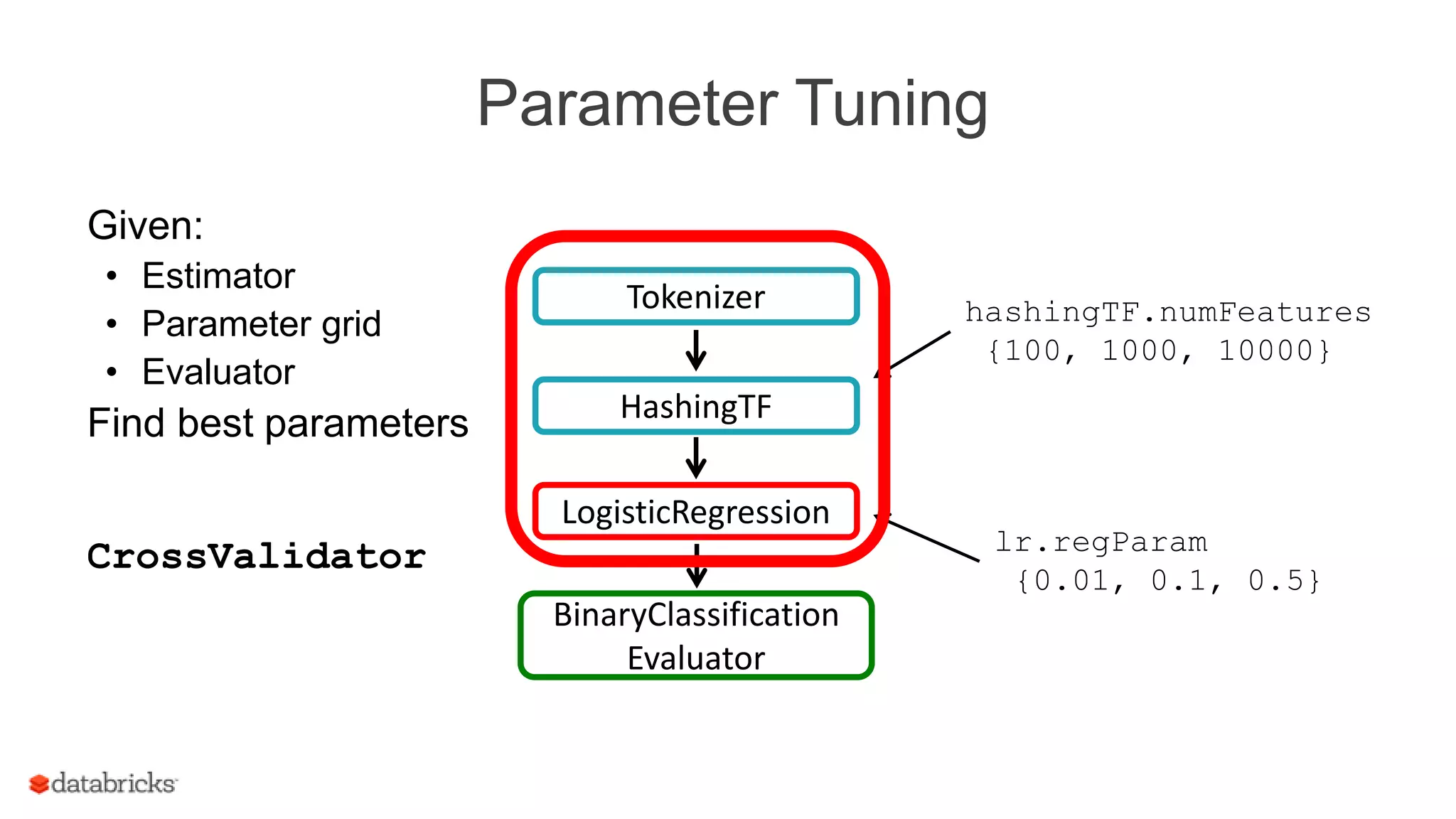

- 30. Parameter Tuning Given: • Estimator •Parameter grid • Evaluator Find best parameters lr.regParam {0.01, 0.1, 0.5} hashingTF.numFeatures {100, 1000, 10000} LogisticRegression Tokenizer HashingTF BinaryClassification Evaluator CrossValidator

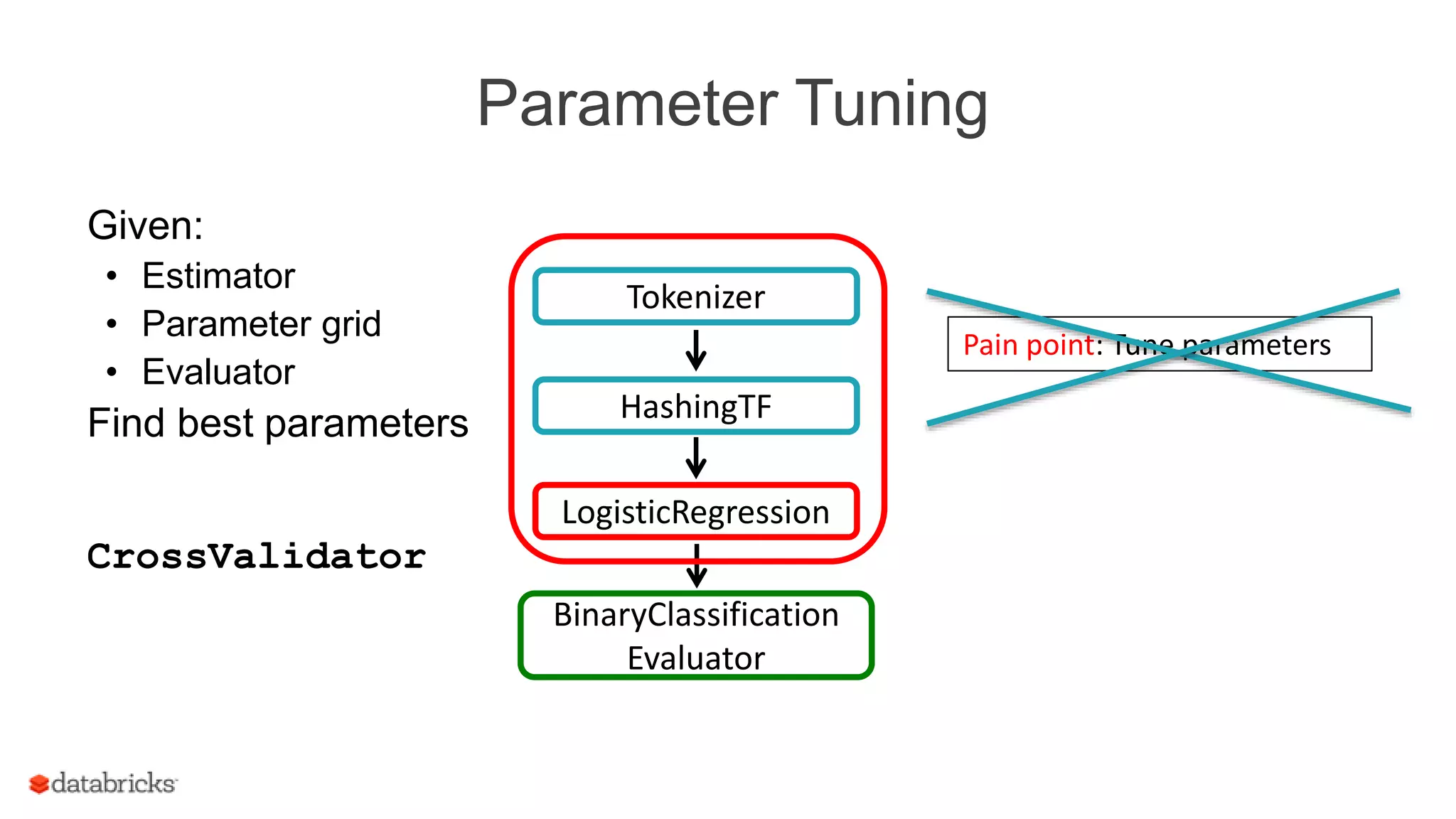

- 31. Parameter Tuning Given: • Estimator •Parameter grid • Evaluator Find best parameters LogisticRegression Tokenizer HashingTF BinaryClassification Evaluator CrossValidator Pain point: Tune parameters

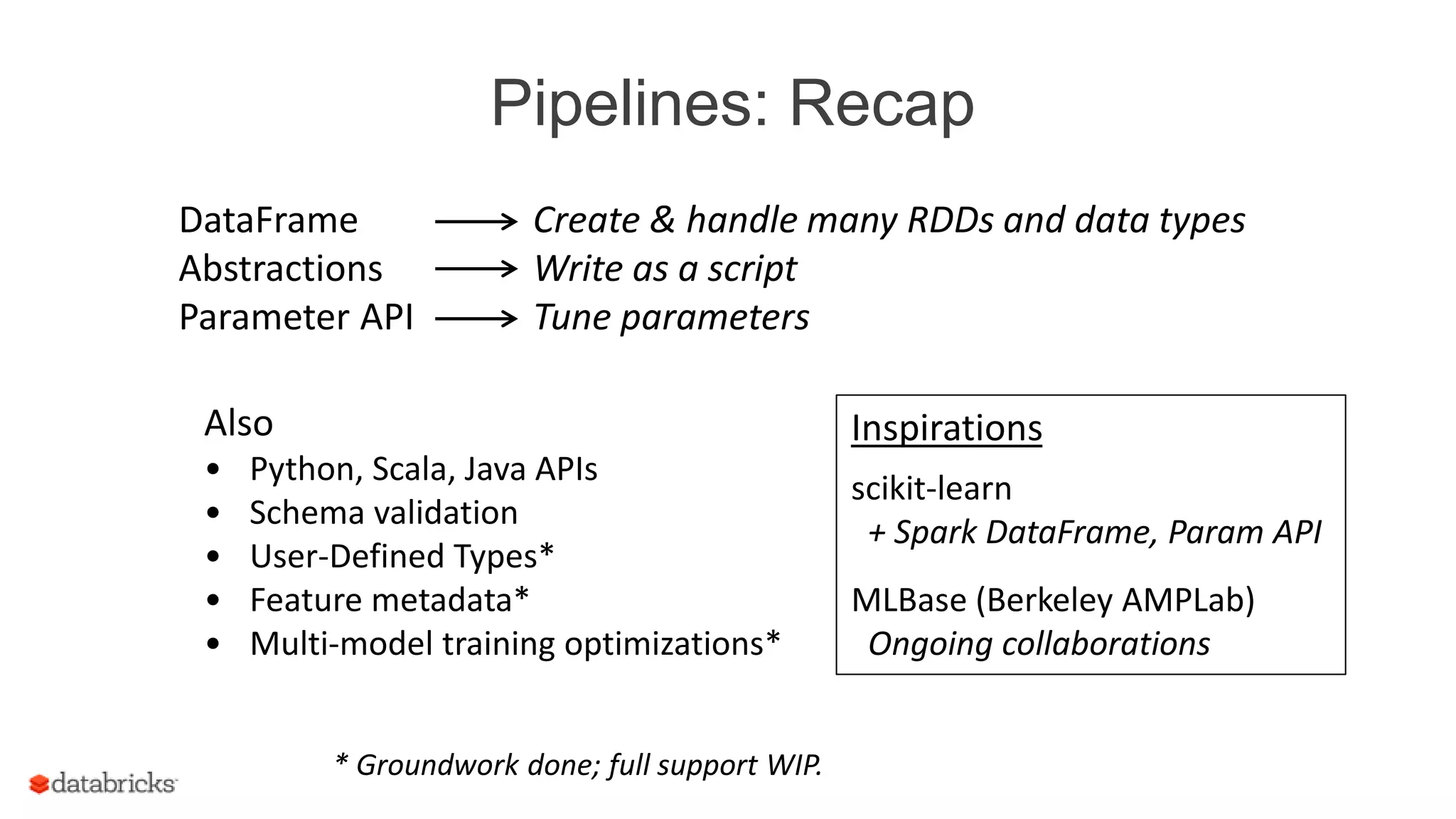

- 32. Pipelines: Recap Inspirations scikit-learn + SparkDataFrame, Param API MLBase (Berkeley AMPLab) Ongoing collaborations Create & handle many RDDs and data types Write as a script Tune parameters DataFrame Abstractions Parameter API * Groundwork done; full support WIP. Also • Python, Scala, Java APIs • Schema validation • User-Defined Types* • Feature metadata* • Multi-model training optimizations*

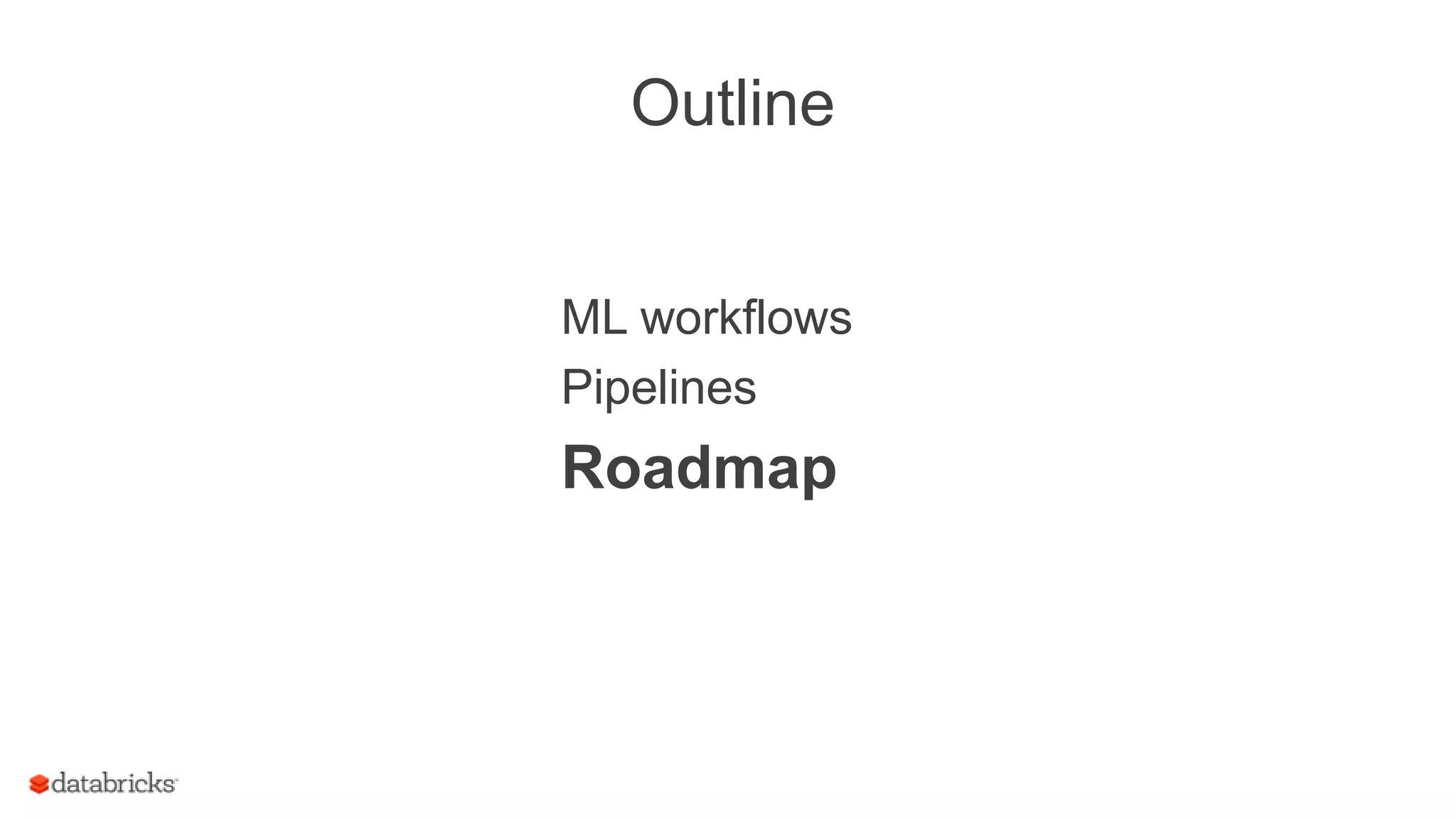

- 33.

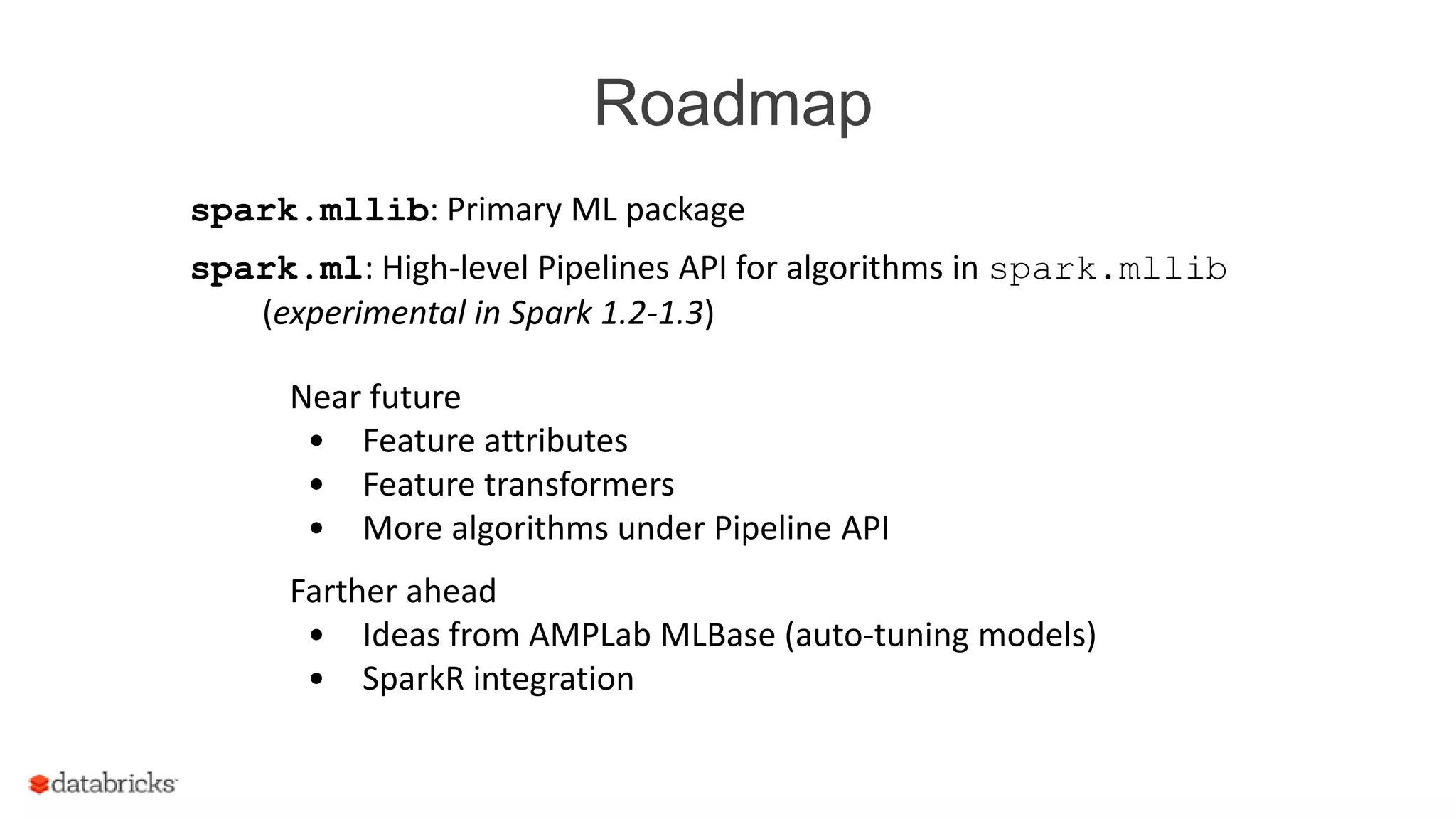

- 34. Roadmap spark.mllib: Primary MLpackage spark.ml: High-level Pipelines API for algorithms in spark.mllib (experimental in Spark 1.2-1.3) Near future • Feature attributes • Feature transformers • More algorithms under Pipeline API Farther ahead • Ideas from AMPLab MLBase (auto-tuning models) • SparkR integration
- 35. Thank you! Outline • MLworkflows • Pipelines • DataFrame • Abstractions • Parameter tuning • Roadmap Spark documentation http://spark.apache.org/ Pipelines blog post https://databricks.com/blog/2015/01/07
Editor's Notes
- #3 Contributions estimated from github commit logs, with some effort to de-duplicate entities.
- #7 Dataset source: http://kdd.ics.uci.edu/databases/20newsgroups/20newsgroups.html *Data from UCI KDD Archive, originally donated to archive by Tom Mitchell (CMU).
- #9 Handling multiple RDDs and data types Split loaded data into featuresRDD, labelsRDD Transform featuresRDD words RDD feature vector RDD Zip labels with feature vector to create final RDD
- #10 It is possible for programmers to abstract workflows by putting their workflows into methods or callable scripts. However, that makes it hard to do exploratory work or do rapid iterative tweaking-and-testing of workflows.
- #11 Feature extraction in particular can be long and complicated, and using the same workflow is vital.
- #12 Parameter tuning is doable in essentially any ML library, but it is often done by hand and involves a lot of repetitive but difficult-to-abstract code.
- #13 This API shipped with Spark 1.2 and 1.3 but is still experimental.
- #16 SchemaRDD + DSL (SchemaRDD is now called DataFrame, mentioned in Michael’s talk earlier in the day) Introduced in Spark 1.3 Integrates with pandas dataframes Catalyst optimizer handles column materialization Other: built-in data sources & 3rd-party extensions optimizations & codegen APIs for Python, Java & Scala (+R in dev)
- #20 Columns which are not needed do not need to be materialized, so there is almost no penalty for keeping the columns around for later use. Default transformer behavior is to append columns.
- #31 ----- Meeting Notes (3/18/15 01:56) ----- bad animation
- #33 Easy for users to create their own Transformers and Estimators to plug into Pipelines.
