Apache Spark has become the most active open source Big Data project, and its Machine Learning library MLlib has seen rapid growth in usage. A critical aspect of MLlib and Spark is the ability to scale: the same code used on a laptop can scale to 100’s or 1000’s of machines. This talk will describe ongoing and future efforts to make MLlib even faster and more scalable by integrating with two key initiatives in Spark. The first is Catalyst, the query optimizer underlying DataFrames and Datasets. The second is Tungsten, the project for approaching bare-metal speeds in Spark via memory management, cache-awareness, and code generation. This talk will discuss the goals, the challenges, and the benefits for MLlib users and developers. More generally, we will reflect on the importance of integrating ML with the many other aspects of big data analysis. About MLlib: MLlib is a general Machine Learning library providing many ML algorithms, feature transformers, and tools for model tuning and building workflows. The library benefits from integration with the rest of Apache Spark (SQL, streaming, Graph, core), which facilitates ETL, streaming, and deployment. It is used in both ad hoc analysis and production deployments throughout academia and industry.

1. Foundations for Scaling ML
in Apache Spark
Joseph K. Bradley
August 14, 2016
® ™

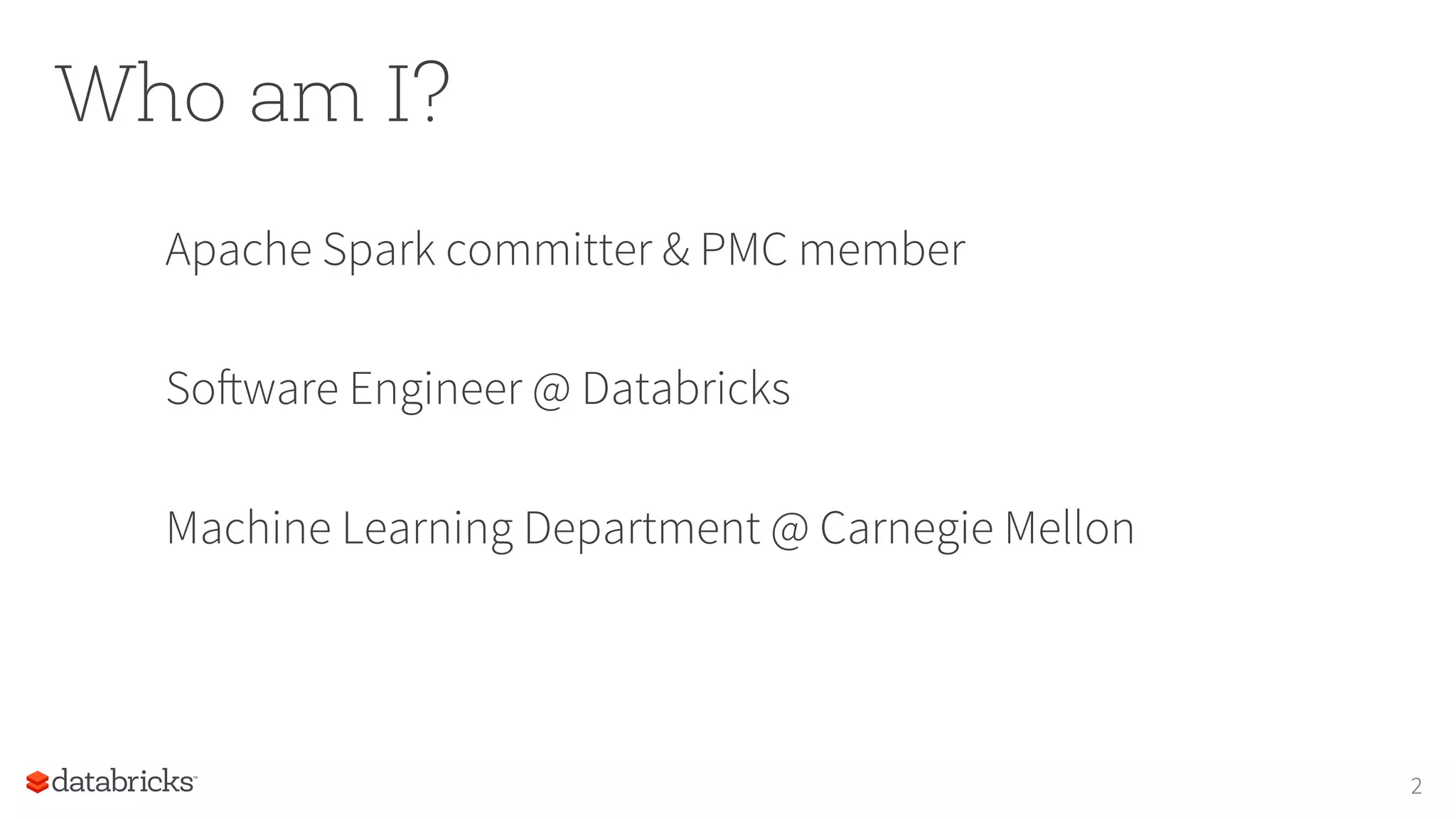

2. Who am I?
Apache Spark committer & PMC member
Software Engineer @ Databricks
Machine Learning Department @ Carnegie Mellon
2

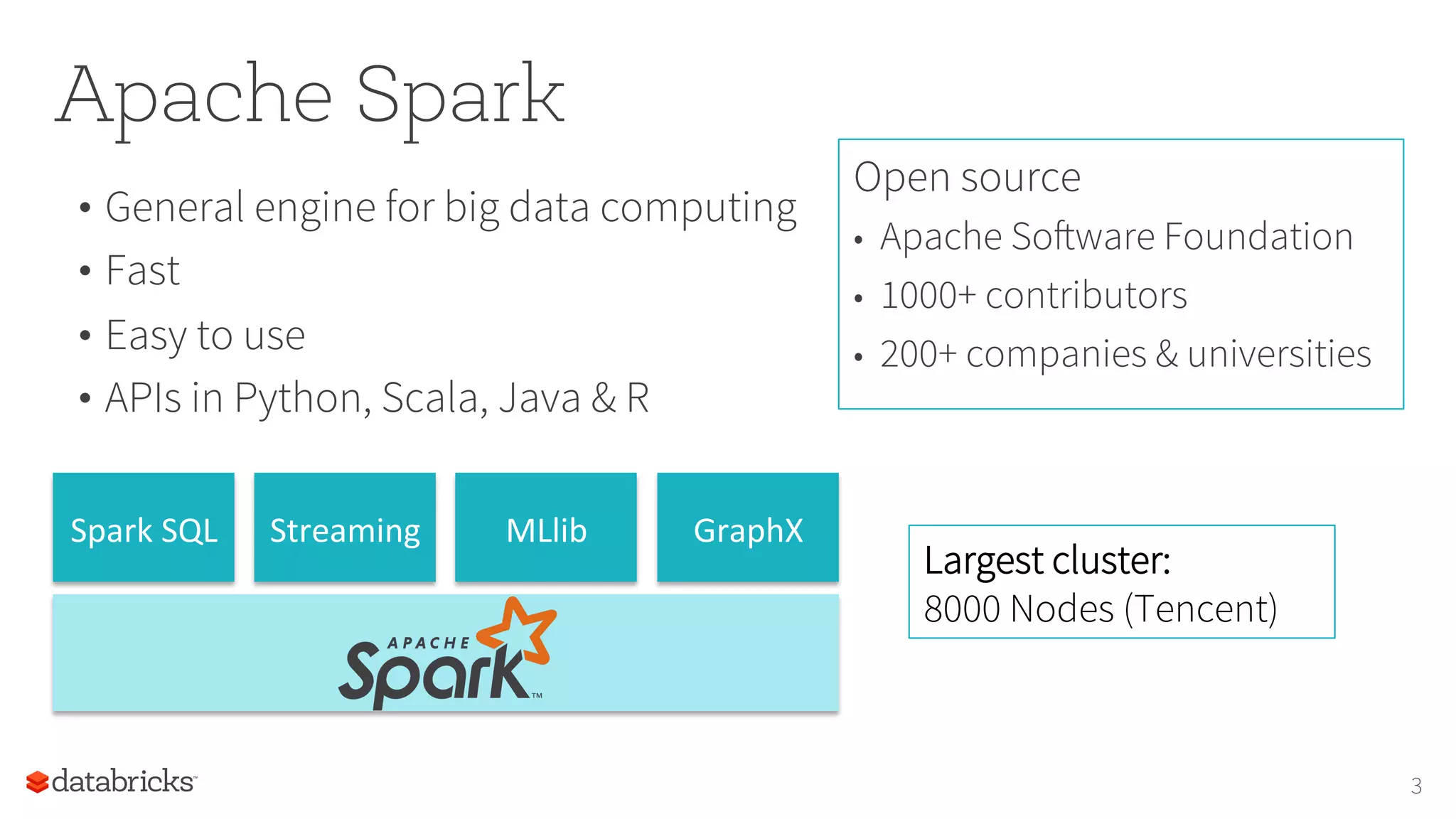

3. • General engine for big data computing
• Fast
• Easy to use
• APIs in Python, Scala, Java & R
3
Apache Spark
Spark SQL Streaming MLlib GraphX
Largest cluster:
8000 Nodes (Tencent)
Open source
• Apache Software Foundation
• 1000+ contributors
• 200+ companies & universities

4. NOTABLE USERS THAT PRESENTED AT SPARK SUMMIT 2015 SAN
FRANCISCO
Source: Slide 5 of Spark Community Update

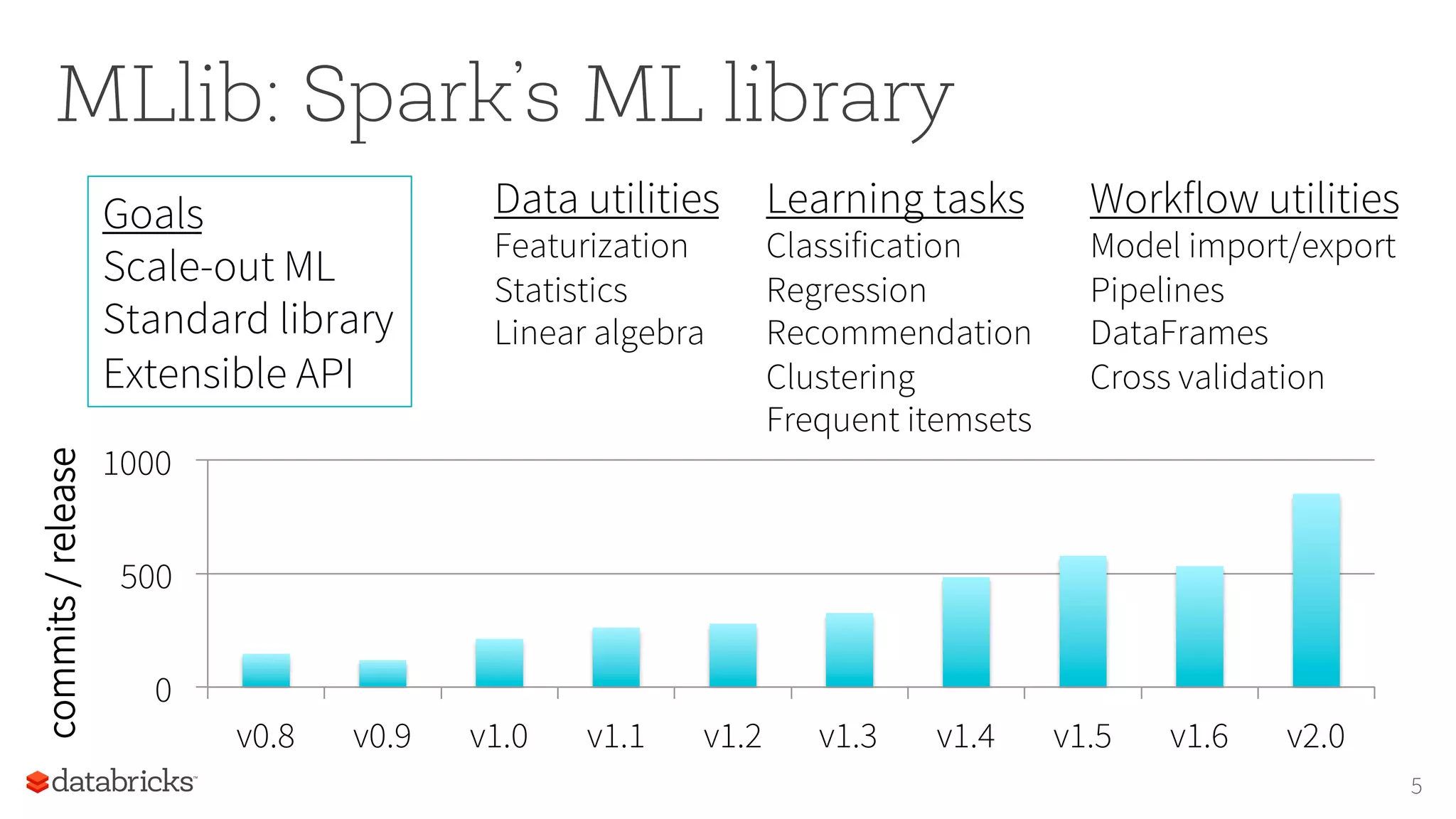

5. MLlib: Spark’s ML library
5
0
500
1000
v0.8 v0.9 v1.0 v1.1 v1.2 v1.3 v1.4 v1.5 v1.6 v2.0
commits/release
Learning tasks
Classification
Regression
Recommendation
Clustering
Frequent itemsets
Data utilities
Featurization
Statistics
Linear algebra
Workflow utilities
Model import/export
Pipelines
DataFrames
Cross validation
Goals
Scale-out ML
Standard library
Extensible API

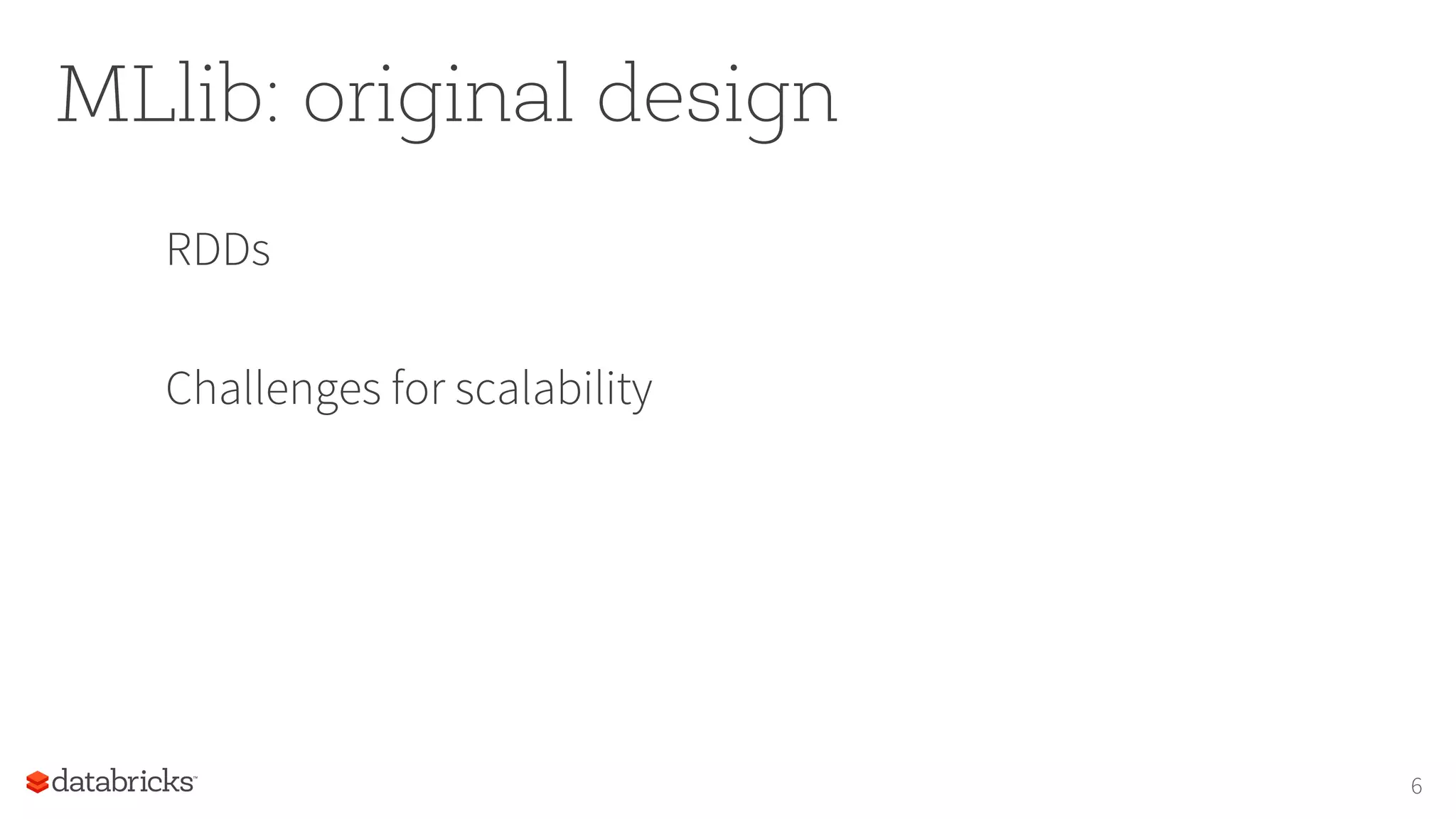

6. MLlib: original design
RDDs
Challenges for scalability
6

7. Resilient Distributed Datasets (RDDs)
7
Map Reduce
master

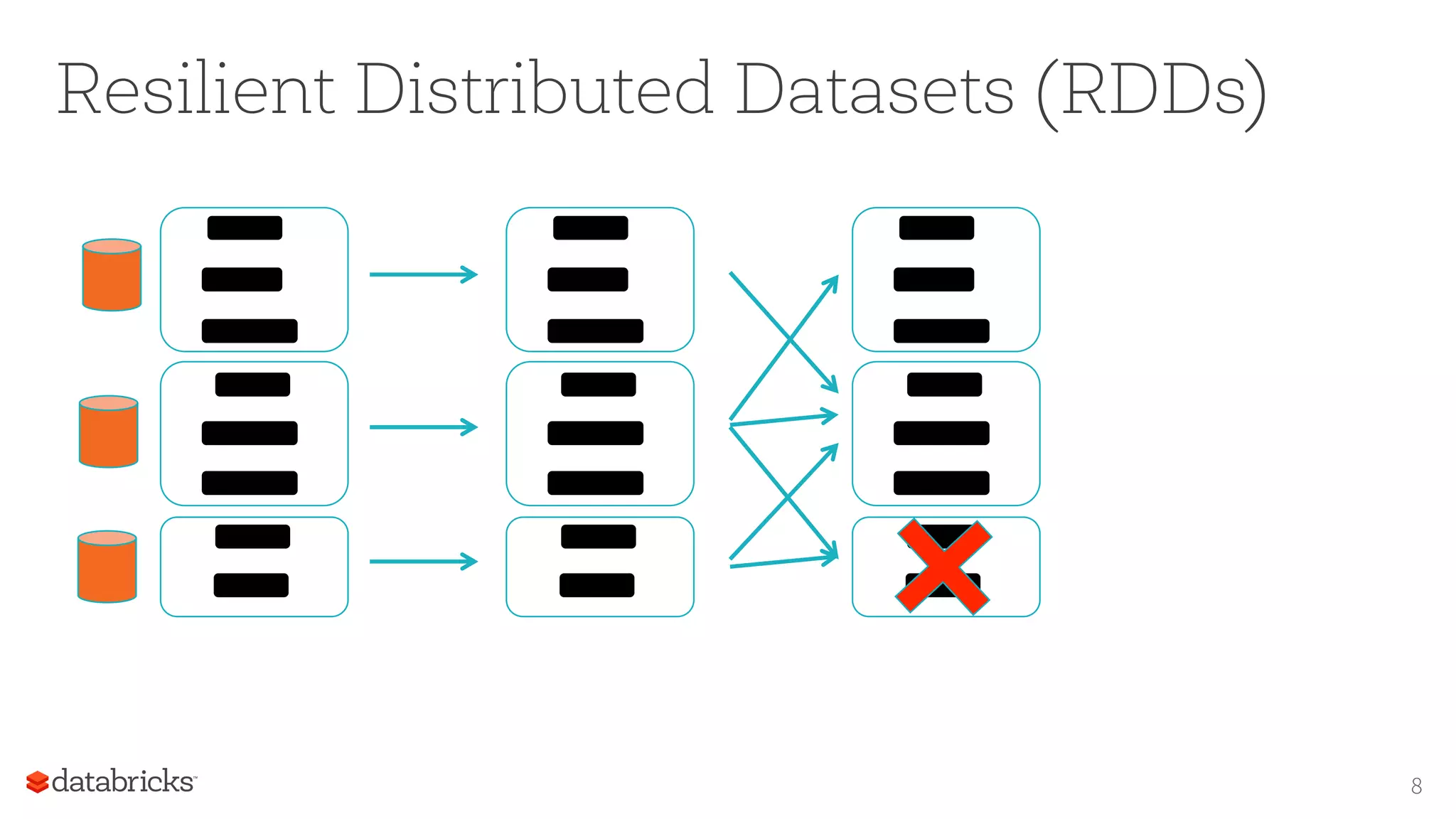

8. Resilient Distributed Datasets (RDDs)
8

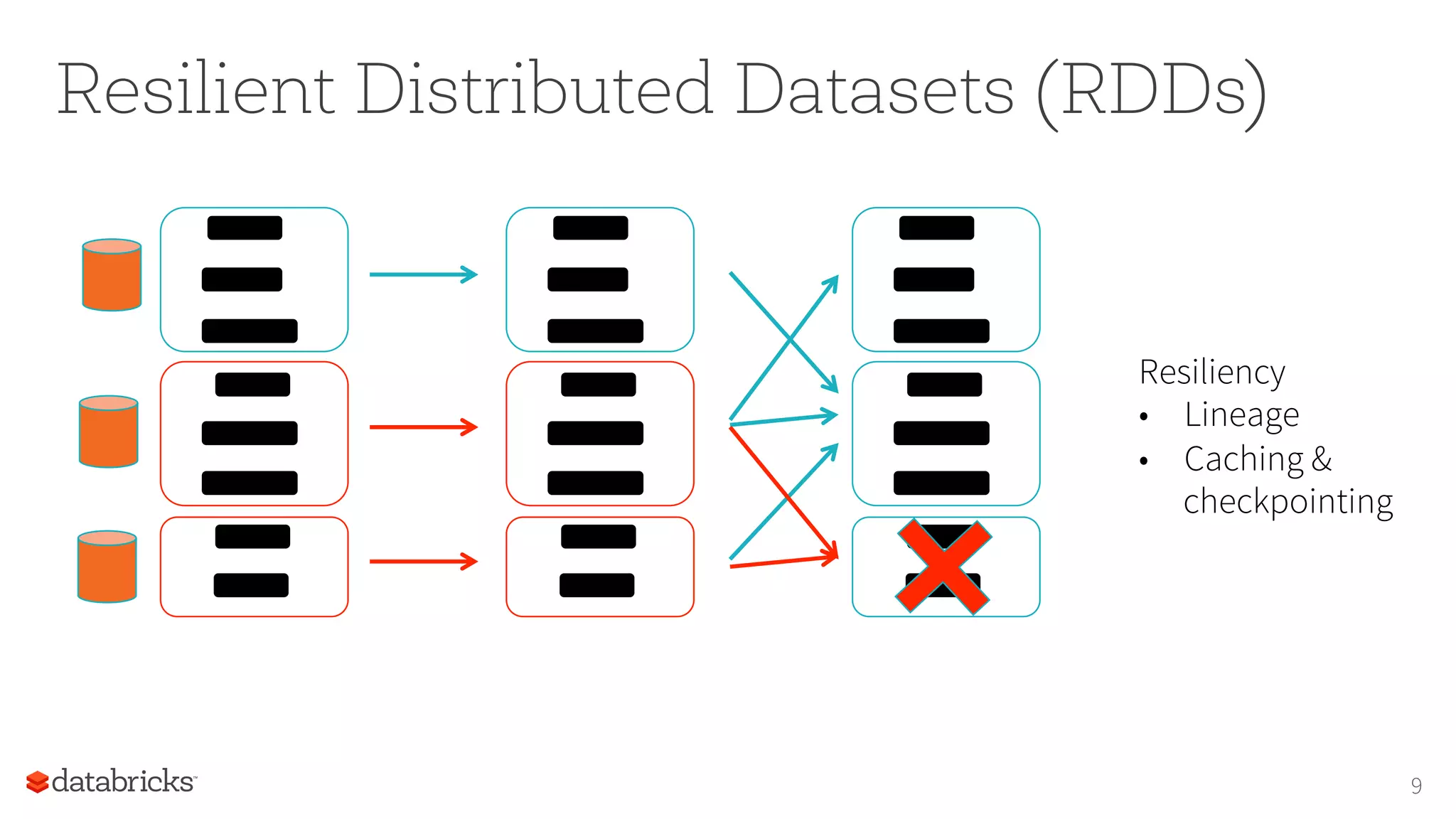

9. Resilient Distributed Datasets (RDDs)
9
Resiliency
• Lineage
• Caching &
checkpointing

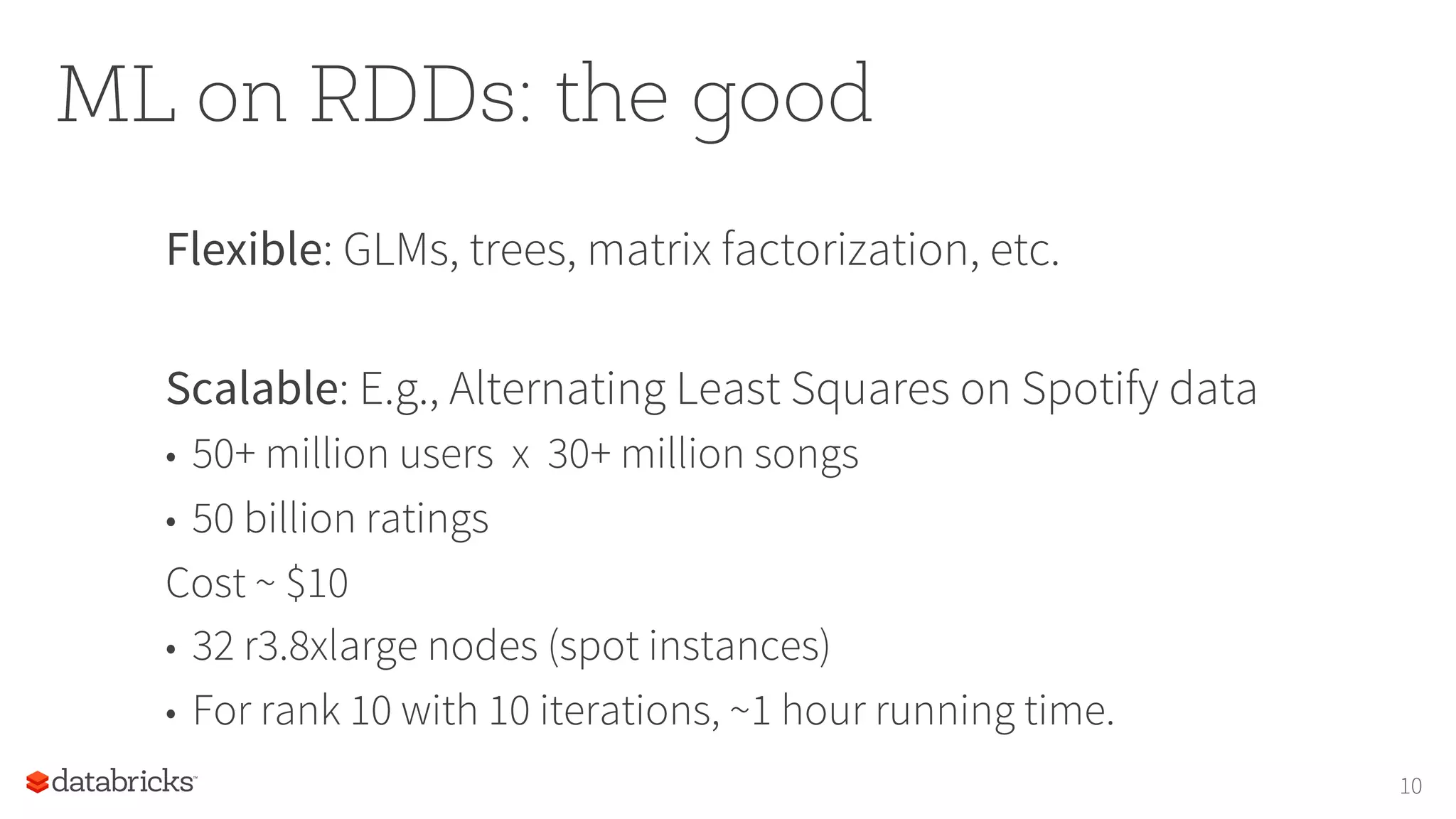

10. ML on RDDs: the good
Flexible: GLMs, trees, matrix factorization, etc.
Scalable: E.g., Alternating Least Squares on Spotify data
• 50+ million users x 30+ million songs
• 50 billion ratings
Cost ~ $10
• 32 r3.8xlarge nodes (spot instances)
• For rank 10 with 10 iterations, ~1 hour running time.
10

11. ML on RDDs: the challenges
Partitioning
• Data partitioning impacts performance.
• E.g., for Alternating Least Squares
Lineage
• Iterative algorithms à long RDD lineage
• Solvable via careful caching and checkpointing
JVM
• Garbage collection (GC)
• Boxed types
11

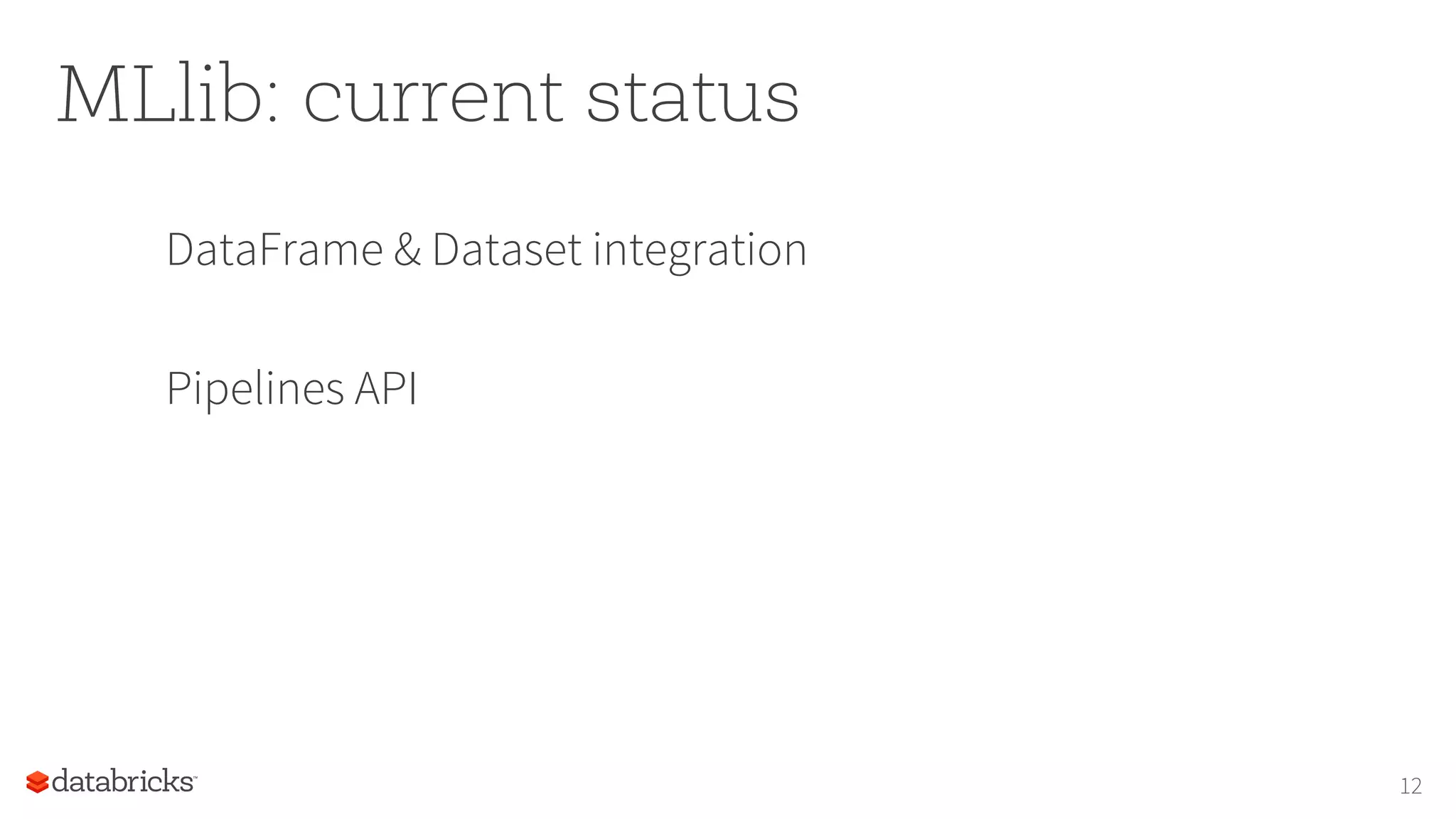

12. MLlib: current status
DataFrame & Dataset integration
Pipelines API
12

13. Spark DataFrames & Datasets
13
dept age name
Bio 48 H Smith
CS 34 A Turing
Bio 43 B Jones
Chem 61 M Kennedy
Data grouped into
named columns
DSL for common tasks
• Project, filter, aggregate, join, …
• 100+ functions available
• User-Defined Functions (UDFs)
data.groupBy(“dept”).avg(“age”)
Datasets: Strongly typed DataFrames

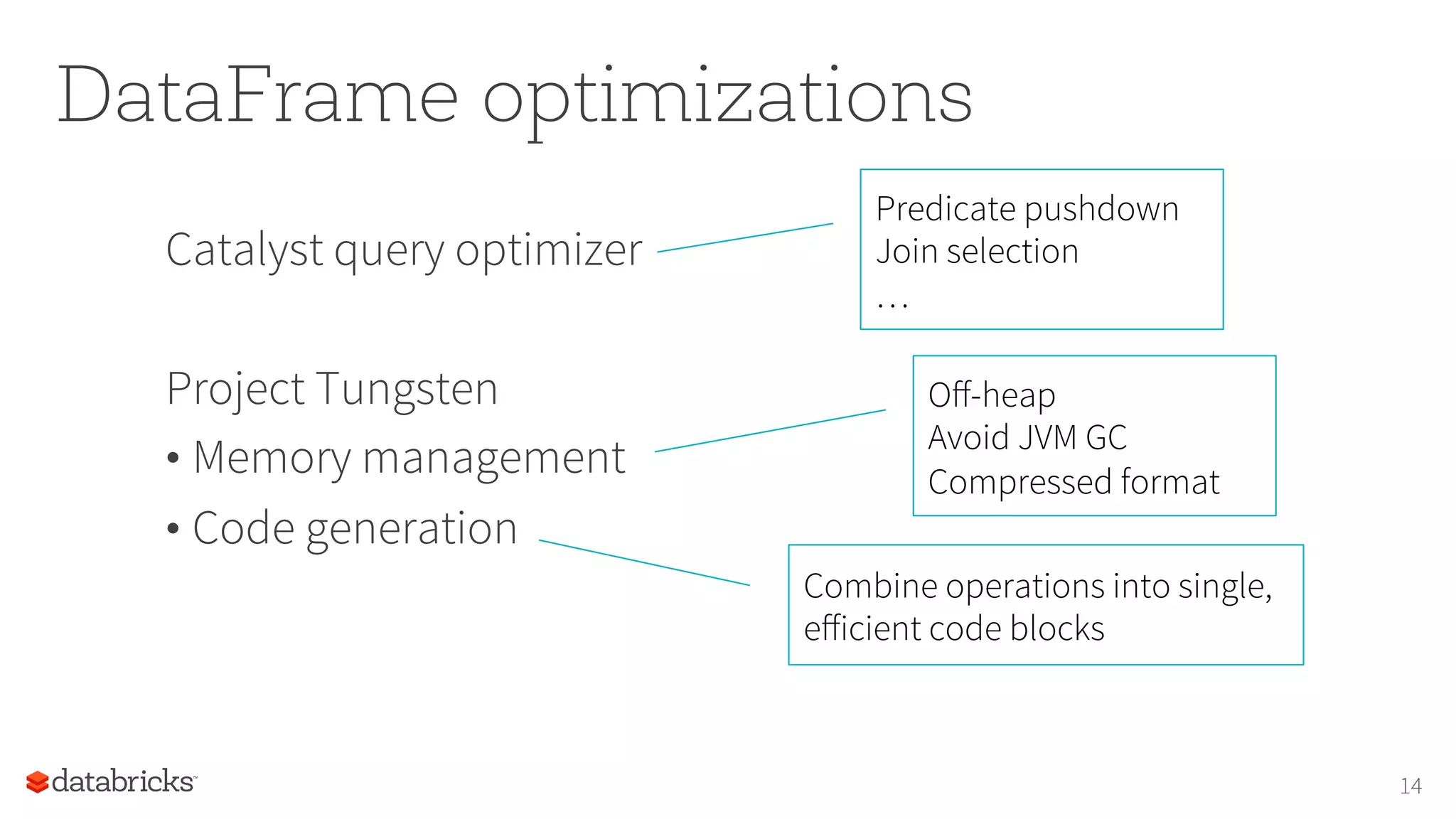

14. DataFrame optimizations
Catalyst query optimizer
Project Tungsten
• Memory management
• Code generation
14
Predicate pushdown
Join selection
…
Off-heap
Avoid JVM GC
Compressed format
Combine operations into single,
efficient code blocks

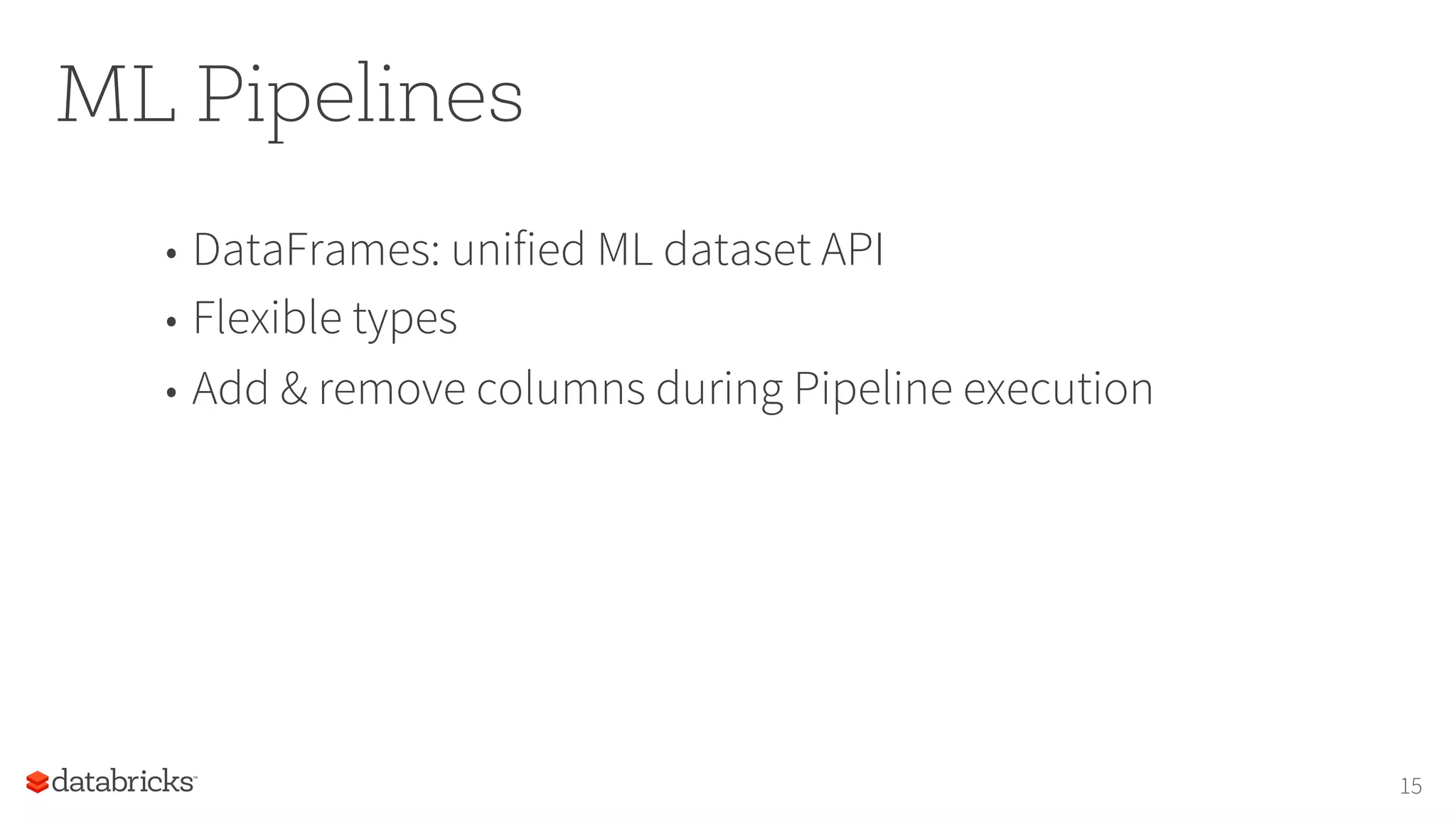

15. ML Pipelines
• DataFrames: unified ML dataset API
• Flexible types
• Add & remove columns during Pipeline execution
15

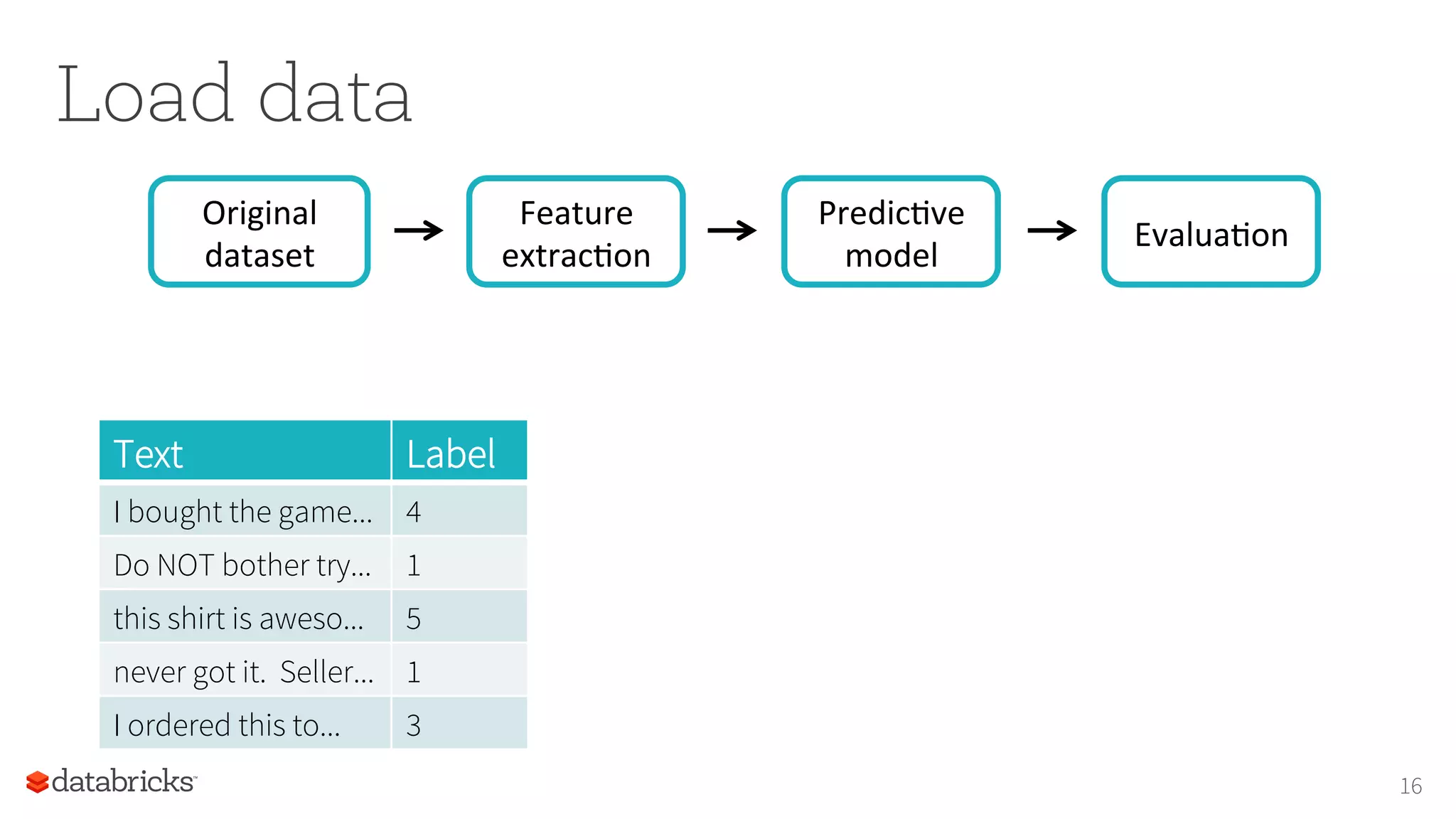

16. Load data
Feature
extracIon
Original
dataset
16
PredicIve
model
EvaluaIon
Text Label
I bought the game... 4
Do NOT bother try... 1
this shirt is aweso... 5
never got it. Seller... 1
I ordered this to... 3

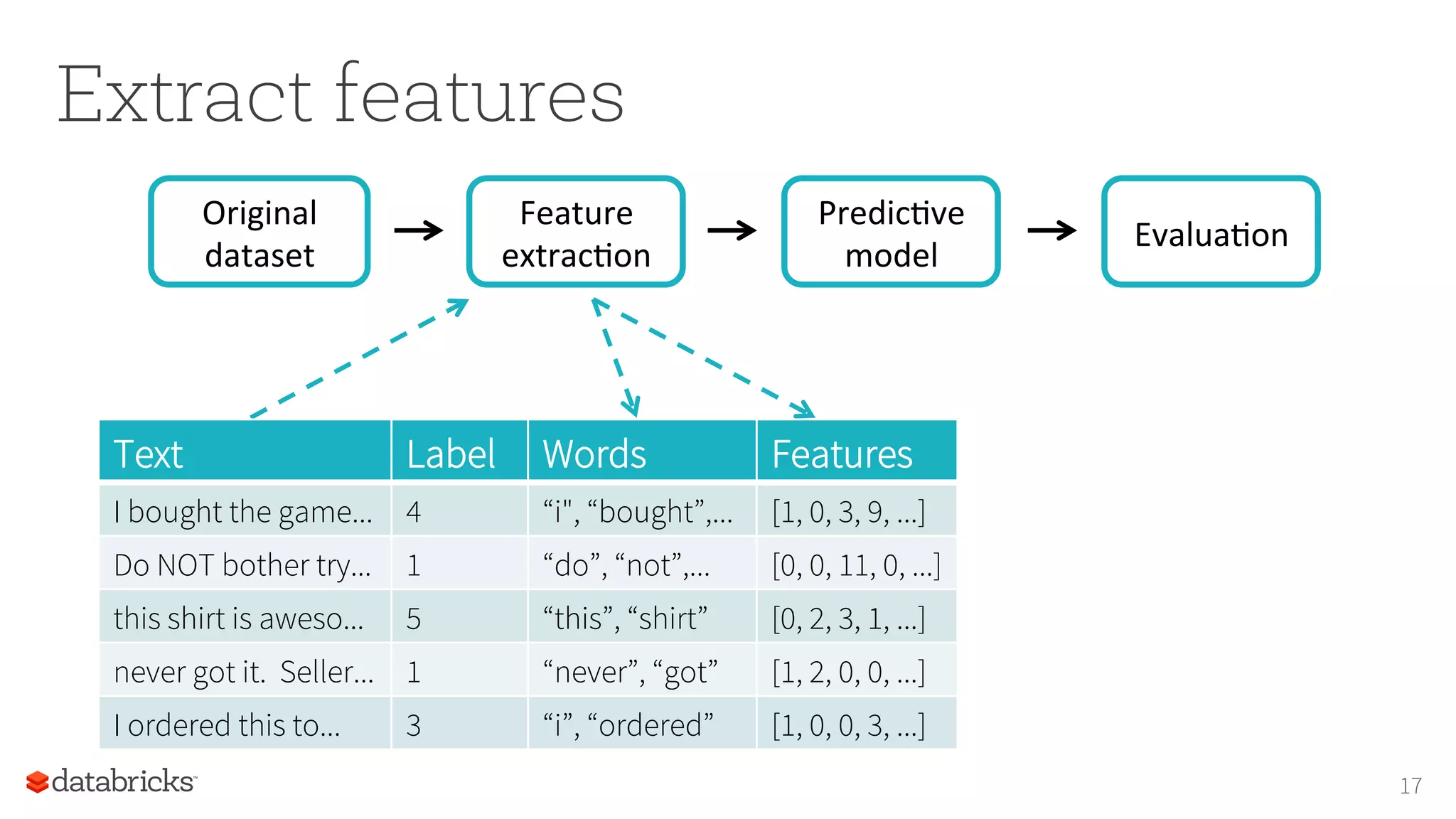

17. Extract features
Feature
extracIon
Original
dataset
17
PredicIve
model
EvaluaIon
Text Label Words Features
I bought the game... 4 “i", “bought”,... [1, 0, 3, 9, ...]
Do NOT bother try... 1 “do”, “not”,... [0, 0, 11, 0, ...]
this shirt is aweso... 5 “this”, “shirt” [0, 2, 3, 1, ...]
never got it. Seller... 1 “never”, “got” [1, 2, 0, 0, ...]
I ordered this to... 3 “i”, “ordered” [1, 0, 0, 3, ...]

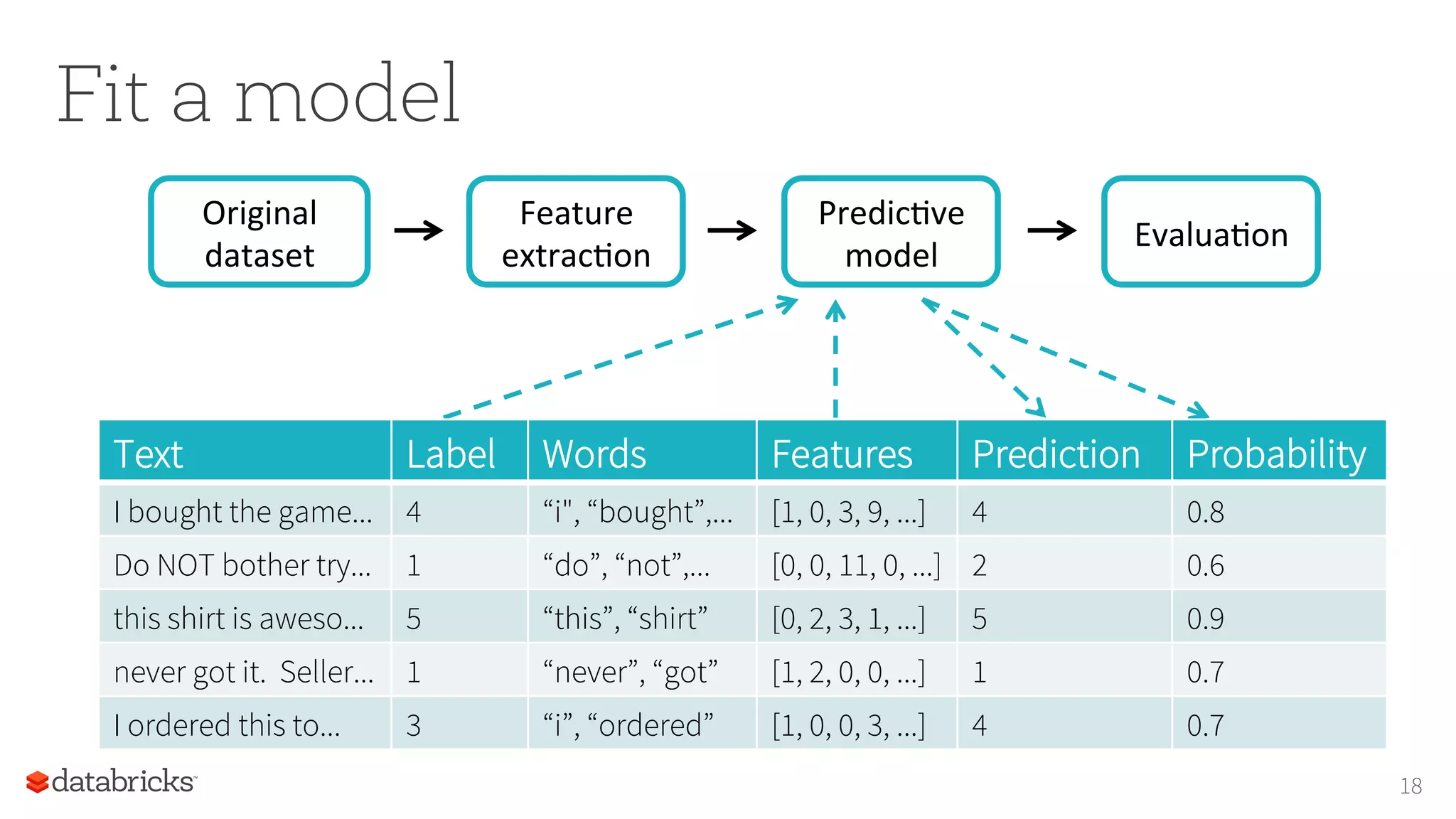

18. Fit a model
Feature
extracIon
Original
dataset
18
PredicIve
model
EvaluaIon
Text Label Words Features Prediction Probability
I bought the game... 4 “i", “bought”,... [1, 0, 3, 9, ...] 4 0.8
Do NOT bother try... 1 “do”, “not”,... [0, 0, 11, 0, ...] 2 0.6
this shirt is aweso... 5 “this”, “shirt” [0, 2, 3, 1, ...] 5 0.9
never got it. Seller... 1 “never”, “got” [1, 2, 0, 0, ...] 1 0.7
I ordered this to... 3 “i”, “ordered” [1, 0, 0, 3, ...] 4 0.7

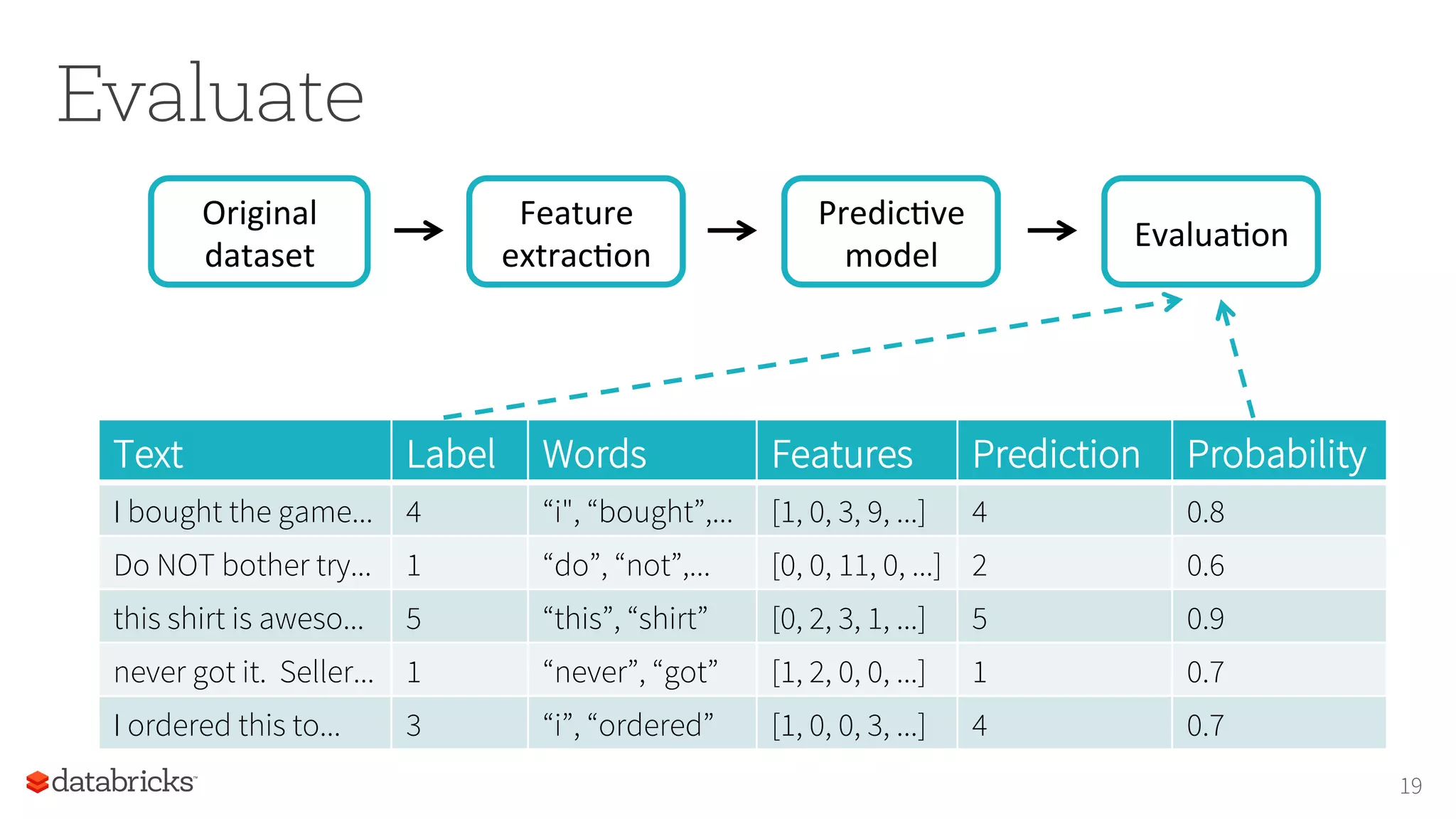

19. Evaluate
Feature
extracIon
Original
dataset
19
PredicIve
model
EvaluaIon
Text Label Words Features Prediction Probability
I bought the game... 4 “i", “bought”,... [1, 0, 3, 9, ...] 4 0.8
Do NOT bother try... 1 “do”, “not”,... [0, 0, 11, 0, ...] 2 0.6
this shirt is aweso... 5 “this”, “shirt” [0, 2, 3, 1, ...] 5 0.9
never got it. Seller... 1 “never”, “got” [1, 2, 0, 0, ...] 1 0.7
I ordered this to... 3 “i”, “ordered” [1, 0, 0, 3, ...] 4 0.7

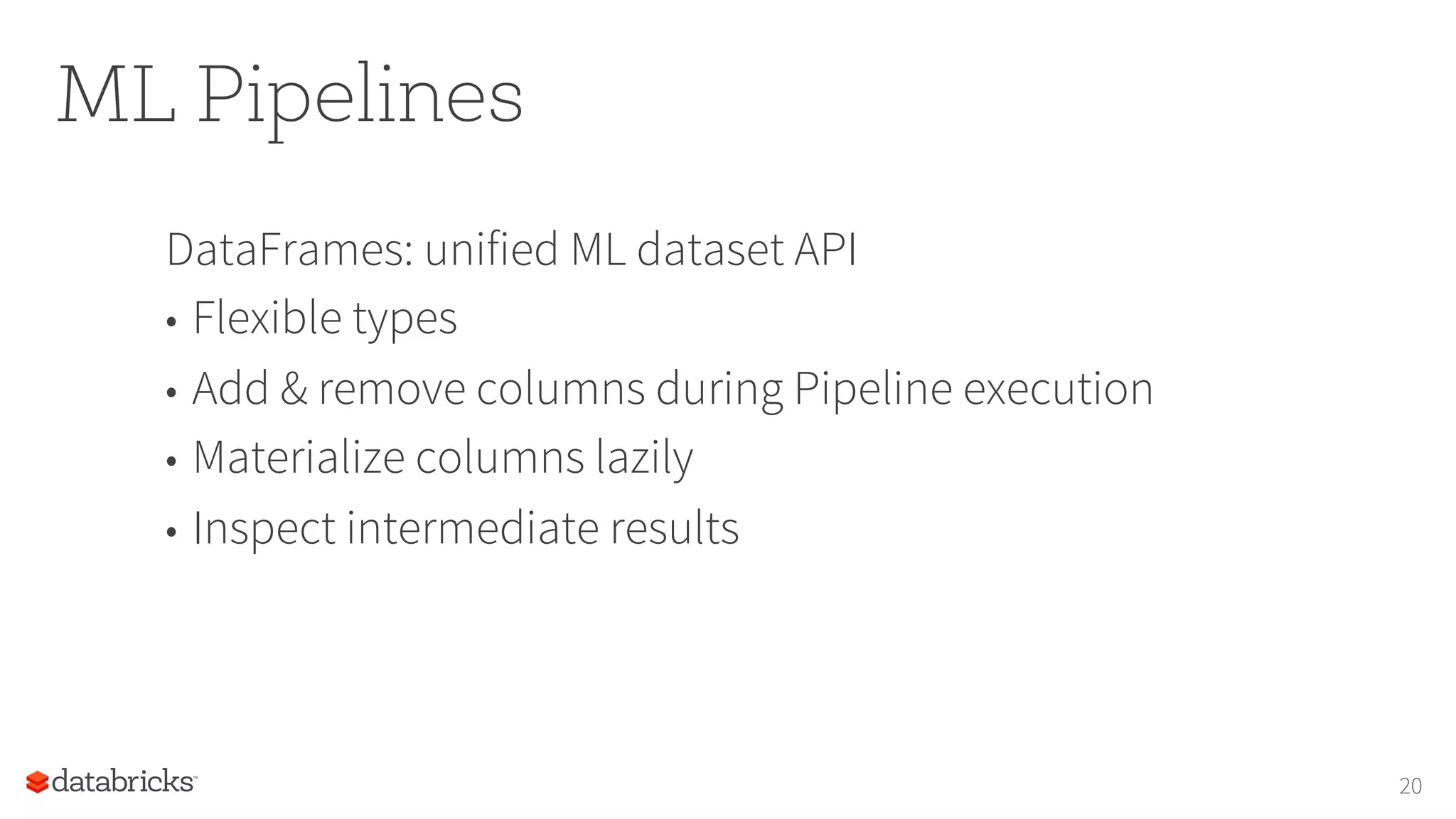

20. ML Pipelines
DataFrames: unified ML dataset API
• Flexible types
• Add & remove columns during Pipeline execution
• Materialize columns lazily
• Inspect intermediate results
20

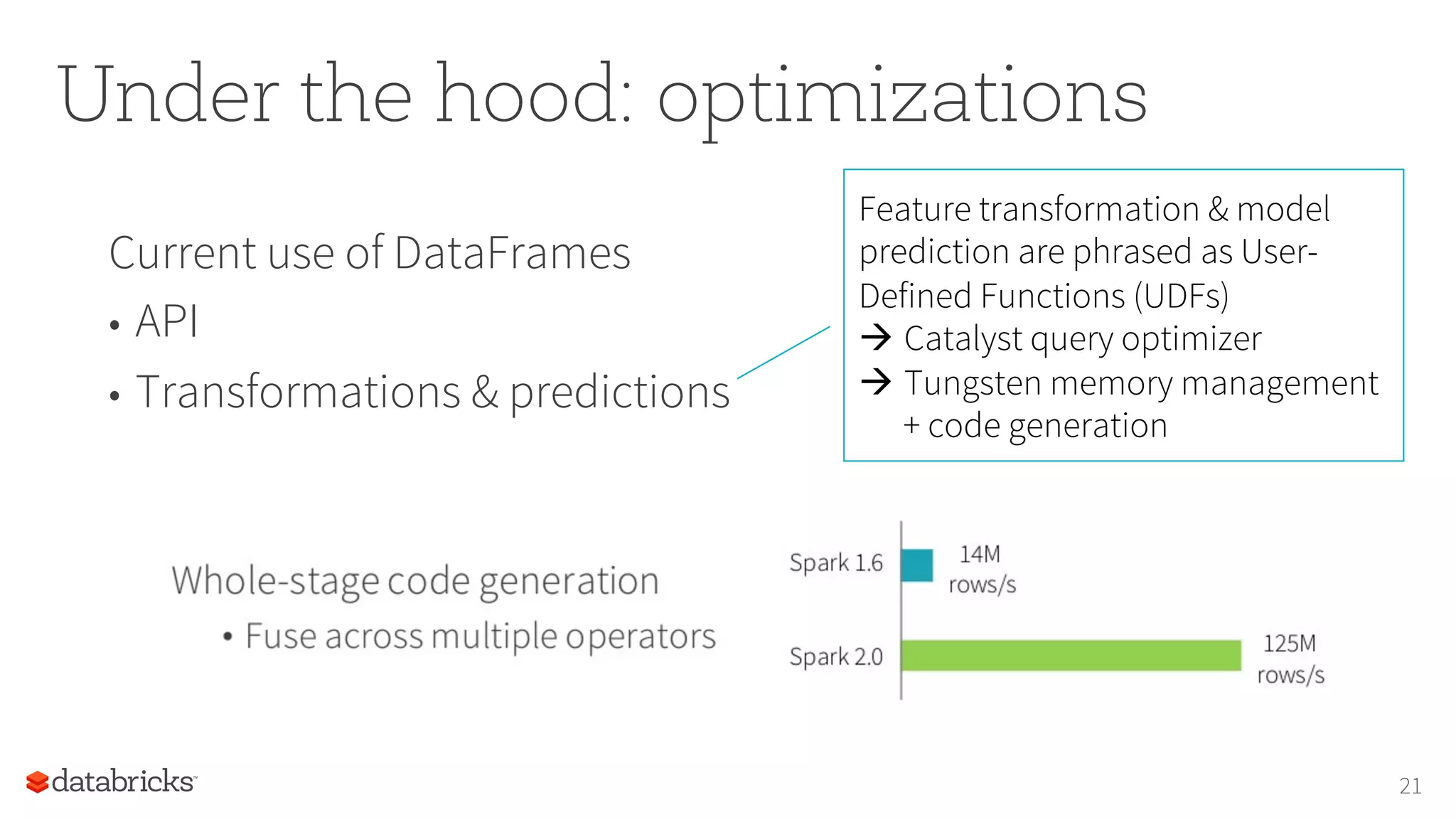

21. Under the hood: optimizations
Current use of DataFrames
• API
• Transformations & predictions
21
Feature transformation & model
prediction are phrased as User-
Defined Functions (UDFs)
à Catalyst query optimizer
à Tungsten memory management
+ code generation

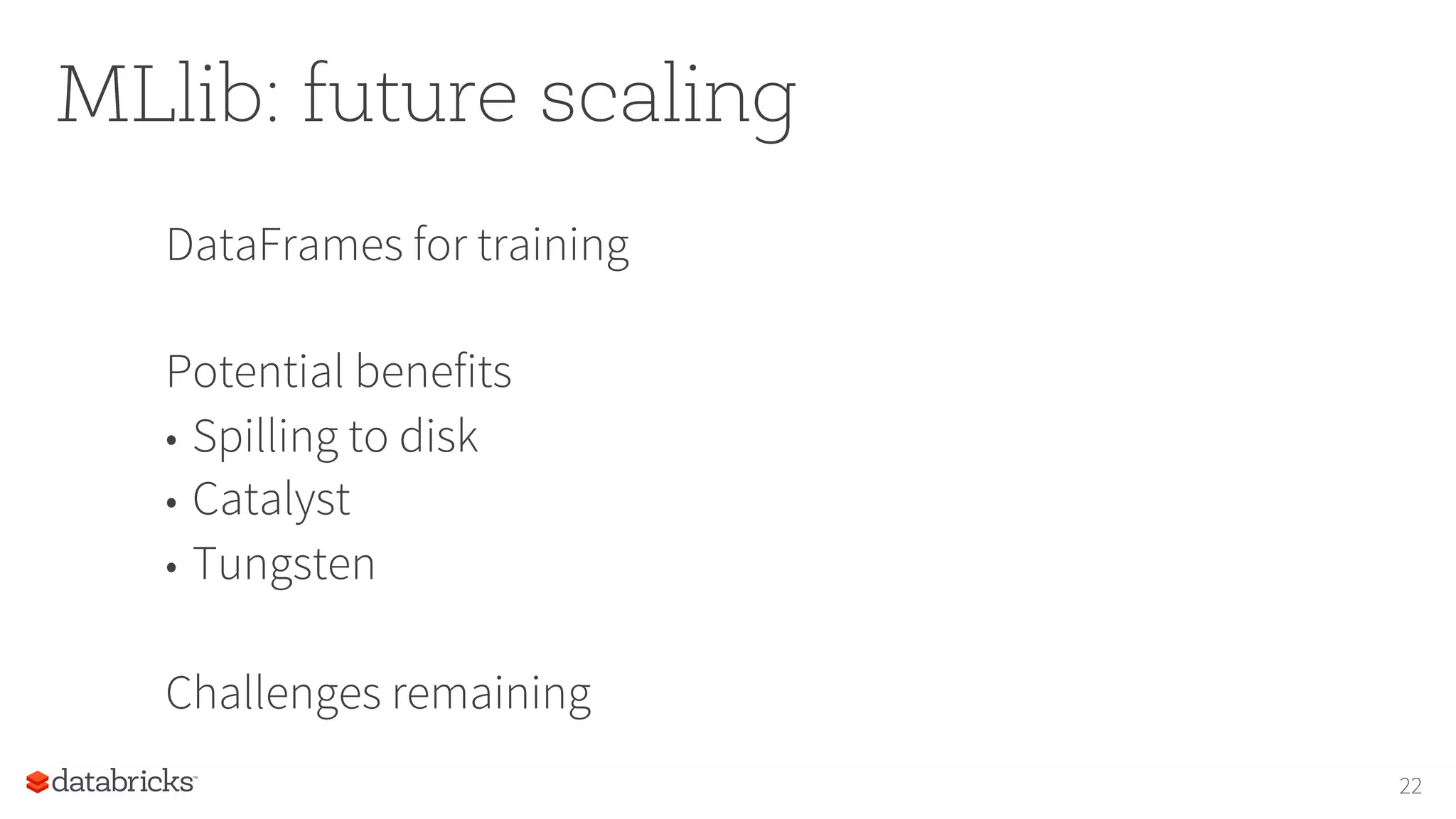

22. MLlib: future scaling
DataFrames for training
Potential benefits
• Spilling to disk
• Catalyst
• Tungsten
Challenges remaining
22

23. Implementing ML on DataFrames
23
Map Reduce
master

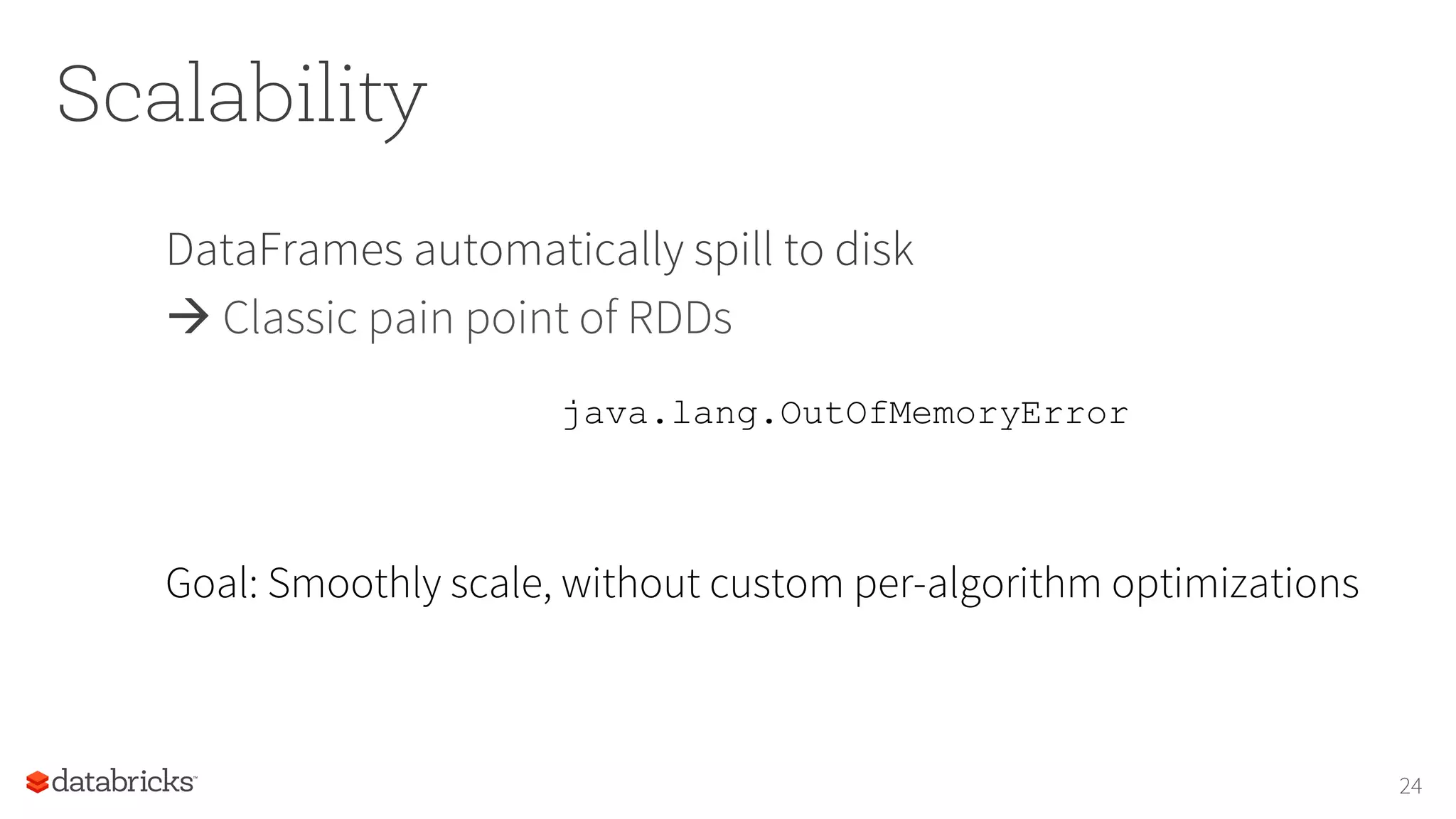

24. Scalability
DataFrames automatically spill to disk
à Classic pain point of RDDs
24
java.lang.OutOfMemoryError
Goal: Smoothly scale, without custom per-algorithm optimizations

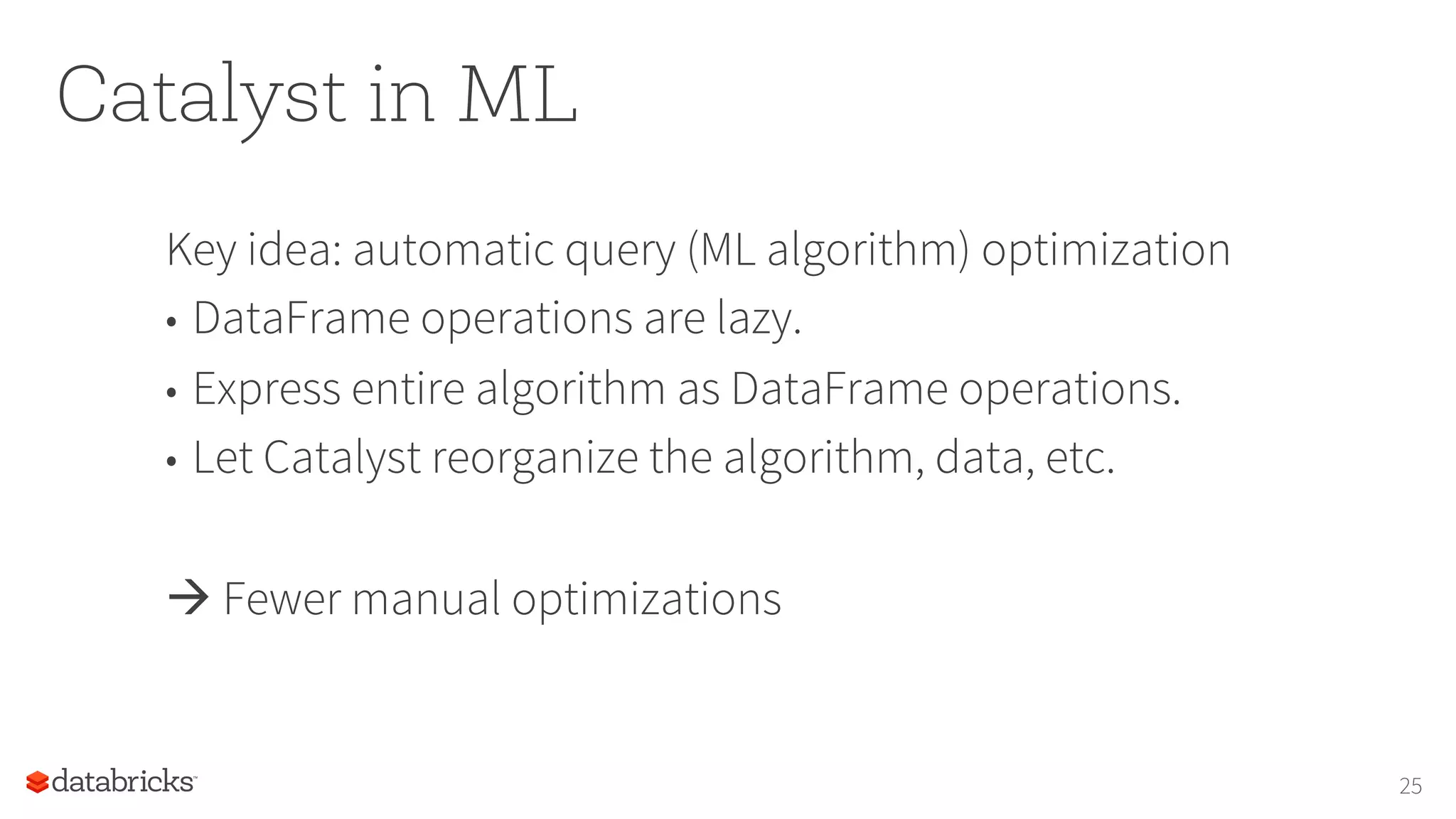

25. Catalyst in ML
Key idea: automatic query (ML algorithm) optimization
• DataFrame operations are lazy.
• Express entire algorithm as DataFrame operations.
• Let Catalyst reorganize the algorithm, data, etc.
à Fewer manual optimizations
25

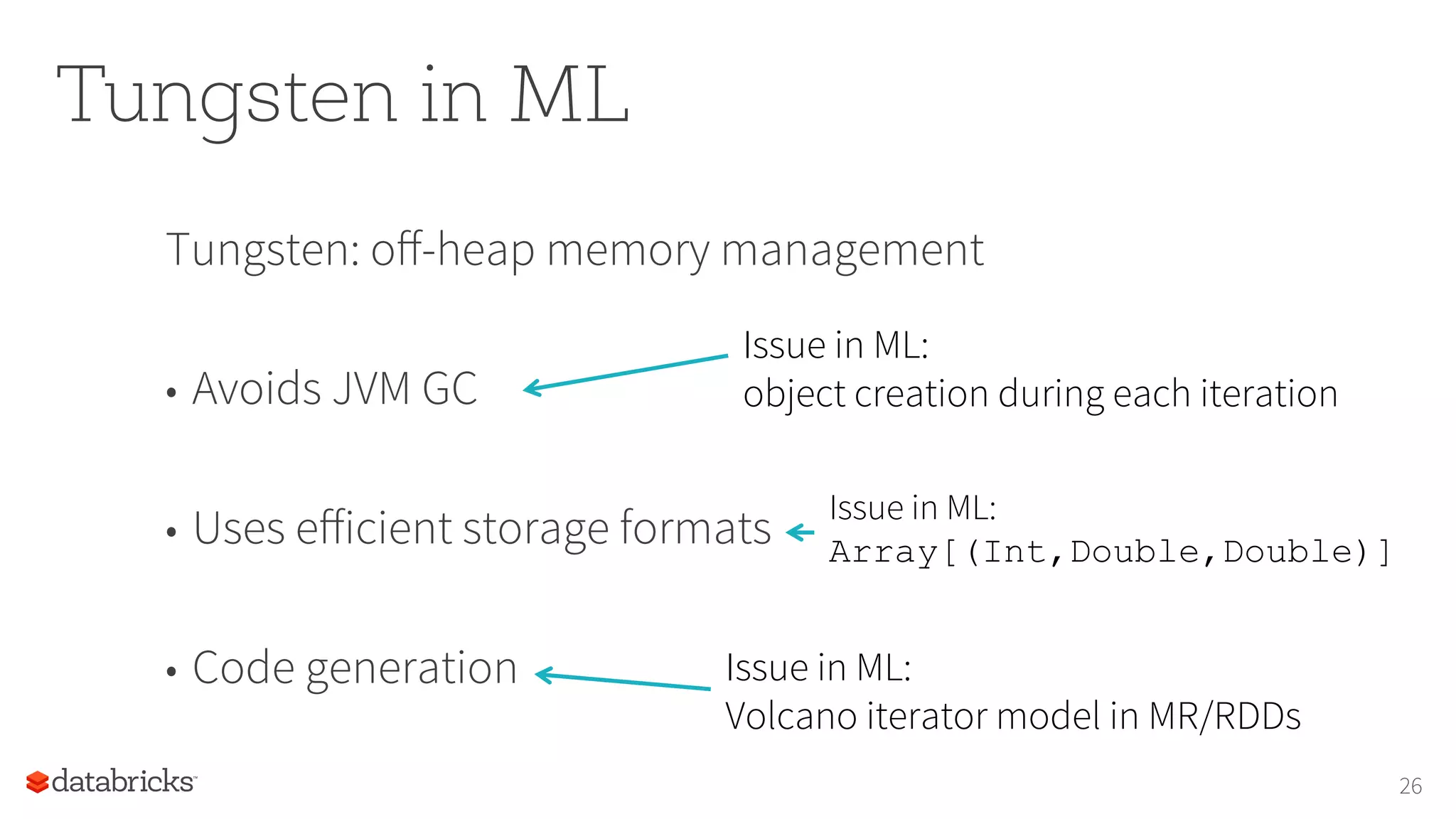

26. Tungsten in ML
Tungsten: off-heap memory management
• Avoids JVM GC
• Uses efficient storage formats
• Code generation
26
Issue in ML:
object creation during each iteration
Issue in ML:
Array[(Int,Double,Double)]
Issue in ML:
Volcano iterator model in MR/RDDs

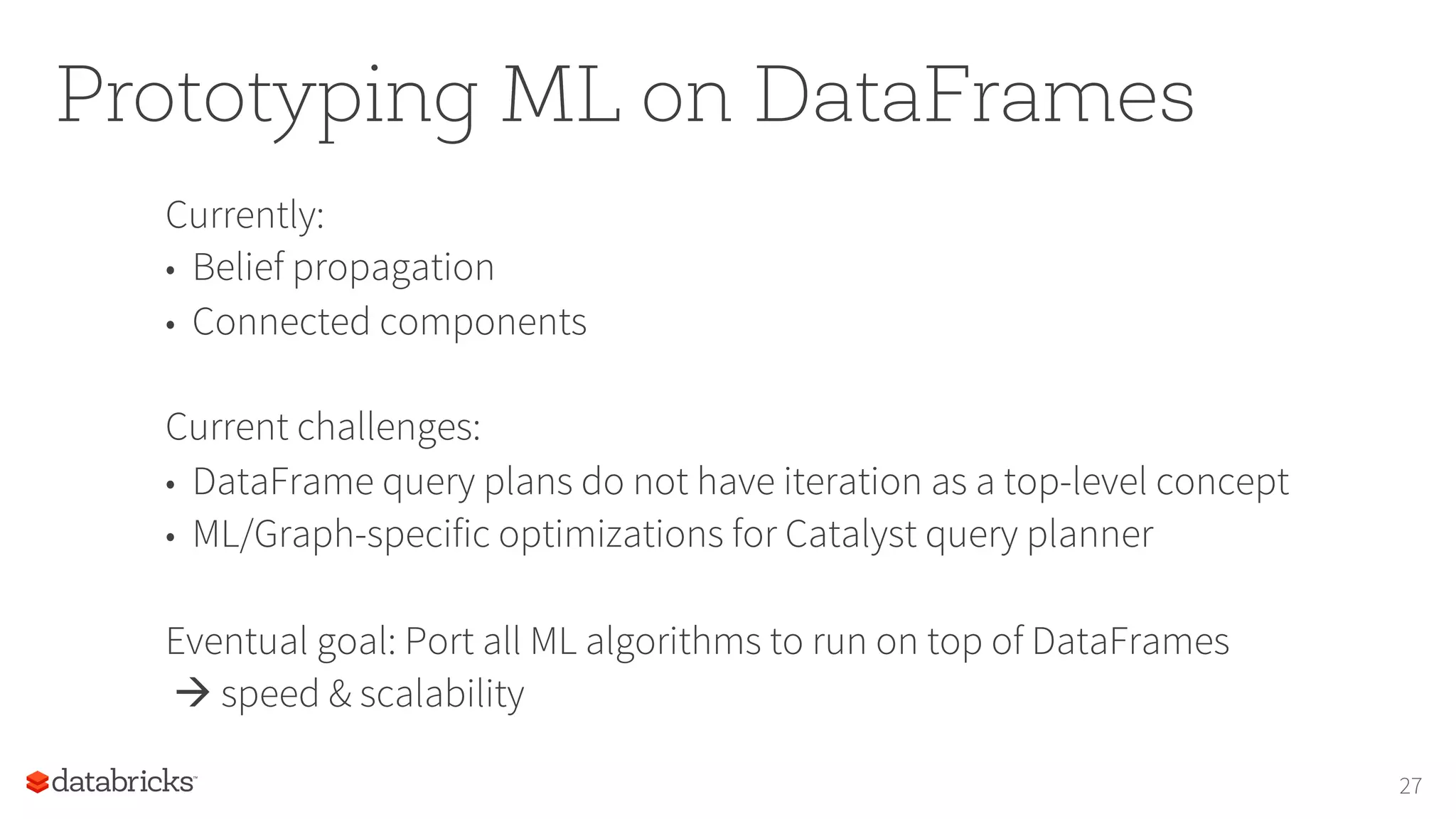

27. Prototyping ML on DataFrames
Currently:
• Belief propagation
• Connected components
Current challenges:
• DataFrame query plans do not have iteration as a top-level concept
• ML/Graph-specific optimizations for Catalyst query planner
Eventual goal: Port all ML algorithms to run on top of DataFrames
à speed & scalability
27

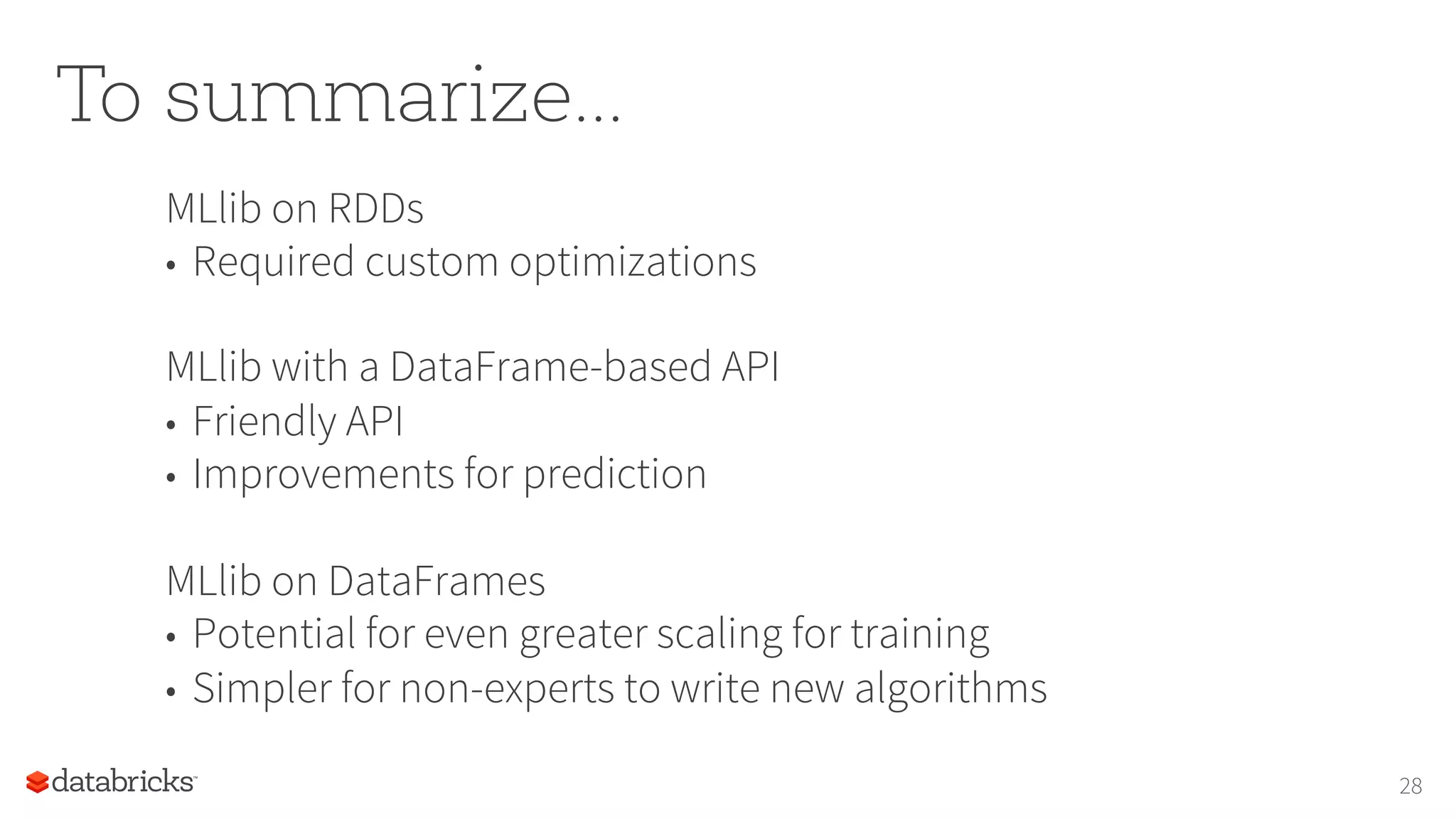

28. To summarize...
MLlib on RDDs
• Required custom optimizations
MLlib with a DataFrame-based API
• Friendly API
• Improvements for prediction
MLlib on DataFrames
• Potential for even greater scaling for training
• Simpler for non-experts to write new algorithms
28

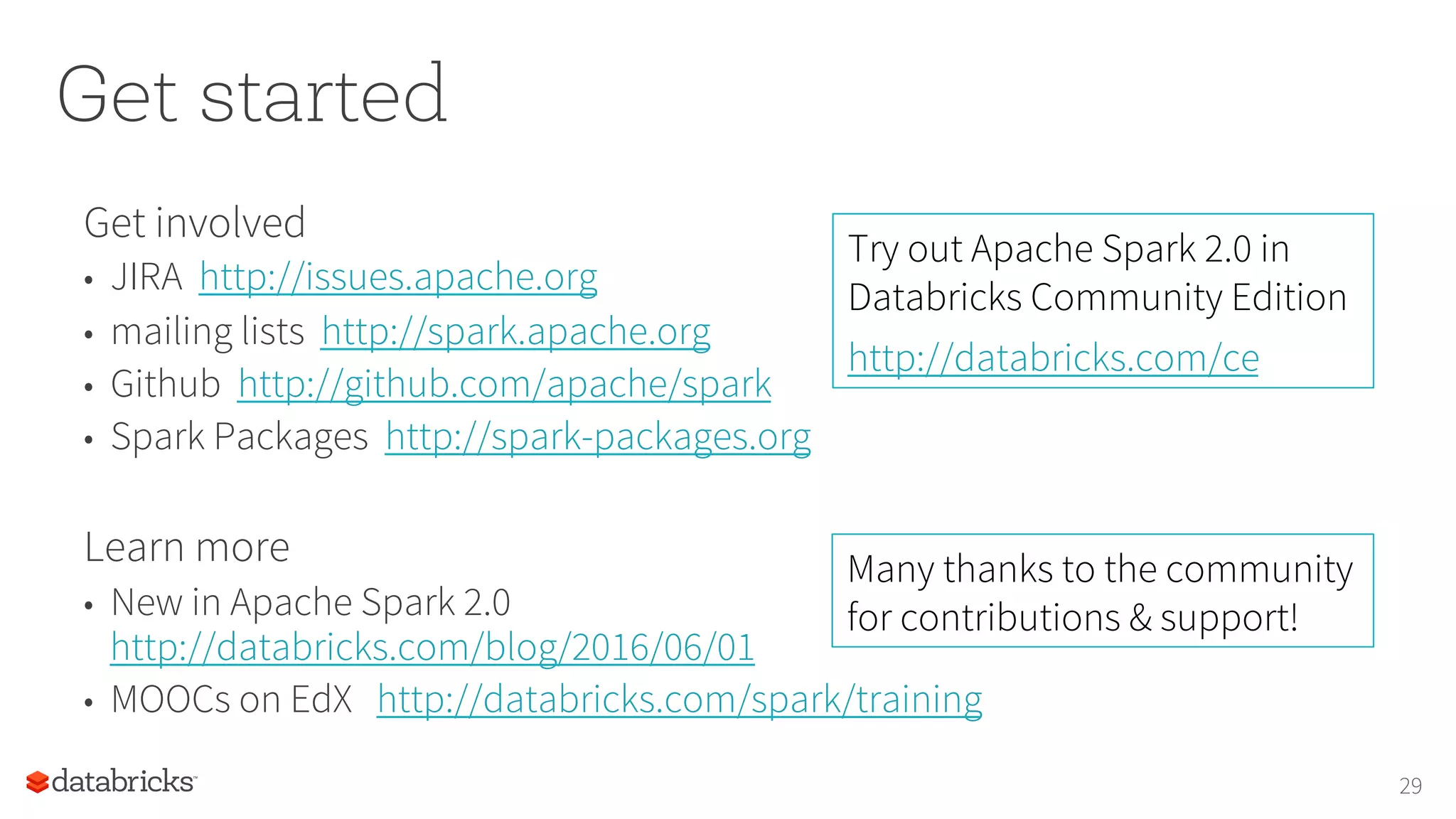

29. Get started
Get involved
• JIRA http://issues.apache.org
• mailing lists http://spark.apache.org
• Github http://github.com/apache/spark
• Spark Packages http://spark-packages.org
Learn more
• New in Apache Spark 2.0
http://databricks.com/blog/2016/06/01
• MOOCs on EdX http://databricks.com/spark/training
29
Try out Apache Spark 2.0 in
Databricks Community Edition
http://databricks.com/ce
Many thanks to the community
for contributions & support!

30. Databricks
Founded by the creators of Apache Spark
Offers hosted service
• Spark on EC2
• Notebooks
• Visualizations
• Cluster management
• Scheduled jobs
30
We’re hiring!

31. Thank you!
Twitter: @jkbatcmu
