1. Android Application Development
Lecture 3: Getting Active Through
Activities and Intents
1. Android App Anatomy
2. What is Activity
3. Activity Lifecycle
4. Handling Runtime Changes
5. Multiple Activities
7. Activity Stack
8. Intents
Ahsanul Karim
karim.ahsanul@gmail.com
http://droidtraining.wordpress.com

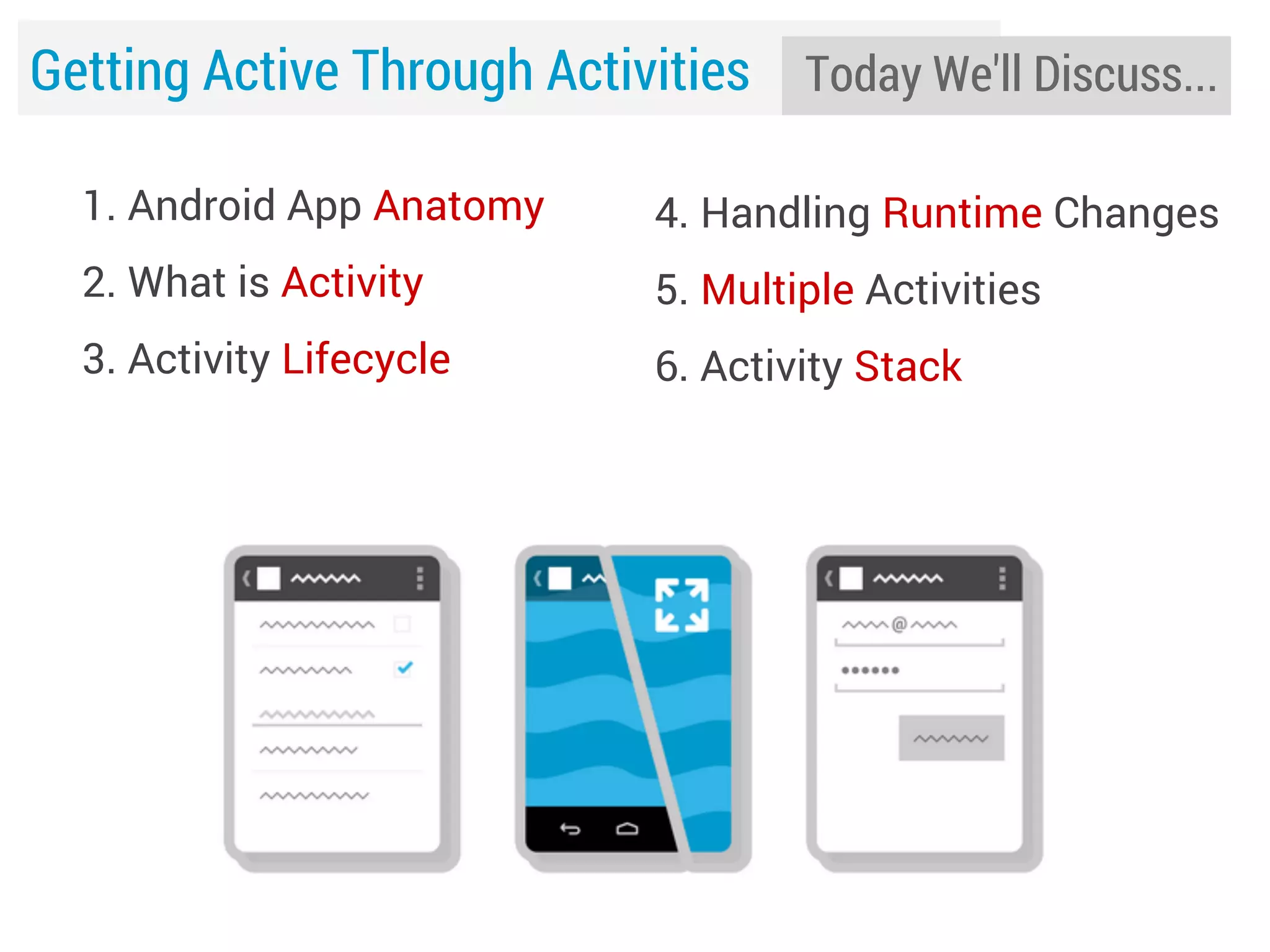

2. Getting Active Through Activities Today We'll Discuss...
1. Android App Anatomy
4. Handling Runtime Changes
2. What is Activity
5. Multiple Activities
3. Activity Lifecycle
6. Activity Stack

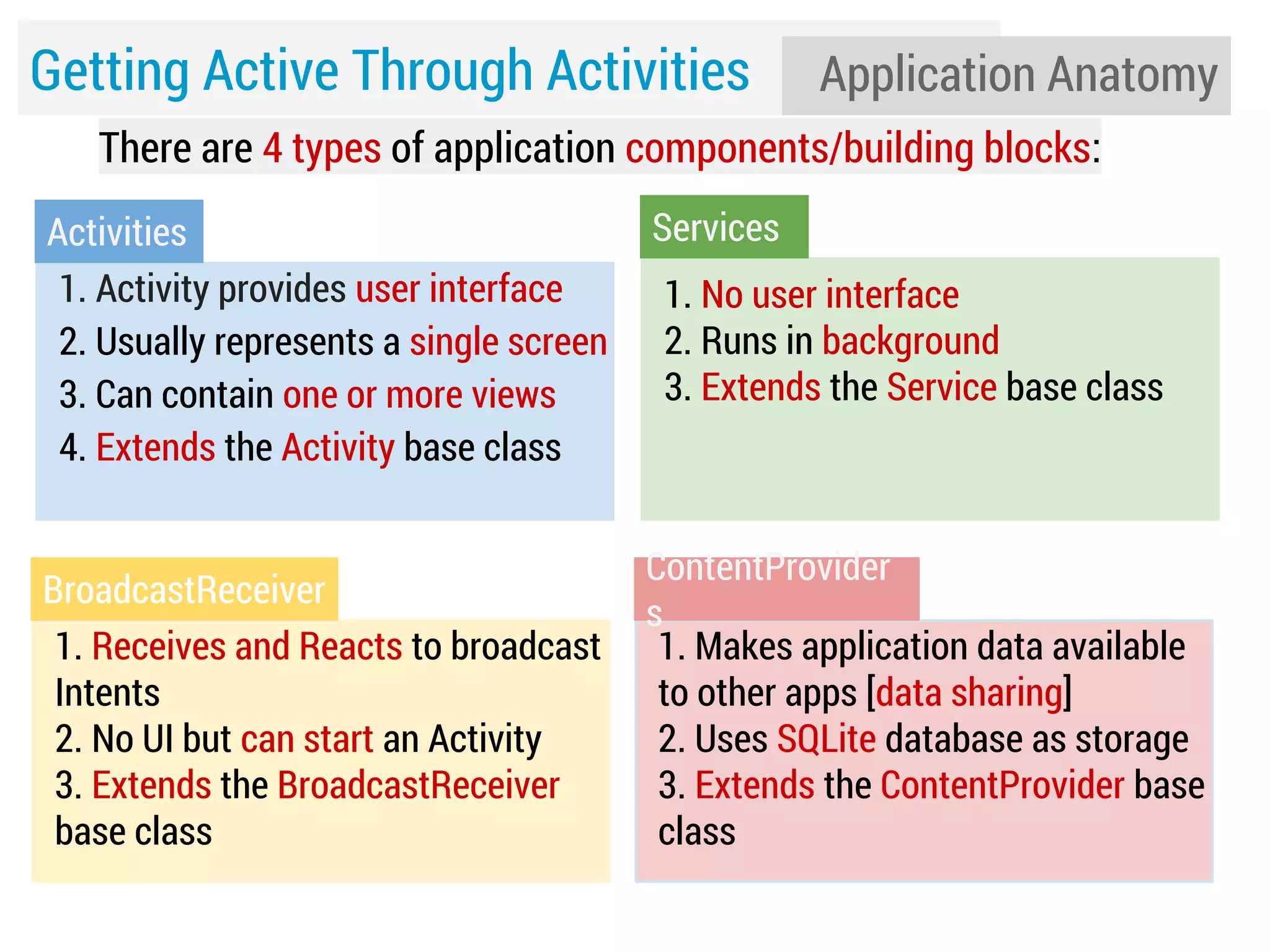

3. Getting Active Through Activities
Application Anatomy
There are 4 types of application components/building blocks:
Activities
1. Activity provides user interface
2. Usually represents a single screen
3. Can contain one or more views
4. Extends the Activity base class
BroadcastReceiver
1. Receives and Reacts to broadcast
Intents
2. No UI but can start an Activity
3. Extends the BroadcastReceiver
base class
Services
1. No user interface
2. Runs in background
3. Extends the Service base class
ContentProvider
s
1. Makes application data available
to other apps [data sharing]
2. Uses SQLite database as storage
3. Extends the ContentProvider base
class

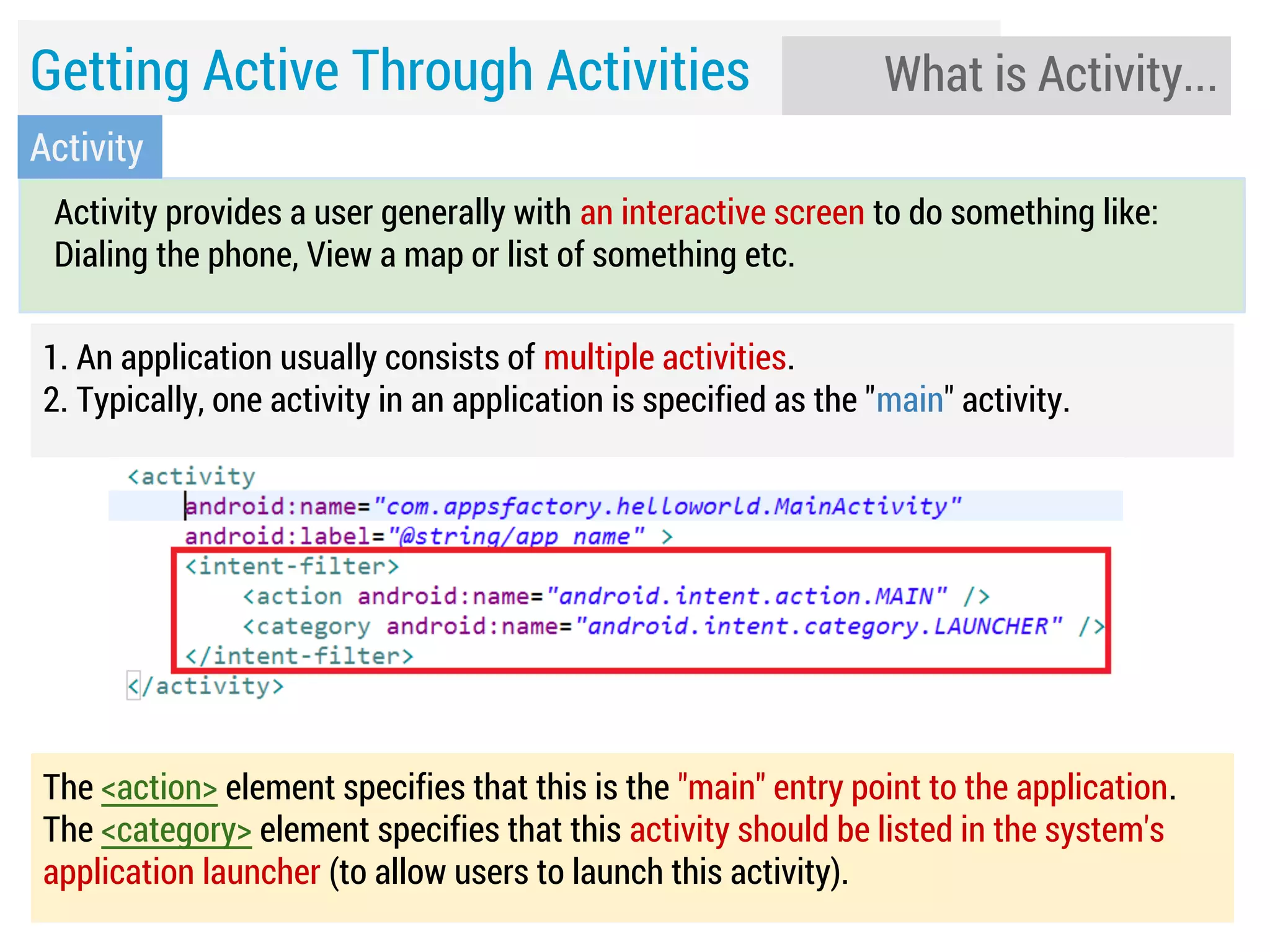

4. Getting Active Through Activities
What is Activity...
Activity
Activity provides a user generally with an interactive screen to do something like:
Dialing the phone, View a map or list of something etc.
1. An application usually consists of multiple activities.
2. Typically, one activity in an application is specified as the "main" activity.
The <action> element specifies that this is the "main" entry point to the application.
The <category> element specifies that this activity should be listed in the system's
application launcher (to allow users to launch this activity).

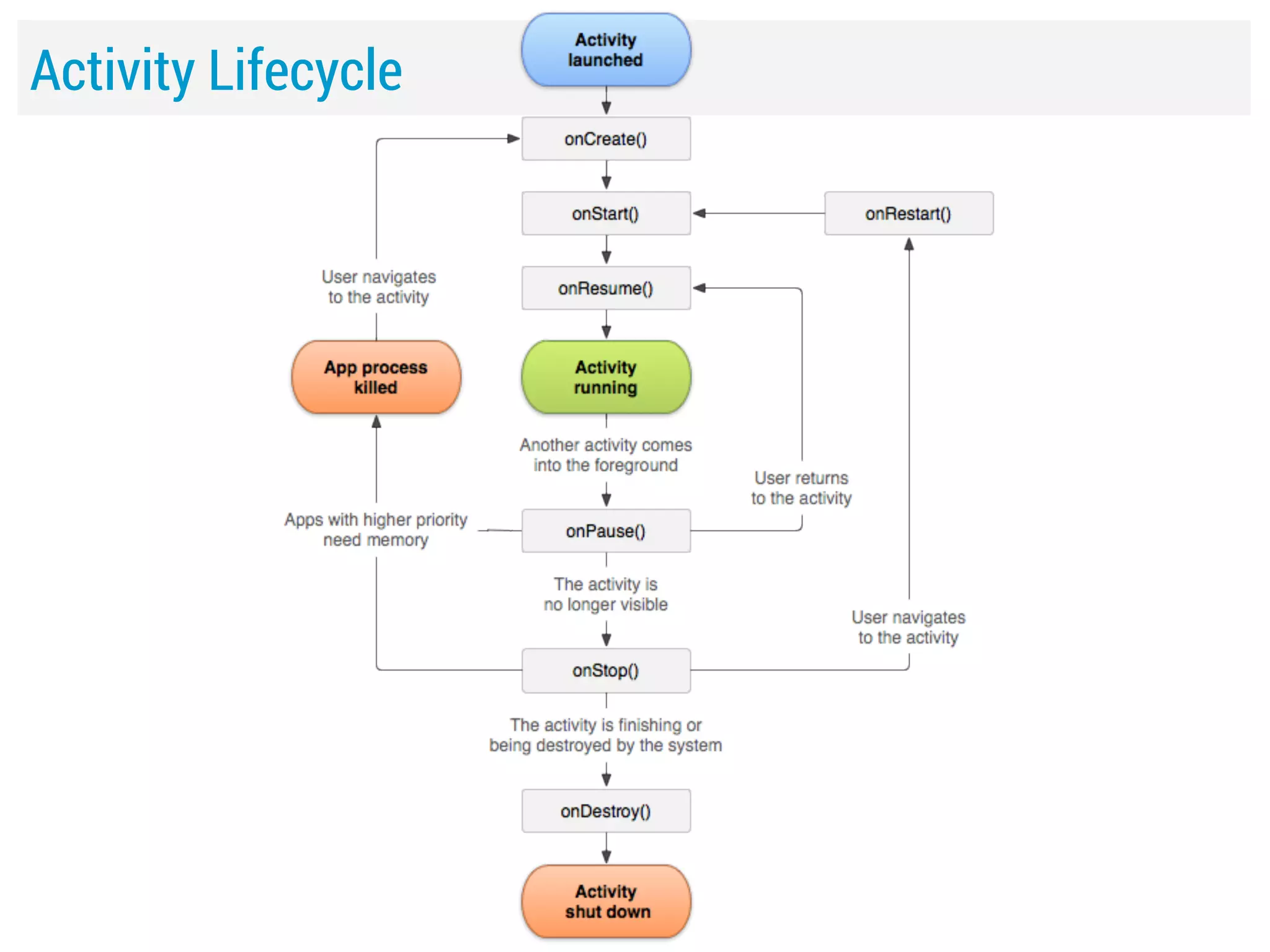

5. Activity Lifecycle

6. Getting Active Through Activities

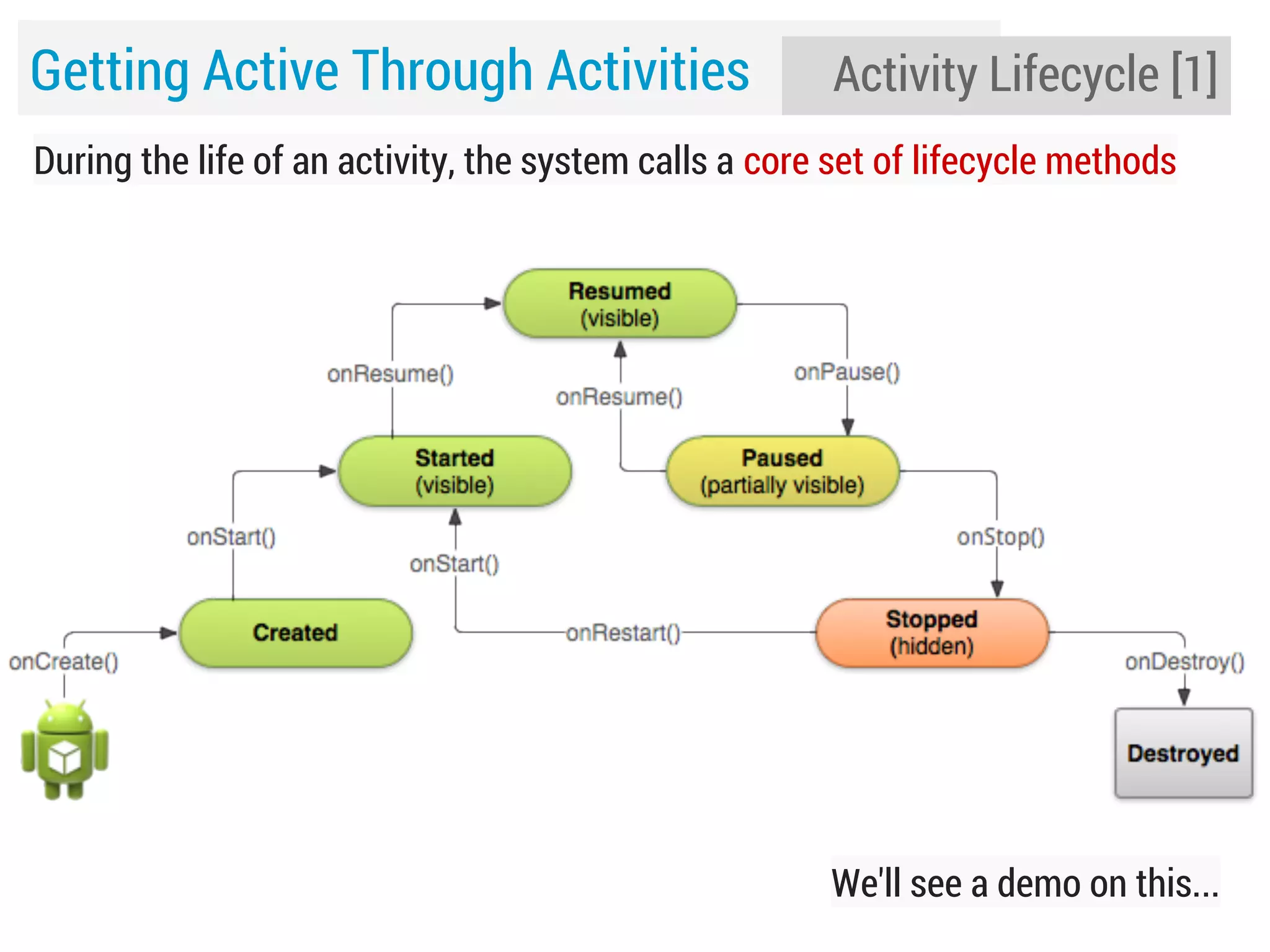

Activity Lifecycle [1]
During the life of an activity, the system calls a core set of lifecycle methods
We'll see a demo on this...

7. Getting Active Through Activities

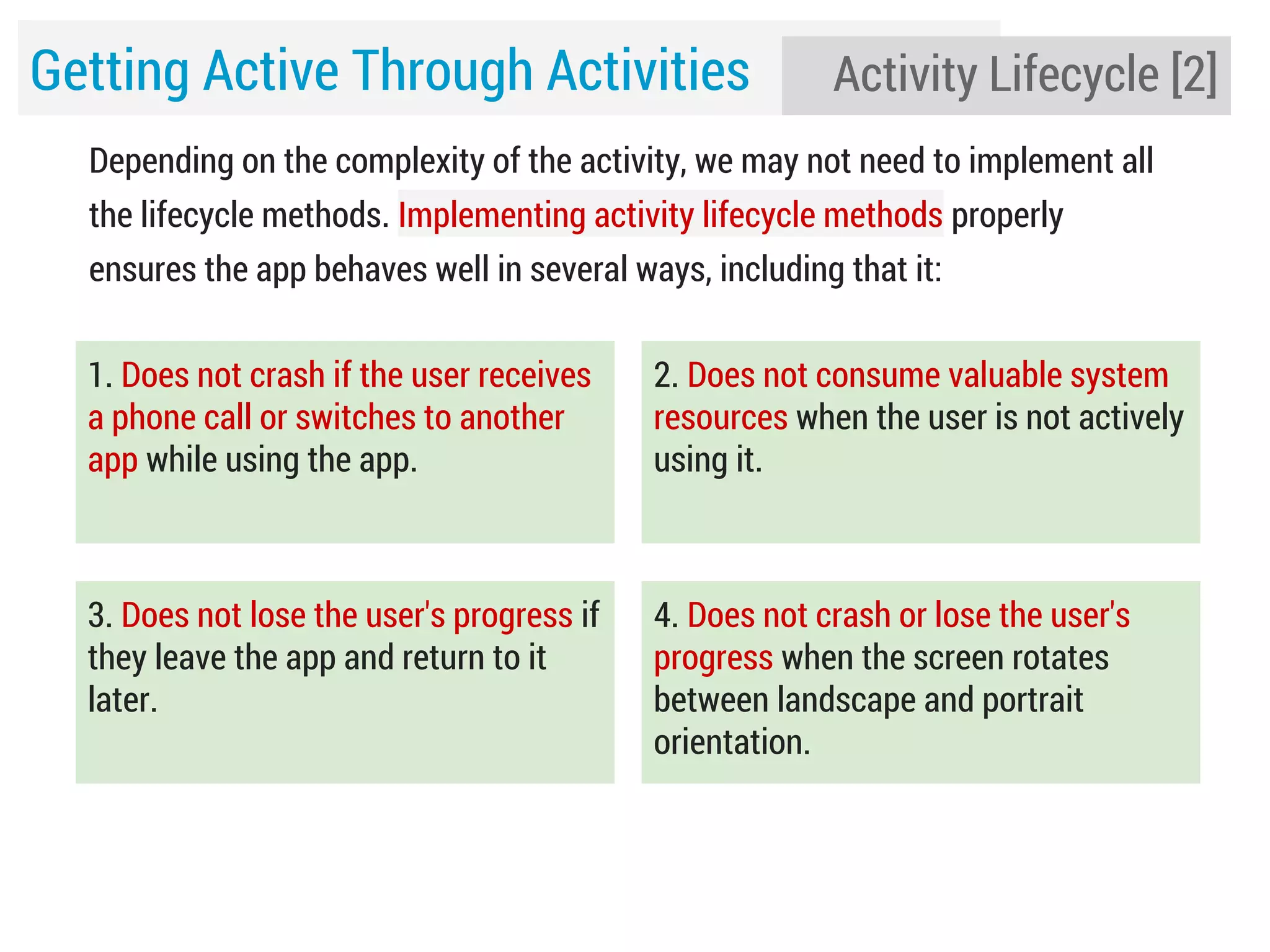

Activity Lifecycle [2]
Depending on the complexity of the activity, we may not need to implement all
the lifecycle methods. Implementing activity lifecycle methods properly
ensures the app behaves well in several ways, including that it:
1. Does not crash if the user receives
a phone call or switches to another
app while using the app.
2. Does not consume valuable system
resources when the user is not actively
using it.
3. Does not lose the user's progress if
they leave the app and return to it
later.
4. Does not crash or lose the user's
progress when the screen rotates
between landscape and portrait
orientation.

8. Getting Active Through Activities

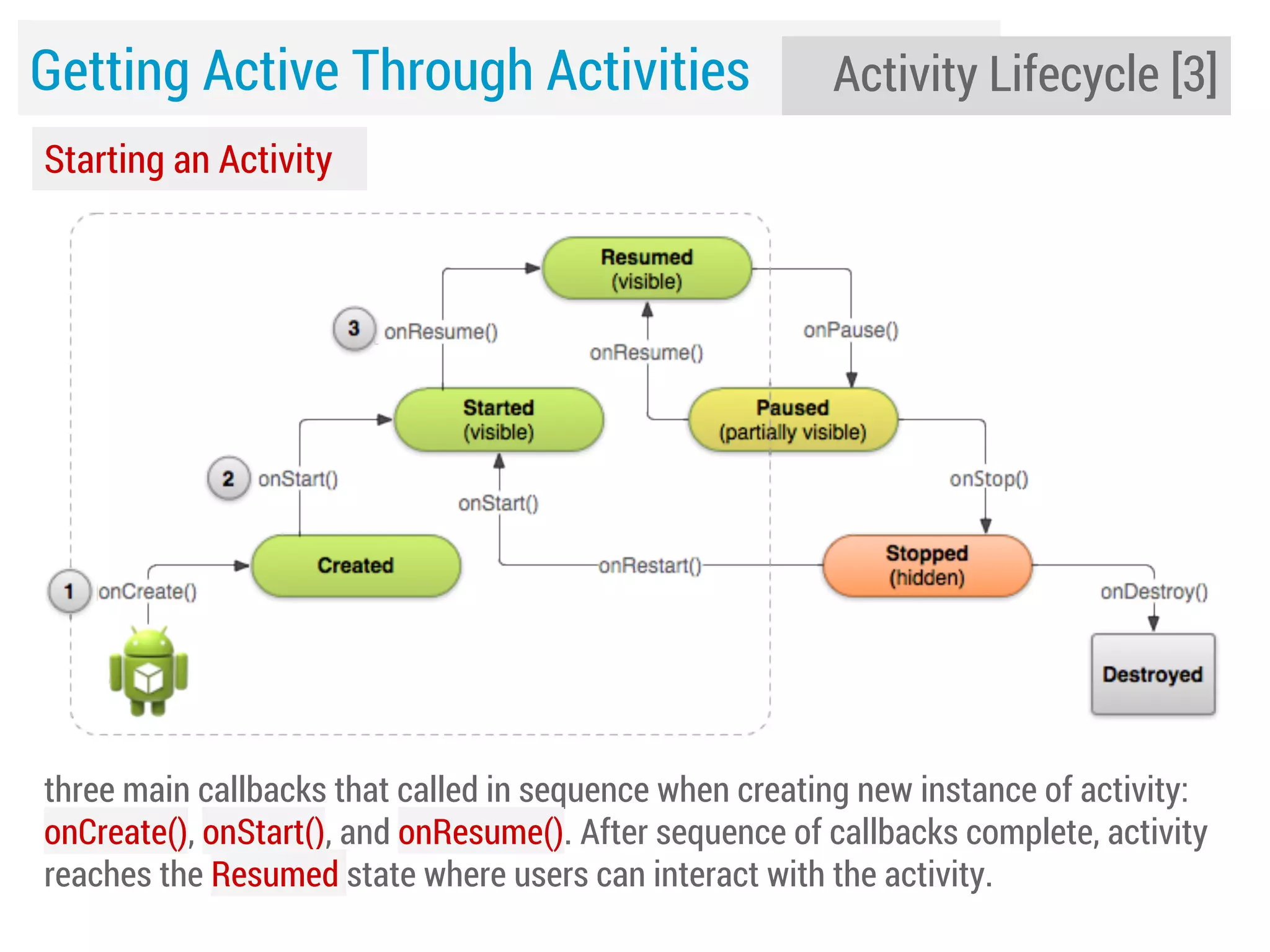

Activity Lifecycle [3]
Starting an Activity
three main callbacks that called in sequence when creating new instance of activity:
onCreate(), onStart(), and onResume(). After sequence of callbacks complete, activity
reaches the Resumed state where users can interact with the activity.

9. Getting Active Through Activities

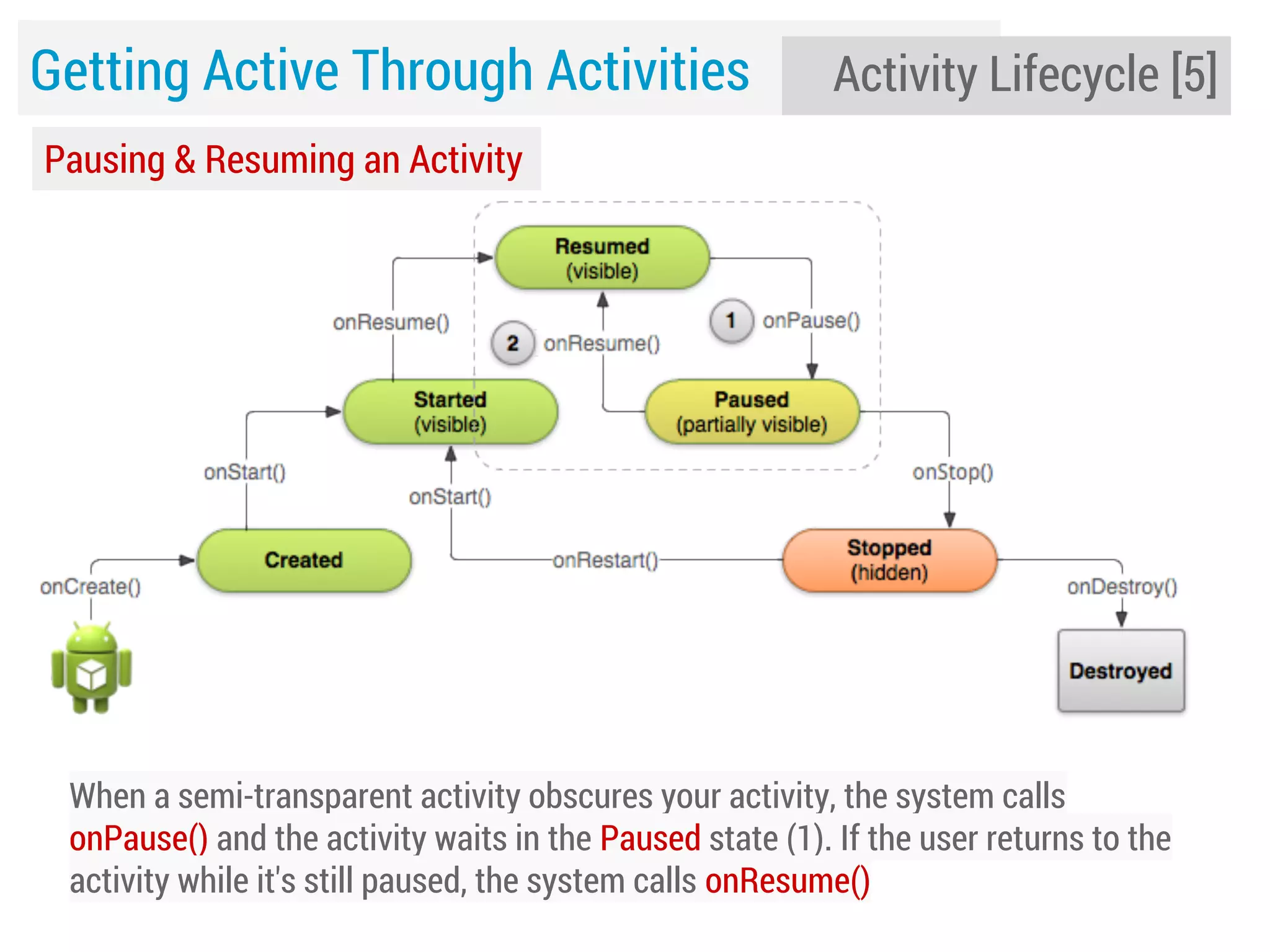

Activity Lifecycle [5]
Pausing & Resuming an Activity
When a semi-transparent activity obscures your activity, the system calls
onPause() and the activity waits in the Paused state (1). If the user returns to the
activity while it's still paused, the system calls onResume()

10. Getting Active Through Activities

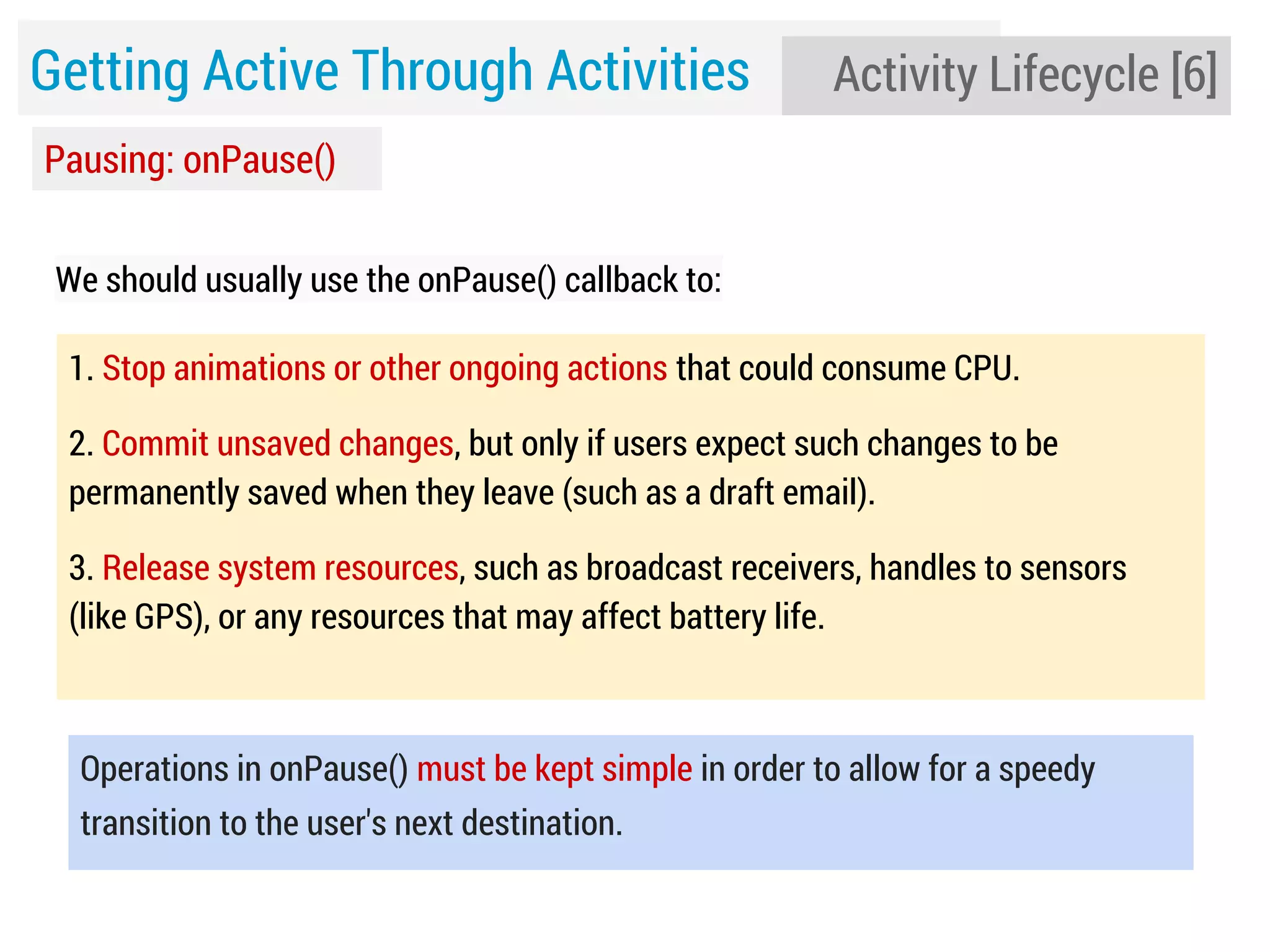

Activity Lifecycle [6]
Pausing: onPause()
We should usually use the onPause() callback to:
1. Stop animations or other ongoing actions that could consume CPU.
2. Commit unsaved changes, but only if users expect such changes to be
permanently saved when they leave (such as a draft email).
3. Release system resources, such as broadcast receivers, handles to sensors
(like GPS), or any resources that may affect battery life.
Operations in onPause() must be kept simple in order to allow for a speedy
transition to the user's next destination.

11. Getting Active Through Activities

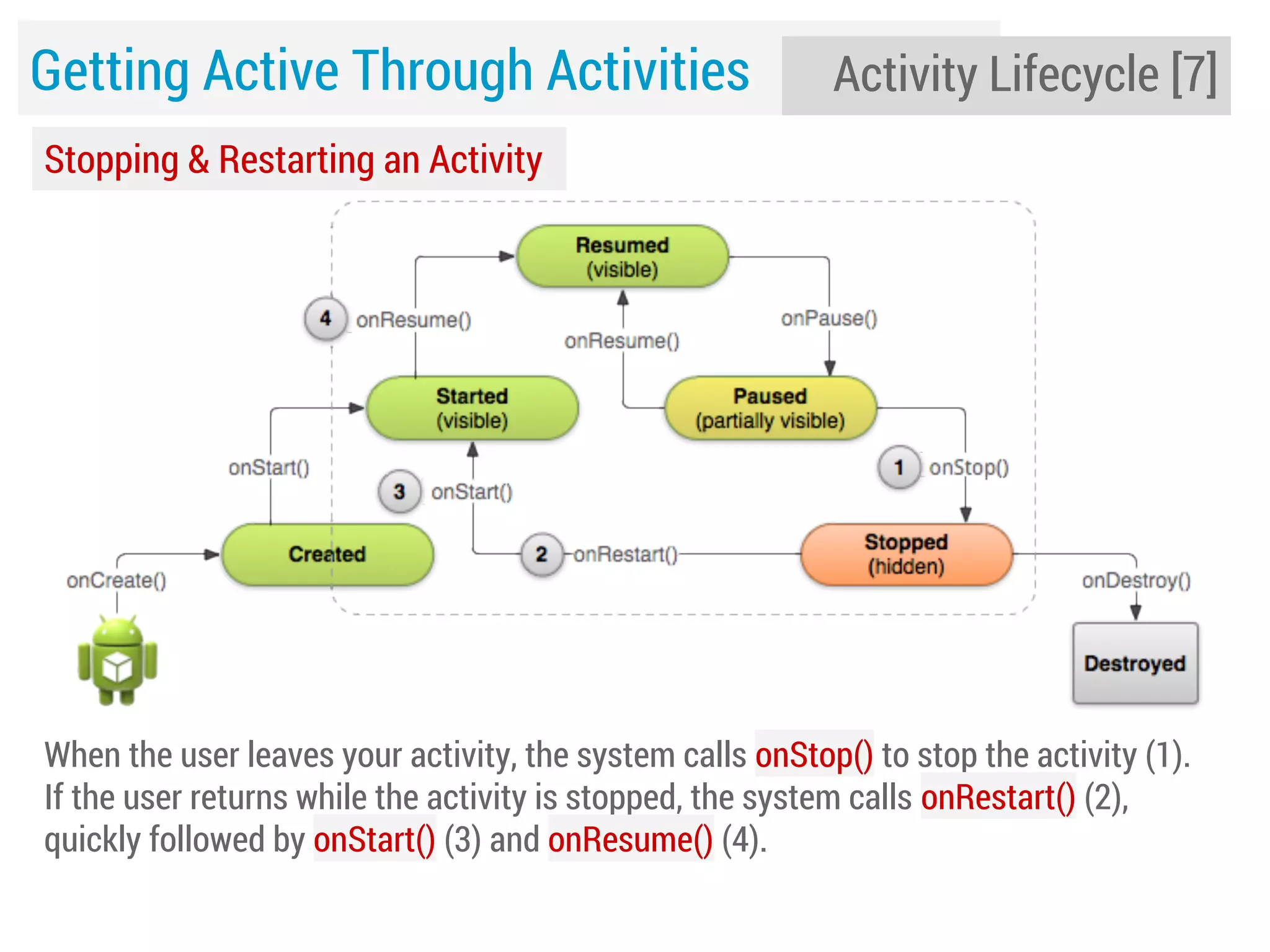

Activity Lifecycle [7]
Stopping & Restarting an Activity
When the user leaves your activity, the system calls onStop() to stop the activity (1).
If the user returns while the activity is stopped, the system calls onRestart() (2),
quickly followed by onStart() (3) and onResume() (4).

12. Getting Active Through Activities

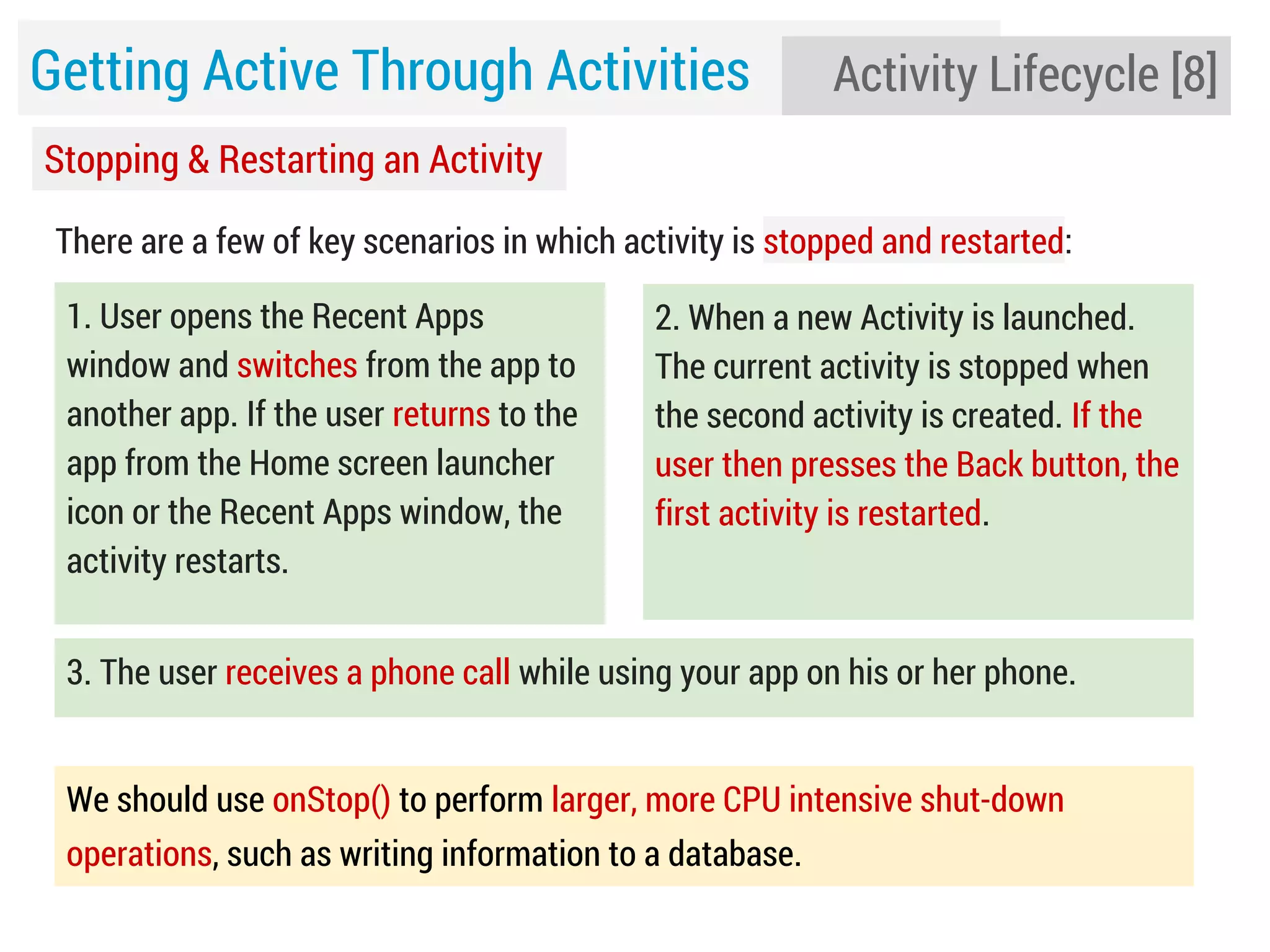

Activity Lifecycle [8]
Stopping & Restarting an Activity
There are a few of key scenarios in which activity is stopped and restarted:
1. User opens the Recent Apps
window and switches from the app to
another app. If the user returns to the
app from the Home screen launcher
icon or the Recent Apps window, the
activity restarts.
2. When a new Activity is launched.
The current activity is stopped when
the second activity is created. If the
user then presses the Back button, the
first activity is restarted.
3. The user receives a phone call while using your app on his or her phone.
We should use onStop() to perform larger, more CPU intensive shut-down
operations, such as writing information to a database.

13. Getting Active Through Activities

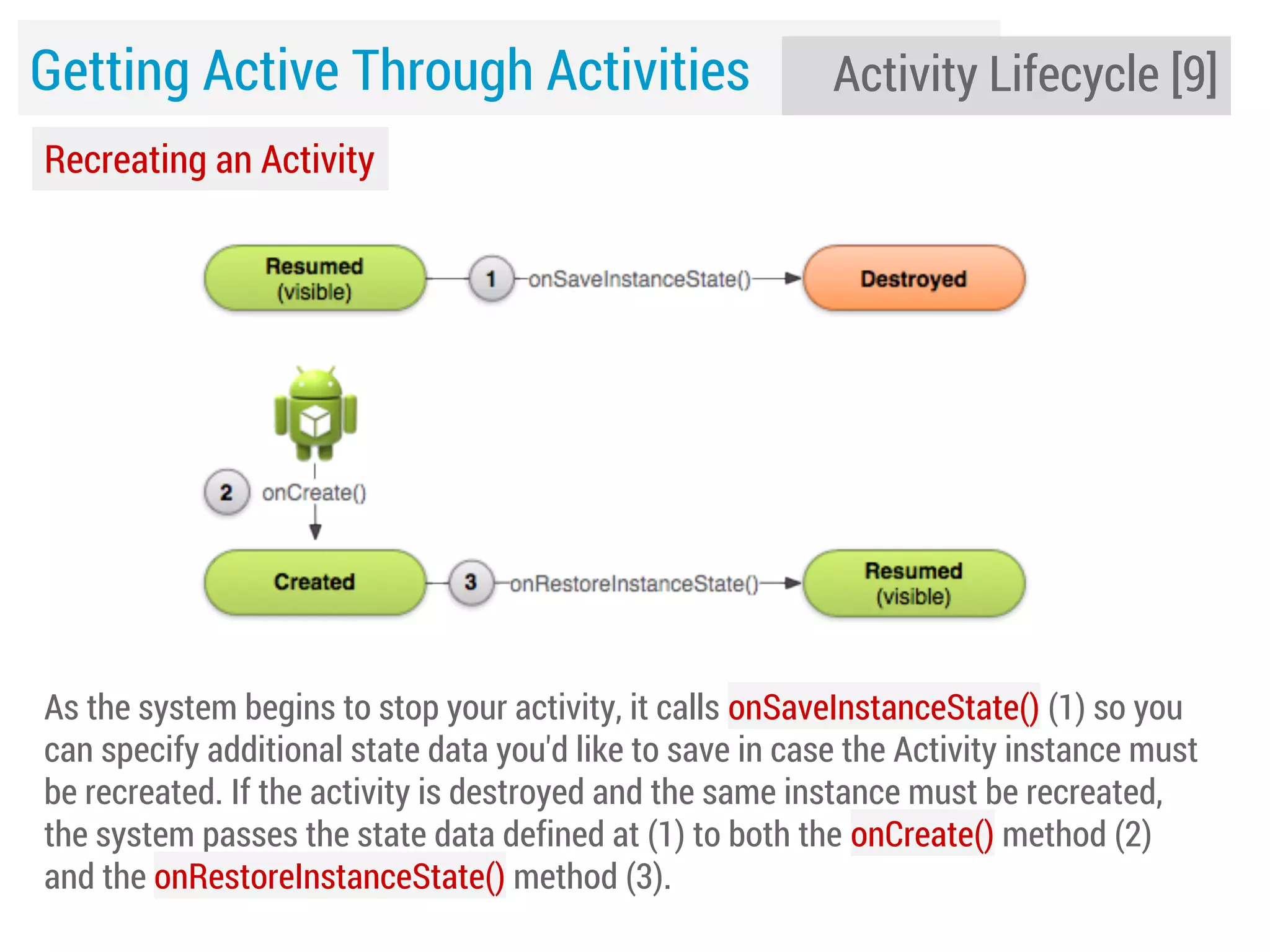

Activity Lifecycle [9]
Recreating an Activity
As the system begins to stop your activity, it calls onSaveInstanceState() (1) so you
can specify additional state data you'd like to save in case the Activity instance must
be recreated. If the activity is destroyed and the same instance must be recreated,
the system passes the state data defined at (1) to both the onCreate() method (2)
and the onRestoreInstanceState() method (3).

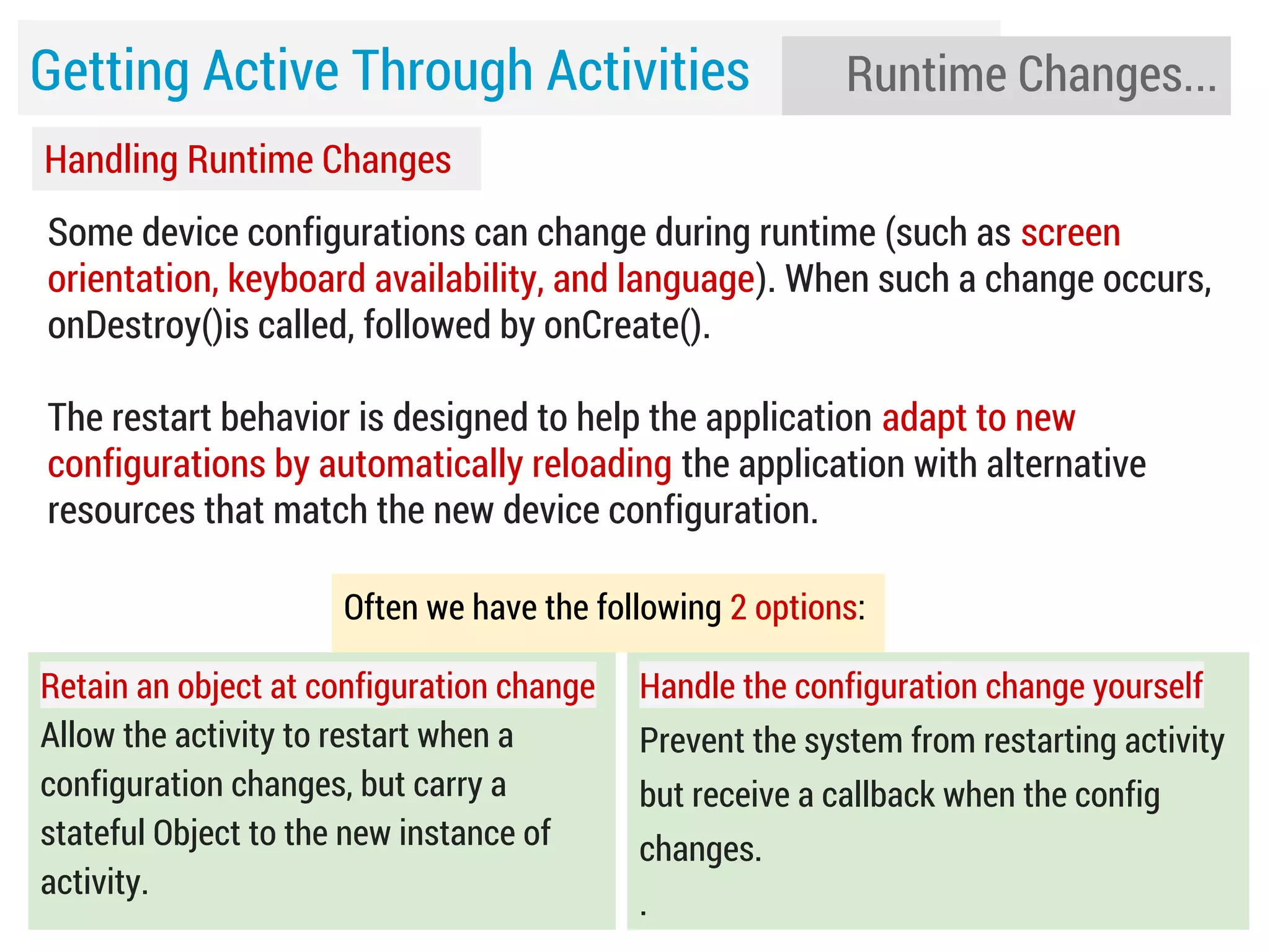

14. Getting Active Through Activities
Runtime Changes...
Handling Runtime Changes
Some device configurations can change during runtime (such as screen
orientation, keyboard availability, and language). When such a change occurs,
onDestroy()is called, followed by onCreate().
The restart behavior is designed to help the application adapt to new
configurations by automatically reloading the application with alternative
resources that match the new device configuration.
Often we have the following 2 options:
Retain an object at configuration change
Allow the activity to restart when a
configuration changes, but carry a
stateful Object to the new instance of
activity.
Handle the configuration change yourself
Prevent the system from restarting activity
but receive a callback when the config
changes.
.

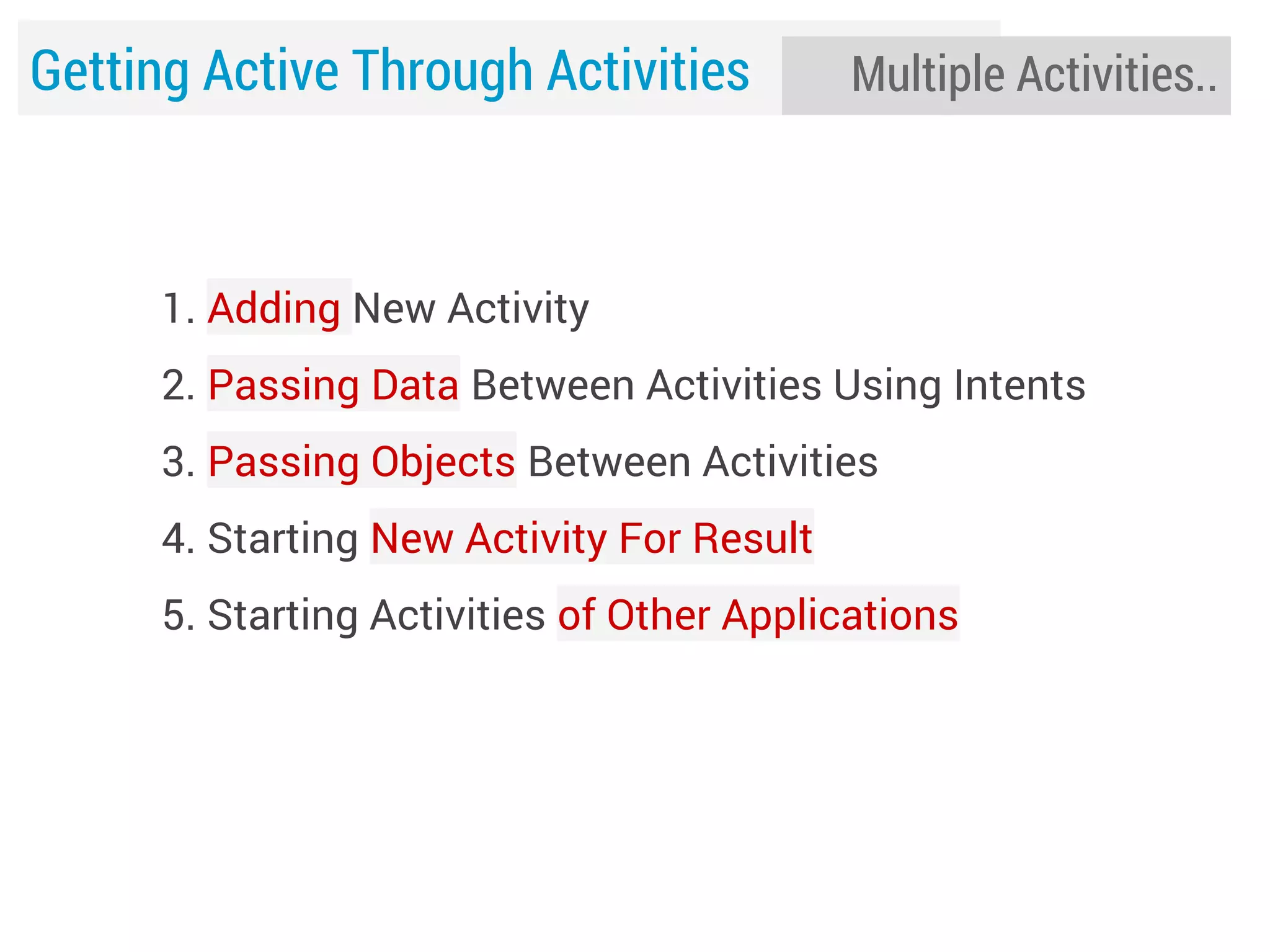

15. Getting Active Through Activities
Multiple Activities..
1. Adding New Activity
2. Passing Data Between Activities Using Intents
3. Passing Objects Between Activities
4. Starting New Activity For Result
5. Starting Activities of Other Applications

16. Getting Active Through Activities

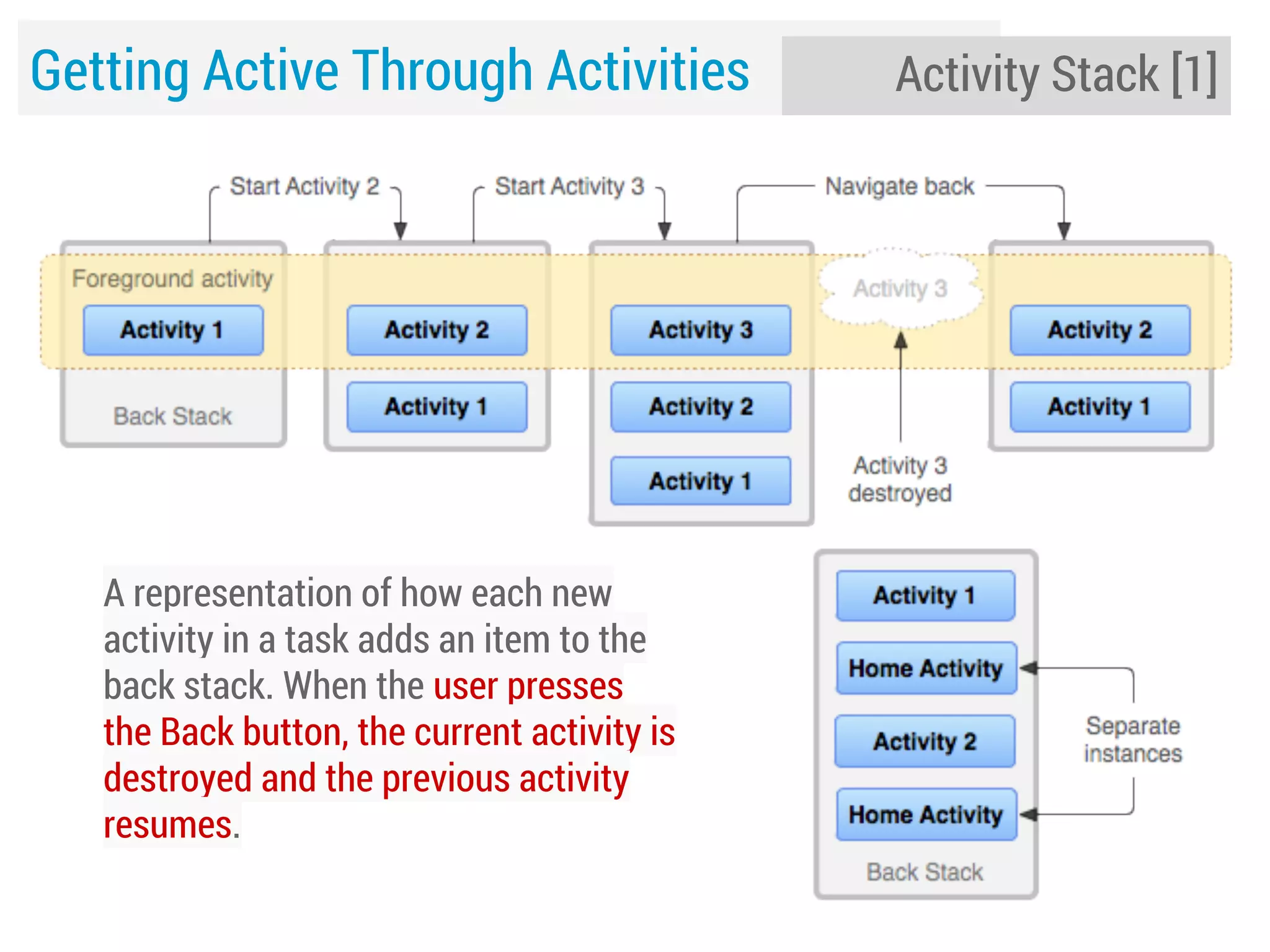

A representation of how each new
activity in a task adds an item to the
back stack. When the user presses
the Back button, the current activity is
destroyed and the previous activity
resumes.
Activity Stack [1]

17. Getting Active Through Activities

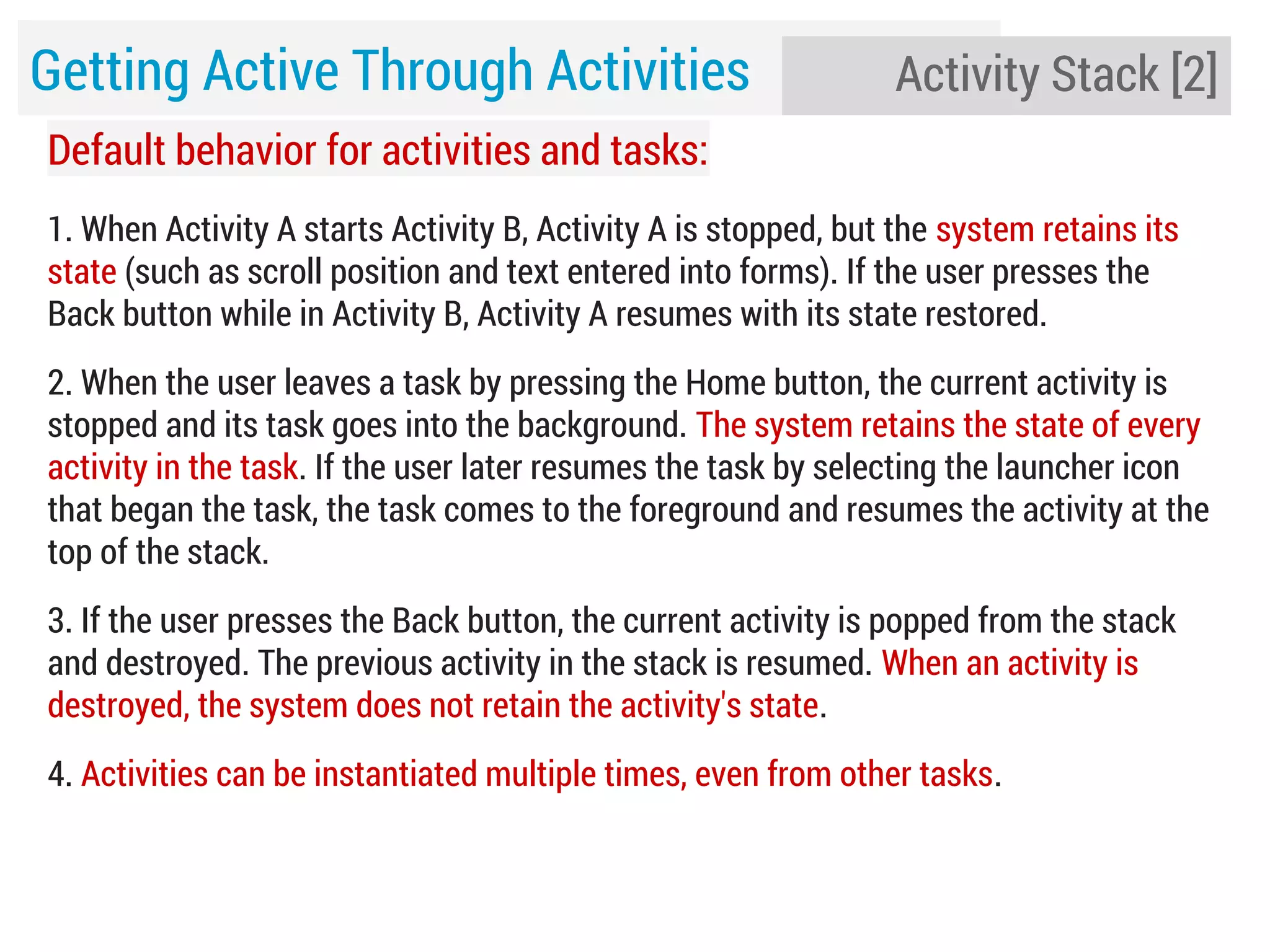

Activity Stack [2]
Default behavior for activities and tasks:
1. When Activity A starts Activity B, Activity A is stopped, but the system retains its
state (such as scroll position and text entered into forms). If the user presses the
Back button while in Activity B, Activity A resumes with its state restored.
2. When the user leaves a task by pressing the Home button, the current activity is
stopped and its task goes into the background. The system retains the state of every
activity in the task. If the user later resumes the task by selecting the launcher icon
that began the task, the task comes to the foreground and resumes the activity at the
top of the stack.
3. If the user presses the Back button, the current activity is popped from the stack
and destroyed. The previous activity in the stack is resumed. When an activity is
destroyed, the system does not retain the activity's state.
4. Activities can be instantiated multiple times, even from other tasks.

18. Getting Active Through Activities

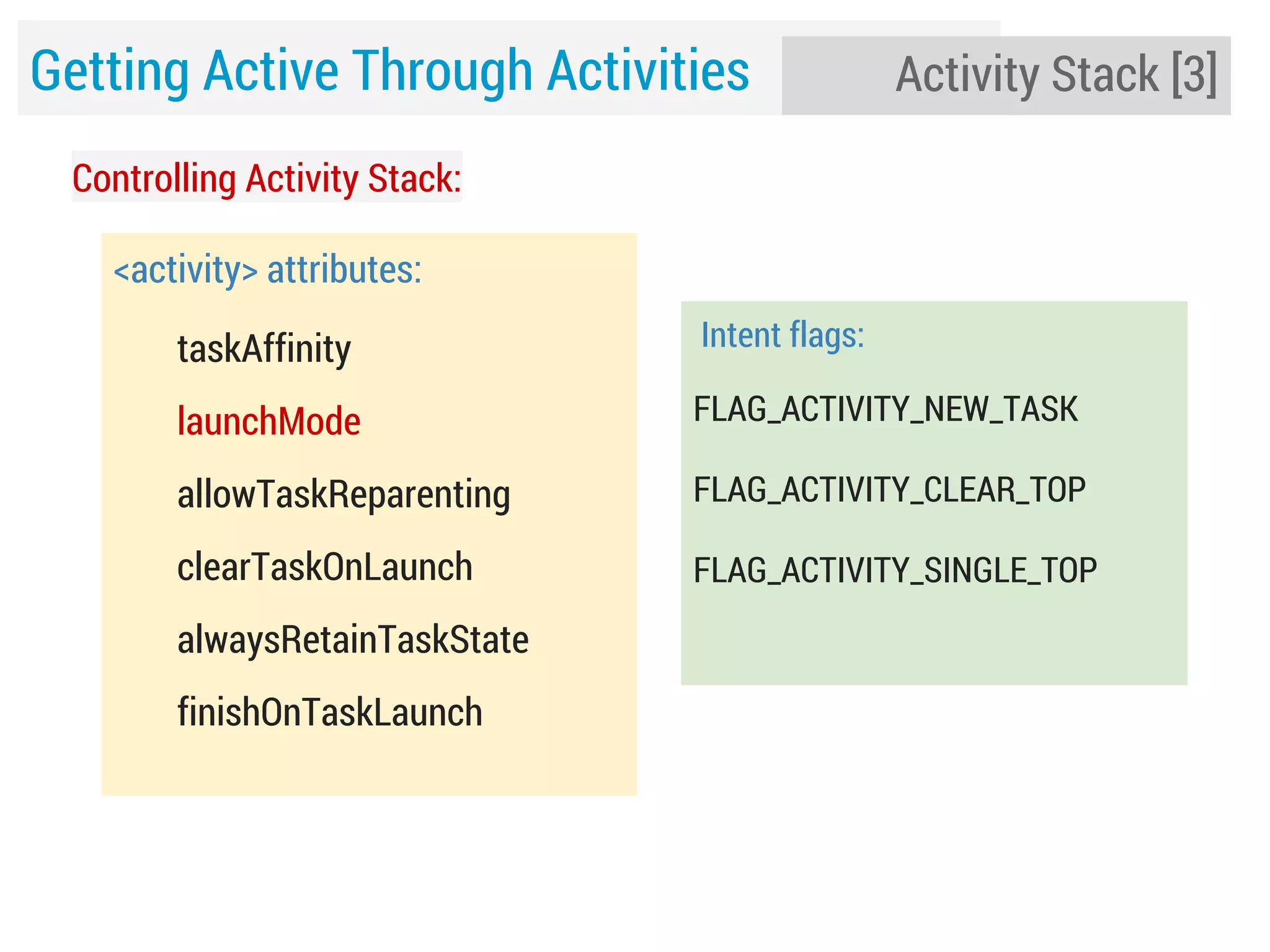

Activity Stack [3]
Controlling Activity Stack:
<activity> attributes:
taskAffinity
Intent flags:
launchMode
FLAG_ACTIVITY_NEW_TASK
allowTaskReparenting
FLAG_ACTIVITY_CLEAR_TOP
clearTaskOnLaunch
FLAG_ACTIVITY_SINGLE_TOP
alwaysRetainTaskState
finishOnTaskLaunch

19. Getting Active Through Activities
