MDE can take the form of OMG's Model Driven Architecture (MDA) using UML profiles or domain-specific languages (DSLs) with custom meta-models and notations. MDA is more generally applicable but also heavier weight and tool-dependent, while DSLs are lighter weight but have higher initial costs to develop the language environment. Both approaches have strengths when the right tooling is developed, such as reduced development time and higher quality, but challenges remain in reducing costs, improving flexibility and applicability to different scenarios.

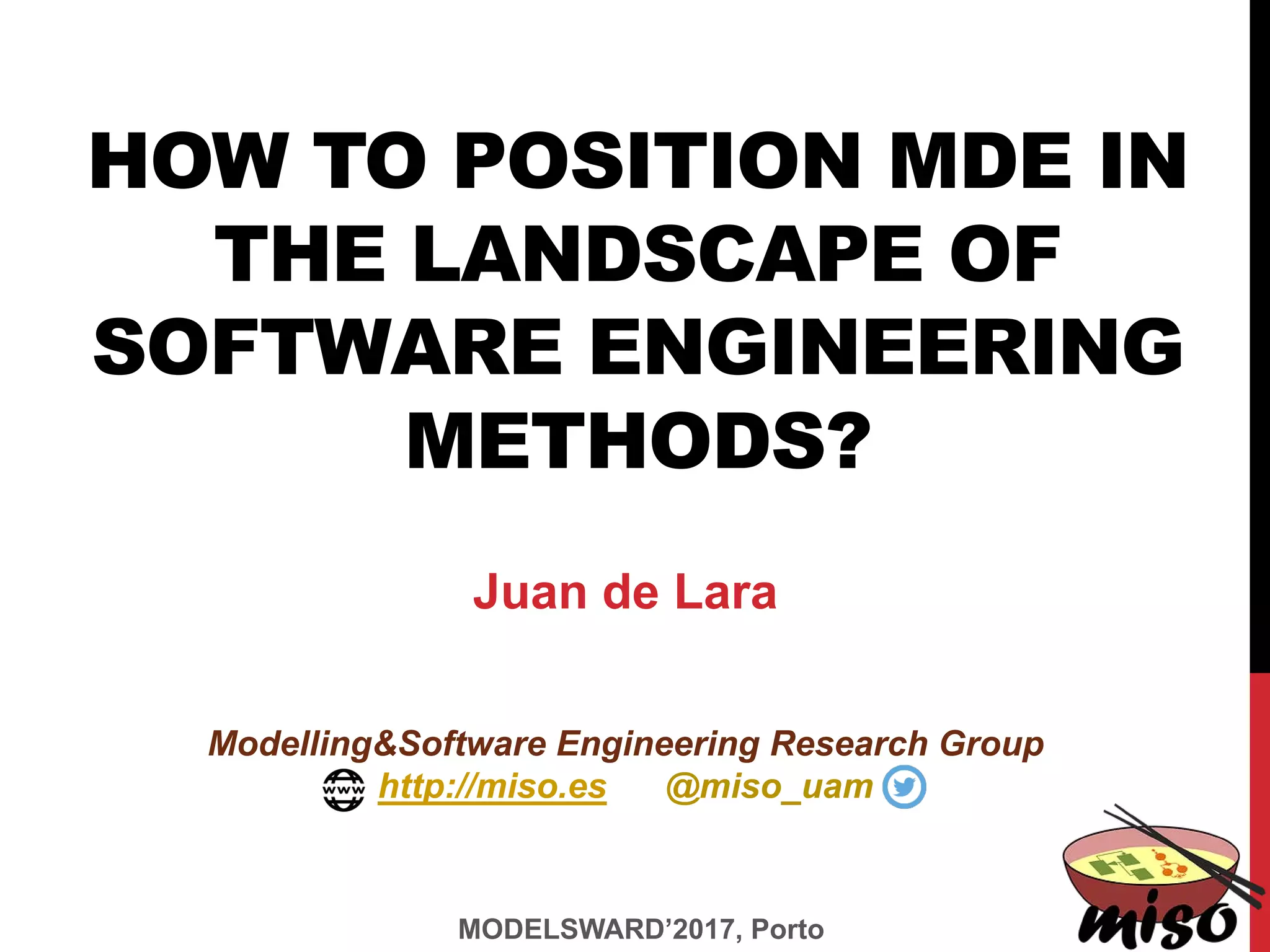

1. HOW TO POSITION MDE IN
THE LANDSCAPE OF
SOFTWARE ENGINEERING
METHODS?
MODELSWARD’2017, Porto
Juan de Lara
Modelling&Software Engineering Research Group
http://miso.es @miso_uam

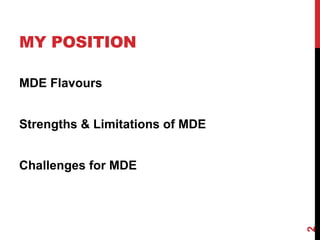

2. MY POSITION
MDE Flavours
Strengths & Limitations of MDE
Challenges for MDE
2

3. WHICH
MDE FLAVOUR?
OMG’s MDA
• UML-based, profiles
• CIM, PIM, PSM and transformations
Domain Specific Languages
• Domain meta-models
• Textual or graphical notations
3
xtext
StopWatch
«Clock»
OSVersion=“3.32”
startOperation=Click
«Clock»
Sirius

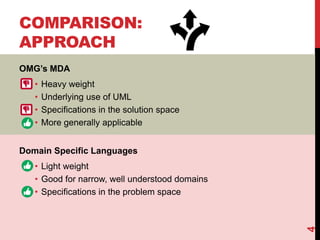

4. COMPARISON:
APPROACH
4
OMG’s MDA
• Heavy weight
• Underlying use of UML
• Specifications in the solution space
• More generally applicable
Domain Specific Languages
• Light weight
• Good for narrow, well understood domains
• Specifications in the problem space

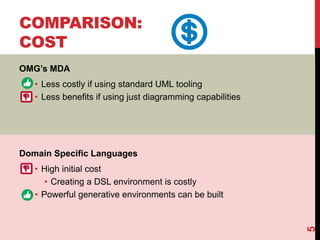

5. COMPARISON:
COST
5
OMG’s MDA
• Less costly if using standard UML tooling
• Less benefits if using just diagramming capabilities
Domain Specific Languages
• High initial cost
• Creating a DSL environment is costly
• Powerful generative environments can be built

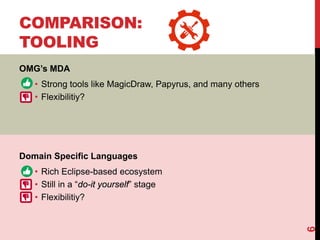

6. COMPARISON:
TOOLING
6
OMG’s MDA
• Strong tools like MagicDraw, Papyrus, and many others
• Flexibilitiy?
Domain Specific Languages
• Rich Eclipse-based ecosystem
• Still in a “do-it yourself” stage
• Flexibilitiy?

7. SUMMARY
Limits of MDE approach
• High initial investment cost
• Applicability
• Acceptance by developers
• Inflexibility (of code generators, notations, tools, etc)
• Tools and notations seen as a straitjacket
Strenghts of MDE approach
• Powerful approaches, when appropriate tooling is developed
• Less development time, higher quality
• Focus on domain aspects
• Everyone can be a programmer (end-user development)
7

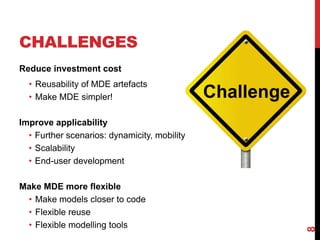

8. CHALLENGES
Reduce investment cost
• Reusability of MDE artefacts
• Make MDE simpler!
Improve applicability
• Further scenarios: dynamicity, mobility
• Scalability
• End-user development
Make MDE more flexible
• Make models closer to code
• Flexible reuse
• Flexible modelling tools
8

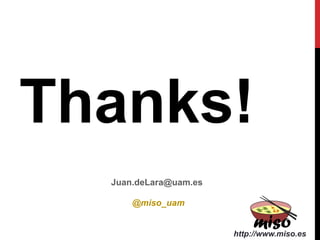

9. Juan.deLara@uam.es
Thanks!
http://www.miso.es
@miso_uam
