1) DSL-maps provide a graphical, mind-map inspired notation for flexibly representing requirements for domain-specific languages (DSLs). 2) An automated transformation can generate an initial meta-model design from a DSL-map by mapping ideas to classes and relationships. 3) A preliminary evaluation with 7 engineers found DSL-maps easy to understand and that the generated meta-models from DSL-maps with pattern assistance were complete and useful.

1. DSL-maps
FROM REQUIREMENTS TO
DESIGN OF DOMAIN
SPECIFIC LANGUAGES
ASE’2016, Singapore
Ana Pescador, Juan de Lara
Modelling&Software Engineering Research Group
http://miso.es @miso_uam

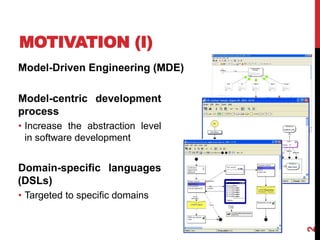

2. Model-Driven Engineering (MDE)
MOTIVATION (I)
2
Model-centric development
process
• Increase the abstraction level
in software development
Domain-specific languages
(DSLs)
• Targeted to specific domains

3. Developing DSLs is recurrent in MDE
DSLs designed through a meta-model
• Abstract syntax
Concrete syntax
• Graphical or textual
MOTIVATION (II)
3
State
name: String
init: bool
final: bool
Transition
event: String[0..1]
src
tar
talking answering
finish
questionstartTalk
end
Talk
timeOut

4. Many meta-modelling tools and
language workbenches
MOTIVATION (III)
4
MetaEdit+
Eugenia
• Entry point is a meta-model
• Already a design!
Requirements representation often
neglected by these tools
Support for requirements
representation for DSLs
Transition to design

5. 1. DSL-maps
2. Transition to design
3. Tool support and evaluation
4. Conclusions and future work
OUTLINE
5
A graphical, flexible notation inspired by mind-maps
Automated transformation to a meta-model
Profit from a library of meta-modelling patterns
Eclipse plugin
Preliminary evaluation with 7 engineers

6. Notation inspired by
mind-maps
Ideas and subideas
• Hierarchical organization
• Radial axes
Lightweight notation for reqs in agile processes
• User whish lists
DSL-maps
6

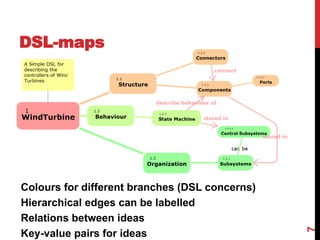

7. Colours for different branches (DSL concerns)
Hierarchical edges can be labelled
Relations between ideas
Key-value pairs for ideas
7
DSL-maps

8. TRANSITION TO
DESIGN
Assisted synthesis of an initial meta-model draft
Repository of meta-modelling patterns
• State machine
• Workflow
• Components
• …
8
behaviour
semantics
Statechart
structure
module
architecture
component
pattern
dynamic
execution
Statemachine
pattern
Legend:
pattern-conceptgeneralpatternconcept
…
Patterns annotated
with lightweight
ontology

9. TRANSITION TO
DESIGN
Pattern recommendation based on lightweight NL analysis of
the DSL-map
9
Structure
1.1
Components
1.1.1
Connectors
1.1.2
Ports
1.1.1.1
connect
Component Portports
*
InPort OutPort
Connector
inout
*
*
Components pattern (shallow)
…

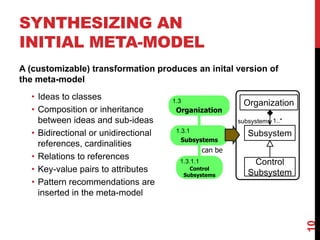

10. SYNTHESIZING AN
INITIAL META-MODEL
10
A (customizable) transformation produces an inital version of
the meta-model
Organization
1.3
Subsystems
1.3.1
Control
Subsystems
1.3.1.1
Organization
subsystems 1..*
can be
Subsystem
Control
Subsystem
• Ideas to classes
• Composition or inheritance
between ideas and sub-ideas
• Bidirectional or unidirectional
references, cardinalities
• Relations to references
• Key-value pairs to attributes
• Pattern recommendations are
inserted in the meta-model

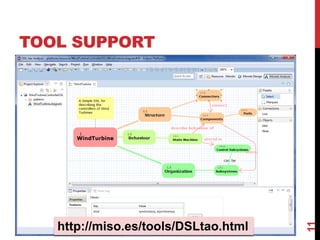

11. TOOL SUPPORT
11
http://miso.es/tools/DSLtao.html

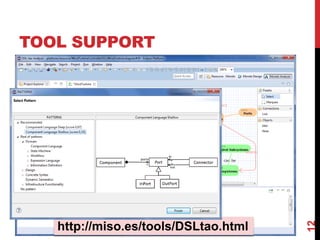

12. TOOL SUPPORT
12
http://miso.es/tools/DSLtao.html

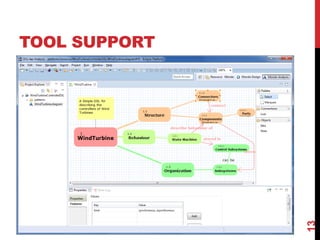

13. TOOL SUPPORT
13

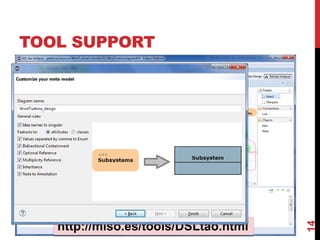

14. TOOL SUPPORT
14
http://miso.es/tools/DSLtao.html

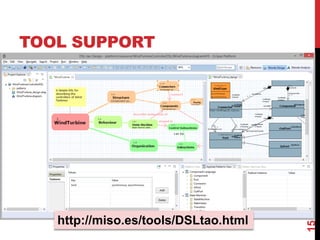

15. TOOL SUPPORT
15
http://miso.es/tools/DSLtao.html

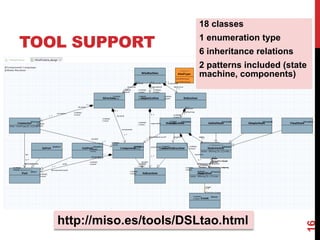

16. TOOL SUPPORT
16
18 classes
1 enumeration type
6 inheritance relations
2 patterns included (state
machine, components)
http://miso.es/tools/DSLtao.html

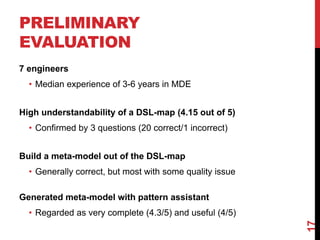

17. PRELIMINARY
EVALUATION
7 engineers
• Median experience of 3-6 years in MDE
High understandability of a DSL-map (4.15 out of 5)
• Confirmed by 3 questions (20 correct/1 incorrect)
Build a meta-model out of the DSL-map
• Generally correct, but most with some quality issue
Generated meta-model with pattern assistant
• Regarded as very complete (4.3/5) and useful (4/5)
17

18. CONCLUSIONS
Building DSLs is recurrent in MDE
Current tools neglect requirements
DSL-maps
• A notation for flexible requirements gathering
• Automated transition to a design meta-model
• Initial tool support (http://miso.es/tools/DSLtao.html)
18

19. CONCLUSIONS AND
FUTURE WORK
Building DSLs is recurrent in MDE
Current tools neglect requirements
DSL-maps
• A notation for flexible requirements gathering
• Automated transition to a design meta-model
• Initial tool support (http://miso.es/tools/DSLtao.html)
Traceability between DSL-map and meta-model
Generate meta-model packages from ideas
Interoperability with mind-map tools
19

20. THANKS!
Juan.deLara@uam.es
20
http://www.miso.es
@miso_uam
