Ken Liao, Senior Associate VP, Faraday
- 1. May 9, 2016 1 ESL Virtual Platform for Early Software Development Ken Liao, Senior Associate VP, Faraday

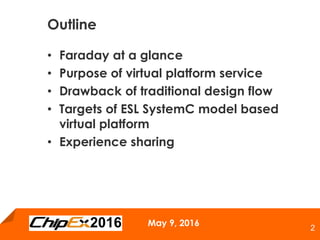

- 2. May 9, 2016 2 • Faraday at a glance • Purpose of virtual platform service • Drawback of traditional design flow • Targets of ESL SystemC model based virtual platform • Experience sharing Outline

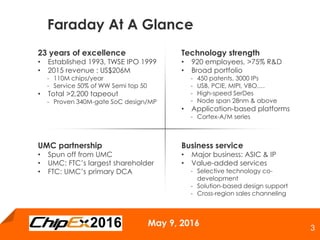

- 3. May 9, 2016 3 Faraday At A Glance 23 years of excellence • Established 1993, TWSE IPO 1999 • 2015 revenue : US$206M - 110M chips/year - Service 50% of WW Semi top 50 • Total >2,200 tapeout - Proven 340M-gate SoC design/MP Technology strength • 920 employees, >75% R&D • Broad portfolio - 450 patents, 3000 IPs - USB, PCIE, MIPI, VBO,… - High-speed SerDes - Node span 28nm & above • Application-based platforms - Cortex-A/M series UMC partnership • Spun off from UMC • UMC: FTC’s largest shareholder • FTC: UMC’s primary DCA Business service • Major business: ASIC & IP • Value-added services - Selective technology co- development - Solution-based design support - Cross-region sales channeling

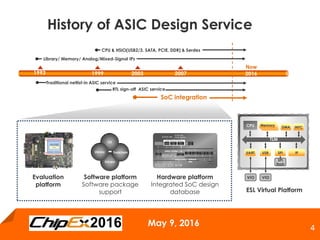

- 4. May 9, 2016 4 History of ASIC Design Service Evaluation platform Software platform Software package support Hardware platform Integrated SoC design database Drivers Toolchain OS Library RTL sign-off ASIC service SoC integration CPU & HSIO(USB2/3, SATA, PCIE, DDR) & Serdes Library/ Memory/ Analog/Mixed-Signal IPs Traditional netlist-in ASIC service 1993 1999 2003 2007 Now 32-bit Data 14-bit Address FA626 v5TE D32K/I32K SD/SDIO NAND CTRL DDR II CTRL External Memory Interface LCD CTRL SRAM CTRL AHB CTRL AES/DES DDR II CTRL8-ch DMA CTRL APB Bridge Timer(3) Interrupt CTRL PLL Clock CTRL GPIO SSP(2)BTUART AHB@ 133MHz AHB@66 MHz 8/16-bit data AHB Bridge APB@33MHz ESL Virtual Platform 2016 TLM memorymemoryMemory UART DMA SPI INTC USB VIO VIO SPI flash CPU IP

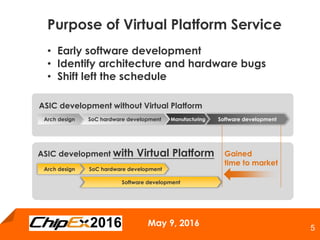

- 5. May 9, 2016 5 Purpose of Virtual Platform Service Software development ASIC development without Virtual Platform ASIC development with Virtual Platform Arch design SoC hardware development Arch design SoC hardware development Gained time to market Manufacturing Software development • Early software development • Identify architecture and hardware bugs • Shift left the schedule

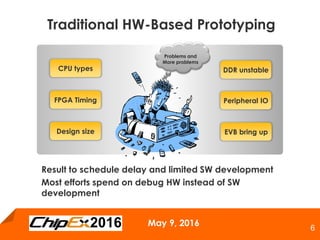

- 6. May 9, 2016 6 Result to schedule delay and limited SW development Most efforts spend on debug HW instead of SW development Traditional HW-Based Prototyping Problems and More problems DDR unstable Peripheral IO EVB bring up CPU types FPGA Timing Design size

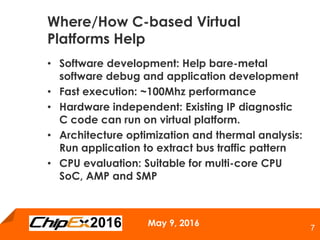

- 7. May 9, 2016 7 • Software development: Help bare-metal software debug and application development • Fast execution: ~100Mhz performance • Hardware independent: Existing IP diagnostic C code can run on virtual platform. • Architecture optimization and thermal analysis: Run application to extract bus traffic pattern • CPU evaluation: Suitable for multi-core CPU SoC, AMP and SMP Where/How C-based Virtual Platforms Help

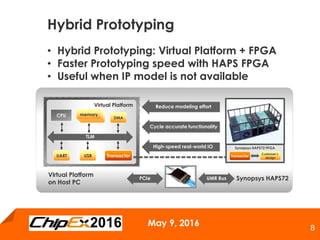

- 8. May 9, 2016 8 Hybrid Prototyping • Hybrid Prototyping: Virtual Platform + FPGA • Faster Prototyping speed with HAPS FPGA • Useful when IP model is not available Virtual Platform on Host PC PCIe Synopsys HAPS72 Reduce modeling effort Cycle accurate functionality High-speed real-world IO UMR Bus memory TLM memorymemory USB Transactor Virtual Platform CPU UART DMA Transactor Customer’s design Synopsys HAPS72 FPGA

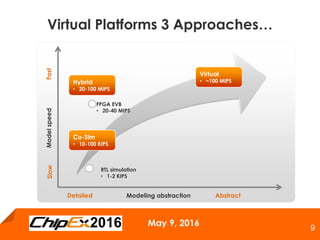

- 9. May 9, 2016 9 Virtual Platforms 3 Approaches… ModelspeedFastSlow Modeling abstractionDetailed Abstract FPGA EVB • 20-40 MIPS RTL simulation • 1-2 KIPS Hybrid • 20-100 MIPS Virtual • ~100 MIPS Co-Sim • 10-100 KIPS

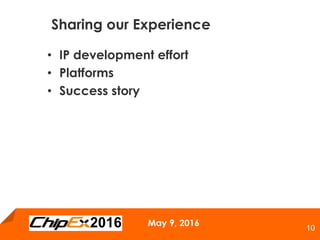

- 10. May 9, 2016 10 • IP development effort • Platforms • Success story Sharing our Experience

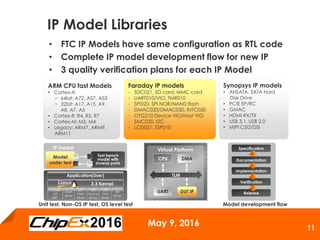

- 11. May 9, 2016 11 IP model • FTC IP Models have same configuration as RTL code • Complete IP model development flow for new IP • 3 quality verification plans for each IP Model IP Model Libraries Unit test, Non-OS IP test, OS level test Model development flow Faraday IP models - SDC021, SD card, MMC card - UART010/VIO, TMR010 - SPI020, SPI NOR/NAND flash - DMAC020/DMAC030, INTC030 - OTG210 Device VIO/Host VIO - SMC030, I2C - LCD021, SSP010 Synopsys IP models • AHSATA, SATA Hard Disk Drive • PCIE EP/RC • GMAC • HDMI RX/TX • USB 3.1, USB 2.0 • MIPI CSI2/DSI Virtual Platform TLM DUT IP CPU UART DMA Specification Documentation Implementation Verification Release Model under test Test bench model with inverse ports ARM CPU fast Models • Cortex-A − 64bit: A72, A57, A53 − 32bit: A17, A15, A9, A8, A7, A5 • Cortex-R: R4, R5, R7 • Cortex-M: M3, M4 • Legacy: ARM7, ARM9, ARM11 3.3 Kernel Application(User) Cortex -A9 BSP DMA driver SPI Flash driver 3D driver USB Device driver USB Host driver

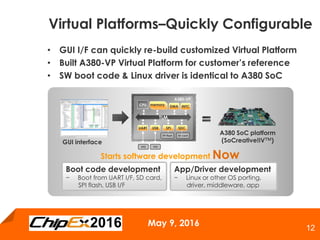

- 12. May 9, 2016 12 Virtual Platforms–Quickly Configurable • GUI I/F can quickly re-build customized Virtual Platform • Built A380-VP Virtual Platform for customer’s reference • SW boot code & Linux driver is identical to A380 SoC GUI interface A380 SoC platform (SoCreative!IVＴＭ) Starts software development Now TLM memorymemorymemory UART DMA SPI A380-VP INTC USB VIO VIO CPU SDC SPI flash SD card Boot code development − Boot from UART I/F, SD card, SPI flash, USB I/F App/Driver development − Linux or other OS porting, driver, middleware, app

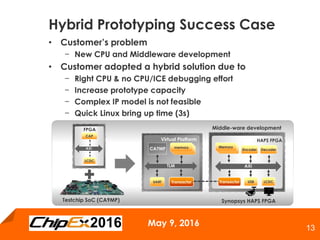

- 13. May 9, 2016 13 AXI memorymemoryMemory USBTransactor HAPS FPGA LCDC Encoder Decoder • Customer’s problem − New CPU and Middleware development • Customer adopted a hybrid solution due to − Right CPU & no CPU/ICE debugging effort − Increase prototype capacity − Complex IP model is not feasible − Quick Linux bring up time (3s) Hybrid Prototyping Success Case Testchip SoC (CA9MP) Synopsys HAPS FPGA Middle-ware development TLM memorymemorymemory Virtual Platform CA7MP UART Transactor AXI FPGA LCDC CAP

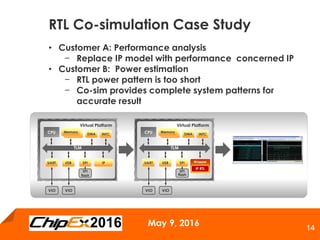

- 14. May 9, 2016 14 RTL Co-simulation Case Study • Customer A: Performance analysis − Replace IP model with performance concerned IP • Customer B: Power estimation − RTL power pattern is too short − Co-sim provides complete system patterns for accurate result RTL waveform TLM memorymemoryMemory UART DMA SPI Virtual Platform INTC USB VIO VIO SPI flash CPU IP TLM memorymemoryMemory UART DMA SPI Virtual Platform INTC USB VIO VIO SPI flash CPU Wrapper IP RTL

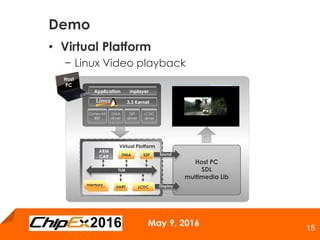

- 15. May 9, 2016 15 Host PC SDL multimedia Lib • Virtual Platform − Linux Video playback Demo ARM CA9 TLM memorymemorymemory UART DMA SSP Virtual Platform LCDC 3.3 Kernel Application mplayer Cortex-A9 BSP DMA driver SSP driver LCDC driver Sound Display Host PC
- 16. May 9, 2016 16 • Virtual Platform Solution − Next generation software development − Shift left the schedule − Flexible prototyping solution with FPGA & RTL Simulation Summary Virtual Prototyping Hybrid Prototyping RTL Co-Simulation TLM memorymemoryMemory UART DMA SPI Virtual Platform INTC USB VIO VIO SPI flash CPU SDC SD card TLM memorymemoryMemory UART DMA SPI Virtual Platform INTC USB VIO VIO SPI flash CPU wrapper IP RTL memory TLM memoryMemory USB Transactor Virtual Platform CPU UART DMA
- 17. May 9, 2016 17 Thank you Ken Liao, Senior Associate VP, Faraday
