The document discusses strategies for automating network configuration using model-driven approaches and open standards. It provides an overview of exciting developments in software development that could enable more programmatic network configuration. Specifically, it covers NETCONF and YANG standards for automating device configuration and management, and recommends starting with familiarization of OpenConfig models, templated deployments of simple configurations, and using tools like YDK and NCClient to test automations.

1. www.opengear.com© Copyright 2019 Opengear, Inc. 1

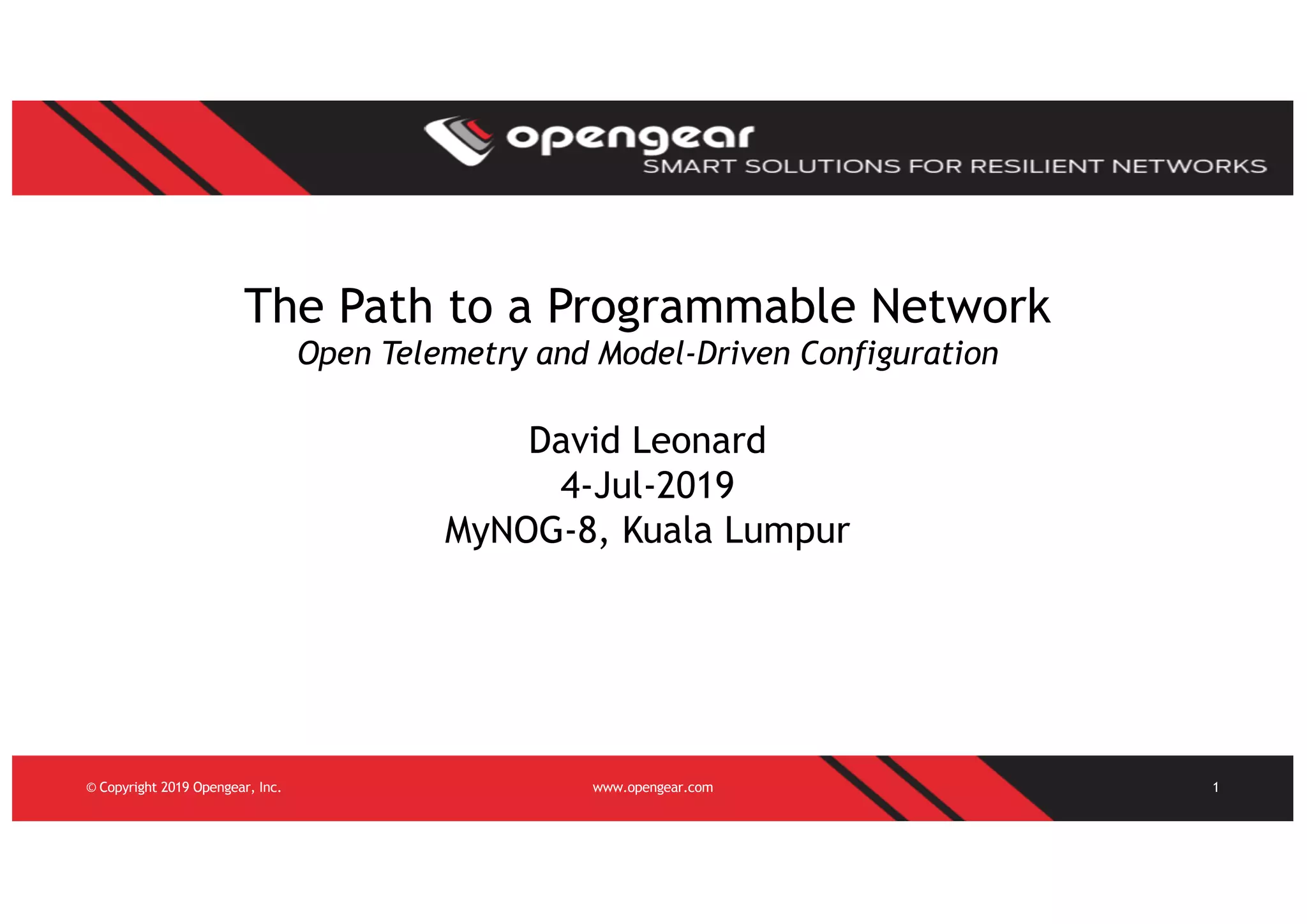

The Path to a Programmable Network
Open Telemetry and Model-Driven Configuration
David Leonard
4-Jul-2019
MyNOG-8, Kuala Lumpur

2. © Copyright 2019 Opengear, Inc. www.opengear.com 2

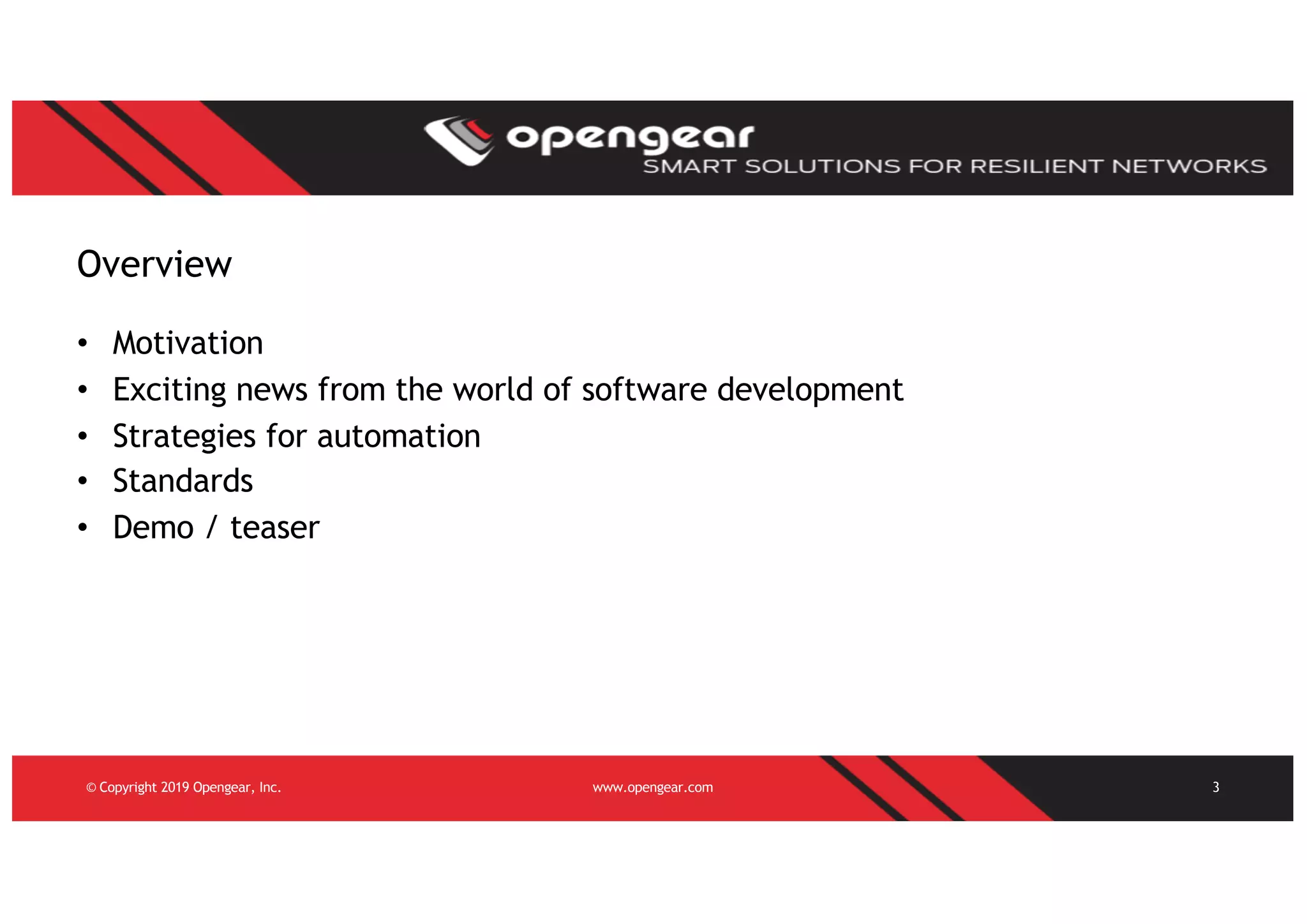

3. Overview
© Copyright 2019 Opengear, Inc. www.opengear.com 3
• Motivation
• Exciting news from the world of software development
• Strategies for automation
• Standards
• Demo / teaser

4. © Copyright 2019 Opengear, Inc. www.opengear.com 4

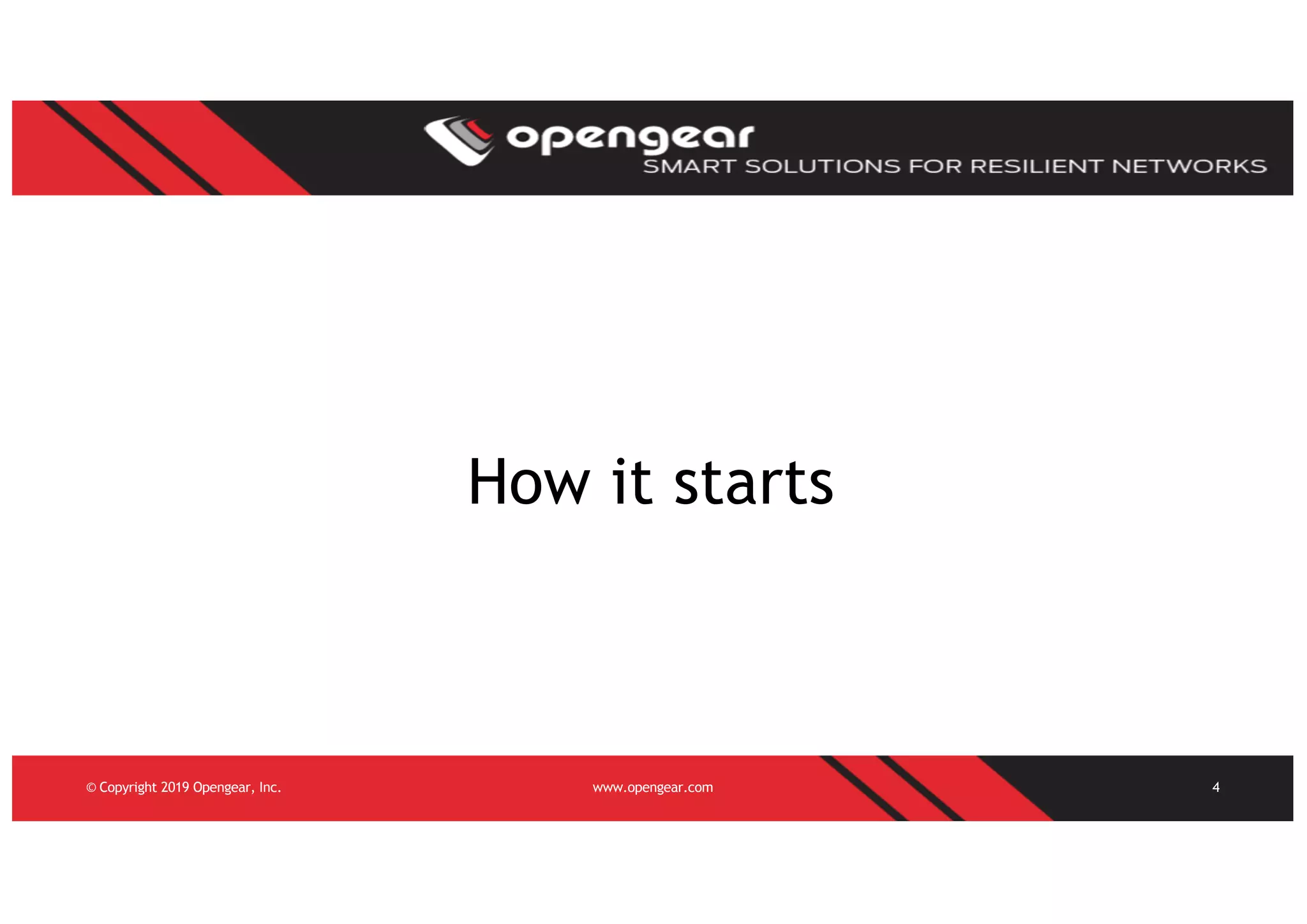

How it starts

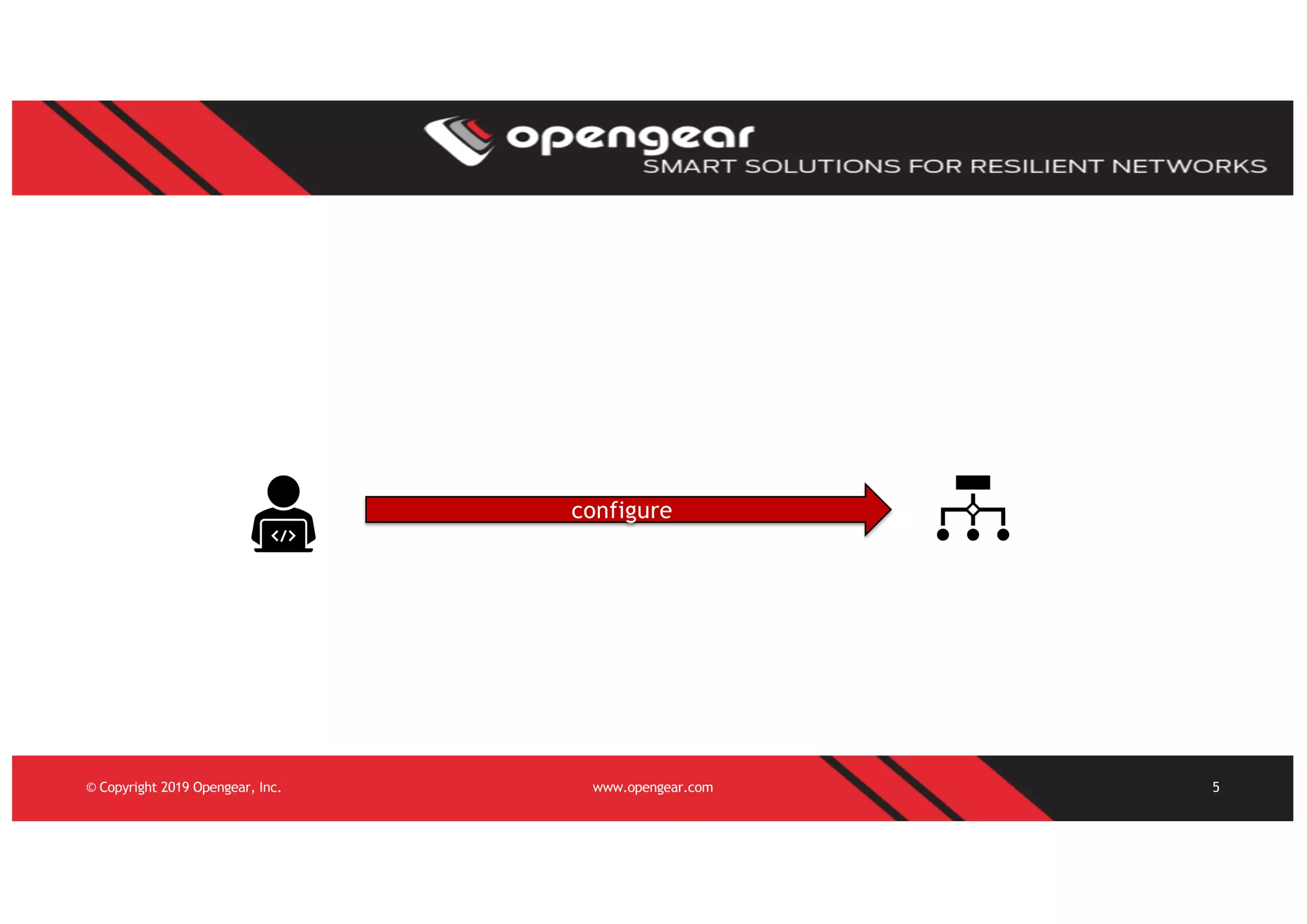

5. © Copyright 2019 Opengear, Inc. www.opengear.com 5

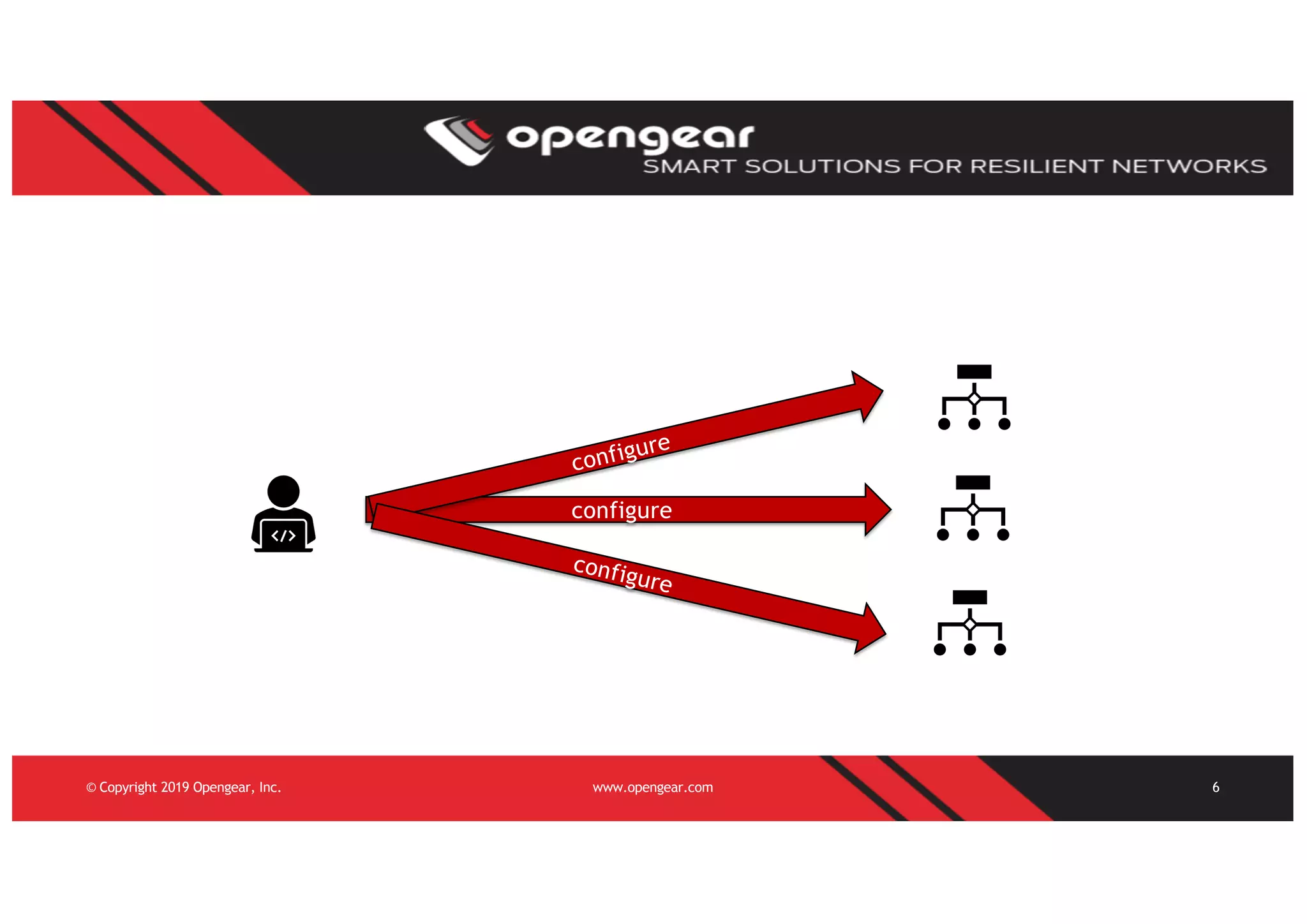

configure

6. © Copyright 2019 Opengear, Inc. www.opengear.com 6
configure
configure
configure

7. © Copyright 2019 Opengear, Inc. www.opengear.com 7
configure
configure
configure
configureconfigure
configure
configure
configure
configure

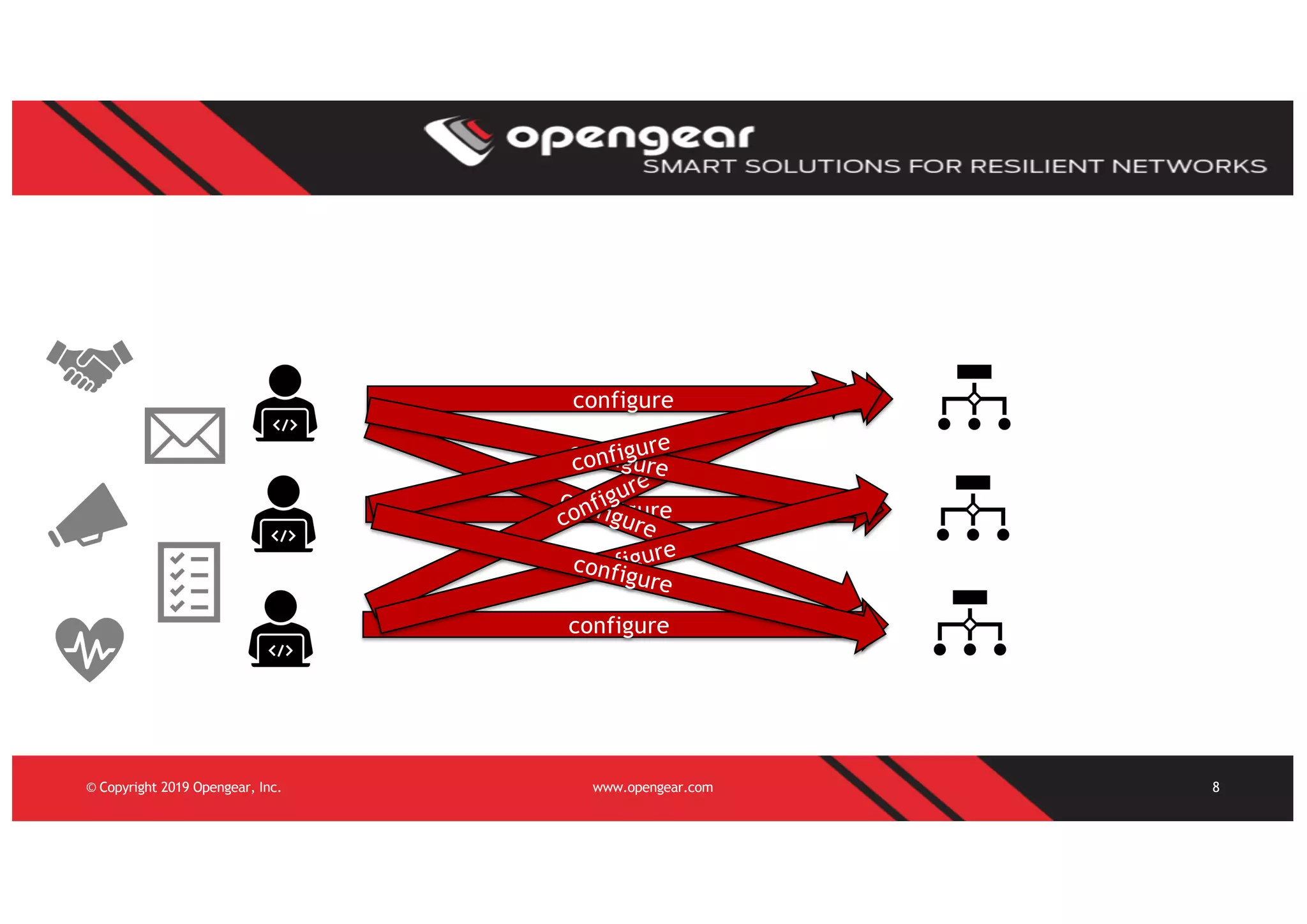

8. © Copyright 2019 Opengear, Inc. www.opengear.com 8
configure
configure
configure
configureconfigure
configure
configure
configure
configure

9. © Copyright 2019 Opengear, Inc. www.opengear.com 9
What have
we wrought?

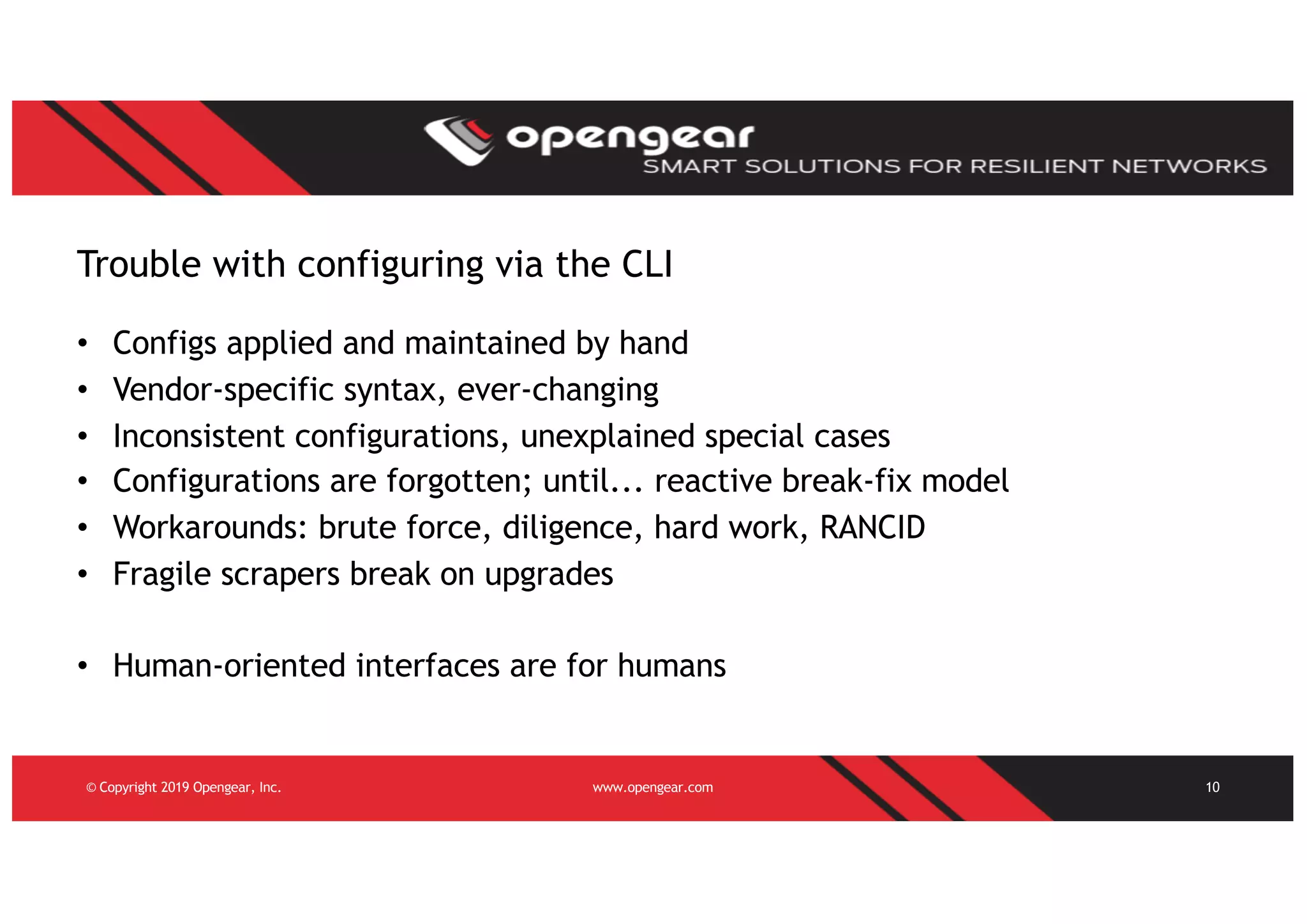

10. Trouble with configuring via the CLI
© Copyright 2019 Opengear, Inc. www.opengear.com 10
• Configs applied and maintained by hand
• Vendor-specific syntax, ever-changing
• Inconsistent configurations, unexplained special cases
• Configurations are forgotten; until... reactive break-fix model
• Workarounds: brute force, diligence, hard work, RANCID
• Fragile scrapers break on upgrades
• Human-oriented interfaces are for humans

11. © Copyright 2019 Opengear, Inc. www.opengear.com 11
Manual control
Controlled by
software

12. © Copyright 2019 Opengear, Inc. www.opengear.com 12

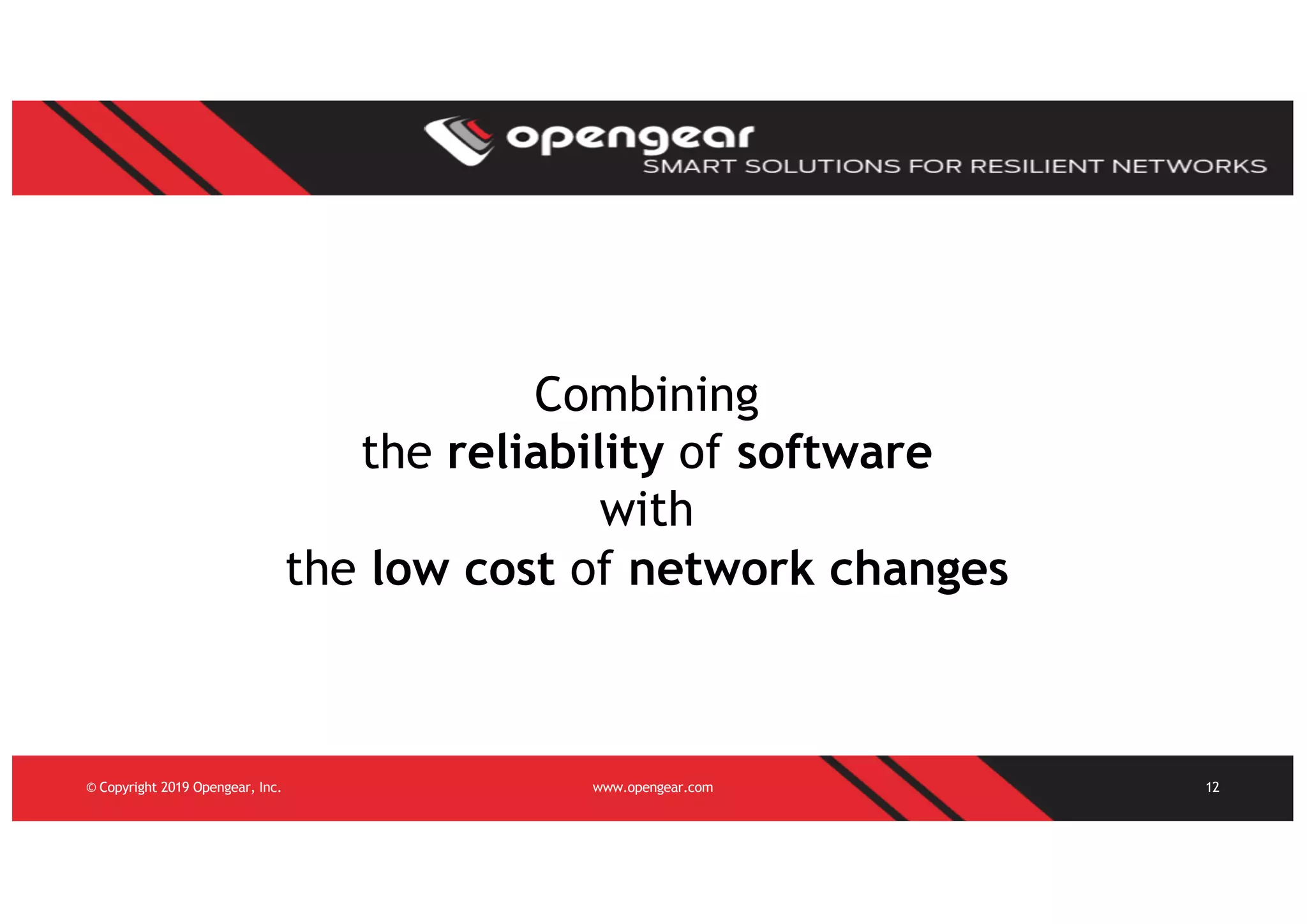

Combining
the reliability of software
with
the low cost of network changes

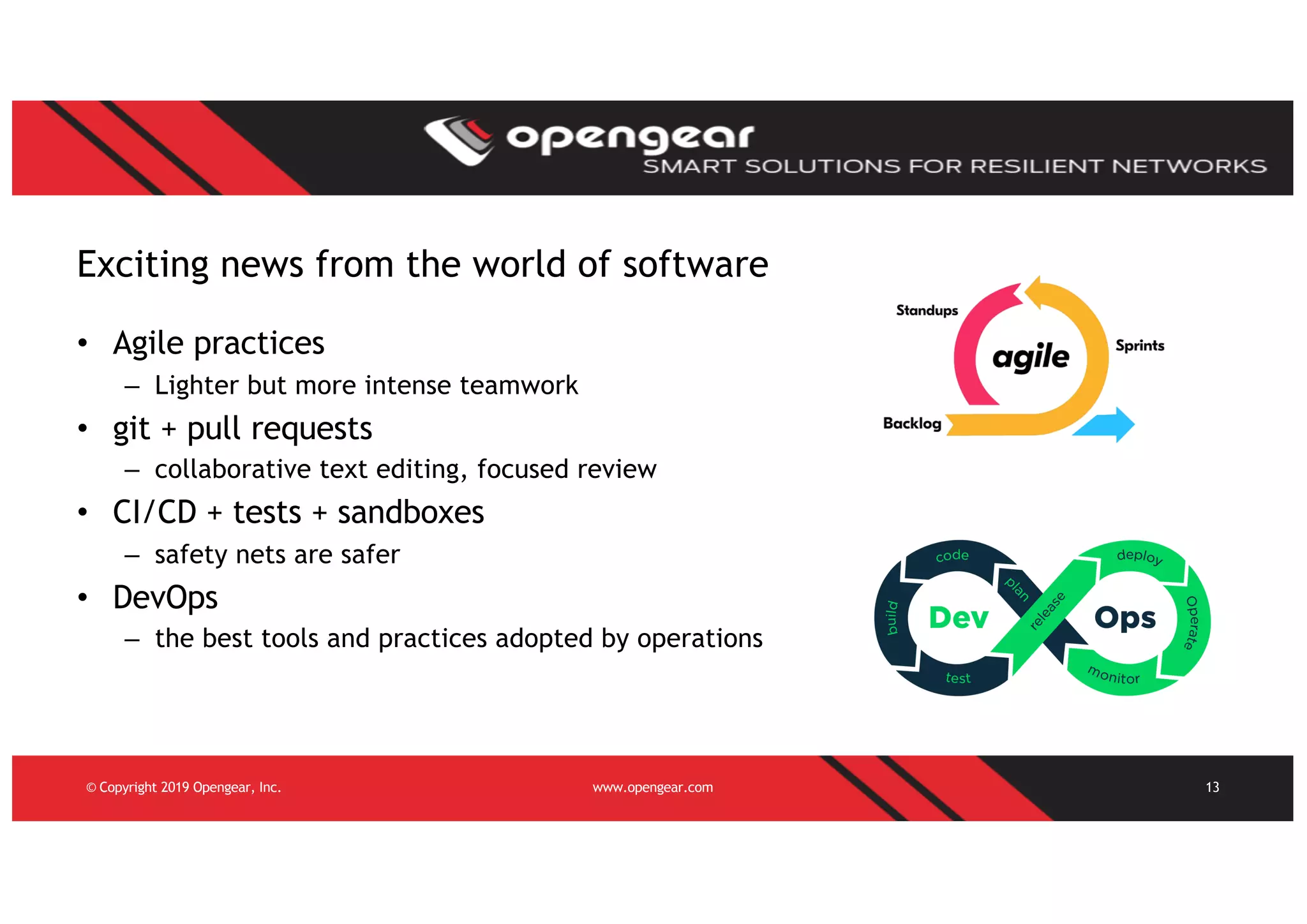

13. Exciting news from the world of software
© Copyright 2019 Opengear, Inc. www.opengear.com 13
• Agile practices
– Lighter but more intense teamwork
• git + pull requests
– collaborative text editing, focused review
• CI/CD + tests + sandboxes
– safety nets are safer
• DevOps
– the best tools and practices adopted by operations

14. © Copyright 2019 Opengear, Inc. www.opengear.com 14
programmer

15. © Copyright 2019 Opengear, Inc. www.opengear.com 15
configure
configure
configure
configureconfigure
configure
configure
configure
configure
1:100

16. © Copyright 2019 Opengear, Inc. www.opengear.com 16

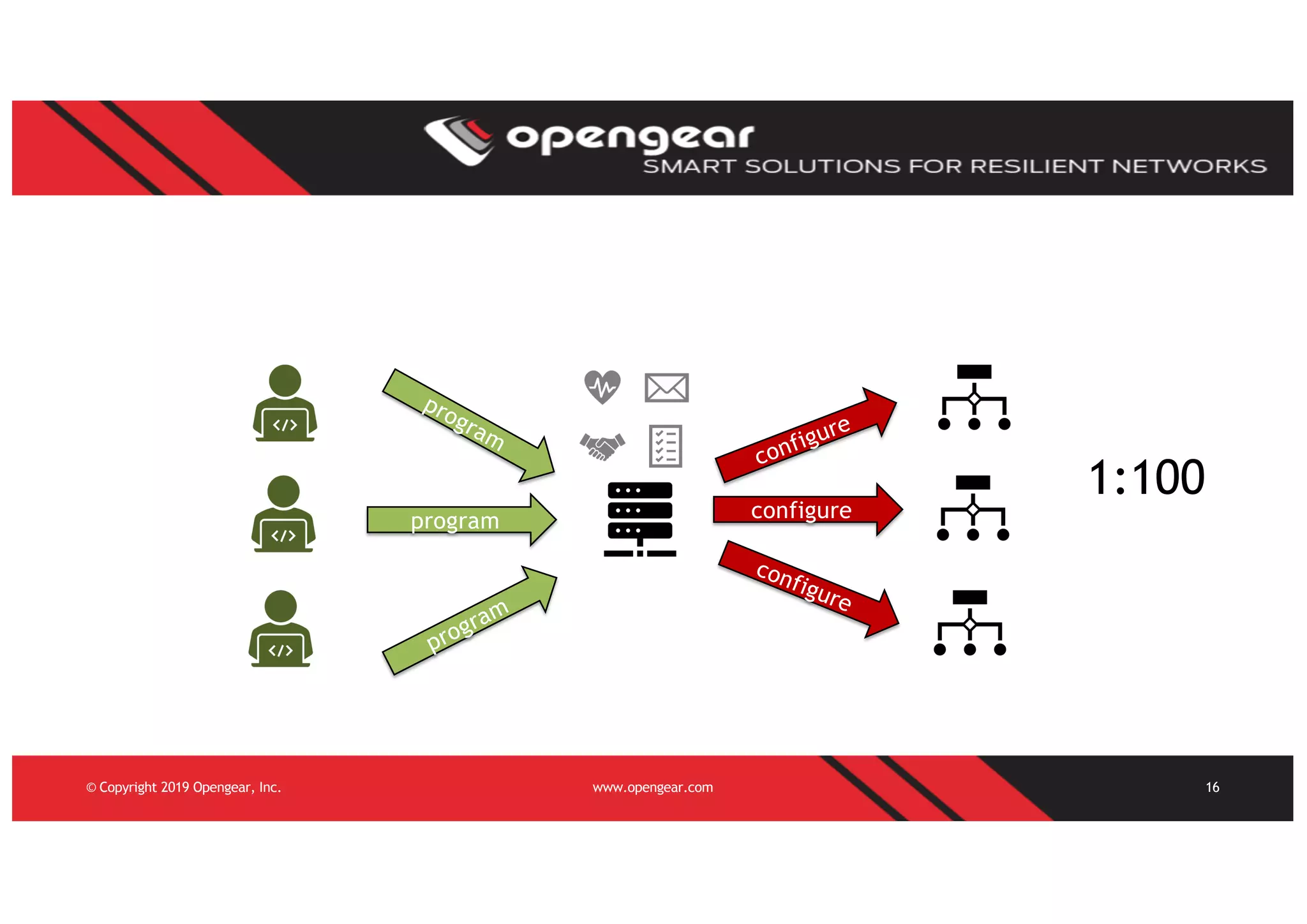

program
program
program
configure
configure
configure
1:100

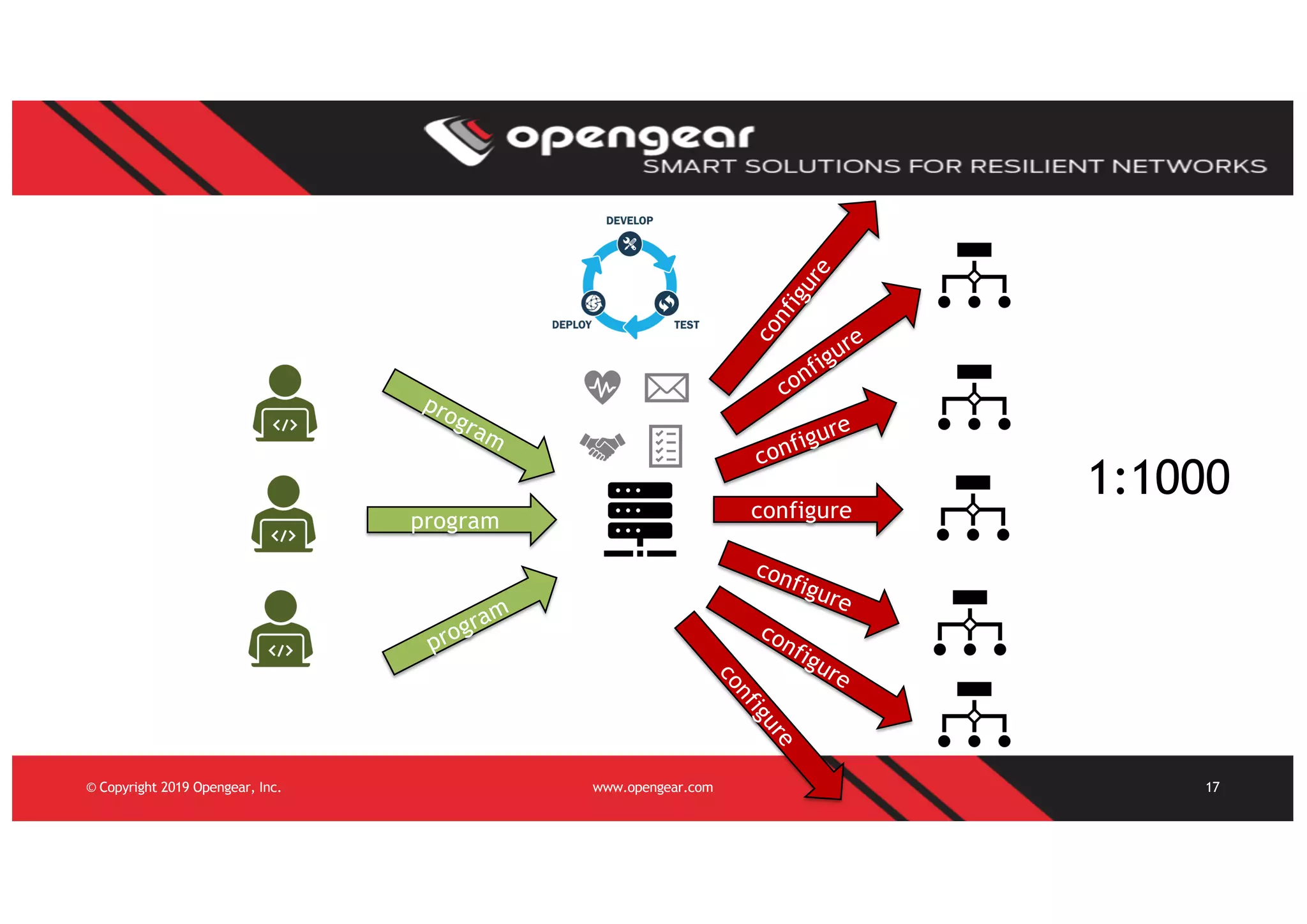

17. © Copyright 2019 Opengear, Inc. www.opengear.com 17
program
program
configure
configure
configure
configure
configure
configure
configure
program
1:1000

18. © Copyright 2019 Opengear, Inc. www.opengear.com 18

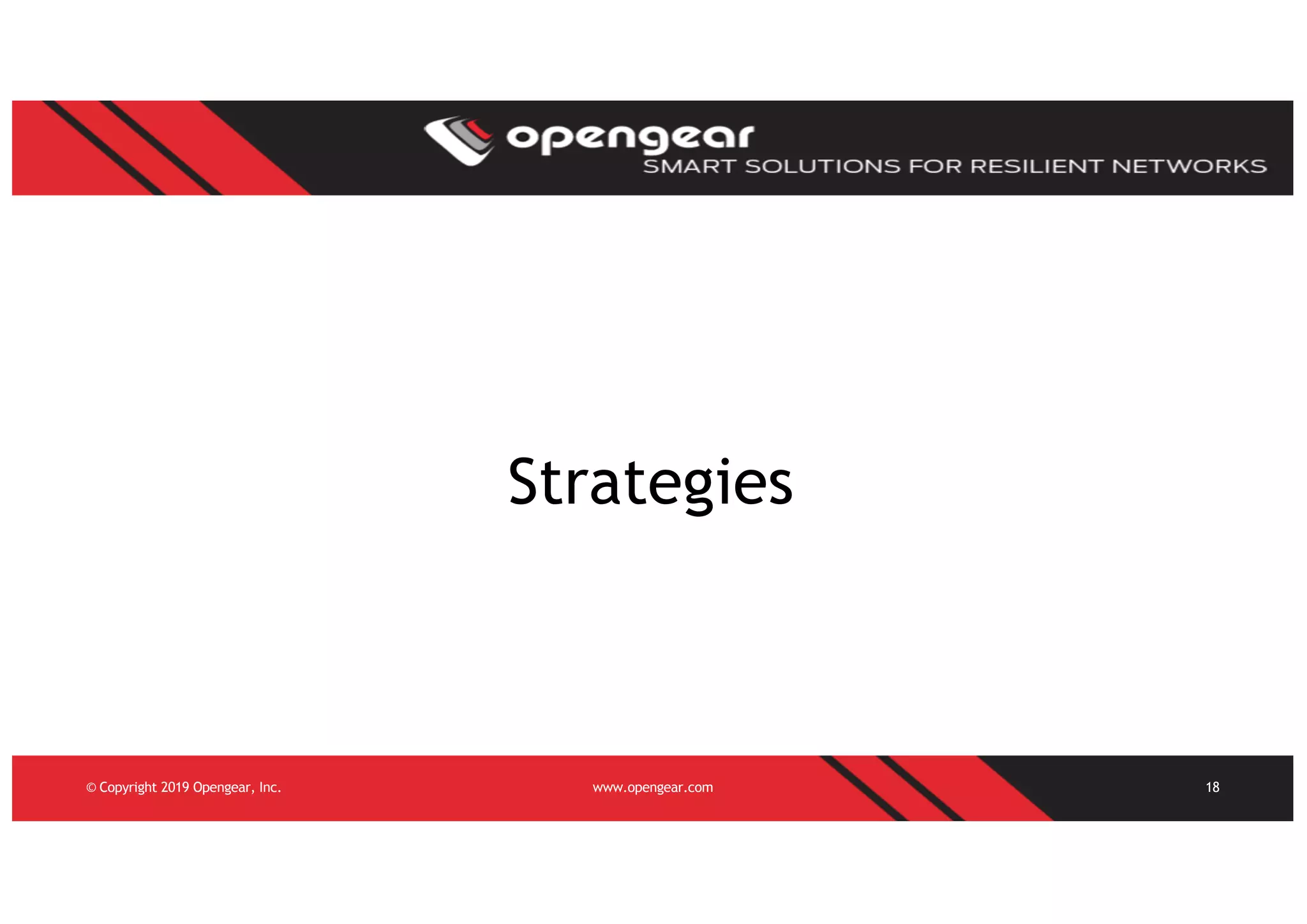

Strategies

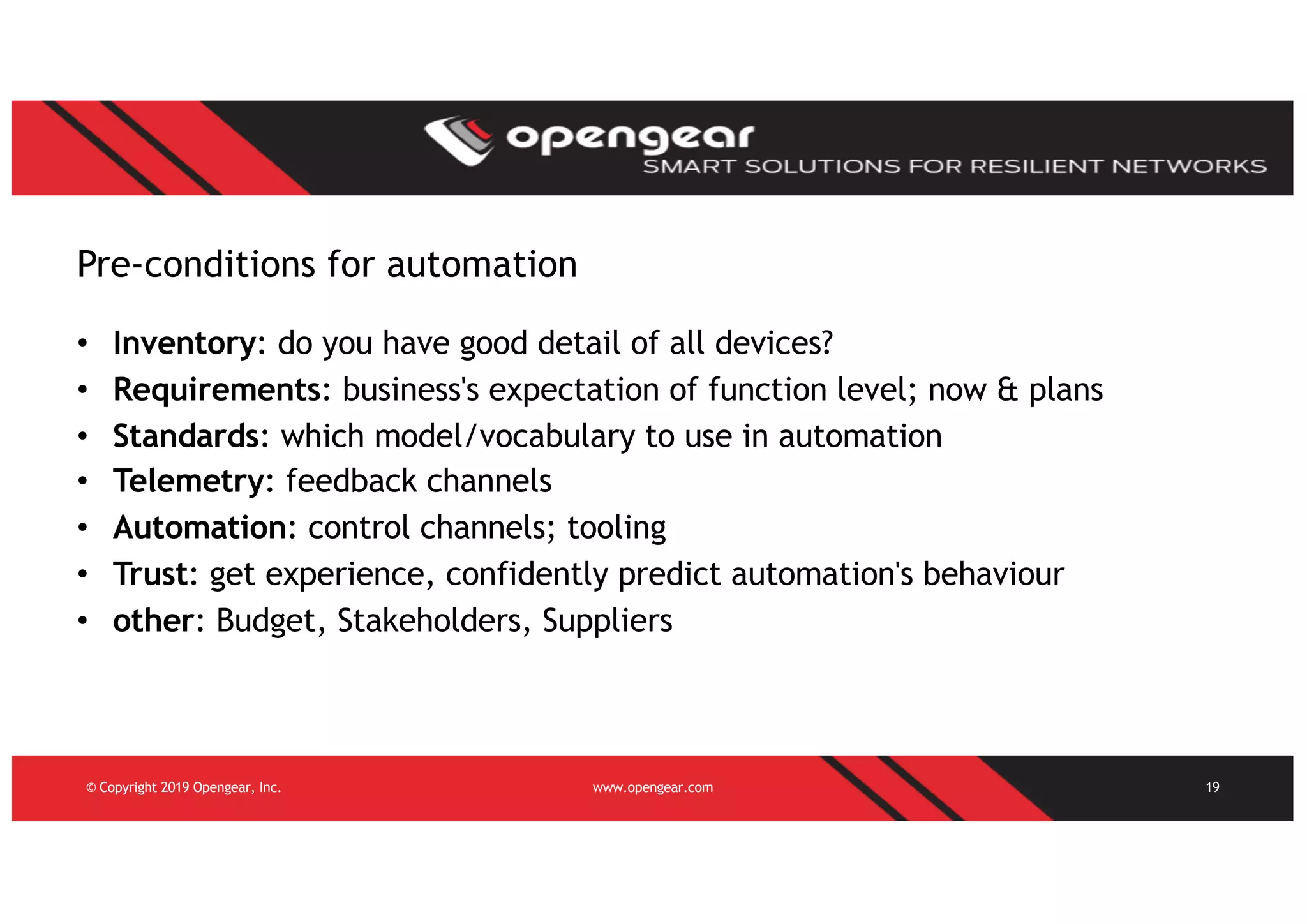

19. Pre-conditions for automation
© Copyright 2019 Opengear, Inc. www.opengear.com 19
• Inventory: do you have good detail of all devices?
• Requirements: business's expectation of function level; now & plans
• Standards: which model/vocabulary to use in automation
• Telemetry: feedback channels
• Automation: control channels; tooling
• Trust: get experience, confidently predict automation's behaviour
• other: Budget, Stakeholders, Suppliers

20. © Copyright 2019 Opengear, Inc. www.opengear.com 20

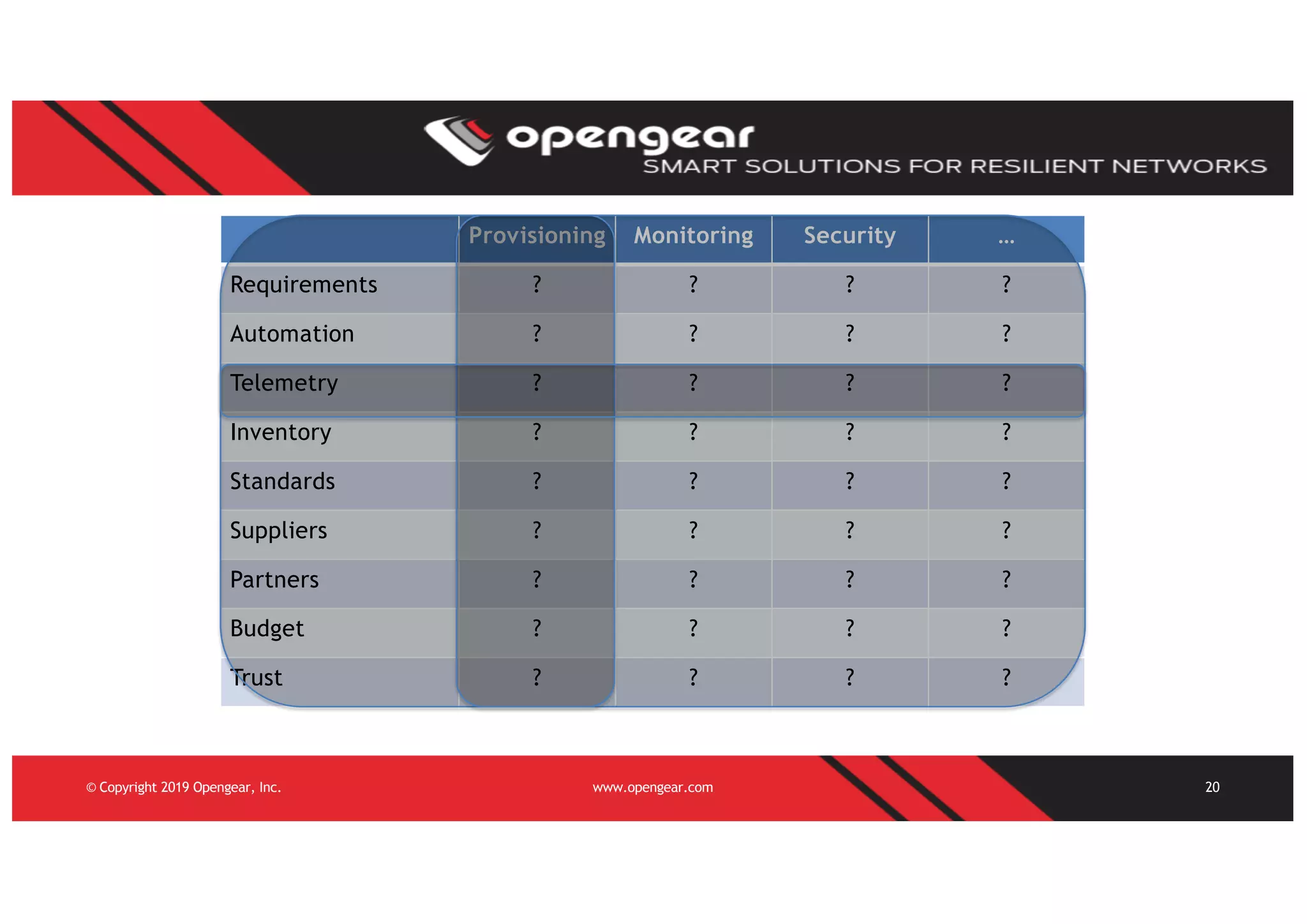

Provisioning Monitoring Security …
Requirements ? ? ? ?
Automation ? ? ? ?
Telemetry ? ? ? ?
Inventory ? ? ? ?
Standards ? ? ? ?
Suppliers ? ? ? ?
Partners ? ? ? ?
Budget ? ? ? ?
Trust ? ? ? ?

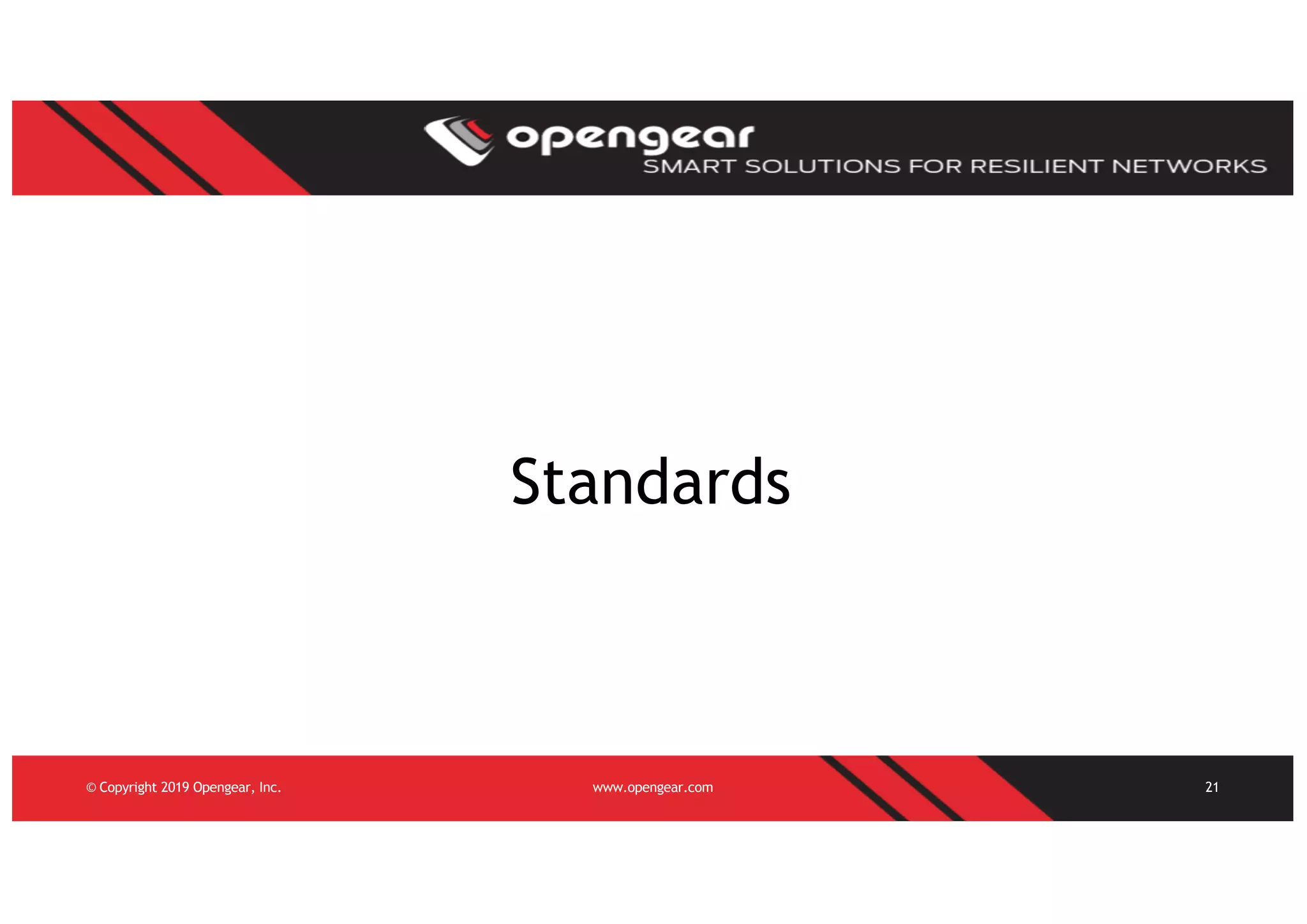

21. © Copyright 2019 Opengear, Inc. www.opengear.com 21
Standards

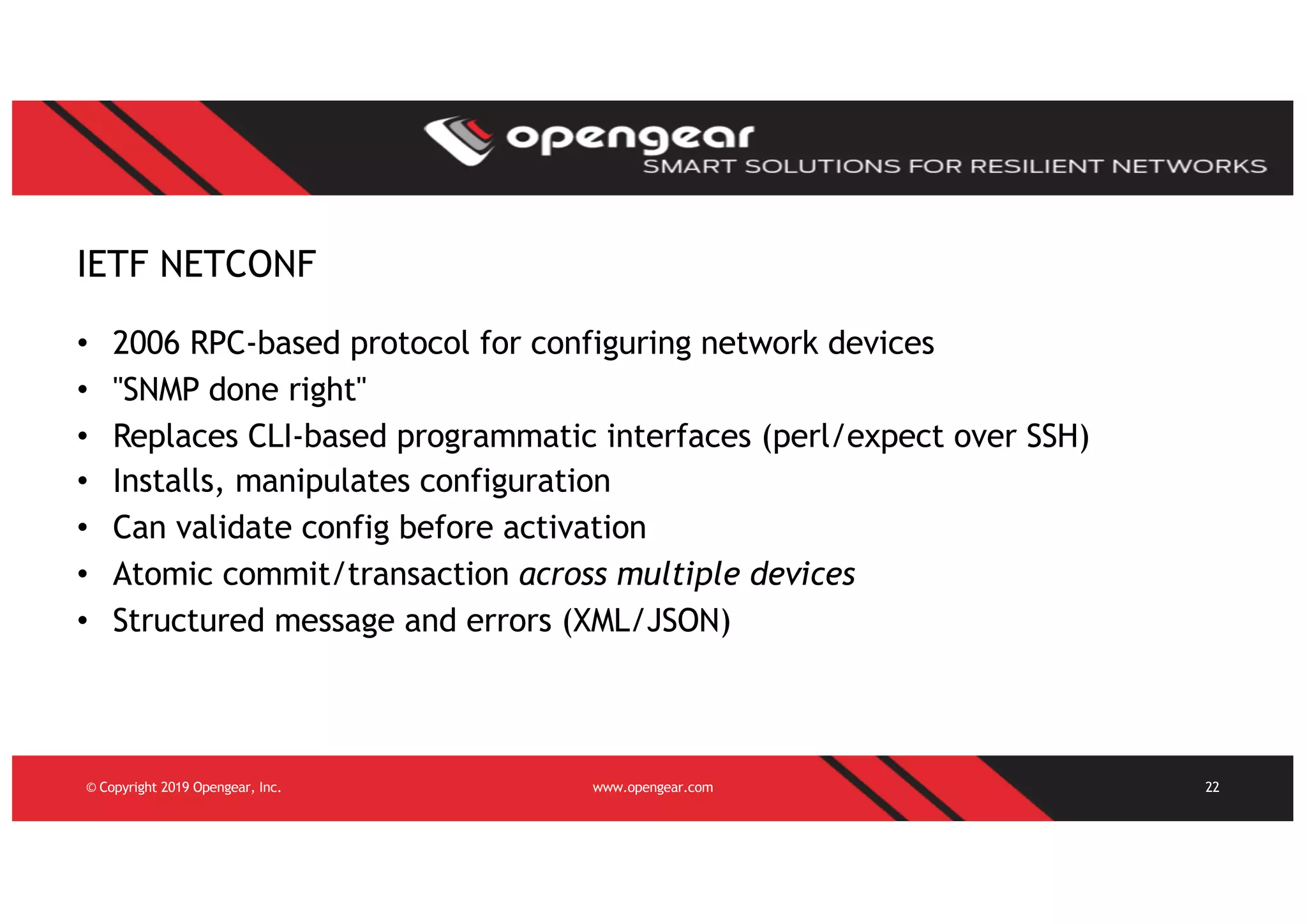

22. IETF NETCONF
© Copyright 2019 Opengear, Inc. www.opengear.com 22
• 2006 RPC-based protocol for configuring network devices
• "SNMP done right"
• Replaces CLI-based programmatic interfaces (perl/expect over SSH)
• Installs, manipulates configuration
• Can validate config before activation
• Atomic commit/transaction across multiple devices
• Structured message and errors (XML/JSON)

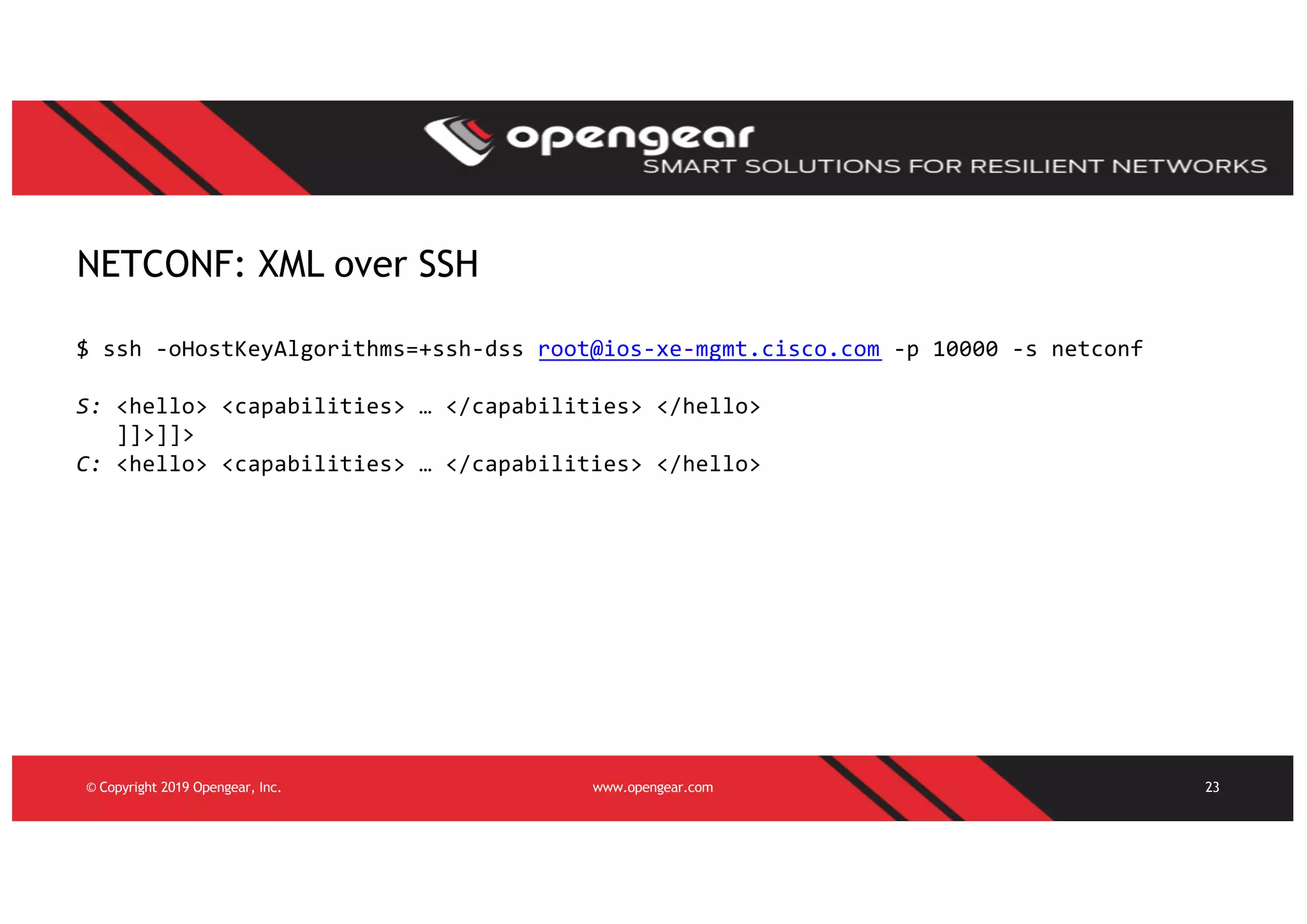

23. NETCONF: XML over SSH
© Copyright 2019 Opengear, Inc. www.opengear.com 23
$ ssh -oHostKeyAlgorithms=+ssh-dss root@ios-xe-mgmt.cisco.com -p 10000 -s netconf
S: <hello> <capabilities> … </capabilities> </hello>
]]>]]>
C: <hello> <capabilities> … </capabilities> </hello>

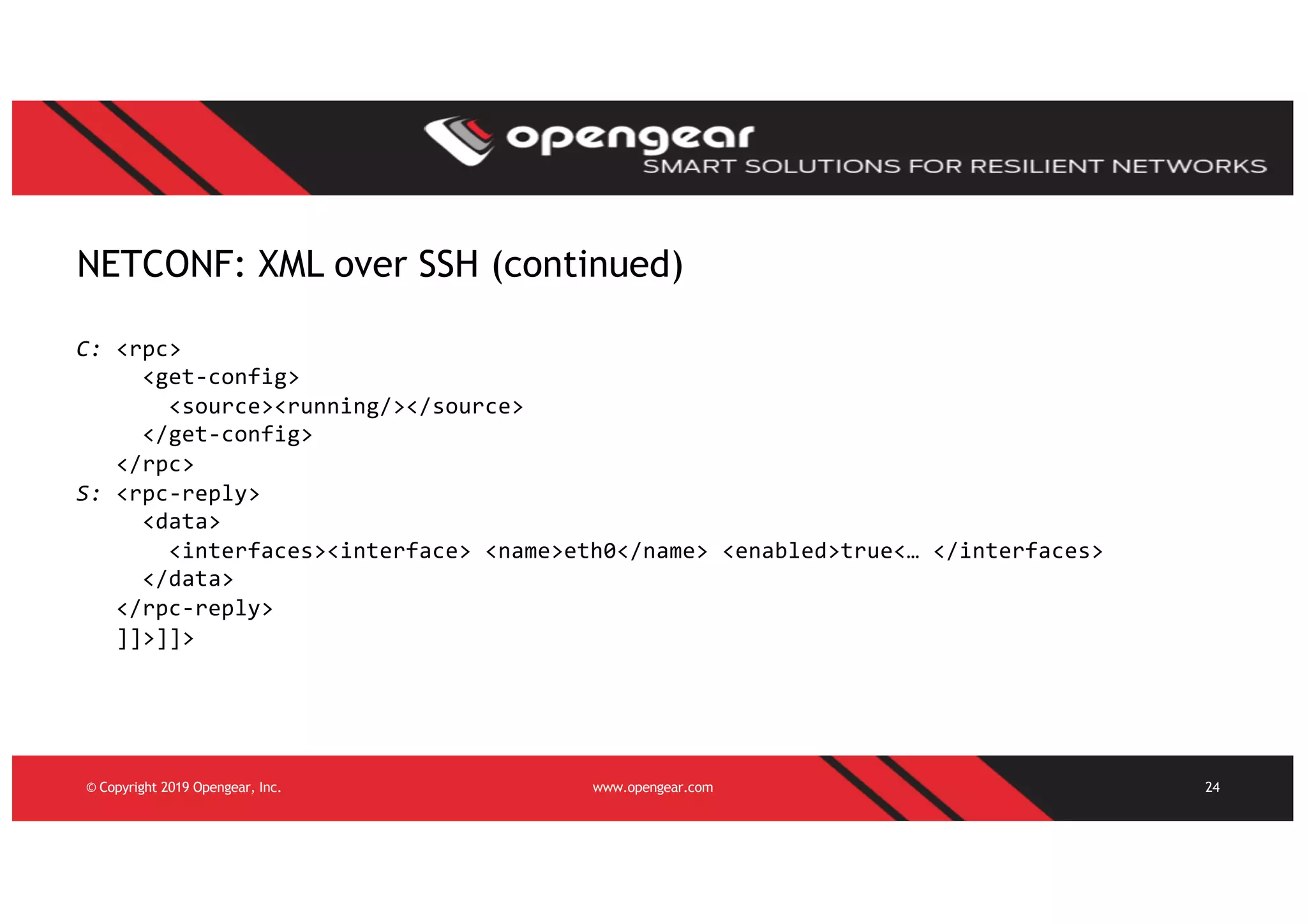

24. NETCONF: XML over SSH (continued)
© Copyright 2019 Opengear, Inc. www.opengear.com 24
C: <rpc>
<get-config>
<source><running/></source>
</get-config>
</rpc>
S: <rpc-reply>
<data>
<interfaces><interface> <name>eth0</name> <enabled>true<… </interfaces>
</data>
</rpc-reply>
]]>]]>

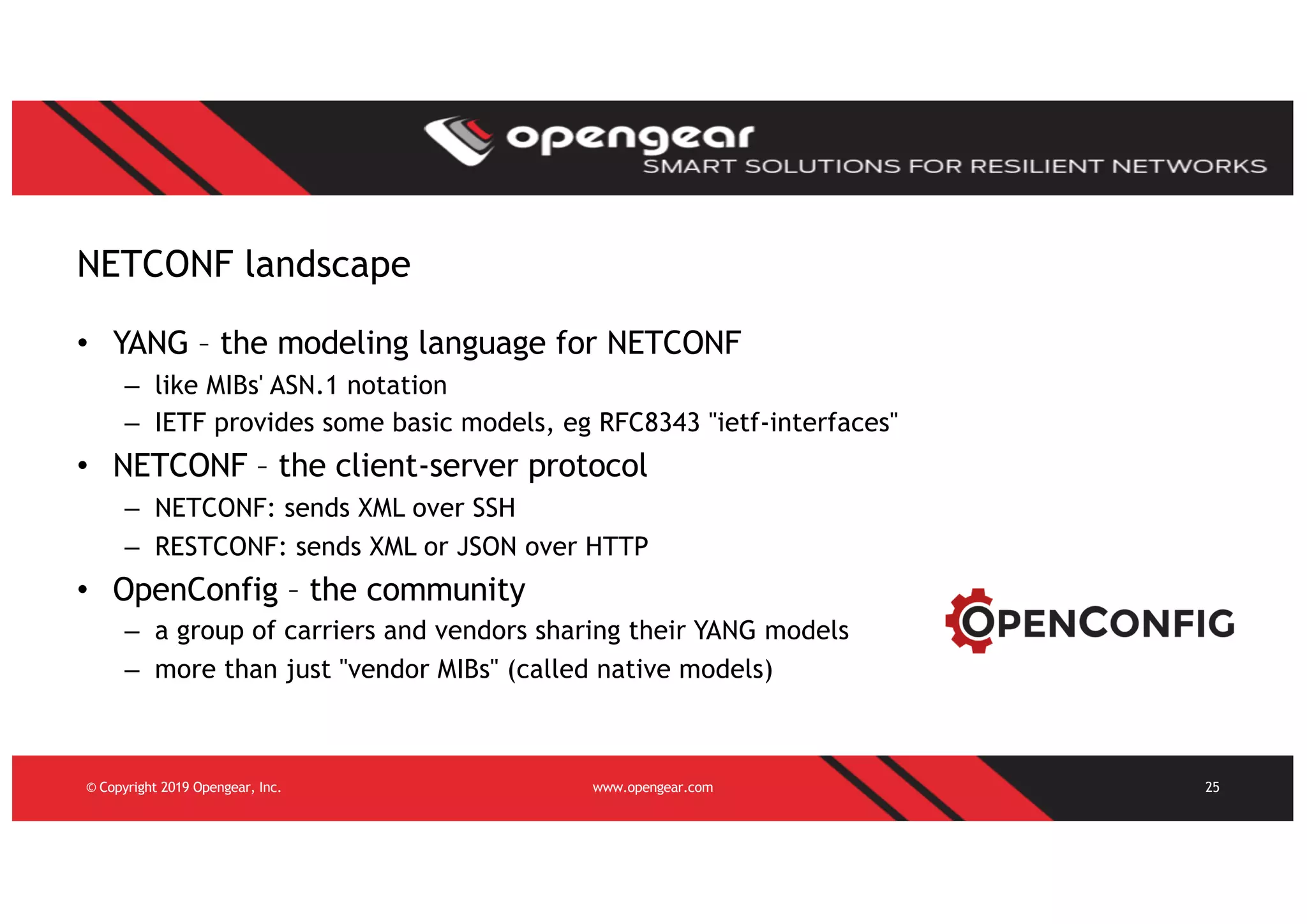

25. NETCONF landscape
© Copyright 2019 Opengear, Inc. www.opengear.com 25
• YANG – the modeling language for NETCONF
– like MIBs' ASN.1 notation
– IETF provides some basic models, eg RFC8343 "ietf-interfaces"
• NETCONF – the client-server protocol
– NETCONF: sends XML over SSH
– RESTCONF: sends XML or JSON over HTTP
• OpenConfig – the community
– a group of carriers and vendors sharing their YANG models
– more than just "vendor MIBs" (called native models)

26. Where to get YANG models
© Copyright 2019 Opengear, Inc. www.opengear.com 26
• yangcatalog.org
– https://github.com/YangModels/yang (yangcatalog.org)
• openconfig.org
– https://github.com/openconfig/public
• https://github.com/Juniper/yang

27. © Copyright 2019 Opengear, Inc. www.opengear.com 27

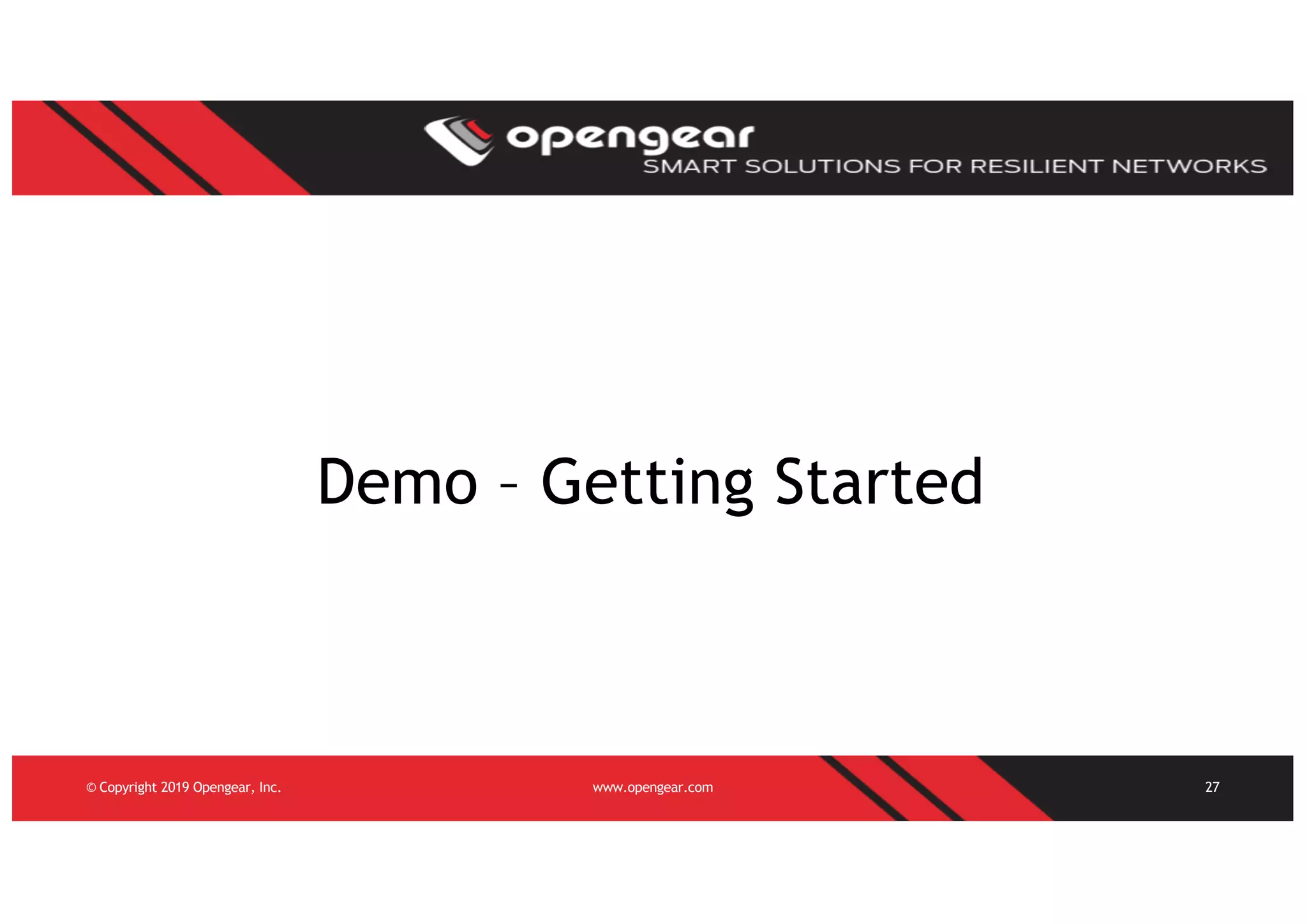

Demo – Getting Started

28. © Copyright 2019 Opengear, Inc. www.opengear.com 28

29. © Copyright 2019 Opengear, Inc. www.opengear.com 29

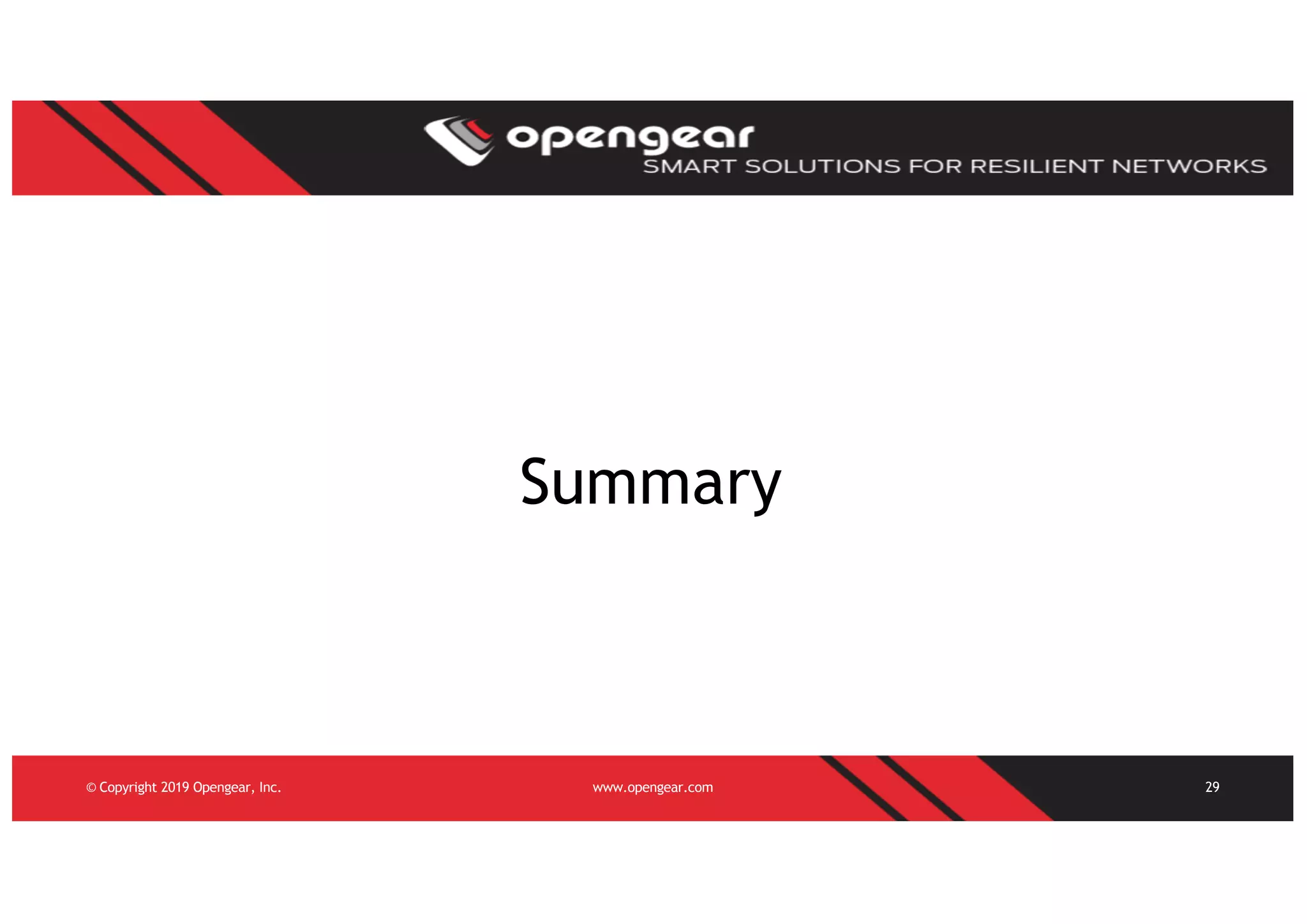

Summary

30. © Copyright 2019 Opengear, Inc. www.opengear.com 30

31. © Copyright 2019 Opengear, Inc. www.opengear.com 31

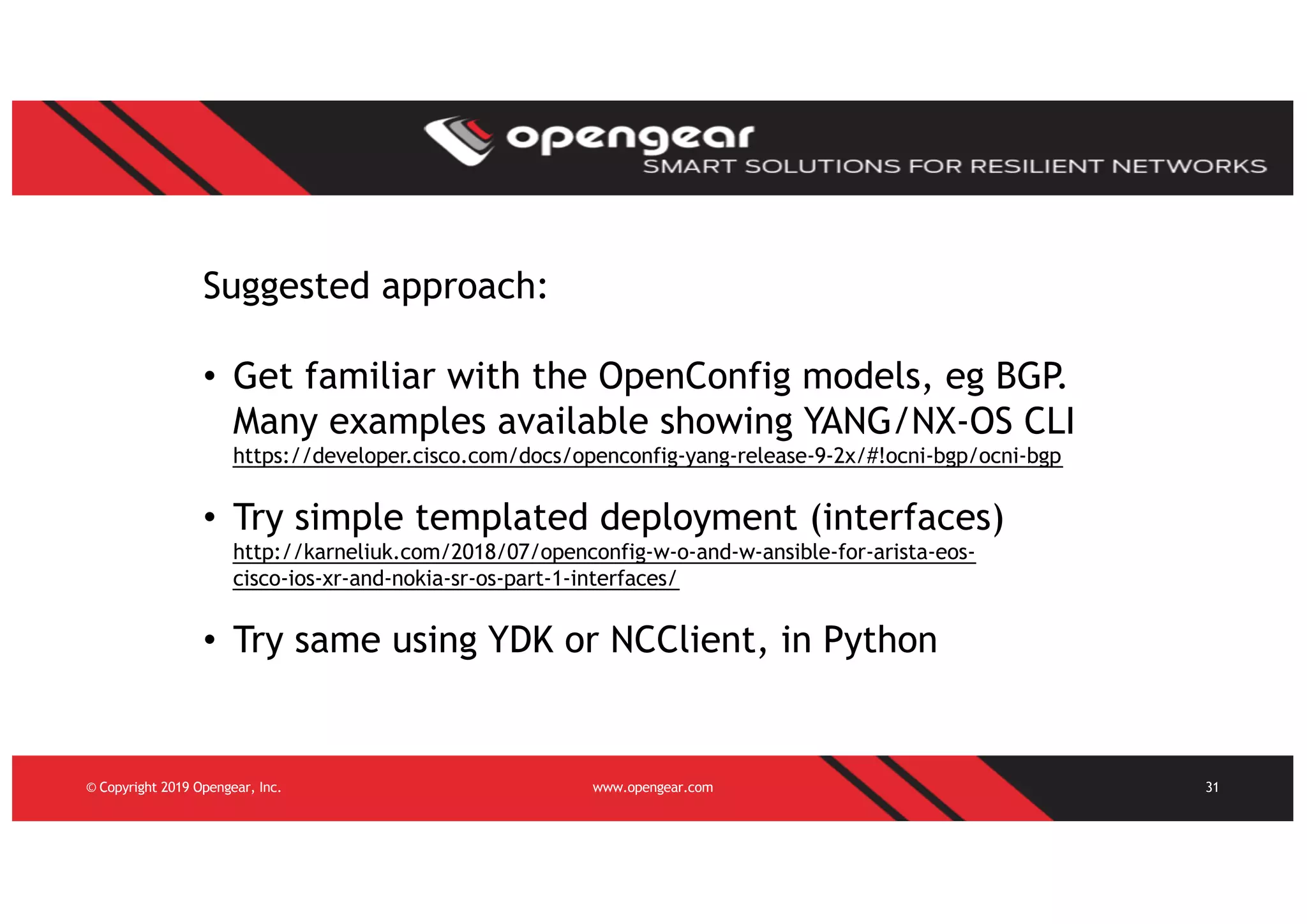

Suggested approach:
• Get familiar with the OpenConfig models, eg BGP.
Many examples available showing YANG/NX-OS CLI
https://developer.cisco.com/docs/openconfig-yang-release-9-2x/#!ocni-bgp/ocni-bgp
• Try simple templated deployment (interfaces)
http://karneliuk.com/2018/07/openconfig-w-o-and-w-ansible-for-arista-eos-
cisco-ios-xr-and-nokia-sr-os-part-1-interfaces/
• Try same using YDK or NCClient, in Python

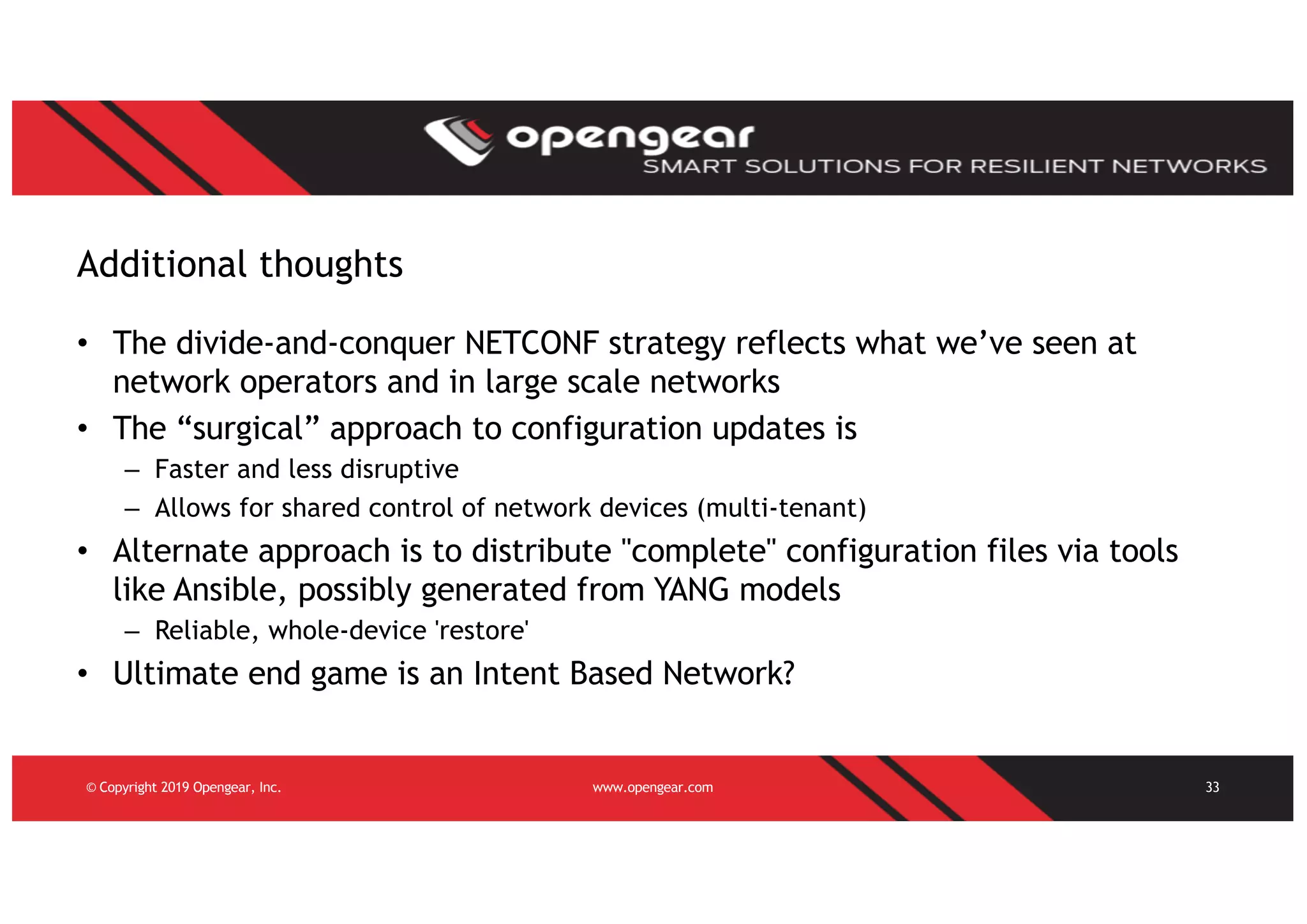

32. Additional thoughts
© Copyright 2019 Opengear, Inc. www.opengear.com 33
• The divide-and-conquer NETCONF strategy reflects what we’ve seen at
network operators and in large scale networks
• The “surgical” approach to configuration updates is
– Faster and less disruptive
– Allows for shared control of network devices (multi-tenant)
• Alternate approach is to distribute "complete" configuration files via tools
like Ansible, possibly generated from YANG models
– Reliable, whole-device 'restore'
• Ultimate end game is an Intent Based Network?

33. © Copyright 2019 Opengear, Inc. www.opengear.com 34
