1. SDN-Based Enterprise
Connectivity Service
Tang Xiongyan& Zhou Wei , China Unicom

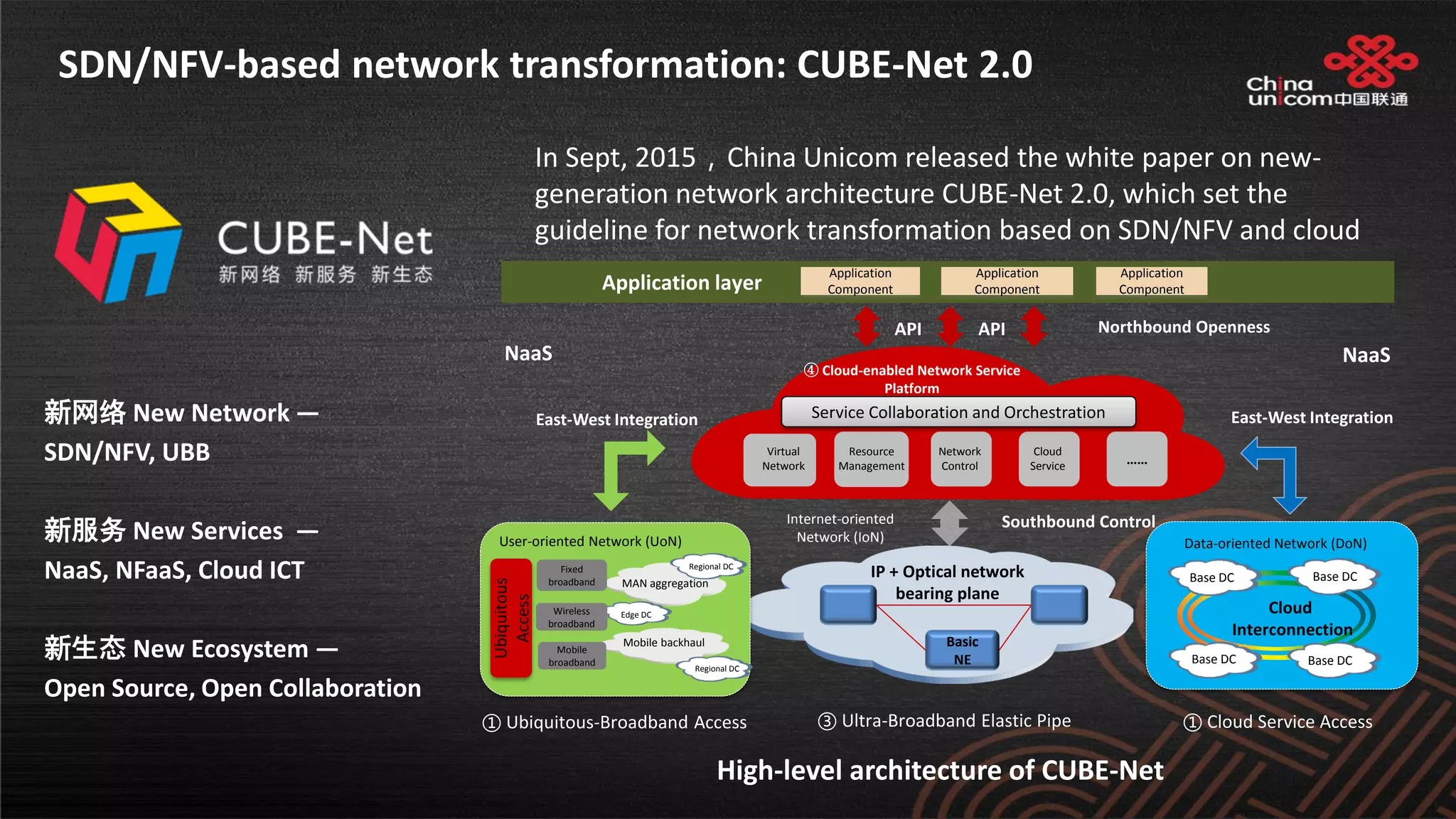

2. SDN/NFV-based network transformation: CUBE-Net 2.0
Application
ComponentApplication layer
API
Data-oriented Network (DoN)
Cloud
Interconnection
User-oriented Network (UoN)
NaaS
……
NaaS
API
Service Collaboration and Orchestration
Application
Component
Application
Component
Basic
NE
Southbound Control
East-West Integration
Northbound Openness
East-West Integration
Internet-oriented
Network (IoN)
IP + Optical network
bearing plane
① Cloud Service Access① Ubiquitous-Broadband Access ③ Ultra-Broadband Elastic Pipe
Base DC Base DC
Base DC Base DC
Regional DC
Regional DC
MAN aggregation
Mobile backhaul
Edge DC
Fixed
broadband
Ubiquitous
Access
Wireless
broadband
Mobile
broadband
④ Cloud-enabled Network Service
Platform
Virtual
Network
Resource
Management
Network
Control
Cloud
Service
In Sept, 2015，China Unicom released the white paper on new-
generation network architecture CUBE-Net 2.0, which set the
guideline for network transformation based on SDN/NFV and cloud
新网络 New Network —
SDN/NFV, UBB
新服务 New Services —
NaaS, NFaaS, Cloud ICT
新生态 New Ecosystem —
Open Source, Open Collaboration
High-level architecture of CUBE-Net

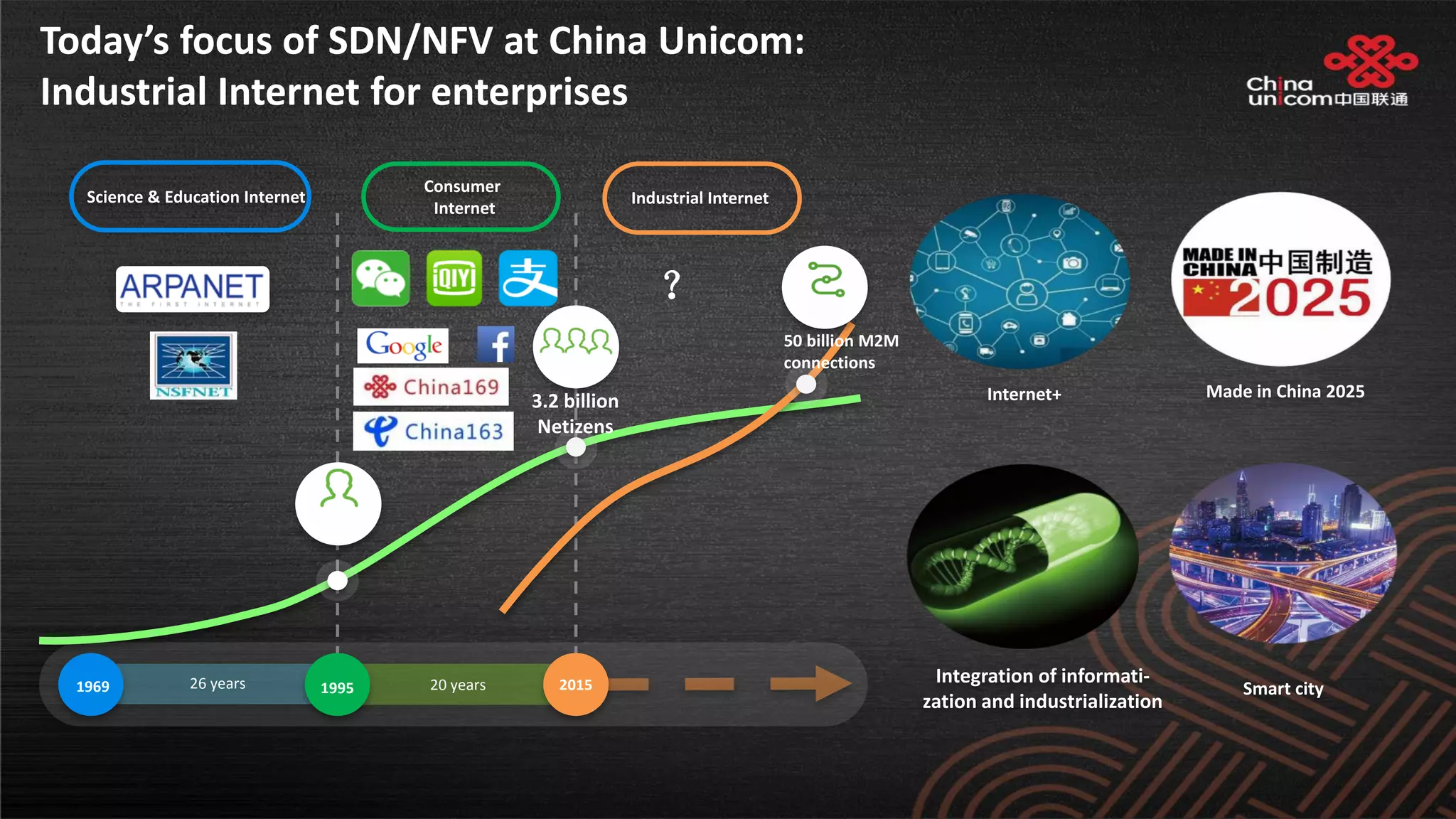

3. Today’s focus of SDN/NFV at China Unicom:
Industrial Internet for enterprises
Internet+ Made in China 2025
Integration of informati-
zation and industrialization
Smart city26 years 20 years 20151995
Consumer
Internet
Industrial Internet
1600万网民
3.2 billion
Netizens
Science & Education Internet
50 billion M2M
connections
1969
？

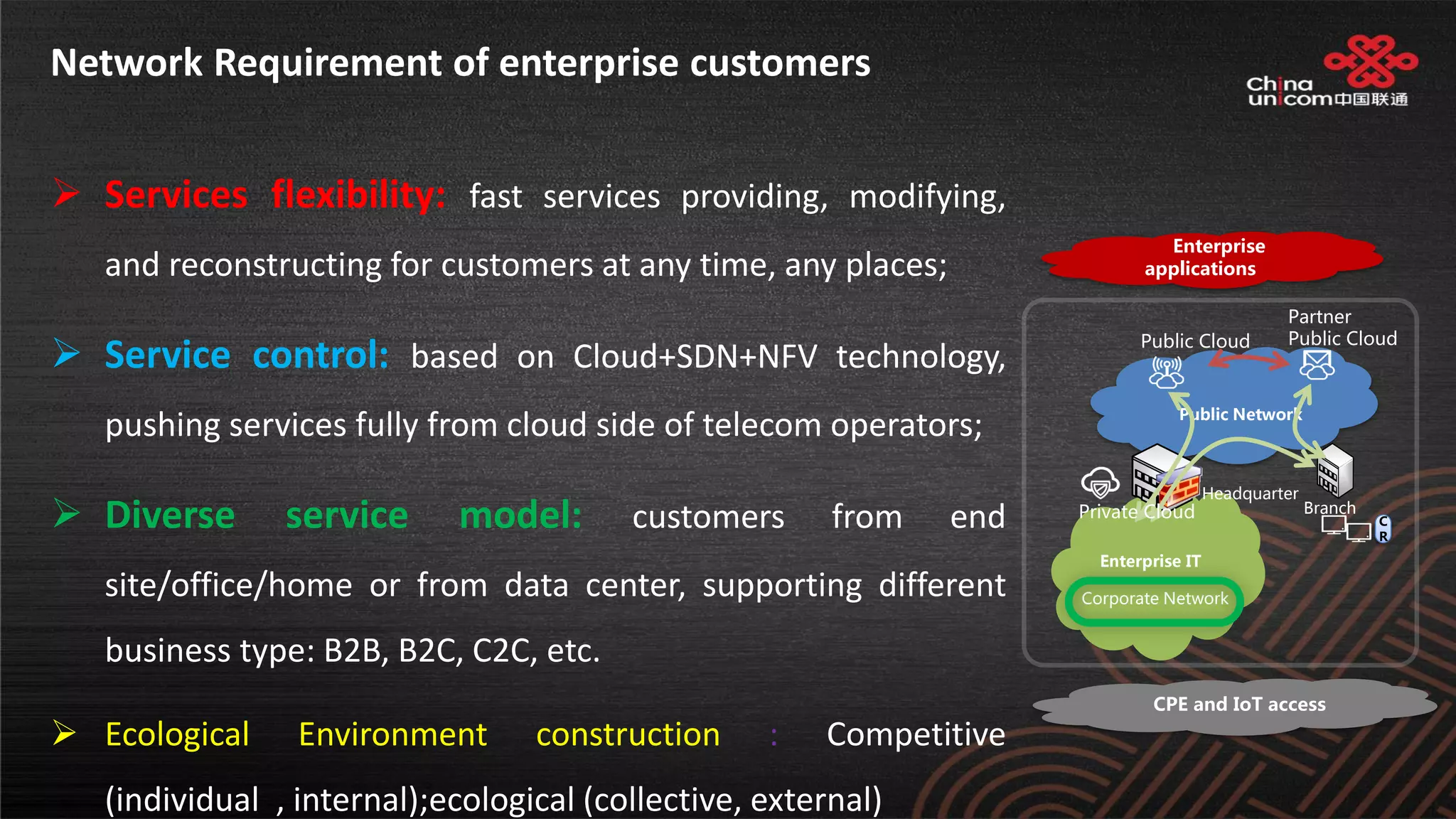

4. Network Requirement of enterprise customers
 Services flexibility: fast services providing, modifying,
and reconstructing for customers at any time, any places;
 Service control: based on Cloud+SDN+NFV technology,
pushing services fully from cloud side of telecom operators;
 Diverse service model: customers from end
site/office/home or from data center, supporting different
business type: B2B, B2C, C2C, etc.
 Ecological Environment construction : Competitive
(individual , internal);ecological (collective, external)
Enterprise IT
Public Network
Public Cloud
Partner
Public Cloud
Branch
Headquarter
Private Cloud
Enterprise
applications
CPE and IoT access
Corporate Network
C
R

5. N
A
T
V
F
W
vCPE
MAN
MAN
UTN
UTN
Router/vRouter
Switch/vSwtich
VM VM
DC
VAS Pool
FW
LB
Service Chain

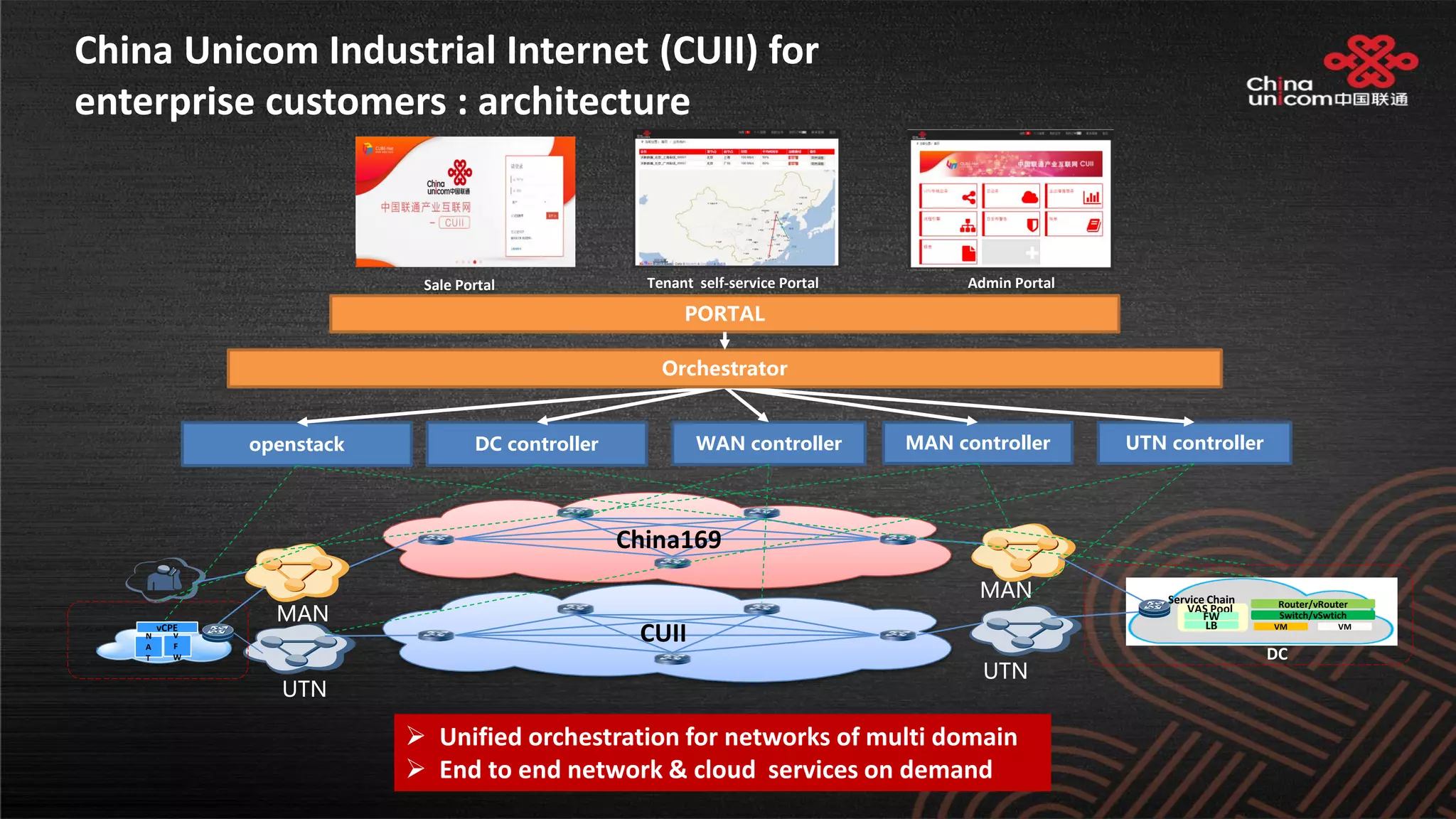

China Unicom Industrial Internet (CUII) for
enterprise customers : architecture
DC controlleropenstack WAN controller MAN controller UTN controller
PORTAL
Orchestrator
Tenant self-service Portal Admin PortalSale Portal
 Unified orchestration for networks of multi domain
 End to end network & cloud services on demand
China169
CUII

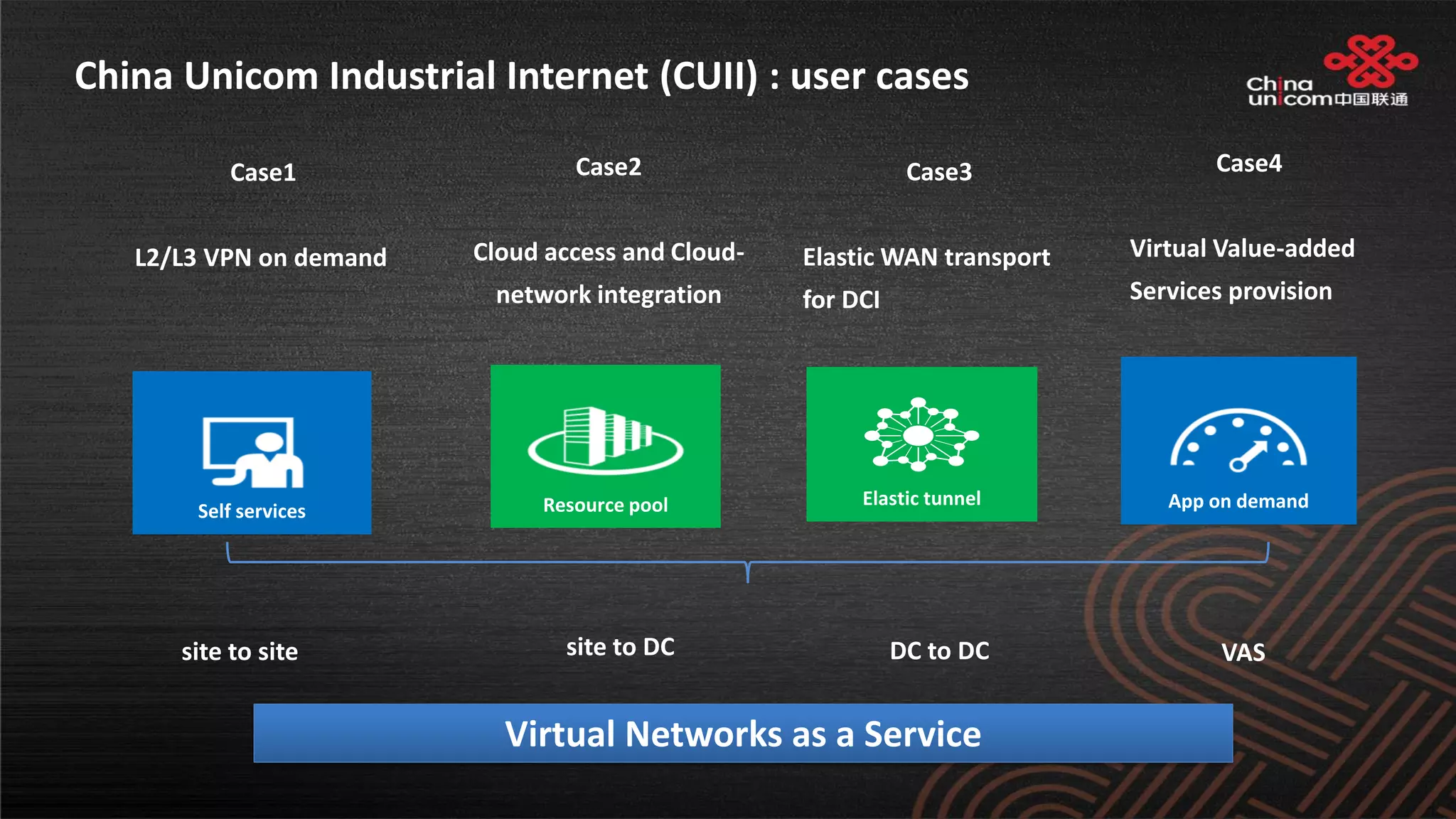

6. China Unicom Industrial Internet (CUII) : user cases
Resource poolSelf services App on demandElastic tunnel
Case1
L2/L3 VPN on demand
Case2
Cloud access and Cloud-
network integration
Case3
Elastic WAN transport
for DCI
Case4
Virtual Value-added
Services provision
site to site site to DC DC to DC VAS
Virtual Networks as a Service

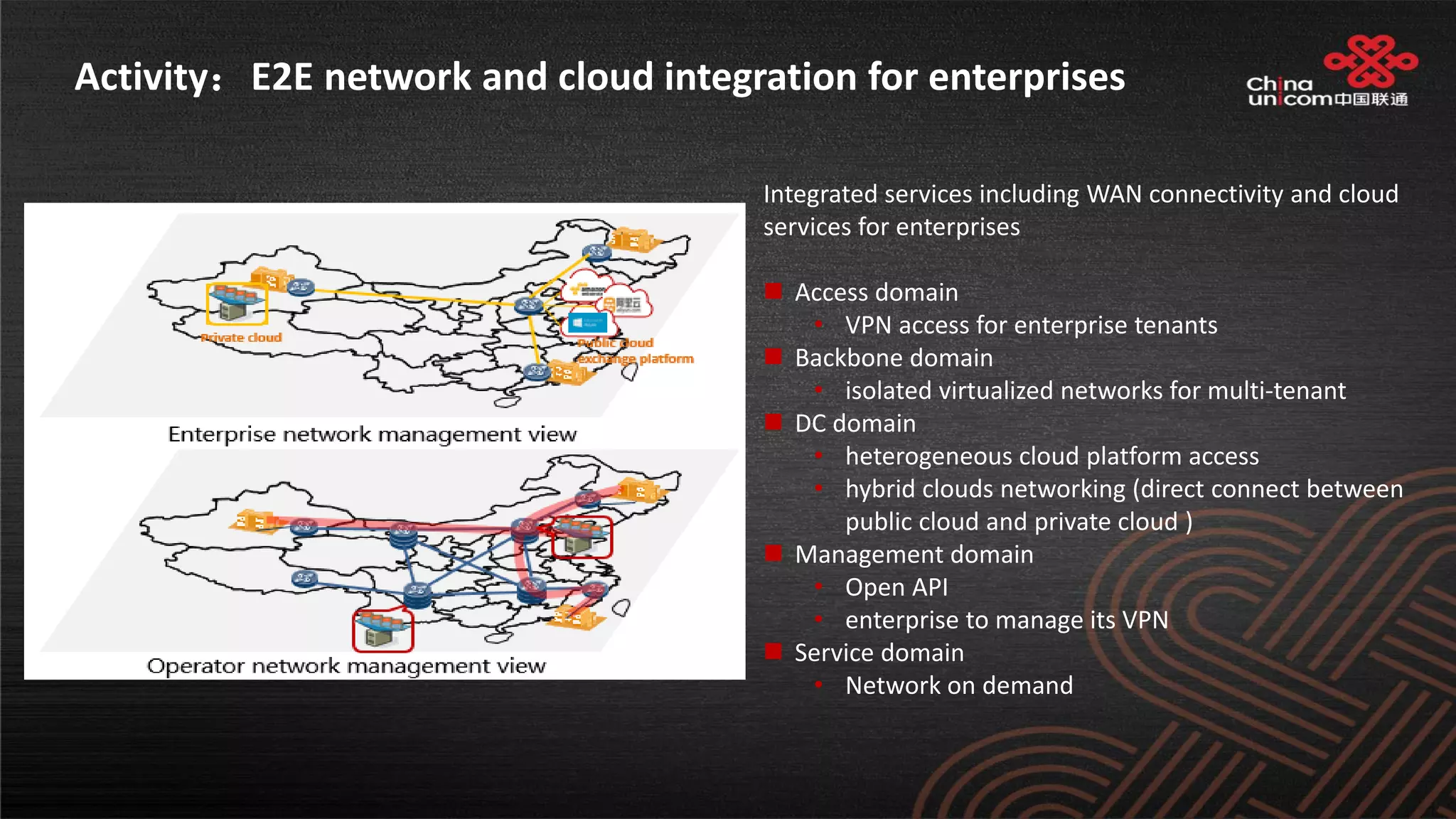

7. Activity：E2E network and cloud integration for enterprises
Integrated services including WAN connectivity and cloud
services for enterprises
 Access domain
• VPN access for enterprise tenants
 Backbone domain
• isolated virtualized networks for multi-tenant
 DC domain
• heterogeneous cloud platform access
• hybrid clouds networking (direct connect between
public cloud and private cloud )
 Management domain
• Open API
• enterprise to manage its VPN
 Service domain
• Network on demand

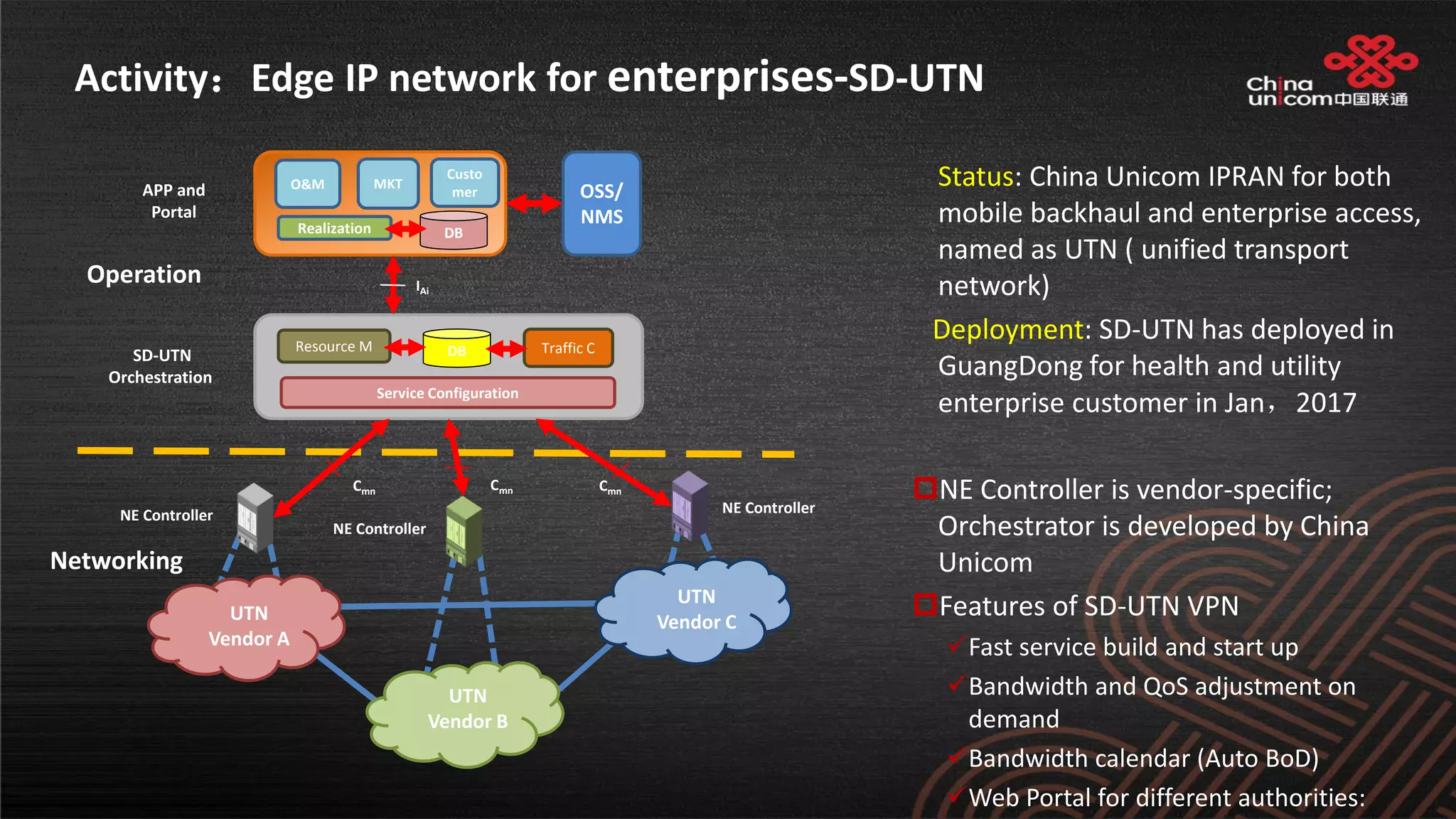

8. Activity：Edge IP network for enterprises-SD-UTN
Status: China Unicom IPRAN for both
mobile backhaul and enterprise access,
named as UTN ( unified transport
network)
Deployment: SD-UTN has deployed in
GuangDong for health and utility
enterprise customer in Jan，2017
NE Controller is vendor-specific;
Orchestrator is developed by China
Unicom
Features of SD-UTN VPN
Fast service build and start up
Bandwidth and QoS adjustment on
demand
Bandwidth calendar (Auto BoD)
Web Portal for different authorities:
NE Controller NE Controller
NE Controller
Operation
Networking
Service Configuration
Resource M Traffic CDBSD-UTN
Orchestration
Cmn CmnCmn
O&M MKT
Custo
mer
Realization DB
UTN
Vendor A
UTN
Vendor B
UTN
Vendor C
APP and
Portal
IAi
OSS/
NMS

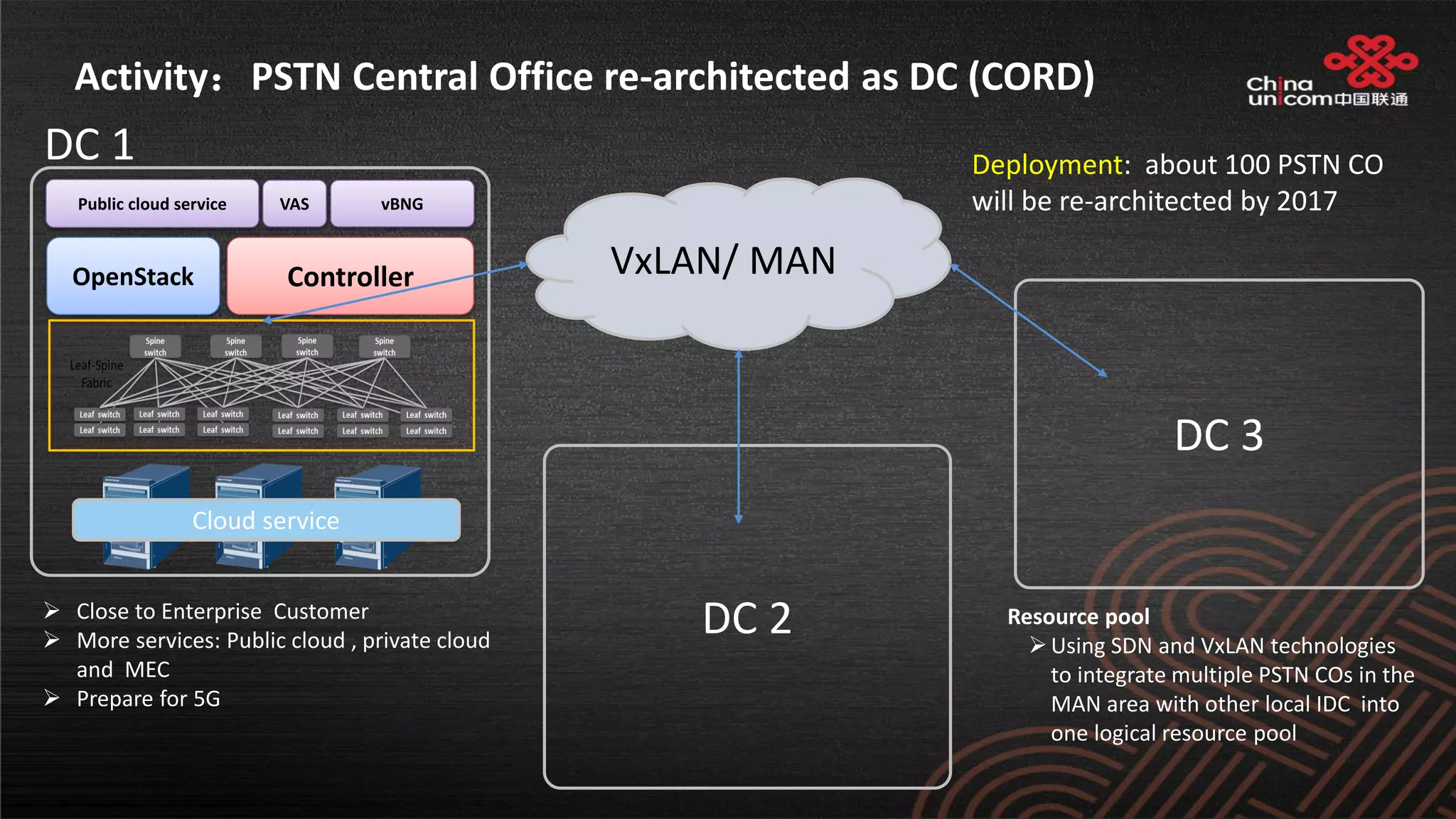

9. Activity：PSTN Central Office re-architected as DC (CORD)
 Close to Enterprise Customer
 More services: Public cloud , private cloud
and MEC
 Prepare for 5G
OpenStack Controller
Cloud service
Public cloud service VAS vBNG
DC 2
DC 3
Resource pool
Using SDN and VxLAN technologies
to integrate multiple PSTN COs in the
MAN area with other local IDC into
one logical resource pool
VxLAN/ MAN
DC 1 Deployment: about 100 PSTN CO
will be re-architected by 2017

10. Activity：Industrial ecological environment construction
CompetitiveAdvantages
Ecological advantages
We have set up two industry alliances
 China CORD industry alliance
 China Unicom industry internet alliance

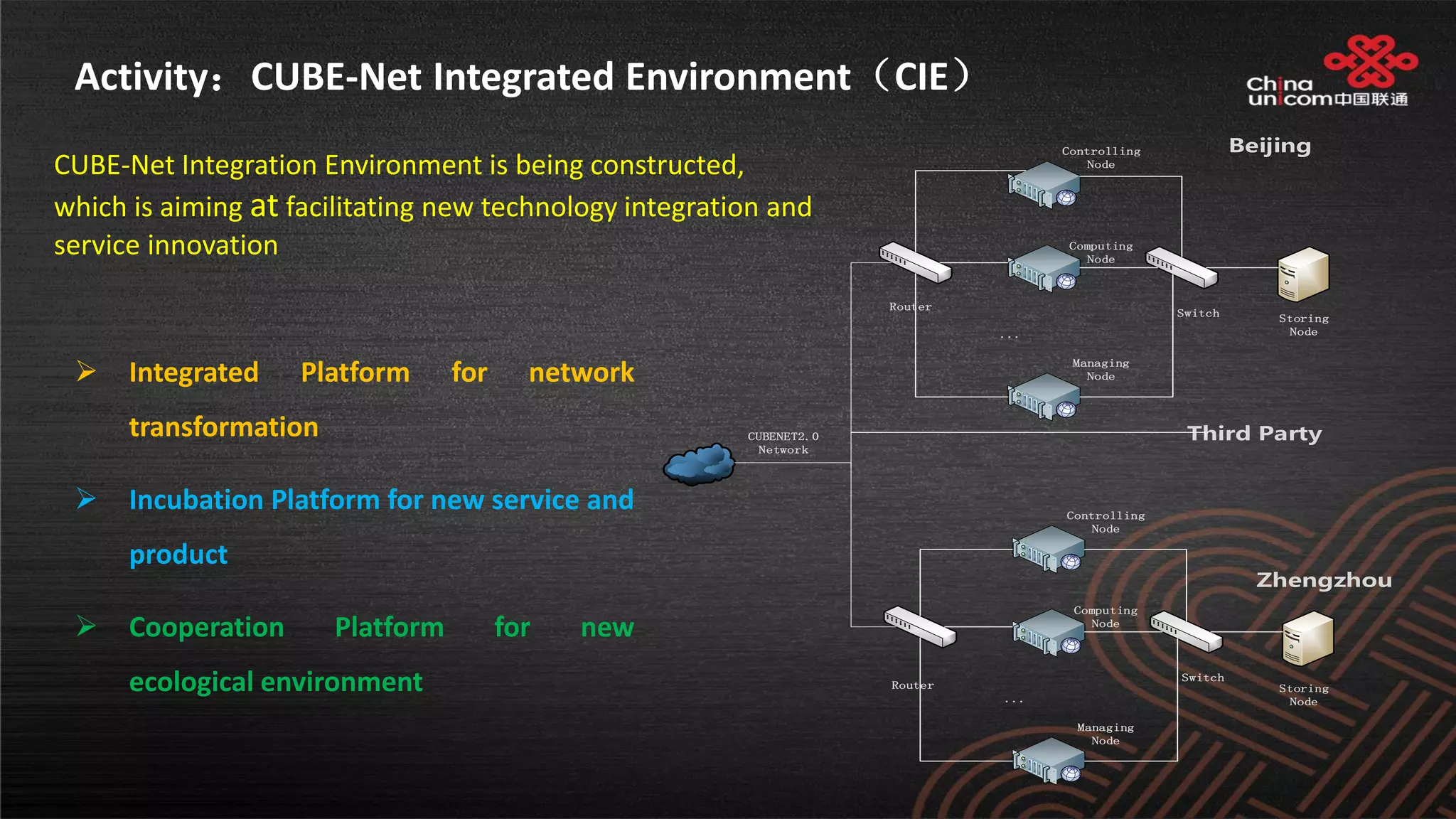

11. Activity：CUBE-Net Integrated Environment（CIE）
CUBENET2.0
Network
Router
...
Switch Storing
Node
Controlling
Node
Managing
Node
Computing
Node
...
Switch
Controlling
Node
Managing
Node
Computing
Node
Beijing
Third Party
Router Storing
Node
Zhengzhou
 Integrated Platform for network
transformation
 Incubation Platform for new service and
product
 Cooperation Platform for new
ecological environment
CUBE-Net Integration Environment is being constructed,
which is aiming at facilitating new technology integration and
service innovation

12. Thank You !
April, 2017
