Mirabilis_Presentation_DAC_June_2024.pptx

Mirabilis Design is an EDA software company based in Silicon Valley, specializing in system-level design for semiconductors, automotive, and aerospace applications. Their VisualSim platform provides graphical modeling and simulation tools to optimize collaboration among system-level teams and eliminate integration surprises, with a focus on power, performance, and thermal management. The company has established partnerships with multiple institutions and clients, continuously evolving its technology to meet the demands of advanced system design and verification.

Embed presentation

Download to read offline
Enabling Better Products

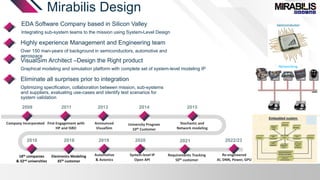

Mirabilis Design EDA Software Company based in Silicon Valley Integrating sub-system teams to the mission using System-Level Design Highly experience Management and Engineering team Over 150 man-years of background in semiconductors, automotive and aerospace VisualSim Architect –Design the Right product Graphical modeling and simulation platform with complete set of system-level modeling IP Eliminate all surprises prior to integration Optimizing specification, collaboration between mission, sub-systems and suppliers, evaluating use-cases and identify test scenarios for system validation Networking 18th companies & 32nd universities Electronics Modeling 35th customer 2008 Company Incorporated 2011 First Engagement with HP and ISRO 2013 Announced VisualSim 2014 University Program 10th Customer 2015 Stochastic and Network modeling 2016 2018 2019 Automotive & Avionics 2020 System-level IP Open API 2022/23 Re-engineered AI, DNN, Power, GPU 2021 Requirements Tracking 50th customer

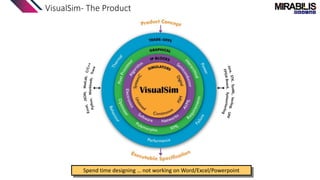

VisualSim- The Product Spend time designing … not working on Word/Excel/Powerpoint
VisualSim IP Library Custom Creator Communication Power RF, Baseband, Channels Communication systems, A/D transceivers, Antenna, Analog, Signal/audio/Image Processing Power States, Allocation, Transition, Loss, Battery, Consumption, Management, Generation, Distribution, and Thermal Sensors, Interfaces, Distribution, Traces, Software, VCD, ML, DNN Traffic Reports Latency, Throughput, Utilization, Ave/peak power (instant, ave) , hit-ratio, Heat, Temp RISC-V and Chiplets RTOS and Software SiFive, In-Order/Out- of-Order Generator, Tilelink Generic RTOS, ARINC 653, AUTOSAR, task Graph AMBA (AHB/ APB/ AXI/CHI),Tilelink Corelink (600, 700), NoC (Generic, Arteris, Signature, OpenEdges), Virtual Channel, DMA, Crossbar, Serial Switch, Bridge, UCie SOC Board- Level VME, PCI/PCI-X/PCIe 6.0, SPI 3.0, 1553B, FlexRay, CAN-FD/XL, AFDX, TTEthernet, OpenVPX Processors ARM (M0-55), R5, Cortex (A8, A72, A53, A76, A77, A65, A78, A720), Nvidia- Pascal to Ampere, Generic GPU, mC, Leon, Power, X86, DSP- TI and ADI, Tensilica, Renesas SH, AI Engine, TPU Stochastic Queue ,Time Queue, Quantity Queue, Resources, Scheduler Scripting, RegEx, Task graph, Use cases, Hardware Builder, C/C++/Java/Python MatLab, STK Storage Flash, NVMe, Disk, SSD, NAS, Fibre Channel, FireWire TSN, AVB, 10BaseT1S, Switched Ethernet, Resilient Packet Ring, RP3, WiFi 802.11, Bluetooth, PAN, Spacewire, SpaceFibre, IEEE802.1Q, Time-Triggered Ethernet, AFDX, 5G Networking Memory • Memory Controller, SDR, DDR DRAM 2,3,4, 5, LPDDR 2, 3, 4,5 HBM2.0, HMC, QDR, RDRAM, MPMC, cache, Coherent cache FPGA Xilinx- Versal, Zynq, Ultrascale, Kintex Altera-Stratix, Arria, Microsemi- Smartfusion, Programmable logic generator Trade-Off Requirements, Thermal, Power, Performance, Failure Verification, Upgrade
Assemble System Model using Pre-Built System-Level IP Scheduling/Arbitration proportional share WFQ static dynamic fixed priority EDF TDMA FCFS Communication Templates Architecture # 1 Architecture # 2 Computation Templates DSP AI GPU DRAM CPU FPGA m E DSP TDMA Priority EDF WFQ RISC DSP LookUp Cipher AI DS P CPU GP U mE DD R static Which architecture is better suited for our application?

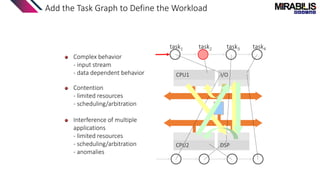

Add the Task Graph to Define the Workload I/O DSP CPU1 CPU2 task1 task2 task3 task4 Contention - limited resources - scheduling/arbitration Interference of multiple applications - limited resources - scheduling/arbitration - anomalies Complex behavior - input stream - data dependent behavior

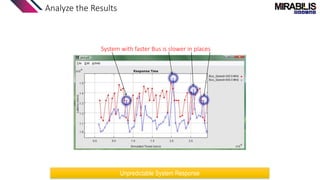

Analyze the Results System with faster Bus is slower in places Unpredictable System Response

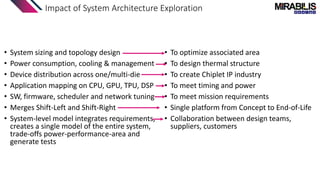

Impact of System Architecture Exploration • System sizing and topology design • Power consumption, cooling & management • Device distribution across one/multi-die • Application mapping on CPU, GPU, TPU, DSP • SW, firmware, scheduler and network tuning • Merges Shift-Left and Shift-Right • System-level model integrates requirements, creates a single model of the entire system, trade-offs power-performance-area and generate tests • To optimize associated area • To design thermal structure • To create Chiplet IP industry • To meet timing and power • To meet mission requirements • Single platform from Concept to End-of-Life • Collaboration between design teams, suppliers, customers

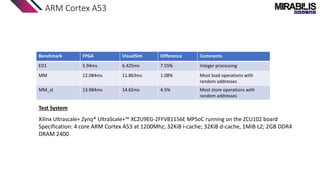

ARM Cortex A53 Benchmark FPGA VisualSim Difference Comments ED1 5.94ms 6.425ms 7.55% Integer processing MM 12.084ms 11.863ms 1.08% Most load operations with random addresses MM_st 13.984ms 14.65ms 4.5% Most store operations with random addresses Test System Xilinx Ultrascale+ Zynq® UltraScale+™ XCZU9EG-2FFVB1156E MPSoC running on the ZCU102 board Specification: 4 core ARM Cortex A53 at 1200Mhz; 32KiB i-cache; 32KiB d-cache, 1MiB L2; 2GB DDR4 DRAM 2400

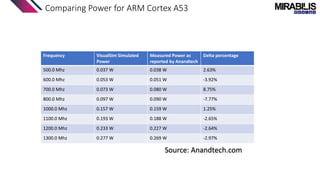

Comparing Power for ARM Cortex A53 Frequency VisualSim Simulated Power Measured Power as reported by Anandtech Delta percentage 500.0 Mhz 0.037 W 0.038 W 2.63% 600.0 Mhz 0.053 W 0.051 W -3.92% 700.0 Mhz 0.073 W 0.080 W 8.75% 800.0 Mhz 0.097 W 0.090 W -7.77% 1000.0 Mhz 0.157 W 0.159 W 1.25% 1100.0 Mhz 0.193 W 0.188 W -2.65% 1200.0 Mhz 0.233 W 0.227 W -2.64% 1300.0 Mhz 0.277 W 0.269 W -2.97% Source: Anandtech.com Over 97% accuracy
Comparing different Cores- Dhrystone Processor MoP Hit Ratio MoP Mean Latency I1 Hit Ratio I1 Mean Latency D1 Hit Ratio D1 Mean Latency L2 Hit Ratio L2 Mean Latency DSU Hit Ratio DSU Mean Latency ARM Cortex A53 - - 99.97 1.93E-09 99.98 2.02E-09 18.75 9.33E-08 - - ARM Cortex A77 99.90 1.75E-09 67.22 6.25E-08 99.96 7.32E-10 14.19 1.82E-07 6.96 2.05E-09 RISC-V u74 - - 99.98 4.15E-09 99.98 1.86E-09 39.58 5.25E-08 - - Processor Instructions Latency Max MIPS ARM Cortex A53 ~ 56,66,000 0.0055846 ~ 1039 ARM Cortex A77 ~ 44,78,000 0.0011795 ~ 3960 RISC-V u74 ~ 60,58,000 0.007726 ~ 797

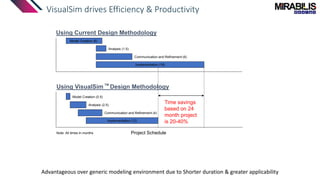

VisualSim drives Efficiency & Productivity Model Creation (6) Implementation (18) Using Current Design Methodology Project Schedule ) Implementation (12) Using VisualSim Design Methodology Time savings based on 24 month project is 20-40% Note: All times in months TM Communication and Refinement (4) Analysis (2.5) Model Creation (0.5) Analysis (1.5) Communication and Refinement (6) Advantageous over generic modeling environment due to Shorter duration & greater applicability
VisualSim System Model using UCIe in ADAS SoC

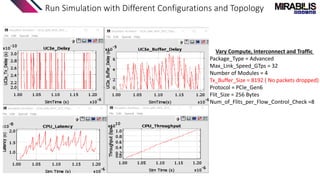

Vary Compute, Interconnect and Traffic Package_Type = Advanced Max_Link_Speed_GTps = 32 Number of Modules = 4 Tx_Buffer_Size = 8192 ( No packets dropped) Protocol = PCIe_Gen6 Flit_Size = 256 Bytes Num_of_Flits_per_Flow_Control_Check =8 Run Simulation with Different Configurations and Topology

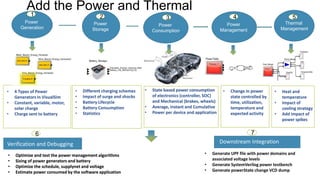

Power Generation Power Storage Power Consumption Thermal Management • Different charging schemes • Impact of surge and shocks • Battery Lifecycle • Battery Consumption • Statistics • Heat and temperature • Impact of cooling strategy • Add impact of power spikes • State based power consumption of electronics (controller, SOC) and Mechanical (brakes, wheels) • Average, instant and Cumulative • Power per device and application Verification and Debugging • 4 Types of Power Generators in VisualSim • Constant, variable, motor, solar charge • Charge sent to battery 1 2 3 5 6 • Optimize and test the power management algorithms • Sizing of power generators and battery • Optimize the schedule, supplynet and voltage • Estimate power consumed by the software application Downstream Integration • Generate UPF file with power domains and associated voltage levels • Generate SystemVerilog power testbench • Generate powerState change VCD dump 7 Power Management • Change in power state controlled by time, utilization, temperature and expected activity 4 Add the Power and Thermal

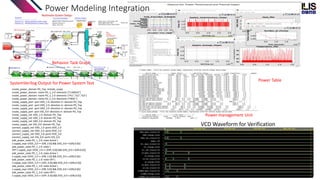

Behavior Task Graph Power Table Power management Unit SystemVerilog Output for Power System Test VCD Waveform for Verification create_power_domain PD_Top -include_scope create_power_domain -name PD_1_2.0 -elements {"CLKMUX"} create_power_domain -name PD_1_1.0 -elements {"PLL","G2","G3"} create_power_domain -name PD_1_3.0 -elements {"PROC"} create_supply_port -port VDD_1.0 -direction in -domain PD_Top create_supply_port -port VDD_2.0 -direction in -domain PD_Top create_supply_port -port VDD_3.0 -direction in -domain PD_Top create_supply_port -port VSS_0.0 -direction in -domain PD_Top create_supply_net VDD_1.0 -domain PD_Top create_supply_net VDD_2.0 -domain PD_Top create_supply_net VDD_3.0 -domain PD_Top create_supply_net VSS_0.0 -domain PD_Top connect_supply_net VDD_1.0 -ports VDD_1.0 connect_supply_net VDD_2.0 -ports VDD_2.0 connect_supply_net VDD_3.0 -ports VDD_3.0 connect_supply_net VSS_0.0 -ports VSS_0.0 add_power_state PD_1_2.0 -state Active {-supply_expr (VDD_2.0 == {ON, 2.0}) && (VSS_0.0 =={ON,0.0})} add_power_state PD_1_2.0 -state OFF {-supply_expr (VDD_2.0 == {OFF, 0.0}) && (VSS_0.0 =={ON,0.0})} add_power_state PD_1_1.0 -state Active {-supply_expr (VDD_1.0 == {ON, 1.0}) && (VSS_0.0 =={ON,0.0})} add_power_state PD_1_1.0 -state OFF {-supply_expr (VDD_1.0 == {OFF, 0.0}) && (VSS_0.0 =={ON,0.0})} add_power_state PD_1_3.0 -state Active {-supply_expr (VDD_3.0 == {ON, 3.0}) && (VSS_0.0 =={ON,0.0})} add_power_state PD_1_3.0 -state OFF {-supply_expr (VDD_3.0 == {OFF, 0.0}) && (VSS_0.0 =={ON,0.0})} Power Modeling Integration
System Verification • Validate product not just HW/SW • Application relevant test vectors • Generate test cases and run against RTL • Compare simulation output against RTL • Match architecture timing within range • Verify functional correctness • Task sequencing @ DSP/uP • Resource contention Eliminate product failure by maximizing relevant verification Golden Reference Comparator Match Tag Architecture model of IP Verilog/C/ Hardware
Reference Data Example: Infotainment

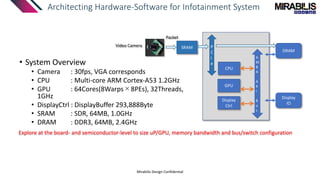

Architecting Hardware-Software for Infotainment System Mirabilis Design Confidential DRAM Display IO A M B A A X I B u s CPU GPU Display Ctrl P C I e Video Camera SRAM Packet • System Overview • Camera : 30fps, VGA corresponds • CPU : Multi-core ARM Cortex-A53 1.2GHz • GPU : 64Cores(8Warps×8PEs), 32Threads, 1GHz • DisplayCtrl : DisplayBuffer 293,888Byte • SRAM : SDR, 64MB, 1.0GHz • DRAM : DDR3, 64MB, 2.4GHz Explore at the board- and semiconductor-level to size uP/GPU, memory bandwidth and bus/switch configuration

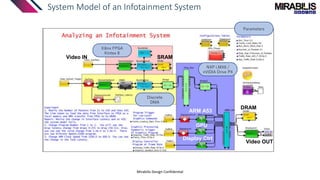

System Model of an Infotainment System Mirabilis Design Confidential NXP i.MX6 / nVIDIA Drive PX Xilinx FPGA Kintex 8 Discrete DMA ARM A53 GPU Display Ctrl SRAM3 DRAM3 Video IN Parameters Video OUT

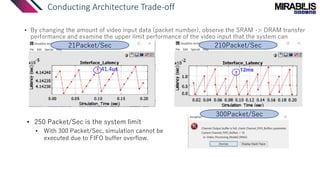

Conducting Architecture Trade-off • By changing the amount of video input data (packet number), observe the SRAM -> DRAM transfer performance and examine the upper limit performance of the video input that the system can tolerate. 210Packet/Sec 12ms 21Packet/Sec 41.4us 300Packet/Sec • 250 Packet/Sec is the system limit • With 300 Packet/Sec, simulation cannot be executed due to FIFO buffer overflow.
Reference Data: Mapping Applications onto SoC

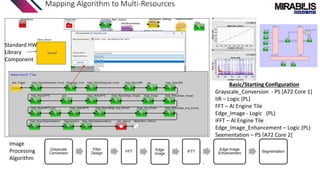

Mapping Algorithm to Multi-Resources Standard HW Library Component Basic/Starting Configuration Grayscale_Conversion - PS [A72 Core 1] IIR – Logic (PL) FFT – AI Engine Tile Edge_Image - Logic (PL) iFFT – AI Engine Tile Edge_Image_Enhancement – Logic (PL) Segmentation – PS [A72 Core 2] Image Processing Algorithm

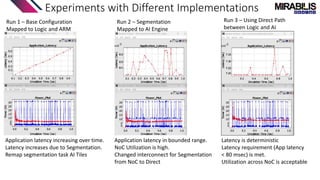

Experiments with Different Implementations Run 3 – Using Direct Path between Logic and AI Run 2 – Segmentation Mapped to AI Engine Run 1 – Base Configuration Mapped to Logic and ARM Application latency increasing over time. Latency increases due to Segmentation. Remap segmentation task AI Tiles Latency is deterministic Latency requirement (App latency < 80 msec) is met. Utilization across NoC is acceptable Application latency in bounded range. NoC Utilization is high. Changed interconnect for Segmentation from NoC to Direct
VisualSim Chiplet Solution Using the Chiplet Library to Design SoC

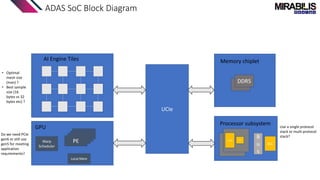

ADAS SoC Block Diagram UCIe AI Engine Tiles Warp Scheduler PE PE PE PE Local Mem GPU Memory chiplet ADC DDR5 Processor subsystem Core L1 B u s SLC • Optimal mesh size (mxn) ? • Best sample size (16 bytes vs 32 bytes etc) ? Use a single protocol stack or multi protocol stack? Do we need PCIe gen6 or still use gen5 for meeting application requirements?

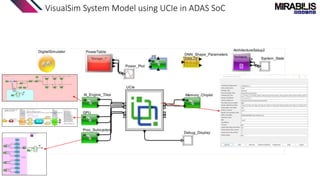

VisualSim System Model using UCIe in ADAS SoC

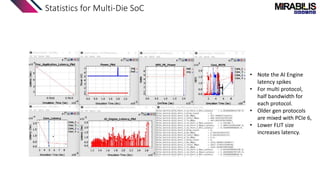

Statistics for Multi-Die SoC • Note the AI Engine latency spikes • For multi protocol, half bandwidth for each protocol. • Older gen protocols are mixed with PCIe 6, • Lower FLIT size increases latency.

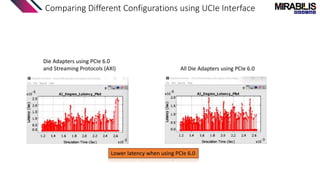

Comparing Different Configurations using UCIe Interface All Die Adapters using PCIe 6.0 Die Adapters using PCIe 6.0 and Streaming Protocols (AXI) Lower latency when using PCIe 6.0
Reference Data Example: Deep Neural Network

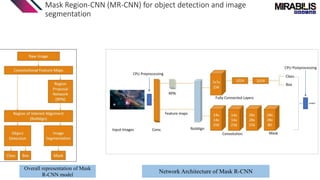

Mask Region-CNN (MR-CNN) for object detection and image segmentation Overall representation of Mask R-CNN model Network Architecture of Mask R-CNN output CPU Preprocessing CPU Postprocessing

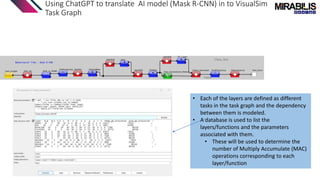

Using ChatGPT to translate AI model (Mask R-CNN) in to VisualSim Task Graph • Each of the layers are defined as different tasks in the task graph and the dependency between them is modeled. • A database is used to list the layers/functions and the parameters associated with them. • These will be used to determine the number of Multiply Accumulate (MAC) operations corresponding to each layer/function Class, box mask
VisualSim Model of DNN Hardware and Task Graph Application sequence from Task Graph is mapped to HW architecture • PE – 12x14 • 4 memory hierarchy • Power computation per PE, Buses and memory

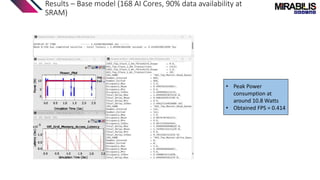

Results – Base model (168 AI Cores, 90% data availability at SRAM) • Peak Power consumption at around 10.8 Watts • Obtained FPS = 0.414

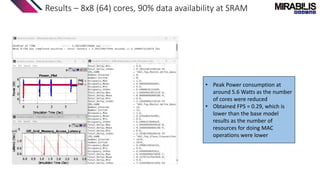

Results – 8x8 (64) cores, 90% data availability at SRAM • Peak Power consumption at around 5.6 Watts as the number of cores were reduced • Obtained FPS = 0.29, which is lower than the base model results as the number of resources for doing MAC operations were lower

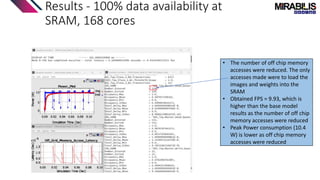

Results - 100% data availability at SRAM, 168 cores • The number of off chip memory accesses were reduced. The only accesses made were to load the images and weights into the SRAM • Obtained FPS = 9.93, which is higher than the base model results as the number of off chip memory accesses were reduced • Peak Power consumption (10.4 W) is lower as off chip memory accesses were reduced

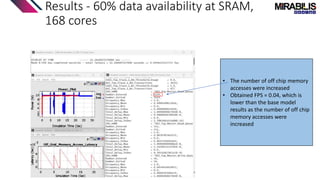

Results - 60% data availability at SRAM, 168 cores • The number of off chip memory accesses were increased • Obtained FPS = 0.04, which is lower than the base model results as the number of off chip memory accesses were increased
Reference Data: Hardware-Software Partitioning SoC Architecture Design

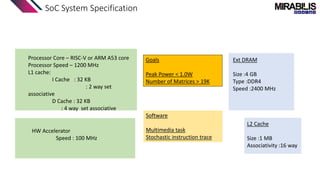

SoC System Specification Processor Core – RISC-V or ARM A53 core Processor Speed – 1200 MHz L1 cache: I Cache : 32 KB : 2 way set associative D Cache : 32 KB : 4 way set associative L2 Cache Size :1 MB Associativity :16 way Ext DRAM Size :4 GB Type :DDR4 Speed :2400 MHz HW Accelerator Speed : 100 MHz Software Multimedia task Stochastic instruction trace Goals Peak Power < 1.0W Number of Matrices > 19K

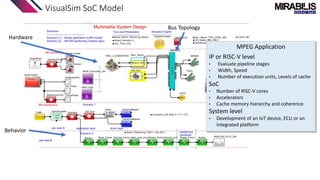

VisualSim SoC Model MPEG Application IP or RISC-V level • Evaluate pipeline stages • Width, Speed • Number of execution units, Levels of cache SoC • Number of RISC-V cores • Accelerators • Cache memory hierarchy and coherence System level • Development of an IoT device, ECU or an integrated platform Behavior Hardware Bus Topology
CASE 1: All SW tasks Observations: 1. Avg power consumption within requirements (<1.0 W) 2. Performance requirement not achieved (Only a max of 9.4K frames)

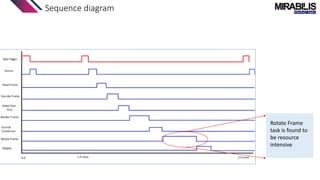

Sequence diagram Rotate Frame task is found to be resource intensive

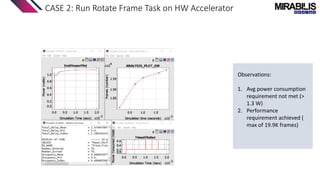

CASE 2: Run Rotate Frame Task on HW Accelerator Observations: 1. Avg power consumption requirement not met (> 1.3 W) 2. Performance requirement achieved ( max of 19.9K frames)
CASE 3: Run Rotate Frame task on HW Accelerator + Power management Observations: 1. Avg power consumption requirement met (<1.0 W) 2. Performance requirement achieved ( max of 19.8K frames)
Comparing different Processor Cores ARM, RISC-V

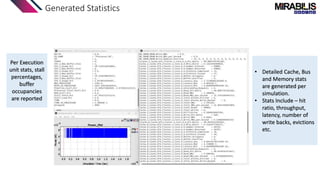

Generated Statistics Per Execution unit stats, stall percentages, buffer occupancies are reported • Detailed Cache, Bus and Memory stats are generated per simulation. • Stats Include – hit ratio, throughput, latency, number of write backs, evictions etc.

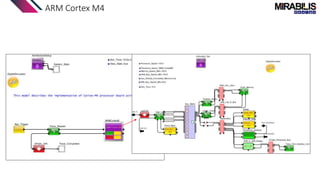

ARM Cortex M4

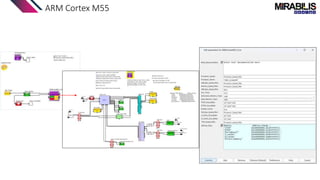

ARM Cortex M55

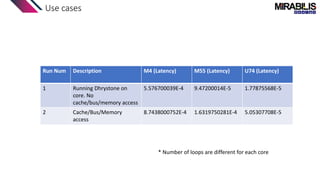

Use cases Run Num Description M4 (Latency) M55 (Latency) U74 (Latency) 1 Running Dhrystone on core. No cache/bus/memory access 5.576700039E-4 9.47200014E-5 1.77875568E-5 2 Cache/Bus/Memory access 8.7438000752E-4 1.6319750281E-4 5.05307708E-5 * Number of loops are different for each core
Automotive applications Mapping tasks to RISC-V
ECU Performance Analysis under Different Use Cases Demo environment 1. Brake ECU integrated to a CAN Network 2. Sensors write data to the memory 3. Brake Pedal or Proximity sensor triggers the braking action from the Brake ECU ECU Using a RISC-V processor for the Brake ECU Analysis 1. Latency (Time taken for the signal to reach all the wheels from the Brake ECU) 2. Processor performance (MIPS) 3. Power Consumption (Breaking activity, ECU usage and Network activity) 6/28/2024 Mirabilis Design Inc. 52

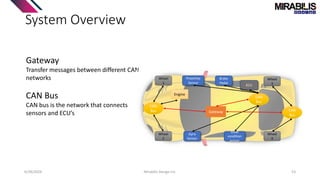

6/28/2024 Mirabilis Design Inc. 53 System Overview Gateway Transfer messages between different CAN networks CAN Bus CAN bus is the network that connects sensors and ECU’s Wheel 1 Wheel 4 Wheel 3 Wheel 2 Gateway CAN Bus Engine Proximity Sensor Brake Pedal Gyro Sensor Road condition sensor CAN Bus CAN Bus ECU

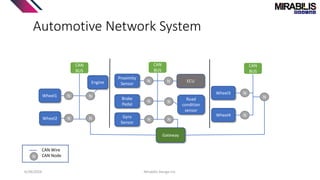

Automotive Network System 6/28/2024 Mirabilis Design Inc. N CAN Wire CAN Node Wheel1 Wheel2 Wheel3 Wheel4 Brake Pedal Proximity Sensor Gyro Sensor Gateway ECU Road condition sensor Engine CAN BUS CAN BUS CAN BUS N N N N N N N N N N N N N

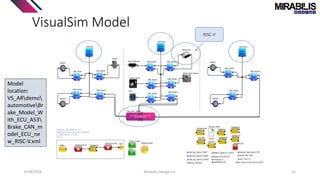

6/28/2024 Mirabilis Design Inc. 55 VisualSim Model RISC-V Model location: VS_ARdemo automotiveBr ake_Model_W ith_ECU_A53 Brake_CAN_m odel_ECU_ne w_RISC-V.xml

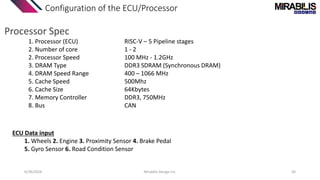

Configuration of the ECU/Processor 6/28/2024 Mirabilis Design Inc. 56 Processor Spec 1. Processor (ECU) RISC-V – 5 Pipeline stages 2. Number of core 1 - 2 2. Processor Speed 100 MHz - 1.2GHz 3. DRAM Type DDR3 SDRAM (Synchronous DRAM) 4. DRAM Speed Range 400 – 1066 MHz 5. Cache Speed 500Mhz 6. Cache Size 64Kbytes 7. Memory Controller DDR3, 750MHz 8. Bus CAN ECU Data input 1. Wheels 2. Engine 3. Proximity Sensor 4. Brake Pedal 5. Gyro Sensor 6. Road Condition Sensor

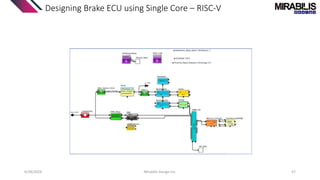

Designing Brake ECU using Single Core – RISC-V 6/28/2024 Mirabilis Design Inc. 57
Results – single core RISC-V 6/28/2024 Mirabilis Design Inc. 58 Slight improvement in Processor Task Latency at few instances
Enabling Better Products
