This document outlines a joystick-based DC motor control project that utilizes an ATmega16 microcontroller and pulse width modulation (PWM) to control the speed and direction of two DC motors. It includes sections on requirements, operation concepts, schematic diagrams, simulation sequences, applications, and budget. Applications for the project range from remote-controlled toys to robotic arms and surveillance systems.

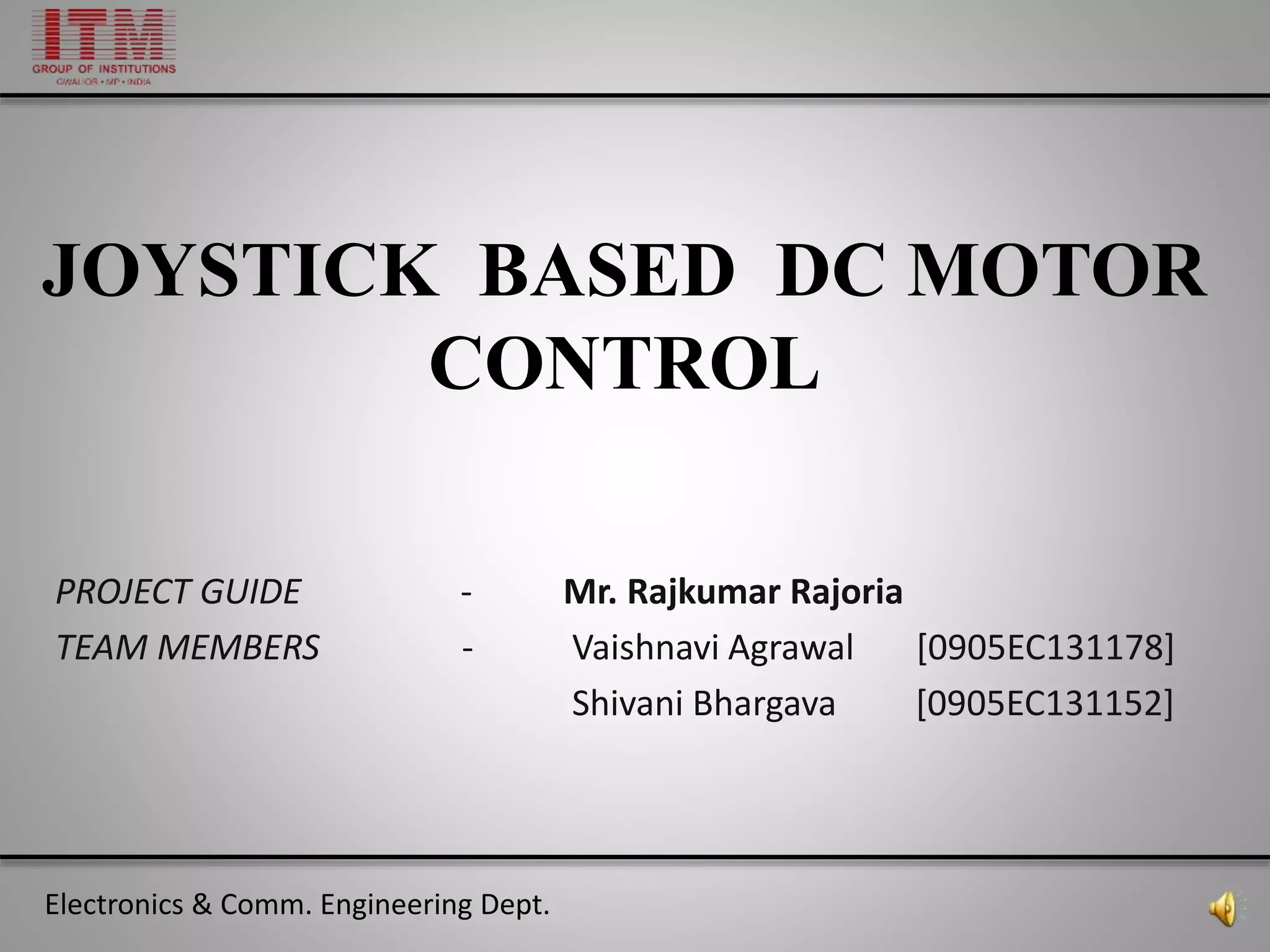

1. JOYSTICK BASED DC MOTOR
CONTROL
PROJECT GUIDE - Mr. Rajkumar Rajoria
TEAM MEMBERS - Vaishnavi Agrawal [0905EC131178]
Shivani Bhargava [0905EC131152]
Electronics & Comm. Engineering Dept.

2. Electronics & Comm. Engineering Dept.

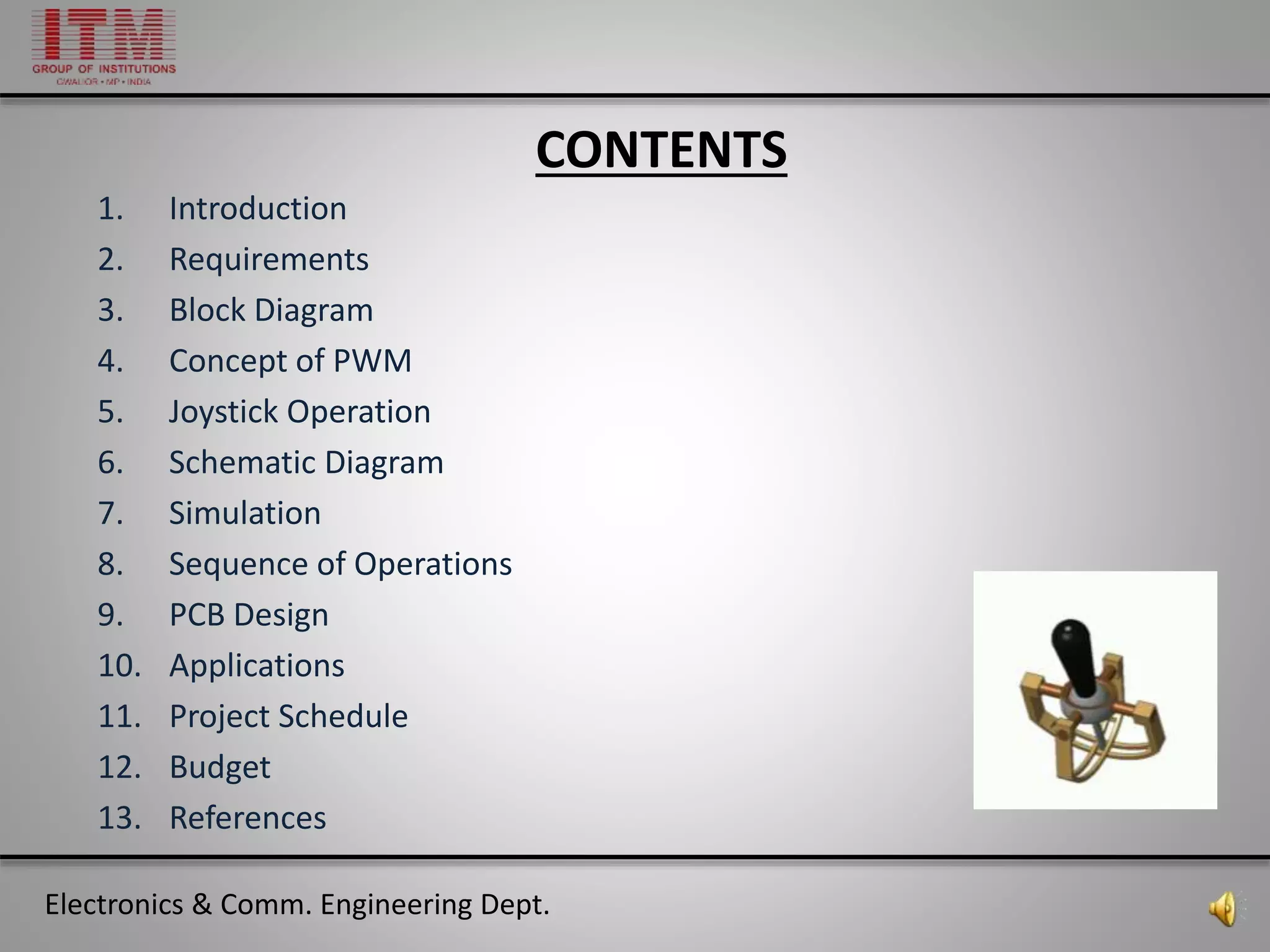

CONTENTS
1. Introduction
2. Requirements
3. Block Diagram
4. Concept of PWM
5. Joystick Operation
6. Schematic Diagram
7. Simulation
8. Sequence of Operations
9. PCB Design
10. Applications
11. Project Schedule
12. Budget
13. References

3. Electronics & Comm. Engineering Dept.

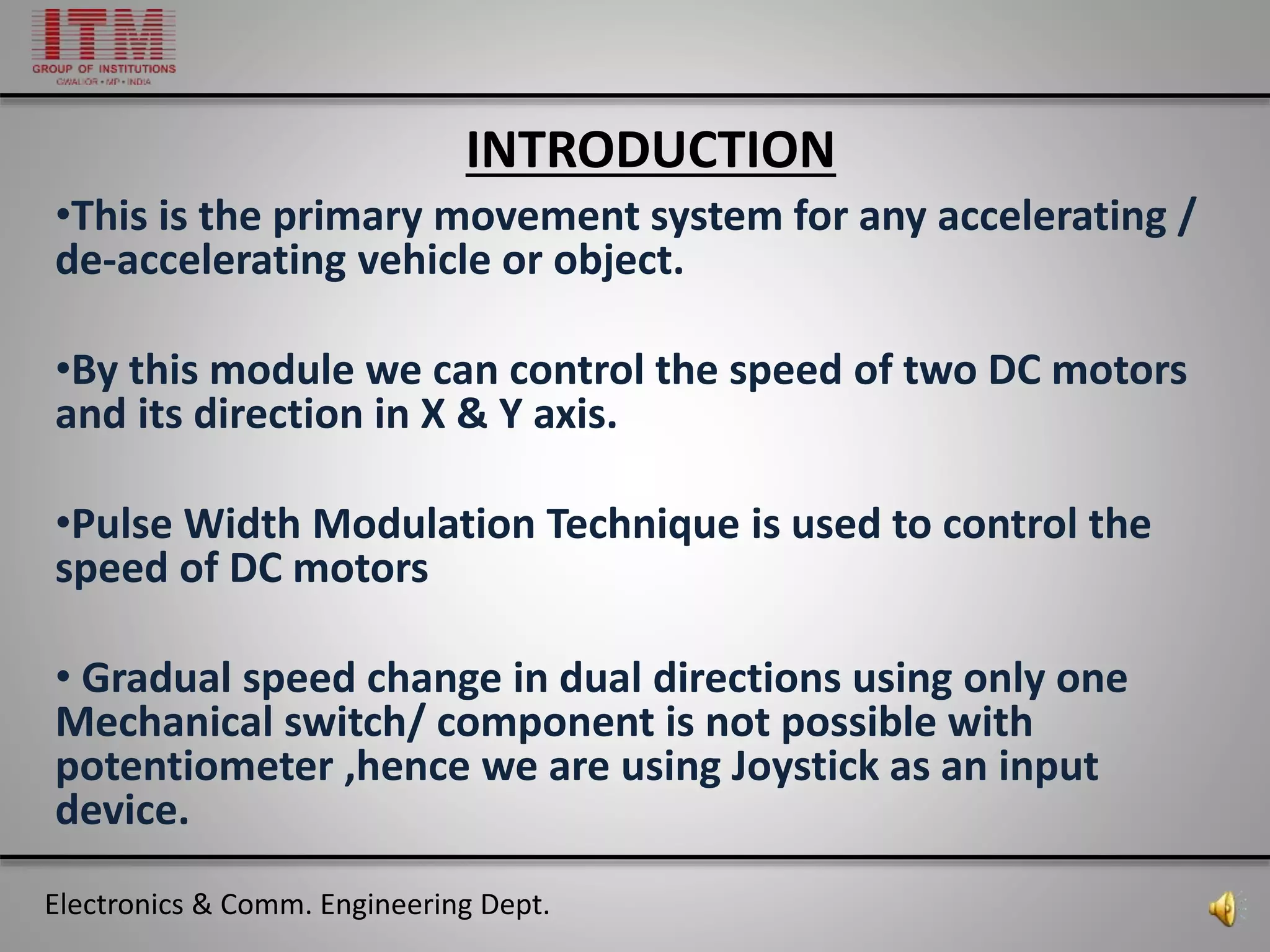

INTRODUCTION
•This is the primary movement system for any accelerating /
de-accelerating vehicle or object.
•By this module we can control the speed of two DC motors
and its direction in X & Y axis.
•Pulse Width Modulation Technique is used to control the
speed of DC motors
• Gradual speed change in dual directions using only one
Mechanical switch/ component is not possible with
potentiometer ,hence we are using Joystick as an input
device.

4. Electronics & Comm. Engineering Dept.

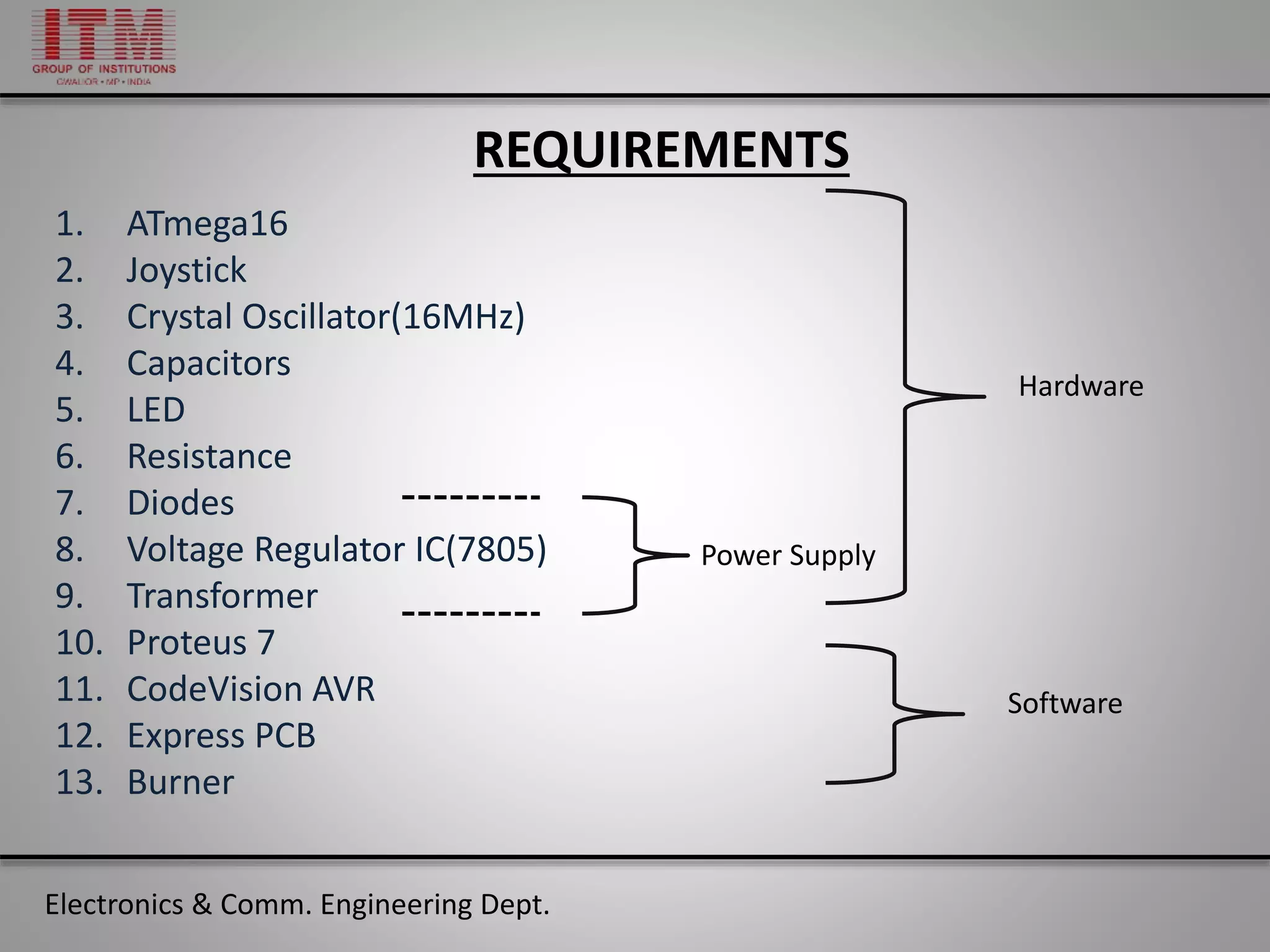

REQUIREMENTS
1. ATmega16
2. Joystick
3. Crystal Oscillator(16MHz)
4. Capacitors
5. LED
6. Resistance
7. Diodes
8. Voltage Regulator IC(7805)
9. Transformer
10. Proteus 7
11. CodeVision AVR
12. Express PCB
13. Burner
Power Supply
Software
Hardware

5. Electronics & Comm. Engineering Dept.

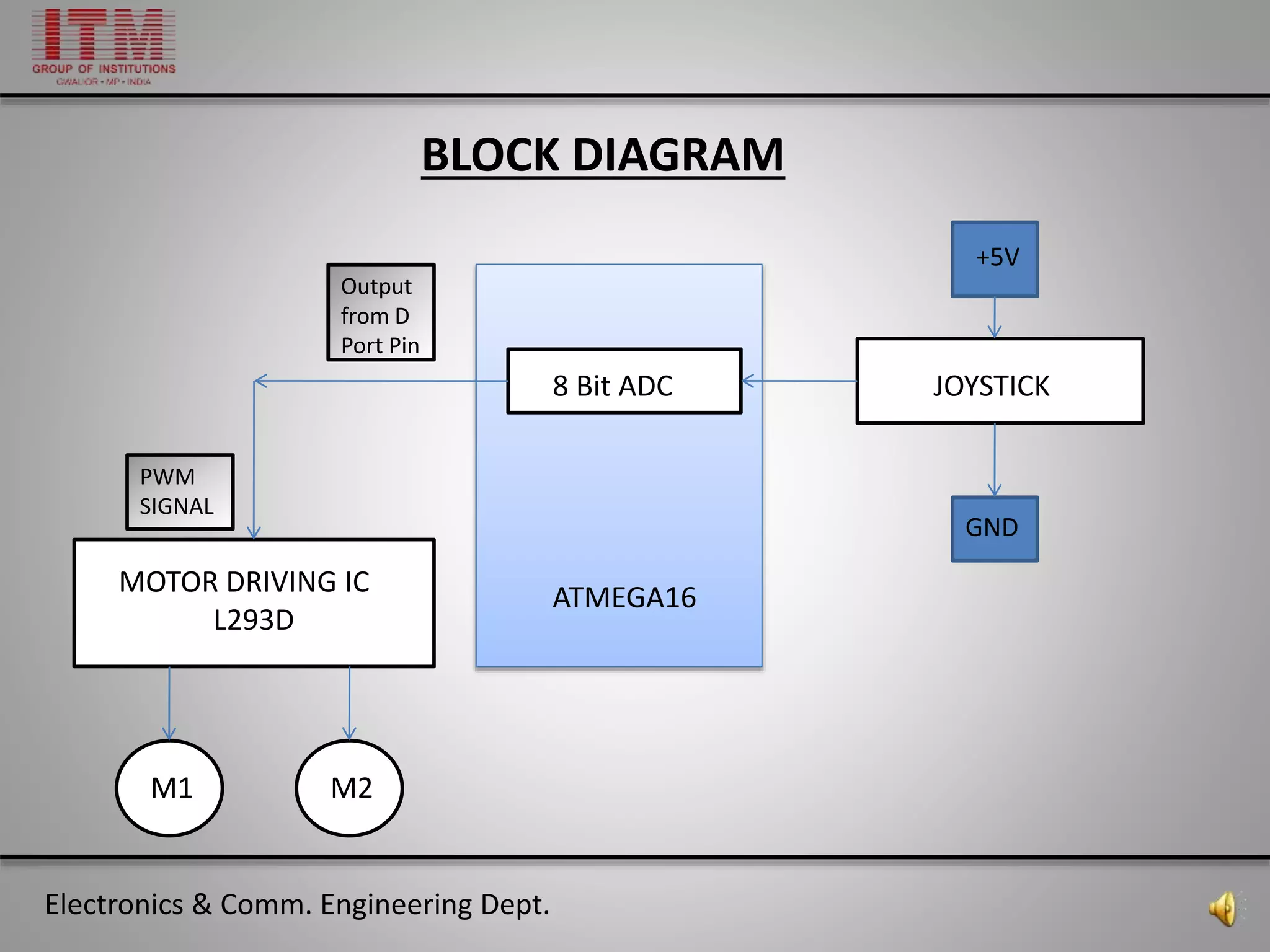

BLOCK DIAGRAM
JOYSTICK
+5V
GND
8 Bit ADC
ATMEGA16MOTOR DRIVING IC
L293D
M1 M2
PWM
SIGNAL
Output
from D
Port Pin

6. Electronics & Comm. Engineering Dept.

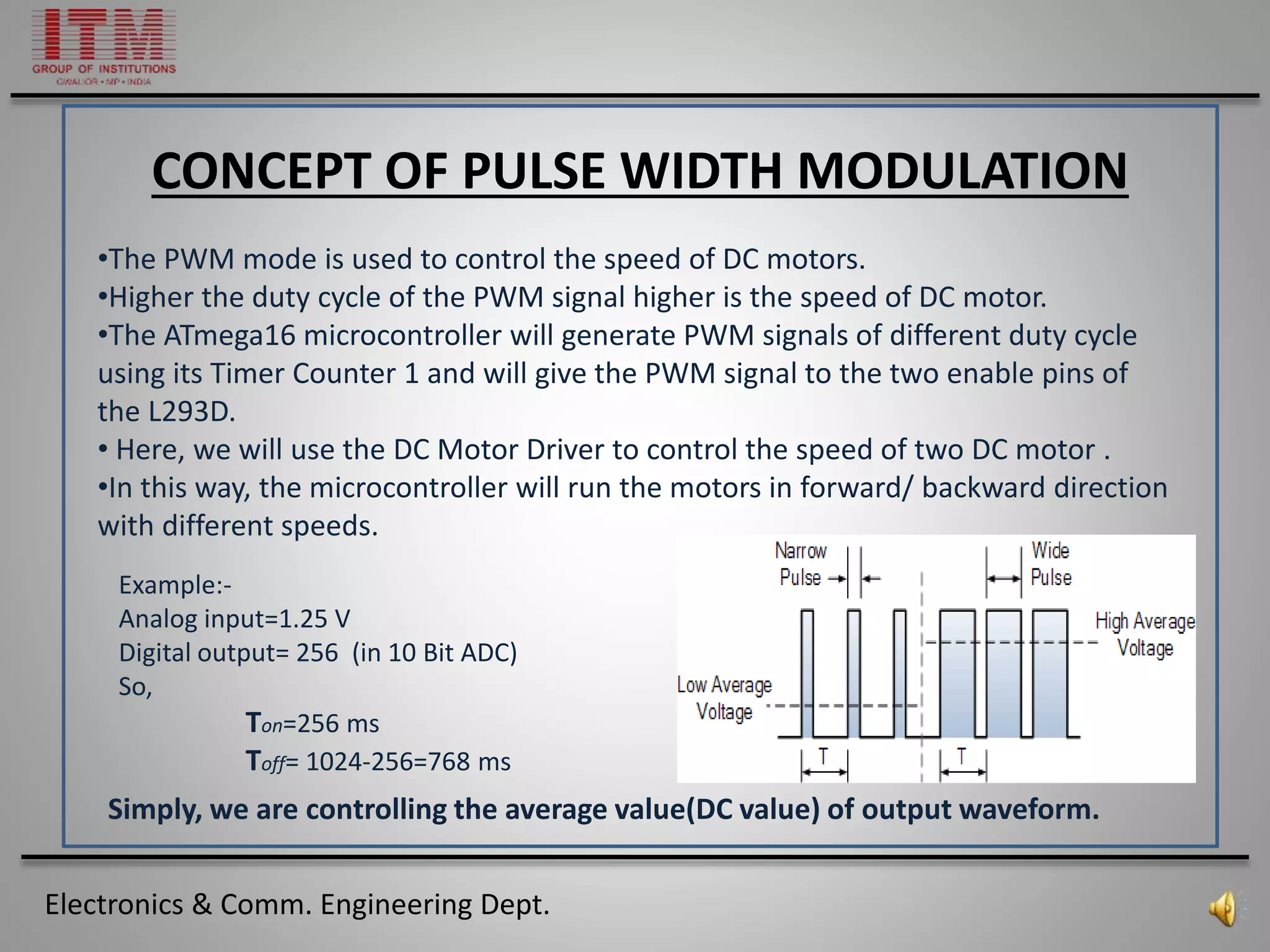

CONCEPT OF PULSE WIDTH MODULATION
•The PWM mode is used to control the speed of DC motors.
•Higher the duty cycle of the PWM signal higher is the speed of DC motor.
•The ATmega16 microcontroller will generate PWM signals of different duty cycle
using its Timer Counter 1 and will give the PWM signal to the two enable pins of
the L293D.
• Here, we will use the DC Motor Driver to control the speed of two DC motor .
•In this way, the microcontroller will run the motors in forward/ backward direction
with different speeds.
Example:-
Analog input=1.25 V
Digital output= 256 (in 10 Bit ADC)
So,
Ton=256 ms
Toff= 1024-256=768 ms
Simply, we are controlling the average value(DC value) of output waveform.

7. Electronics & Comm. Engineering Dept.

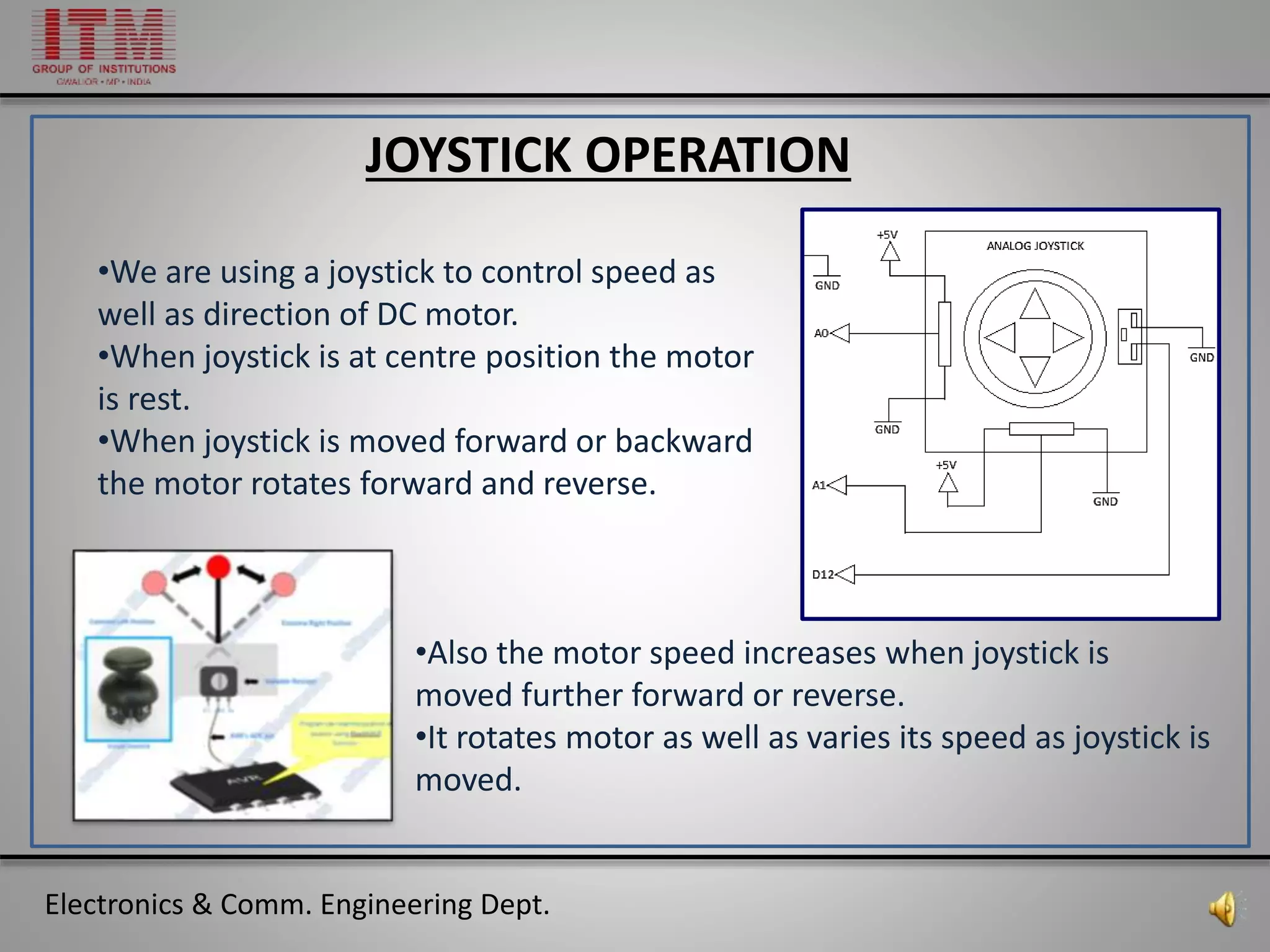

JOYSTICK OPERATION
•We are using a joystick to control speed as
well as direction of DC motor.
•When joystick is at centre position the motor
is rest.
•When joystick is moved forward or backward
the motor rotates forward and reverse.
•Also the motor speed increases when joystick is
moved further forward or reverse.
•It rotates motor as well as varies its speed as joystick is
moved.

8. Electronics & Comm. Engineering Dept.

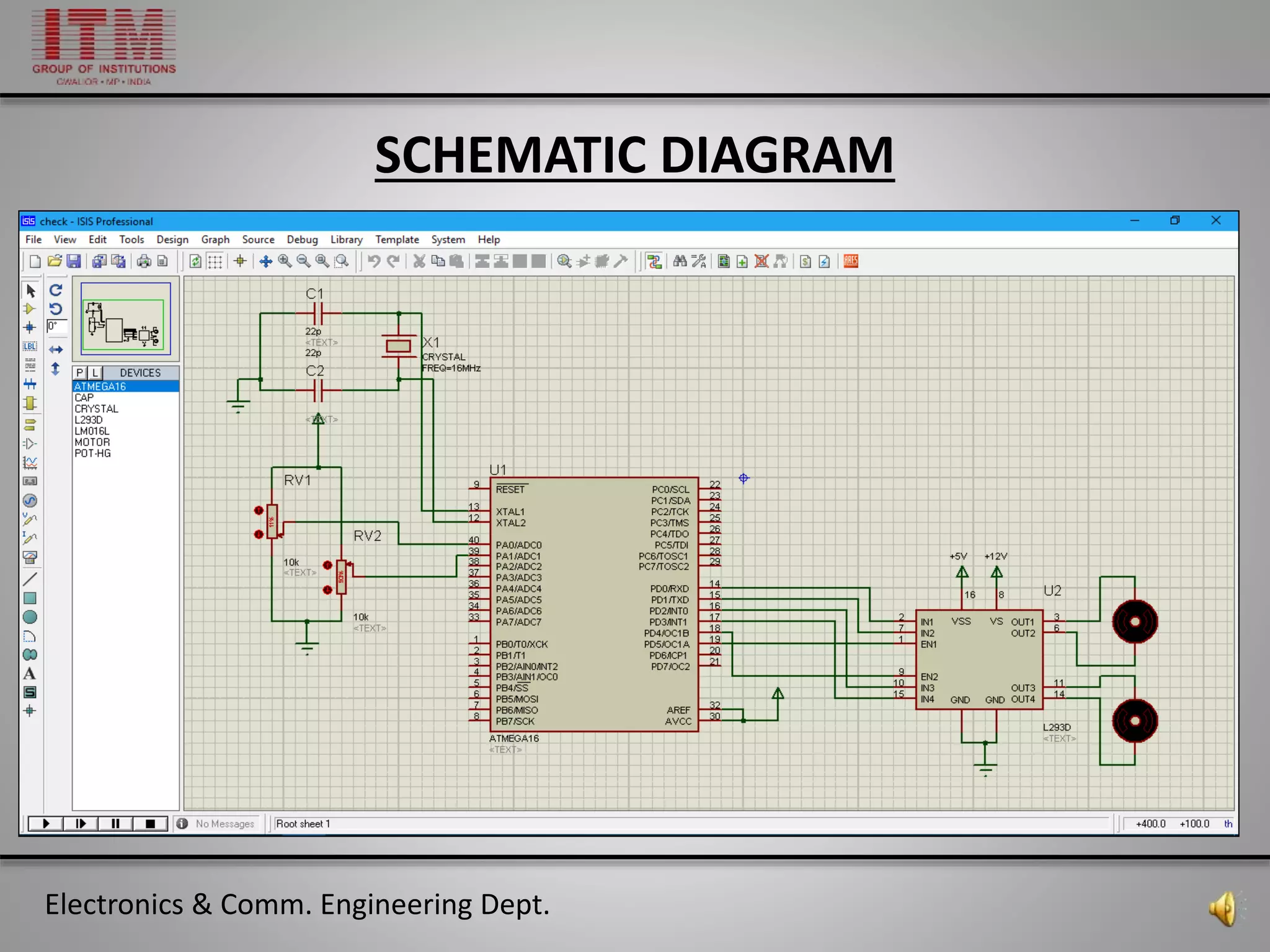

SCHEMATIC DIAGRAM

9. Electronics & Comm. Engineering Dept.

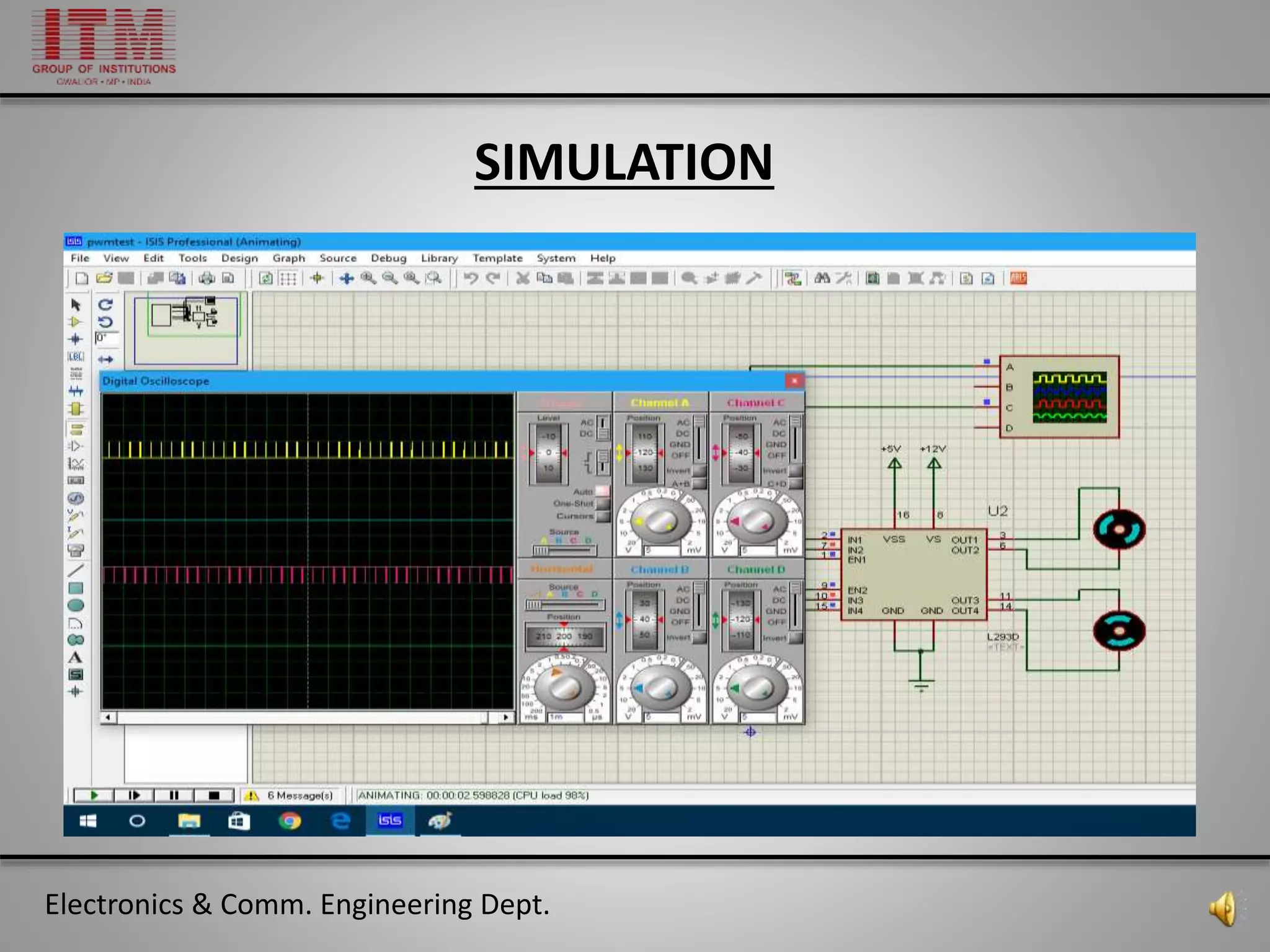

SIMULATION

10. Electronics & Comm. Engineering Dept.

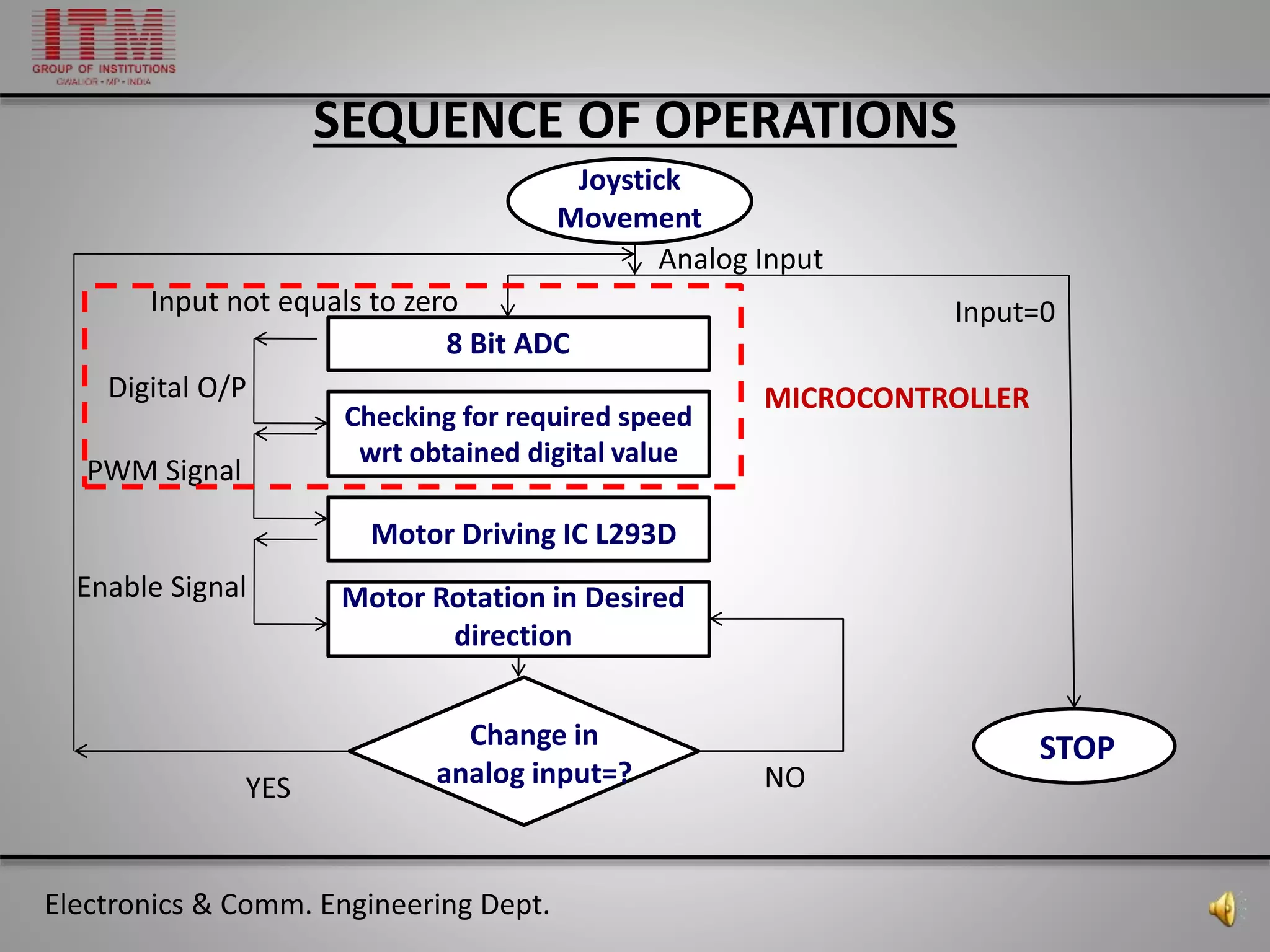

SEQUENCE OF OPERATIONS
Joystick
Movement
8 Bit ADC
Checking for required speed
wrt obtained digital value
Motor Driving IC L293D
Motor Rotation in Desired
direction
Change in
analog input=?
STOP
Analog Input
Input not equals to zero Input=0
Digital O/P
PWM Signal
Enable Signal
YES NO
MICROCONTROLLER

11. Electronics & Comm. Engineering Dept. 11

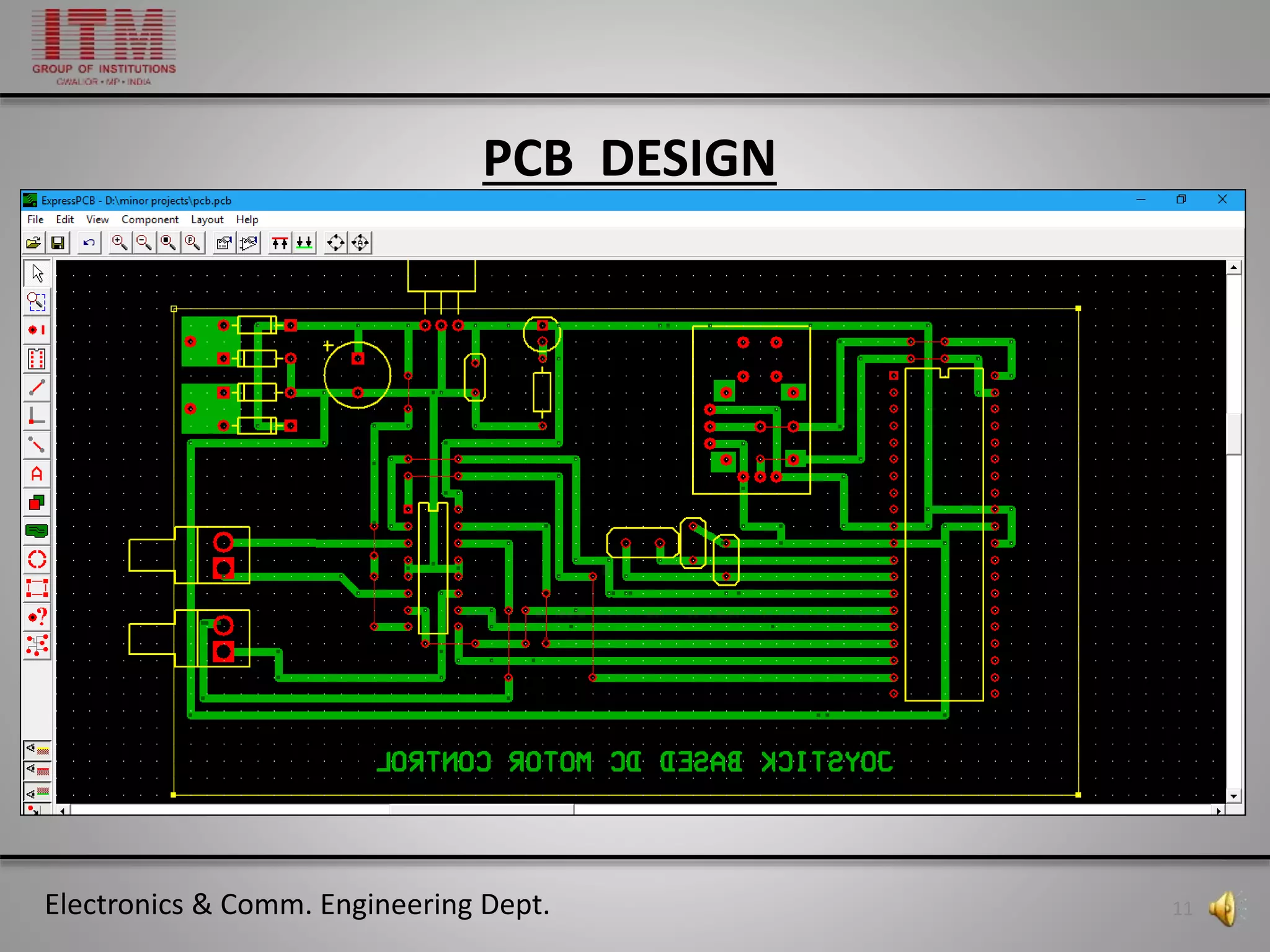

PCB DESIGN

12. Electronics & Comm. Engineering Dept. 12

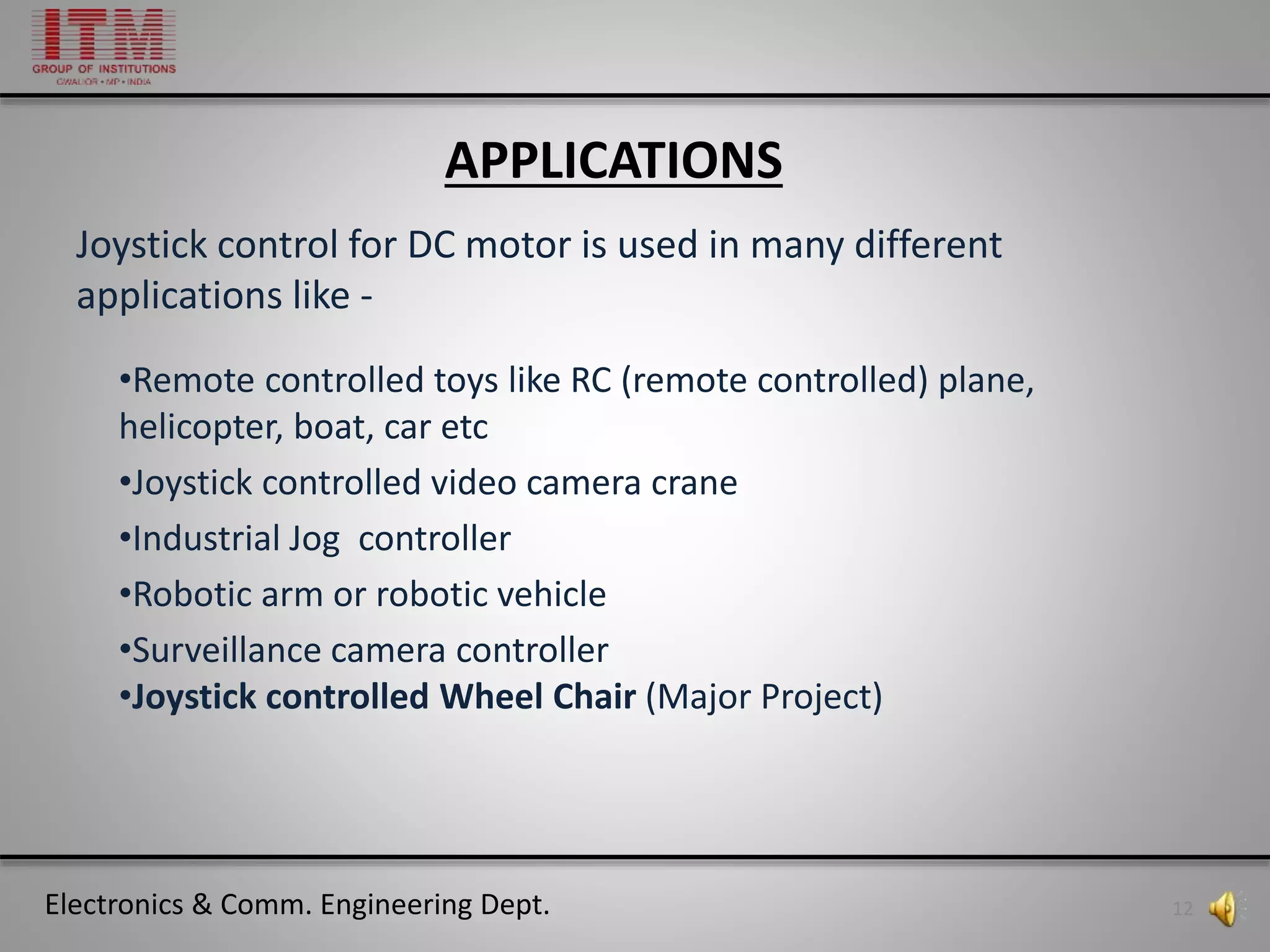

•Remote controlled toys like RC (remote controlled) plane,
helicopter, boat, car etc
•Joystick controlled video camera crane
•Industrial Jog controller
•Robotic arm or robotic vehicle
•Surveillance camera controller
•Joystick controlled Wheel Chair (Major Project)
APPLICATIONS
Joystick control for DC motor is used in many different
applications like -

13. Electronics & Comm. Engineering Dept. 13

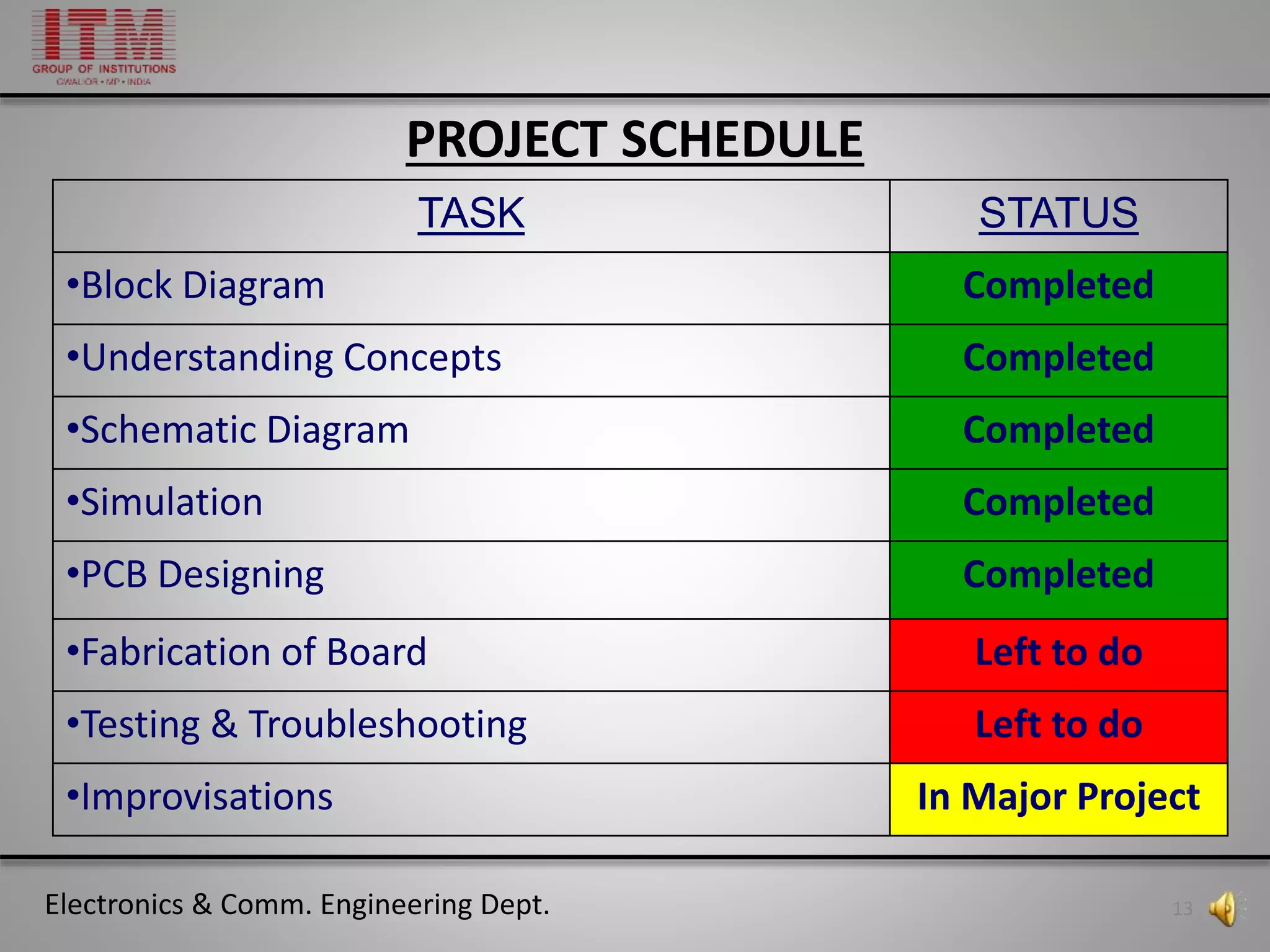

PROJECT SCHEDULE
TASK STATUS
•Block Diagram Completed
•Understanding Concepts Completed
•Schematic Diagram Completed
•Simulation Completed
•PCB Designing Completed
•Fabrication of Board Left to do
•Testing & Troubleshooting Left to do
•Improvisations In Major Project

14. Electronics & Comm. Engineering Dept. 14

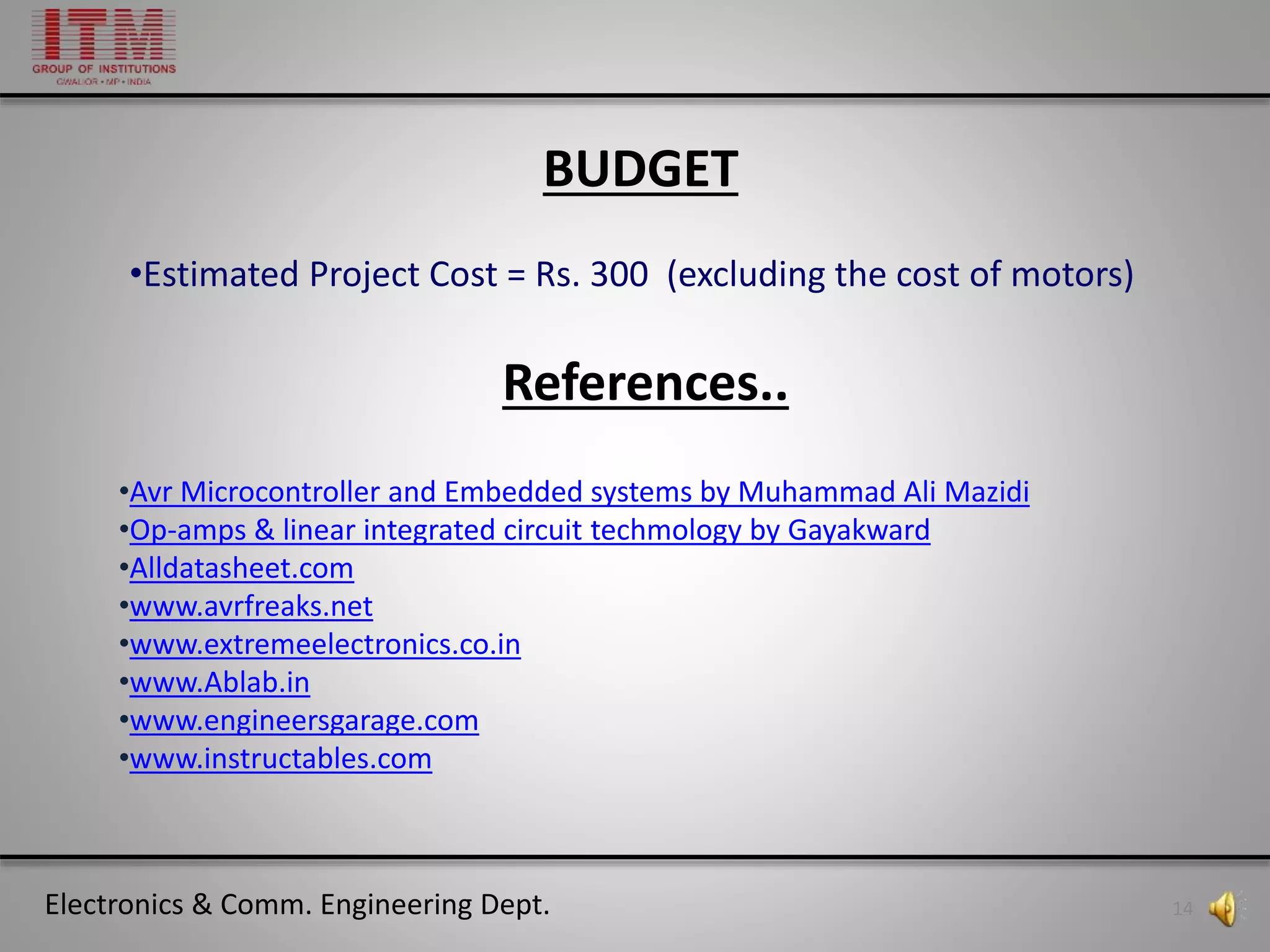

References..
•Avr Microcontroller and Embedded systems by Muhammad Ali Mazidi
•Op-amps & linear integrated circuit techmology by Gayakward
•Alldatasheet.com
•www.avrfreaks.net
•www.extremeelectronics.co.in
•www.Ablab.in
•www.engineersgarage.com
•www.instructables.com
BUDGET
•Estimated Project Cost = Rs. 300 (excluding the cost of motors)
