Jet Propulsion: Combustion Chamber
•Download as PPTX, PDF•
5 likes•6,006 views

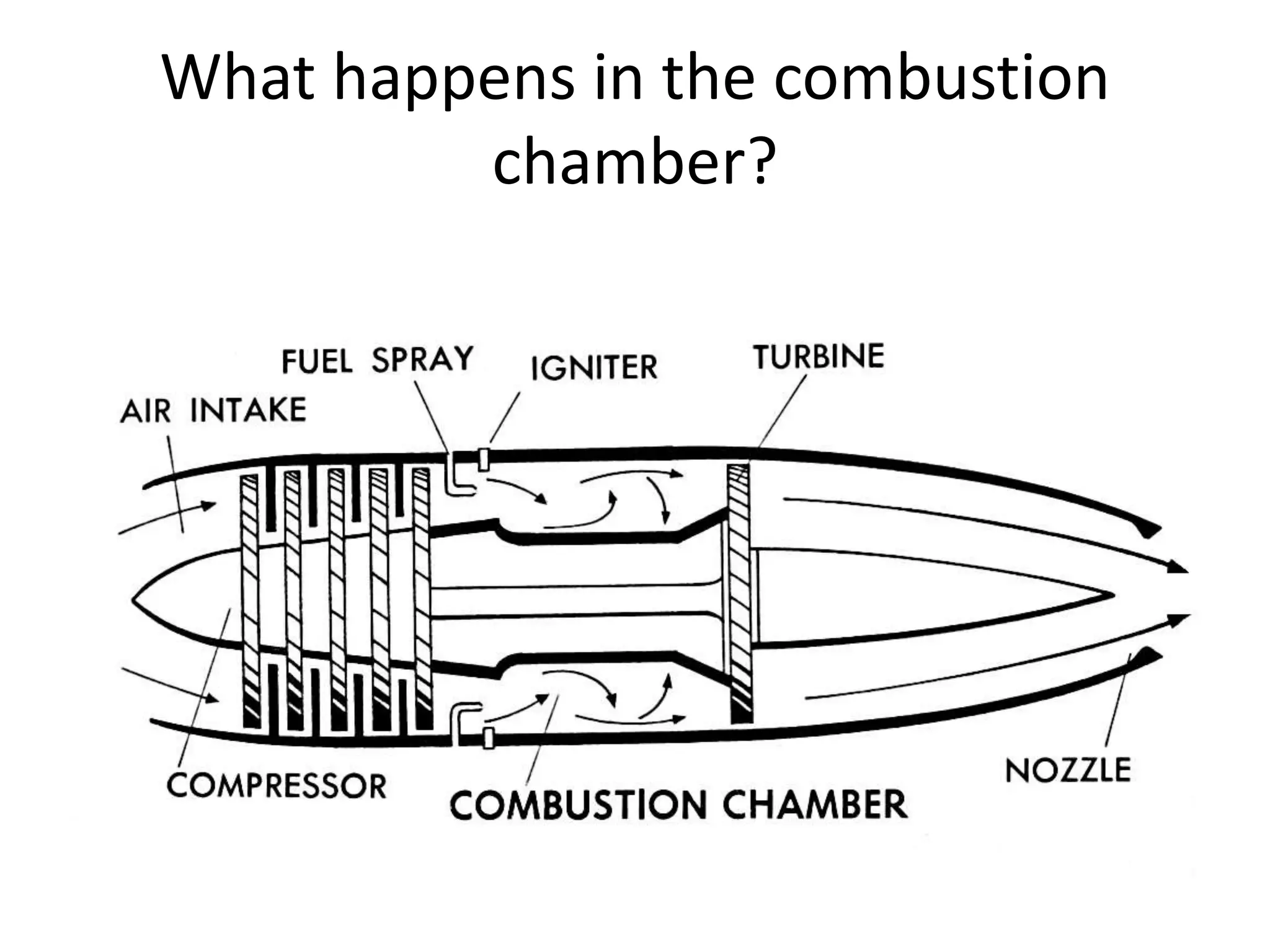

The combustion chamber is where combustion takes place in a jet engine. There are three main types of combustors: can, cannular, and annular. The can combustor has individual combustion cans each with their own fuel injector, igniter, and casing. The cannular combustor is similar but the combustion zones share a common ring casing. The annular combustor is the most common type, with a continuous circular liner and casing without separate combustion zones.
