The document discusses graphical user interface (GUI) components in Java. It covers topics like basic GUI units like frames and panels, common Swing components like JFrame, JButton, JTextField, layout managers, event handling using listeners, and examples of creating simple GUI applications in Java. Key concepts explained include the component hierarchy in Swing, commonly used layouts like FlowLayout, BorderLayout and GridLayout, and how to add listeners for events like button clicks and window closing. Code samples are provided to demonstrate creating frames, adding components, setting layouts and handling events.

1. www.SunilOS.com 1
www.sunilos.com
www.raystec.com
GUI -JFC Swing

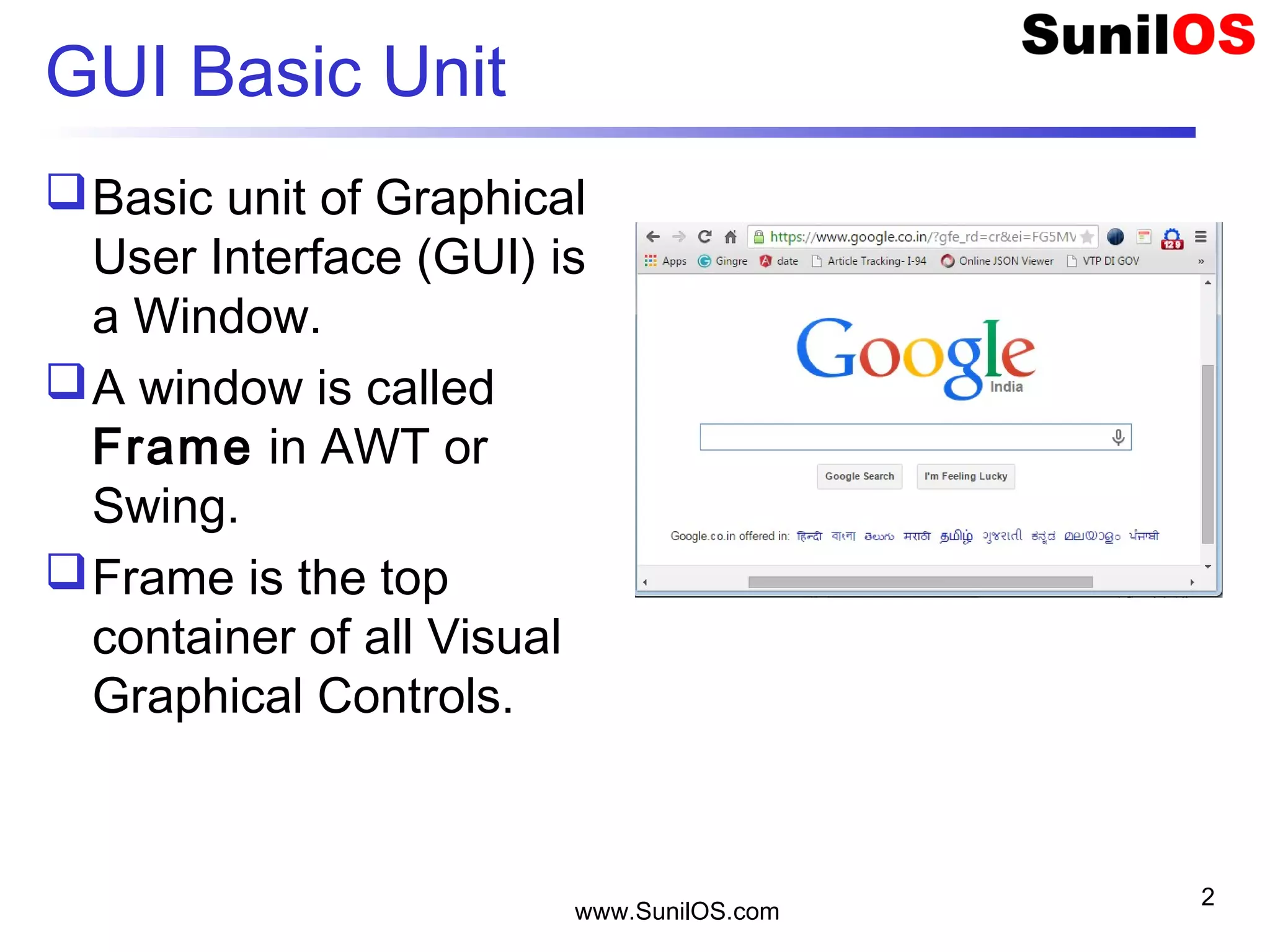

2. GUI Basic Unit
Basic unit of Graphical
User Interface (GUI) is
a Window.
A window is called
Frame in AWT or
Swing.
Frame is the top
container of all Visual
Graphical Controls.
www.SunilOS.com
2

3. www.SunilOS.com
3

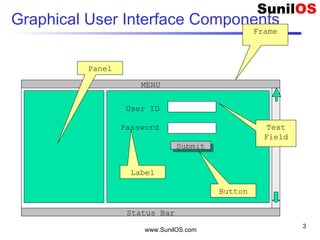

Graphical User Interface Components
MENU
Status Bar
User ID
Password
SubmitSubmit
Frame
Panel
Label
Text
Field
Button

4. www.SunilOS.com
4

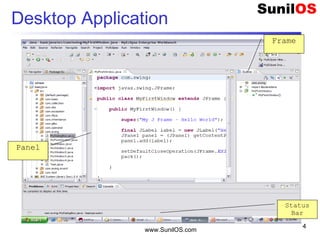

Desktop Application
Frame
Panel
Status
Bar

5. www.SunilOS.com
5

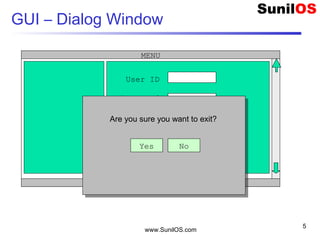

GUI – Dialog Window
MENU
Status Bar
User ID
Password
SubmitSubmitAre you sure you want to exit?
Yes No

6. www.SunilOS.com
6

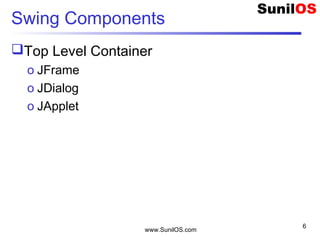

Swing Components
Top Level Container
o JFrame
o JDialog
o JApplet

7. www.SunilOS.com
7

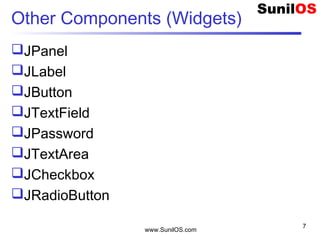

Other Components (Widgets)
JPanel
JLabel
JButton
JTextField
JPassword
JTextArea
JCheckbox
JRadioButton

8. www.SunilOS.com
8

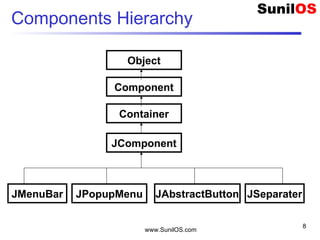

Components Hierarchy
Object
Component
Container
JComponent
JMenuBar JPopupMenu JAbstractButton JSeparater

9. www.SunilOS.com
9
Package
javax.swing
java.awt

10. www.SunilOS.com
10
Create A Window
 public static void main(String[] args) {
 JFrame frame = new JFrame(“My First Window");
 JPanel pan = (JPanel)frame.getContentPane();
 JButton b = new JButton("Click Me");
 pan.add(b);
 frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
//Close window when click on ‘x’
 frame.pack();
 //frame.setSize(400, 200);
 frame.setVisible(true);
 }

11. www.SunilOS.com
11
Create a Window by Extending JFrame
 public class Loginform extends JFrame{
 public Loginform(){
o super(“Login Form");
o JPanel pan = (JPanel)getContentPane();
o Jlabel lab1 = new Jlabel(“User ID”);
o pan.add(lab1);
o JtextField fl1 = new JTextField();
o pan.add(fl1);
o JButton button = new JButton(“Go");
o pan.add(button);
o setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
 }

12. www.SunilOS.com
12
Create an object of extended JFrame
public static void main(String[] args) {
o Loginform frame = new Loginform ();
o frame.pack();
o frame.setVisible(true);
}
}

13. www.SunilOS.com
13
Layout Management
Arrange widgets display order
java.awt.FlowLayout
java.awt.BorderLayout (Default)
java.awt.GridLayout
java.awt.GridBagLayout
javax.swing.BoxLayout
GridLayout layout = new GridLayout(2,2);
frame.setLayout(layout);

14. www.SunilOS.com
14

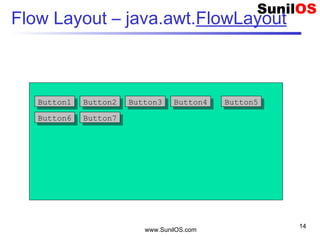

Flow Layout – java.awt.FlowLayout
Button1Button1 Button2Button2 Button3Button3 Button4Button4 Button5Button5
Button6Button6 Button7Button7

15. www.SunilOS.com
15

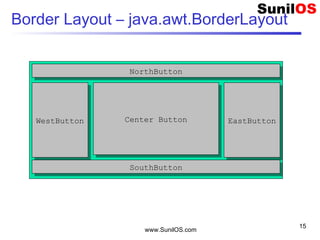

Border Layout – java.awt.BorderLayout
WestButtonWestButton Center ButtonCenter Button
NorthButtonNorthButton
EastButtonEastButton
SouthButtonSouthButton

16. www.SunilOS.com
16

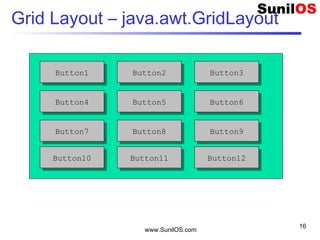

Grid Layout – java.awt.GridLayout
Button1Button1 Button2Button2 Button3Button3
Button4Button4 Button5Button5 Button6Button6
Button7Button7 Button8Button8 Button9Button9
Button10Button10 Button11Button11 Button12Button12

17. www.SunilOS.com
17

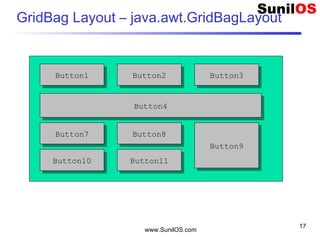

GridBag Layout – java.awt.GridBagLayout
Button1Button1 Button2Button2 Button3Button3
Button4Button4
Button7Button7 Button8Button8
Button9Button9
Button10Button10 Button11Button11

18. www.SunilOS.com
18

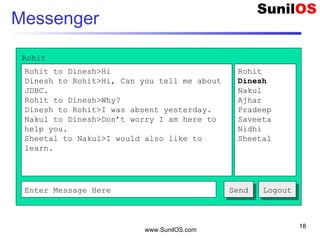

Messenger
Rohit to Dinesh>Hi
Dinesh to Rohit>Hi, Can you tell me about
JDBC.
Rohit to Dinesh>Why?
Dinesh to Rohit>I was absent yesterday.
Nakul to Dinesh>Don’t worry I am here to
help you.
Sheetal to Nakul>I would also like to
learn.
Rohit
Dinesh
Nakul
Ajhar
Pradeep
Saveeta
Nidhi
Sheetal
Enter Message Here SendSend
Rohit
LogoutLogout

19. www.SunilOS.com
19

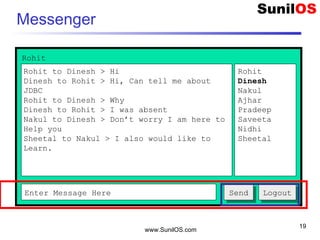

Messenger
Rohit to Dinesh > Hi
Dinesh to Rohit > Hi, Can tell me about
JDBC
Rohit to Dinesh > Why
Dinesh to Rohit > I was absent
Nakul to Dinesh > Don’t worry I am here to
Help you
Sheetal to Nakul > I also would like to
Learn.
Rohit
Dinesh
Nakul
Ajhar
Pradeep
Saveeta
Nidhi
Sheetal
Enter Message Here SendSend
Rohit
LogoutLogout

20. www.SunilOS.com
20

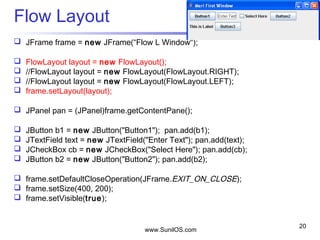

Flow Layout
 JFrame frame = new JFrame(“Flow L Window");
 FlowLayout layout = new FlowLayout();
 //FlowLayout layout = new FlowLayout(FlowLayout.RIGHT);
 //FlowLayout layout = new FlowLayout(FlowLayout.LEFT);
 frame.setLayout(layout);
 JPanel pan = (JPanel)frame.getContentPane();
 JButton b1 = new JButton("Button1"); pan.add(b1);
 JTextField text = new JTextField("Enter Text"); pan.add(text);
 JCheckBox cb = new JCheckBox("Select Here"); pan.add(cb);
 JButton b2 = new JButton("Button2"); pan.add(b2);
 frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
 frame.setSize(400, 200);
 frame.setVisible(true);

21. www.SunilOS.com
21
BorderLayout
 public static void main(String[] args) {
 JFrame frame = new JFrame("MyFirstWindow");
 frame.setLayout(new BorderLayout());
 JPanel pan = (JPanel)frame.getContentPane();
 JButton b1 = new JButton("North"); pan.add(b1,BorderLayout.NORTH);
 JButton b2 = new JButton("South"); pan.add(b2, BorderLayout.SOUTH);
 JButton b3 = new JButton("Right"); pan.add(b3, BorderLayout.EAST);
 JButton b4 = new JButton("West"); pan.add(b4, BorderLayout.WEST);
 JButton b5 = new JButton("Center"); pan.add(b5);
 frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
 frame.pack();
 frame.setVisible(true);
 }

22. www.SunilOS.com
22

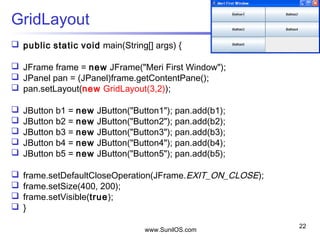

GridLayout
 public static void main(String[] args) {
 JFrame frame = new JFrame("Meri First Window");
 JPanel pan = (JPanel)frame.getContentPane();
 pan.setLayout(new GridLayout(3,2));
 JButton b1 = new JButton("Button1"); pan.add(b1);
 JButton b2 = new JButton("Button2"); pan.add(b2);
 JButton b3 = new JButton("Button3"); pan.add(b3);
 JButton b4 = new JButton("Button4"); pan.add(b4);
 JButton b5 = new JButton("Button5"); pan.add(b5);
 frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
 frame.setSize(400, 200);
 frame.setVisible(true);
 }

23. www.SunilOS.com
23

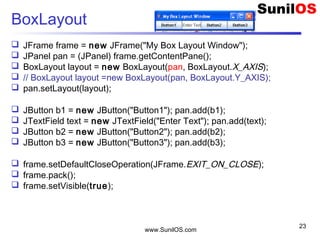

BoxLayout
 JFrame frame = new JFrame("My Box Layout Window");
 JPanel pan = (JPanel) frame.getContentPane();
 BoxLayout layout = new BoxLayout(pan, BoxLayout.X_AXIS);
 // BoxLayout layout =new BoxLayout(pan, BoxLayout.Y_AXIS);
 pan.setLayout(layout);
 JButton b1 = new JButton("Button1"); pan.add(b1);
 JTextField text = new JTextField("Enter Text"); pan.add(text);
 JButton b2 = new JButton("Button2"); pan.add(b2);
 JButton b3 = new JButton("Button3"); pan.add(b3);
 frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
 frame.pack();
 frame.setVisible(true);

24. www.SunilOS.com
24
Absolute Position
 public static void main(String[] args) {
 JFrame frame = new JFrame("Meri First Window");
 JPanel pan = (JPanel)frame.getContentPane();
 pan.setLayout(null);
 JButton b1 = new JButton("Button1");
 b1.setSize(100,30);
 b1.setLocation(10,10);
 pan.add(b1);
 JButton b2 = new JButton("Button2");
 b2.setSize(100,30);
 b2.setLocation(10,50);
 pan.add(b2);
 frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
 frame.setSize(400, 200);
 frame.setVisible(true);
 }

25. Event
www.SunilOS.com
25

26. www.SunilOS.com
26

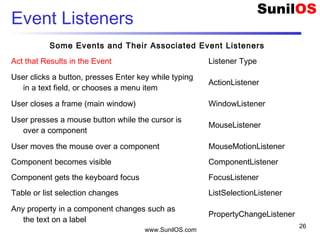

Event Listeners
Some Events and Their Associated Event Listeners
Act that Results in the Event Listener Type
User clicks a button, presses Enter key while typing
in a text field, or chooses a menu item
ActionListener
User closes a frame (main window) WindowListener
User presses a mouse button while the cursor is
over a component
MouseListener
User moves the mouse over a component MouseMotionListener
Component becomes visible ComponentListener
Component gets the keyboard focus FocusListener
Table or list selection changes ListSelectionListener
Any property in a component changes such as
the text on a label
PropertyChangeListener

27. www.SunilOS.com
27
Event Object Hierarchy
 Java.lang.Object
o Java.util.EventObject
o Java.awt.AWTEvent
• Java.awt.event.ActionEvent
• Java.awt.event.ItemEvent
• Java.awt.event.AdjustmentEvent
• Java.awt.event.TextEvent
• Java.awt.event.ComponentEvent
• Java.awt.event.InputEvent
+ Java.awt.event.KeyEvent
+ Java.awt.event.MouseEvent
• Java.awt.event.FocusEvent
• Java.awt.event.ContainerEvent
• Java.awt.event.WindowEvent

28. www.SunilOS.com
28

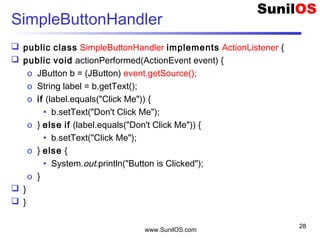

SimpleButtonHandler
 public class SimpleButtonHandler implements ActionListener {
 public void actionPerformed(ActionEvent event) {
o JButton b = (JButton) event.getSource();
o String label = b.getText();
o if (label.equals("Click Me")) {
• b.setText("Don't Click Me");
o } else if (label.equals("Don't Click Me")) {
• b.setText("Click Me");
o } else {
• System.out.println("Button is Clicked");
o }
 }
 }

29. www.SunilOS.com
29

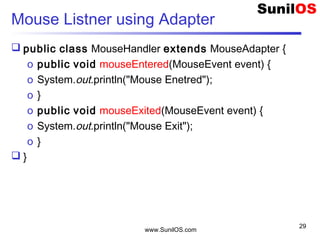

Mouse Listner using Adapter
 public class MouseHandler extends MouseAdapter {
o public void mouseEntered(MouseEvent event) {
o System.out.println("Mouse Enetred");
o }
o public void mouseExited(MouseEvent event) {
o System.out.println("Mouse Exit");
o }
 }

30. www.SunilOS.com
30

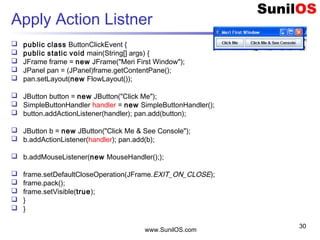

Apply Action Listner
 public class ButtonClickEvent {
 public static void main(String[] args) {
 JFrame frame = new JFrame("Meri First Window");
 JPanel pan = (JPanel)frame.getContentPane();
 pan.setLayout(new FlowLayout());
 JButton button = new JButton("Click Me");
 SimpleButtonHandler handler = new SimpleButtonHandler();
 button.addActionListener(handler); pan.add(button);
 JButton b = new JButton("Click Me & See Console");
 b.addActionListener(handler); pan.add(b);
 b.addMouseListener(new MouseHandler(););
 frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
 frame.pack();
 frame.setVisible(true);
 }
 }

31. www.SunilOS.com
31
WindowHandler
 public class WindowHandler implements WindowListener {
 public void windowActivated(WindowEvent e) { System.out.println("windowActivated"); }
 public void windowClosed(WindowEvent e) { System.out.println("windowClosed"); }
 public void windowClosing(WindowEvent e) { System.out.println("windowClosing"); }
 public void windowDeactivated(WindowEvent e) {
System.out.println("windowDeactivated");
 }
 public void windowDeiconified(WindowEvent e)
{ System.out.println("windowDeiconified"); }
 public void windowIconified(WindowEvent e) { System.out.println("windowIconified"); }
 public void windowOpened(WindowEvent e) { System.out.println("windowOpened"); } }

32. www.SunilOS.com
32

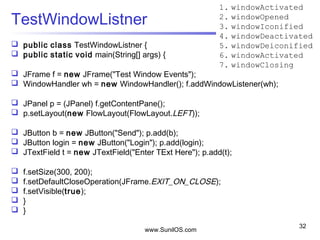

TestWindowListner
 public class TestWindowListner {
 public static void main(String[] args) {
 JFrame f = new JFrame("Test Window Events");
 WindowHandler wh = new WindowHandler(); f.addWindowListener(wh);
 JPanel p = (JPanel) f.getContentPane();
 p.setLayout(new FlowLayout(FlowLayout.LEFT));
 JButton b = new JButton("Send"); p.add(b);
 JButton login = new JButton("Login"); p.add(login);
 JTextField t = new JTextField("Enter TExt Here"); p.add(t);
 f.setSize(300, 200);
 f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
 f.setVisible(true);
 }
 }
1. windowActivated
2. windowOpened
3. windowIconified
4. windowDeactivated
5. windowDeiconified
6. windowActivated
7. windowClosing

33. www.SunilOS.com
33

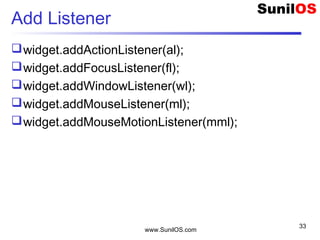

Add Listener
widget.addActionListener(al);
widget.addFocusListener(fl);
widget.addWindowListener(wl);
widget.addMouseListener(ml);
widget.addMouseMotionListener(mml);

34. www.SunilOS.com
34

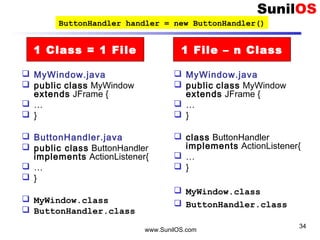

 MyWindow.java
 public class MyWindow
extends JFrame {
 …
 }
 ButtonHandler.java
 public class ButtonHandler
implements ActionListener{
 …
 }
 MyWindow.class
 ButtonHandler.class
 MyWindow.java
 public class MyWindow
extends JFrame {
 …
 }
 class ButtonHandler
implements ActionListener{
 …
 }
 MyWindow.class
 ButtonHandler.class
1 Class = 1 File 1 File – n Class
ButtonHandler handler = new ButtonHandler()

35. www.SunilOS.com
35

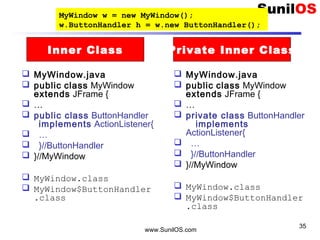

 MyWindow.java
 public class MyWindow
extends JFrame {
 …
 public class ButtonHandler
implements ActionListener{
 …
 }//ButtonHandler
 }//MyWindow
 MyWindow.class
 MyWindow$ButtonHandler
.class
Inner Class Private Inner Class
MyWindow w = new MyWindow();
w.ButtonHandler h = w.new ButtonHandler();
 MyWindow.java
 public class MyWindow
extends JFrame {
 …
 private class ButtonHandler
implements
ActionListener{
 …
 }//ButtonHandler
 }//MyWindow
 MyWindow.class
 MyWindow$ButtonHandler
.class

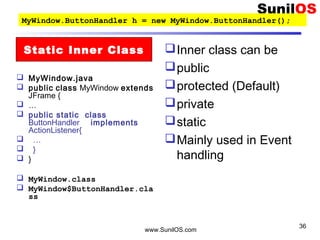

36. www.SunilOS.com
36
 MyWindow.java
 public class MyWindow extends
JFrame {
 …
 public static class
ButtonHandler implements
ActionListener{
 …
 }
 }
 MyWindow.class
 MyWindow$ButtonHandler.cla
ss
Inner class can be
public
protected (Default)
private
static
Mainly used in Event
handling
Static Inner Class
MyWindow.ButtonHandler h = new MyWindow.ButtonHandler();

37. www.SunilOS.com
37
Inner Class - TestFocusListner
 public class TestFocusListner {
o private class InnFocusHandler implements FocusListner {
• public void focusGained(FocusEvent e) {
+ JButton b = (JButton) e.getSource();
+ System.out.println("Focus Gained " + b.getText());
• }
• public void focusLost(FocusEvent e) {
+ JButton b = (JButton) e.getSource();
+ System.out.println("Focus lost " + b.getText());}
o }

38. www.SunilOS.com
38

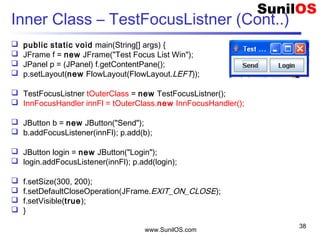

Inner Class – TestFocusListner (Cont..)
 public static void main(String[] args) {
 JFrame f = new JFrame("Test Focus List Win");
 JPanel p = (JPanel) f.getContentPane();
 p.setLayout(new FlowLayout(FlowLayout.LEFT));
 TestFocusListner tOuterClass = new TestFocusListner();
 InnFocusHandler innFl = tOuterClass.new InnFocusHandler();
 JButton b = new JButton("Send");
 b.addFocusListener(innFl); p.add(b);
 JButton login = new JButton("Login");
 login.addFocusListener(innFl); p.add(login);
 f.setSize(300, 200);
 f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
 f.setVisible(true);
 }

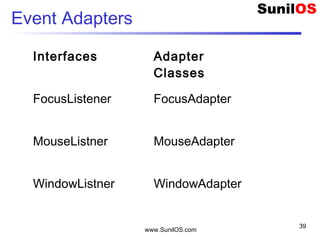

39. www.SunilOS.com
39
Event Adapters
Interfaces Adapter
Classes
FocusListener FocusAdapter
MouseListner MouseAdapter
WindowListner WindowAdapter

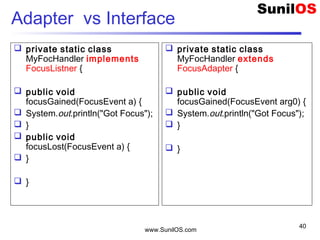

40. www.SunilOS.com
40
Adapter vs Interface
 private static class
MyFocHandler extends
FocusAdapter {
 public void
focusGained(FocusEvent arg0) {
 System.out.println("Got Focus");
 }
 }
 private static class
MyFocHandler implements
FocusListner {
 public void
focusGained(FocusEvent a) {
 System.out.println("Got Focus");
 }
 public void
focusLost(FocusEvent a) {
 }
 }

41. www.SunilOS.com
41
Anonymous Classes
JButton b = new JButton(“Click Me");
FocusAdapter fa= new FocusAdapter();
b.addFocusListener(fa);
OR
JButton b = new JButton(“Click Me");
b.addFocusListener(new FocusAdapter());

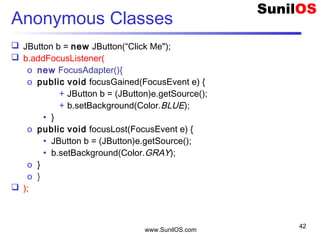

42. www.SunilOS.com
42
Anonymous Classes
 JButton b = new JButton(“Click Me");
 b.addFocusListener(
o new FocusAdapter(){
o public void focusGained(FocusEvent e) {
+ JButton b = (JButton)e.getSource();
+ b.setBackground(Color.BLUE);
• }
o public void focusLost(FocusEvent e) {
• JButton b = (JButton)e.getSource();
• b.setBackground(Color.GRAY);
o }
o }
 );

43. www.SunilOS.com
43

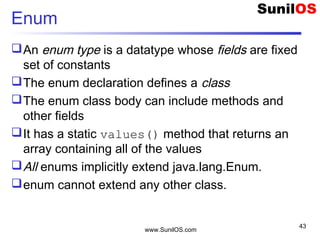

Enum
An enum type is a datatype whose fields are fixed
set of constants
The enum declaration defines a class
The enum class body can include methods and
other fields
It has a static values() method that returns an
array containing all of the values
All enums implicitly extend java.lang.Enum.
enum cannot extend any other class.

44. www.SunilOS.com
44

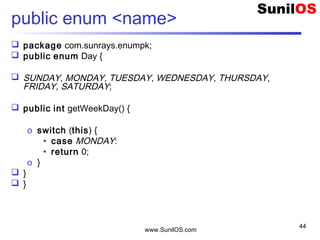

public enum <name>
 package com.sunrays.enumpk;
 public enum Day {
 SUNDAY, MONDAY, TUESDAY, WEDNESDAY, THURSDAY,
FRIDAY, SATURDAY;
 public int getWeekDay() {
o switch (this) {
• case MONDAY:
• return 0;
o }
 }
 }

45. www.SunilOS.com
45

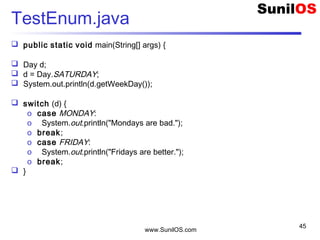

TestEnum.java
 public static void main(String[] args) {
 Day d;
 d = Day.SATURDAY;
 System.out.println(d.getWeekDay());
 switch (d) {
o case MONDAY:
o System.out.println("Mondays are bad.");
o break;
o case FRIDAY:
o System.out.println("Fridays are better.");
o break;
 }

46. www.SunilOS.com
46
ENUM with Constructor
 public enum Human {
 KID(10), MAN(50), OLDMAN(70);
 private final int weight;
 Human(int w) {
 this.weight = w;
 }
 public void display() {
 System.out.println(weight);
 }
 }

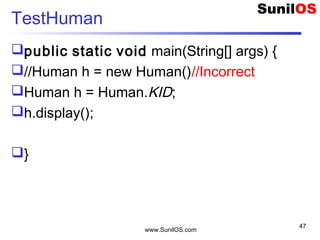

47. www.SunilOS.com
47
TestHuman
public static void main(String[] args) {
//Human h = new Human()//Incorrect
Human h = Human.KID;
h.display();
}

48. www.SunilOS.com
48

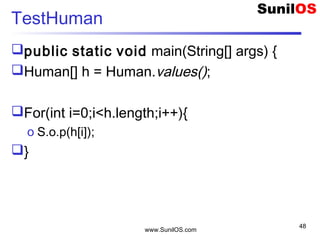

TestHuman
public static void main(String[] args) {
Human[] h = Human.values();
For(int i=0;i<h.length;i++){
o S.o.p(h[i]);
}

49. Disclaimer
This is an educational presentation to enhance the
skill of computer science students.
This presentation is available for free to computer
science students.
Some internet images from different URLs are
used in this presentation to simplify technical
examples and correlate examples with the real
world.
We are grateful to owners of these URLs and
pictures.
www.SunilOS.com 49

50. Thank You!
www.SunilOS.com 50
www.SunilOS.com
