1. Ischemic and
Valvular heart disease
Prashant Gupta
NAMS, Radiodiagnosis and Imaging

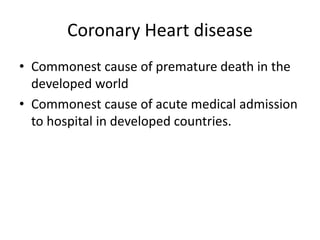

2. Coronary Heart disease
• Commonest cause of premature death in the
developed world
• Commonest cause of acute medical admission
to hospital in developed countries.

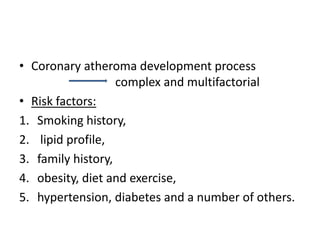

3. • Coronary atheroma development process
complex and multifactorial
• Risk factors:
1. Smoking history,
2. lipid profile,
3. family history,
4. obesity, diet and exercise,
5. hypertension, diabetes and a number of others.

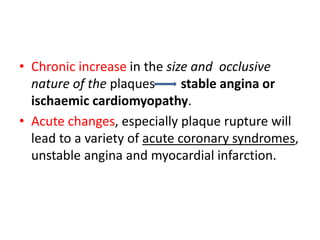

4. • Chronic increase in the size and occlusive
nature of the plaques stable angina or
ischaemic cardiomyopathy.
• Acute changes, especially plaque rupture will
lead to a variety of acute coronary syndromes,
unstable angina and myocardial infarction.

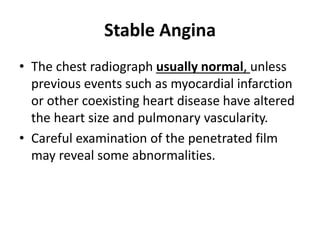

5. Stable Angina
• The chest radiograph usually normal, unless
previous events such as myocardial infarction
or other coexisting heart disease have altered
the heart size and pulmonary vascularity.
• Careful examination of the penetrated film
may reveal some abnormalities.

6. • Coronary artery calcification is best seen in
the proximal left coronary artery and may be
identified near the aortic root on both PA and
lateral views
• The significance of this finding is dependent
on the patient's age.

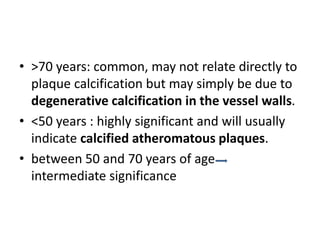

8. • >70 years: common, may not relate directly to
plaque calcification but may simply be due to
degenerative calcification in the vessel walls.
• <50 years : highly significant and will usually
indicate calcified atheromatous plaques.
• between 50 and 70 years of age
intermediate significance

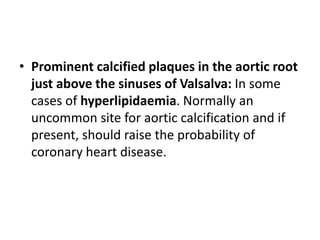

9. • Prominent calcified plaques in the aortic root
just above the sinuses of Valsalva: In some
cases of hyperlipidaemia. Normally an
uncommon site for aortic calcification and if
present, should raise the probability of
coronary heart disease.

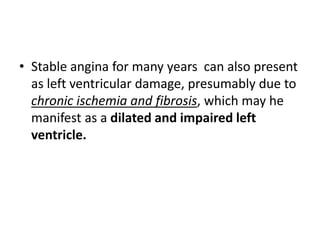

10. • Stable angina for many years can also present
as left ventricular damage, presumably due to
chronic ischemia and fibrosis, which may he
manifest as a dilated and impaired left
ventricle.

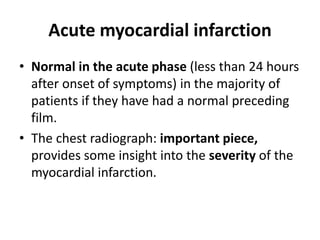

11. Acute myocardial infarction
• Normal in the acute phase (less than 24 hours
after onset of symptoms) in the majority of
patients if they have had a normal preceding
film.
• The chest radiograph: important piece,
provides some insight into the severity of the
myocardial infarction.

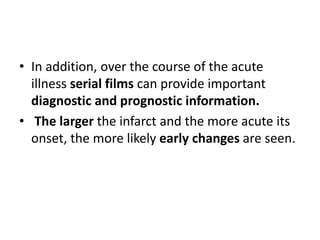

12. • In addition, over the course of the acute
illness serial films can provide important
diagnostic and prognostic information.
• The larger the infarct and the more acute its
onset, the more likely early changes are seen.

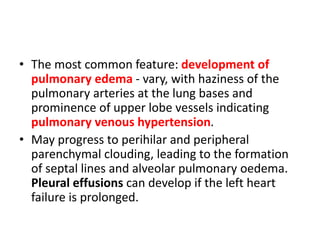

13. • The most common feature: development of
pulmonary edema - vary, with haziness of the
pulmonary arteries at the lung bases and
prominence of upper lobe vessels indicating
pulmonary venous hypertension.
• May progress to perihilar and peripheral
parenchymal clouding, leading to the formation
of septal lines and alveolar pulmonary oedema.
Pleural effusions can develop if the left heart
failure is prolonged.

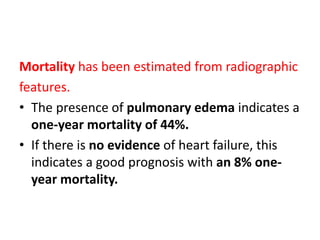

14. Mortality has been estimated from radiographic
features.
• The presence of pulmonary edema indicates a
one-year mortality of 44%.
• If there is no evidence of heart failure, this
indicates a good prognosis with an 8% one-
year mortality.

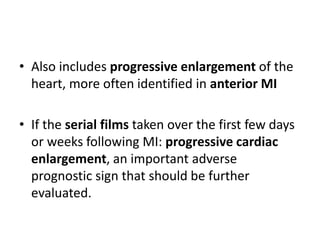

15. • Also includes progressive enlargement of the
heart, more often identified in anterior MI
• If the serial films taken over the first few days
or weeks following MI: progressive cardiac
enlargement, an important adverse
prognostic sign that should be further
evaluated.

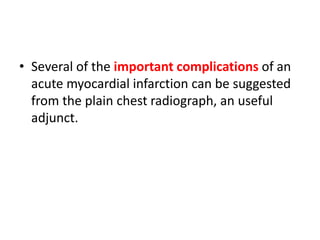

17. • Several of the important complications of an
acute myocardial infarction can be suggested
from the plain chest radiograph, an useful
adjunct.

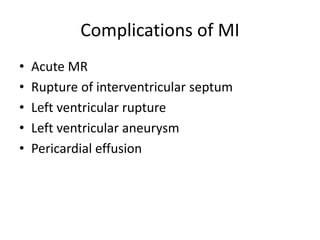

18. Complications of MI
• Acute MR
• Rupture of interventricular septum
• Left ventricular rupture
• Left ventricular aneurysm
• Pericardial effusion

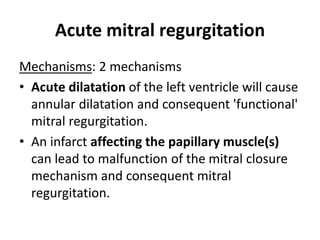

19. Acute mitral regurgitation
Mechanisms: 2 mechanisms
• Acute dilatation of the left ventricle will cause
annular dilatation and consequent 'functional'
mitral regurgitation.
• An infarct affecting the papillary muscle(s)
can lead to malfunction of the mitral closure
mechanism and consequent mitral
regurgitation.

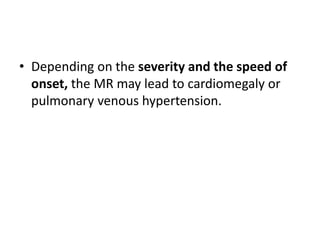

20. • Depending on the severity and the speed of
onset, the MR may lead to cardiomegaly or
pulmonary venous hypertension.

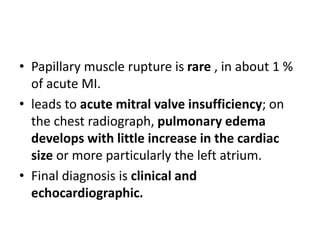

21. • Papillary muscle rupture is rare , in about 1 %
of acute MI.
• leads to acute mitral valve insufficiency; on
the chest radiograph, pulmonary edema
develops with little increase in the cardiac
size or more particularly the left atrium.
• Final diagnosis is clinical and
echocardiographic.

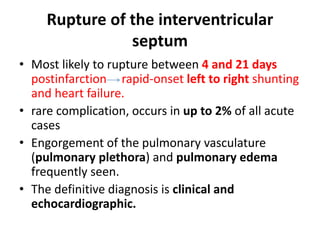

22. Rupture of the interventricular
septum
• Most likely to rupture between 4 and 21 days
postinfarction rapid-onset left to right shunting
and heart failure.
• rare complication, occurs in up to 2% of all acute
cases
• Engorgement of the pulmonary vasculature
(pulmonary plethora) and pulmonary edema
frequently seen.
• The definitive diagnosis is clinical and
echocardiographic.

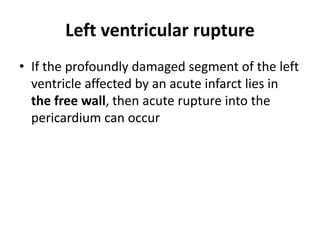

24. Left ventricular rupture
• If the profoundly damaged segment of the left
ventricle affected by an acute infarct lies in
the free wall, then acute rupture into the
pericardium can occur

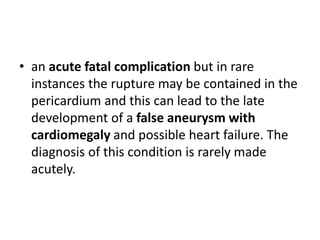

25. • an acute fatal complication but in rare
instances the rupture may be contained in the
pericardium and this can lead to the late
development of a false aneurysm with
cardiomegaly and possible heart failure. The
diagnosis of this condition is rarely made
acutely.

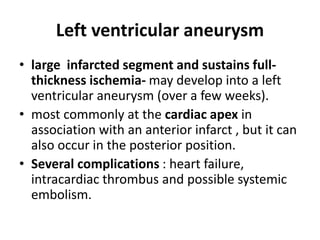

26. Left ventricular aneurysm
• large infarcted segment and sustains full-
thickness ischemia- may develop into a left
ventricular aneurysm (over a few weeks).
• most commonly at the cardiac apex in
association with an anterior infarct , but it can
also occur in the posterior position.
• Several complications : heart failure,
intracardiac thrombus and possible systemic
embolism.

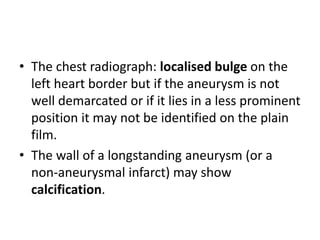

27. • The chest radiograph: localised bulge on the
left heart border but if the aneurysm is not
well demarcated or if it lies in a less prominent
position it may not be identified on the plain
film.
• The wall of a longstanding aneurysm (or a
non-aneurysmal infarct) may show
calcification.

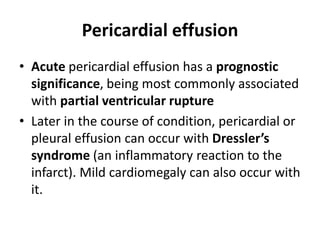

29. Pericardial effusion
• Acute pericardial effusion has a prognostic
significance, being most commonly associated
with partial ventricular rupture
• Later in the course of condition, pericardial or
pleural effusion can occur with Dressler’s
syndrome (an inflammatory reaction to the
infarct). Mild cardiomegaly can also occur with
it.

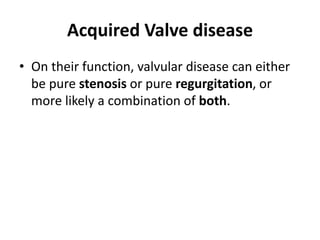

30. Acquired Valve disease
• On their function, valvular disease can either
be pure stenosis or pure regurgitation, or
more likely a combination of both.

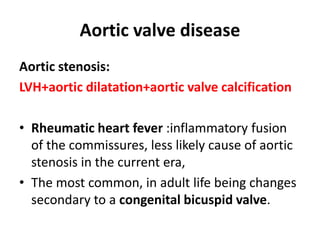

31. Aortic valve disease
Aortic stenosis:
LVH+aortic dilatation+aortic valve calcification
• Rheumatic heart fever :inflammatory fusion
of the commissures, less likely cause of aortic
stenosis in the current era,
• The most common, in adult life being changes
secondary to a congenital bicuspid valve.

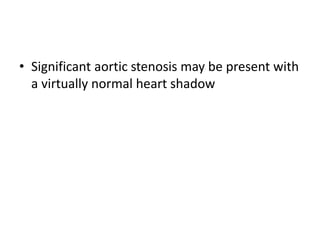

32. • Significant aortic stenosis may be present with
a virtually normal heart shadow

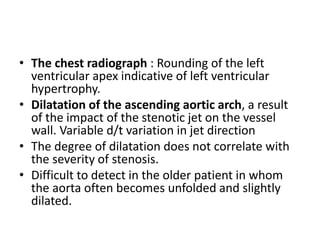

33. • The chest radiograph : Rounding of the left
ventricular apex indicative of left ventricular
hypertrophy.
• Dilatation of the ascending aortic arch, a result
of the impact of the stenotic jet on the vessel
wall. Variable d/t variation in jet direction
• The degree of dilatation does not correlate with
the severity of stenosis.
• Difficult to detect in the older patient in whom
the aorta often becomes unfolded and slightly
dilated.

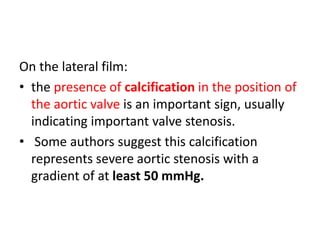

34. On the lateral film:
• the presence of calcification in the position of
the aortic valve is an important sign, usually
indicating important valve stenosis.
• Some authors suggest this calcification
represents severe aortic stenosis with a
gradient of at least 50 mmHg.

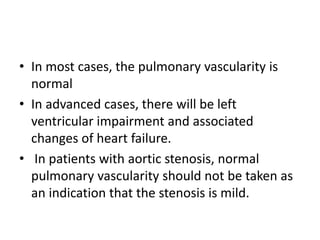

35. • In most cases, the pulmonary vascularity is
normal
• In advanced cases, there will be left
ventricular impairment and associated
changes of heart failure.
• In patients with aortic stenosis, normal
pulmonary vascularity should not be taken as
an indication that the stenosis is mild.

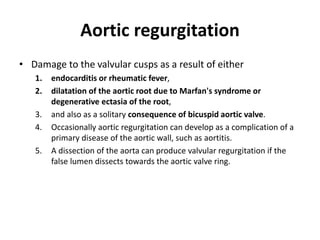

37. Aortic regurgitation
• Damage to the valvular cusps as a result of either
1. endocarditis or rheumatic fever,
2. dilatation of the aortic root due to Marfan's syndrome or
degenerative ectasia of the root,
3. and also as a solitary consequence of bicuspid aortic valve.
4. Occasionally aortic regurgitation can develop as a complication of a
primary disease of the aortic wall, such as aortitis.
5. A dissection of the aorta can produce valvular regurgitation if the
false lumen dissects towards the aortic valve ring.

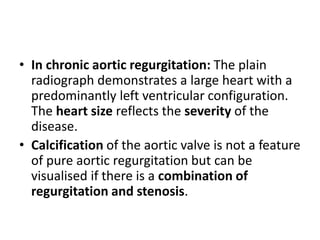

38. • In chronic aortic regurgitation: The plain
radiograph demonstrates a large heart with a
predominantly left ventricular configuration.
The heart size reflects the severity of the
disease.
• Calcification of the aortic valve is not a feature
of pure aortic regurgitation but can be
visualised if there is a combination of
regurgitation and stenosis.

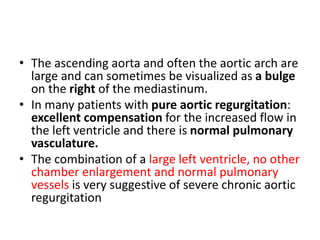

39. • The ascending aorta and often the aortic arch are
large and can sometimes be visualized as a bulge
on the right of the mediastinum.
• In many patients with pure aortic regurgitation:
excellent compensation for the increased flow in
the left ventricle and there is normal pulmonary
vasculature.
• The combination of a large left ventricle, no other
chamber enlargement and normal pulmonary
vessels is very suggestive of severe chronic aortic
regurgitation

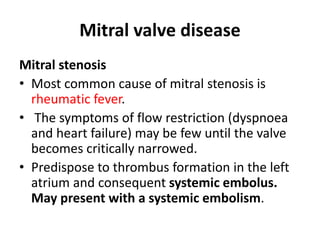

41. Mitral valve disease
Mitral stenosis
• Most common cause of mitral stenosis is
rheumatic fever.
• The symptoms of flow restriction (dyspnoea
and heart failure) may be few until the valve
becomes critically narrowed.
• Predispose to thrombus formation in the left
atrium and consequent systemic embolus.
May present with a systemic embolism.

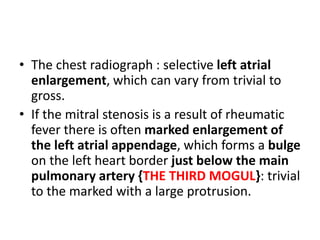

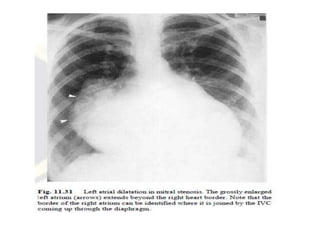

42. • The chest radiograph : selective left atrial
enlargement, which can vary from trivial to
gross.
• If the mitral stenosis is a result of rheumatic
fever there is often marked enlargement of
the left atrial appendage, which forms a bulge
on the left heart border just below the main
pulmonary artery {THE THIRD MOGUL}: trivial
to the marked with a large protrusion.

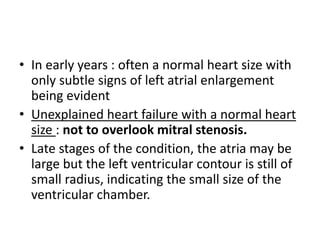

43. • In early years : often a normal heart size with
only subtle signs of left atrial enlargement
being evident
• Unexplained heart failure with a normal heart
size : not to overlook mitral stenosis.
• Late stages of the condition, the atria may be
large but the left ventricular contour is still of
small radius, indicating the small size of the
ventricular chamber.

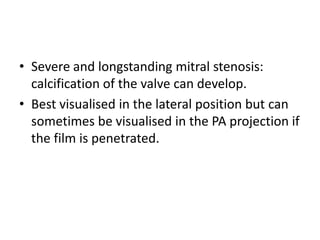

44. • Severe and longstanding mitral stenosis:
calcification of the valve can develop.
• Best visualised in the lateral position but can
sometimes be visualised in the PA projection if
the film is penetrated.

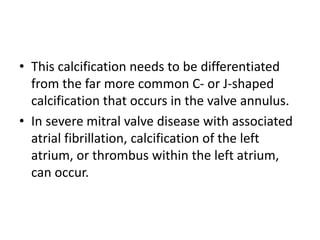

45. • This calcification needs to be differentiated
from the far more common C- or J-shaped
calcification that occurs in the valve annulus.
• In severe mitral valve disease with associated
atrial fibrillation, calcification of the left
atrium, or thrombus within the left atrium,
can occur.

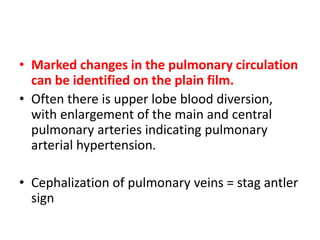

48. • Marked changes in the pulmonary circulation
can be identified on the plain film.
• Often there is upper lobe blood diversion,
with enlargement of the main and central
pulmonary arteries indicating pulmonary
arterial hypertension.
• Cephalization of pulmonary veins = stag antler
sign

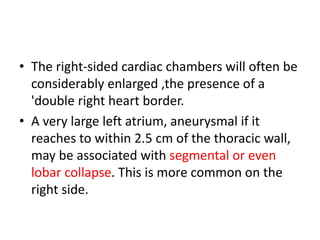

49. • The right-sided cardiac chambers will often be
considerably enlarged ,the presence of a
'double right heart border.
• A very large left atrium, aneurysmal if it
reaches to within 2.5 cm of the thoracic wall,
may be associated with segmental or even
lobar collapse. This is more common on the
right side.

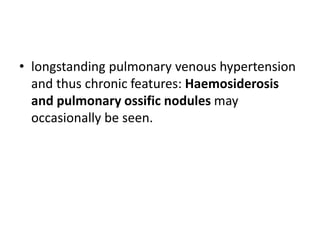

50. • longstanding pulmonary venous hypertension
and thus chronic features: Haemosiderosis
and pulmonary ossific nodules may
occasionally be seen.

53. Mitral regurgitation
• The commonest cause in west is degeneration
of the valve. several variants of this
degeneration, including myxomatous
degeneration of the valve tissue with prolapse
of part or all of the valve (Barlow syndrome,
billowing mitral leaftlet syndorme).
• Degeneration of the chordae can lead to
rupture and a consequent flail portion of
leaflet: occur with abrupt onset of symptoms

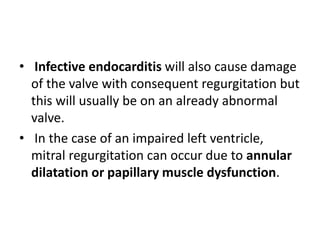

54. • Infective endocarditis will also cause damage
of the valve with consequent regurgitation but
this will usually be on an already abnormal
valve.
• In the case of an impaired left ventricle,
mitral regurgitation can occur due to annular
dilatation or papillary muscle dysfunction.

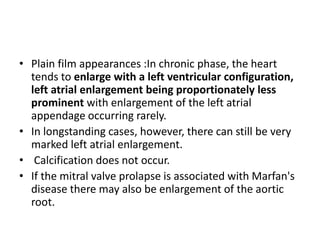

55. • Plain film appearances :In chronic phase, the heart
tends to enlarge with a left ventricular configuration,
left atrial enlargement being proportionately less
prominent with enlargement of the left atrial
appendage occurring rarely.
• In longstanding cases, however, there can still be very
marked left atrial enlargement.
• Calcification does not occur.
• If the mitral valve prolapse is associated with Marfan's
disease there may also be enlargement of the aortic
root.

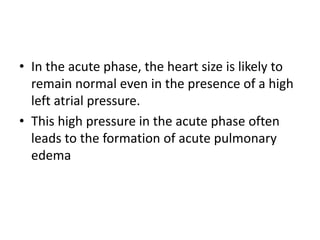

56. • In the acute phase, the heart size is likely to
remain normal even in the presence of a high
left atrial pressure.
• This high pressure in the acute phase often
leads to the formation of acute pulmonary
edema

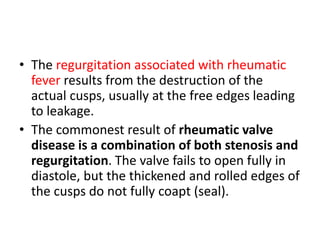

58. • The regurgitation associated with rheumatic
fever results from the destruction of the
actual cusps, usually at the free edges leading
to leakage.
• The commonest result of rheumatic valve
disease is a combination of both stenosis and
regurgitation. The valve fails to open fully in
diastole, but the thickened and rolled edges of
the cusps do not fully coapt (seal).

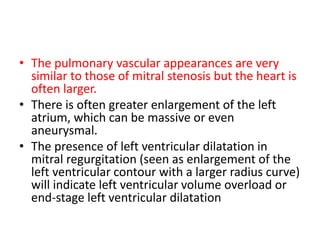

59. • The pulmonary vascular appearances are very
similar to those of mitral stenosis but the heart is
often larger.
• There is often greater enlargement of the left
atrium, which can be massive or even
aneurysmal.
• The presence of left ventricular dilatation in
mitral regurgitation (seen as enlargement of the
left ventricular contour with a larger radius curve)
will indicate left ventricular volume overload or
end-stage left ventricular dilatation

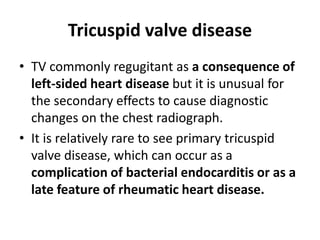

60. Tricuspid valve disease
• TV commonly regugitant as a consequence of
left-sided heart disease but it is unusual for
the secondary effects to cause diagnostic
changes on the chest radiograph.
• It is relatively rare to see primary tricuspid
valve disease, which can occur as a
complication of bacterial endocarditis or as a
late feature of rheumatic heart disease.

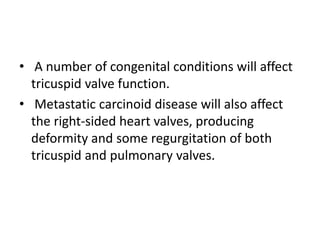

61. • A number of congenital conditions will affect
tricuspid valve function.
• Metastatic carcinoid disease will also affect
the right-sided heart valves, producing
deformity and some regurgitation of both
tricuspid and pulmonary valves.

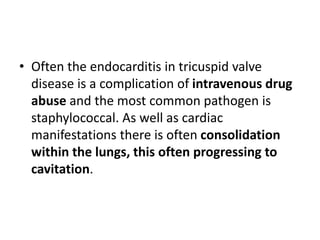

62. • Often the endocarditis in tricuspid valve
disease is a complication of intravenous drug
abuse and the most common pathogen is
staphylococcal. As well as cardiac
manifestations there is often consolidation
within the lungs, this often progressing to
cavitation.

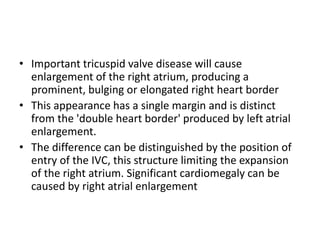

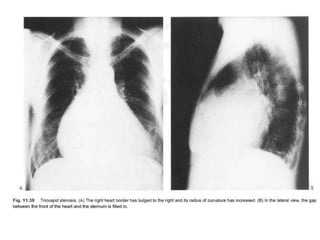

63. • Important tricuspid valve disease will cause
enlargement of the right atrium, producing a
prominent, bulging or elongated right heart border
• This appearance has a single margin and is distinct
from the 'double heart border' produced by left atrial
enlargement.
• The difference can be distinguished by the position of
entry of the IVC, this structure limiting the expansion
of the right atrium. Significant cardiomegaly can be
caused by right atrial enlargement

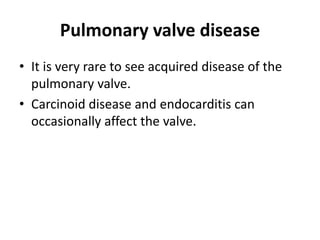

65. Pulmonary valve disease
• It is very rare to see acquired disease of the
pulmonary valve.
• Carcinoid disease and endocarditis can
occasionally affect the valve.

66. References
• Textbook of Radiology and imaging, David
Sutton
• Fundamentals of diagnostic radiology, Bryant
and Helms

67. Thank you
