1. Behind The Scenes
Dr. Thanisa Kruawaisayawan
www.imcinstitute.com

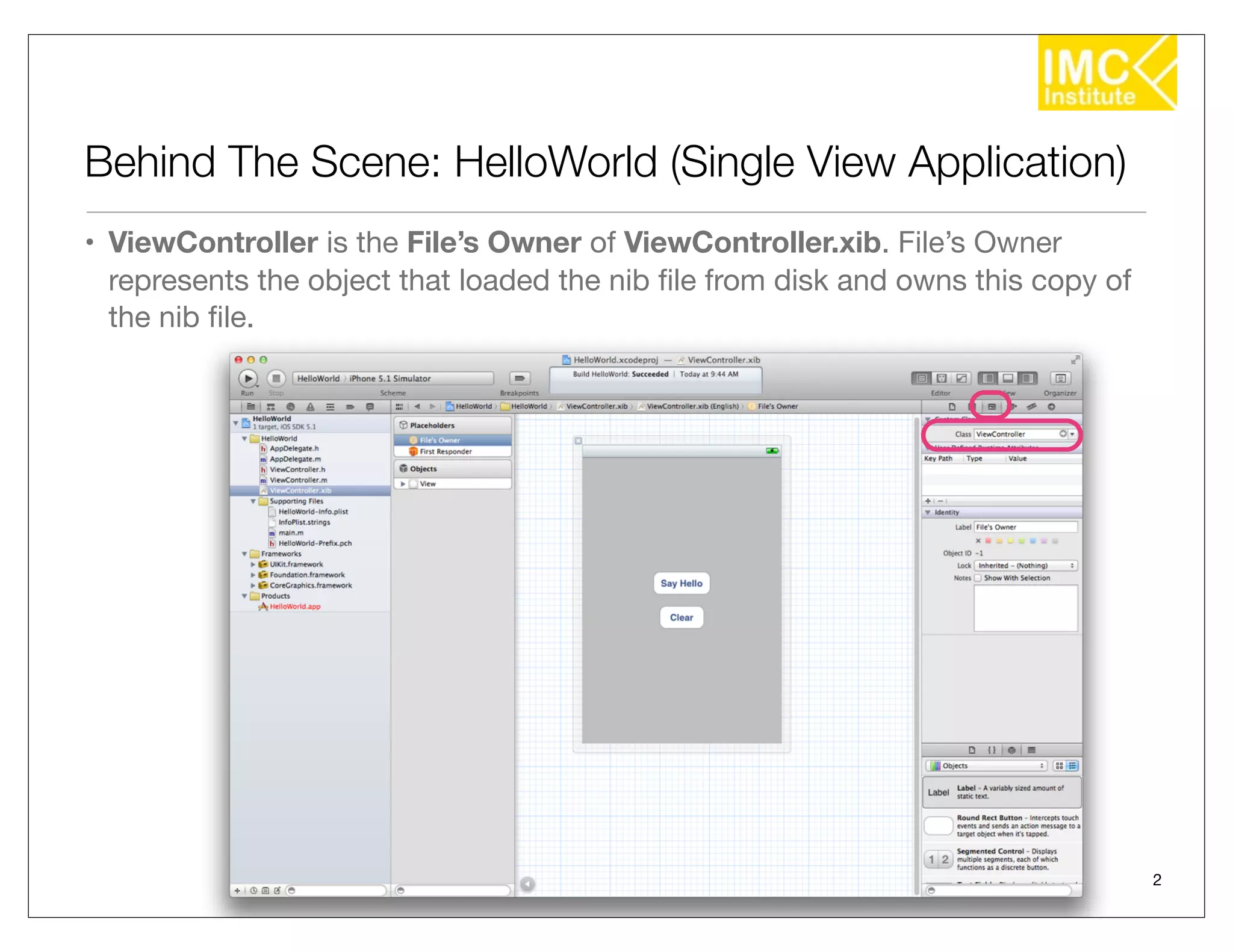

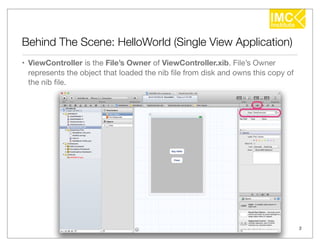

2. Behind The Scene: HelloWorld (Single View Application)
• ViewController is the File’s Owner of ViewController.xib. File’s Owner
represents the object that loaded the nib file from disk and owns this copy of
the nib file.
2

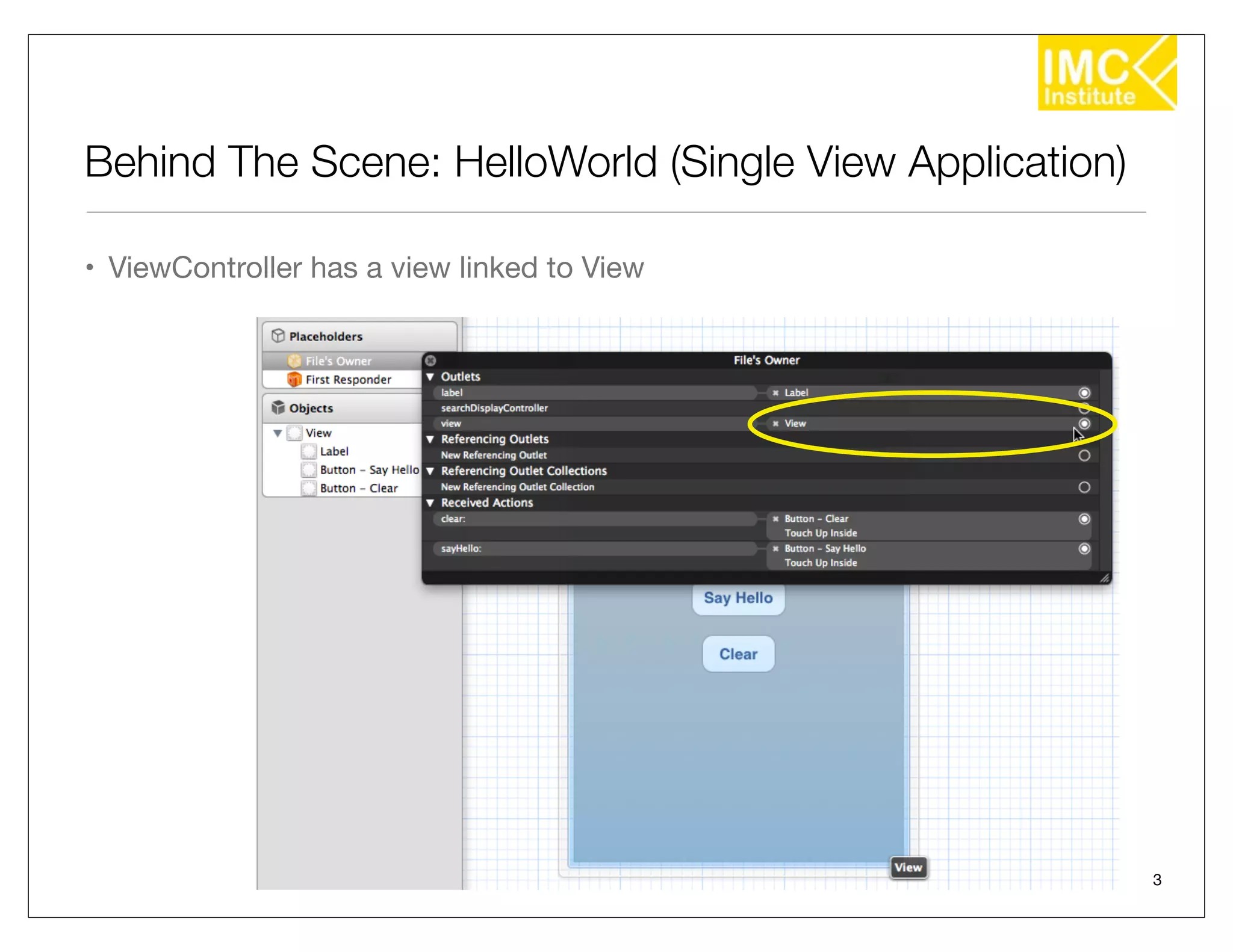

3. Behind The Scene: HelloWorld (Single View Application)
• ViewController has a view linked to View
3

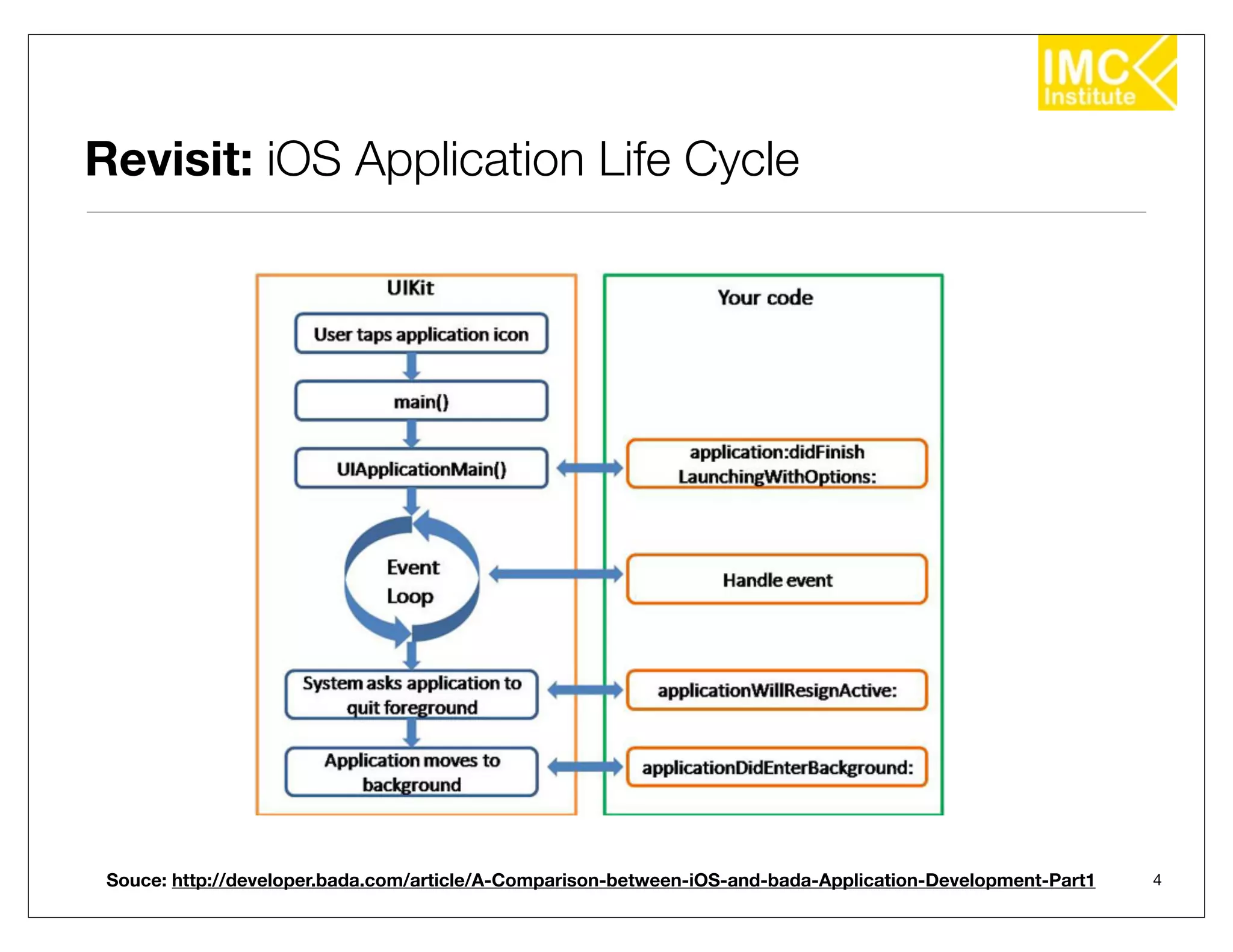

4. Revisit: iOS Application Life Cycle
Souce: http://developer.bada.com/article/A-Comparison-between-iOS-and-bada-Application-Development-Part1 4

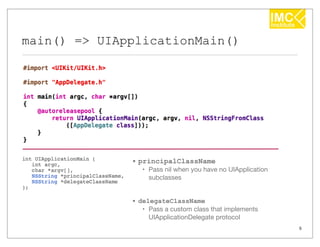

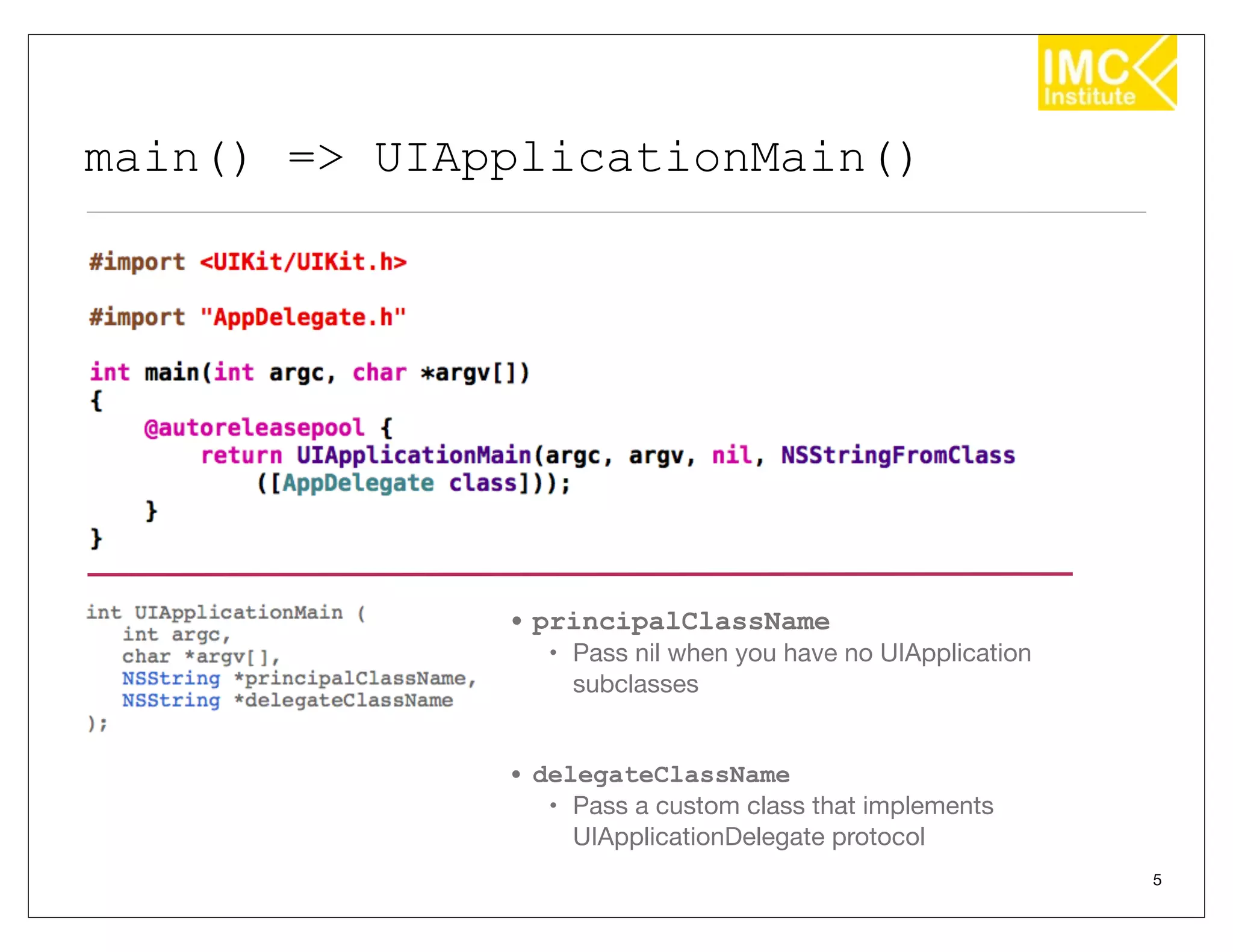

5. main() => UIApplicationMain()
• principalClassName
• Pass nil when you have no UIApplication
subclasses
• delegateClassName
• Pass a custom class that implements
UIApplicationDelegate protocol
5

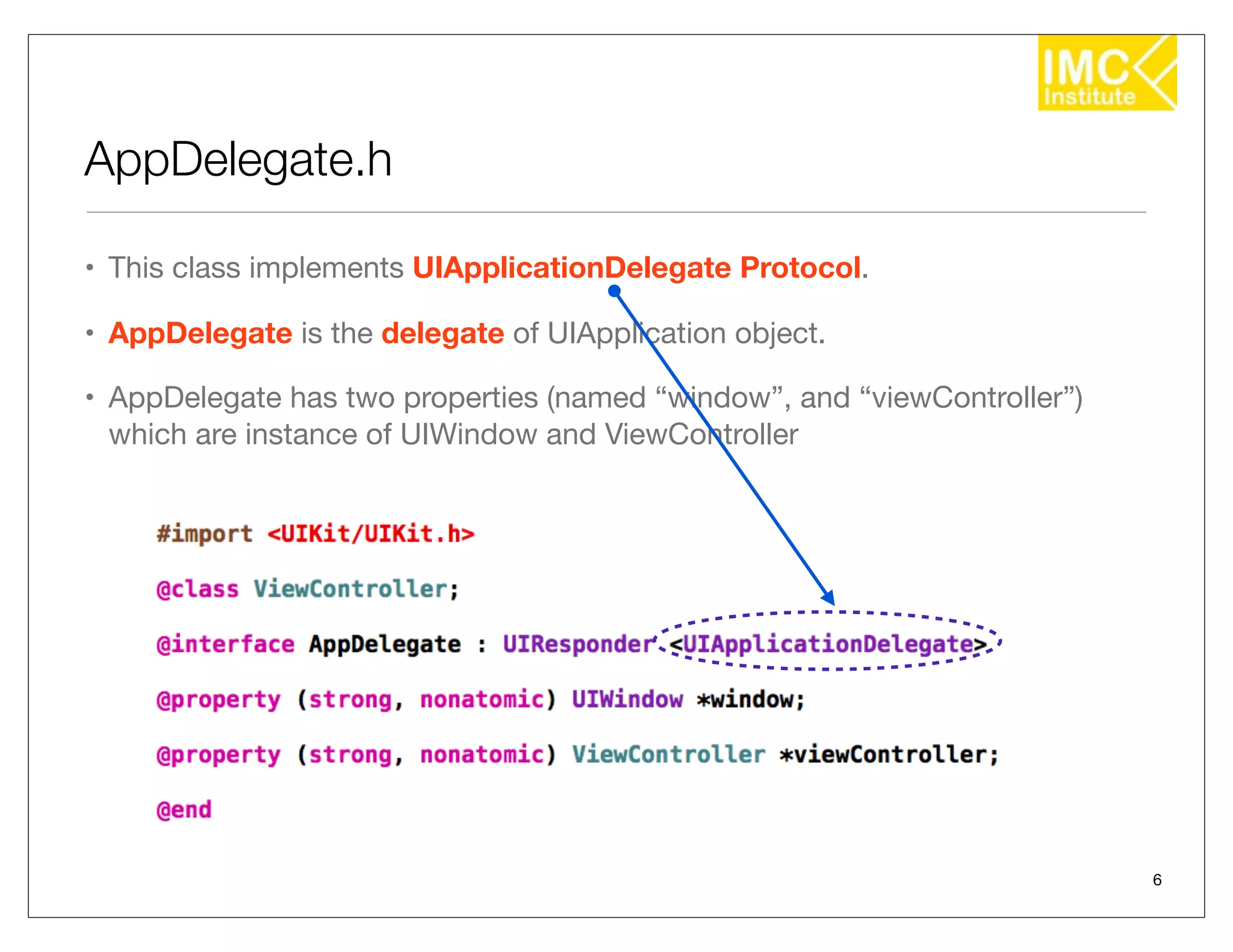

6. AppDelegate.h
• This class implements UIApplicationDelegate Protocol.
• AppDelegate is the delegate of UIApplication object.
• AppDelegate has two properties (named “window”, and “viewController”)
which are instance of UIWindow and ViewController
6

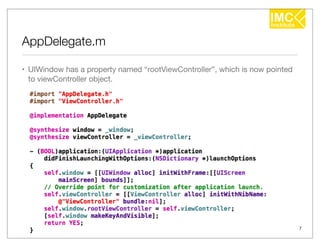

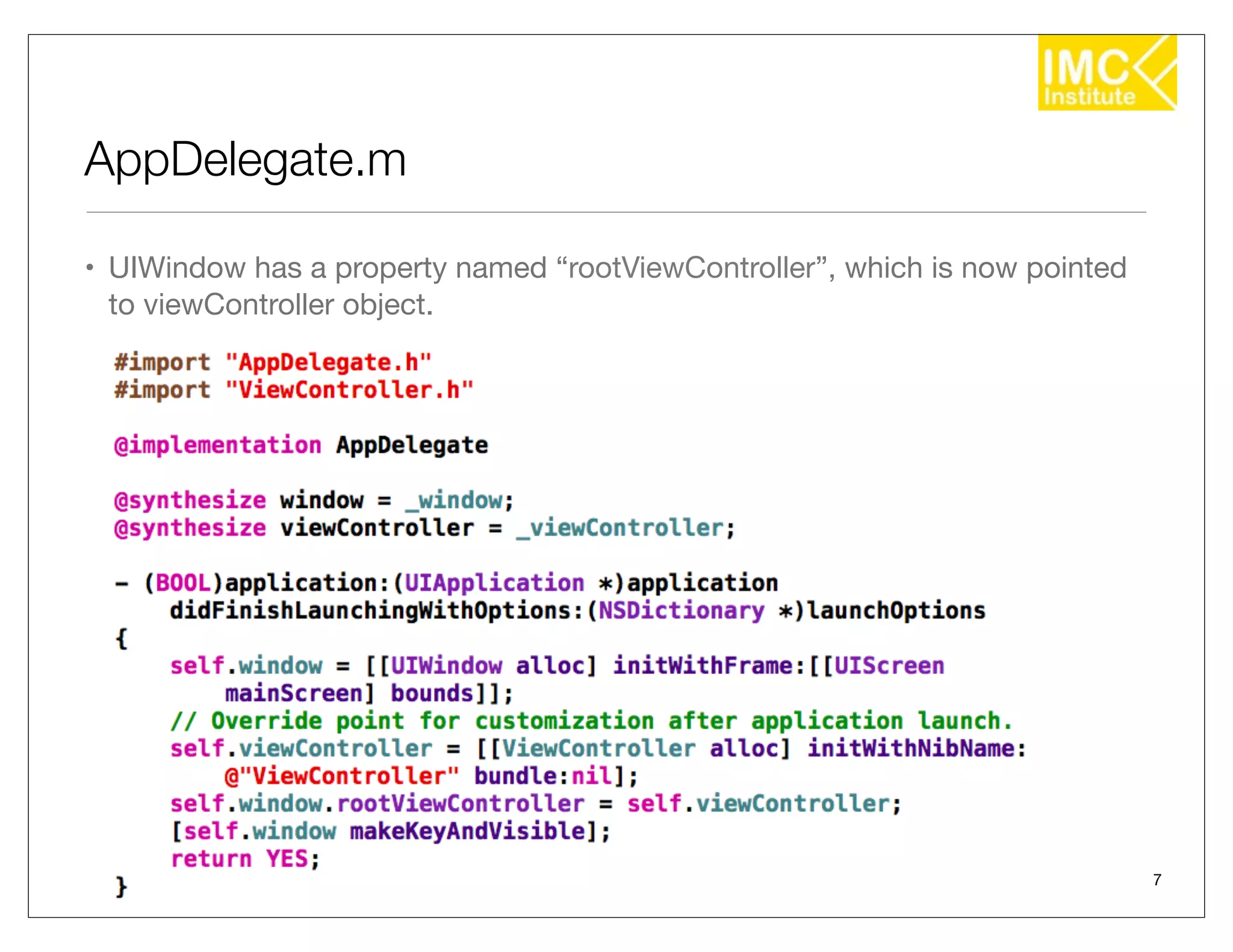

7. AppDelegate.m
• UIWindow has a property named “rootViewController”, which is now pointed
to viewController object.
7

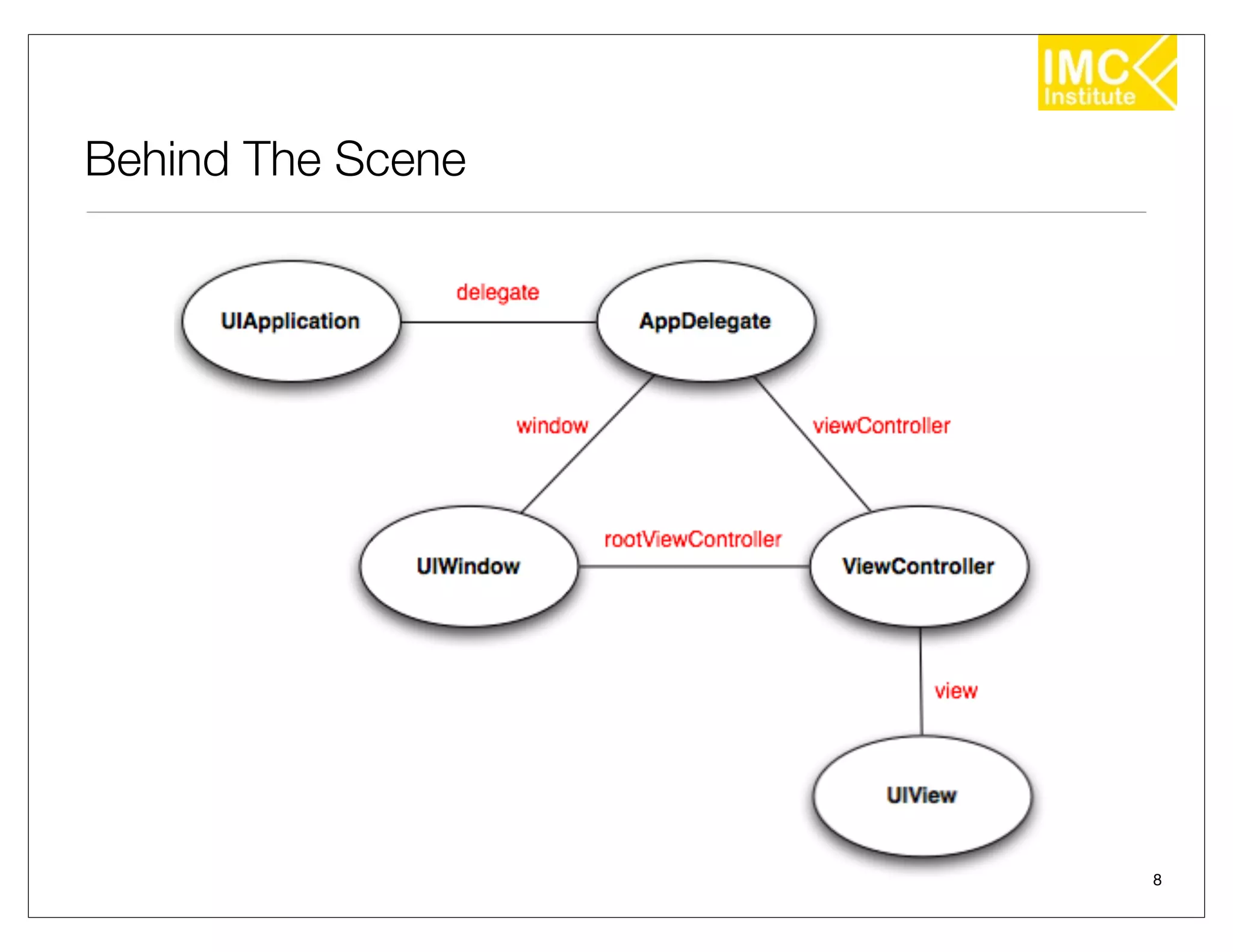

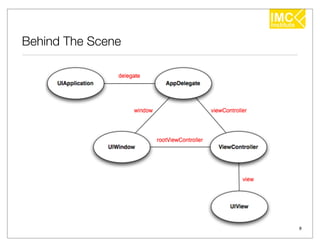

8. Behind The Scene
8

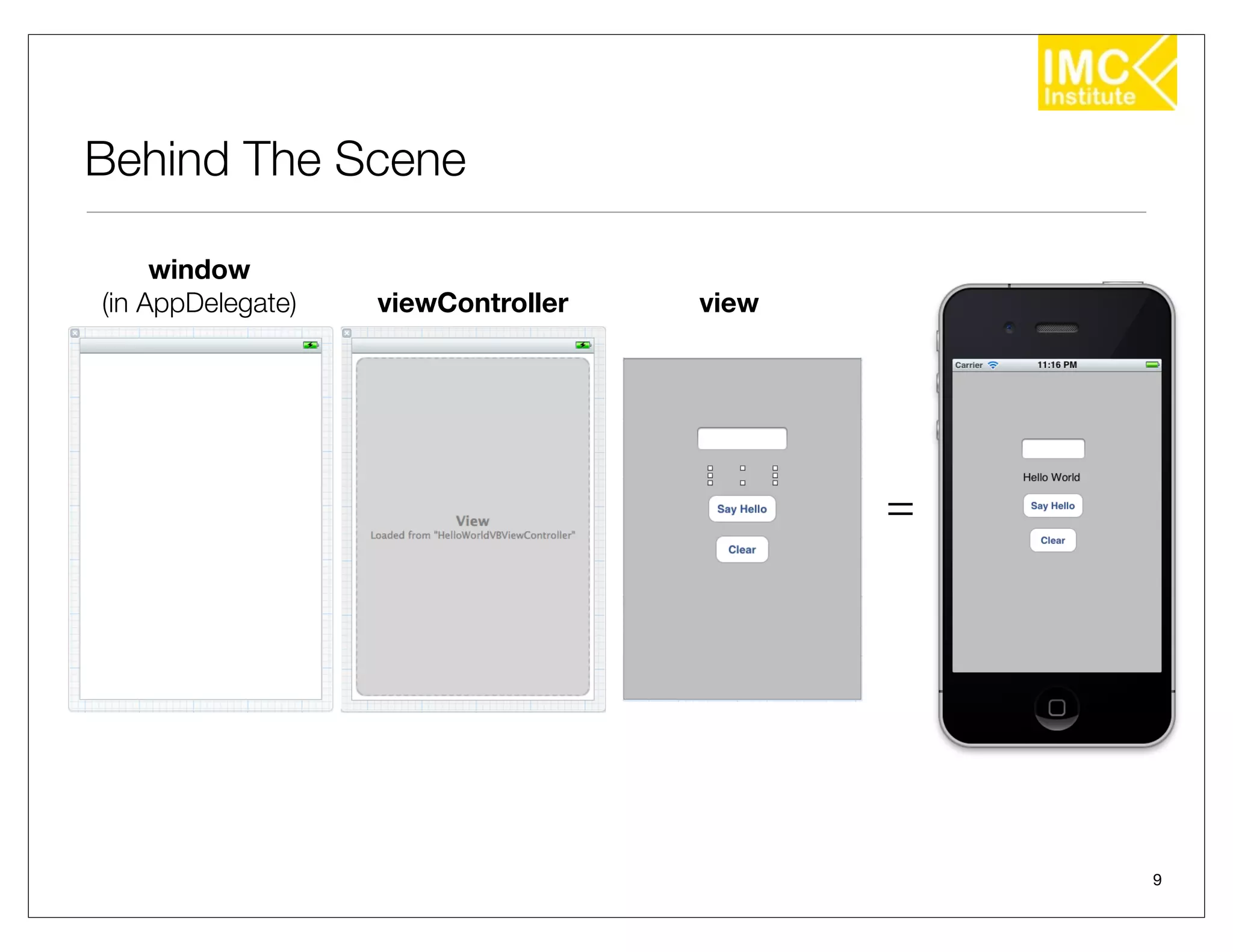

9. Behind The Scene
window
(in AppDelegate) viewController view
=
9

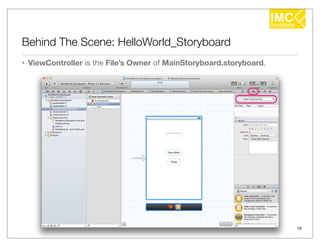

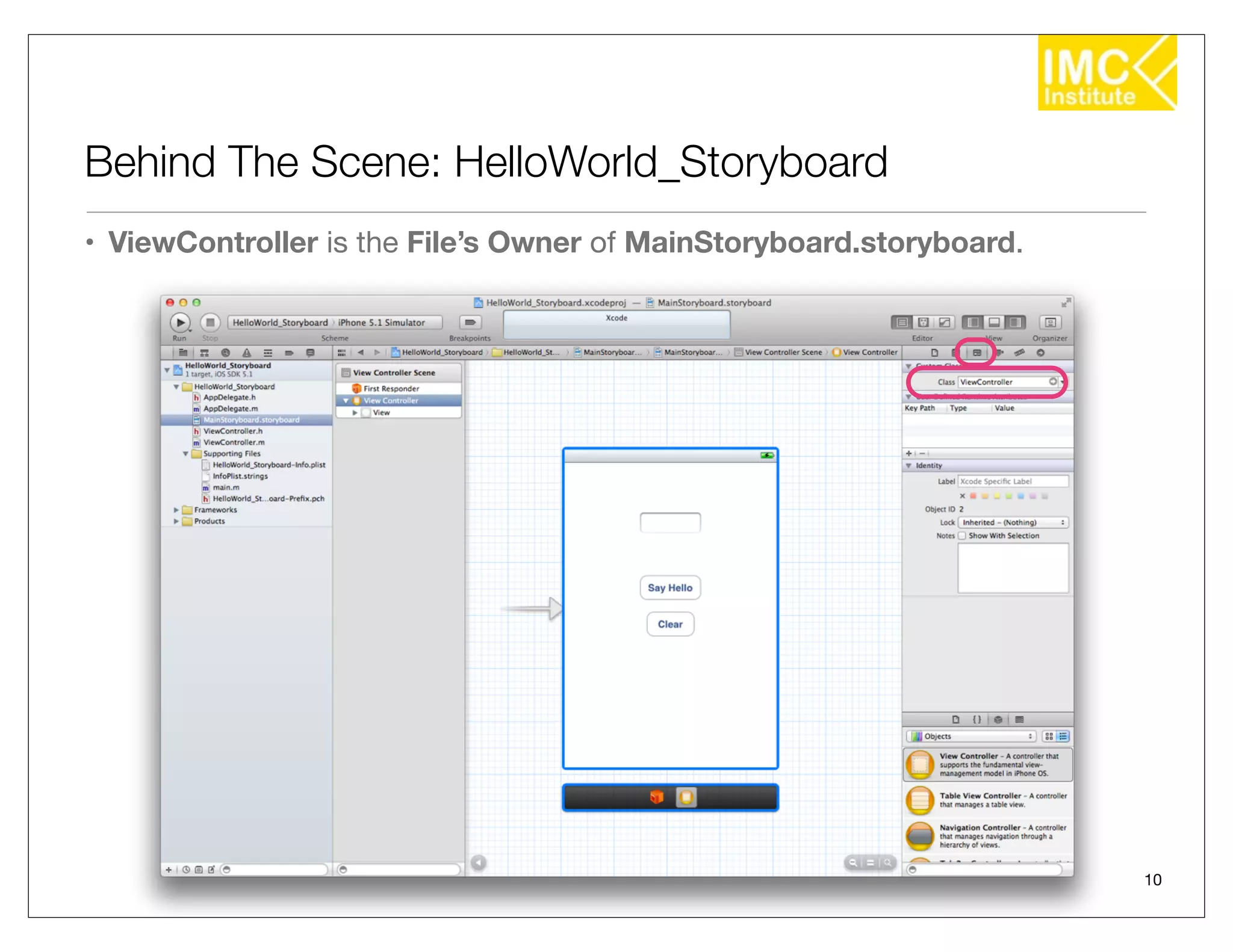

10. Behind The Scene: HelloWorld_Storyboard
• ViewController is the File’s Owner of MainStoryboard.storyboard.
10

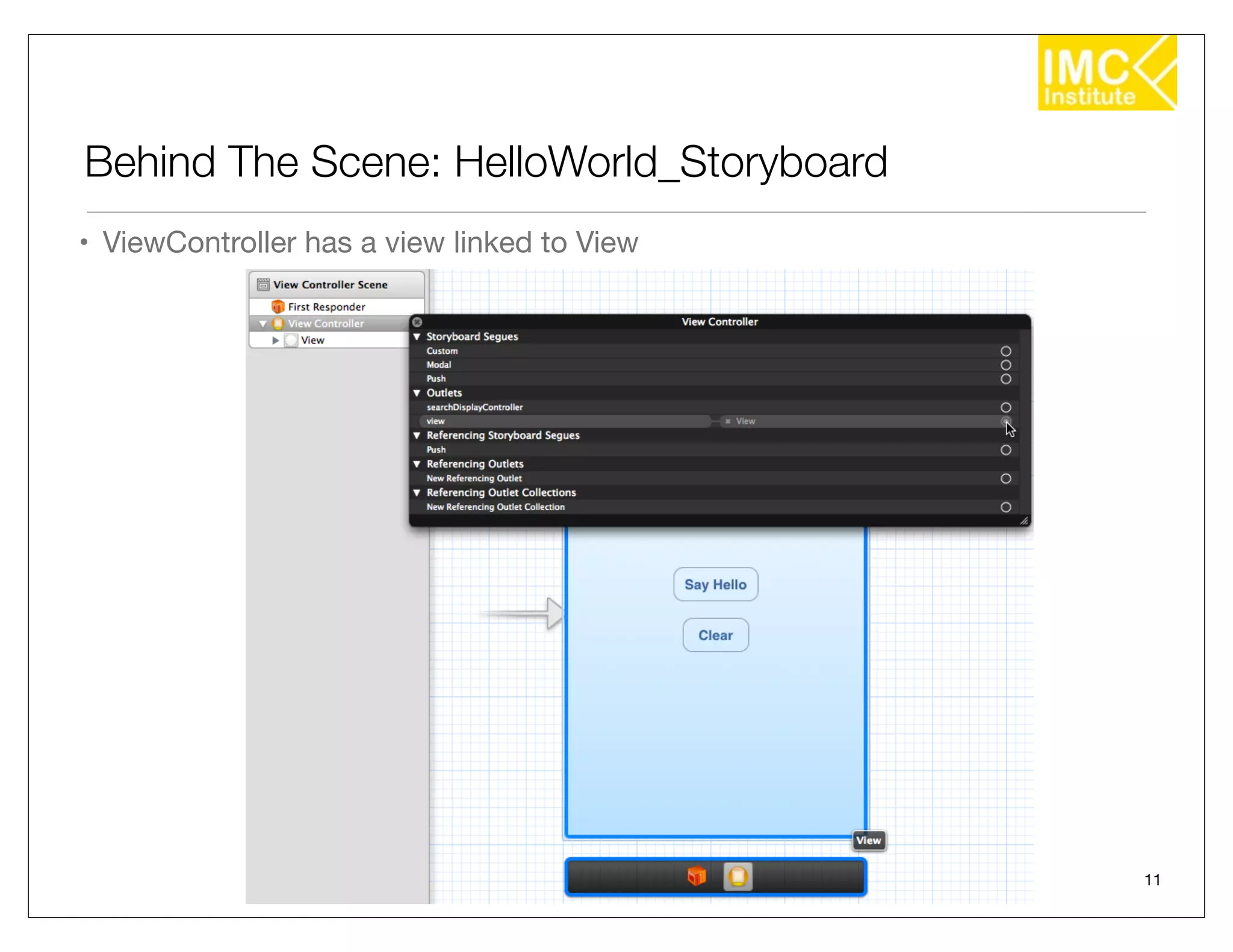

11. Behind The Scene: HelloWorld_Storyboard
• ViewController has a view linked to View
11

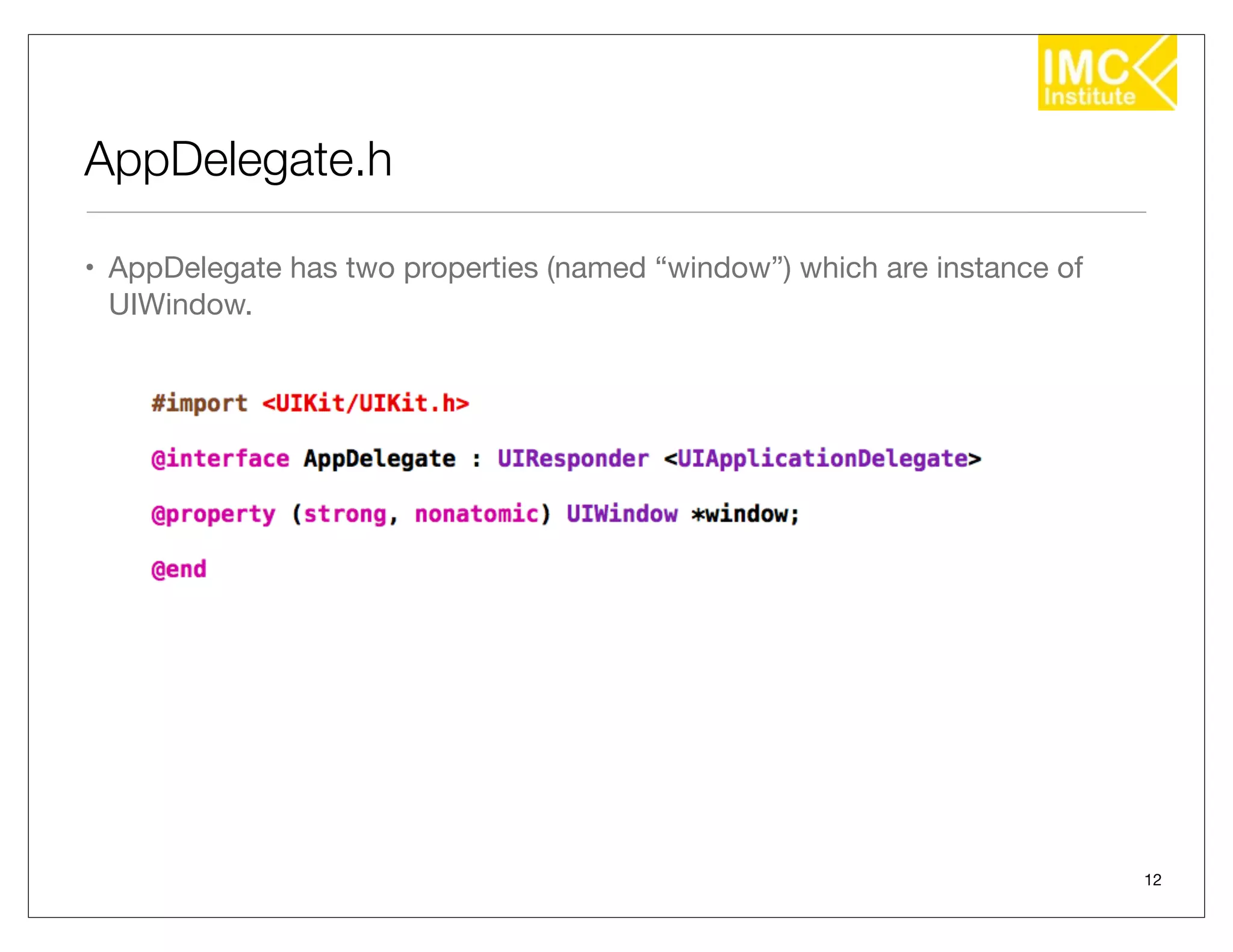

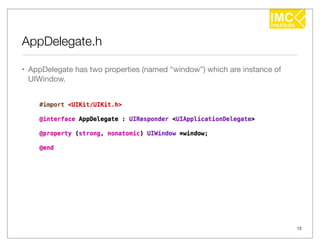

12. AppDelegate.h
• AppDelegate has two properties (named “window”) which are instance of
UIWindow.
12

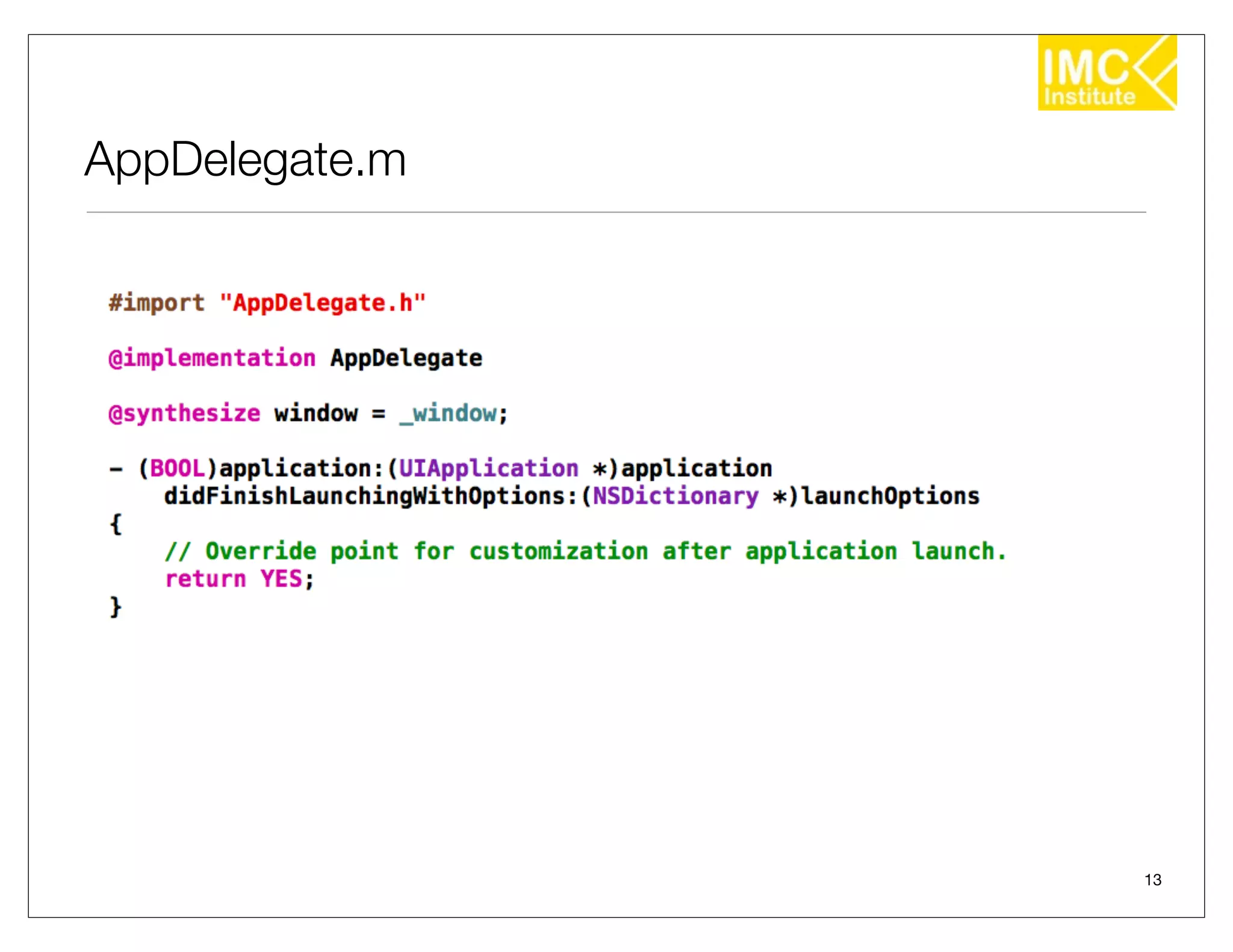

13. AppDelegate.m
13

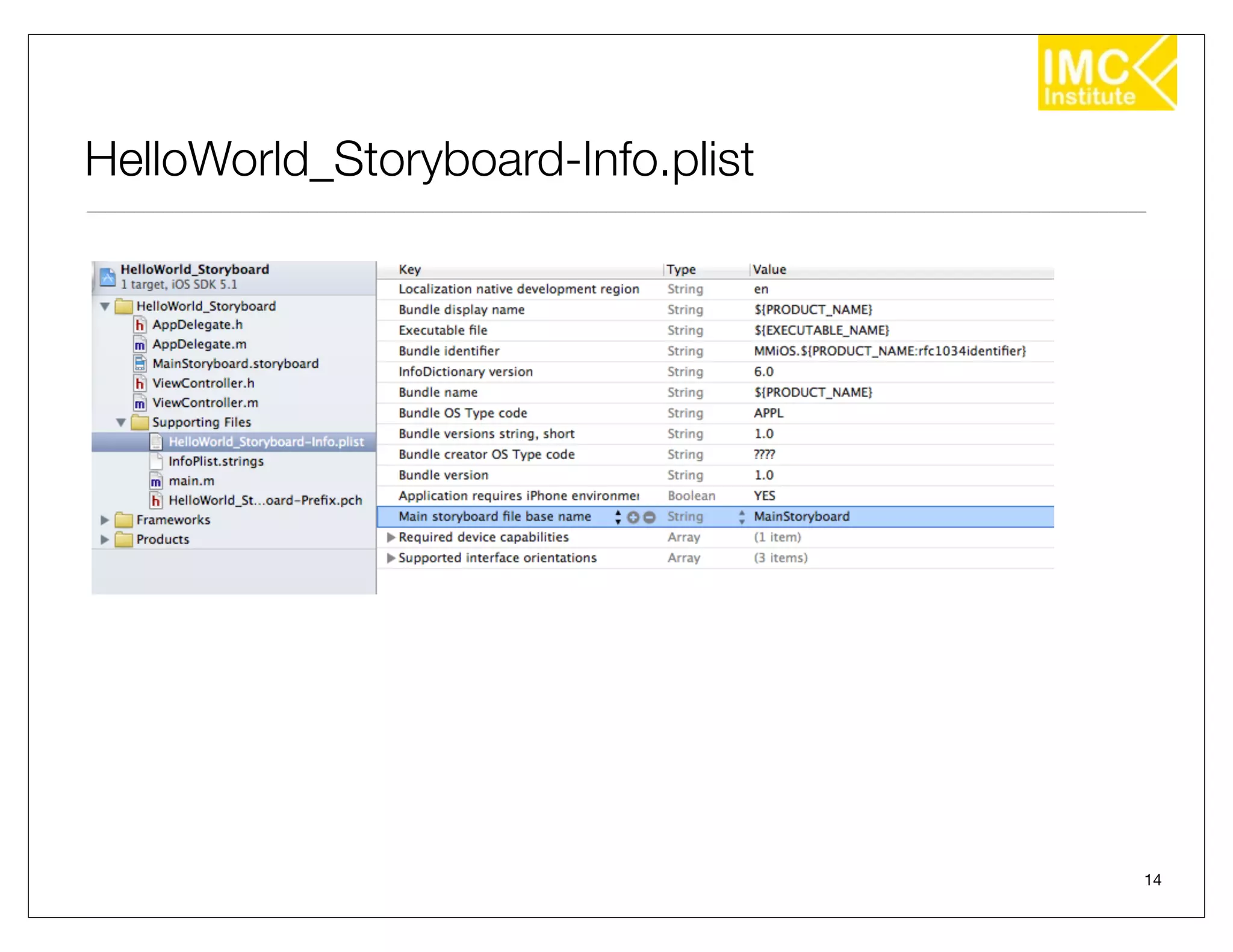

14. HelloWorld_Storyboard-Info.plist
14

15. Behind The Scene
window
(in AppDelegate) viewController view
=
15

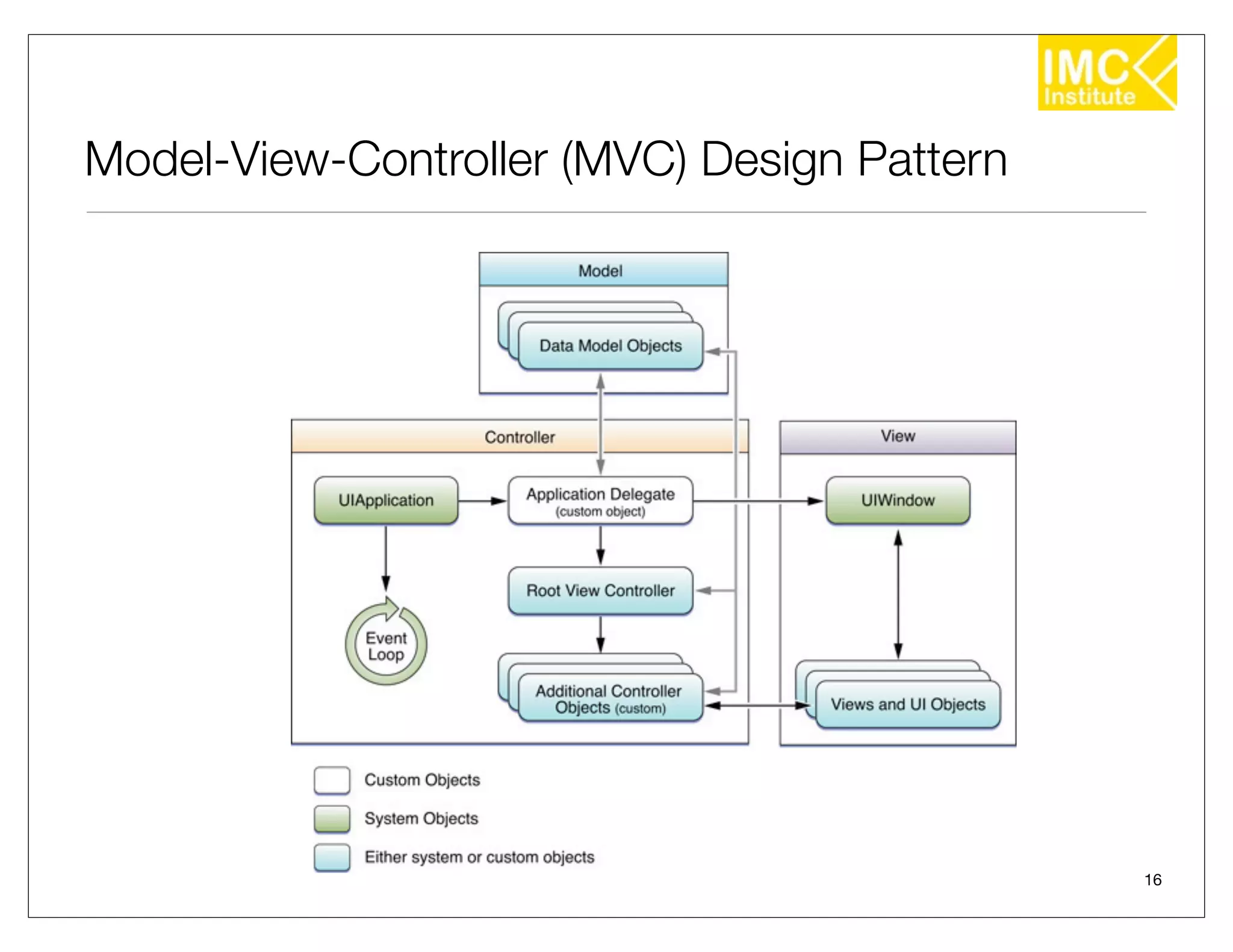

16. Model-View-Controller (MVC) Design Pattern
16

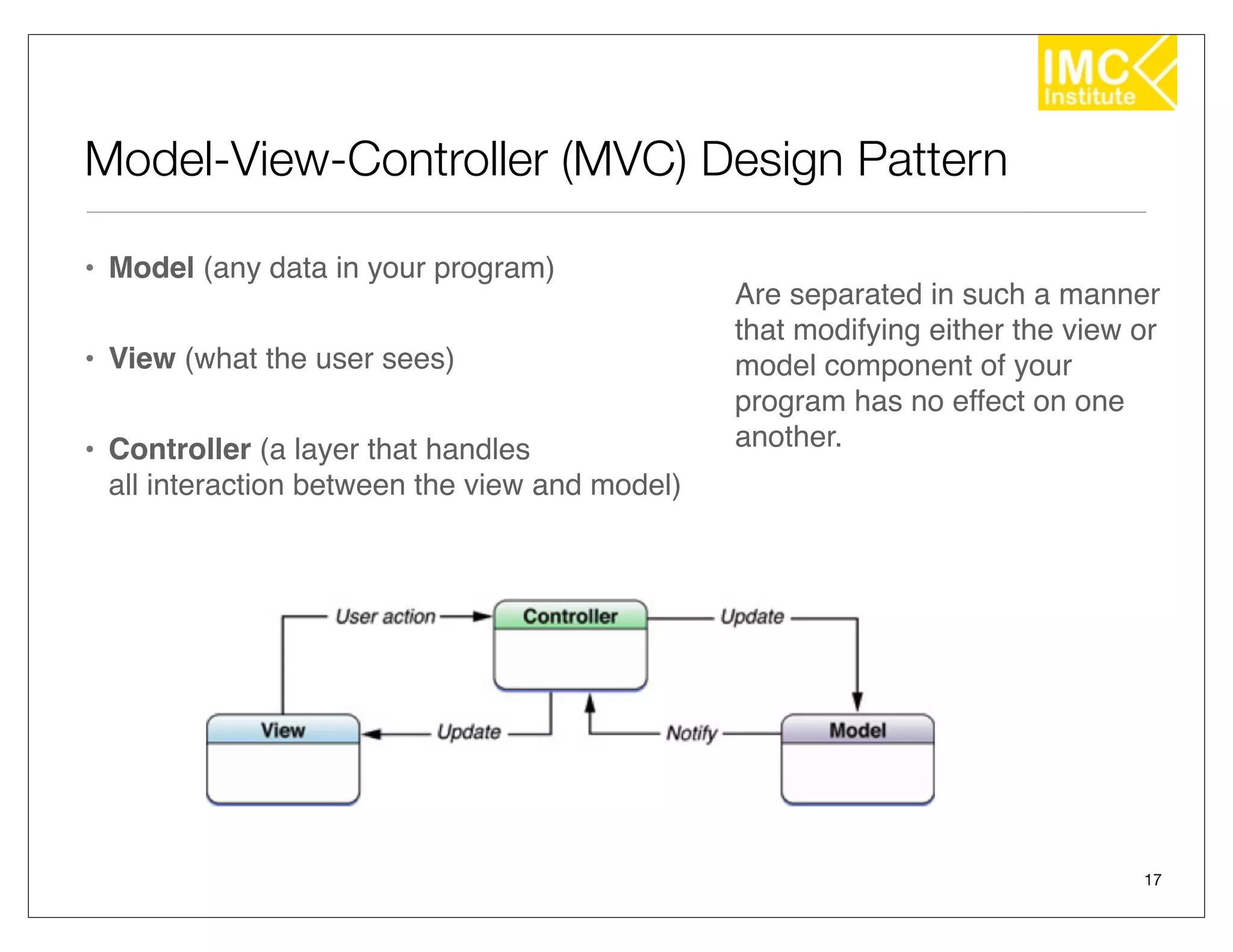

17. Model-View-Controller (MVC) Design Pattern
• Model (any data in your program)
Are separated in such a manner
that modifying either the view or
• View (what the user sees) model component of your
program has no effect on one
• Controller (a layer that handles another.
all interaction between the view and model)
17

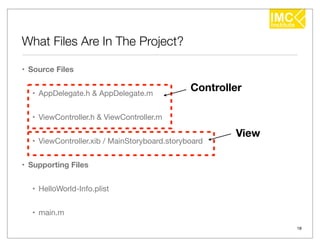

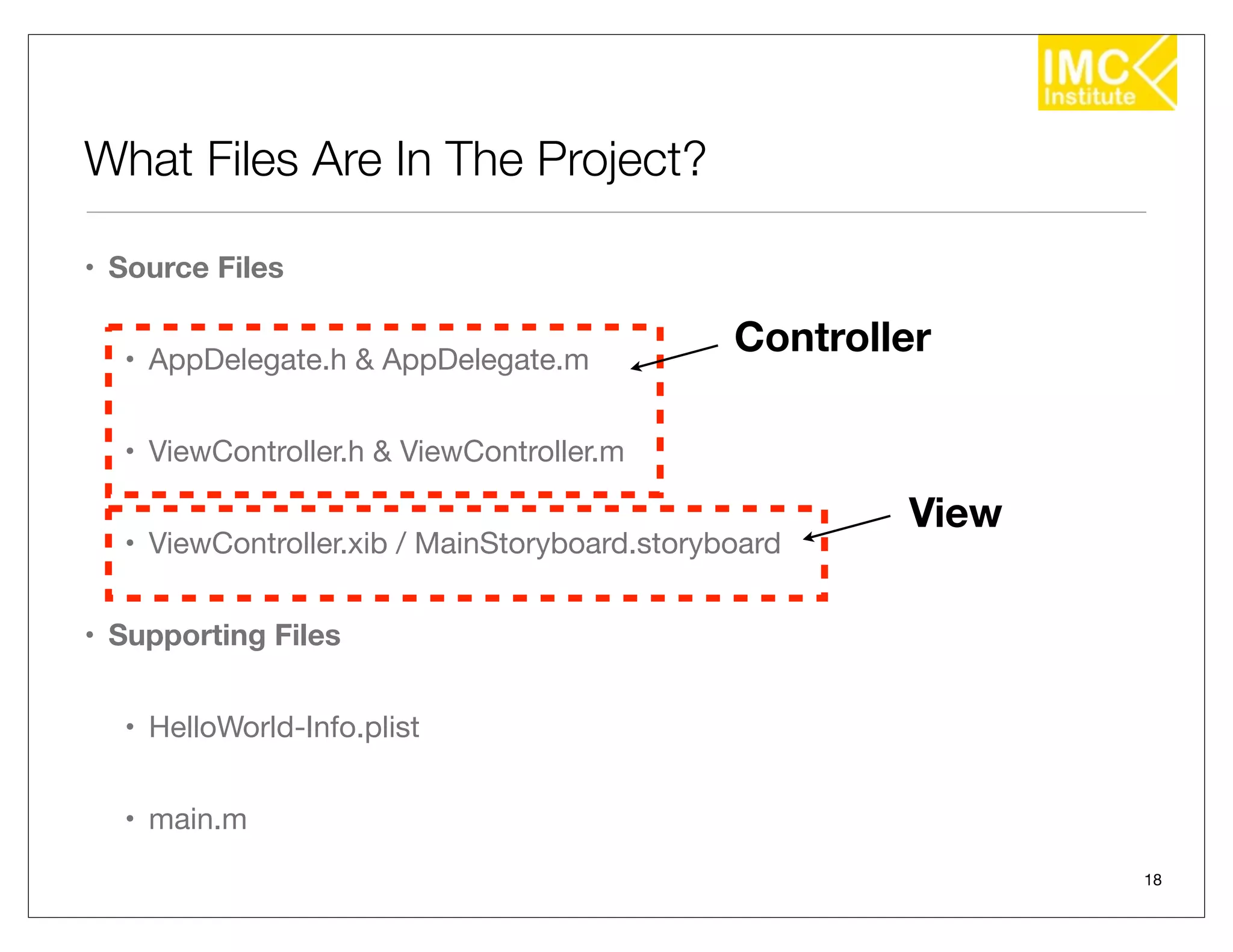

18. What Files Are In The Project?
• Source Files
• AppDelegate.h & AppDelegate.m
Controller
• ViewController.h & ViewController.m
View
• ViewController.xib / MainStoryboard.storyboard
• Supporting Files
• HelloWorld-Info.plist
• main.m
18

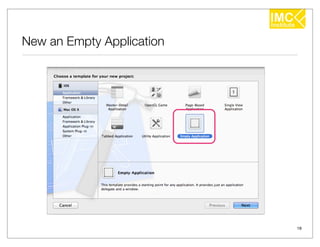

19. New an Empty Application
19

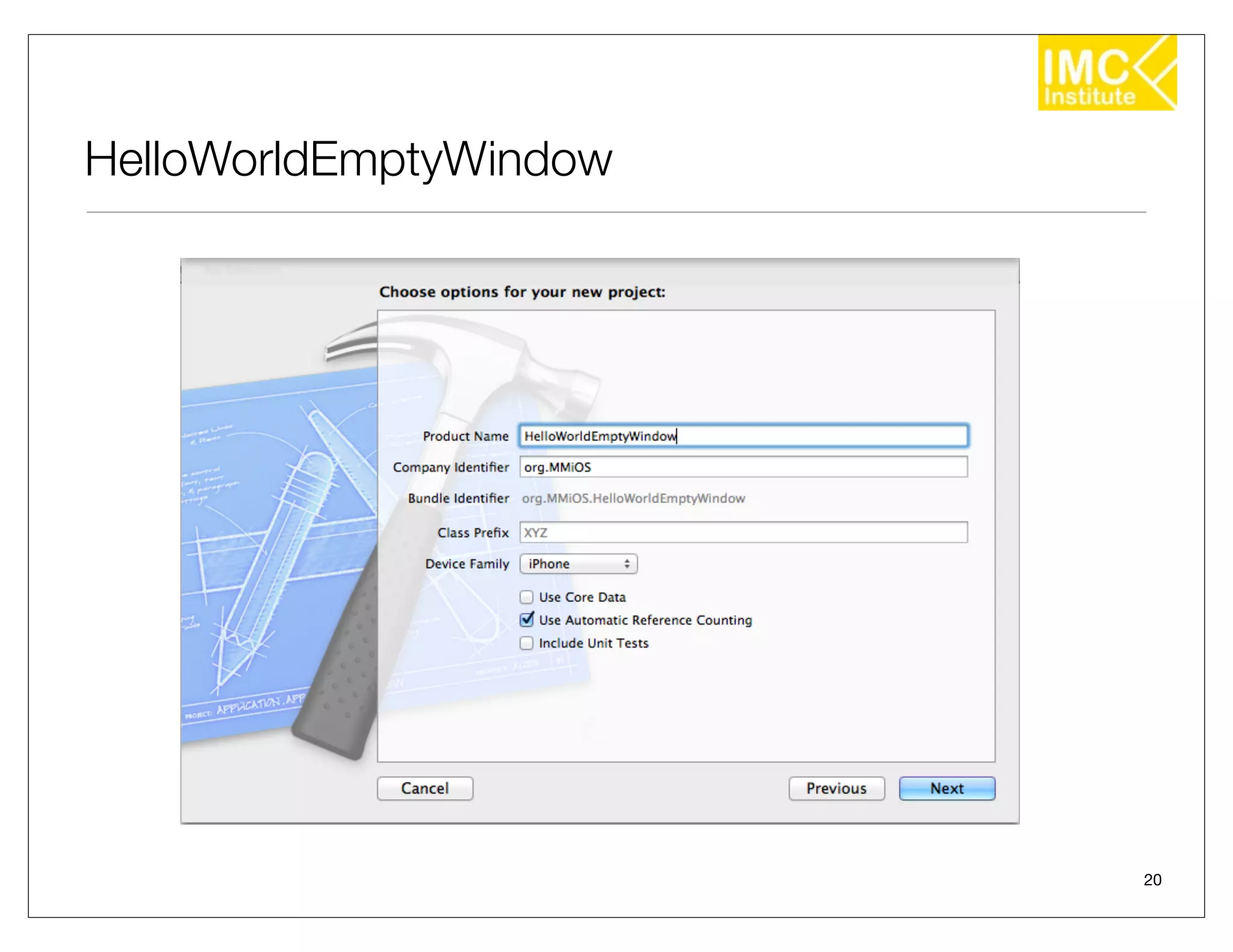

20. HelloWorldEmptyWindow
20

21. AppDelegate.h
• AppDelegate has two properties (named “window”) which are instance of
UIWindow.
21

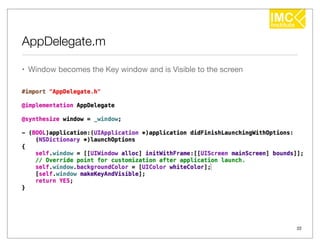

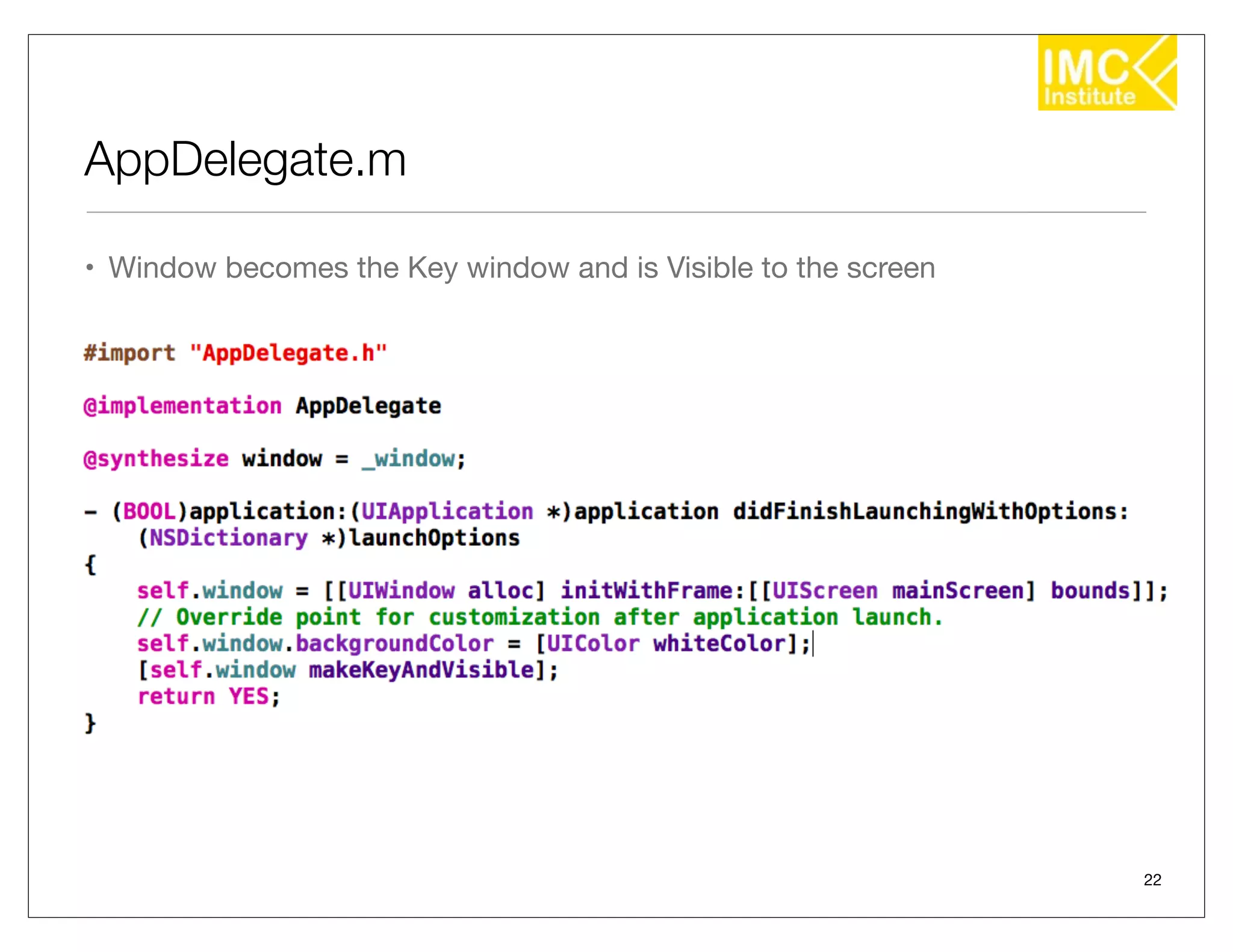

22. AppDelegate.m
• Window becomes the Key window and is Visible to the screen
22

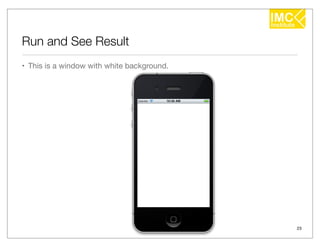

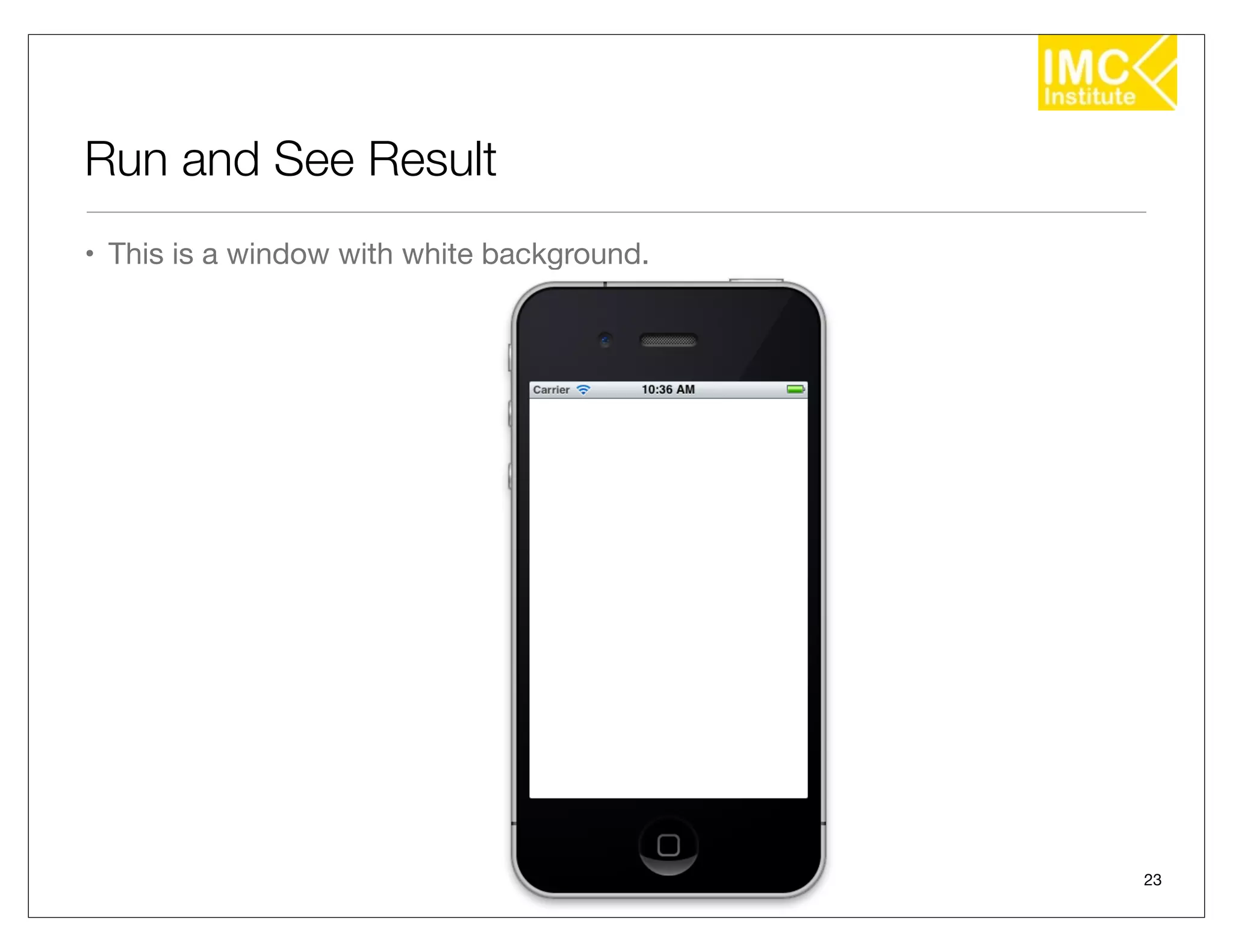

23. Run and See Result
• This is a window with white background.
23

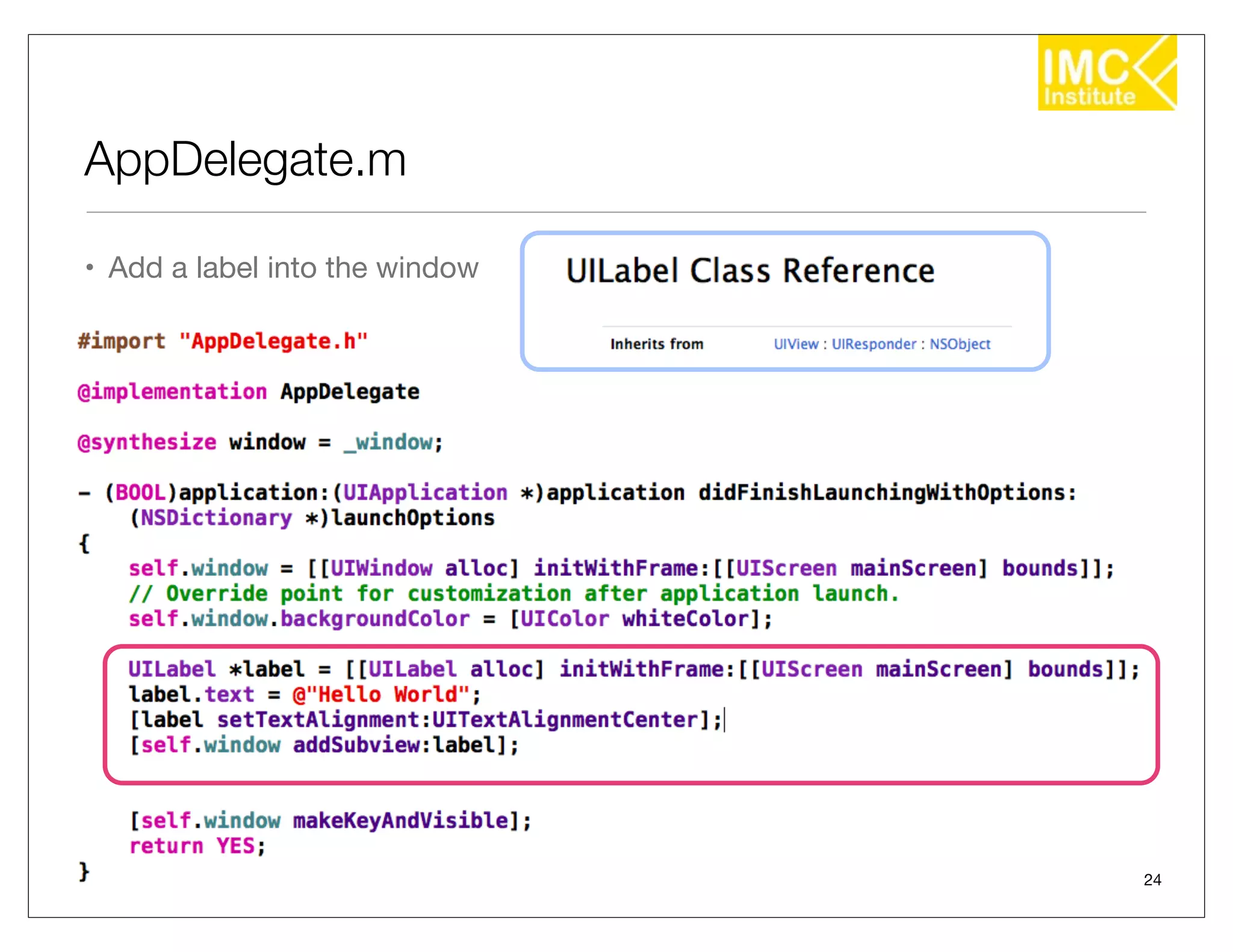

24. AppDelegate.m
• Add a label into the window
24

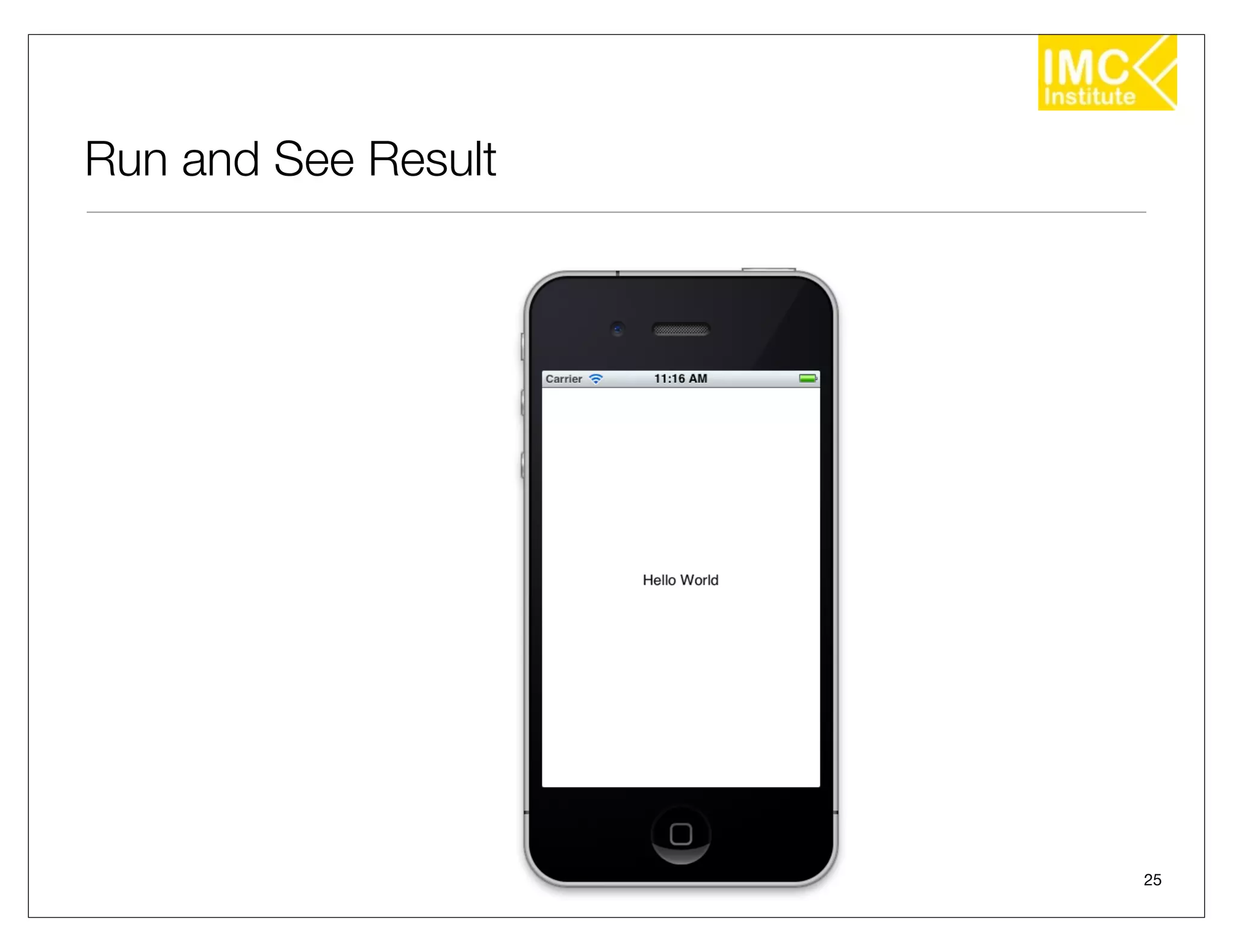

25. Run and See Result
25

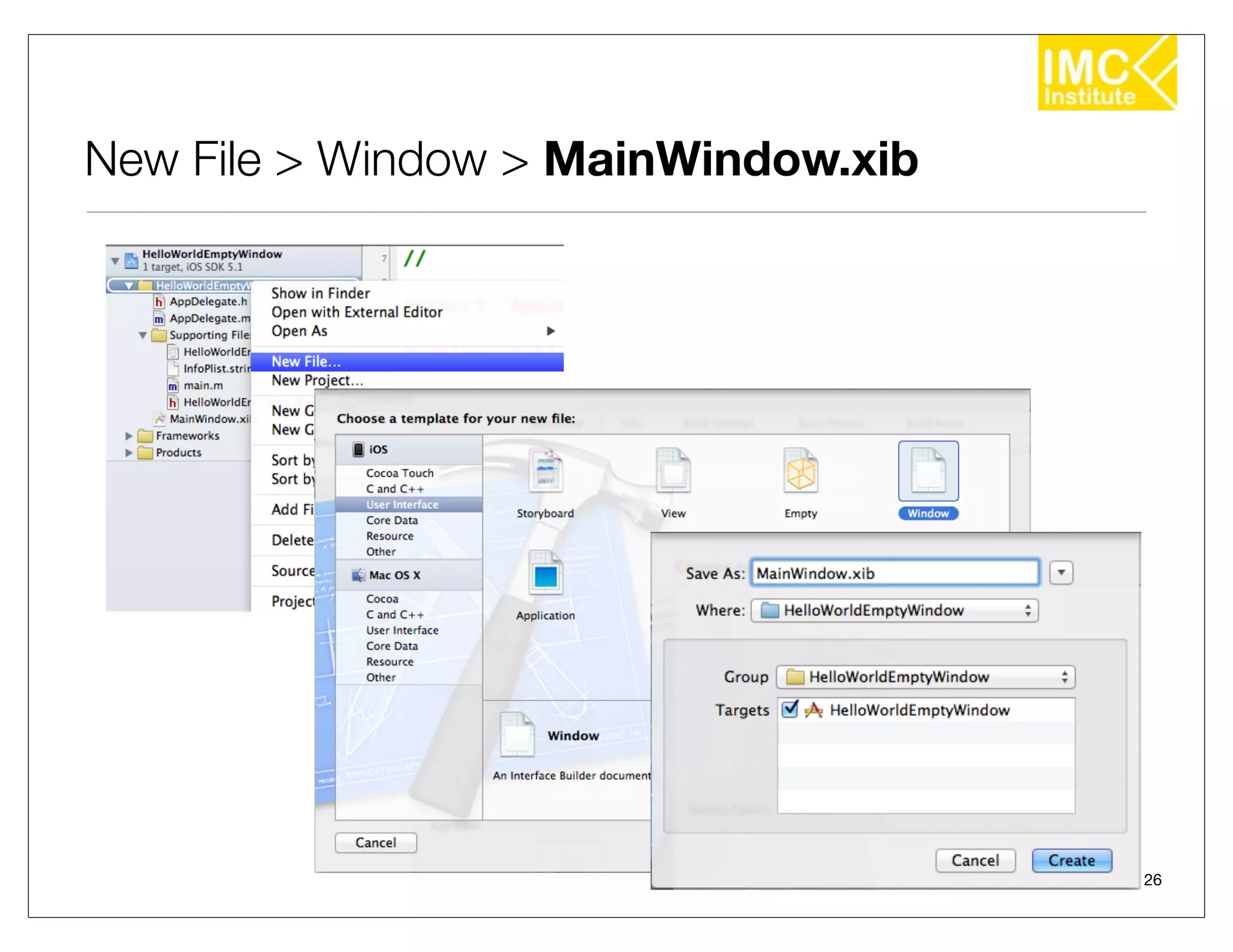

26. New File > Window > MainWindow.xib
26

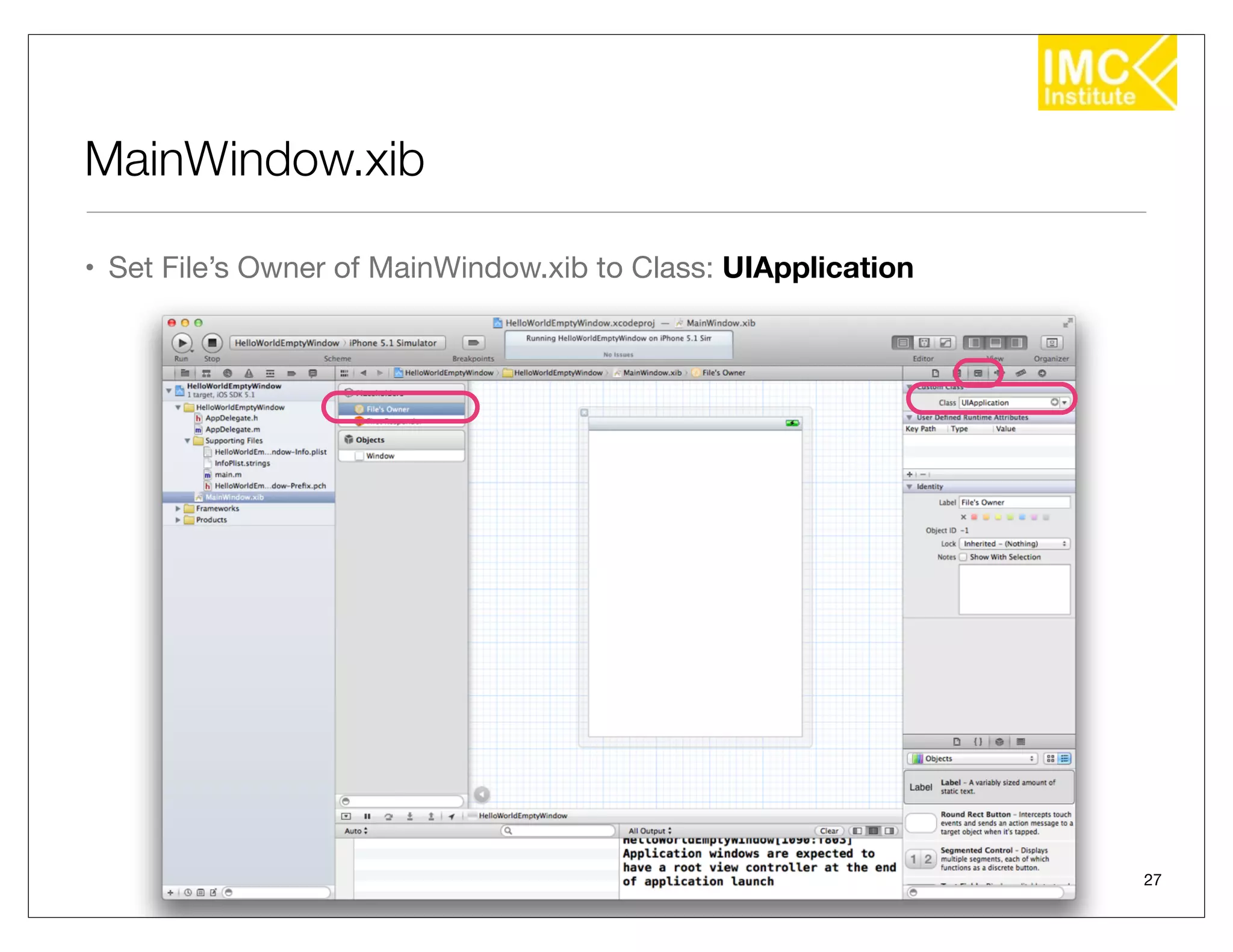

27. MainWindow.xib
• Set File’s Owner of MainWindow.xib to Class: UIApplication
27

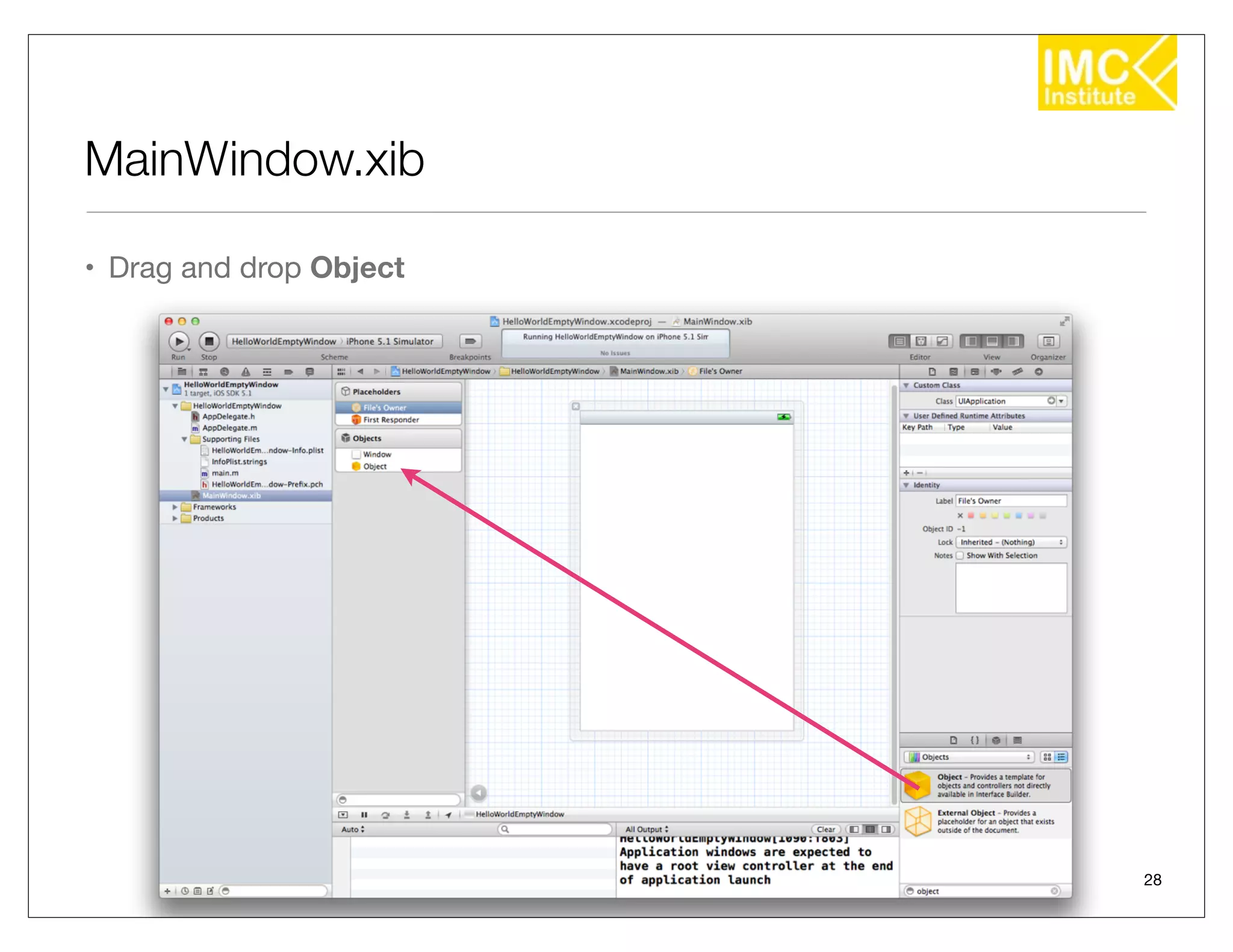

28. MainWindow.xib
• Drag and drop Object
28

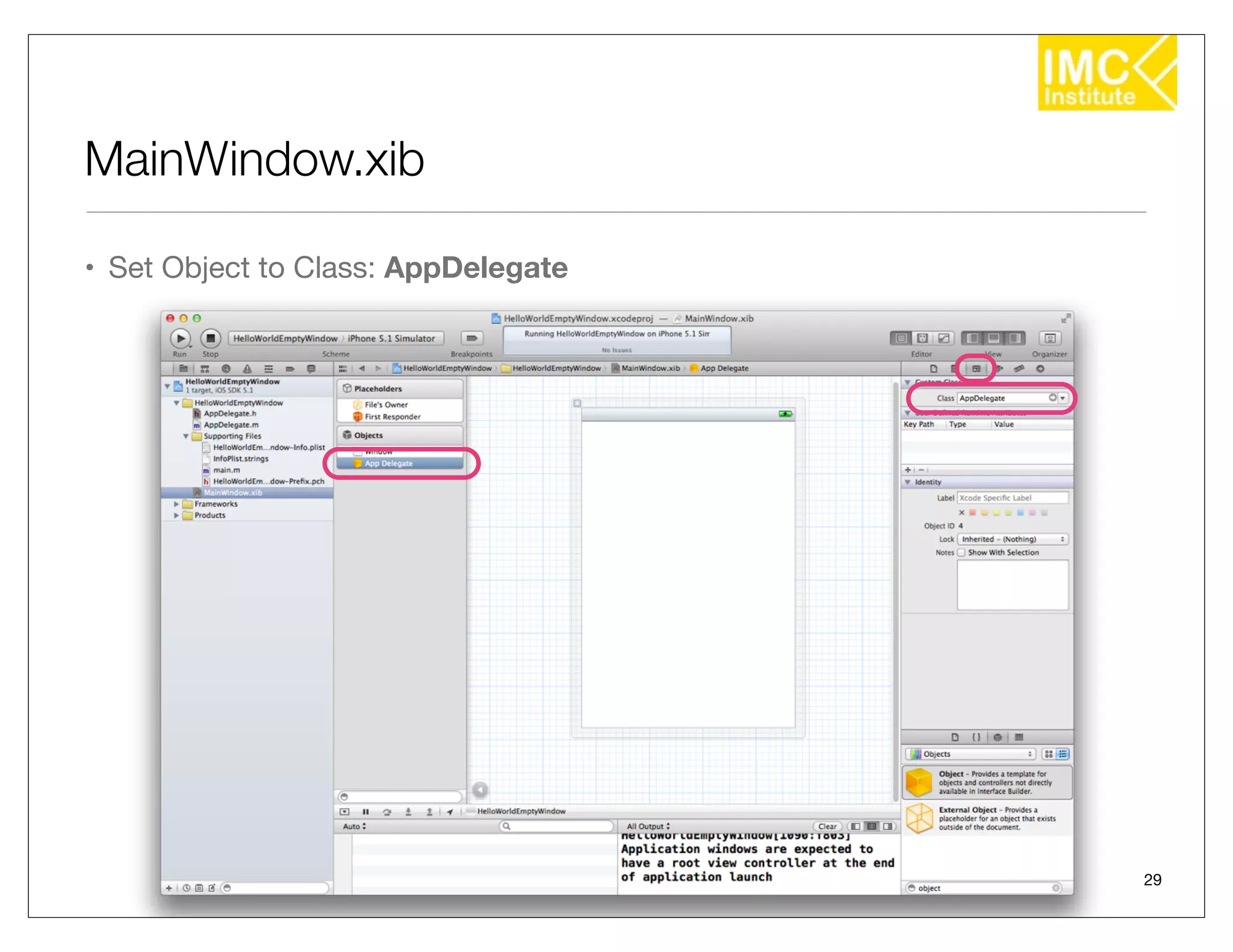

29. MainWindow.xib
• Set Object to Class: AppDelegate
29

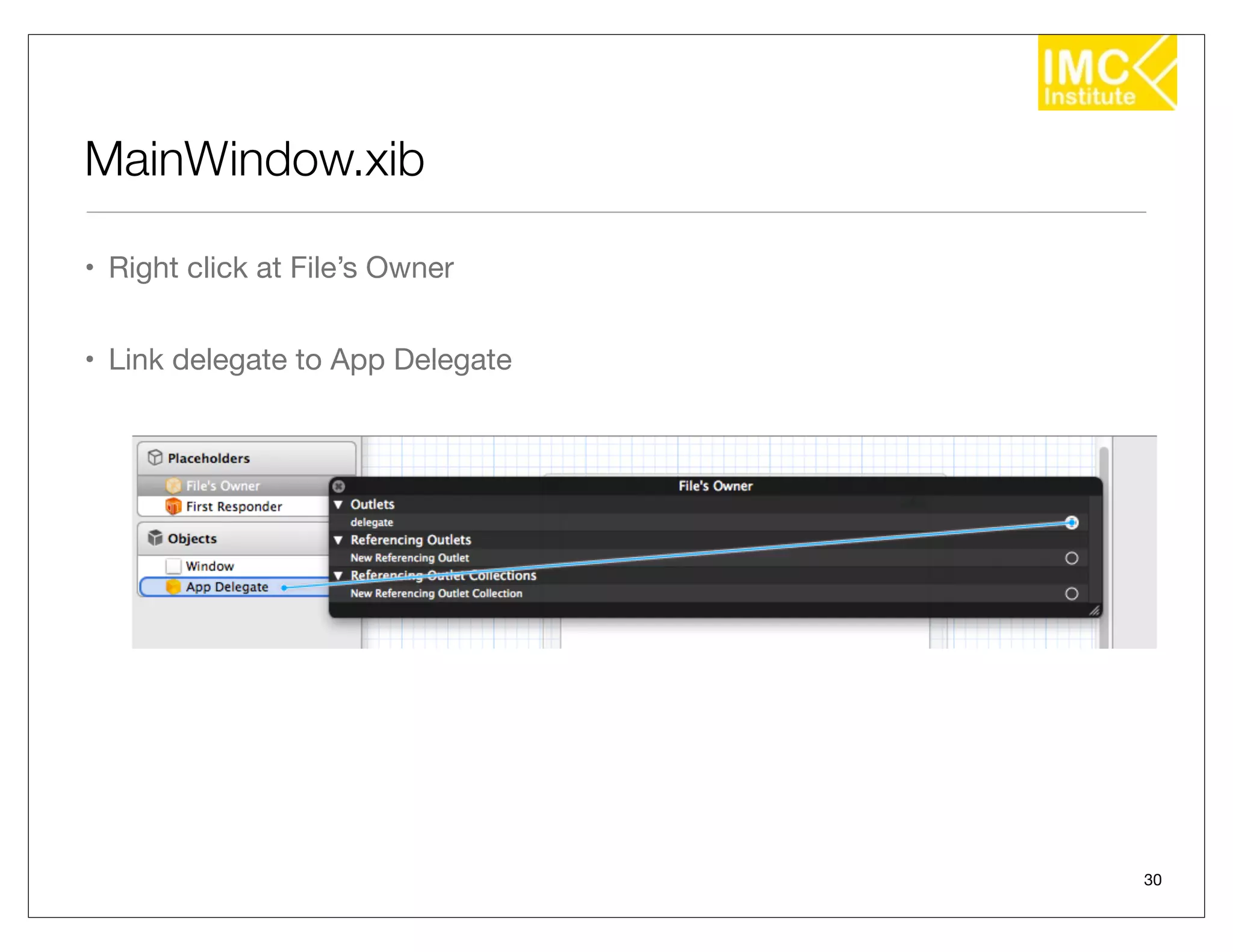

30. MainWindow.xib
• Right click at File’s Owner
• Link delegate to App Delegate
30

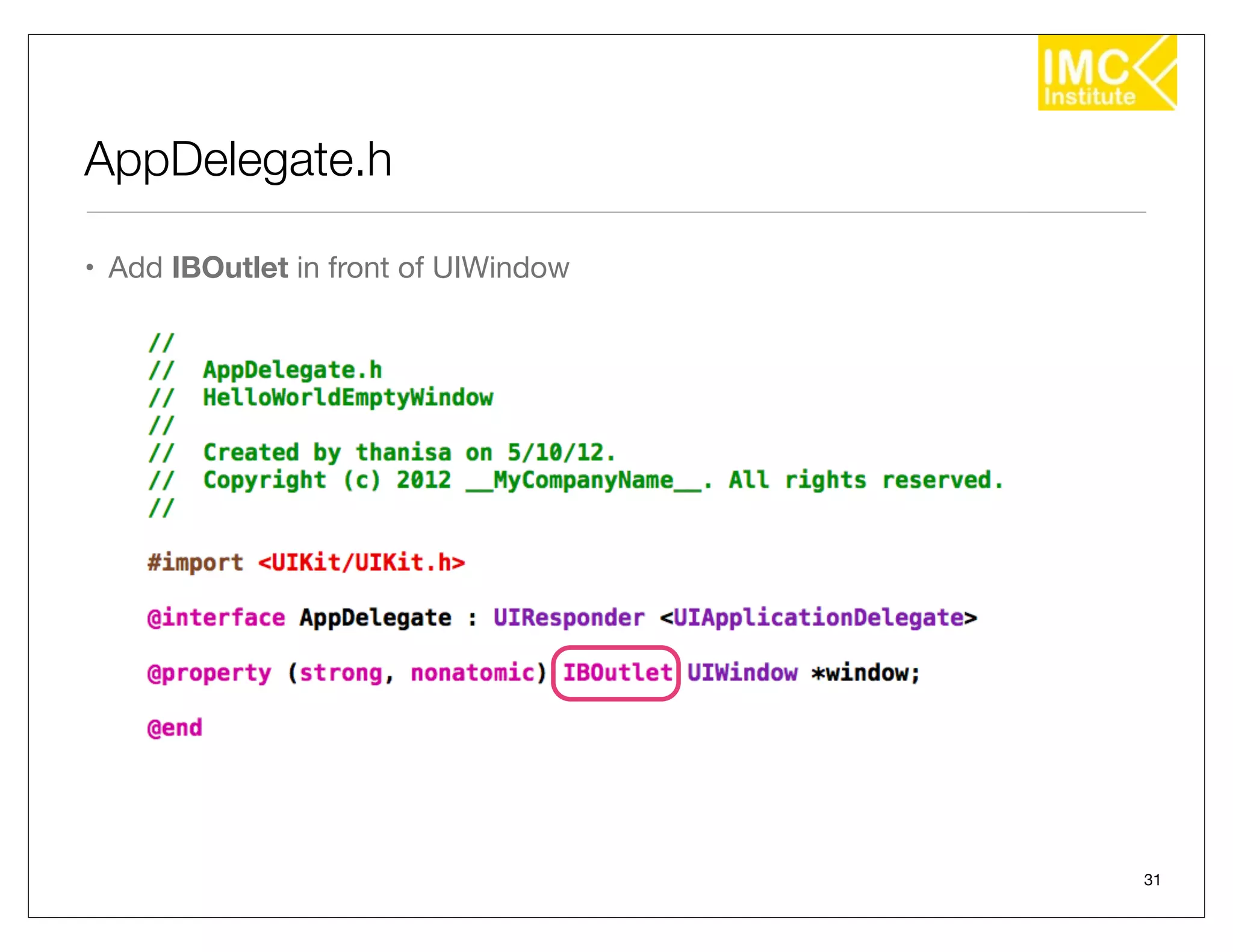

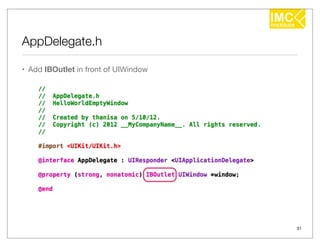

31. AppDelegate.h
• Add IBOutlet in front of UIWindow
31

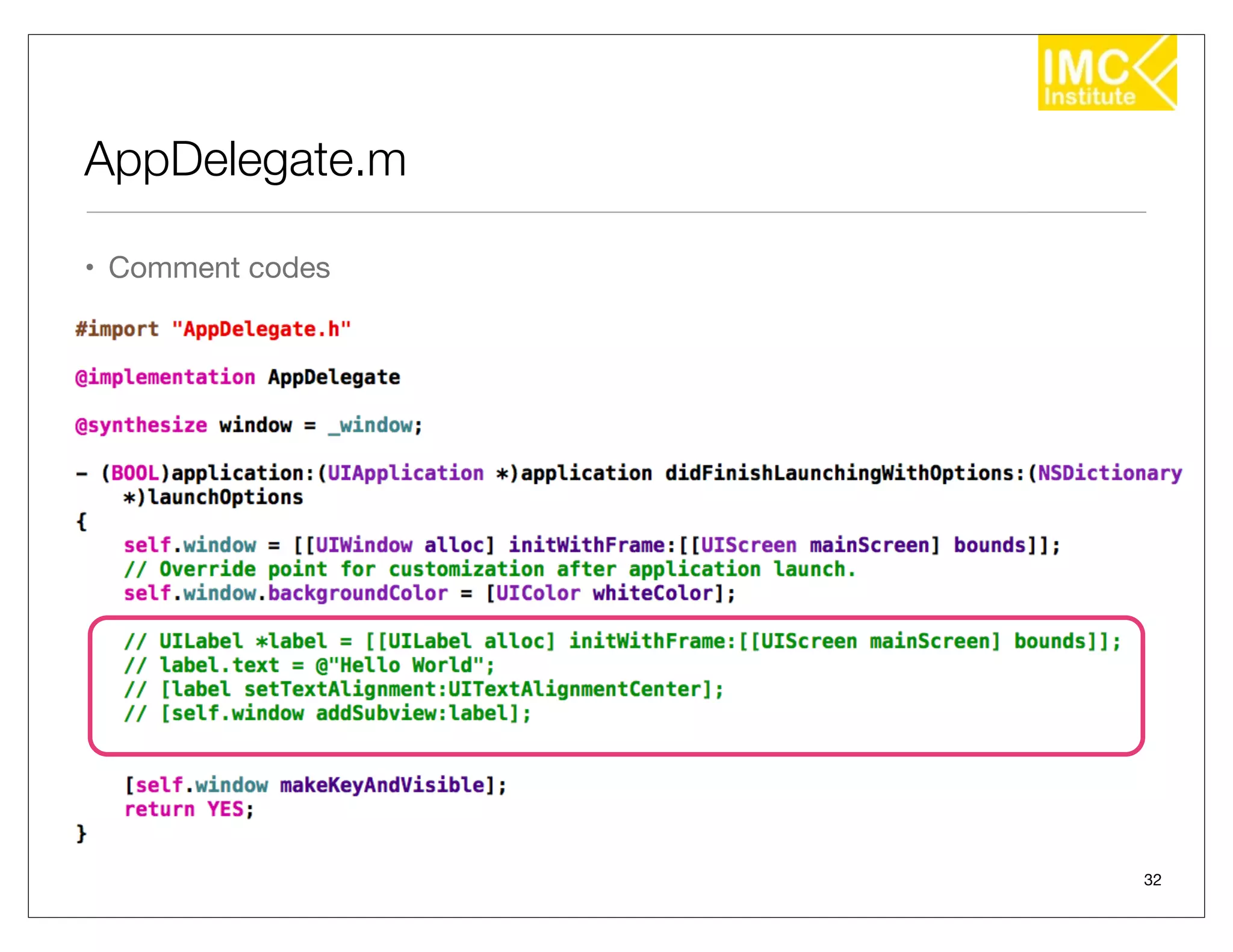

32. AppDelegate.m
• Comment codes
32

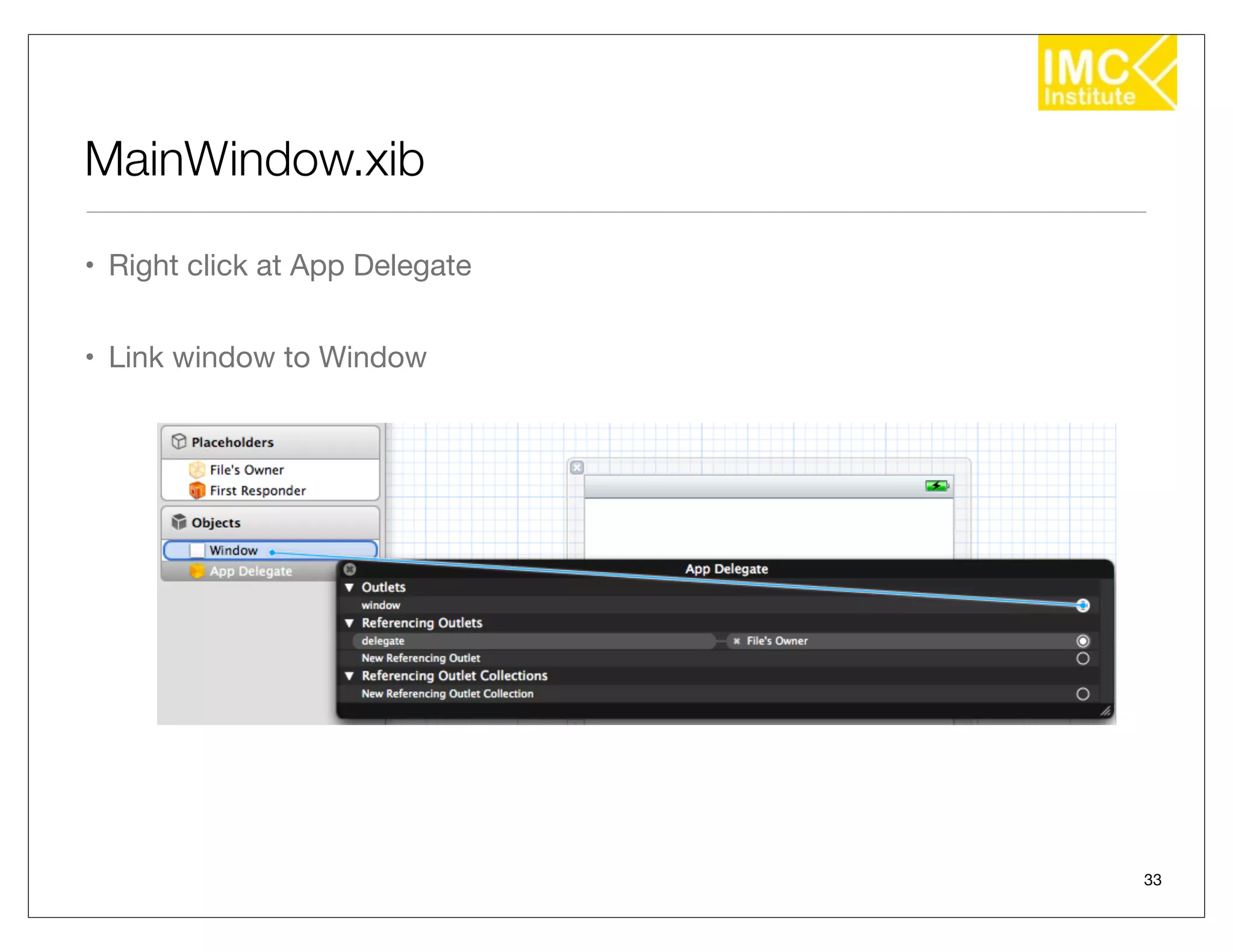

33. MainWindow.xib
• Right click at App Delegate
• Link window to Window
33

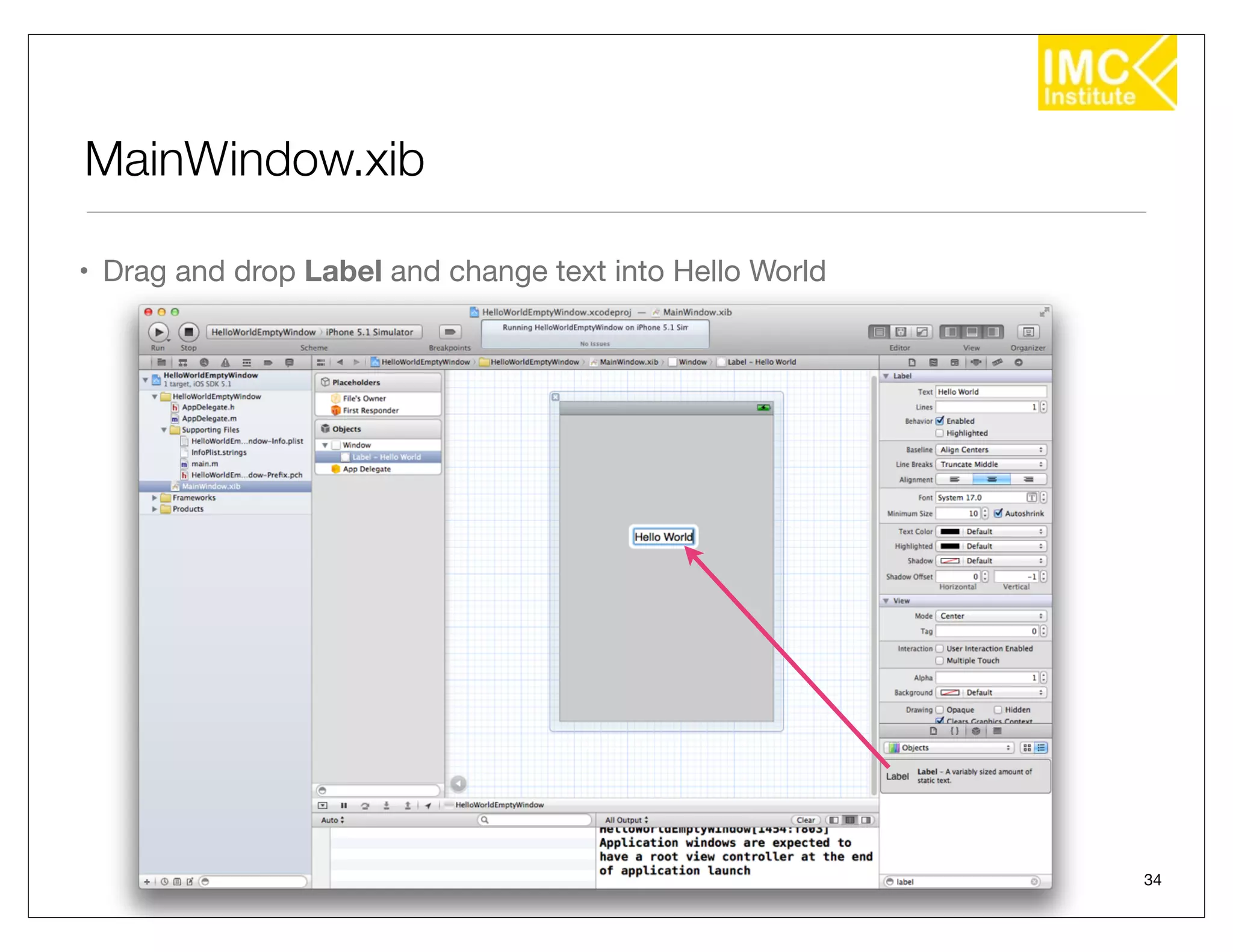

34. MainWindow.xib
• Drag and drop Label and change text into Hello World
34

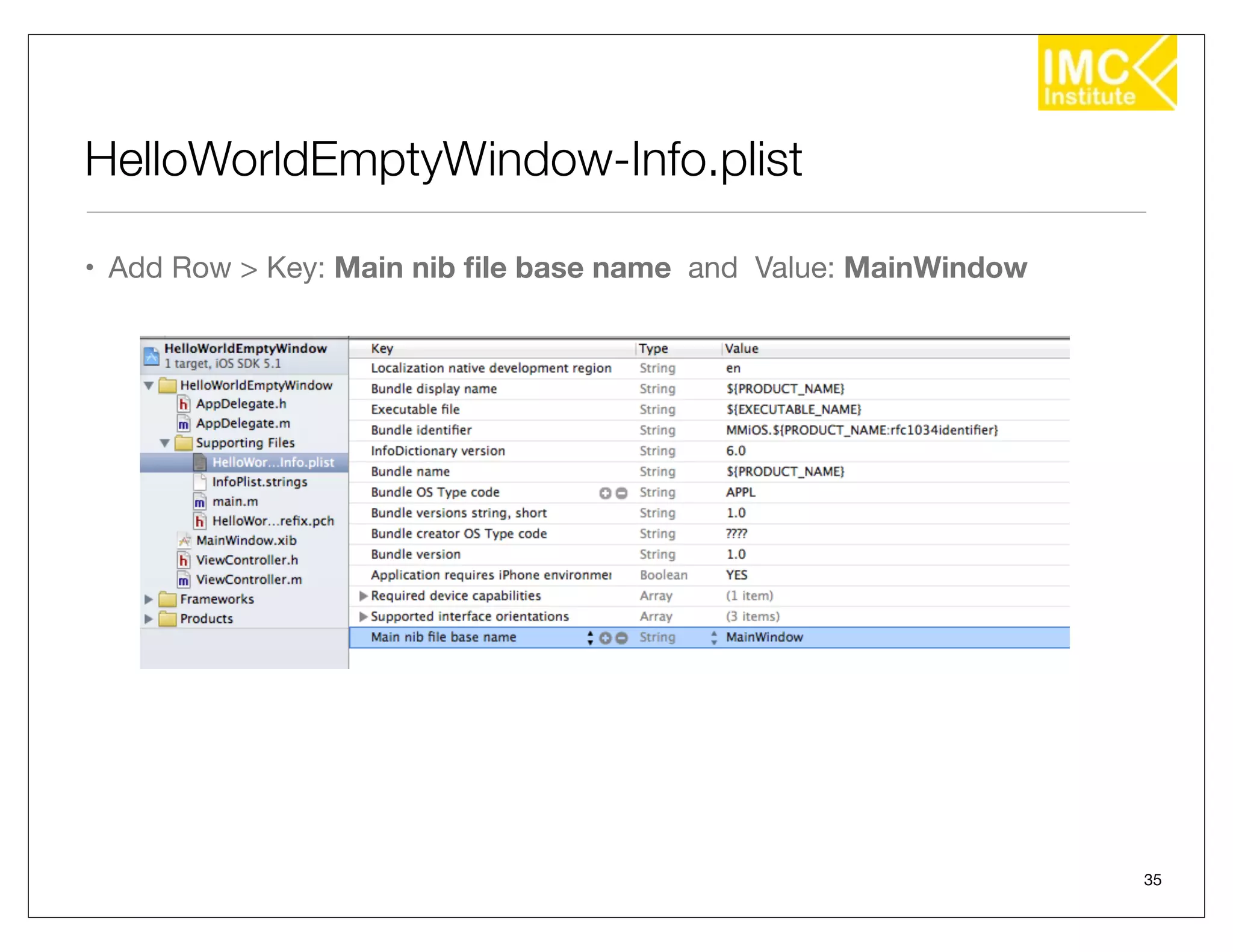

35. HelloWorldEmptyWindow-Info.plist
• Add Row > Key: Main nib file base name and Value: MainWindow
35

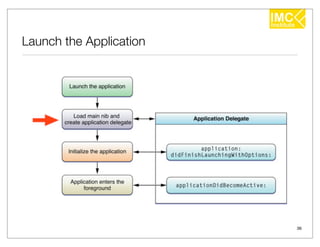

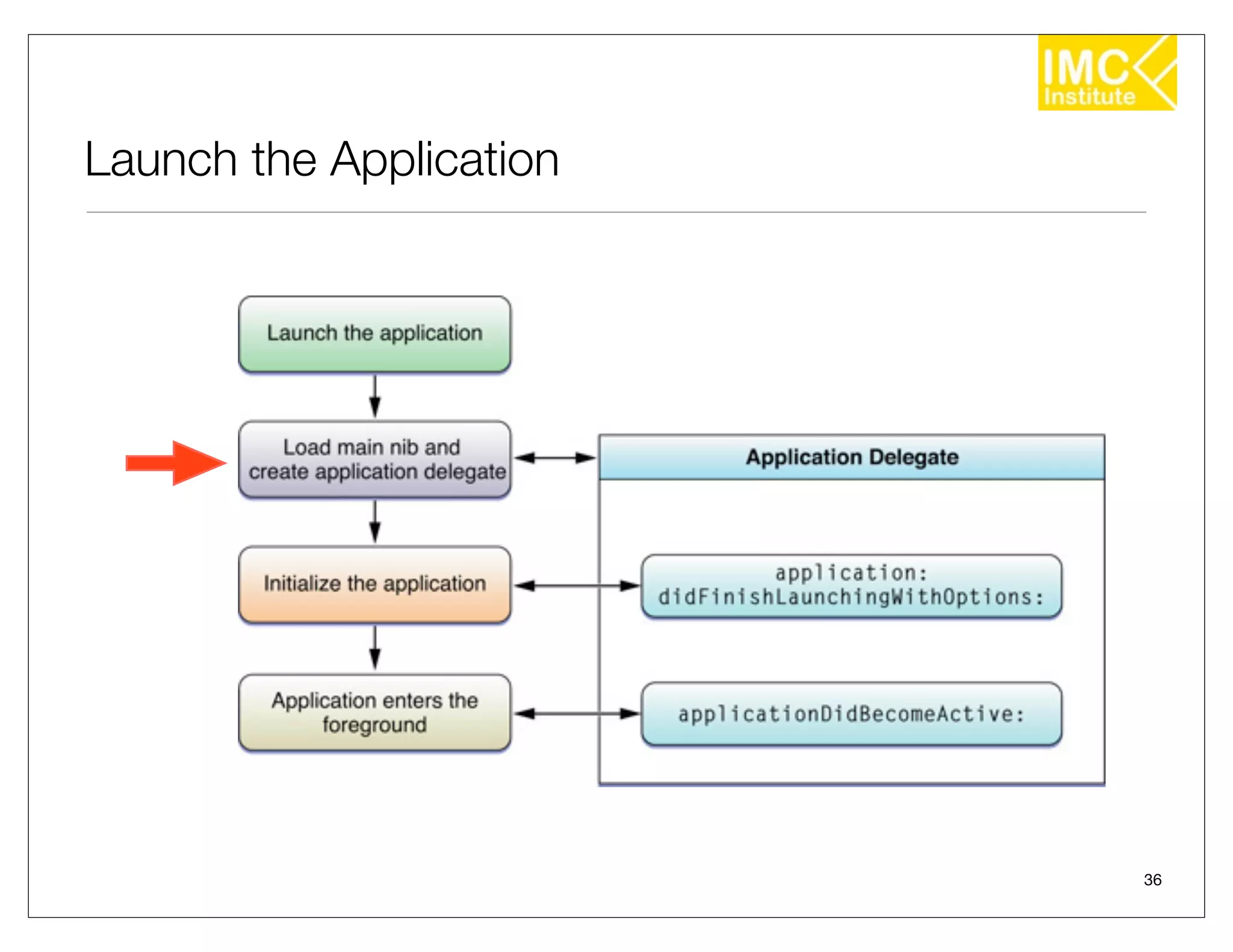

36. Launch the Application
36

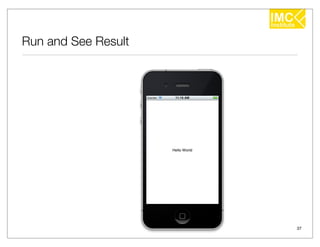

37. Run and See Result
37

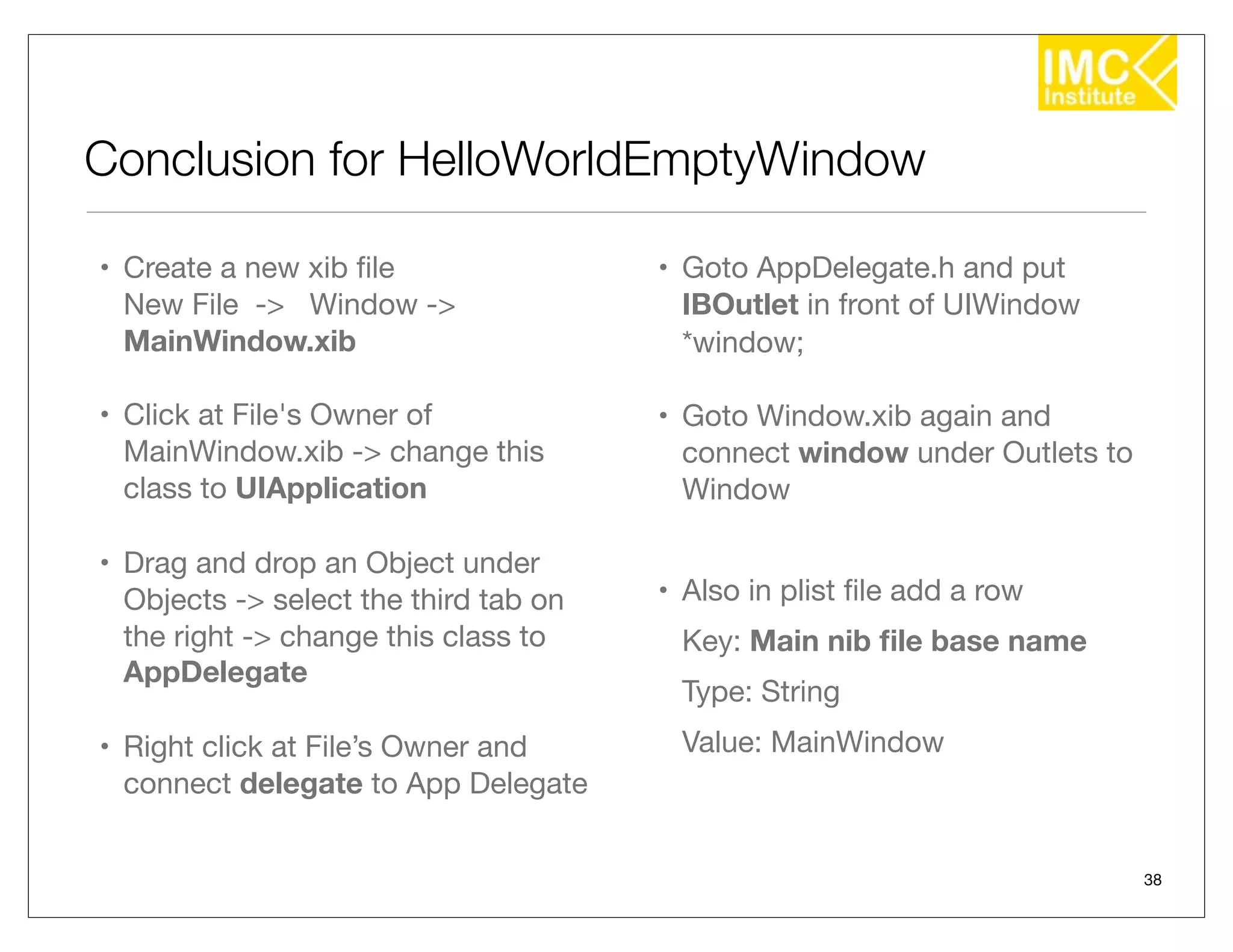

38. Conclusion for HelloWorldEmptyWindow
• Create a new xib file • Goto AppDelegate.h and put
New File -> Window -> IBOutlet in front of UIWindow
MainWindow.xib *window;
• Click at File's Owner of • Goto Window.xib again and
MainWindow.xib -> change this connect window under Outlets to
class to UIApplication Window
• Drag and drop an Object under
Objects -> select the third tab on • Also in plist file add a row
the right -> change this class to Key: Main nib file base name
AppDelegate
Type: String
• Right click at File’s Owner and Value: MainWindow
connect delegate to App Delegate
38

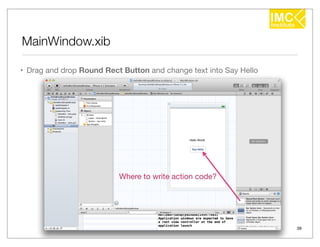

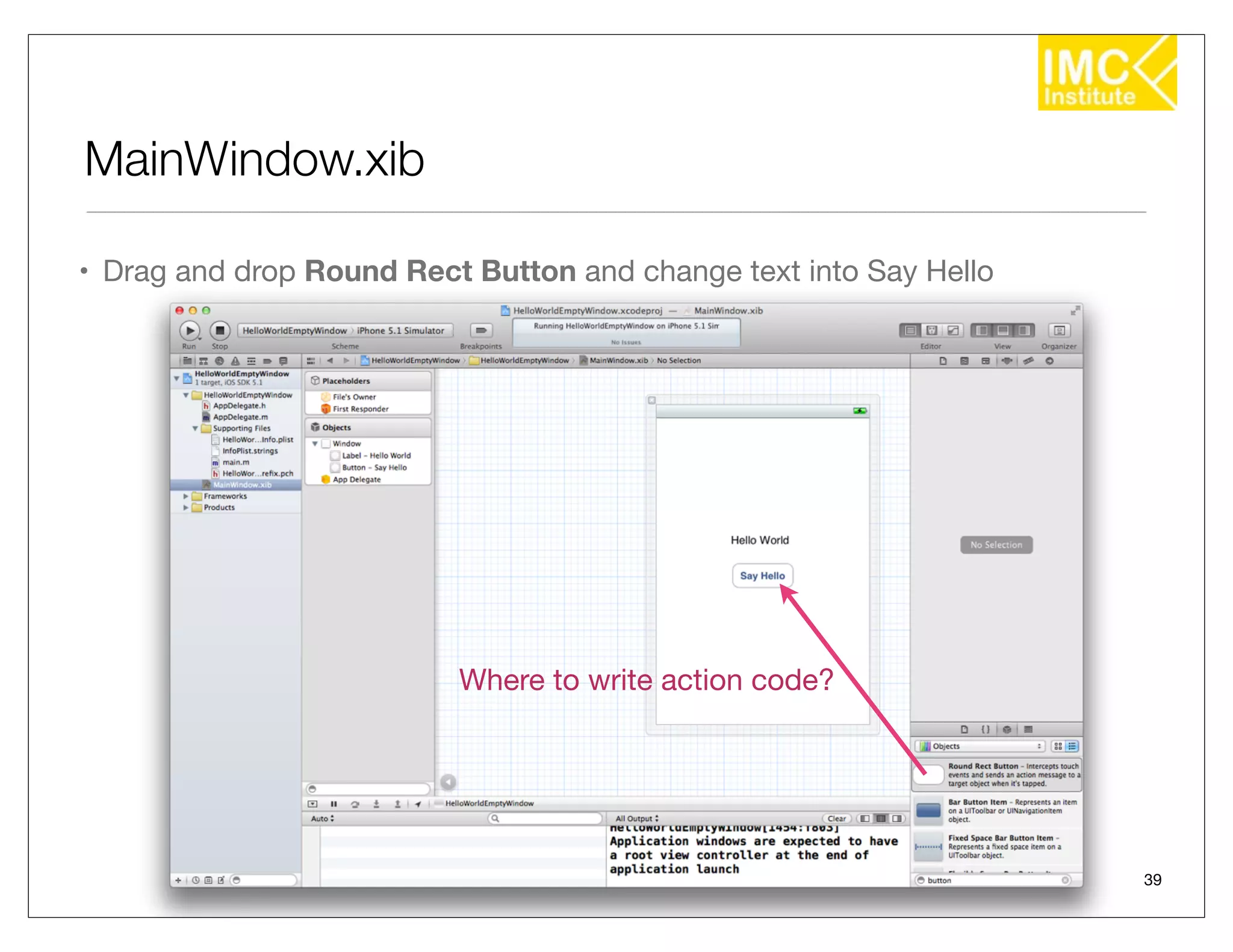

39. MainWindow.xib
• Drag and drop Round Rect Button and change text into Say Hello
Where to write action code?
39

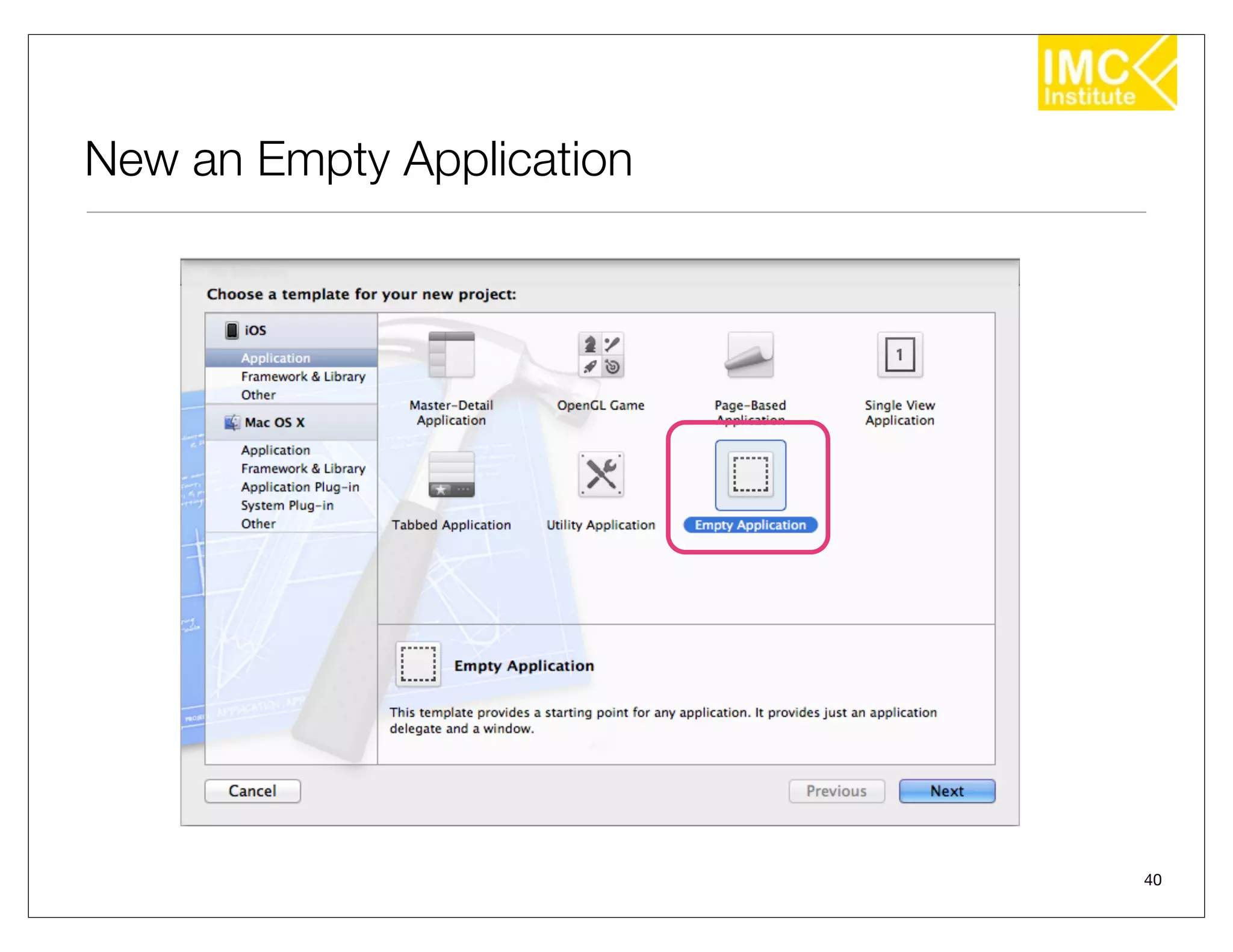

40. New an Empty Application
40

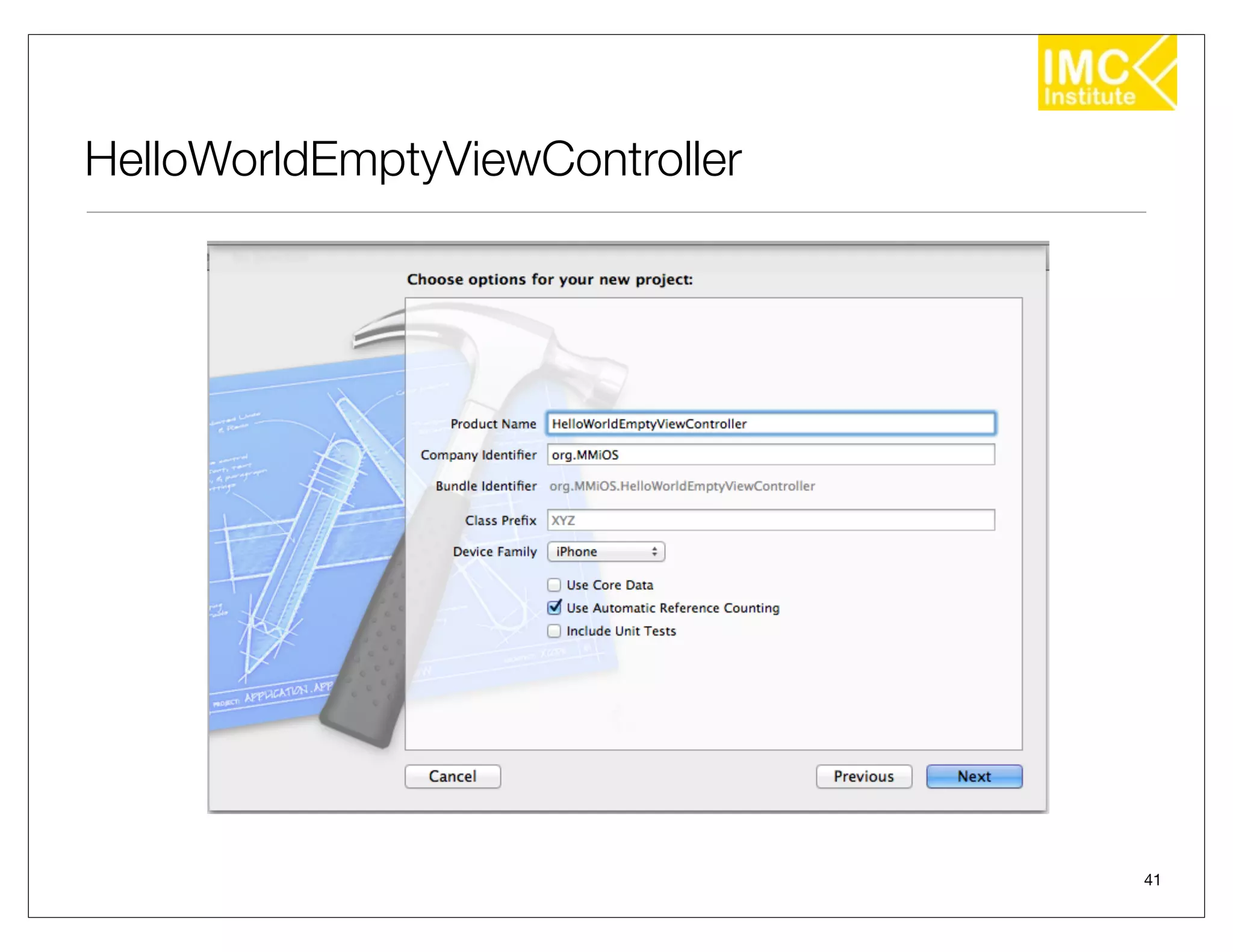

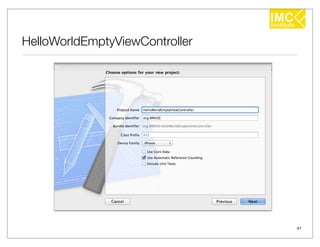

41. HelloWorldEmptyViewController
41

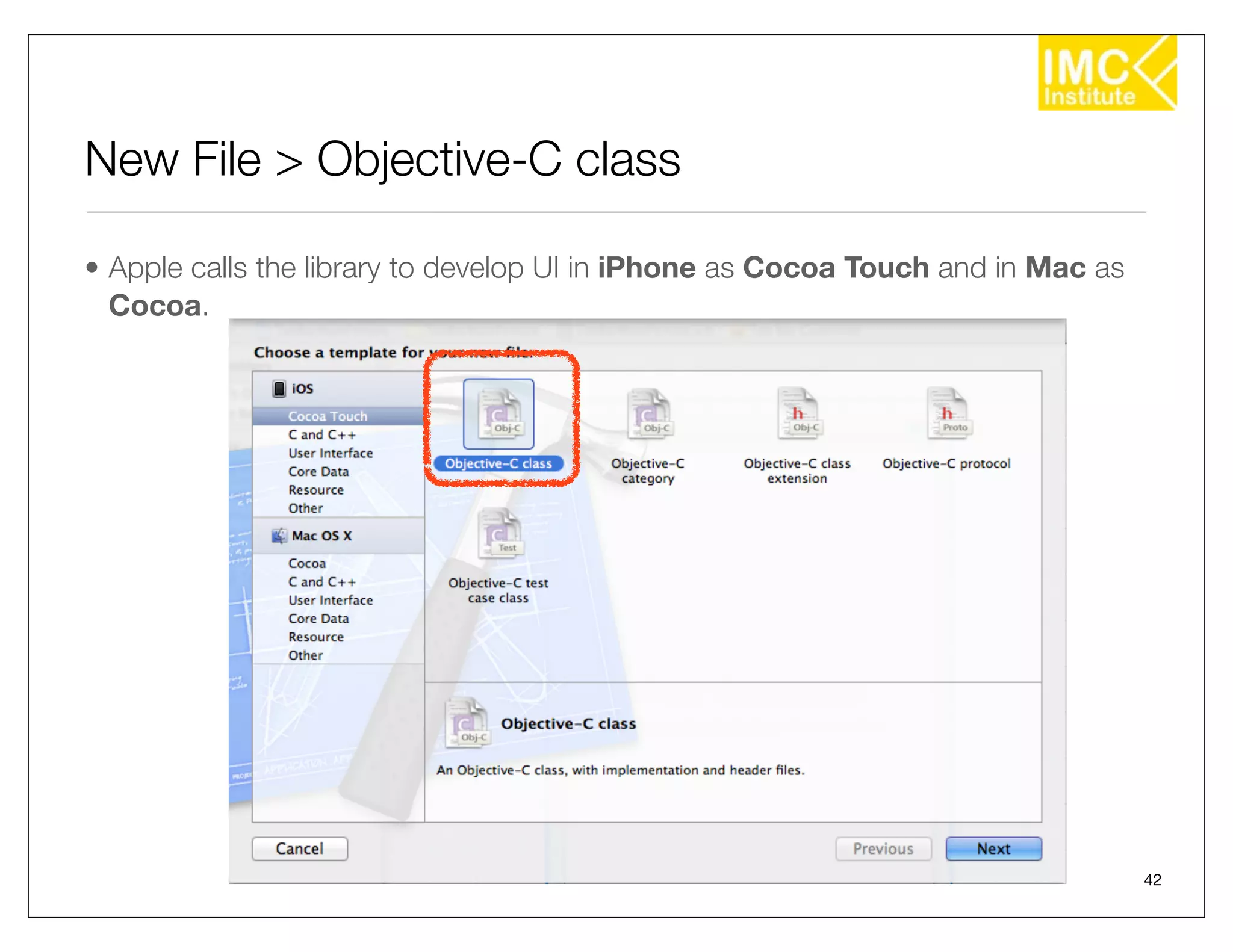

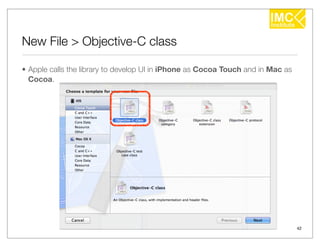

42. New File > Objective-C class
• Apple calls the library to develop UI in iPhone as Cocoa Touch and in Mac as
Cocoa.
42

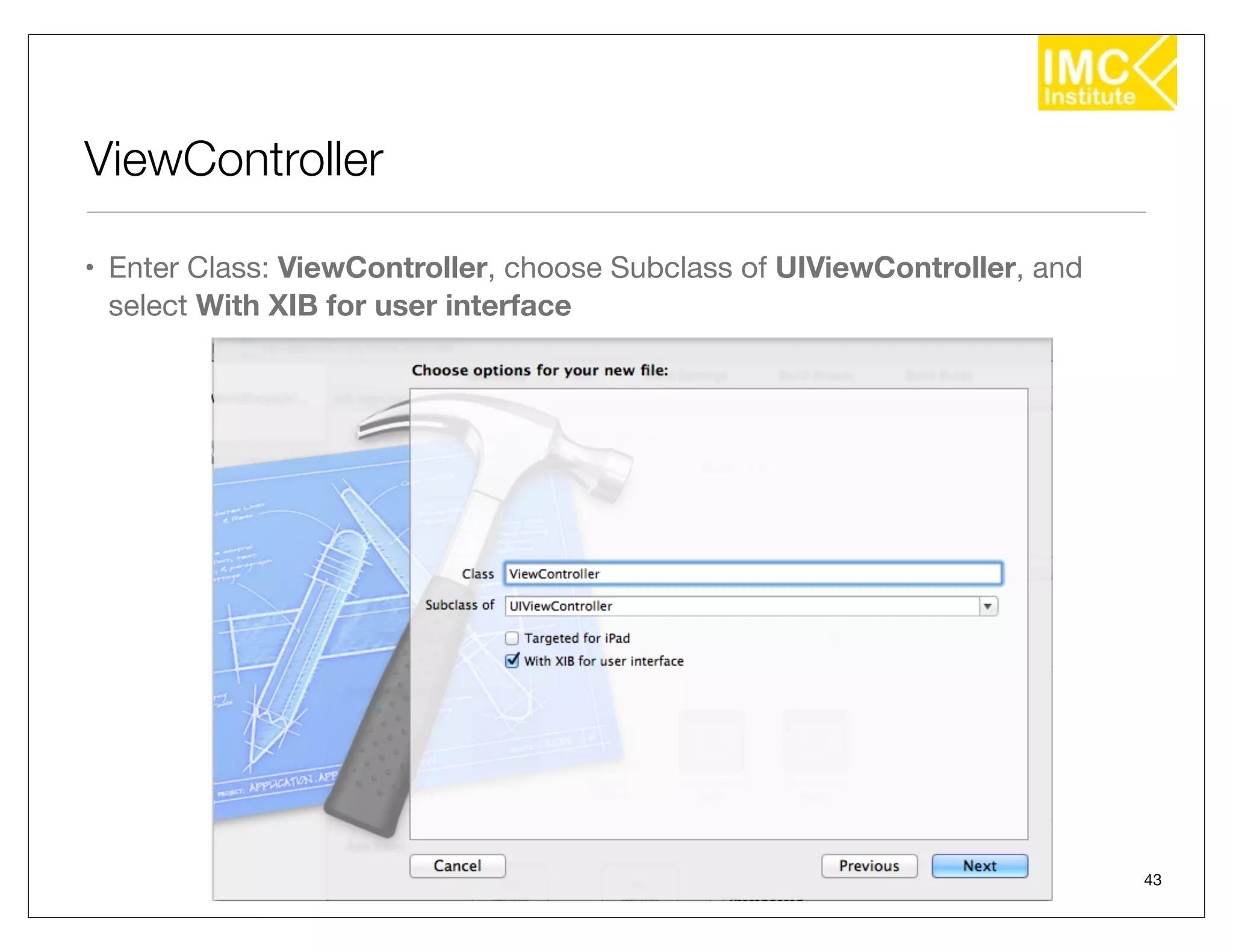

43. ViewController
• Enter Class: ViewController, choose Subclass of UIViewController, and
select With XIB for user interface
43

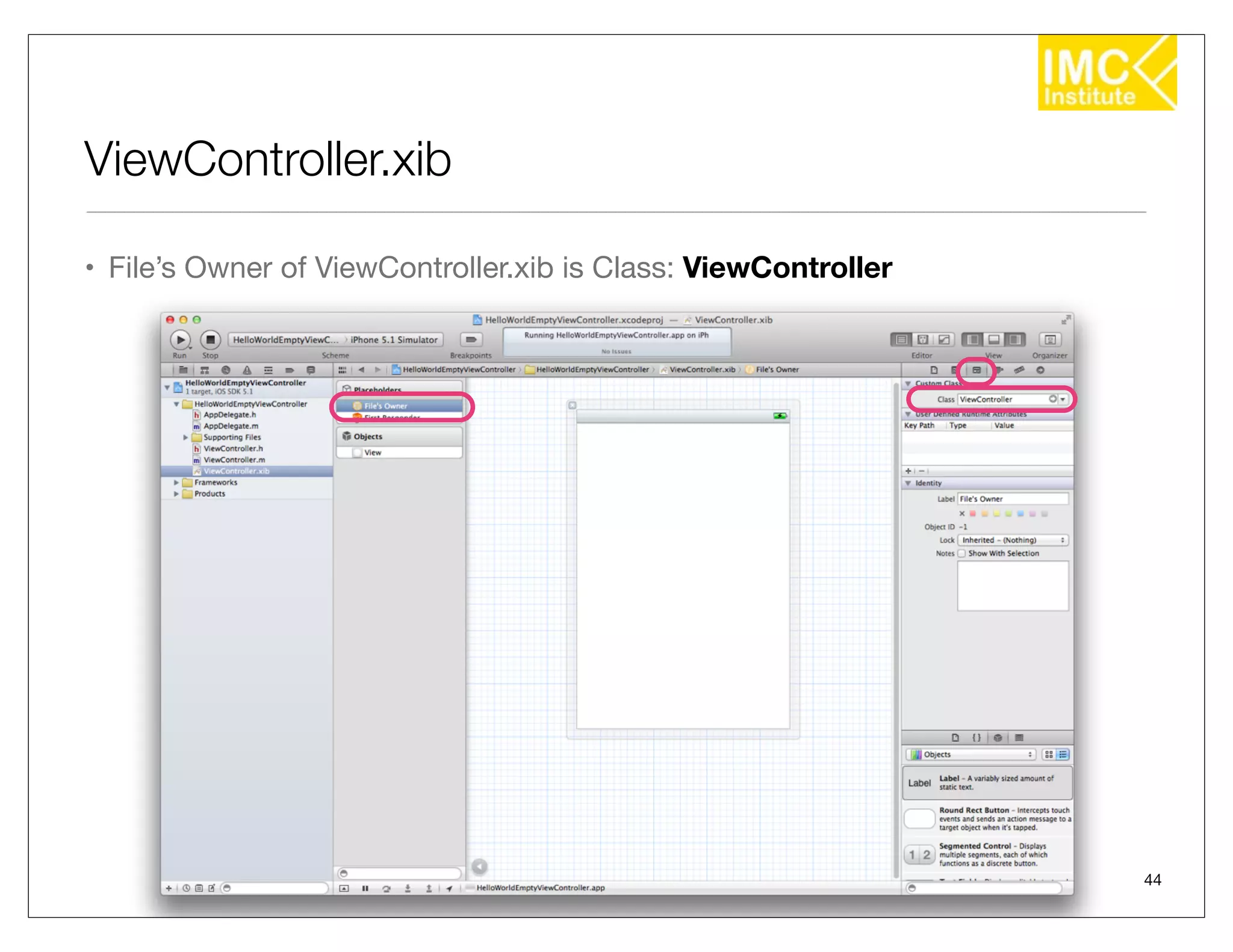

44. ViewController.xib
• File’s Owner of ViewController.xib is Class: ViewController
44

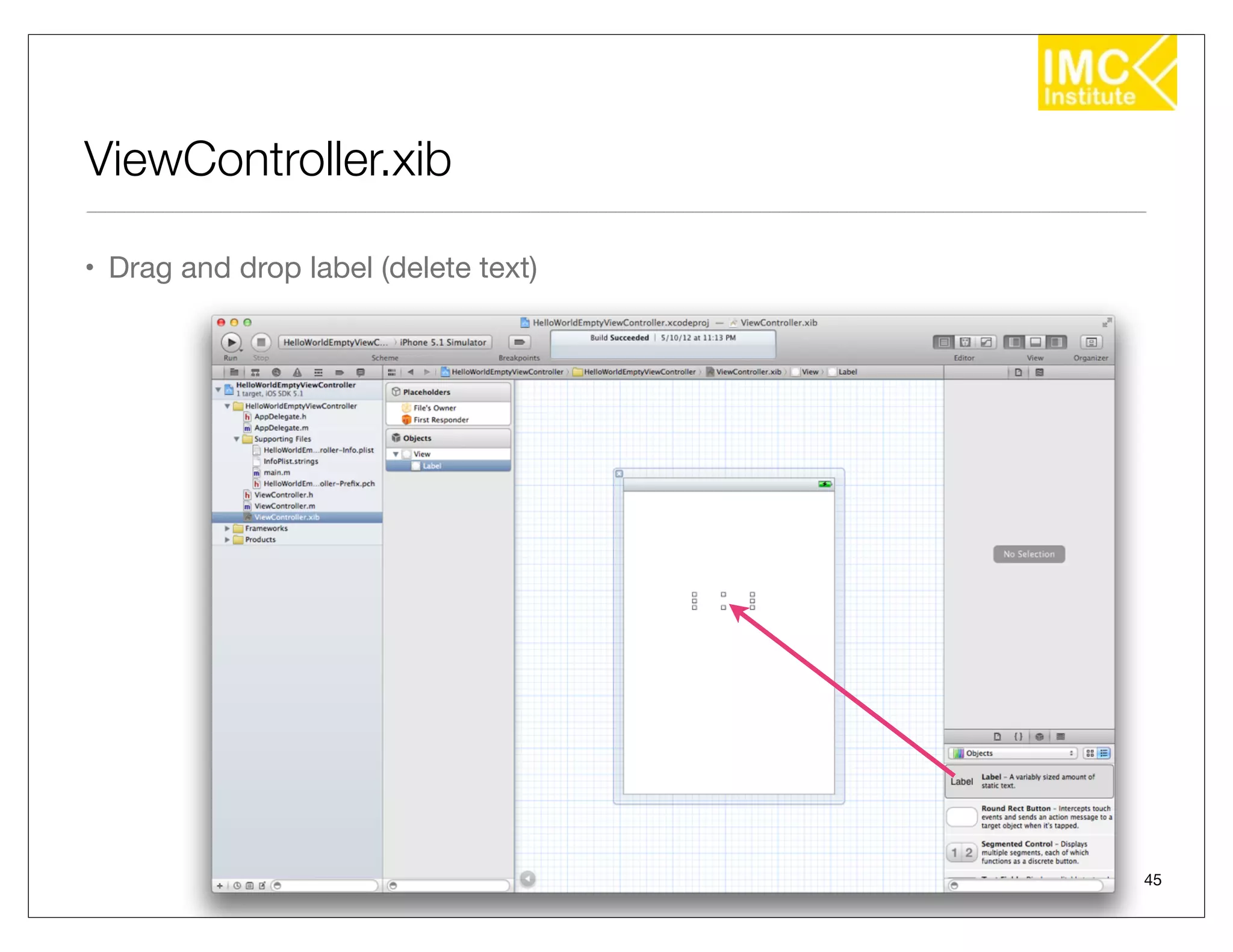

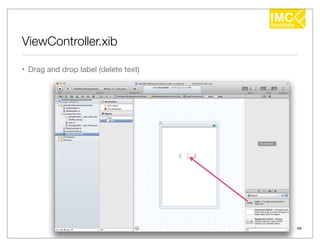

45. ViewController.xib
• Drag and drop label (delete text)
45

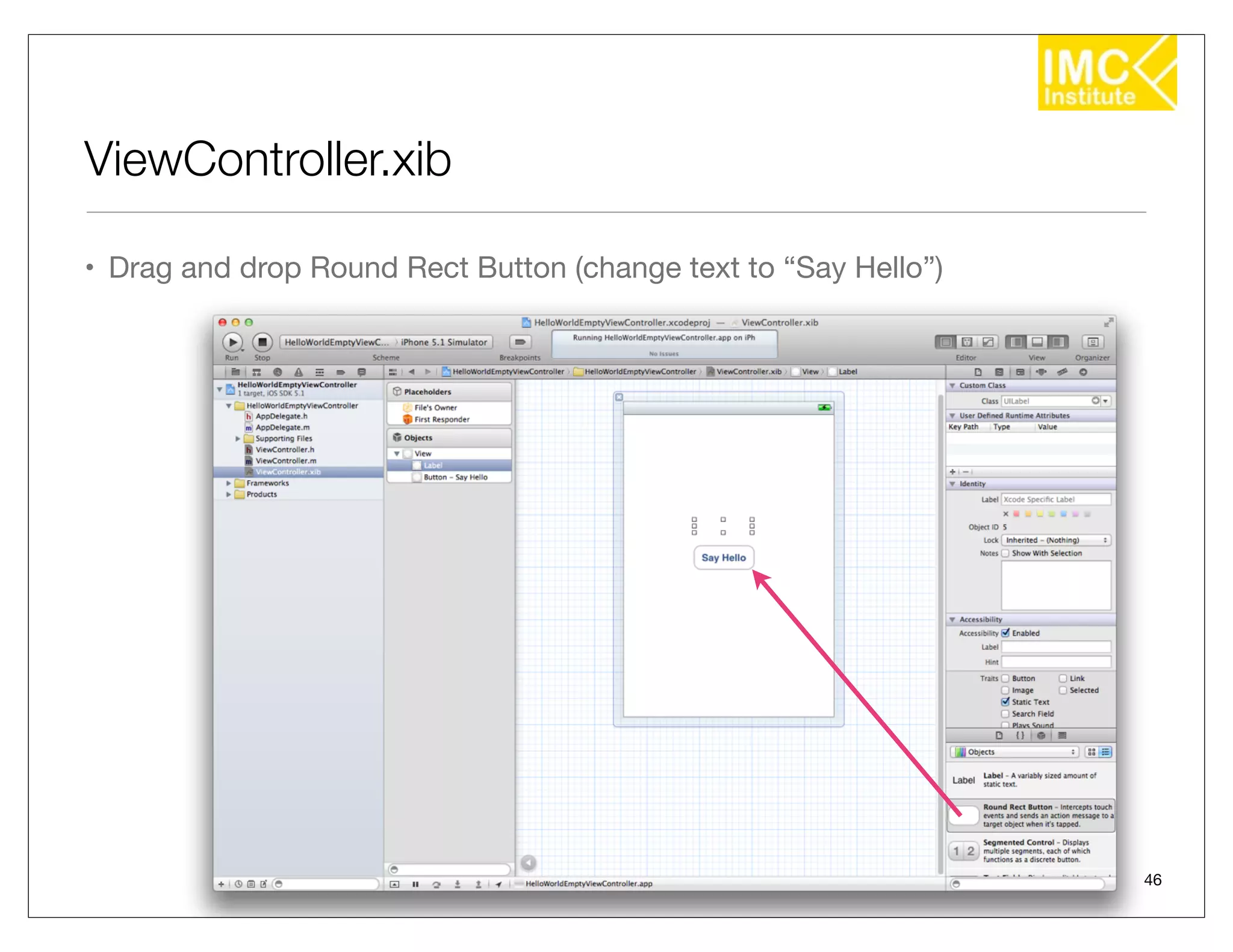

46. ViewController.xib
• Drag and drop Round Rect Button (change text to “Say Hello”)
46

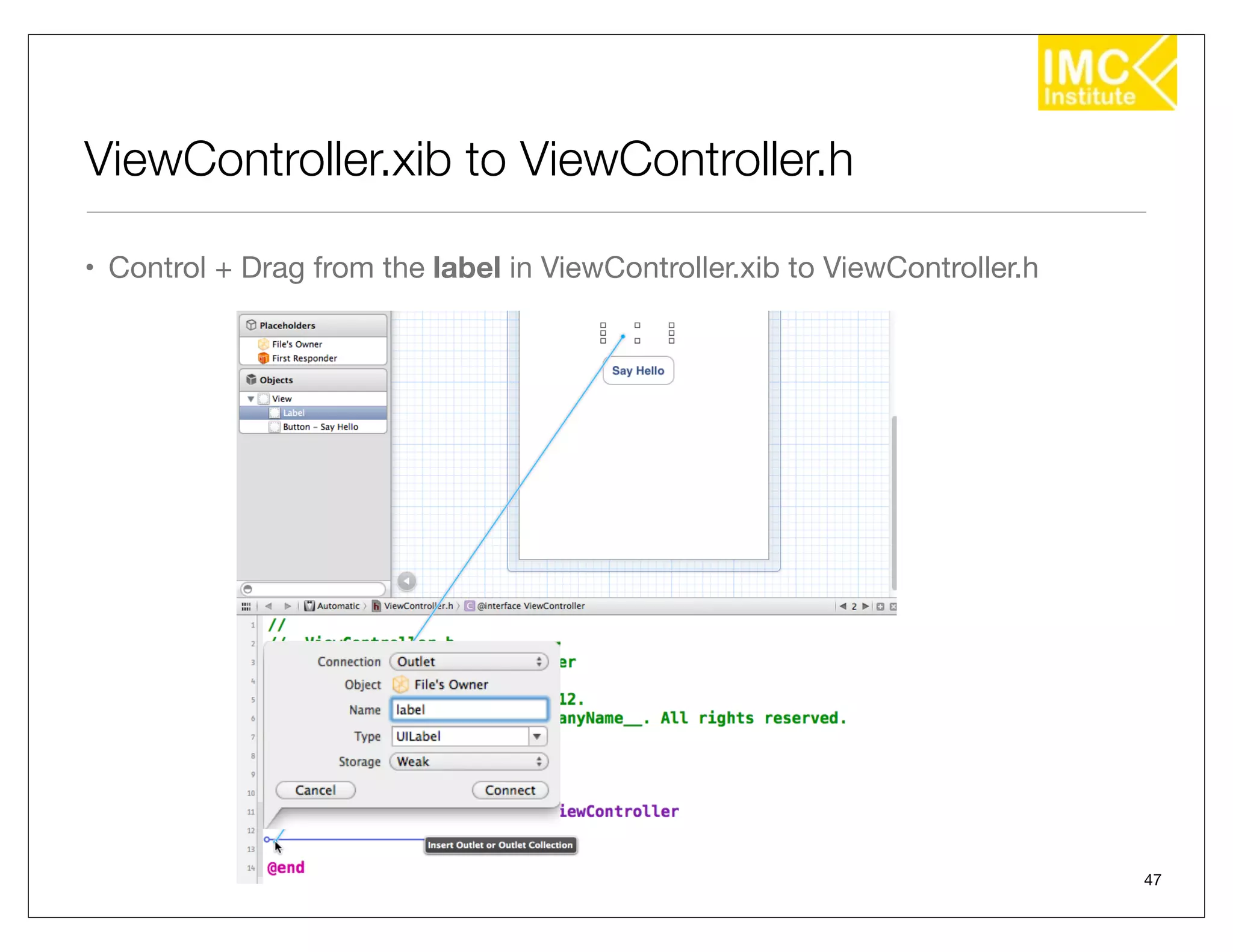

47. ViewController.xib to ViewController.h
• Control + Drag from the label in ViewController.xib to ViewController.h
47

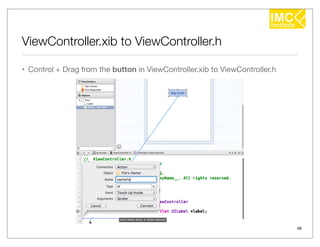

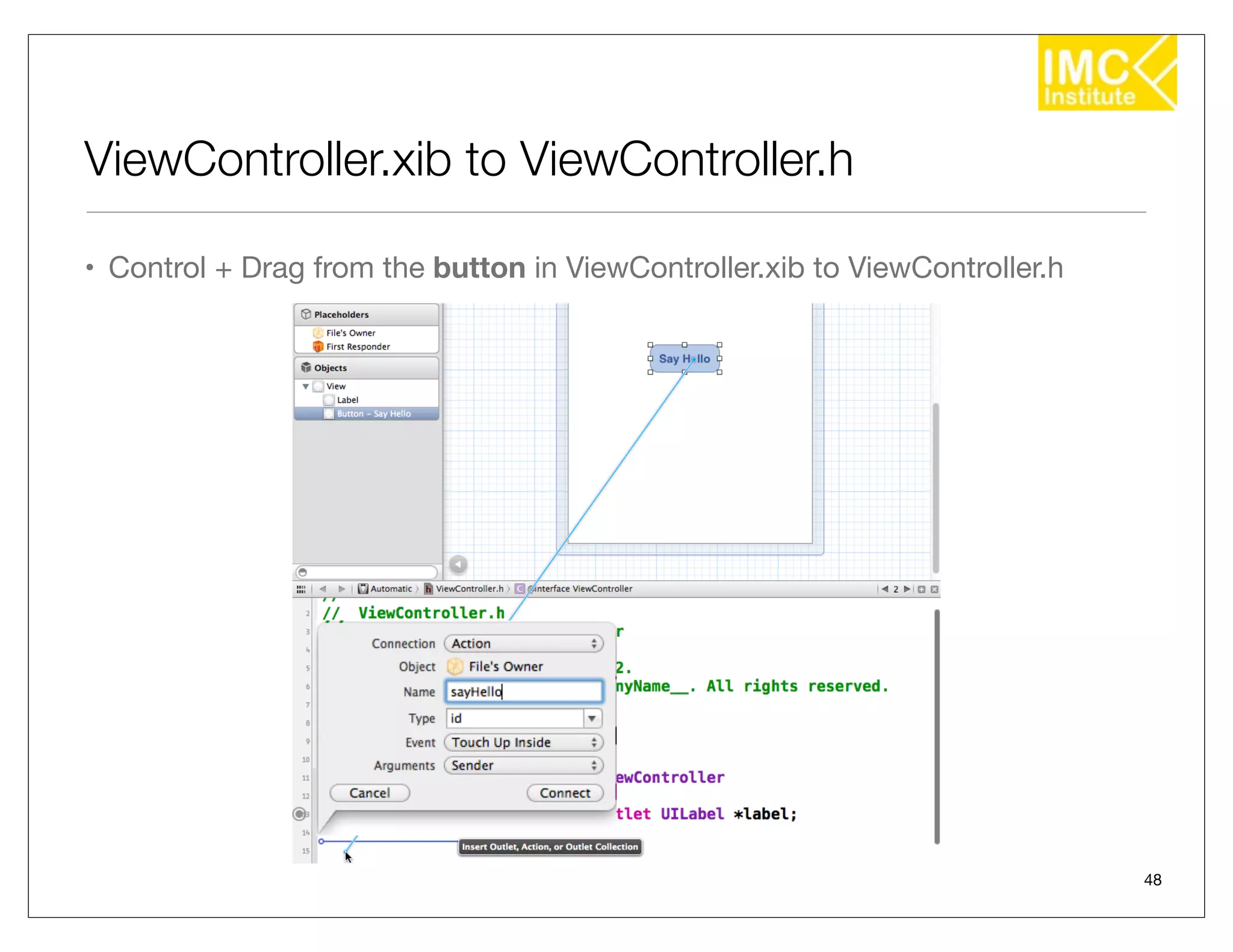

48. ViewController.xib to ViewController.h
• Control + Drag from the button in ViewController.xib to ViewController.h
48

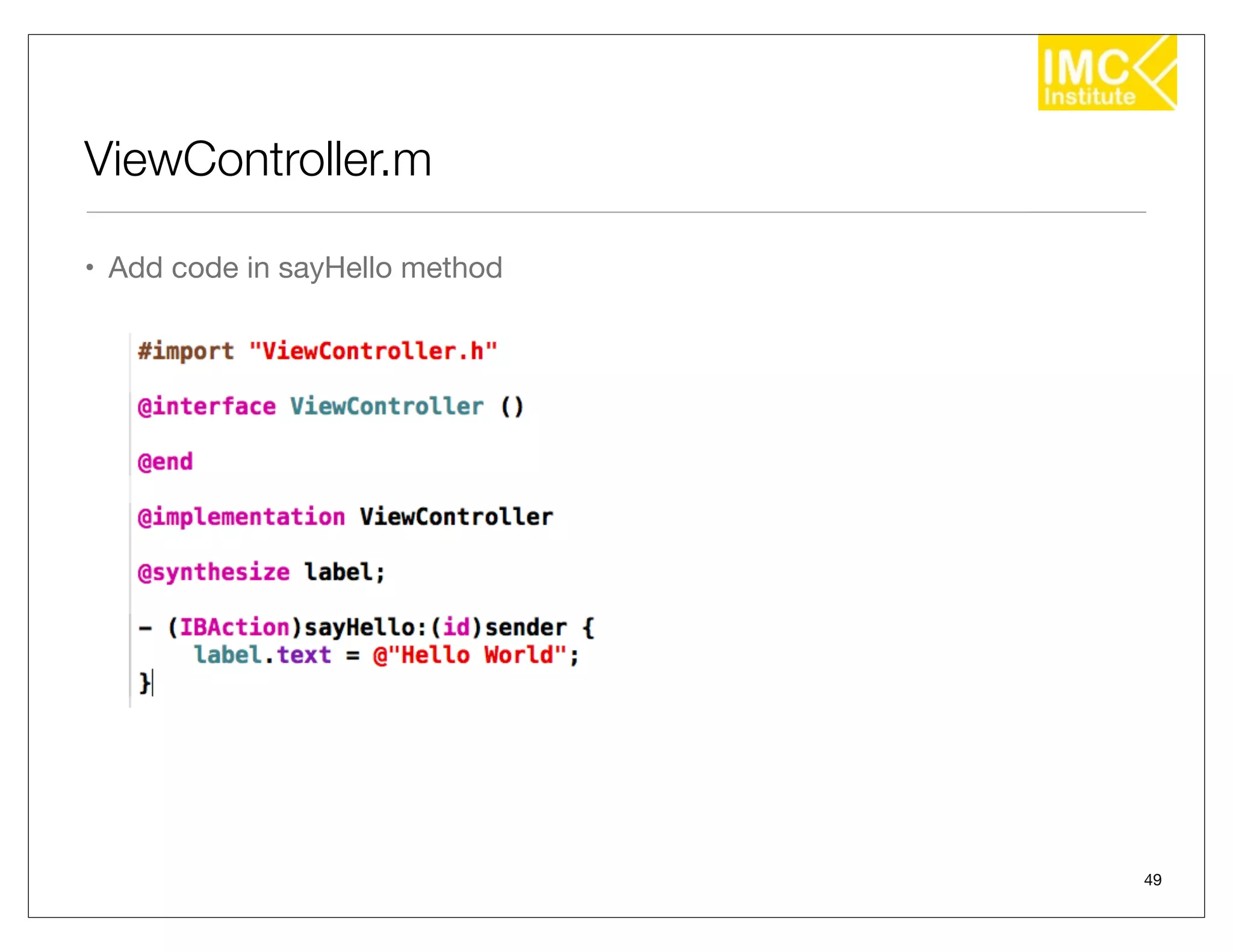

49. ViewController.m
• Add code in sayHello method
49

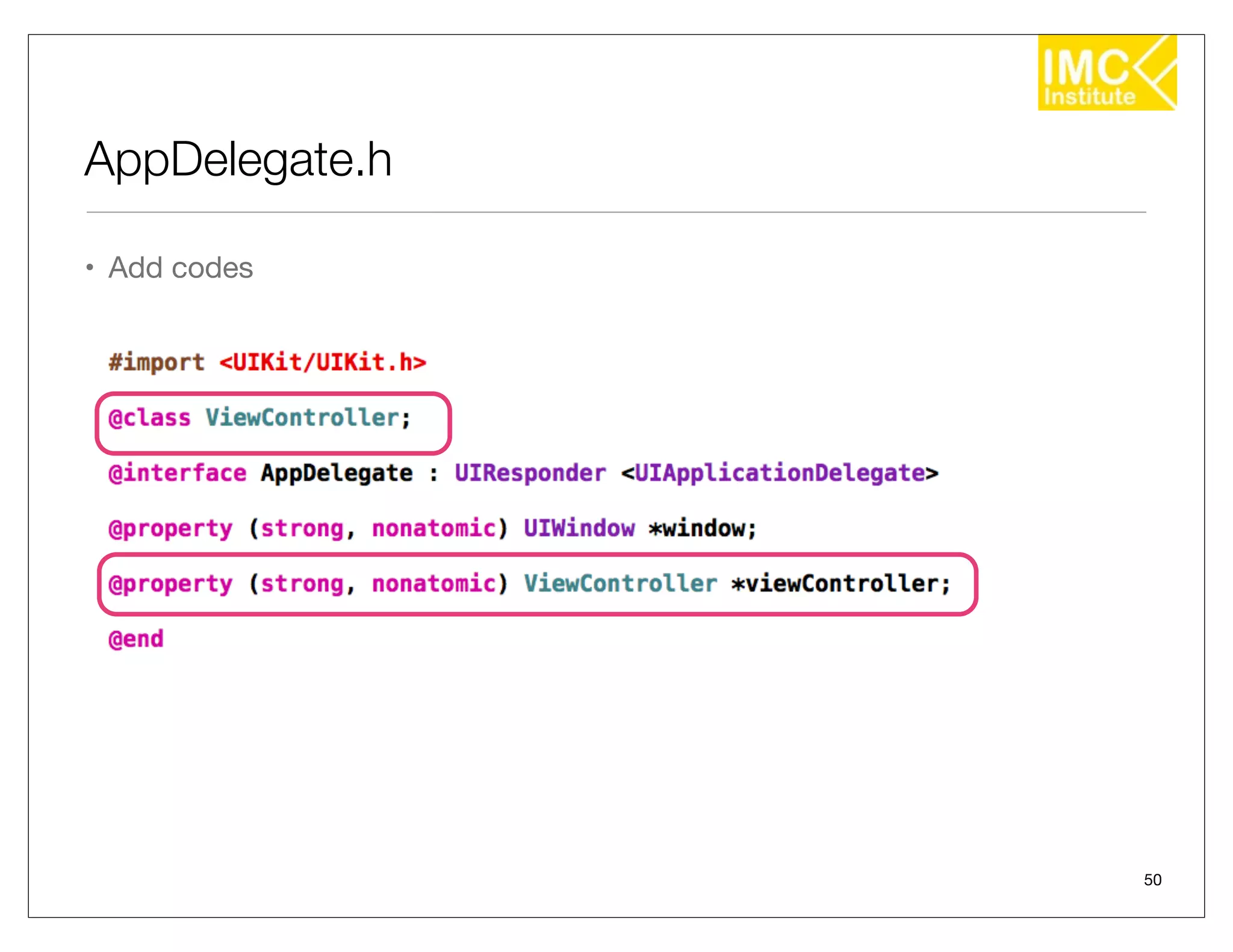

50. AppDelegate.h
• Add codes
50

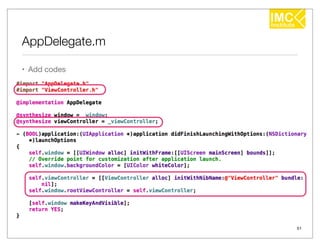

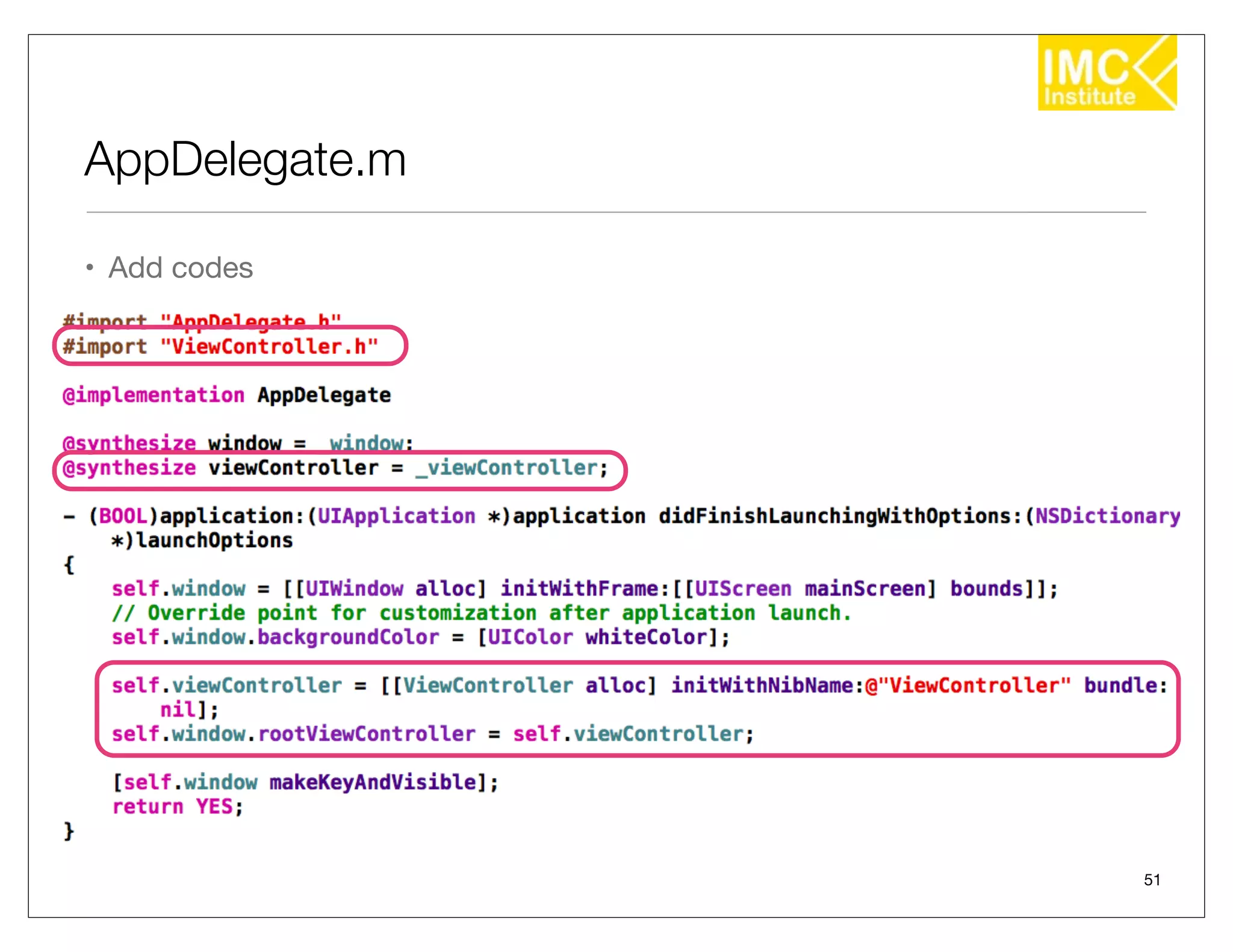

51. AppDelegate.m
• Add codes
51

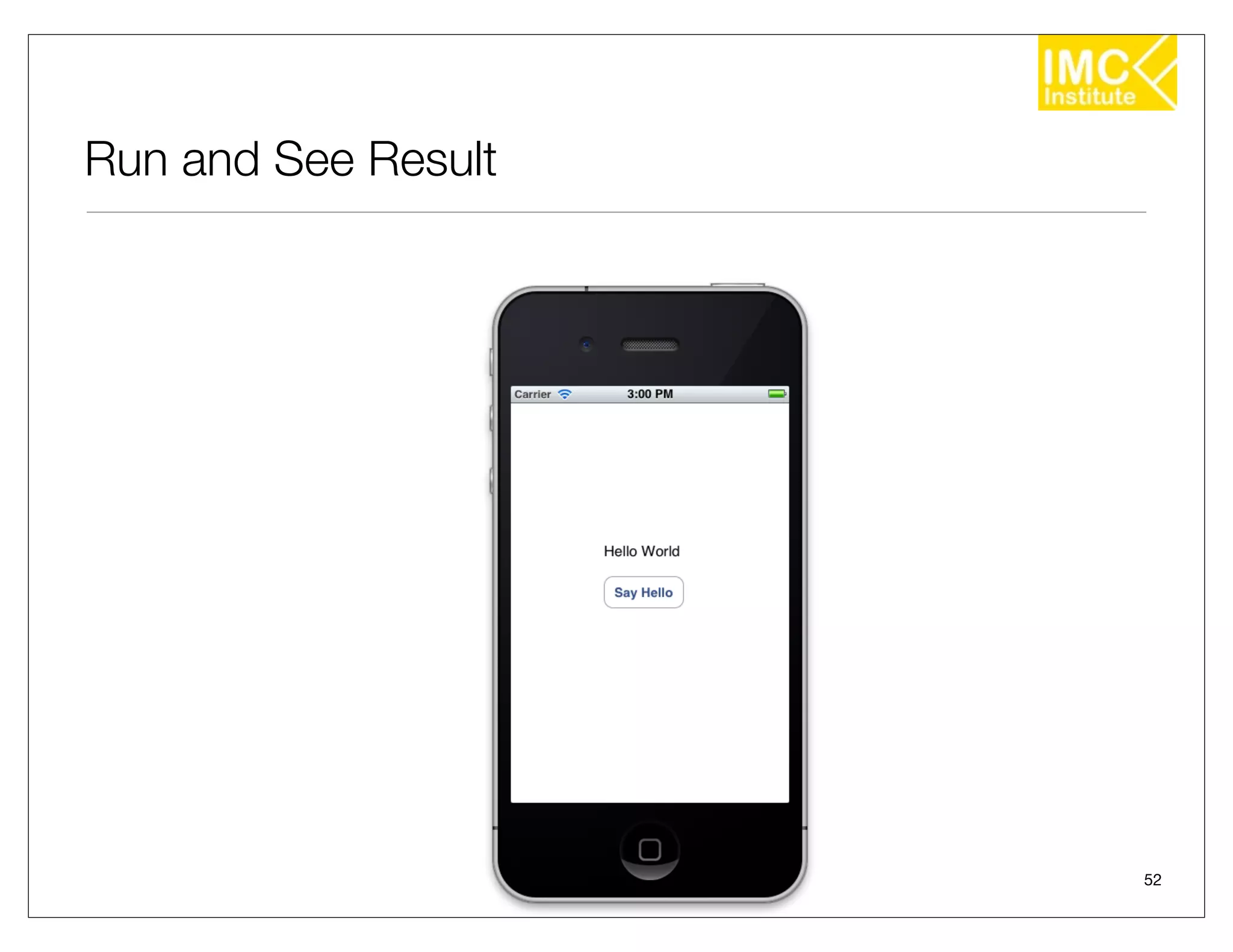

52. Run and See Result
52

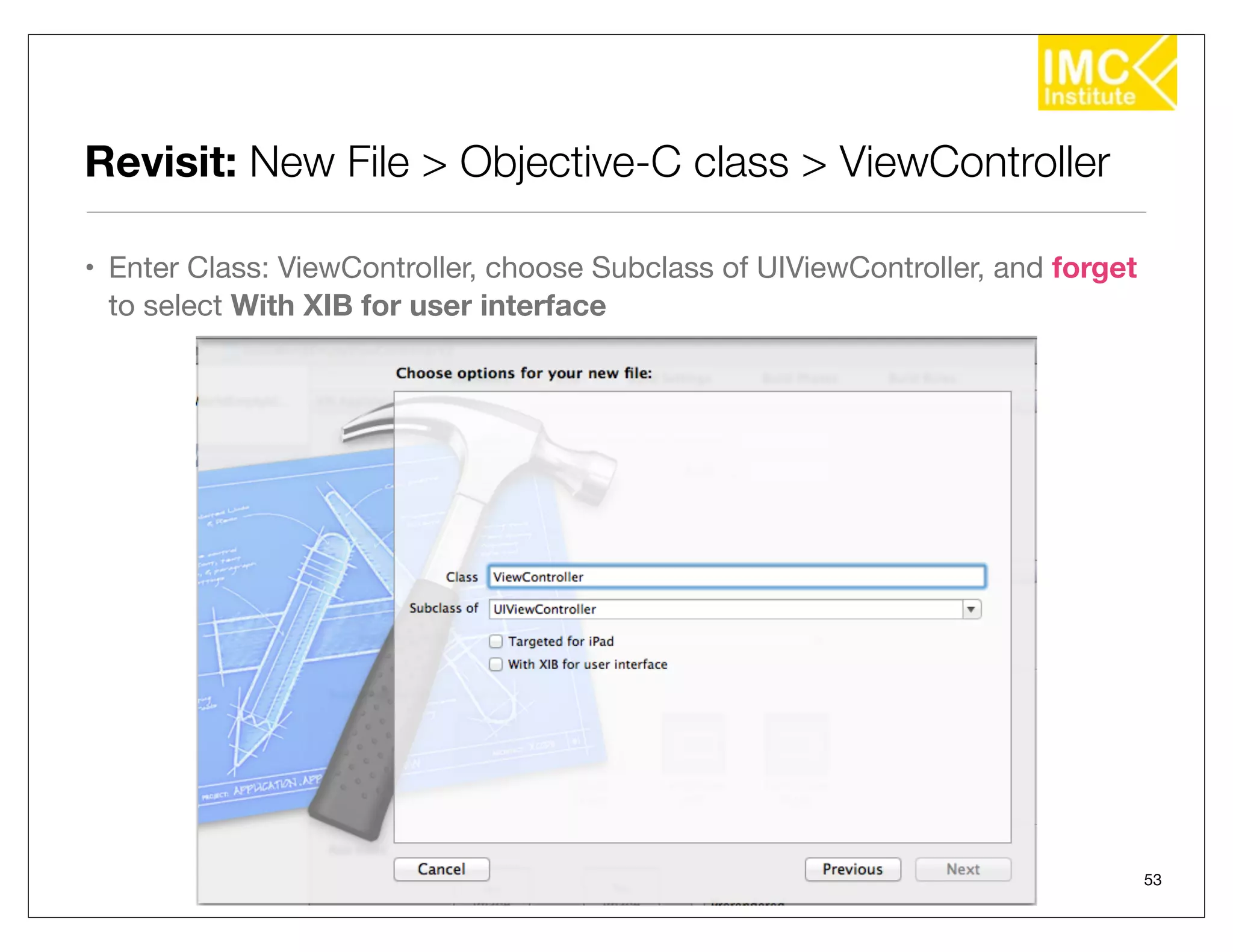

53. Revisit: New File > Objective-C class > ViewController
• Enter Class: ViewController, choose Subclass of UIViewController, and forget
to select With XIB for user interface
53

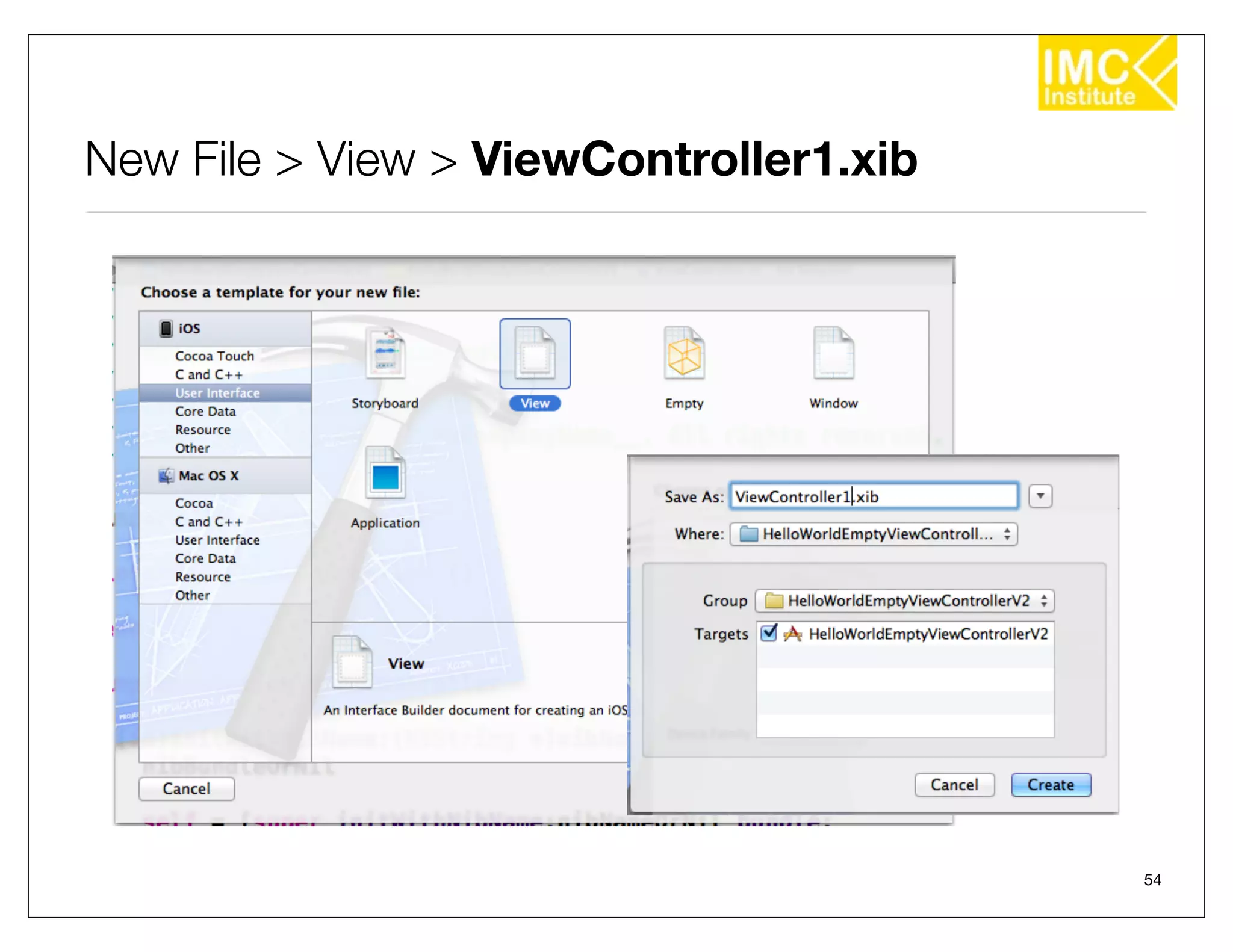

54. New File > View > ViewController1.xib
54

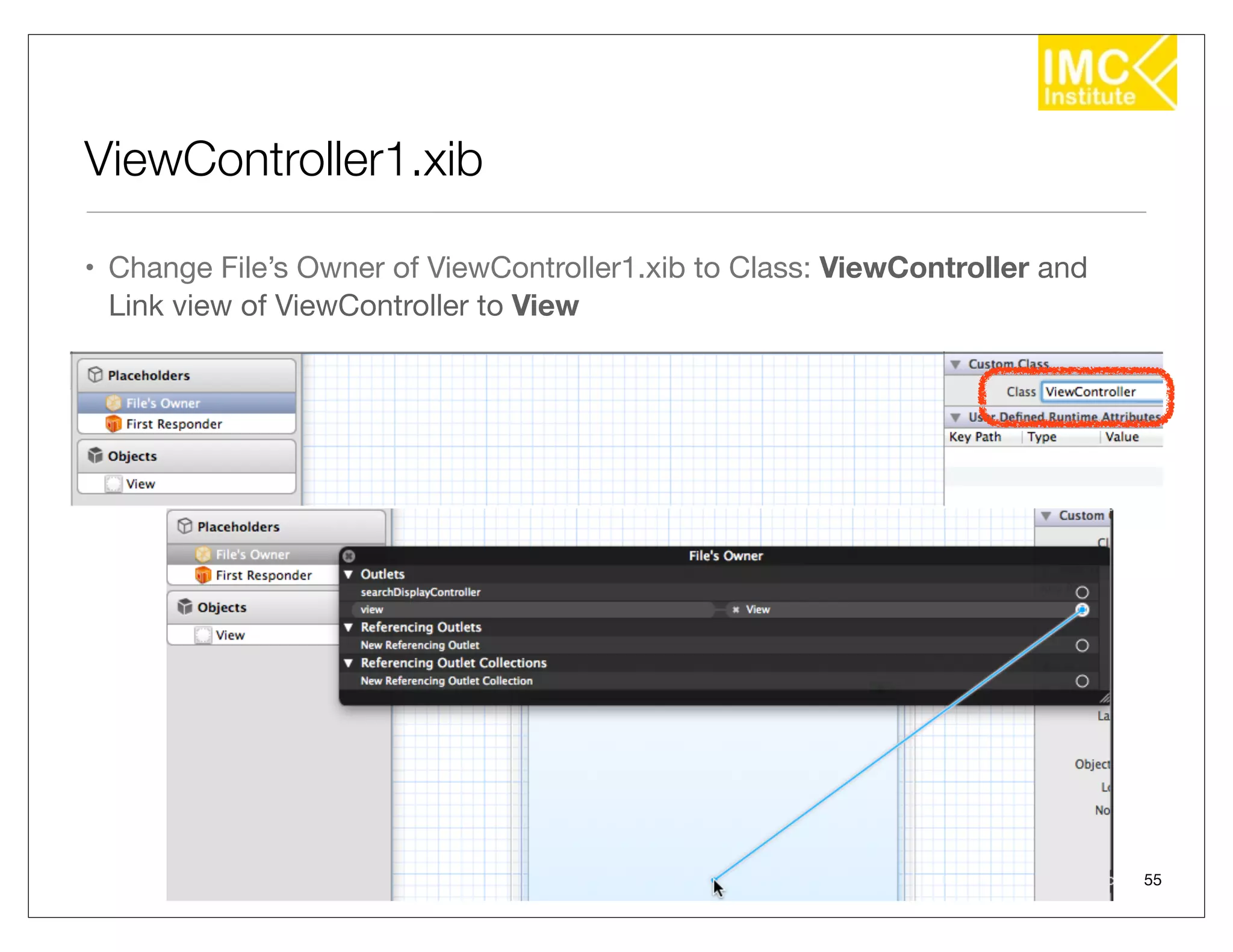

55. ViewController1.xib
• Change File’s Owner of ViewController1.xib to Class: ViewController and
Link view of ViewController to View

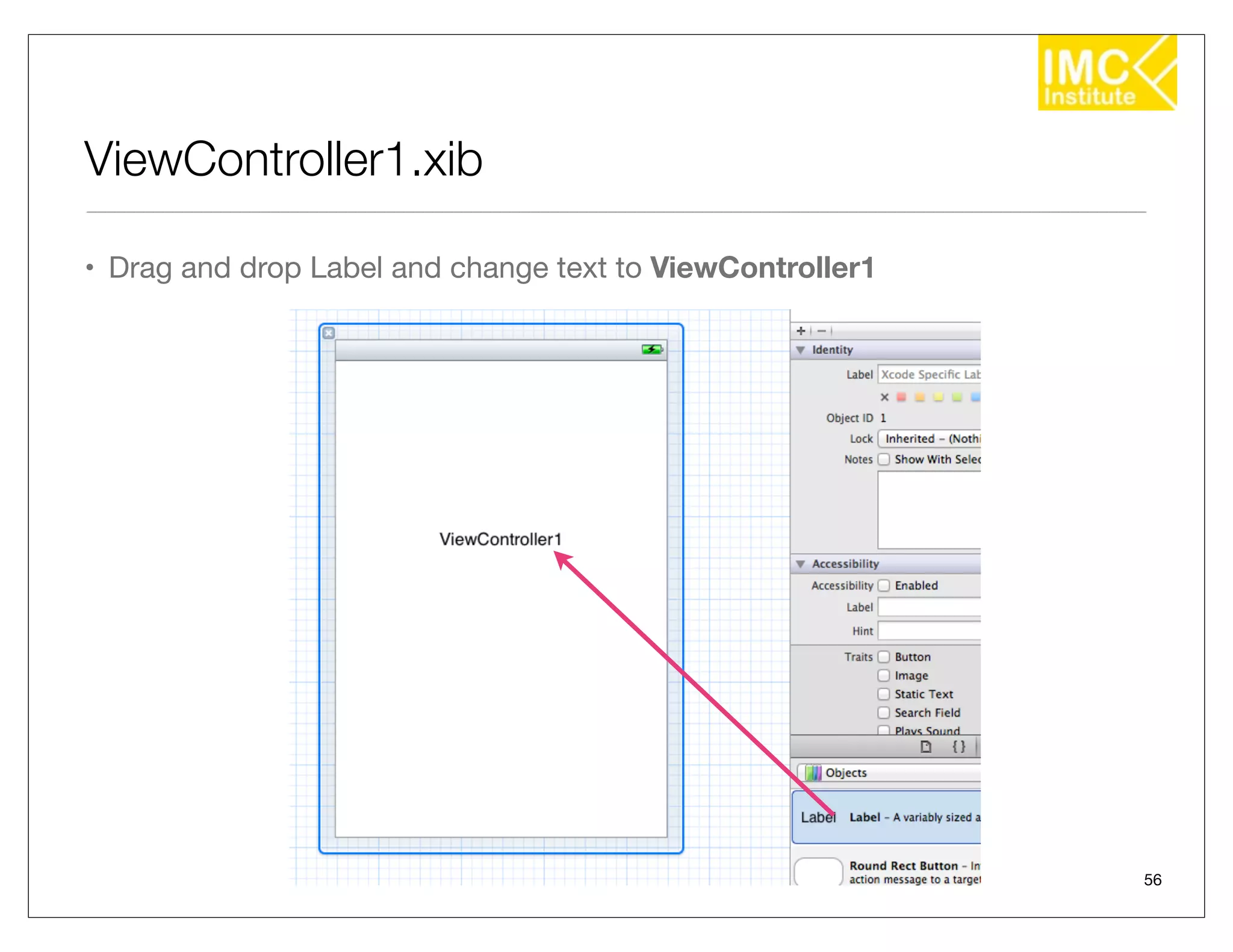

55

56. ViewController1.xib
• Drag and drop Label and change text to ViewController1
56

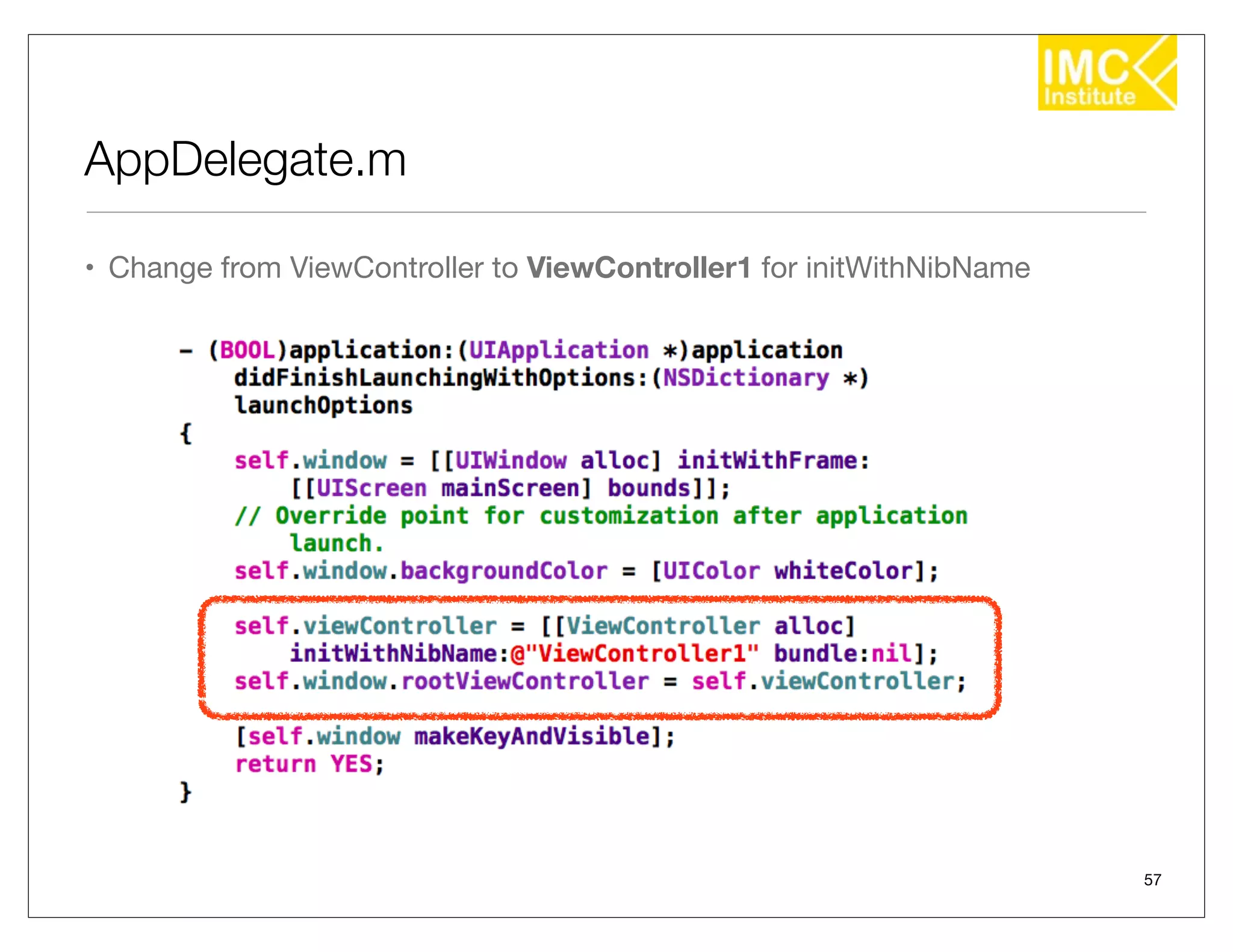

57. AppDelegate.m
• Change from ViewController to ViewController1 for initWithNibName
57

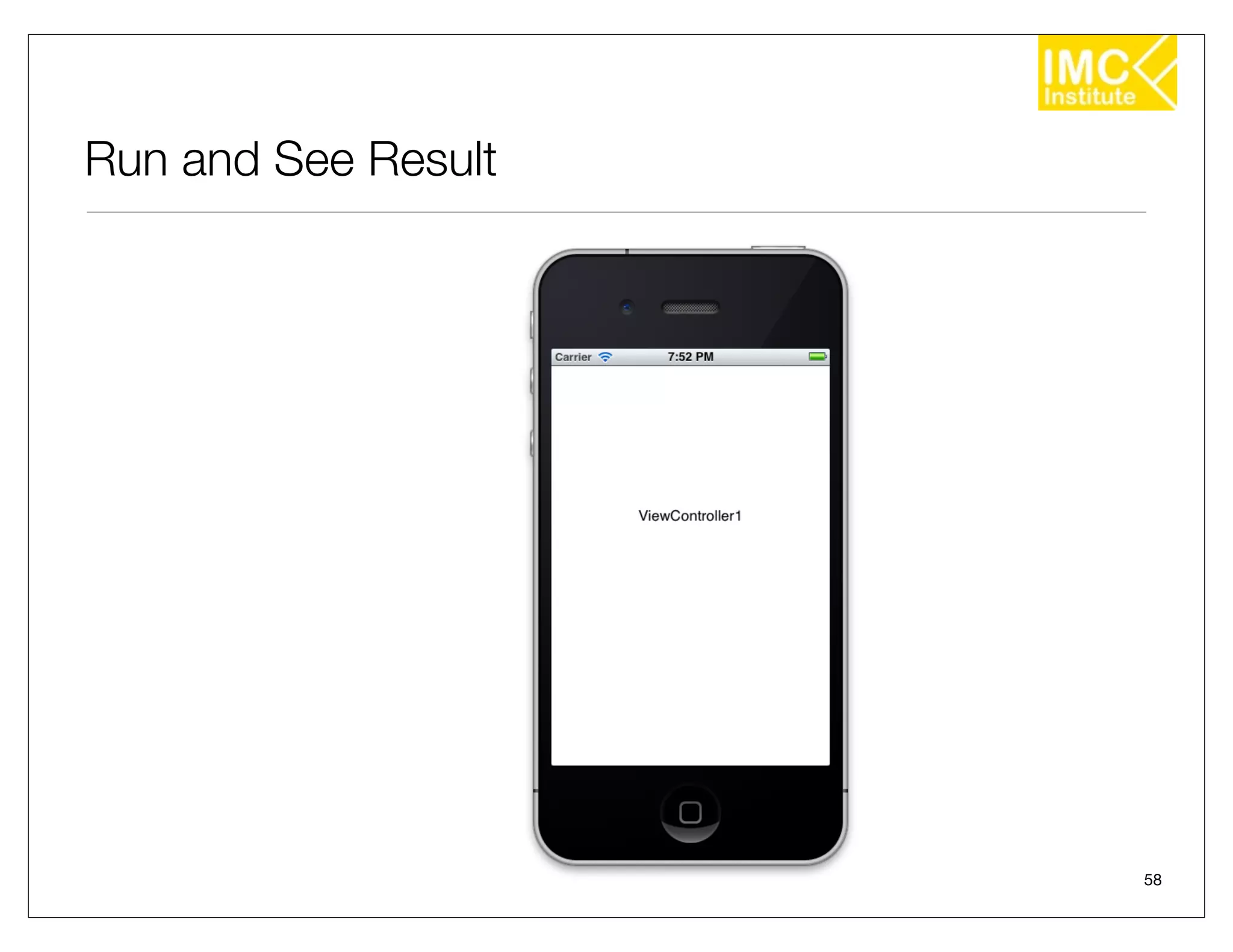

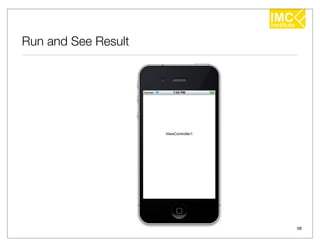

58. Run and See Result
58

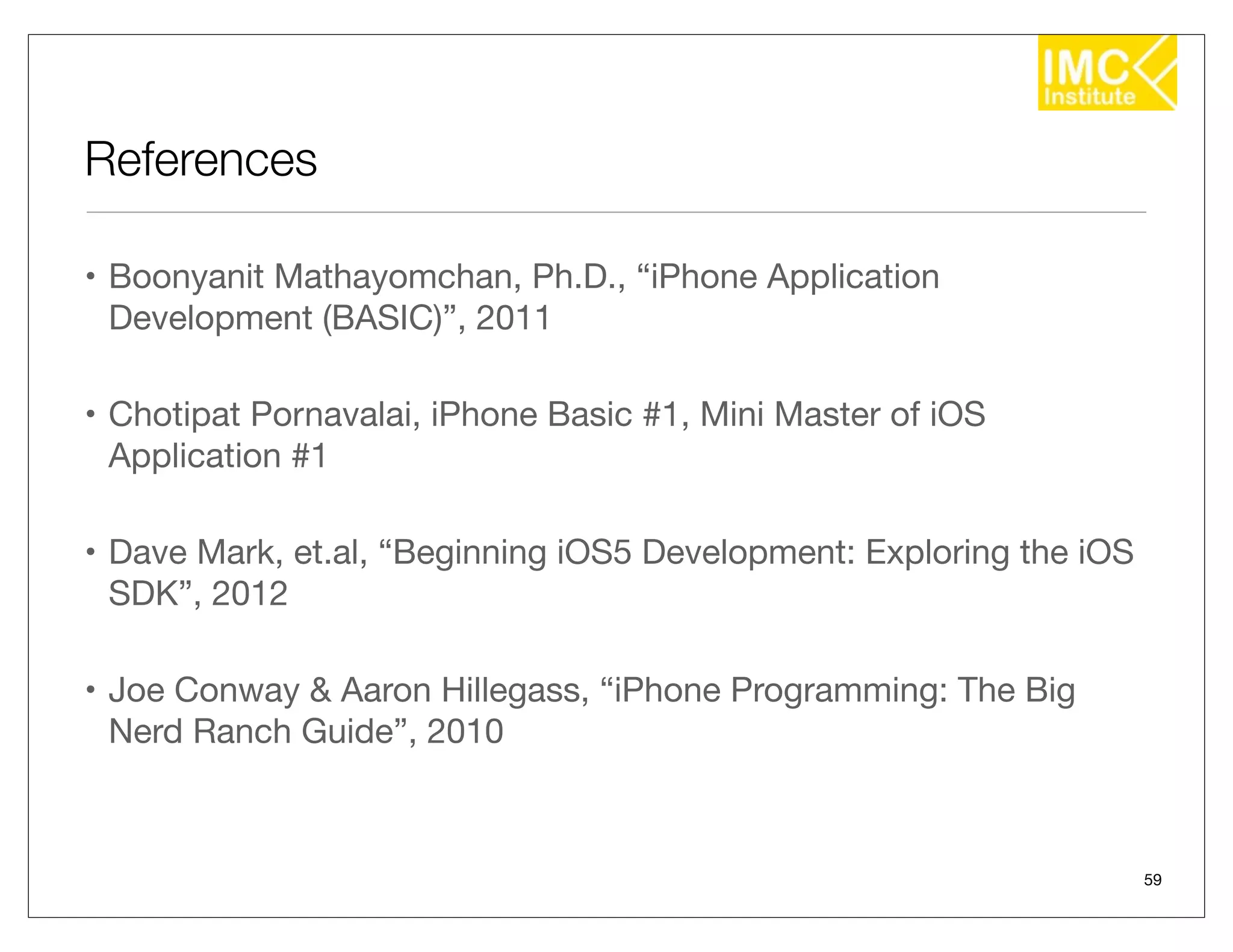

59. References
• Boonyanit Mathayomchan, Ph.D., “iPhone Application
Development (BASIC)”, 2011
• Chotipat Pornavalai, iPhone Basic #1, Mini Master of iOS
Application #1
• Dave Mark, et.al, “Beginning iOS5 Development: Exploring the iOS
SDK”, 2012
• Joe Conway & Aaron Hillegass, “iPhone Programming: The Big
Nerd Ranch Guide”, 2010
59
