- 1. Drupal 8: The PluginSystem
- 2. Ajit Shinde @azeets AjitS Sr. DrupalDeveloper Piyuesh Kumar @piyuesh23 Drupal Architect

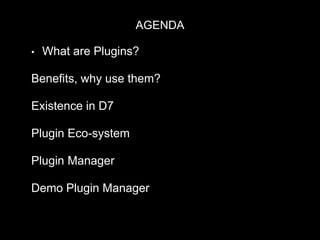

- 3. • What arePlugins? Benefits, why use them? Existence in D7 Plugin Eco-system Plugin Manager Demo Plugin Manager AGENDA

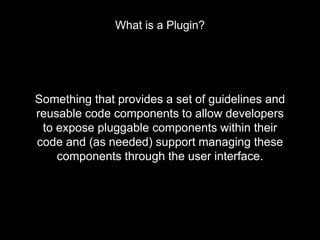

- 4. Something that providesa set of guidelines and reusable code components to allow developers to expose pluggable components within their code and (as needed) support managing these components through the user interface. What is a Plugin?

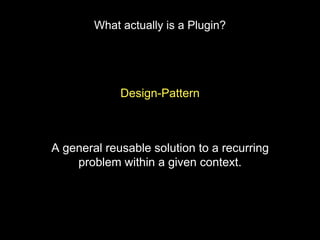

- 5. Design-Pattern A general reusablesolution to a recurring problem within a given context. What actually is a Plugin?
- 6.
- 7. • Not tiedwith Drupal Lazy loaded Extensible because of the use of object oriented programming concept : class Interface driven Does only one thing at a time Swappable Why Plugins / Benefits?

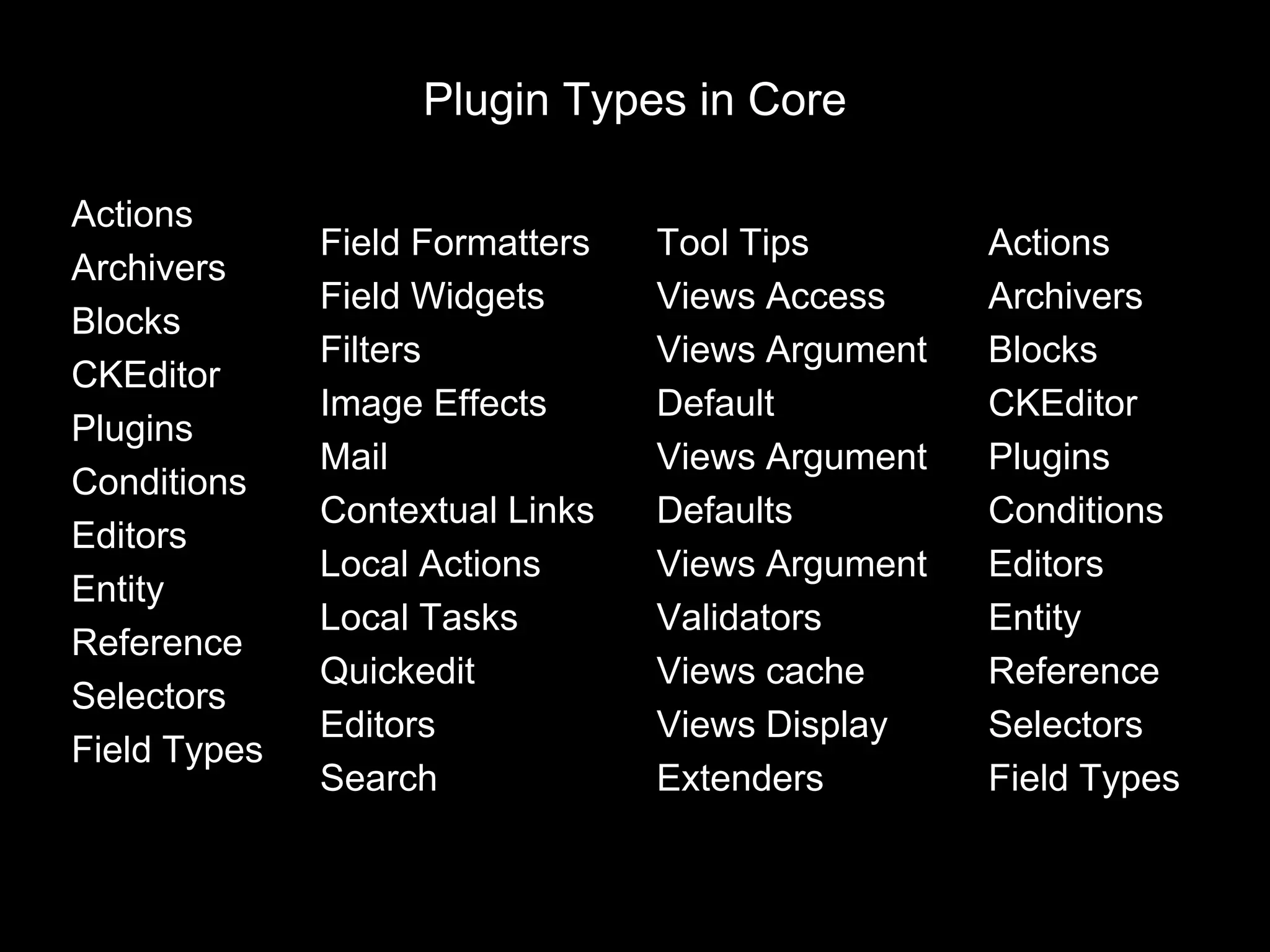

- 8. Plugin Types inCore Field Formatters Field Widgets Filters Image Effects Mail Contextual Links Local Actions Local Tasks Quickedit Editors Search Tool Tips Views Access Views Argument Default Views Argument Defaults Views Argument Validators Views cache Views Display Extenders Actions Archivers Blocks CKEditor Plugins Conditions Editors Entity Reference Selectors Field Types Actions Archivers Blocks CKEditor Plugins Conditions Editors Entity Reference Selectors Field Types

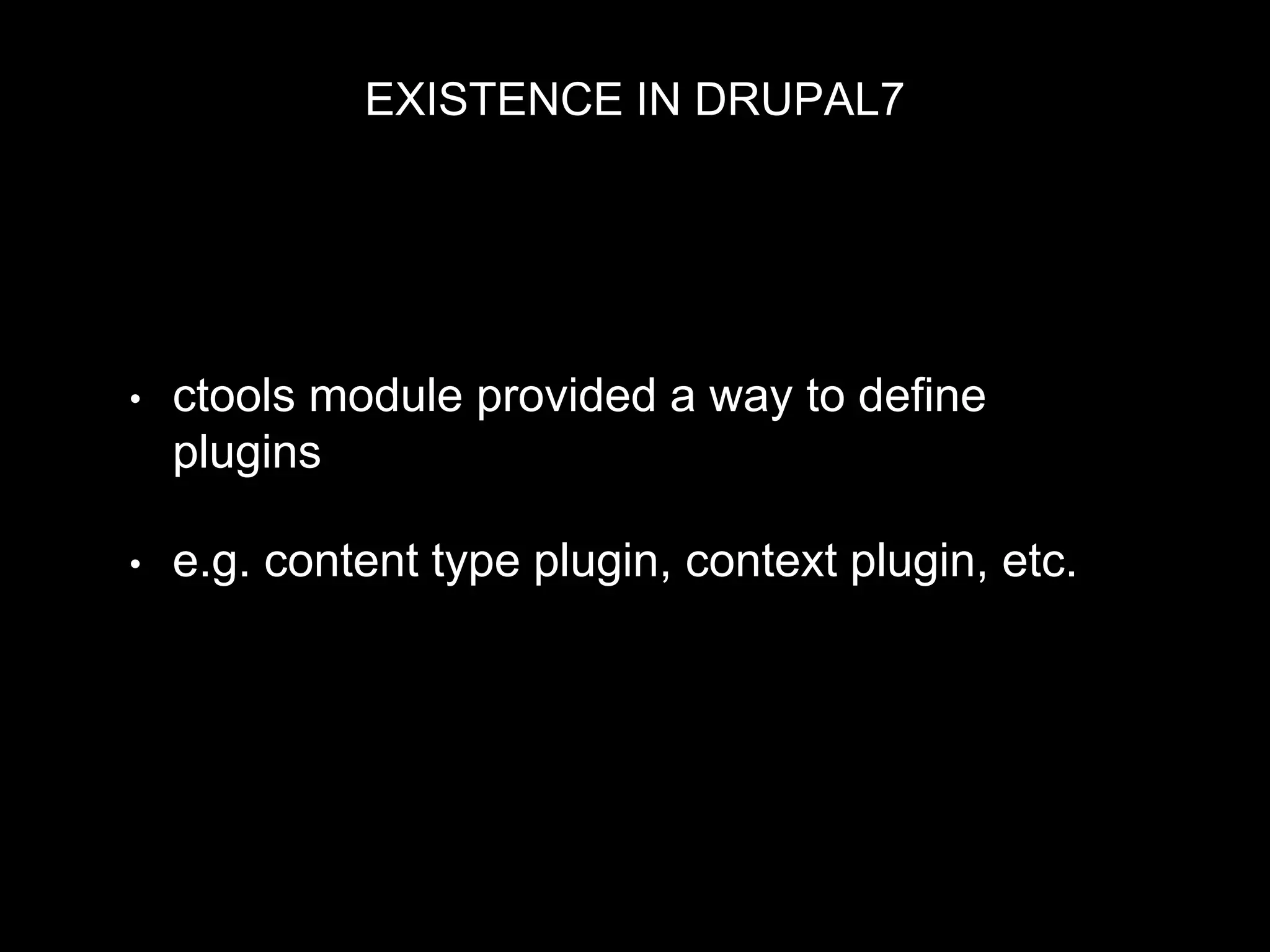

- 9. EXISTENCE IN DRUPAL7 •ctools module provided a way to define plugins • e.g. content type plugin, context plugin, etc.
- 10.

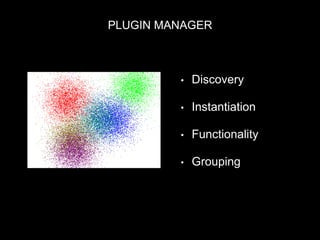

- 11. PLUGIN MANAGER • Discovery •Instantiation • Functionality • Grouping

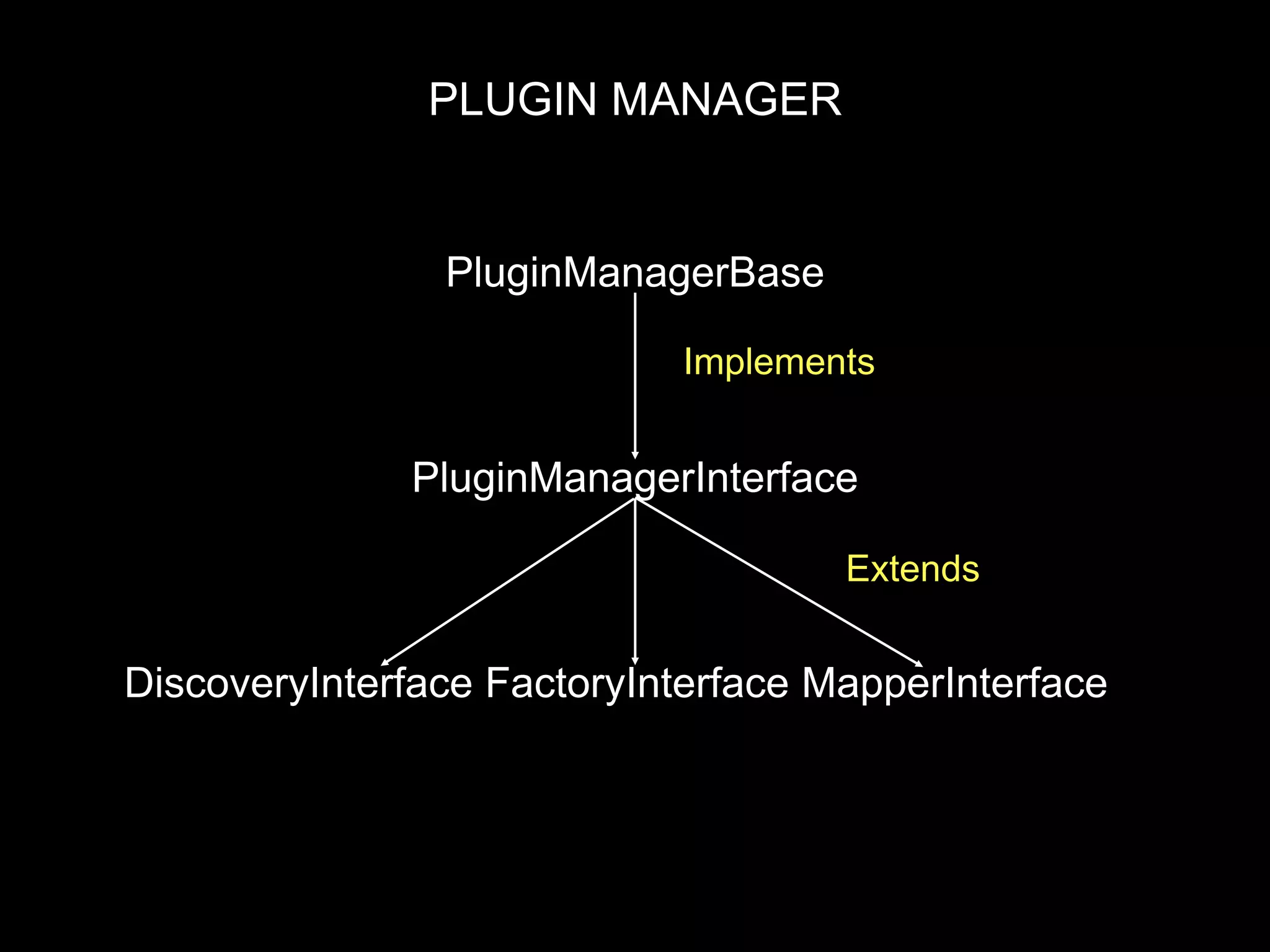

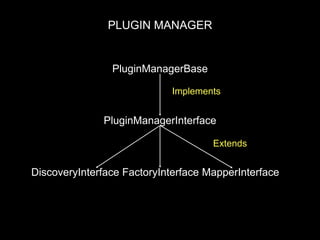

- 12. PLUGIN MANAGER PluginManagerBase PluginManagerInterface DiscoveryInterface FactoryInterfaceMapperInterface Implements Extends

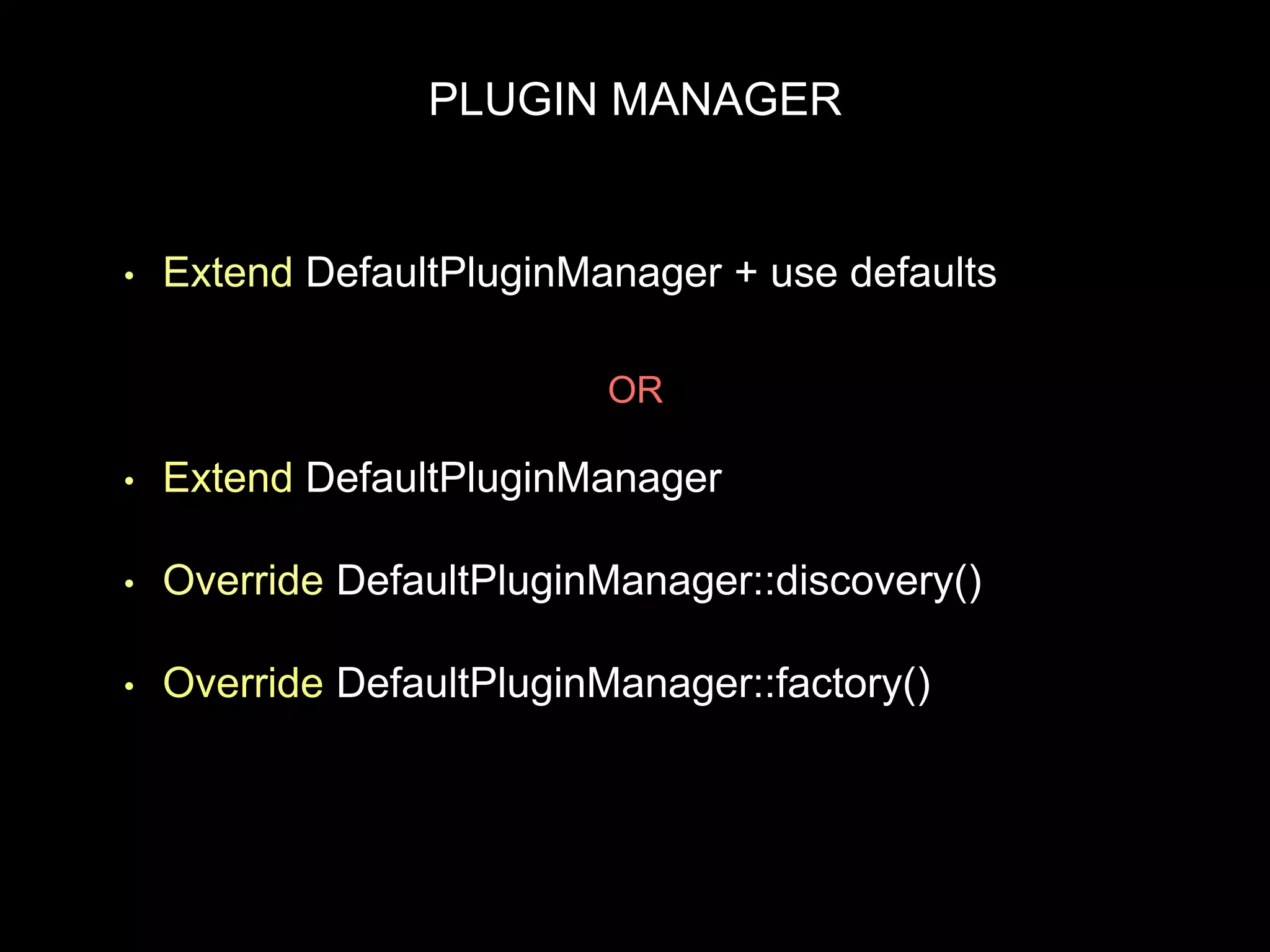

- 13. PLUGIN MANAGER • ExtendDefaultPluginManager + use defaults • Extend DefaultPluginManager • Override DefaultPluginManager::discovery() • Override DefaultPluginManager::factory() OR
- 14. HELPER FUNCTIONS • getDefinition/s() •getDiscovery() • getFactory() • createInstance() • getInstance()
- 15. PLUGIN DISCOVERY • AnnotatedPlugin Discovery • Hook Based Plugin Discovery • YAML Based Plugin Discovery • Static Plugin Discovery

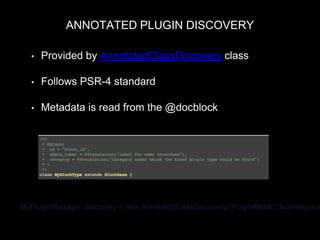

- 16. ANNOTATED PLUGIN DISCOVERY •Provided by AnnotatedClassDiscovery class • Follows PSR-4 standard • Metadata is read from the @docblock MyPluginManager::discovery = new AnnotatedClassDiscovery(‘Plugin/Block’, $namespace

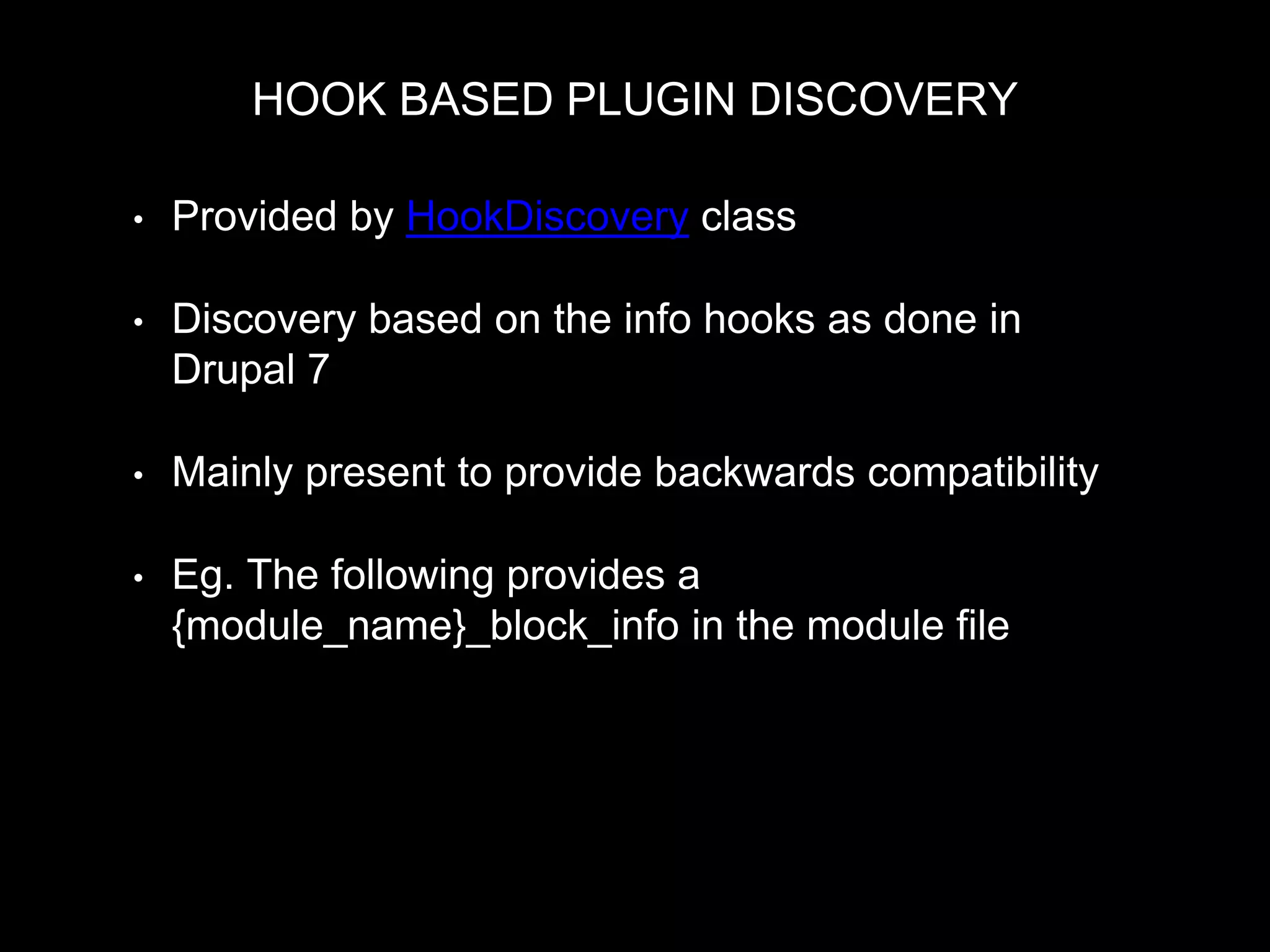

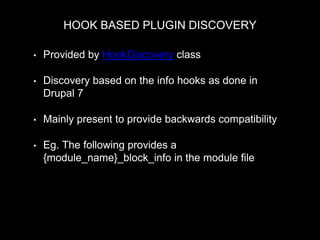

- 17. HOOK BASED PLUGINDISCOVERY • Provided by HookDiscovery class • Discovery based on the info hooks as done in Drupal 7 • Mainly present to provide backwards compatibility • Eg. The following provides a {module_name}_block_info in the module file MyPluginManager::discovery = new HookDiscovery($this->moduleHandler, 'block_info');

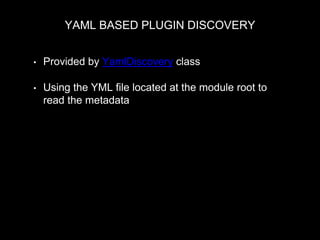

- 18. YAML BASED PLUGINDISCOVERY • Provided by YamlDiscovery class • Using the YML file located at the module root to read the metadata MyPluginManager::discovery = new YamlDiscovery('blocks', $module_handler->getModuleDirectories()); E.g. mymodule.blocks.yml block: id: "block_id" admin_label: "Label for user interface" category: "Category of the block"

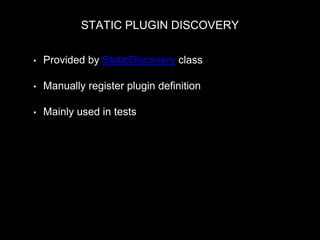

- 19. STATIC PLUGIN DISCOVERY •Provided by StaticDiscovery class • Manually register plugin definition • Mainly used in tests MyPluginManager::discovery = new StaticDiscovery();

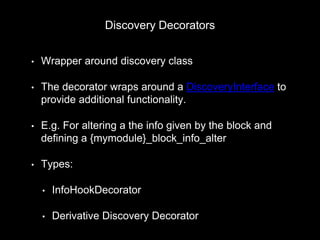

- 20. Discovery Decorators • Wrapperaround discovery class • The decorator wraps around a DiscoveryInterface to provide additional functionality. • E.g. For altering a the info given by the block and defining a {mymodule}_block_info_alter • Types: • InfoHookDecorator • Derivative Discovery Decorator
- 21. INFOHOOK DECORATOR • Addsprocessing for plugins exposed via info hooks. MyPluginManager::discovery = new InfoHookDecorator( new HookDiscovery('block_info'), 'block_info_alter');

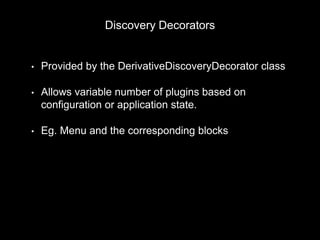

- 22. Discovery Decorators • Providedby the DerivativeDiscoveryDecorator class • Allows variable number of plugins based on configuration or application state. • Eg. Menu and the corresponding blocks MyPluginManager::discovery = new DerivativeDiscoveryDecorator( new HookDiscovery('block_info'));

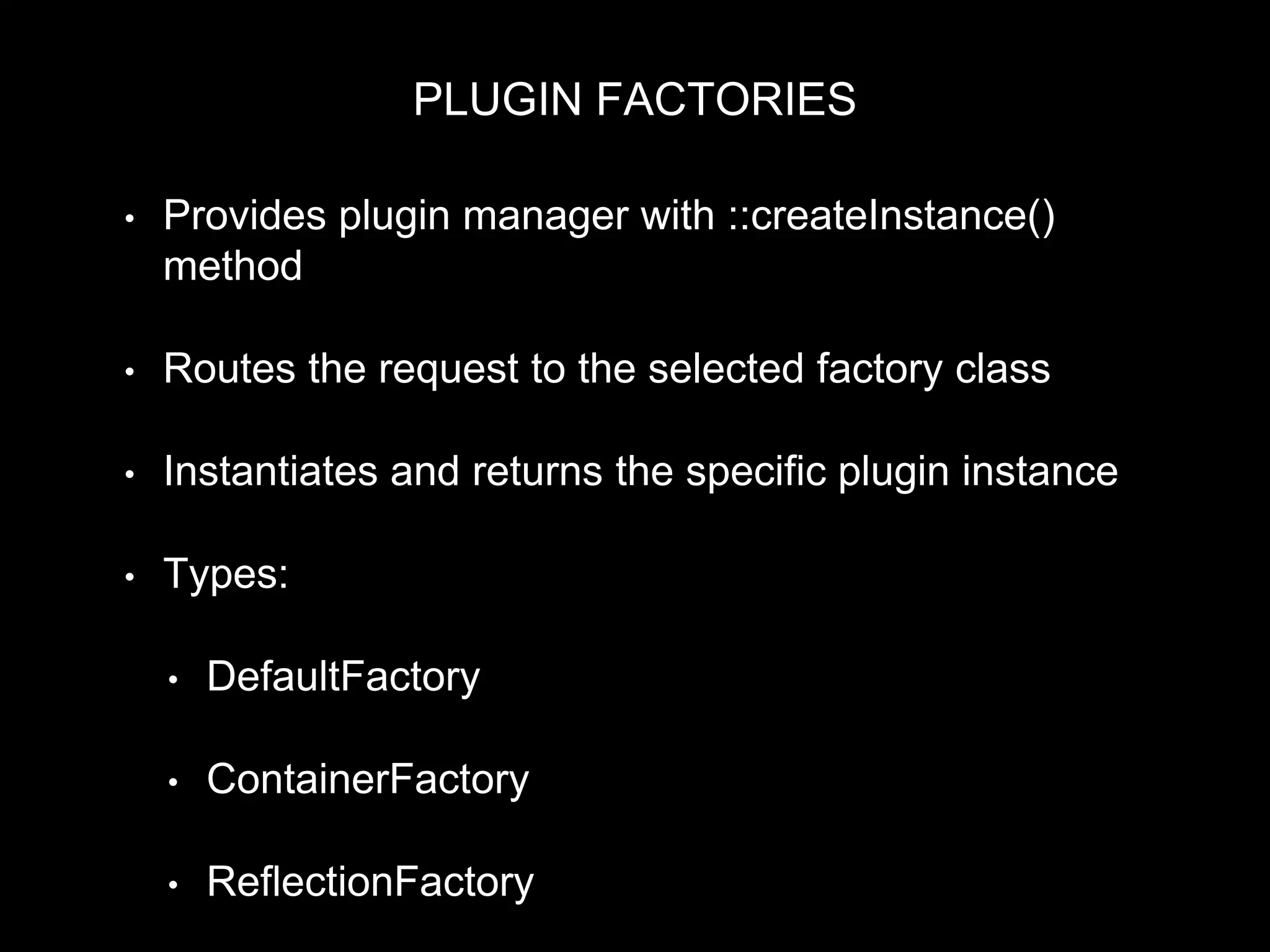

- 23. PLUGIN FACTORIES • Providesplugin manager with ::createInstance() method • Routes the request to the selected factory class • Instantiates and returns the specific plugin instance • Types: • DefaultFactory • ContainerFactory • ReflectionFactory

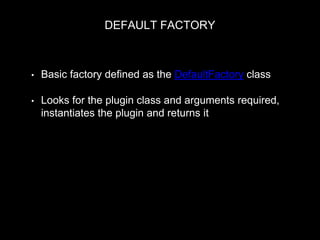

- 24. DEFAULT FACTORY • Basicfactory defined as the DefaultFactory class • Looks for the plugin class and arguments required, instantiates the plugin and returns it return new $plugin_class($configuration, $plugin_id, $plugin_definition);

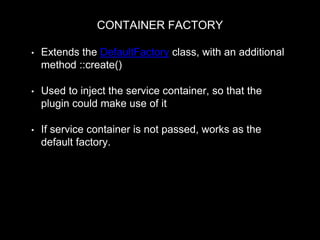

- 25. CONTAINER FACTORY • Extendsthe DefaultFactory class, with an additional method ::create() • Used to inject the service container, so that the plugin could make use of it • If service container is not passed, works as the default factory. return $plugin_class::create(Drupal::getContainer(), $configuration, $plugin_id, $plugin_definition);

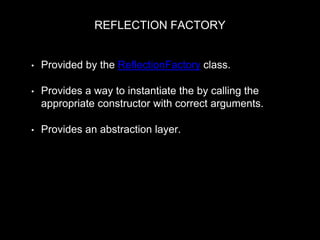

- 26. REFLECTION FACTORY • Providedby the ReflectionFactory class. • Provides a way to instantiate the by calling the appropriate constructor with correct arguments. • Provides an abstraction layer. $arguments = $this->getInstanceArguments($reflector, $plugin_id, $plugin_definition, $configuration); $instance = $reflector->newInstanceArgs($arguments); return $instance

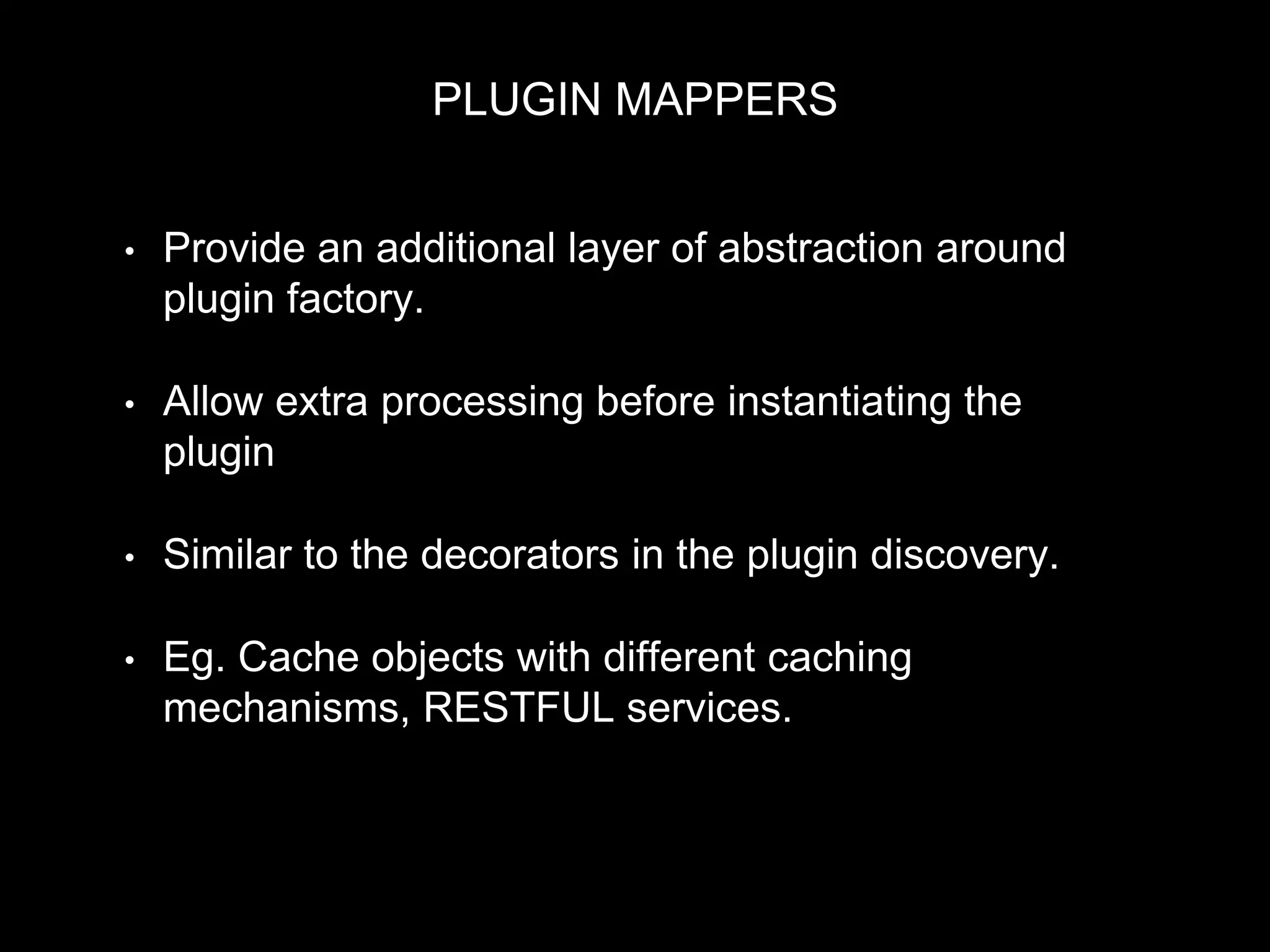

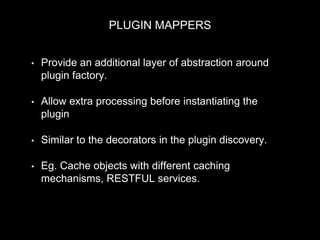

- 27. PLUGIN MAPPERS • Providean additional layer of abstraction around plugin factory. • Allow extra processing before instantiating the plugin • Similar to the decorators in the plugin discovery. • Eg. Cache objects with different caching mechanisms, RESTFUL services.
- 28.
- 29.
- 30.
