Introduction to (x)html

Prepared By: Er. Nawaraj
Bhandari
DESIGNING AND DEVELOPING A
WEBSITE
Topic 2:
Introduction to (X)HTML

HTML
• Hyper Text Markup language.
• Markup refers to the sequence of characters that
describes the document’s structure and how the
file should look when it is printed or displayed.
• HTML does not define what a page looks like!
For that we have CSS.
• Extension is html or htm.
• Write code in any text editor (e.g. Notepad,
Notepad++, Dream weaver, etc) and save as
filename.html/htm
• Initially, html deals with only text but now
multimedia too.
• Html is not a case sensitive.

HTML Tags
• The markup indicators are often called "tags."
• Beings with an open angle bracket (<) and ends
with close angle bracket (>).
• e.g. <html>, <head>, <br/>, <table>, etc.
• Two types: -
1. Singular Tag or Empty Elements
• Tag that comes alone, no closing tag.
• It doesn’t contain any content.
• e.g <br />, <hr />, <img />, etc.

HTML Tags
2. Paired Tag
• Tag that needs opening and closing tag.
• e.g. <h1>Welcome to HTML</h1>
• <h1> is opening tag. </h1> is closing tag. “Welcome to
HTML” is content.
• Some paired tags are :
• <body> , <table>, <tr>, <b> , etc.
• Last In First Out (LIFO) concept
• i.e. last tag should be closed first.

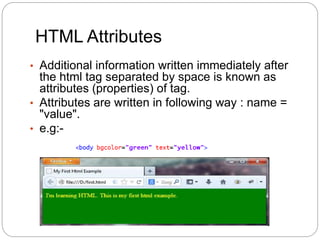

HTML Attributes
• Additional information written immediately after
the html tag separated by space is known as
attributes (properties) of tag.
• Attributes are written in following way : name =
"value".
• e.g:-

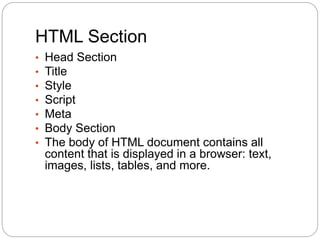

HTML Section
• Head Section
• Title
• Style
• Script
• Meta
• Body Section
• The body of HTML document contains all
content that is displayed in a browser: text,
images, lists, tables, and more.

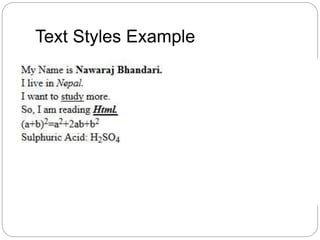

Text Styles
• Bold <b>...............</b> /
<strong>..............</strong>
• Italic <i>................</i> /
<em>..................</em>
• Underlined <u>..................</u>
• Superscript <sup> ………</sup>
• Subscript <sub> …………</sub>

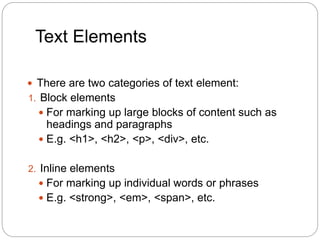

Text Elements
 There are two categories of text element:
1. Block elements
 For marking up large blocks of content such as
headings and paragraphs
 E.g. <h1>, <h2>, <p>, <div>, etc.
2. Inline elements
 For marking up individual words or phrases
 E.g. <strong>, <em>, <span>, etc.

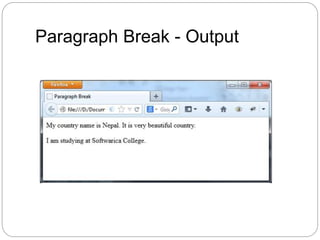

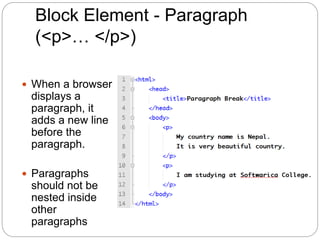

Block Element - Paragraph
(<p>… </p>)
 When a browser
displays a
paragraph, it
adds a new line
before the
paragraph.
 Paragraphs
should not be
nested inside
other
paragraphs

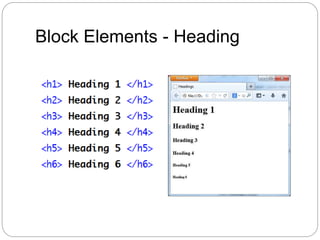

Block Elements - Heading
 There are 6 different levels of headings. <h1> to
<h6>.
 The highest level header format is <h1> and the
lowest is <h6> i.e:- font size decreases.
 All the styles appeared in bold face.
 Headings shouldn’t be nested inside other
headings.

Inline Elements
 Inline elements are used to markup small portions
of text.
 Inline elements must always be nested inside a
block level element.

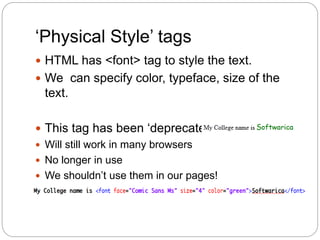

‘Physical Style’ tags
 HTML has <font> tag to style the text.
 We can specify color, typeface, size of the
text.
 This tag has been ‘deprecated’:
 Will still work in many browsers
 No longer in use
 We shouldn’t use them in our pages!

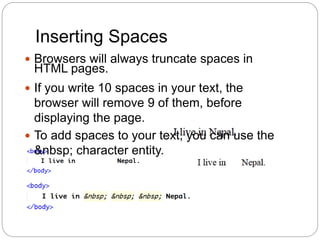

Inserting Spaces
 Browsers will always truncate spaces in
HTML pages.
 If you write 10 spaces in your text, the
browser will remove 9 of them, before
displaying the page.
 To add spaces to your text, you can use the
  character entity.

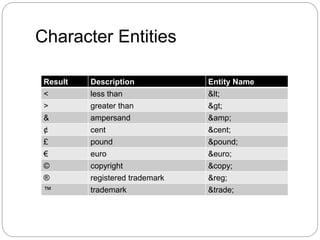

Character Entities
Result Description Entity Name
< less than <
> greater than >
& ampersand &
¢ cent ¢
£ pound £
€ euro €
© copyright ©
® registered trademark ®
™ trademark ™

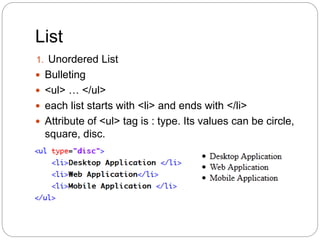

List
1. Unordered List
 Bulleting
 <ul> … </ul>
 each list starts with <li> and ends with </li>
 Attribute of <ul> tag is : type. Its values can be circle,
square, disc.

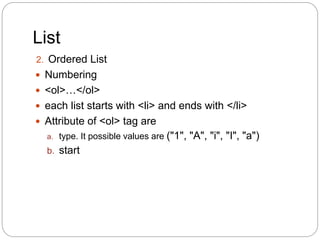

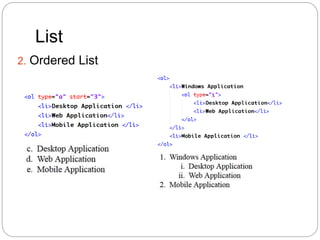

List
2. Ordered List
 Numbering
 <ol>…</ol>
 each list starts with <li> and ends with </li>
 Attribute of <ol> tag are
a. type. It possible values are ("1", "A", "i", "I", "a")
b. start

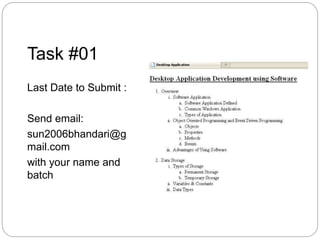

Task #01
Last Date to Submit :
Send email:
sun2006bhandari@g
mail.com
with your name and
batch

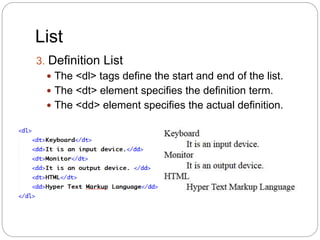

List
3. Definition List
 The <dl> tags define the start and end of the list.
 The <dt> element specifies the definition term.
 The <dd> element specifies the actual definition.

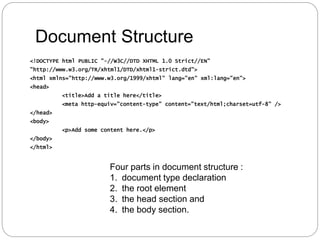

Document Structure
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
<html xmlns="http://www.w3.org/1999/xhtml" lang="en" xml:lang="en">
<head>
<title>Add a title here</title>
<meta http-equiv="content-type" content="text/html;charset=utf-8" />
</head>
<body>
<p>Add some content here.</p>
</body>
</html>
Four parts in document structure :
1. document type declaration
2. the root element
3. the head section and
4. the body section.

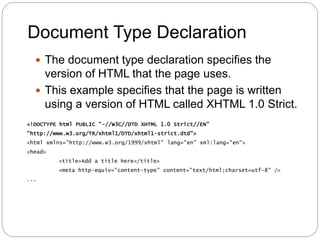

Document Type Declaration
 The document type declaration specifies the
version of HTML that the page uses.
 This example specifies that the page is written
using a version of HTML called XHTML 1.0 Strict.
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
<head>
<meta http-equiv="content-type" content="text/html;charset=utf-8" />
...

 This is the same document re-
written as HTML 5
 Elements, tags and attributes work
in exactly the same way.
 Different document type declaration
<!DOCTYPE HTML>
<html lang="en">
<head>
<meta http-equiv="content-type" content="text/html;charset=utf-8"
/>
</head>
<body>
<p>Add some content here.</p>
</body>
</html>

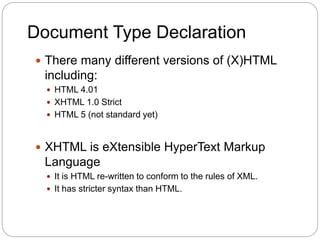

 There many different versions of (X)HTML
including:
 HTML 4.01
 XHTML 1.0 Strict
 HTML 5 (not standard yet)
 XHTML is eXtensible HyperText Markup
Language
 It is HTML re-written to conform to the rules of XML.
 It has stricter syntax than HTML.

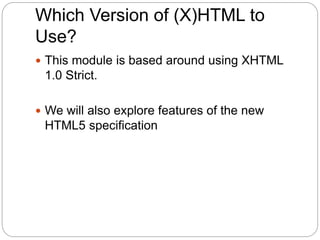

Which Version of (X)HTML to
Use?
 This module is based around using XHTML
1.0 Strict.
 We will also explore features of the new
HTML5 specification

The Root Element
 The root element <html> encloses all other
elements
 XMLNS attribute
 This specifies the XML namespace for the page.
 lang and xml:lang
 These attributes specify the language used to write the
document.

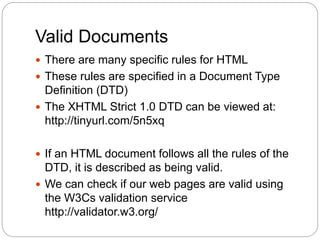

Valid Documents
 There are many specific rules for HTML
 These rules are specified in a Document Type
Definition (DTD)
 The XHTML Strict 1.0 DTD can be viewed at:
http://tinyurl.com/5n5xq
 If an HTML document follows all the rules of the
DTD, it is described as being valid.
 We can check if our web pages are valid using
the W3Cs validation service
http://validator.w3.org/

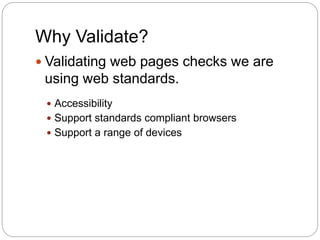

Why Validate?
 Validating web pages checks we are
using web standards.
 Accessibility
 Support standards compliant browsers
 Support a range of devices

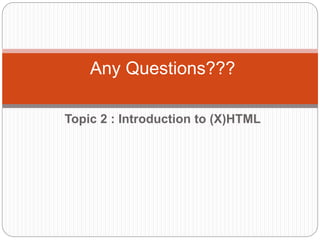

Any Questions???
Topic 2 : Introduction to (X)HTML

References
 XHTML 1.0 Strict Cheat Sheet
 Available at: http://www.w3.org/2010/04/xhtml10-
strict.html
 http://www.w3schools.com/html/html_entities.
asp
