This document discusses imaging of the urinary tract, including KUB (kidneys, ureters, bladder) radiography and intravenous urography (IVU). It provides details on: - The standard KUB technique using two abdominal x-ray images to outline the kidneys, ureters and bladder. - The classic IVU procedure involving a series of x-ray images before and after intravenous injection of iodine contrast to visualize the functioning of the kidneys and urinary tract. - Modifications of IVU for specific situations like urinary obstruction or pregnancy to minimize radiation exposure.

1. I V U
dr. rajendra prasad
ray

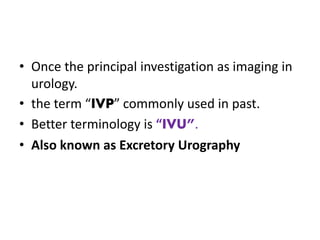

2. • Once the principal investigation as imaging in
urology.
• the term “IVP” commonly used in past.
• Better terminology is “IVU”.
• Also known as Excretory Urography

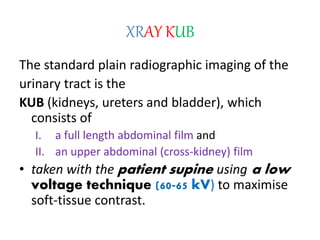

3. XRAY KUB
The standard plain radiographic imaging of the
urinary tract is the
KUB (kidneys, ureters and bladder), which
consists of
I. a full length abdominal film and
II. an upper abdominal (cross-kidney) film
• taken with the patient supine using a low
voltage technique (60-65 kV) to maximise
soft-tissue contrast.

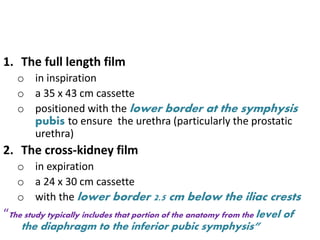

4. 1. The full length film
o in inspiration
o a 35 x 43 cm cassette
o positioned with the lower border at the symphysis
pubis to ensure the urethra (particularly the prostatic
urethra)
2. The cross-kidney film
o in expiration
o a 24 x 30 cm cassette
o with the lower border 2.5 cm below the iliac crests
“The study typically includes that portion of the anatomy from the level of
the diaphragm to the inferior pubic symphysis”

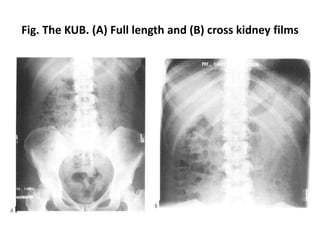

5. Fig. The KUB. (A) Full length and (B) cross kidney films

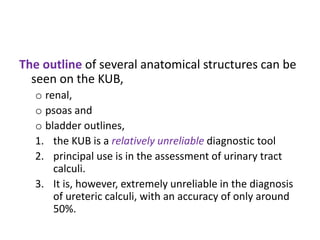

6. The outline of several anatomical structures can be
seen on the KUB,
o renal,
o psoas and
o bladder outlines,
1. the KUB is a relatively unreliable diagnostic tool
2. principal use is in the assessment of urinary tract
calculi.
3. It is, however, extremely unreliable in the diagnosis
of ureteric calculi, with an accuracy of only around
50%.

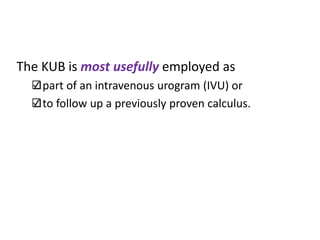

7. The KUB is most usefully employed as
part of an intravenous urogram (IVU) or
to follow up a previously proven calculus.

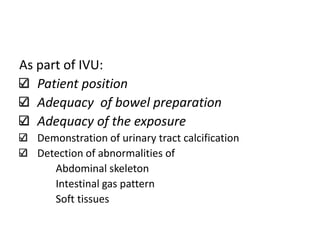

8. As part of IVU:
Patient position
Adequacy of bowel preparation
Adequacy of the exposure
Demonstration of urinary tract calcification
Detection of abnormalities of
Abdominal skeleton
Intestinal gas pattern
Soft tissues

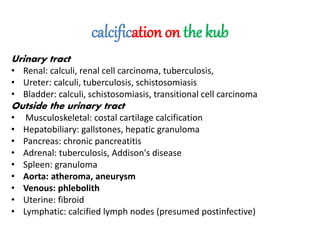

9. calcification on the kub
Urinary tract
• Renal: calculi, renal cell carcinoma, tuberculosis,
• Ureter: calculi, tuberculosis, schistosomiasis
• Bladder: calculi, schistosomiasis, transitional cell carcinoma
Outside the urinary tract
• Musculoskeletal: costal cartilage calcification
• Hepatobiliary: gallstones, hepatic granuloma
• Pancreas: chronic pancreatitis
• Adrenal: tuberculosis, Addison's disease
• Spleen: granuloma
• Aorta: atheroma, aneurysm
• Venous: phlebolith
• Uterine: fibroid
• Lymphatic: calcified lymph nodes (presumed postinfective)

10. digital xray imaging
• Include CR and DR
• Compturised radiology
o Photostimulable phosphors to capture the image
o Read with a laser(red)
o Computer software form a digital image

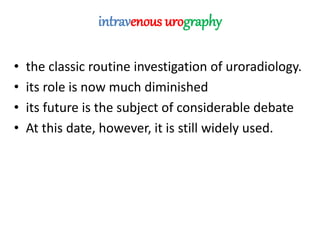

11. intravenous urography
• the classic routine investigation of uroradiology.
• its role is now much diminished
• its future is the subject of considerable debate
• At this date, however, it is still widely used.

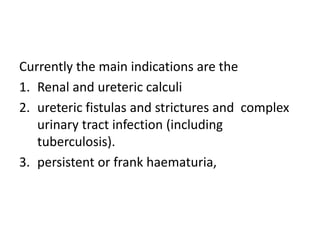

12. Currently the main indications are the
1. Renal and ureteric calculi
2. ureteric fistulas and strictures and complex
urinary tract infection (including
tuberculosis).
3. persistent or frank haematuria,

13. preparation
1. the bowel purged with a strong laxative.
Most patients will need only
clear liquids for 12 hours and an enema 1 hour before the
procedure.
Patients with chronic constipation
complete bowel prep with clear liquids for 12 to 24 hours
and an enema 2 hours before the procedure.
Bowel preparation is now generally regarded as unhelpful and
unpleasant for the patient
2. a period of 4 h starvation and fluid deprivation

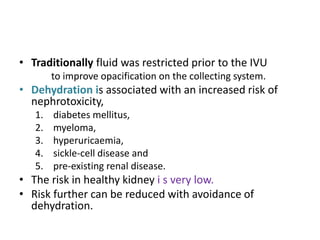

14. • Traditionally fluid was restricted prior to the IVU
to improve opacification on the collecting system.
• Dehydration is associated with an increased risk of
nephrotoxicity,
1. diabetes mellitus,
2. myeloma,
3. hyperuricaemia,
4. sickle-cell disease and
5. pre-existing renal disease.
• The risk in healthy kidney i s very low.
• Risk further can be reduced with avoidance of
dehydration.

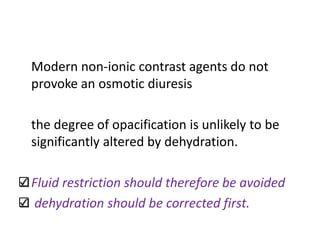

15. Modern non-ionic contrast agents do not
provoke an osmotic diuresis
the degree of opacification is unlikely to be
significantly altered by dehydration.
Fluid restriction should therefore be avoided
dehydration should be corrected first.

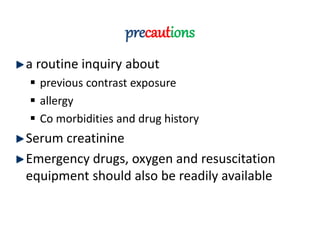

16. precautions
a routine inquiry about
 previous contrast exposure
 allergy
 Co morbidities and drug history
Serum creatinine
Emergency drugs, oxygen and resuscitation
equipment should also be readily available

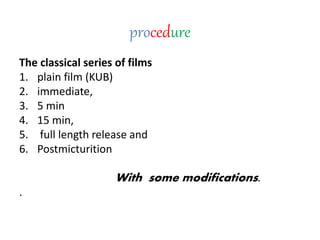

17. procedure
The classical series of films
1. plain film (KUB)
2. immediate,
3. 5 min
4. 15 min,
5. full length release and
6. Postmicturition
With some modifications.
.

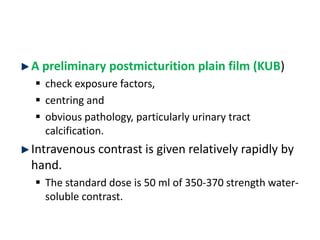

18. A preliminary postmicturition plain film (KUB)
 check exposure factors,
 centring and
 obvious pathology, particularly urinary tract
calcification.
Intravenous contrast is given relatively rapidly by
hand.
 The standard dose is 50 ml of 350-370 strength water-
soluble contrast.

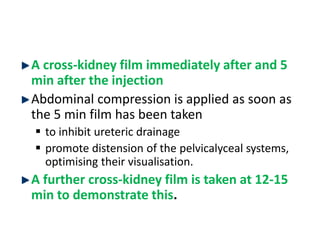

19. A cross-kidney film immediately after and 5
min after the injection
Abdominal compression is applied as soon as
the 5 min film has been taken
 to inhibit ureteric drainage
 promote distension of the pelvicalyceal systems,
optimising their visualisation.
A further cross-kidney film is taken at 12-15
min to demonstrate this.

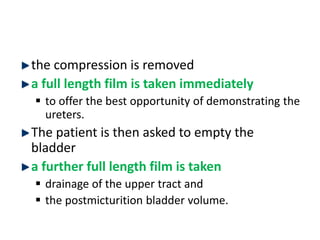

20. the compression is removed
a full length film is taken immediately
 to offer the best opportunity of demonstrating the
ureters.
The patient is then asked to empty the
bladder
a further full length film is taken
 drainage of the upper tract and
 the postmicturition bladder volume.

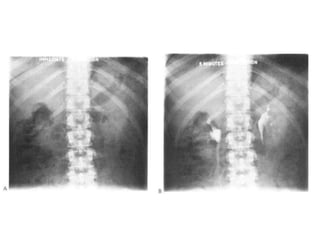

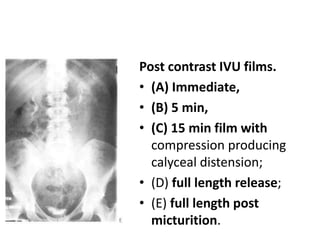

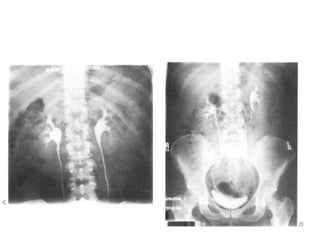

23. Post contrast IVU films.
• (A) Immediate,
• (B) 5 min,
• (C) 15 min film with
compression producing
calyceal distension;
• (D) full length release;
• (E) full length post
micturition.

24. Additionally
Delayed film, oblique film , prone film

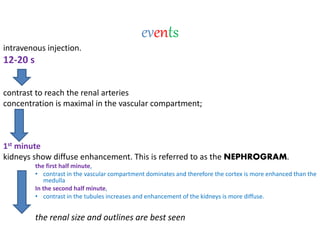

25. events
intravenous injection.
12-20 s
contrast to reach the renal arteries
concentration is maximal in the vascular compartment;
1st minute
kidneys show diffuse enhancement. This is referred to as the NEPHROGRAM.
the first half minute,
• contrast in the vascular compartment dominates and therefore the cortex is more enhanced than the
medulla
In the second half minute,
• contrast in the tubules increases and enhancement of the kidneys is more diffuse.
the renal size and outlines are best seen

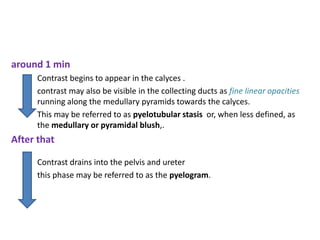

26. around 1 min
Contrast begins to appear in the calyces .
contrast may also be visible in the collecting ducts as fine linear opacities
running along the medullary pyramids towards the calyces.
This may be referred to as pyelotubular stasis or, when less defined, as
the medullary or pyramidal blush,.
After that
Contrast drains into the pelvis and ureter
this phase may be referred to as the pyelogram.

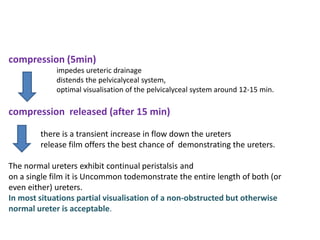

27. compression (5min)
impedes ureteric drainage
distends the pelvicalyceal system,
optimal visualisation of the pelvicalyceal system around 12-15 min.
compression released (after 15 min)
there is a transient increase in flow down the ureters
release film offers the best chance of demonstrating the ureters.
The normal ureters exhibit continual peristalsis and
on a single film it is Uncommon todemonstrate the entire length of both (or
even either) ureters.
In most situations partial visualisation of a non-obstructed but otherwise
normal ureter is acceptable.

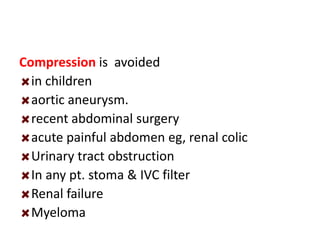

28. Compression is avoided
in children
aortic aneurysm.
recent abdominal surgery
acute painful abdomen eg, renal colic
Urinary tract obstruction
In any pt. stoma & IVC filter
Renal failure
Myeloma

29. modifications
Three circumstances
1.When there is significant acute obstruction
• usually due to calculi,
• there is delay in opacification of the collecting system.
• The delay may be considerable, up to 24 h or more.
• It is then necessary to perform the minimum number of additional
films.
• The time interval between films is approximately doubled, with films
taken at 0.5, 1, 2, 4, 16 and 24 h, as necessary.
in order to minimise the radiation exposure,
 if there is no opacification of an acutely obstructed kidney at 30 min it is
usually unhelpful to perform the next film before around 4 h after
contrast injection.

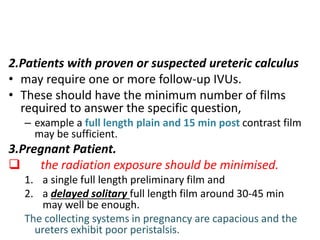

30. 2.Patients with proven or suspected ureteric calculus
• may require one or more follow-up IVUs.
• These should have the minimum number of films
required to answer the specific question,
– example a full length plain and 15 min post contrast film
may be sufficient.
3.Pregnant Patient.
 the radiation exposure should be minimised.
1. a single full length preliminary film and
2. a delayed solitary full length film around 30-45 min
may well be enough.
The collecting systems in pregnancy are capacious and the
ureters exhibit poor peristalsis.

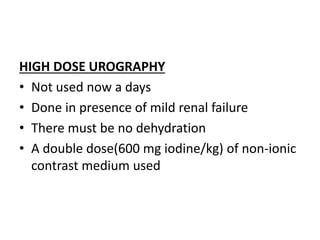

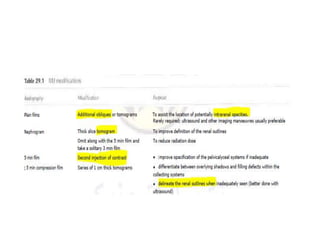

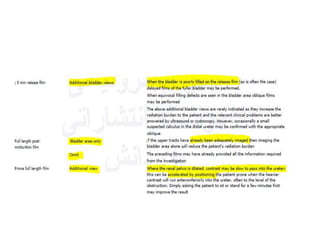

34. HIGH DOSE UROGRAPHY
• Not used now a days
• Done in presence of mild renal failure
• There must be no dehydration
• A double dose(600 mg iodine/kg) of non-ionic
contrast medium used

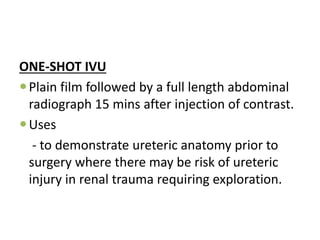

35. ONE-SHOT IVU
Plain film followed by a full length abdominal
radiograph 15 mins after injection of contrast.
Uses
- to demonstrate ureteric anatomy prior to
surgery where there may be risk of ureteric
injury in renal trauma requiring exploration.

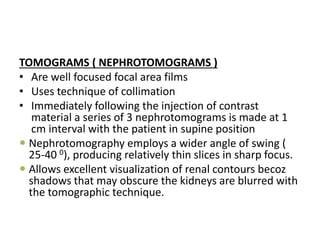

36. TOMOGRAMS ( NEPHROTOMOGRAMS )
• Are well focused focal area films
• Uses technique of collimation
• Immediately following the injection of contrast
material a series of 3 nephrotomograms is made at 1
cm interval with the patient in supine position
 Nephrotomography employs a wider angle of swing (
25-40 0), producing relatively thin slices in sharp focus.
 Allows excellent visualization of renal contours becoz
shadows that may obscure the kidneys are blurred with
the tomographic technique.

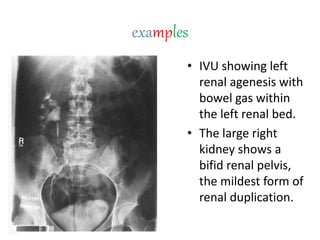

37. examples
• IVU showing left
renal agenesis with
bowel gas within
the left renal bed.
• The large right
kidney shows a
bifid renal pelvis,
the mildest form of
renal duplication.

38. IVU demonstrating a
horseshoe kidney.
“Flower vase
appearance “

39. Duplex ureters on
IVU: complete
bilateral

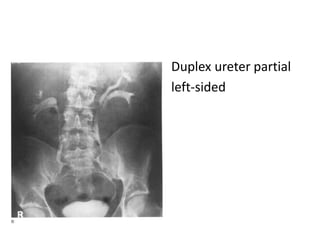

40. Duplex ureter partial
left-sided

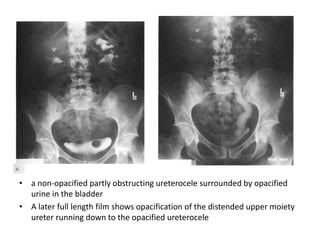

41. • a non-opacified partly obstructing ureterocele surrounded by opacified
urine in the bladder
• A later full length film shows opacification of the distended upper moiety
ureter running down to the opacified ureterocele

42. • IVU demonstrating the
characteristic
stretching of calyces by
cysts in polycystic
kidneys.
• Spider leg appearance

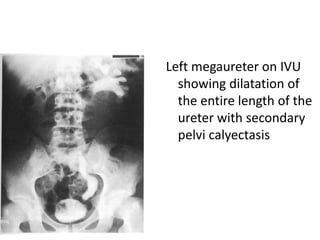

43. Left megaureter on IVU
showing dilatation of
the entire length of the
ureter with secondary
pelvi calyectasis

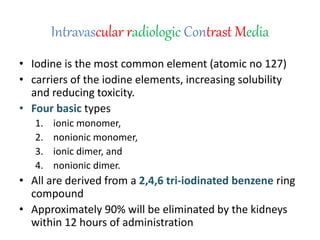

44. Intravascular radiologic Contrast Media
• Iodine is the most common element (atomic no 127)
• carriers of the iodine elements, increasing solubility
and reducing toxicity.
• Four basic types
1. ionic monomer,
2. nonionic monomer,
3. ionic dimer, and
4. nonionic dimer.
• All are derived from a 2,4,6 tri-iodinated benzene ring
compound
• Approximately 90% will be eliminated by the kidneys
within 12 hours of administration

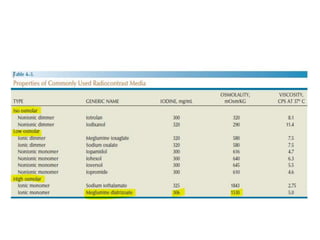

46. Physiological effects:
• HOCM have an osmolality that is 5 times greater than
physiologic osmolality of body cells.
1.The hyperosmolar agents are associated with
• erythrocyte damage,
• endothelial damage,
• v asodilation,
• hypervolemia,
• interruption of the blood-brain barrier, and
• cardiac depression.
2.Chemotoxic reactions
• cardiac, vascular, neurologic, and renal toxicity.

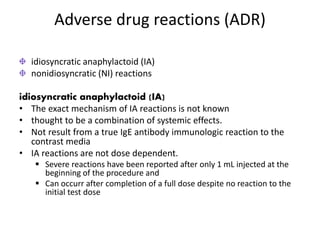

47. Adverse drug reactions (ADR)
idiosyncratic anaphylactoid (IA)
nonidiosyncratic (NI) reactions
idiosyncratic anaphylactoid (IA)
• The exact mechanism of IA reactions is not known
• thought to be a combination of systemic effects.
• Not result from a true IgE antibody immunologic reaction to the
contrast media
• IA reactions are not dose dependent.
 Severe reactions have been reported after only 1 mL injected at the
beginning of the procedure and
 Can occurr after completion of a full dose despite no reaction to the
initial test dose

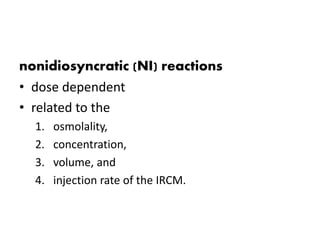

48. nonidiosyncratic (NI) reactions
• dose dependent
• related to the
1. osmolality,
2. concentration,
3. volume, and
4. injection rate of the IRCM.

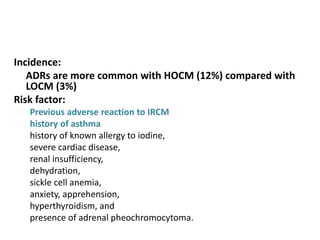

49. Incidence:
ADRs are more common with HOCM (12%) compared with
LOCM (3%)
Risk factor:
Previous adverse reaction to IRCM
history of asthma
history of known allergy to iodine,
severe cardiac disease,
renal insufficiency,
dehydration,
sickle cell anemia,
anxiety, apprehension,
hyperthyroidism, and
presence of adrenal pheochromocytoma.

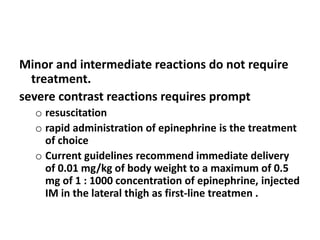

50. Minor and intermediate reactions do not require
treatment.
severe contrast reactions requires prompt
o resuscitation
o rapid administration of epinephrine is the treatment
of choice
o Current guidelines recommend immediate delivery
of 0.01 mg/kg of body weight to a maximum of 0.5
mg of 1 : 1000 concentration of epinephrine, injected
IM in the lateral thigh as first-line treatmen .

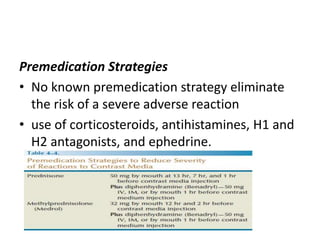

51. Premedication Strategies
• No known premedication strategy eliminate
the risk of a severe adverse reaction
• use of corticosteroids, antihistamines, H1 and
H2 antagonists, and ephedrine.

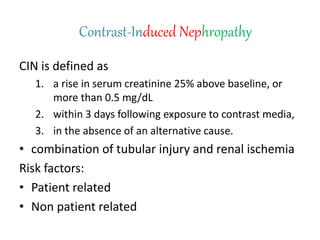

52. Contrast-Induced Nephropathy
CIN is defined as
1. a rise in serum creatinine 25% above baseline, or
more than 0.5 mg/dL
2. within 3 days following exposure to contrast media,
3. in the absence of an alternative cause.
• combination of tubular injury and renal ischemia
Risk factors:
• Patient related
• Non patient related

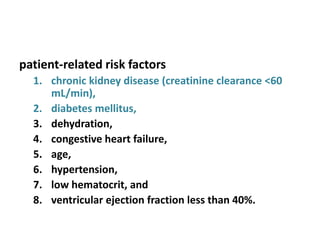

53. patient-related risk factors
1. chronic kidney disease (creatinine clearance <60
mL/min),
2. diabetes mellitus,
3. dehydration,
4. congestive heart failure,
5. age,
6. hypertension,
7. low hematocrit, and
8. ventricular ejection fraction less than 40%.

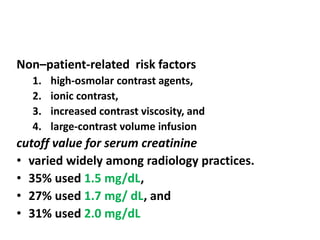

54. Non–patient-related risk factors
1. high-osmolar contrast agents,
2. ionic contrast,
3. increased contrast viscosity, and
4. large-contrast volume infusion
cutoff value for serum creatinine
• varied widely among radiology practices.
• 35% used 1.5 mg/dL,
• 27% used 1.7 mg/ dL, and
• 31% used 2.0 mg/dL

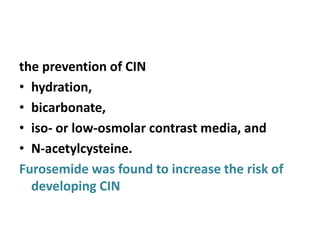

55. the prevention of CIN
• hydration,
• bicarbonate,
• iso- or low-osmolar contrast media, and
• N-acetylcysteine.
Furosemide was found to increase the risk of
developing CIN

56. ...thank you
