Intravenous urography (IVU) is a radiographic procedure used to evaluate the urinary system, administered after an intravenous contrast media injection. It is employed for diagnosing conditions such as obstructive uropathies, congenital anomalies, and renal pathologies while requiring careful patient assessment including history and preparation. Various imaging techniques and positioning are outlined to ensure accurate evaluation of the renal system, including the use of compression and different film types.

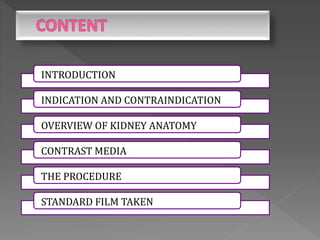

2. INTRODUCTION
INDICATION AND CONTRAINDICATION
OVERVIEW OF KIDNEY ANATOMY
CONTRAST MEDIA
THE PROCEDURE
STANDARD FILM TAKEN

3. What is Intravenous Urography (IVU)
 It commonly used investigation for evaluation of
urinary system.
 Radiographic study of the renal parenchyma,
pelvicalyceal system, ureters and the urinary bladder.
 After intravenous injection of contrast media.

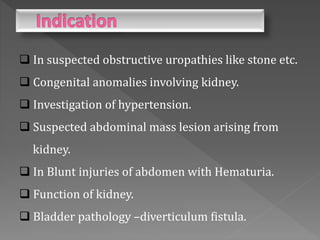

4.  In suspected obstructive uropathies like stone etc.
 Congenital anomalies involving kidney.
 Investigation of hypertension.
 Suspected abdominal mass lesion arising from
kidney.
 In Blunt injuries of abdomen with Hematuria.
 Function of kidney.
 Bladder pathology –diverticulum fistula.

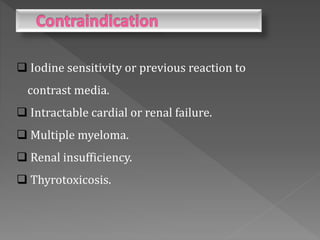

5.  Iodine sensitivity or previous reaction to
contrast media.
 Intractable cardial or renal failure.
 Multiple myeloma.
 Renal insufficiency.
 Thyrotoxicosis.

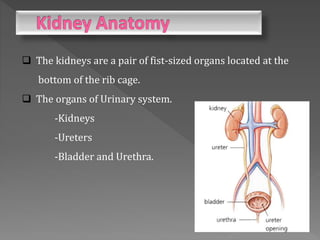

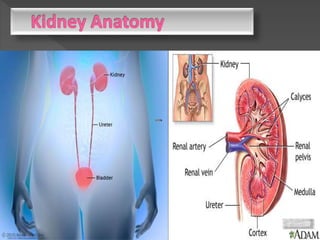

6.  The kidneys are a pair of fist-sized organs located at the
bottom of the rib cage.
 The organs of Urinary system.
-Kidneys
-Ureters
-Bladder and Urethra.

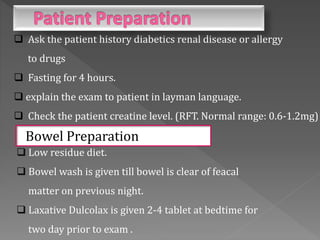

8.  Ask the patient history diabetics renal disease or allergy
to drugs
 Fasting for 4 hours.
 explain the exam to patient in layman language.
 Check the patient creatine level. (RFT. Normal range: 0.6-1.2mg)
Bowel Preparation
 Low residue diet.
 Bowel wash is given till bowel is clear of feacal
matter on previous night.
 Laxative Dulcolax is given 2-4 tablet at bedtime for
two day prior to exam .

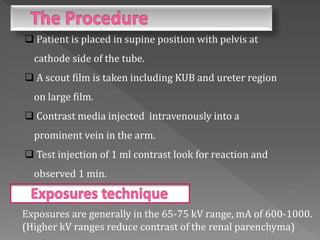

9.  Patient is placed in supine position with pelvis at
cathode side of the tube.
 A scout film is taken including KUB and ureter region
on large film.
 Contrast media injected intravenously into a
prominent vein in the arm.
 Test injection of 1 ml contrast look for reaction and
observed 1 min.
Exposures are generally in the 65-75 kV range, mA of 600-1000.
(Higher kV ranges reduce contrast of the renal parenchyma)

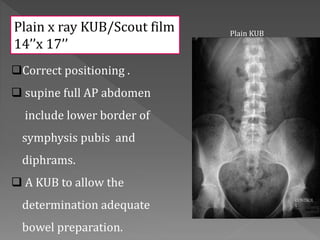

10. Correct positioning .
 supine full AP abdomen
include lower border of
symphysis pubis and
diphrams.
 A KUB to allow the
determination adequate
bowel preparation.
Plain KUB
Plain x ray KUB/Scout film
14’’x 17’’

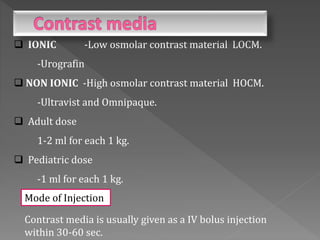

11. Contrast media is usually given as a IV bolus injection
within 30-60 sec.
 IONIC -Low osmolar contrast material LOCM.
-Urografin
 NON IONIC -High osmolar contrast material HOCM.
-Ultravist and Omnipaque.
 Adult dose
1-2 ml for each 1 kg.
 Pediatric dose
-1 ml for each 1 kg.
Mode of Injection

12.  1 minute film show nephrogram.
 Radiograph is often omitted as the renal outline are
usually adequately visualize on 5 minute.
(after the 1 minute film compression band is applied)
1 Minute film10’’x 12’’

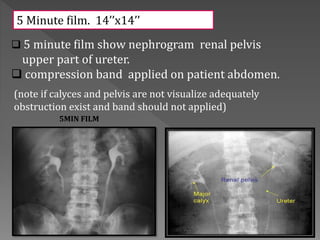

13.  5 minute film show nephrogram renal pelvis
upper part of ureter.
 compression band applied on patient abdomen.
(note if calyces and pelvis are not visualize adequately
obstruction exist and band should not applied)
5 Minute film. 14’’x14’’
5MIN FILM

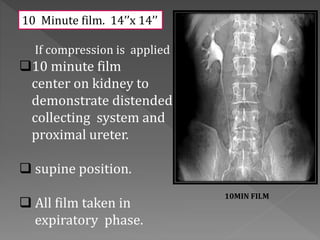

14. If compression is applied
10 minute film
center on kidney to
demonstrate distended
collecting system and
proximal ureter.
 supine position.
 All film taken in
expiratory phase.
10 Minute film. 14’’x 14’’
10MIN FILM

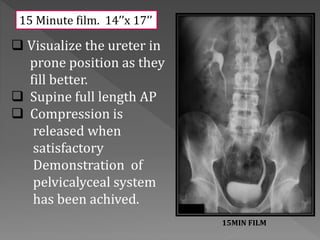

15.  Visualize the ureter in
prone position as they
fill better.
 Supine full length AP
 Compression is
released when
satisfactory
Demonstration of
pelvicalyceal system
has been achived.
15 Minute film. 14’’x 17’’
15MIN FILM

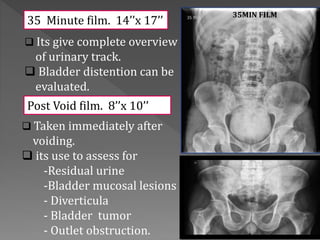

16.  Its give complete overview
of urinary track.
 Bladder distention can be
evaluated.
 Taken immediately after
voiding.
 its use to assess for
-Residual urine
-Bladder mucosal lesions
- Diverticula
- Bladder tumor
- Outlet obstruction.
Post Void film. 8’’x 10’’
35 Minute film. 14’’x 17’’
35MIN FILM

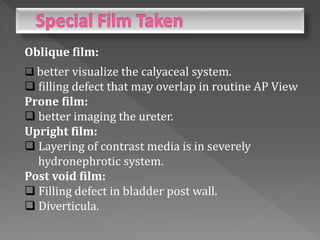

17. Oblique film:
 better visualize the calyaceal system.
 filling defect that may overlap in routine AP View
Prone film:
 better imaging the ureter.
Upright film:
 Layering of contrast media is in severely
hydronephrotic system.
Post void film:
 Filling defect in bladder post wall.
 Diverticula.
