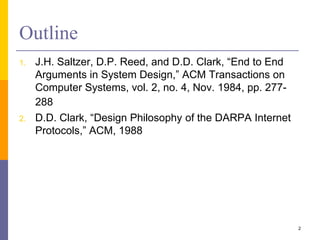

Outline
1. J.H. Saltzer, D.P. Reed, and D.D. Clark, “End to End
Arguments in System Design,” ACM Transactions on
Computer Systems, vol. 2, no. 4, Nov. 1984, pp. 277-
288
2. D.D. Clark, “Design Philosophy of the DARPA Internet
Protocols,” ACM, 1988
2

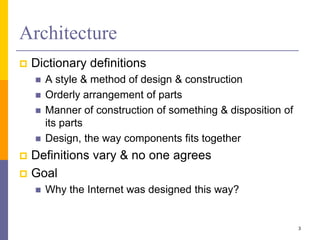

Architecture
 Dictionary definitions
 A style & method of design & construction
 Orderly arrangement of parts
 Manner of construction of something & disposition of
its parts
 Design, the way components fits together
 Definitions vary & no one agrees
 Goal
 Why the Internet was designed this way?
3
4

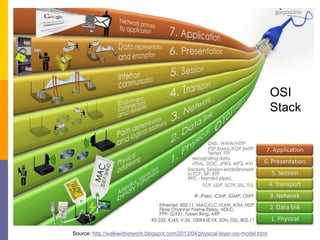

OSI
Stack
Source: http://walkwidnetwork.blogspot.com/2013/04/physical-layer-osi-model.html

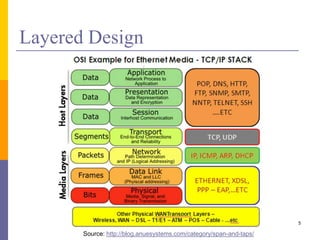

Layered Design
5
Source: http://blog.anuesystems.com/category/span-and-taps/

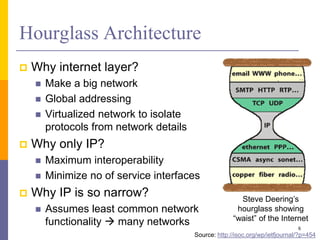

Hourglass Architecture
 Why internet layer?
 Make a big network
 Global addressing
 Virtualized network to isolate
protocols from network details
 Why only IP?
 Maximum interoperability
 Minimize no of service interfaces
 Why IP is so narrow?
 Assumes least common network
functionality  many networks 6
Steve Deering’s
hourglass showing
“waist” of the Internet
Source: http://isoc.org/wp/ietfjournal/?p=454
Hourglass Architecture Insufficient
7
Putting on weight
Need for more
functionality
Midlife Crisis
Address space not
sufficient

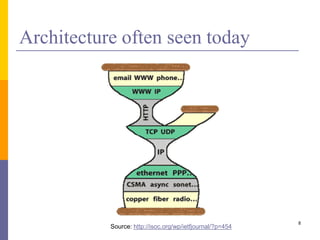

Architecture often seen today
8
Source: http://isoc.org/wp/ietfjournal/?p=454
End-to-End Argument [1]
 Examines which layer should implement a service
 Argue many services should be implemented at
higher layers
 e.g., on end hosts
 Contributions
 Fits with the model of minimal network (IP) layer
 Provides guidance on what (not) to add to data link
layers
 End-to-end principle is fundamental to Internet success
9

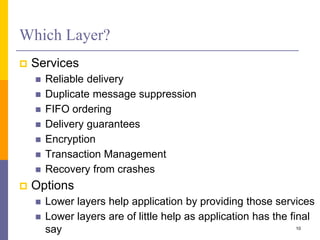

Which Layer?
 Services
 Reliable delivery
 Duplicate message suppression
 FIFO ordering
 Delivery guarantees
 Encryption
 Transaction Management
 Recovery from crashes
 Options
 Lower layers help application by providing those services
 Lower layers are of little help as application has the final
say 10

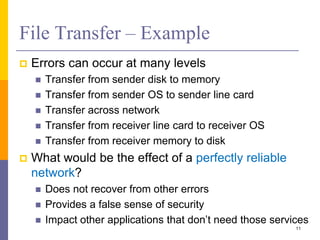

File Transfer – Example
 Errors can occur at many levels
 Transfer from sender disk to memory
 Transfer from sender OS to sender line card
 Transfer across network
 Transfer from receiver line card to receiver OS
 Transfer from receiver memory to disk
 What would be the effect of a perfectly reliable
network?
 Does not recover from other errors
 Provides a false sense of security
 Impact other applications that don’t need those services
11

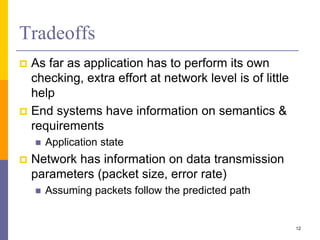

Tradeoffs
 As far as application has to perform its own
checking, extra effort at network level is of little
help
 End systems have information on semantics &
requirements
 Application state
 Network has information on data transmission
parameters (packet size, error rate)
 Assuming packets follow the predicted path
12
Other Examples
 Delivery guarantees
 Did the end act upon the received message?
 Encryption
 Clear data before entering the secure network
 Duplicate message suppression
 Applications may retry, e.g., remote login
 FIFO ordering
 In distributed systems with multiple destinations
 Recovery from crashes
 What if the network failed & all state is lost?
13

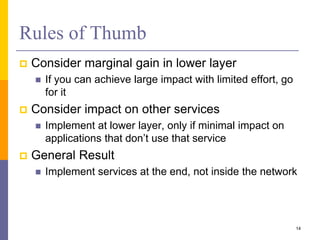

Rules of Thumb
 Consider marginal gain in lower layer
 If you can achieve large impact with limited effort, go
for it
 Consider impact on other services
 Implement at lower layer, only if minimal impact on
applications that don’t use that service
 General Result
 Implement services at the end, not inside the network
14

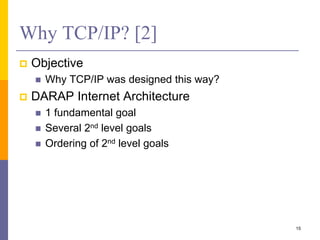

Why TCP/IP? [2]
 Objective
 Why TCP/IP was designed this way?
 DARAP Internet Architecture
 1 fundamental goal
 Several 2nd level goals
 Ordering of 2nd level goals
15

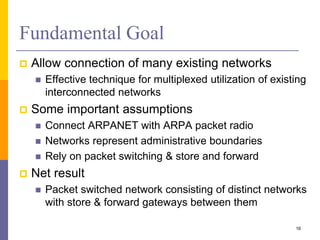

Fundamental Goal
 Allow connection of many existing networks
 Effective technique for multiplexed utilization of existing
interconnected networks
 Some important assumptions
 Connect ARPANET with ARPA packet radio
 Networks represent administrative boundaries
 Rely on packet switching & store and forward
 Net result
 Packet switched network consisting of distinct networks
with store & forward gateways between them
16

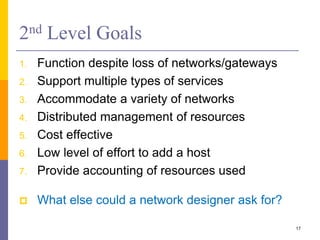

2nd Level Goals
1. Function despite loss of networks/gateways
2. Support multiple types of services
3. Accommodate a variety of networks
4. Distributed management of resources
5. Cost effective
6. Low level of effort to add a host
7. Provide accounting of resources used
 What else could a network designer ask for?
17

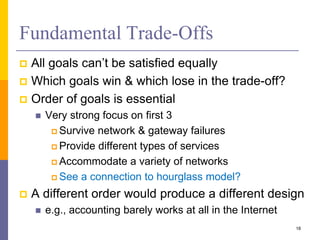

Fundamental Trade-Offs
 All goals can’t be satisfied equally
 Which goals win & which lose in the trade-off?
 Order of goals is essential
 Very strong focus on first 3
 Survive network & gateway failures
 Provide different types of services
 Accommodate a variety of networks
 See a connection to hourglass model?
 A different order would produce a different design
 e.g., accounting barely works at all in the Internet
18

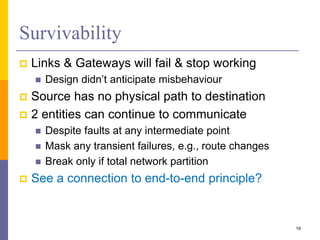

Survivability
 Links & Gateways will fail & stop working
 Design didn’t anticipate misbehaviour
 Source has no physical path to destination
 2 entities can continue to communicate
 Despite faults at any intermediate point
 Mask any transient failures, e.g., route changes
 Break only if total network partition
 See a connection to end-to-end principle?
19

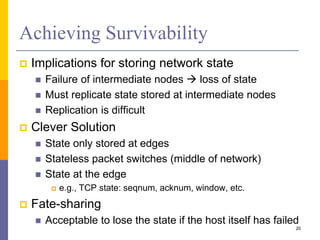

Achieving Survivability
 Implications for storing network state
 Failure of intermediate nodes  loss of state
 Must replicate state stored at intermediate nodes
 Replication is difficult
 Clever Solution
 State only stored at edges
 Stateless packet switches (middle of network)
 State at the edge
 e.g., TCP state: seqnum, acknum, window, etc.
 Fate-sharing
 Acceptable to lose the state if the host itself has failed
20

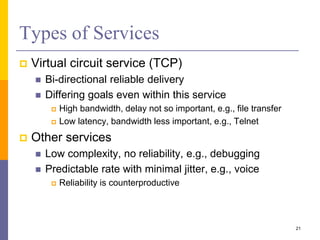

Types of Services
 Virtual circuit service (TCP)
 Bi-directional reliable delivery
 Differing goals even within this service
 High bandwidth, delay not so important, e.g., file transfer
 Low latency, bandwidth less important, e.g., Telnet
 Other services
 Low complexity, no reliability, e.g., debugging
 Predictable rate with minimal jitter, e.g., voice
 Reliability is counterproductive
21

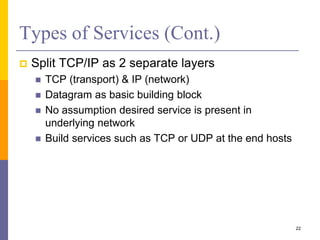

Types of Services (Cont.)
 Split TCP/IP as 2 separate layers
 TCP (transport) & IP (network)
 Datagram as basic building block
 No assumption desired service is present in
underlying network
 Build services such as TCP or UDP at the end hosts
22

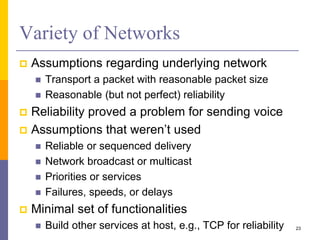

Variety of Networks
 Assumptions regarding underlying network
 Transport a packet with reasonable packet size
 Reasonable (but not perfect) reliability
 Reliability proved a problem for sending voice
 Assumptions that weren’t used
 Reliable or sequenced delivery
 Network broadcast or multicast
 Priorities or services
 Failures, speeds, or delays
 Minimal set of functionalities
 Build other services at host, e.g., TCP for reliability 23

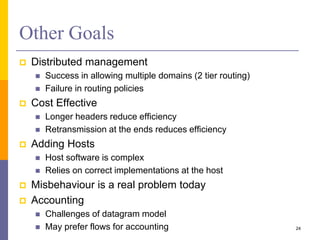

Other Goals
 Distributed management
 Success in allowing multiple domains (2 tier routing)
 Failure in routing policies
 Cost Effective
 Longer headers reduce efficiency
 Retransmission at the ends reduces efficiency
 Adding Hosts
 Host software is complex
 Relies on correct implementations at the host
 Misbehaviour is a real problem today
 Accounting
 Challenges of datagram model
 May prefer flows for accounting 24

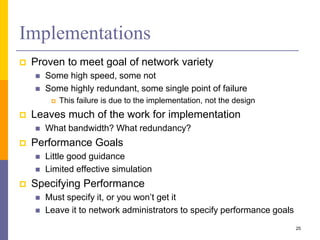

Implementations
 Proven to meet goal of network variety
 Some high speed, some not
 Some highly redundant, some single point of failure
 This failure is due to the implementation, not the design
 Leaves much of the work for implementation
 What bandwidth? What redundancy?
 Performance Goals
 Little good guidance
 Limited effective simulation
 Specifying Performance
 Must specify it, or you won’t get it
 Leave it to network administrators to specify performance goals
25

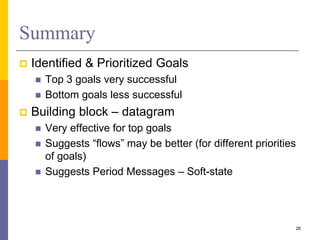

Summary
 Identified & Prioritized Goals
 Top 3 goals very successful
 Bottom goals less successful
 Building block – datagram
 Very effective for top goals
 Suggests “flows” may be better (for different priorities
of goals)
 Suggests Period Messages – Soft-state
26
