The document discusses pick and place robots, which are used for moving objects to desired locations using different robotic structures, including cylindrical, spherical, articulated, and SCARA robots. Key components include the rover, end effector, actuators, sensors, and controllers, all working together to achieve precise movement and object handling. Practical applications span defense, industrial manufacturing, and medical surgeries, highlighting their advantages of speed, accuracy, and safety despite concerns over expenses and the need for employee training.

1. Industrial Robotics
Pick & Place
Presented by:
Samarthan Systems Pvt. Ltd.
ID –marketing@samarthansystems.com

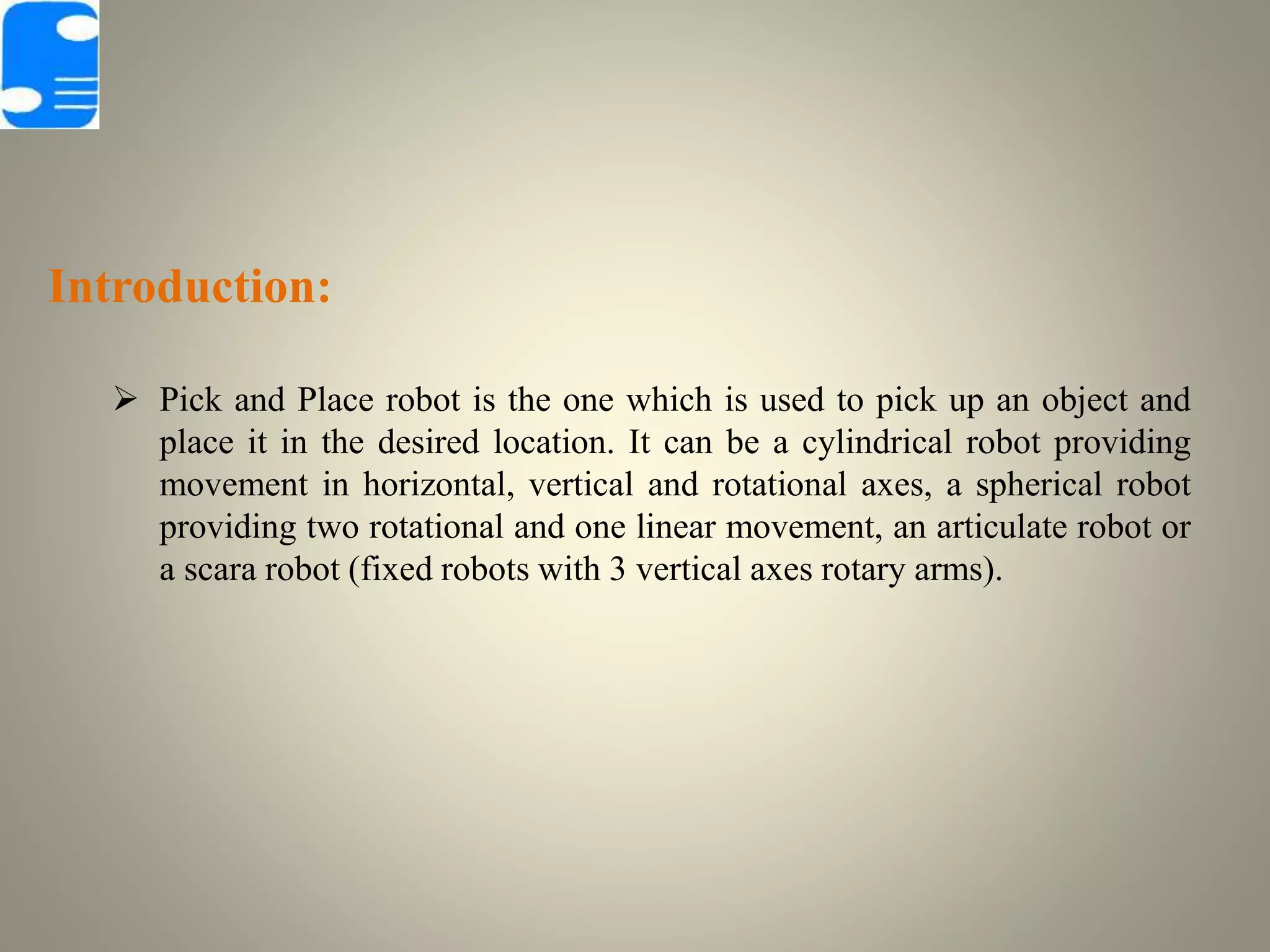

2. Introduction:
 Pick and Place robot is the one which is used to pick up an object and
place it in the desired location. It can be a cylindrical robot providing
movement in horizontal, vertical and rotational axes, a spherical robot
providing two rotational and one linear movement, an articulate robot or
a scara robot (fixed robots with 3 vertical axes rotary arms).

3. Parts of a Pick & Place Robot
 A Rover: It is the main body of the robot consisting of several
rigid bodies like a cylinder or a sphere, joints and links. It is also
known as a manipulator.
 End Effector: It is the body connected to the last joint of the rover
which is used for the purpose of gripping or handling objects. It
can be an analogy to the arm of a human being.

4. Parts of a Pick & Place Robot
 Actuators: They are the drivers of the robot. It actually actuates the
robot. It can be any motor like servo motor, stepper motor or pneumatic
or hydraulic cylinders.
 Sensors: They are used to sense the internal as well as the external state
to make sure the robot functions smoothly as a whole. Sensors involve
touch sensors, IR sensor etc.
 Controller: It is used to control the actuators based on the sensor
feedback and thus control the motion of each and every joint and
eventually the movement of the end effector.

5. Working of a Basic Pick & Place Robot:
 The basic function of a pick and place robot is done by its joints. Joints are
analogous to human joints and are used to join the two consecutive rigid
bodies in the robot. They can be rotary joint or linear joint.
 To add a joint to any link of a robot, we need to know about the degrees of
freedom and degrees of movement for that body part. Degrees of freedom
implement the linear and rotational movement of the body and Degrees of
movement imply the number of axis the body can move.

6. Working of a Basic Pick & Place Robot:

7. Working of a Basic Pick & Place Robot:
 A simple pick and place robot consists of two rigid bodies on a moving
base, connected together with rotary joint. A rotary joint is a one which
provides rotation in 360 degrees around any one of the axes.
 The bottom or the base is attached with wheels which provide linear
movement.
 The 1st rigid body is fixed and supports the second rigid body to which the
end effector is provided.
 The 2nd rigid body is provided with movement in all 3 axes and has 3
degrees of freedom. It is connected to the 1st body with a rotational joint.

8. Working of a Basic Pick & Place Robot:
 The end effector should accommodate all 6 degrees of freedom, in order
to reach all sides of the component, to take up position to any height.
On a whole, the basic pick and place robot works as follows:
 The wheels underneath the base help to move the robot to the desired
location.
 The rigid body supporting the end effector bends or straightens up to
reach the position where the object is placed.
 The end effector picks up the object with a strong grip and places it at
the desired position.

9. How Pick N Place Robot Actually Controlled
 A simple pick and place robot can be controlled by controlling the
movement of its end effector.
 The motion can be using hydraulic motion, i.e. using hydraulic fluid
under pressure to the drive the robot, or using pneumatic motion, i.e.
using pressurized air to cause mechanical motion.
 The most effective way is using motors to provide the required motion.
 The motors have to be controlled in order to provide required motion to
the robot and the end effector.

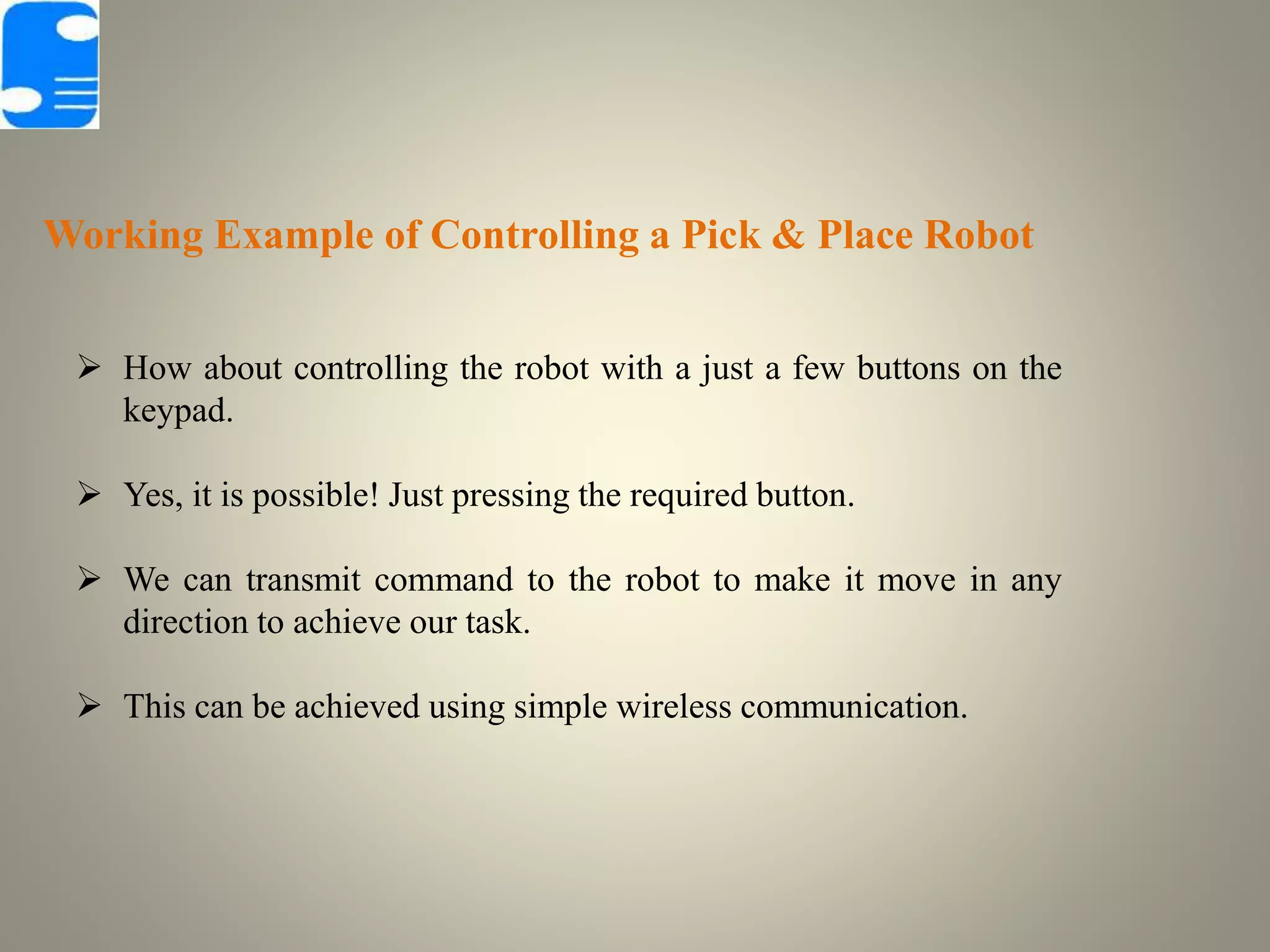

10. Working Example of Controlling a Pick & Place Robot
 How about controlling the robot with a just a few buttons on the
keypad.
 Yes, it is possible! Just pressing the required button.
 We can transmit command to the robot to make it move in any
direction to achieve our task.
 This can be achieved using simple wireless communication.

11. Working Example of Controlling a Pick & Place Robot
 The transmitter part consists of the keypad interfaced to the
microcontroller.
 Any button number in decimal format is converted to 4 digit binary by
the microcontroller and the parallel output at one of its port is applied
to the encoder.
 The encoder converts this parallel data to serial data and this is fed to
the transmitter, fitted with an antenna to transmit the serial data.

12. Working Example of Controlling a Pick & Place Robot
 The system consists of two motors for providing motion to the whole
robot.
 Two other motors to provide the arm motion.
 The end effector or the gripper needs to be controlled to apply proper
pressure on the object.
 To give it a soft grip by controlling the arm motors through proper
command.
 The output from the arm motors is connected to a 10Ohms/2W resistor.

13. Working Example of Controlling a Pick & Place Robot
 At the time of motor over load or locked condition, a high voltage is
developed across the resistor.
 It causes a logic high level at the output of the Opto-isolator.
 The interrupt pin of the microcontroller connected to the Opto-
isolator output through a PNP transistor gets logic low signal.
 It halts all other operations of the gripper.

14. Advantages
 They are faster and can get the work done in seconds compared to
their human counterparts.
 Work at any kind of condition.
 Increase the work accuracy and productivity.
 Most of cases removed manpower
 They are flexible and have the appropriate design.
 They increase the safety of the working environment and actually
never get tired.

15. Disadvantages
1. Expense: The initial investment to integrated automated robotics into
your business is significant.
2. ROI: Industrial robots gives the massive results for mass production for
similar products.
3. Expertise: Employees will require training program and interact with the
new robotic equipment.

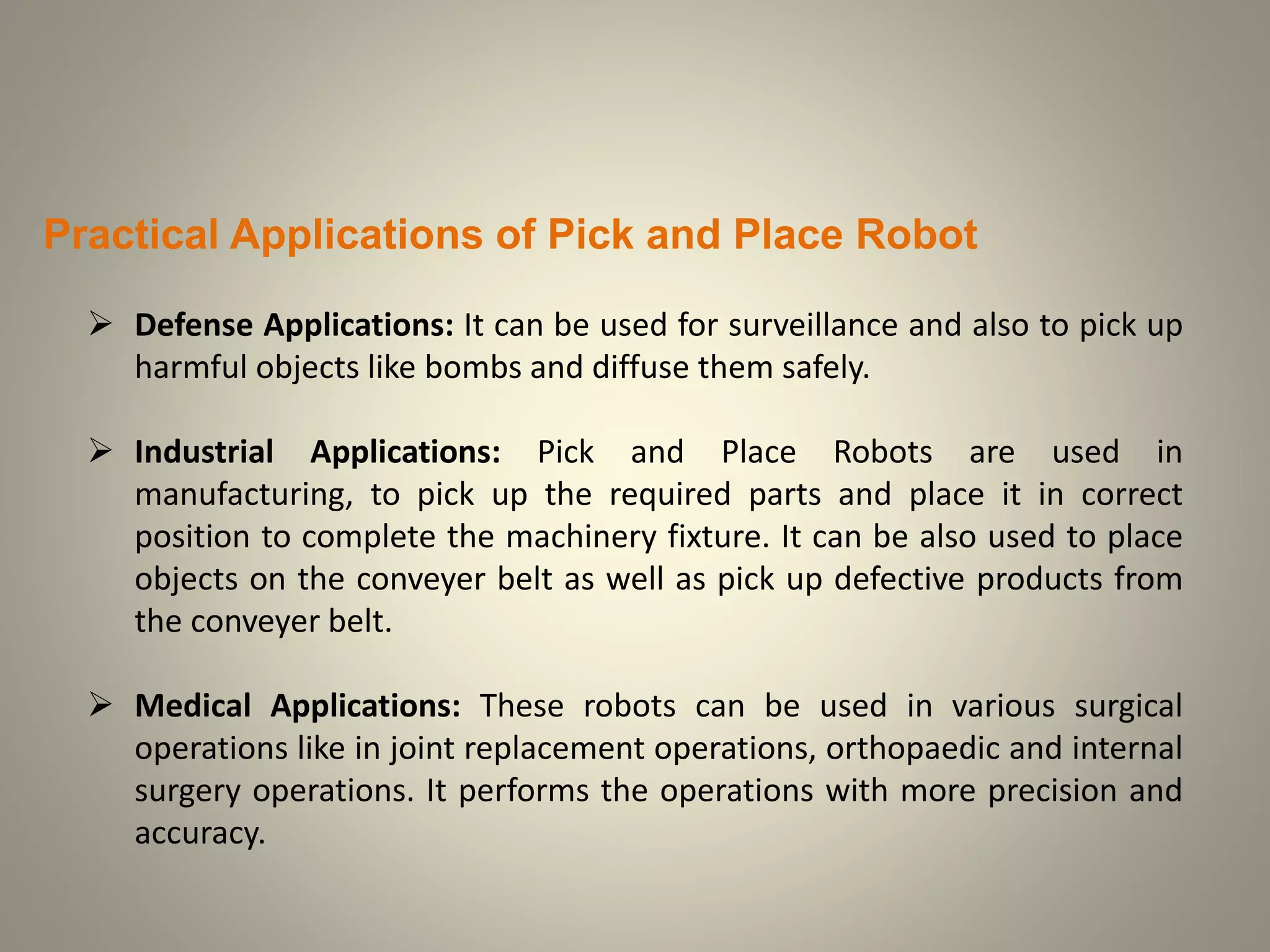

16. Practical Applications of Pick and Place Robot
 Defense Applications: It can be used for surveillance and also to pick up
harmful objects like bombs and diffuse them safely.
 Industrial Applications: Pick and Place Robots are used in
manufacturing, to pick up the required parts and place it in correct
position to complete the machinery fixture. It can be also used to place
objects on the conveyer belt as well as pick up defective products from
the conveyer belt.
 Medical Applications: These robots can be used in various surgical
operations like in joint replacement operations, orthopaedic and internal
surgery operations. It performs the operations with more precision and
accuracy.
