This document outlines the steps for loading and merging crime data from multiple sources for machine learning analysis. It begins by introducing the datasets: Dataset A contains crime reports and police stations; Dataset B contains police station populations; and Dataset C contains police station coordinates. It then describes loading each dataset and checking for duplicates. The datasets are merged by joining Dataset A and B on the police station feature, and joining the resulting dataset with Dataset C on police station. The final merged dataset will contain crime statistics, population estimates, and location data for analysis.

2. Arthur Samuel (1959)
Machine Learning is
the field of study
that gives computers
the ability to learn
without being

3. The Tools

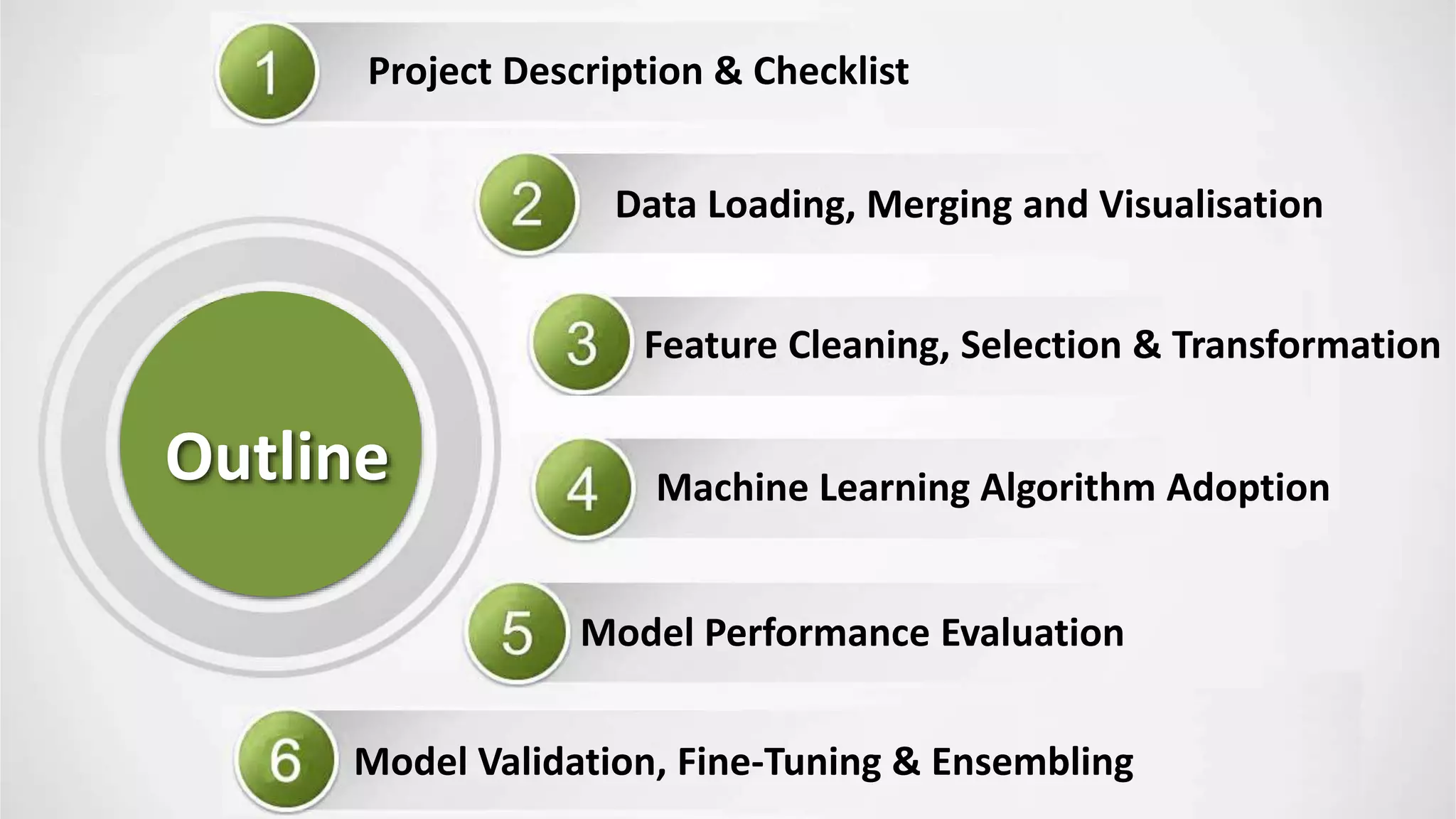

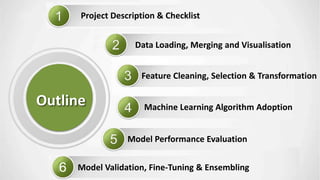

5. Project Description & Checklist
Data Loading, Merging and Visualisation
Feature Cleaning, Selection & Transformation
Machine Learning Algorithm Adoption
Model Performance Evaluation
Outline
Model Validation, Fine-Tuning & Ensembling

6. 1

7. Project Description & Checklist
The Description
To use machine learning
techniques to perform
exploratory and predictive
analyses on crime data.

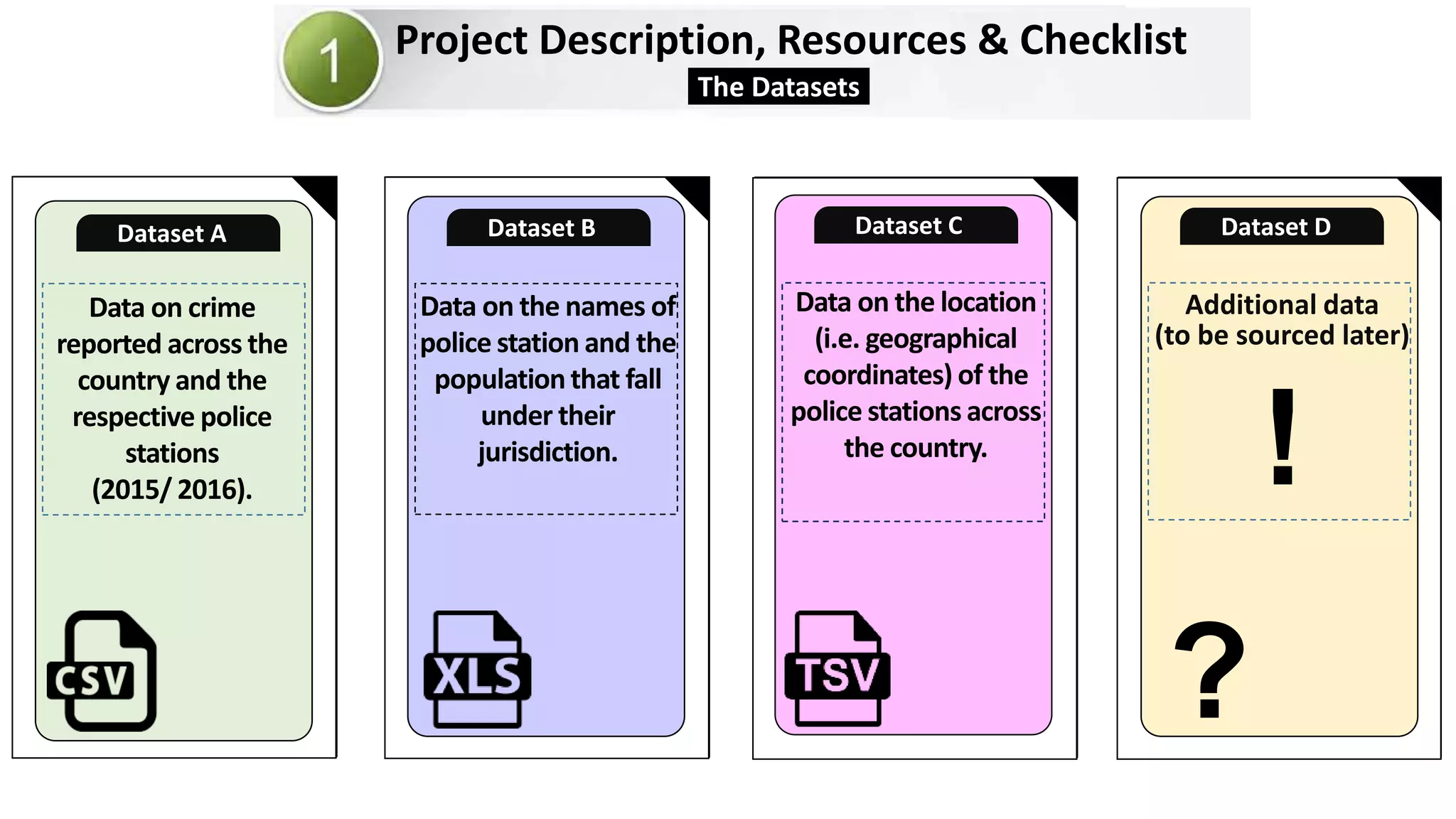

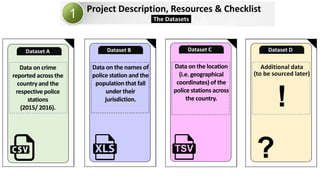

8. Project Description, Resources & Checklist
The Datasets
Additional data
(to be sourced later)
Dataset D
?
!
Data on the location
(i.e. geographical
coordinates) of the
police stations across
the country.
Dataset C
Data on the names of
police station and the
population that fall
under their
jurisdiction.
Dataset B
Data on crime
reported across the
country and the
respective police
stations
(2015/ 2016).
Dataset A

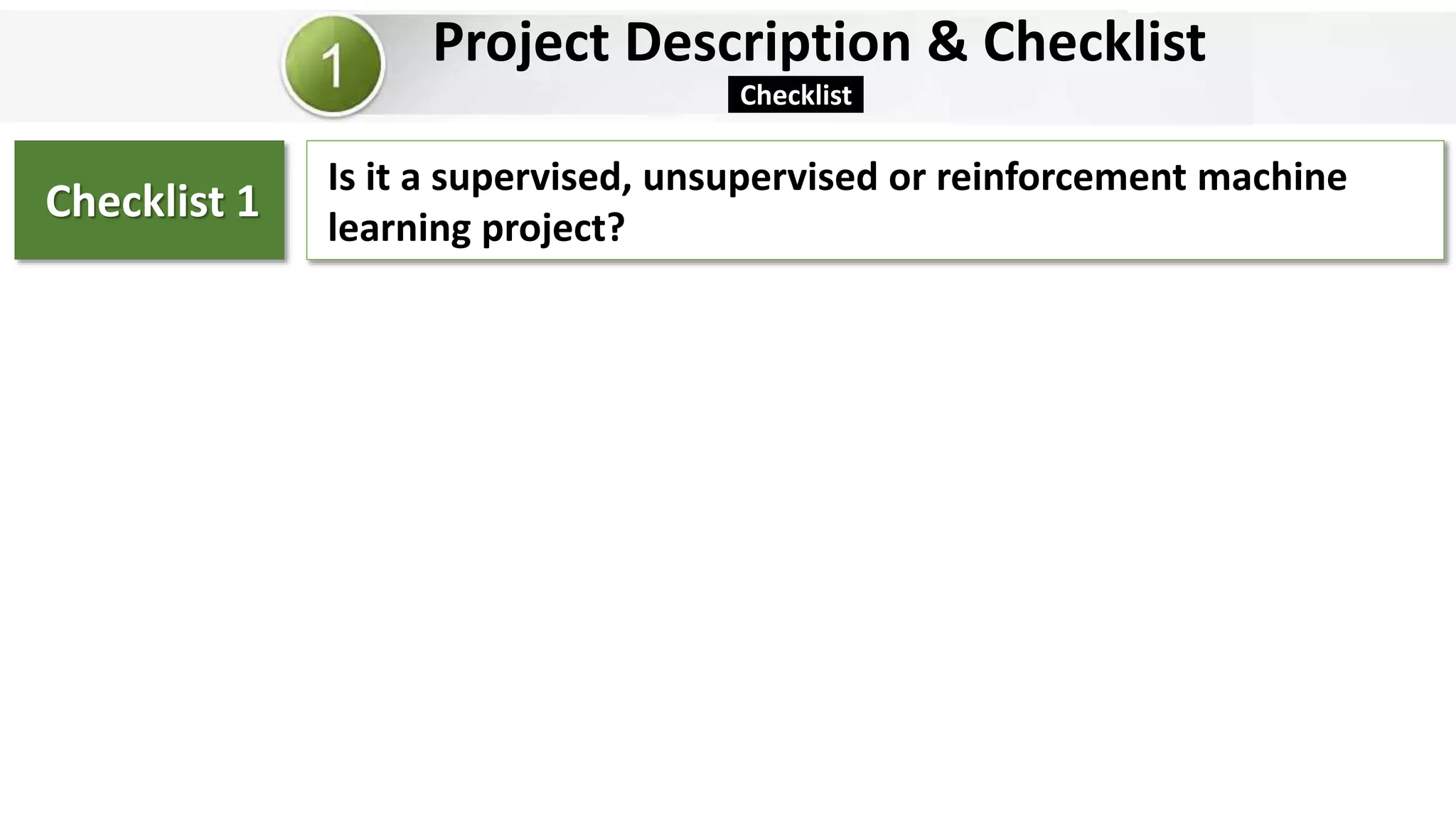

9. Project Description & Checklist
Checklist
Checklist 1
Is it a supervised, unsupervised or reinforcement machine
learning project?

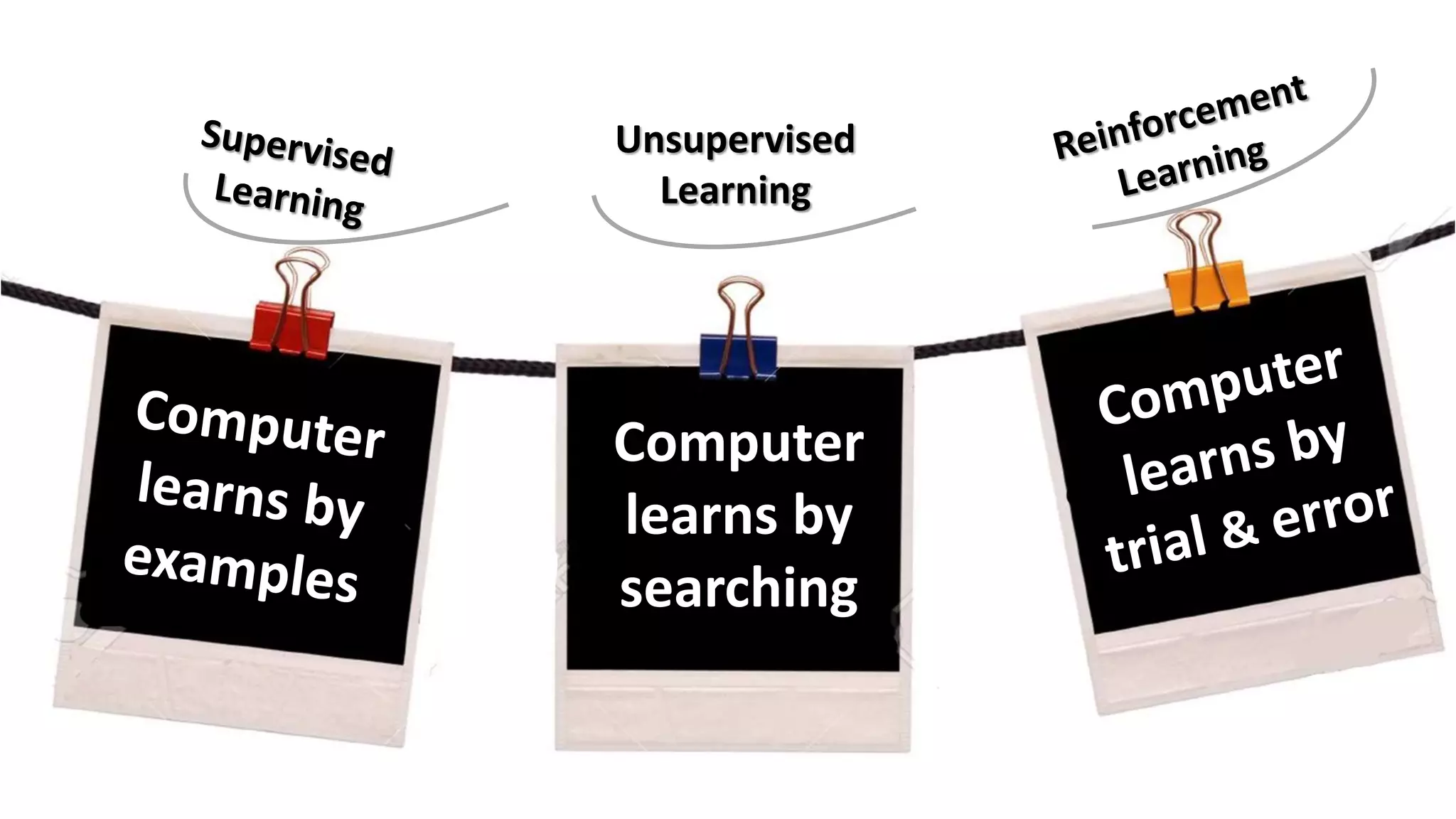

10. Unsupervised
Learning
Computer
learns by
searching

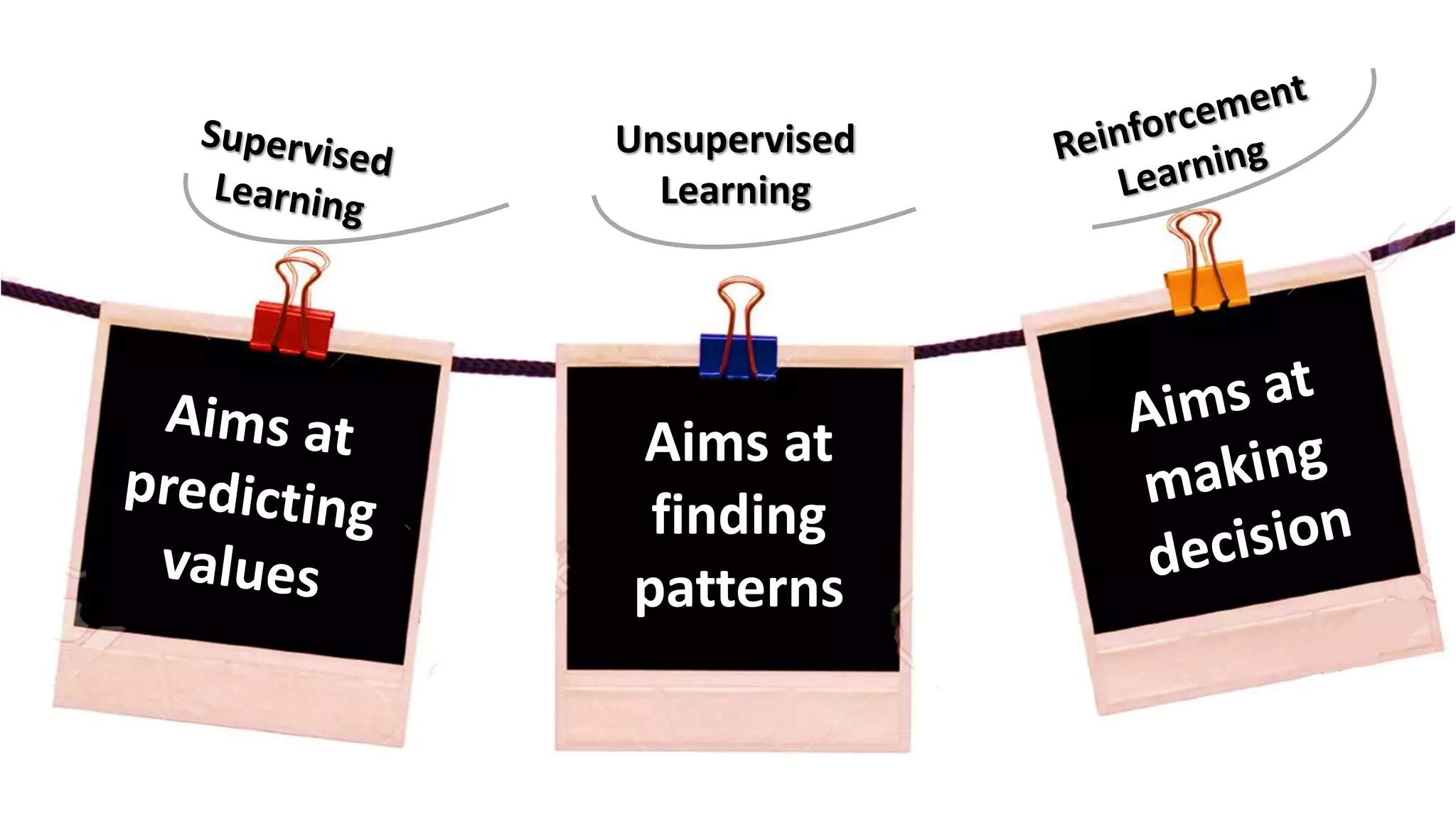

11. Unsupervised
Learning
Aims at
finding
patterns

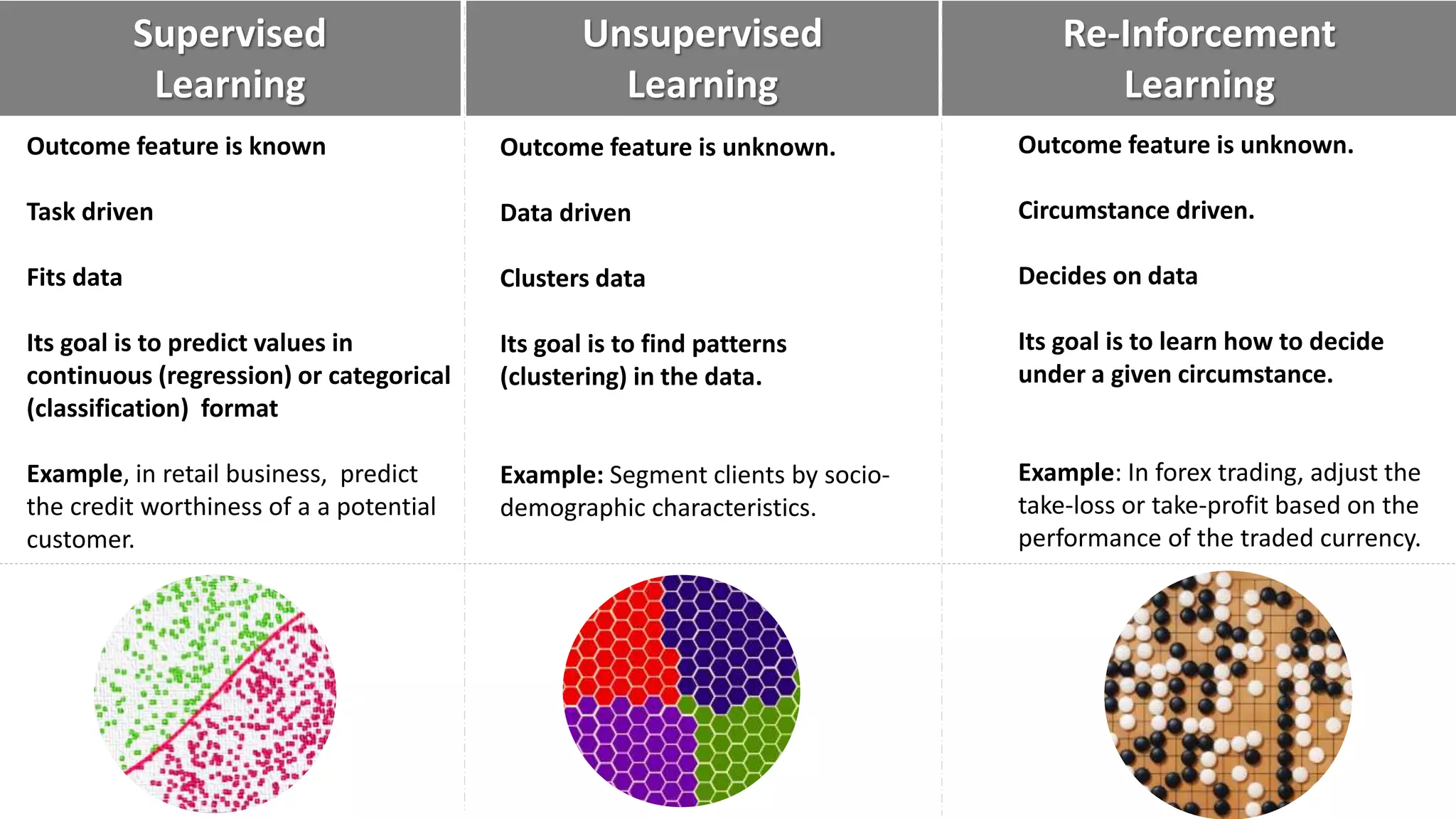

12. Outcome feature is known
Task driven
Fits data
Its goal is to predict values in
continuous (regression) or categorical
(classification) format
Example, in retail business, predict
the credit worthiness of a a potential
customer.
Re-Inforcement
Learning
Unsupervised
Learning
Supervised
Learning
Outcome feature is unknown.
Data driven
Clusters data
Its goal is to find patterns
(clustering) in the data.
Example: Segment clients by socio-
demographic characteristics.
Outcome feature is unknown.
Circumstance driven.
Decides on data
Its goal is to learn how to decide
under a given circumstance.
Example: In forex trading, adjust the
take-loss or take-profit based on the
performance of the traded currency.

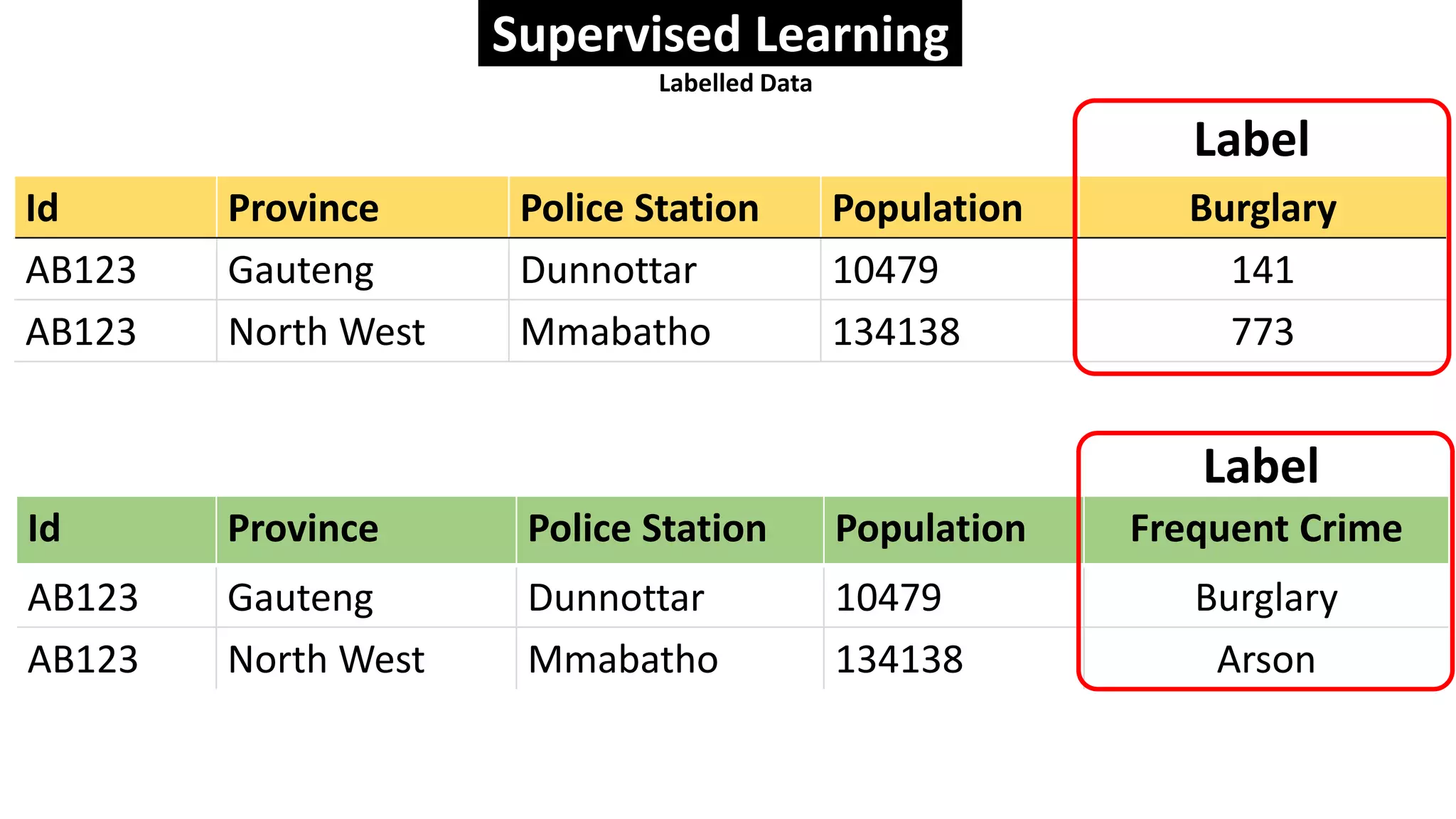

13. Id Province Police Station Population Burglary
AB123 Gauteng Dunnottar 10479 141
AB123 North West Mmabatho 134138 773
Id Province Police Station Population Frequent Crime
AB123 Gauteng Dunnottar 10479 Burglary
AB123 North West Mmabatho 134138 Arson
Label
Supervised Learning
Labelled Data
Label

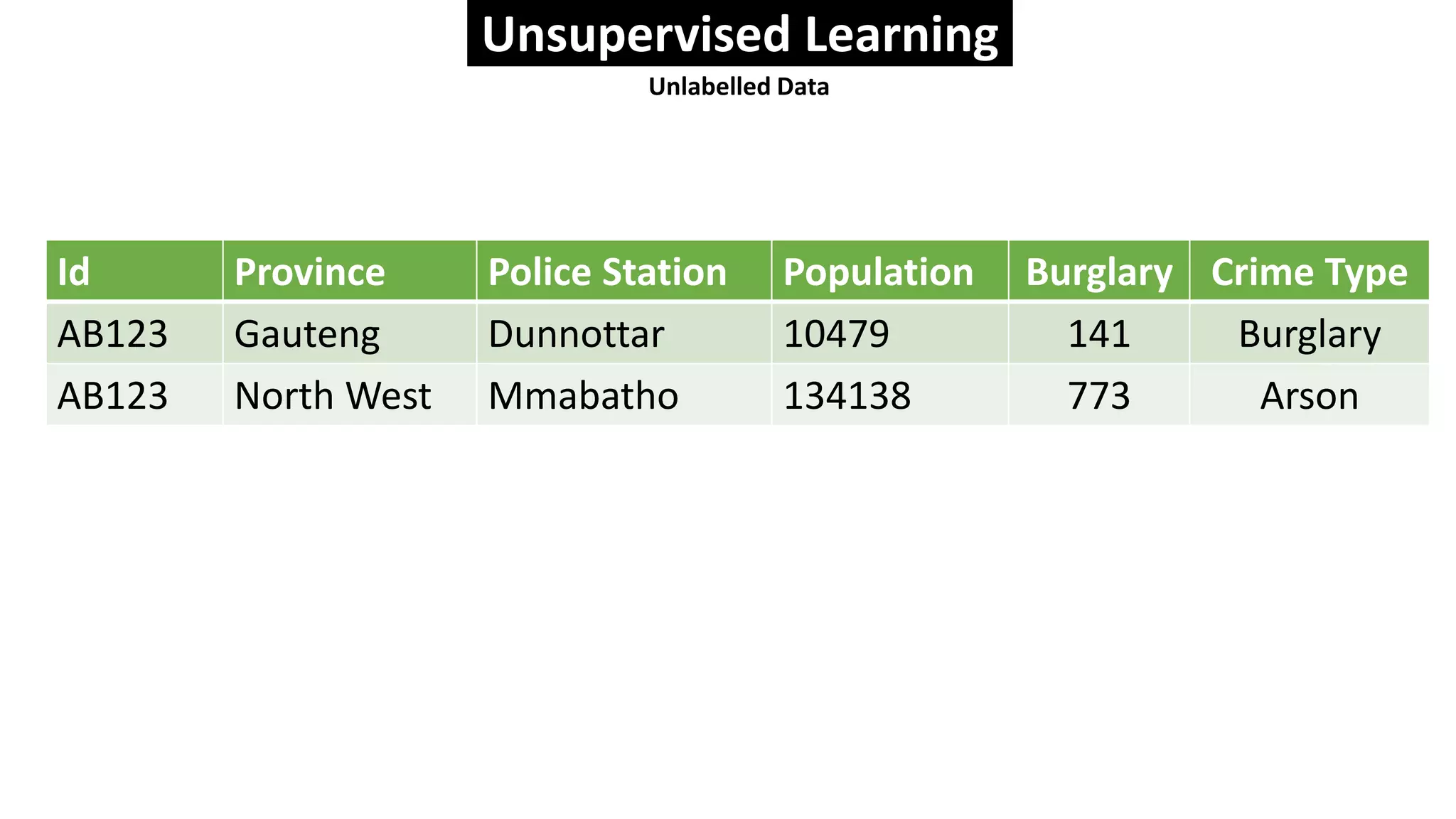

14. Id Province Police Station Population Burglary Crime Type
AB123 Gauteng Dunnottar 10479 141 Burglary
AB123 North West Mmabatho 134138 773 Arson
Unsupervised Learning
Unlabelled Data

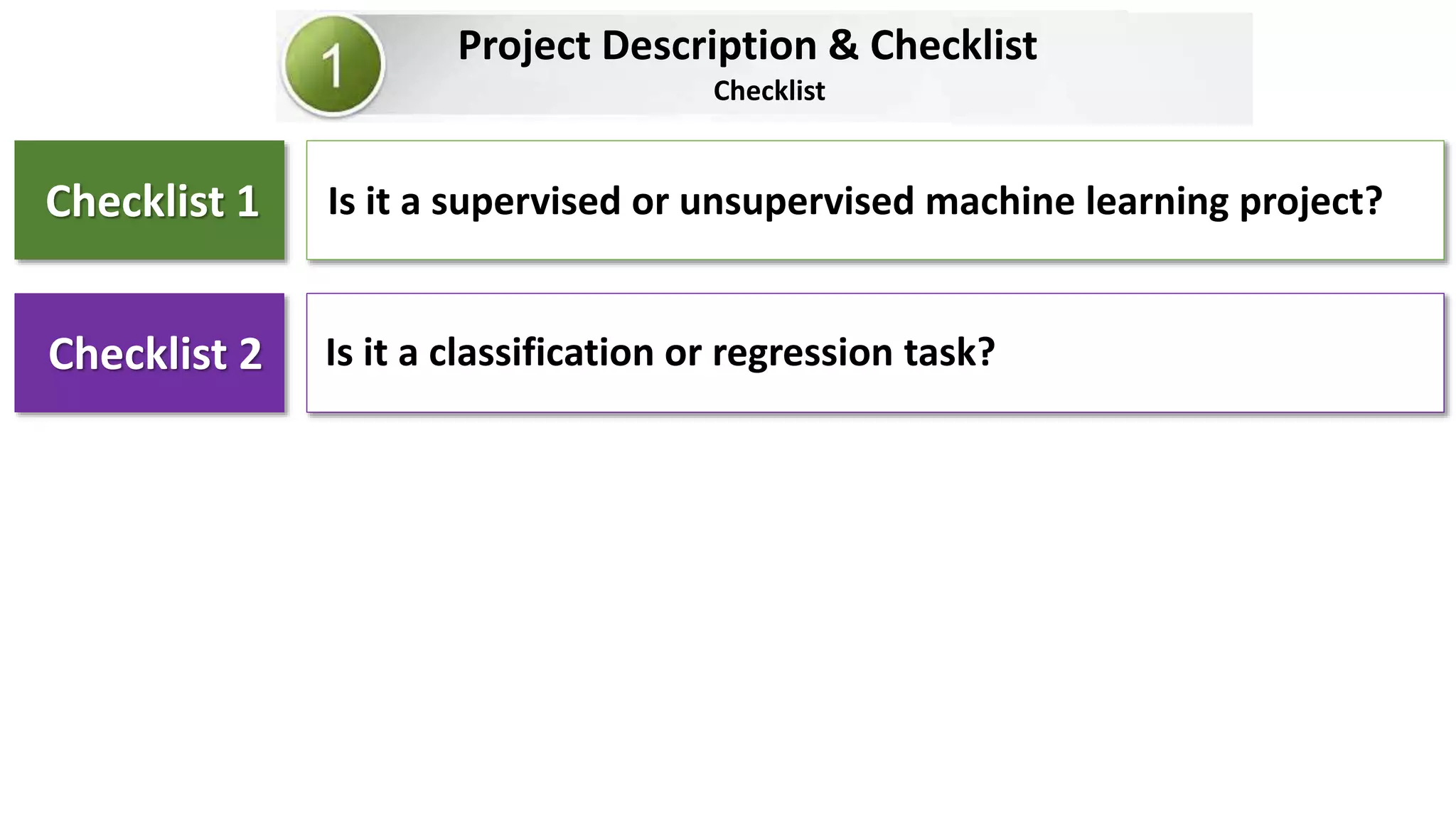

15. Project Description & Checklist
Checklist
Checklist 1
Checklist 2
Is it a supervised or unsupervised machine learning project?
Is it a classification or regression task?

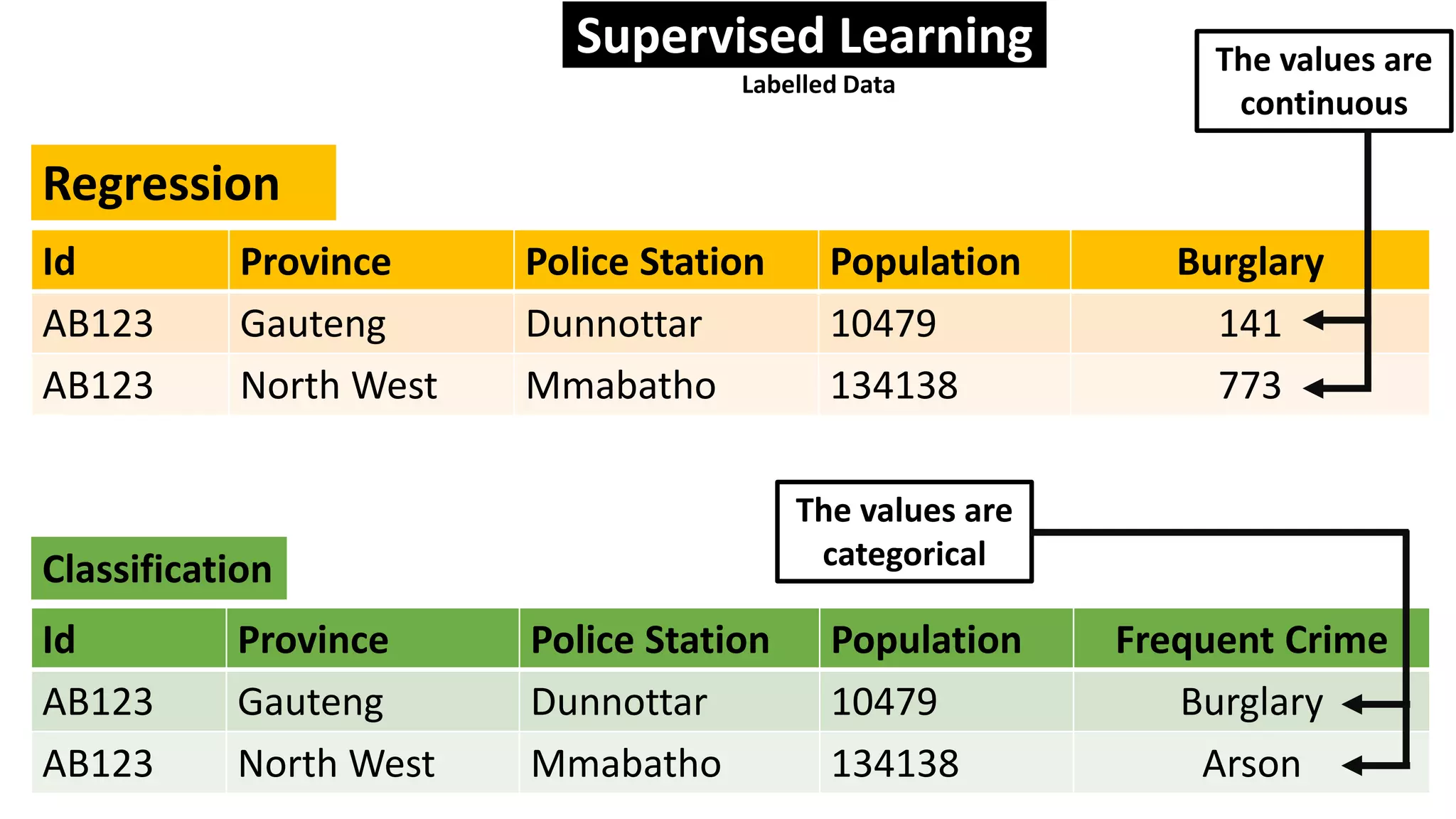

16. Id Province Police Station Population Burglary
AB123 Gauteng Dunnottar 10479 141
AB123 North West Mmabatho 134138 773
Regression
Id Province Police Station Population Frequent Crime
AB123 Gauteng Dunnottar 10479 Burglary
AB123 North West Mmabatho 134138 Arson
Classification
Supervised Learning
Labelled Data
The values are
continuous
The values are
categorical

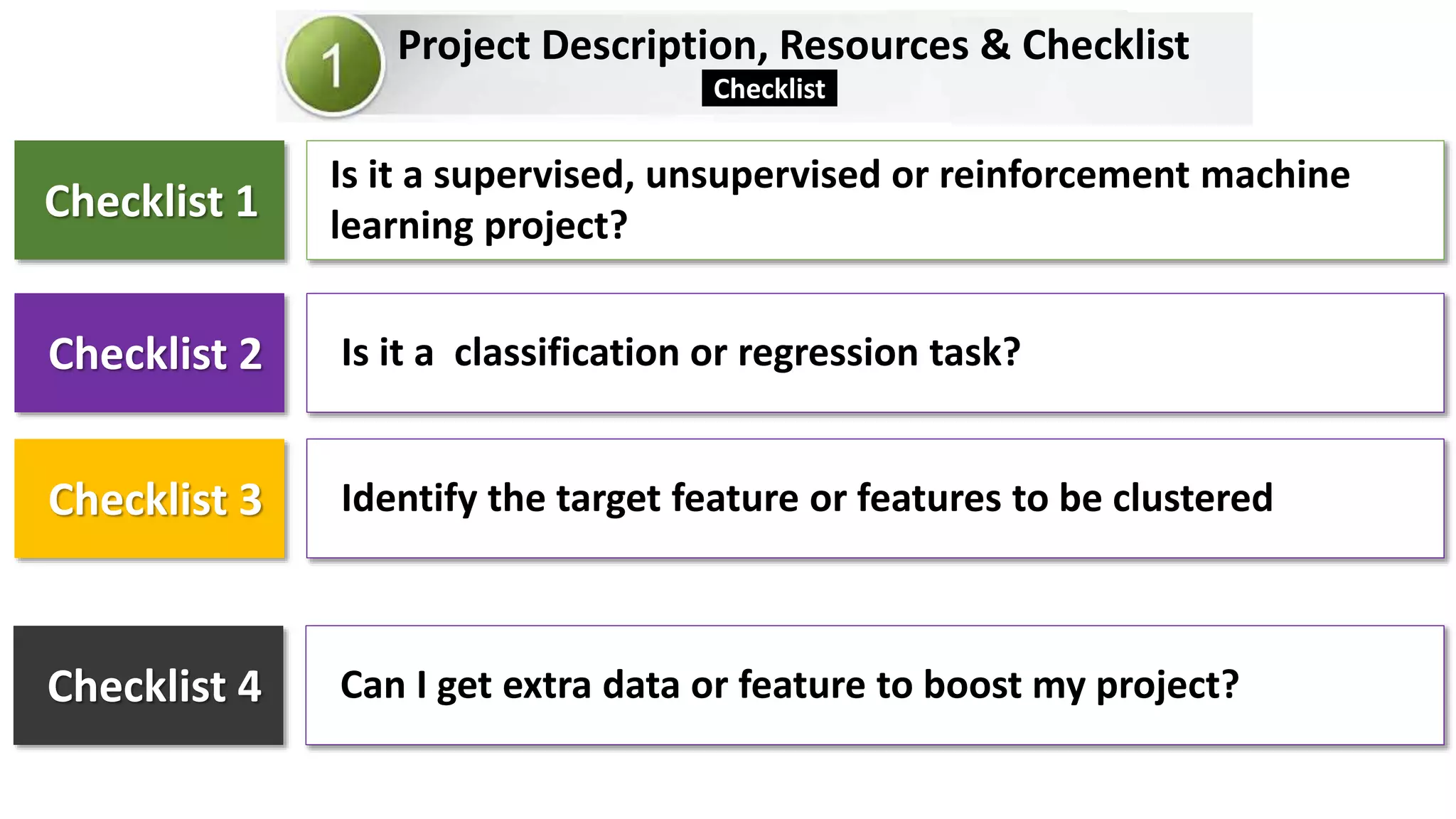

17. Project Description, Resources & Checklist
Checklist
Checklist 1
Checklist 2
Is it a supervised, unsupervised or reinforcement machine
learning project?
Is it a classification or regression task?
Checklist 3 Identify the target feature or features to be clustered
Checklist 4 Can I get extra data or feature to boost my project?

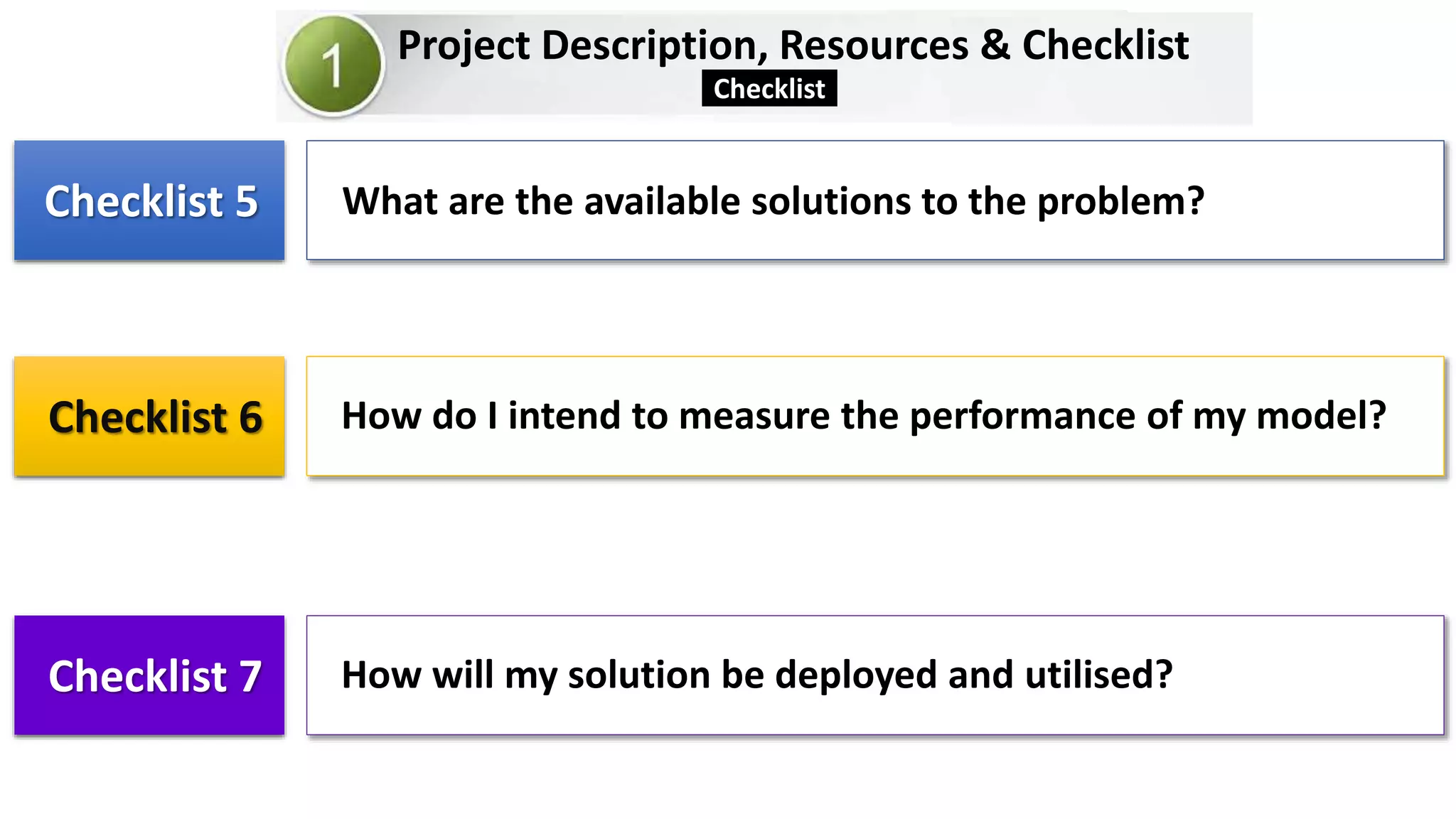

18. Project Description, Resources & Checklist
Checklist 5
Checklist 6
What are the available solutions to the problem?
How do I intend to measure the performance of my model?
Checklist 7 How will my solution be deployed and utilised?
Checklist

19. 2

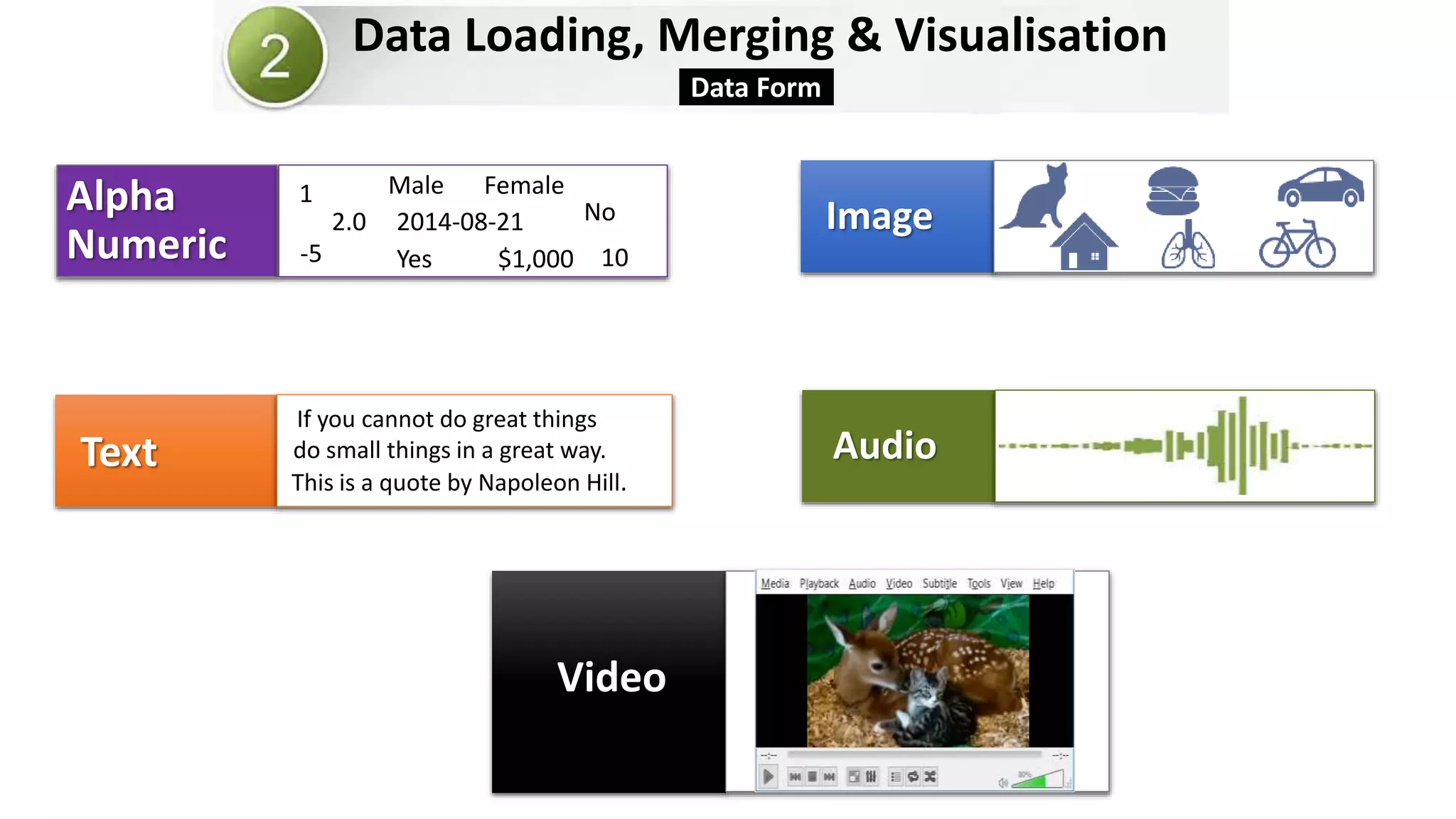

20. Video
AudioText
ImageAlpha
Numeric $1,000
Male Female
No
Yes
2014-08-21
10-5
2.0
1
This is a quote by Napoleon Hill.
do small things in a great way.
If you cannot do great things
Data Loading, Merging & Visualisation
Data Form

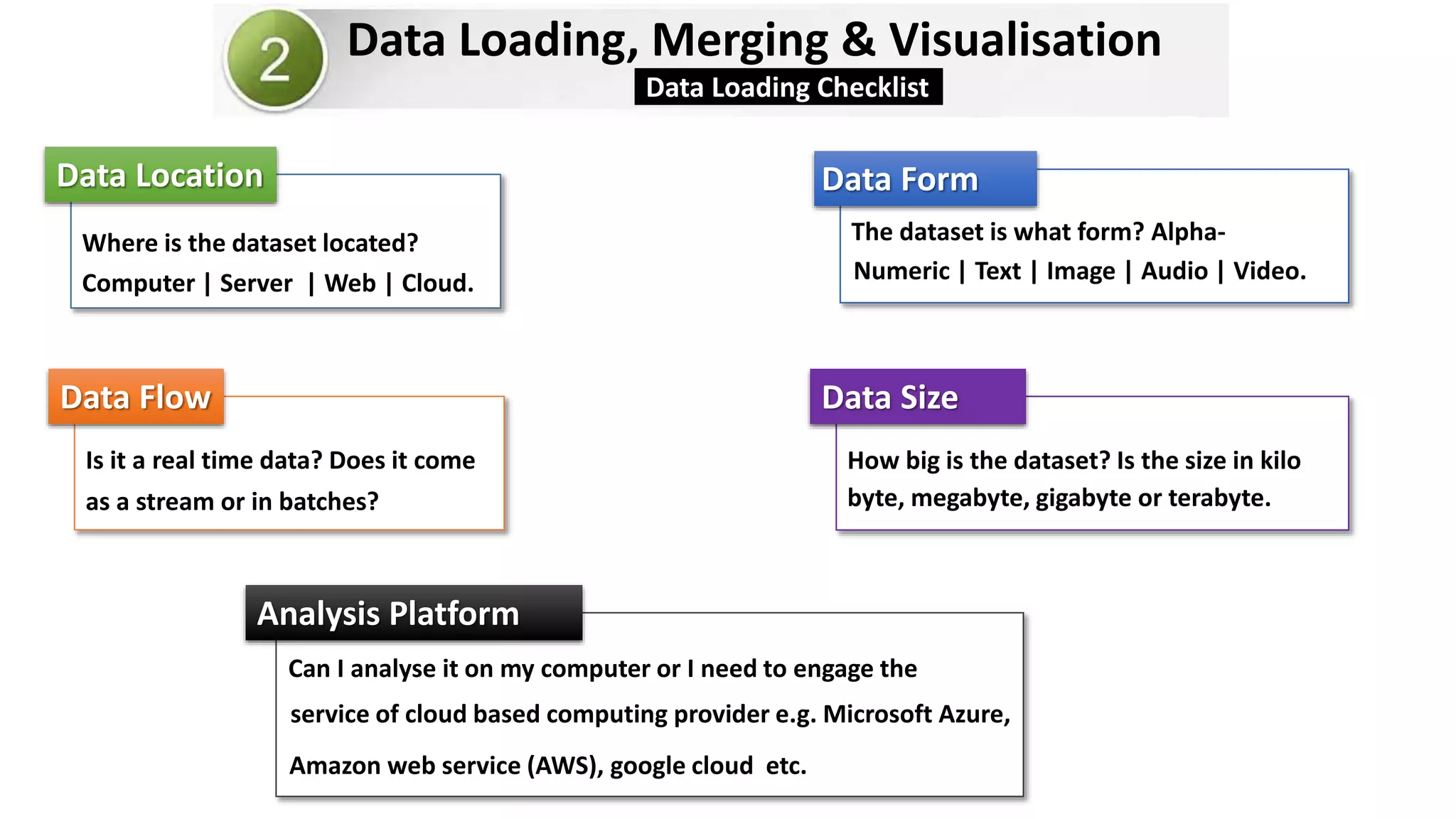

21. Data Loading, Merging & Visualisation
Data Location
Computer | Server | Web | Cloud.
Where is the dataset located?
Data Form
Numeric | Text | Image | Audio | Video.
The dataset is what form? Alpha-
Data Size
byte, megabyte, gigabyte or terabyte.
How big is the dataset? Is the size in kilo
Analysis Platform
Can I analyse it on my computer or I need to engage the
Data Flow
as a stream or in batches?
Is it a real time data? Does it come
Data Loading Checklist
service of cloud based computing provider e.g. Microsoft Azure,
Amazon web service (AWS), google cloud etc.

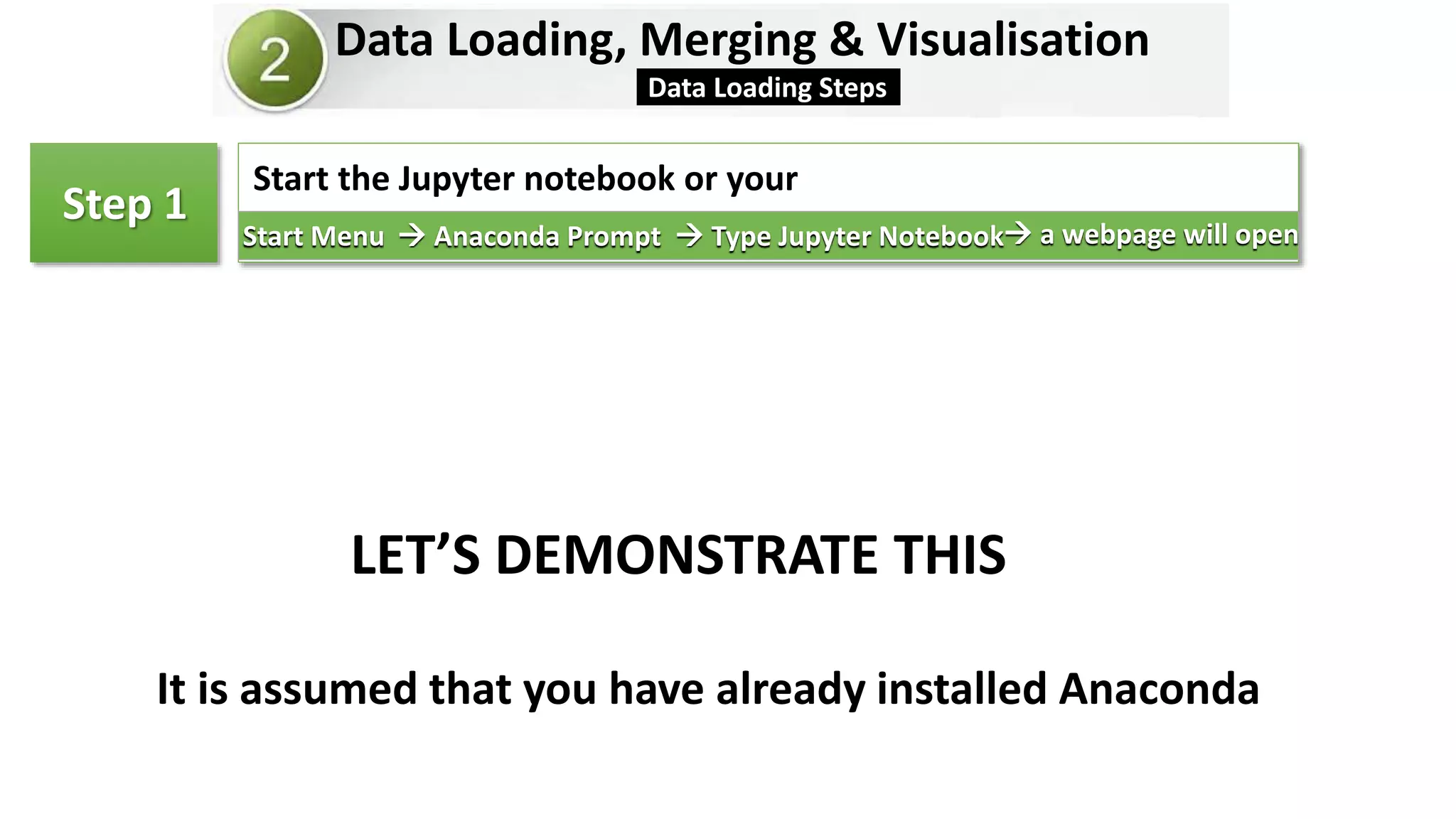

22. Data Loading, Merging & Visualisation
Data Loading Steps
Step 1
 a webpage will open Type Jupyter Notebook Anaconda PromptStart Menu
Start the Jupyter notebook or your
LET’S DEMONSTRATE THIS
It is assumed that you have already installed Anaconda

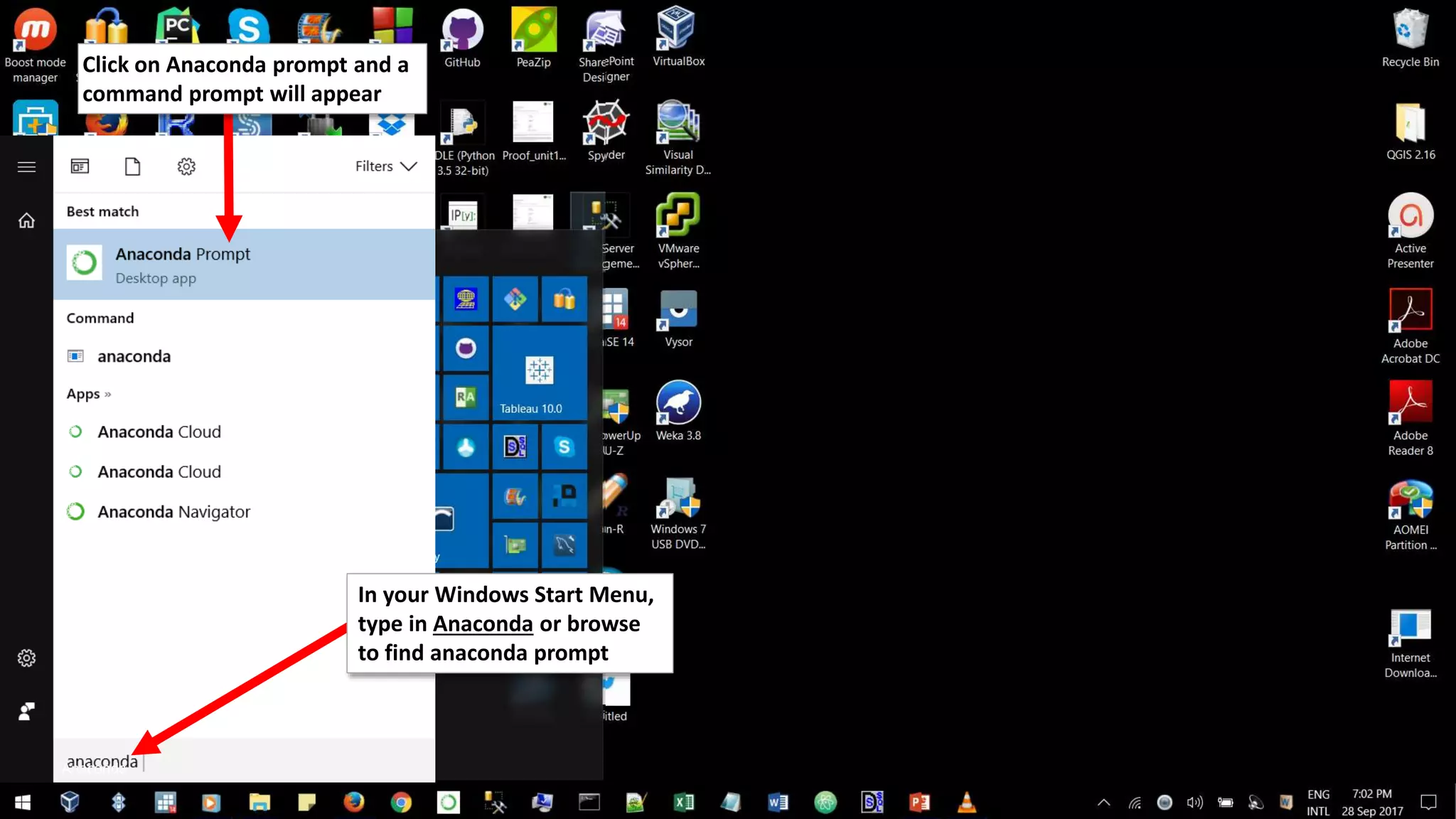

23. Anaconda
In your Windows Start Menu,
type in Anaconda or browse
to find anaconda prompt
Click on Anaconda prompt and a
command prompt will appear

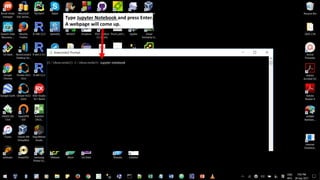

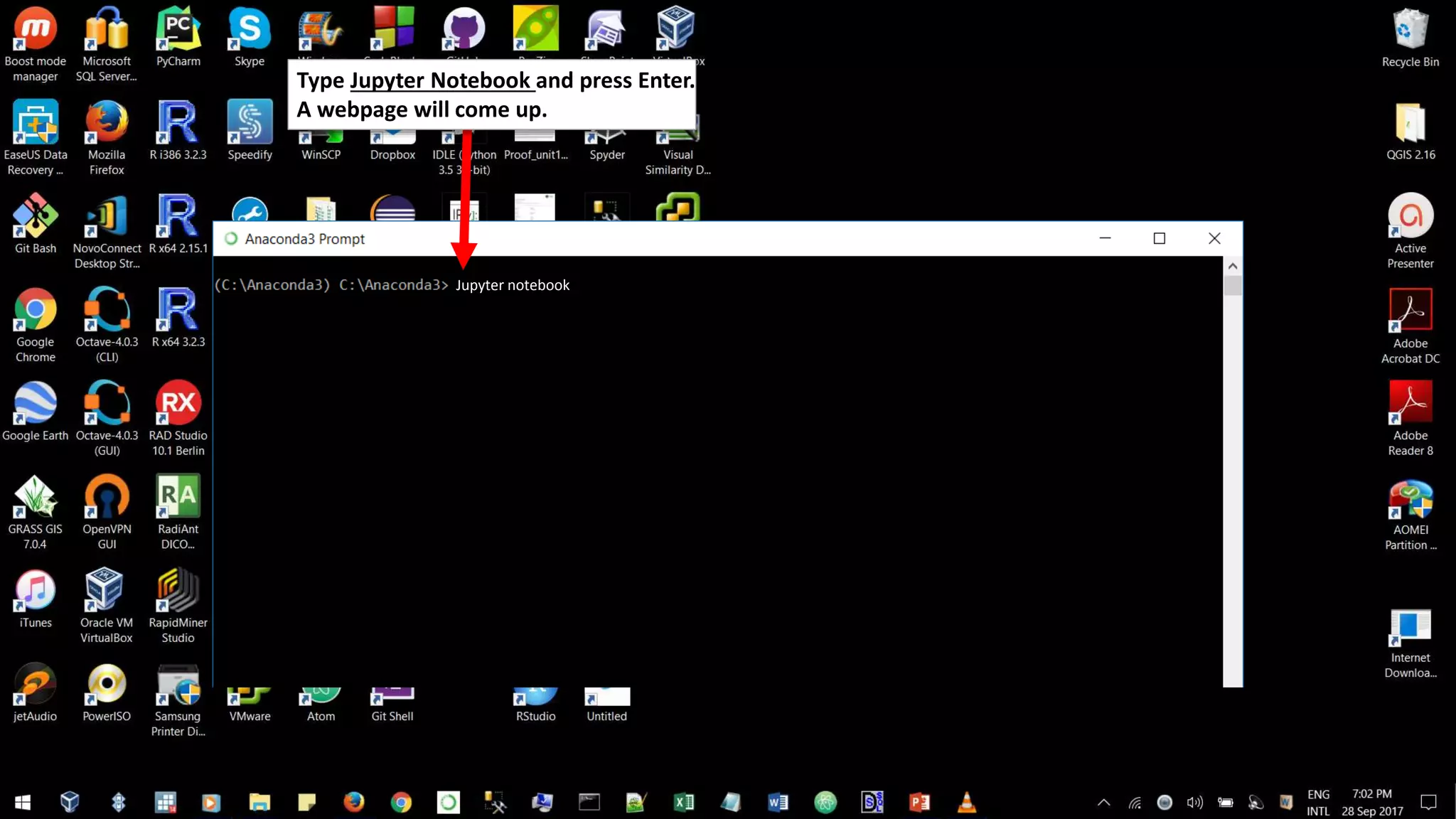

24. Type Jupyter Notebook and press Enter.
A webpage will come up.
Jupyter notebook

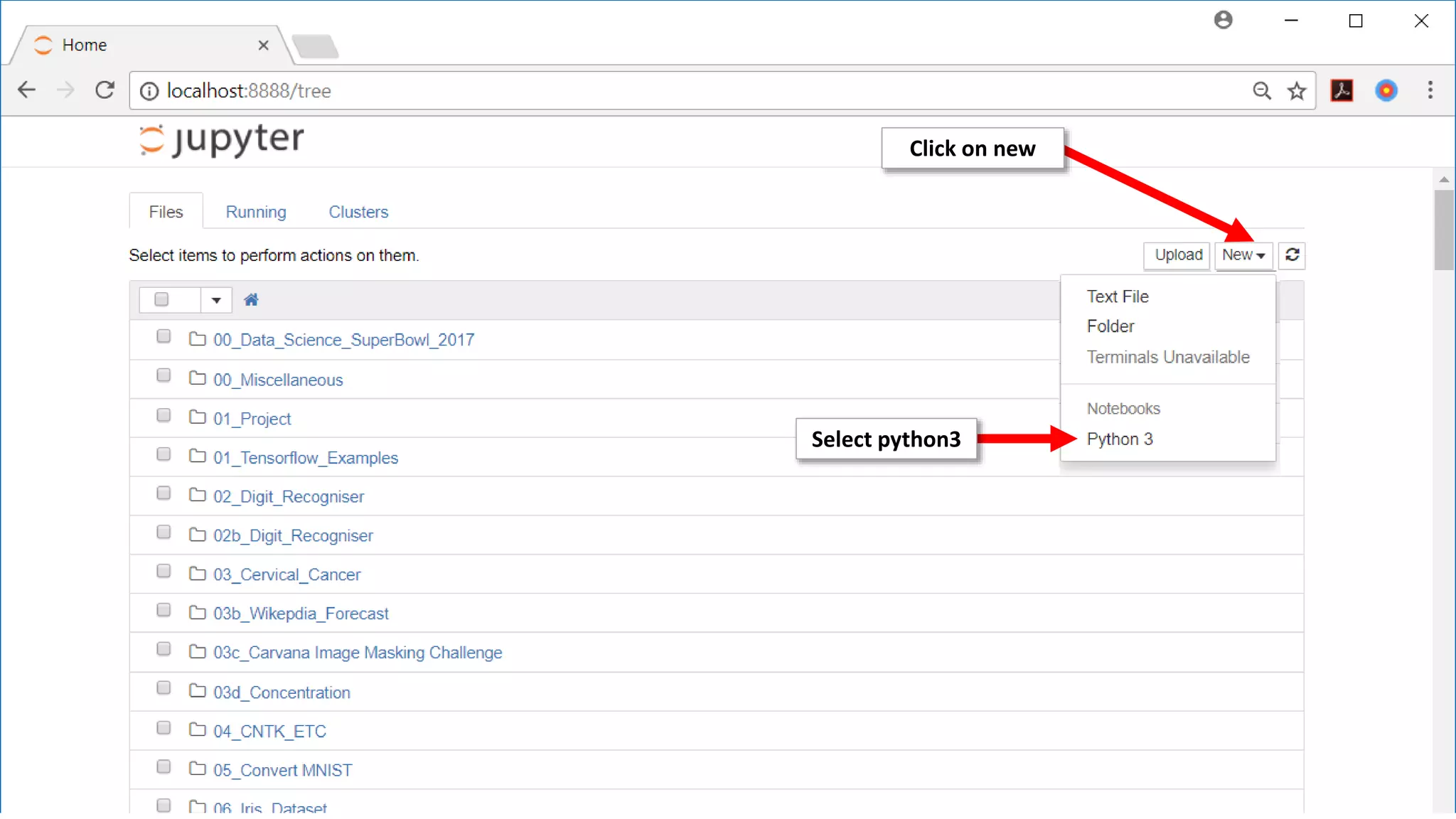

25. Click on new
Select python3

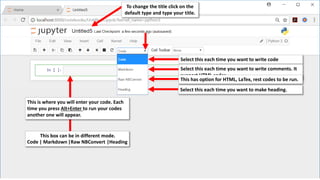

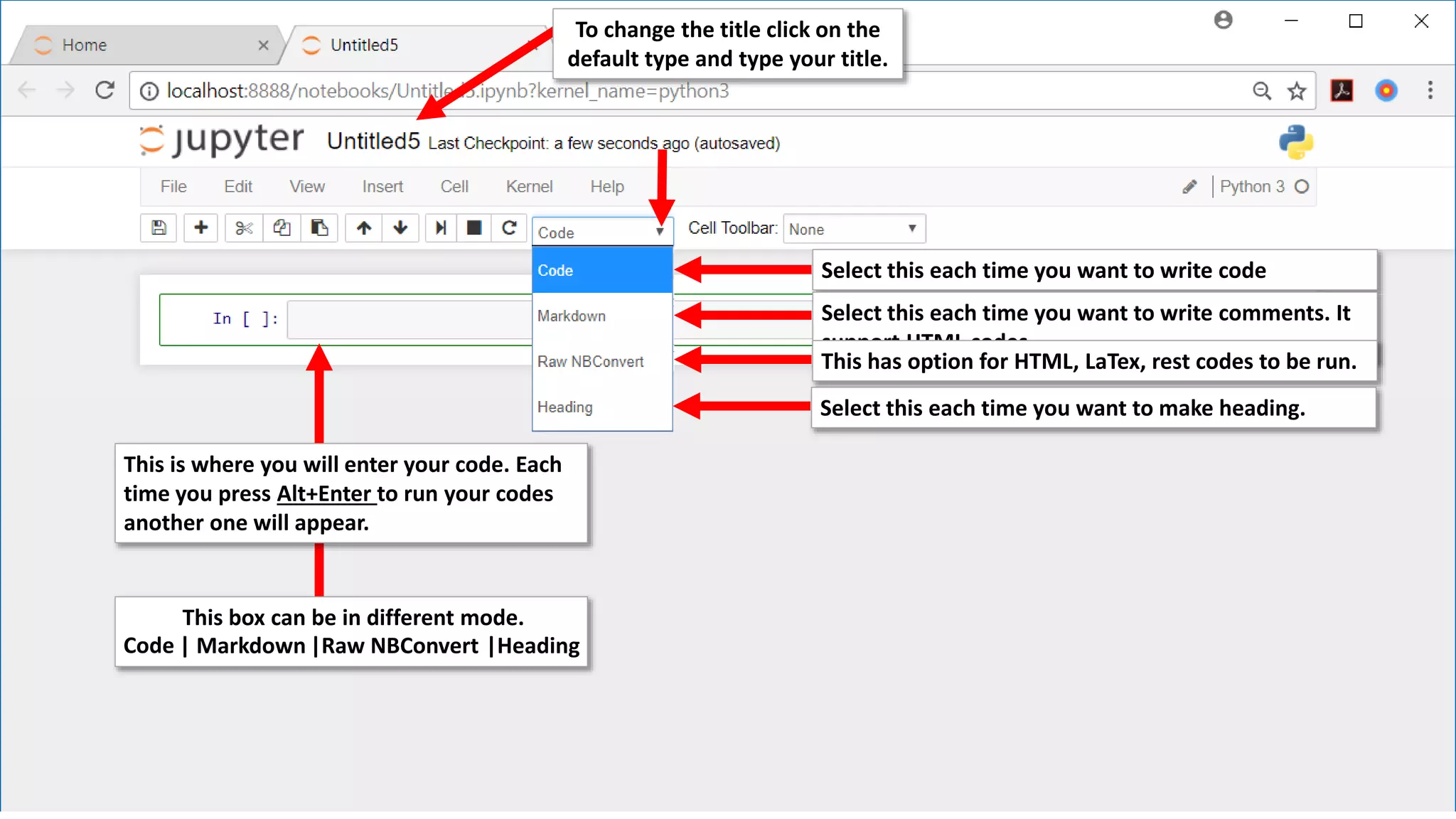

26. To change the title click on the
default type and type your title.
Select this each time you want to write code
This is where you will enter your code. Each
time you press Alt+Enter to run your codes
another one will appear.
This box can be in different mode.
Code | Markdown |Raw NBConvert |Heading
Select this each time you want to write comments. It
support HTML codes.
This has option for HTML, LaTex, rest codes to be run.
Select this each time you want to make heading.

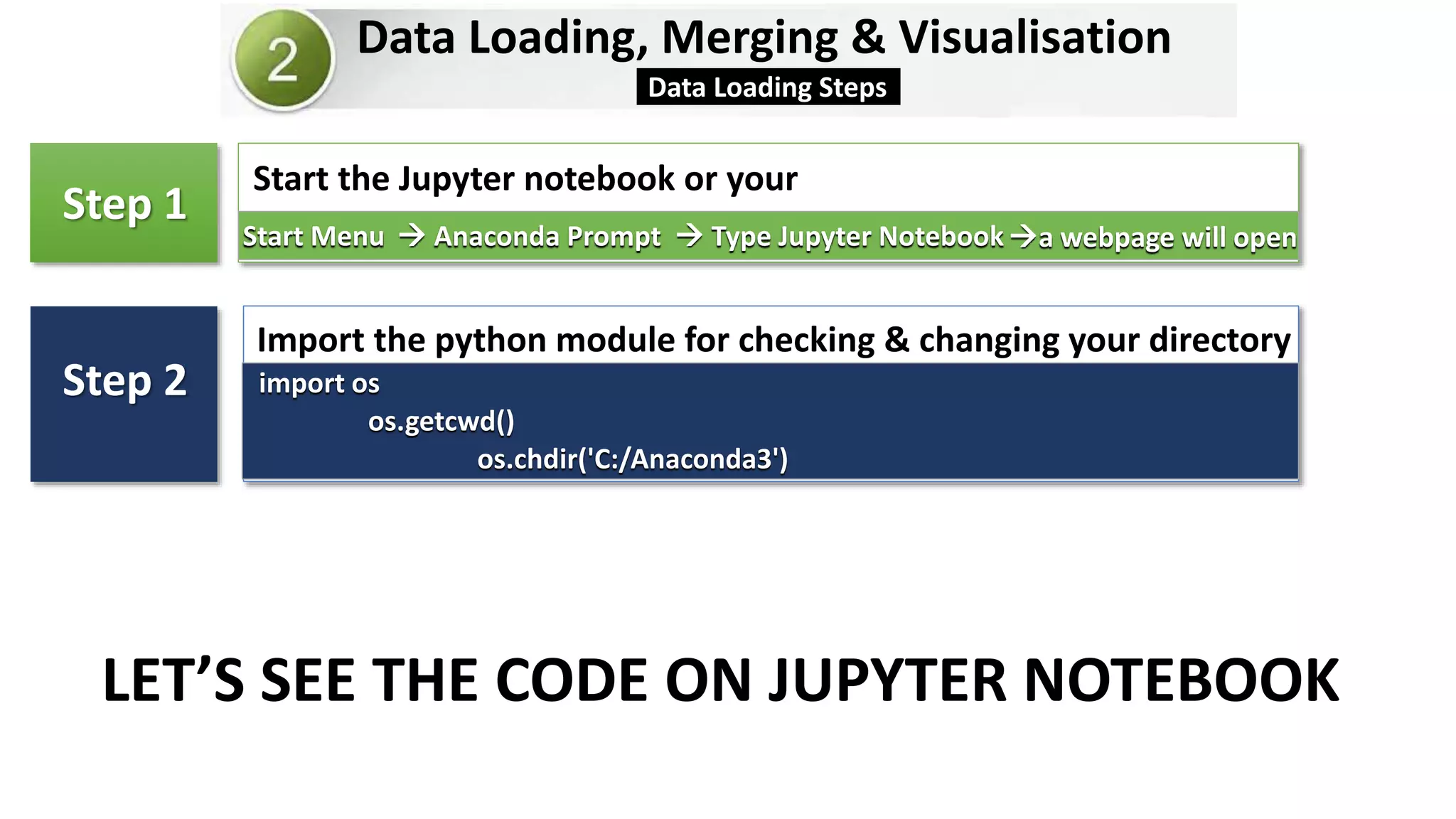

27. Data Loading, Merging & Visualisation
Data Loading Steps
Step 2
Step 1

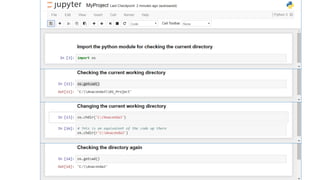

import os
os.getcwd()
os.chdir('C:/Anaconda3')
Import the python module for checking & changing your directory
a webpage will open Type Jupyter Notebook Anaconda PromptStart Menu
Start the Jupyter notebook or your
LET’S SEE THE CODE ON JUPYTER NOTEBOOK

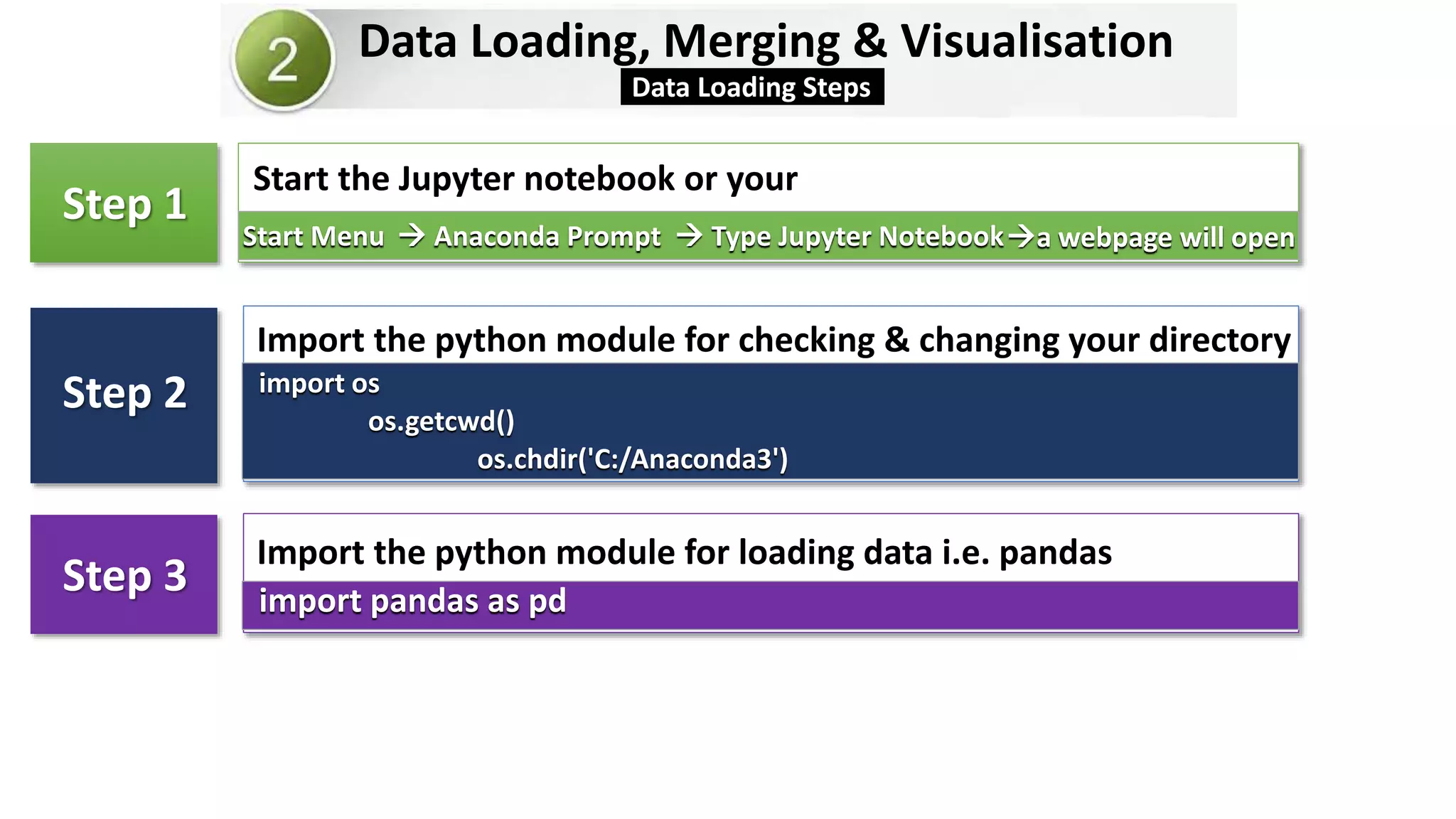

29. Data Loading, Merging & Visualisation
Data Loading Steps
Step 3
Step 2
Step 1

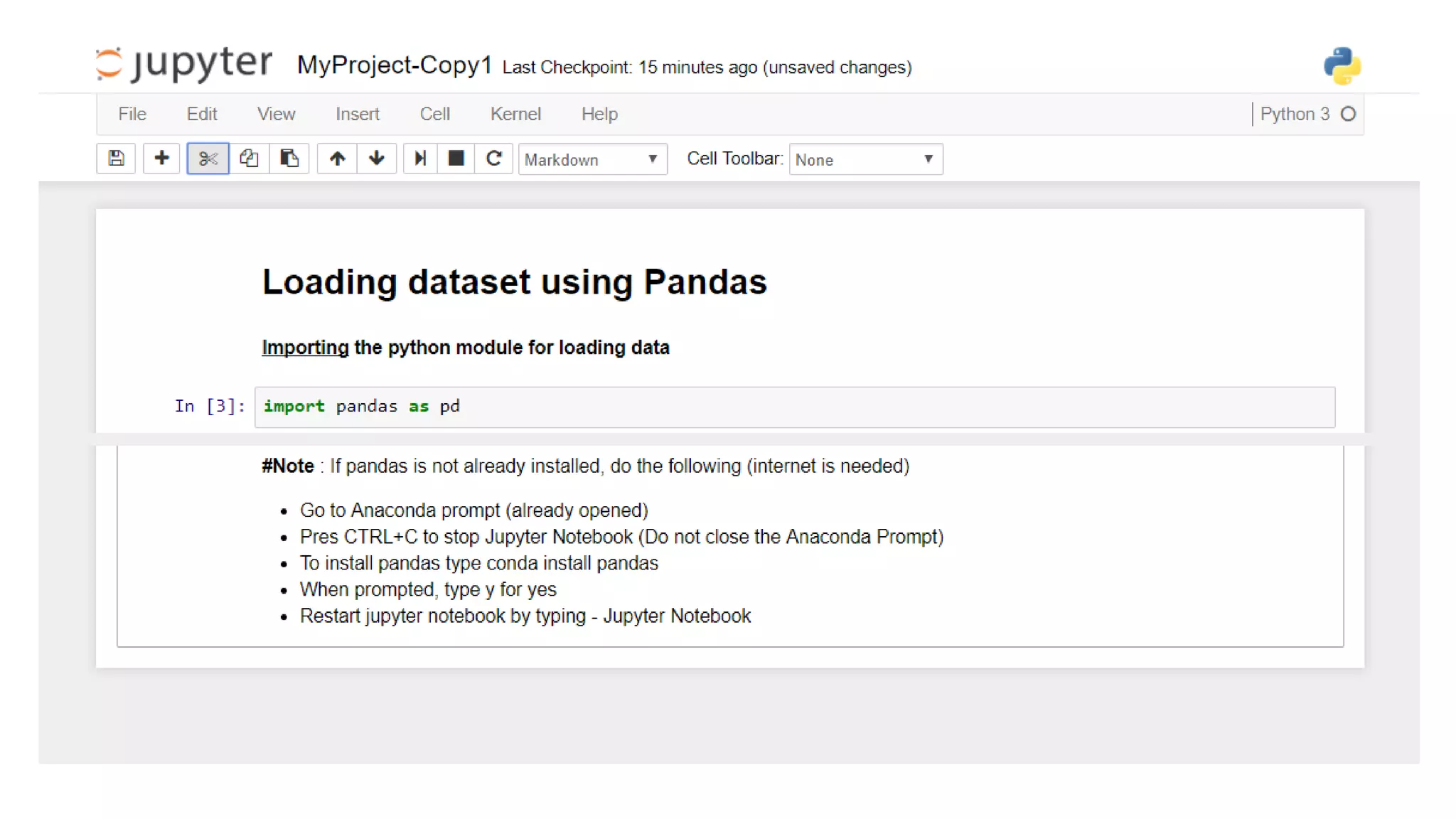

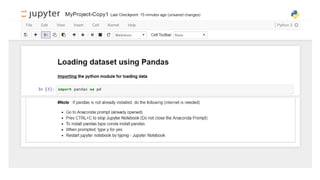

import pandas as pd
Import the python module for loading data i.e. pandas
import os
os.getcwd()
os.chdir('C:/Anaconda3')
Import the python module for checking & changing your directory
a webpage will open Type Jupyter Notebook Anaconda PromptStart Menu
Start the Jupyter notebook or your

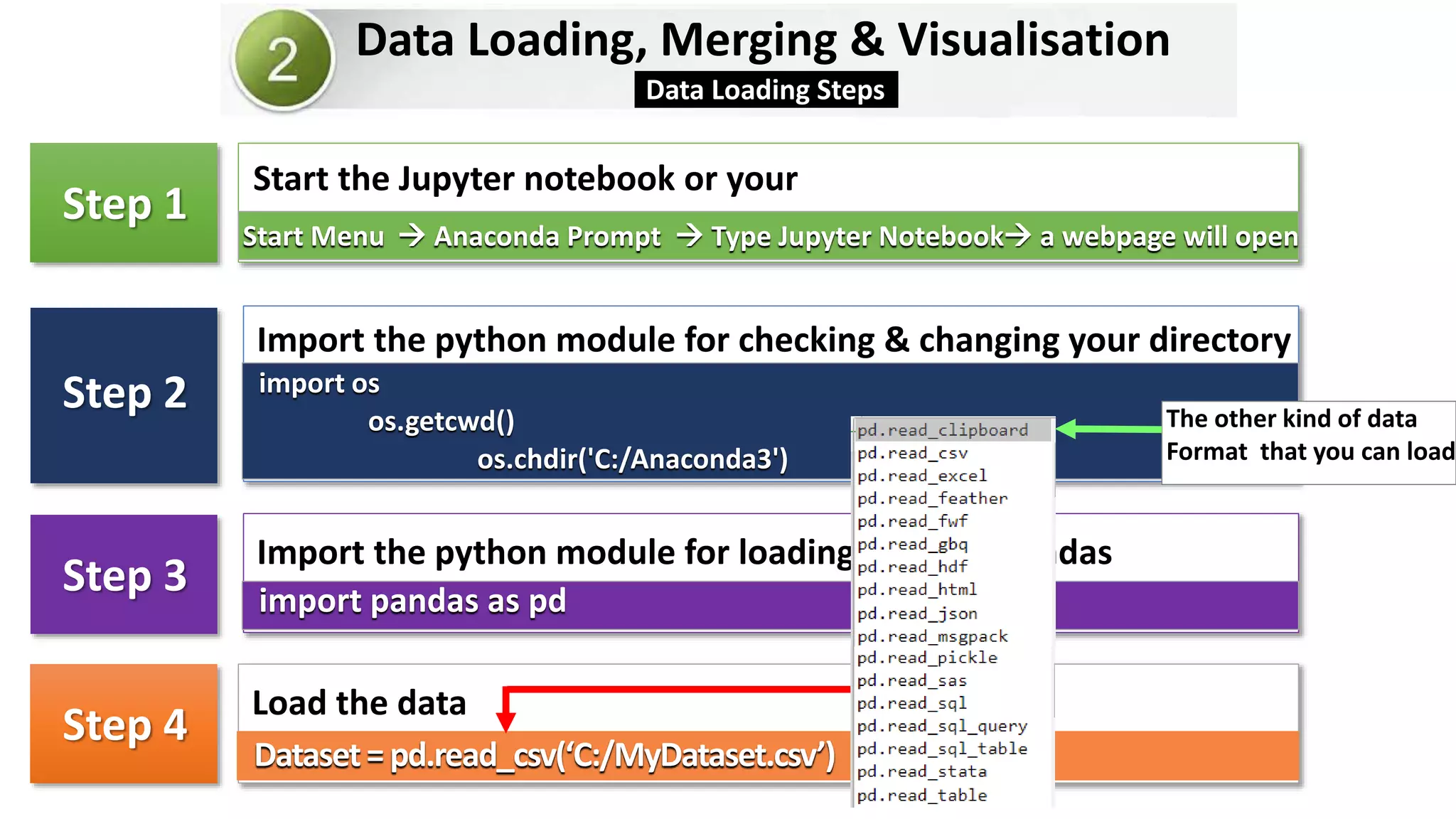

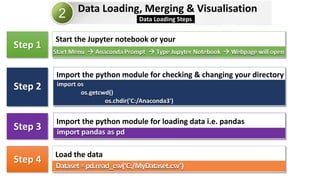

31. Data Loading, Merging & Visualisation
Data Loading Steps
Step 4
Step 3
Step 2
Step 1
Dataset=pd.read_csv(‘C:/MyDataset.csv’)
Load the data
import pandas as pd
Import the python module for loading data i.e. pandas
import os
os.getcwd()
os.chdir('C:/Anaconda3')
Import the python module for checking & changing your directory
 a webpage will open Type Jupyter Notebook Anaconda PromptStart Menu
Start the Jupyter notebook or your
The other kind of data
Format that you can load

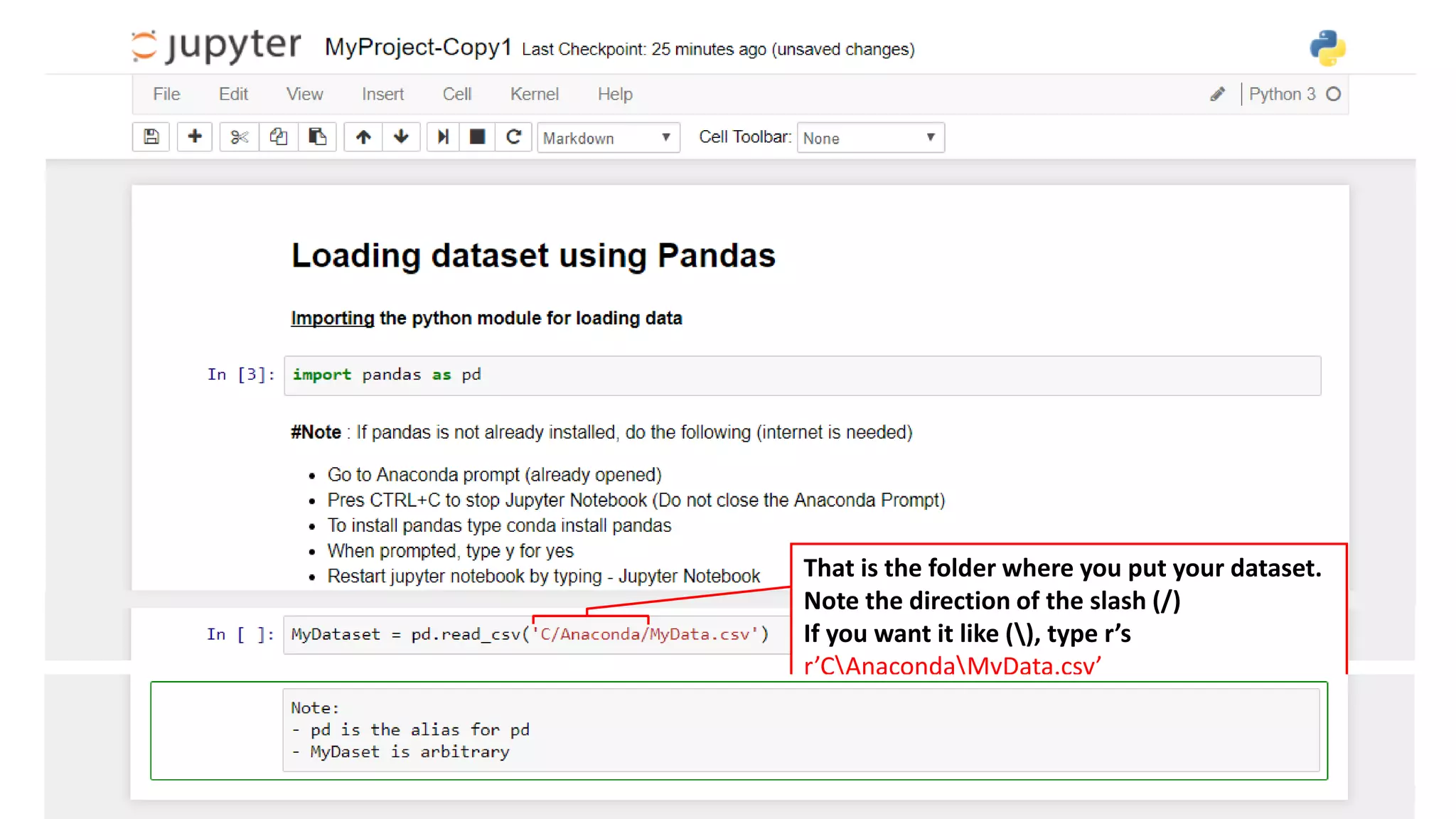

32. That is the folder where you put your dataset.
Note the direction of the slash (/)
If you want it like (), type r’s
r’CAnacondaMyData.csv’

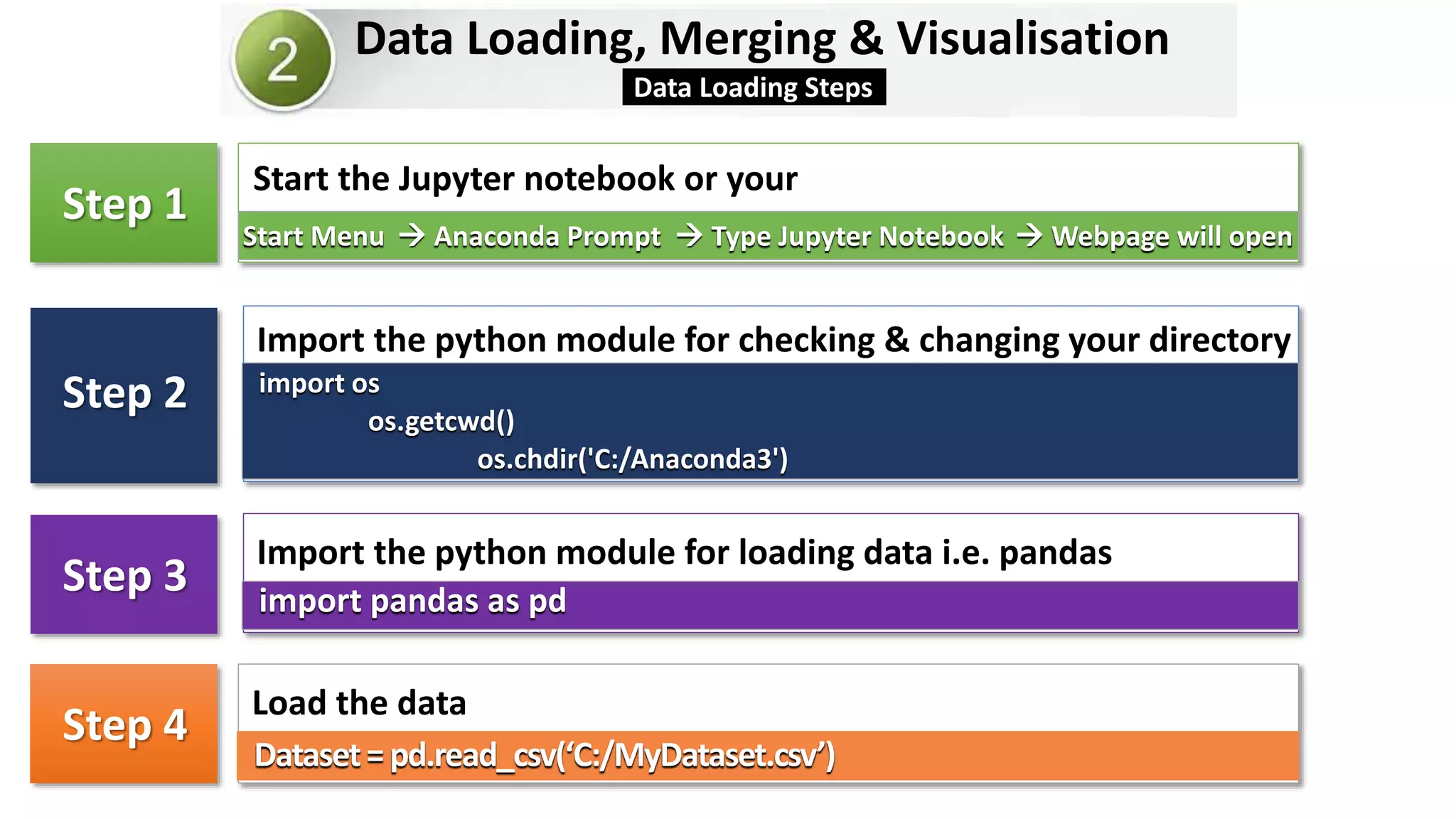

33. Data Loading, Merging & Visualisation
Data Loading Steps
Step 4
Step 3
Step 2
Step 1
Dataset=pd.read_csv(‘C:/MyDataset.csv’)
Load the data
import pandas as pd
Import the python module for loading data i.e. pandas
import os
os.getcwd()
os.chdir('C:/Anaconda3')
Import the python module for checking & changing your directory
 Webpage will open Type Jupyter Notebook Anaconda PromptStart Menu
Start the Jupyter notebook or your

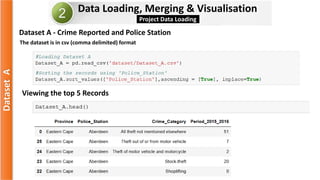

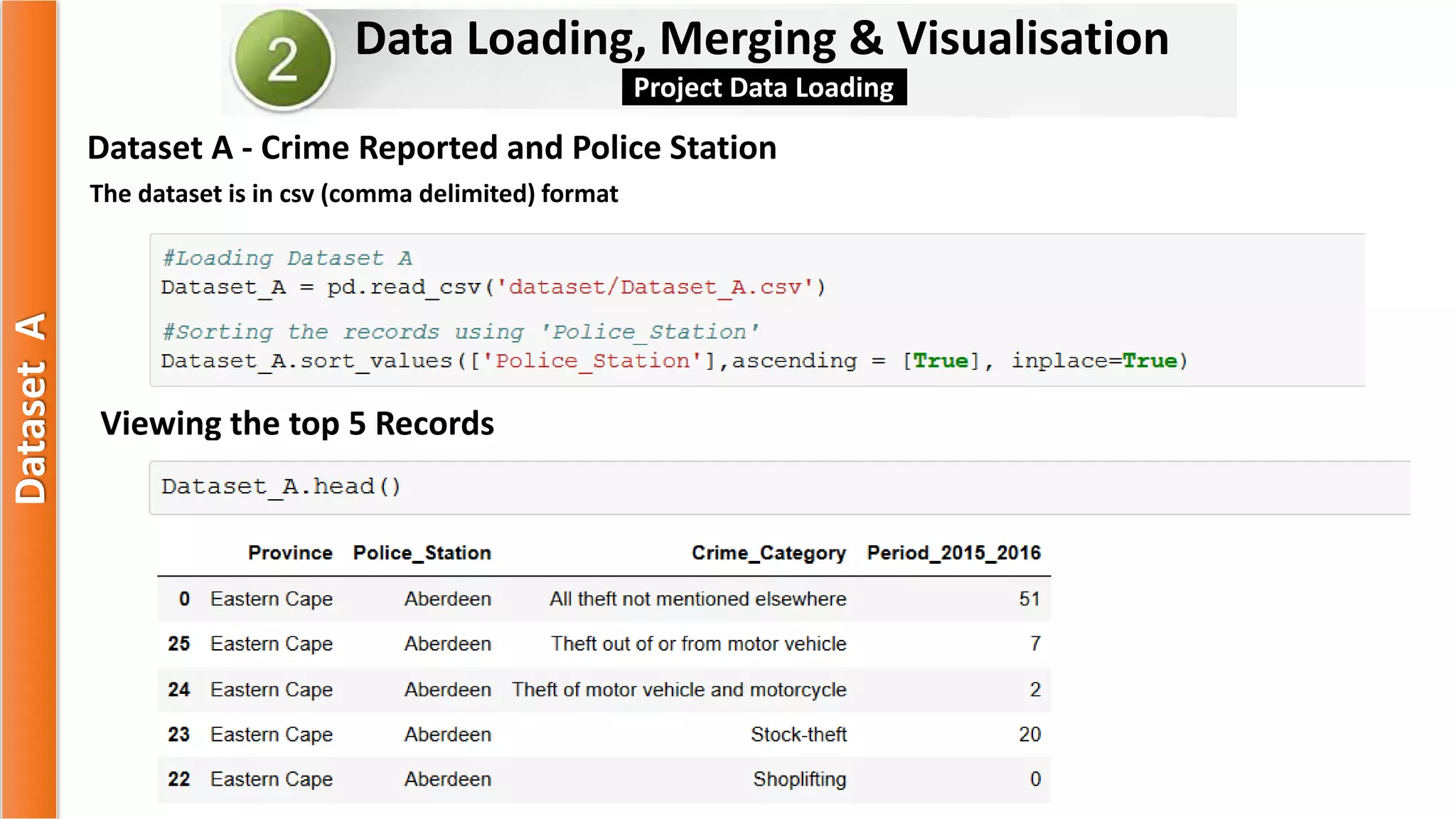

34. Data Loading, Merging & Visualisation
Project Data Loading
Viewing the top 5 Records
DatasetA
The dataset is in csv (comma delimited) format
Dataset A - Crime Reported and Police Station

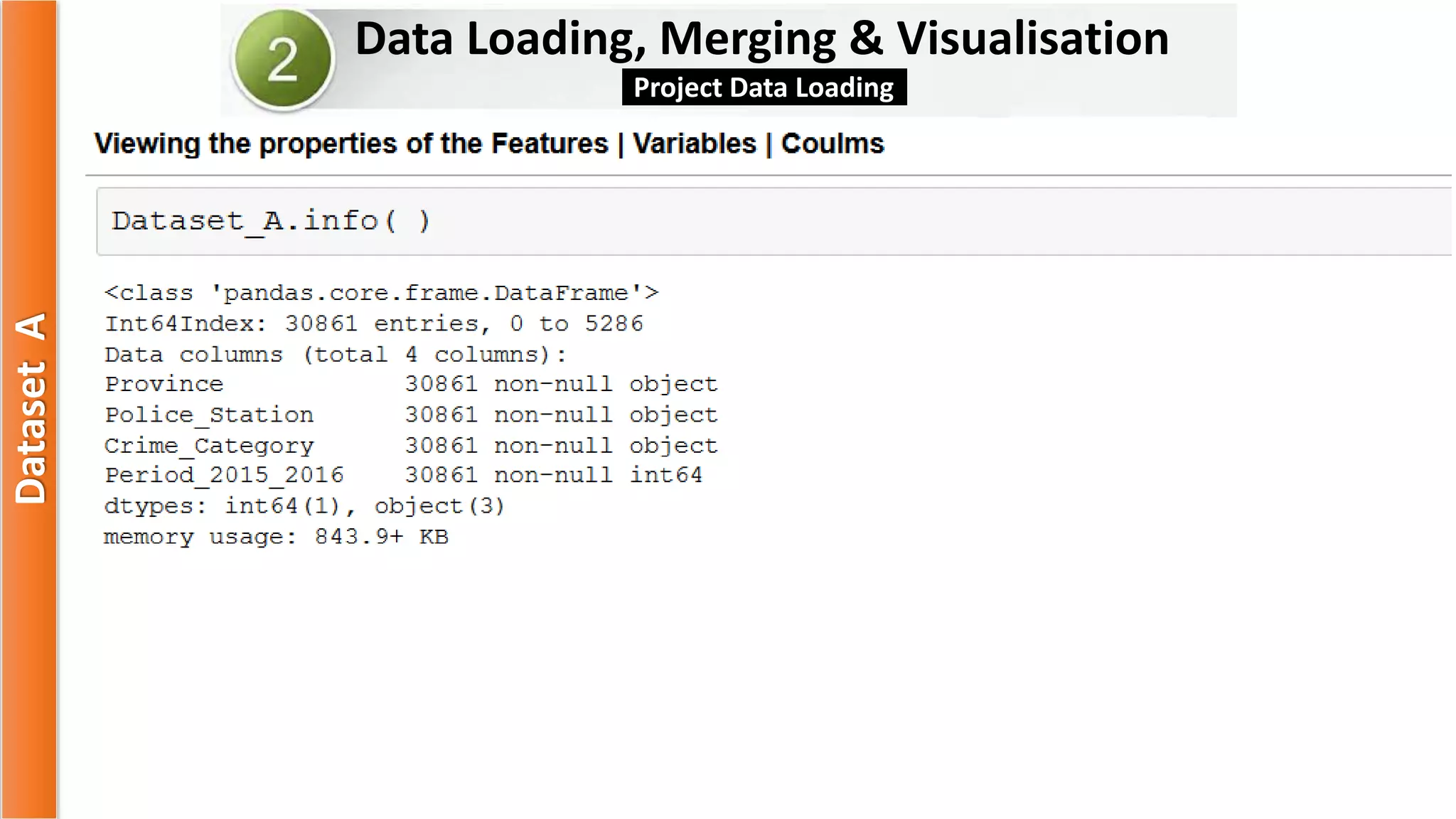

35. Data Loading, Merging & Visualisation
Project Data Loading
DatasetA

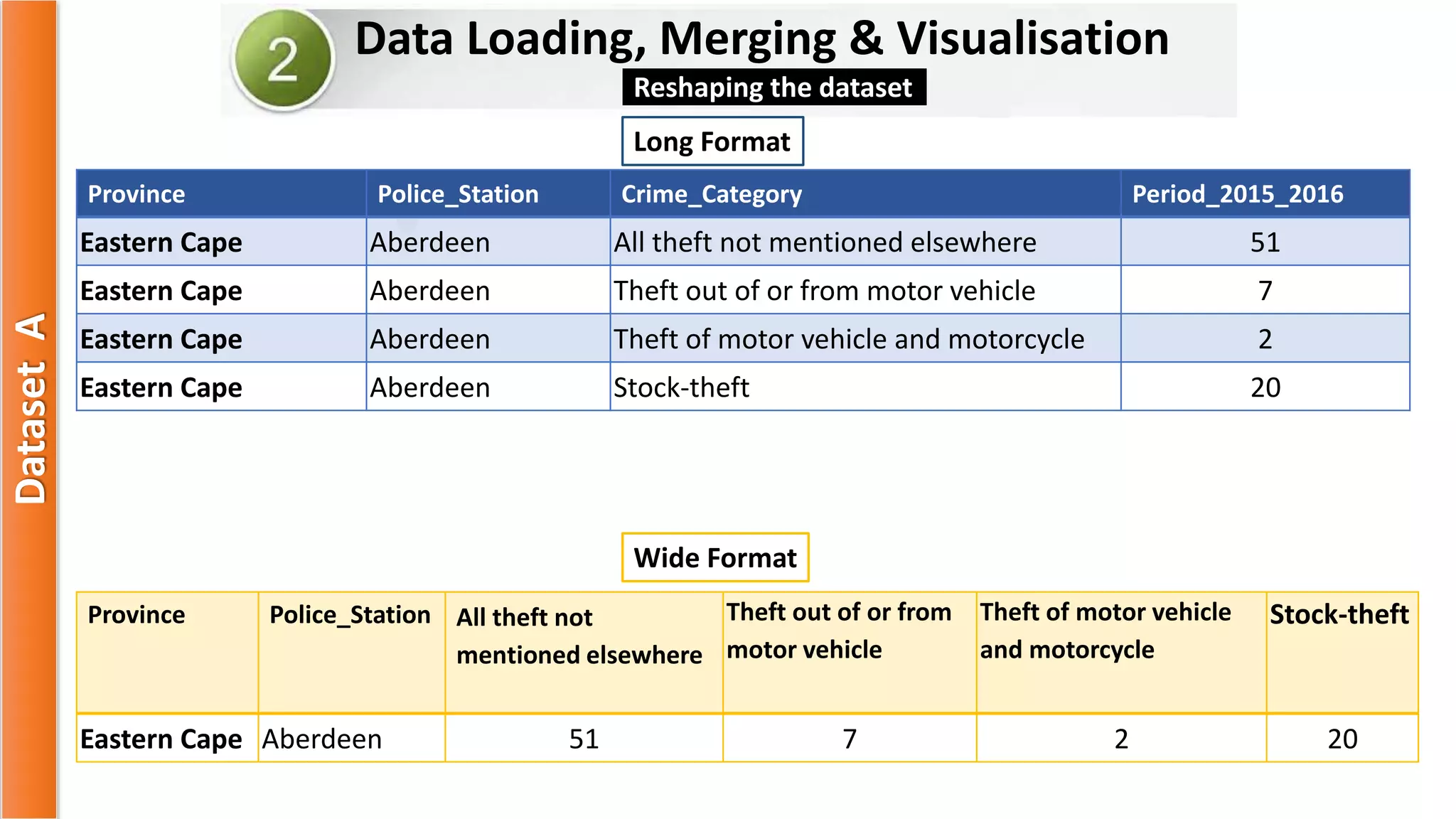

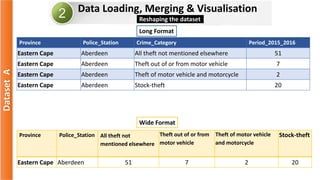

36. Data Loading, Merging & Visualisation
Reshaping the dataset
DatasetA
Province Police_Station Crime_Category Period_2015_2016
Eastern Cape Aberdeen All theft not mentioned elsewhere 51
Eastern Cape Aberdeen Theft out of or from motor vehicle 7
Eastern Cape Aberdeen Theft of motor vehicle and motorcycle 2
Eastern Cape Aberdeen Stock-theft 20
Long Format
Province Police_Station All theft not
mentioned elsewhere
Theft out of or from
motor vehicle
Theft of motor vehicle
and motorcycle
Stock-theft
Eastern Cape Aberdeen 51 7 2 20
Wide Format

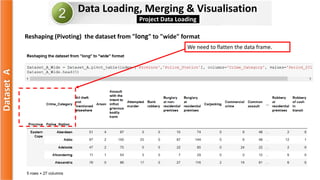

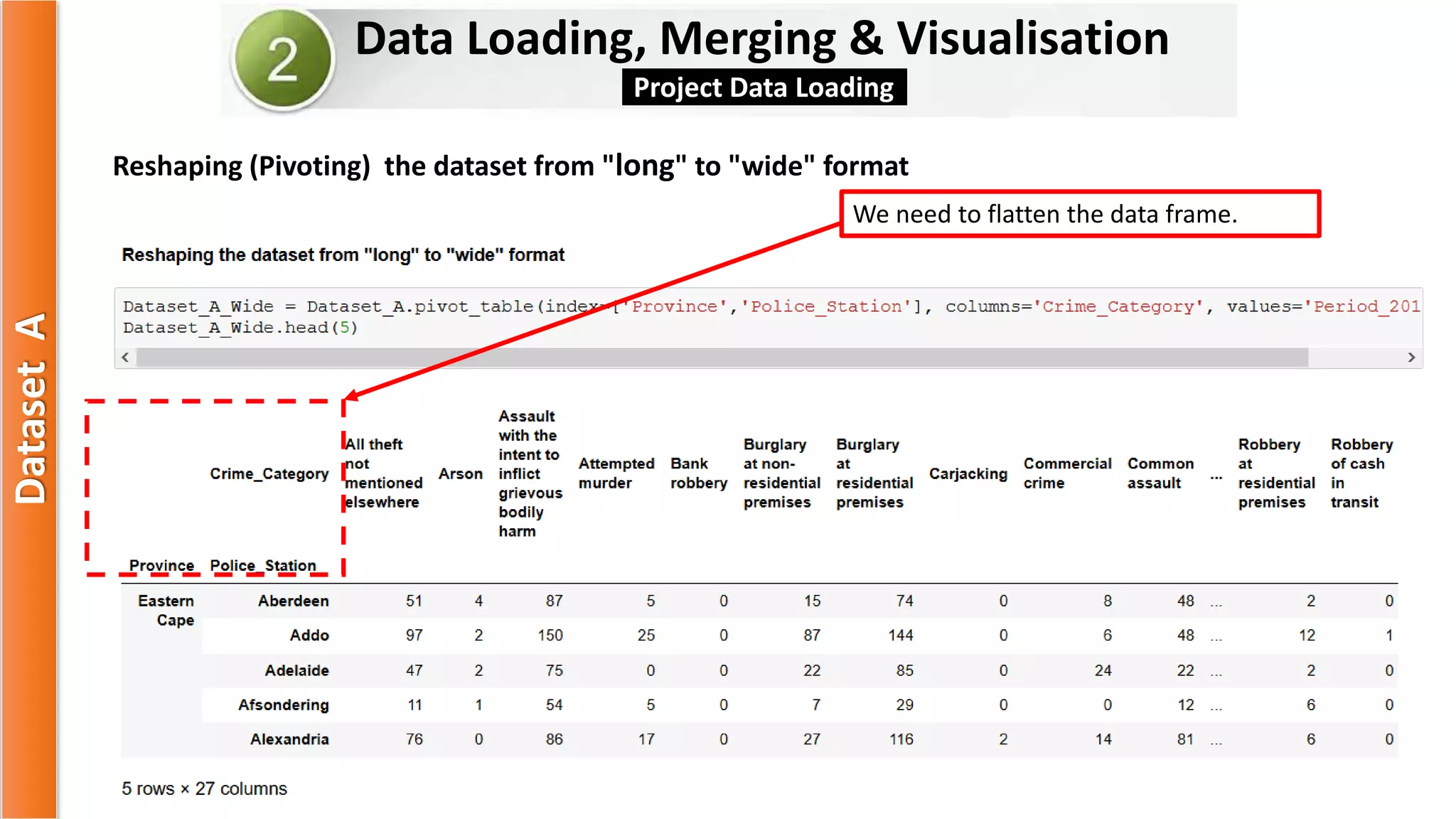

37. Data Loading, Merging & Visualisation
Project Data Loading
DatasetA
Reshaping (Pivoting) the dataset from "long" to "wide" format
We need to flatten the data frame.

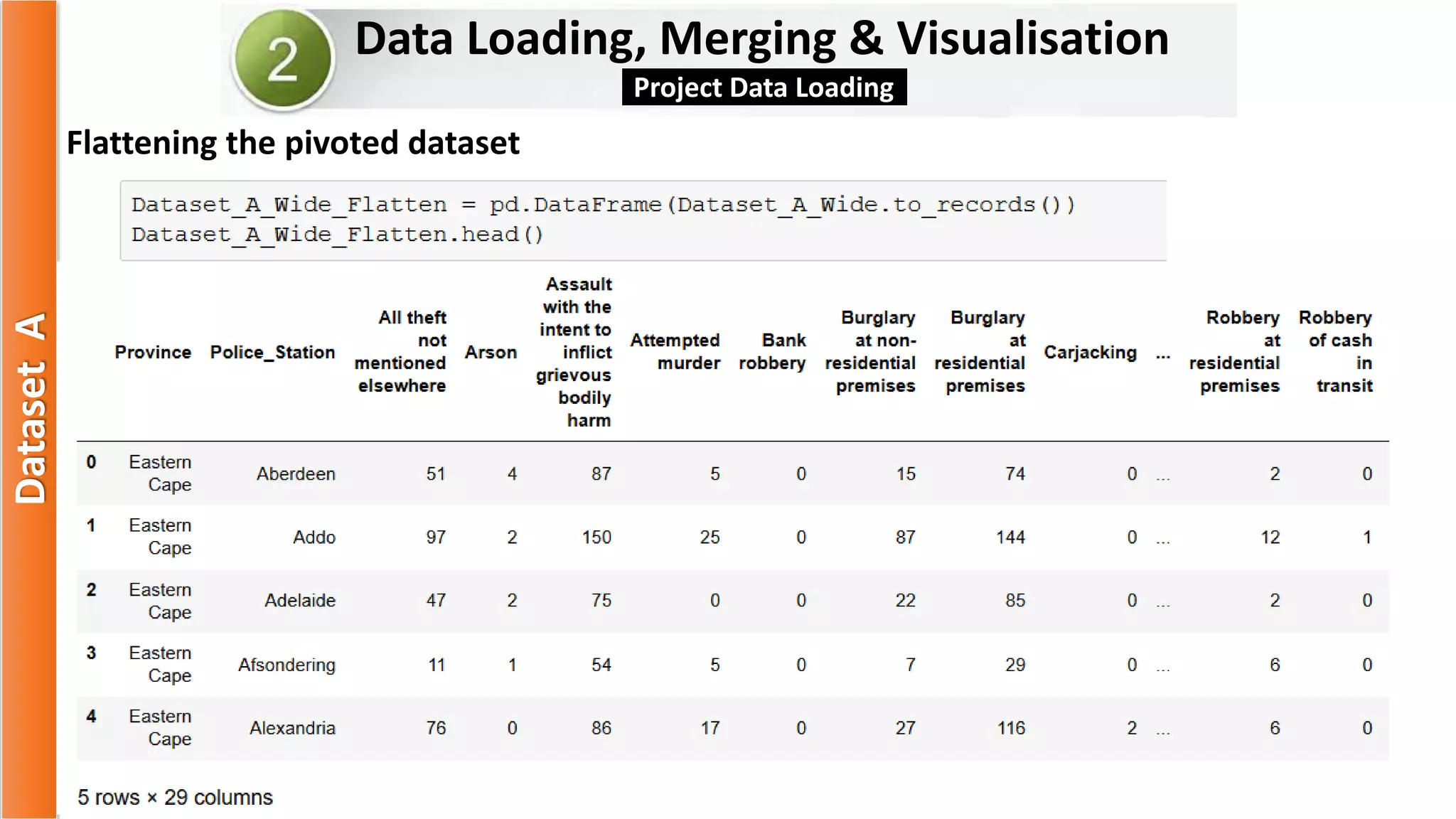

38. Data Loading, Merging & Visualisation
Project Data Loading
DatasetA

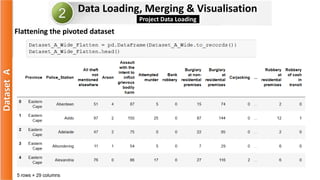

Flattening the pivoted dataset

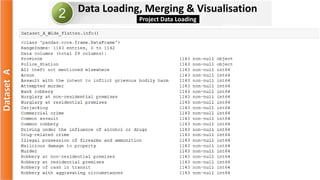

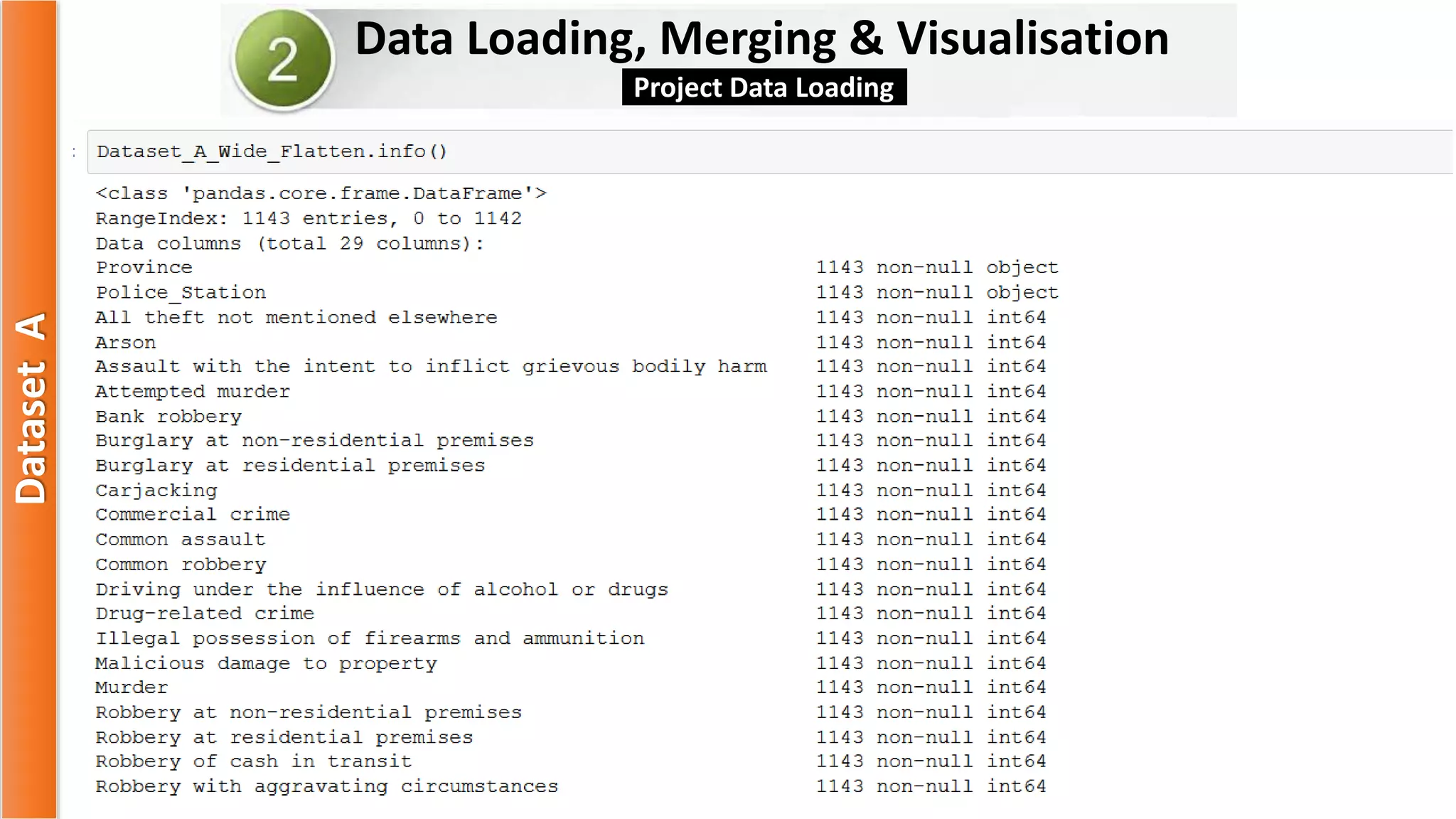

39. Data Loading, Merging & Visualisation
Project Data Loading
DatasetA

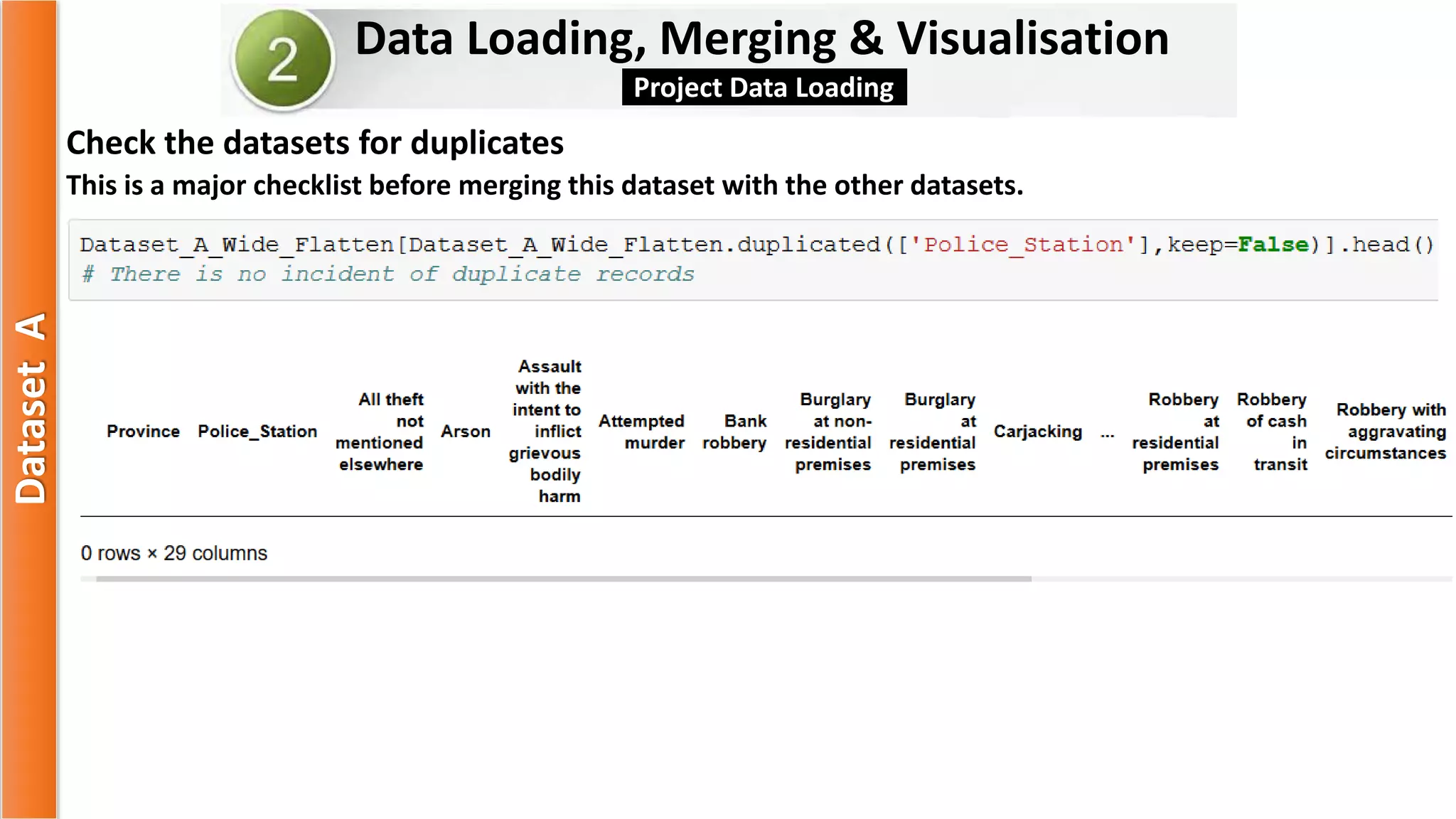

40. Data Loading, Merging & Visualisation
Project Data Loading
DatasetA

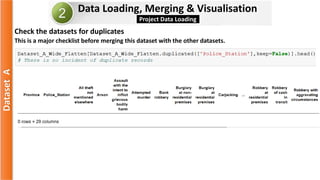

Check the datasets for duplicates
This is a major checklist before merging this dataset with the other datasets.

41. Data Loading, Merging & Visualisation
Project Data Loading

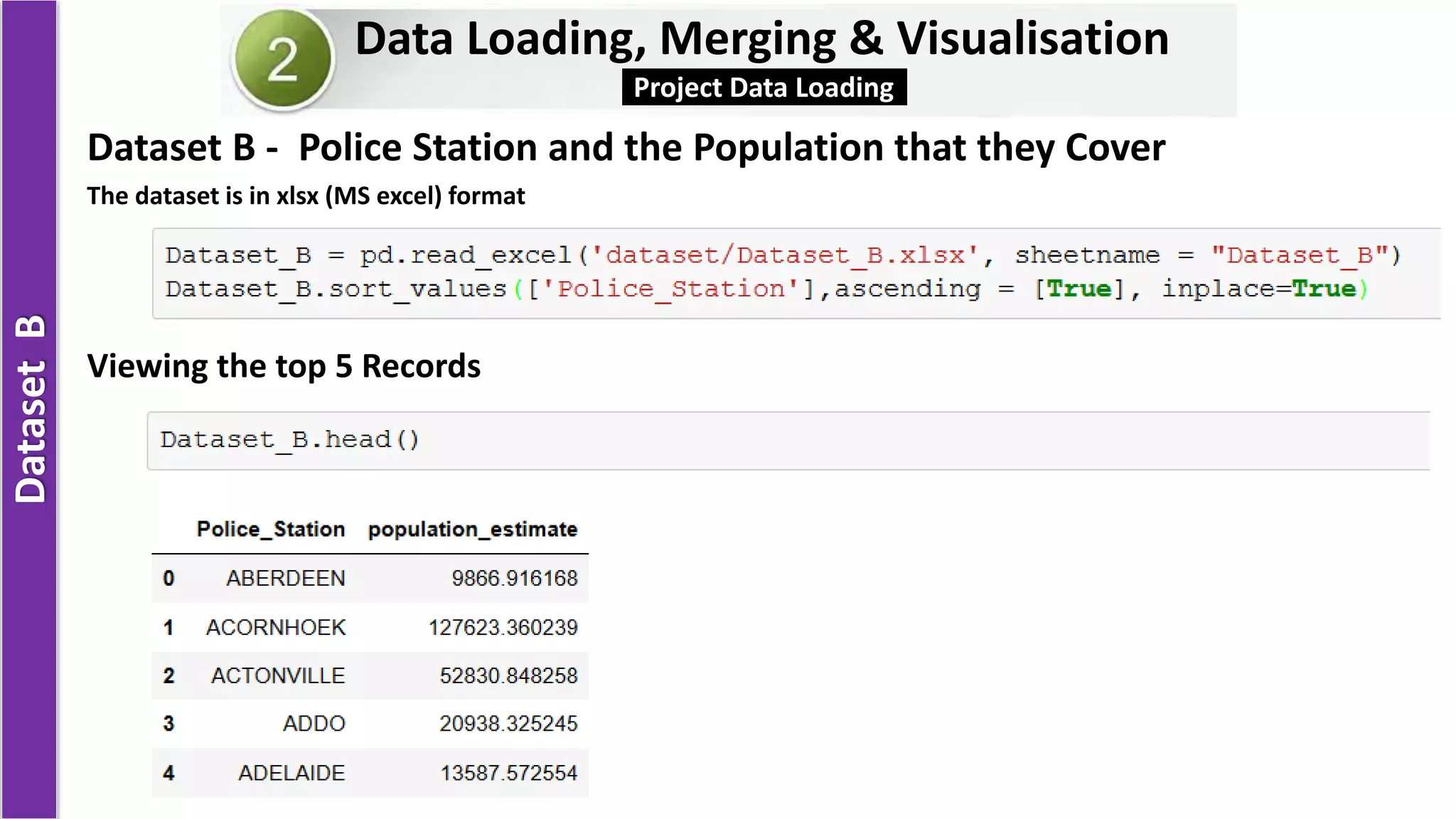

Dataset B - Police Station and the Population that they Cover
DatasetB
Viewing the top 5 Records
The dataset is in xlsx (MS excel) format

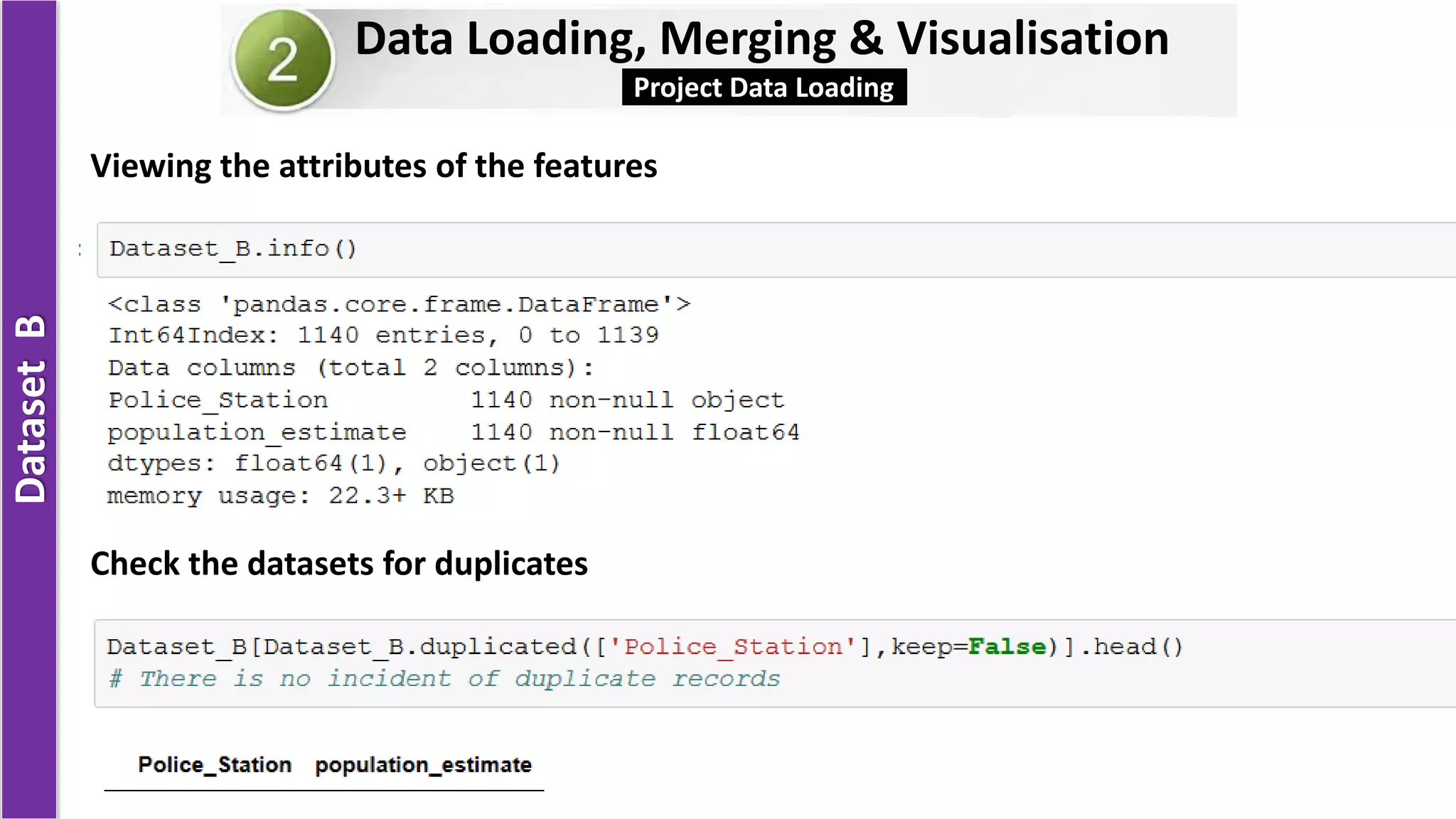

42. Data Loading, Merging & Visualisation
Project Data Loading
DatasetB
Viewing the attributes of the features
Check the datasets for duplicates

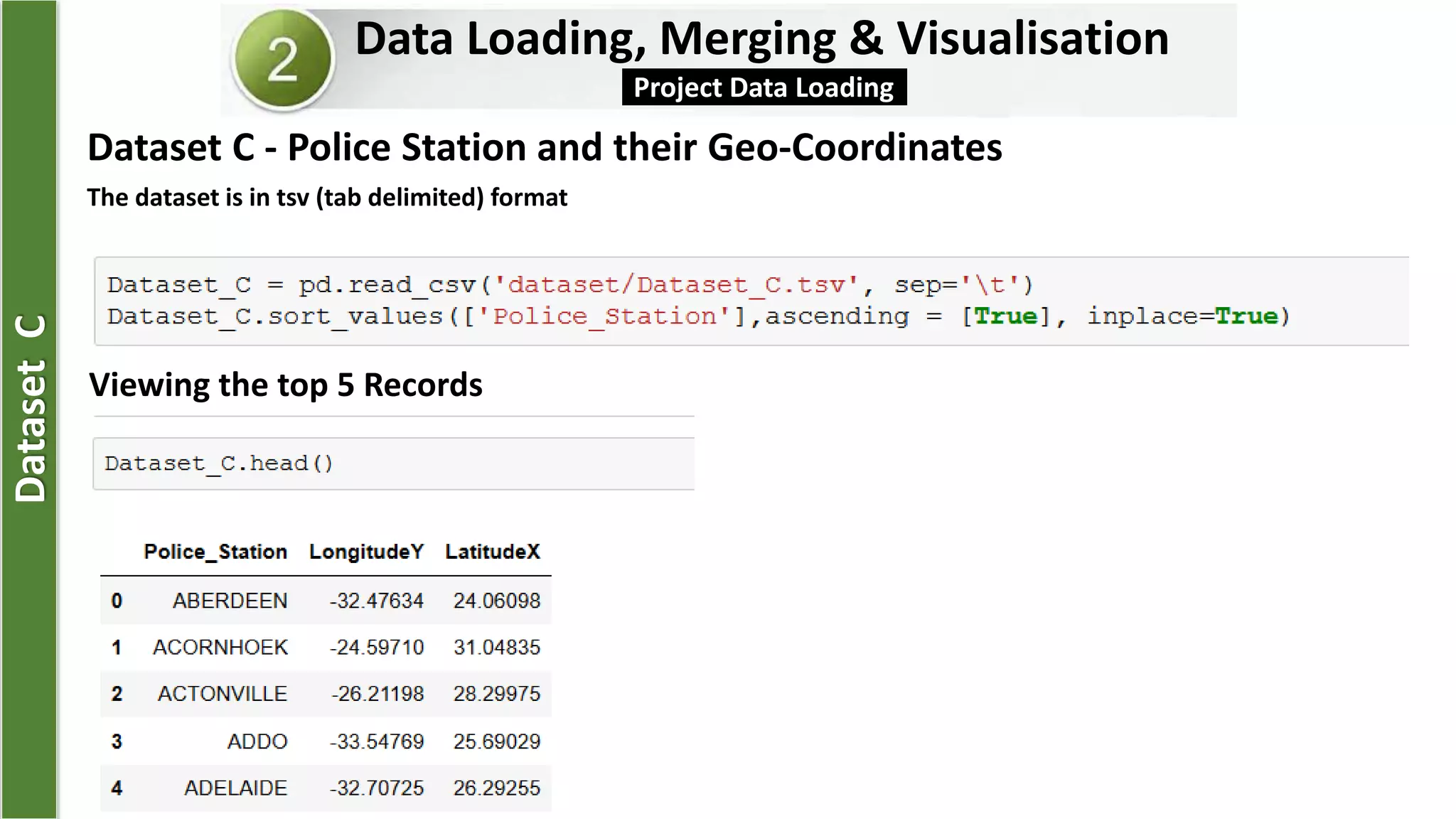

43. Data Loading, Merging & Visualisation
Project Data Loading

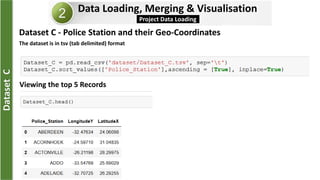

Dataset C - Police Station and their Geo-Coordinates
DatasetC
Viewing the top 5 Records
The dataset is in tsv (tab delimited) format

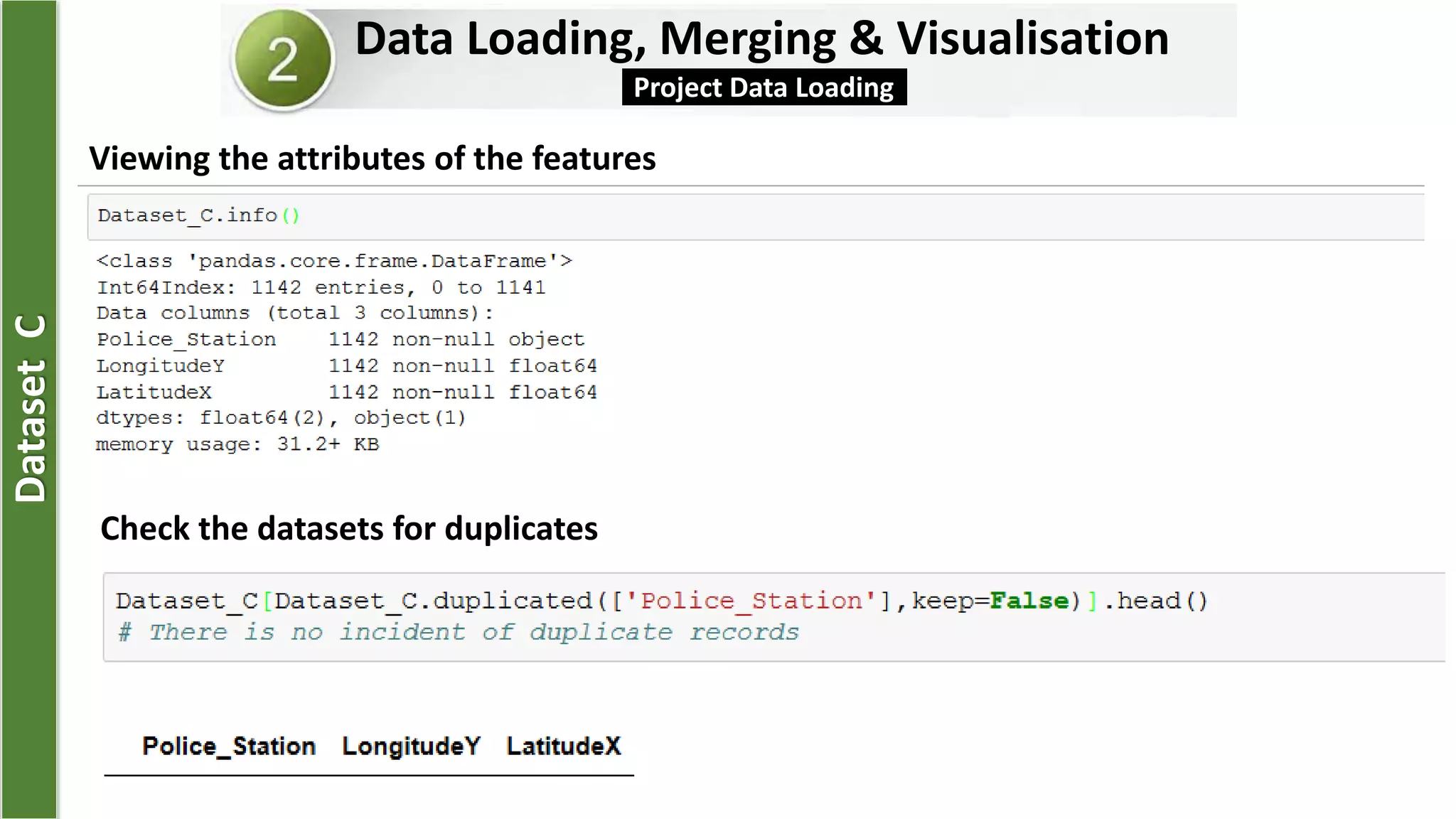

44. Data Loading, Merging & Visualisation
Project Data Loading
DatasetC
Viewing the attributes of the features
Check the datasets for duplicates

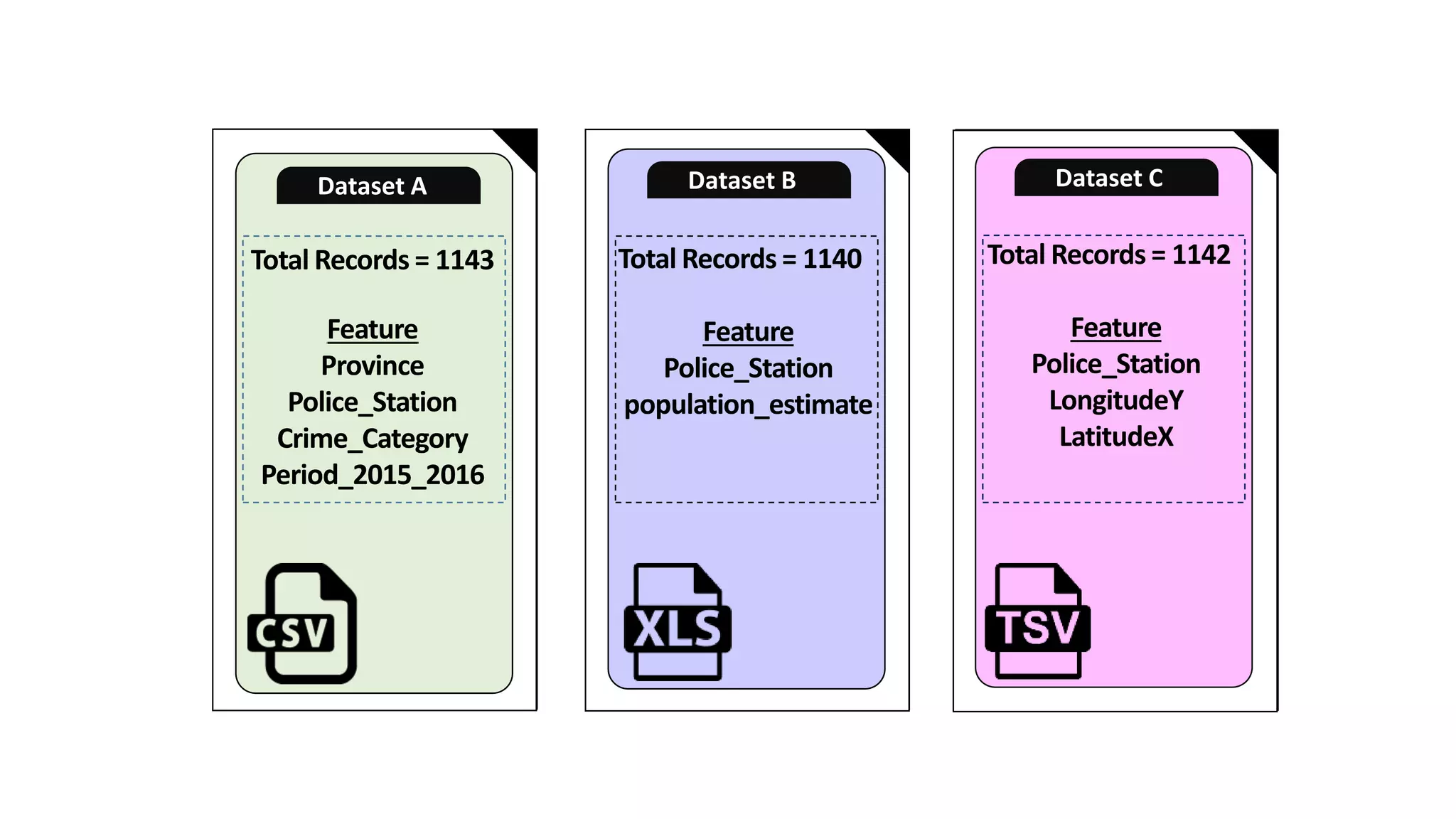

45. Total Records = 1142
Feature
Police_Station
LongitudeY
LatitudeX
Dataset C
Total Records = 1140
Feature
Police_Station
population_estimate
Dataset B
Total Records = 1143
Feature
Province
Police_Station
Crime_Category
Period_2015_2016
Dataset A

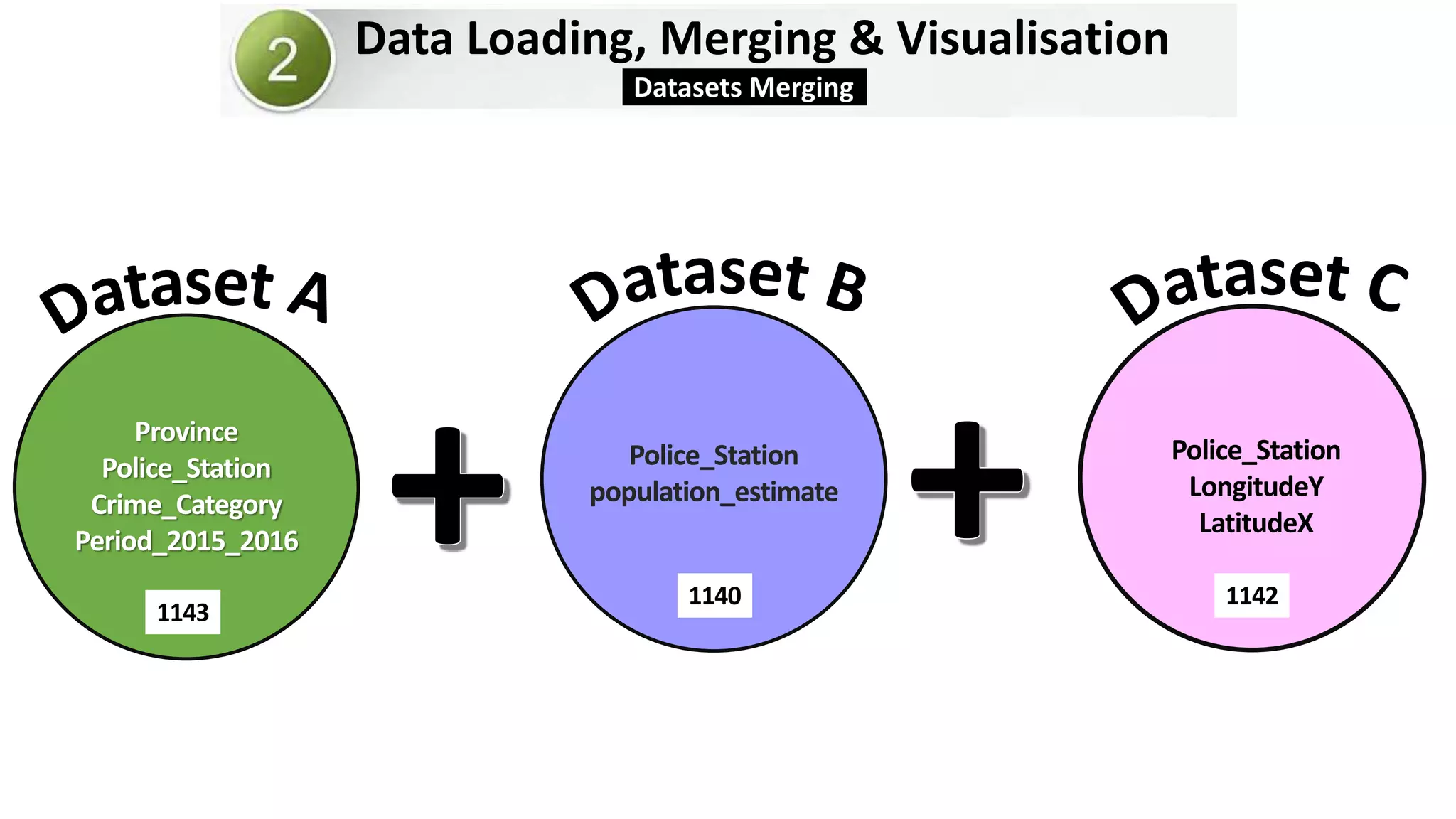

46. Data Loading, Merging & Visualisation
Datasets Merging
Province
Police_Station
Crime_Category
Period_2015_2016
Police_Station
population_estimate
Police_Station
LongitudeY
LatitudeX
1143
1140 1142

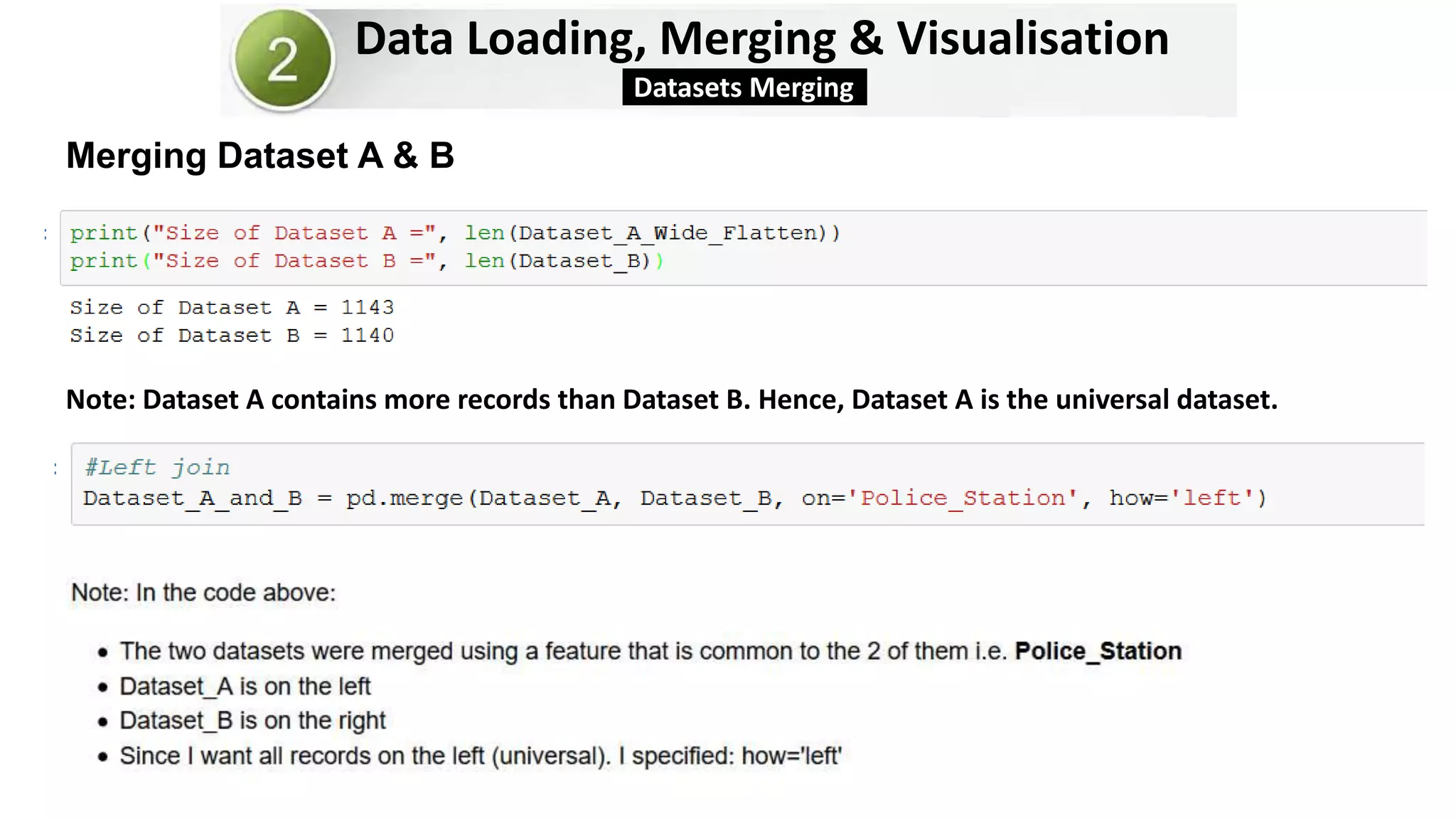

47. Data Loading, Merging & Visualisation
Datasets Merging

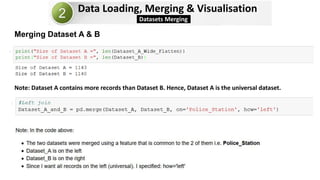

Merging Dataset A & B
Note: Dataset A contains more records than Dataset B. Hence, Dataset A is the universal dataset.

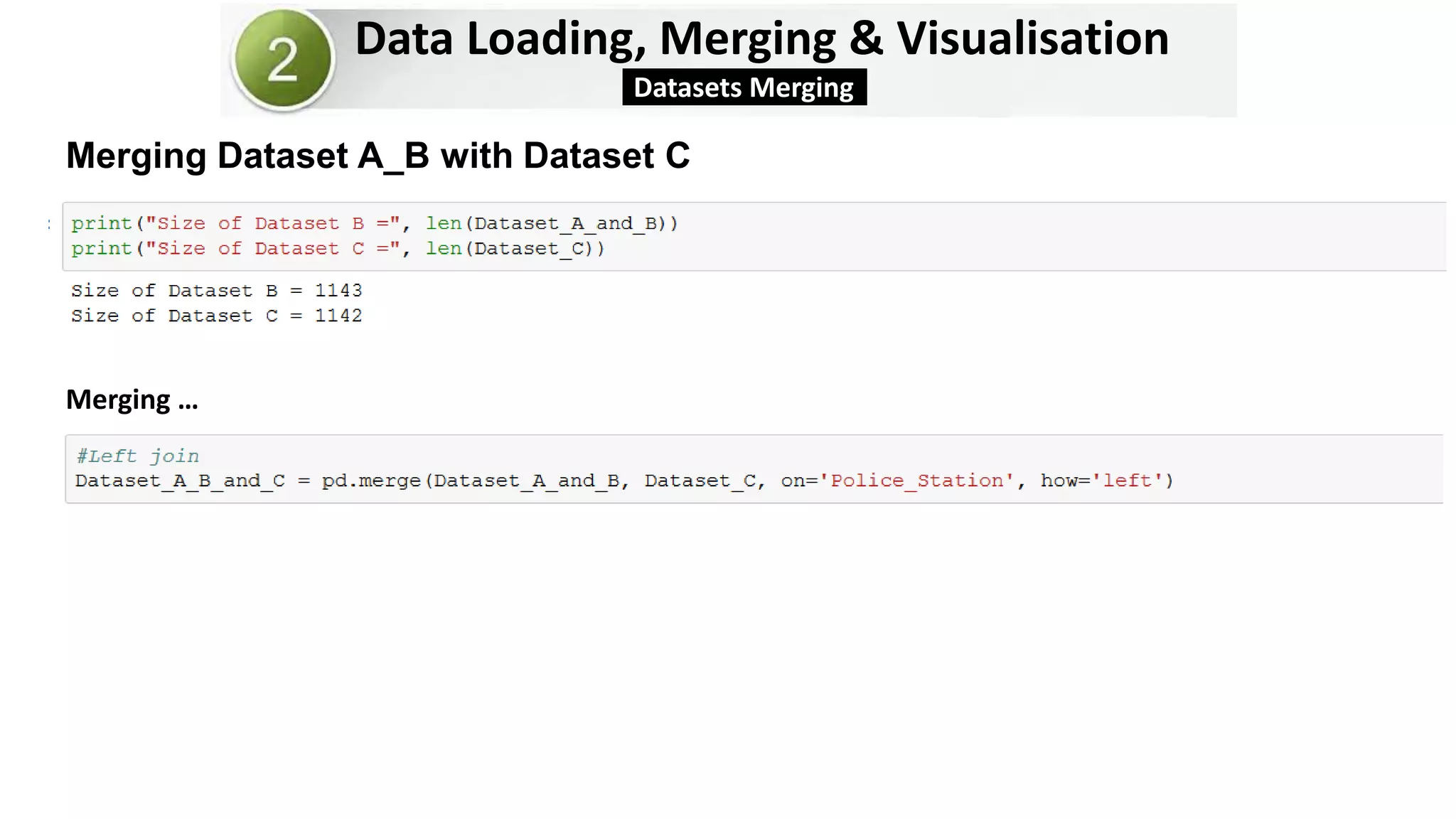

48. Data Loading, Merging & Visualisation
Datasets Merging
Merging Dataset A_B with Dataset C
Merging …
