This document discusses hyperlinks and how to create and style them. It covers the <a> anchor element used to create hyperlinks and the href attribute to specify the URL. Absolute and relative URLs are described. Best practices for file naming, linking within pages using IDs, and accessibility considerations like skip links and access keys are provided. Pseudo-classes like :hover, :visited and :active allow styling link states. Mobile usability of hyperlinks is also addressed.

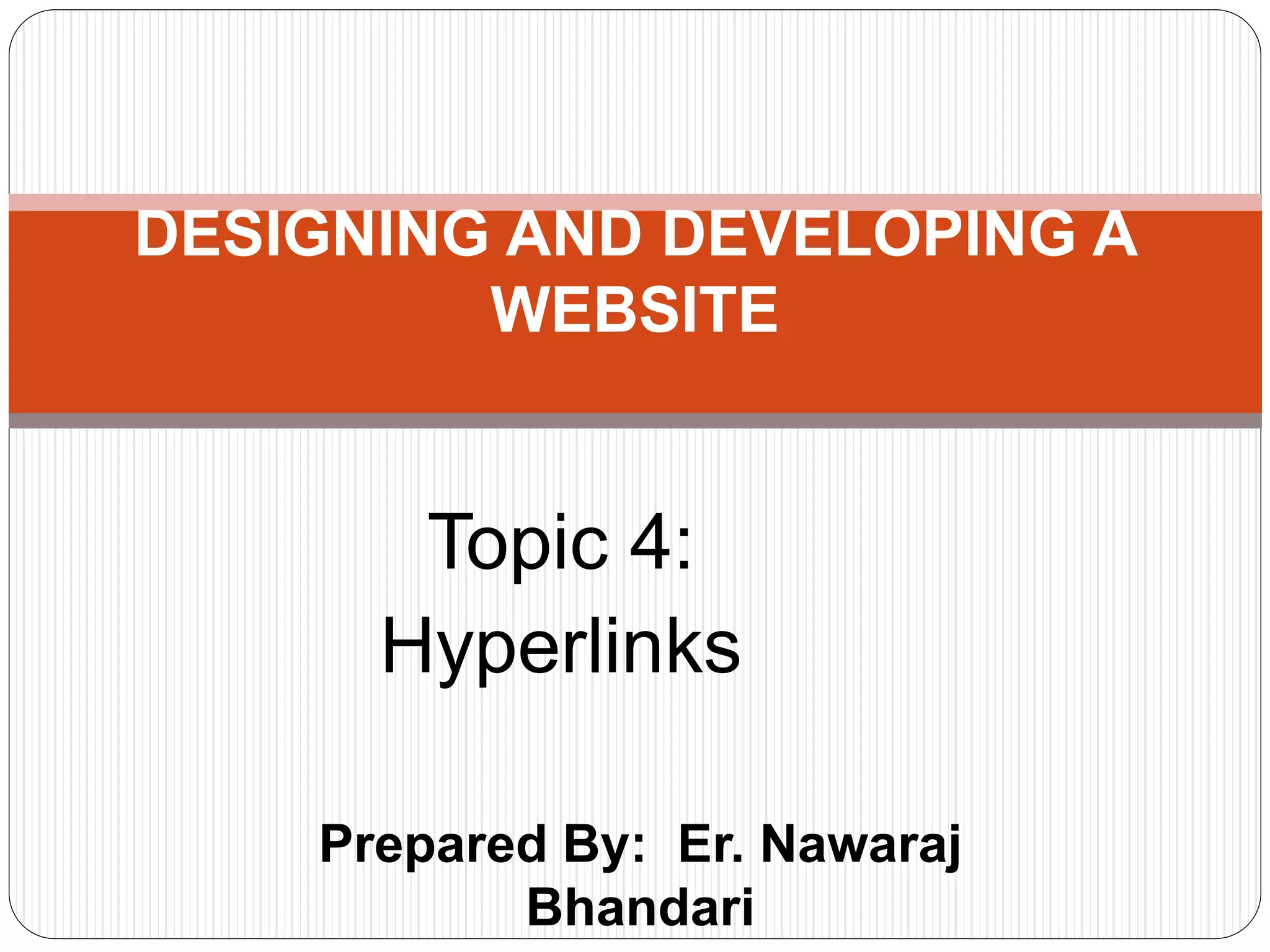

1. Prepared By: Er. Nawaraj
Bhandari
DESIGNING AND DEVELOPING A
WEBSITE
Topic 4:
Hyperlinks

2.  A key feature of the web is hyperlinks.
 Allows us to surf the web
 There is only one element responsible for creating
hyperlinks.
 The anchor element <a>
Hyperlinks

3.  The anchor element specifies the enclosed content
is a hyperlink.
 Browsers render the content of hyperlink
elements as underlined text.
 The href attribute specifies the URL of the page to
which the user will be linked.
 In this example - http://www.wwf.org/
The Anchor Element
<p>The <a href="http://www.wwf.org/">World Wide Fund for
Nature (WWF)</a> is an international organisation concerned
with conservation of the natural world.</p>

4. • The ‘address’ of a resource and how it can
be retrieved
Specifies the location of document on the
web to which we want to create a link
• There are two type of URLs
Absolute
Relative
Uniform Resource Locators (URLs)

5.  Protocol name
 The mechanism for accessing the resource - http
 Domain name
 The name of the web server where the web page
is stored - www.nhm.ac.uk
Absolute URLs - 1
http://www.nhm.ac.uk/about-us/index.html
protocol domain path

6.  Pathname
 Specifies the location of the page on the
server – about-us/index.html
 Absolute URLs are used when linking to
web pages in a separate website.
 External hyperlinks
 A website on a different web server
Absolute URLs - 2

7.  Relative URLs describe the location of a document
relative to the current document’s location.
 Relative URLs are when linking pages together in
the same site.
 Internal hyperlinks
 In your assessment, you will be expected to link
pages together using relative URLs.
Relative URLs - 1

8.  A hyperlink in the page
culture.html that links to the
page locations.html would look
like
Relative URLs - 2
root
careers news about index.html
benefits.html
locations.html
culture.html investors
financial.html
annual_reports.html
press.html
media.html contact_us.html
our_values.html
<a href="locations.html">locations</a>

9.  A hyperlink in the page contact_us.html that
links to the page financial.html would look like
Relative URLs - 3
root
careers news about index.html
benefits.html
locations.html
culture.html investors
financial.html
annual_reports.html
press.html
media.html contact_us.html
our_values.html
<a href="investors/financial.html">financial</a>

10.  A hyperlink in the page media.html
that links to the page index.html
would look like
Relative URLs - 4
root
careers news about index.html
benefits.html
locations.html
culture.html investors
financial.html
annual_reports.html
press.html
media.html contact_us.html
our_values.html
<a href="../index.html">Home</a>

11.  A hyperlink in the page benefits.html
that links to the page press.html
would look like
Relative URLs - 5
root
careers news about index.html
benefits.html
locations.html
culture.html investors
financial.html
annual_reports.html
press.html
media.html contact_us.html
our_values.html
<a href="../news/press.html">Press Releases</a>

12.  Do not use spaces in file names or special
characters (e.g. ?,#, /).
 Use letters, numbers, underscores (_) and
hyphens (-)
 Consistently use the same filename extension.
 HTML pages can have an extension of .htm or
.html.
 Use all lowercase letters.
 Some web servers are case-sensitive.
File Naming Conventions - 1

13.  Keep filenames short.
 Easier to remember
 Place related files into subdirectories.
 Keeps the site organised.
 Name the homepage index.html (or
index.htm).
 Most web servers are configured to serve
a file named index.html as the default
page for a directory.
File Naming Conventions - 2

14. • It is also possible to link to a different point in the
same document.
 The user does not have to scroll to view content.
• The destination element needs to feature an id
attribute.
 The id attribute uniquely identifies an element.
‘In-Page’ Hyperlinks - 1
<h2 id="sales">Sales and Marketing</h2>
<p>The importance of sales and marketing
to for new businesses is extremely
important...

15.  To link to this part of the page, the href attribute is the value
of the id attribute preceded by a hash (#).
 We can link to a specific point in a separate page by adding
a hash mark at the end of the URL.
‘In-Page’ Hyperlinks - 2
<h2 id="sales">Sales and Marketing</h2>
<p>The importance of sales and marketing
for new businesses is extremely important...
<a href="#sales">Sales and Marketing</a>
<a href="business_advice.html#sales">Sales and
Marketing</a>

16.  The title attribute can be used to describe the
content that will be linked.
 Browsers often display the title as a ‘tooltip’.
 The title attribute is not visible by default.
 Should be used to provide additional information
 Important information should not be hidden in a
title attribute.
The Title Attribute
<a href="../news/press.html" title="Read our press
releases">Press Releases</a>

17.  The XHTML 1.0 Strict specification defines the <a>
element as being an inline element
 Must be nested inside a block level element
 In HTML 5, links can be wrapped around block
level elements.
Hyperlinks and Valid Documents
... just contact us.</p>
<a href="contact.html">Contact Us</a>
<h2>Further Information</h2> …
…<p>
<a href="contact.html">Contact Us</a>
</p>…
Invalid
Valid

18.  It is common to structure a collection of hyperlinks
as a list.
 Each link is nested inside a <li> element.
Hyperlinks and List Elements
<ul>
<li><a href="careers.html">Careers</a></li>
<li><a href="news.html">News</a></li>
<li><a href="about.html">About</a></li>
<li><a href="contact.html">Contact Us</a></li>
</ul>

19. • HTML 5 introduces a new <nav> element for
grouping together hyperlinks.
 For grouping major navigation blocks
 Provide assistance to screen readers
The HTML 5 <nav> Element
<nav>
<ul>
<li><a href="careers.html">Careers</a></li>
<li><a href="news.html">News</a></li>
<li><a href="about.html">About</a></li>
<li><a href="contact.html">Contact Us</a></li>
</ul>
</nav>

20.  A pseudo-class is used to define a special state of
an element.
 CSS pseudo-classes allow us to select elements
using factors not present in the HTML of a
document.
 The :visited, :hover and :active pseuedo-classes
allow us to style hyperlinks based on the state of
the hyperlink.
 :visited – the user has followed this link
 :hover – the cursor is over the link
 :active – when the link is being activated (clicked)
CSS for Hyperlinks - 1

21.  Psuedo-classes are commonly used to create
rollover effects for links.
 The psuedo-classes must appear in the order
specified above in order to work correctly.
CSS for Hyperlinks - 2
a{background-color:red}
a:visited{background-color:yellow}
a:hover{background-color:blue}
a:active{background-color:green}

22.  Many disabled people surf the web using
their keyboard rather than the mouse.
 Using the Tab and Enter keys
 Link text should be understandable out of
context
 Bad example: ‘click here for more
information’
 Good example: ‘product information’
Accessibility and Hyperlinks

23.  Many websites have large navigation bars.
 Tabbing through these links for keyboard
users can be tedious.
 A skip link allows the user to jump directly to
the content of the page.
 Give a heading element for the content an
id attribute
 A hyperlink at the very top of the page
links directly to this heading element
Skip Links - 1

24.  The user does not have to tab through all
the navigation options.
 Many sites use CSS to visually hide the skip links.
 Screen readers will still read these links
out as the first elements on the page.
Skip Links - 2

25.  The accesskey attribute allows us to associate a
specific key with a hyperlink.
 Pressing a modifier key and the specified access
key will make the browser follow the hyperlink.
 In Firefox, the modifier keys are Alt+Shift.
 In IE and Chrome, the modifier key is Alt.
Access Keys - 1
<a href="careers.html" accesskey="c">Careers</a>

26. • Access keys suffer from a number of problems
 Different browsers use different modifier keys.
 Conflict with browser shortcuts
– Access keys often use numbers to avoid this.
 How does the user know what the access keys
are?
– Provide a list of hyperlinks and their access
keys.
– Use CSS to underline a specific letter in the link
text.
– Indicate the access key after the hyperlinks.
Access Keys - 2

27. • The tabindex attribute can be used to override the
default tabbing order in a browser.
• The tabindex attribute also has problems.
 Can be confusing for user if their tabbing jumps them
in an unexpected order.
 In above tab index tab first jump to About hyperlink.
Then move to News and then only other hyperlink
who doesn’t have tabindex.
Tab Order
<ul>
<li><a href="careers.html" accesskey="c" >Careers</a></li>
<li><a href="news.html" accesskey="n" tabindex="11">News</a></li>
<li><a href="about.html" accesskey="a" tabindex="10">About</a></li>
<li><a href="contact.html" accesskey="u">Contact Us</a></li>
</ul>

28.  Users with mobile devices often experience
similar problems as disabled users.
 E.g. navigating through the keypad
 Skip links can be useful
 Use of access keys is often recommended
for sites designed for mobile users.
 Using numbers
 Used consistently can make the site easier
to use
Mobile Devices and Hyperlinks

29. References
 Chisholm, W. & May, M. (2008). Universal
Design for Web Applications: Web
Applications That Reach Everyone. O'Reilly
Media.
 Lawson, B & Sharp, R. (2010). Introducing
HTML5. Pearson.
 Niederst, J. (2006). Web Design in a
Nutshell: A Desktop Quick Reference.
O'Reilly Media.

30.  Good link names, bad link names
 Link together all the examples so far
 In page links in the CV
 Link to favourite websites in CV example
 Skip links – find sites that use them; government
sites
Practical

31. Topic 4 – Hyperlinks
Any Questions?
