1. BY,
AYUSHA PATNAIK

2. INTRODUCTION
HUMAN COMPUTER INTERACTION
STUDY OF INTERACTION BETWEEN HUMAN AND COMPUTER TO
DESIGN HUMAN-CENTRED SKILLS, SO THAT THERE ARE
PRINCIPLES AND METHODS TO CREATE EXCELLENT INTERFACES
WITH ANY TECHNOLOGY.
• IT IS THE HOTTEST TOPIC AMONG IT PROFFESIONALS OF TODAY
• SERIOUS RESEARCH IN THIS AREA HAS JUST BEGUN WHICH
PROMISES OF FUNDAMENTALLY CHANGING COMPUTING
• SPECTACULAR GROWTH OF WORLD WIDE WEB IS THE DIRECT RESULT
OF HCI RESEARCH
• HCI WOULD PLAY A LEADING ROLE IN THE CREATION OF
TOMMOROW’S EXCITING NEW USER INTERFACE SOFTWARE

3. IMPORTANCE
 How important is it for a
practitioner to have a deep
understanding of the visual,
intellectual, motor, and
memory capabilities of the
users when they are
designing commercial
systems?
 How important is it to have
the knowledge of
implementing empirical
research techniques for
evaluations when they are
rarely used?

4. COMPUTER
ELEMENTS
INPUT DEVICES
OUTPUT DEVICES
MEMORY
PROCESSING
A computer without human

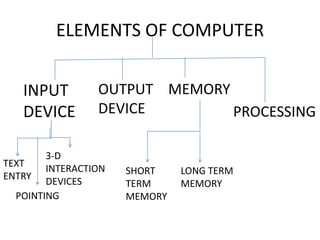

5. ELEMENTS OF COMPUTER
INPUT
DEVICE
OUTPUT
DEVICE
MEMORY
PROCESSING
TEXT
ENTRY
POINTING
3-D
INTERACTION
DEVICES
SHORT
TERM
MEMORY
LONG TERM
MEMORY

6. HUMAN IN TERMS OF COMPUTER
ELEMENTS
INPUT –
OUTPUT
CHANNELS
M
E
M
O
R
Y
PROCESSINGOF
INFORMATION

8. USER INPUT
SYSTEMOUTPUT
• THE INTERACTION FRAME WORK HAS FOUR PARTS

11. Stages of design process :
 Knowing users
 Observation of
users
 Creating user
friendly designs
 Complexity of
design
DESIGN
Know
user
observ
ation
Creation
of design
Complex
ity of
design

12. In order to develop a user-centered design the
following steps should be followed :
 Data Collection
 Data Analysis
 User Modelling
 Design
 Prototyping
 Evaluation

14. INTERACTION
STYLES
Some common styles of
interaction are :
 Command line interface
 Menus
 Natural Language
 Query dialogue
 Form-fills and spreadsheets
 Wimp
WIMP interface :
oWindows
oIcons
oMenu
oPointer

15. INTERACTION DEVICES
COMPUTER
INPUT DEVICES
• QWERTY keyboard
• Special Keyboards
• Light pen
• Scanner etc.
OUTPUT DEVICES
• LCD
• CRT
• PRINTERS
HUMAN
INPUT – OUTPUT DEVICES
 SIGHT
 SOUND
 TOUCH

16. THE EYE :

17. TYPES OF EYE MOVEMENTS
• SACCADE
• FIXATION OF EYE
• OCCURS IN RESPONSE TO MOVING OBJECT
• NYSTAGMUS
• RELATIVE MOVEMENT OF EYE WITH RESPECT
TO ONE ANOTHER

18. WHAT TO MEASURE ?
•Generally visual line of gaze is measured
•Only one eye is tracked
METHODS :

19.  SIMPLEST EYE TRACKING TECHNIQUE
 USES ELECTRODES PLACED ON THE SKIN AROUND THE EYE
 MEASURES CHANGES IN ORIENTATION OF THE POTENTIAL
DIFFERENCE
EXISTING BETWEEN CORNEA AND RETINA
 USEFUL FOR MEASURING RELATIVE EYE MOVEMENTS
 COVERS WIDE RANGE OF EYE MOVEMENTS
 BUT ACCURACY LEVEL IS LOW
 USEFUL FOR DIAGNOSING NEUROLOGICAL PROBLEMS
REVEALED BY EYE MOVEMENTS

20. MECHANICAL METHODS
 LEAST USER FRIENDLY APPROACH
 USES NON-SLIPPING CONTACT LENS – FITS OVER CORNEAL BULGE
 TO HOLD IN PLACE SLIGHT SUCTION IS APPLIED
 THE LENS HAS SMALL MECHANICAL LEVER, MAGNETIC COIL OR
MIRROR ATTACHED FOR TRACKING
 EXTREMELY ACCURATE
 CAN EVEN INVESTIGATE TINY EYE MOVEMENTS
 BUT, VERY AWKWARD AND UNCOMFORTABLE, COVERS ONLY
LIMITED RANGE
INTERFERES WITH BLINKING

22. OPTICAL/VIDEO
METHOD
SINGLE POINT TWO POINT

23.  USES REMOTE IMAGING OF VISIBLE FEATURE LOCATED ON THE EYE SUCH AS
BOUNDARY BETWEEN SCLERA AND IRIS

24.  HOWEVER THIS BOUNDARY IS ONLY PARTIALLY
VISIBLE AT ANY ONE TIME
 THE OUTLINE OF THE PUPIL CAN ALSO BE
CONSIDERED
o BUT THIS WORKS BEST FOR ONLY LIGHT COLORED EYES
o BUT TO OVERCOME THIS PROBLEM PUPIL CAN BE
ILLUMINATED
REFLECTION OF THE FRONT OF CORNEA OF LIGHT
BEAM SHOWN AT THE EYE
ANY OF THESE COULD BE USED WITH
PHOTOGRAPHIC OR VIDEO RECORDING
BUT A DEMERIT IS THAT THE HEAD IS TO BE HELD
STATIONARY TO BE SURE THAT ANY MOVEMENT
DETECTED REPRESENTS MOVEMENT OF EYE
 A BITE BOARD IS CUSTOMARLIY USED

26. TWO POINT
 AS THE HEAD MOVES THE LINE OF GAZE CHANGES
 SO THIS CAN BE CONSIDERED AS ANOTHER TYPE OF
EYE MOVEMENT
 TO DETECT THIS KIND TWO POINT SYSTEM IS USED
 THE HEAD NO LONGER NEEDS TO BE RIGIDLY FIXED
ALTHOUGH IT MUST STAY WITHIN THE CAMERA RANGE
 BOTH CORNEAL REFLECTION AND OUTLINE OF THE PUPIL
ARE TRACKED
 INFRARED LIGHT IS USED
 THE ABSOLUTE VISUAL LINE OF GAZE IS COMPUTED
FROM THE RELATIONSHIP BETWEEN THE TWO TRACKED POINTS

30.  HCI IS EMERGING WITH VARIOUS OTHER DESIGNS CONCERNED WITH
VOICE AND TOUCH SENSORY ORGANS
 VARIOUS PROPOSALS HAVE BEEN PUT FORWARD FOR EMOTION
DETECTION, GESTURE DETECTION
 IN EMOTION DETECTION THE PUPILLIARY ACTIONS WOULD HAVE TO
BE TAKEN INTO CONSIDERATION
ALL THESE ADVANCEMENTS WOULD BRING INTO SOCIETY A NEW
ERA OF COMPUTERS

31. HCI IS VERY RICH IN TERMS OF DISCIPLINES AS WELL AS
OPPORTUNITIES FOR RESEARCH
 WHATEVER WE DISCUSSED WAS JUST A SMALL SUBSET OF THE
TOPICS IN HCI
 STUDY OF USER INTERFACE IS A DOUBLE SIDED APPROACH
 BY MANIPULATING EYE BEHAVIOUR WE CAN DESIGN INTERFACES
BETWEEN COMPUTER AND HUMAN EYE
 STUDYING PSYCHOLOGY AND PHYSIOLOGY OF HUMAN WE CAN
DESIGN BETTER INTERFACES FOR THE USER
 WORK IN THIS DOMAIN HAS JUST BEGUN.THERE IS A LONG
WAY TO GO BY STUDYING HOW HUMAN MIND WORKS

32. 1. A BRIEF HISTORY OF HUMAN COMPUTER INTERACTION
TECHNOLOGY – BRAD A. MYERS
2. INTRODUCTION TO HUMAN COMPUTER INTERACTION – MATTHIAS
RAUTERBERG
3. HUMAN COMPUTER INTERACTION – Prof. Dr. KEITH ANDREWS
4. USABILITY DESIGN – JAN GULLIKSEN
5. FUTURE OF HUMAN COMPUTER INTERACTION – MICHAEL H. COEN
6. USER CENTERED DESIGN – NICKY DANINO
7. EYES AT THE INTERFACE – R.A. BOLTZ
