Html 5

HTML Images
Acknowledgements: www.w3schools.com
1
Computer Network & Web Technology
(SET, JU)

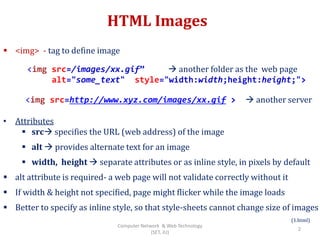

HTML Images
 <img> - tag to define image
<img src=http://www.xyz.com/images/xx.gif >  another server
• Attributes
 src specifies the URL (web address) of the image
 alt  provides alternate text for an image
 width, height  separate attributes or as inline style, in pixels by default
 alt attribute is required- a web page will not validate correctly without it
 If width & height not specified, page might flicker while the image loads
 Better to specify as inline style, so that style-sheets cannot change size of images
(1.html)
<img src=/images/xx.gif”  another folder as the web page
alt="some_text" style="width:width;height:height;">
2
(SET, JU)

Image Maps
 <map> tag used to define image-map i.e. Image with clickable areas
 name attr of <map> tag associated with usemap attr of <img> and
creates a relationship between the image and the map
 <map> tag contains a number of <area> tags, that defines the clickable
areas in the image-map
<img src="planets.gif" width="145" height="126" alt="Planets"
usemap="#planetmap">
<map name="planetmap">
<area shape="rect" coords="0,0,82,126" alt="Sun" href="sun.htm">
<area shape="circle" coords="90,58,3" alt="Mercury" href="mercur.htm">
<area shape="circle" coords="124,58,8" alt="Venus" href="venus.htm">
</map>
4.html
3
(SET, JU)

Image Float Property
 Use the CSS float property to let the image float to the right or to the
left of a text
 Elements after a floating element will flow around it. To avoid this, use
the clear property
 none - Allows floating elements on both sides. This is default
 left - No floating elements allowed on the left side
 right- No floating elements allowed on the right side
 both - No floating elements allowed on either the left or the right side
 inherit - The element inherits the clear value of its parent
<p><img src="smiley.gif" alt="Smiley
face"style="float:right;width:42px;height:42px;">
The image will float to the right of the text.</p>
3.html, 3a.html
4
(SET, JU)

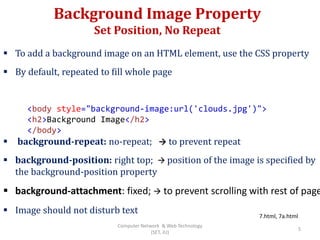

Background Image Property
Set Position, No Repeat
 To add a background image on an HTML element, use the CSS property
 By default, repeated to fill whole page
 background-repeat: no-repeat;  to prevent repeat
 background-position: right top;  position of the image is specified by
the background-position property
 background-attachment: fixed;  to prevent scrolling with rest of page
 Image should not disturb text
<body style="background-image:url('clouds.jpg')">
<h2>Background Image</h2>
</body>
7.html, 7a.html
5
(SET, JU)

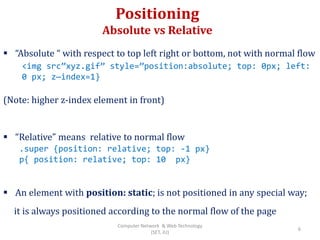

Positioning
Absolute vs Relative
 “Absolute “ with respect to top left right or bottom, not with normal flow
(Note: higher z-index element in front)
 “Relative” means relative to normal flow
 An element with position: static; is not positioned in any special way;
it is always positioned according to the normal flow of the page
<img src”xyz.gif” style=”position:absolute; top: 0px; left:
0 px; z—index=1}
.super {position: relative; top: -1 px}
p{ position: relative; top: 10 px}
6
(SET, JU)

Background Image Property
Repeat Horizontal / Vertical
 Sometimes, if image is repeated only horizontally (background-
repeat: repeat-x;), the background will look better
 To repeat an image vertically, set background-repeat: repeat-y;
body {
background-image: url(“clouds.jpg");
background-repeat: repeat-x;
}
7
(SET, JU)

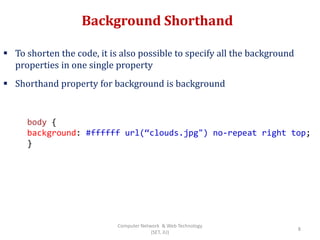

Background Shorthand
 To shorten the code, it is also possible to specify all the background
properties in one single property
 Shorthand property for background is background
body {
background: #ffffff url(“clouds.jpg") no-repeat right top;
}
8
(SET, JU)

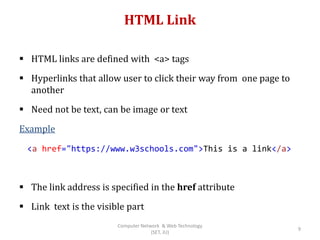

HTML Link
 HTML links are defined with <a> tags
 Hyperlinks that allow user to click their way from one page to
another
 Need not be text, can be image or text
Example
 The link address is specified in the href attribute
 Link text is the visible part
<a href="https://www.w3schools.com">This is a link</a>
9
(SET, JU)

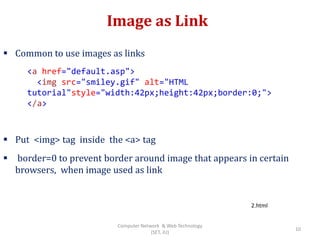

Image as Link
 Common to use images as links
 Put <img> tag inside the <a> tag
 border=0 to prevent border around image that appears in certain
browsers, when image used as link
<a href="default.asp">
<img src="smiley.gif" alt="HTML
tutorial"style="width:42px;height:42px;border:0;">
</a>
2.html
10
(SET, JU)

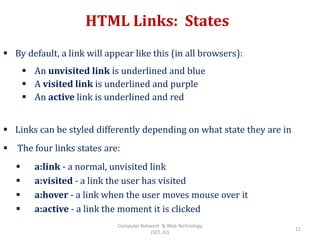

HTML Links: States
 By default, a link will appear like this (in all browsers):
 An unvisited link is underlined and blue
 A visited link is underlined and purple
 An active link is underlined and red
 Links can be styled differently depending on what state they are in
 The four links states are:
 a:link - a normal, unvisited link
 a:visited - a link the user has visited
 a:hover - a link when the user moves mouse over it
 a:active - a link the moment it is clicked
11
(SET, JU)

Anchor Pseudoclasses
 A pseudo-class is used to define a special state of an element
selector:pseudo-class {
property:value;
}
• /* mouse over link */
a:hover {
color: #FF00FF;
}
/* selected link */
a:active {
color: #0000FF;
}
/* unvisited link */
a:link {
color: #FF0000;
}
/* visited link */
a:visited {
color: #00FF00;
}
12
(SET, JU)

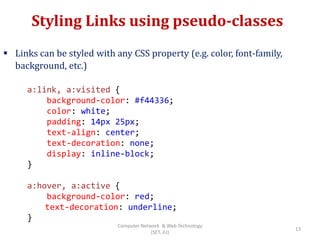

Styling Links using pseudo-classes
 Links can be styled with any CSS property (e.g. color, font-family,
background, etc.)
a:link, a:visited {
background-color: #f44336;
color: white;
padding: 14px 25px;
text-align: center;
text-decoration: none;
display: inline-block;
}
a:hover, a:active {
background-color: red;
text-decoration: underline;
}
13
(SET, JU)

Text Decoration
 Property is used to set or remove decorations from text.
 The value text-decoration: none; often used to remove underlines
from links
 Other values: overline, underline, line-through
h1 {
text-decoration: overline;
}
h2 {
text-decoration: line-through;
}
h3 {
text-decoration: underline;
} 14
(SET, JU)

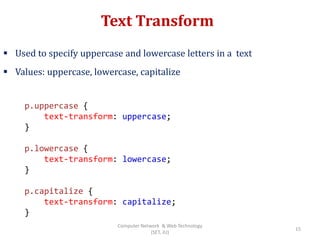

Text Transform
 Used to specify uppercase and lowercase letters in a text
 Values: uppercase, lowercase, capitalize
p.uppercase {
text-transform: uppercase;
}
p.lowercase {
text-transform: lowercase;
}
p.capitalize {
text-transform: capitalize;
}
15
(SET, JU)

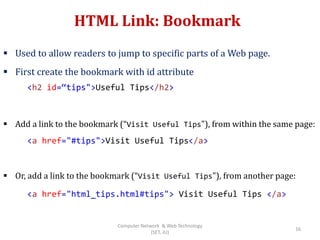

HTML Link: Bookmark
 Used to allow readers to jump to specific parts of a Web page.
 First create the bookmark with id attribute
 Add a link to the bookmark (“Visit Useful Tips"), from within the same page:
 Or, add a link to the bookmark (“Visit Useful Tips"), from another page:
<h2 id=“tips">Useful Tips</h2>
<a href="#tips">Visit Useful Tips</a>
<a href="html_tips.html#tips"> Visit Useful Tips </a>
16
(SET, JU)

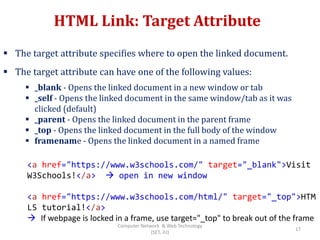

HTML Link: Target Attribute
 The target attribute specifies where to open the linked document.
 The target attribute can have one of the following values:
 _blank - Opens the linked document in a new window or tab
 _self - Opens the linked document in the same window/tab as it was
clicked (default)
 _parent - Opens the linked document in the parent frame
 _top - Opens the linked document in the full body of the window
 framename - Opens the linked document in a named frame
<a href="https://www.w3schools.com/" target="_blank">Visit
W3Schools!</a>  open in new window
<a href="https://www.w3schools.com/html/" target="_top">HTM
L5 tutorial!</a>
 If webpage is locked in a frame, use target="_top" to break out of the frame
17
(SET, JU)

HTML Iframe
 An HTML iframe is defined with the <iframe> tag
 src attribute specifies the URL (web address) of the inline frame page
 Size of iframe specified using height and width, pixels by default, may be
defined as %
 To remove (default) border around, use CSS border property, set value to none
 Else, may define custom border properties (color, size, style)
<iframe src="URL"></iframe>
<iframe src="demo_iframe.htm" height="200" width="300"></iframe>
<iframe src="demo_iframe.htm" style="border:none;"></iframe>
<iframe src="demo_iframe.htm" style="border:2px solid grey;"></iframe>
18
(SET, JU)

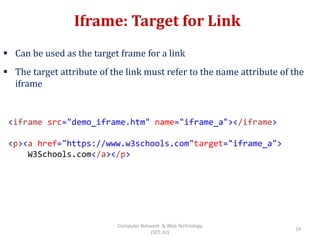

Iframe: Target for Link
 Can be used as the target frame for a link
 The target attribute of the link must refer to the name attribute of the
iframe
<iframe src="demo_iframe.htm" name="iframe_a"></iframe>
<p><a href="https://www.w3schools.com"target="iframe_a">
W3Schools.com</a></p>
19
(SET, JU)

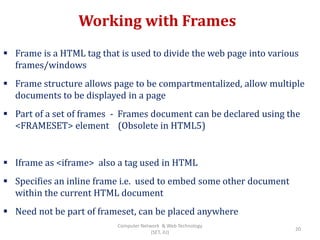

Working with Frames
 Frame is a HTML tag that is used to divide the web page into various
frames/windows
 Frame structure allows page to be compartmentalized, allow multiple
documents to be displayed in a page
 Part of a set of frames - Frames document can be declared using the
<FRAMESET> element (Obsolete in HTML5)
 Iframe as <iframe> also a tag used in HTML
 Specifies an inline frame i.e. used to embed some other document
within the current HTML document
 Need not be part of frameset, can be placed anywhere
20
(SET, JU)

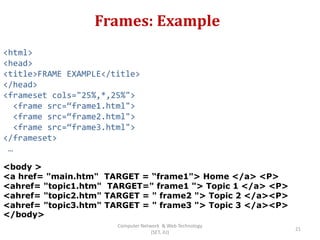

Frames: Example
<html>
<head>
<title>FRAME EXAMPLE</title>
</head>
<frameset cols="25%,*,25%">
<frame src=“frame1.html">
</frameset>
…
<body >
<a href= "main.htm" TARGET = “frame1"> Home </a> <P>
<ahref= "topic1.htm" TARGET=" frame1 "> Topic 1 </a> <P>
<ahref= "topic2.htm" TARGET = " frame2 "> Topic 2 </a><P>
<ahref= "topic3.htm" TARGET = " frame3 "> Topic 3 </a><P>
</body>
21
(SET, JU)

Working with Audio
 One can associate a background audio clip to be played whenever web
page is opened in the browser
 Non standard: bgsound
 Specify how many times the audio clip will loop by a positive integer
value, -1 stands for infinite
<bgsound src= “tunes/beethoven.mid” LOOP = 3>
The background music will loop 3 times
</bgsound>
22
(SET, JU)

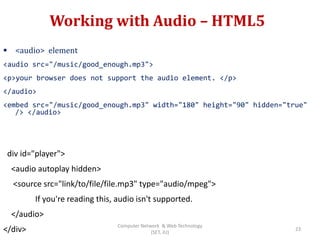

Working with Audio – HTML5
 <audio> element
<audio src="/music/good_enough.mp3">
<p>your browser does not support the audio element. </p>
</audio>
<embed src="/music/good_enough.mp3" width="180" height="90" hidden="true"
/> </audio>
div id="player">
<audio autoplay hidden>
<source src="link/to/file/file.mp3" type="audio/mpeg">
If you're reading this, audio isn't supported.
</audio>
</div> 23
(SET, JU)

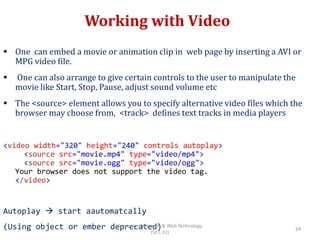

Working with Video
 One can embed a movie or animation clip in web page by inserting a AVI or
MPG video file.
 One can also arrange to give certain controls to the user to manipulate the
movie like Start, Stop, Pause, adjust sound volume etc
 The <source> element allows you to specify alternative video files which the
browser may choose from, <track> defines text tracks in media players
<video width="320" height="240" controls autoplay>
<source src="movie.mp4" type="video/mp4">
<source src="movie.ogg" type="video/ogg">
Your browser does not support the video tag.
</video>
Autoplay  start aautomatcally
(Using object or ember deprecated) 24
(SET, JU)

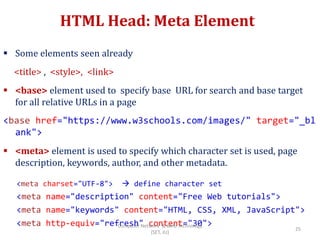

HTML Head: Meta Element
 Some elements seen already
<title> , <style>, <link>
 <base> element used to specify base URL for search and base target
for all relative URLs in a page
<base href="https://www.w3schools.com/images/" target="_bl
ank">
 <meta> element is used to specify which character set is used, page
description, keywords, author, and other metadata.
<meta charset="UTF-8">  define character set
<meta name="description" content="Free Web tutorials">
<meta name="keywords" content="HTML, CSS, XML, JavaScript">
<meta http-equiv="refresh" content="30">
25
(SET, JU)

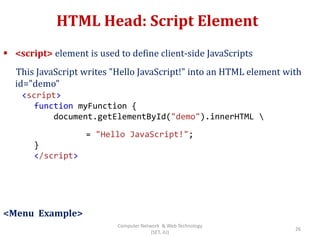

HTML Head: Script Element
 <script> element is used to define client-side JavaScripts
This JavaScript writes "Hello JavaScript!" into an HTML element with
id="demo"
<Menu Example>
<script>
function myFunction {
document.getElementById("demo").innerHTML
= "Hello JavaScript!";
}
</script>
26
(SET, JU)

Html 5

More Related Content

What's hot

Similar to Html 5

More from pavishkumarsingh

Recently uploaded

Html 5

Editor's Notes
