HOFFA’S FRACTURE
DR.A.SINGH
MBBS, D’ORTHO, DNB
Medica Superspecialty Hospital
Kolkata(West Bengal),India

3. Medica Lab is NABL accredited
SYNOPSIS
• Definition
• Mechanism
• Radiology
• Management
• BAGARIA classification system for Hoffa’s Fracture

4. Medica Lab is NABL accredited
ALBERT HOFFA
(31 March 1859 – 31 December 1907)
German Surgeon, Orthopedist and
Physiotherapist
Born in Richmond, Cape of Good Hope
Others: Remembered for introducing an
operation for congenital hip dislocation
(1890)

5. Medica Lab is NABL accredited
Definition
Coronal fracture of the distal femur - intra articular - usually the
only attachment is the posterior capsule.

6. Medica Lab is NABL accredited

7. Medica Lab is NABL accredited
Mechanism of Injury
• Shearing force on the posterior condyle
• Axial Load with knee flexed >= 90 ->
tangential force pattern
• Typically a motor bike accident in young
patient
• Subject to shear force in both sagittal and
coronal plane -> Intrinsically unstable

8. Medica Lab is NABL accredited
Clinical Examination
• Effusion ++
• Varus/Valgus Instability +/- maybe subtle
• Always check for DNVD

9. Medica Lab is NABL accredited

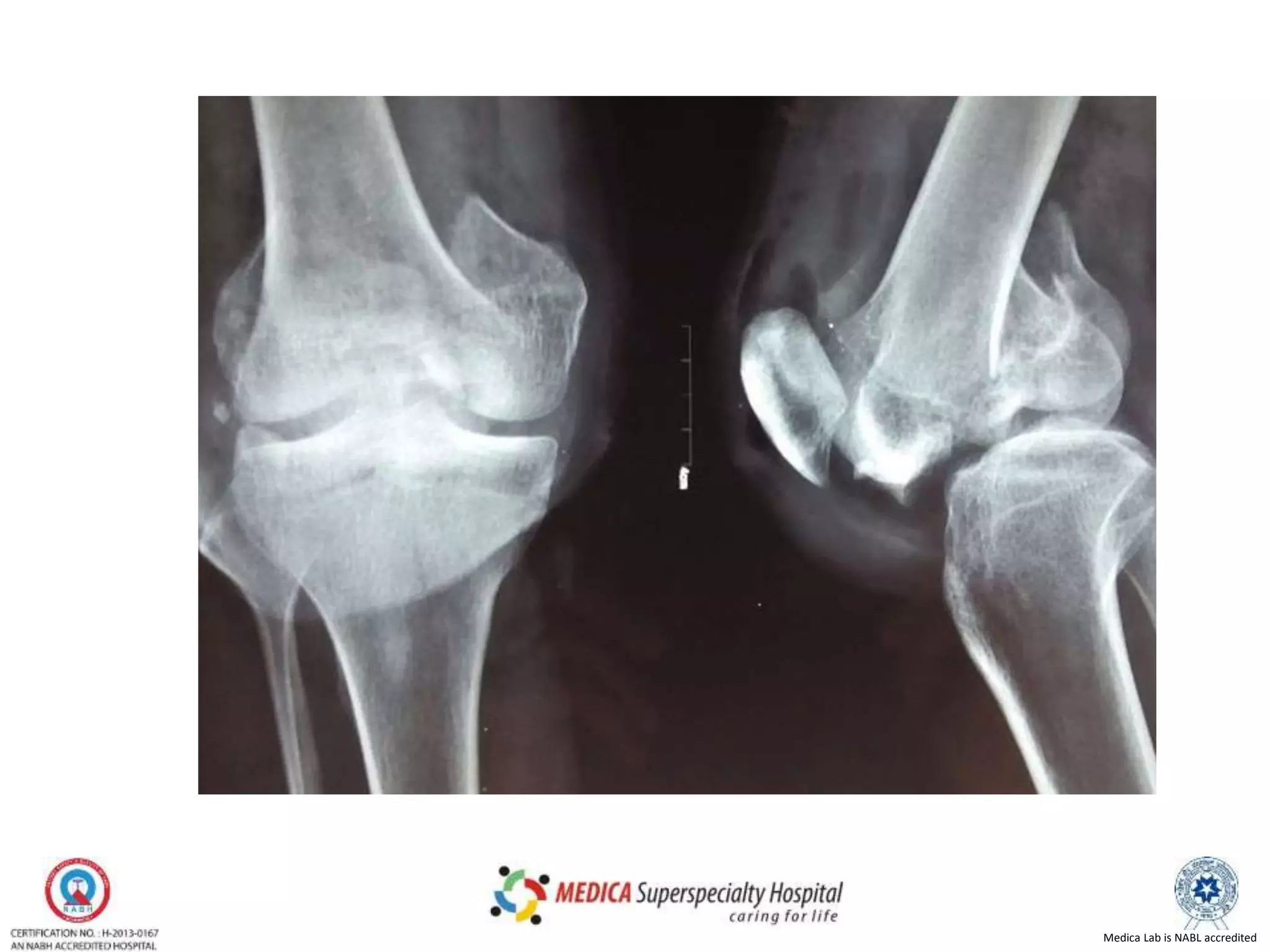

X Rays
• On AP Fore shortened Fracture condyle may lead to
appearance of varus or valgus mal-alignment.
• On true lat the femoral condyles are not
superimposed.
• Be wary to misinterpret those as poor X ray.
• Oblique view may be useful but when in doubt CT is
preferred.

10. Medica Lab is NABL accredited

11. Medica Lab is NABL accredited

12. Medica Lab is NABL accredited

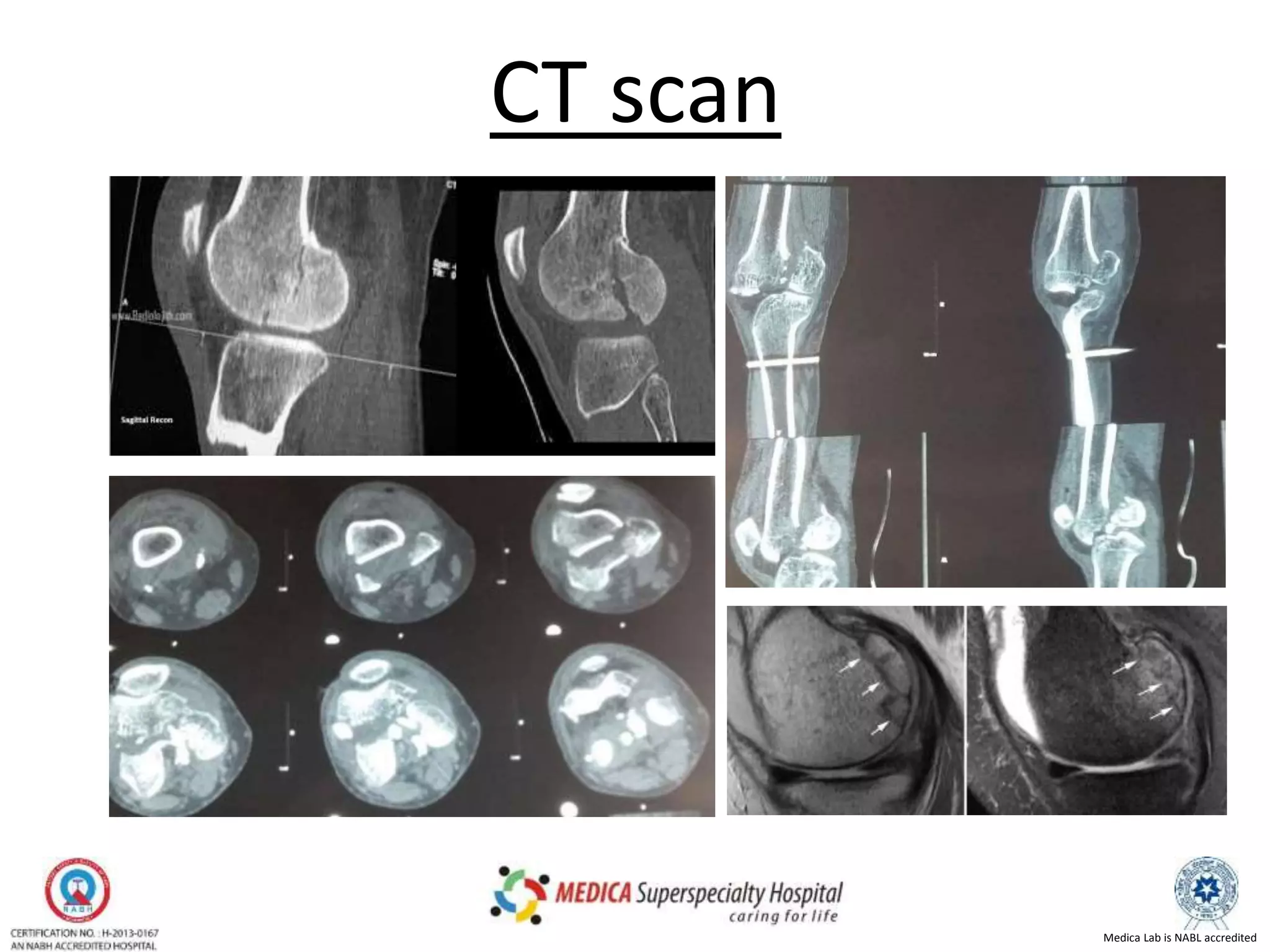

CT scan

13. Medica Lab is NABL accredited
3 D Recon

14. Medica Lab is NABL accredited
Management
• Hoffa Fracture effectively separates Patellofemoral
joint from the Tibiofemoral joint.
• Knee movements particularly weight bearing
result in high Shear forced along the fracture line,
making non operative management unpredictable
and adequate stabilization challenging.

15. Medica Lab is NABL accredited
Principle of treatment
• Atraumatic
• Anatomical Reduction
• Secure Fixation
• Early mobilisation & Functional Activity

16. Medica Lab is NABL accredited
Planning
• Approach
• Reduction Fixation
• Post op

17. Medica Lab is NABL accredited
Approach
• Lateral Para pateallar
• Medial Parapatellar
• Medial Approach
• Posterior

18. Medica Lab is NABL accredited
Medial Para patellar

19. Medica Lab is NABL accredited
Lateral Para patellar

20. Medica Lab is NABL accredited
Medial approach

21. Medica Lab is NABL accredited
Posterior Approach
• When the fragment is too small to be fixed from
anterior.
• Prone position

22. Medica Lab is NABL accredited
Posterior Approach

23. Medica Lab is NABL accredited
Steps
• Inspect the Joint
• Visualise the fracture line
• Clean it - use a spreader
• Anatomically reduce and hold
• Initiate drilling at Patellofemoral Joint.
• Perpendicular to Fracture

24. Medica Lab is NABL accredited
Reduction
• Bone Spreader - clear
• Periosteal Elevator
• Reduction clamp
• Joystick technique

25. Medica Lab is NABL accredited

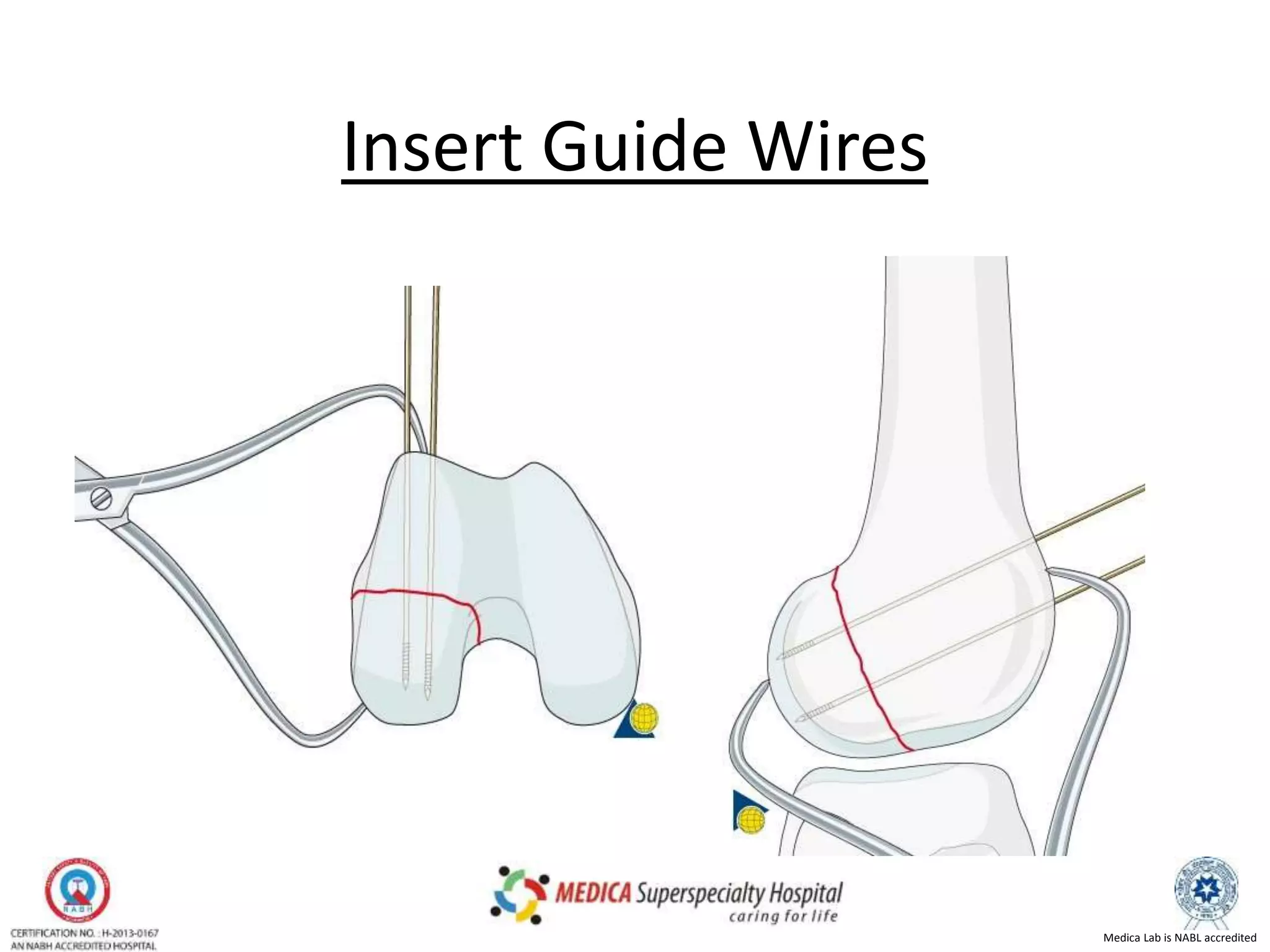

Insert Guide Wires

26. Medica Lab is NABL accredited
Counter Sink & Screw placement

27. Medica Lab is NABL accredited
Fixation
• At least two screws - prevent rotation and achieve
compression
• Implants not to violate the articular surface
• Choice of implant: 3.5/4.5 cortical compression vs
CC Vs Headless
BeckerPL,StafordPR,GouletR,etal. Comparative analysis for the fixation of coronal distal
intraarticular femur fractures. Presented at the 67th annual meeting of the American
Academy of Orthopaedic Surgeons, March 15–19, 2000.

28. Medica Lab is NABL accredited

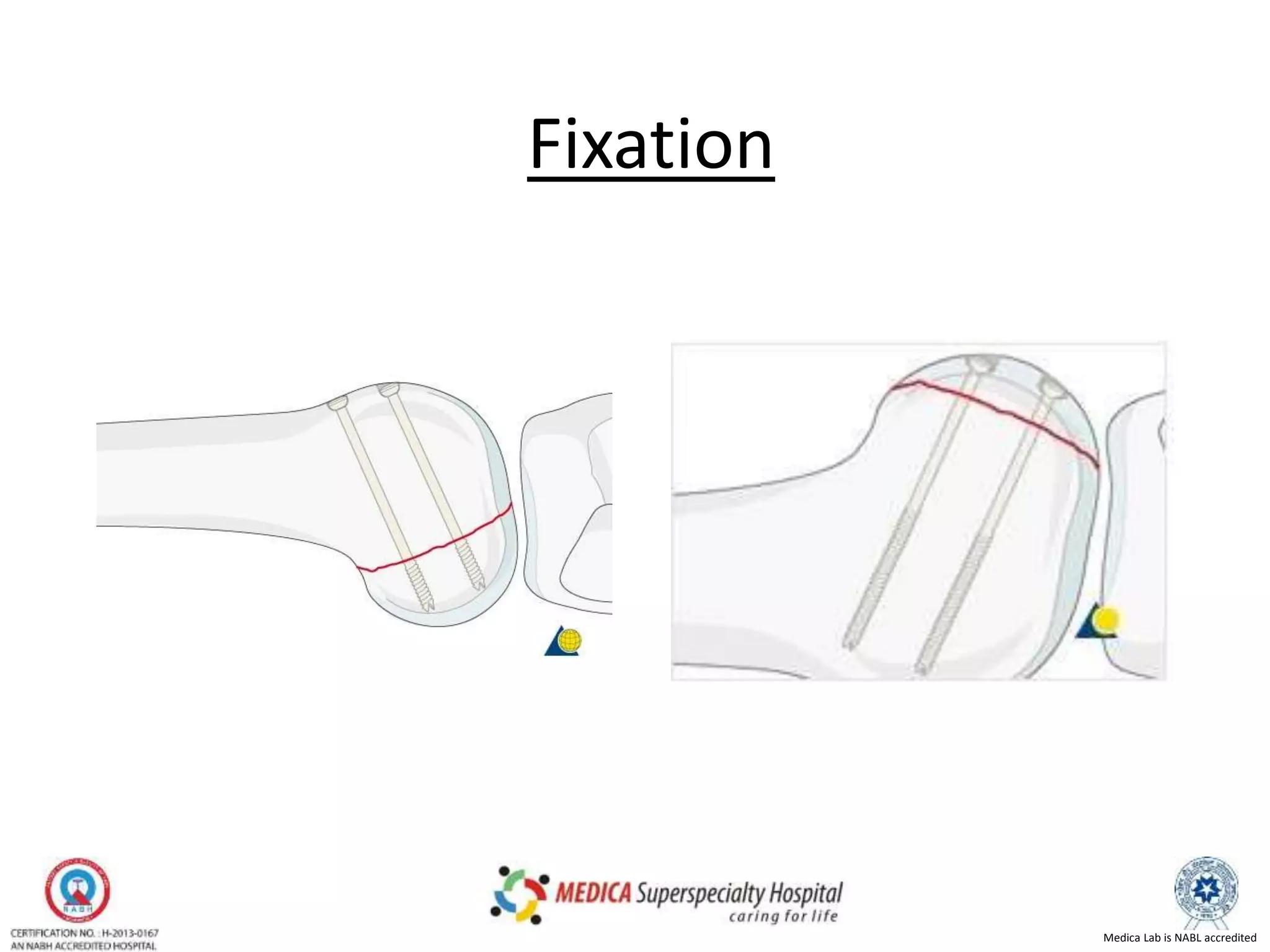

Fixation

29. Medica Lab is NABL accredited
Post Op X Rays

30. Medica Lab is NABL accredited
Complications
• Loss of Reduction
• Malunion
• Neuro vascular damage
• AVN?

31. Medica Lab is NABL accredited
Subsequent Re-displacement

32. Medica Lab is NABL accredited
Malunions

33. Medica Lab is NABL accredited

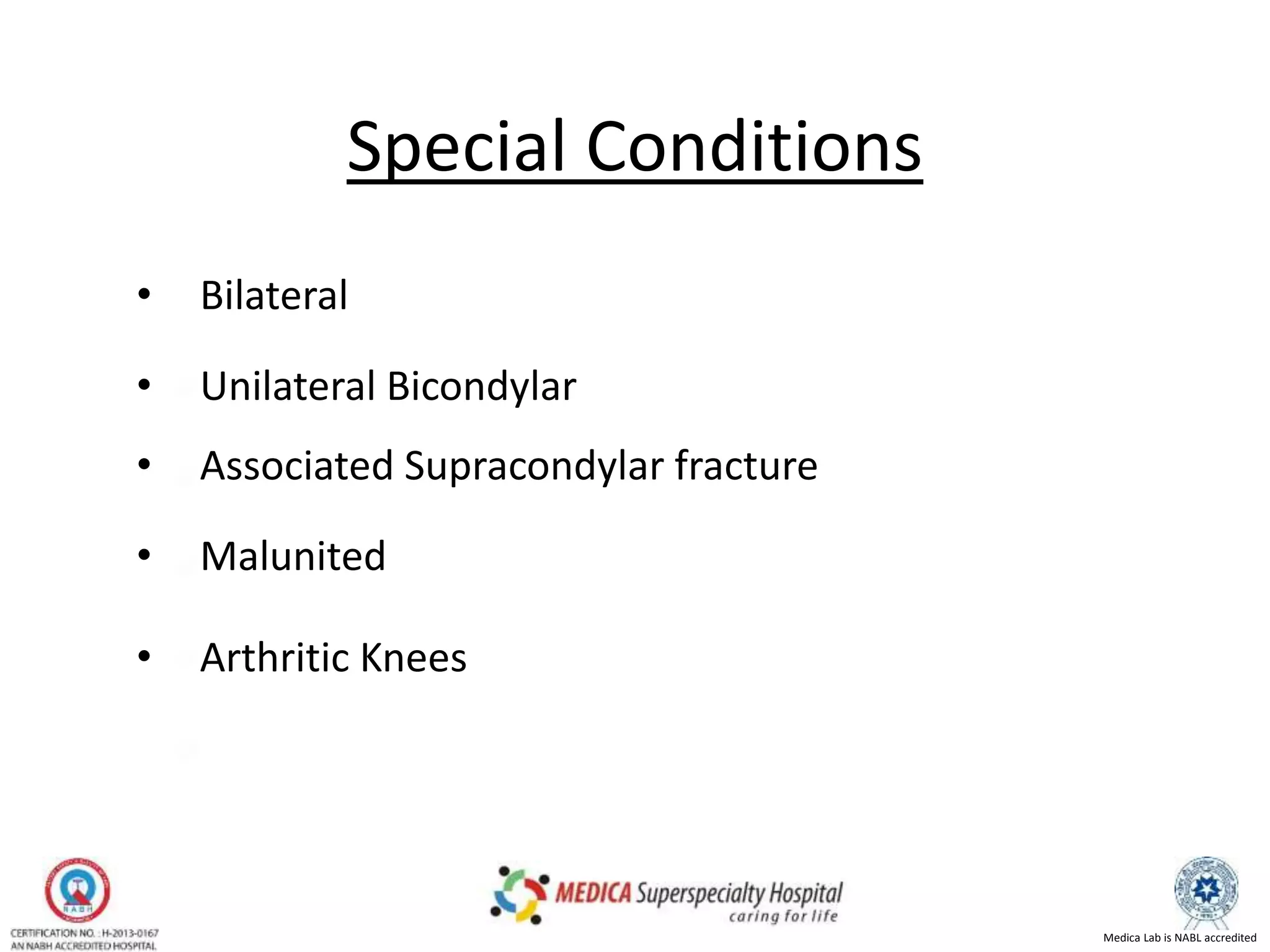

Special Conditions
• Bilateral
• Unilateral Bicondylar
• Associated Supracondylar fracture
• Malunited
• Arthritic Knees

34. Medica Lab is NABL accredited
Bicondylar

35. Medica Lab is NABL accredited
Plates as washers

36. Medica Lab is NABL accredited

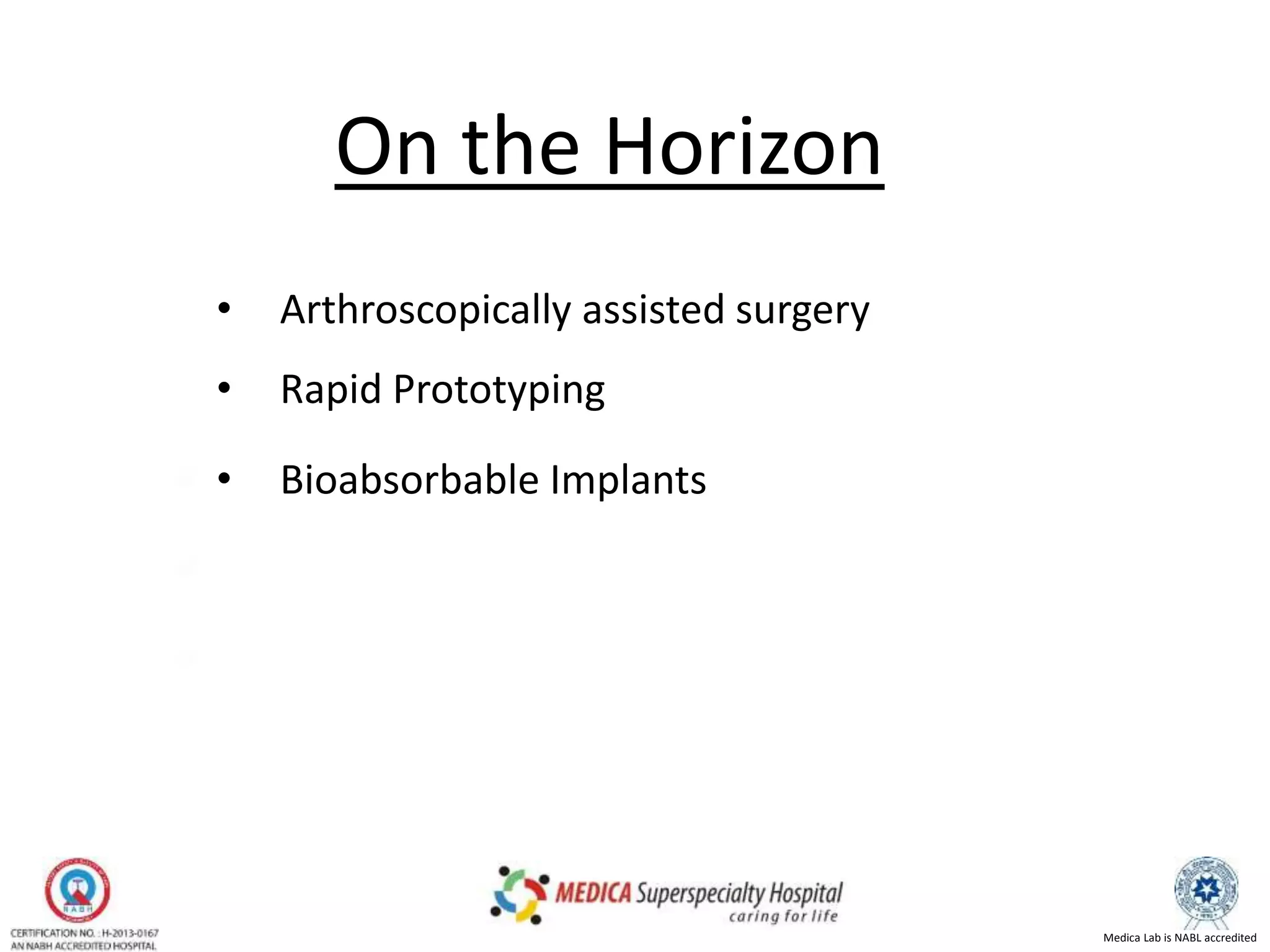

On the Horizon
• Arthroscopically assisted surgery
• Rapid Prototyping
• Bioabsorbable Implants

37. Medica Lab is NABL accredited

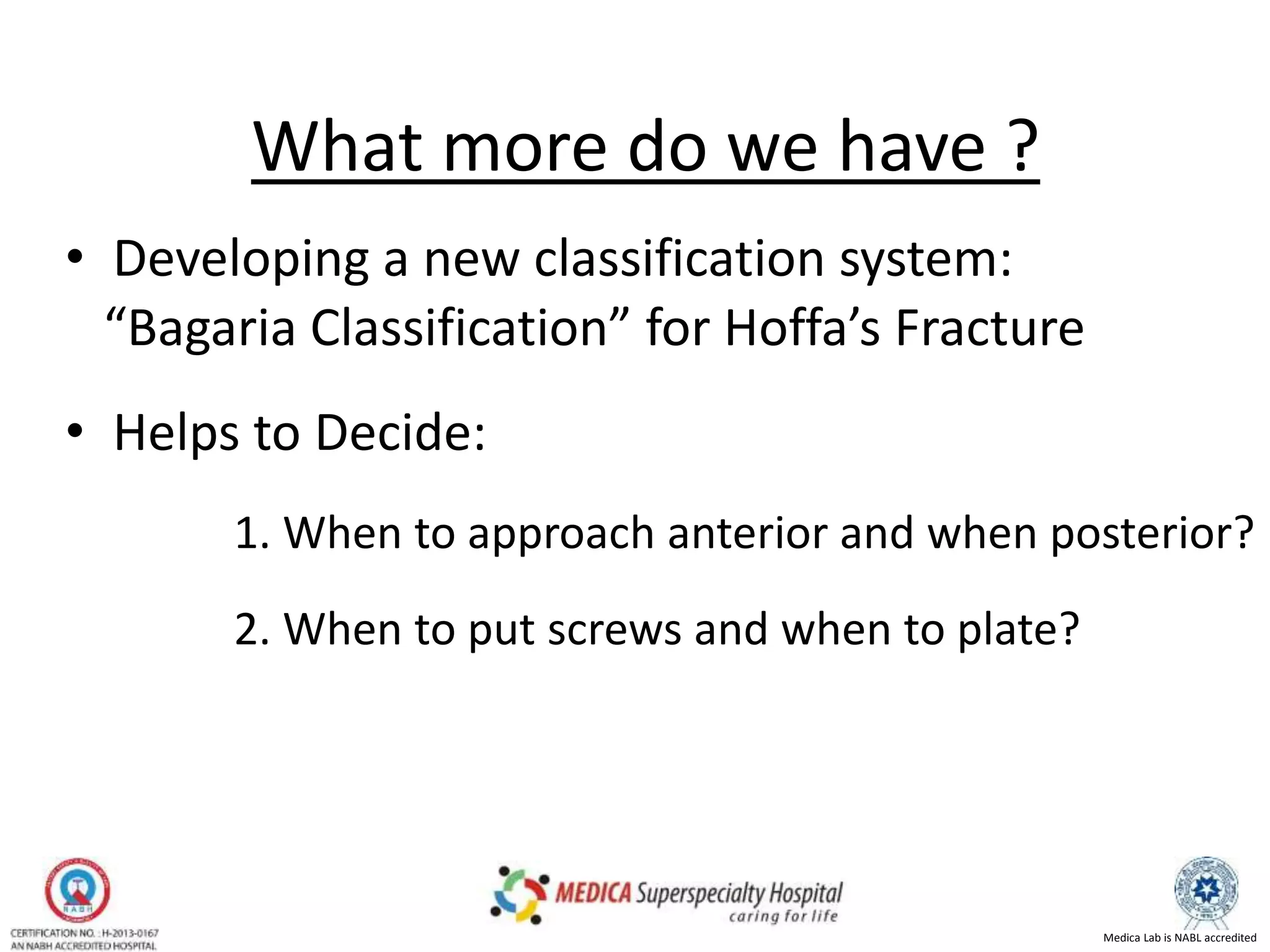

What more do we have ?
•
• Developing a new classification system:
“Bagaria Classification” for Hoffa’s Fracture
• Helps to Decide:
1. When to approach anterior and when posterior?
2. When to put screws and when to plate?
•

38. Medica Lab is NABL accredited
Bagaria Classification
•
•
•
•
Grade 1: Fragment > 2.5 cm on CT axial section at the level of
medial epicondyle
Grade 2: Fragment < 2.5 cm on CT axial section at the level of
medial epicondyle
Grade 3: Communition present at the fracture site a) > 2.5 b) < 2.5
Grade 4: Presence of a sagittal fracture line in addition to coronal
fracture.

39. Medica Lab is NABL accredited
Management as per Bagaria
Classification of Hoffa Fracture
•
•
•
•
Grade 1: Two parallel screw anterior to posterior
(countersunk or headless)
Grade 2: Two parallel screw posterior to anterior
(countersunk or headless)
Grade 3 a & b: Consider buttress plate/ parallel screws.
Grade 4: Anti glide plate

40. Medica Lab is NABL accredited

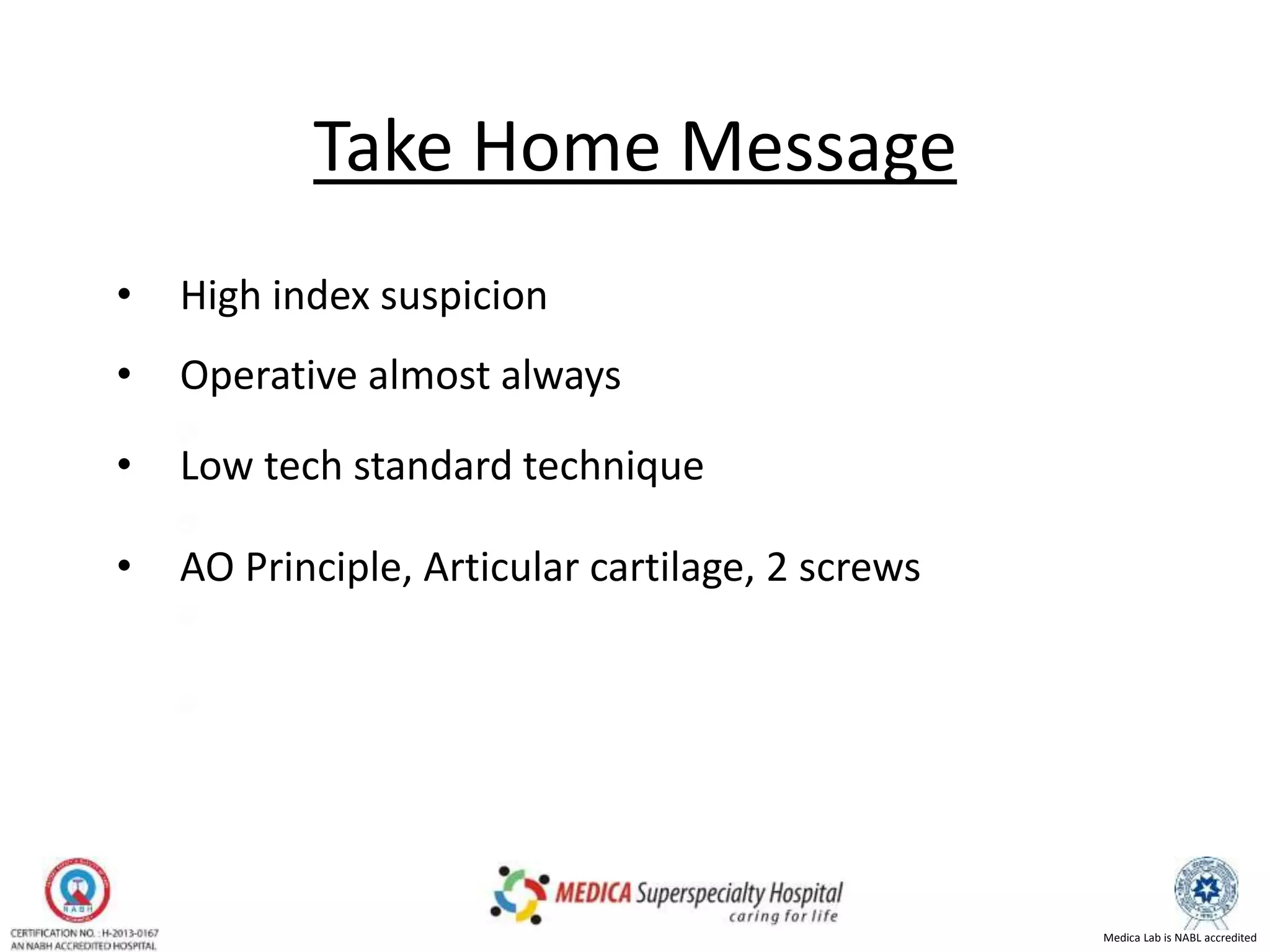

Take Home Message
• High index suspicion
• Operative almost always
• Low tech standard technique
• AO Principle, Articular cartilage, 2 screws
