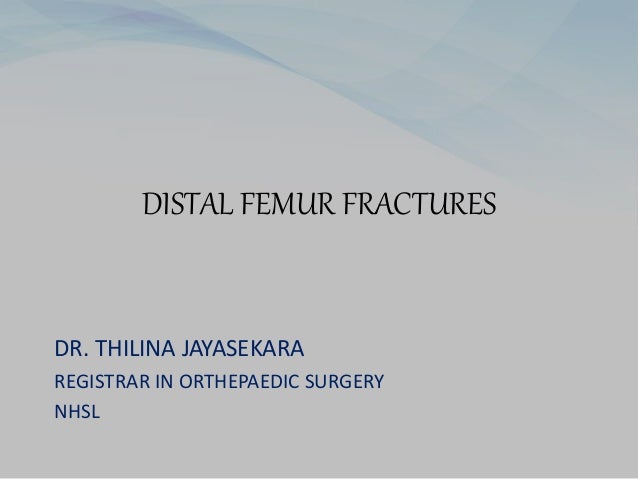

- 1. DISTAL FEMUR FRACTURES DR.THILINA JAYASEKARA REGISTRAR IN ORTHEPAEDIC SURGERY NHSL

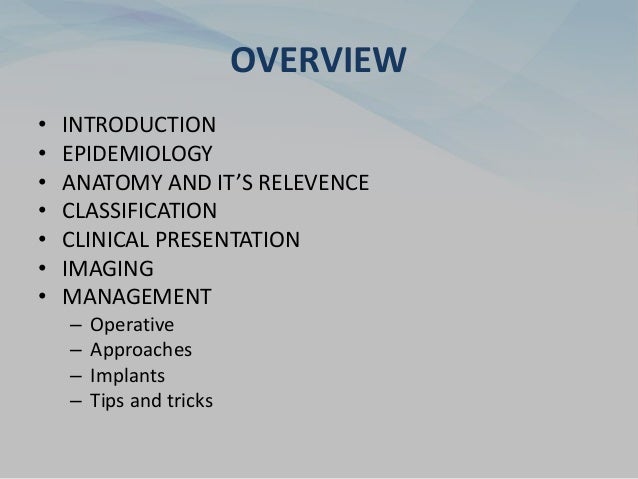

- 2. OVERVIEW • INTRODUCTION • EPIDEMIOLOGY •ANATOMY AND IT’S RELEVENCE • CLASSIFICATION • CLINICAL PRESENTATION • IMAGING • MANAGEMENT – Operative – Approaches – Implants – Tips and tricks

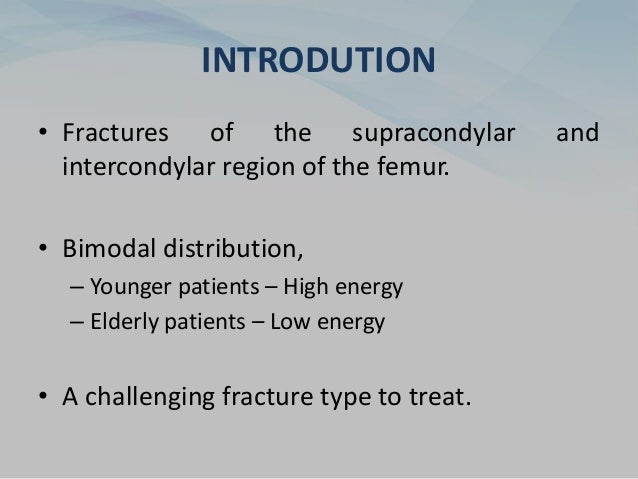

- 3. INTRODUTION • Fractures ofthe supracondylar and intercondylar region of the femur. • Bimodal distribution, – Younger patients – High energy – Elderly patients – Low energy • A challenging fracture type to treat.

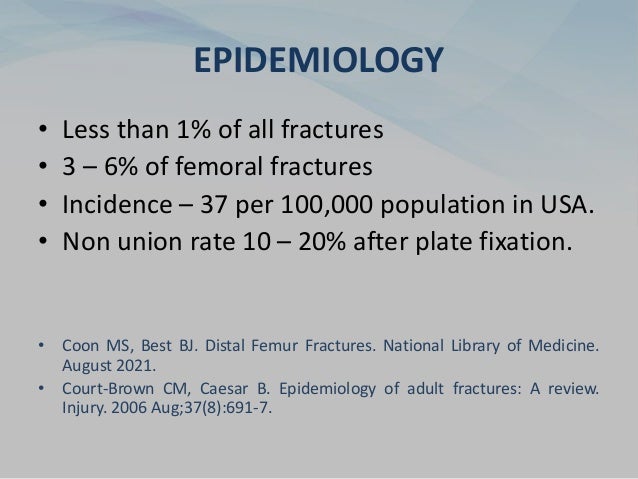

- 4. EPIDEMIOLOGY • Less than1% of all fractures • 3 – 6% of femoral fractures • Incidence – 37 per 100,000 population in USA. • Non union rate 10 – 20% after plate fixation. • Coon MS, Best BJ. Distal Femur Fractures. National Library of Medicine. August 2021. • Court-Brown CM, Caesar B. Epidemiology of adult fractures: A review. Injury. 2006 Aug;37(8):691-7.
- 5. ANATOMY • Distal most10- 15 cm of the femur. supracondylar and condylar region. • Medial condyle extends more distally and is more convex than the lateral femoral condyle. This accounts for the physiologic valgus of the femur.

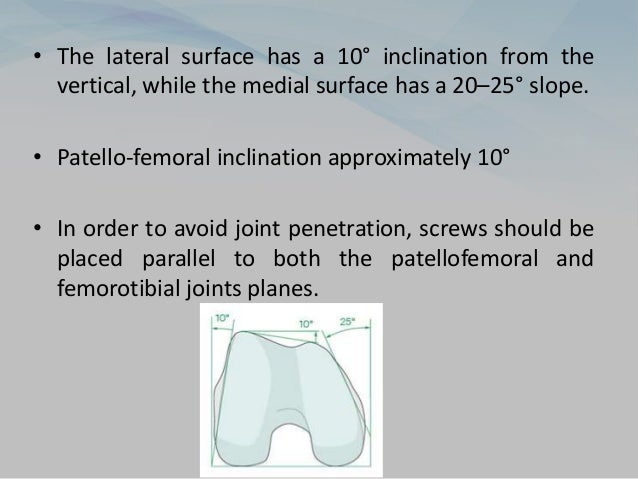

- 6. • The lateralsurface has a 10° inclination from the vertical, while the medial surface has a 20–25° slope. • Patello-femoral inclination approximately 10° • In order to avoid joint penetration, screws should be placed parallel to both the patellofemoral and femorotibial joints planes.

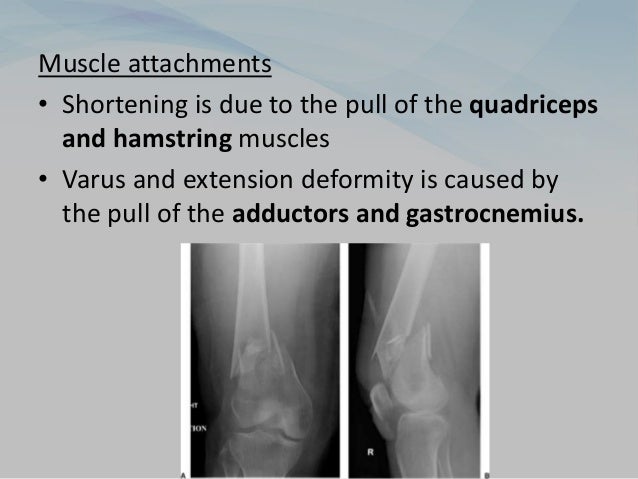

- 7. Muscle attachments • Shorteningis due to the pull of the quadriceps and hamstring muscles • Varus and extension deformity is caused by the pull of the adductors and gastrocnemius.

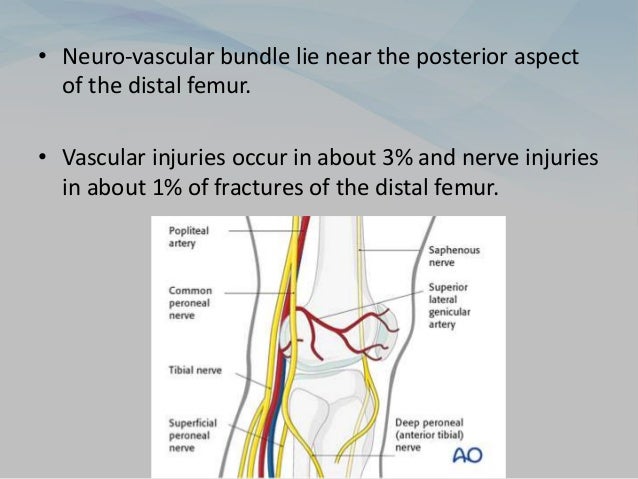

- 8. • Neuro-vascular bundlelie near the posterior aspect of the distal femur. • Vascular injuries occur in about 3% and nerve injuries in about 1% of fractures of the distal femur.
- 9.

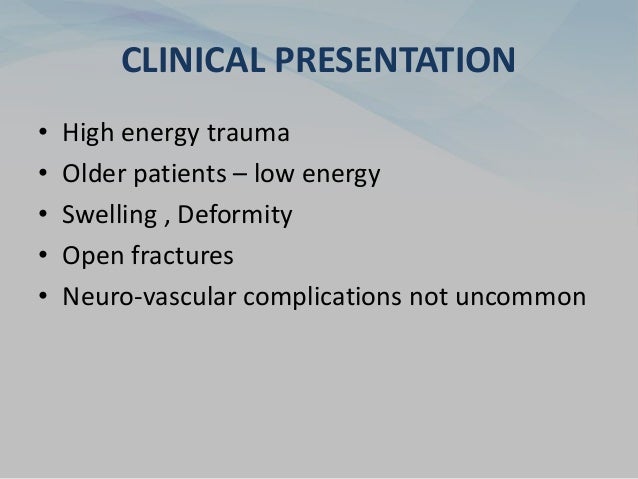

- 10. CLINICAL PRESENTATION • Highenergy trauma • Older patients – low energy • Swelling , Deformity • Open fractures • Neuro-vascular complications not uncommon

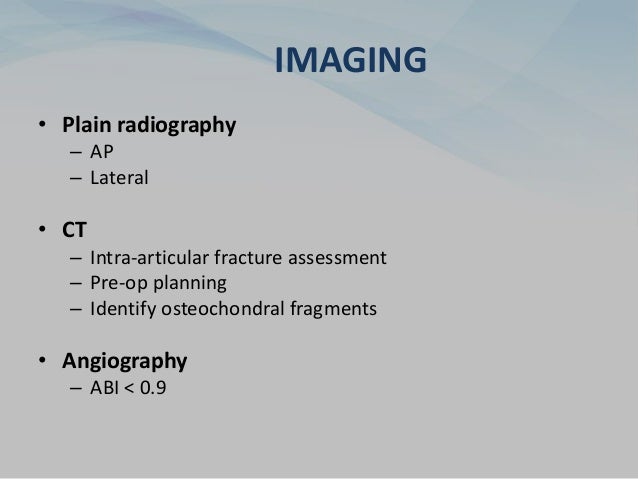

- 11. IMAGING • Plain radiography –AP – Lateral • CT – Intra-articular fracture assessment – Pre-op planning – Identify osteochondral fragments • Angiography – ABI < 0.9

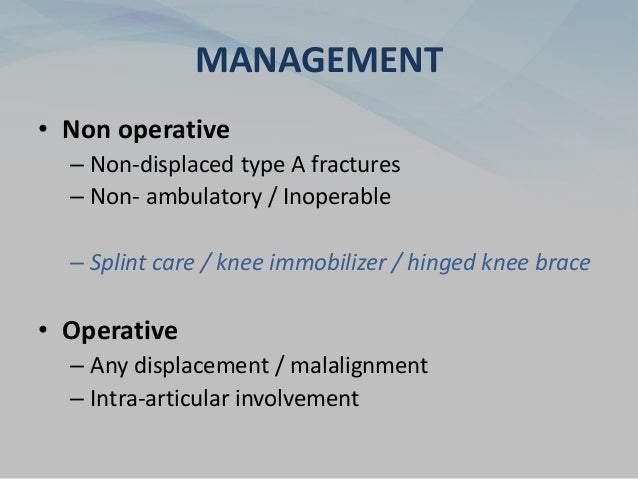

- 12. MANAGEMENT • Non operative –Non-displaced type A fractures – Non- ambulatory / Inoperable – Splint care / knee immobilizer / hinged knee brace • Operative – Any displacement / malalignment – Intra-articular involvement

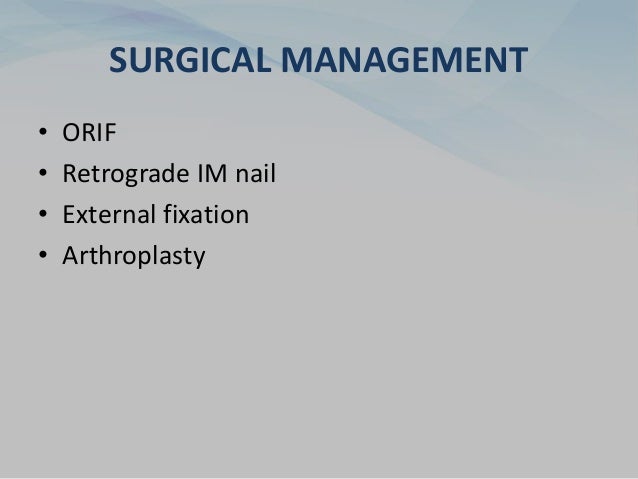

- 13. SURGICAL MANAGEMENT • ORIF •Retrograde IM nail • External fixation • Arthroplasty

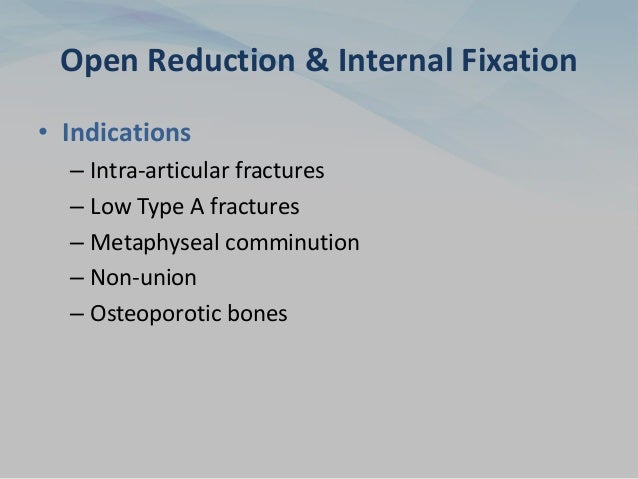

- 14. Open Reduction &Internal Fixation • Indications – Intra-articular fractures – Low Type A fractures – Metaphyseal comminution – Non-union – Osteoporotic bones

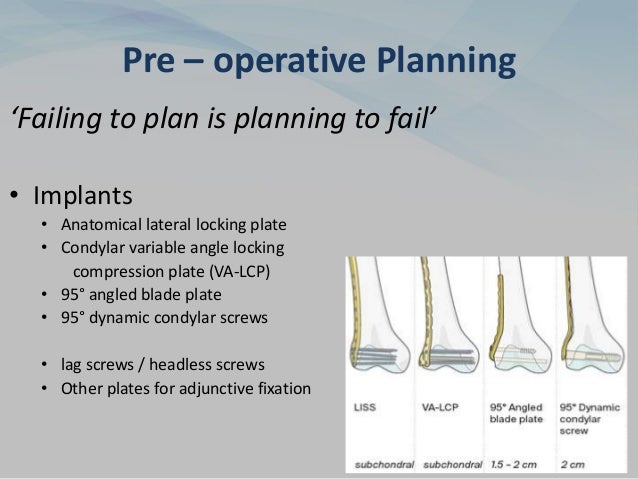

- 15. Pre – operativePlanning ‘Failing to plan is planning to fail’ • Implants • Anatomical lateral locking plate • Condylar variable angle locking compression plate (VA-LCP) • 95° angled blade plate • 95° dynamic condylar screws • lag screws / headless screws • Other plates for adjunctive fixation

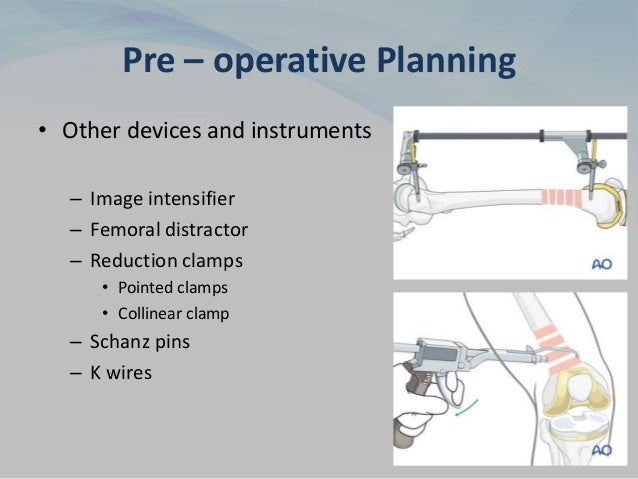

- 16. Pre – operativePlanning • Other devices and instruments – Image intensifier – Femoral distractor – Reduction clamps • Pointed clamps • Collinear clamp – Schanz pins – K wires
- 17. • DFLP fixationof the distal femur fractures resulted in stronger construct than the DCS fixation in both cyclic loading and ultimate strength in biomechanical testing of a simulated A3 distal femur fracture.

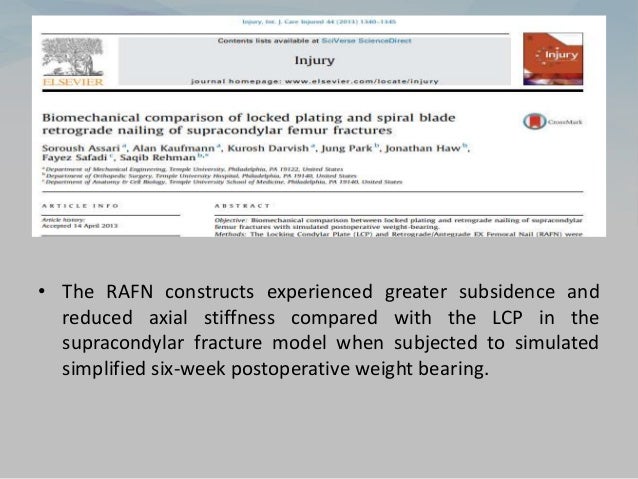

- 18. • The RAFNconstructs experienced greater subsidence and reduced axial stiffness compared with the LCP in the supracondylar fracture model when subjected to simulated simplified six-week postoperative weight bearing.

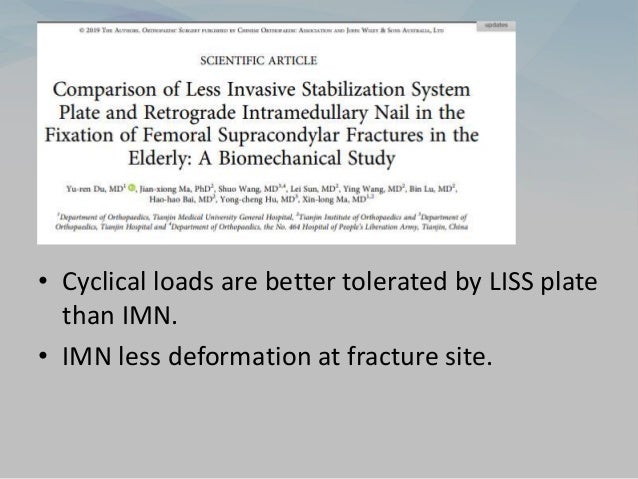

- 19. • Cyclical loadsare better tolerated by LISS plate than IMN. • IMN less deformation at fracture site.

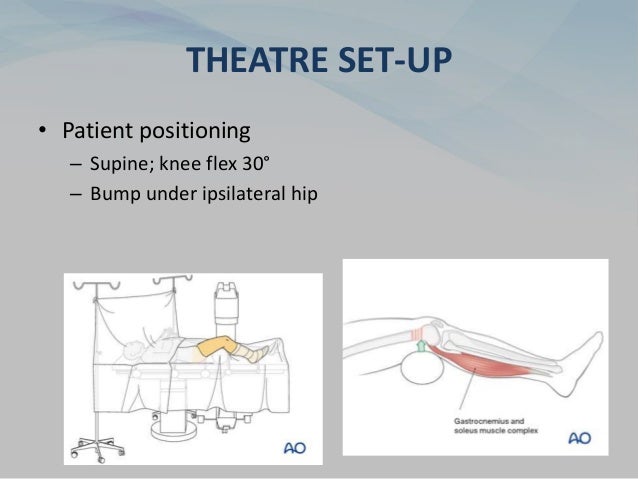

- 20. THEATRE SET-UP • Patientpositioning – Supine; knee flex 30° – Bump under ipsilateral hip

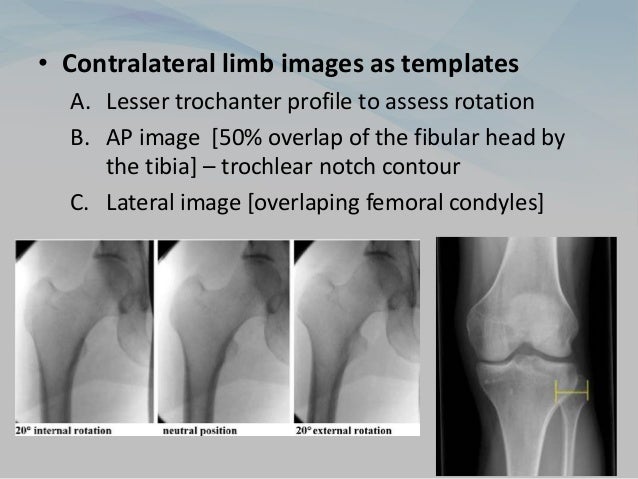

- 21. • Contralateral limbimages as templates A. Lesser trochanter profile to assess rotation B. AP image [50% overlap of the fibular head by the tibia] – trochlear notch contour C. Lateral image [overlaping femoral condyles]

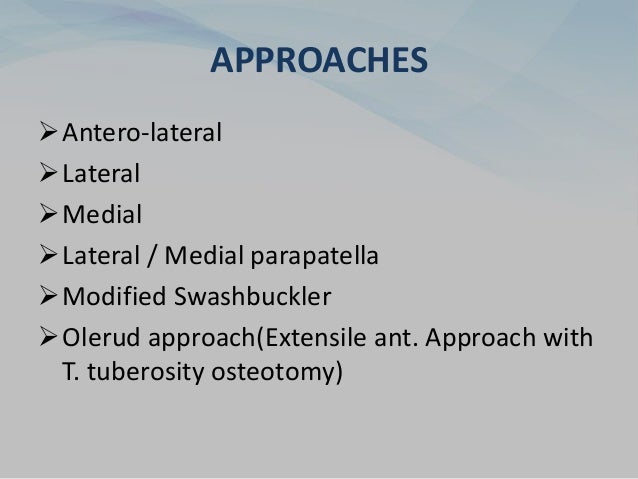

- 22. APPROACHES Antero-lateral Lateral Medial Lateral / Medialparapatella Modified Swashbuckler Olerud approach(Extensile ant. Approach with T. tuberosity osteotomy)

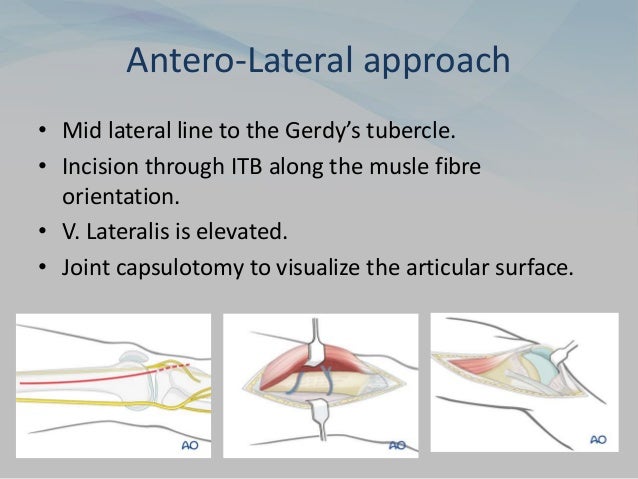

- 23. Antero-Lateral approach • Midlateral line to the Gerdy’s tubercle. • Incision through ITB along the musle fibre orientation. • V. Lateralis is elevated. • Joint capsulotomy to visualize the articular surface.

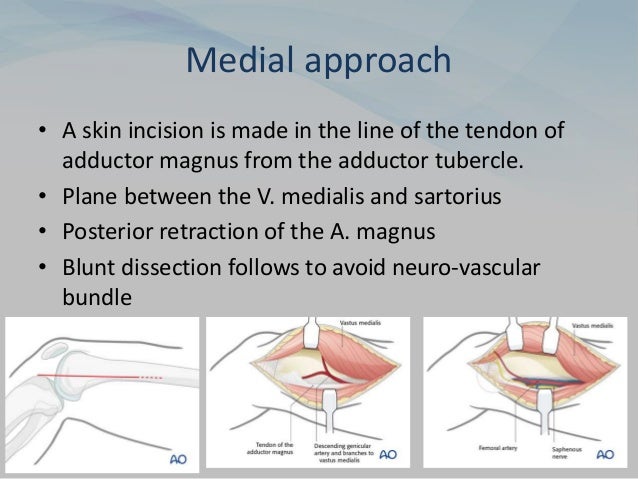

- 24. Medial approach • Askin incision is made in the line of the tendon of adductor magnus from the adductor tubercle. • Plane between the V. medialis and sartorius • Posterior retraction of the A. magnus • Blunt dissection follows to avoid neuro-vascular bundle
- 25. Lateral parapatellar approach •Land marks - Tibial tubercle and the patella. The incision can be either directly midline, or preferably, slightly lateral to midline. • longitudinal incision through the lateral parapatellar retinaculum and the quadriceps tendon. • Flexion of the knee and medial traction on the extensor mechanism, the patella is dislocated medially.
- 26. Modified Swashbuckler approach •A midline skin incision above the fracture laterally across the patella. • Lateral parapatella arthrotomy done 2cm lateral to the patella border. • At the base of the incision is deviated aiming the post. depression of V. lateralis.
- 27. • Swashbuckler approach– excellent outcome in terms of post op knee ROM, pain tolerance, infection rate. • Excellent approach to manage complex type C fractures

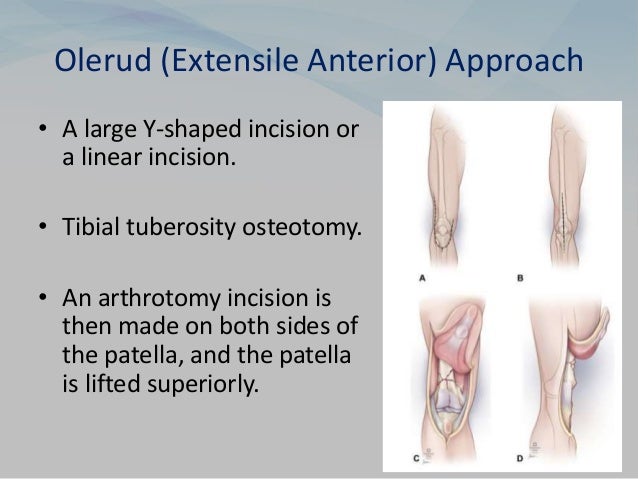

- 28. Olerud (Extensile Anterior)Approach • A large Y-shaped incision or a linear incision. • Tibial tuberosity osteotomy. • An arthrotomy incision is then made on both sides of the patella, and the patella is lifted superiorly.

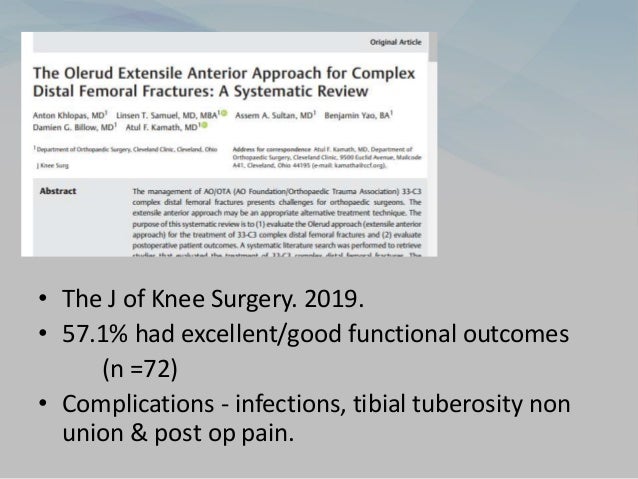

- 29. • The Jof Knee Surgery. 2019. • 57.1% had excellent/good functional outcomes (n =72) • Complications - infections, tibial tuberosity non union & post op pain.
- 30. REDUCTION TECHNIQUES • Converttype C to Type A. • In the absence of metaphyseal comminution reduce the largest articular fragment to the metaphysis ( C → B) and the fix the rest. • Femoral distractor is used in reduction of the articular block to the shaft. • A well placed bump under the knee – hyper extended distal part relative to the shaft.
- 31. REDUCTION TECHNIQUES • Hoffafracture – Medial Hoffa fragments are addressed first. – Schanz pins can be used to joystick the medial Hoffa. – Posterior Hoffa - Extreme hyperflexion of the knee joint with hyperextension of the metaphyseal segment.

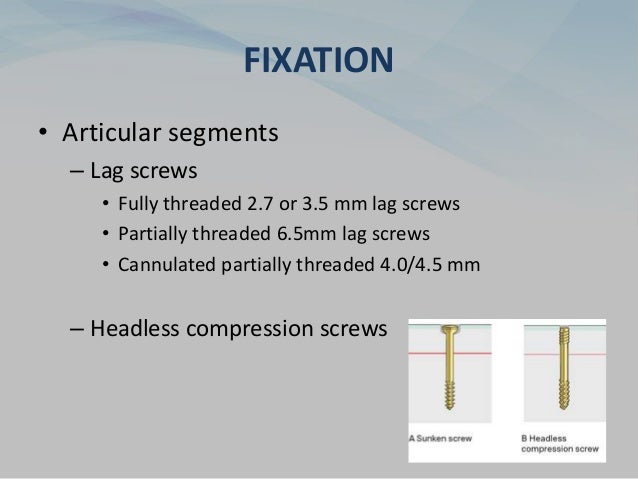

- 32. FIXATION • Articular segments –Lag screws • Fully threaded 2.7 or 3.5 mm lag screws • Partially threaded 6.5mm lag screws • Cannulated partially threaded 4.0/4.5 mm – Headless compression screws

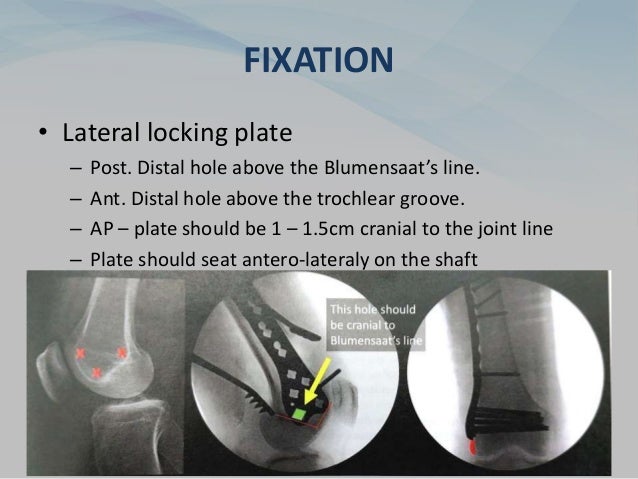

- 33. FIXATION • Lateral lockingplate – Post. Distal hole above the Blumensaat’s line. – Ant. Distal hole above the trochlear groove. – AP – plate should be 1 – 1.5cm cranial to the joint line – Plate should seat antero-lateraly on the shaft

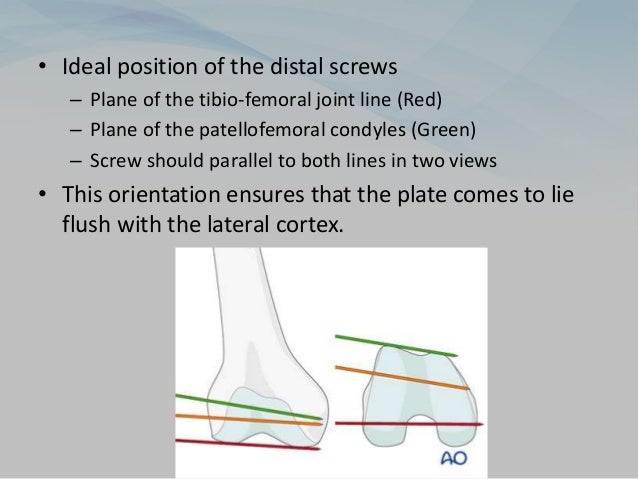

- 34. • Ideal positionof the distal screws – Plane of the tibio-femoral joint line (Red) – Plane of the patellofemoral condyles (Green) – Screw should parallel to both lines in two views • This orientation ensures that the plate comes to lie flush with the lateral cortex.

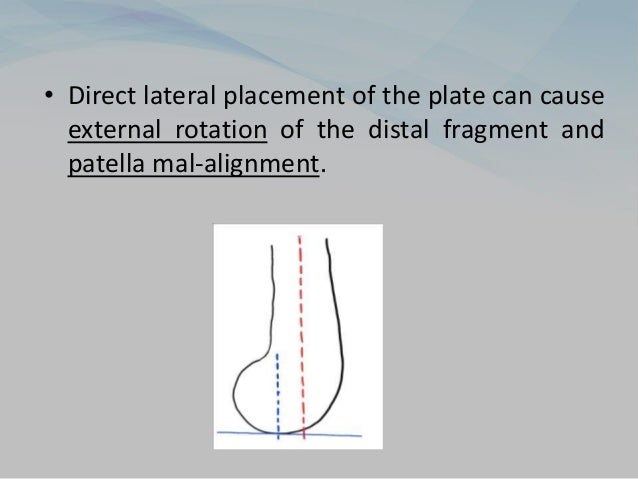

- 35. • Direct lateralplacement of the plate can cause external rotation of the distal fragment and patella mal-alignment.
- 36. • Too posteriorplacement of the plate causes “Golf clubbing” of the distal segment. • Hyperextension or internal rotation of the distal segment can cause similar problem.
- 37. MIPO technique • Bridgeplating • For distal screw insertion • LISS is a system which helps MIPO

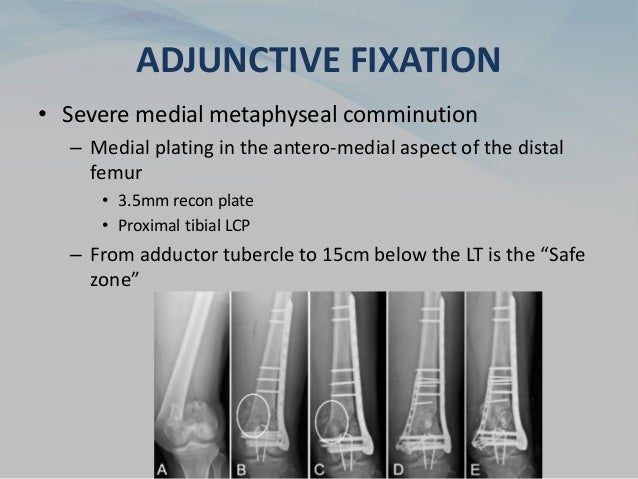

- 38. ADJUNCTIVE FIXATION • Severemedial metaphyseal comminution – Medial plating in the antero-medial aspect of the distal femur • 3.5mm recon plate • Proximal tibial LCP – From adductor tubercle to 15cm below the LT is the “Safe zone”

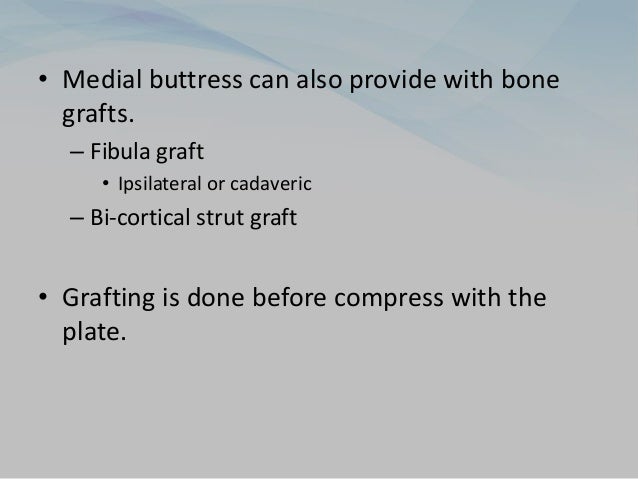

- 39. • Medial buttresscan also provide with bone grafts. – Fibula graft • Ipsilateral or cadaveric – Bi-cortical strut graft • Grafting is done before compress with the plate.

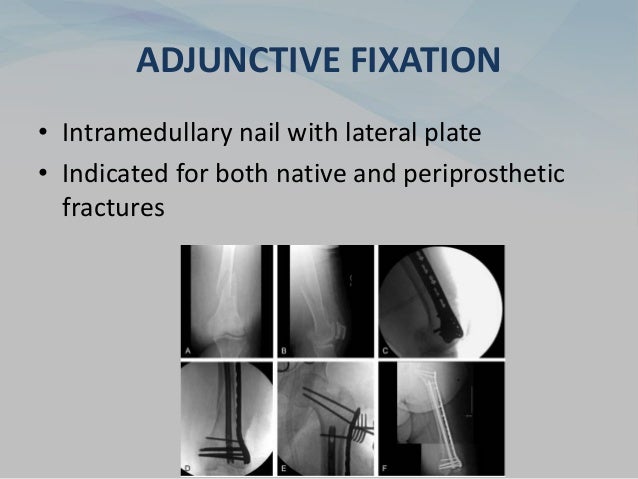

- 40. ADJUNCTIVE FIXATION • Intramedullarynail with lateral plate • Indicated for both native and periprosthetic fractures

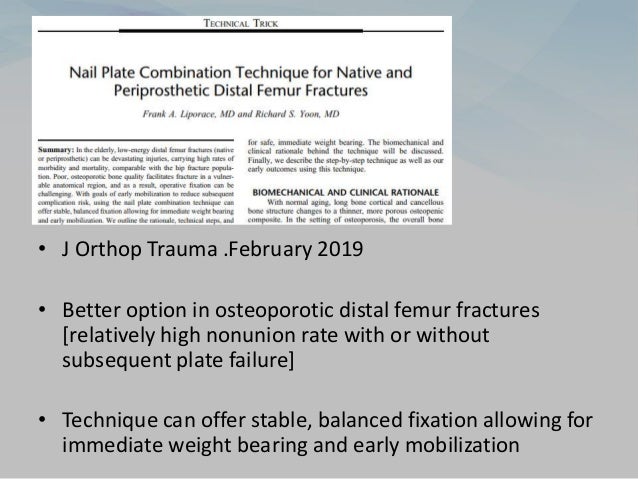

- 41. • J OrthopTrauma .February 2019 • Better option in osteoporotic distal femur fractures [relatively high nonunion rate with or without subsequent plate failure] • Technique can offer stable, balanced fixation allowing for immediate weight bearing and early mobilization

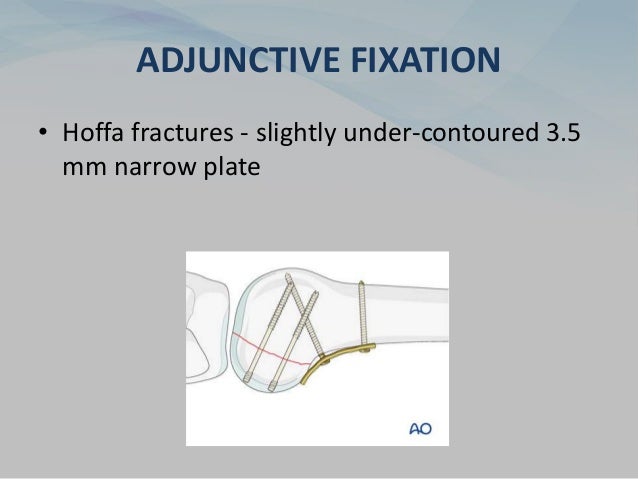

- 42. ADJUNCTIVE FIXATION • Hoffafractures - slightly under-contoured 3.5 mm narrow plate
- 43.
- 44. RFN-ADVANCED™ Retrograde Femoral NailingSystem • Designed to improve fixation by reduced toggle and loss of reduction for distal femur fractures. • Two descending oblique screws target denser posterior condyles. • Locking Attachment Washer increases the fixation strength by 44% compared to nailing alone.
- 45. RFN-ADVANCED™ Retrograde Femoral NailingSystem • Locking Polymer is built into the nail for angular stability. • Designed to avoid the challenges associated with cross-threading and cold-welding. • Locking Polymer reduces screw toggle by 80% and holds the screw in position relative to the nail, increasing pull out strength up to 128%.
- 46. RFN-ADVANCED™ Retrograde Femoral NailingSystem The RFN-A System is intended to stabilize fractures of the distal femur and the femoral shaft, including: • Supracondylar fractures, including those with intraarticular extension • Combination of ipsilateral condylar and diaphyseal fractures • Ipsilateral femur/tibia fractures • Femoral fractures in multiple trauma patients • Periprosthetic fractures • Fractures in the morbidly obese • Fractures in osteoporotic bone • Impending pathologic fractures • Malunions and nonunions
- 47.

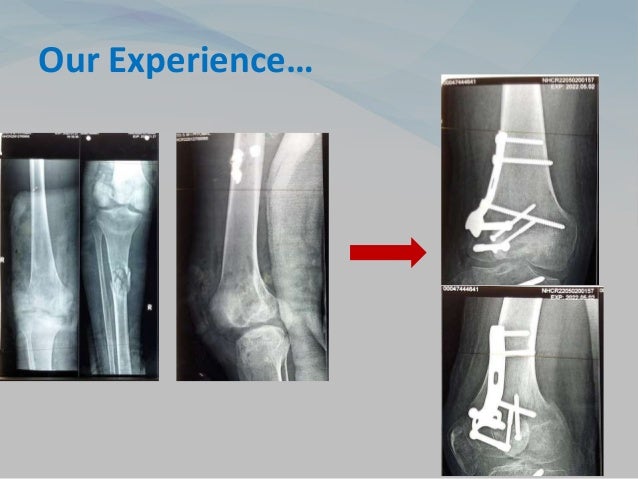

- 48.
- 49.

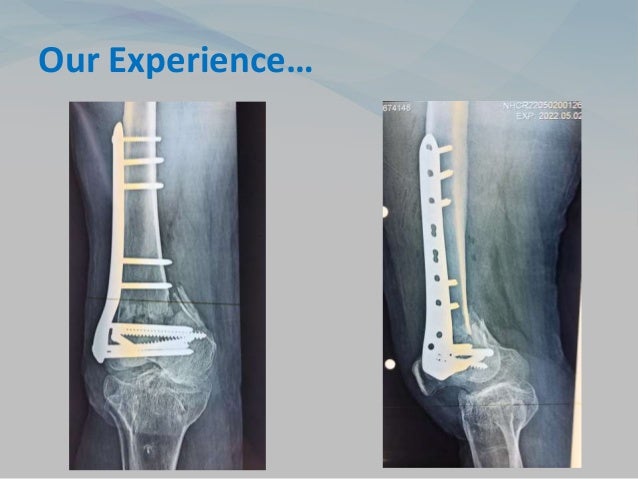

- 50.

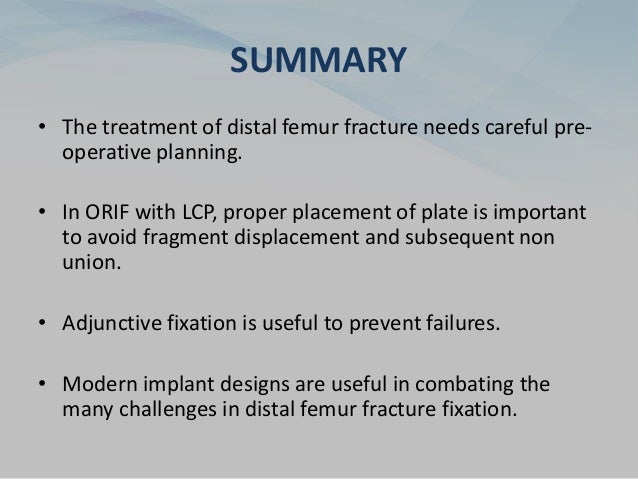

- 51. SUMMARY • The treatmentof distal femur fracture needs careful pre- operative planning. • In ORIF with LCP, proper placement of plate is important to avoid fragment displacement and subsequent non union. • Adjunctive fixation is useful to prevent failures. • Modern implant designs are useful in combating the many challenges in distal femur fracture fixation.
- 52. REFERENCES 1. Lee C,Dane B, Ajay G. Surgical Tips and Tricks for Distal Femur Plating. J of the American Academy of Orthopaedic Surgeons. 2021;29(18) : p 770-779.

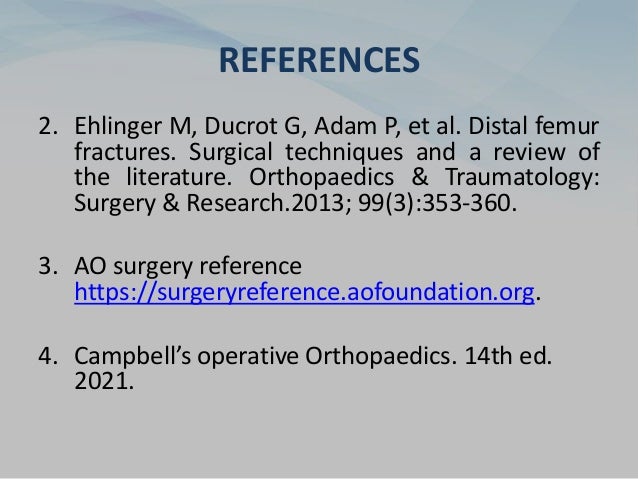

- 53. REFERENCES 2. Ehlinger M,Ducrot G, Adam P, et al. Distal femur fractures. Surgical techniques and a review of the literature. Orthopaedics & Traumatology: Surgery & Research.2013; 99(3):353-360. 3. AO surgery reference https://surgeryreference.aofoundation.org. 4. Campbell’s operative Orthopaedics. 14th ed. 2021.
