1. BI Seminar project:
High-level languages
for Big Data Analytics
Janani Chakkaradhari
Jose Luis Lopez Pino

2. Outline
1. Introduction
1.1 The Map Reduce programming model
1.2 Hadoop
2. High Level Languages
2.1 Pig Latin
2.2 Hive
2.3 JAQL
2.4 Other Languages
3. Comparison of HLLs
3.1 Syntax Comparison
3.2 Performance
3.3 Query Compilation
3.4 JOIN Implementation
4. Future Work
4.1 Machine Learning
4.2 Interactive Queries
5. Conclusion

3. Introduction

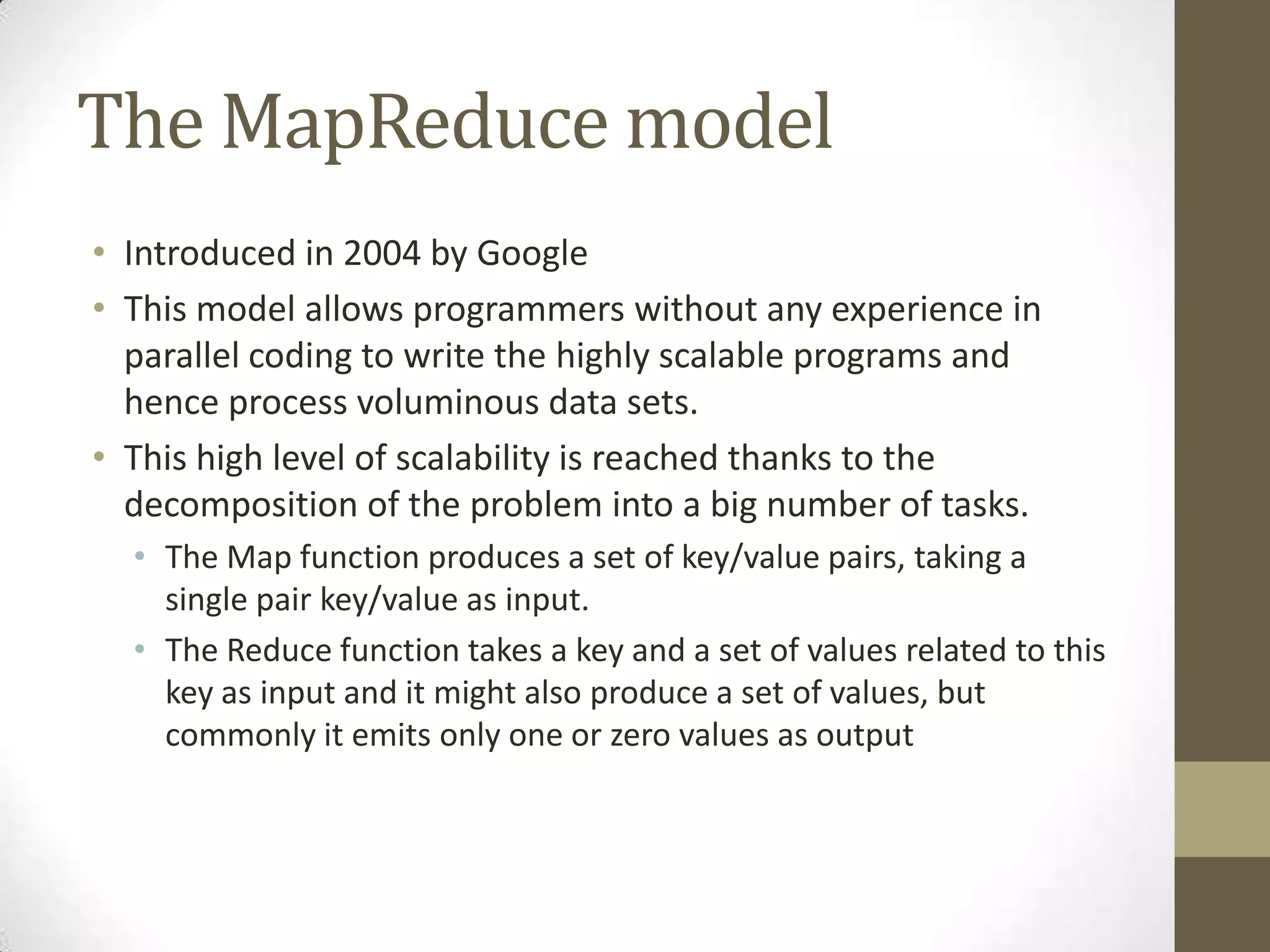

4. The MapReduce model
• Introduced in 2004 by Google
• This model allows programmers without any experience in
parallel coding to write the highly scalable programs and
hence process voluminous data sets.
• This high level of scalability is reached thanks to the
decomposition of the problem into a big number of tasks.
• The Map function produces a set of key/value pairs, taking a
single pair key/value as input.
• The Reduce function takes a key and a set of values related to this
key as input and it might also produce a set of values, but
commonly it emits only one or zero values as output

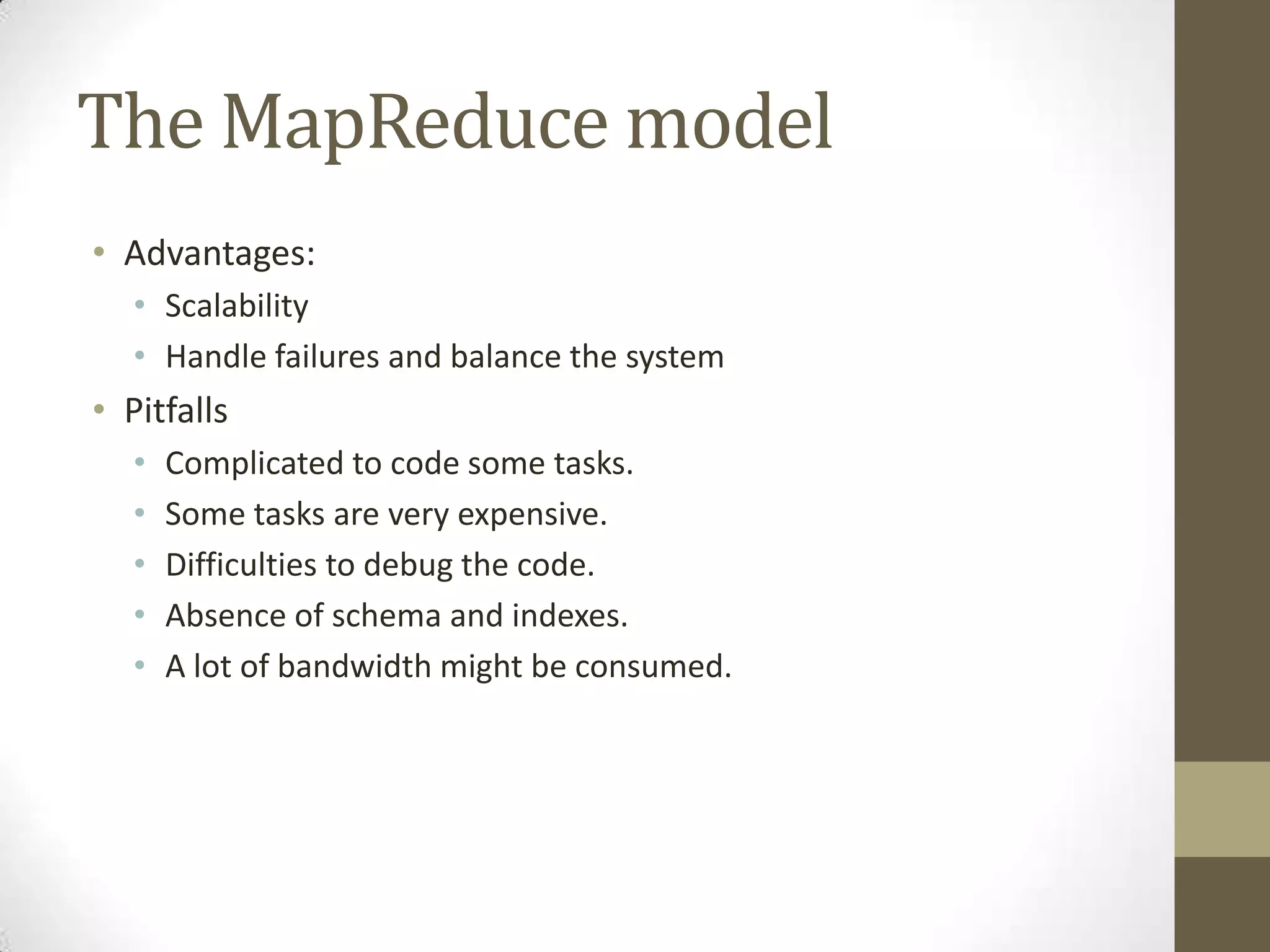

5. The MapReduce model
• Advantages:
• Scalability
• Handle failures and balance the system
• Pitfalls
• Complicated to code some tasks.
• Some tasks are very expensive.
• Difficulties to debug the code.
• Absence of schema and indexes.
• A lot of bandwidth might be consumed.

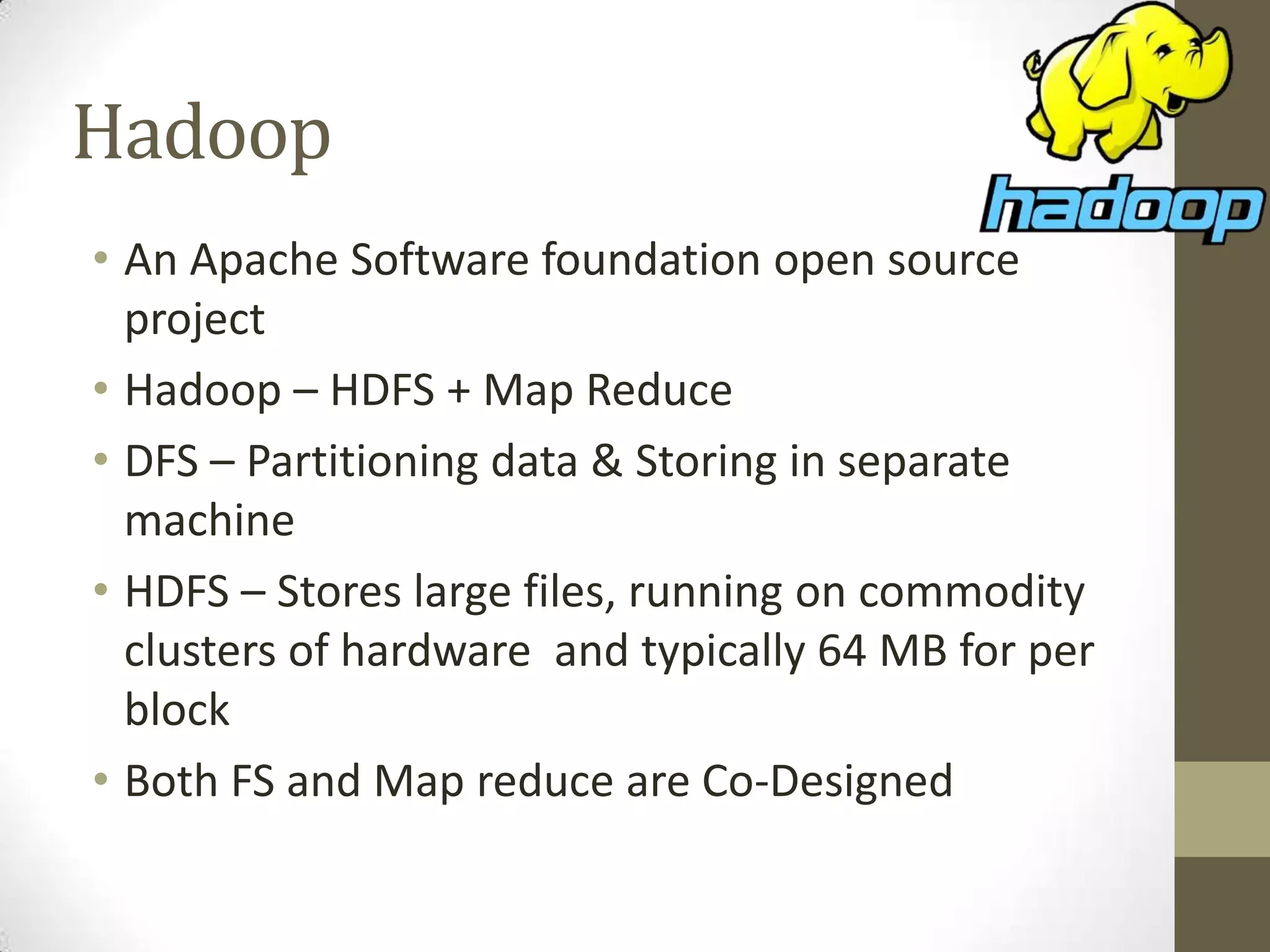

6. Hadoop
• An Apache Software foundation open source
project
• Hadoop – HDFS + Map Reduce
• DFS – Partitioning data & Storing in separate
machine
• HDFS – Stores large files, running on commodity
clusters of hardware and typically 64 MB for per
block
• Both FS and Map reduce are Co-Designed

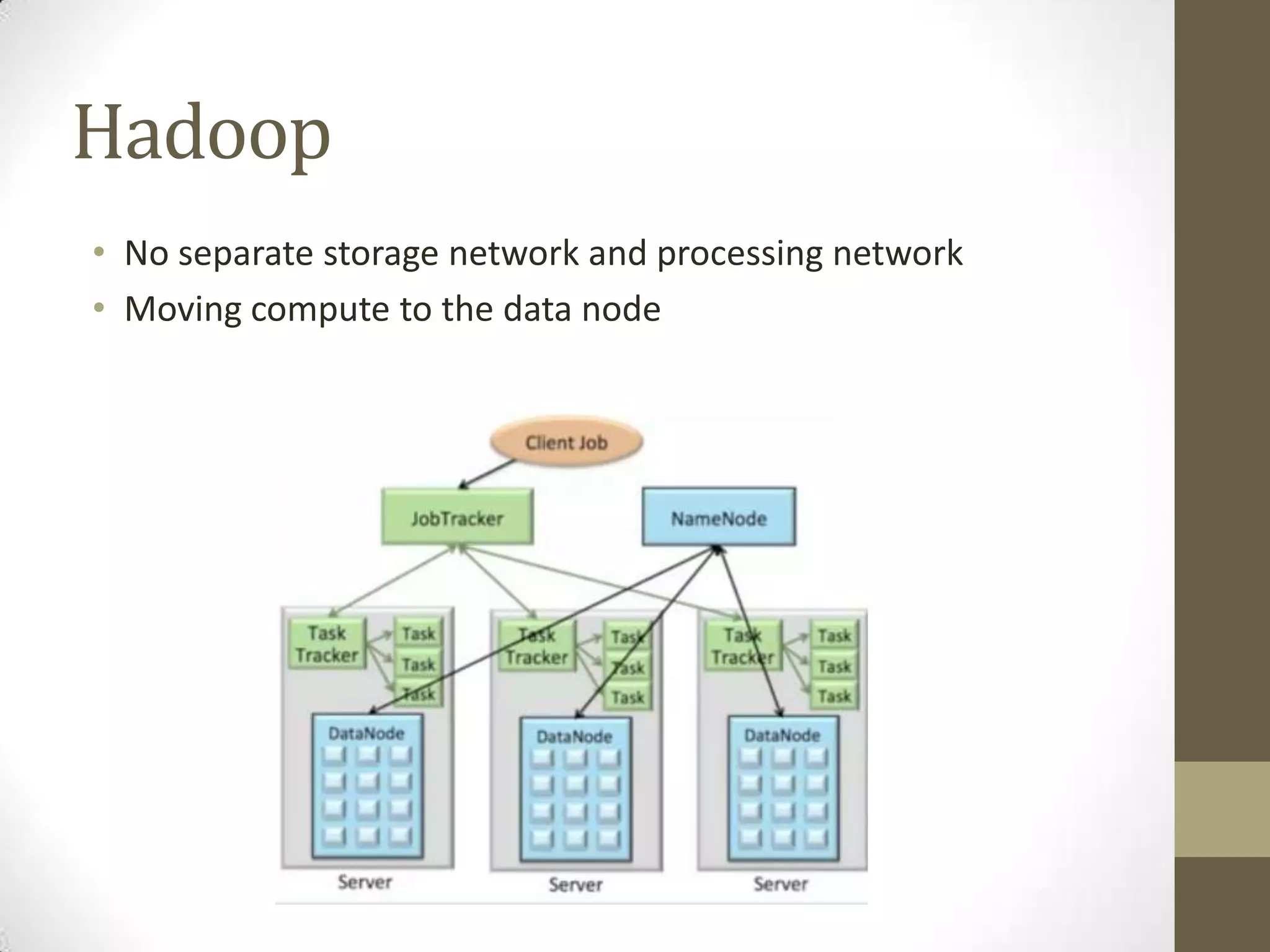

7. Hadoop
• No separate storage network and processing network
• Moving compute to the data node

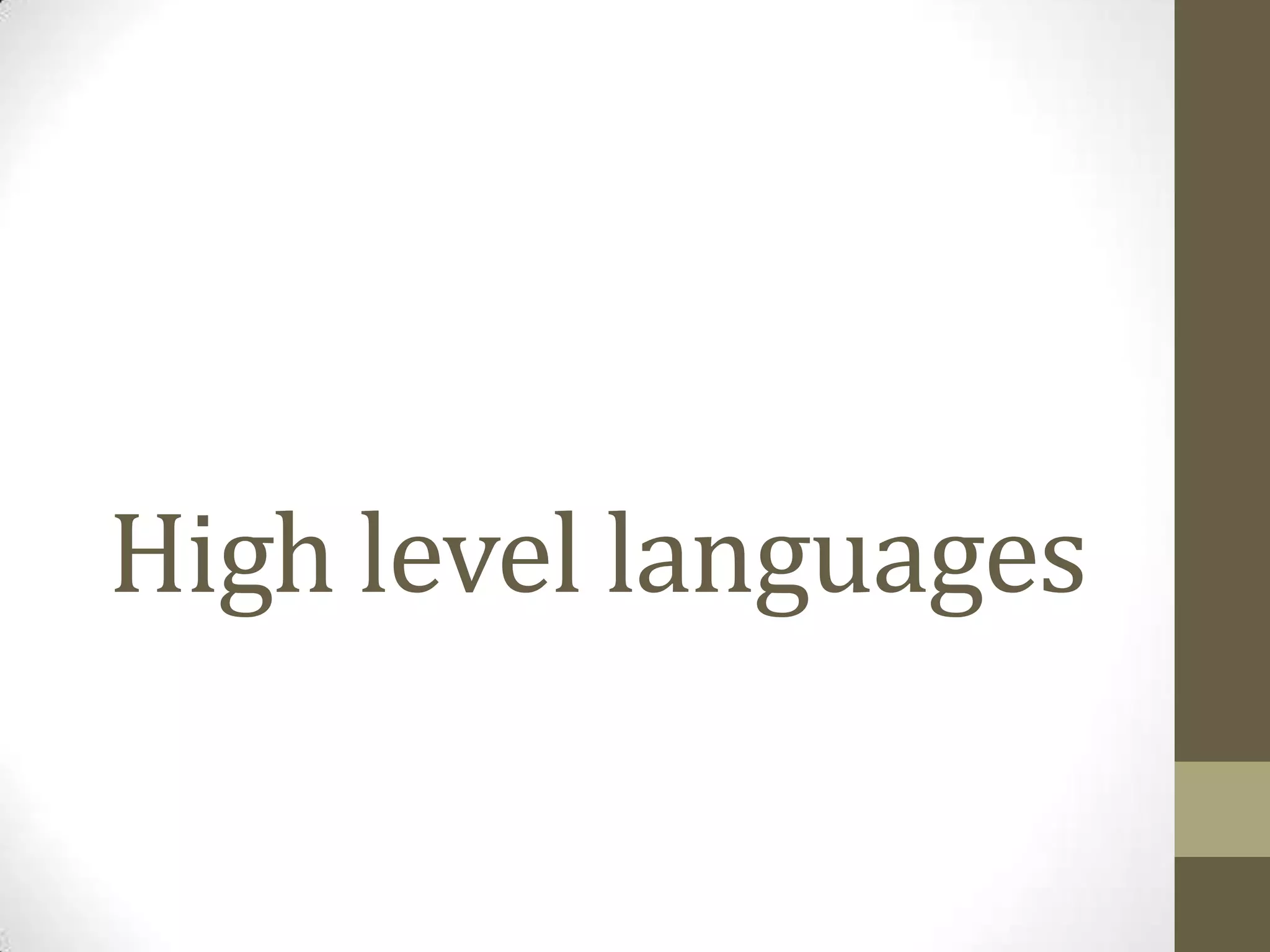

8. High level languages

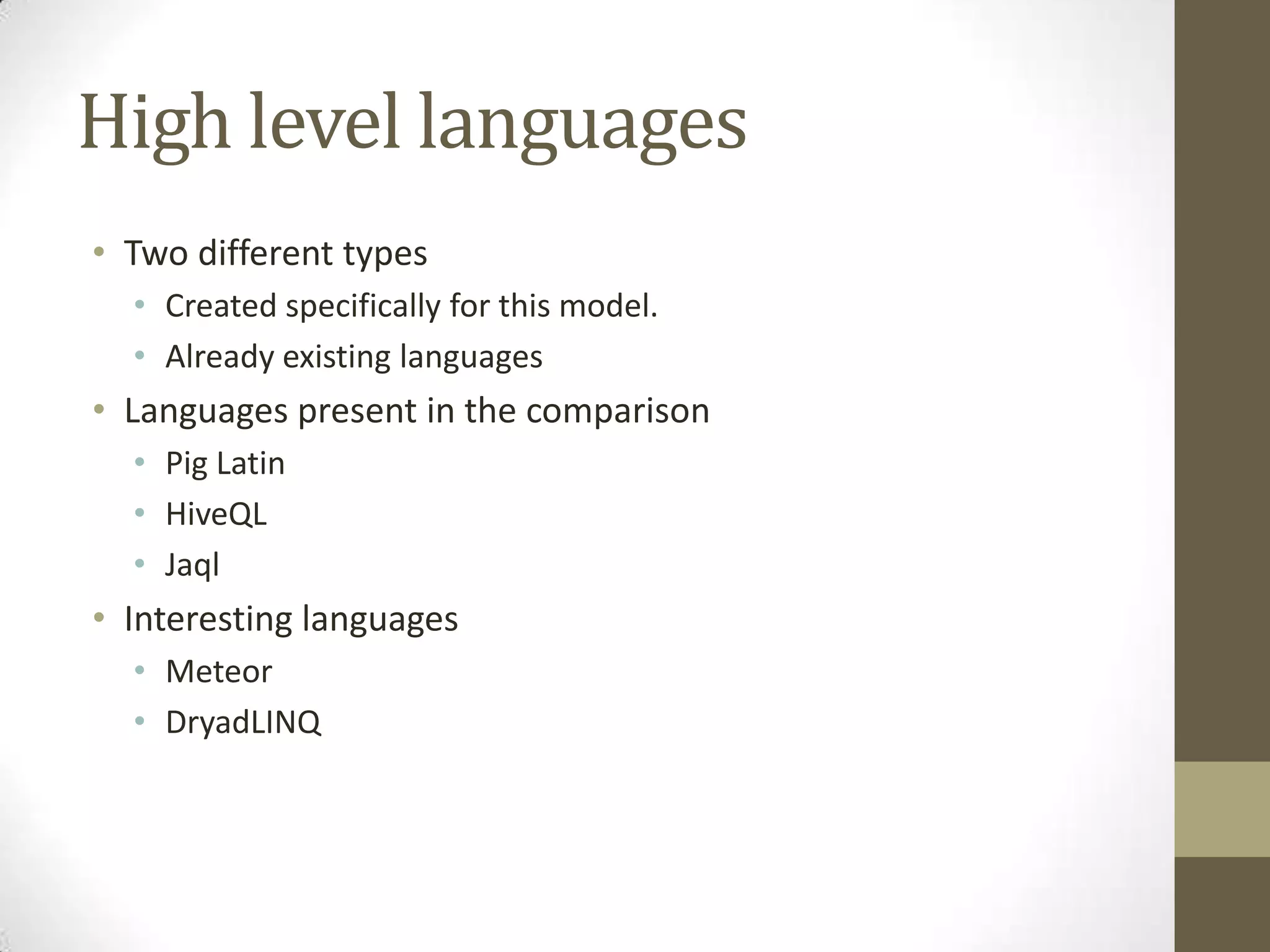

9. High level languages
• Two different types
• Created specifically for this model.
• Already existing languages
• Languages present in the comparison
• Pig Latin
• HiveQL
• Jaql
• Interesting languages
• Meteor
• DryadLINQ

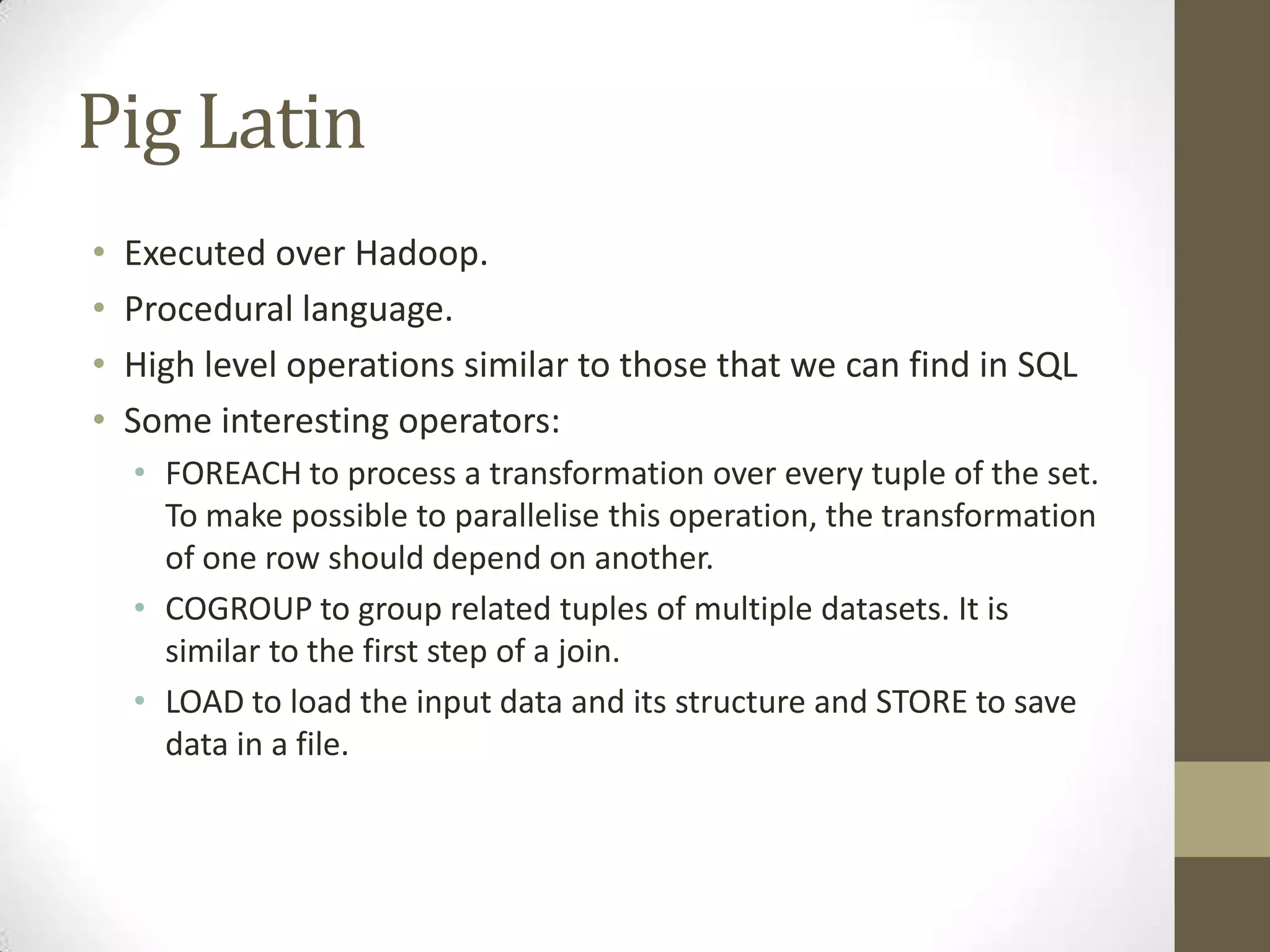

10. Pig Latin
• Executed over Hadoop.
• Procedural language.
• High level operations similar to those that we can find in SQL
• Some interesting operators:
• FOREACH to process a transformation over every tuple of the set.
To make possible to parallelise this operation, the transformation
of one row should depend on another.
• COGROUP to group related tuples of multiple datasets. It is
similar to the first step of a join.
• LOAD to load the input data and its structure and STORE to save
data in a file.

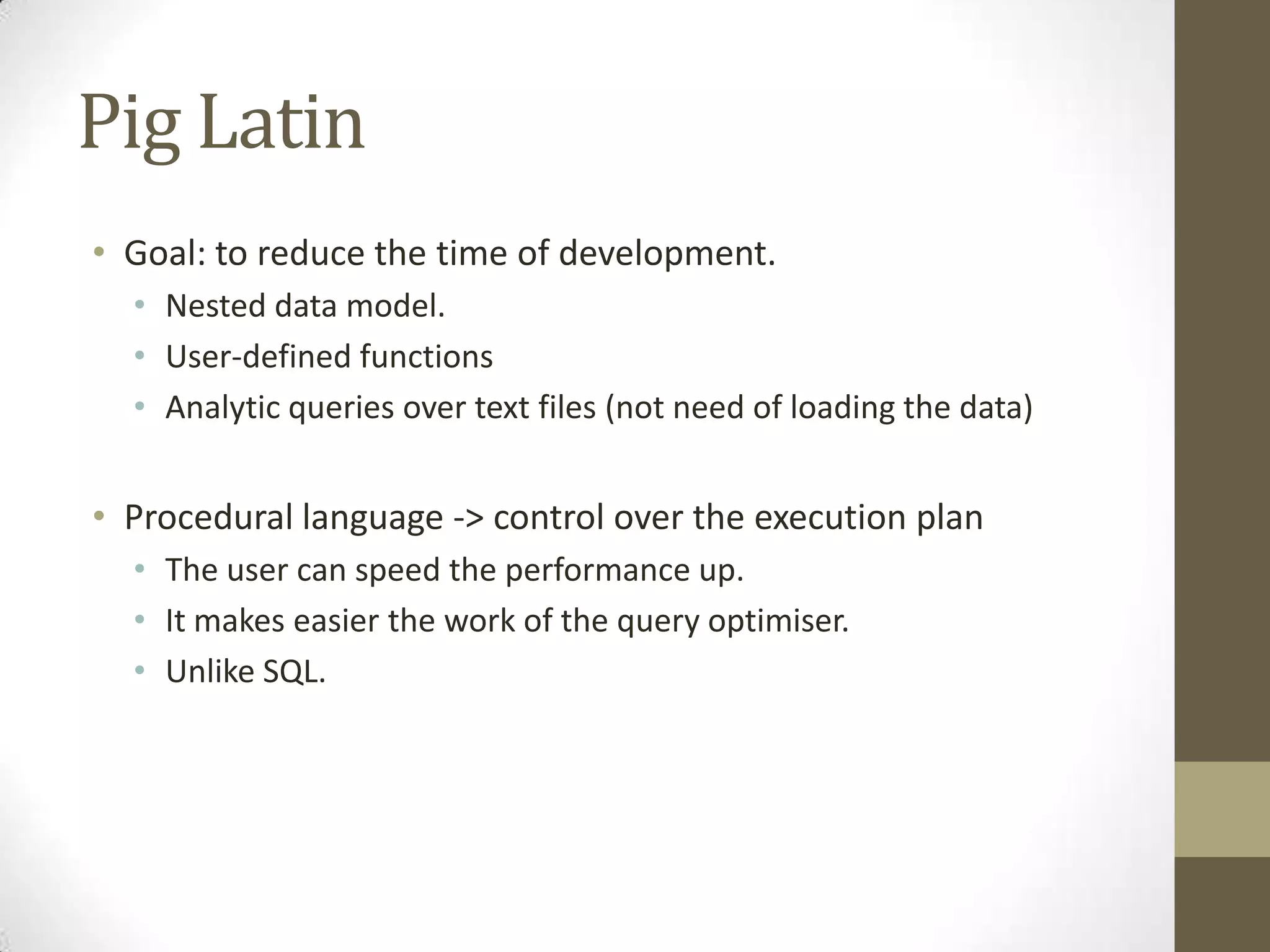

11. Pig Latin
• Goal: to reduce the time of development.
• Nested data model.
• User-defined functions
• Analytic queries over text files (not need of loading the data)
• Procedural language -> control over the execution plan
• The user can speed the performance up.
• It makes easier the work of the query optimiser.
• Unlike SQL.

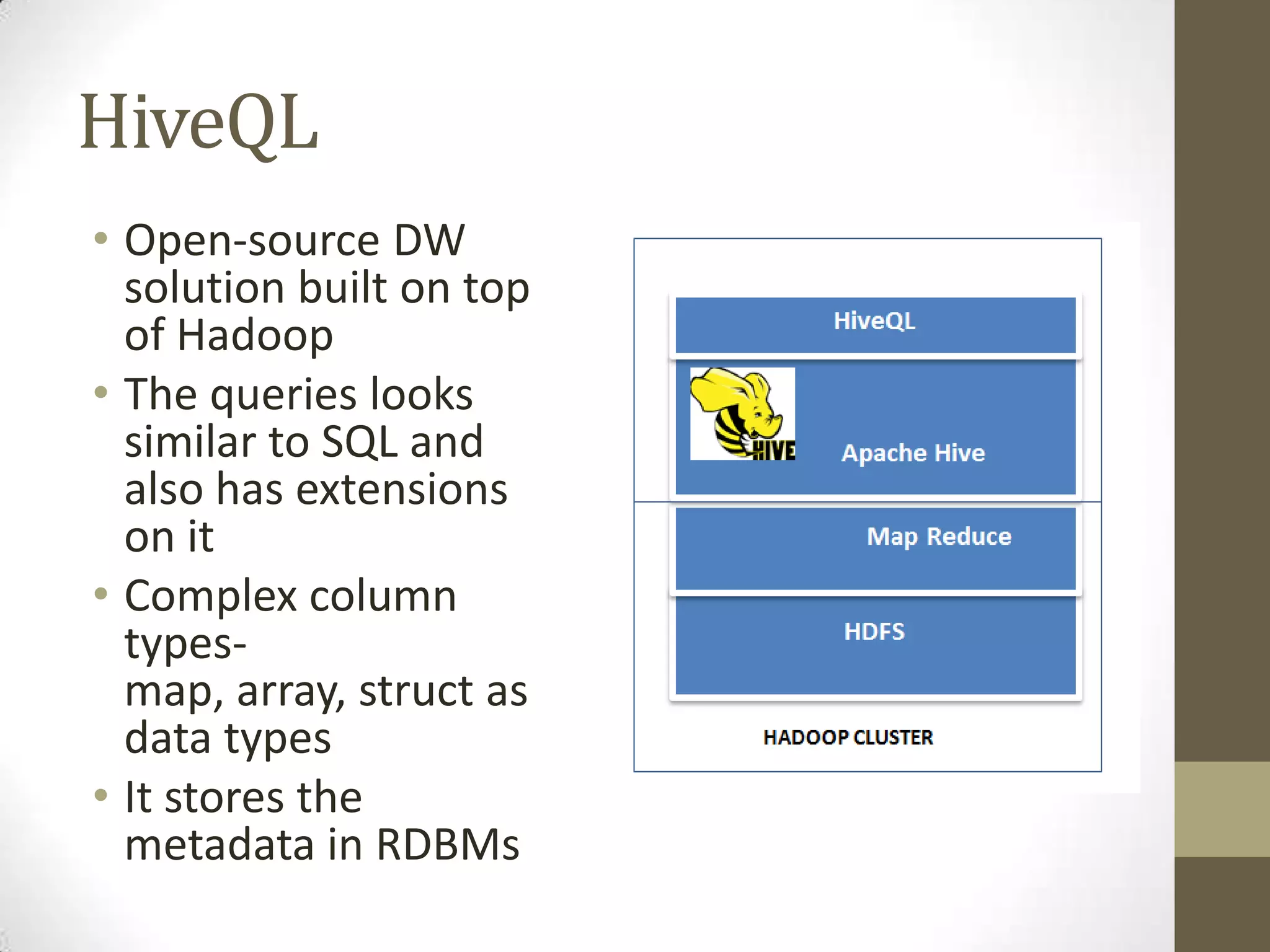

12. HiveQL
• Open-source DW
solution built on top
of Hadoop
• The queries looks
similar to SQL and
also has extensions
on it
• Complex column
types-
map, array, struct as
data types
• It stores the
metadata in RDBMs

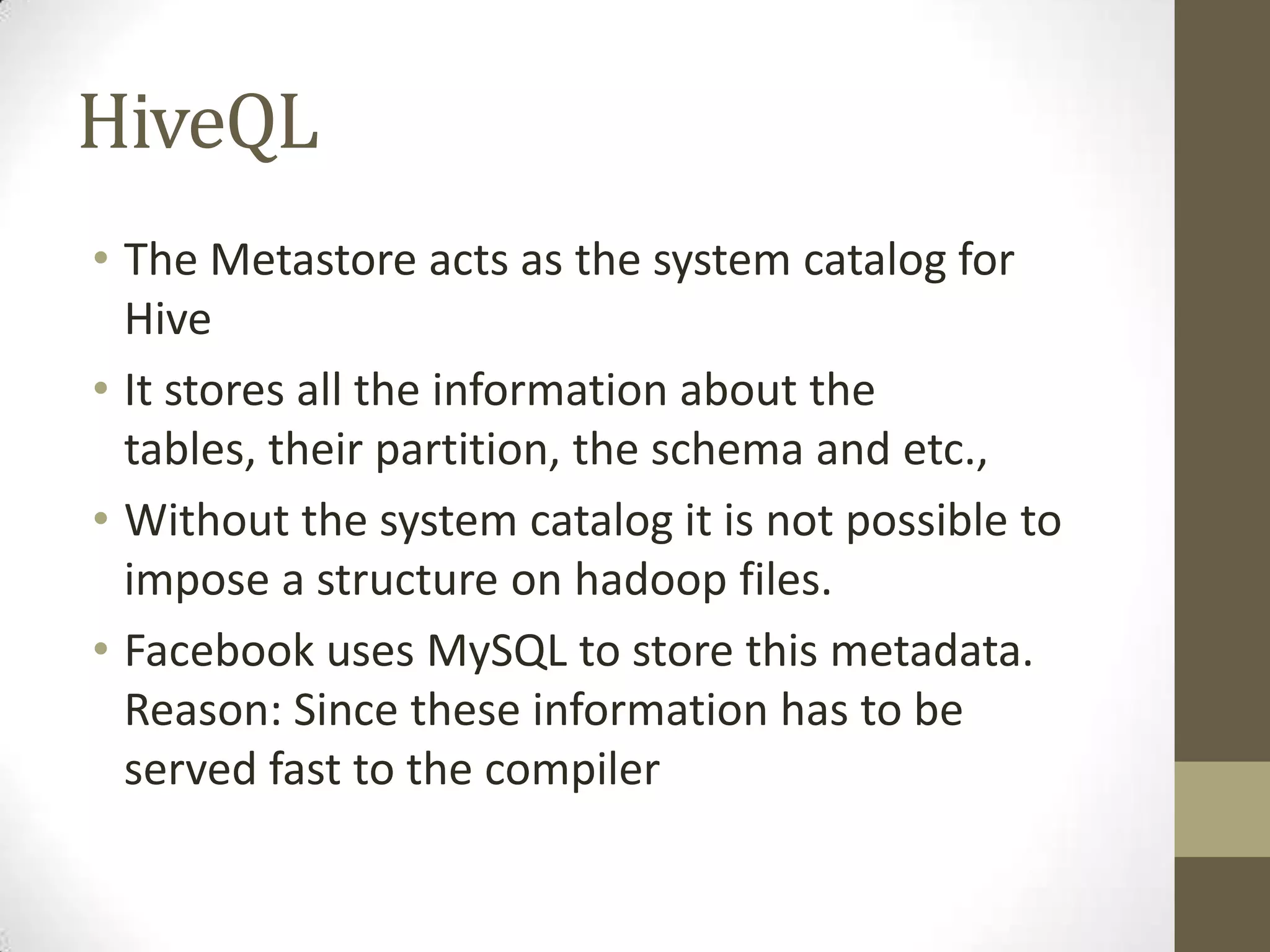

13. HiveQL
• The Metastore acts as the system catalog for
Hive
• It stores all the information about the
tables, their partition, the schema and etc.,
• Without the system catalog it is not possible to
impose a structure on hadoop files.
• Facebook uses MySQL to store this metadata.
Reason: Since these information has to be
served fast to the compiler

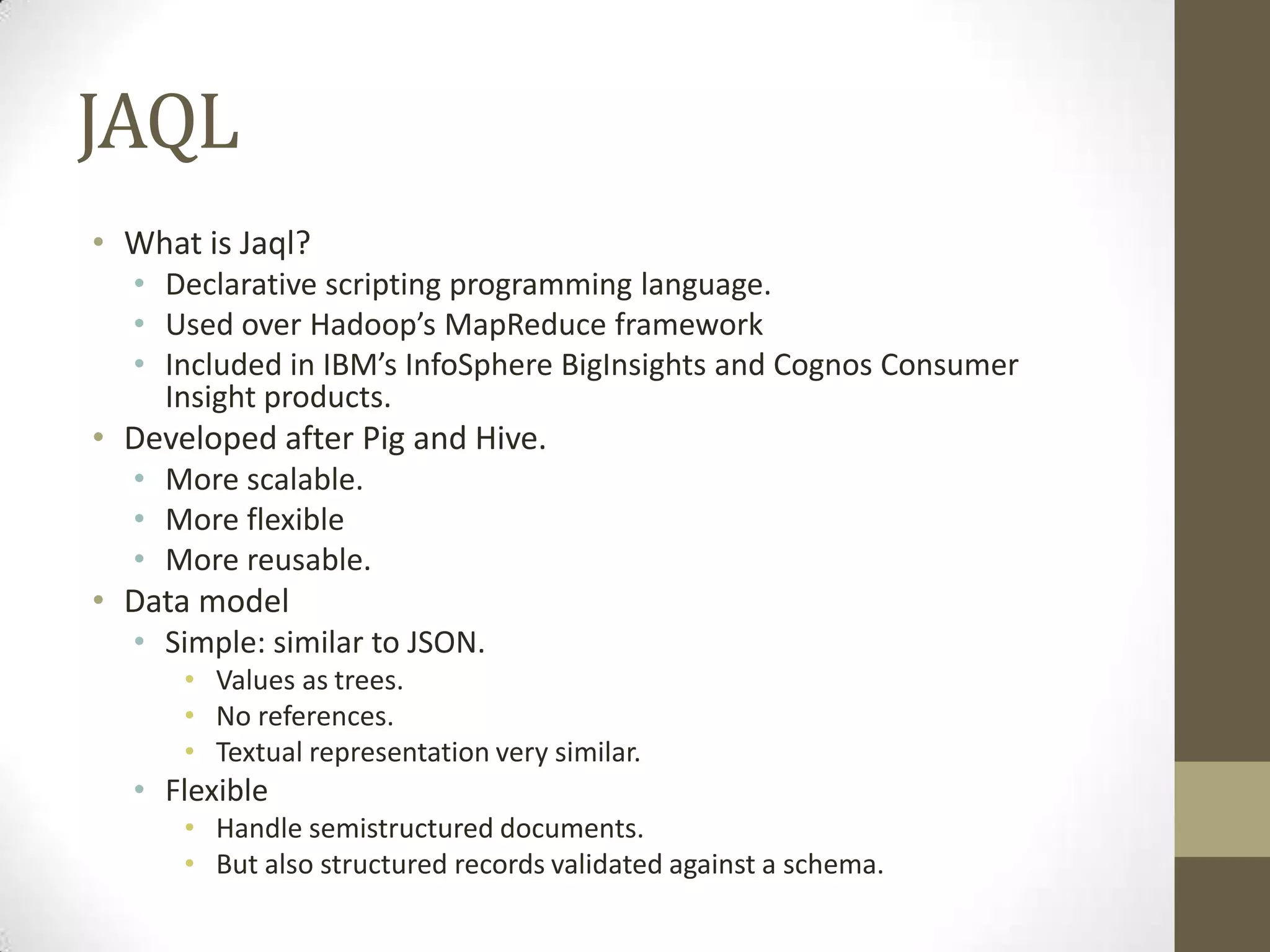

14. JAQL
• What is Jaql?
• Declarative scripting programming language.
• Used over Hadoop’s MapReduce framework
• Included in IBM’s InfoSphere BigInsights and Cognos Consumer
Insight products.
• Developed after Pig and Hive.
• More scalable.
• More flexible
• More reusable.
• Data model
• Simple: similar to JSON.
• Values as trees.
• No references.
• Textual representation very similar.
• Flexible
• Handle semistructured documents.
• But also structured records validated against a schema.

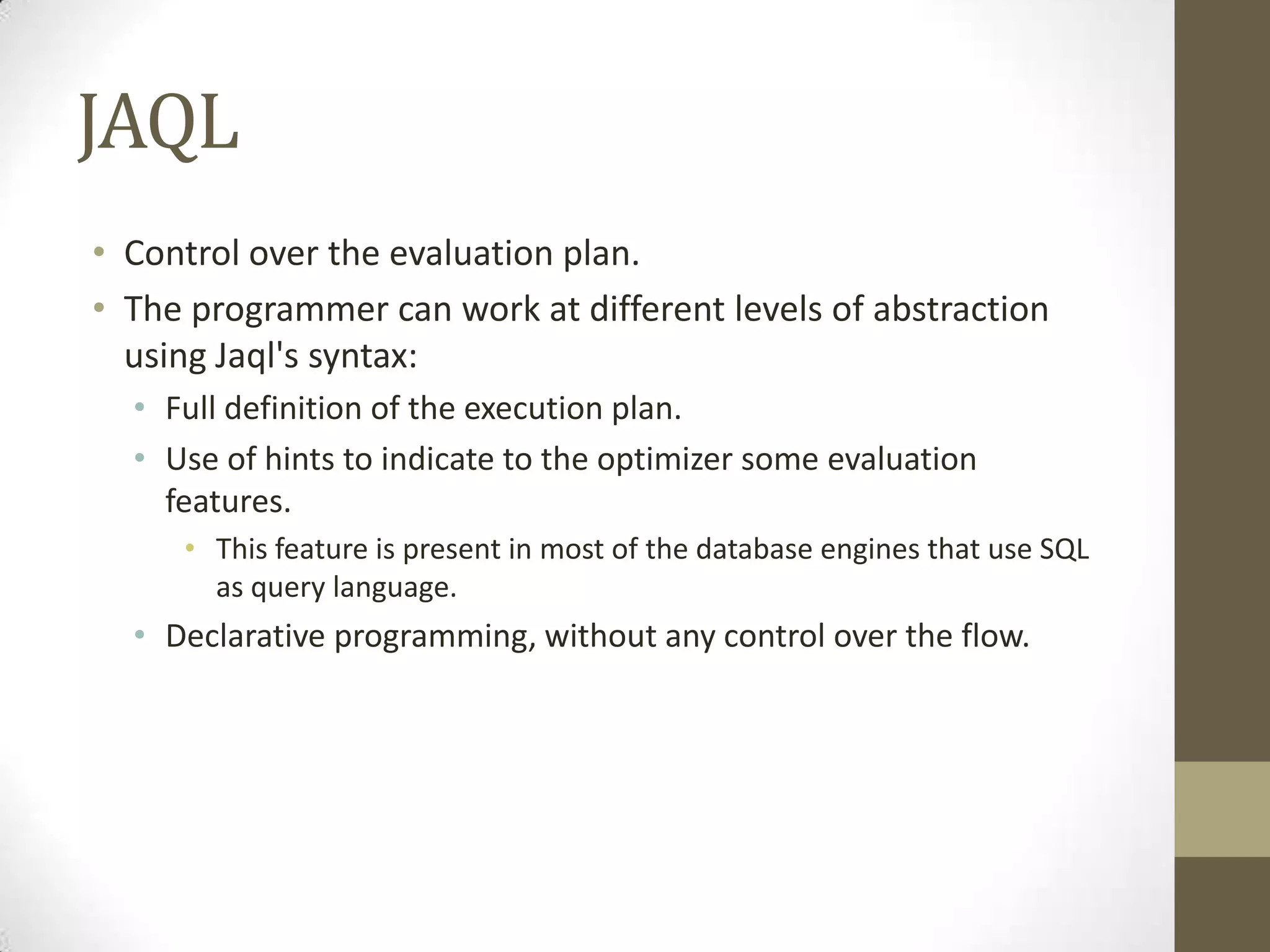

15. JAQL
• Control over the evaluation plan.
• The programmer can work at different levels of abstraction
using Jaql's syntax:
• Full definition of the execution plan.
• Use of hints to indicate to the optimizer some evaluation
features.
• This feature is present in most of the database engines that use SQL
as query language.
• Declarative programming, without any control over the flow.

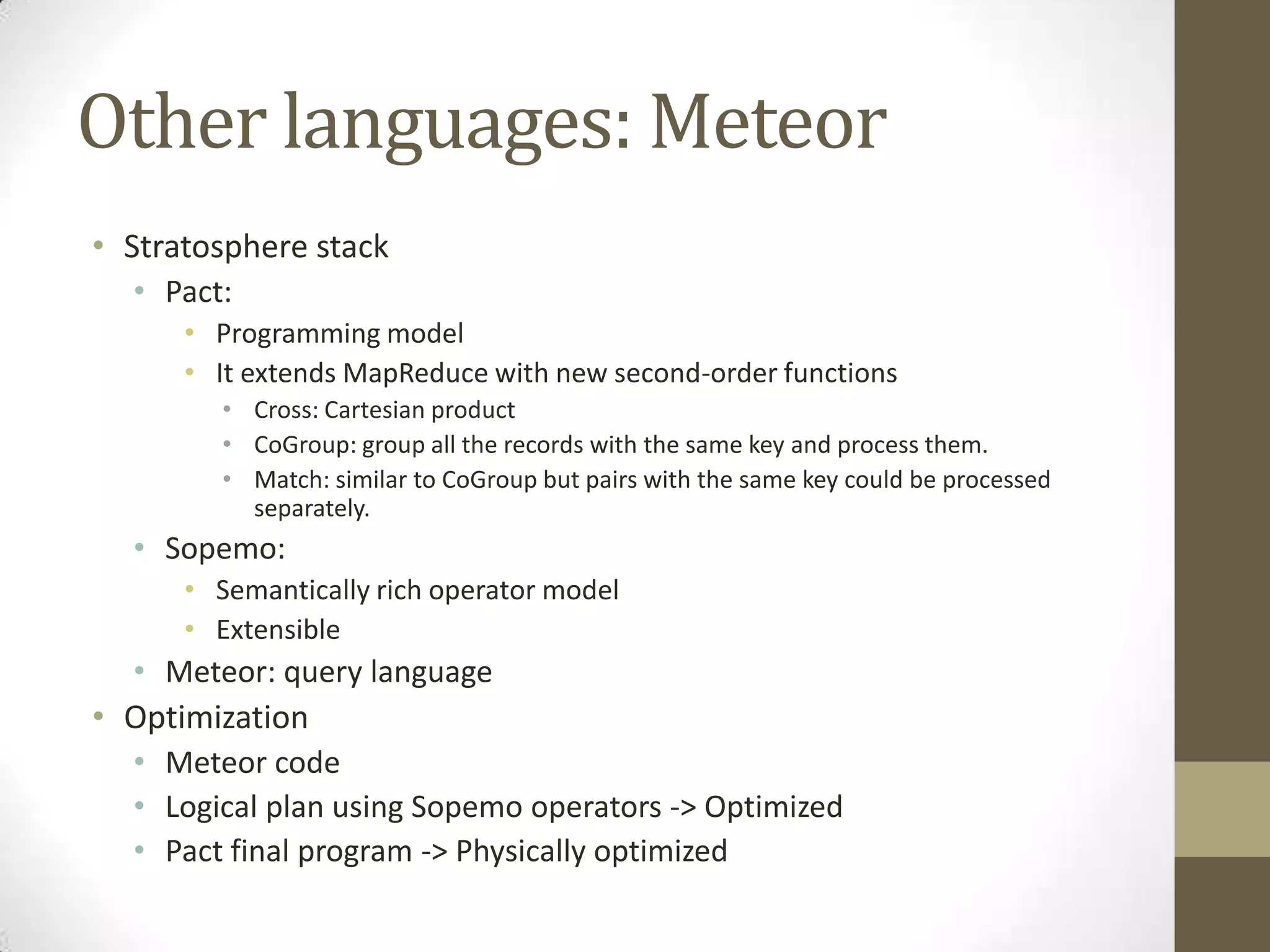

16. Other languages: Meteor
• Stratosphere stack
• Pact:
• Programming model
• It extends MapReduce with new second-order functions
• Cross: Cartesian product
• CoGroup: group all the records with the same key and process them.
• Match: similar to CoGroup but pairs with the same key could be processed
separately.
• Sopemo:
• Semantically rich operator model
• Extensible
• Meteor: query language
• Optimization
• Meteor code
• Logical plan using Sopemo operators -> Optimized
• Pact final program -> Physically optimized

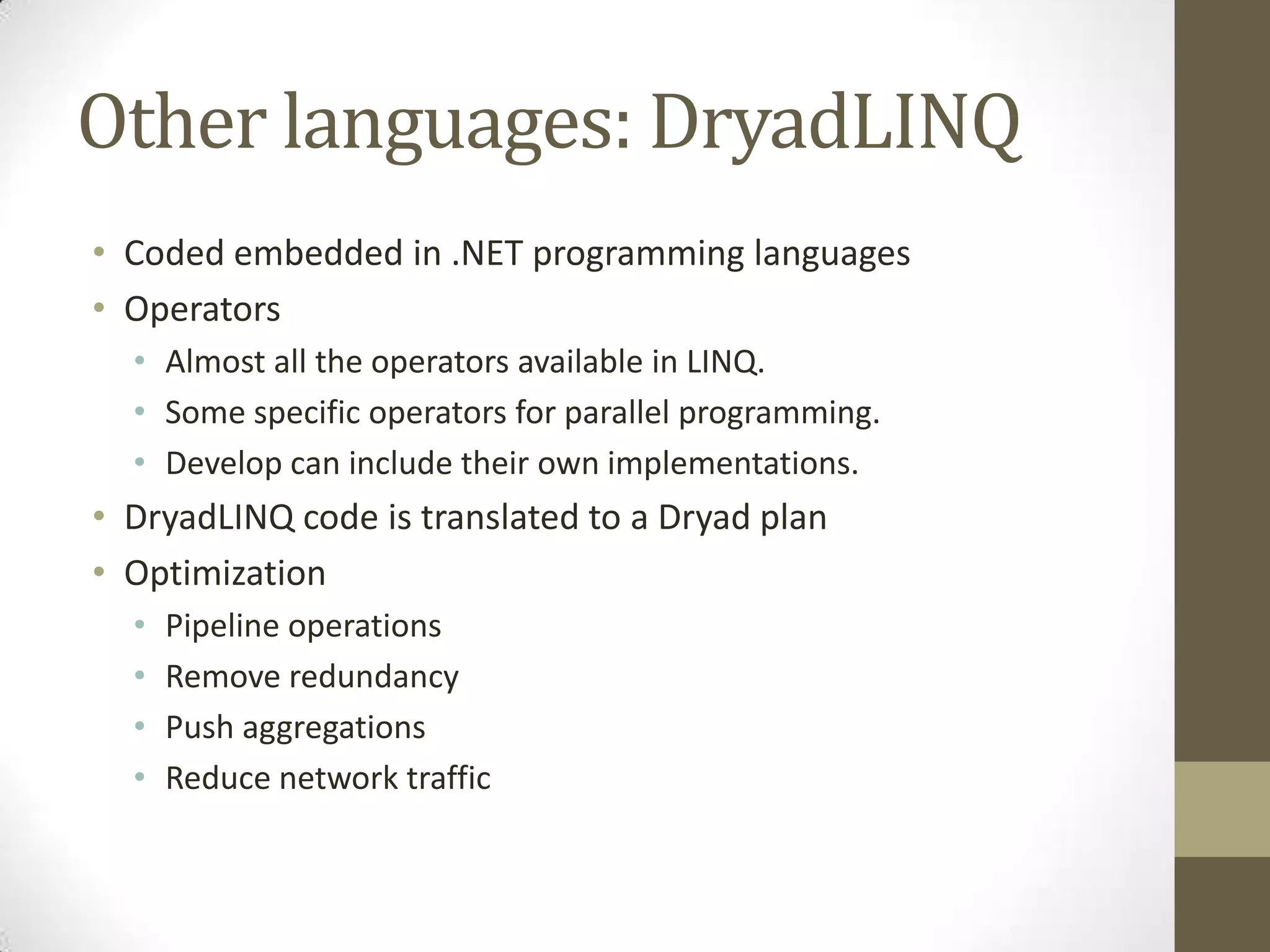

17. Other languages: DryadLINQ
• Coded embedded in .NET programming languages
• Operators
• Almost all the operators available in LINQ.
• Some specific operators for parallel programming.
• Develop can include their own implementations.
• DryadLINQ code is translated to a Dryad plan
• Optimization
• Pipeline operations
• Remove redundancy
• Push aggregations
• Reduce network traffic

18. Comparison HLLs

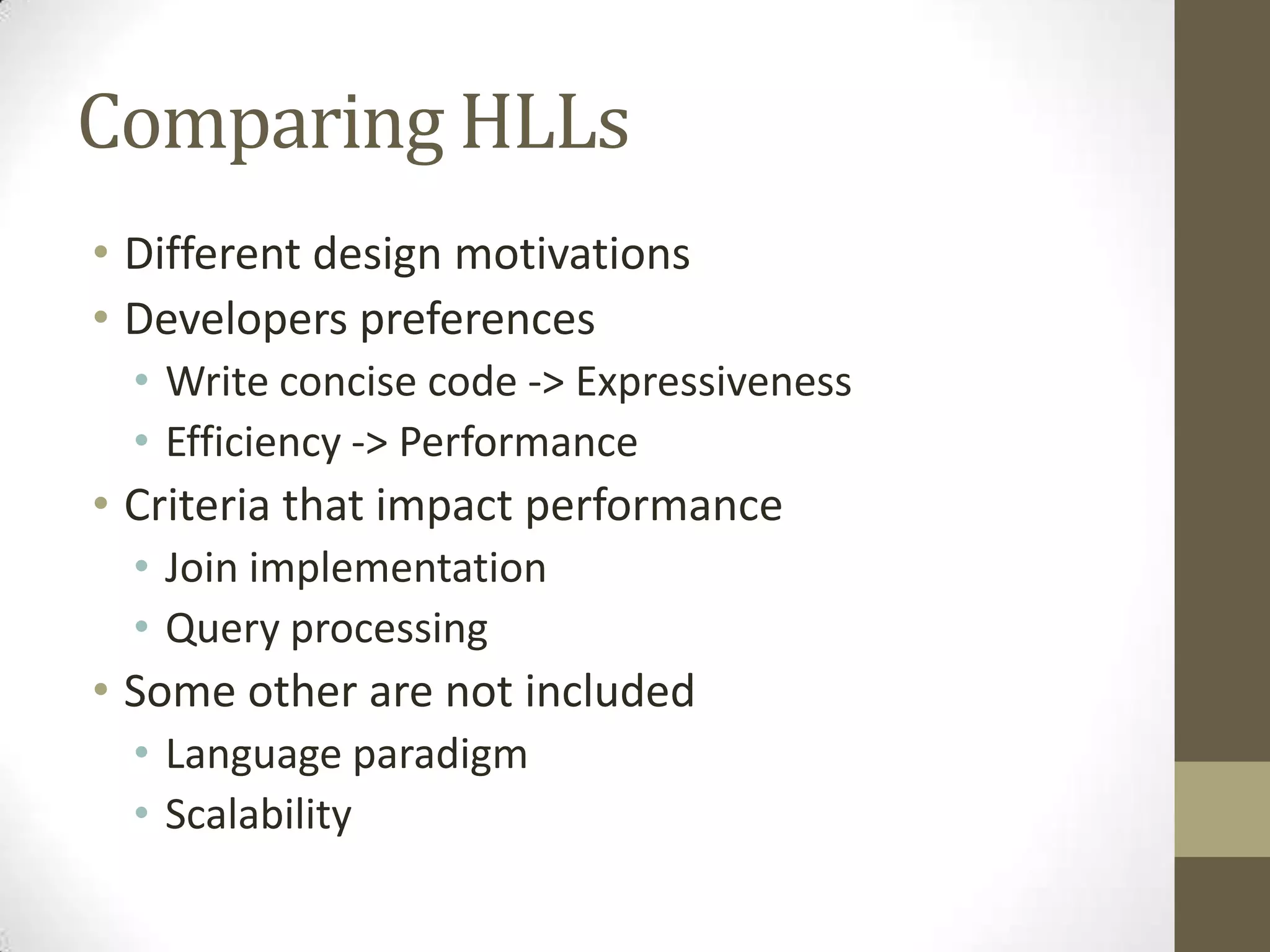

19. Comparing HLLs
• Different design motivations
• Developers preferences
• Write concise code -> Expressiveness
• Efficiency -> Performance
• Criteria that impact performance
• Join implementation
• Query processing
• Some other are not included
• Language paradigm
• Scalability

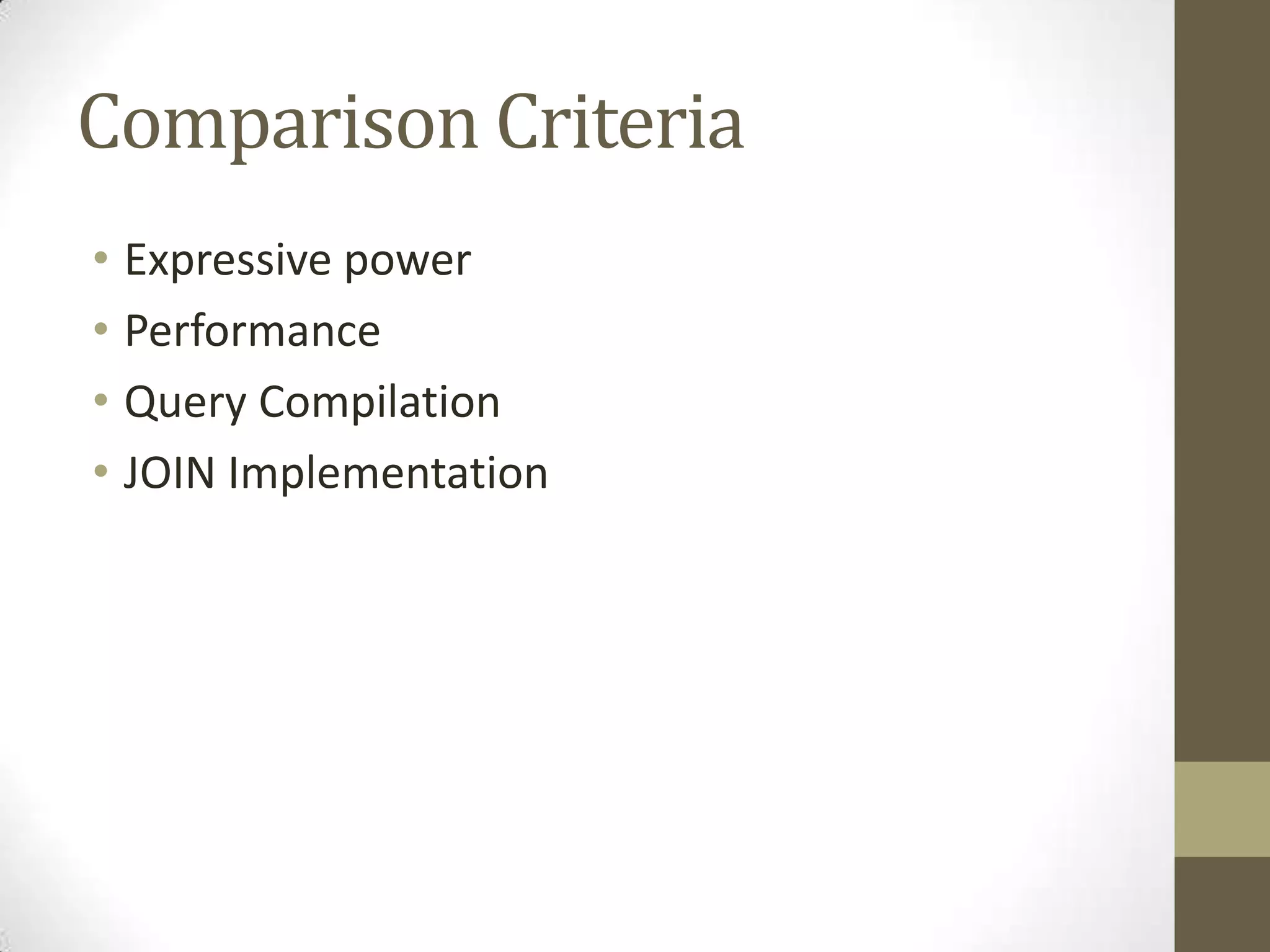

20. Comparison Criteria
• Expressive power
• Performance
• Query Compilation
• JOIN Implementation

21. Expressive power
• Three categories by Robert Stewart:
• Relational complete
• SQL equivalent (aggregate functions)
• Turing complete
• Conditional branching
• Indefinite iterations by means of recursion
• Emulation of infinite memory model

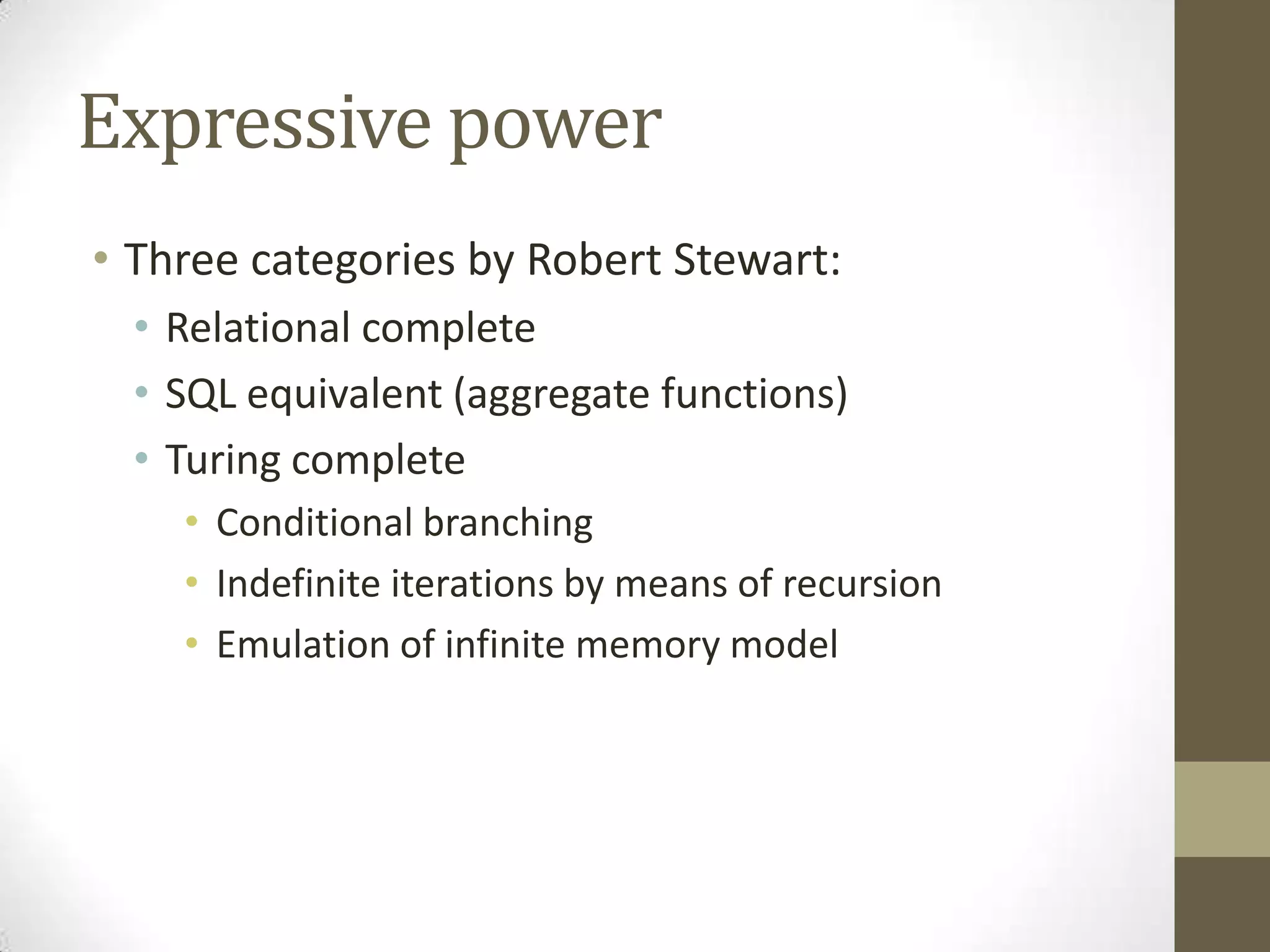

22. Expressive power
• Three categories by Robert Stewart:
• Relational complete
• SQL equivalent (aggregate functions)
• Turing complete
• Conditional branching
• Indefinite iterations by means of recursion
• Emulation of infinite memory model

23. Expressive power
• Three categories by Robert Stewart:
• Relational complete
• SQL equivalent (aggregate functions)
• Turing complete
• Conditional branching
• Indefinite iterations by means of recursion
• Emulation of infinite memory model

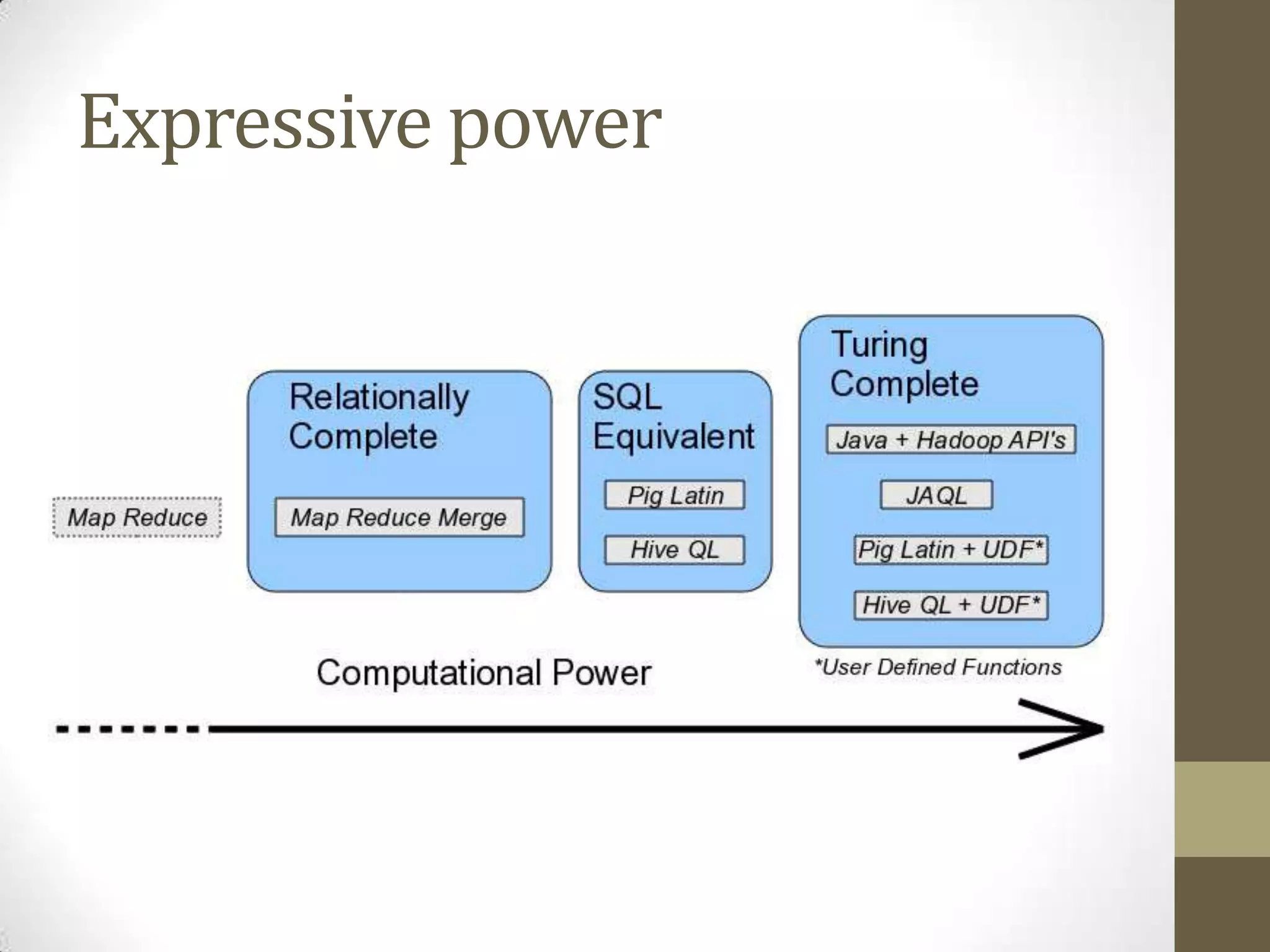

24. Expressive power

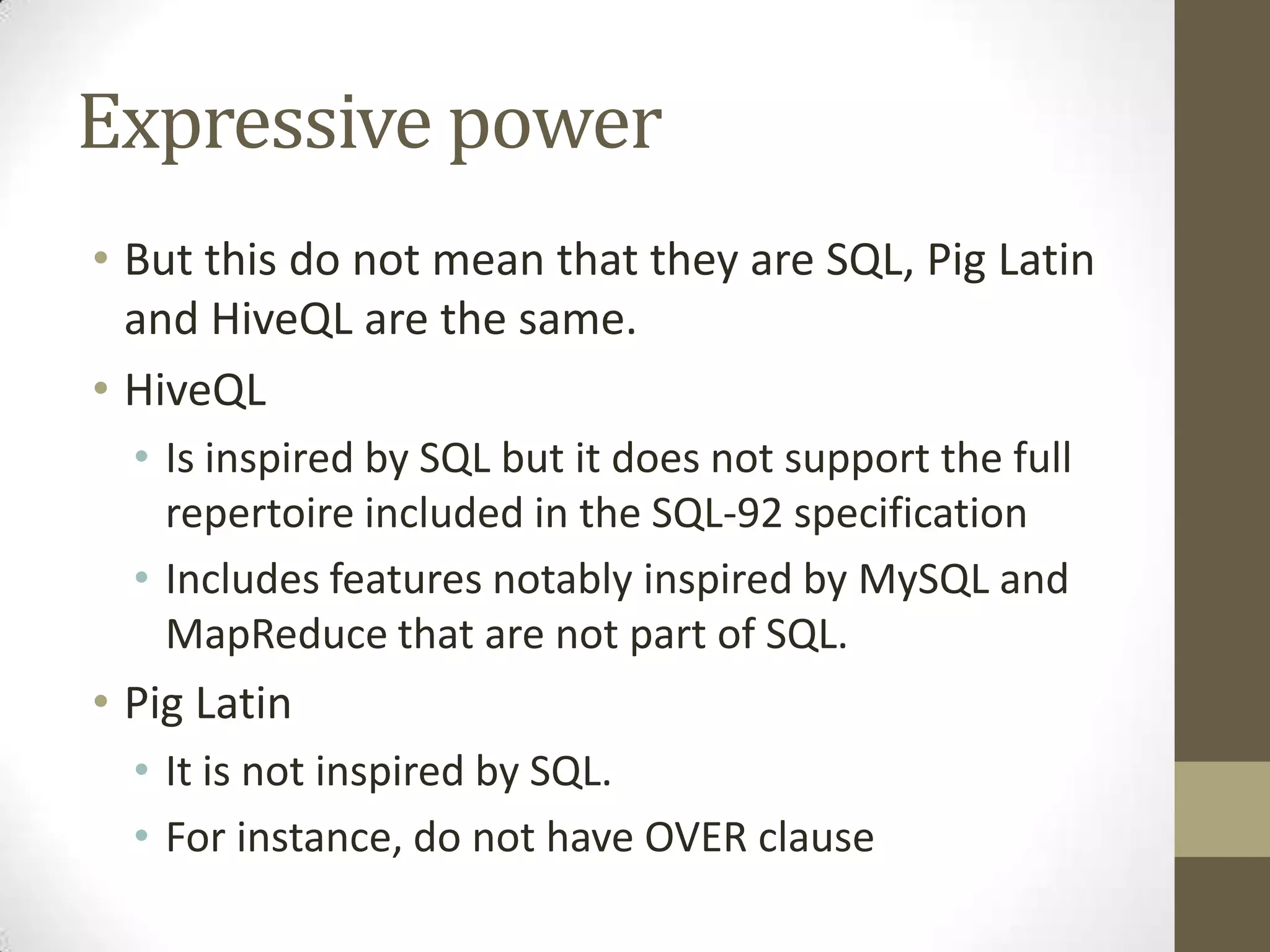

25. Expressive power
• But this do not mean that they are SQL, Pig Latin
and HiveQL are the same.
• HiveQL
• Is inspired by SQL but it does not support the full
repertoire included in the SQL-92 specification
• Includes features notably inspired by MySQL and
MapReduce that are not part of SQL.
• Pig Latin
• It is not inspired by SQL.
• For instance, do not have OVER clause

26. SQL Vs. HiveQL (2009)
SQL HiveQL
Transactions Yes No
Indexes Yes No
Create table as select Not SQL-92 Yes
Subqueries In any clause
Correlated or not
Only in FROM clause
Only noncorrelated
Views Yes Not materialized
Extension with
map/reduce scripts
No Yes

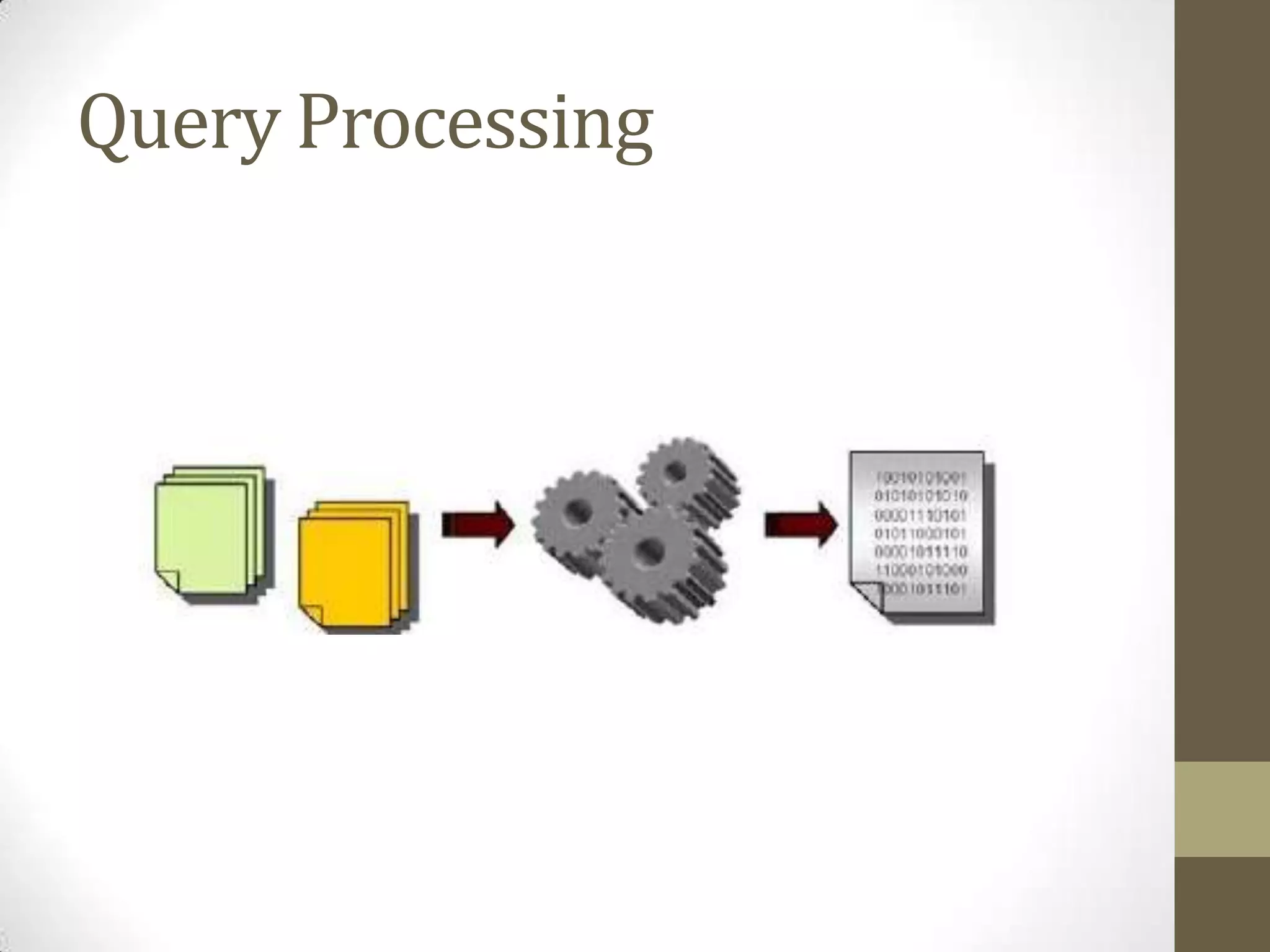

27. Query Processing

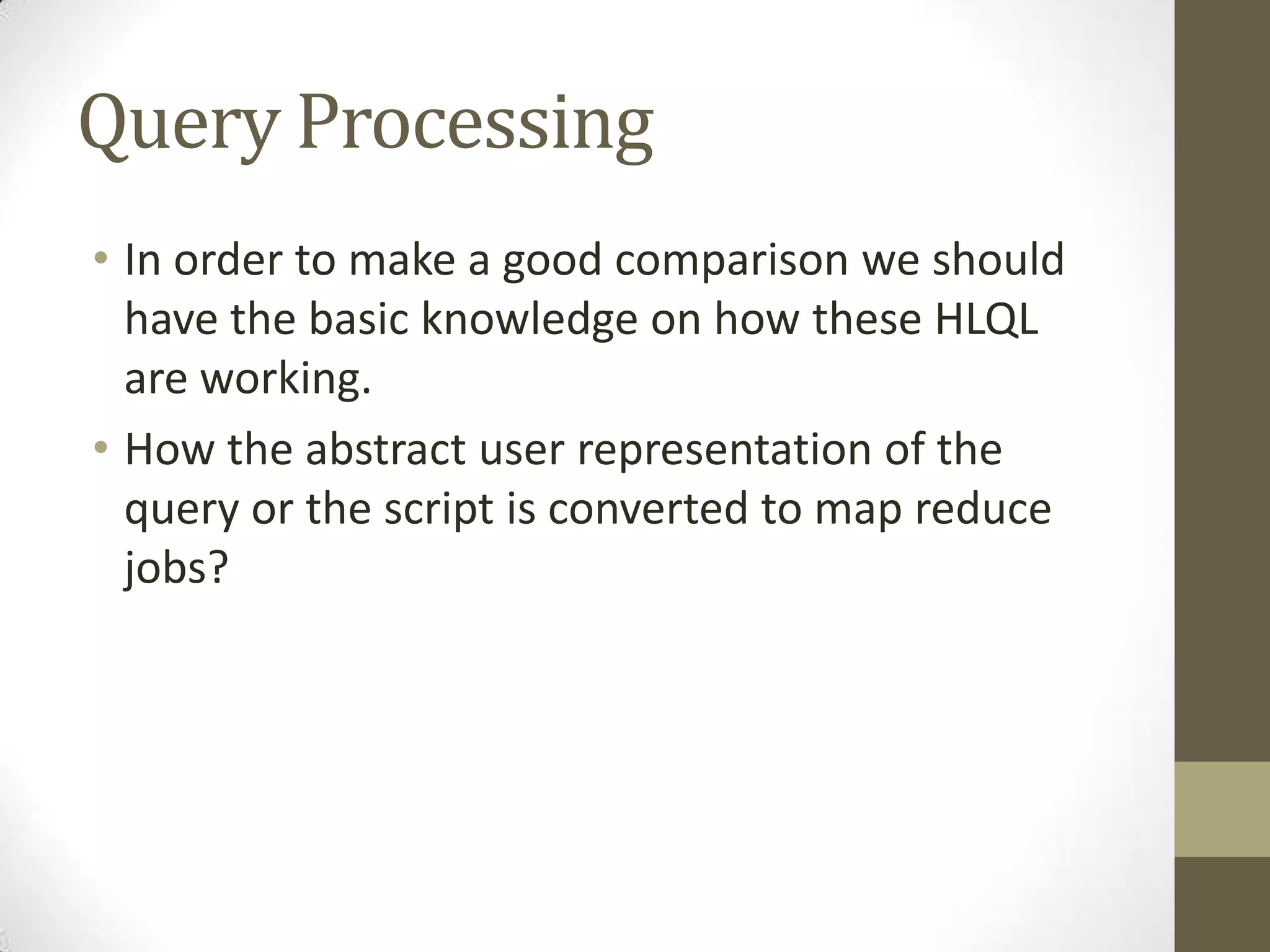

28. Query Processing
• In order to make a good comparison we should
have the basic knowledge on how these HLQL
are working.
• How the abstract user representation of the
query or the script is converted to map reduce
jobs?

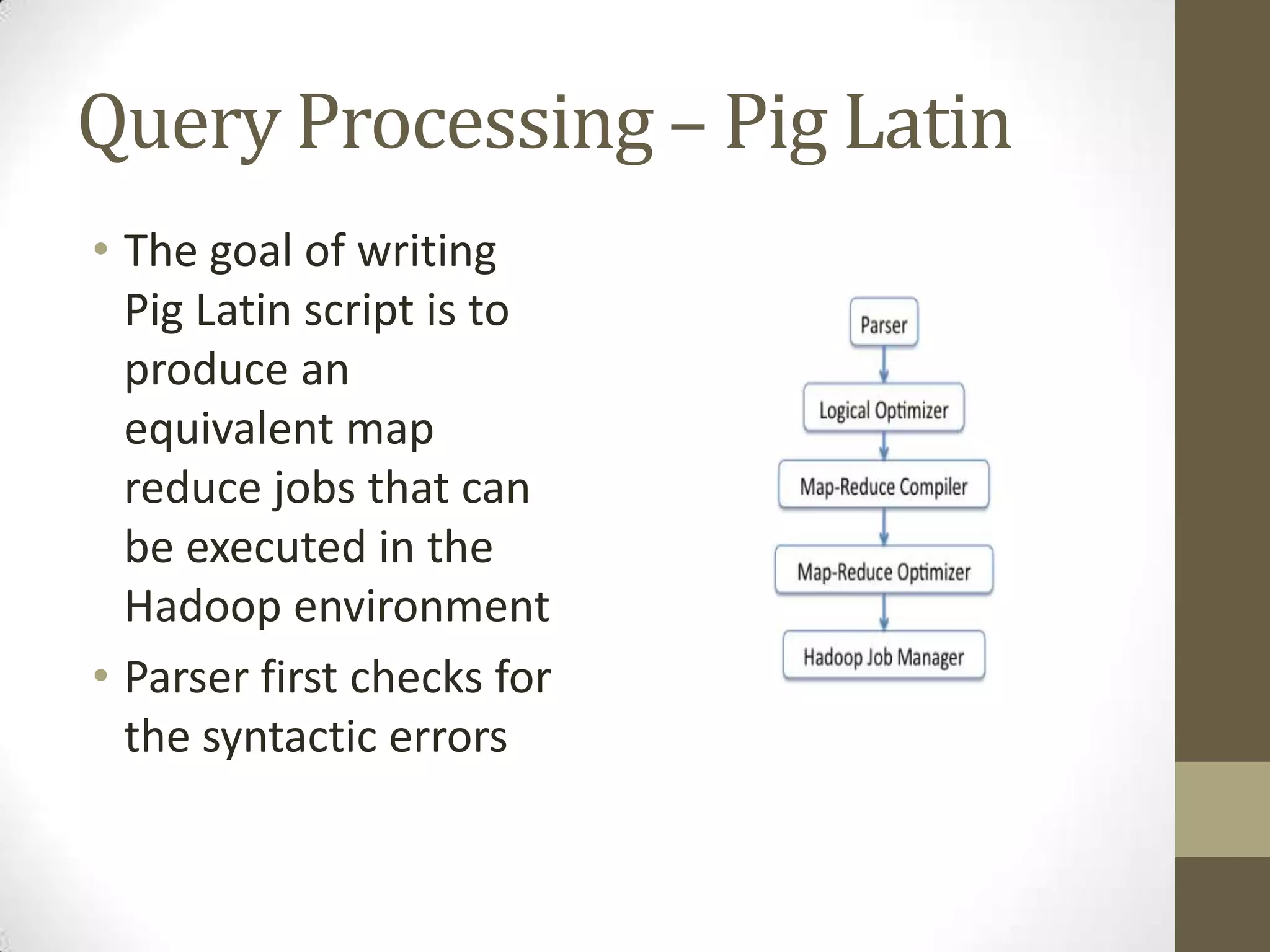

29. Query Processing – Pig Latin
• The goal of writing
Pig Latin script is to
produce an
equivalent map
reduce jobs that can
be executed in the
Hadoop environment
• Parser first checks for
the syntactic errors

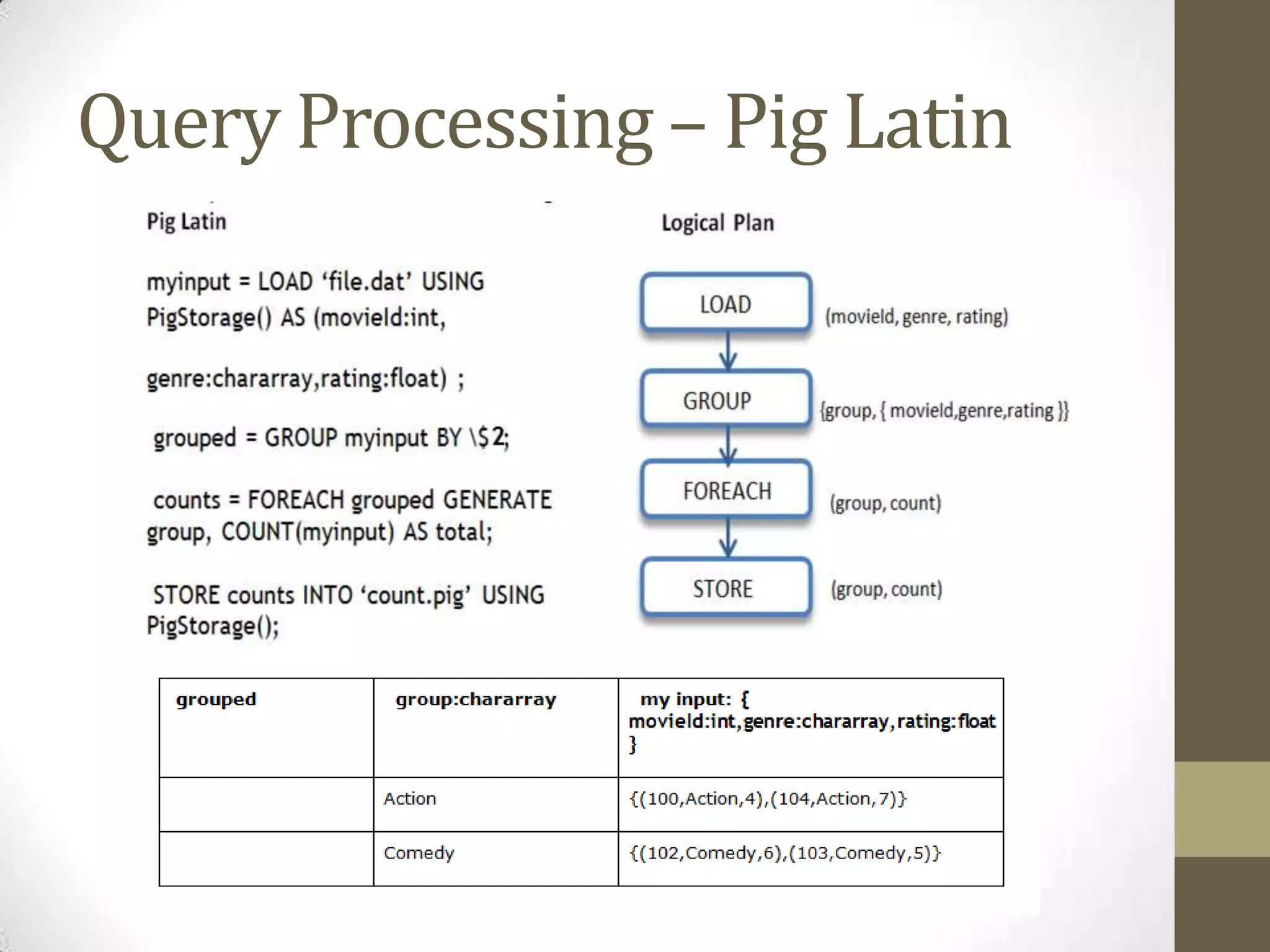

30. Query Processing – Pig Latin

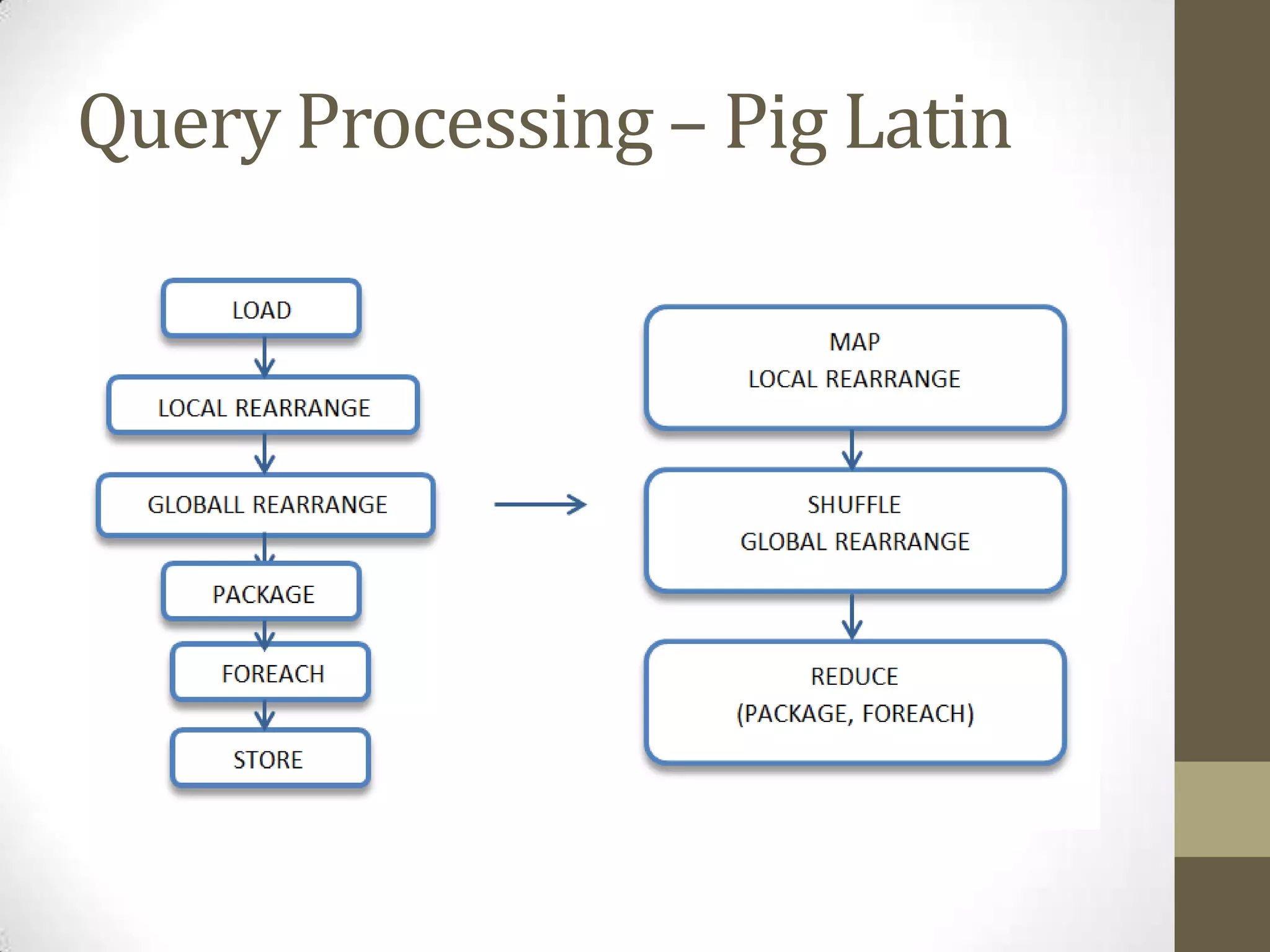

31. Query Processing – Pig Latin

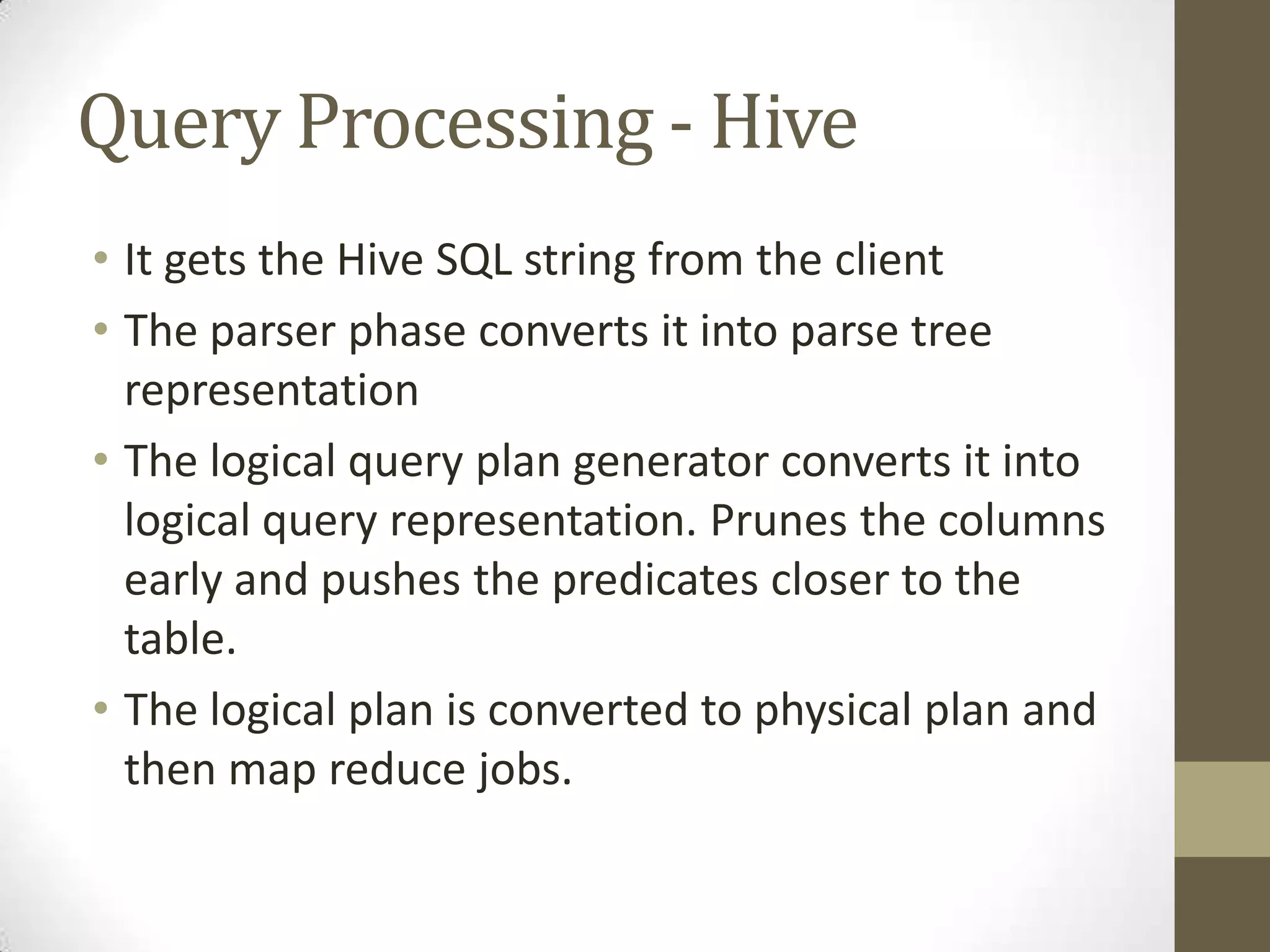

32. Query Processing - Hive
• It gets the Hive SQL string from the client
• The parser phase converts it into parse tree
representation
• The logical query plan generator converts it into
logical query representation. Prunes the columns
early and pushes the predicates closer to the
table.
• The logical plan is converted to physical plan and
then map reduce jobs.

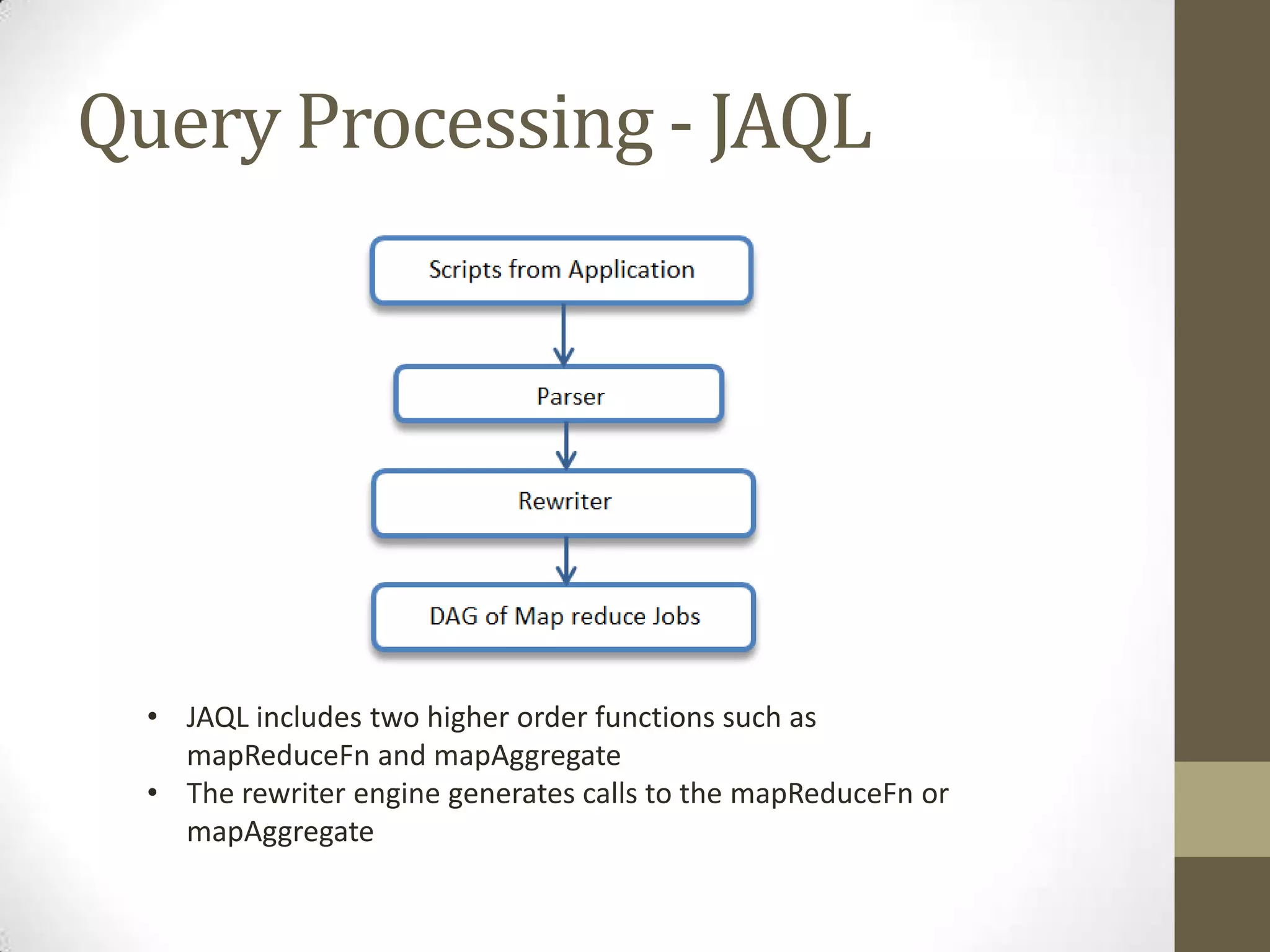

33. Query Processing - JAQL
• JAQL includes two higher order functions such as
mapReduceFn and mapAggregate
• The rewriter engine generates calls to the mapReduceFn or
mapAggregate

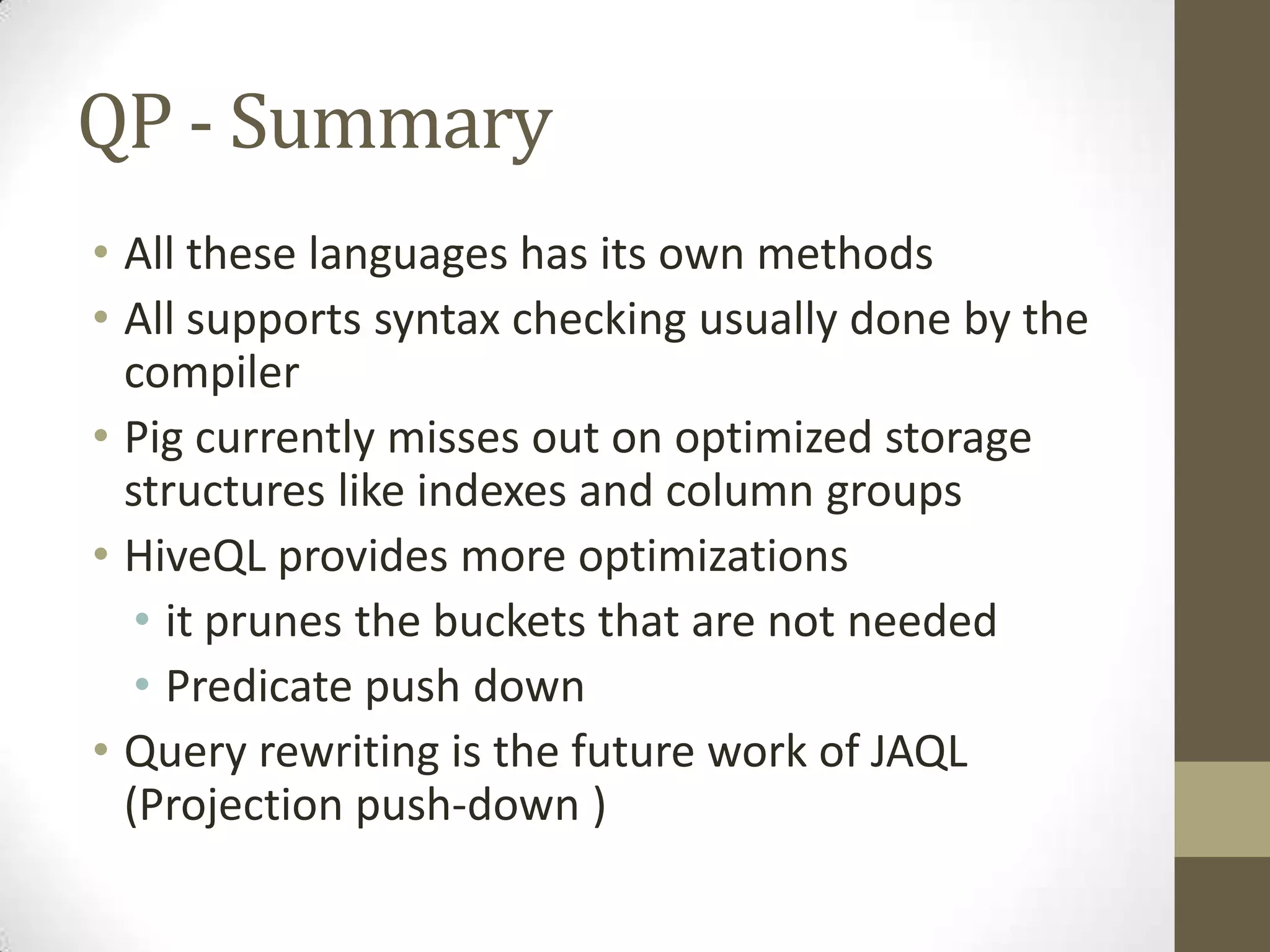

34. QP - Summary
• All these languages has its own methods
• All supports syntax checking usually done by the
compiler
• Pig currently misses out on optimized storage
structures like indexes and column groups
• HiveQL provides more optimizations
• it prunes the buckets that are not needed
• Predicate push down
• Query rewriting is the future work of JAQL
(Projection push-down )

35. JOIN Implementation

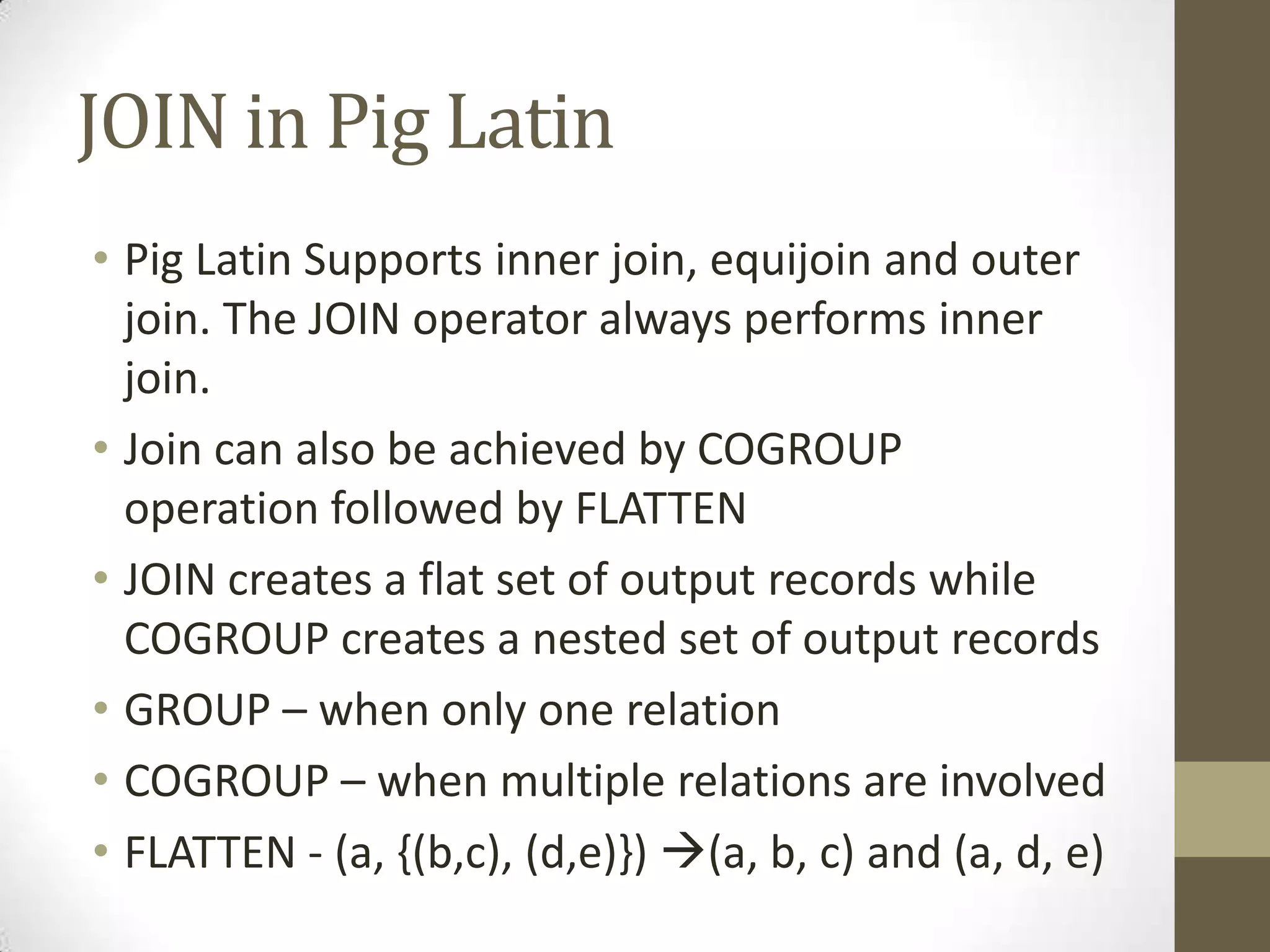

36. JOIN in Pig Latin
• Pig Latin Supports inner join, equijoin and outer
join. The JOIN operator always performs inner
join.
• Join can also be achieved by COGROUP
operation followed by FLATTEN
• JOIN creates a flat set of output records while
COGROUP creates a nested set of output records
• GROUP – when only one relation
• COGROUP – when multiple relations are involved
• FLATTEN - (a, {(b,c), (d,e)}) (a, b, c) and (a, d, e)

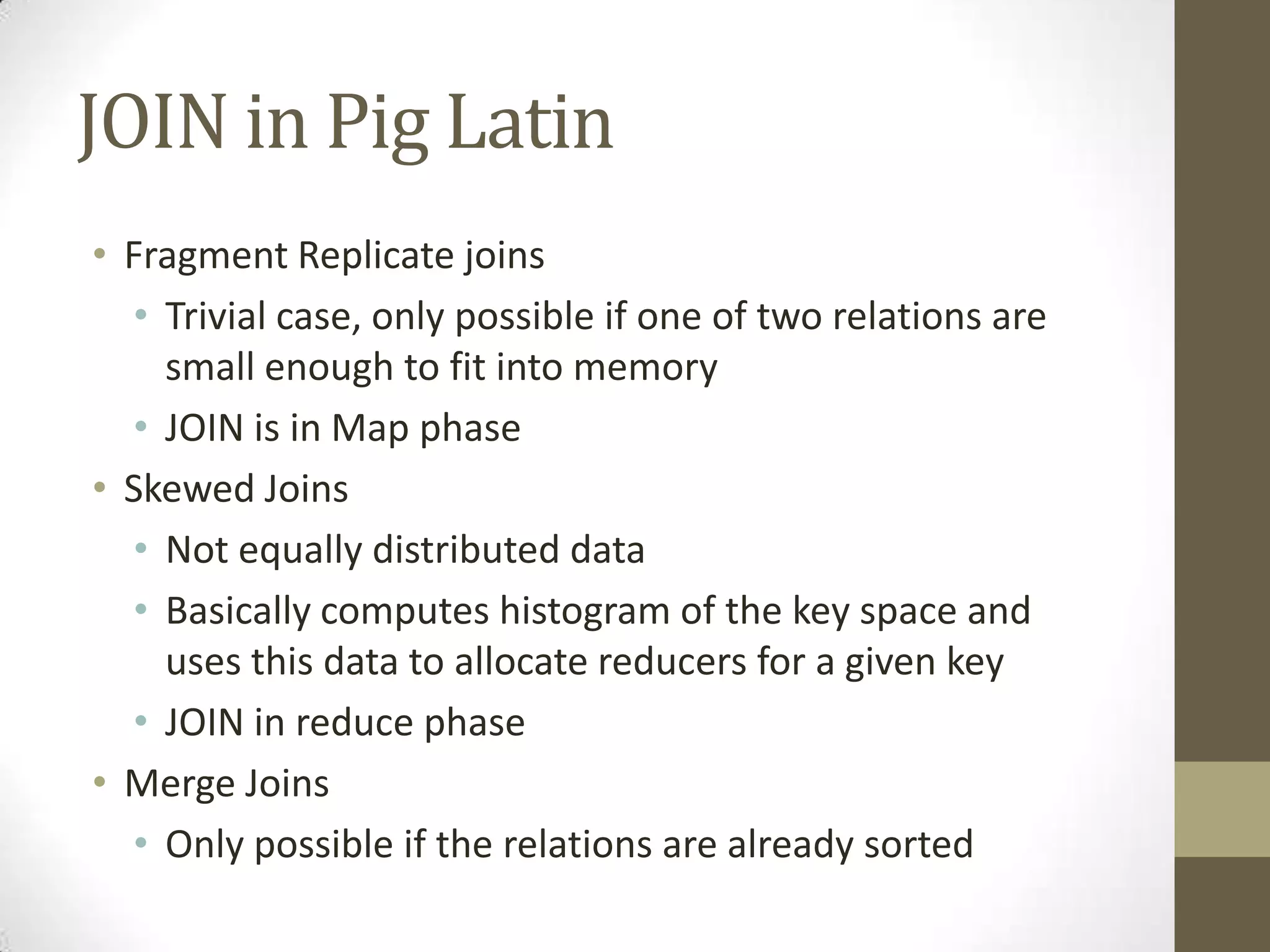

37. JOIN in Pig Latin
• Fragment Replicate joins
• Trivial case, only possible if one of two relations are
small enough to fit into memory
• JOIN is in Map phase
• Skewed Joins
• Not equally distributed data
• Basically computes histogram of the key space and
uses this data to allocate reducers for a given key
• JOIN in reduce phase
• Merge Joins
• Only possible if the relations are already sorted

38. JOIN in Pig Latin
• The choice of join strategy can be specified by the user

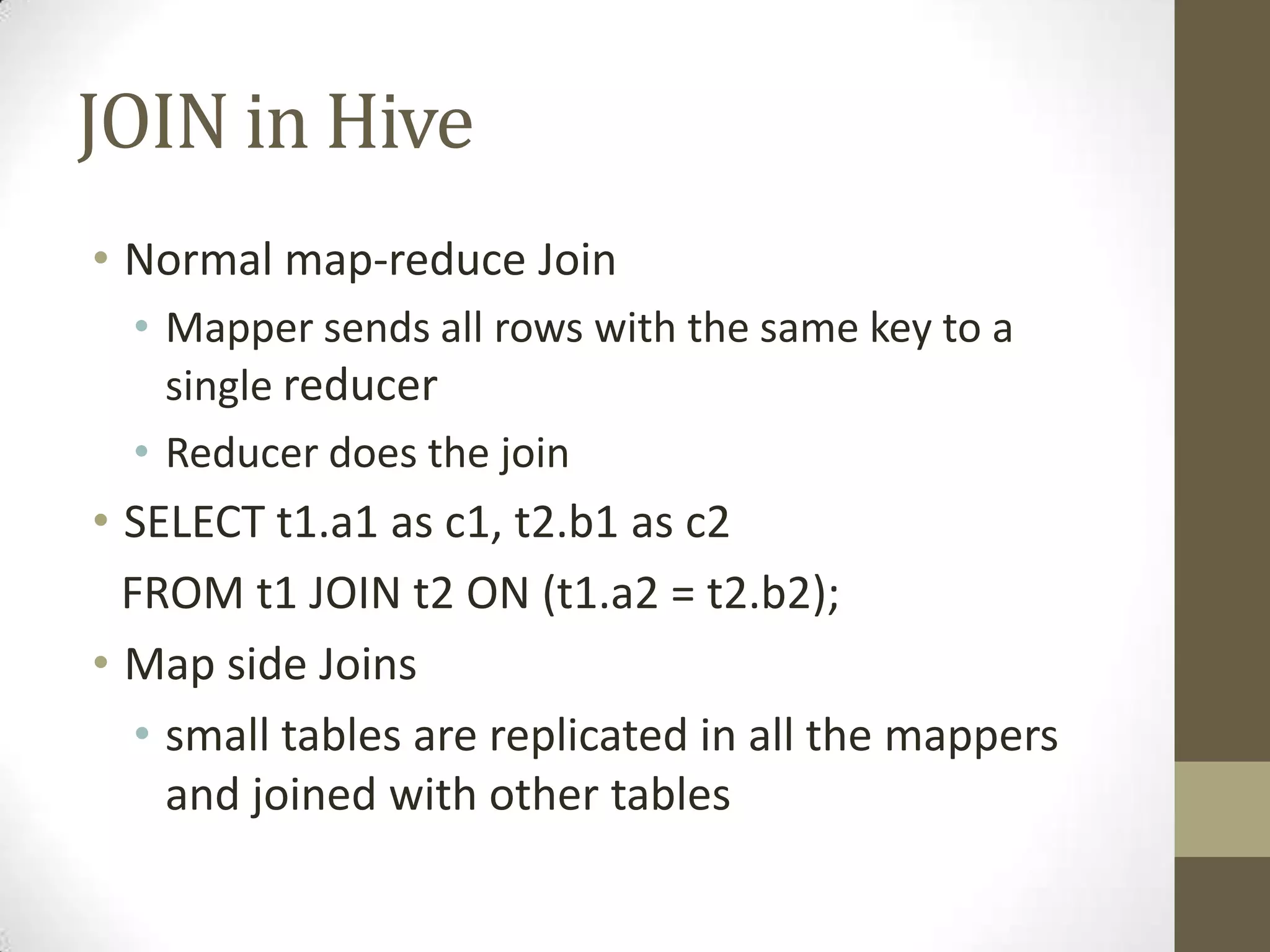

39. JOIN in Hive
• Normal map-reduce Join
• Mapper sends all rows with the same key to a
single reducer
• Reducer does the join
• SELECT t1.a1 as c1, t2.b1 as c2
FROM t1 JOIN t2 ON (t1.a2 = t2.b2);
• Map side Joins
• small tables are replicated in all the mappers
and joined with other tables

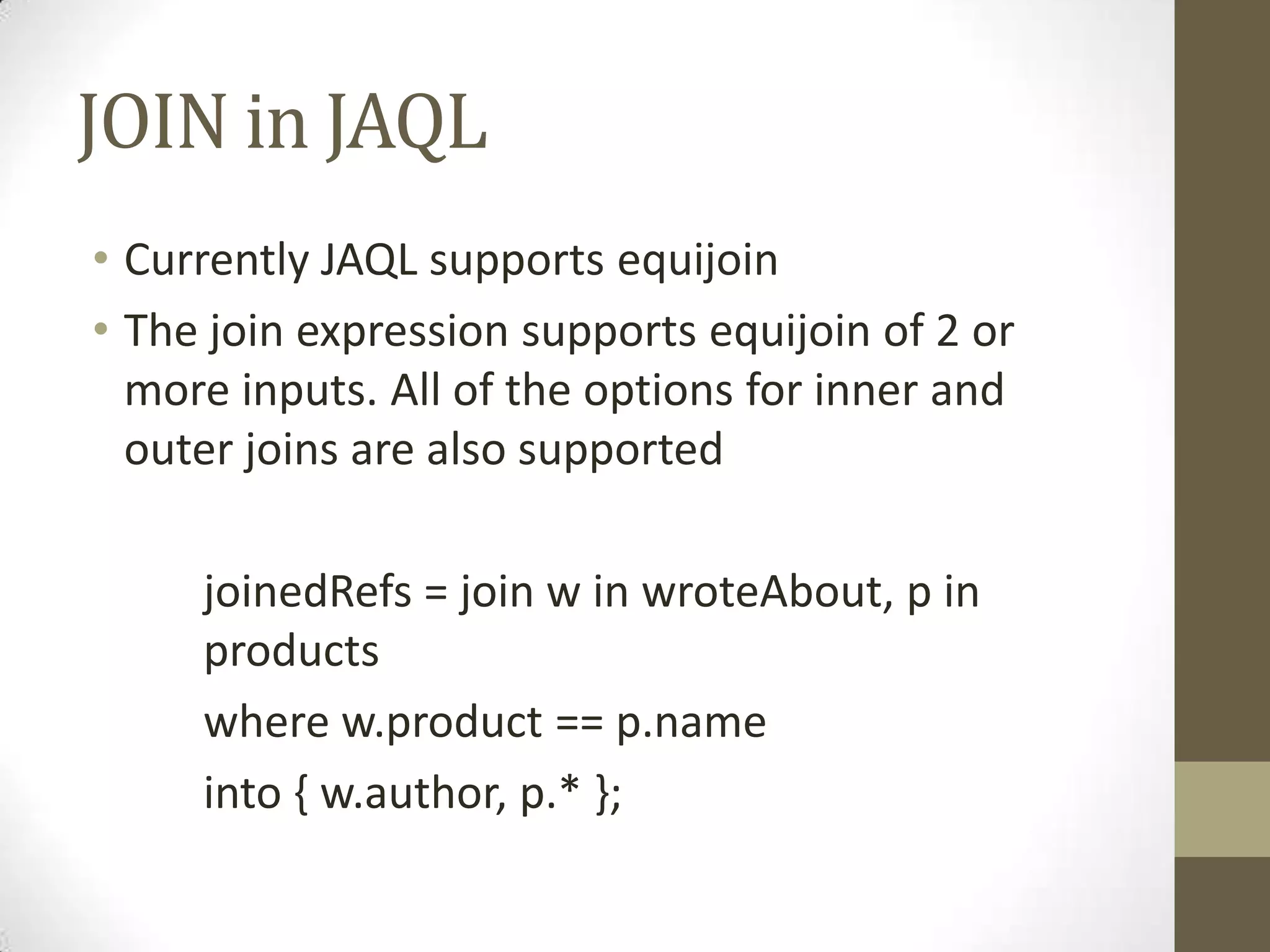

40. JOIN in JAQL
• Currently JAQL supports equijoin
• The join expression supports equijoin of 2 or
more inputs. All of the options for inner and
outer joins are also supported
joinedRefs = join w in wroteAbout, p in
products
where w.product == p.name
into { w.author, p.* };

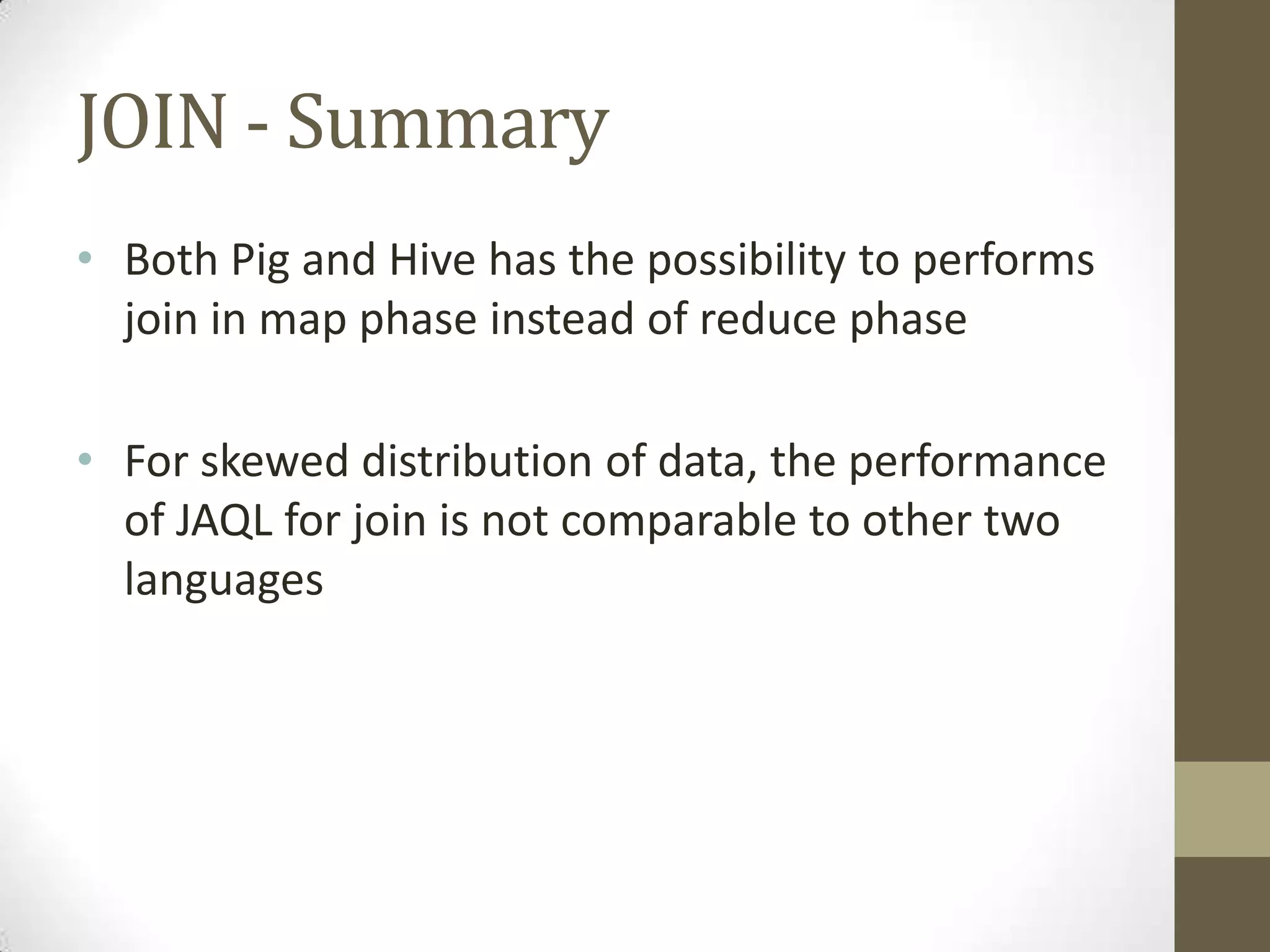

41. JOIN - Summary
• Both Pig and Hive has the possibility to performs
join in map phase instead of reduce phase
• For skewed distribution of data, the performance
of JAQL for join is not comparable to other two
languages

42. Performance

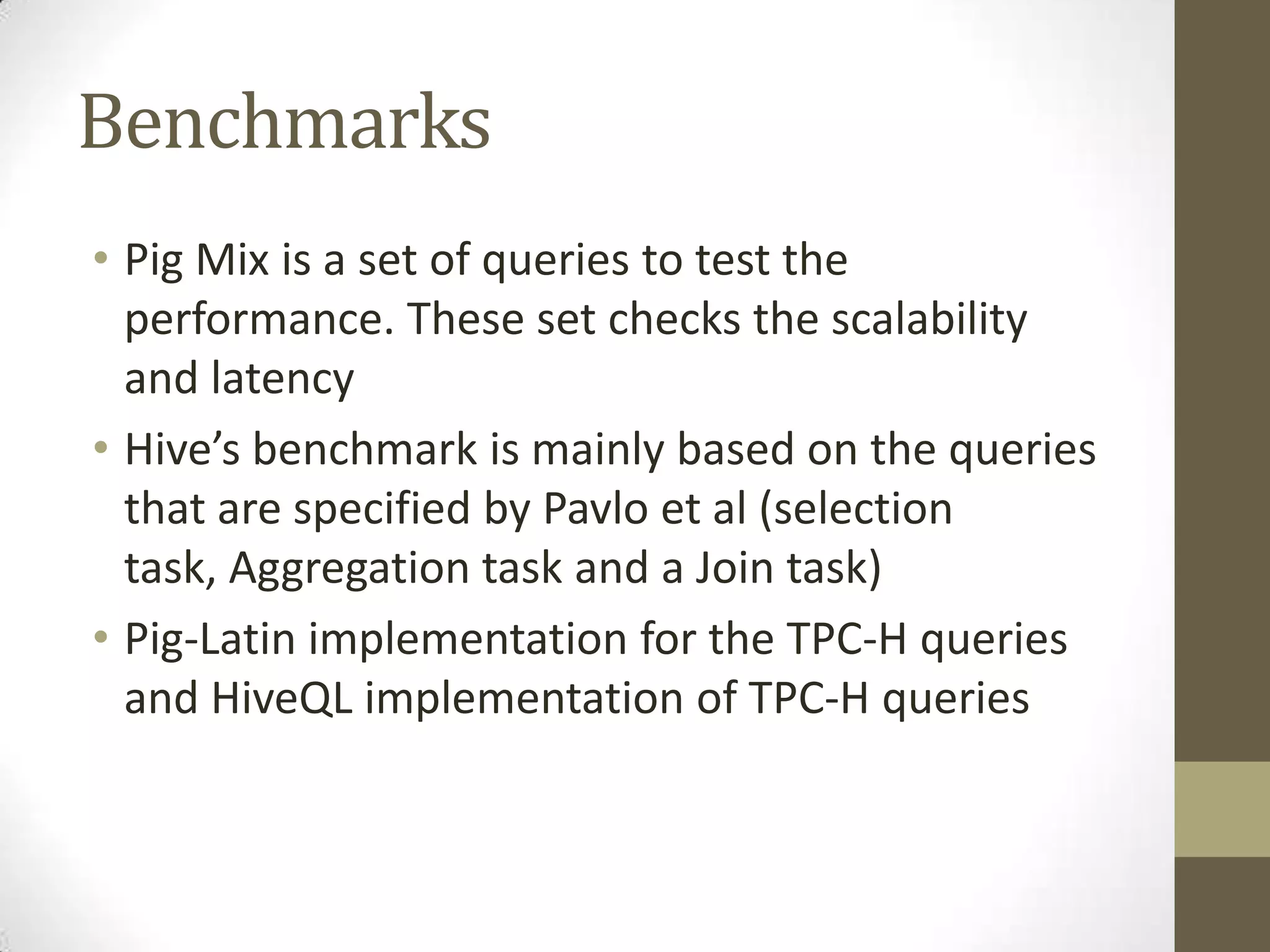

43. Benchmarks
• Pig Mix is a set of queries to test the
performance. These set checks the scalability
and latency
• Hive’s benchmark is mainly based on the queries
that are specified by Pavlo et al (selection
task, Aggregation task and a Join task)
• Pig-Latin implementation for the TPC-H queries
and HiveQL implementation of TPC-H queries

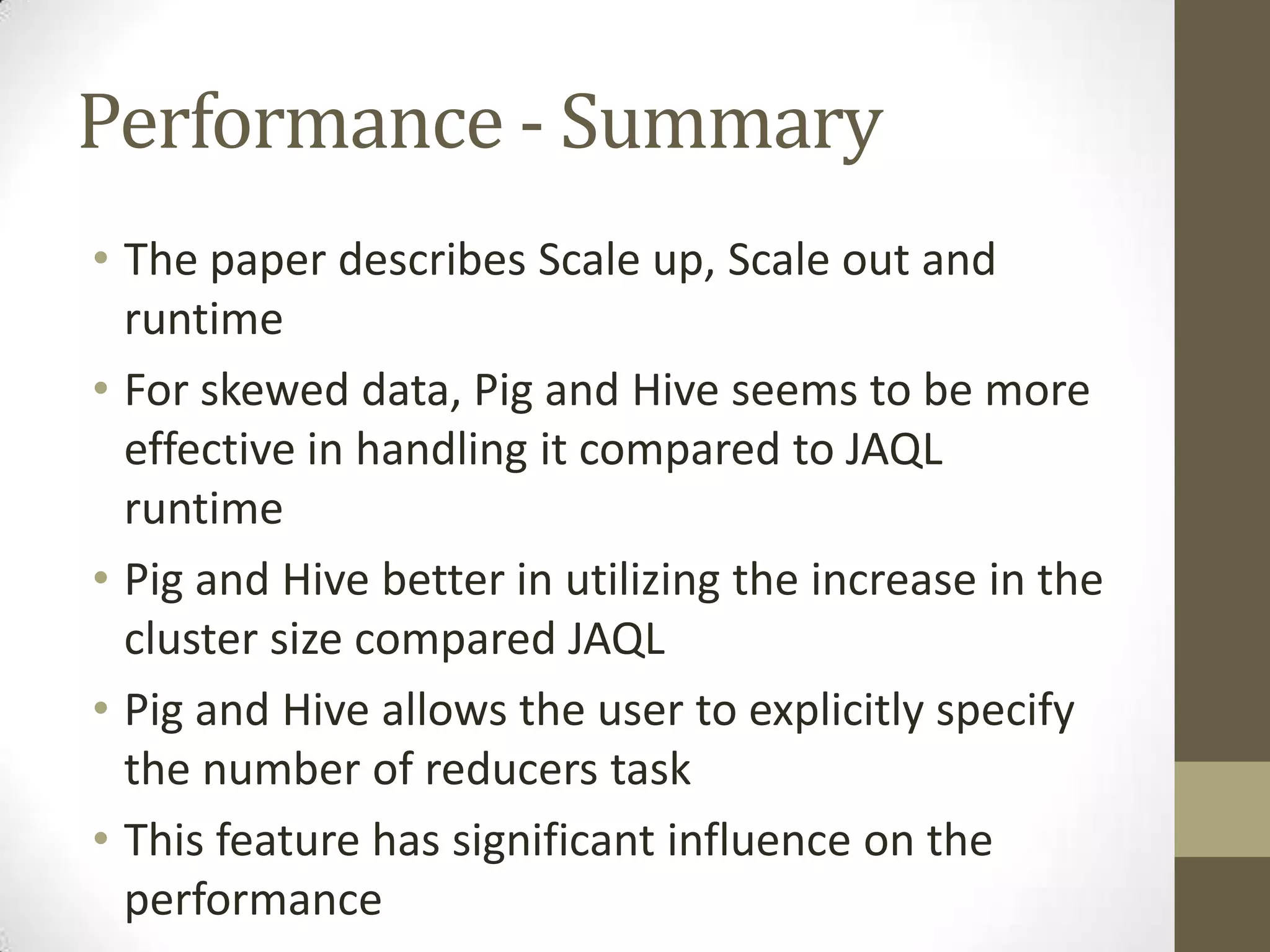

44. Performance - Summary
• The paper describes Scale up, Scale out and
runtime
• For skewed data, Pig and Hive seems to be more
effective in handling it compared to JAQL
runtime
• Pig and Hive better in utilizing the increase in the
cluster size compared JAQL
• Pig and Hive allows the user to explicitly specify
the number of reducers task
• This feature has significant influence on the
performance

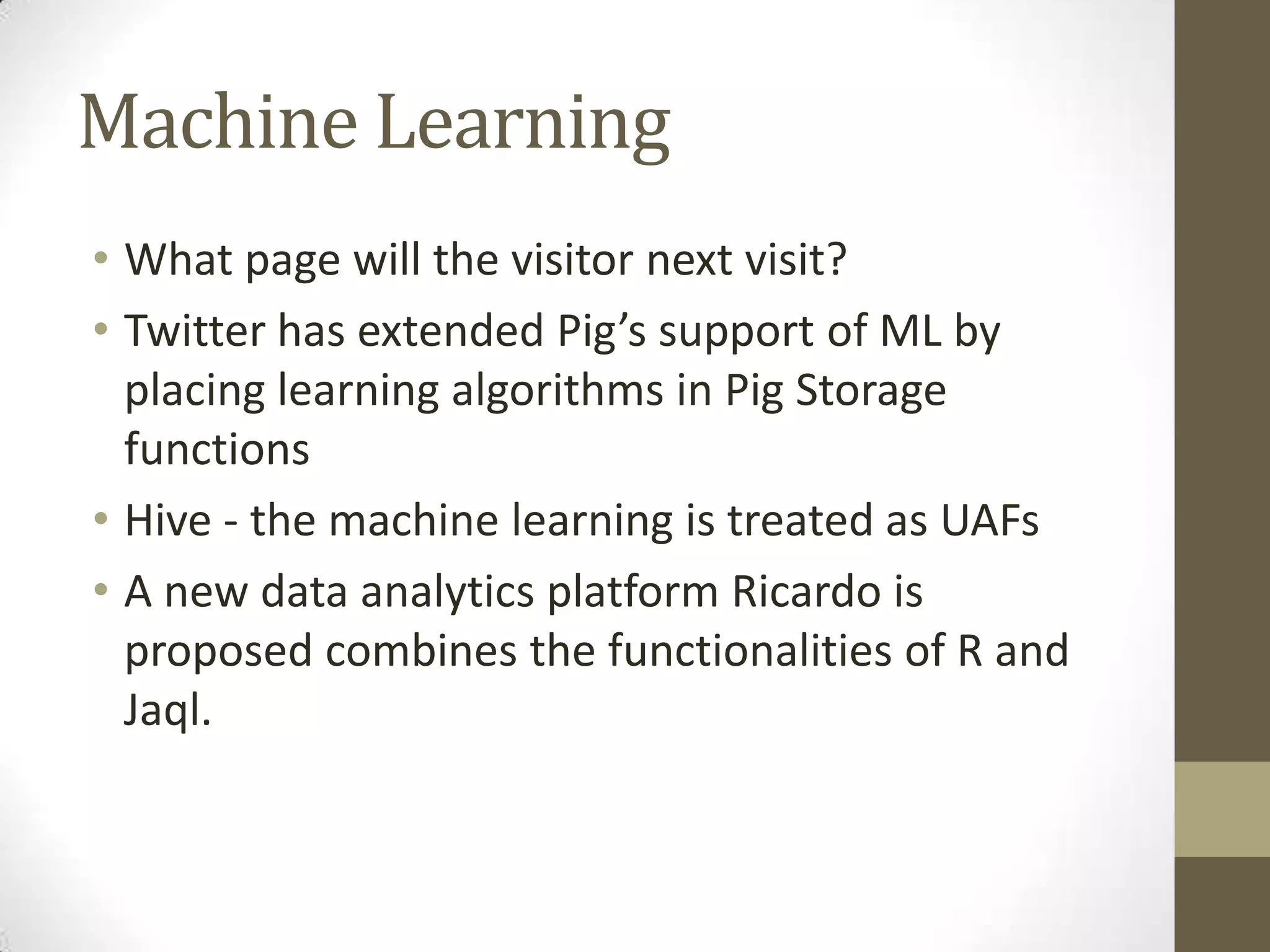

46. Machine Learning
• What page will the visitor next visit?
• Twitter has extended Pig’s support of ML by
placing learning algorithms in Pig Storage
functions
• Hive - the machine learning is treated as UAFs
• A new data analytics platform Ricardo is
proposed combines the functionalities of R and
Jaql.

47. Interactive queries
• One of the main problems of MapReduce all the languages built on top
of this framework (Pig, Hive, etc.) is the latency.
• As a complement of those technologies, some new frameworks that
allow programmers to query large datasets in an interactive manner
have been developed
• Dremel by Google
• The open source project Apache Drill.
• How to reduce the latency?
• Store the information as nested columns.
• Query execution based on a multi-level tree architecture.
• Balance the load by means of a query dispatcher.
• Not too many details of the query language
• It is based on SQL
• It includes the usual operations (selection, projection, etc.)
• SQL-like languages features: user define functions or nested subqueries
• The characteristic that distinguish this languages is that it operates with
nested tables as inputs and outputs.

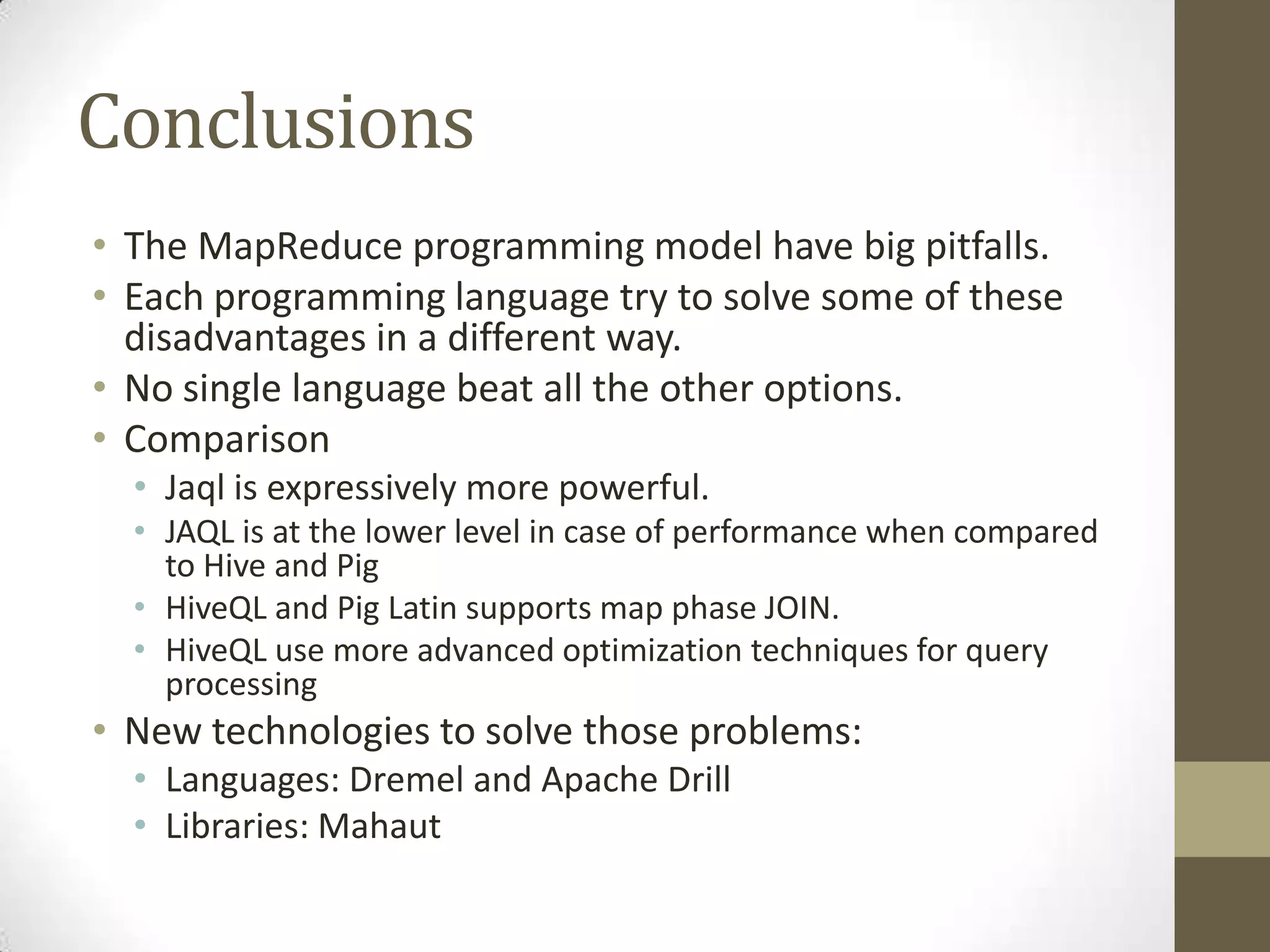

48. Conclusions
• The MapReduce programming model have big pitfalls.
• Each programming language try to solve some of these
disadvantages in a different way.
• No single language beat all the other options.
• Comparison
• Jaql is expressively more powerful.
• JAQL is at the lower level in case of performance when compared
to Hive and Pig
• HiveQL and Pig Latin supports map phase JOIN.
• HiveQL use more advanced optimization techniques for query
processing
• New technologies to solve those problems:
• Languages: Dremel and Apache Drill
• Libraries: Mahaut

49. Thankyouverymuch!
