1. Science PowerPoint
By cowboy101

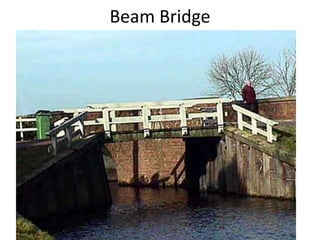

2. Beam Bridge

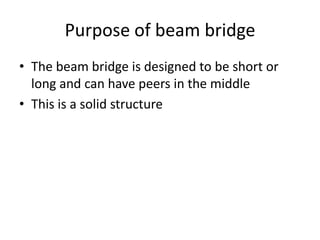

3. Purpose of beam bridge
• The beam bridge is designed to be short or
long and can have peers in the middle
• This is a solid structure

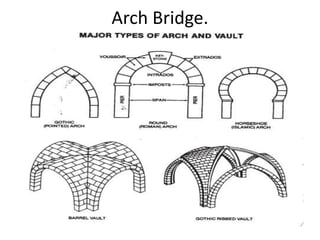

4. Arch Bridge.

5. Purpose of arch bridge
• An arch is a structure that spans a space while
supporting weight
• This is a frame structure

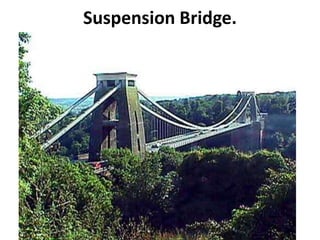

6. Suspension Bridge.

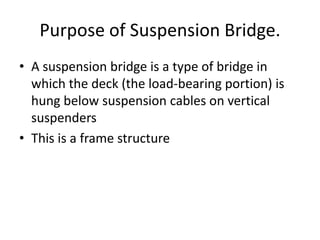

7. Purpose of Suspension Bridge.
• A suspension bridge is a type of bridge in
which the deck (the load-bearing portion) is
hung below suspension cables on vertical
suspenders
• This is a frame structure

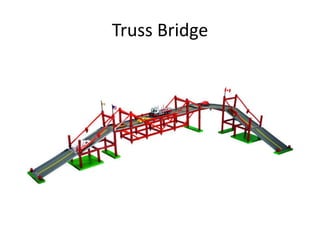

8. Truss Bridge

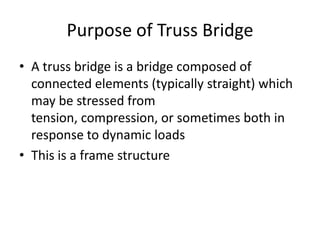

9. Purpose of Truss Bridge
• A truss bridge is a bridge composed of
connected elements (typically straight) which
may be stressed from
tension, compression, or sometimes both in
response to dynamic loads
• This is a frame structure

10. Frame structure

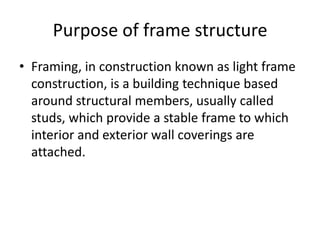

11. Purpose of frame structure
• Framing, in construction known as light frame
construction, is a building technique based
around structural members, usually called
studs, which provide a stable frame to which
interior and exterior wall coverings are
attached.

12. Solid structure

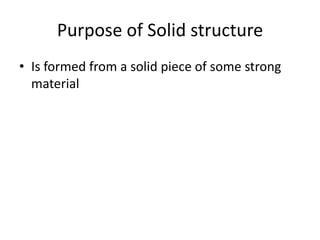

13. Purpose of Solid structure
• Is formed from a solid piece of some strong
material

14. Shell Structure

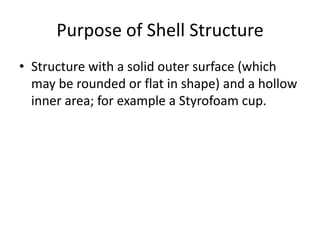

15. Purpose of Shell Structure
• Structure with a solid outer surface (which
may be rounded or flat in shape) and a hollow
inner area; for example a Styrofoam cup.

16. Eiffel Tower

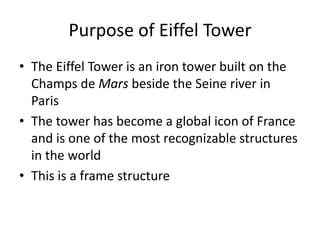

17. Purpose of Eiffel Tower
• The Eiffel Tower is an iron tower built on the
Champs de Mars beside the Seine river in
Paris
• The tower has become a global icon of France
and is one of the most recognizable structures
in the world
• This is a frame structure

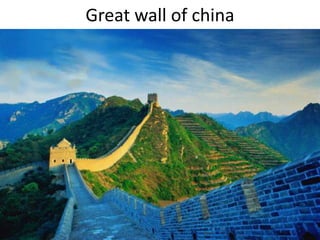

18. Great wall of china

19. Purpose of Great wall of china
• The Great wall of china is a series of stone and
earthen fortification in northern
China, built, rebuilt, and maintained between
the 5th century BC and the 16th century
• This is a solid structure

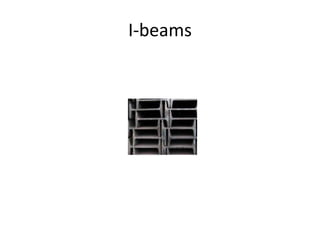

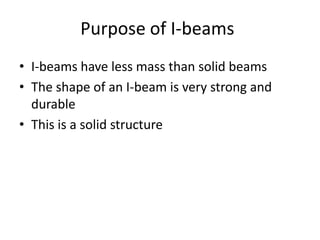

20. I-beams

21. Purpose of I-beams
• I-beams have less mass than solid beams
• The shape of an I-beam is very strong and
durable
• This is a solid structure

22. THE END
